Installation Guide
5-Port Gigabit Desktop Switch
© 2024 TP-Link 7106511150 REV1.0.0
On: Power on
O: Power o
Flashing: Loop occurs in the network topology
Panel Explanation
Power LED
Switch
Link/Act LED
On: Running at 10/100/1000 Mbps
O: No device is linked to the corresponding port
Quick ashing: Transmitting/receiving data
Slow ashing: Loop is detected on the
corresponding port
Note:
Images may dier from your actual products.

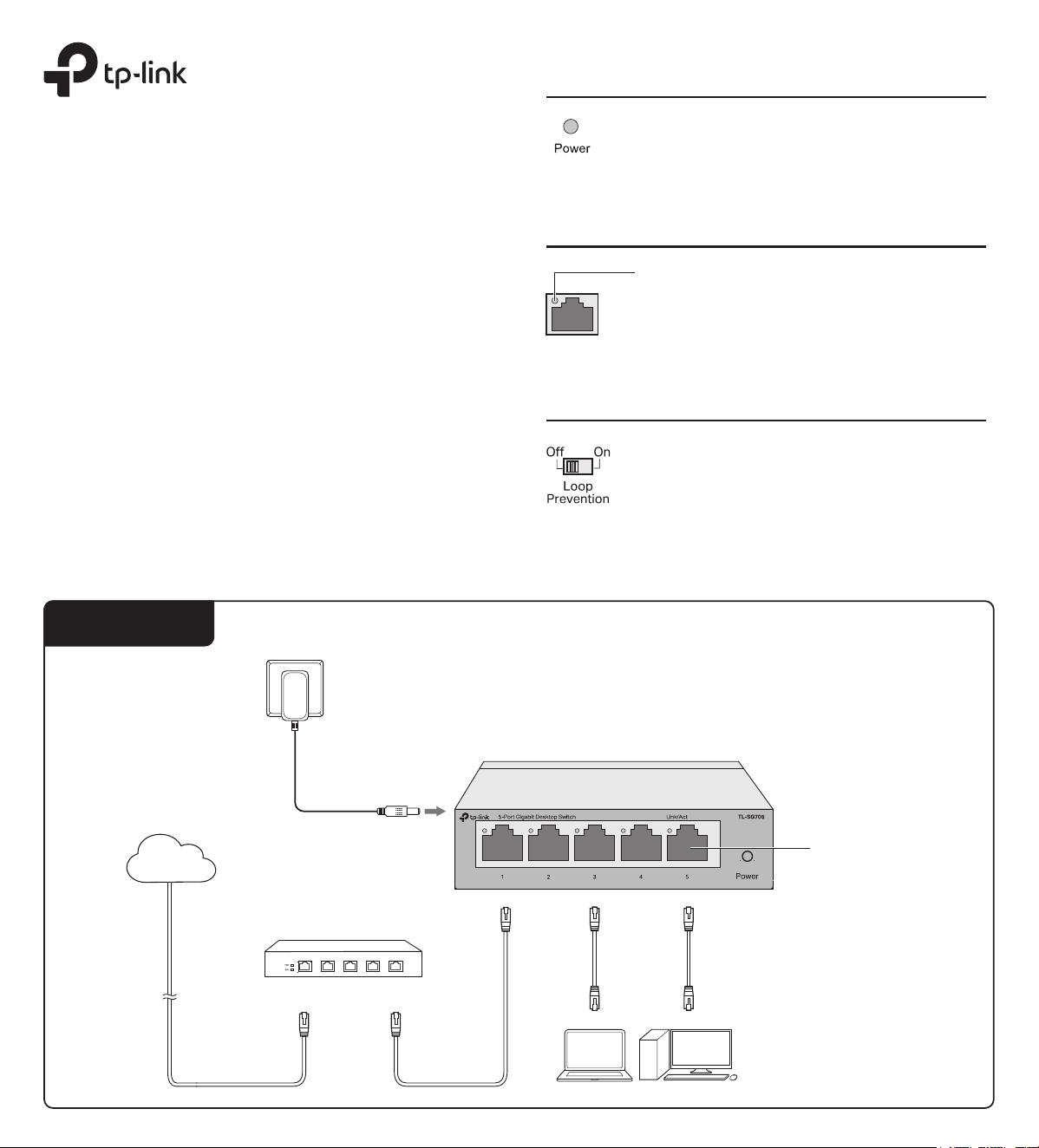

Connection
Ethernet Ports (1-5)
PC PC
Router
WAN Port
Internet
TL-SG705
Power Adapter
On: The switch will monitor and address
loop-related issues within the network
structure to prevent disruptions caused by
redundant pathing
O: (default) The switch will not try to monitor or
address loop-related issues
LAN Port
Standard
Protocol
Interface
Safety Information
Do not use any other chargers than those recommended.
Keep the device away from water, re, humidity or hot environments.
Adapter shall be installed near the equipment and shall be easily accessible.
Do not use damaged charger or USB cable to charge the device.
Use only power supplies which are provided by manufacturer and in the origin packing of this product. If you have any questions, please don’t hesitate to contact us.
Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.
Specications
General Specications
Data Transfer Rate
Network Media (Cable)
LED Indicators
Transfer Method
MAC Address Learning
Frame Forward Rate
Wall Mountable
Distance Between
Mounting Holes
Ye s
39 mm
10Base-T: 14881pps/Port
100Base-TX: 148810pps/Port
1000Base-T: 1488095pps/Port
IEEE802.3, IEEE802.3i, IEEE802.3u, IEEE802.3ab,
IEEE802.3x, IEEE802.1p
CSMA/CD
Ethernet:
10 Mbps (Half Duplex), 20 Mbps (Full Duplex)
Fast Ethernet:
100 Mbps (Half Duplex), 200 Mbps (Full Duplex)
Gigabit Ethernet:
2000 Mbps (Full Duplex)
10Base-T:
UTP category 3, 4, 5 cable (maximum 100 m)
EIA/TIA-568 100
Ω
STP (maximum 100 m)
100Base-TX:
UTP category 5, 5e cable (maximum 100 m)
EIA/TIA-568 100
Ω
STP (maximum 100 m)
1000Base-T:
UTP category 5e cable (maximum 100 m)
EIA/TIA-568 100 Ω STP (maximum 100 m)
5 10/100/1000 Mbps Auto-Negotiation RJ45 Ports
Power, Link/Act LED
Store-and-Forward
Automatically learning, automatically aging
Q1. The Power LED is not lit.
Q2. The Link/Act LED is not lit when a device is connected
to the corresponding port.
Frequently Asked Questions (FAQ)
The Power LED should be lit when the power system is working
normally. If the Power LED is not lit, check as follows:
A1:
Make sure the power adapter is connected to the switch with
power source properly.
A2
: Make sure the voltage of the power supply meets the requirements
of the input voltage of the switch.
A3:
Make sure the power source is ON.
It is recommended that you check the following items:
A1:
Make sure that the cable connectors are rmly plugged into the
switch and the device.
A2:
Make sure the connected device is turned on and works normally.
A3:
The cable must be less than 100 meters long (328 feet).
Q3. Why does the switch fail to detect and block a loop
from occurring in the network topology when Loop
Prevention is enabled?
A:
When this switch is connected to other non-terminal devices, such
as switches of other brands, and the device is incapable of correctly
processing or forwarding loop detection packets, the Loop
Prevention function will be limited. It is recommended to connect
the terminal devices directly to this switch or connect non-terminal
devices with complete forwarding capability to this switch.
For technical support and other information, please visit
https://www.tp-link.com/support/?type=smb, or simply
scan the QR code.
To ask questions, find answers, and communicate with TP-Link users or
engineers, please visit https://community.tp-link.com/business to join
TP-Link Community.
Operation Temperature 0˚C to 40˚C (32˚F to 104˚F)
Storage Temperature -40˚C to 70˚C (-40˚F to 158˚F)
Storage Humidity 5% to 90%RH non-condensing
Operation Humidity 10% to 90%RH non-condensing
Environmental and Physical Specications
