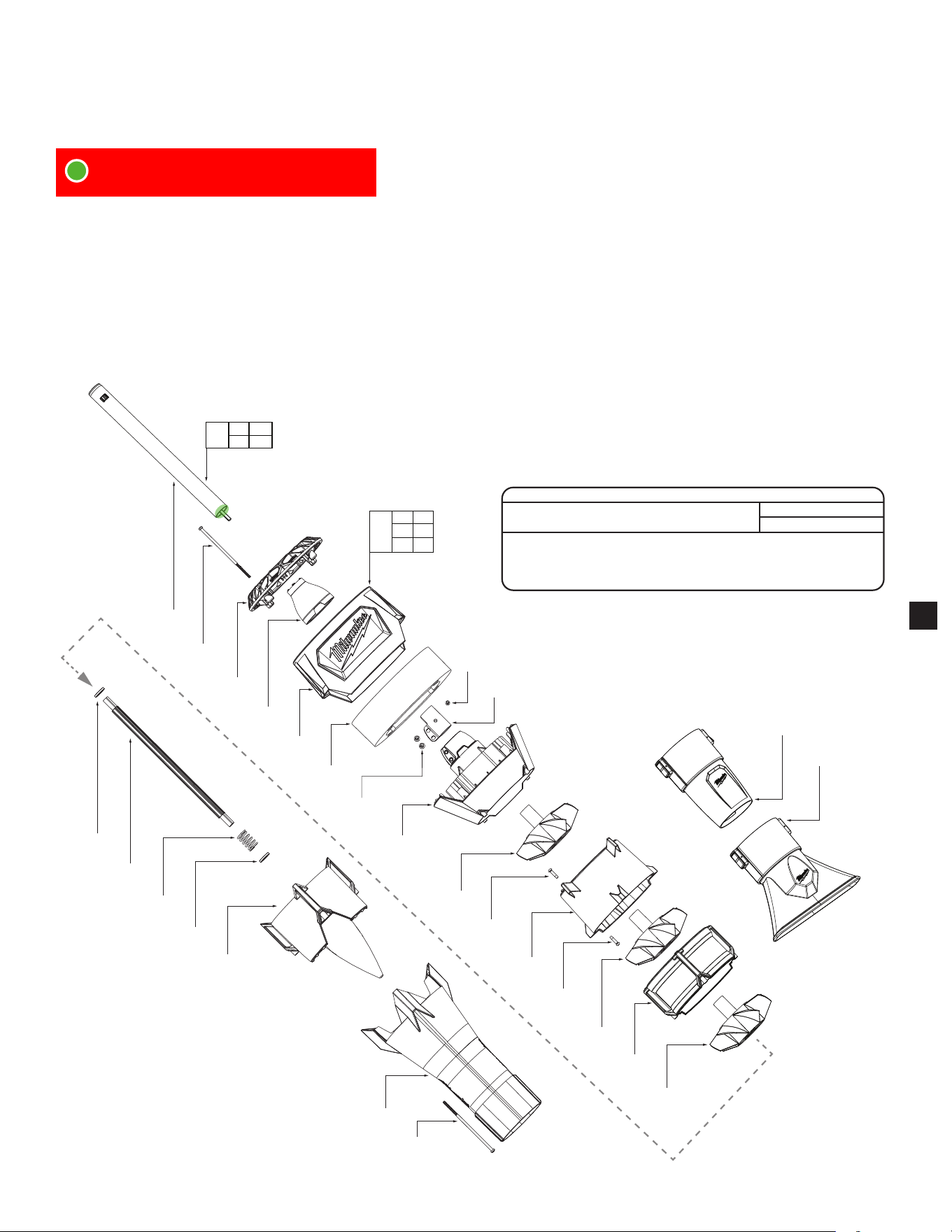

FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 44-10-0102 Quick Release Coupler (1)
2 05-78-0027 M6 x 1 Hex Hd. Screw (1)
3 05-74-0026 M6 x 1 CH Hex Hd. Screw (1)
7 05-88-5375 M4 x 1.411 Pan Hd. Torx T-20 Screw (15)
8 05-78-0229 M5 x 8mm Machine Screw (3)
9 05-74-0228 M5 x 20mm Machine Screw (1)
10 44-52-0001 Rubber Damping Bar (2)
11 06-82-0154 M3 x 1.058 Pan Hd. Torx T10 Screw (5)
12
---------------
Motor Housing - Cover (1)
13
---------------
Handle Housing - Cover (1)
14 40-50-1090 Latch Spring (1)
15 45-72-0026 Quick Change Trigger (1)
16 05-81-0592 M4 x 6.5mm Flat Head T-15 Screw (1)
17 42-92-0206 Trigger Cover (1)
18 43-98-0103 Clamping Knob (1)
19 45-88-0011 Washer (1)
26 05-55-0006 M6 Hex Nut (2)
27 43-62-0102 Bail Handle (1)
28 28-28-0053 Bail Handle Plate (2)
29 05-74-0015 M6 x 1 CH Torx T-30 Screw (3)
31
---------------
Ball Bearings (1)
46
---------------
Tube Clamp (1)
47 40-50-0374 Trigger Spring (1)
48 23-66-0236 Trigger (1)
49
---------------
Motor Housing - Support (1)
50 40-50-0254 Lock-oSpring (1)
55
---------------
Handle Housing - Support (1)
58 10-22-0675 Warning Label (Not Shown) (1)
59 12-20-0288 Service Nameplate (1)
60 10-22-0676 Warning Label (Not Shown) (1)
62 44-66-0039 Shoulder Strap Mounting Plate (1)
63 06-57-0625 M6 Lock Nut (1)
64 45-56-0011 Shoulder Strap Mounting Band (1)
65
---------------
Shoulder Strap (1)
70 42-90-0112 Quick Release Coupler Service Kit (1)
71 23-40-0019 Rotor/Motor Mount Assembly (1)
72 45-08-0073 Drive Shaft Assembly (1)
Pg. 1 Power Unit
Pg. 2 Edge Trimmer Attachment
Pg. 3 String Trimmer Attachment
Pg. 4 Hedge Trimmer Attachment
Pg. 5 Pole Saw Attachment

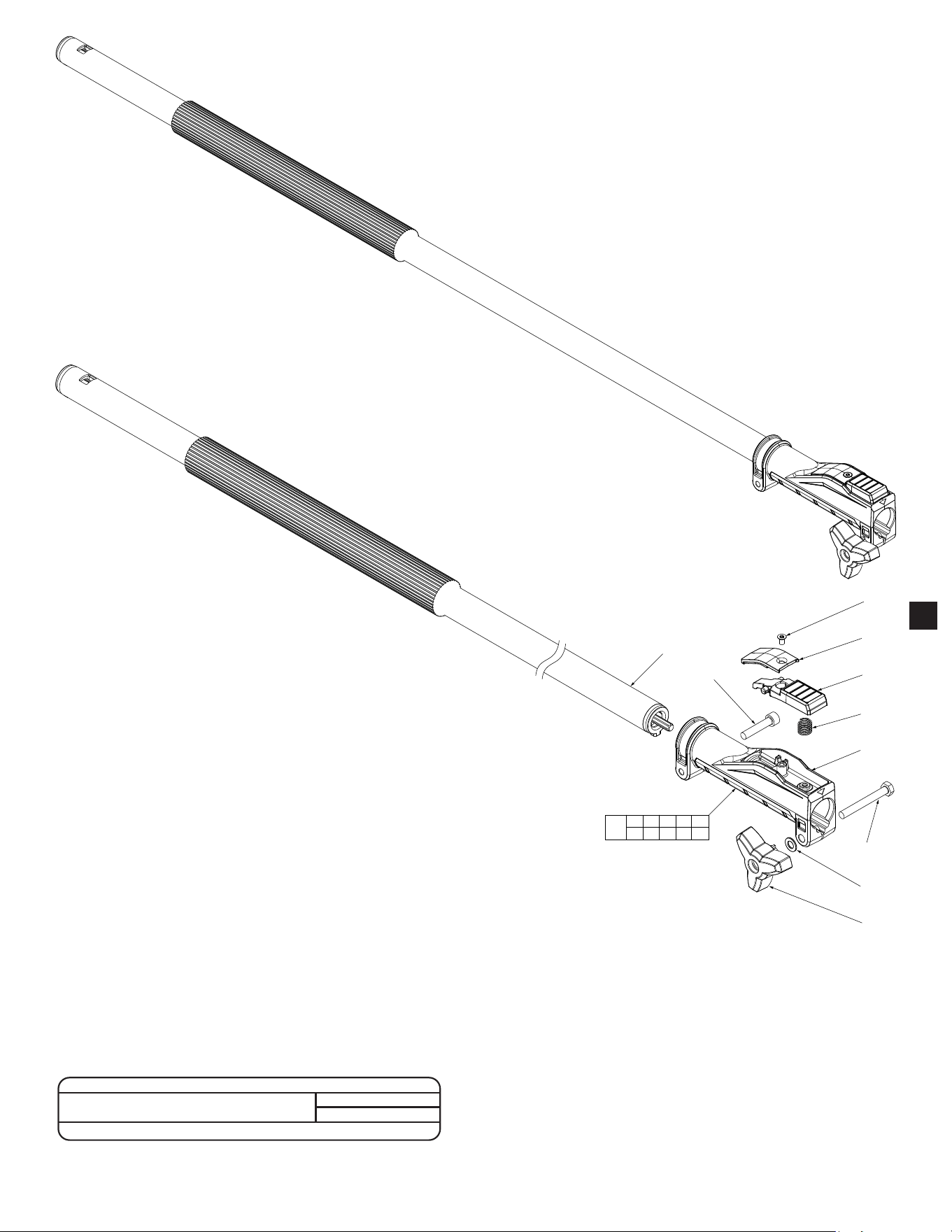

Pg. 6 Extension Tube Attachment

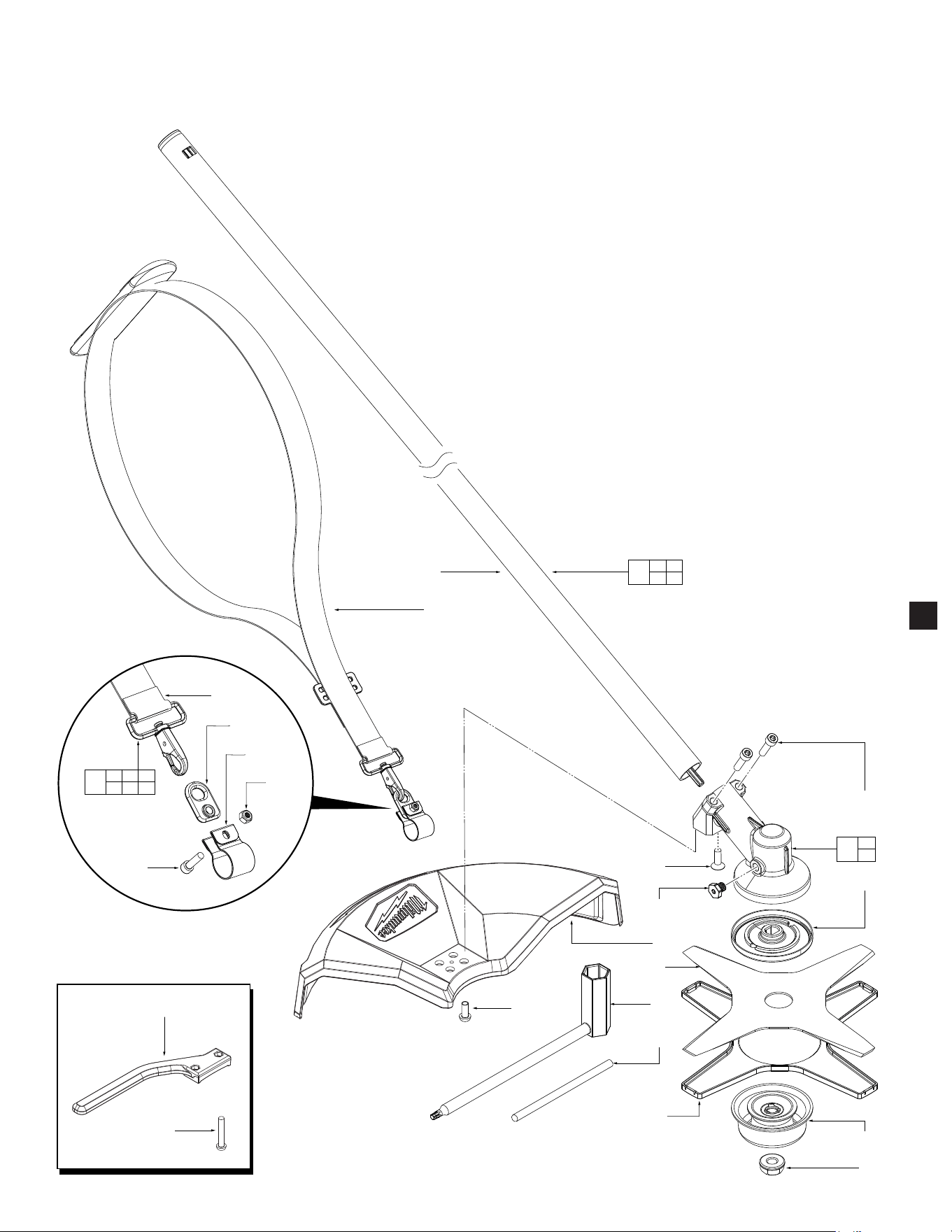

Pg. 7 Brush Cutter Attachment
Pg. 8 Rubber Broom Attachment

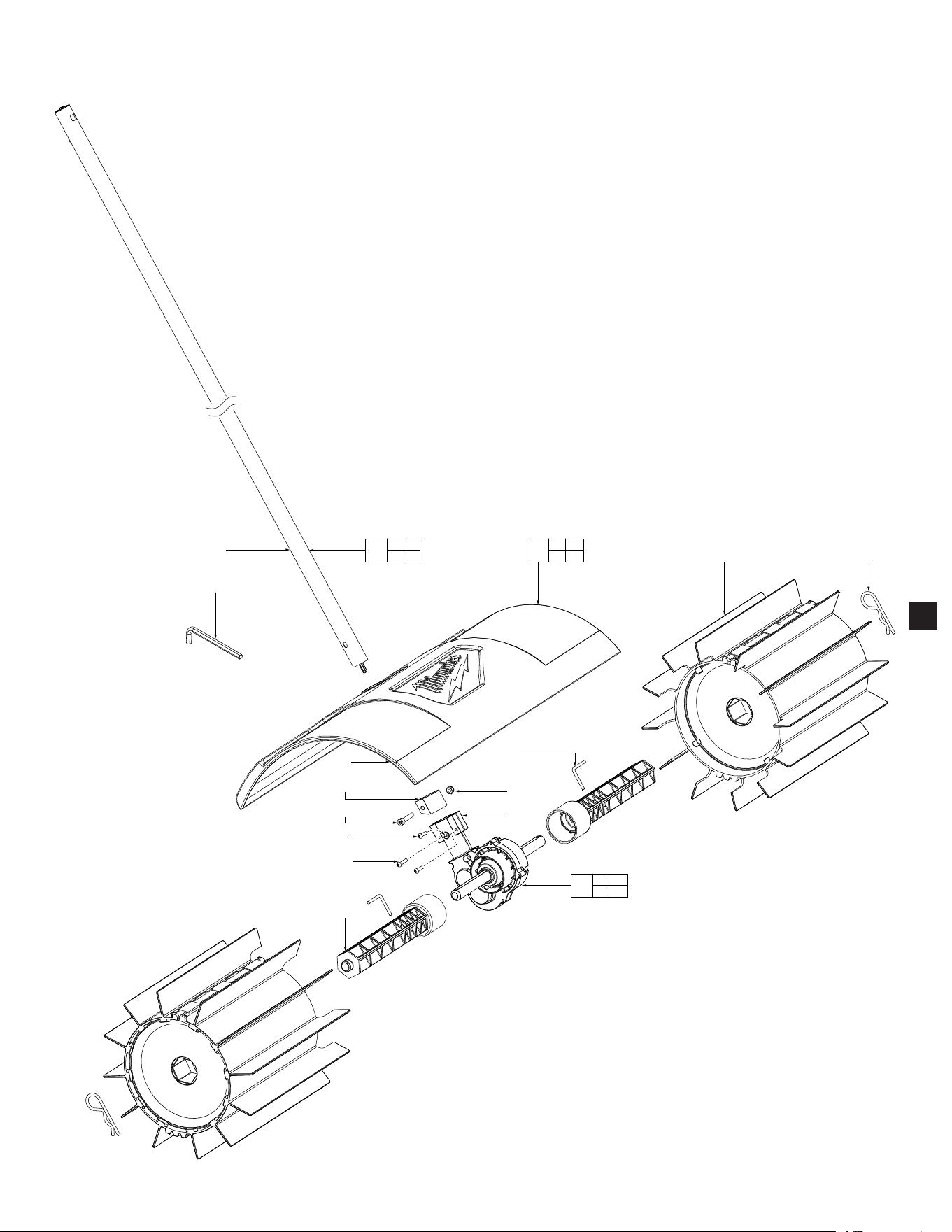

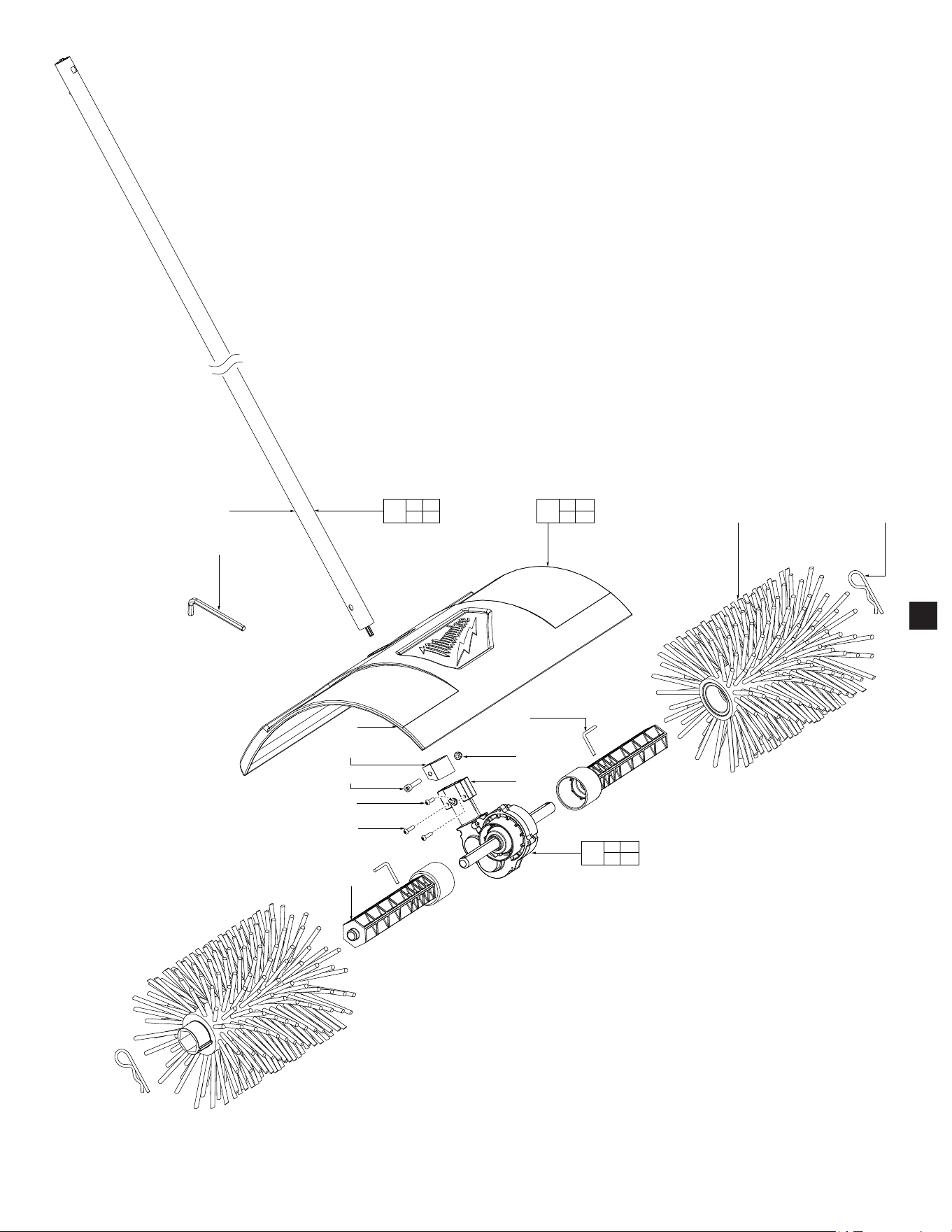

Pg. 9 Bristle Brush Attachment

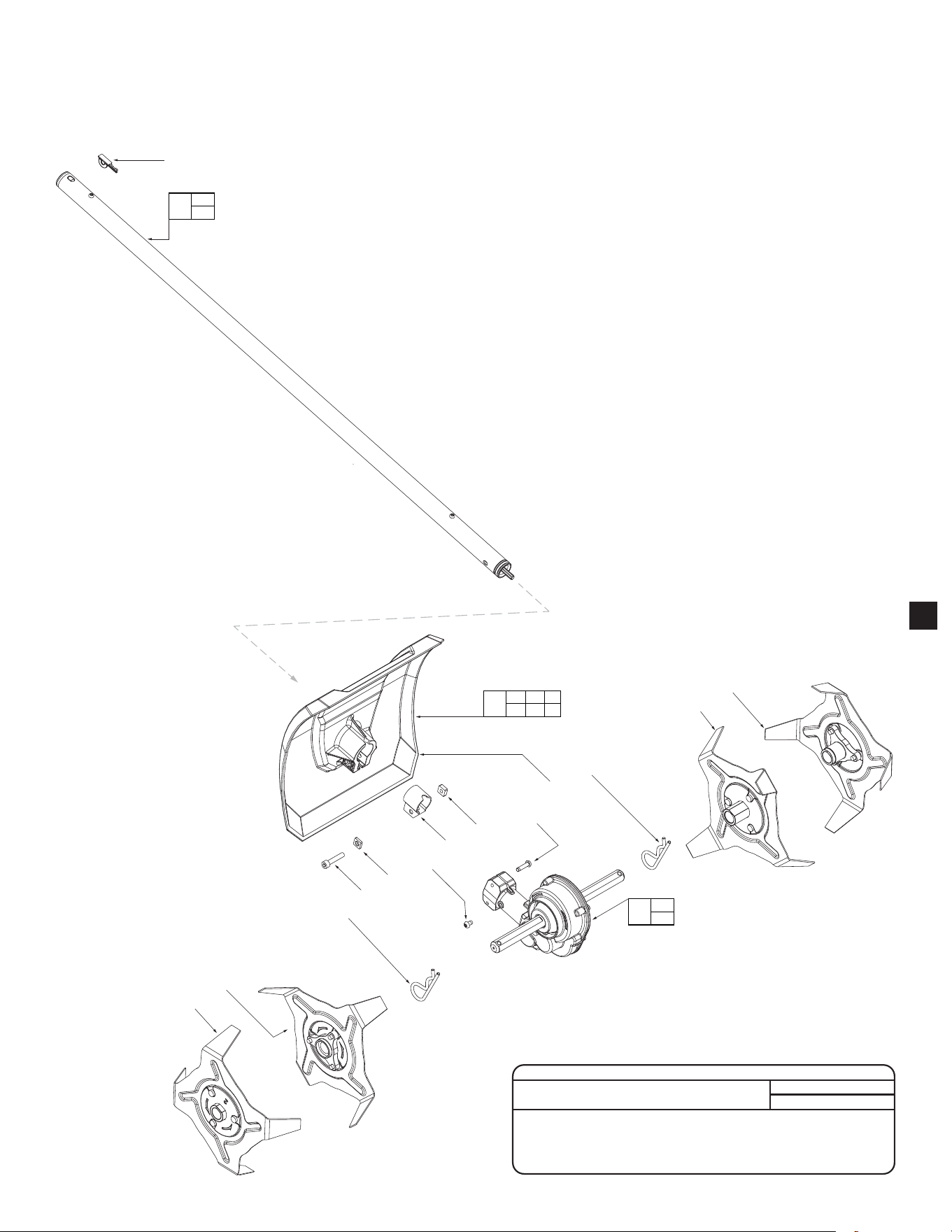

Pg. 10 Cultivator Attachment
Pg. 11 Blower Attachment
Pg. 12 Bed Redener Attachment
10
(2x)
31
7
8
55
11(5x)
46
8
47
48
26
(2x)
27
28
(2x)
29
(2x)
72
71
49
9
79
12
77
50
7
(14x)
13
7 10 13 55
58 59 60
76
26 27
28 29
74
70
72
80
11 12
49
75
2 18
19
73
16
17
15
14
2
1
19
18
65
62
63
64
8
3
1 2 3 8 14
15 16 17 18 19
70
29 62 63
64 65
78
59
29
73 42-98-0116 Coupler Knob Service Kit (1)
74 31-44-0253 Carrier Handle Service Kit (1)
75 28-50-0072 Motor Housing Service Kit (1)
76 28-14-0116 Handle Housing Service Kit (1)
77 45-72-0037 Lock-OTriggerAssembly (1)
78 45-56-0012 Shoulder Strap Service Kit (1)
79 14-20-0299 Electronics Assembly (1)
80 44-84-0052
Drive Shaft/Quick Release Service Kit
(1)
SCREW TORQUE SPECIFICATIONS
SEAT TORQUE
FIG. PART NO. WHERE USED (kgf-cm) (lb-in)
3 05-74-0026 Quick Release Coupler 45-50 39-43
7 05-88-5375 Ground Wire 8-10 7-9
Handle Housing 11-13 10-11
8 05-78-0229 Motor Mount 24-26 21-23
9 05-74-0228 Motor Mount 24-26 21-23
11 06-82-0154 Motor Housing 6-8 5-7
16 05-81-0592 Quick Release Coupler 8-10 7-9
29 05-74-0015 Bail Handlle 25-28 21-23
NOTE: Apply 3.5g of type ”J” grease
(49-08-4220) to inner sleeve of Drive
Shaft Assembly (72).
MILWAUKEE TOOL
l
www.milwaukeetool.com
13135 W. LISBON RD., BROOKFIELD, WI 53005
Drwg.7

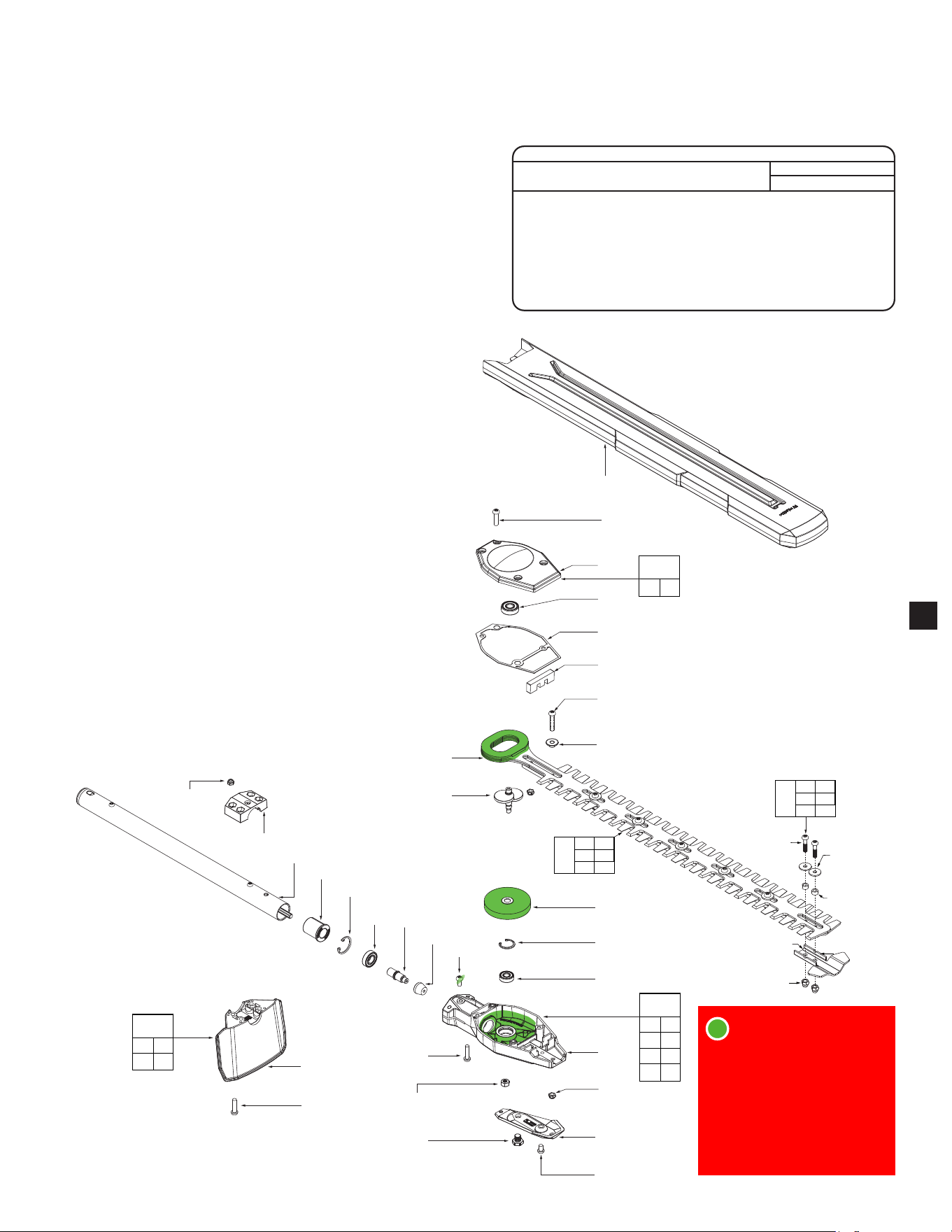

Pg. 13 Short Shaft Hedge Trimmer
Pg. 14 Reciprocator Attachment

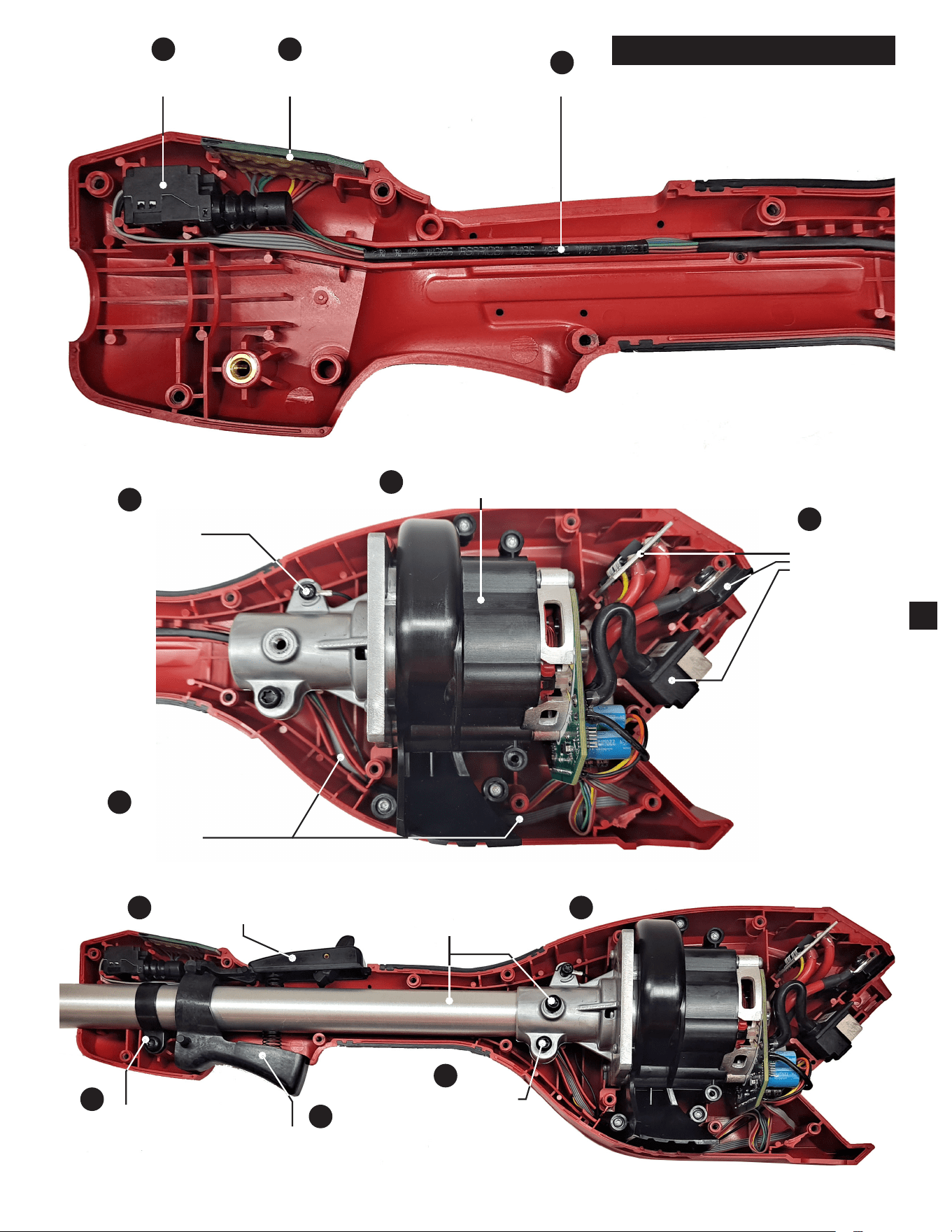

Pg. 15 Wiring Diagram
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
SERVICE PARTS LIST
BULLETIN NO.
54-49-2815
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS REVISED BULLETIN
DATE
Jun 2025
M18 FUEL™ QUIK-LOK™ POWER HEAD
WIRING INSTRUCTION
See Page 15
CATALOG NO. 3016-20 SERIAL NO. N93A and B
2
25
1
2
3
6
(2x)
4
6
(2x)
8
7
(3x)
9
11
17
16
15
14
13
19
18
7
10
6
12
(2x)
30

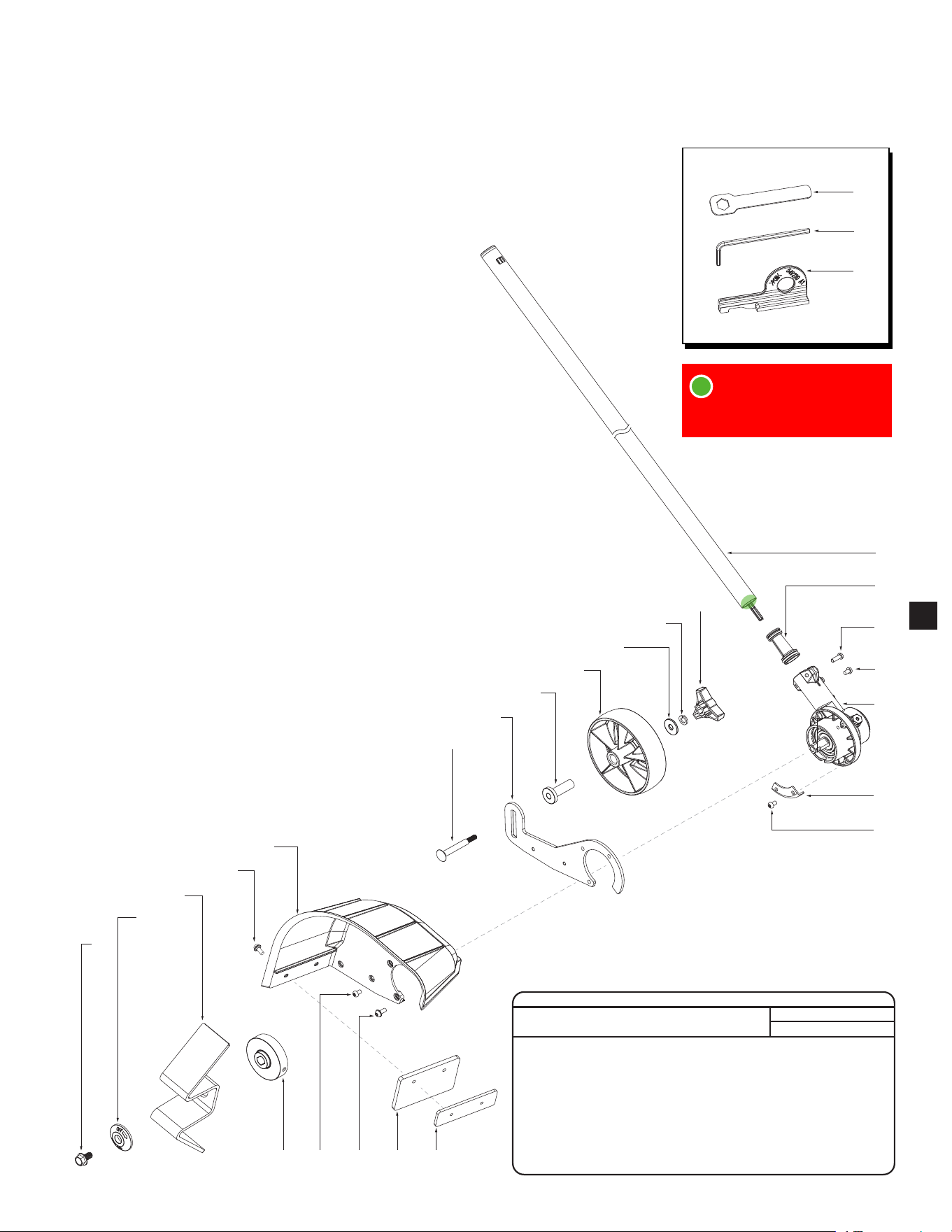

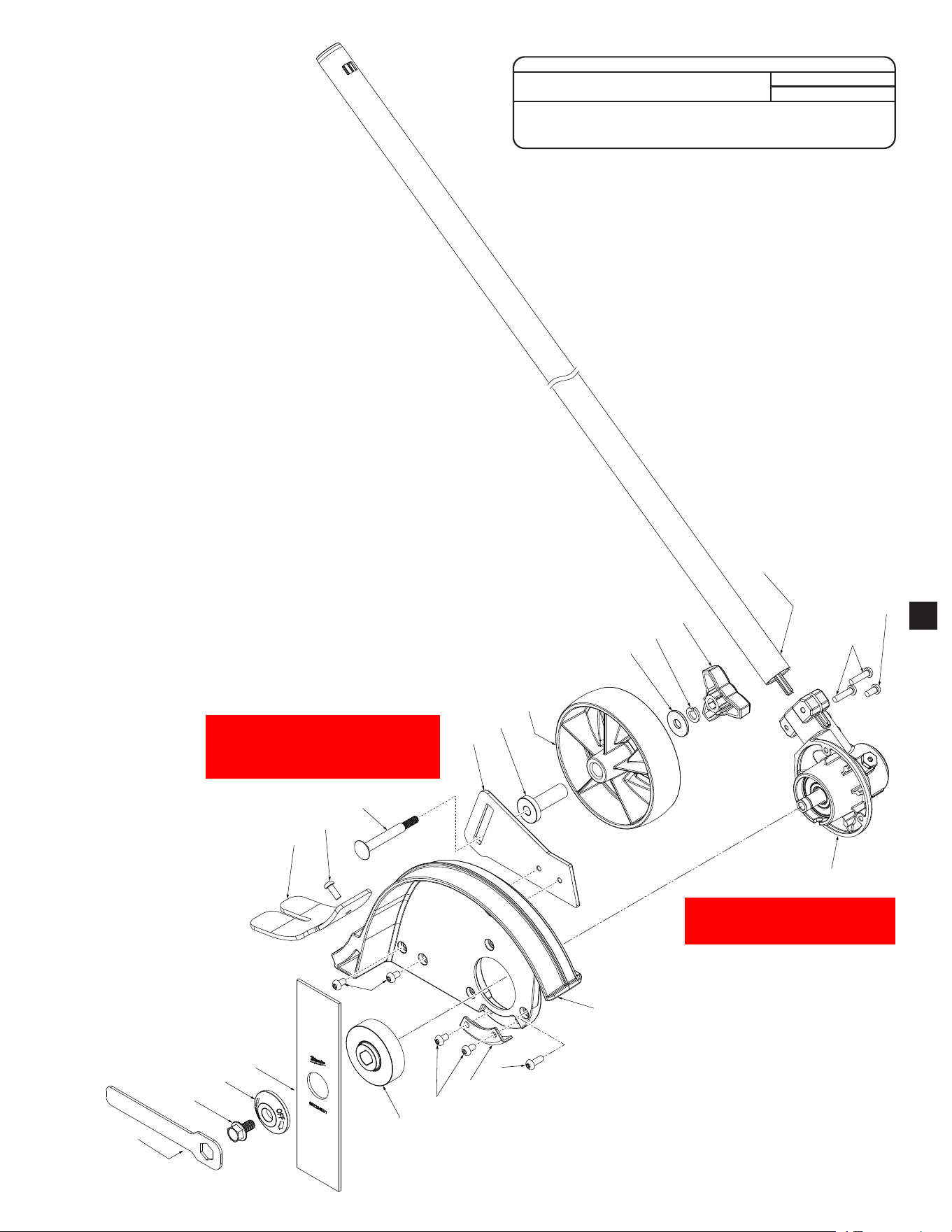

FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 45-04-0016 M8 x 15mm Hex Head LH Machine Screw (1)
2 43-34-2718 Blade Flange (1)
3 42-26-2718 Edger Blade (1)
4 43-78-0031 Edger Blade Mounting Hub (1)
6 05-78-0029 M5 x 8mm Pan Hd. T-25 Machine Screw (5)
7 05-78-0032 M5 x 13mm Pan Hd. T-25 Machine Screw (4)
8 44-66-0038 Edger Skid Plate (1)
9 43-54-0016 Edger A Guard (1)
10 43-54-0018 Flexible Rear Guard (1)
11 14-29-0033 Gearbox Assembly (1)
12 05-78-0033 M5 x 20mm Pan Hd. T-25 Machine Screw (2)
13 42-40-0013 Sleeve Bushing (1)
14 45-94-0017 Edger Wheel (1)
15 45-88-0077 Flat Washer (1)
16 05-90-0016 Split Ring Lock washer (1)
17 43-98-0027 Clamping Knob (1)
18 06-10-0012 M6 x 65mm Square Neck Carriage Bolt (1)
19 42-36-0074 Edger Wheel Bracket (1)
25 49-96-0182 Wrench (1)
30 45-08-0027 Drive Shaft Assembly (For Edge Trimmer) (1)
10-20-1782 Warning Label (Not Shown) (1)
12-20-0157 Service Nameplate (Not Shown) (1)
No. 49-16-2718
Edge Trimmer Attachment
Serial No. K51A
SCREW TORQUE SPECIFICATIONS
SEAT TORQUE
FIG. PART NO. WHERE USED (kgf-cm) (lb-in)
1 45-04-0016 Gearbox 25-28 21-24
6 05-78-0029 Edger A Guard 25-30 21-26
12 05-78-0033 Gearbox 32-38 27-33
NOTE: Apply 9.0g of type ”J” grease
(49-08-4220) to port on Gearbox
Assembly (11).
NOTE: You must order both components
when replacing the M6 x 65mm Square
Neck Carriage Bolt (18) or Edger Wheel
Bracket (19).
3
30
15
(2x)
58
57p
57
57p
67
69
41
68
(2x)
66(4x)
66 67
68 69
101
59 61 62
63 64 65
102
65
64
62
63
61
59

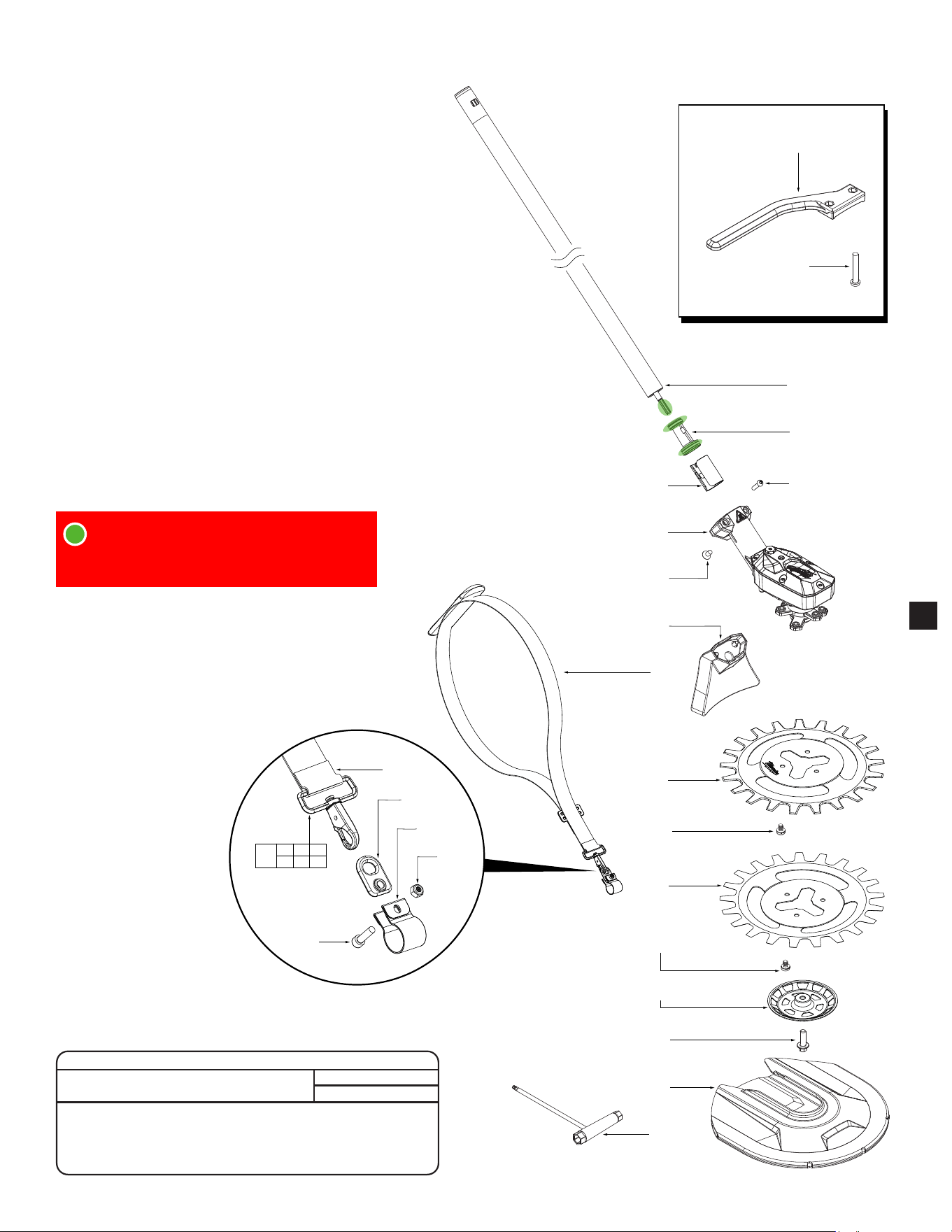

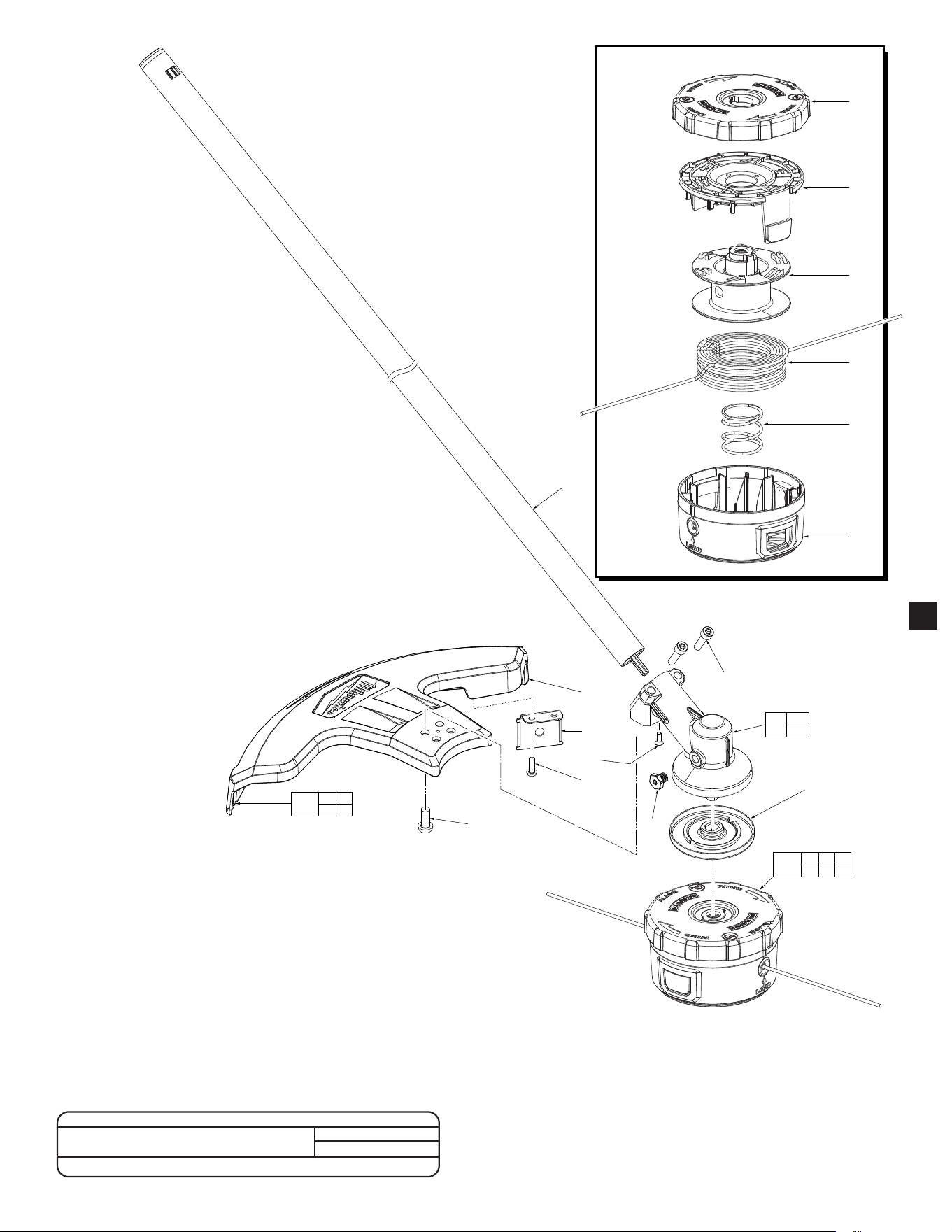

Easy Load Trimmer Head (fig.102)
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
15 05-74-0015 M6 x 21.5mm, 5mm Hex Socket Cap Screw (2)
30 45-08-0028 Drive Shaft Assembly (For String Trimmer) (1)
41 05-81-0131 M6 x 18mm, 5mm Hex Socket Cap Screw (1)
57 14-29-0038 Gearbox Assembly (1)
57p 05-85-0080 M8 x 1.25 Hex Hd. Screw (1)
58 44-66-0139 Lock Plate Assembly (1)
59 42-30-0051 Trimmer Head Body Housing Assy. (1)
No. 49-16-2717
String Trimmer Attachment
Serial No. K50A
SCREW TORQUE SPECIFICATIONS
SEAT TORQUE
FIG. PART NO. WHERE USED (kgf-cm) (lb-in)
15 45-04-0016 Gearbox 32-38 27-33
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
61 40-50-0296 Trimmer Head Spring (1)
62 --------------- Spool (1)
63 --------------- 0.080" x 150' String (1)
64 --------------- Trimmer Head Ring (1)
65 --------------- Trimmer Head Bump Cap (1)
66 05-81-0132 M6 x 14mm Pan Hd. T-30 Machine Screw (4)
67 --------------- String Trimmer Guard (1)
68 05-74-0935 M5 x 15mm Pan Hd. T-25 Machine Screw (2)
69 42-26-0024 LineCut-OBlade (1)
101 14-32-0012 String Guard Assembly (1)
102 49-16-2748 Easy Load Trimmer Head (1)
10-20-1781 Warning Label (Not Shown) (1)
12-20-0157 Service Nameplate (Not Shown) (1)
4
39
40
42
41
27
5
6
7
8
9
36
(x2)
17
20
19
18
14
10
15
12
11
13
(x2)
21
(x2)
37
26
17
57
53
32
25
23
(x2)
24
(x2)
33
55
36
(x4)
32g
(x2)
32k
(x2)
32f
(x2)
32j
(x2)
32e
50
17 18
19
52
5 6 7
8 9
51
32 32e
32f 32g
32j 32k
54
32e 32f
32g 32j
32k
58
27
27 39 40
41 42
56

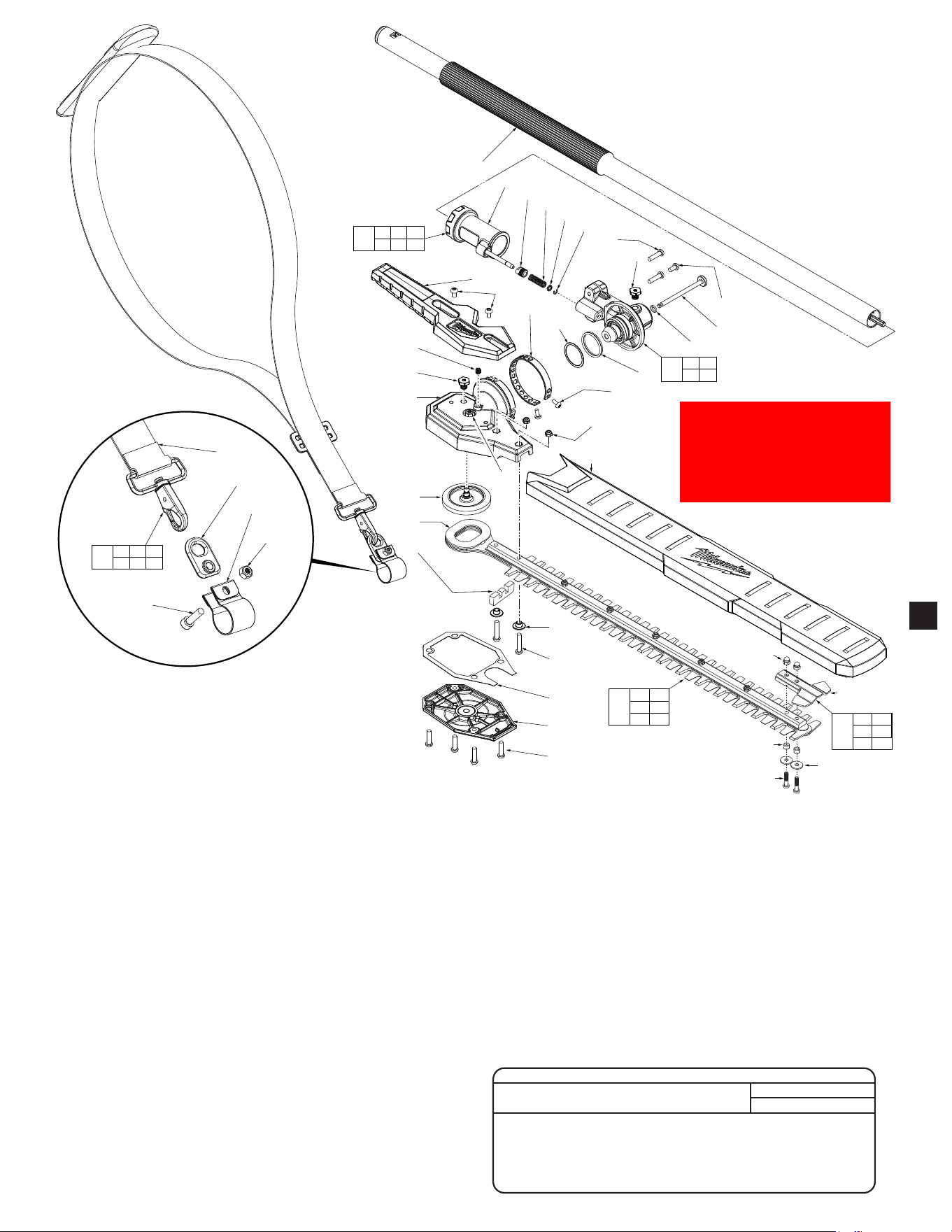

FIG. PART NO. DESCRIPTION OF PART NO. REQ.
5 --------------- Handle with Locking Pin (1)
6 06-38-0021 Threaded Stud (1)
7 40-50-0114 Lock Pin Spring (1)
8 45-88-0078 Flat Washer (1)
9 34-60-0023 C Retaining Ring (1)
10 05-78-0029 M5 x 8mm Pan Hd. T-25 Machine Screw (2)
11 31-44-0127 Hedge Trimmer Handle (1)
12 42-16-0011 Detent Band (1)
13 05-78-0038 M4 x 7mm Pan Hd. T-20 Machine Screw (2)
14 34-40-0126 O-Ring (1)
15 45-88-0079 Flat Washer (1)
17 05-85-0080 M8 x 1.25 Hex Hd. Screw (2)
18 34-40-4002 O-Ring (1)
19 44-60-0069 Gear Alignment Pin (1)
20 05-78-0024 M5 x 10mm Pan Hd. T-25 Machine Screw (1)
21 05-55-0019 M5 Nylon Hex Nut (2)
23 42-40-0123 Bushing (2)
24 05-78-0019 M5 x 26mm Pan Hd. T-25 Machine Screw (2)
25 45-06-0016 Felt Seal (1)
26 06-83-0017 M6 x 8mm Cone Point Set Screw (1)
27 06-57-0625 M5 Nylon Insert Hex Nut (2)
32 --------------- Blade (1)
32e --------------- Tip Guard (1)
32f --------------- M5 Acorn Nut (2)
32g --------------- M5 Pan Hd. Screw (2)
32j --------------- Washer (2)
32k --------------- Bushing (2)
33 43-44-0026 Gasket (1)
No. 49-16-2719
Hedge Trimmer Attachment
Serial No. K52A
36 05-78-0033 M5 x 20mm Pan Hd. T-25 Machine Screw (6)
37 49-62-0011 Blade Sheath (1)
39 --------------- Shoulder Strap (1)
40 44-66-0039 Shoulder Strap Mounting plate (1)
41 45-56-0011 Shoulder Strap Mounting Band (1)
42 05-74-0015 M6 x 21.5mm Cap Hd. T-30 Machine Screw (1)
50 45-08-0023 Drive Shaft Assembly (For Hedge Trimmer) (1)
51 14-34-0011 Handle Assembly with Locking Pin (1)
52 14-29-0014 Gearbox Assembly (1)
53 14-29-0015 Gear/Crankshaft Assembly (1)
54 42-26-0016 Blade Assembly (1)
55 31-15-0067 Gearbox Cover with Ball Bearing (1)
56 45-56-0012 Shoulder Strap Assembly (1)
57 43-76-2719 Hedge Trimmer Housing Assembly (1)
58 14-46-6784 Blade Tip Guard Kit (1)
10-20-1783 Warning Label (Not Shown) (1)
12-20-0157 Service Nameplate (Not Shown) (1)
SCREW TORQUE SPECIFICATIONS
SEAT TORQUE
FIG. PART NO. WHERE USED (kgf-cm) (lb-in)
20 05-78-0024 Gearbox 27-33 23-28
24 05-78-0019 Hedge Trimmer Housing 55-65 47-56
26 06-83-0017 Hedge Trimmer Housing 15-19 13-16
27 06-57-0625 Hedge Trimmer Housing 21-26 18-22
36 05-78-0033 Hedge Trimmer Housing 32-38 27-33
•Apply 5.0g of type ”J” grease
(49-08-4220) to port on Gearbox
Assembly (52). Location of where
Screw (17) is fastened to.
•Apply 35.0g of type ”J” grease
(49-08-4220) to cavity of Hedge
Trimmer Assembly.
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
5
24 23 22 25 26
11
31
17
18
19
28
(2x)
9
(4x)
29
16
28
34
33
20
32
30
13
9
7g
10
14
15
9
(3x)
12
8
(2x)
36
21
27
7g
52
36
51
50

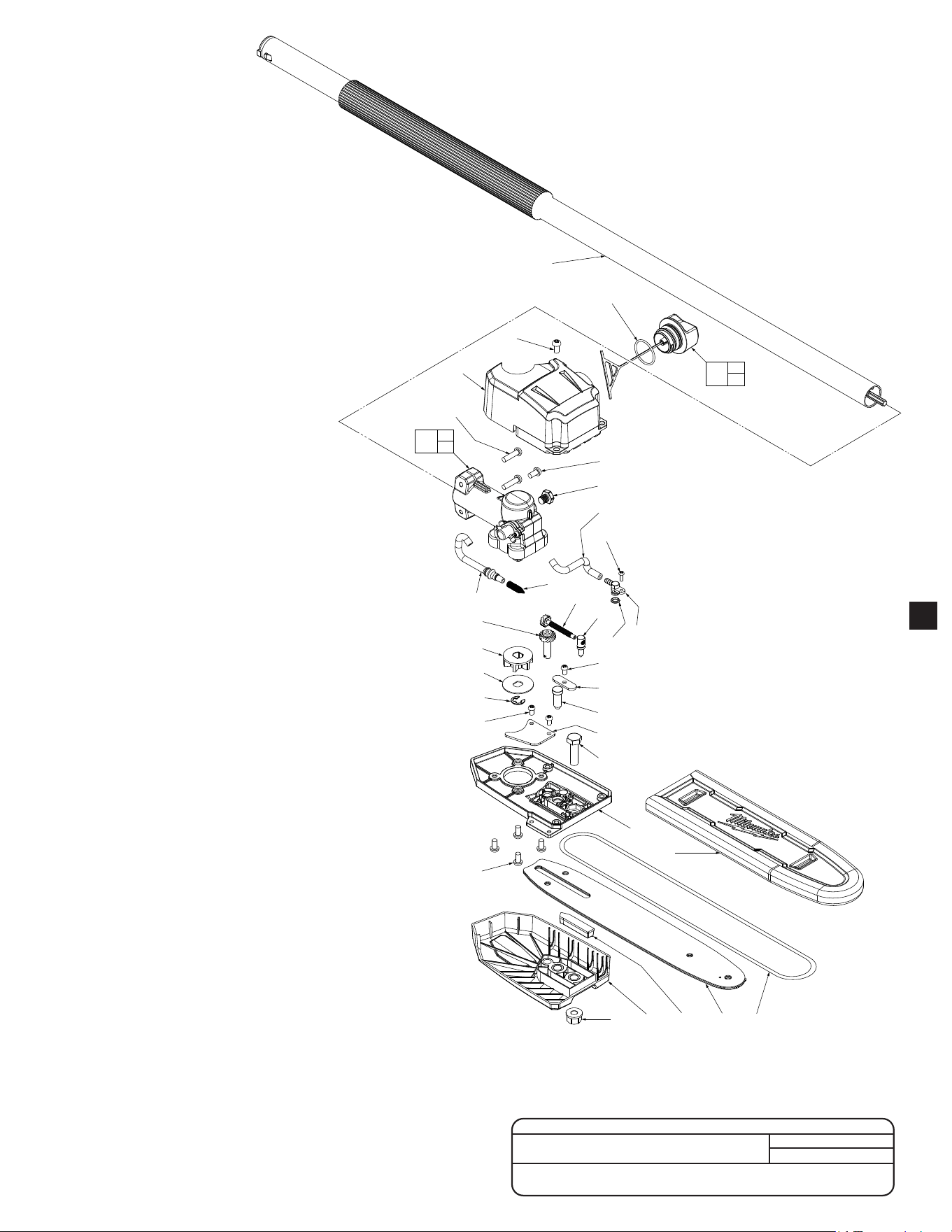

FIG. PART NO. DESCRIPTION OF PART NO. REQ.
7g 05-85-0080 M8 x 1.25 Hex Head Screw (1)
8 05-78-0033 M5 x 20mm Pan Hd. T-25 Machine Screw (2)
9 05-78-0024 M5 x 10mm Pan Hd. T-25 Machine Screw (8)
10 45-36-0016 Outlet Tube (1)
11 45-76-0011 Inlet Tube (1)
12 45-66-0013 Oil Tank Assembly (1)
13 40-50-9220 Cone Spring (1)
14 05-81-0015 M3 x 6mm Pan Hd. Phillips Screw (1)
15 42-86-0012 Connector (1)
16 34-40-4002 O-Ring (1)
17 45-44-0010 Sprocket (1)
18 45-88-7001 Chain Washer (1)
19 42-70-5268 Retaining E-Ring (1)
20 43-74-0011 Hook (1)
21 42-92-0057 Bar Mount Housing (1)
22 43-84-0013 Insert Block (1)
23 43-72-0014 Bar Holder (1)
24 05-55-5001 13mm M8 Flange Nut (1)
25 48-09-5001 10" Bar (1)
26 49-16-2723 10" Chain, 3/8" Pitch (1)
27 49-62-0015 Scabbard (1)
28 05-78-0038 M4 x 7mm Pan Hd. T-20 Machine Screw (3)
29 05-89-0017 Chain Tensioning Post (1)
30 05-89-0018 Chain Tensioner Main Screw (1)
31 05-81-9001 Chain Tensioner Adjustment Screw (1)
32 05-85-0012 M8 x 28mm Hex Head Machine Screw (1)
33 44-50-0015 Locating Pin (1)
34 44-66-0089 Plate (1)
36 34-40-9002 Oil Cap O-Ring (1)
50 45-08-0029 Drive Shaft Assembly (For Pole Saw) (1)
51 42-52-3001 Oil Cap Assembly (1)
52 14-29-0016 Gearbox Assembly (1)
10-20-1784 Warning Label (Not Shown) (1)
12-20-0157 Service Nameplate (Not Shown) (1)
No. 49-16-2720
Pole Saw Attachment
Serial No. K53A
SCREW TORQUE SPECIFICATIONS
SEAT TORQUE
FIG. PART NO. WHERE USED (kgf-cm) (lb-in)
8 05-78-0033 Gearbox 32-38 27-33
9 05-78-0024 Bar Mount Housing 25-30 21-26
6
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 05-81-0592 M4 x 6.5mm Flat Head T-15 Screw (1)
2 42-92-0047 Trigger Cover (1)
3 45-72-0013 Quick Change Trigger (1)
4 40-50-1090 Spring (1)
5 44-60-0068 Clamping Knob (1)
6 --------------- Quick Release Casting (1)
7 05-78-0027 M6 x 50mm Hex Hd. Machine Screw (1)
8 05-74-0026 M6 x 30mm Cap Hd. Hex Socket Screw (1)
13 45-88-0011 Flat Washer (1)
98 14-02-0010 Quick Release Assembly (1)
99 45-08-0033 Drive Shaft Assembly (For Extension) (1)
12-20-0157 Service Nameplate (Not Shown) (1)
No. 49-16-2721
Extension Tube Attachment
Serial No. K54A
1
2
3
4
6
7
13
5
8
1 2 3 4 5
6 7 8 13
98
99
SCREW TORQUE SPECIFICATIONS
SEAT TORQUE
FIG. PART NO. WHERE USED (kgf-cm) (lb-in)
8 05-78-0033 Quick Release Assembly 45-50 39-43
7
6
23
19
3
22
35
47
8
(2x)
4
2
1
5
(4x)
18
24
23
7
18 43
44
46
20
48
(x2)
24
40
42
41
27
24 27 40
41 42
30
No. 49-16-2738
Brush Cutter Attachment
Serial No. M91A and B
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 05-74-0313 Flange Nut (Left Hand Thread) (1)
2 31-10-0019 Mount with Washer Assembly (1)
3 49-16-2757 Brush Cutter Blade (Accessory) (1)
4 44-66-0149 Lock Plate Assembly (1)
5 05-81-0132 M6 x 14mm Pan Hd. T-30 Machine Screw (4)
6 05-81-0131 M6 x 17.8mm Flat Hd. Hex Machine Screw (1)
7 14-29-0038 Gearbox Assembly (1)
8 05-74-0015 M6 x 21.5mm Cap Hd. T-30 Machine Screw (2)
18 --------------- Drive Shaft (For Brush Cutter) (1)
19 43-54-0022 Blade Guard Kit (1)
20 42-34-0016 Brush Cutter Barrier Guard (1)
22 45-96-0030 Wrench (1)
23 05-85-0080 M8 x 1.25 Hex Hd. Screw (1)
24 --------------- Shoulder Strap (1)
27 06-57-0625 M5 Nylon Insert Hex Nut (2)
30 45-56-0012 Shoulder Strap Assembly (1)
35 44-60-0144 Head Removal Pin (1)
40 44-66-0039 Shoulder Strap Mounting Plate (1)
41 45-56-0011 Shoulder Strap Mounting Band (1)
42 05-74-0015 M6 x 21.5mm Cap Hd. T-30 Machine Screw (1)
43 12-20-0511 Service Nameplate (Not Shown) (1)
44 10-20-8994 Long Warning Label-Brush Cutter
(Not Shown)
(1)
45 10-20-8995 Warning Label (Not Shown) (1)
46 38-50-0093 Drive Shaft Assembly (For Brush Cutter) (1)
47 42-92-0175 Brush Cutter Cover (1)
48 06-82-0073 M6 x 36mm Pan Hd. T-30 B Mach. Screw (2)
8
16
13
14
11
12
(2x)
19
(2x)
17
(2x)
15
10
18
(2x)
25
(2x)
26
32
13 14
15 16
27
10 11
12
28
26 29
30
31
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
10 --------------- Gearbox (1)
11 05-78-0029 M5 x 8mm Pan Hd. T-25 Machine Screw (1)
12 05-74-0315 M5 x 17mm Pan Hd. T-25 Machine Screw (2)
13 42-76-0053 Collar (1)
14 05-88-0051 M6 x 30mm Cap Hd. Hex Recess Mach. Screw (1)
15 05-55-0052 10mm M6 Hex Nut (1)
16 --------------- Shield (1)
17 06-65-0121 'L' Pin (2)
18 06-65-0122 Hair Pin Cotter Pin (2)
19 42-12-0026 Output Shaft Axle (2)
25 31-92-0027 Sweeper Paddle Assembly (Set of 1) (2)
26 --------------- Drive Shaft (Rubber Broom) (1)
27 42-38-0036 Shield Assembly (1)
28 14-29-0024 Gearbox Assembly (1)
29 12-20-0511 Service Nameplate (Not Shown) (1)
30 10-20-8996 Long Warning Label-Rubber Broom
(Not Shown)
(1)
31 38-50-0096 Drive Shaft Assembly (Rubber Broom) (1)
32 49-96-0012 5mm Hex Key (1)
No. 49-16-2740
Rubber Broom Attachment
Serial No. M92A
9
16
13
14
11
12
(2x)
19
(2x)
17
(2x)
15
10
18
(2x)
25
(2x)
26
32
13 14
15 16
27
10 11
12
28
26 29
30
31
No. 49-16-2741
Bristle Brush Attachment
Serial No. M93A
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
10 --------------- Gearbox (1)
11 05-78-0029 M5 x 8mm Pan Hd. T-25 Machine Screw (1)
12 05-74-0315 M5 x 17mm Pan Hd. T-25 Machine Screw (2)
13 42-76-0053 Collar (1)
14 05-88-0051 M6 x 30mm Cap Hd. Hex Recess Mach. Scr. (1)
15 05-55-0052 10mm M6 Hex Nut (1)
16 --------------- Shield (1)
17 06-65-0121 'L' Pin (2)
18 06-65-0122 Hair Pin Cotter Pin (2)
19 42-12-0026 Output Shaft Axle (2)
25 14-46-0349 Bristle Brush Assembly (Set of 1) (2)
26 --------------- Drive Shaft (Bristle Brush) (1)
27 42-38-0036 Shield Assembly (1)
28 14-29-0024 Gearbox Assembly (1)
29 12-20-0511 Service Nameplate (Not Shown) (1)
30 10-20-8997 Long Warning Label-Bristle Brush
(Not Shown)
(1)
31 38-50-0097 Drive Shaft Assembly (Bristle Brush) (1)
32 49-96-0012 5mm Hex Key (1)
10
36
16
15
20
37
19
(x2)
14
29
30
32
31
18
18
38
40
34
19
20
21
14 15 16
17 37
33
17
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
14 05-88-0051 M6 x 30mm Cap Hd. Hex Recess Mach. Screw (1)
15 05-55-0042 Cultivator Clamping Plate (1)
16 42-76-0106 Collar (1)
17 --------------- Cultivator Shield (1)
18 06-65-0077 Cotter Pin (2)
19 05-74-0228 M5 x 20mm Machine Screw (2)
20 05-78-0229 M5 x 8mm Machine Screw (1)
21 14-46-0713 Gear Box Assembly (1)
29 14-46-0708 Cultivator -Left Inner Blade Assembly-L1 (1)
30 14-46-0709 Cultivator -Left Outer Blade Assembly-L2 (1)
31 14-46-0711 Cultivator -Right Inner Blade Assembly-R1 (1)
32 14-46-0712 Cultivator -Right Outer Blade Assembly-R2 (1)
33 14-46-0707 Cultivator - Shield Kit (1)
34 14-46-0706 Cultivator - Tube Kit (1)
36 06-42-0010 Coupler Key (1)
37 31-86-0020 Cultivator Square Shield Spacer (1)
38 10-22-0076 Warning Label (Not Shown) (1)
40 12-20-0307 Service Nameplate (Not Shown) (1)
No. 49-16-2739
Cultivator Attachment
Serial No. K68A
SCREW TORQUE SPECIFICATIONS
SEAT TORQUE
FIG. PART NO. WHERE USED (kgf-cm) (lb-in)
14 05-88-0051 Shield Kit 14-18 12-15
19 05-74-0228 Gear Box Assembly 27-33 23-28
20 05-78-0229 Gear Box Assembly 27-33 23-28
11
26
27
28
26
47
24
11
(x3)
17
(x4)
25
22
25
21
17
(x3)
25
46
37
(x2)
15
14
13
12
11
(x4)
18
16
35
34
14 39
40 41
42
45
6
6 16
18 37
36
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
6 --------------- Blower Tube (with sleeve and shaft) (1)
11 05-74-0419 M4 x 113mm Pan Hd. Torx CH Screw (7)
12 45-03-0014 Blower Screen (1)
13 43-72-0052 Cone (1)
14 --------------- Blower Screen Housing (1)
15 --------------- Blower Foam (1)
16 --------------- Tube Clamp (1)
17 05-81-5262 M4 x 18mm ST T-15 B Screw (7)
18 --------------- M4 x 18mm ST Torx T-20 B Screw (1)
21 31-44-0437 Stage 2 Housing (1)
22 31-44-0438 Stage 3 Housing (1)
24 31-12-0116 Long TIp Nozzle (1)
25 22-08-0013 Blower Input Fan (3)
26 45-88-0186 Flat Washer 10.5 x 20 x 3mm (2)
27 20-20-0010 Fan Shaft (1)
28 40-50-0219 Spring (1)
34 31-12-0122 Flared Nozzle Attachment Assembly (1)
35 31-12-0121 Tapered Nozzle Attachment Assembly (1)
36 14-46-0714 Tube Kit - Gen II Quik-Lok Blower (1)
37 --------------- M5 x 13mm Pan Hd. Torx T-25 B Screw (2)
39 10-22-0269 Warning Label A (Not Shown) (1)
40 10-22-0270 Warning Label B (Not Shown) (1)
41 10-22-0271 Warning Label C (Not Shown) (1)
42 10-22-0273 Warning Label D (Not Shown) (1)
43 12-20-0383 Service Nameplate (Not Shown) (1)
45 14-46-0716 Screen Housing Kit (1)
46 14-46-0717 Stage 1 Housing Assembly (1)
47 14-46-0718 Stage 4 Housing Assembly (1)
No. 49-16-2793
Blower Attachment
Serial No. N94A
NOTE: Apply 2g of type “J” grease (49-08-4220)
to the bottom side cavity of the Blower Tube (#6).
SCREW TORQUE SPECIFICATIONS
SEAT TORQUE
FIG. PART NO. WHERE USED (kgf-cm) (lb-in)
11 05-74-0419 Housing 10-12 9-10
17 05-74-0228 Stage 2 Housing 10-12 9-10
37 --------------- Tube Clamp 20-24 17-21
12
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 05-77-0016 M8 x 15mm Flange Hd. M Screw (1)
2 43-34-2718 Washer, Edger Blade Capture (1)
3 42-26-0031 Blade, Design 10 (1)
4 28-53-0077 Hub (1)
5 05-74-0261 M5 x 13mm Torx T-25 B Screw (5)
6 05-74-0262 M5 x 8mm Torx T-25 B Screw (5)
7 28-41-0024 Guard, Ink Fill (1)
8 28-41-0025 Rubber Guard (1)
9 28-28-0052 Guard Front Retaining Plate (1)
10 05-74-0263 M6 x 73mm Screw Bolt (1)
11 42-36-0054 Wheel Plate (1)
12 42-40-0013 Bushing, Sleeve (1)
13 45-94-0017 Wheel, Edger (1)
14 45-88-0077 Washer (1)
15 05-90-0016 Spring Washer (1)
16 28-28-0037 Skid Plate (1)
17 43-98-0027 Clamping Knob (1)
19 05-74-0315 M5 x 17mm Pan Hd. Torx T-25 B Screw (2)
20 --------------- O-Ring, Top (1)
21 --------------- O-Ring, Bottom (1)
22 --------------- Cultivator Tube Seal (1)
23 --------------- Tube (1)
24 --------------- M4 Hexagon Nut (1)
25 --------------- M4 x 6mm Pan Head Torx T-20 Screw (1)
27 --------------- Washer (1)
28 --------------- Sleeve for Attachment (1)
29 --------------- E-Ring (2)
30 --------------- Shaft (1)
31 --------------- Liner (1)
33 49-96-0182 Wrench Edger (1)
34 49-96-0012 5mm Hex Key (1)
35 06-42-0010 Coupler Key (1)
36 43-44-0093 Tube Assembly (1)
37 42-92-0149 Tube Seal Assembly (1)
38 14-30-0054 Gearbox Assembly (1)
40 12-20-0386 Service Nameplate (Not Shown) (1)
SCREW TORQUE SPECIFICATIONS
SEAT TORQUE
FIG. PART NO. WHERE USED (kgf-cm) (lb-in)
1 05-77-0016 Edger Blade (3) 25-28 21-24
5 05-74-0261 Guard (7) 25-28 21-24
5 05-74-0261 Guards (8,9) 12-15 10-13
6 05-74-0262 Plate (11) 12-15 10-13
6 05-74-0262 Plate (16) 30-33 26-28
6 05-74-0262 Gear Box Assy (38) 25-30 21-26
17 43-98-0027 Wheel (13) 2-6 1.7-5.2
19 05-74-0264 Gear Box Assy (38) 23-27 20-23
No. 49-16-2795
Bed Redener Attachment
Serial No. N95A
NOTE: Apply 2g of type “J”
grease (49-08-4220) to the
bottom side cavity of the
Tube Assembly (#36).
NOTE: item #19 (05-74-0315) should be replaced
with the gearbox item #38 (14-30-0054)
17
37
36
6
(x2)
16
19
(x2)
6
38
15
13
12
11
10
7
5
(x2)
14
3
2
1
1
6
(x2)
5
(x3)
8 9
34
33
35
13
28
29
26
25
24
23
11
(x2)
22
21
9
(x4)
34
33
32
27
31
(x2)
30
(x2)
35
9
(x2)
19
20
18
17
16
15
(x2)
14
13
50
12
11
(x4)
10
9
(x4)
14 15
16 17
20 23
24 25
52
33 34
54
9 10
11 12
51
29g
(x2)
29k
(x2)
29f
(x2)
29j
(x2)
29e
29 29e
29f 29g
29j 29k
53
29e 29f
29g 29j
29k
55
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
9 05-78-0033 M5 x 20mm Pan Hd. Torx T-25 B Screw (10)
10 --------------- Guard (1)
11 05-55-0019 Nut (6)
12 --------------- Clamp, Bottom Guard (1)
13 --------------- Hedge Trimmer Retaining Sleeve (1)
14 --------------- Beveled Internal Ring (1)
15 --------------- Ball Bearing (2)
16 --------------- Spline Coupler (1)
17 --------------- Bevel Pinion (1)
18 05-78-0024 M5 x 10mm Pan Hd. Torx T-25 B Screw (1)
19 06-57-0625 M6 Nylon Insert Lock Nut (1)
20 05-85-0080 M8 x 8mm Hex Hd. Torx T-25 B Screw (1)
21 05-78-0029 M5 x 8mm Pan Hd. Torx T-25 B Screw (1)
22 28-20-0108 Cover, Gear Case (1)
23 --------------- Housing, Top Gear Case (1)
24 --------------- Ball Bearing (1)
25 31-86-0045 Bevel C-Ring (1)
26 32-05-0042 Bevel Gear (1)
27 45-06-0108 Felt Seal (1)
28 36-17-0022 Crank Shaft (1)
29 --------------- Blade (1)
29e --------------- Tip Guard (1)
29f --------------- M5 Acorn Nut (2)
29g --------------- M5 Pan Hd. Screw (2)
29j --------------- Washer (2)
29k --------------- Bushing (2)
30 42-40-0123 Bushing (2)
31 05-78-0019 M5 x 25mm Pan Hd. Torx T-25 B Screw (2)
32 43-44-048 Gasket, Gear Case (1)
33 --------------- Ball Bearing (1)
34 --------------- Housing, Bottom Gear Case (1)
35 49-62-0018 Sheath (1)
38 12-20-0384 Service Nameplate (Not Shown) (1)
39 10-22-0274 Warning Label (Not Shown) (1)
50 45-76-0139 Tube Assembly (1)
51 43-62-0057 Handguard Assembly (1)
52 28-14-0071 Gearcase Kit (1)
53 42-26-0016 Blade Assembly (1)
54 28-20-0111 Gearcase Cover with Bearing Kit (1)
55 14-46-6784 Blade Tip Guard Kit (1)
No. 49-16-2796
Short Shaft Hedge Trimmer Attachment
Serial No. N97A
SCREW TORQUE SPECIFICATIONS
SEAT TORQUE
FIG. PART NO. WHERE USED (kgf-cm) (lb-in)
9 05-78-0033 Guard (10) 18-24 15-20
9 05-78-0033 Housing, Top (23) 32-38 27-33
9 05-78-0033 Housing, Bottom (34) 27-33 23-28
18 05-78-0024 Housing, Top (23) 27-33 23-28
19 06-57-0625 Housing, Top (23) 21-26 18-22
20 05-85-0080 Cover (22) 26-32 23-27
21 05-78-0029 Cover (22) 21-26 18-22
31 05-78-0019 Housing, Bottom (34) 55-65 48-56
NOTE: Inject 5g of type ‘J’
grease (49-08-4220) into
the Bevel Pinion (#17).
Apply 4g of ‘J’ grease to
the Bevel Gear (#26).
Inject 25g of ‘J’ grease into
the cavity of the Housing
(#23). The end of the Blade
Assembly (#53) should be
covered in ‘J’ grease.
14
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
12 31-86-0048 Spacer, Sleever (1)
13 05-78-0033 M5 x 20mm Pan Hd. Torx T-25 B Screw (2)
14 28-14-0073 Gearcase Assembly (1)
15 --------------- Upper Blade (1)
16 --------------- Bottom Blade (1)
17 45-22-0063 Blade Cap (1)
18 06-74-1050 Flange Bolt (1)
19 42-92-0137 Blade Cover (1)
20 05-74-0239 Flanged Screw (6)
23 05-80-0012 M6 x 12mm Flat Hd. Hex Recess B Screw (1)
26 45-96-0035 Wrench (1)
27 42-34-0016 Brush Cut Barrier Guard (1)
29 10-22-0275 Long Warning Label (Not Shown) (1)
31 12-20-0385 Service Nameplate (Not Shown) (1)
33 --------------- Shoulder Strap (1)
34 44-66-0039 Shoulder Strap Mounting Plate (1)
35 06-57-0625 M5 Nylon Insert Hex Nut (1)
36 45-56-0011 Shoulder Strap Mounting Band (1)
37 05-74-0015 M6 x 21.5mm Cap Hd. T-30 Mach. Screw (1)
38 --------------- M6 x 36mm Pan Hd. T-30 B Mach. Screw (2)
50 45-76-0147 Tube Assembly (1)
51 34-40-0252 Tube Seal Assembly (1)
52 43-54-0041 Guard Assembly (1)
53 45-56-0012 Shoulder Strap Assembly (1)
No. 49-16-2794
Reciprocator Attachment
Serial No. N99A
SCREW TORQUE SPECIFICATIONS
SEAT TORQUE
FIG. PART NO. WHERE USED (kgf-cm) (lb-in)
13 05-78-0033 Gearbox (14) 32-38 28-33
18 06-74-1050 Blade Cap (17) 190-210 165-182
20 43-54-0041 Blades (15,16) 56-66 49-57
23 05-80-0012 Gearbox (14) 20-25 17-21
NOTE: Apply 2g of type “J” grease (49-08-4220)
to the spline of the Tube Assembly (#50).
Apply 0.5g to each of the O-rings on the
Tube Seal Assembly (#51).
33
34
37
36
35
33 34 35
36 37
53
12
14
23
52
33
15
20
(x3)
16
20
(x3)
17
18
19
26
50
51
13
(x2)
27
38
(x2)
15
SERVICE WIRING DIAGRAM
Install
Switch Assembly
Use M4 T-20 screw (7)
to attach ground wire
to motor mount
Install
SSD Board,
Holder and
Terminal
Place motor assembly
into slot
Route wires
through wire traps
and channels
Push drive shaft assembly into
motor mount until holes line
up. Tighten M5 screw (8).
Tighten M5 screw (9)
Tighten M5 screw (8)
on tube clamp (46)
Put Spring (47) and
Trigger (48) in place
as shown.
Put Spring (50) and Lock-Off
Trigger Assy. (77) in place
Place wires in channel
Install Speed
Control Board
12
3
4
812
9
11
10
6
5
7
