PORTABLE AIR CONDITIONER (PAC) DRIP PAN KIT
MODEL: PAC-DPK 22
For condensation overflow
The Universal Drip Pan Kit is devised for use with Portable Air Conditioners. It is used to collect the overflow of
water that is released from the condensation valve located at the back – bottom of the PAC. It includes a Pump to
drain the water to another location and prevent flooding.

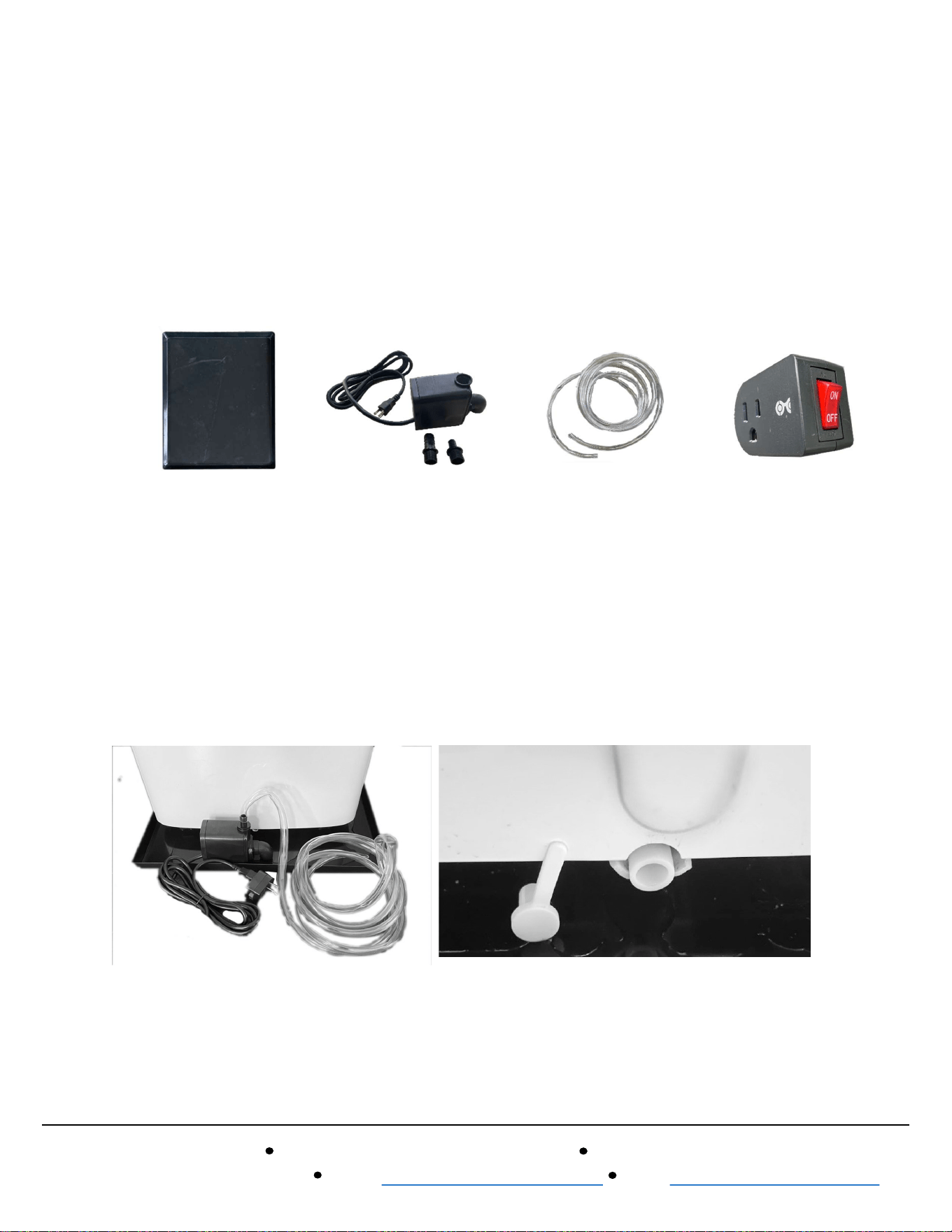

Includes:
Drip Pan Pump Hose 10 feet On/Off switch
(with 2 adaptors)
Installation:
1. Insert small adapter into pump.
2. Insert hose into pump adapter about ½”.
3. Attach pump plug into On/Off switch
4. Insert Switch into 110V power outlet.
5. Insert PAC into the pan, leaving sufficient space for the pump to fit in the front or rear.
6. At the back of PAC, there is a condensation valve. This should be open and be positioned over the pan.
Operation:
When condensation water fills in the pan, switch the drain pump on, so water flows into a bucket, flower pot, etc.
ATTENTION: Check the pan periodically so it does not overflow.
