User Guide
Quality, Design and Innovation
home.liebherr.com/fridge-manuals
Contents
1 General safety instructions.................................. 2
2 Appliance at a glance............................................ 3
2.1 Scope of supply............................................................ 3
2.2 Overview of appliances and equipment................... 4
2.3 Special features........................................................... 4
2.4 Range of use of appliance.......................................... 4
2.5 Appliance noise emissions......................................... 5
2.6 Conformity..................................................................... 5
2.7 SVHC substances according to REACH regulation. 5
2.8 EPREL database........................................................... 5
3 Setting up and connecting.................................... 5
3.1 Installation requirements........................................... 5
3.2 Appliance dimensions................................................. 6
3.3 Transporting the appliance........................................ 6
3.4 Unpacking appliance................................................... 6

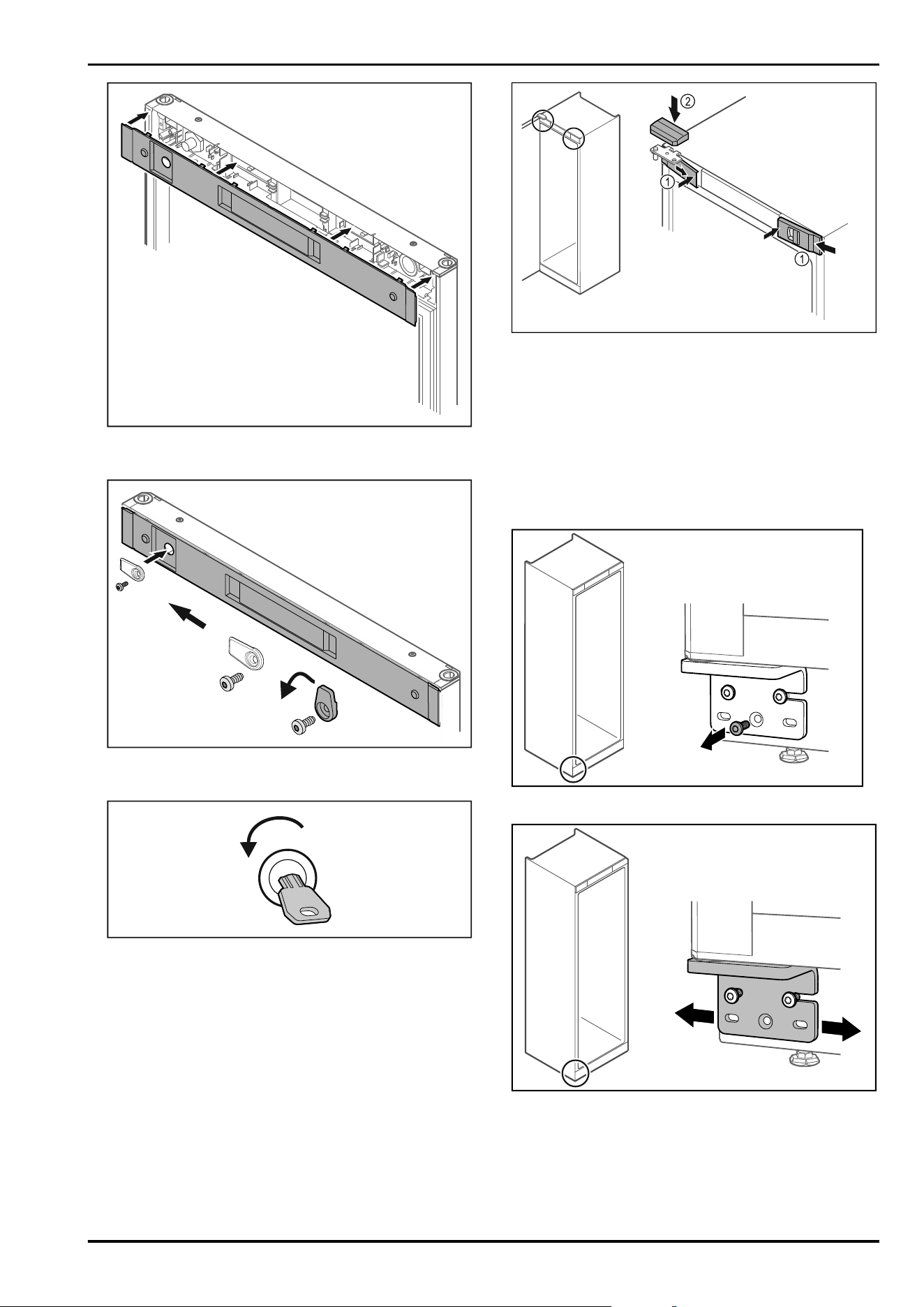

3.5 Reversing the door opening direction...................... 6
3.6 Aligning the door.......................................................... 12
3.7 Removing transport lock............................................. 13
3.8 Installing appliance..................................................... 13
3.9 Setting up the appliance so it is level...................... 13
3.10 Installing multiple appliances.................................... 13
3.11 After installation.......................................................... 13
3.12 Disposing of packaging............................................... 14
3.13 Connecting the appliance to the power supply...... 14
4 Putting into operation........................................... 14
4.1 Switching on appliance............................................... 14
5 Storage.................................................................. 14
5.1 Information regarding storage................................... 14
5.2 Storage times............................................................... 15
6 Controls................................................................. 15
6.1 Control and display elements.................................... 15
6.2 Appliance functions..................................................... 15
6.2.1 Temperature...............................................................15
6.2.2 Lighting*.....................................................................15
7 Features................................................................. 15
7.1 Safety lock.................................................................... 15
8 Maintenance.......................................................... 16
8.1 Defrosting appliance................................................... 16
8.2 Cleaning the appliance............................................... 16
9 Customer help....................................................... 17
9.1 Technical specifications............................................. 17
9.2 Technical fault.............................................................. 17
9.3 Customer Service......................................................... 18
9.4 Type plate...................................................................... 18
10 Shutting down....................................................... 18
11 Disposal................................................................. 18
11.1 Preparing appliance for disposal.............................. 18
11.2 Disposing of the appliance in an environmentally
friendly manner............................................................ 18
12 Additional information.......................................... 19
The manufacturer is continually working on the further
development of all types and models. Please be aware that
we reserve the right to make changes to the shape, equip‐
ment and technology.
Symbol
Explanation
Read instructions
Please read the information in these instruc‐
tions carefully to understand all of the benefits
of your new appliance.
Symbol Explanation
Additional information on the Internet
The digital manual with additional informa‐
tion and in other languages can be found
via the QR code on the front of the
manual or by entering the service number at
home.liebherr.com/fridge-manuals.
The service number can be found on the serial
tag:
Fig.Example illustration
Check appliance
Check all parts for transport damage. If you
have any complaints, please contact your
agent or customer service.
Differences
These instructions apply to a range of models,
so differences are possible. Sections that
apply to certain models only are marked with
an asterisk (*).
Instructions and results
Instructions are marked with a .
Results are marked with a .
Videos
Videos about the appliances are available on
the YouTube channels of Liebherr-Hausgeräte.
Open source licences:
The appliance contains software components that use
open source licences. Information on the open source
licences used can be found here: home.liebherr.com/
open-source-licences
These operating instructions apply to:
-
MRFvc 3501
-
MRFvc 3511
-
MRFvc 4001
-
MRFvc 4011
-
MRFvc 5501
-
MRFvc 5511
1 General safety instructions
Please keep these operating instructions in a safe place so
you can refer back to them at any time.
If you pass the appliance on, please hand these operating
instructions to the next user.
Read these operating instructions carefully before use to
ensure safe and correct use of the appliance. Follow the
instructions, safety instructions and warning messages
included at all times. They are important for ensuring you
can operate and install the appliance safely and without any
problems.
Danger for the user:
-
This device can be used by children aged 8 and above
and people with impaired physical, sensory or mental
abilities or with a lack of experience and knowledge
General safety instructions
2 * Depending on model and options
provided that they are supervised or have received
instruction in the safe use of this appliance, and about
the resulting hazards. Children must not play with this
appliance. Cleaning and user maintenance work must not
be carried out by children without adult supervision.
-
The socket must be easily accessible so that the appli‐
ance can be disconnected quickly from the electricity
supply in an emergency. It must not be located in the
area behind the appliance.
-
When disconnecting the appliance from the supply,
always take hold of the plug. Do not pull the cable.
-
In the event of a fault pull out the mains plug or deacti‐
vate the fuse.
-
WARNING: Do not damage the mains power cable. Do
not operate the appliance with a defective mains power
cable.
-
WARNING: Multiple sockets/distributors and other elec‐
tronic equipment (such as halogen transformers) must
not be placed or operated at the rear of the appliance.
-
WARNING: Keep ventilation openings, in the appliance
enclosure or in the built-in structure, clear of obstruction.
-
Repairs, interventions on the appliance and the replace‐
ment of mains connection line may only be carried out
by AfterSales Service or other suitably trained specialist
personnel.
-
Only assemble, connect and dispose of the appliance
according to the instructions.
Fire hazard
-
The coolant used (information on the model plate) is
ecofriendly but also flammable Any leaking coolant may
ignite.
•
WARNING: Do not damage refrigeration circuit.
•
Do not handle ignition sources inside the appliance.
•
WARNING: Do not use electrical appliances in the
fridge compartment which do not comply with the
design recommended by the manufacturer.
•
If the refrigerant leaks: remove any naked flames or
ignition sources from the vicinity of the leakage point.
Properly air the room. Inform customer services.
-
Do not operate the appliance close to explosive gases.
-
Do not store or use petrol or other flammable gases and
liquids close to the appliance.
-
Do not store any explosive substances, such as aerosol
containers with flammable propellant gas, in the appli‐
ance. To identify these spray cans, look for the list of
contents printed on the can, or a flame symbol. Gases
possibly escaping may ignite due to electrical compo‐
nents.
-
Keep burning candles, lamps and other items with naked
flames away from the appliance so that they do not set
the appliance on fire.
-
Please be sure to store alcoholic drinks or other pack‐
aging containing alcohol in tightly closed containers.
Any alcohol that leaks out may be ignited by electrical
components.
Danger of tipping and falling:
-
Do not misuse the plinth, drawers, doors etc. as a step or
for support.
Danger of frostbite, numbness and pain:
-
Avoid prolonged skin contact with cold surfaces or refri‐
gerated/frozen goods or take protective measures, e.g.
wear gloves.
Danger of injury and damage:
-
WARNING: Do not use mechanical equipment or other
methods to speed up the defrosting process other than
those recommended by the manufacturer.
-
WARNING: Risk of injury due to electric shock! There are
live electrical parts under the cover.
Only have the LED interior lighting replaced or repaired by
customer service or other suitably trained professionals.*
-
NOTICE: Appliance must only be used using original
manufacturer accessories or using accessories from
other providers approved by the manufacturer. The user
bears the risk of using accessories which are not
approved.
Risk of crushing
-
Do not hold the hinge when opening and closing the door.
Fingers may get caught.
Specialist personnel qualifications:
Specialist personnel are persons who, on account of their
specialist training, knowledge and experience as well as
their knowledge of the relevant standards, are able to
assess and perform the work assigned to them and iden‐
tify potential hazards. They must have training, instruc‐
tion, and authorisation to work on the appliance.
Symbols on the appliance:
This symbol may be located on the
compressor. It relates to the oil in the
compressor and makes reference to the
risk that:Swallowing or inhaling can be
fatal. This advice is only relevant to recy‐
cling. There is no danger in normal opera‐
tion.
WARNING: Danger of fire / flammable
materials. This symbol is located on the
compressor and indicates the danger of
flammable materials. Do not remove the
sticker.
This or a similar sticker may be located
on the rear of the appliance. This sticker
indicates that there are vacuum insulation
panels (VIP) or perlite panels in the door
and/or housing. This advice is only relevant
to recycling. Do not remove the sticker.
Please note the warning messages and other specific
advice in the other chapters:
DANGER
Indicates an immediately hazardous
situation which will lead to death or
serious injuries if it is not avoided.
WARNING
Indicates a hazardous situation which
will lead to death or serious injuries if
it is not avoided.
CAUTION
Indicates a hazardous situation which
will lead to minor or moderate injuries
if it is not avoided.
NOTICE
Indicates a hazardous situation which
may lead to damage to property if it is
not avoided.
Note Indicates useful instructions and tips.
2 Appliance at a glance
2.1 Scope of supply
Check all parts for transport damage. If you have any
complaints, please contact your dealer or Customer Service.
(see 9.3 Customer Service)
The delivery comprises the following parts:
-
Free-standing appliance
-
Equipment *
Appliance at a glance
* Depending on model and options 3
-
Installation materials *
-
Operating instructions
-
Service brochure
-
Quality certificate *
2.2 Overview of appliances and equip‐
ment
MRFvc 3501
MRFvc 4001
MRFvc 5511
MRFvc 3511
MRFvc 4011
MRFvc 5511
Fig. 1 Basic equipment
Fig. 2 Variants
Equipment
(1) Control(s) (5) Interior lighting *
(2) Thermometer/temper‐
ature display
(6) Adjusting feet
(3) Type plate (7) Lock
(4) Grid shelves (8) Defrost water drain
2.3 Special features
Note
Accessories are available from Customer Service
(see 9.3 Customer Service) and the Liebherr-Hausgeräte
store at home.liebherr.com/shop/de/deu/zubehor.html.
2.4 Range of use of appliance
Intended use
This fridge is appropriate for professional use in the
commercial environment and in retail. It may be used for
the storage, presentation and sale of chilled packaged food‐
stuffs and beverages. It is appropriate for the removal of
chilled goods by customers.
The appliance is only designed for use in closed rooms.
All other types of use are not permitted.
Foreseeable incorrect use
The following uses are expressly forbidden:
-
Storage and refrigeration of:
•
Chemically unstable flammable or corrosive
substances
•
Medicines, blood plasma, laboratory preparations or
similar substances and products based on the Medical
Device Directive 2007/47/EC
-
Use in potentially explosive atmospheres
-
Use outdoors or in areas exposed to dampness and
splashing water
Improper use of the appliance will result in goods stored
being damaged or spoiled.
Climate classes
The applicable climate class for your appliance is printed on
the type plate.
Fig. 3 Type plate
(X)
The climate class
states the ambient
conditions in which the
appliance can be oper‐
ated safely.
(Z) The temperature class
indicates the tempera‐
ture setting at which the
appliance will function
smoothly.
(Y) The climate class
defines the maximum
parameters within
which the appliance
will function smoothly.
Climate class (X) Max. room tempera‐
ture
Max. rel. humidity
3 +25°C 60%
4 +30°C 55%
5 +40°C 40%
7 +35°C 75%
Appliance at a glance
4 * Depending on model and options
Note
The minimum permitted room temperature at the setup
location is +10°C.
At limit conditions, slight condensation may form on the
glass door and on the side walls.
Climate class (Y) Max. room tempera‐
ture
Max. rel. humidity
CC1 +25.5°C 60%
CC2 +32.2°C 65%
CC3 +40.6°C 75%
Recommended temperature setting:
Temperature class (Z) Temperature setting
K1 +3.5°C
K2 +2.5°C
K3 -1°C
K4 +5°C
M1 +5°C
M2 +7°C
2.5 Appliance noise emissions
The A-weighted emission sound pressure level during oper‐
ation of the appliance is under 70 dB(A) (sound power rel.
1 pW).
2.6 Conformity
The coolant circuit has been tested for leak-tightness. The
appliance complies with the relevant safety regulations.
EU Declaration of Conformity
Manufacturer/Exhibitor: LIEBHERR-HAUSGERÄTE
LIENZ GMBH
Address: A-9900 Lienz, Dr. Hans
Liebherr Straße 1
The designated product complies with the provisions of
the following European directives and regulations:
(EU) 2019/2020, (EU) 2019/2024, (EU) 2019/2018,
(EU) 2017/1369, 2006/42/EC, 2014/30/EU, 2009/125/EC,
2011/65/EU
The full text of the EU Declaration of Conformity is avail‐
able at the following web address: www.liebherr.de
2.7 SVHC substances according to
REACH regulation
You can check whether your appliance contains SVHC
substances according to REACH regulation at the following
link: home.liebherr.com/de/deu/de/liebherr-erleben/nach‐
haltigkeit/umwelt/scip/scip.html
2.8 EPREL database
Details about the labelling of energy consumption and
ecodesign requirements will be available on the European
Product Database (EPREL) from 1 March 2021. You can
access the product database at the following link: https://
eprel.ec.europa.eu/. You will be asked to enter the model
identification. The model identification can be found on the
type plate.
3 Setting up and connecting
3.1 Installation requirements
The installation conditions are crucial to ensure that you
can operate your appliance safely, efficiently and without
problems.
-
Observe all safety instructions.
-
Consider the location and position in the room.
WARNING
Danger of fire due to incorrect positioning!
If the mains cable or plug touches the back of the appli‐
ance, the vibration can damage the mains cable or the plug
resulting in a short circuit.
► Make sure the mains cable is not trapped under the appli‐
ance when you position the appliance.
► Stand the appliance so that it is not touched by connec‐
tors or main cables.
► Do not connect any appliances to sockets in the area of
the back of the appliance.
► Do not place and operate multi-sockets/power distribu‐
tors and other electronic devices (such as halogen trans‐
formers) at the back of the appliances.
WARNING
Fire hazard due to dampness!
If live parts or the mains lead become damp this may cause
short circuits.
► The appliance is designed for use in enclosed areas. Do
not operate the appliance outdoors or in areas where it is
exposed to splash water or damp conditions.
WARNING
Leaking coolant and oil!
Fire. The coolant contained in the appliance is eco-friendly,
but also flammable. The oil contained in the appliance
is flammable. Escaping coolant and oil can ignite if the
concentration is high enough and in contact with an
external heat source.
► Do not damage the pipelines of the coolant circuit and
the compressor.
3.1.1 Installation site
-
A dry and well-ventilated room is an optimum installation
location.
-
If the appliance is installed in a very damp environment,
condensation may form on the appliance exterior.
Always make sure there is good ventilation and aeration
at the installation site.
-
The more refrigerant there is in the appliance, the larger
than room must be in which it is located. In rooms that
are too small, a leak can product a flammable gas/air
mixture. For every 8g of refrigerant, the installation room
must be at least 1 m
3
in size. Information on the refrig‐
erant contained is given on the type plate inside the
appliance.
-
The floor on which the appliance stands must be hori‐
zontal and level.
3.1.2 Position in space
-
Do not place the appliance in direct sunlight or near radi‐
ators or similar sources of heat.
Setting up and connecting
* Depending on model and options 5
-
Always position the appliance with the rear directly on
the wall.
-
Use in hazardous areas is not permitted.
3.2 Appliance dimensions
Fig.4
Model
A B C D E
MRFvc
3501/3511
1684mm 597mm 654mm 1203mm 23mm
MRFvc
4001/4011
1884mm 597mm 654mm 1203mm 23mm
MRFvc
5501/5511
1684mm 747mm 769mm 1468mm 23mm
A = appliance height B=appliance width without handle
C = appliance depth without handle D = appliance depth
with door open E = hinge height
3.3 Transporting the appliance
WARNING
Risk of injury due to broken glass!*
When transporting at an altitude of more than 1500 m, the
glass panes of the door may break. This can result in sharp-
edged fragments, which can cause serious injuries.
► Take appropriate protective action.
WARNING
Risk of injury and damage due to the appliance tipping over!
► Pay attention to uneven floors and ramps when trans‐
porting appliances.
3.3.1 Transporting the appliance for initial use
Ensure that the following requirements are met:
❑
The appliance is packaged.
❑
The appliance is upright.
► Transport the appliance with the help of two people.
► Unpacking the appliance.
3.3.2 Transporting the appliance after initial
use
Observe the following instructions if you wish to transport
or move the appliance again after initial use.
Ensure that the following requirements are met:
❑
The appliance is emptied.
❑
The appliance is upright.
❑
Door is secured against accidental opening.
❑
The pull-out trolley is secured against accidental
opening.
► Transport the appliance with the help of two people.
After transport:
► Unscrew the adjustable feet on the appliance.
► Align the appliance.
3.4 Unpacking appliance
► Check the appliance and the packaging for damage
during transport. Contact the supplier immediately if you
suspect any damage. Do not connect appliance to the
power supply.
► Remove all packaging materials from the rear or the side
walls of the fridge that may prevent proper installation or
prevent air flow and ventilation.
► Take the mains cable from the rear of the appliance.
Remove the cable retainer when you do so, otherwise
there will be vibration noise.
3.5 Reversing the door opening direc‐
tion
Tools
WARNING
Risk of injury if the door is not reversed correctly!
► Replace the door hinge with specialist personnel.
WARNING
Risk of injury and material damage due to heavy door!
► Only perform the conversion if you can carry a weight of
25 kg.
► Always have someone help you carry out the conversion.
NOTICE
Live parts!
Damage to electrical components.
► Remove the mains plug before you reverse the door.
► Open the door.
Setting up and connecting
6 * Depending on model and options
Fig.5
► Unlatch the front covers Fig. 5 (1) on the inside and
remove them sideways.
► Lift off the upper cover Fig.5(2).
Fig.6
► Unscrew the door latch Fig.6(1).
► Unlatch the cover Fig. 6 (1) with a small screwdriver and
remove it.
Fig.7
► Put the lock and cover on the opposite side.
-or-
Fig.8
► Put the lock and cover on the opposite side.
NOTICE
Risk of injury if the door tips out!
► Hold the door.
Fig.9
► Unscrew the hinge Fig.9(1).
► Lift the door with the hinge straight up by Fig. 9 (2)
roughly 200mm and take it off.
► Carefully place the door on a soft surface.
Fig. 10
► Pull out the hinge.
Setting up and connecting
* Depending on model and options 7
Fig.11
► Pull out the hinge bushing Fig.11(1) with your fingers.
► Carefully lift the cover plug Fig. 11 (2) with a slotted
screwdriver and pull it out.
Fig.12
► Insert hinge bushing and cover plug on the opposite side
(the flattened sides face outwards).
Fig. 13 Insulated door*
Fig. 14Glass door*
Note
► If the handle is difficult to detach from the door, slightly
push the handle together when removing it.
► Unscrew the handle.
Setting up and connecting
8 * Depending on model and options
Fig. 15
Note
► If the cover is difficult to detach, carefully lever it out
using a tool such as a screwdriver.
► Put the cover on the opposite side.

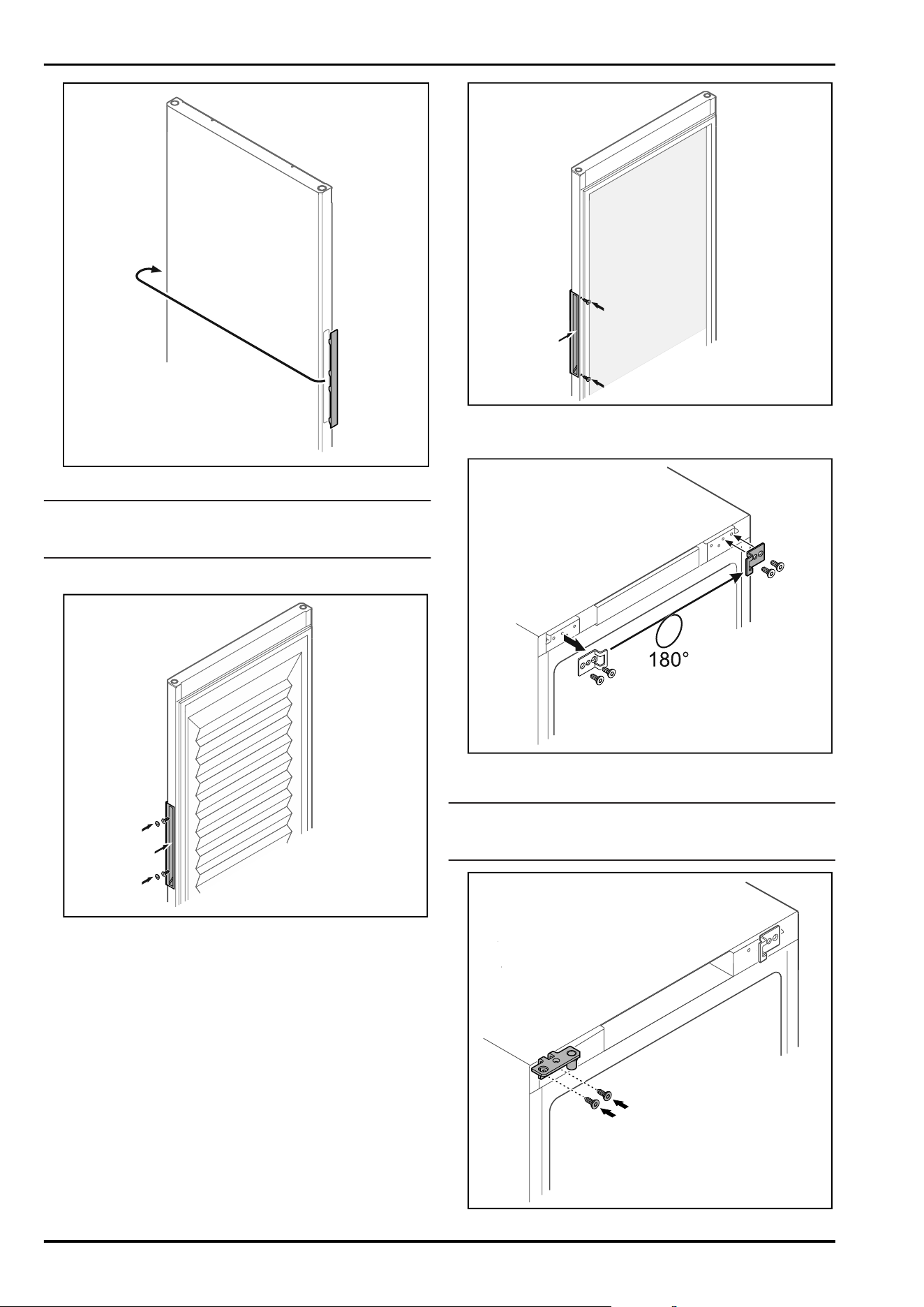

Fig. 16 Insulated door*
Fig.17Glass door*
► Screw the handle onto the opposite side.
Fig. 18
► Put the closing bracket on the opposite side.
Note
The holes are pre-marked and must be pierced with the
self-tapping screws.
Setting up and connecting
* Depending on model and options 9
Fig. 19
► Move the hinge to the opposite side.
WARNING
Risk of injury and material damage if the door tips out!
► Tighten the bearing pins to the specified torque.
Fig.20
► Put the pin back into the hinge Fig.20(1).
► Tighten the pin Fig.20(2) to a torque of 12 Nm.
► Unscrew the hinge again.
NOTICE
Risk of injury due to tensioned spring!
► Do not disassemble the door closing system Fig.21(1).
Fig.21
► Turn the closing system Fig.21(2) until it clicks.
▷ The tension of the closing system is released.
► Unscrew the hinge Fig.21(3).
Fig.22
► Put the door closing system in the hinge.
► Make sure the pin chamfer Fig.22(1) faces the round hole
when you put it in.
-or-
Note
Incorrect alignment of the height adjustment washers.
Nuts no longer have sufficient hold.
► The washer must lock into the underside of the closing
system.
Fig.23
► Loosen the nut and remove the door closing system
Fig.23(1).
► Observe the correct alignment of the height adjustment
washers Fig.23(2).
► Put the door closing system in the hinge and fix in place
with the nut Fig.23(3).
► Observe the correct alignment of the door closing system
when doing so Fig.23(4).
Setting up and connecting
10 * Depending on model and options
Fig. 24
► Put the cover plate on the opposite side.
Fig.25
► Screw the hinge onto the opposite side.
Note
Correct alignment and tension are important for the closing
system to work properly.
Fig. 26 Left-hinged (A) / Right-hinged (B)
► Turn the closing system against the resistance until the
bar of the closing system Fig. 26(1) points outwards.
▷ The closing system automatically stays in this position.
▷ The closing system is now aligned and tensioned.
Fig.27
► Put the hinge into the door.
NOTICE
Risk of injury if the door tips out!
► Hold the door.
Fig.28
► Together with a second person, lift the door from the
ground.
► Carefully put the door on the closing system with the
door opened at a 90° angle.
Fig.29
► Screw on the hinge.
Setting up and connecting
* Depending on model and options 11
Fig.30
► Put on the cover.
Fig.31
► Screw on the door latch.
Fig.32
► Open the door.
Fig.33
► Hook in the front covers Fig. 33 (1) on the side and snap
them into place on the inside.
► Snap on the top cover Fig.33(2) from above.
► Close the door.
▷ The door has now been reversed.
3.6 Aligning the door
If the door is not straight, you can adjust it on the lower
hinge.
Fig.34
Fig.35
► Slightly undo both screws and move the door with the
hinge to the left or right.
▷ The door is now straight.
Setting up and connecting
12 * Depending on model and options
3.7 Removing transport lock
Fig.36
► Remove transport lock in upwards direction.
▷ Base holder remains on the appliance.
3.8 Installing appliance
CAUTION
Risk of injury and damage.
► Use 2 people to install appliance.
CAUTION
Risk of injury and damage.
The door can knock against the wall and become damaged
as a result. In the case of glass doors, the damaged glass
can cause injuries.
► Protect the door from knocking against the wall. Attach
door stopper, e.g. felt stopper, to the wall.
► Connect all necessary components (e.g. mains cable) to
the back of the appliance and route to the side.
Note
Cables can be damaged.
► Do not jam the cable when pushing the appliance back.
Fig.37
► Set up the appliance either free-standing or directly
against a wall at a minimum distance of 5mm Fig.37(1).
3.9 Setting up the appliance so it is
level
NOTICE
Appliance body is deformed and door does not close.
► Align appliance horizontally and vertically.
► Compensate for uneven floors using adjustable feet.
WARNING
Incorrect height adjustment of the adjustable foot!
Can cause severe or even fatal injury. Incorrect height
adjustment can cause the bottom part of the adjustable
foot to come loose and the appliance to tip over.
► Do not unscrew the adjustable foot too far.
Fig.38
Raising appliance:
► Turn adjustable foot clockwise.
Lowering appliance:
► Turn adjustable foot anticlockwise.
3.10 Installing multiple appliances
NOTICE
Risk of damage due to condensation between the side
walls.
► Do not install the appliance directly next to another
fridge.
► Install appliances with a space 3cm between appliances.
► Only install multiple appliances of up to climate class
CC2 temperatures (32.2 °C, 65% humidity) next to one
another.
► At higher levels of humidity, increase space between
appliances.
Fig. 39 Side-by-side installation
Note
A side-by-side kit is available as an accessory via Liebherr
Customer Service. (see 9.3 Customer Service)
3.11 After installation
► Peel off the protective films. *
► Clean appliance. (see8.2Cleaning the appliance)
► If necessary: Disinfect the appliance.
Setting up and connecting
* Depending on model and options 13
► Keep the invoice so you have the appliance and dealer
information available if needed.
3.12 Disposing of packaging
WARNING
Danger of suffocation due to packing material and plastic
film!
► Do not allow children to play with packing material.
The packaging is made of recyclable materials:
-
corrugated board/cardboard
-
expanded polystyrene parts
-
polythene bags and sheets
-
polypropylene straps
-
nailed wooden frame with polyethylene panel*
► Take the packaging material to an official collecting
point.
3.13 Connecting the appliance to the
power supply
WARNING
Danger of electric shock and injury due to damaged appli‐
ance or damaged mains cable!
Danger of cuts and fatal injuries. If the appliance or the
mains cable is damaged during transport, you may be elec‐
trocuted. You could also cut yourself on damaged parts of
the appliance housing.
► Check the appliance and the mains cable for damage
after transport.
► Never put the appliance into operation if the appliance or
the mains cable are damaged.
► Contact Customer Service.
Connect your appliance to the mains using the power cable
included. The power cable has a mains plug at the free end.
Make sure that the following requirements are fulfilled:
-
The appliance and power cable are undamaged.
-
The appliance is set up in accordance with the regula‐
tions. (see 3.7 Removing transport lock)
-
Requirements for the electrical connection are met.
-
Dimensions for connection in accordance with regula‐
tions are known and observed.
-
Mains voltage and frequency correspond to the specifica‐
tions on the type plate.
-
The socket is earthed according to the regulations and
fused.
-
The fuse tripping current is between 10A and 16A.
-
The socket is easily accessible and is not behind the
appliance.
WARNING
Danger of fire due to incorrect connection!
Burns.
Damage to the appliance.
► Do not use an extension cable.
► Do not use distributor blocks.
NOTICE
Danger of damage to incorrect connection!
Damage to the appliance.
► Do not connect the appliance to a stand-alone inverter,
e.g. solar power systems and petrol generators.
► Connect the mains cable plug to the power supply.
Ensure that the plug is tightly in the socket.
▷ The appliance is connected. For information regarding
first use, see the following section or the operating
instructions.
4 Putting into operation
4.1 Switching on appliance
Make sure that the following requirements are fulfilled:
- The appliance is set up and aligned and there is a suit‐
able power socket.
- All adhesive strips, adhesive and protective films and
transport locks are removed from inside and on the appli‐
ance.
► Plug in the power plug.
▷ The appliance is switched on.
5 Storage
5.1 Information regarding storage
Note
Failure to follow these guidelines can lead to food becoming
spoiled.
Fig. 40 Example illustration Fig. 41
When stocking observe the following:
❑
If storage surfaces Fig. 40 (1) are movable, adjust them
according to height.
❑
Observe maximum load weight. (see 9.1 Technical specifi‐
cations)
❑
Do not load appliance until storage temperature has been
reached (maintain cold chain).
❑
Refrigerated goods must not touch the rear wall.
❑
Refrigerated items do not protrude beyond the shelves.
❑
Ensure items for refrigeration are well packaged.
❑
Pack items for refrigeration which easily acquire or emit
an odour of flavour in closed containers or cover.
❑
Keep liquids in closed containers.
Putting into operation
14 * Depending on model and options
❑
Package raw meat or fish in clean, closed containers.
This will prevent meat or fish from touching or dripping
onto other food.
❑
Leave space when storing items for refrigeration to
ensure good air circulation.
5.2 Storage times
The best-before date specified on the packaging should be
used as the reference point for the storage time.
6 Controls
6.1 Control and display elements
Fig. 42
MRFvc 3501
MRFvc
4001
MRFvc 5501
MRFvc 3511
MRFvc 4011
MRFvc 5511
Fig. 42(1) Lock
Fig. 42(2) Temperature control
Fig. 42(3) Light switch on/off
Fig. 42(4) Door contact switch for fan
6.2 Appliance functions
6.2.1 Temperature
The temperature depends on the following factors:
-
How often the door is opened
-
How long the door is open for
-
The room temperature of the installation site
-
The type, temperature and amount of refrigerated food
Note
At the correct temperature, cooled produce will keep for
longer. This avoids disposing of food unnecessarily.
Recommended temperature setting: see temperature class
on the type plate. (see2.4 Range of use of appliance)
Setting temperature
Fig. 43 Temperature adjustment knob
► Set a lower temperature in the appliance: Turn the knob
in the direction “Max”. Position “Max” is for the lowest
interior appliance temperature.
► Set a higher temperature in the appliance: Turn the knob
in the direction “Min”.
6.2.2 Lighting*
The appliance is fitted with interior lighting.
The interior lighting always switches on when the door of
the appliance is opened.
Switching the lighting on/off*
Fig.44
► Press the light switch.
▷ The lighting is switched on/off.
7 Features
7.1 Safety lock
The lock in the appliance door is equipped with a safety
mechanism.
7.1.1 Locking appliance
Fig. 45 Example illustration
► Insert key.
► Turn key anticlockwise by 90°.
▷ The appliance is locked.
7.1.2 Unlocking appliance
Fig. 46 Example illustration
► Insert key Fig.46(1).
► Turn key clockwise by 90° Fig.46(2).
▷ The appliance is unlocked.
Controls
* Depending on model and options 15
8 Maintenance
8.1 Defrosting appliance
WARNING
Improper defrosting of the appliance!
Injuries and damage.
► Do not use mechanical equipment or other methods to
speed up the defrosting process other than those recom‐
mended by the manufacturer.
► Do not use electrical heating or steam-cleaning appli‐
ances, naked flames or defroster sprays to defrost.
► Do not use sharp objects to remove ice.
Defrosting is performed automatically. The defrost water
drains through the opening and evaporates.
To maintain the functionality of the appliance, we recom‐
mend defrosting it when there is a high buildup of ice.
Icing in the interior is determined by the location (e.g.
high humidity), settings on the appliance and incorrect user
behaviour.
If automatic defrosting is insufficient, defrost the appliance
manually:
► Switch off appliance.
► Pull out mains plug.
► Store refrigerated items elsewhere.
► Leave appliance door open during defrosting process.
► Soak up remaining defrost water with a cloth, clean drain
opening and the appliance.
8.2 Cleaning the appliance
8.2.1 Preparing
WARNING
Short-circuit hazard due to live parts!
Electric shock or damage to the electronics.
► Switch off the appliance.
► Pull out mains plug or switch off fuse.
WARNING
Risk of fire
► Do not damage the refrigeration circuit.
► Empty the appliance.
► Pull out the mains plug.
► Observe the notes on transporting the appliance.
8.2.2 Cleaning housing
NOTICE
Improper cleaning!
Damage to the appliance.
► Only use soft cleaning cloths and ph-neutral all-purpose
cleaners.
► Do not uses abrasive sponges or steel wool which may
cause scratches.
► Do not use any sharp or abrasive cleaning agents, nor
any that contain sand, chloride or acid.
WARNING
Risk of injury and damage as a result of hot steam!
Hot steam can lead to burns and can damage the surfaces.
► Do not use any steam cleaners!
NOTICE
Risk of damage due to short circuit.
► When cleaning the appliance, make sure no water gets
into the electrical components.
► Wipe the housing down with soft, clean cloth. If very
dirty, use lukewarm water with a neutral cleaner. Glass
surfaces can also be cleaned with glass cleaner.
► Clean condenser coil each year. If the condenser coil is
not cleaned, this significantly reduces the efficiency of
the appliance.
8.2.3 Cleaning fan cover
NOTICE
Risk of damage due to short circuit.
► When cleaning the appliance, make sure no water gets
into the electrical components.
NOTICE
Improper cleaning!
Damage to the appliance.
► Only use soft cleaning cloths and ph-neutral all-purpose
cleaners.
► Do not uses abrasive sponges or steel wool which may
cause scratches.
► Do not use any sharp or abrasive cleaning agents, nor
any that contain sand, chloride or acid.
Fig. 47
► Carefully lever out fan covers from the side Fig. 47(1) and
remove towards the front Fig. 47(2).
► Rinse the air slots of the fan covers under running water.
If very dirty, use lukewarm water with a neutral cleaner.
► Leave fan covers to air-dry completely.
► Reattach fan covers to the appliance.
8.2.4 Cleaning interior
WARNING
Short-circuit hazard due to live parts!
Electric shock or damage to the electronics.
► Switch off the appliance.
► Pull out mains plug or switch off fuse.
WARNING
Risk of injury and damage as a result of hot steam!
Hot steam can lead to burns and can damage the surfaces.
► Do not use any steam cleaners!
Maintenance
16 * Depending on model and options
NOTICE
Improper cleaning!
Damage to the appliance.
► Only use soft cleaning cloths and ph-neutral all-purpose
cleaners.
► Do not uses abrasive sponges or steel wool which may
cause scratches.
► Do not use any sharp or abrasive cleaning agents, nor
any that contain sand, chloride or acid.
Note
► Defrost water drain (see 2.2 Overview of appliances and
equipment) : Remove deposits using a thin material (for
example a cotton bud).
Note
Do not damage or remove the type plate on the inside of the
appliance. The type plate is important for Customer Service.
(see 9.3 Customer Service)
► Open the door.
► Empty the appliance.
► Clean interior and equipment parts with lukewarm water
and a little detergent. Do not use any gritty or acidic
cleaning agent or any chemical solvent.
8.2.5 After cleaning
► Wipe appliance and equipment parts dry.
► Connect and switch on appliance.
Once the temperature is sufficiently cold:
► put in items for refrigeration goods.
► Repeat cleaning regularly.
► Clean and remove dust from the refrigeration unit with
heat exchanger once a year.
9 Customer help
9.1 Technical specifications
Temperature range
Refrigeration +2°C to +9°C
Maximum load per shelf
A)
Appliance width 550mm 600mm 750mm
Grid shelves -- 45 kg 60 kg
Glass shelf 40 kg 40 kg 40 kg
Drawer (freezer appliances) 15 kg 15 kg 15 kg
A)
Heavier loads may result in a slight bending of the
shelves.
Net capacity
See net capacity on the type plate. (see 2.2 Overview of
appliances and equipment)
Lighting*
Energy efficiency class
A)
*
Light source*
This product contains one or more energy
efficiency class F light sources
LED
A)
The appliance may contain light sources with different
energy efficiency classes. The lowest energy efficiency
class is indicated.
9.2 Technical fault
Your appliance is designed and built to ensure it works reli‐
ably and has a long service life. In the unlikely event that
a fault occurs during operation, please check whether the
fault is due to an operating error. If this is the case, you will
be charged for the cost incurred even if this falls within the
warranty period.
You can fix the following faults yourself.
9.2.1 Appliance function
Defect
Cause Remedy
The appliance is
not working.
→ The appliance is not switched on. ► Switch on the appliance.
→ The mains plug is not properly
plugged into the socket.
► Check the mains plug.
→ There is something wrong with the
fuse in the socket.
► Check fuse.
→ Power cut ► Keep the appliance closed.
Temperature is not
cold enough.
→ The appliance door is not closed
properly.
► Close appliance door.
→ Ventilation is not sufficient. ► Clear ventilation grille and clean it.
→ The ambient temperature is too
high.
► Ensure the correct ambient conditions: (see2.4 Range of
use of appliance)
→ The appliance was opened too
many times or for too long.
► Wait to see if the appliance goes back to the required
temperature by itself. If not, contact Customer Service.
(see 9.3 Customer Service)
→ The temperature is set incorrectly. ► Set a colder temperature and check after 24 hours.
Customer help
* Depending on model and options 17
Defect Cause Remedy
→ The appliance is too close to a heat
source (oven, radiator, etc).
► Change where the appliance or the heat source are
located.
9.3 Customer Service
First check whether you can remedy the fault yourself . If
this is not the case, please contact Customer Service.
You can find the address in the enclosed brochure “Liebherr-
Service” or at home.liebherr.com/service.
WARNING
Unprofessional repair!
Injuries.
► Have any repairs and action - not expressly specified -
on the appliance and mains cable carried out by service
personnel only. (see8 Maintenance)
► A damaged mains cable may only be replaced by the
manufacturer, the manufacturer’s Customer Service or a
similarly qualified person.
► In the case of appliances with an IEC connector, the
change may be made by the customer.
9.3.1 Contacting Customer Service
Make sure you have the following appliance data at the
ready:
❑
Appliance name (model and index)
❑
Service no. (Service)
❑
Serial no. (S no.)
► Access the appliance information via the display .
-or-
► Refer to the type plate for appliance information.
(see 9.4 Type plate)
► Note down appliance information.
► Inform Customer Service: Report faults and the appliance
information.
▷ This will help us to provide a fast and focussed service.
► Follow any further instructions provided by Customer
Service.
9.4 Type plate
The type plate is inside the appliance. See appliance over‐
view.
Fig.48
(1)
Appliance designation (3) Serial No.
(2) Service No.
10 Shutting down
► Empty the appliance.
► Switch off the appliance.
► Pull the mains plug out of the socket.
► Clean appliance (see8.2Cleaning the appliance) .
►
If present: Remove the covers and insulation from the
sensor feed-through to prevent mould forming.
► Leave the door open so that no bad odours form.
Note
Damage to the appliance and malfunctions!
► After shutting down, only store the appliance at the
permitted room temperature of between -10 °C and
+50°C.
11 Disposal
11.1 Preparing appliance for disposal
Liebherr uses batteries in some of its appli‐
ances. In the EU, for environmental reasons,
legislation obliges the end user to remove
these batteries before disposing of old appli‐
ances. If your appliance contains batteries, a
corresponding notice is attached.
Lamps If you can remove the lamps yourself without
destroying them, also remove these before
disposal.
► Take the appliance out of operation.
► If possible: remove lamps without destroying them.
11.2 Disposing of the appliance in an
environmentally friendly manner
The appliance still contains
valuable materials and must
be disposed of separately from
unsorted municipal waste.
Dispose of batteries separately
from the old appliance. To do
this, you can return the batteries
free of charge to retailers as
well as recycling centres and
collection centres for recyclable
materials.
Lamps Dispose of removed lamps
via the respective collection
systems.
For Germany: You can dispose of the appli‐
ance free of charge via the
class 1 collection containers
at the local recycling and
recyclable material collection
centres. When purchasing a new
fridge/freezer, if the sales area
> 400 m
2
, retailers will also take
back the old appliance free of
charge.
Shutting down
18 * Depending on model and options
WARNING
Leaking coolant and oil!
Fire. The coolant contained in the appliance is eco-friendly,
but also flammable. The oil contained in the appliance
is flammable. Escaping coolant and oil can ignite if the
concentration is high enough and in contact with an
external heat source.
► Do not damage the pipelines of the coolant circuit and
the compressor.
► Observe the notes on transporting the appliance.
► Transport the appliance without damaging it.
► Dispose of batteries, lamps and the appliance according
to the above specifications.
12 Additional information
Further information on warranty conditions can be found in
the enclosed service brochure or on the Internet at https://
home.liebherr.com.
Additional information
* Depending on model and options 19
home.liebherr.com/fridge-manuals
Counter beverage cooler
ORIGINAL OPERATOR'S MANUAL
Issue date: 20251007
Part number index: 7085827-00
Liebherr-Hausgeräte Ochsenhausen GmbH
Memminger Straße 77-79
88416Ochsenhausen
Deutschland
