INVERTER GENERATOR
USER'S MANUAL
R
GM8500iAED
Portable Dual Fuel Generator
8500/6500 7200/5850
UNPACKING
Always have assistance when lifting
the generator. The generator is heavy;
lifting it could cause bodily harm.
Avoid cutting on or near staples to
prevent personal injury.
Tools required - box cutter or similar device.
1. Carefully cut the packing tape on top of the carton.
2. Remove socket wrench, and oil funnel and save for
later.
3. Carefully cut two sides of the carton to remove the
generator.
DISCLAIMERS:
All information, illustrations and specifications in this manual are based on the latest information available at the
time of publishing. The illustrations used in this manual are intended as representative reference views only.
Moreover, because of our continuous product improvement policy, we may modify information, illustrations and/or
specifications to explain and/or exemplify a product, service or maintenance improvement. We reserve the right to
make any change at any time without notice. Some images may vary depending upon which model is shown.
ALL RIGHTS RESERVED:
No part of this publication may be reproduced or used in any form by any means - graphic, electronic or
mechanical, including photocopying, recording, taping or information storage and retrieval systems - without the
written permission of CHONGQING DINKING POWER MACHINERY CO., LTD
This manual contains important instructions for operating this inverter generator. For your
safety and the safety of others, be sure to read this manual thoroughly before operating the
generator. Failure to properly follow all instructions and precautions can cause you and others
to be seriously hurt or killed.
1
WHAT COMES IN THE BOX
Spark Plug Socket Wrench (1)
Dual-Purpose Screwdriver (1)
User Manual (1)
Warranty Information (1)
Funnel (1)
Remote Control Key (1)
LPG Hose (1)
Battery Charger (1)
Engine Oil (1)

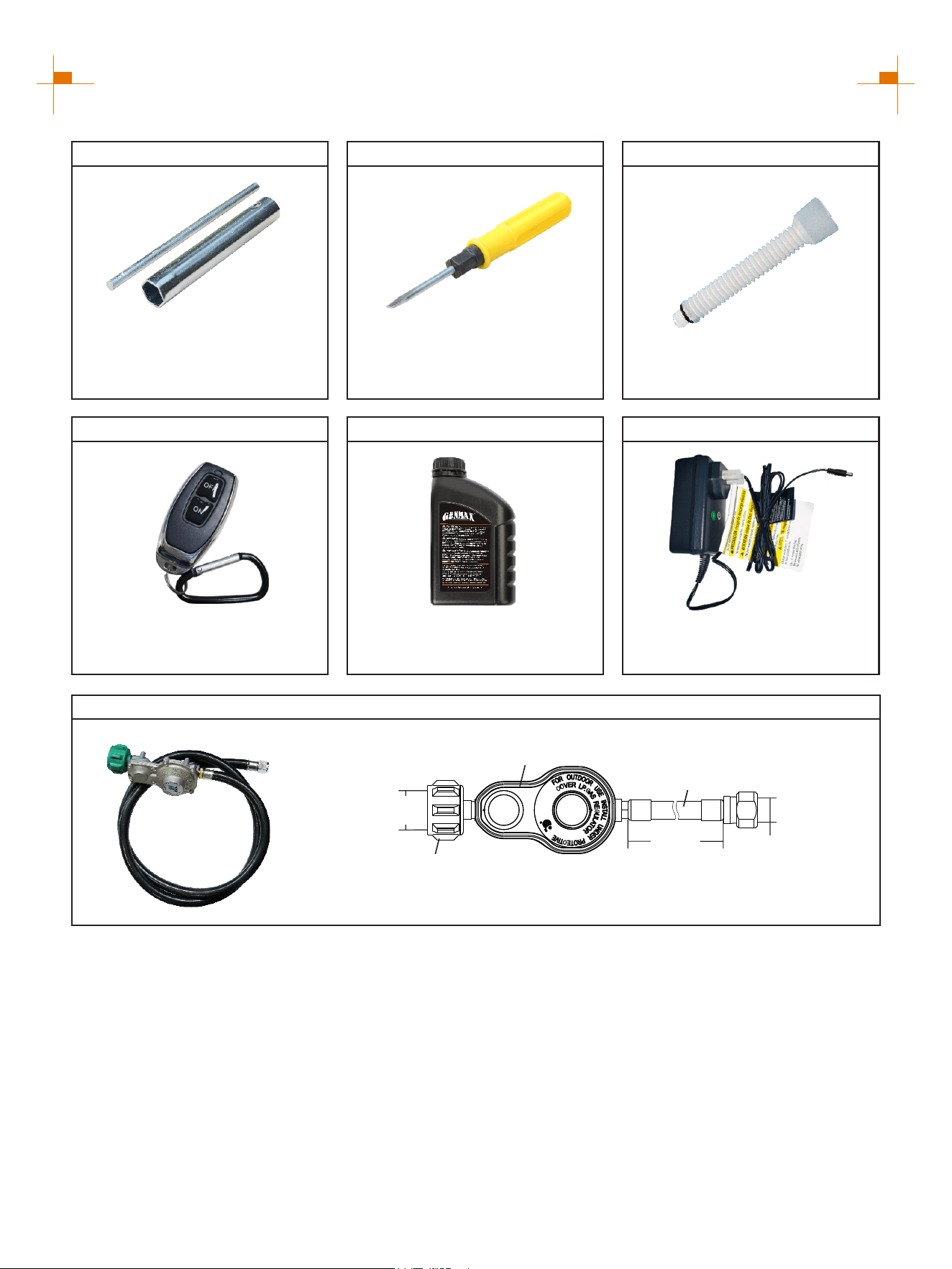

DESCRIPTION OF FITTINGS
Spark Plug Socket Wrench
Used in spark plug maintenance,
inspection, and installation.
Phillips and slot blade
screwdriver used for generator
maintenance.
Dual-Purpose Screwdriver Funnel
It's used to oil the generator.
LPG Hose
1485 mm
Hose length
1.312"-5ACME
Inside Diameter
LPG Hose
Pressure 1psi
First Stage Reducing Valve
Gas Cylinder Joint
5/8"-18UNF
Inside Diameter
Connect the LPG tank to transmit LPG fuel to the generator.
Note: Actual tools may differ in appearance or design from image shown.
Remote Control Key
Used to remotely start and stop
the generator.
Engine Oil
Be sure to add oil before starting
the generator.
2

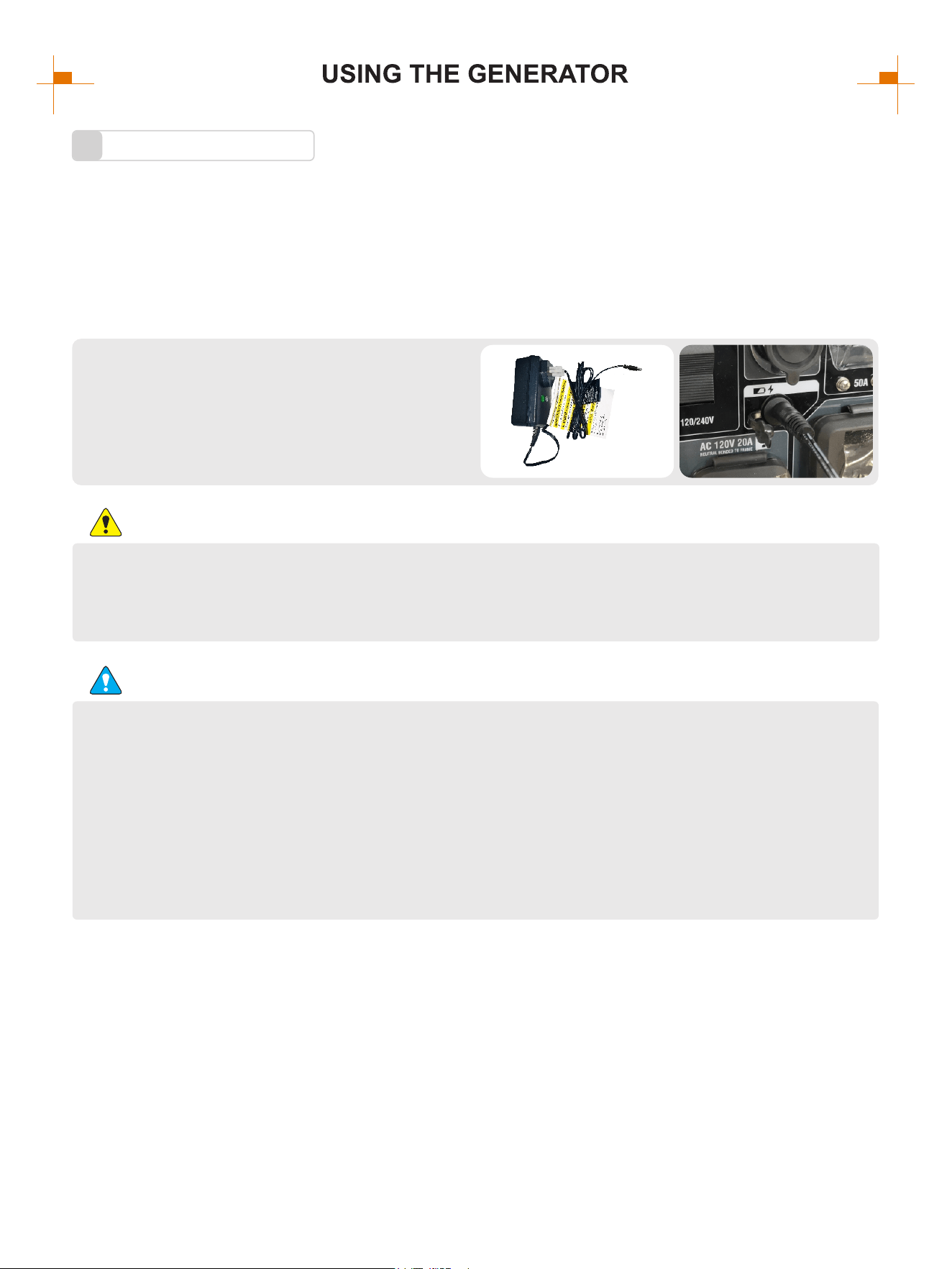

Battery Charger
Used to charge the battery
when in storage.

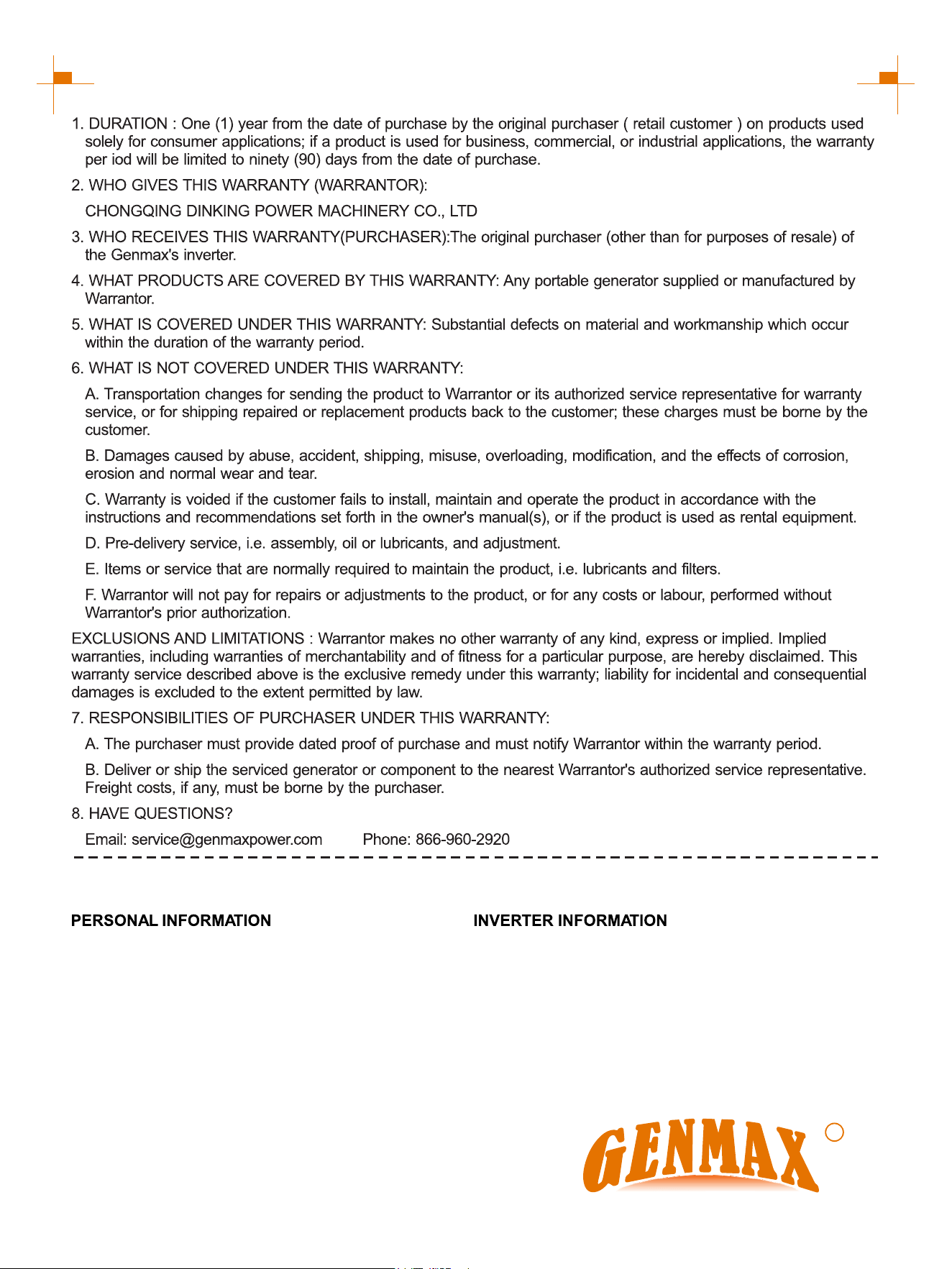

LIMITED WARRANTY
Model Number: _____________________________________
Name: ___________________________________________
Serial Number: ______________________________________
Street Address: ___________________________________
Date Purchased: ____________________________________
Purchased From: ____________________________________
City, State, ZIP: ____________________________________
Country: __________________________________________
Phone Number: ___________________________________
E-Mail: ___________________________________________
WARRANTY CARD
R
3

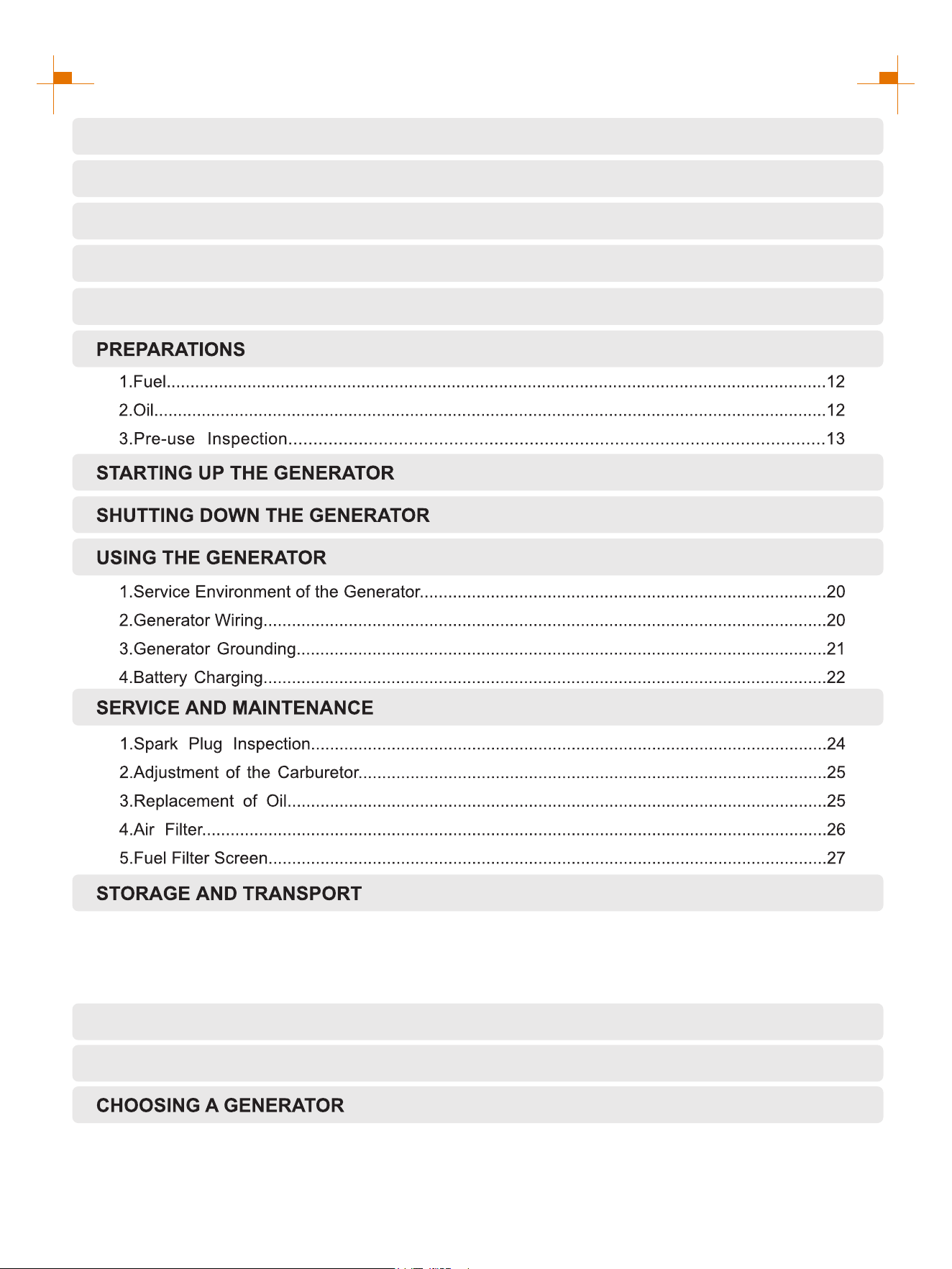

TABLE OF CONTENTS
LIMITED WARRANTY
3
SAFETY WARNING
5
SAFETY INSTRUCTIONS
6
NAMES OF COMPONENTS
8
CONTROL FUNCTIONS
9
12
14
19
20
23
28

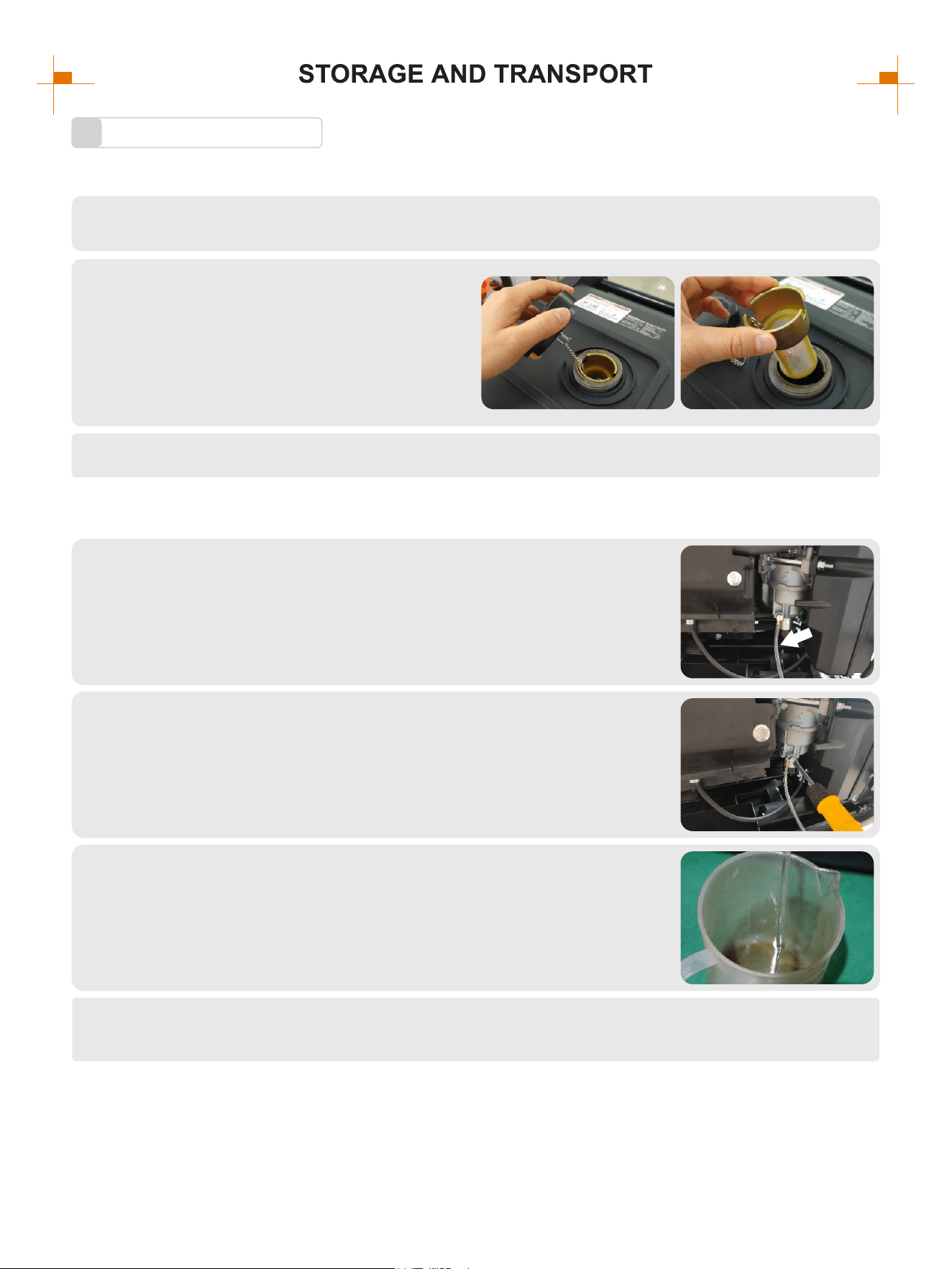

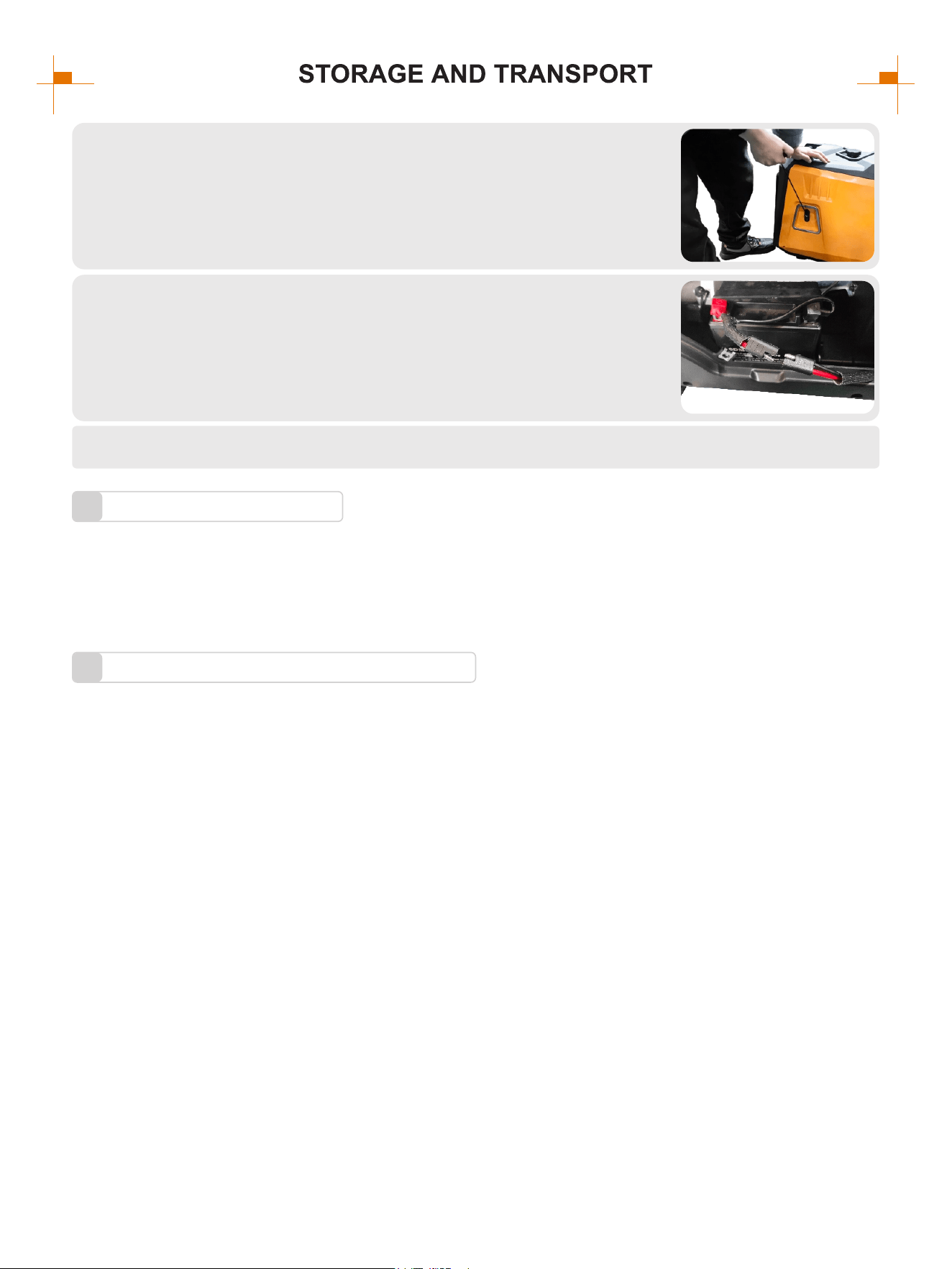

1.Generator Storage....................................................................................................................28
2.Generator Transport..................................................................................................................29
3.Preparation for Use After Storage.............................................................................................29

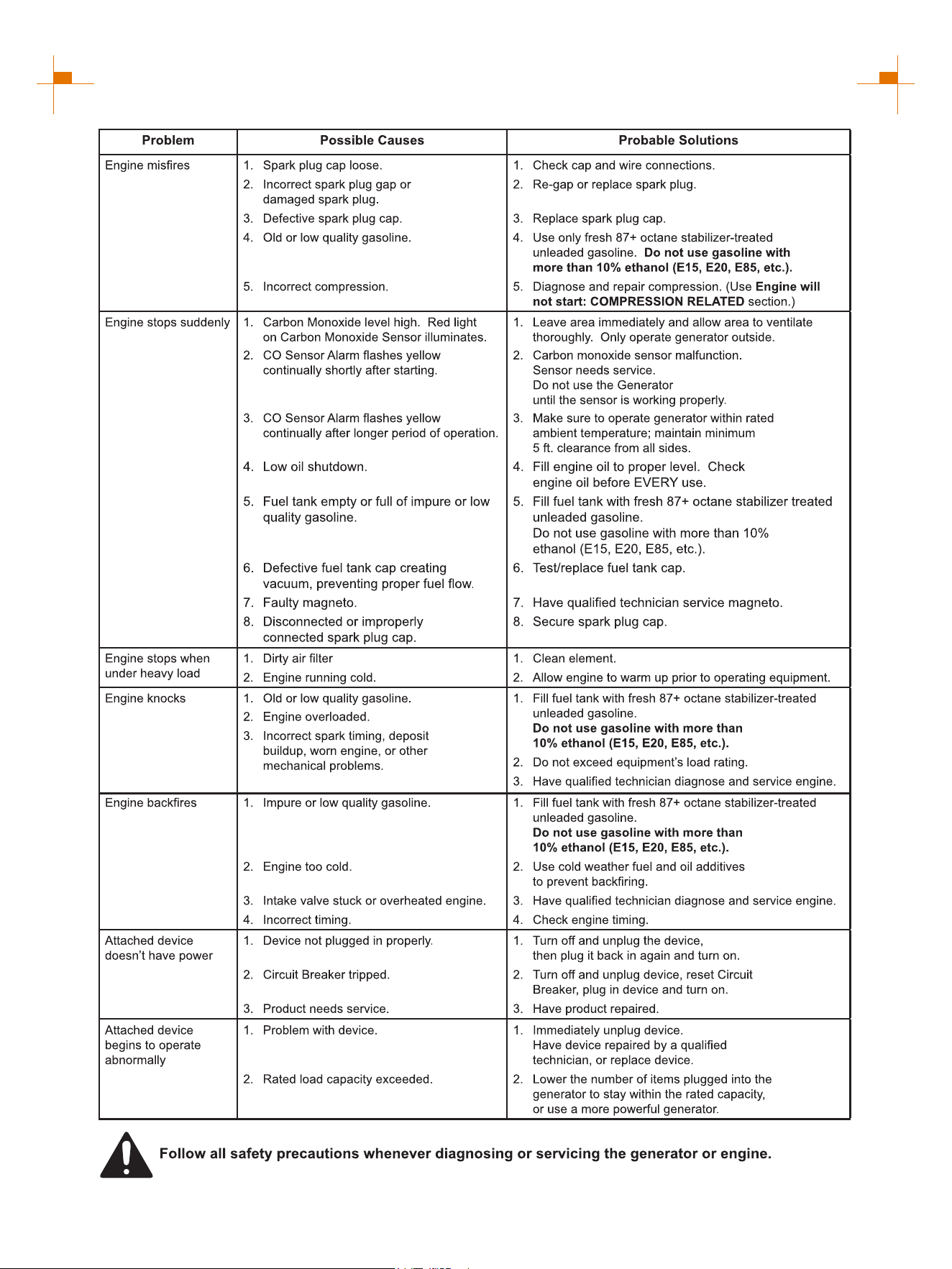

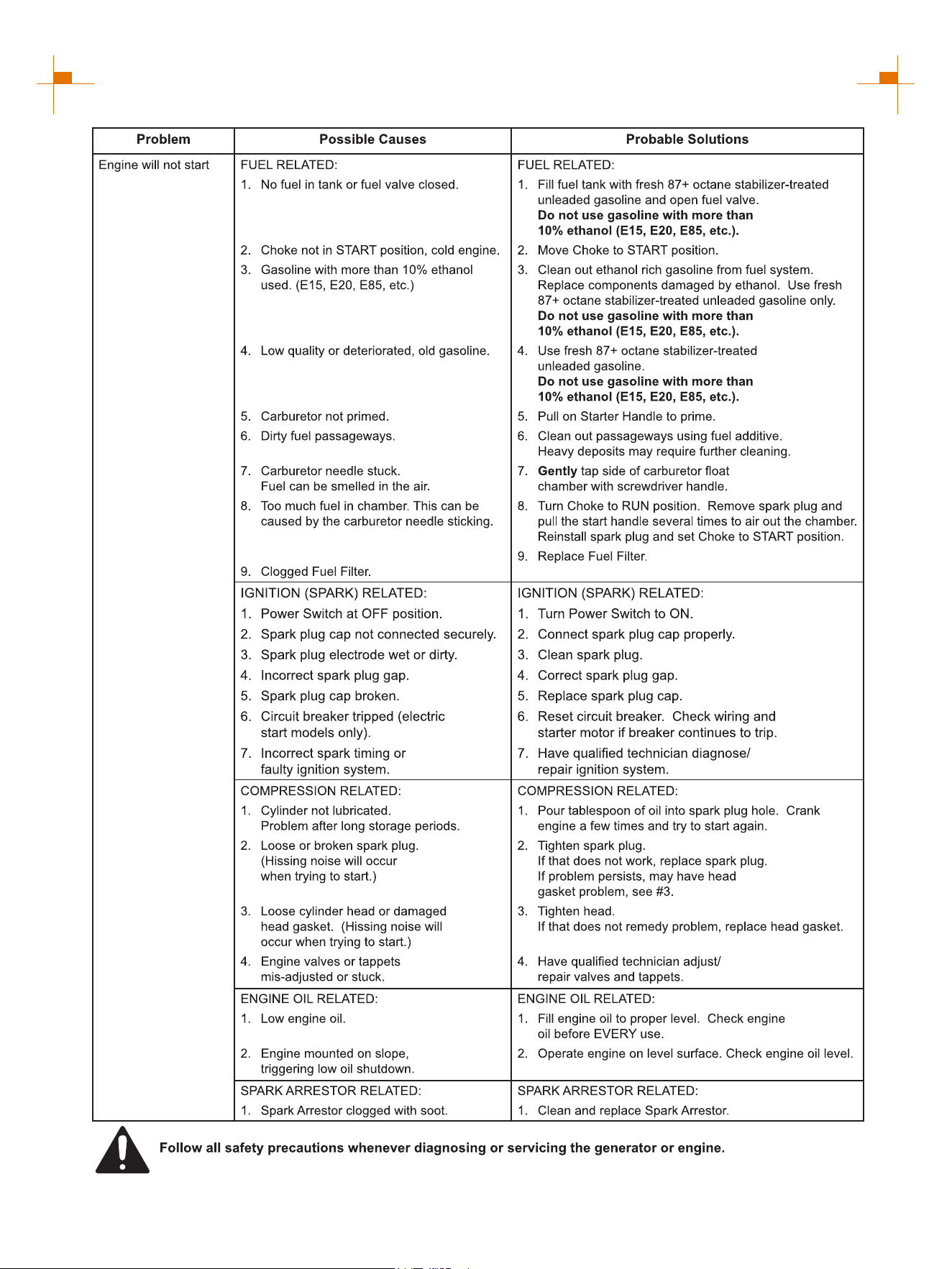

TROUBLESHOOTING
30
TECHNICAL PARAMETERS
32
33
4

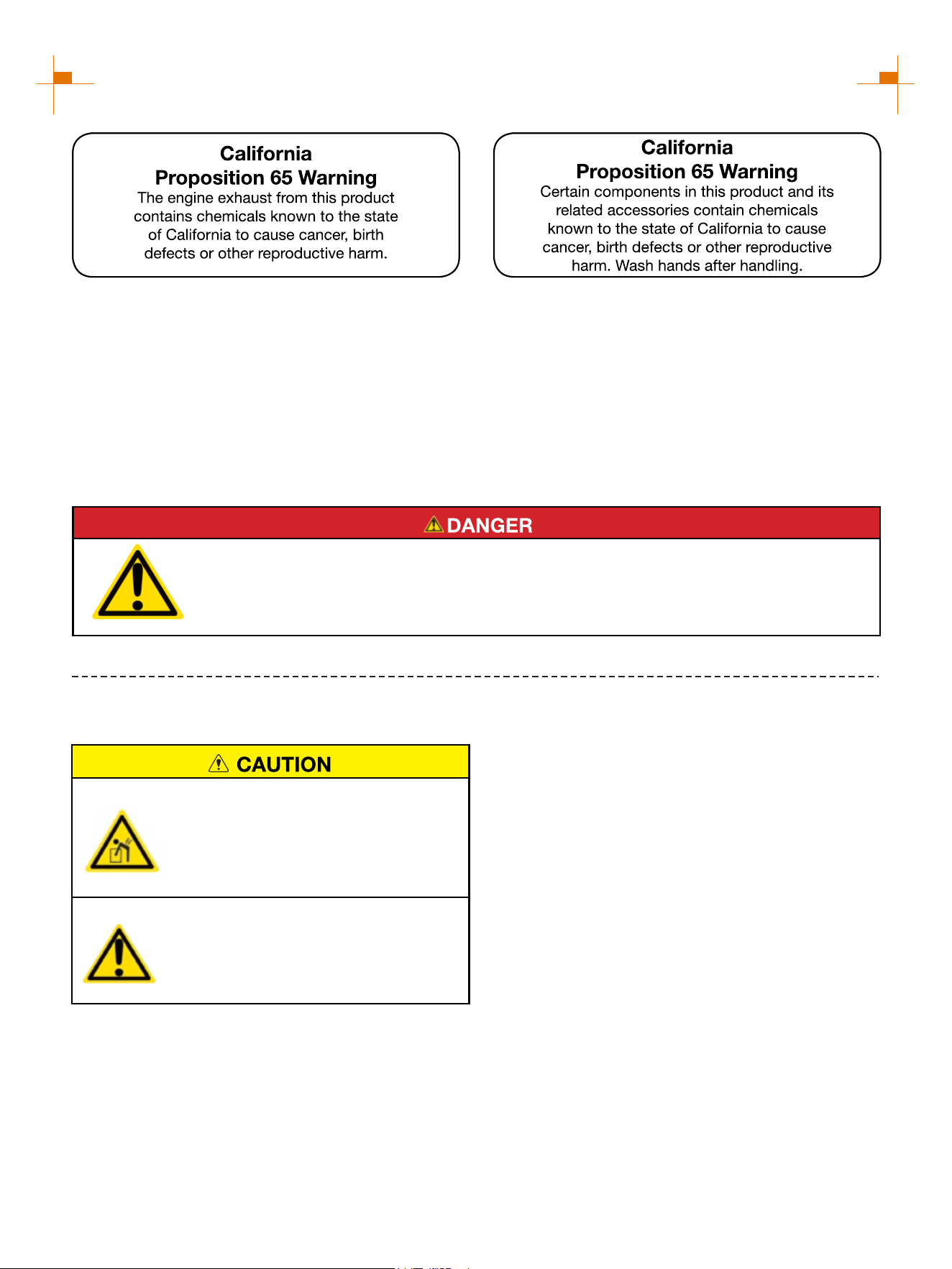

Failure to follow the instruction will result in being
in peril of your life or extremely serious injury.
Failure to follow the instruction will result in being
in peril of your life or very serious injury.
Failure to follow the instruction will result in minor
injury.
Failure to follow the instruction will result in the
damage to your generator set and other properties.
For portable generators where the neutral is floating, the operator's manual shall include the following wording or
equivalent:
The portable generator stator winding is isolated from the frame and from the AC receptacle ground pin; and
Electrical devices that require a connection between one conductor pin and the grounded receptacle pin may not
function properly.
CO TECHNICAL WARNING
5

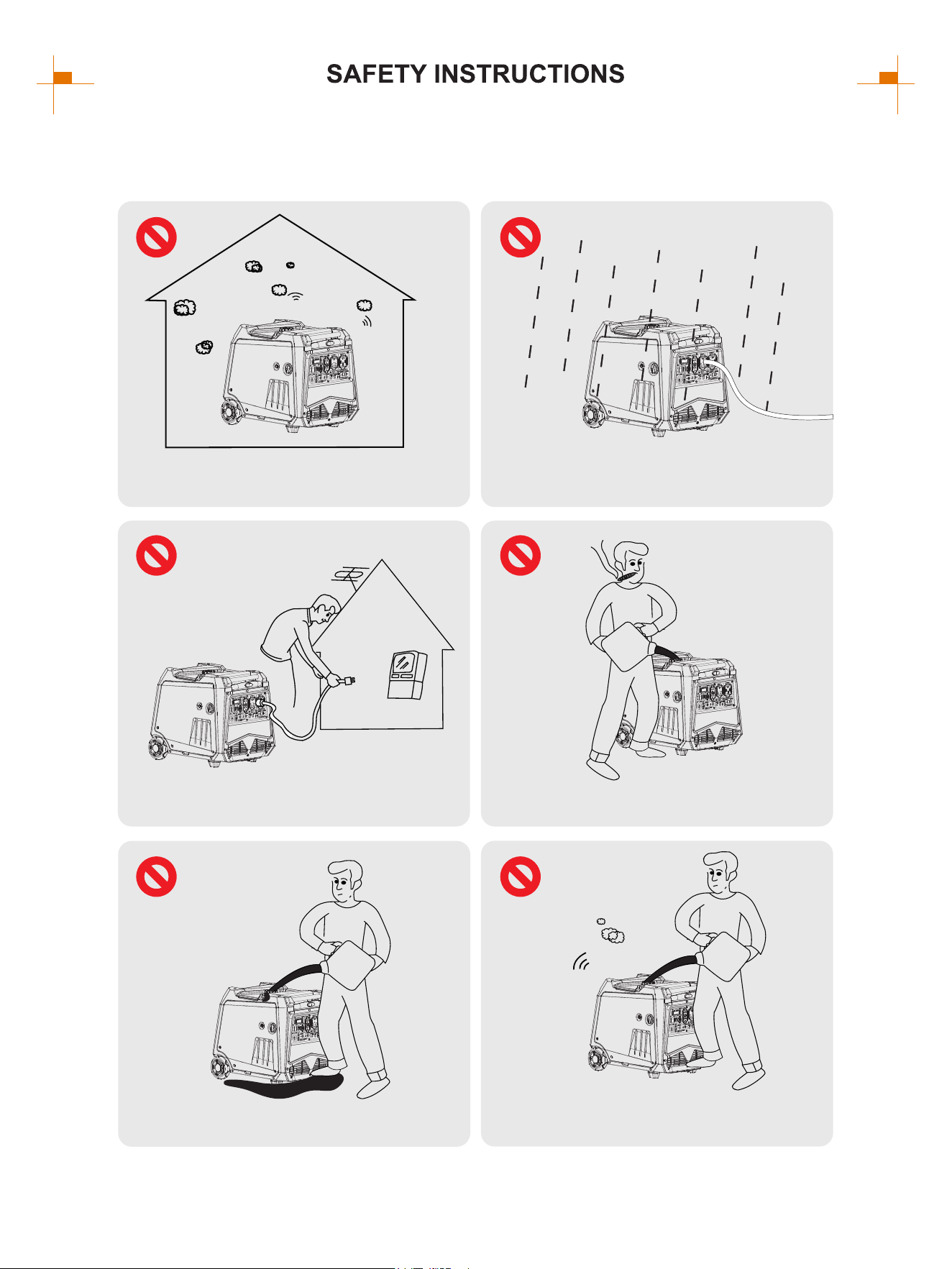

Before operating the generator, it will help you avoid accidents to read and understand the Manual and
familiarize yourself with the safe operation procedures of the generator.
Please do not use indoors
Please do not use in humid
environment
Please do not smoke when refueling
Please do not spill when refueling
Please shut down the generator
before refueling

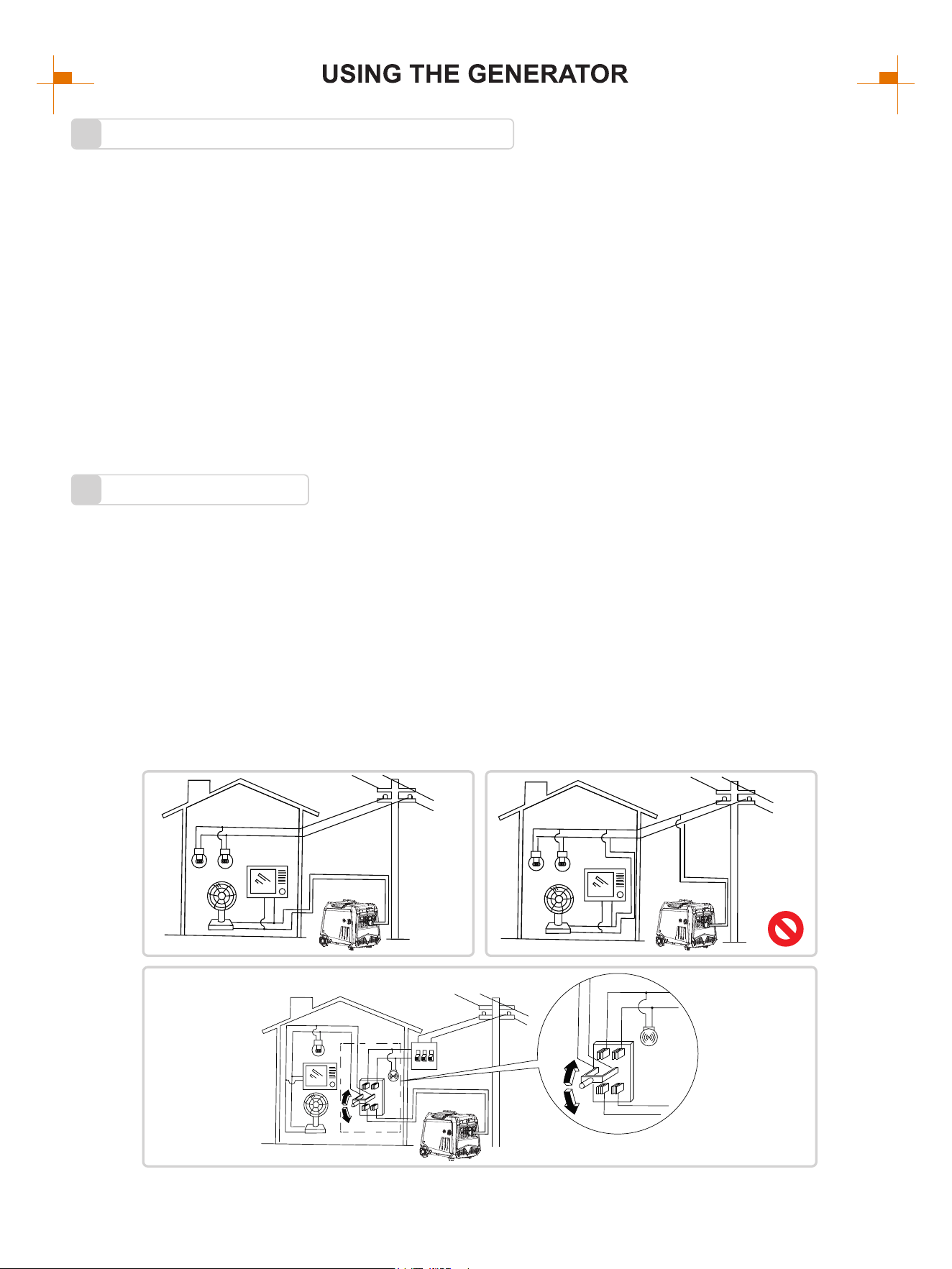

Do not directly connect to the
household power supply system
6

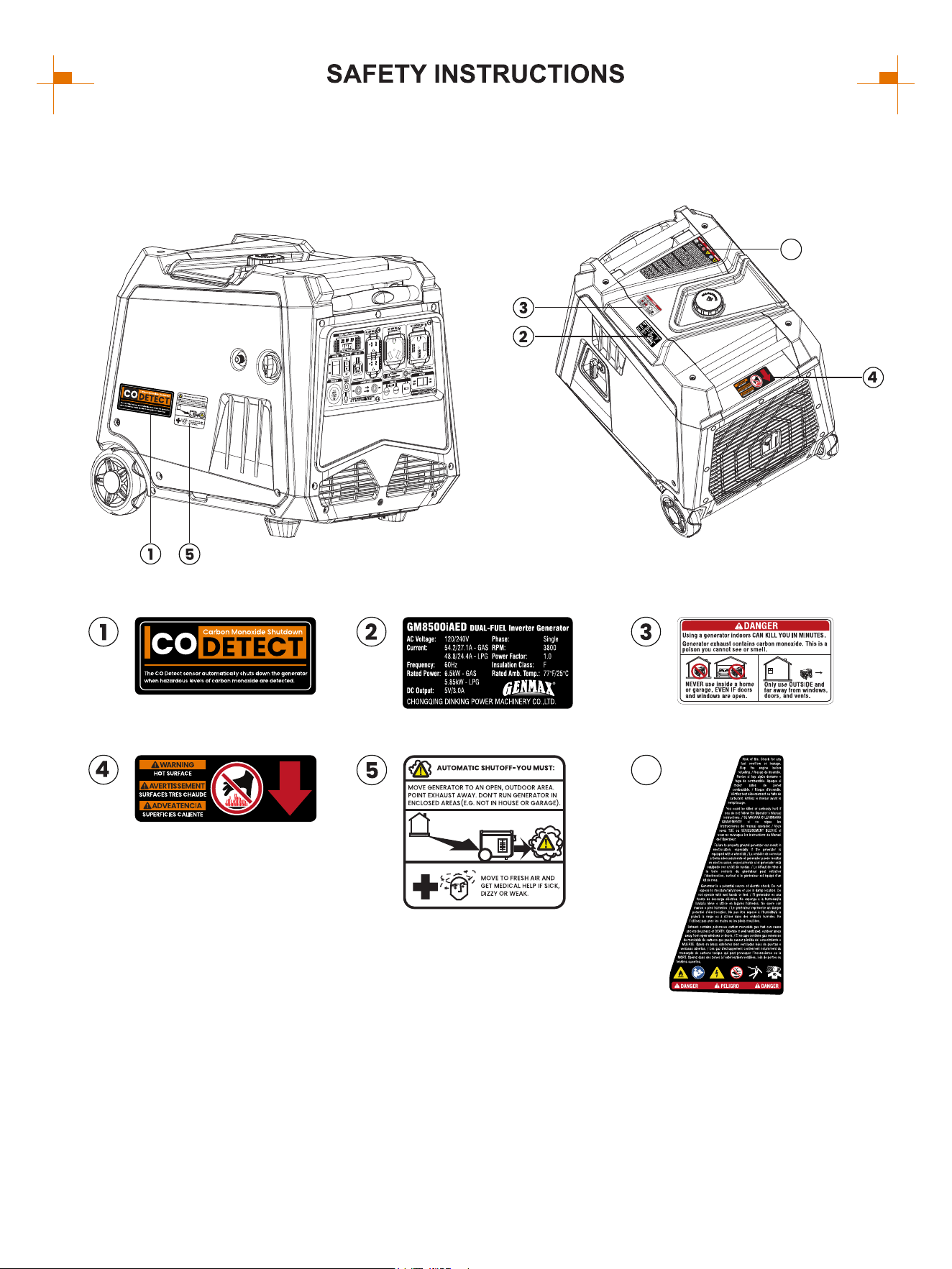

SAFETY LABELS AND DECALS
6
6
7

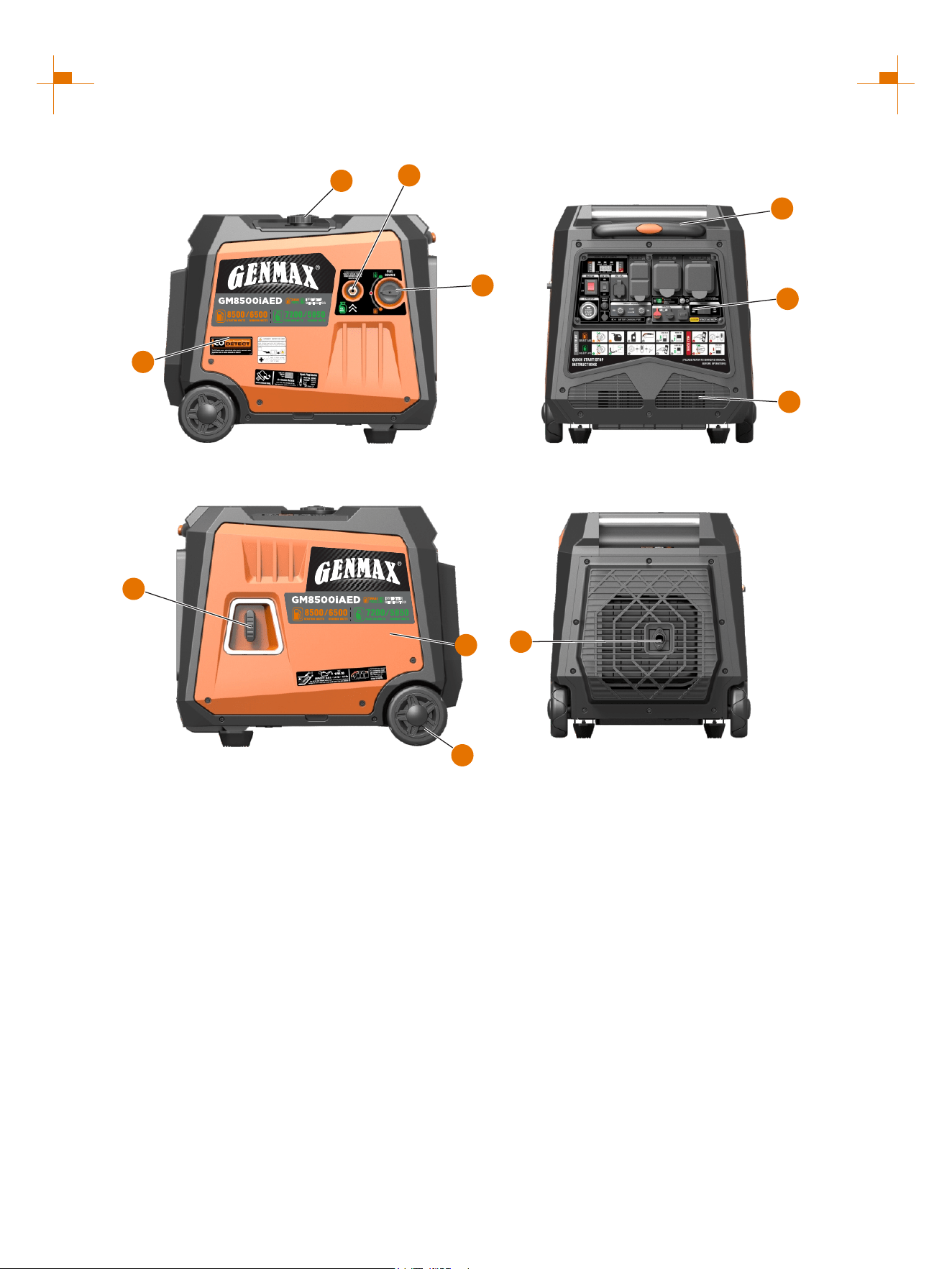

NAMES OF COMPONENTS
① Fuel Tank Cap: Open the fuel tank cap and fill with
proper amount of gasoline.
② Recoil Handle: Pull to start the engine.
③ Telescopic Rod
④ Left Outer Cover: Unscrew the bolt, remove the
outer cover, connect the battery wire, maintain the
air filter and replace the spark plug.
⑤ Control Panel: Contains the reset breaker, outlets
and warning lights.
⑥ Engine Cooling Vents: Helps move airflow in unit
to regulate engine temperatures.
⑦ Right Outer Cover: Unscrew the bolt, remove the
outer cover, refuel or change the oil.
⑧ Muffler: Avoid contact until the engine is cooled
down. The spark arrestor prevents sparks from exiting
the muffler. It must be removed for servicing.
⑨ Wheel
⑩ LPG Inlet: Connects the LPG inlet to the LPG
hose/regulator.
⑪ Fuel Source: GAS/LPG valve that changes the
fuel into the engine.
1
9
4
2
7
3
5
6
8
10
11
8

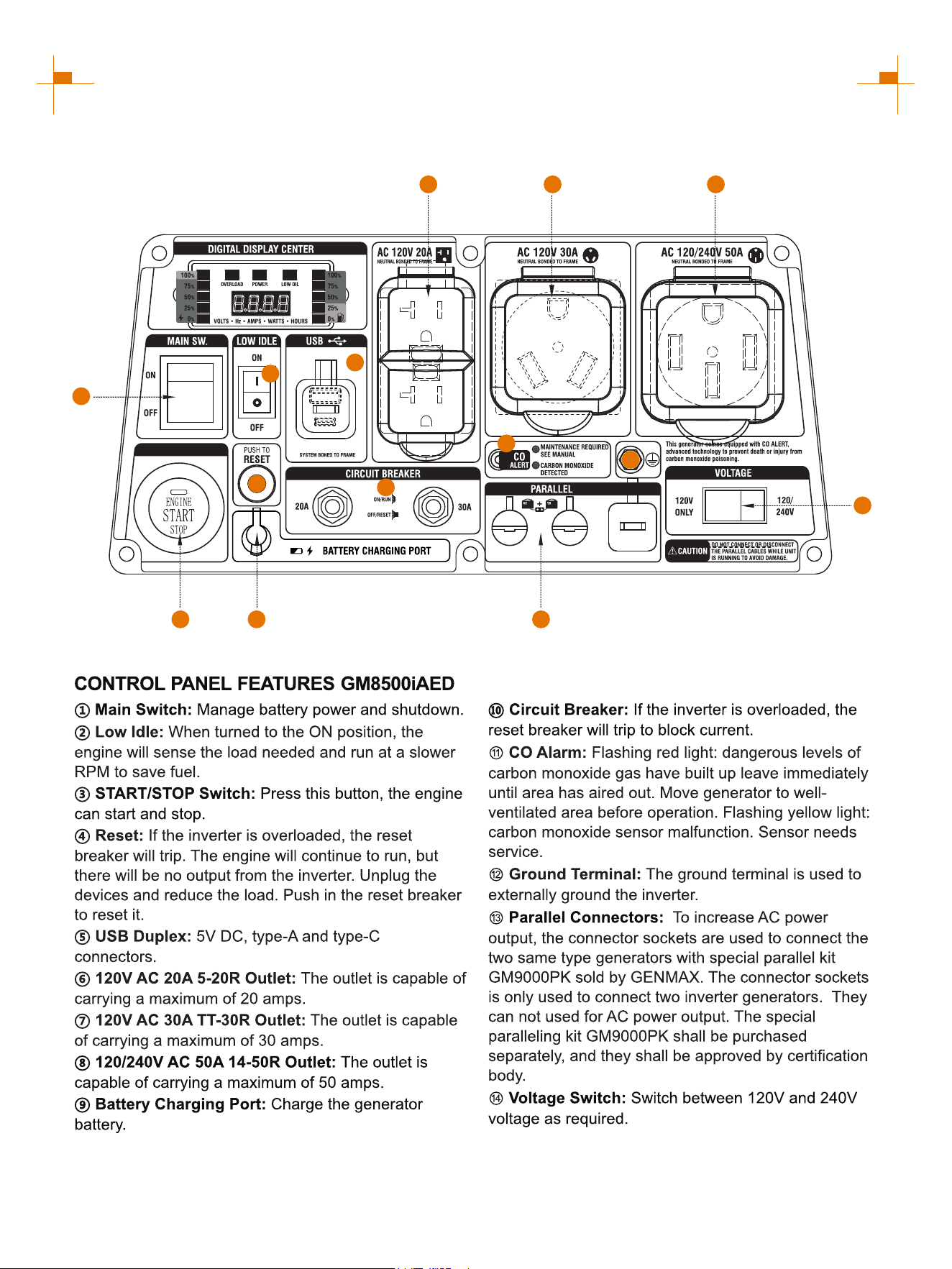

CONTROL FUNCTIONS
6 7 8
13
93
1
4
5
2
10
11
12
14
9
START/STOP
10

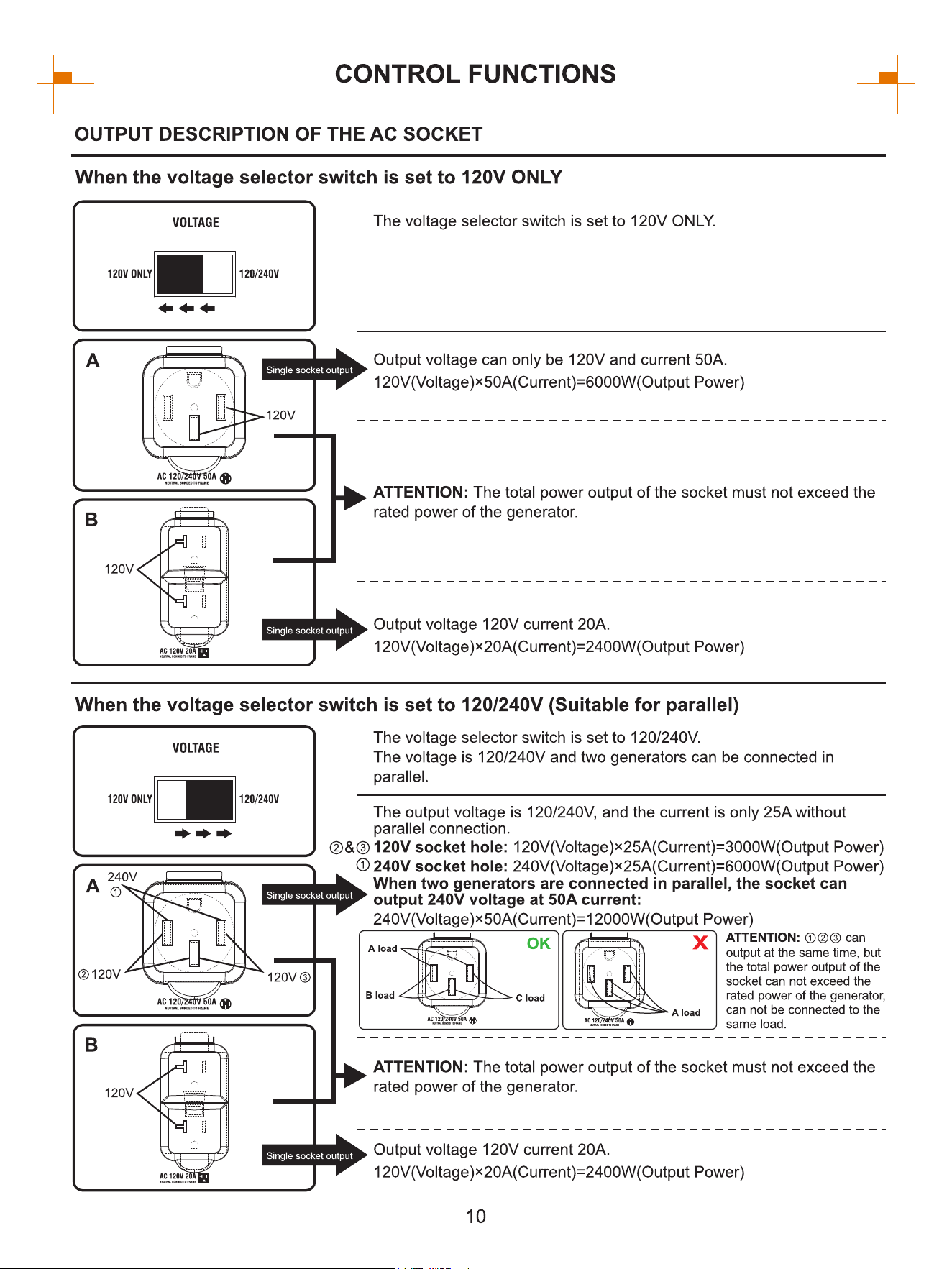

CONTROL FUNCTIONS

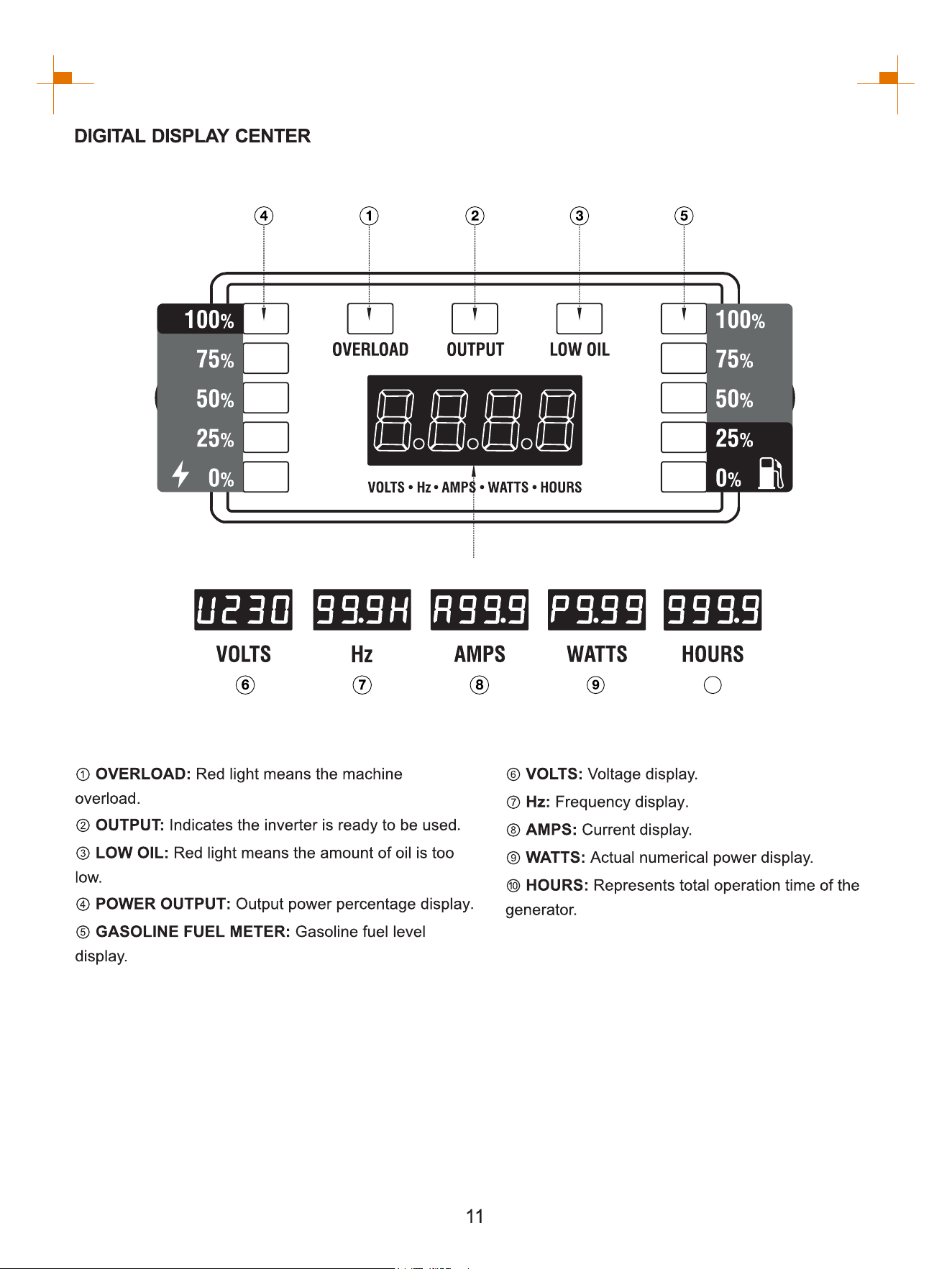

AUTOMATIC ROTATING DIGITAL DISPLAY(scroll once every 5 s)
10

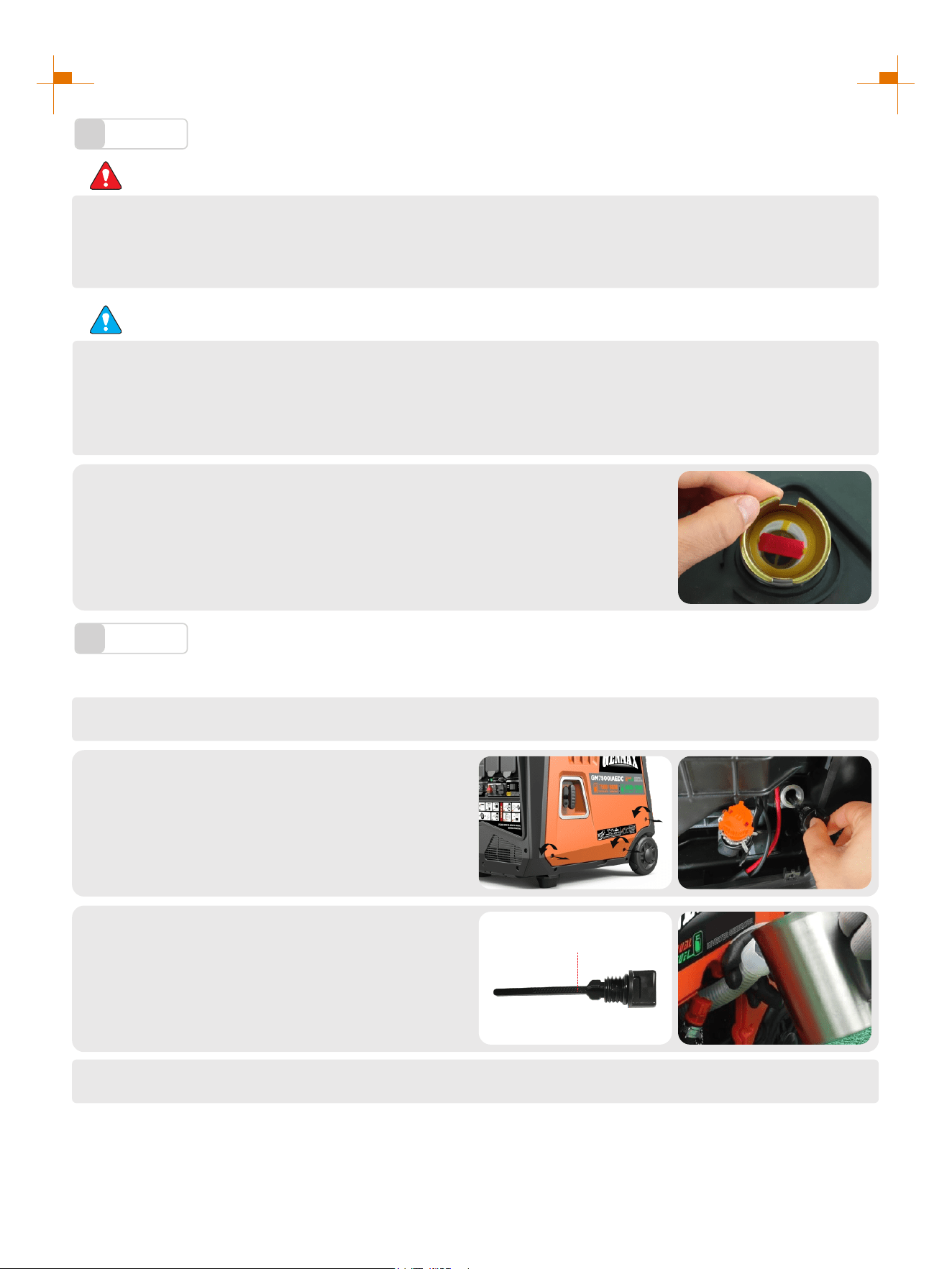

PREPARATIONS
Fuel
1
DANGER
• Fuel is flammable and toxic, please read the Safety Instruction carefully before refueling;
• Do not fuel too full, otherwise fuel will spill after fuel tank is warmed;
• After refueling, confirm that the fuel tank cap has been tightened.
ATTENTION
• After refueling, dry gasoline residue with a clean and soft cloth in time to avoid damaging plastic
enclosure;
• Unleaded gasoline must be used, as leaded gasoline can seriously damage internal parts of the
generator;
Remove fuel tank cap, and add gasoline to red horizontal indicating line oil level.
Fuel tank capacity: 3.3gal(12.5L)
Oil
2
No oil is filled into this generator when being delivered. Do not start up the generator without filling sufficient oil.
Please place the generator onto a horizontal plane surface;
1.
Loosen the two bolts on the right panel cover
and remove the left panel cover. Unscrew oil
dipstick;
2.
Fill in 0.21gal(0.8L) oil (SAE 10W/30 oil is
recommended, of which the grade is API
standard Type SE or higher);
3.
Oil to the appropriate position, tighten the dipstick, cover the right exterior cover, and tighten the bolts.
4.
Don't go over the scale
12
PREPARATIONS
Pre-use Inspection
3
WARNING
Even if the generator is not in service, its important component may suddenly fails. Before the
generator is started up, if any of following components is unable to work properly, please inspect
and repair carefully.
Tip: The condition of the generator shall be inspected before using every time.
Pre-operation inspection
Project Possible Causes Probable Solutions
Fuel Check fuel level in fuel tank of the generator. Add fuel if necessary.
Oil
Check oil level of the generator. Add oil if necessary.
Check whether there is oil leaking.
Abnormal
conditions
during
operation
Check operating condition of the generator.
If there is any need, please do not hesitate to
consult your dealer.
Battery
Check whether the battery is full. See the “Battery Charging” page.
13
Press the LOW IDLE Switch to "OFF";
4.
Remove the load from all output ends;
1.

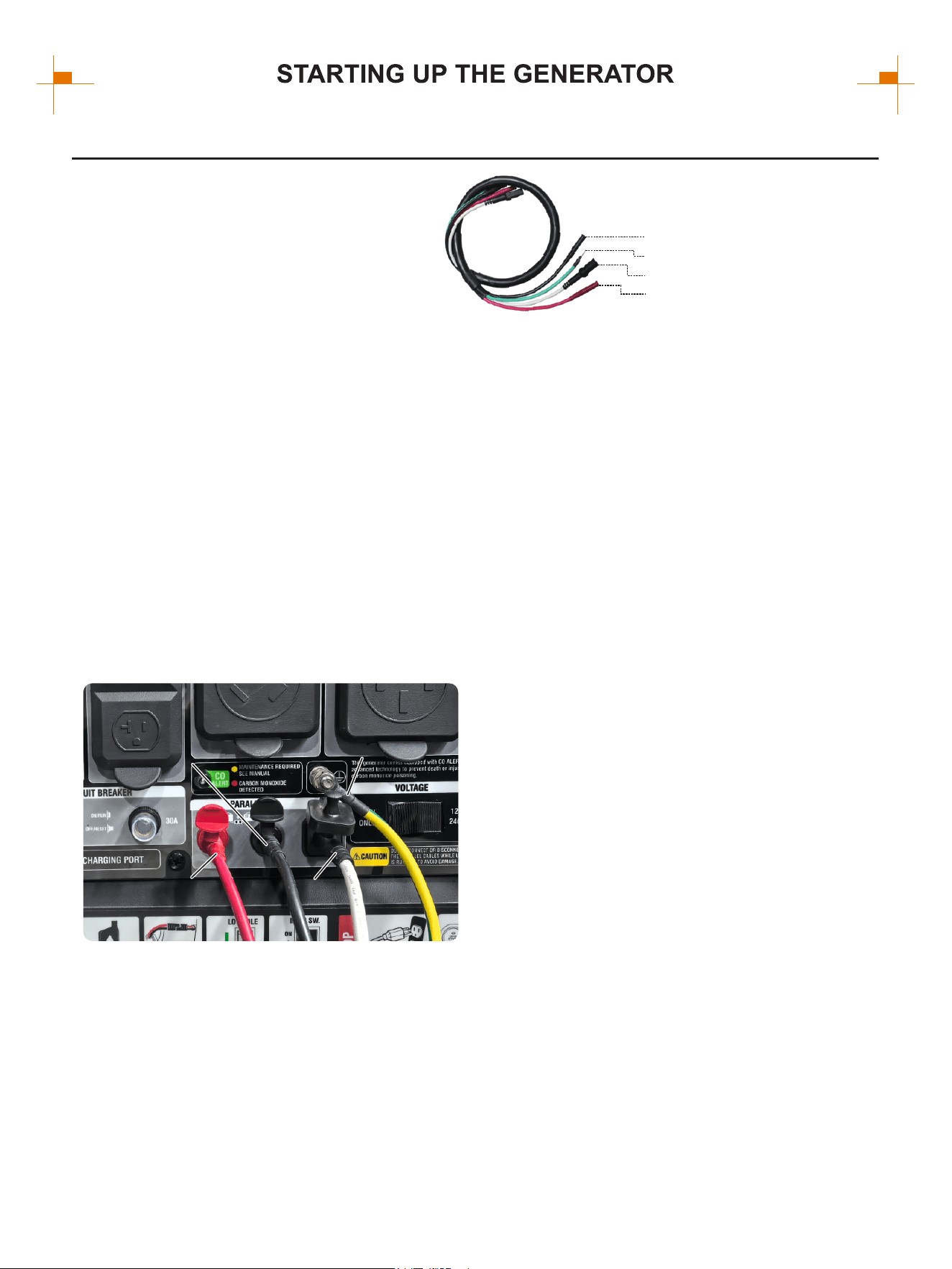

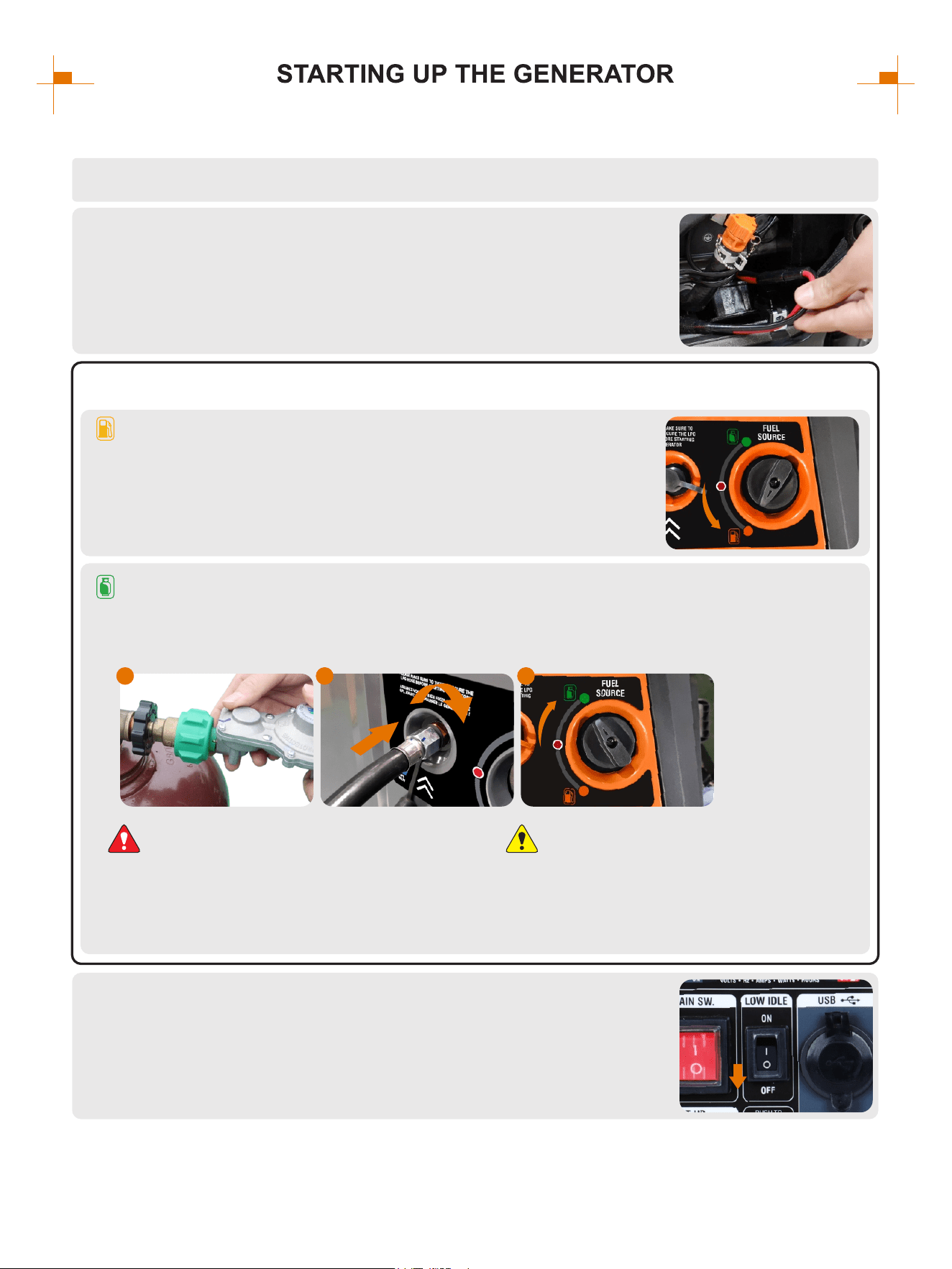

Connect battery line before first use:
1. Loosen the two bolts on the panel cover and remove the right outer cover;
2. A quick-connect battery plug is pre-installed on the battery. Remove the
cable tie securing the plugs, align colors, then push firmly to connect them.
2.
a. Gasoline: Turn the Fuel Source Switch to gasoline.
3.
b. LPG:
1. Connect the LPG hose to the LPG tank;
2. Tighten the other end of the LPG hose to the generator intake;
3. Turn the Fuel Source Switch to LPG.
Select the Fuel:
1 2 3
DANGER
Fire and explosion hazard. Always turn the propane
tank valve to the fully closed position if not running
the generator on propane.
WARNING
When using the generator with propane, make
sure there is no possible ignition source close to
the generator.
14
6.
Plug in after started.
7.
Remote Control Pairing
1. Long press the start button for more than 5 seconds until the button red indicator is on;
2. Press any key on the remote control;
3. The red indicator of the start button will blink two or three times and then turns off, Remote start pairing is
successful.
a
b
c
1 2
3.1 3.2
TIP
Remote Control Key Dormancy
When generator stops running for 5 days (120hours), while the main switch is not turned off, the remote
control key cannot be used to start the generator again. At this time, you need to turn off the main switch
and turn it on again, or press the one-key start button (or hand start) to start the generator, and the remote
control key will be reactivated.
Tip
● If the next step is not taken within 5 seconds, the key pairing will exit.
● The remote control delivered with the generator has been paired successfully.

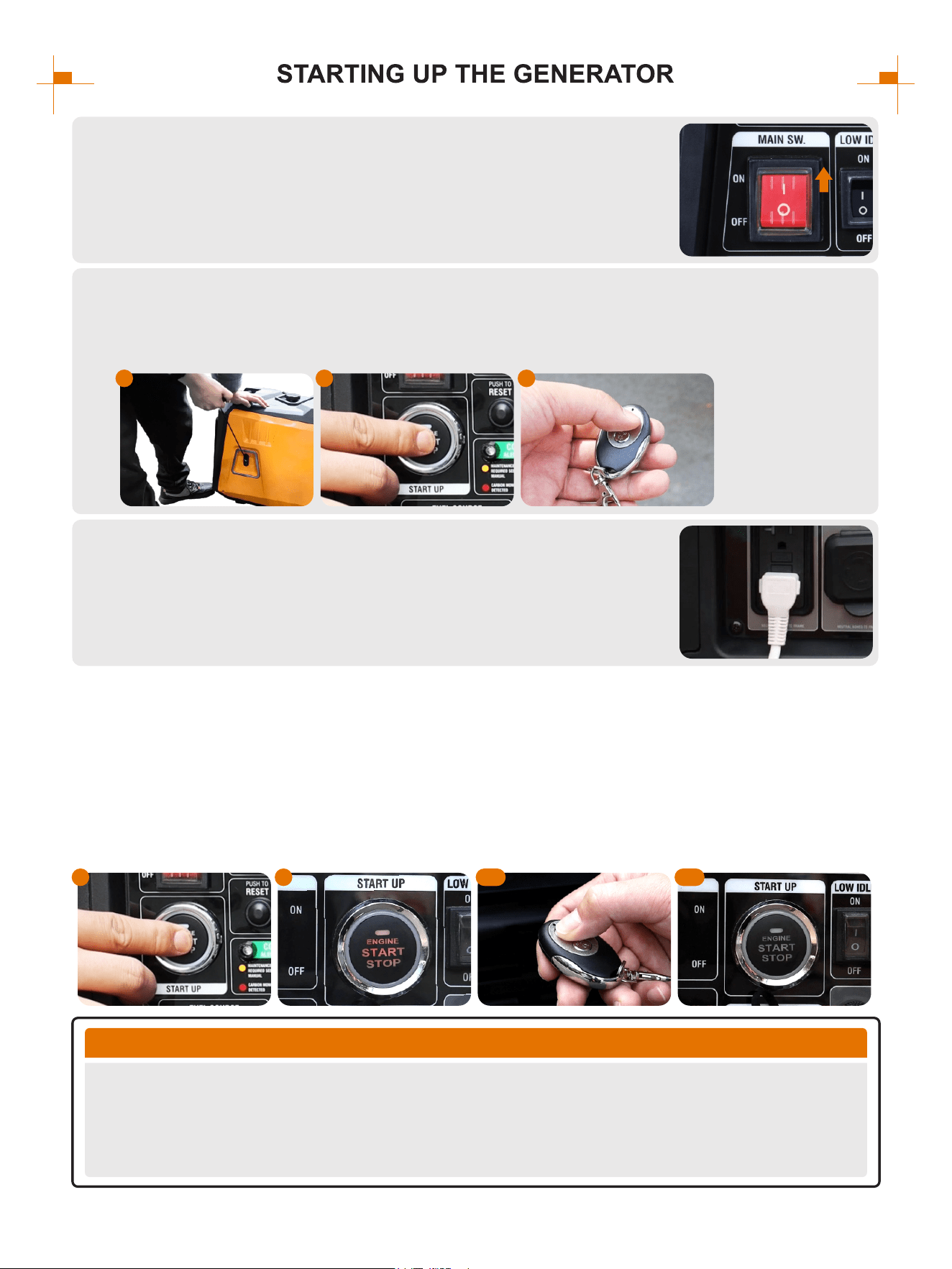

Select Boot Mode:
a. Recoil Start: Pull the starting handle to start the generator.
b. Button Start: Press the button to start the generator.
c. Remote Start: Press the "START" button on the remote control to start the generator.
Press the Main Switch to "ON";
5.
15

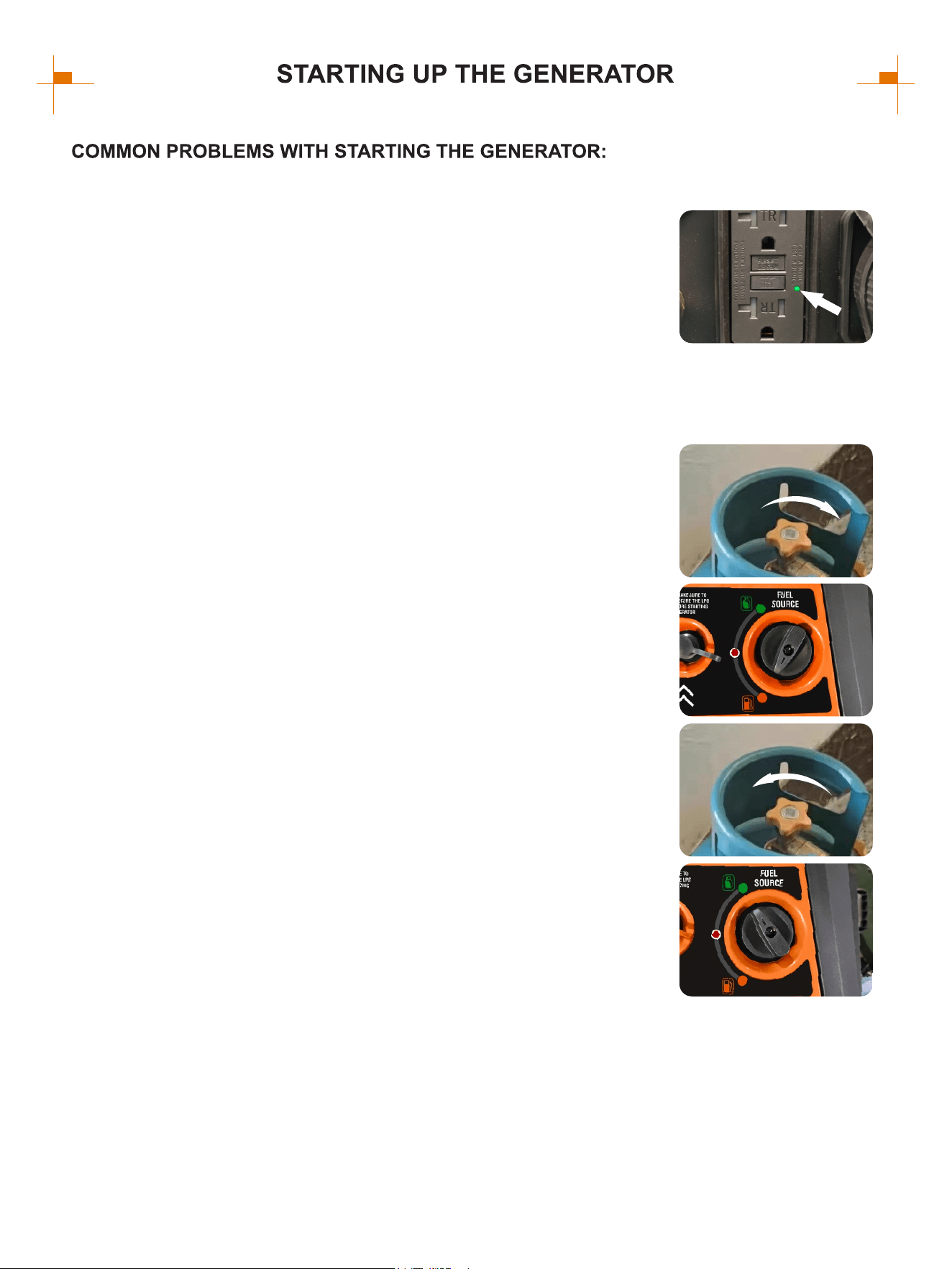

LPG startup is difficult ?
When both gasoline and propane are present in the generator it is recommended to start the generator on
gasoline first, allow the engine to stabilize then switch to propane.
1. Ensure the LPG supply hose is securely attached and Close the LPG valve
completely.
2. Fuel source rocker switch to “GASOLINE”.
3. Follow the startup steps to start the generator.
4. Open the LPG valve completely.
5. Fuel source switch to “LPG”.
OPEN
CLOSE
Electric start and remote start no response ?
1. Check whether the positive and negative electrodes of the battery are correctly connected.
2. Check whether the battery is charged.
3. Check whether the remote control is powered on.
Start the generator to run normally without output ?
Check whether the green light of the GFCI socket is on.
If the green light is not on, press the RESET button after the generator is started to
make the green light on.
Tip: When the generator is not started, the GFCI socket is in the protected state and
the "RESET" button cannot be pressed.
16
Parallel Operation
The parallel connection ports allow you to connect two generators to increase the total available electrical power.
Follow the instructions included with your parallel connection kit for proper installation and operation.
Overload Indicator
Note: The OVERLOAD light may turn on for a few seconds as a large device starts. This is normal for loads
approaching the capacity of this generator.
1. The total combined load through the outlets on the generator must not exceed the running power of the unit.
2. If the OVERLOAD light turns on and the generator stops producing power, it has been overloaded.
3. Turn off and disconnect all electrical devices and stop the engine. Compare device requirements to generator
rating and reduce the total wattage of connected devices if necessary. Move anything that may be limiting
generator ventilation away.
4. Check if any circuit breakers have tripped and make sure that ALL circuit breakers are reset before starting the
generator again.
5. Restart the engine and reconnect devices while being careful to not overload the generator.
Low Oil Indicator
1. If the engine oil level is too low, the LOW OIL light turns on and the engine will automatically shut off.
2. The engine cannot be restarted until the proper amount of oil has been added. Add the appropriate type of oil
until the oil level is at the proper level. SAE 10W-30 oil is recommended for general use.
Do not run the engine with too little oil. Engine will shut off if engine oil level is too low.
Low Idle
1. Turn on a Low Idle Switch to limit noise and fuel consumption with a light generator load.
2. Turn off the low idle mode to run the engine at full speed under the following conditions:
● Starting the generator.
● If the load exceeds 50%, it is recommended to turn off the low idle mode.
AT TENTION
17
18
INVERTER PARALLEL KIT OPERATION
50A Parallel Kits
Round Connector (Black)
Ground Connectors (Yellow/Green)
Round Connector (White)
Round Connectors (Red)
This parallel kit is intended to be used
only with GENMAX inverter generators.
Please read safety information below
before proceeding.
1. Make sure both engine switches are in the off position, and confirm the Low idle switches on
both generators are turned off.
2. Attach the ground terminal (yellow/green) from each end of the parallel cable to the
corresponding ground terminal on each generator. Connect and tighten the ground wire.
3. Connect the black and red parallel cable leads to the black parallel ports on each
corresponding inverters control panel. connect two red leads or two black leads DO NOT
into the same inverter.
4. Connect the white connector to the square socket of the generator.
5. Start each generator and confirm that the green output indicator is illuminated on both.

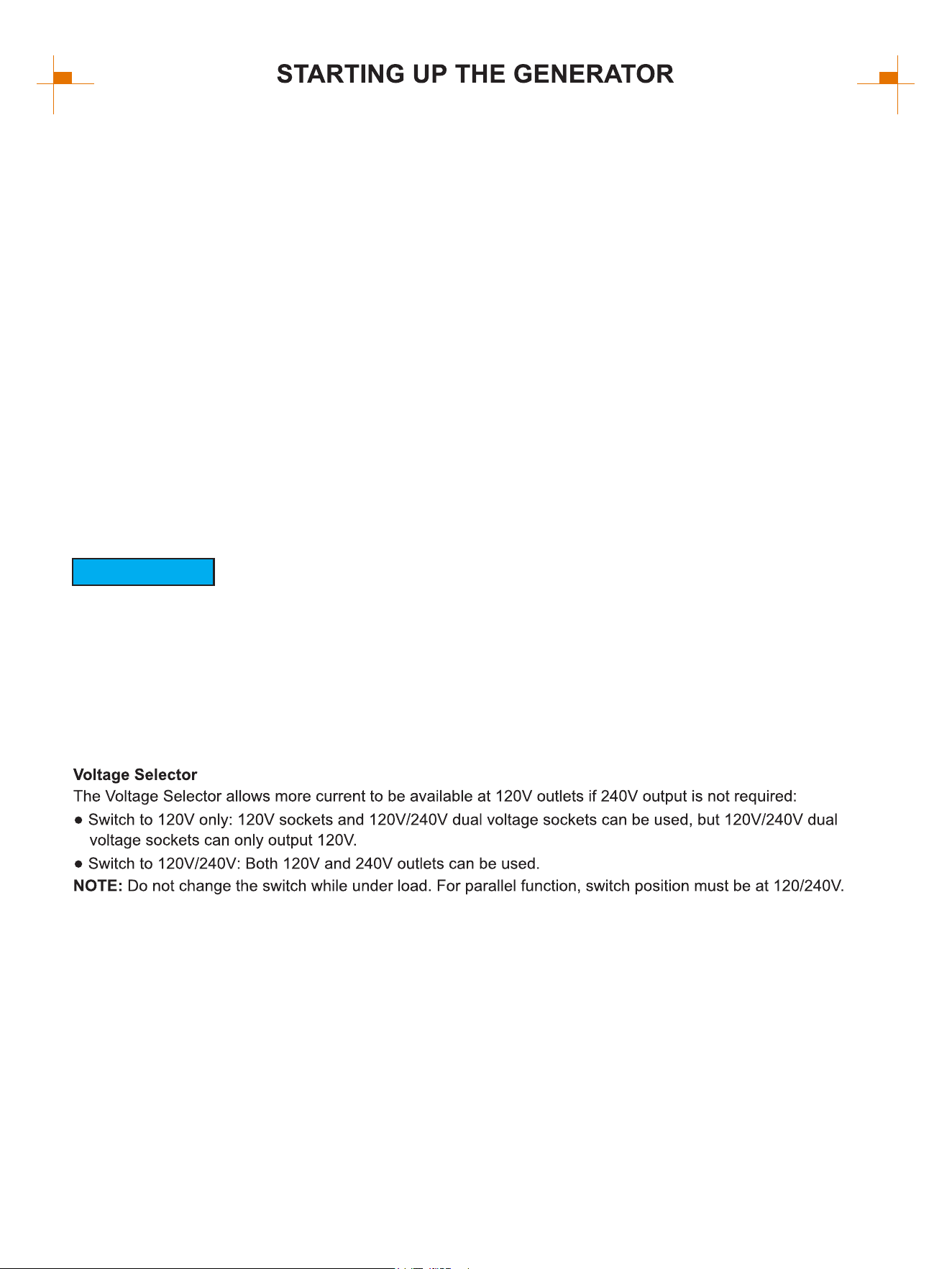

Tip: When two generators are connected in parallel, the voltage selector switch must be placed
at 120/240V before starting.
6. If using Low idle mode, turn both Low idle switches on after the generators are started.
7. To shut down, turn off both generators and then remove the parallel cords.
Connectors (Red)
Round Connector
(White)
Ground Connectors
(Yellow/Green)
NOTICE: If high electrical loads are connected,
turn the Low idle switch to the OFF position to
reduce voltage changes. With the generators
running, make sure both green output indicator
lights are ON. If not ON, turn the generators off,
restart the generators, and make sure both
green output lights are ON.
Round Connector
(Black)

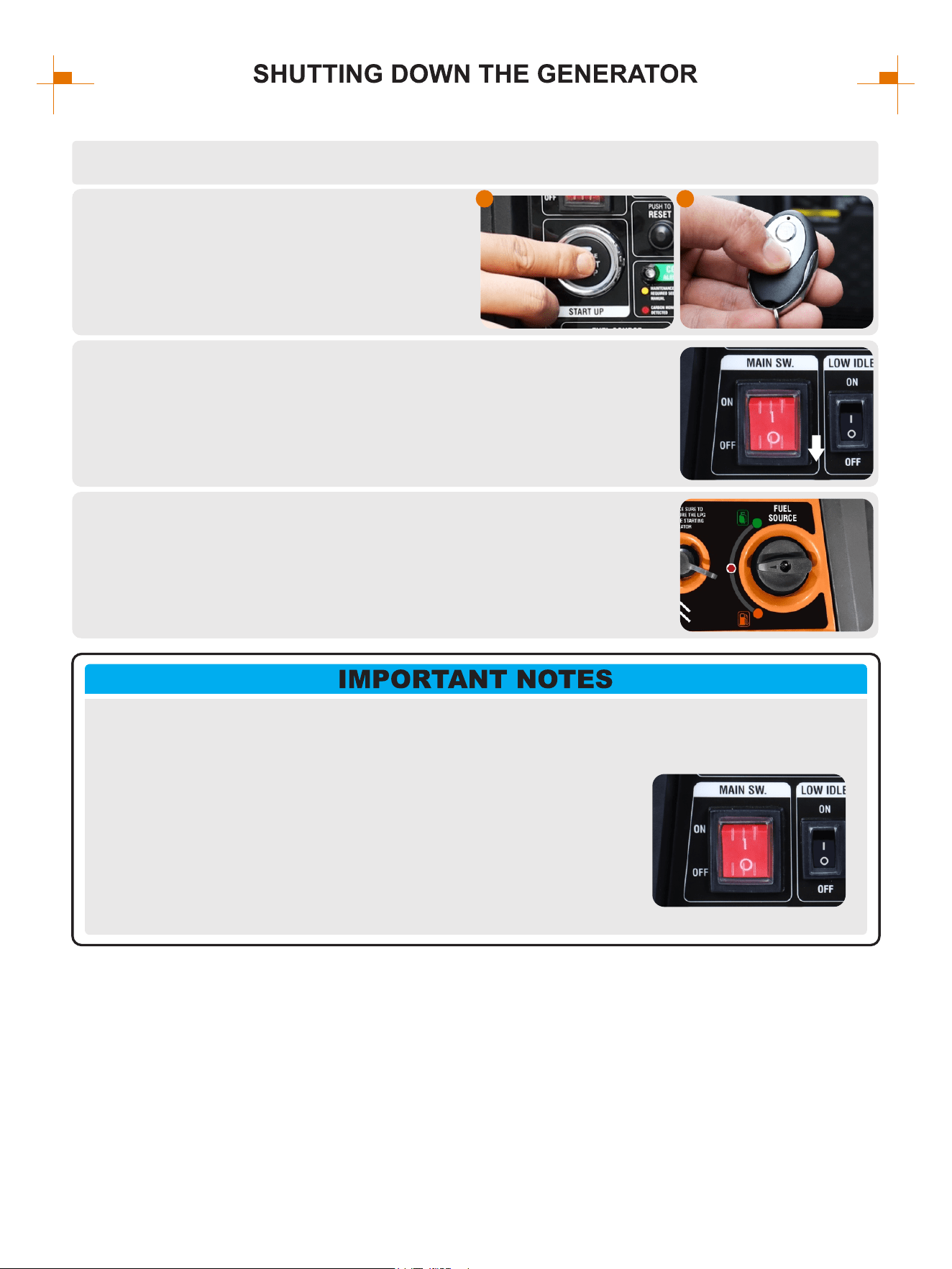

Unplug the power cord;
1.
2.
Press the Main Switch to "OFF";
3.
Turn the Fuel Source Switch to middle to turn off gasoline/LPG.
4.
The above instructions for starting and stopping the generator are normal procedures. Users
must follow standard procedures to start, use and shut down the generator.
1. If the user directly turns off the generator with the main switch,
there may be a sound of muffler blasting, which is a normal
phenomenon under abnormal operation.
2. When the battery is not connected or the battery is out of charge, if
the user directly turns off the generator with the main switch, it may
be difficult or impossible to start the cold machine, which is a
normal phenomenon under abnormal operation.
a
b
Select Stop Mode:
a. Button Stop: Press the button to turn off the
generator.
b. Remote Stop: Press the "STOP" button on
the remote control to turn off the generator.
19
Service Environment of the Generator
1
• Applicable temperature: 23℉~104℉ (-5°C ~ 40°C);
• Applicable humidity: below 95%;
• Applicable altitude: regions below 1,500 m (It shall be used by reducing power in regions above 1,000 m).
Standard atmospheric condition
• Ambient temperature Tr: 298k (77℉/25°C)
• Relative air humidity Фr: 30%
• Absolute atmospheric pressure Pr: 100kPa
When actual environmental condition is inconsistent with the condition of output power of the generator
set:
• Every 41℉(5°C) of increase in ambient temperature will reduce the power of generator by about 2%.
• Every 30% of increase in relative humidity of air will reduce the power of generator by about 1.5%.
• Every 300 m rising of ASL will reduce the power the generator by about 4.5%.
Generator Wiring
2
• When the generator is connected to household power source as a backup power supply, the connection shall be
carried out by a professional electrician or a person familiar with electricity.
• After connecting the load to the generator, check carefully whether electrical connection is safe and reliable.
Improper electrical connection may cause generator damage, burning or fire.
• Avoid connecting this generator to commercial power outlet.
• When extending the cable, be sure not to exceed its length.
① 60m cross-section area is 1.5mm²
② 100m cross-section area is 2.5mm²
• The appearance of extension cable shall be protected by a layer of tough and elastic rubber cover (IEC25) or
other substitutes.
OK
OK
20
Connection of AC power
WARNING
All electrical equipment shall be disconnected before inserting the plug.
ATTENTION
• Make sure that all electrical equipment, including wires and plugs, are in good condition before
connecting to the generator;
• Make sure that all loads driven by the generator are within rated load range;
• Make sure that load current is within rated current range of rated socket.
Tip: Make sure that the generator set is grounded, and if electrical equipment requires
grounding, the generator set must be grounded.
① Start up the engine;
② Turn energy-saving switch to "ON";
③ Insert the plug into AC outlet;
④ Make sure that AC indicator is lit up;
⑤ Switch on electrical equipment.
Tip: Before increasing engine speed, energy-
saving switch must be switched to "OFF". If the
generator set supplies power to multi loads or
electrical equipment, start from large to small
according to the size of each electrical
equipment.

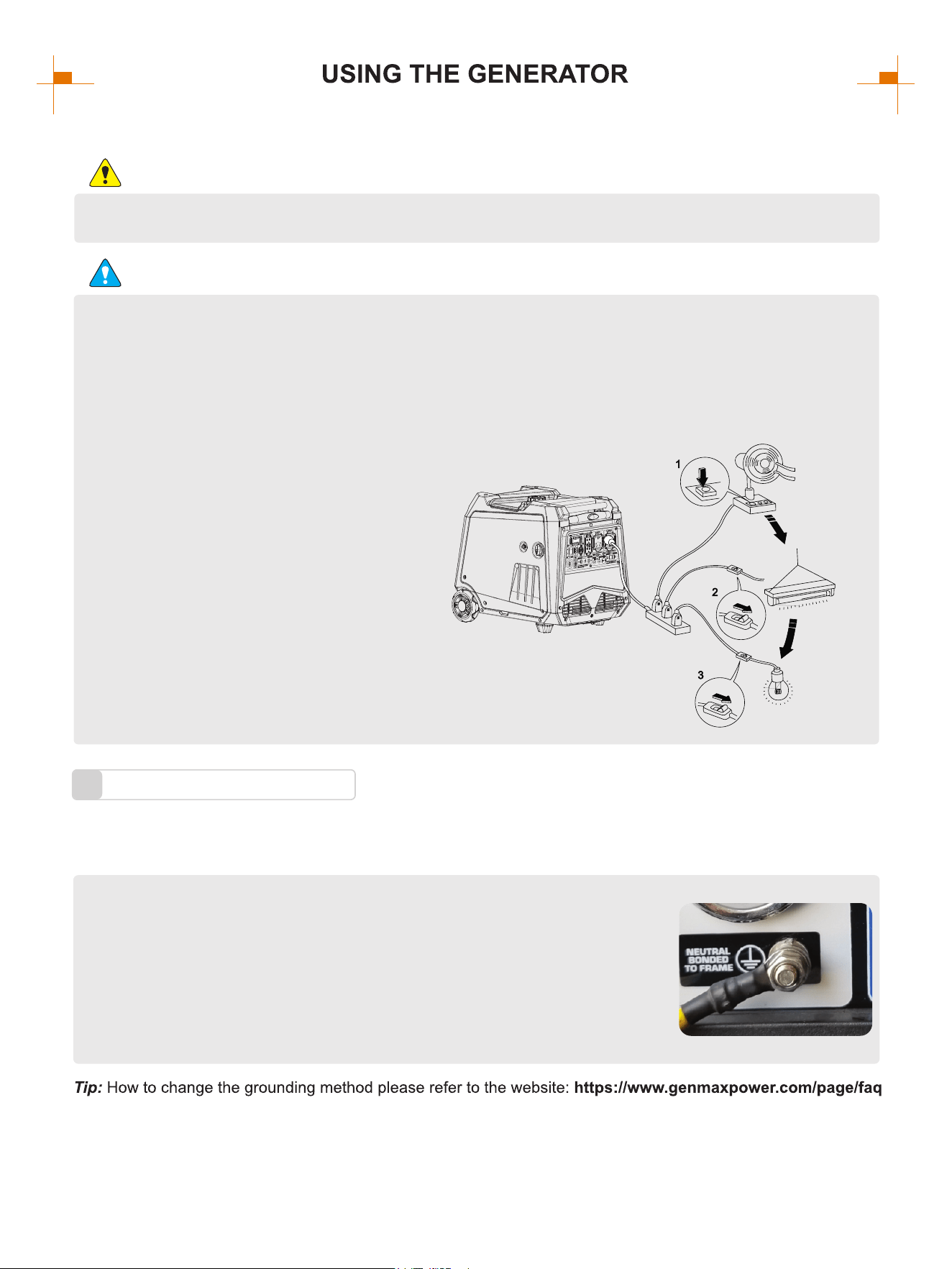

Generator Grounding
3
① Please use grounding wire with sufficient electrical energy capacity;
② Connect one end of grounding wire reliable to grounding bolt on control panel
of the generator set;
③ Insert grounding body (iron rod with a diameter of 5 ~ 10mm) 200mm below
into the earth and lead it out with conductor;
④ Connect the other end of the grounding wire reliable to the led wire of
grounding body.
In order to prevent any damage to the generator caused by electric shock or improper electrical application, it is
recommended that the generator is grounded with good conductor with insulating sheath.
21
Battery Charging
4
Connect the charger to the battery charging port on
the generator panel and connect the mains to
charge the battery.
The battery storage time is generally about 6 months. If the generator is not used for a long time, the battery will
run out of power. At this time, the battery should be charged. Replace the battery if it is damaged or fails to
charge.
Hand start charging: Start the generator by hand, and the battery will be charged automatically when the
generator runs.
Use an external power source for charging:
WARNING
Do not start the generator while charging with an external power supply. Keep batteries away from
fire sources. Keep the battery in a cool and dry place, away from direct sunlight. Keep batteries
away from children.
ATTENTION
1. Charge properly
Keeping battery properly charged and discharged can prolong battery life. Maintaining a power level of 10%-
90% in battery is beneficial for battery protection.
2. Choose the appropriate charging temperature
Battery charging temperature range: 32℉~113℉ (0℃~45℃).
3. Avoid overcharging
Overcharging of battery must be avoided during the charging process. Overcharging of battery in any form will
lead to serious damage to battery performance and even explosion.
22
Good maintenance and service is the best guarantee for safe, economical and zero-failure operation. It also
contributes to environmental protection.
In order to keep the generator in good condition, you must inspect and maintain it regularly. The maintenance
schedule is as follows:
Maintenance cycle
Item
Each
First in 1 month
or 20 hours
Then every three
months or every
50 hours
100 hours per
year or use
Engine oil
Gearbox gear
Oil (if any)
Air cleaner
element
Settling cup (if any)
Spark plug
Spark eliminator
Idle speed
(if any)**
Fuel tank and
fuel filter***
Fuel line
Cylinder head,
piston
Displacement < 225cc, every 125 hours; displacement
capacity ≥ 225cc, every 250 hours.
Check-fill
Replace
Replace
Check oil
Inspection
Clean
Replace
Clean
Clean-adjust
Clean
Check-adjust
Check-adjust
Clean
Inspection
Remove
carbon
deposit**
Every two years (Please replace if necessary)
√
√ √
√
√ √
√
√
√
√
√*
√
√
√
√
* heseT items shall be replaced if necessary;
** heT se items shall be maintained by the dealer authorized by the Company, unless the
user has proper tools and maintenance ability.
ATTENTION
• If it often works under high temperature or high load, oil shall be changed every 25 hours;
• If it often works in dusty or harsh environment, air cleaner element shall be cleaned every 10 hours. If
necessary, the air cleaner element shall be replaced every 25 hours;
• It shall be maintained on spot-inspection cycle and time, whichever is earlier;
• If maintenance cycle time has elapsed, perform the maintenance as soon as possible as per the table
above.
23
WARNING
Please shut down the engine first before performing any maintenance. The engine shall be placed in a
horizontal position. In order to prevent the engine from starting up, separate spark plug cap shall be
separated from spark plug.
Do not use it indoors or use it in a tunnel, cave or other places ventilated poorly. Make sure that work area
is well ventilated. Exhaust gas from the engine contains toxic gases, carbon oxides, and the inhalation can
cause shock, loss of consciousness, and even death.

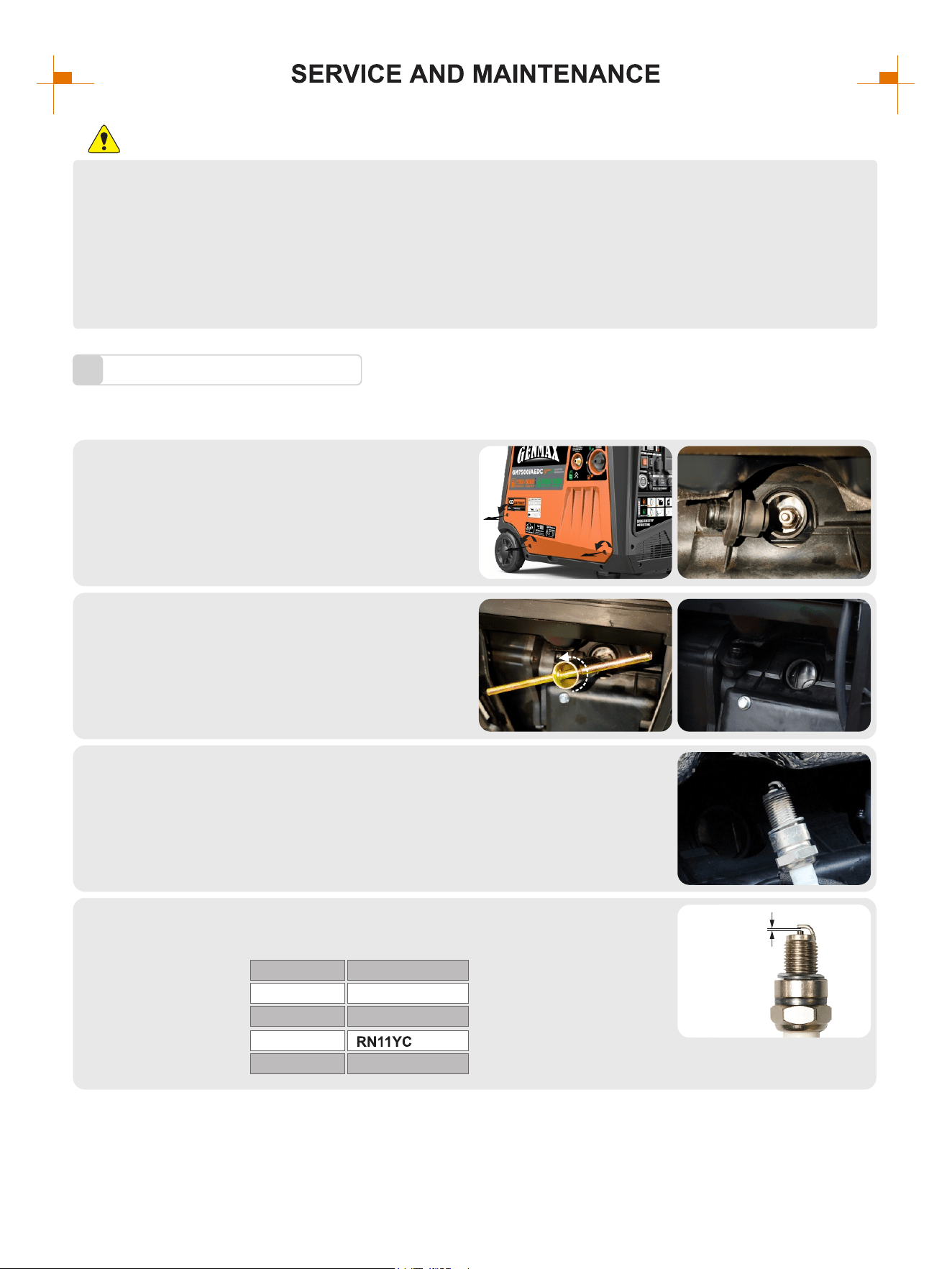

Spark Plug Inspection
1
Spark plug is an important part of the generator, which must be inspected regularly.
Loosen the two bolts on the left panel cover,
remove the left panel cover, and remove the
high voltage pack;
1.
Insert the screwdriver into the sleeve, to screw it
counterclockwise, and then remove the spark
plug;
2.
Check whether there is discoloration, and remove carbon deposits.Check
whether there is little pale to moderate brown on ceramic cores around
center electrode of the spark plug;
3.
Tip: The spark plug clearance is required to be measured by line thickness gauge, which shall be adjusted if
necessary.
Check the model of spark plug and clearance.
Spark plug gap: 0.7-0.8mm
Standard spark:
4.
0.7~0.8mm
BRANDBRAND MODEL
NGK BPR6ES
TORCH F6RTC
CHAMPION
BOSCH WR6DS
24

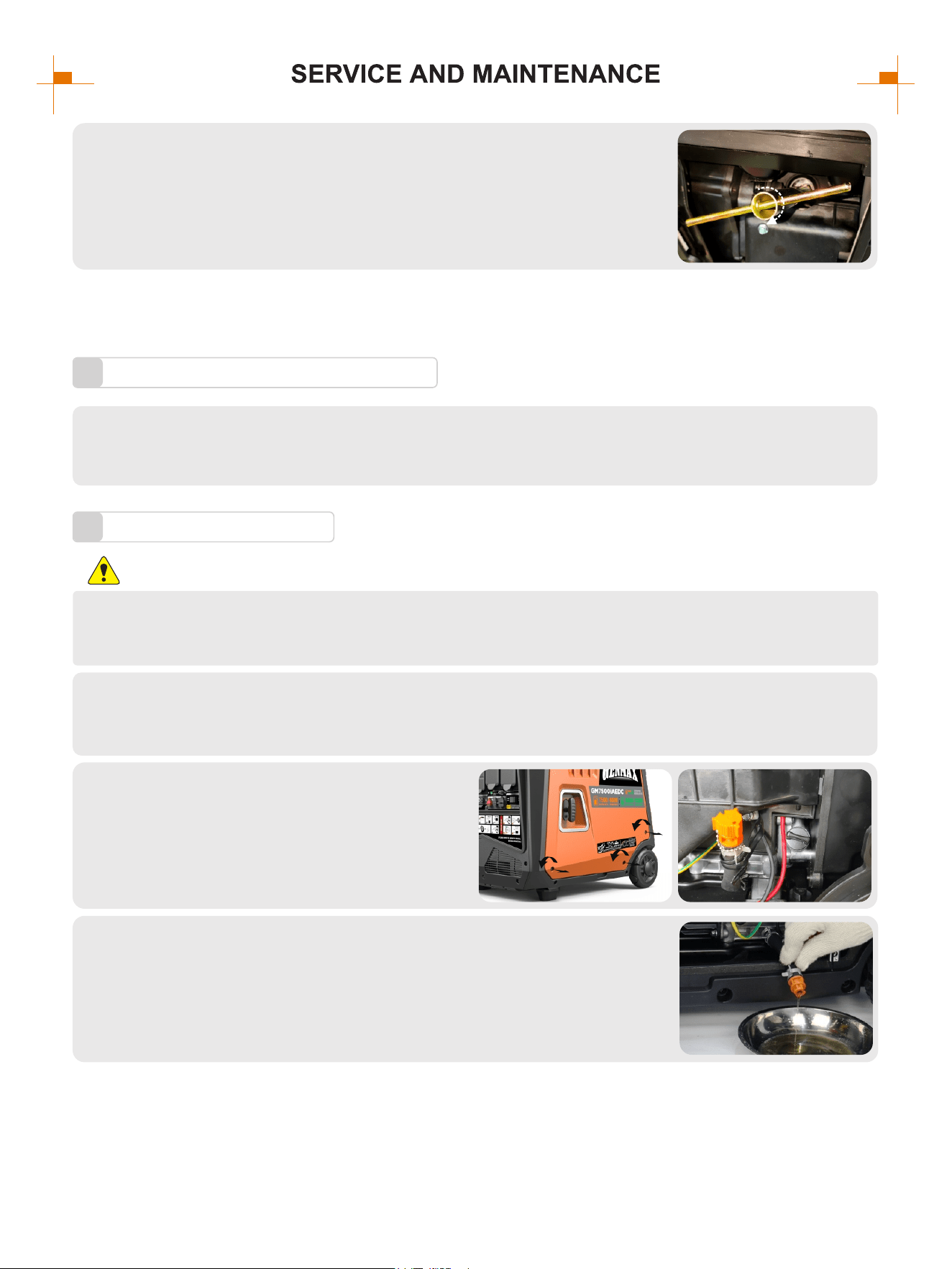

Install the spark plugs in reverse order of removal.
Spark plug torque: 22.5±2.5N.m(199±22in-lb)
5.
Tip: If there is no torque wrench when installing the spark plug, a better estimation method is to screw it 1/4-1/2
turns by force after screwing it in place, but the spark plug shall be screwed to specified torque as soon as possible.
Adjustment of the Carburetor
2
The carburetor is an important components of the engine. The adjustment shall be carried out by a dealer with
professional knowledge, professional data and equipment, to ensure that the adjustment is proper.

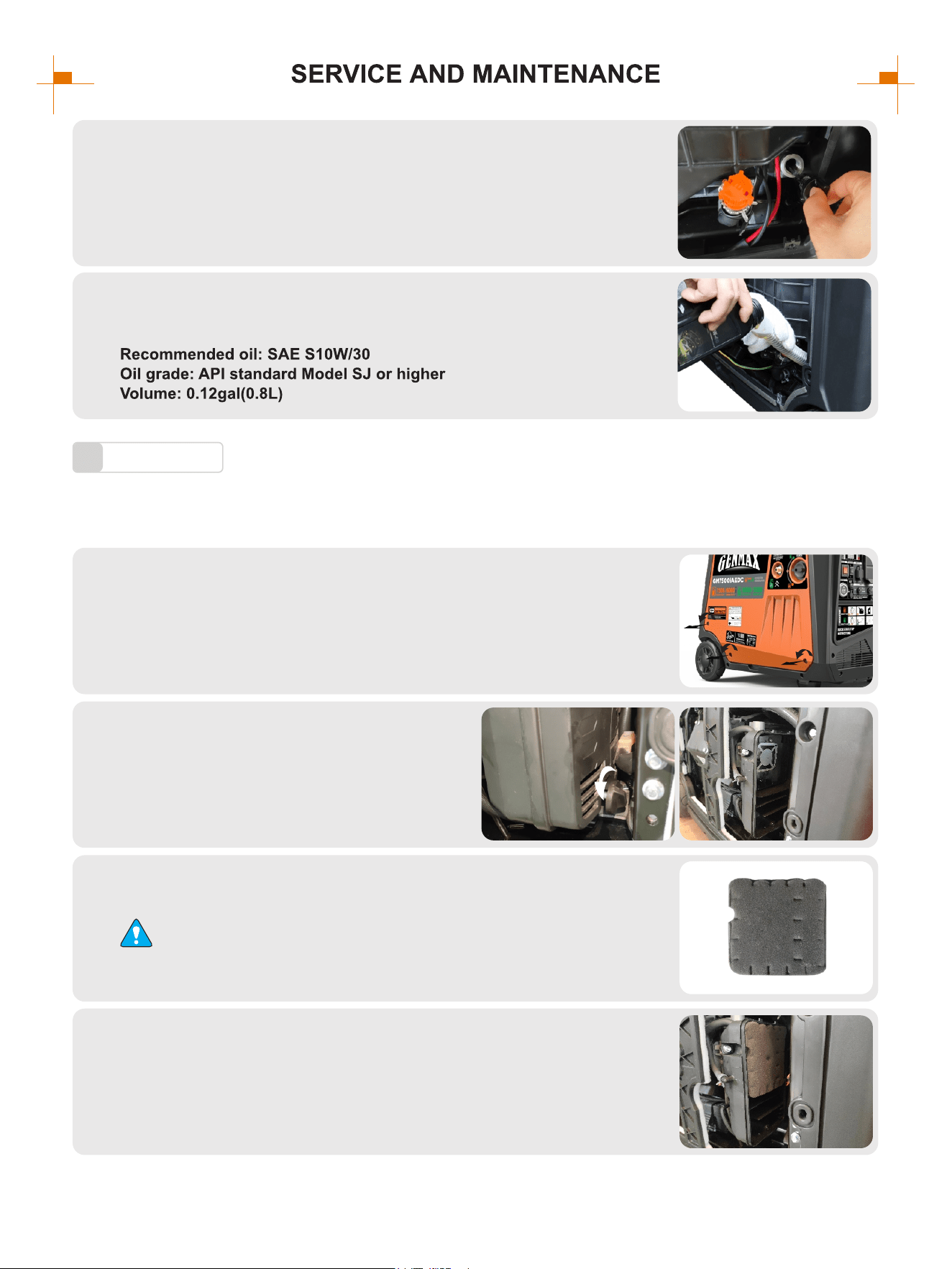

Replacement of Oil
3
WARNING
Do not drain the oil immediately after turning off the generator. Oil temperature is very high, when
operating, take care to avoid scalding.
Put the generator on a horizontal plane, start the generator, run it for a few minutes to make it warm, then
turn off the engine;
1.
2.
Loosen the two bolts on the right panel cover
and remove the left panel cover;
Place an oil pan under the engine, tilt the generator to quickly pour out oil;
After discharging the oil, put the generator back on level ground;
3.
25
Oil to the appropriate position, tighten the dipstick, cover the right exterior
cover, and tighten the bolts.
5.

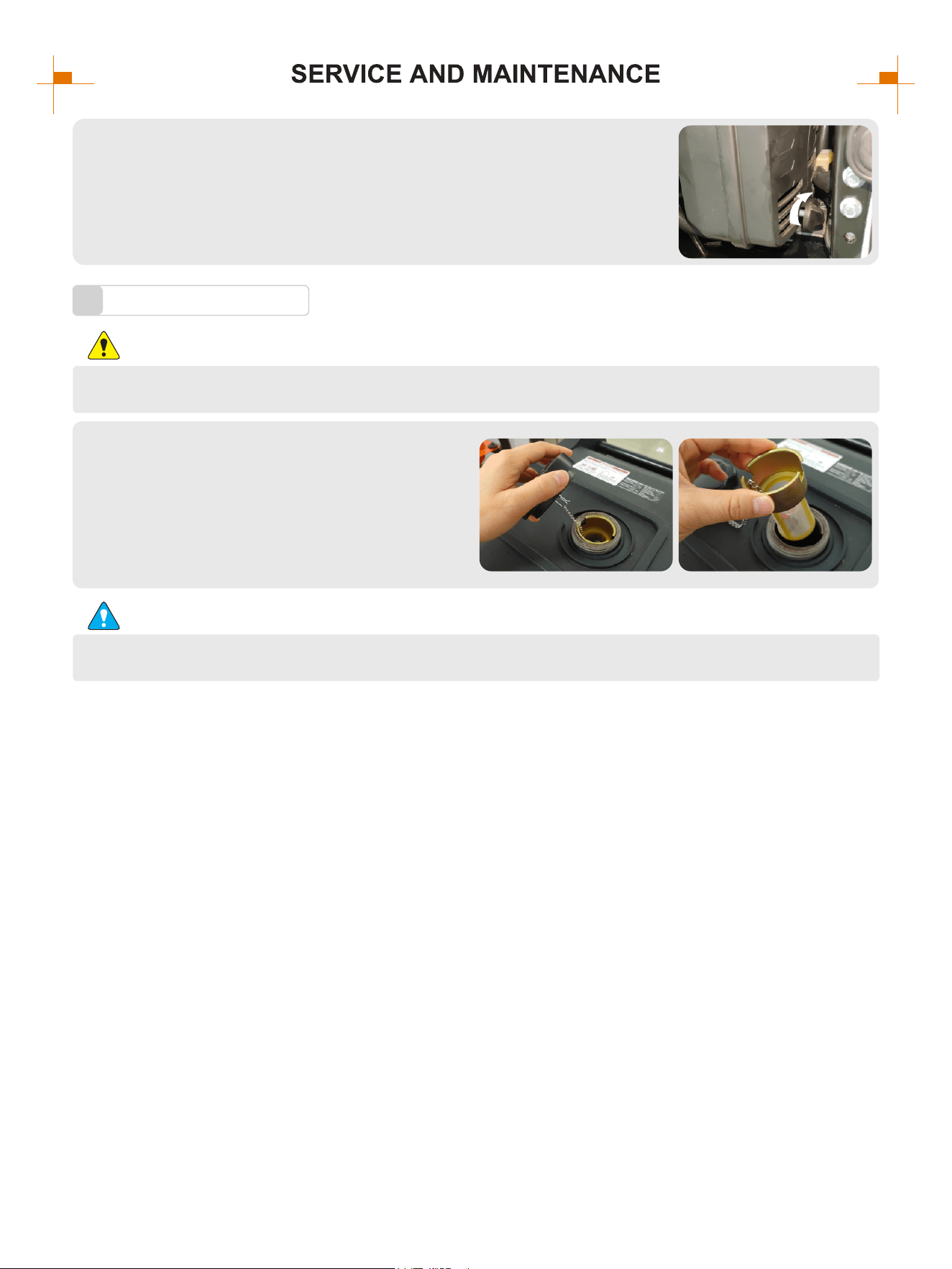

Air Filter
4
Dirty air cleaner may prevent air from flowing into the carburetor. In order to prevent failure of the carburetor,
please maintain air cleaner regularly. If being used in a dusty environment, it shall be maintained frequently.
1.
Remove screws, to remove cover plate of air
cleaner ;
2.
Clean foam cleaner element with cleaning solvent and blow it dry, Put a few
drops of oil on the filter element.
3.
ATTENTION
Be sure not to twist the foam cleaner element forcibly to avoid damage.
Put foam cleaner element into air cleaner;
Tip: Make sure that the surface of foam cleaner element is in close contact
with air cleaner, and there shall be no gap leaking air. Be sure not to start the
engine before air cleaner is assembled, because it will generate excessive
toxic gas and wear the cylinder;
4.
Loosen the bolt on the left appearance cover plate and remove the left
appearance cover plate;
Unscrew oil dipstick;
4.
26
1. Reassemble empty air cleaner cap back to original position, and tighten
screws;
2. Assemble left outer cover and tighten bolts.
5.
Fuel Filter Screen
5
WARNING
Be sure not to open fuel tank of the generator in a place where smoking or with flame.
1. Remove fuel tank cap and fuel tank filter screen.
2. Clean fuel tank filter screen with gasoline.
3. Wipe filter screen dry, and put it back into fuel tank.
4. Reassemble fuel tank cap.
Be sure to screw fuel tank cap tight.
ATTENTION
27
Generator Storage
1
If it is stored long-term, in order to prevent aging, you shall take some storage measures.
Shut down generator.
1.
Open fuel tank cap, to take out fuel filter screen.
Pump all fuel in fuel tank into special fuel tank,
and then reassemble fuel tank cap back.
2.
Start up the engine to burn off fuel in the carburetor, and then shut it down.
3.
Tip: Do not connect any electrical equipment. Running time of the engine depends on remaining fuel in the fuel
tank.
Open generator left exterior cover and enter carburetor. Locate the clear
plastic hose from the carburetor and place a suitable container under it to
capture the drained fuel.
4.
Loosen the carburetor drain screws until you see fuel draining from the
carburetor.
5.
Allow fuel to drain into the container and tighten the drain screws on the
carburetor. Install the engine service panel.
6.
Unscrew oil dipstick, and drain oil in the crankcase off. Fill new oil to upper oil limit, and then assemble
oil dipstick.
7.
28
Gently pull startup handle until you feel resistance, allowing both inlet valve
and exhaust valve to be closed.
8.
Place the generator set in a clean and dry area.
10.
Generator Transport
2
• When the generator set is transported, it shall be ensured that there is no fuel spilling;
• Do not fill excessive fuel into fuel tank;
• Do not run the generator, and avoid direct sunlight;
• Do not transport the generator set on rough road for long time.
Disconnect the battery cable.
9.
1. Slowly pull the starter cord a few times to clean oil from the cylinder or to eject any pump protector from the
pump which may have been added prior to storage.
2. Remove the spark plug from the cylinder. Wipe oil from the spark plug and return it to the cylinder and re-
tighten.
3. Reconnect the spark plug wire.
4. Refuel engine per earlier instructions in this manual.
Preparation for Use After Storage
3
29
TROUBLESHOOTING
30
TROUBLESHOOTING
31
TECHNICAL PARAMETERS
Item
Engine Model
Engine Type
Displacement (cc)
Gas Distribution Mode
Cooling Mode
Rated Speed (RPM)
Starting Method
Fuel Tank Volume (gal)
Fuel Type and Grade
Lubricating Oil Capacity (gal)
Lubricating Oil Model
Forced cooling wind
Vehicle-use unleaded gasoline
Noise dB (at 7m)(25% load)
Rated Power (kW)
Max. Power (kW)
Rated Voltage (V)
Rated Frequency (Hz)
Rated Power Factor
Phase Number
Overall Dimension (in.)
Net Weight (lb.)
312
OHV
3800
3.3(12.5L)
SAE 10W/30
0.21(0.8L)
62
6.5(GAS.)/5.85(LPG)
120/240
60
1
Single phase
Stroke x Bore (mm)
4-stroke
25.9×18.9×21.8(658×481×553mm)
124.4(56kg)
180F/GL-2
8.5(GAS.)/7.2(LPG)
80x62
THD
≤3%
GM8500iAED
Recoil start/Electrical start/Remote start
Valve Clearance Input valve：0.07~0.13 mm, Output valve：0.10~0.15 mm
32
R

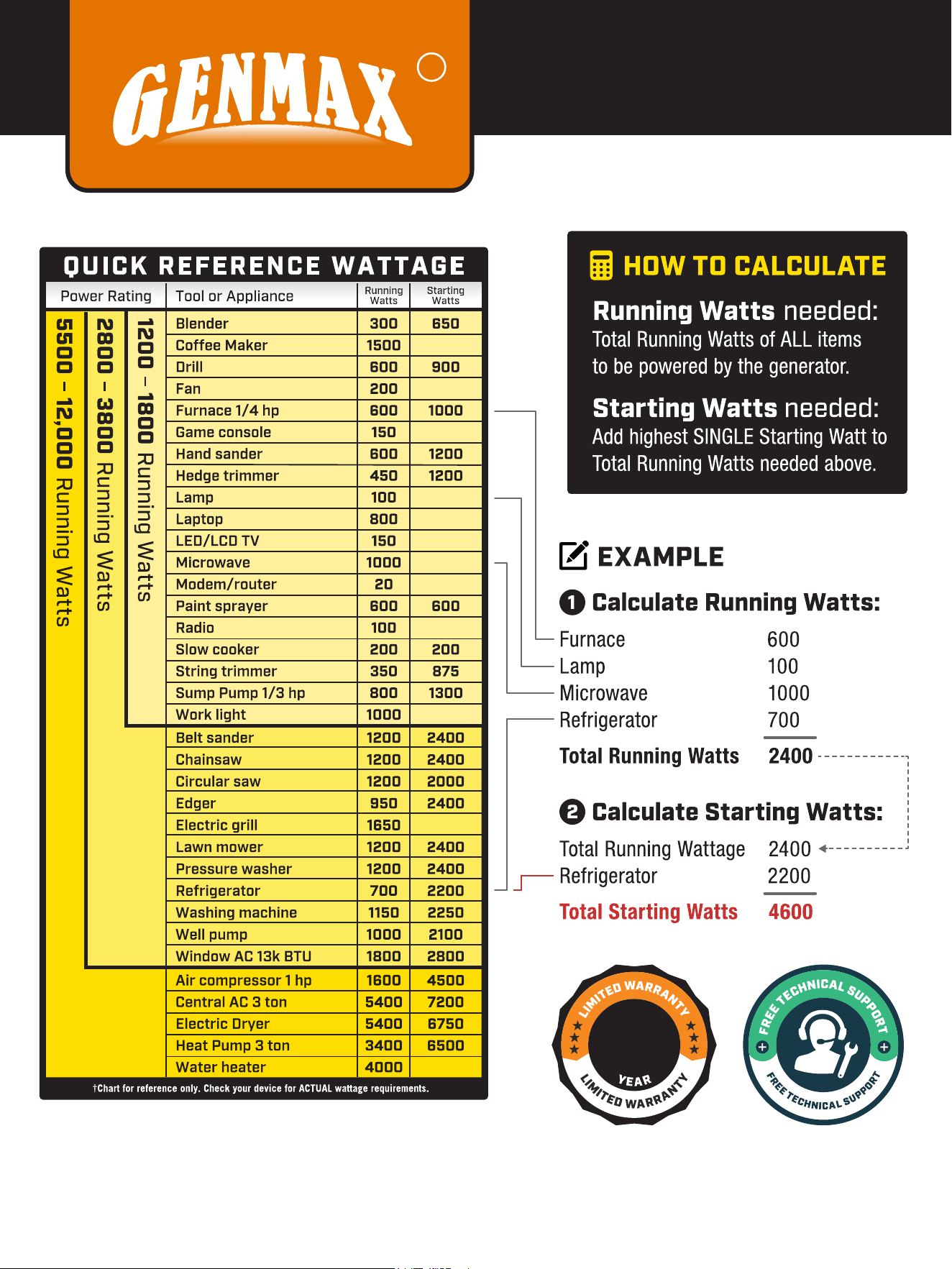

CHOOSING
A GENERATOR
1
33
Phone
866-960-2920
service@genmaxpower.com
E-mail
You
Tube
f
+
R
6800.J54.GEM.02.03 V2
Facebook Linkedin
ADD: 301 Doubleday Ave Ontario CA 91761
