Features:
•
One Pair 6.5'' Two-Way Component Speaker Systems
• Butyl Rubber Surround
• 1'' High-Temperature KSV Voice Coil
• Black Sandblasting Paper Cone
• Crossover Coil Built on Terminal for LPF Eect
• 1'' Neodymium PEI Dome Tweeter
• In-line Crossover Capacitor for HPF and Burned Avoiding
• T-tap Parts Included for Non-stripped Tweeter Wire Connection
• OE Replacement Mounting Bracket with Non-fabrication Quick Wire Connector
• Fitting HONDA Civic Lower Front Door Speaker and Upper Front Door
Tweeter Upgrade Replacement
What's in the Box:
•
(2) 6.5” Woofers
• (2) OE Replacement Mounting Brackets (Pre-Installed on Speakers)
• (2) Tweeters with Mounting Décor Panel
• (2) T-tap Parts for Tweeter Wiring Connection
Technical Specs:
•
Power Handling: 300 Watts MAX
• Impedance: 4 Ohm
• Sensitivity: 92 dB
• Mounting Depth: 2.24''
• Mounting Depth with Gasket: 1.54”
• Magnet Weight: 11 oz.
• Weight of Speaker with Gasket: 1.76 lbs.
• Frequency Response: 65Hz - 20KHz
• Product Dimension: 6.6'' x 6.6'' x 3.11'' -inches
• Product Dimension with Gasket: 6.77'' x 7.08'' x 3.11'' -inches
• Product Dimension: 11.6'' x 4.53'' x 2.36'' -inches (Tweeter)
ww w.PyleUSA.com
2
ww w.PyleUSA.com
3
INSTALLATION MANNERS AND LOCATION:
6.5” Front door woofer and 1” Corner tweeter

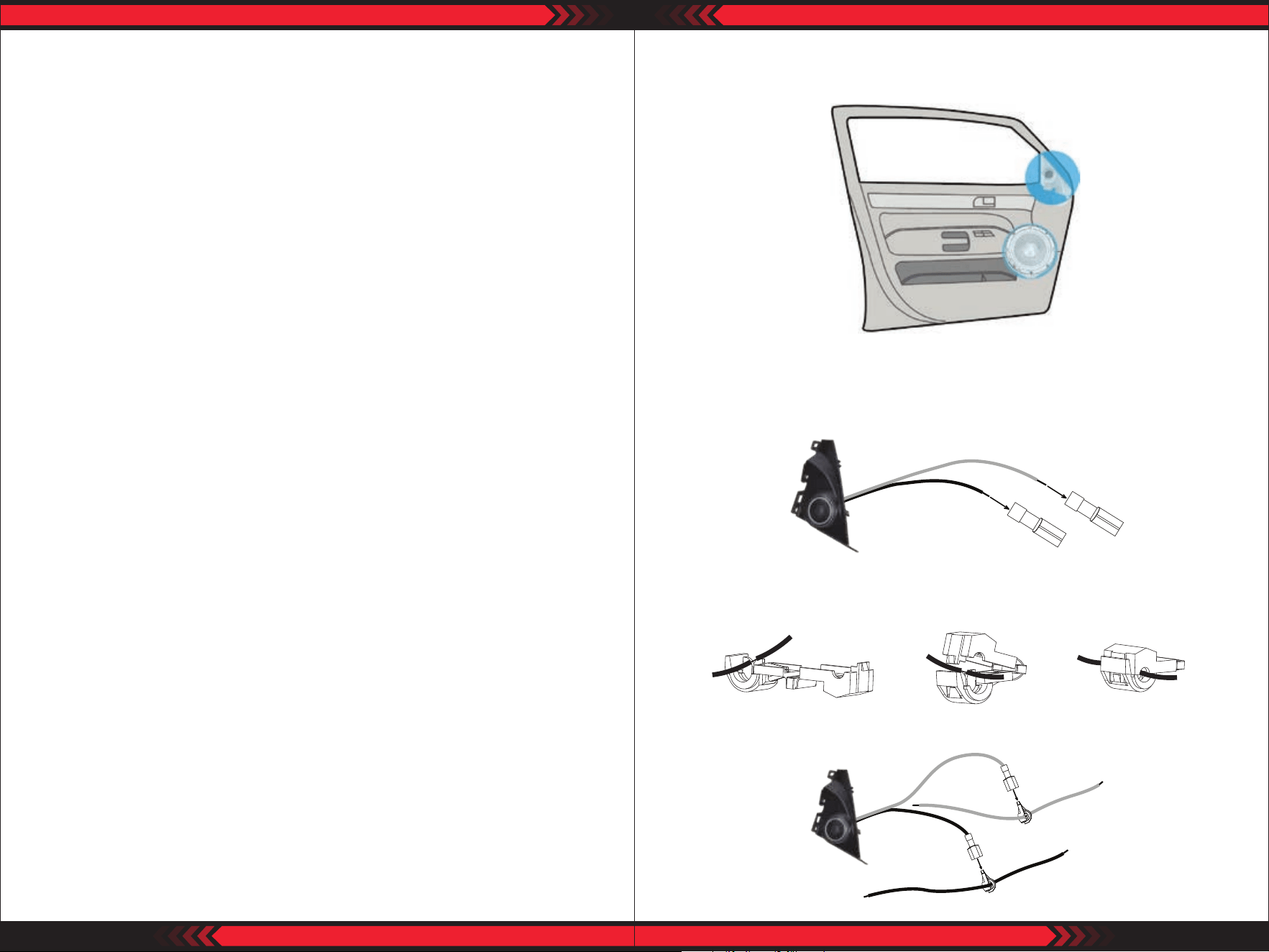

TWEETER WIRING CONNECTION
1. Connect the speaker wire cable to the pin of T-tap. It needs to be clamped
with pointed nose pliers.
2. Using two T-taps to connect OE speaker cable, one for positive polarity wire,
the other one for negative polarity wire.
3. Connecting above step1 and step2 to complete the tweeter wiring
connection.
