PLEASE READ THIS MANUAL CAREFULLY BEFORE OPERATION
Features:
• LED display
• Digital Amplier with DSP Inside
• Designed to Sit Under Your Television
• Home Theater Tabletop TV Stand Mount
• Powerful and Compact Speaker Sound Bar System
• Built-in BT for Instant Wireless Music Streaming
• Works with All of Your Favorite BT-Enabled Devices
(iPhone, Smartphone, iPod, MP3 Player, iPad, Tablet, PC, etc.)
• Digital Optical Audio Connector Jacks, USB Port, HDMI/ARC, COAX
• System Doubles as TV Speaker Base Entertainment System
• Ported Tube Design for Extended Bass Performance
• Full-Range Audio Spectrum Stereo Sound Reproduction
• Convenient Source Selection with LED Indicators
• Easy Touch Button Audio Select Control Center
• Aux (3.5mm) Input Connector Jack
• Easy-to-Use and Easy-to-Setup
Technical Specs:
• RMS Power Output: 30 Watt (15 x 2) + 60-Watt x 1
• Audio Output: 2.1CH
• Wireless BT Version: 5.0
• Wireless BT Range: 50 Feet
• Speaker Impedance: 8Ω x 2 + 4Ω x 1
• Inputs: 3.5mm (AUX), Digital Optical Audio Connector Jacks, USB Port,
HDMI/ARC, COAX
• Power Supply: Soundbar: AC100-240V~50/60Hz, DC22V/2A
• Subwoofer:AC100-240V~50/60Hz
• Frequency Response: 45Hz - 20kHz (+/- 6dB)
• Input Sensitivity: 450mV
• S/N: 63dB
• THD: 1%
• Soundbar Dimensions: 34.84 '' x 3.39'' x 2.20” -inches
• Subwoofer Dimensions: 4.72'' x 8.66'' x 15.75” -inches
What's in the Box:
• 2.1 TV Soundbar
• Audio Connection Cables
• Remote Control
IMPORTANT SAFETY INSTRUCTIONS
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with dry cloth.
• Do not block any ventilation openings.
Install in accordance with the manufacturer's instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves,
or other apparatus (including ampliers) that produce heat.
• Do not defeat the safety purpose of the polarized or grounding-type plug.
A polarized plug has two blades with one wider than the other.
A grounding type plug has two blades and a third grounding prong.
The wide blade or the third prong are provided for your safety.
If the provided plug does not t into your outlet, consult an electrician for
replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
• Only use attachments/accessories specied by the manufacturer.
• Unplug this apparatus during lightning storms or when unused for long
periods of time.
• Refer all servicing to qualied service personnel. Servicing is required when
the apparatus has been damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
• To reduce the risk of re or electric shock, do not expose this device to rain,
moisture, dripping, or splashing, and no objects lled with liquids, such as
vases, shall be placed on it.
• Optical Cable
• 22V/2A Power Adapter
• Power Cable
INPUT
PAIR
BASS+
BASS-
TREB- EQ TREB+
1
2
3
4
5
6
7
8
9
10
12
14
13
11
www.PyleUSA.com
4
www.PyleUSA.com
5
Using close to a TV or computer
Some older TVs and computer monitors are magnetically sensitive devices and
as such are likely to suer discoloration or picture distortion when conventional
speakers are placed nearby. If discoloration problems persist, try moving the
soundbar away from your TV or monitor.
Placement
• Sensitive to extreme temperatures and humidity. Do not put it in locations
subject to direct sunlight or in humid places, such as near an air conditioner,
humidier, bathroom, or kitchen.
• Do not put water or other liquids close to the soundbar.
If liquid is spilled over the soundbar, it may be damaged.
• The soundbar should be placed on a sturdy, at surface that is free from
vibration, or mounted on a wall. Do not put the soundbar on an uneven or
unstable surface, where it may fall and cause damage.
This user manual explains how to correctly install, operate, and get the
best performance from your Home Theater Wireless BT Soundbar Speaker.
Read this user manual carefully before installing your system, and then
keep it handy for quick reference.

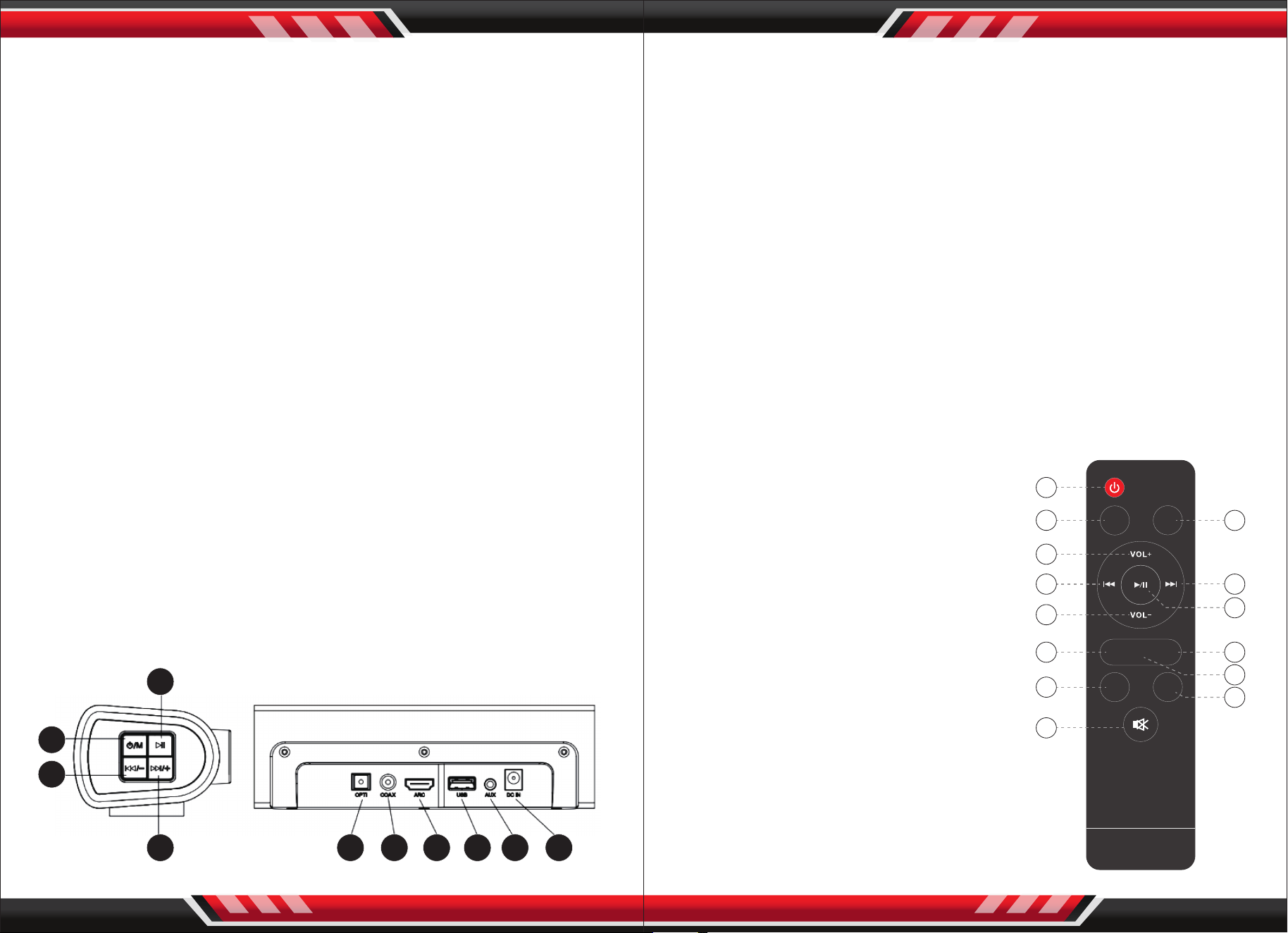

FUNCTION DESCRIPTION
FUNCTION DESCRIPTION
1. Play/Pause the music
2. Power: Press and hold to switch ON/OFF the sound bar.
Mode: Short press to change between modes AUX IN/OPTICAL/BT/COAX.
3. VOL-/PREV: Press and hold to decrease the volume, and press to skip to
previous track.
4. VOL+/PREV: Press and hold to increase the volume, and press to skip to
next track.
5. Optical Port.
6. COAX Port.
7. HDMI (arc) In Port.
8. USB Port.
9. AUX in Port.
10. DC In Port.
Note: The RC sensor is at the front of the sound bar.
REMOTE CONTROL FUNCTIONS
1. Power: Switch ON/OFF the sound bar.
2. PAIR: Connects/disconnects Wireless BT
3. VOL +
4. Previous track
5. VOL -
6. TREB - : Reduce the amount of treble.
7. BASS - : Reduce the amount of bass.
8. Mute
9. INPUT: Input signal mode conversion.
10. Next track
11. Play/Pause
12. TREB + : Increase the amount of treble.
13. EQ: Equalizer button.
14. BASS + : Increase the amount of bass.
1
4
2
3
5 6 7 8 9 10
www.PyleUSA.com
6
www.PyleUSA.com
7
OPERATION INSTRUCTION
HOW TO CONNECT SOUNDBAR TO SUBWOOFER BY WIRELESS BT
TECHNOLOGY:
1. Plug power cable to subwoofer, red LED keeps ashing. Plug the DC port of
the 22V/2A adapter into the sound bar, the display says "--".
2. Press and hold the " " key for 2 seconds, then release it. After 3 seconds,
it will automatically enter BT mode with sound alerts. The LED displays "BT"
and keeps ashing.
3. Press and hold the “ ” key for 3 seconds.
You will hear the sound “Left Channel”, “ Right Channel” which means the bar
and subwoofer is successfully connected by wireless BT.
Now You can play music by USB, AUX, BT etc.
Note:
The second time turning ON the subwoofer and soundbar:
Press the " " key for 2 seconds and then release it.
After 10 seconds, you will hear the sound “Left Channel”, “ Right Channel”.
Sound bar will automatically connect to subwoofer.
WIRELESS BT CONNECTION
1. Put the sound bar near the BT device, iPhone, Smartphone, iPod, MP3 Player,
iPad, Tablet, PC, etc.
2. Turn ON the BT function of the device, search for "Pyle”. Connect to it once
found. If code is needed, press"0000”. An alert will appear when connected,
and the The LED display BT lights up and stops ashing.
3. The sound bar will automatically reconnect to the last paired device when
switched ON, If it doesn't connect, the sound bar will enter pairing mode.
OPTICAL FUNCTION
1. Plug the optical cable into the optical port and the other side to TV or other
device with optical/digital port.
2. Short press " " into optical mode, LED lights (white) will light indicating
"OP", music will start playing.
COAX FUNCTION
1. Plug the COAX cable into the COAX port and the other side to your TV or
other device with COAX/digital port.
2. Short press " " key into “COAX” mode, LED lights (white) indicating "CO",
music will start playing.
AUX IN FUNCTION
1. Put the 3.5mm cable into the AUX-in port and the other side into the mobile
device.
2. Short press " " into “AU IN” mode, with indication of AU.
3. Hold the “VOL-/PREV” on the sound bar to decrease the volume.
4. Hold the “VOL+/NEXT” on the sound bar to increase the volume.
USB FUNCTION
1. Directly insert the USB card.
2. Press “ ” on Soundbar or “ ” on remote control to play/pause.
3. Press “ / V-/ / V+ “ or ” / ” to go to previous/next song.
ARC IN FUNCTION
Connection with HDMI (ARC) cable, e.g. to the HDMI ARC connection of the
television set, DVD player.
