EN, English
Operator's manual
HUSQVARNA AUTOMOWER
®
305E/310E/405XE/410XE
NERA
Read the operator's manual carefully and make sure that you
understand the instructions before you use the product.
Contents
1 Safety
1.1 Safety definitions...................................................3
1.2 General safety instructions....................................3
1.3 Safety instructions for installation..........................4
1.4 Safety instructions for operation............................4
1.5 Safety instructions for maintenance...................... 5
1.6 Battery safety........................................................ 5

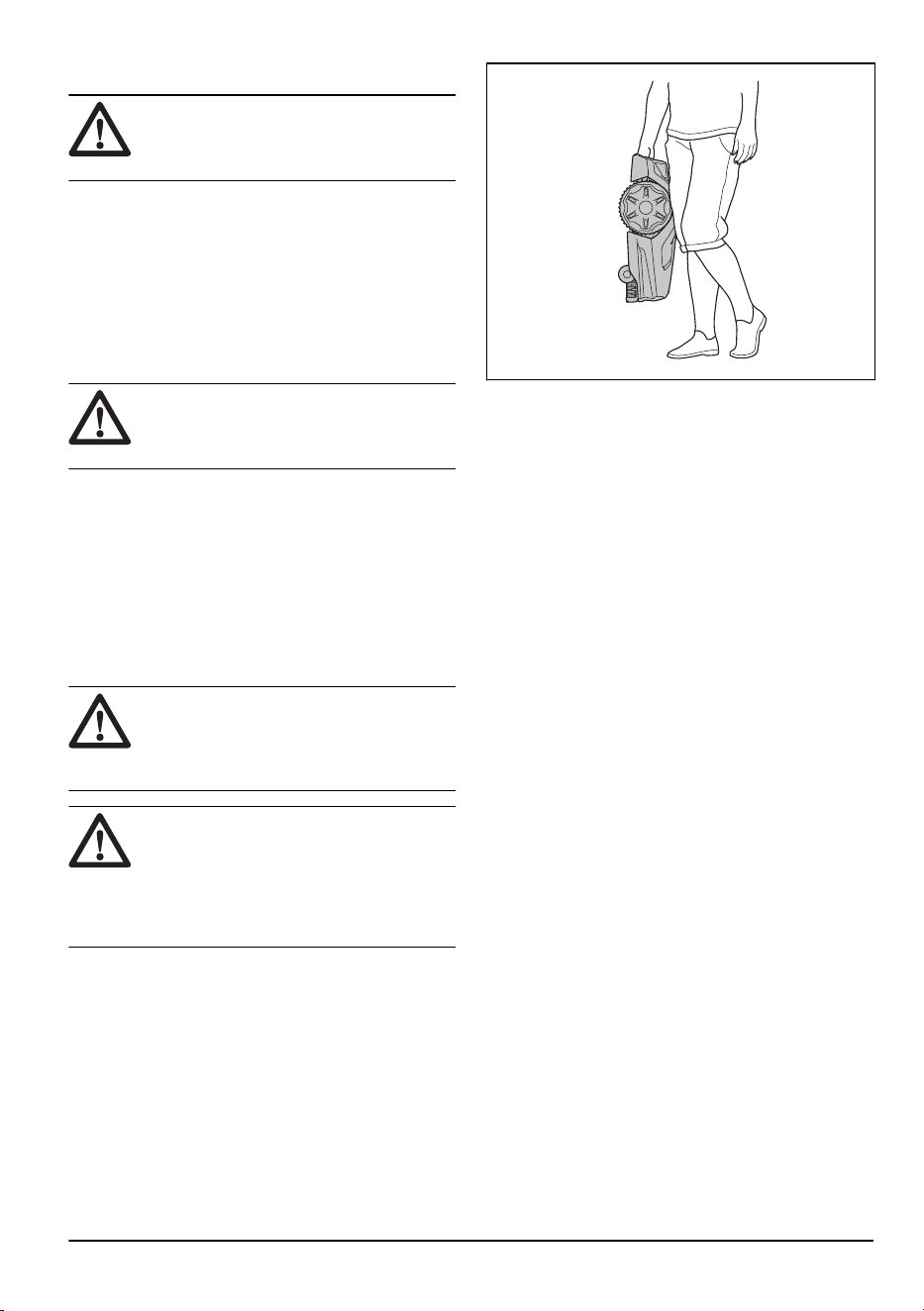

1.7 To lift and move the product..................................5
2 Introduction
2.1 Introduction........................................................... 6
2.2 Support..................................................................6
2.3 Product description............................................... 6

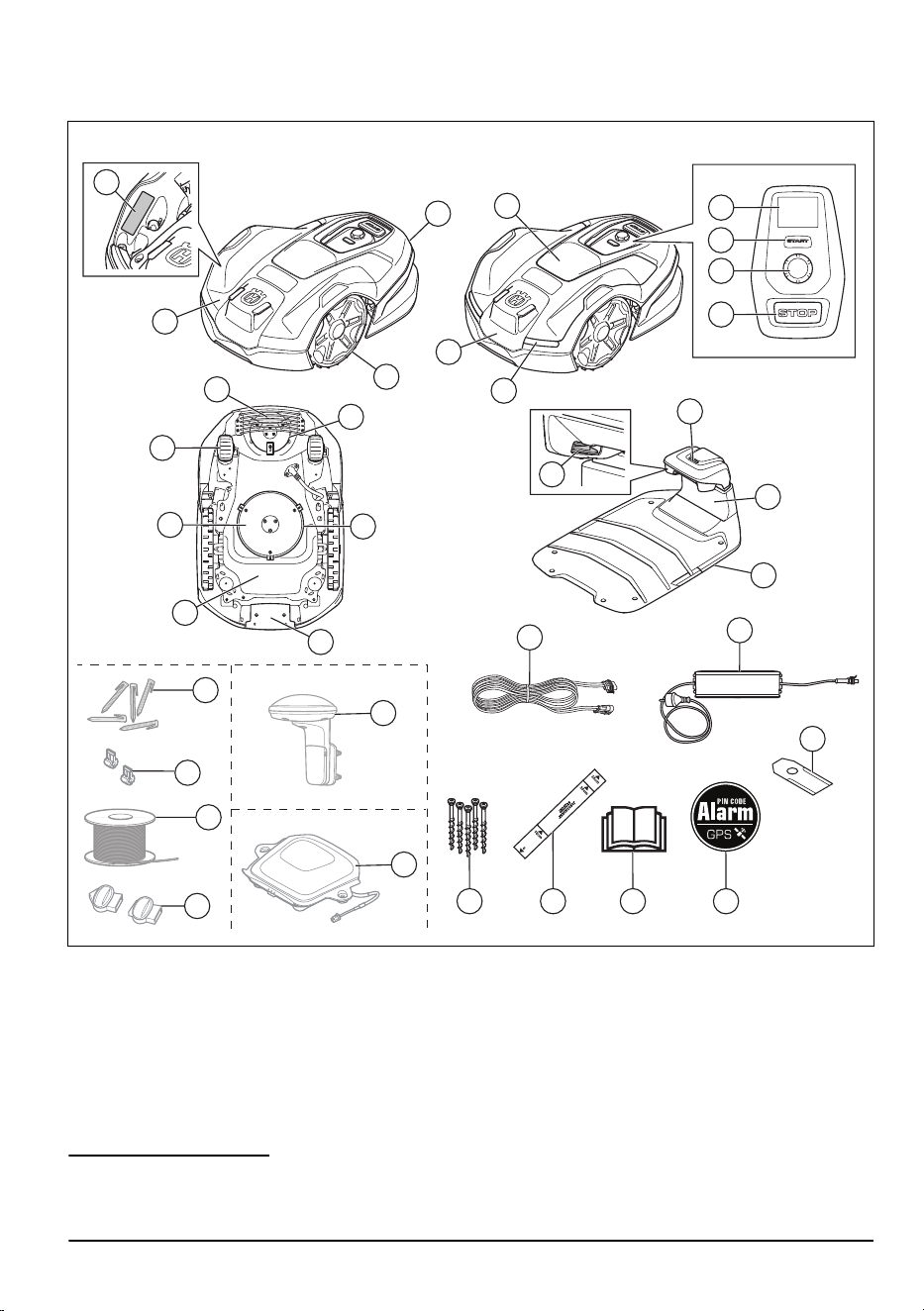

2.4 Product overview...................................................7

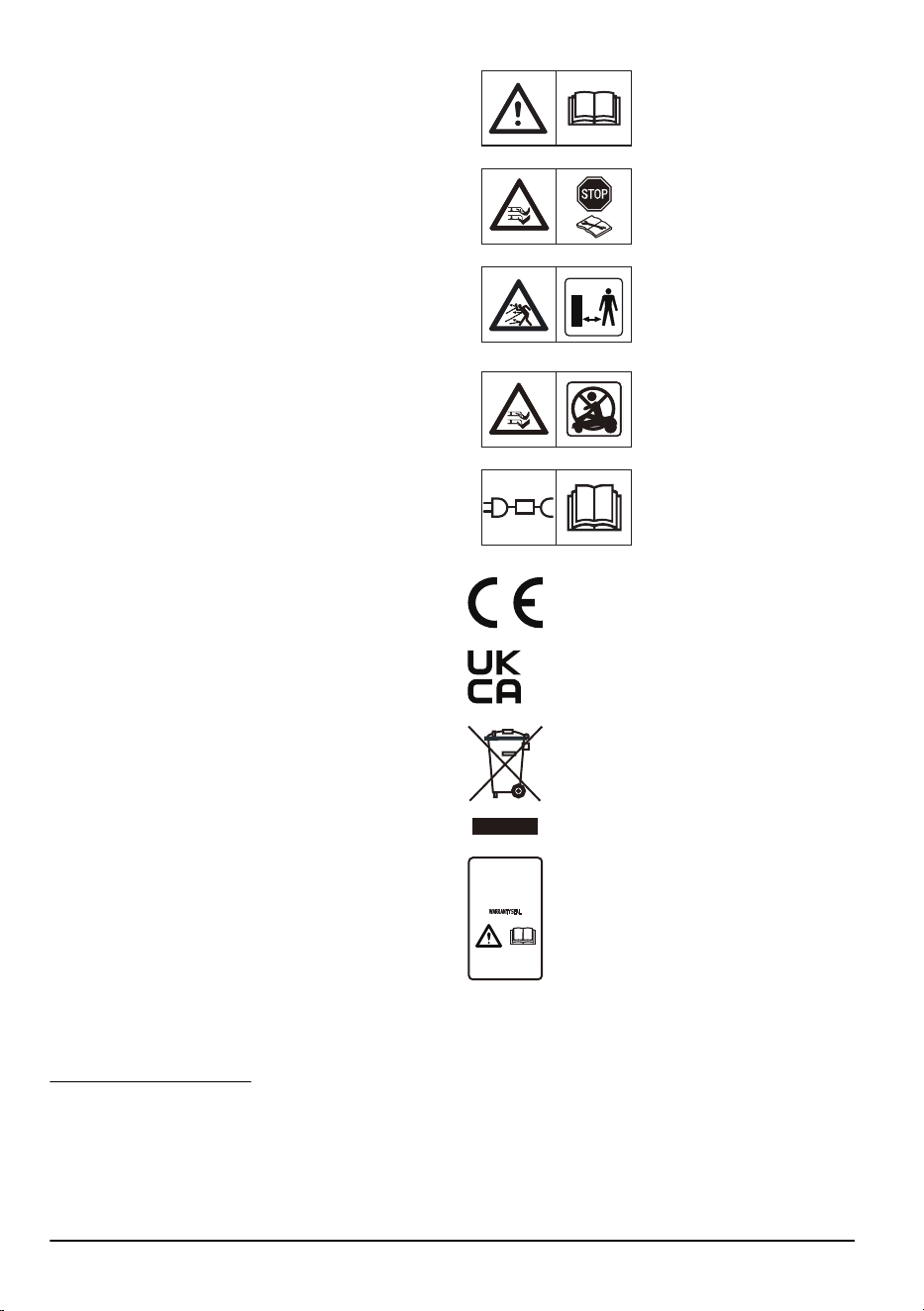

2.5 Symbols on the product........................................ 8
2.6 Symbols on the battery......................................... 9
2.7 Symbols on the display......................................... 9

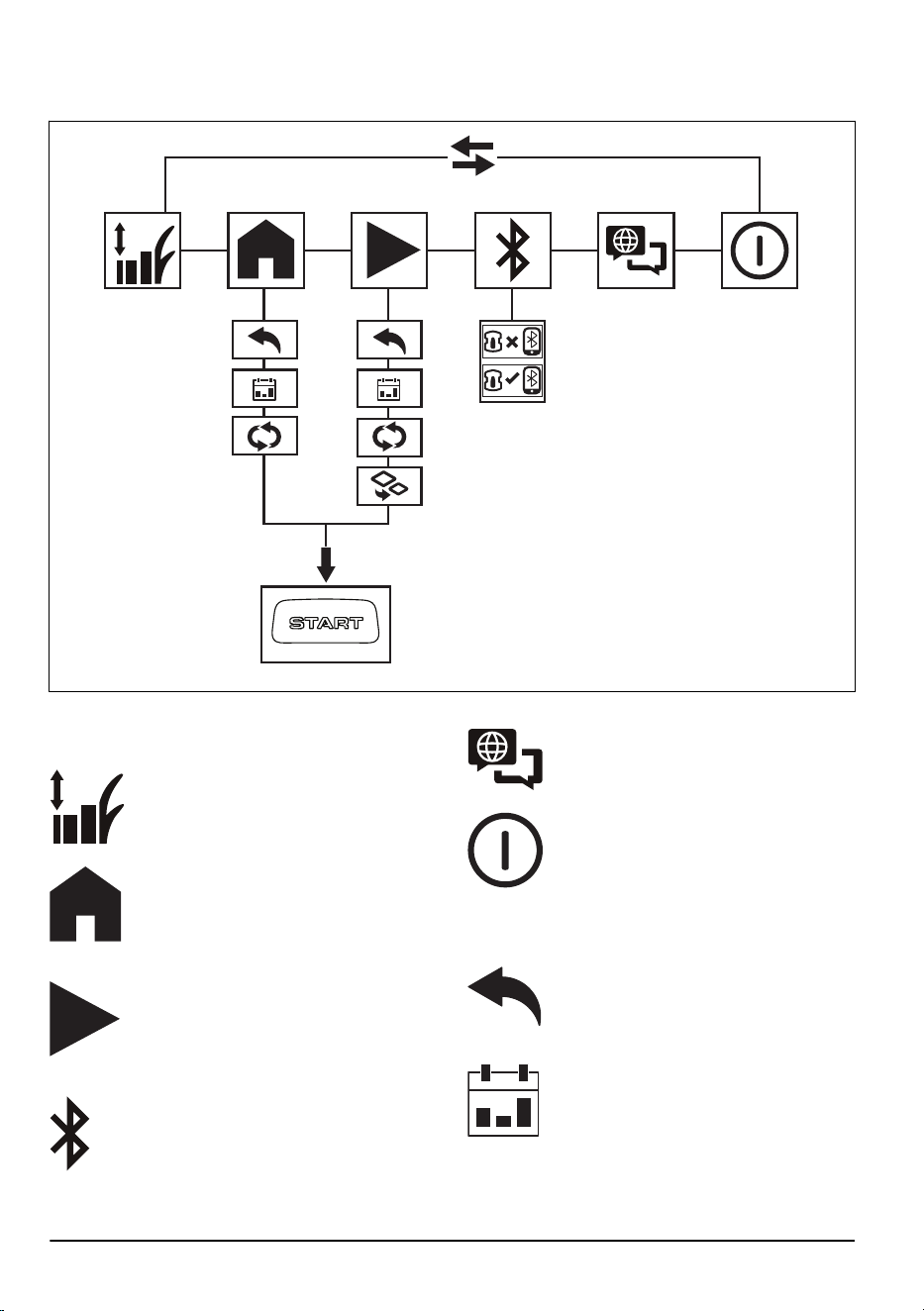

2.8 Menu structure overview in Automower
®
Access.......................................................................10
2.9 Product damage..................................................11
3 Installation with virtual boundary
3.1 Introduction - Installation..................................... 12

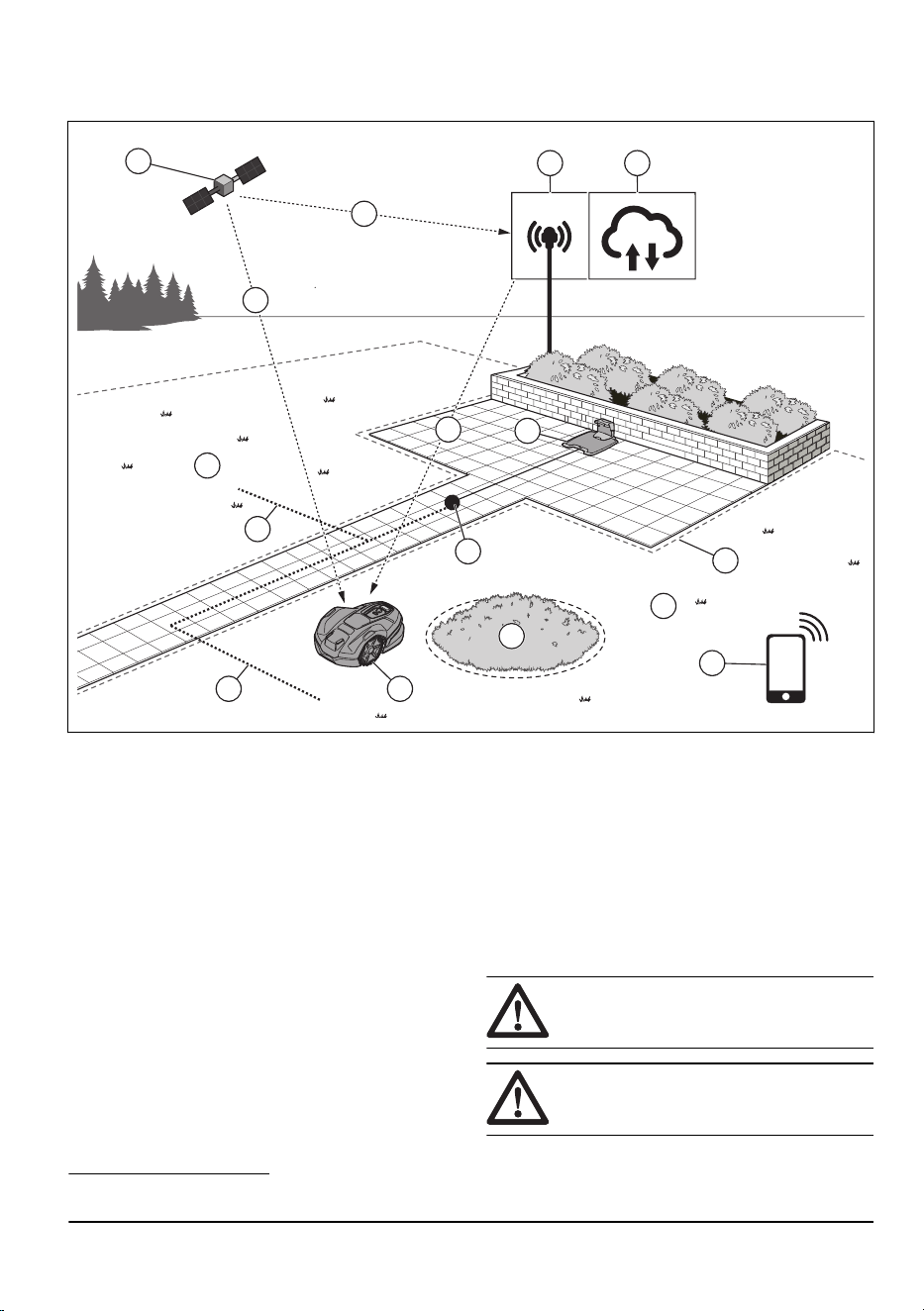

3.2 System overview for EPOS
™
installation............13
3.3 Primary components for installation.................... 13
3.4 To prepare for installation................................... 13

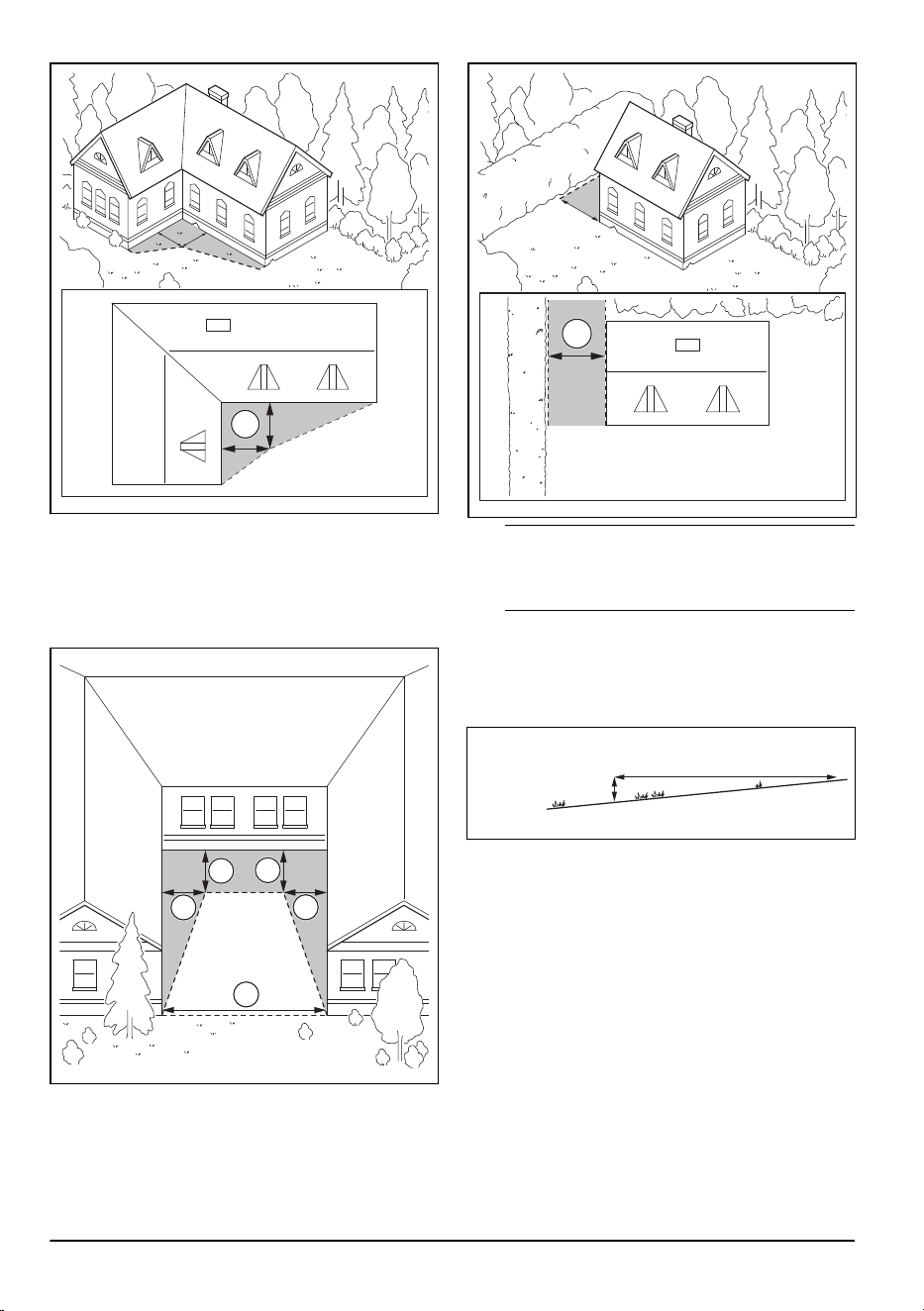

3.5 To examine where to put the reference station...14
3.6 To examine where to put the charging station.... 14
3.7 To examine where to put the power supply........ 15
3.8 To examine where to install the virtual
boundaries................................................................ 15
3.9 To use the EPOS
™
Support by wire function......17
3.10 Installation of the product.................................. 17
4 Installation with boundary wire
4.1 Introduction - Installation..................................... 24
4.2 Primary components for installation.................... 24
4.3 To prepare for installation................................... 24
4.4 Before the installation of the wires...................... 24
4.5 Installation of the product.................................... 29
5 Settings
5.1 Schedule............................................................. 33
5.2 Cutting height...................................................... 33
5.3 Pattern.................................................................33
5.4 Operation............................................................ 34
5.5 Installation settings..............................................35
5.6 Accessories.........................................................36
5.7 General............................................................... 36
5.8 Security............................................................... 36
5.9 Automower
®
Connect ........................................ 37
5.10 Messages..........................................................37
5.11 Automower
®
Intelligent Mapping (AIM) ............37
5.12 Download firmware over the air FOTA
(Firmware over the air)..............................................38
5.13 Mowing profiles................................................. 38
5.14 To reinstall the charging station on the map..... 38
6 Operation
6.1 To set the product to ON.....................................39
6.2 To start the product............................................. 39
6.3 To park the product............................................. 39
6.4 To stop the product............................................. 39
6.5 To set the product to OFF................................... 39
6.6 To charge the battery.......................................... 40
7 Maintenance
7.1 Introduction - maintenance..................................41
7.2 Maintenance schedule........................................ 41
7.3 Clean the product................................................42
7.4 Battery.................................................................43

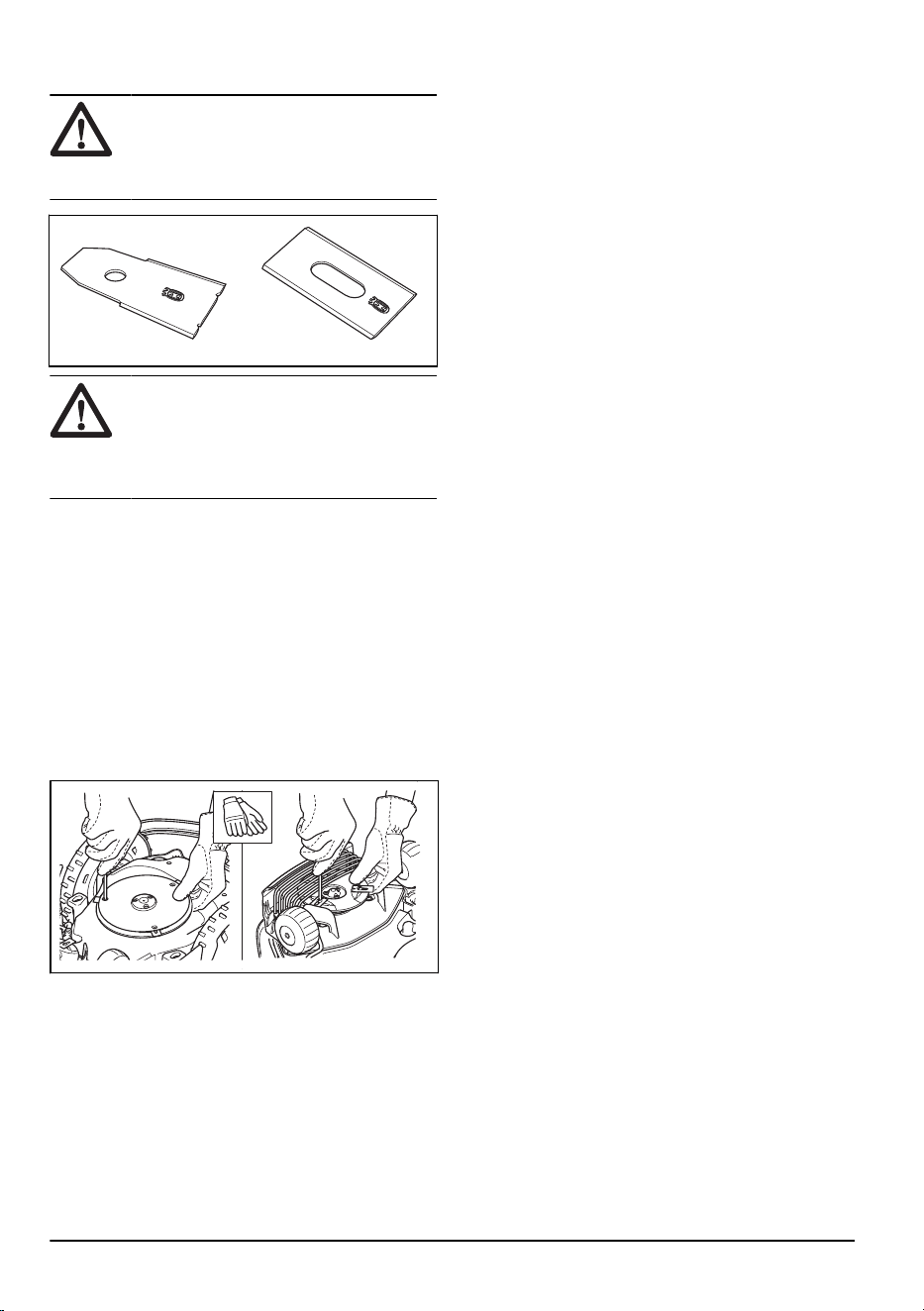

7.5 Replacement of the blades................................. 44
8 Troubleshooting
8.1 Messages............................................................45
8.2 LED indicator of the charging station.................. 52
8.3 Symptoms........................................................... 53
8.4 Finding breaks in the loop wire........................... 55
9 Transportation, storage and disposal
9.1 Transportation..................................................... 57
9.2 To put the product into storage........................... 57
9.3 To put the charging station into storage..............57
9.4 To install the charging station after storage........ 57
9.5 Disposal.............................................................. 58
10 Technical data
10.1 Technical data...................................................59
2
2369 - 003 -
1 Safety
1.1 Safety definitions
Warnings, cautions and notes are used to point out
specially important parts of the manual.
WARNING: Used if there is a risk of
injury or death for the operator or bystanders
if the instructions in the manual are not
obeyed.
CAUTION: Used if there is a risk of
damage to the product, other materials or
the adjacent area if the instructions in the
manual are not obeyed.
Note: Used to give more information that is necessary
in a given situation.
1.2 General safety instructions
WARNING: Read the warning
instructions that follow before you use the
product.
• Read the Operator’s manual carefully and make
sure you understand the instructions before you
use the product. Keep for future reference.
• This appliance is not intended for use by children
or persons with reduced physical, sensory or
mental capabilities (that could affect a safe
handling of the product), or lack of experience
and knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
However, EU requirements allows this appliance
to be used by children aged from 8 years and
above and persons with reduced physical, sensory
or mental capabilities or lack of experience and
knowledge, if they have been given supervision
or instruction concerning use of the appliance in
a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by
children without supervision.
• The product must only be used with the equipment
recommended by Husqvarna. All other types of
use are incorrect.
• To prevent damage to the product and accidents to
vehicles and persons, do not install work areas and
transport paths across public pathways.
• The product is not a toy. The blades of the product
can cause injury to persons and animals.
• Do not let children less than 8 years of age be
in the work area during operation. Children and
animals must be supervised at all times during
operation.
• All persons must be a minimum of 3 m/10 ft away
from the product when it is in operation. Do not for
example sleep or sunbathe in the work area when
the product is in operation.
• Warning signs must be put around the work area
of the product if it operates in public areas. The
signs must have the text that follows: Warning!
Automatic lawn mower! Keep away from the
machine! Supervise children!
• Do not run when you operate the product manually
with appDrive. Make sure that you have a safe and
stable position at all times. Make sure that there
are no persons near the product when it operates
in steep slopes. Always wear substantial footwear
and long pants when you operate the product with
appDrive.
• To set the product to OFF, go behind the product
and push the STOP button. You can use the app
to pause the product if it is applicable for your
product. When the product is set to OFF, wait
minimum 3 seconds before you move the product.
• Set the product to OFF before you clear a
blockage, do maintenance or examine the product,
and if the product starts to vibrate abnormally.
Examine the product for damage before you start
the product again. Do not use the product if it is
damaged.
• Do not touch moving hazardous parts, such as the
blade disc, before it has come to a complete stop.
• If an injury or accident occur, get medical aid.
• Do not put power supply cable and extension cable
in the work area. This can cause damage to the
cables.
• Do not connect a damaged cable or plug, or touch
a damaged cable, before it is disconnected from
the power outlet. Disconnect the plug from the
power outlet if the cable becomes damaged while
in operation. A worn or damaged cable increases
the risk of electrical shock. A damaged cable must
be replaced by service personnel.
• When you connect the power supply to the power
outlet, use a residual-current device (RCD) with a
tripping current of maximum 30 mA.
• Only charge the product in the included charging
station. For safe disposal of the battery, refer to
Disposal on page 58
. Incorrect use may result in
electric shock, overheating or leaking of corrosive
liquid from the battery. In the event of leakage of
electrolyte, flush with water/neutralizing agent. Get
medical aid if corrosive liquid comes in your eyes.
2369 - 003 -
Safety - 3
• Use only original batteries recommended by
Husqvarna. Product safety cannot be guaranteed
with other than original batteries. Do not use non-
rechargeable batteries.
• Follow the installation instructions that includes
to specify the work area, refer to
Introduction -
Installation on page 12
.
• Follow the instructions about to start and operate
the product, refer to
Operation on page 39
.
• If there is a risk of thunderstorm, Husqvarna
recommends that the power supply and all the
wires to the charging station are disconnected
to decrease the risk of damage to electrical
components. Connect the power supply and all
the wires again if there is no longer a risk of
thunderstorm. It is important that all wires are
connected correctly.
• Follow the maintenance instructions and if
necessary use Husqvarna original spare parts,
refer to
Maintenance on page 41
.
• For technical data such as weight, dimensions and
noise emission values, refer to
Installation of the
product on page 29
.
• The operator is responsible for accidents or
dangers that occurs to other persons or property.
• The product must only be operated, maintained
and repaired by persons that are fully conversant
with its special characteristics and safety
regulations.
• It is not permitted to change the initial design of the
product.
• Obey national regulations about electrical safety.
• Husqvarna does not guarantee full compatibility
between the product and other types of
wireless systems such as remote controls, radio
transmitters or equivalent.
• The built-in alarm is very loud. Be careful,
especially if the product is handled indoors.
• Operation and storage temperature range is 0-45
°C / 32-113 °F. Temperature range for charging is
5-45 °C / 41-113 °F. Too high temperatures can
cause damage to the product.
1.3 Safety instructions for installation
WARNING:
Read the warning
instructions that follow before you use the
product.
• Do not install the charging station, including any
accessory, at a location that is below, or within 60
cm / 24 in. from, any combustible material. In case
of malfunction, heating of the charging station and
the power supply may occur and create a potential
risk of fire.
• Do not put the power supply at a height where
there is a risk it can be put in water. Do not put the
power supply on the ground.
• Do not encapsulate the power supply. Condensed
water can harm the power supply and increase the
risk of electrical shock.
• Do not install the charging station where there are
pests, for example ants.
• Applicable to USA/Canada. If power supply is
installed outdoors: Risk of Electric Shock. Install
only to a covered Class A GFCI receptacle (RCD)
that has an enclosure that is weatherproof with the
attachment plug cap inserted or removed.
• Do not install the charging station where there is a
risk of standing water.
1.4 Safety instructions for operation
WARNING: Read the warning
instructions that follow before you use the
product.
• Keep your hands and feet away from the rotating
blades. Do not put your hands or feet near or
below the product when it is set to ON.
• Use the park mode or set the product to OFF when
persons, especially children or animals are in the
work area. Refer to
To set the product to OFF
on page 39
. Husqvarna recommends to set the
product to operate when the work area has no
activity. The product can cause injury to animals at
night in work area, for example hedgehogs. Refer
to
Operating modes - Park on page 39
.
• Make sure that there are no objects such as
stones, branches, tools or toys on the lawn. The
blades can be damaged if it hits an object.
• Do not lift the product or move it when it is set to
ON.
• Do not to let the product collide with persons or
animals. If a person or animal comes in the way of
the product, stop the product immediately. Refer to
To stop the product on page 39
.
• Do not put objects on top of the product or its
charging station.
• Do not use the product if the STOP button does
not work.
• Always set the product to OFF when it is not in
operation. The product can only start when you
enter the correct PIN code.
• Do not use the product at the same time as a
pop-up sprinkler. Use the
Schedule
function so the
product and pop-up sprinkler do not operate at the
same time. Refer to
Schedule on page 33
.
• Do not let the product operate when there is
standing water in the work area. For example when
heavy rain forms pools of water.
4
- Safety 2369 - 003 -
1.5 Safety instructions for maintenance
WARNING: Read the warning
instructions that follow before you do
maintenance on the product.
• Set the product to OFF when you do maintenance
on the product.
• Do not use a high-pressure washer to clean the
product. Do not use solvents to clean the product.
• Disconnect the plug to the charging station before
you clean or do maintenance of the charging
station.
1.6 Battery safety
WARNING: Read the warning
instructions that follow before you use the
product.
• Lithium-ion batteries can explode or cause fire if
disassembled, short-circuited, exposed to water,
fire, or high temperatures. Handle carefully, do
not dismantle, open the battery or use any type
of electrical/mechanical abuse. Avoid storage in
direct sunlight.
• Do not use a damaged battery. Dispose the battery
if it is damaged. Refer to
Disposal on page 58
.

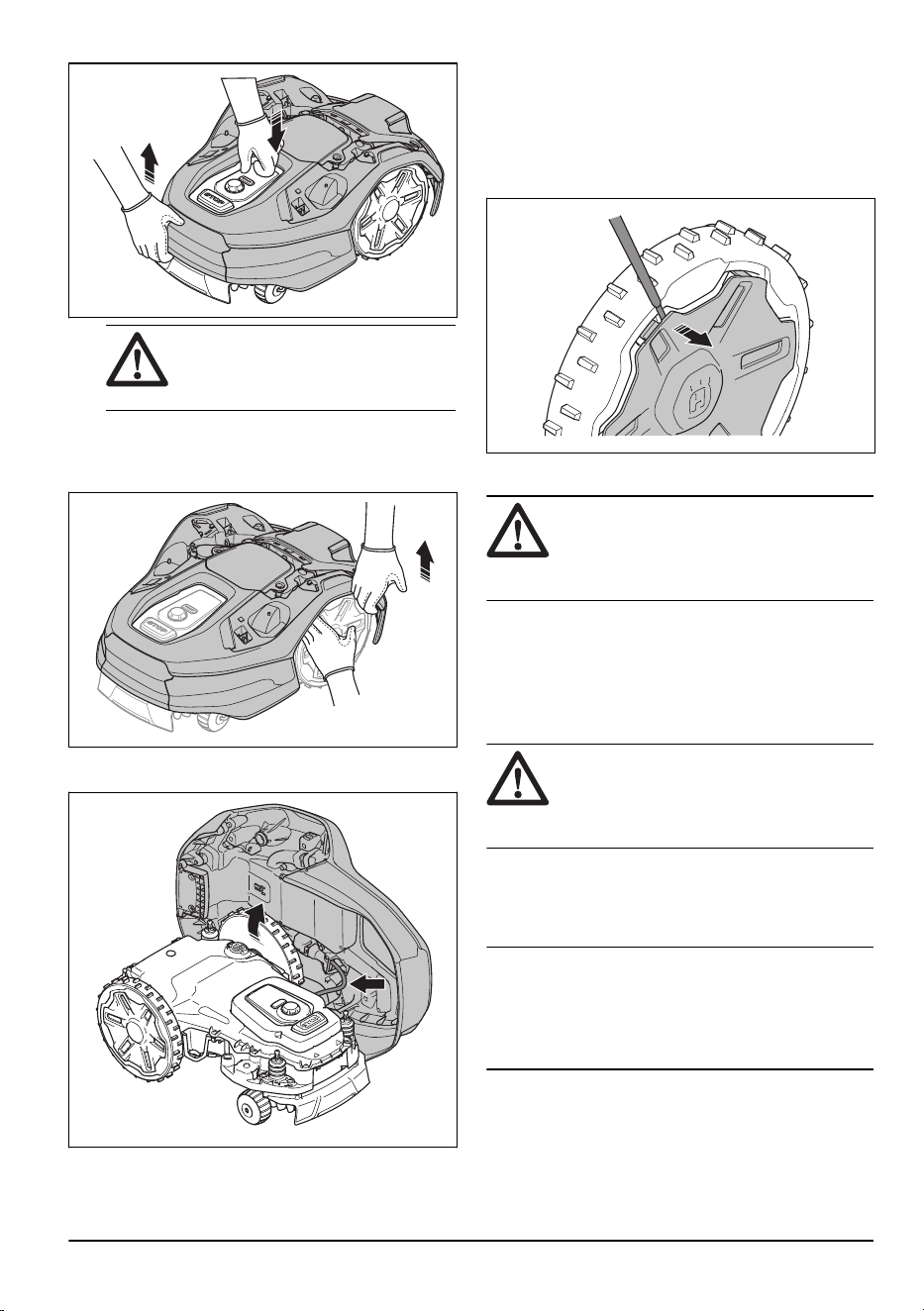

1.7 To lift and move the product
WARNING:
The product must be set to
OFF before you lift the product. The product
is disabled when the indicator on the jog
wheel goes off.
CAUTION: Do not lift the product when
it is parked in the charging station. It can
cause damage to the charging station and/or
the product. Push the STOP button and
pull the product out of the charging station
before you lift it.
To safely move the product from or in the work area:
1. Push the STOP button to stop the product.
2. Set the product to OFF.
3. Lift the product by the handle with the blade disc
away from your body.
2369 - 003 -
Safety - 5

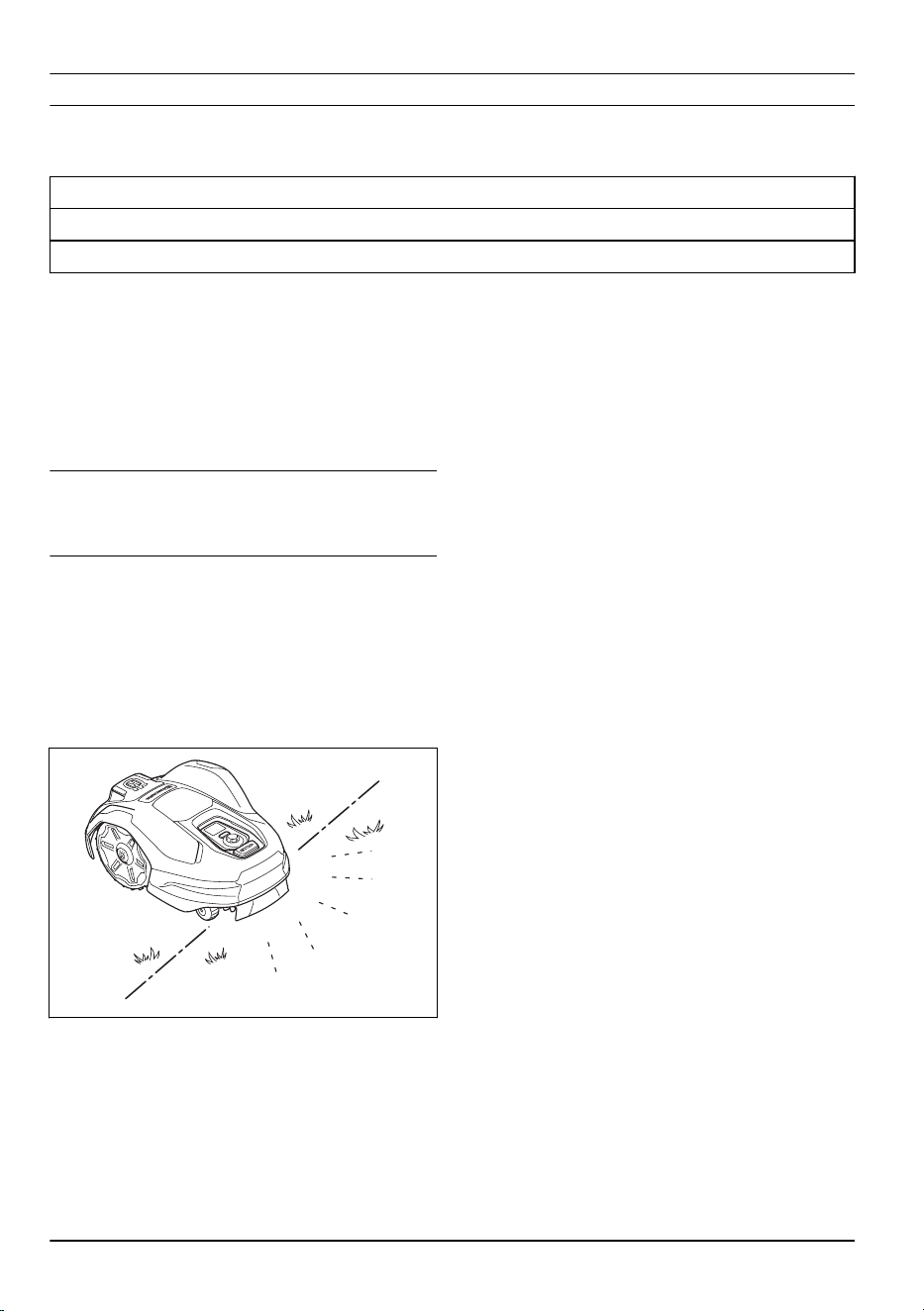

2 Introduction
2.1 Introduction
Factory PIN code: 1234
Serial number:
Product number:
The serial number and the product number are on the product rating plate and on the product carton.
• Register your product on www.husqvarna.com. Enter the serial number of the product, the product number and
the date of purchase to register your product.
2.2 Support
For support about the product, speak to your Husqvarna
servicing dealer.
2.3 Product description
Note: Husqvarna regularly updates the appearance
and function of the products. Refer to
Support on page
6
.
The product is a robotic lawn mower. The product has a
battery power source and operates automatically. When
the battery state of charge is low the product goes to the
charging station to charge. The product starts to operate
again when the battery is fully charged.
The product has EdgeCut which makes the product cut
the edges of your lawn. The frequent cutting technique
improves the grass quality and decreases the use of
fertilizers. Collection of grass is not necessary.
2.3.1 Installation method
You can install the product with virtual boundaries
with EPOS
™
technology or physical boundaries with
boundary wire.
For installation with EPOS
™
, refer to
Installation with
virtual boundary on page 12
. For installation of the
boundary wire, refer to
Installation with boundary wire
on page 24
.
2.3.2 Automower
®
Access
Automower
®
Access is the user interface on the
product. It includes the display, the jog wheel, the
START button and the STOP button. Refer to
Menu
structure overview in Automower
®
Access on page 10
.
6 - Introduction 2369 - 003 -
2.4 Product overview
Automower®
305E/310E NERA
Automower®
405XE/410XE NERA
30
23
26 27 28 29
8
13
6
7
2
4
5
12
14
17
18
19
15
16
3
20
21
22
9
10
11
34
35
24
25
32
33
31
1
1. Rating plate
1
2. Top cover
3. Front wheels
4. Product body
5. EPOS
™
hub
6. Radar
2
7. Headlights
3
8. Display
9. START button
10. Jog wheel
11. STOP button
12. Blade disc guard
13. Rear wheels
14. Skid plate
1
Found below the top cover.
2
Only for Automower
®
405XE/410XE NERA.
3
Only for Automower
®
405XE/410XE NERA.
2369 - 003 - Introduction - 7
15. Chassis with electronics, battery and motors
16. EdgeCut blade disc
17. Main blade disc
18. Handle
19. Contact plates
20. LED indicator of the charging station
21. Hatch
22. Charging station
23. Low-voltage cable
24. Power supply
4
25. Extra blades
26. Screws to attach the charging station
27. Measurement gauge for installation of the
boundary wire (the measurement gauge is
removed from the carton of the product)
28. Operator’s manual and Quick guide
29. Alarm decal
30. Stakes
5
31. Connectors for the loop wire
6
32. Loop wire for boundary wire and guide wire
7
33. Couplers for the loop wire
8
34. Reference station EPOS
™
RS1
9
35. Automower
®
EPOS
™
Plug-in
10
2.5 Symbols on the product
These symbols can be found on the product. Make sure
that you understand them.
WARNING: Read the opera-
tor instructions before you op-
erate the product.
WARNING: Disable the prod-
uct before maintenance or
before you lift the product.
WARNING: Keep a safe dis-
tance from the product when
it is in operation. Keep your
hands and feet away from the
rotating blades of the product.
WARNING: Do not sit on
the product. Do not put your
hands or feet near or below
the product.
Use a detachable power sup-
ply as specified on the rating
plate adjacent to the symbol.
This product complies with the applicable
EU Directives.
This product complies with the applicable
UK Directives.
It is not permitted to dispose the product
as usual domestic waste. Obey national
regulations and use the local recycling
system.
The chassis contains components which
are sensitive to electrostatic discharge
(ESD). The chassis must only be opened
and sealed by an authorized service
technician. The warranty will not be
applicable if the seal is broken.
4
The appearance can be different for different markets.
5
Purchased separately.
6
Purchased separately.
7
Purchased separately.
8
Purchased separately.
9
Purchased separately.
10
Purchased separately.
8 - Introduction 2369 - 003 -
Do not make modifications on the low-
voltage cable.
Do not use a hedge trimmer or a grass
trimmer near the low-voltage cable.

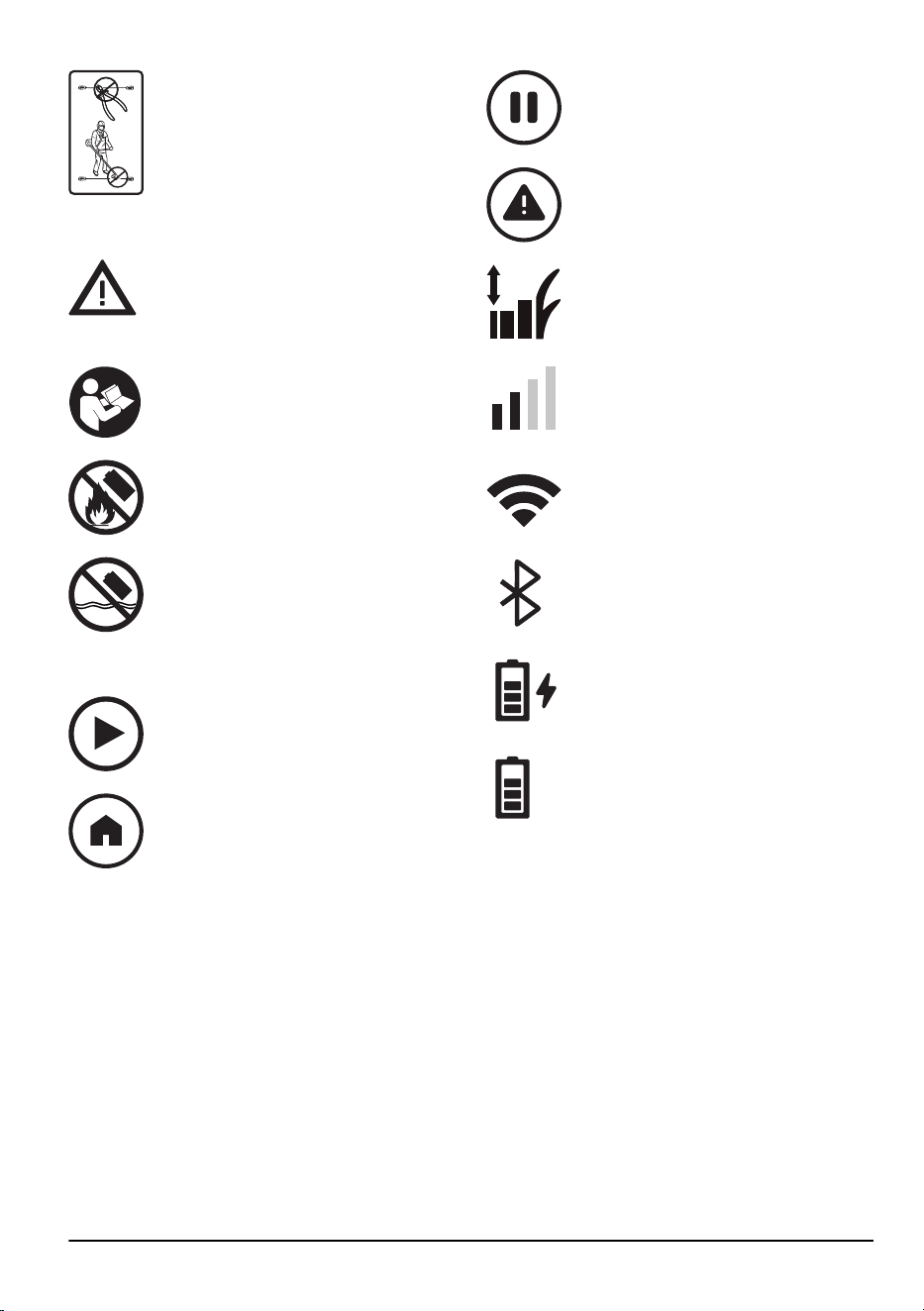

2.6 Symbols on the battery
WARNING: Lithium-ion batteries can
explode or cause fire if disassembled,
short-circuited or handled roughly. Do not
expose to water, fire or high temperature.
Read the user instructions.
Do not discard the battery into fire and do
not expose the battery to a heat source.
Do not immerse the battery into water.
2.7 Symbols on the display
The product is in operation.
The product is parked.
The product is paused.
There is an error.
Cutting height of the product.
Cellular signal strength.
Wi-Fi signal strength.
Bluetooth
®
connection is enabled.
The battery is charging.
Battery level.
2369 - 003 - Introduction - 9
2.8 Menu structure overview in Automower
®
Access
2.8.1 Symbols in the main menu for
Automower
®
Access
Cutting height
In the
Cutting height
menu you can adjust
the cutting height.
Park
In the
Park
menu you can set the product
to park until further notice or to the set
schedule.
Mow
In the
Mow
menu you can set the product
to cut to the set schedule or in secondary
area mode.
Connect
In the
Connect
menu you can enable
Bluetooth
®
and make a pairing operation
with your mobile device.
Language
In the
Language
menu you can select a
language in the display.
Power off
Power off
sets the product to OFF.
2.8.2 Symbols in the submenu for
Automower
®
Access
Back
If you select
Back
, you go back to the
main menu.
Schedule
In the
Schedule
submenu you can select
the
Schedule
settings. The
Schedule
settings are set in the Automower
®
Connect app.
10 - Introduction 2369 - 003 -
Selected operation mode
If you only have one work area, you
can select to override the schedule and
continue to cut until you change the
operation mode.
If you have more than one work area
you can select to override the schedule
and only cut one of the work areas. For
work areas with irregular mowing, the
product will cut this area until you change
the operation mode. For systematic work
areas, the product will cut until the area
is completed and then it will park in the
charging station.
Secondary area
In the
Secondary area
submenu you
can select the
Secondary area
operation
mode. Refer to
Secondary area on page
39
.
Connected
The product and mobile device are
connected with Bluetooth
®
.
Not Connected
The product and mobile device are not
connected with Bluetooth
®
.
2.8.3 Symbols in the app
Shows the status of the correction data
that the product receives.
The status is
EPOS
™
confirmed
. The
product has an accurate position and
direction. This is necessary to operate
the product automatically and for the
installation of map objects.
The status is
EPOS
™
action is necessary
.
The product has an accurate position but
it is necessary to operate the product,
manually or automatically, to get an
accurate direction.
The status is
EPOS
™
searching
. The
product does not have an accurate
position and is searching for the satellite
signals and the correction data to get an
accurate position.
2.9 Product damage
We are not responsible for damages to our product if:
• the product is incorrectly repaired.
• the product is repaired with parts that are not
from the manufacturer or not approved by the
manufacturer.
• the product has an accessory that is not from the
manufacturer or not approved by the manufacturer.
• the product is not repaired at an approved service
center or by an approved authority.
2369 - 003 - Introduction - 11
3 Installation with virtual boundary
3.1 Introduction - Installation
WARNING: Read and understand the
safety chapter before you install the product.
CAUTION: Use original spare parts and
installation material.
Note: Refer to www.husqvarna.com for more
information about installation.
For installation of virtual boundaries with EPOS
™
, the
product uses satellites and correction data to navigate.
The correction data can be received through the
Husqvarna
®
Cloud or a reference station. The reference
station is an optional accessory that you can use if you
cannot connect to the Husqvarna
®
Cloud.
Note: All countries do not support reference stations
or correction data through the Husqvarna
®
Cloud.
Speak to you local Husqvarna representative for
information.
To make an installation the product is operated with
appDrive in the Automower
®
Connect app. Waypoints
are added to make a map in the app.
Work areas are the areas where the product operates
and cuts grass. You can also create stay-out zones
where the product cannot enter.
In front of the charging station there is a docking point.
It is used for the product to navigate to and from the
charging station.
Transport paths are necessary to navigate between the
docking point and the work areas. The product does
not cut grass when it operates along a transport path.
Refer to
System overview for EPOS
™
installation on
page 13
.
12 - Installation with virtual boundary 2369 - 003 -
3.2 System overview for EPOS
™
installation
6
3 4
1
2
9
9
2
5
10
7
8
11
12
12 13
1. Satellites
2. Satellite signals
3. Reference station
11
4. Husqvarna
®
Cloud
5. Correction data
6. Charging station
7. Virtual boundary
8. Stay-out zone
9. Work area
10. Mobile device
11. Docking point
12. Transport path
13. Robotic lawn mower
3.3 Primary components for installation
The installation includes the components that follow:
• Robotic lawn mower, that cuts the lawn
automatically.
• Charging station, that charges the product.
• Power supply, which is connected to the charging
station and a 100-240V power outlet.
• Reference station
12
, that receives satellite signals
and sends correction data to the robotic lawn
mower.
• Mobile device with the Automower
®
Connect app
to do the installation and the settings for the
product.
3.4 To prepare for installation
CAUTION: Holes with water in the lawn
can cause damage to the product.
CAUTION: Read the installation
chapter before you start the installation.
11
Optional accessory which is purchased separately.
12
Optional accessory which is purchased separately.
2369 - 003 - Installation with virtual boundary -
13
• If you use EPOS
™
through Husqvarna
®
Cloud,
make sure that the product can receive correction
data in the complete work area.
Note: Cellular coverage or Wi-Fi is necessary
to receive correction data for the product
through Husqvarna
®
Cloud. Automower
®
405XE/
410XE NERA must have cellular coverage and
Automower
®
305E/310E NERA must have Wi-Fi
coverage in the complete work area. If this is not
possible, you can use a local reference station to
receive correction data as an alternative.
• Make a blueprint of the work area and include all
obstacles. This makes it easier to examine where
to put the charging station, the virtual boundaries
and the reference station.
• Make a mark on the blueprint where to put
the charging station, the maintenance point, the
transport paths, the virtual boundaries, stay-out
zones and the reference station.
• Fill in holes in the lawn to make it level.
• For Automower
®
305E/310E NERA, make sure
that you have Wi-Fi coverage in the charging
station to download new firmware. Refer to
Download firmware over the air FOTA (Firmware
over the air) on page 38
. For Automower
®
405XE/410XE NERA Wi-Fi or cellular technology
is used for FOTA.
• For Automower
®
305E/310E NERA, make sure
that you have Wi-Fi coverage in the work area if
you use the Automower
®
Connect app remotely.
Refer to
To do a pairing operation with the
Automower
®
Connect app on page 19
. For
Automower
®
405XE/410XE NERA Wi-Fi or cellular
technology is used for Automower
®
Connect.
• Cut the grass before you install the product. Make
sure that the grass is maximum 6 cm / 2.5 in.
Note:
The first weeks after installation the sound level
when the product cuts the grass can be higher than
usual. The sound level decreases after some time.
3.5 To examine where to put the
reference station
Read and understand the instructions about where to
put the reference station. Refer to the Operator's manual
for the reference station.
3.6 To examine where to put the
charging station
• You can put the charging station inside or outside
the work area.
• If the docking point is outside the work areas,
install a transport path from the docking point to
the work areas.
• Put the charging station (A) in an open area.
• Set the docking point between 70-250 cm / 28-98
in. from the charging station. Make sure that the
docking point (B) has unimpeded sky view.
• Make sure to have sufficient of free space in front
of the charging station.
Note: Husqvarna recommends to have a
minimum of 6 m / 20 ft. (C) free space in front of
the charging station.
• The reversing distance can be set to 70-250 cm /
28-98 in.
B
C
A
AB
C
Note: Short reversing distance decreases the
risk of track marks. A long reversing distance can
be necessary to have good satellite signals at the
docking point.
• Put the charging station near a power outlet.
• Put the charging station on a level surface.
• The baseplate of the charging station must not be
bent.
• If the work area has 2 parts separated with a steep
slope, Husqvarna recommends to put the charging
station in the lower section.
CAUTION:
Do not install the charging
station where there are metal objects
in the ground. Metal objects can cause
interference with the charging station signal.
14 - Installation with virtual boundary 2369 - 003 -
3.7 To examine where to put the power
supply
CAUTION: Make sure that the blades
on the product do not cut the low-voltage
cable.
CAUTION: Do not put the low-voltage
cable in a coil or below the charging station
plate. The coil causes interference with the
signal from the charging station.
• Put the power supply in an area with a roof and
protection from the sun and rain.
• Put the power supply in an area with good airflow.
• Use a residual-current device (RCD) with a tripping
current of maximum 30 mA when you connect the
power supply to the power outlet.
Low-voltage cables of different lengths are available as
accessories.
3.8 To examine where to install the
virtual boundaries
CAUTION:
If the work area is adjacent
to water bodies, slopes, precipices or a
public road, there must be a protective wall.
The wall must be minimum 15 cm / 6 in. in
height.
CAUTION: Do not let the product
operate on gravel.
• For careful operation without noise, make stay-out
zones around all obstacles for example trees, roots
and stones.
• Make a blueprint of the work area before you install
the virtual boundaries.

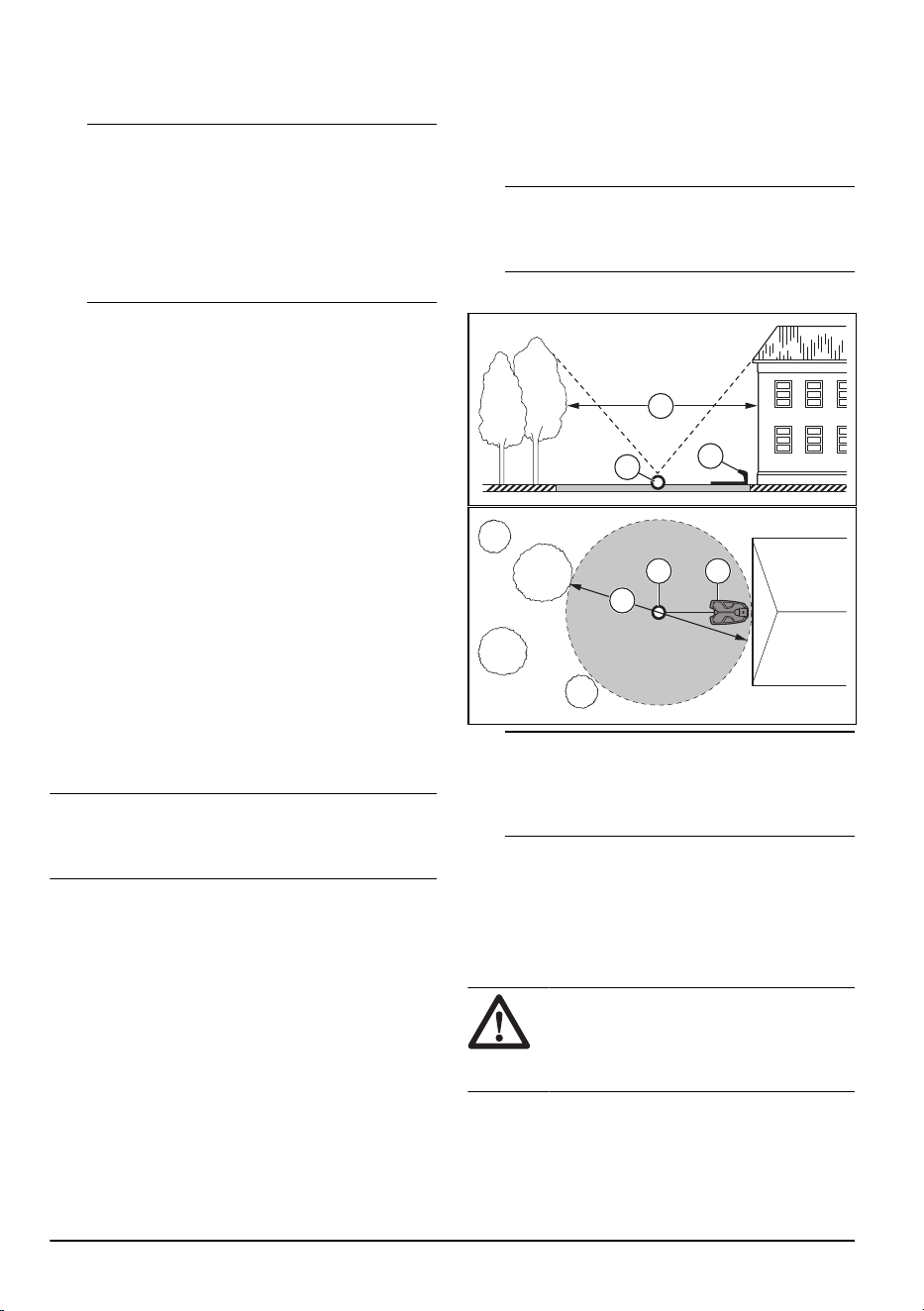

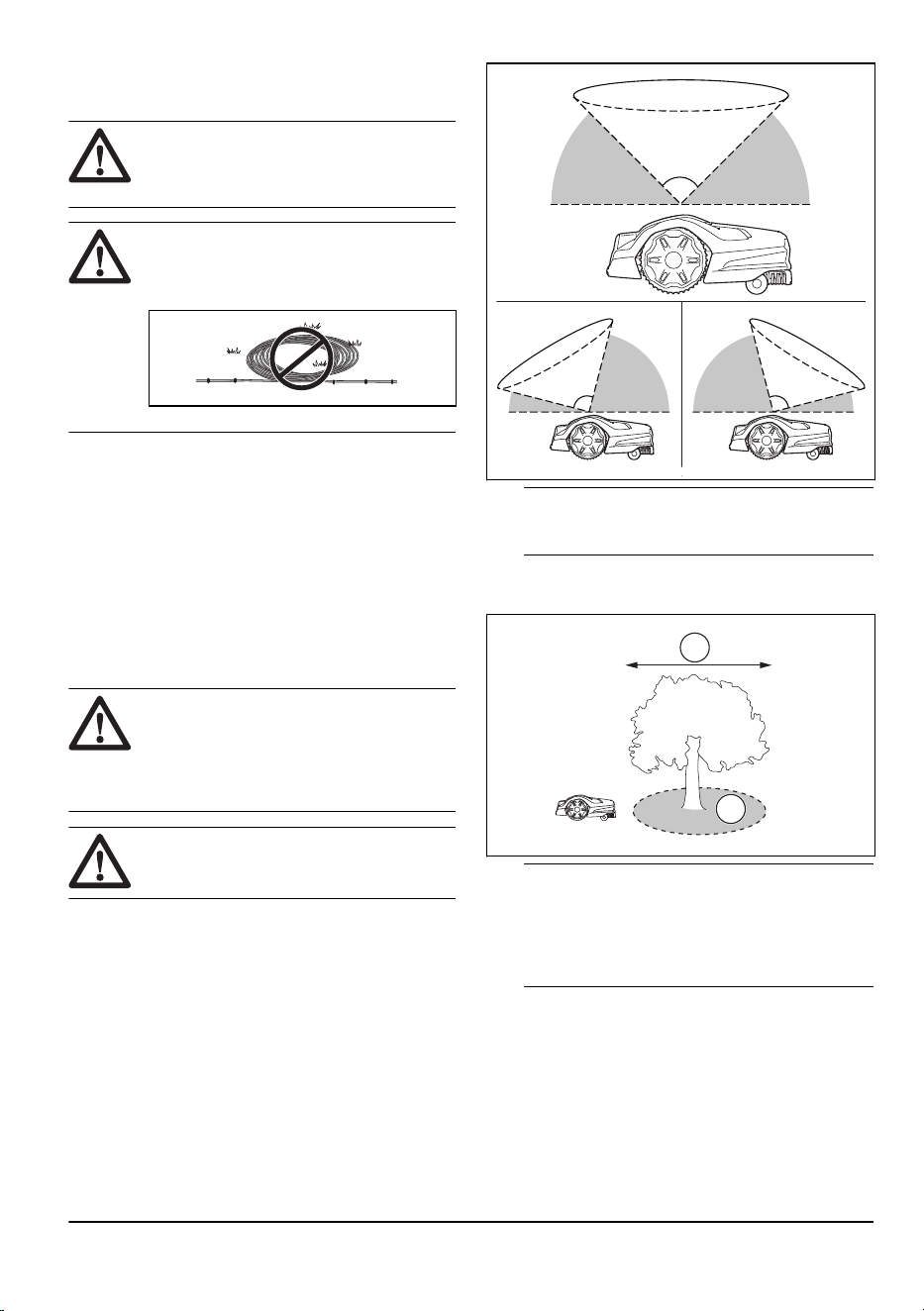

3.8.1 To install map objects near buildings
and trees
• Make sure that 90° section of the sky is unimpeded
where the product operates.
90°
Note:
The product cannot receive signals from
the satellite for navigation if the sky is impeded.
• Make a stay-out zone (B) around trees or a group
of trees with tree canopies that are more than 4 m /
13 ft. in diameter (A).
B
A
Note: Trees or a group of trees with tree
canopies that are more than 4 m / 13 ft. in diameter
(A) can cause temporary stops for the product.
Smaller trees do usually not cause interference
with the operation of the product.
• For L-shaped buildings, install the virtual boundary
at a minimum distance (C) of 1.5 m / 5 ft. from it.
2369 - 003 -
Installation with virtual boundary -
15
C
• To install virtual boundaries in an area with an U-
shaped building, make sure that the distance (E) is
minimum 6 m / 20 ft. If the building is higher than 3
m / 10 ft., make sure that the distance (E) is twice
the height of the highest building. Install the virtual
boundary at a minimum distance (D) of 1.5 m / 5 ft.
from the building.
D
D
D
D
E
• Make sure that the areas between objects have a
distance (F) of minimum 4 m / 13 ft.
F
Note:
For areas with a width less than 4 m / 13
ft. a transport path can be made for the robotic
lawn mower to go through without cutting.
3.8.2 To install the map objects in a slope
The product can operate in 30% slopes in the work
area. At the virtual boundaries the maximum slope is
20%. The slope (%) is calculated as height for each m.
Example: 10 cm / 100 cm = 10%.
10 cm/ 4"
100 cm/ 40"
10%
• For slopes more than 30% in the work area, isolate
the slope with a stay-out zone.
• For slopes adjacent to a public road, put a fence or
a protective wall along the outer edge of the slope.
• Husqvarna recommends to set the direction of the
systematic pattern straight up the slope to prevent
wear on the grass.
3.8.3 Passages
A passage is a section that has virtual boundary on each
side and that connects 2 parts of the work area. The
width of the passage can be minimum 2 m / 6.5 ft. to get
a good cutting result.
16
- Installation with virtual boundary 2369 - 003 -
3.8.4 To examine where to make stay-out
zones
• Make stay-out zones around objects that are larger
than 2x2 m / 6.6x6.6 ft.
• Make sure that the stay-out zone is minimum
30x30 cm / 1x1 ft.
• Make sure that the stay-out zone includes the
complete area (A) where the product must not
enter.
A
B

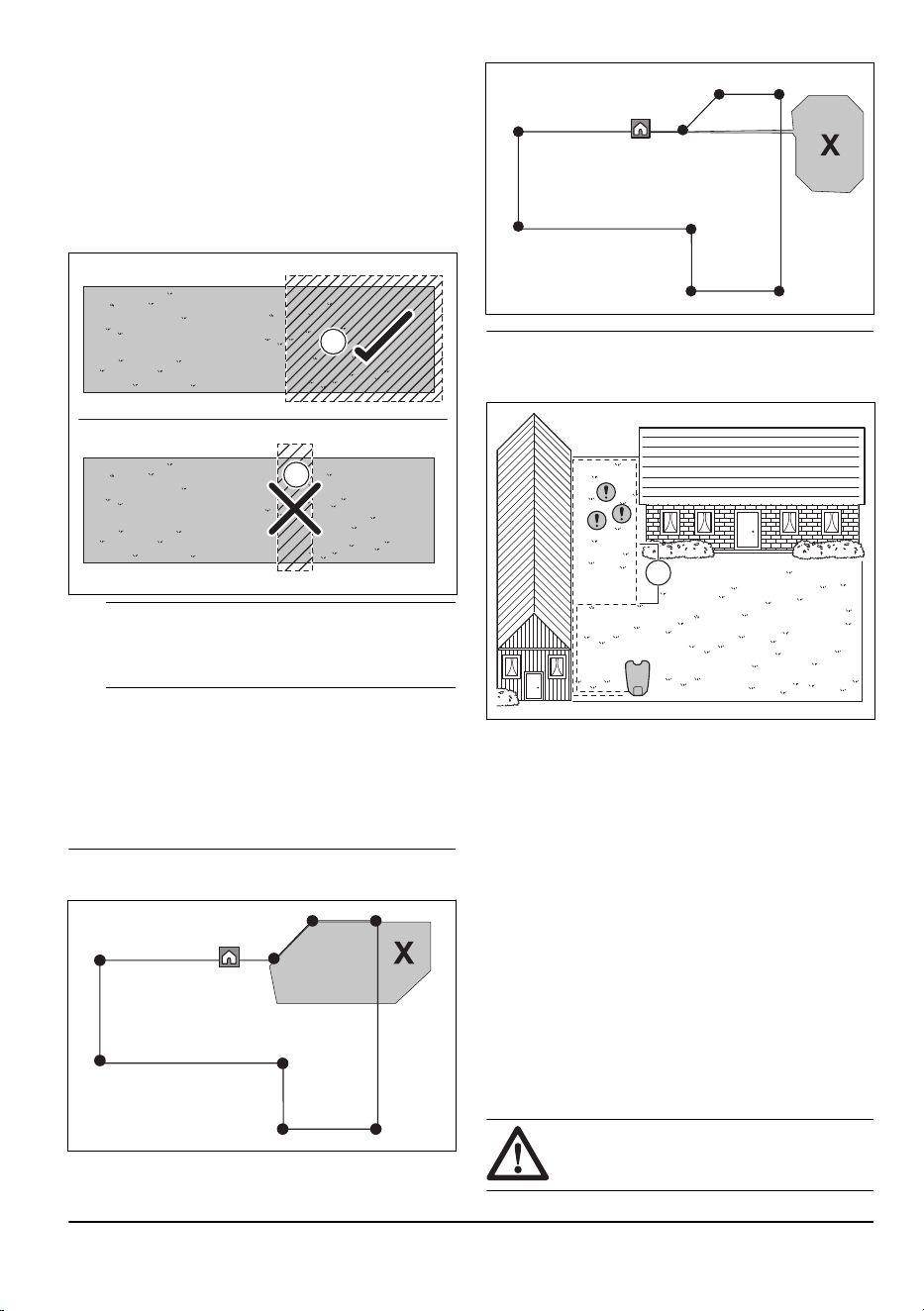

Note: Do not make a stay-out zone (B) across
the work area to prevent the product to enter parts
of the work area.
3.9 To use the
EPOS
™
Support by wire
function

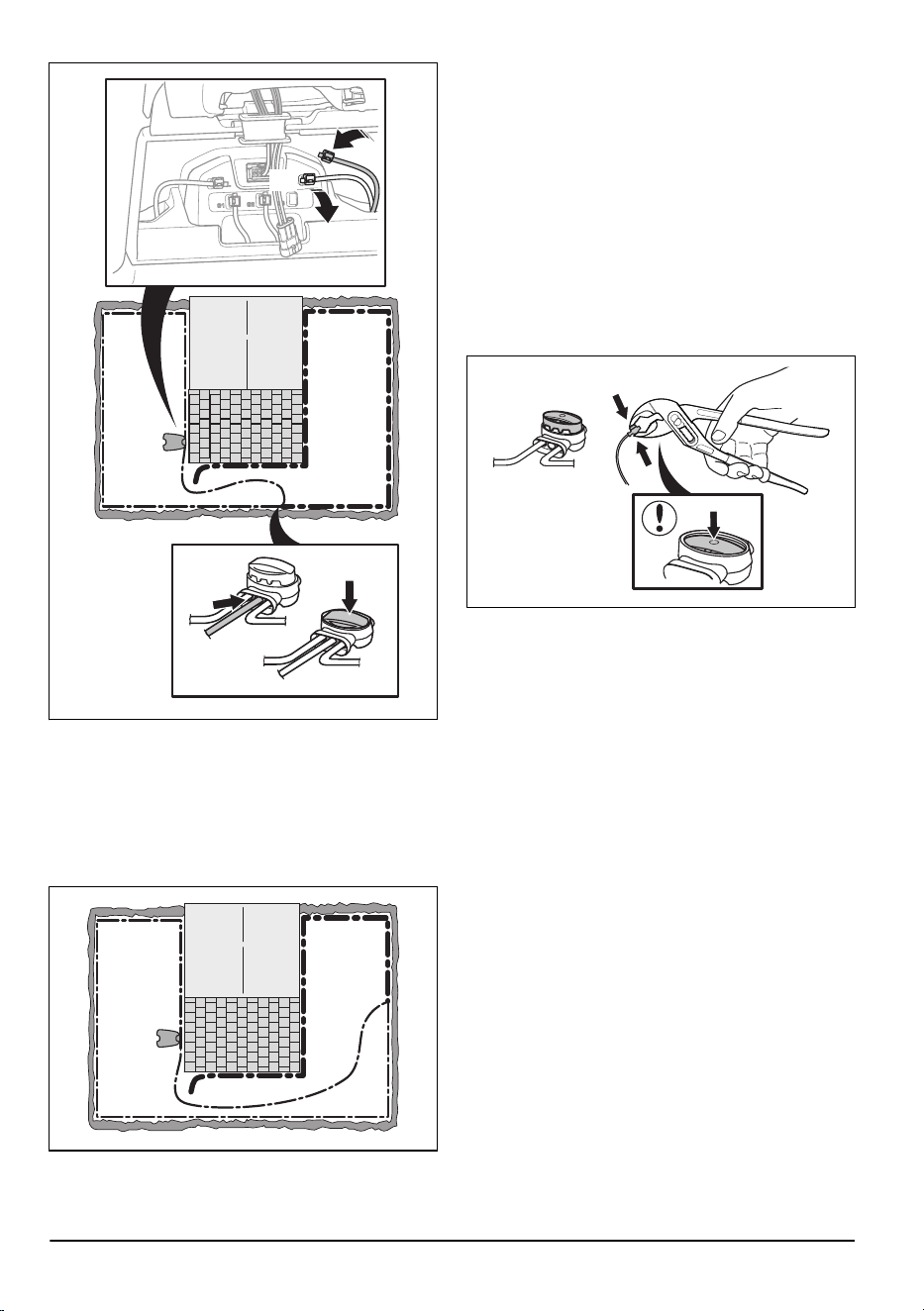

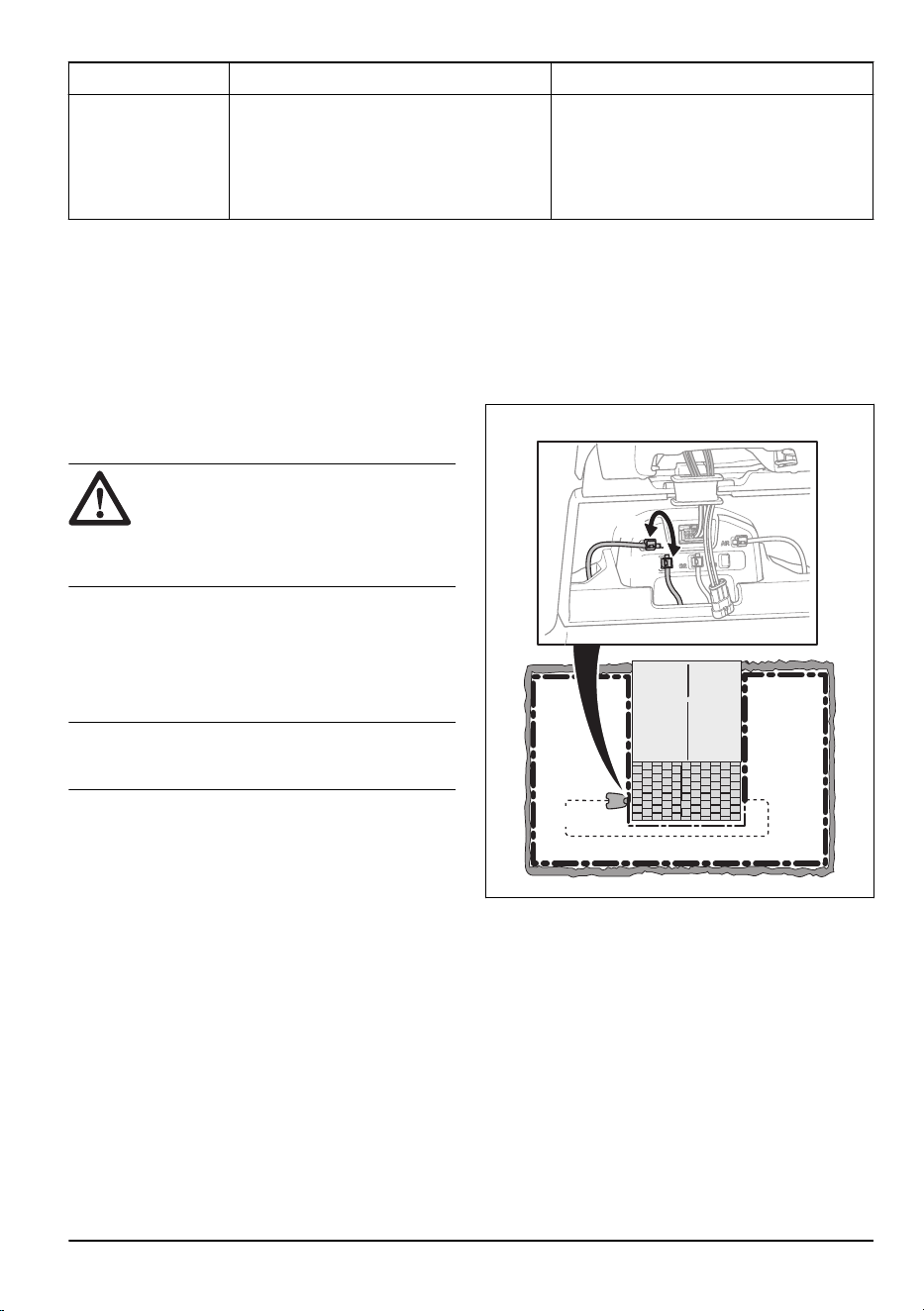

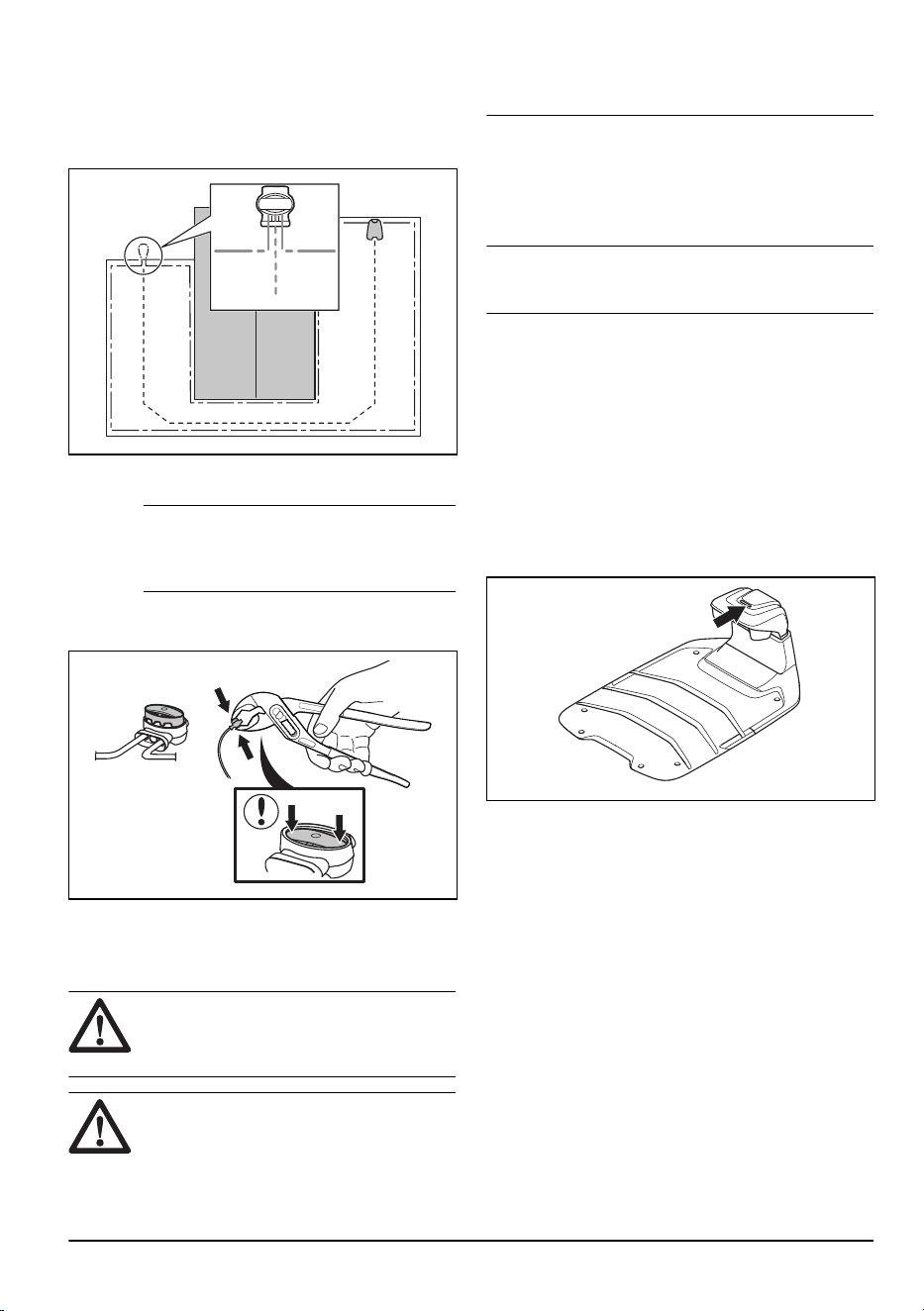

The boundary wire can be installed to operate with the
EPOS
™
system. Install the boundary wire if the satellite
signals are weak. It can be in a part of the work area or
an area where you have installed a transport path.
Note:
Do not use the boundary wire to extend the
work area.
• Put a part of the boundary wire (A) approximately 2
m / 6.6 ft from the area where the satellite signal is
weak.
A
• Enable the
EPOS
™
Support by wire
function when
the boundary wire is installed. Select
Accessories
>
EPOS
™
Support by wire
>
Enable
in the
Automower
®
Connect app.
• Extend the boundary wire in the work area if the
product continues to stop in a part of the work
area.
• Extend the boundary wire in the work area if the
product cannot move from the area with boundary
wire.
3.10 Installation of the product
3.10.1 Installation tools
• Hex key, 8 mm. Included in the carton.
3.10.2 Installation of the charging station
Read and understand the instructions about the
charging station. Refer to
To examine where to put the
charging station on page 14
.
CAUTION: Do not make new holes in
the charging station plate.
2369 - 003 - Installation with virtual boundary -
17
CAUTION: Do not put your feet on the
baseplate of the charging station.
WARNING: Make sure that the plugs of
the low-voltage cable and the power supply
unit are clean and dry before you connect
them.
When you connect the power supply, only use a power
outlet that is connected to a residual-current device
(RCD).

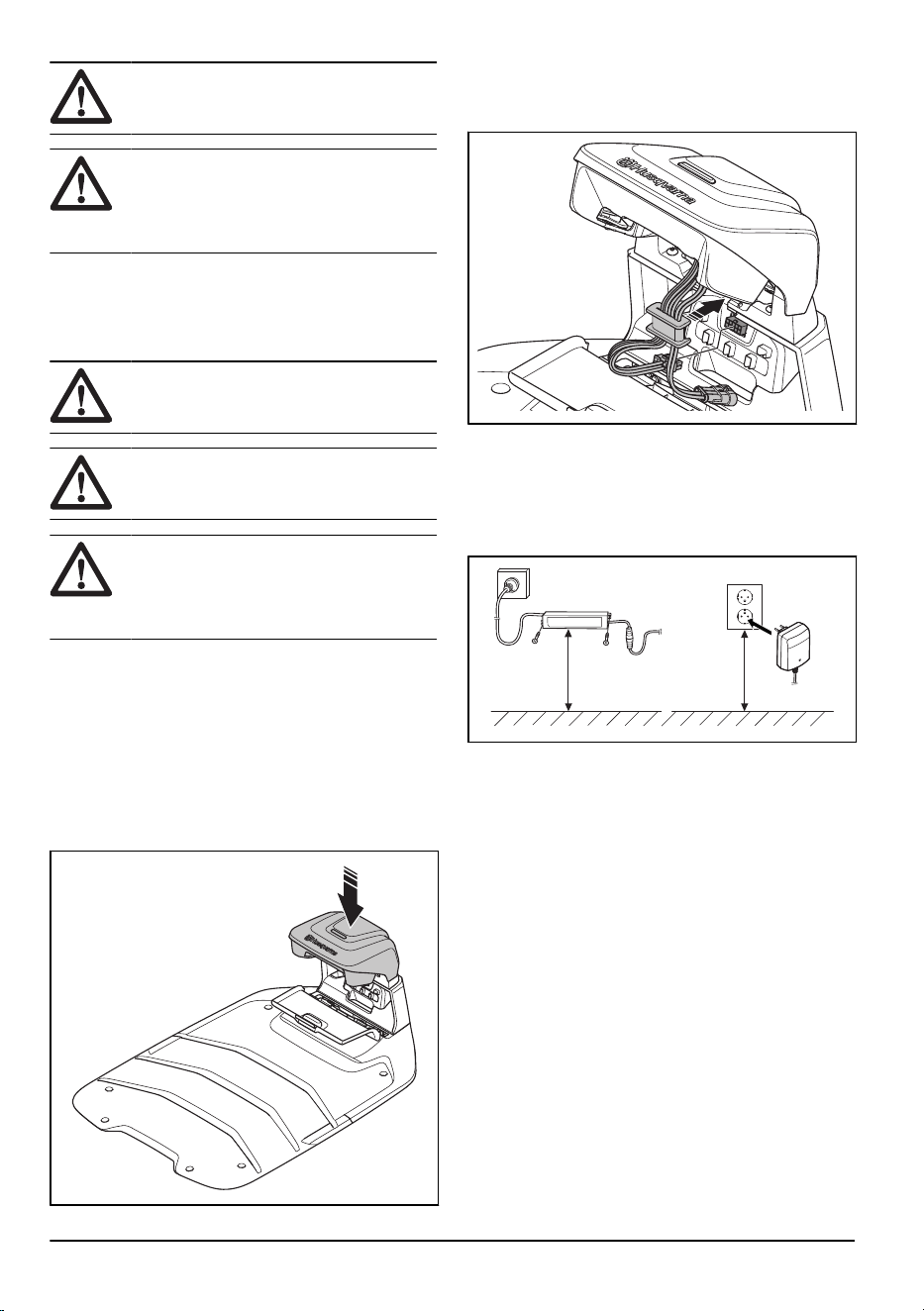

3.10.2.1 To install the charging station
CAUTION: Do not make new holes in
the charging station plate.
CAUTION: Do not put your feet on the
baseplate of the charging station.
WARNING: Make sure that the plugs of
the low-voltage cable and the power supply
unit are clean and dry before you connect
them.
When connecting the power supply, only use a power
outlet that is connected to an residual-current (RCD)
device.
1. Read and understand the instructions about the
charging station. Refer to
To examine where to put
the charging station on page 14
.
2. Put the charging station in the selected area.
3. Open the hatch on the front of the charging station.
4. Attach the top of the charging station.
5. Lift and tilt the top of the charging station.
6. Put the grommet with the cables into position.
7. Connect the cable to the charging station.
8. Connect the low-voltage cable to the charging
station.
9. Close the hatch on the front of the charging
station.

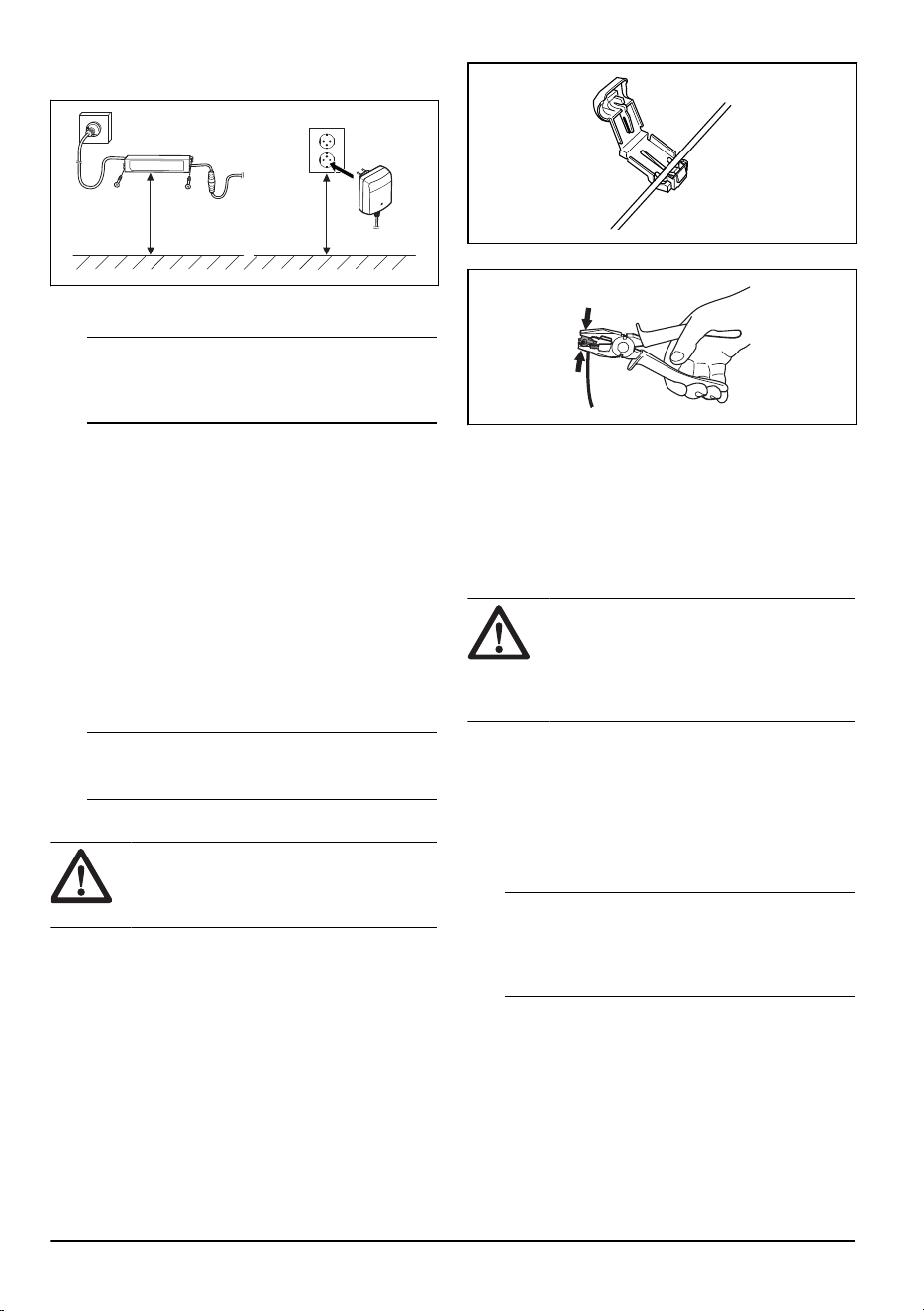

10. Put the power supply at a minimum height of 30
cm / 12 in.
min 30 cm / 12”
11. Connect the power supply cable to a 100-240V
power outlet.
12. Put the low-voltage cable in the ground with stakes
or bury the cable.
13. Attach the charging station to the ground with the
supplied screws.
3.10.2.2 To do a visual check of the charging station
1. Make sure that the indicator LED lamp on the
charging station has a green light. Refer to
LED
indicator of the charging station on page 52
for
information about the LED indicator.
18
- Installation with virtual boundary 2369 - 003 -
2. If the indicator LED lamp does not have a green
light, do a check of the installation. Refer to
LED
indicator of the charging station on page 52
and
Installation of the charging station on page 17
.
3.10.3 To charge the product
1. Put the product in the charging station.
Note: The product starts to charge automatically
when the product is in the charging station.
3.10.4 To do a pairing operation with the
Automower
®
Connect app
1. Download the Automower
®
Connect app on your
mobile device.
2. Sign up for a Husqvarna account in the
Automower
®
Connect app and follow the
instructions.
3. Enter the factory PIN code 1234 on the product.
4. Use the jog wheel on the product to select the
Bluetooth
®
menu to enable the pairing operation
mode.
5. Select
My mowers
in the Automower
®
Connect
app and add your product.
6. Follow instructions in the Automower
®
Connect
app.
Note:
Husqvarna recommends to change the factory
PIN code to a new PIN code in the app.
3.10.5 Installation of the EPOS plug-in
Follow the instructions for installation in the operator's
manual for Automower
®
EPOS
™
Plug-in.
3.10.6 To enable EPOS
™
in the
Automower
®
Connect app
Enable EPOS
™
in the Automower
®
Connect app to do
an installation with virtual boundaries.
1. Select
Settings
>
Accessories
>
EPOS
™
Technology
in the Automower
®
Connect app.
3.10.7 Installation of the reference station
Install the reference station according to the instructions
in the Operator's manual for the reference station.
3.10.8 Installation of the map objects
Read and understand the instructions about where to
install the map objects. Refer to
To install objects on the
map on page 20
.

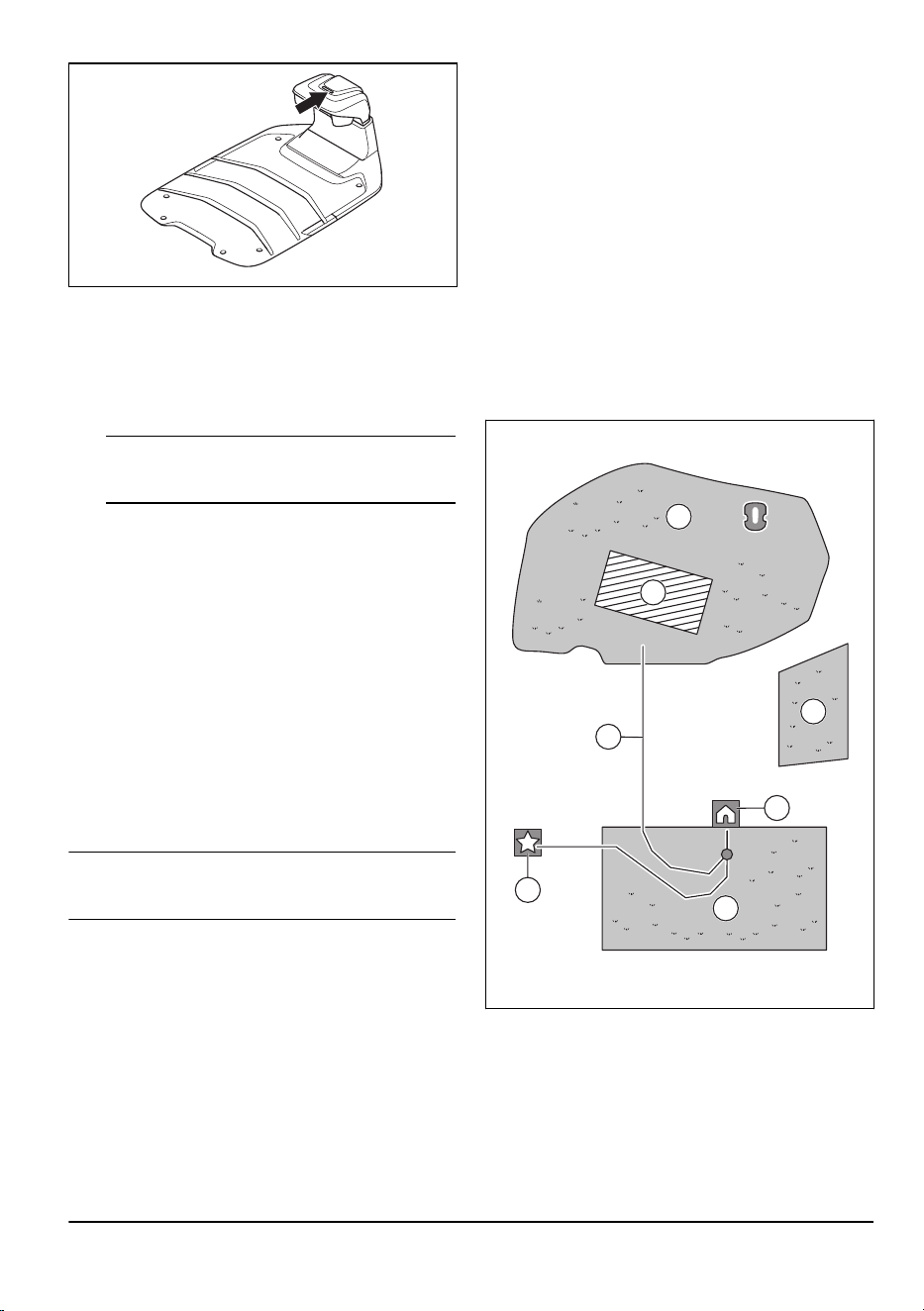

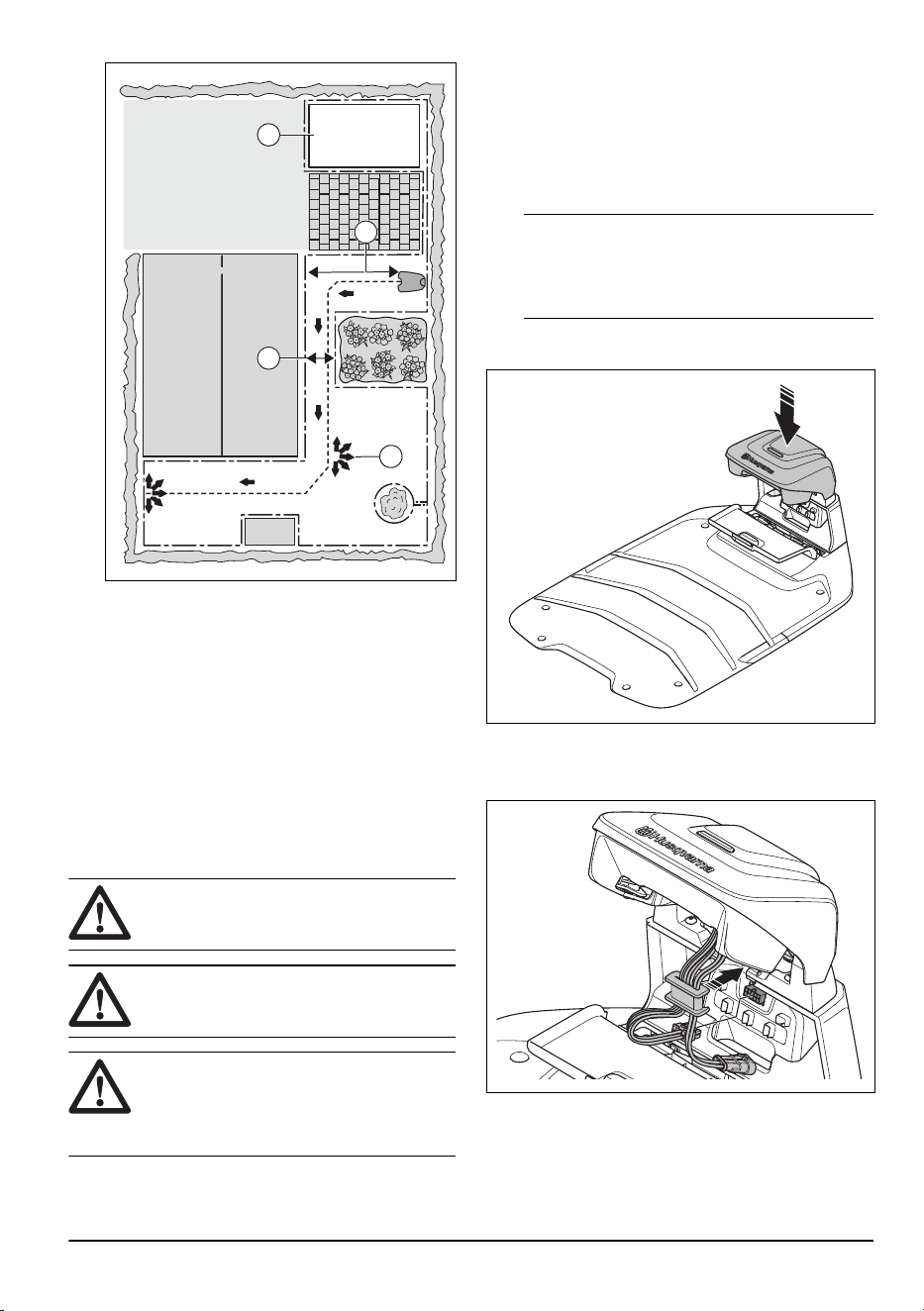

On the map you can install the objects that follow in the
app:
•
Work areas
(A)
•
Stay-out zones
(B)
•
Transport path
(C)
•
Charging station
(D)
•
Maintenance point
(E)
•
Work area (Secondary area)
(F)
A
F
B
A
D
E
C
For a complete map installation, you must install a work
area and a charging station on the map.
A work area is specified by virtual boundaries. Maximum
20 work areas and secondary areas can be installed on
a map.
There are two types of work areas:
2369 - 003 -
Installation with virtual boundary -
19
• A work area that has a charging station in it or
connected to it with a transport path where the
product operates automatically.
• A secondary area is a work area with no charging
station and no transport path. The product must be
moved manually to and from the work area.
A transport path is a specified path between the docking
point in front of the charging station and a work area.
The product can operate automatically in this path, but
does not cut grass. A transport path can temporarily be
enabled and disabled in the app.
Stay-out zones can be made if there are areas where
the product must not operate. A stay-out zone is
specified by virtual boundaries. Stay-out zones can
temporarily be enabled and disabled in the app.
A maintenance point is a specified position where the
product can be parked at. This can for example be used
for a service point where maintenance of the product
is done. The maintenance point is connected to the
docking point with a path.
To install objects on the map, operate the product with
the appDrive installation to add waypoints on the map.
Refer to
To install objects on the map on page 20
.
3.10.8.1 To install objects on the map

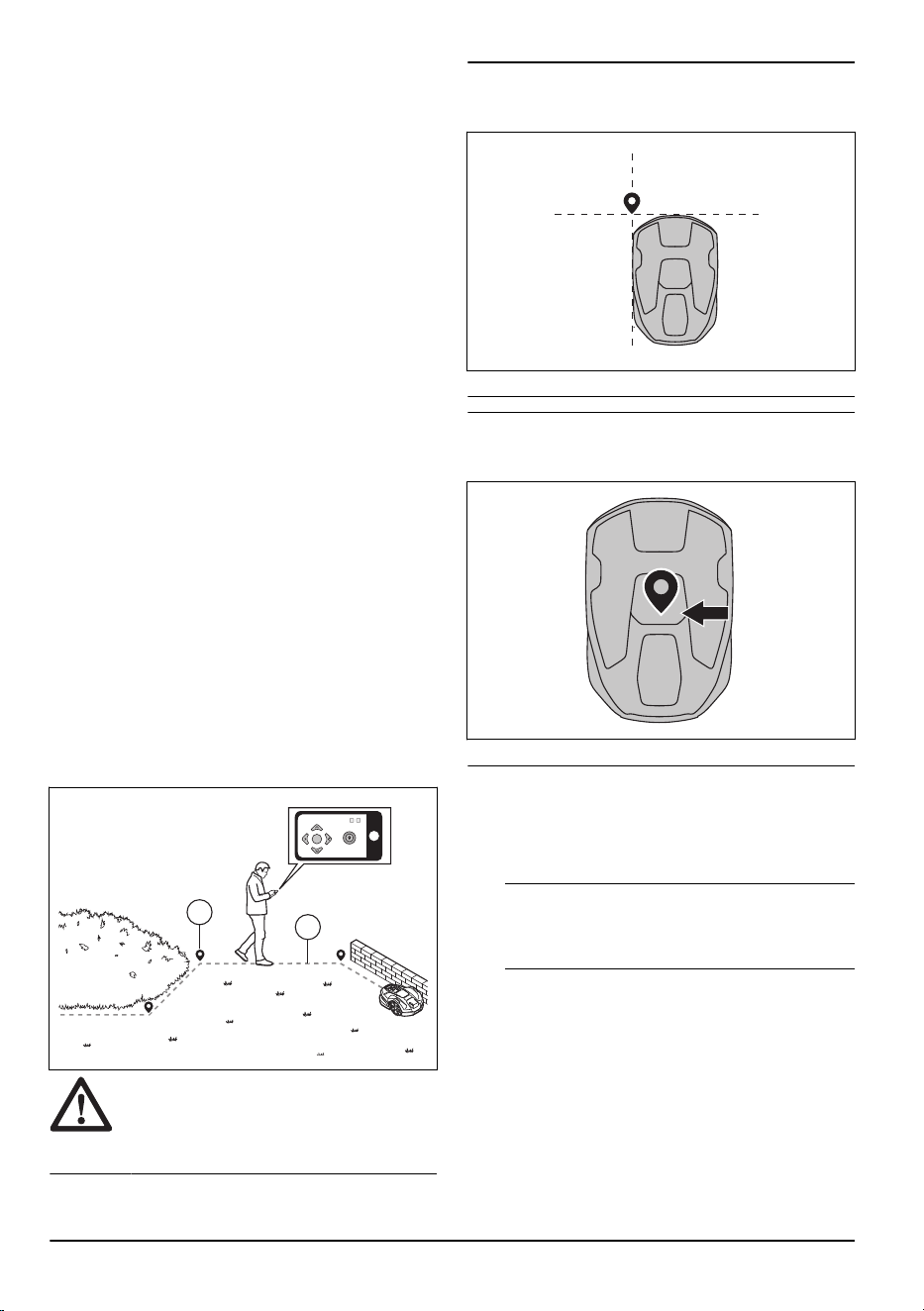

The waypoints (A) are positions that makes the virtual
boundaries and paths (B). The lines are straight
between the waypoints. It is recommended to use as
few waypoints as possible. For each work area and
the related stay-out zones and transport path the total
maximum number of waypoints are 800. Husqvarna
recommends to add maximum 1000 waypoints for the
complete installation of the map. To make smooth
curves use several waypoints. Husqvarna recommends
to set the minimum distance of 30 cm / 1 ft. between the
waypoints. You can adjust the positions of the waypoints
in the app after the installation of the map.
B
A
CAUTION:
Do not lift and move the
product between the waypoints when you
install the map objects. Use appDrive for a
correct installation.
Note: The position of the waypoint when you install a
work area or a stay-out zone is in the front left corner of
the product.
Note: The position of the waypoint when you install a
transport path or a path to a maintenance point is in the
middle of the product between the drive wheels.
• Make sure that you are near the product and
connected to the product with the app with
Bluetooth
®
.
• Make sure that the status is
EPOS
™
confirmed
in
the appDrive.
Note:
A game controller with Bluetooth
®
can
be used together with appDrive to operate the
product.
• Select the object you want to install and use the
buttons in the appDrive installation to operate the
product.

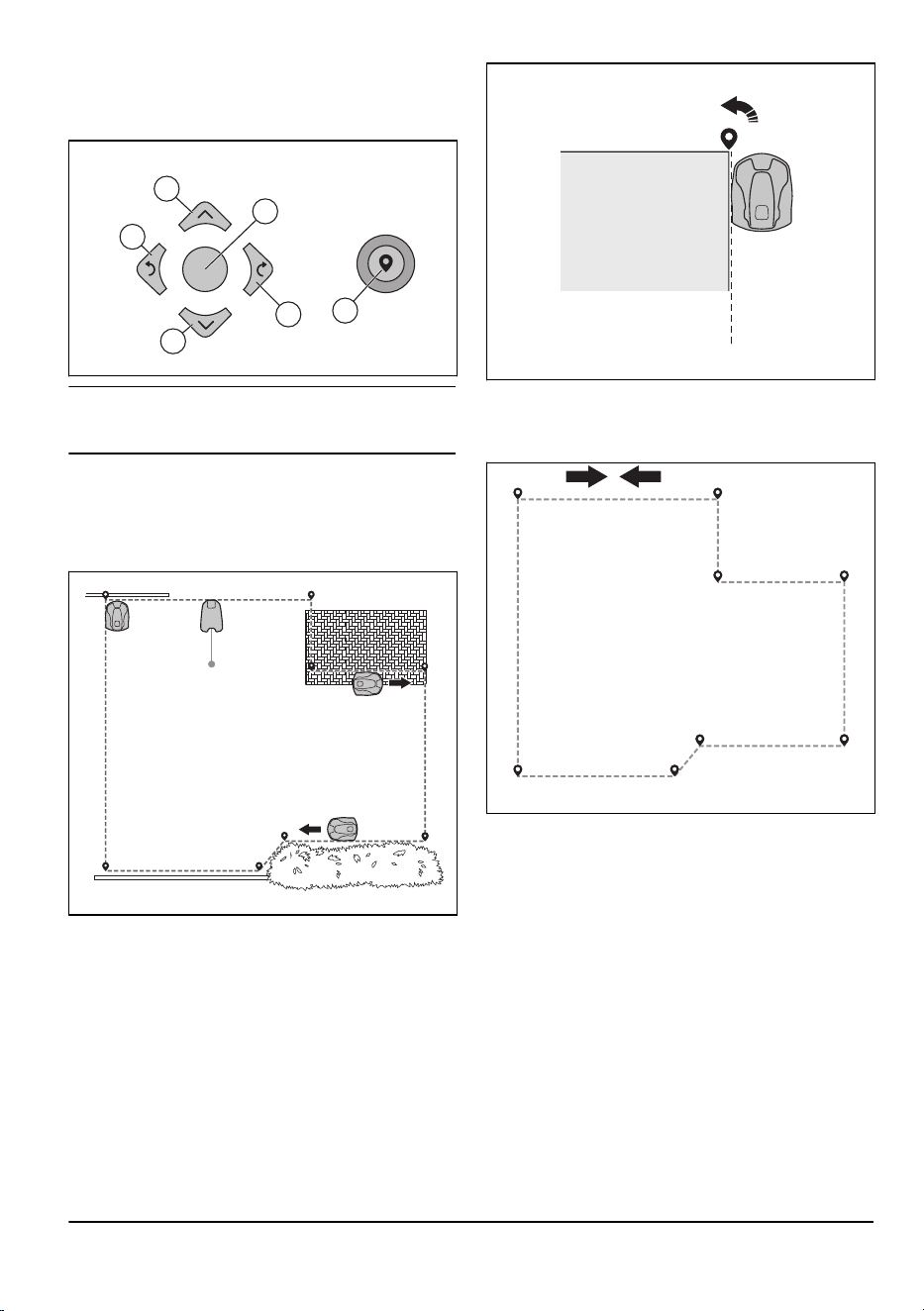

• Use the up button (A) to move the product forward.
• Use the down button (B) to move the product
rearward.
• Use the left arrow button (C) to rotate the product
to the left.
• Use the right arrow button (D) to rotate the product
to the right.
20
- Installation with virtual boundary 2369 - 003 -
• Use the center button (E) as a joystick to move and
rotate the product in any direction.
• Use the waypoint button (F) to add a waypoint in
the map.
A
D
F
B
C
E
Note: Walk 2-3 m / 6.5-9.8 ft. behind the product
when you operate the product with appDrive.
To make a work area
Minimum 3 waypoints are necessary to make a work
area.
• Operate the product clockwise around the
boundary of the work area and set waypoints.
• Add the waypoint at the outer corner to install the
virtual boundary around a corner.
• Do not set waypoints that make a virtual boundary
go across itself in the same work area.
• Save the work area to automatically connect the
first and last waypoint with a virtual boundary.
1
2
3
4
5
6
7
8

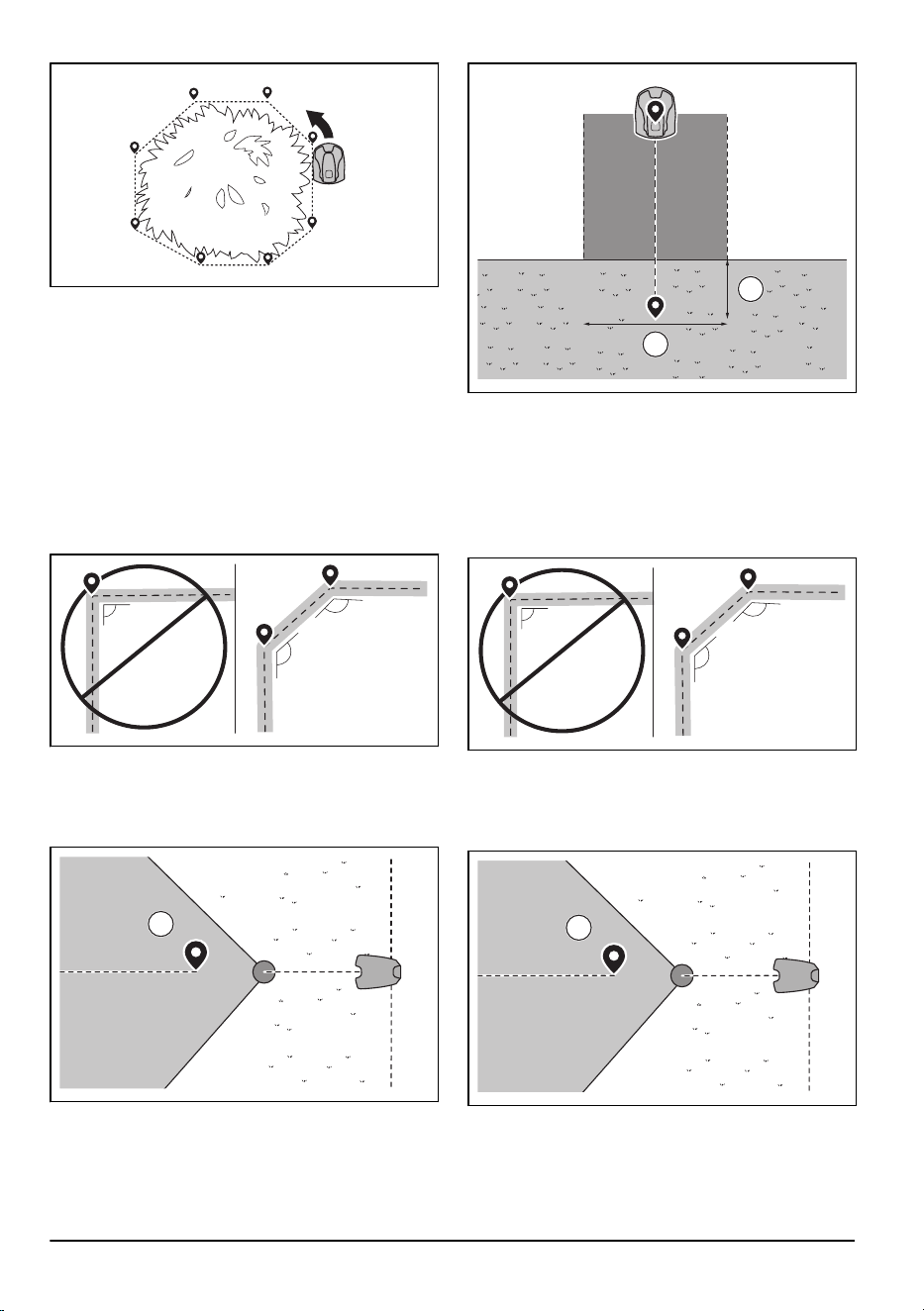

To make a stay-out zone
Minimum 3 waypoints are necessary to make a stay-out
zone.
• Operate the product counterclockwise around the
boundary of the stay-out zone.
• Do not set waypoints that make a virtual boundary
go across itself in the same stay-out zone.
• Save the stay-out zone to automatically connect
the first and last waypoint with a virtual boundary.
2369 - 003 -
Installation with virtual boundary -
21
To make a transport path
• Operate the product and add waypoints on the
map to install a transport path. Start in a work area
minimum 1 m / 3.3 ft. from the virtual boundary.
• Install the transport path perpendicular to the
virtual boundary of the work area.
• Do not install a transport path across a stay-out
zone.
• Do not set waypoints that make the transport path
go across the same transport path.
• Do not make sharp bends when you install the
transport part. Husqvarna recommends to add
more waypoints to make smoother curves.
135º
135º
90º
• Operate the product and add waypoints to connect
the transport path to the docking point.
• Put the last waypoint on a transport path (A) in
an angle of +/-45 degrees seen from the docking
point.
A
• Save the transport path to automatically connect
the last waypoint to the docking point.
• Set the corridor width (A) for the transport path.
The corridor width can be set to 2-5 m / 6.6-16.4 ft.
B
A
To make a maintenance point
• Operate the product and add waypoints on the
map. Start to add waypoints at the position
where you install the maintenance point. The first
waypoint specifies the maintenance point.
• Do not make sharp bends when you install a
transport part. Husqvarna recommends to add
more waypoints to make smoother curves.
135º
135º
90º
• Operate the product and add waypoints to make a
path to the charging station.
• Put the last waypoint on a transport path (A) in
an angle of +/-45 degrees seen from the docking
point.
A
• Save the maintenance point to automatically
connect the last waypoint to the docking point.
22
- Installation with virtual boundary 2369 - 003 -
• Set the corridor width (A) for the maintenance
point. The corridor width can be set to 2-5 m /
6.6-16.4 ft.
A
2369 - 003 - Installation with virtual boundary -
23
4 Installation with boundary wire
4.1 Introduction - Installation
WARNING: Read and understand the
safety chapter before you install the product.
CAUTION: Use original spare parts and
installation material.
Note: Refer to www.husqvarna.com for more
information about installation.
4.2 Primary components for installation
The installation involves the following components:
• A robotic lawn mower that mows the lawn
automatically.
• A charging station, which has 3 functions:
• To send control signals along the boundary
wire.
• To send control signals along the guide wire
so that the product can follow the guide wire
to specific remote areas in the garden and
can find its way back to the charging station.
• To charge the product.
• A power supply, which is connected to the
charging station and a 100-240V power outlet.
• Loop wire, which is laid around the work area
and around objects and plants that the product
must not run into. The loop wire is used both as
boundary wire and guide wire.
4.3 To prepare for installation
Read the installation chapter before you start the
installation. Prepare the installation carefully to make the
product operate satisfactorily.
• Make a blueprint of the work area and include all
obstacles. This makes it easier to examine where
to put the charging station, the boundary wire and
the guide wire.
• Make a mark on the blueprint where to put the
charging station, the boundary wire and the guide
wire.
• Make a mark on the blueprint where the guide wire
connects to the boundary wire. Refer to
To install
the guide wire on page 30
.
• Fill in holes in the lawn to make it level.
CAUTION:
Holes with water in
the lawn can cause damage to the
product.
• For Automower
®
305E/310E NERA, make sure
that you have Wi-Fi coverage in the charging
station to download new firmware. Refer to
Download firmware over the air FOTA (Firmware
over the air) on page 38
. For Automower
®
405XE/410XE NERA Wi-Fi or cellular technology
is used for FOTA.
• For Automower
®
305E/310E NERA, make sure
that you have Wi-Fi coverage in the work area if
you use the Automower
®
Connect app remotely.
Refer to
To do a pairing operation with the
Automower
®
Connect app on page 31
. For
Automower
®
405XE/410XE NERA Wi-Fi or cellular
technology is used for Automower
®
Connect.
Note: We recommend you to have Wi-Fi
coverage in the work area. If you have Wi-Fi
coverage, you can control and make settings
for the product remotely with the Automower
®
Connect app. The product automatically connects
to Wi-Fi when it is in an area that has Wi-Fi
coverage.
• Cut the grass and trim the edges before you install
the product. Make sure that the grass is maximum
6 cm / 2.5 in.
Note: The first weeks after installation the sound level
when the product cuts the grass can be higher than
usual. The sound level decreases after some time.
4.4 Before the installation of the wires
You can select to attach the wires with stakes or bury
them. You can use the 2 procedures for the same work
area.
CAUTION:
If you use a dethatcher
in the work area, bury the boundary wire
and the guide wire to prevent them from
damage.
4.4.1 To examine where to put the charging
station
• Keep a minimum 3 m / 10 ft. of free space in front
of the charging station. Refer to
To examine where
to put the guide wire on page 28
.
• Keep a minimum of 150 cm / 60 in. of free space
to the right and left of the center of the charging
station.
24
- Installation with boundary wire 2369 - 003 -
• Put the charging station near a power outlet.
• Put the charging station on a level surface.

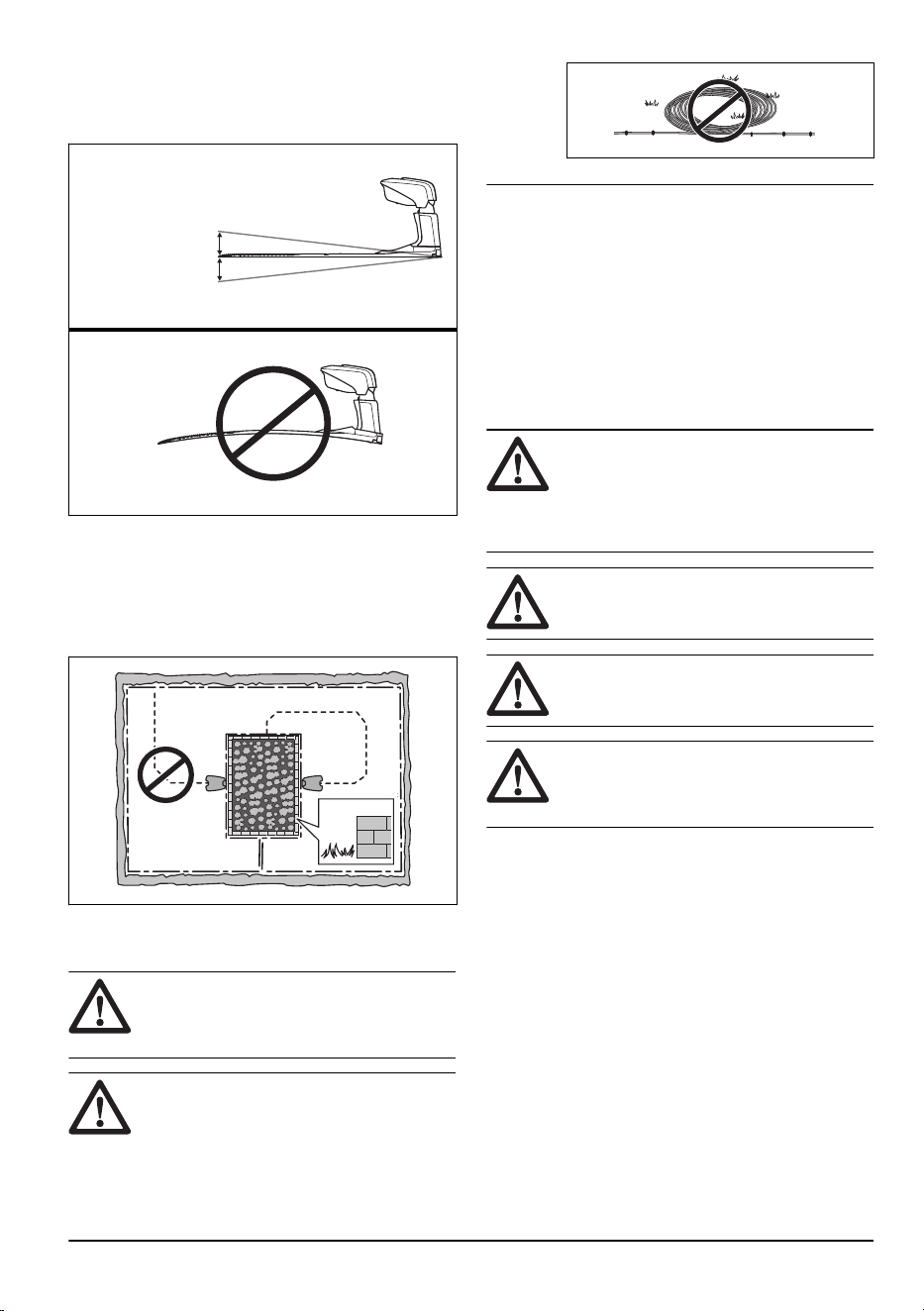

• The baseplate of the charging station must not be
bent.
max. 5 cm / 2"
max. 5 cm / 2"
• If the work area has two parts separated with a
steep slope, we recommend to put the charging
station in the lower section.
• Put the charging station in an area with protection
from the sun.
• If the charging station is installed on an island,
make sure to connect the guide wire to the island.
4.4.2 To examine where to put the power
supply
CAUTION:
Make sure that the blades
on the product do not cut the low-voltage
cable.
CAUTION: Do not put the low-voltage
cable in a coil or below the charging station
plate. The coil causes interference with the
signal from the charging station.
• Put the power supply in an area with a roof and
protection from the sun and rain.
• Put the power supply in an area with good airflow.
• Use a residual-current device (RCD) with a tripping
current of maximum 30 mA when you connect the
power supply to the power outlet.
Low-voltage cables of different lengths are available as
accessories.
4.4.3 To examine where to put the
boundary wire
CAUTION: There must be a barrier of
minimum 15 cm / 6 in. in height between
the boundary wire and water bodies, slopes,
precipices or public roads. This will prevent
damage to the product.
CAUTION: Do not let the product
operate on gravel.
CAUTION: Do not make sharp bends
when you install the boundary wire.
CAUTION: For a careful operation
without noise, isolate all obstacles such as
trees, roots and stones.
The boundary wire must be put as a loop around the
work area. For good cutting results with EdgeCut, it is
necessary to install the boundary wire at the correct
distances to obstacles. The product only cuts with
EdgeCut by the boundary wire. To use EdgeCut around
trees and obstacles, make islands around them. Refer to
To make an island on page 27
. Sensors in the product
sense when the product goes near the boundary wire,
and the product selects a different direction. All parts of
the work area must be maximum 35 m / 115 ft. from the
boundary wire.

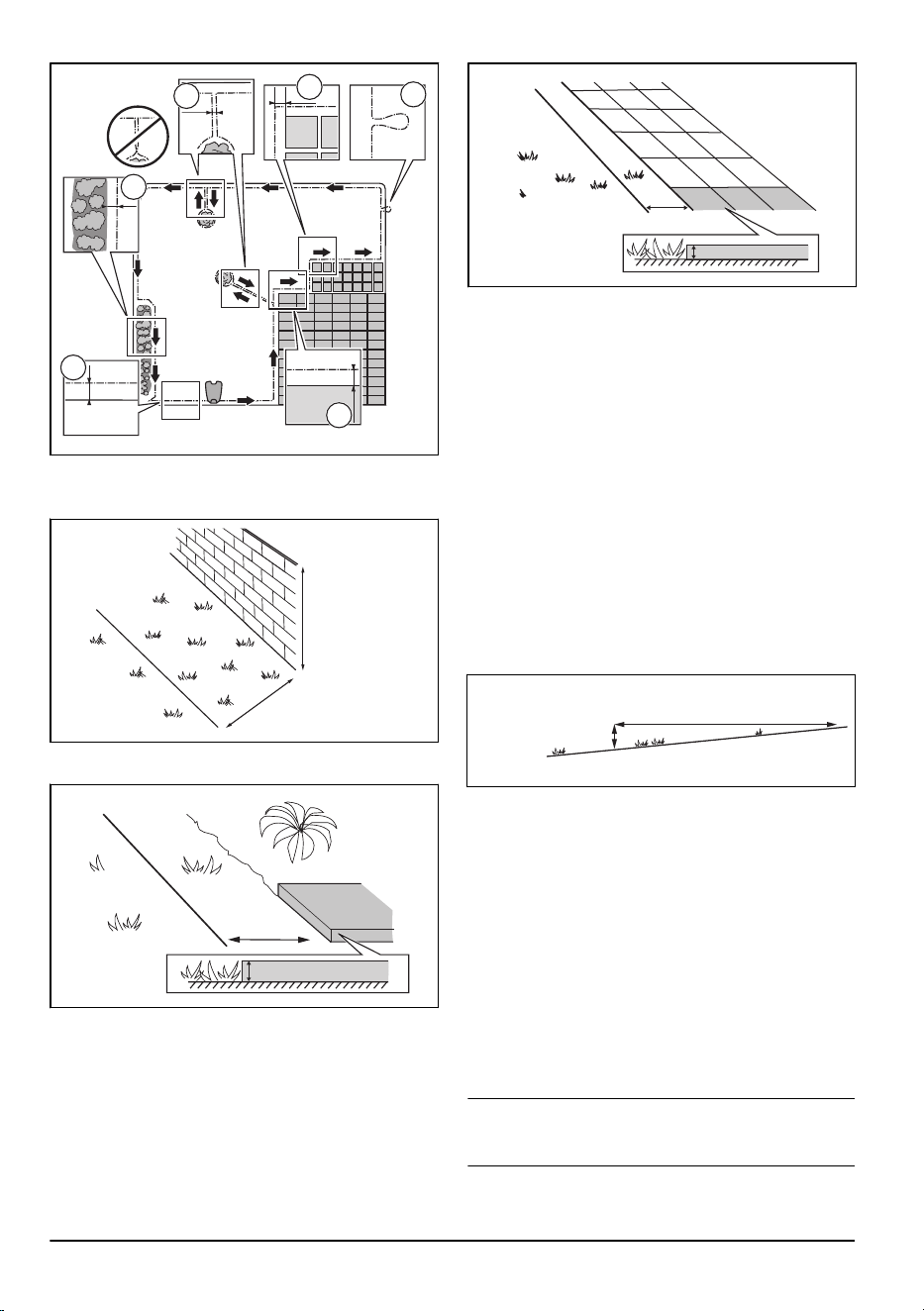

• Put the boundary wire around the work area (A).
Adapt the distance between the boundary wire and
obstacles.
2369 - 003 -
Installation with boundary wire - 25

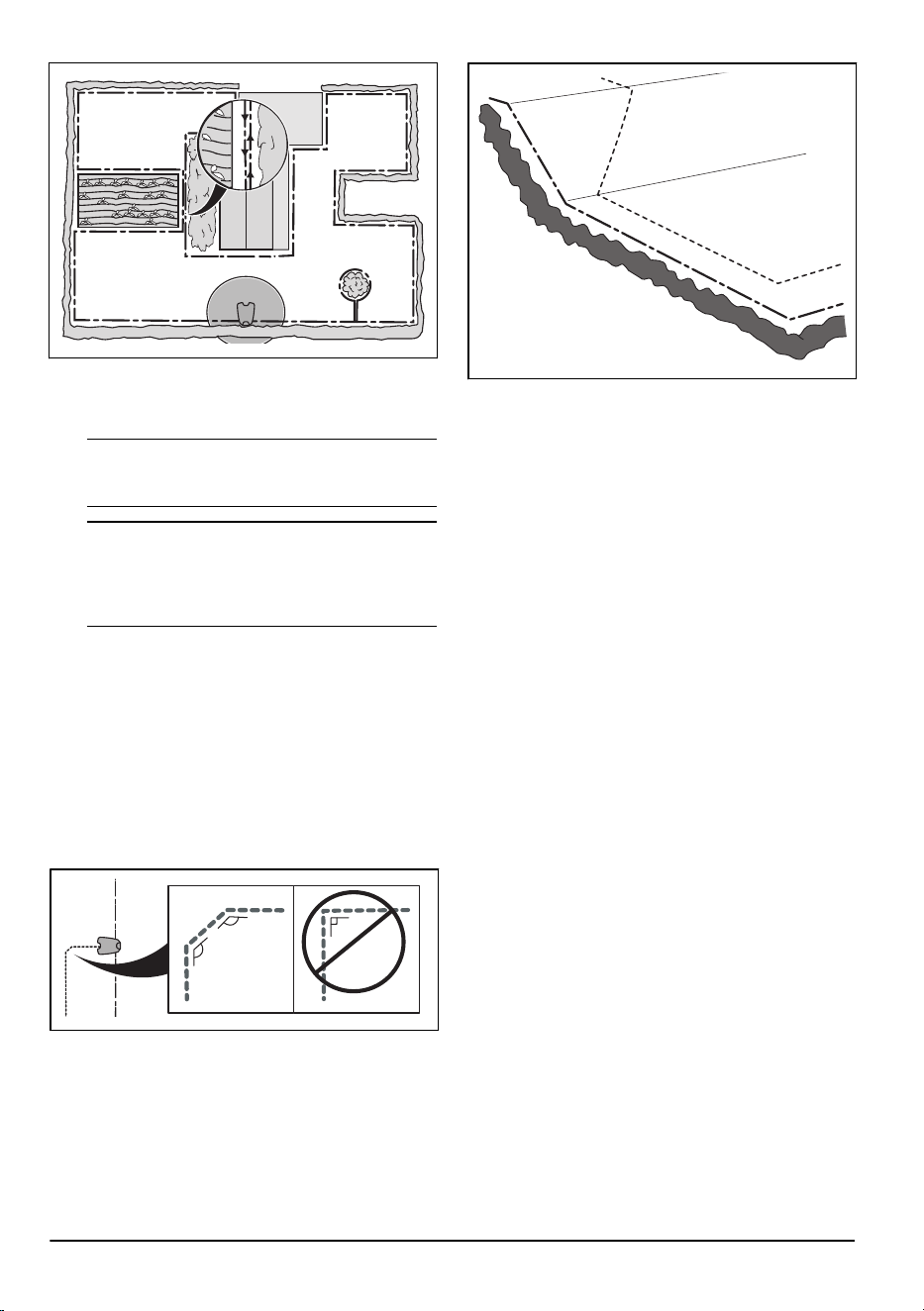

A
B
C
E
D
F
a) Put the boundary wire 35 cm / 14 in. (B) from
an obstacle that is more than 3 cm / 1.2 in.
high.
35 cm /14
"
> 5 cm / 2
"
b) Put the boundary wire 30 cm / 12 in. (C) from
an obstacle that is 1-3 cm / 0.4-1.2 in. high.
1-5 cm / 0.4 - 2"
30 cm / 12"
c) Put the boundary wire 10 cm / 4 in. (D) from
an obstacle that is less than 1 cm / 0.4 in.
high.
10 cm / 4"
max 1 cm / 0.4"
• If you have a paving stone path that is in level with
the lawn, put the boundary wire below the paving
stone.
• If you make an island, put the boundary wire that
goes to and from the island near together (E).
Refer to
To make an island on page 27
.
• Make an eyelet (F) where the guide wire is to be
connected to the boundary wire. This makes the
connection easier between the guide wire and the
boundary wire. Make the eyelet with approximately
20 cm / 8 in. of the boundary wire.
4.4.3.1 To put the boundary wire in a slope
Slopes that are too steep must be isolated with the
boundary wire. The gradient (%) is calculated as the
vertical height divided by the horizontal distance.
Example:
• 10 cm / 100 cm = 10%.
• in / in = 10%.
10 cm/ 4"
100 cm/ 40"
10%
• For slopes that are too steep inside the work area,
isolate the slope with boundary wire.
• For slopes steeper than 20% along the outer edge
of the lawn, put the boundary wire 20 cm / 8 in. (A)
from the edge.
• For slopes adjacent to a public road, put a barrier
of minimum 15 cm / 6 in. along the outer edge of
the slope. You can use a wall or a fence as a
barrier.
4.4.3.2 Passages
A passage is a section that has boundary wire on each
side and that connects 2 parts of the work area. The
distance between the boundary wire on each side in the
passage must be a minimum of 60 cm / 24 in.
Note:
If a passage is less than 2 m / 6.5 ft. wide,
install a guide wire through the passage.
26 - Installation with boundary wire 2369 - 003 -

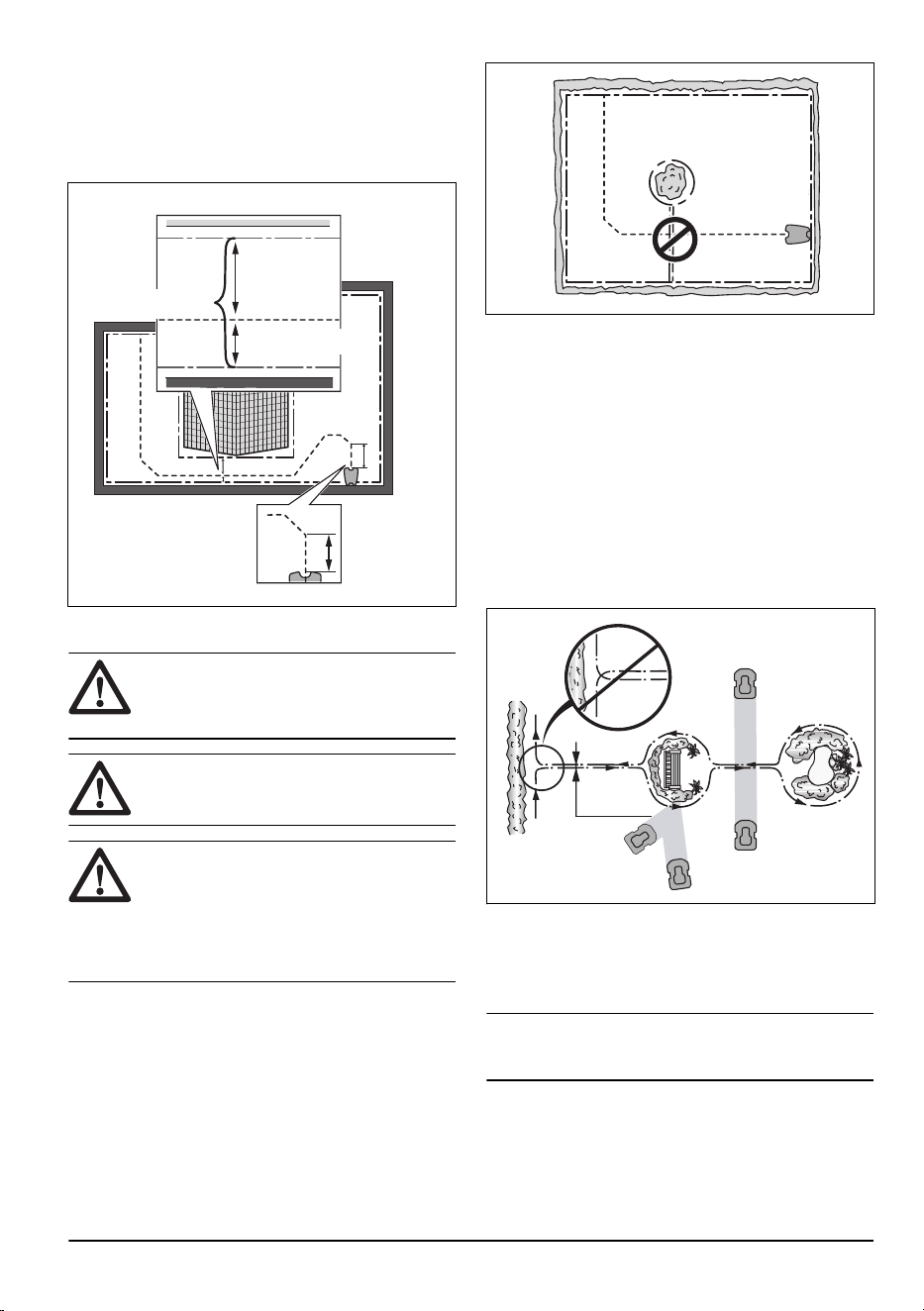

The recommended minimum distance between the
guide wire and the boundary wire is 30 cm / 12 in. The
product always runs to the left of the guide wire as seen
facing the charging station. It is recommended to have
as much free area as possible to the left of the guide
wire (A).
>2 m / 6.5 ft
A
>30 cm / 12"
>60 cm / 24"
4.4.3.3 To make an island
CAUTION: Do not put the boundary
wires across each other. The sections of
boundary wire must be parallel.
CAUTION: Do not put the guide wire
across the boundary wire.
CAUTION: Isolate or remove obstacles
that are less than 15 cm / 5.9 in. in height.
Isolate or remove obstacles that slope
slightly, for example, stones, trees or roots.
This will prevent damage to the blades of the
product.
To make an island, isolate areas in the work area with
the boundary wire. We recommend to isolate all stable
objects in the work area.
Some obstacles are resistant to a collision, for example,
trees or bushes that are more than 15 cm / 5.9 in. in
height. The product will collide with the obstacle and
then select a new direction.
• Put the boundary wire to and around the obstacle
to make an island.
• Put the 2 sections of boundary wire to and from the
island close together. This will make the product
run across the wire.
• Put the 2 sections of boundary wire in the same
stake.
0 cm / 0
"
4.4.3.4 To make a secondary area
Make a secondary area (B) if the work area has 2 areas
that are not connected with a passage. The work area
with the charging station is the main area (A).
Note:
The product must be manually moved between
the main area and the secondary area.
2369 - 003 - Installation with boundary wire - 27
B
A
• Put the boundary wire around the secondary area
(B) to make an island. Refer to
To make an island
on page 27
.
Note: The boundary wire must be put as 1 loop
around all of the work area (A + B).
Note: When the product cuts grass in the
secondary area, the
Secondary area
mode must
be selected. Refer to
Secondary area on page
39
.
4.4.4 To examine where to put the guide
wire
• Put the guide wire in a line at a minimum of 2 m /
6.5 ft. in front of the charging station.
• Make as much free area as possible to the left of
the guide wire when facing the charging station.
Refer to
To install the guide wire on page 30
.
• Put the guide wire minimum 30 cm / 12 in. from the
boundary wire.
• Do not make sharp bends when you install the
guide wire.
135º
135º
90º
• If the work area has a slope, put the guide wire
diagonally across the slope.
4.4.5 Work area examples
• If the charging station is put in a small area (A),
make sure that the distance to the boundary wire
is at a minimum 3 m / 10 ft. in front of the charging
station.
• If the work area has a passage (B) with no
guide wire installed, the recommended minimum
distance between the boundary wires is 2 m / 6.5
ft. With a guide wire installed through the passage,
the recommended minimum distance between the
boundary wires is 60 cm / 24 in.
• If the work area has areas which are connected by
a narrow passage (B), you can set the product to
first follow and then leave the guide wire after a
certain distance (C). The settings can be changed
in
Lawn coverage on page 35
.
• Use the GPS Assisted Navigation that helps the
product select the most optimal operation. Refer to
GPS assisted navigation on page 35
.
• If the work area includes a secondary area (D),
refer to
To make a secondary area on page 27
.
Put the product in the secondary area and select
Secondary area mode
.
28
- Installation with boundary wire 2369 - 003 -
B
D
C
A
4.5 Installation of the product
4.5.1 Installation tools
• Hammer/plastic mallet: To simplify putting the
stakes into the ground.
• Edge cutter/straight spade: To bury the boundary
wire.
• Combination pliers: For cutting the boundary wire
and pressing the connectors together.
• Adjustable plier: For pressing the couplers
together.
4.5.2 To install the charging station
CAUTION: Do not make new holes in
the charging station plate.
CAUTION: Do not put your feet on the
baseplate of the charging station.
WARNING: Make sure that the plugs of
the low-voltage cable and the power supply
unit are clean and dry before you connect
them.
When connecting the power supply, only use a power
outlet that is connected to an residual-current (RCD)
device.
1. Read and understand the instructions about the
charging station. Refer to
To examine where to put
the charging station on page 24
.
2. Put the charging station in the selected area.
Note: Do not attach the charging station to the
ground with the screws until the guide wire is
installed. Refer to
To install the guide wire on page
30
.
3. Open the hatch on the front of the charging station.
4. Attach the top of the charging station.
5. Lift and tilt the top of the charging station.
6. Put the grommet with the cables into position.
7. Connect the cable to the charging station.
8. Connect the low-voltage cable to the charging
station.
9. Close the hatch on the front of the charging
station.
2369 - 003 -
Installation with boundary wire - 29
10. Put the power supply at a minimum height of 30
cm / 12 in.
min 30 cm / 12”
11. Connect the power supply cable to a 100-240V
power outlet.
Note: The product can be put in the charging
station to charge while you install the boundary
wire.
12. Put the low-voltage cable in the ground with stakes
or bury the cable. Refer to
To put the wire or the
cable into position with stakes on page 31
or
To
bury the wire or the cable on page 31
.
13. Connect the wires to the charging station after
the installation of boundary wire and guide wire is
complete. Refer to
To install the boundary wire on
page 30
and
To install the guide wire on page
30
.
14. Attach the charging station to the ground with the
supplied screws after the guide wire is installed.
Refer to
To install the guide wire on page 30
.
4.5.3 To charge the product
1. Put the product in the charging station.
Note:
The product starts to charge automatically
when the product is in the charging station.
4.5.4 To install the boundary wire
CAUTION:
Do not put remaining wire in
a coil. The coil causes interference with the
product.
1. Put the boundary wire around all of the work
area. Start and complete the installation behind the
charging station.
2. Open the connector and put the boundary wire in
the connector.
3. Close the connector with a pair of pliers.
4. Cut the boundary wire 1-2 cm / 0.4-0.8 in. above
each connector.
5. Push the right connector onto the metal pin on the
charging station with the mark "AR".
6. Push the left connector onto the metal pin on the
charging station with the mark "AL".
4.5.5 To install the guide wire
CAUTION: Twinned cables, or a
screw terminal block that is insulated with
insulation tape are not satisfactory splices.
Soil moisture will cause the wire to oxidize
and after a time result in a broken circuit.
1. Open the connector and put the wire in the
connector.
2. Close the connector with a pair of pliers.
3. Cut the guide wire 1-2 cm / 0.4-0.8 in. above the
connector.
4. Push the connector onto the metal pin on the
charging station with the mark "G1/G2/G3".
Note:
For Automower
®
305E/310E NERA 2
guide wires can be installed and for Automower
®
405XE/410XE NERA 3 guide wires can be
installed.
5. Disconnect the charging station from the power
outlet.
6. Put the guide wire from the charging station to the
point where you want to connect it to the boundary
wire.
7. Attach the guide wire to the ground with stakes or
bury the guide wire in the ground. Refer to
To put
the wire or the cable into position with stakes on
page 31
or
To bury the wire or the cable on page
31
.
30
- Installation with boundary wire 2369 - 003 -
8. Put the end of the guide wire at the eyelet on the
boundary wire.
9. Cut the boundary wire with a pair of wire cutters.
10. Connect the guide wire to the boundary wire with a
coupler.
a) Put the 2 ends of the boundary wire and the
end of the guide wire into the coupler.
Note: Make sure that you can see the ends
of the wires through the transparent area of
the coupler.
b) Push down the cover on the coupler with
adjustable pliers to attach the wires in the
coupler.
11. Connect the charging station to the power outlet.
4.5.6 To put the wire or the cable into
position with stakes
CAUTION:
Make sure that the stakes
hold the wire or the cable against the
ground.
CAUTION: Cutting the grass too low
right after installation can damage the wire
or the cable insulation. Damage to the
insulation may not cause disruptions until
several weeks or months later.
1. Put the wire or the cable on the ground.
2. Put the stakes at a maximum of 75 cm / 30 in.
distance from each other.
3. Attach the stakes to the ground with a hammer or a
plastic mallet.
Note: The wire or the cable is overgrown with grass
and not visible after a few weeks.
4.5.7 To bury the wire or the cable
• Cut a groove in the ground with an edge cutter or a
straight shovel.
• Put the wire or the cable 1-20 cm / 0.4-8 in. into the
ground.
4.5.8 To do a visual check of the charging
station
1. Make sure that the indicator LED lamp on the
charging station has a green light. Refer to
LED
indicator of the charging station on page 52
for
information about the LED indicator.
2. If the indicator LED lamp does not have a green
light, do a check of the installation. Refer to
LED
indicator of the charging station on page 52
and
To install the charging station on page 29
.
4.5.9 To do a pairing operation with the
Automower
®
Connect app
1. Download the Automower
®
Connect app on your
mobile device.
2. Sign up for a Husqvarna account in the
Automower
®
Connect app and follow the
instructions.
3. Enter the factory PIN code 1234 on the product.
4. Use the jog wheel on the product to select the
Bluetooth
®
menu to enable the pairing operation
mode.
5. Select
My mowers
in the Automower
®
Connect
app and add your product.
2369 - 003 -
Installation with boundary wire - 31
6. Follow instructions in the Automower
®
Connect
app.
Note: Husqvarna recommends to change the factory
PIN code to a new PIN code in the app.
32 - Installation with boundary wire 2369 - 003 -
5 Settings
This chapter gives information about the settings for
the product that you can make in the Automower
®
Connect app. All setting for the product are available
in Automower
®
Connect. Some settings can also be
made in Automower
®
Access, refer to
Menu structure
overview in Automower
®
Access on page 10
. The
product has factory settings but the settings can be
adapted for each work area.
5.1 Schedule
In
Schedule
you can change the schedule settings for
the product.
The
Schedular Tool
adapts the schedule to the size of
your work area. The
Schedule
function controls which
hours the product operates. When the product does not
operate, it is parked in the charging station. You can
see which hours and days the product operates in the
schedule overview in the app.
5.1.1 To set the schedule for systematic
mowing
• Set the schedule to let the product operate for as
long time as possible.
Note: After the product has cut the full work
area, it goes back to the charging station. When
the next session starts, the product cuts the full
work area again.
Note: If the product has not cut the full work
area before the session ends, it goes back to the
charging station. When the next session starts, the
product continues to cut from where it stopped.
• To cut a work area 2 times a day, you can set
2 different schedules. Set the schedule for the
product to have sufficient time to cut the complete
work area.
• With 2 or more parallel schedules, the product
starts to cut where it has not cut for the longest
time.
• Make sure that the product completes to cut each
work area in less than 24 hours. If the product
must cut a work area for more than 24 hours,
divide the work area into smaller work areas.
5.1.2 To set the schedule for irregular
mowing
The product operates the complete scheduled time with
irregular mowing.
• Decrease the scheduled time to prevent wear on
the grass.
• If the cutting result is not satisfactory, increase the
scheduled time. Refer to
Schedule on page 33
.
• With 2 or more parallel schedules in different work
areas, the product first starts to cut 1 work area.
After each charging of the product, the product
starts to cut another work area.
5.2 Cutting height
5.2.1 Adjust the cutting height
The cutting height can be adjusted from 2 cm / 0.8 in. to
5.5 cm / 2.2 in.
CAUTION: The first weeks after a new
installation, the cutting height must be set to
5.5 cm / 2.2 in. to prevent damage to the
loop wire. The cutting height can then be
lowered each week.
5.2.2 TargetHeight
Use the TargetHeight function to lower the cutting height
from the maximum cutting height to the specified cutting
height gradually during 10 days. If you change the
cutting height manually during this time it will disable the
TargetHeight function.
5.3 Pattern
The settings for pattern can be set for each work area
with an EPOS installation. You can do these settings:
• Set the pattern for how the product operates.
• For some patterns you can set the direction of the
pattern.
• For a satisfactory edge cutting result, use for
example the checkerboard or triangle pattern.
These mowing patterns cuts the edges in both
directions.
2369 - 003 -
Settings - 33
• For slopes, set the alternating mowing pattern at a
45 degree angle to the slope.
• For some patterns you can set the type of the
Border mowing
. With
Fixed border mowing
the
product always operates in the same paths to
keep a sharp border around the work area. With
Variable border mowing
, the product operates in
different paths to decrease the risk of track marks
along the virtual boundary.
Husqvarna recommends to use systematic pattern on
large and open work areas. If you use systematic
pattern on a work area with obstacles, make stay-out
zones around obstacles and use a pattern with many
directions for the best possible cutting result.
Husqvarna recommends to use irregular pattern if the
work area is complex and has many obstacles or
includes steep slopes.
5.4 Operation
In
Operation
you can change the operation settings of
the product.
5.4.1 Spiral cutting
Spiral cutting is only applicable for work areas with
irregular pattern. If the product enters an area where it
senses the grass is longer than average, it can change
the movement pattern to
Spiral cutting
. This means that
the product mows in a spiral pattern to faster cut the
area with longer grass. It is possible to set the intensity
of the
Spiral cutting
.
Very low / Low
intensity means
that
Spiral cutting
begins less often.
High / Very high
intensity means that
Spiral cutting
begins more often.
Note:
Spiral Cutting
does not start in slopes steeper
than 17%.
5.4.2 Object avoidance
Object avoidance
is only available for Automower
®
405XE/410XE NERA.
The products senses objects on the lawn that is higher
than the grass with the
Object avoidance
function
enabled. When the product senses an object on the
lawn, the product turns and continues to cut in a
different direction. You can disable the
Object avoidance
function if it is unsatisfactory for your work area.
Note:
Object avoidance
can cause that the grass is
not cut around objects. The sensors can also sense high
grass or flowers in the work area as objects.
5.4.3 Weather timer
Weather timer
automatically adjust the cutting time to
the growth of the grass. The product is not permitted to
operate more than the schedule settings.
Note: When using
Weather timer
, it is recommended
to make as much operating time as possible available
for
Weather timer
. Do not restrict the schedule more
than necessary.
The first operation of the day is set by the schedule
settings. The product always complete 1 mowing cycle,
and then
Weather timer
selects if the product will
continue to operate or not.
Note:
Weather timer
is reset if the product does not
operate for more than 50 hours, or if a
Reset of all user
settings
is done.
Weather timer
is not changed if a
Reset
of schedule settings
is done.
5.4.4 ECO mode
ECO mode
disables the signal in the boundary wire,
guide wire and the charging station, when the product is
parked or is charging. The LED indicator of the charging
station flashes green when the loop signal is disabled.
Note:
Use
ECO mode
to save energy and to prevent
interference with other equipment, for example hearing
loops or garage doors.
Note: To start the product manually in the work area
you must first enable the loop signal.
5.4.4.1 To enable the loop signal
1. Set the product to ON.
2. Put the product in the charging station.
3. Push the STOP button.
34
- Settings 2369 - 003 -
4. Wait 2 seconds and then remove the product from
the charging station.
5. Make sure that the LED indicator of the charging
station is solid green.
6. Put the product where you want it to start to cut.
5.4.5 EdgeCut
The product has EdgeCut which makes the product cut
the edges of your lawn. You can disable EdgeCut in the
app during season with low grass growth.
5.5 Installation settings
In
Installation
you can change the settings for an
installation with boundary wire.
5.5.1 To find the charging station
The product can be set to search for the charging station
in 3 methods:
•
Charging station signal
•
Follow boundary wire
•
Follow guide wire
The factory setting is set to use the 3 search methods
at the same time. Use the factory setting to find the
charging station as fast as possible and to keep the risk
of tracks on the lawn to a minimum. The product always
starts to search for the
Charging station signal
. After
a specified time interval, it also uses
Follow guide
and
Follow boundary wire
.
Causes why the product cannot follow the wire:
• Obstacles near the wire have not been isolated.
• The charging station, the boundary wire or the
guide wire are not installed according to the
instructions in
To install the charging station on
page 29
,
To install the boundary wire on page 30
and in
To install the guide wire on page 30
.
5.5.1.1 Charging station signal
For some installations it is necessary to decrease the
signal of the charging station. For example when the
charging station is put near an obstacle, such as a bush
or a wall. The product finds the charging station signal
on the other side of the obstacle and tries to find the
charging station, but the object prevents it to go to the
charging station. You can set the charging station signal
to
min
,
avg
or
max
.
Note:
Husqvarna recommends to set the charging
station signal to
max
. It is usually better to move the
charging station, than to decrease the range of the
charging station signal.
5.5.1.2 Follow guide wire and boundary wire
The time interval can be set for when the product starts
to follow the boundary wire and guide wire to find the
charging station.
5.5.2 Lawn coverage
5.5.2.1 GPS assisted navigation
The product has
GPS Assisted Navigation
that helps
the product to select the most optimal operation. This
function is enabled from the factory. If you want to do
manual settings for your lawn, disable the
GPS Assisted
Navigation
and make settings for
Area 1-5
. Disable
the
GPS Assisted Navigation
if you want to use the
Systematic Passage Mowing
function and make settings
for
Area 1-5
. Refer to
Settings for Area 1-5 on page 35
.
5.5.2.2 Settings for Area 1-5
Use this function if the work area includes remote
parts that are connected with narrow passages to keep
a satisfactorily cut work area. The
Lawn Coverage
function is used to cut remote parts of the work area.
The
Systematic Passage Mowing
function is used to
cut in narrow passages. A guide wire must be installed
to use these functions. You can set a maximum of 5
remote areas where the product starts to cut.
The
Systematic Passage Mowing
function is applicable
for narrow passages of 60 cm - 1.5 m / 23 in. - 4.9
ft. width. The product moves in a pattern to cut the
full passage width. The product starts the
Systematic
Passage Mowing
at the set distance from the charging
station. When the product is at the end of the narrow
passage, the product continues to cut the work area as
usual.
You can set the product to follow the guide wire to the
set specified distance before it starts to cut.

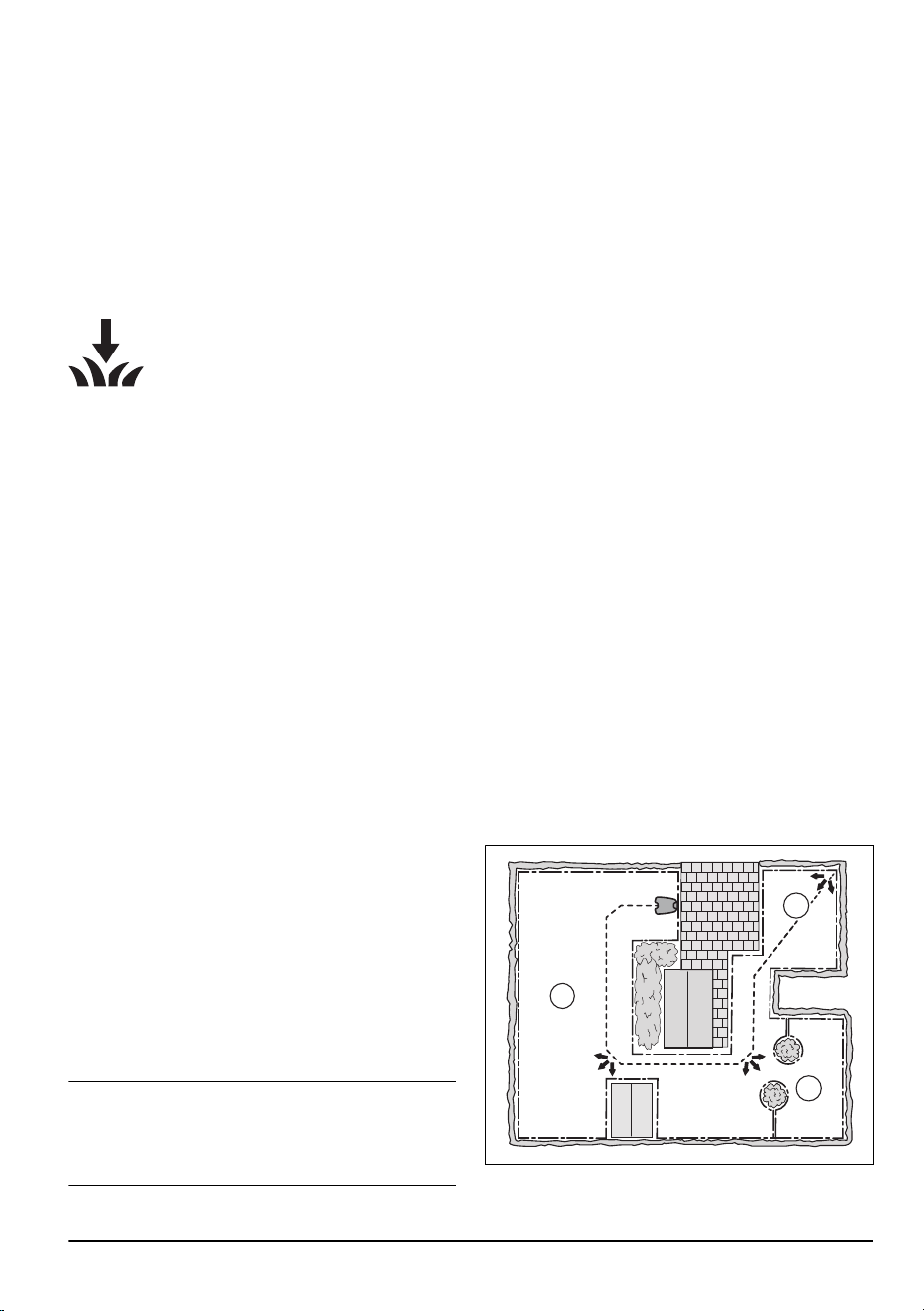

Area A, approximately 50%
Area B, approximately 30%
Area C, approximately 20%
A
C
B
2369 - 003 -
Settings - 35
Each area can be enabled or disabled. Use the
Test
function to measure the distance from the charging
station to where the product must start to cut. Refer to
To measure the distance from the charging station on
page 36
.
The default settings lets the product follow the guide
wire 300 m / 980 ft. in 20% of the times it moves out
from the charging station. If the guide wire is less than
300 m / 980 ft. the product will follow it to the point
where the guide wire is connected to the boundary wire.
5.5.2.3 To measure the distance from the charging
station
The product follows the guide wire to measure the
distance to the charging station.
1. Put the product in the charging station.
2. Select
Test: Area 1 setup
or
Test: Area 2 setup
to
measure the distance.
3. Push the STOP button to show the distance in the
app.
5.5.3 Corridor width
The boundary wire corridor is the area adjacent to
the boundary wire. The product uses the corridors to
find the charging station. The corridor width is adjusted
automatically. If it is necessary to adjust the corridor
width manually for the product to operate satisfactorily,
you can set the corridor width between 1-9.
5.5.4 Reversing distance
The reversing distance makes the product move in
reverse for a set distance, before the product starts to
cut the lawn.
5.5.5 Drive Past Wire function
The front of the product always moves past the
boundary wire by a specified distance. Then the product
moves rearward and changes direction. The factory
setting is 32 cm / 13 in. You can select a distance of
25-40 cm / 10-16 in.
Note:
If you change the distance for
Drive Past Wire
,
the distance will change along the boundary wire in all
parts of the work area.
5.6 Accessories
In
Accessories
you can change the settings of the
product accessories.
5.6.1 Headlights
Headlights is only available for Automower
®
405XE/
410XE NERA.
There are 4 different headlight settings that control when
the headlights are on:
•
Always on
•
Evening only (19:00-00:00)
•
Evening and night (19:00-07:00)
•
Always off
The default setting is
Always on
. The headlights can be
set to flash if there is an error.
5.6.2 To avoid collisions with the
Automower
®
house
When this option is enabled, the wear on the product
and the Automower
®
house is reduced, but it can result
in more uncut grass around the charging station.
5.7 General
In the
General
menu you can set the time and date, or
reset to factory settings.
This menu is only available when your mobile device is
connected to the product with Bluetooth
®
.
5.7.1 Time & date
The time and date can be changed manually, or by
using the time and date from the mobile device.
5.7.2 Reset to factory settings
The user settings can be reset to factory settings.
Note:
PIN code, Loop signal, Messages
and
Date &
Time
will not be reset.
5.8 Security
The security settings controls the PIN code, the
GeoFence and other security functions. The correct PIN-
code must be entered to get access to the
Security
menu.
This menu is only available when your mobile device is
connected to the product with Bluetooth
®
.
36
- Settings 2369 - 003 -
5.8.1 New loop signal
The loop signal is randomly selected to create a unique
link between the product and the charging station. In
rare cases, there may be a need to generate a new
signal, for instance if 2 adjacent installations have a very
similar signal.
5.8.2 Change PIN code
You can change the PIN code. Make a note of the new
PIN code in Memo. Refer to
Introduction on page 6
.
5.8.3 Theft protection
In the
Theft protection
menu it is possible to set the
alarm duration and also what events should trigger the
alarm. The factory setting is to require PIN code and the
alarm duration is 1 min.
5.8.3.1 Require PIN code
This function means that the product cannot be operated
or controlled after the STOP button has been pushed
without first entering the correct PIN code. If the
incorrect PIN code is entered 5 times, the product is
locked for a time. The lock is extended for each new
incorrect try.
5.8.3.2 Alarm duration
There is a possibility to set how long the alarm signal
should last. A setting between 1 and 10 minutes is
possible.
5.8.3.3 STOP button pressed
If the alarm
"STOP button pressed"
is enabled, the
alarm goes off if someone presses the STOP button and
the PIN code is not entered within 30 seconds.
5.8.3.4 Carried away
If the alarm
Carried away
is enabled, the product senses
unexpected motions, and the alarm goes off.
5.8.4 GeoFence
GeoFence is a GPS-based theft protection that makes
a virtual fence for the product. If the product is more
than a set distance away from the center position the
product will be disabled and an alarm will start. The
center position sets to the current position of the product
when GeoFence is enabled. The PIN code is necessary
to stop the alarm and to start the product again. The
GeoFence is only enabled when the product is set to
ON.
5.9 Automower
®
Connect
In
Automower
®
Connect
you can enable or disable the
Automower
®
Connect function. You can connect the
product to a Wi-Fi network. You can also see the signal
strength and connectivity status.
This menu is only available when your mobile device is
connected to the product with Bluetooth
®
.
5.10 Messages
In this menu the previous fault and information
messages can be found. For some of the messages,
there are tips and advice to help to rectify the fault.
If the product is disrupted in any way, for example it
is trapped or the battery is low, a message is saved
relating to the disruption and the time it happened.
If the same message is repeated several times, this
may indicate that an adjustment to the installation or the
product is required. Refer to
Introduction - Installation on
page 12
.
5.11 Automower
®
Intelligent Mapping
(AIM)
Automower
®
Intelligent Mapping (AIM) is available in
the Automower
®
Connect app. The technology uses
different sensors, GPS included, in the product. The
precision of the map is approximately 1 m / 3.3 ft.

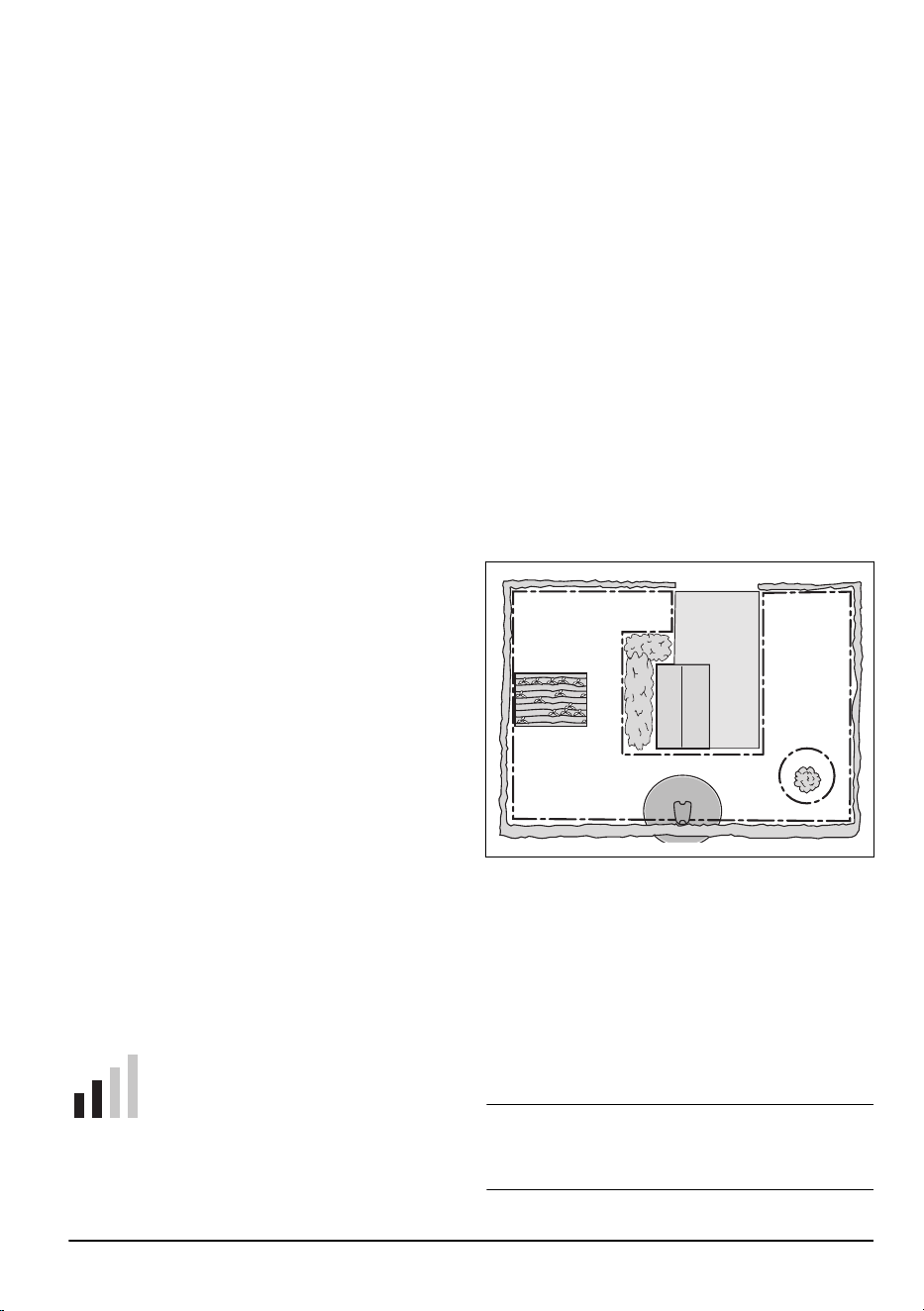

B
A
C
Some of the functions with AIM are:
• It shows a map of the lawn in the Automower
®
Connect app with charging station, boundary wire,
guide wire and islands.
• You can make work areas (A) and (B) in the
installation where you can set a schedule and
cutting height for each work area. This is only
available for Automower
®
405XE/410XE NERA.
• You can make stay-out zones (C) in which the
product cannot enter and cut grass. This is only
available for Automower
®
405XE/410XE NERA.
Note:
With the AIM function you can set work areas
and stay-out zones with a precision of approximately 1
m / 3.3 ft.
2369 - 003 - Settings - 37
The data collection for the AIM map starts automatically.
The product collects data while it operates and the
map is completed in 1-2 weeks. Remove temporary
obstacles on the lawn when the product operates and
collects data. If you change the installation of the wires
or charging station, you must do a new map. Read more
about AIM in the Automower
®
Connect app.
5.12 Download firmware over the air
FOTA (Firmware over the air)
The product has a function that automatically downloads
new firmware. When a new firmware is available, a
notification shows in the app where you can select
to install the new firmware. The LED indicator of the
product pulsates when the firmware update is ongoing.
If the product does not use cellular connectivity, it
downloads new firmware when it is parked in the
charging station. The product must have Wi-Fi coverage
in the charging station to download new firmware.
5.13 Mowing profiles
You can save different sets of settings in the
Mowing
profiles
. Use this function when you use one product for
more than one location or to have different settings on
the same location. In the
Mowing profiles
the product
settings, map objects and their settings are saved.
5.14 To reinstall the charging station on
the map
Reinstall the charging station on the map if you move
or replace the charging station. You can also reinstall
it if the product cannot dock or connect to the charging
station.
1. Select
Map objects > Charging station
in the app.
2. Select
Reinstall charging station
and follow the
instructions.
Note:
Other devices with Bluetooth
®
enabled can
cause interference with the pairing operation. Disable
Bluetooth
®
on the other devices if it causes interference
with the pairing operation.
38 - Settings 2369 - 003 -
6 Operation
The most frequently used operation settings are
included in the Automower
®
Access, refer to
Automower
®
Access on page 6
. All operating modes are
available in the Automower
®
Connect app.
6.1 To set the product to ON
WARNING: Read and understand the
safety chapter before you use the product.
• Push the jog wheel for 3 seconds.
• Use the jog wheel to enter the PIN code.
6.2 To start the product
1. Push the STOP button.
2. Use the jog wheel to enter the PIN code.
3. Use the jog wheel to select the operating mode.
Refer to
Operating modes - Start on page 39
.
4. Push the START button.
Note: The first weeks after installation the perceived
sound level when cutting the grass may be higher than
expected. When the product has cut the grass for some
time, the perceived sound level is much lower.
6.2.1 Operating modes - Start
6.2.1.1 Main area
Use the operating mode
Main area
for the product to cut
and charge automatically.
6.2.1.2 Secondary area
Use
Secondary area
operating mode to cut secondary
areas. You must move the product manually between
the main area and the secondary area. The product cuts
for a selected period of time or until the battery is empty.
Note:
You must put the product manually in the
charging station to charge the product when it is in a
secondary area. The product will move out from the
charging station and stop when the battery is charged.
You must select an operating mode to start the product.
Note: If you will cut the main area after the battery is
charged, set the product to
Main area
mode before you
put the product in the charging station.
6.2.1.3 Override schedule
Use the operating mode
Override schedule
to
temporarily override the
Schedule
settings for
24h
or
3
days
.
6.3 To park the product
1. Push the STOP button.
2. Use the jog wheel to enter the PIN code.
3. Use the jog wheel to select the park mode. Refer
to
Operating modes - Park on page 39
.
4. Push the START button.
6.3.1 Operating modes - Park
6.3.1.1 Park until further notice
Use the operating mode
Park until further notice
for the
product to go back to the charging station. The product
will stay in the charging station until you select a new
operating mode.
6.3.1.2 Start on next schedule
Use the operating mode
Start on next schedule
for the
product to go back to the charging station. The product
will stay in the charging station until the next
Schedule
setting.
6.3.1.3 Select duration
The product goes back to the charging station and
stays for the selected park duration. Use the operation
selection to temporary stop an ongoing mowing cycle
and let the product to stay in the charging station.
6.3.1.4 Park at maintenance point (EPOS
™
installation
only)
You can park the product at the maintenance point to do
maintenance on the product. The product is parked at
the maintenance point until you select a new operation
mode.
6.4 To stop the product
1. Push the STOP button to make the product and
the cutting motor stop.
6.5 To set the product to OFF
1. Push the STOP button to stop the product.
2. Enter the PIN code if it is necessary.
3. Push the jog wheel for 3 seconds to set the
product to OFF. You can also use the jog wheel
to select
Power off
in the menu in the display.
4. Make sure that the LED indicator on the jog wheel
is not lit.
2369 - 003 -
Operation - 39
6.6 To charge the battery
When the product is new or after long-term storage, the
battery can be empty. Charge the battery before you
start the product. In the
Main area
mode, the product
cuts and charges automatically.
1. Set the product to ON.
2. Put the product into the charging station until the
charging plates touch the contact plates.
3. Do a check that the product charges in the display
of the product or in the Automower
®
Connect app.
40 - Operation 2369 - 003 -
7 Maintenance
7.1 Introduction - maintenance
WARNING: Set the product to OFF
before you do maintenance on the product.
WARNING: Use protective gloves.
For better operation and lifetime of the product, make
sure to clean the product regularly and replace worn
parts.
When the product is new, examine the blade discs and
blades each week. If the wear is low, you can increase
the interval for the next time you examine the blade
discs and blades. Examine the blade discs and the
blades more regularly if there is much wear.
It is important that the blade disc rotates easily and
that the edges of the blades are not damaged. The
usual lifetime of the blades are 3-6 weeks for the main
blade disc and 9-12 weeks for the EdgeCut blade disc.
The conditions that follow can increase or decrease the
lifetime of the blades:
• Operation time and dimension of the work area.
• Length and thickness of the grass.
• Soil, sand and use of fertilizers.
• Objects such as cones, tools, stones and roots in
the work area.
Note: The cutting result can be unsatisfactory if the
blades are blunt. Refer to
Replacement of the blades on
page 44
on how to replace the blades.
7.2 Maintenance schedule
The maintenance schedule shows how to do
servicing and maintenance on the product. Follow the
maintenance schedule for a better operation and to
increase the lifetime of the product.
X = The instructions are given in this operator's manual.
O = The instructions are not given in this operator's
manual. Speak to your approved servicing dealer.
To prepare Weekly Every
year
Every
third year
Clean the product. Refer to
Clean the product on page 42
. X
Examine the product for damage and wear. X
Do an update of the firmware. X
Do a check of the servicing messages for recommended upgrades. O
Servicing
Examine the blades and replace the blades and blade screws if it is necessary.
Refer to
Replacement of the blades on page 44
.
X
Examine and polish the contact plates on the charging station. X
Examine and polish the charging plates on the product. X
Charge the battery fully before you put the product into storage. Refer to
To
charge the battery on page 40
.
X
Examine the wheels for wear. O
Examine and clean the collision columns. Do a check of the tightening torque on
the front and rear collision columns.
O
Make sure that the product is docking and charging correctly. O
Examine the cable and connector to the charging plates on the body of the
product.
O
2369 - 003 - Maintenance - 41

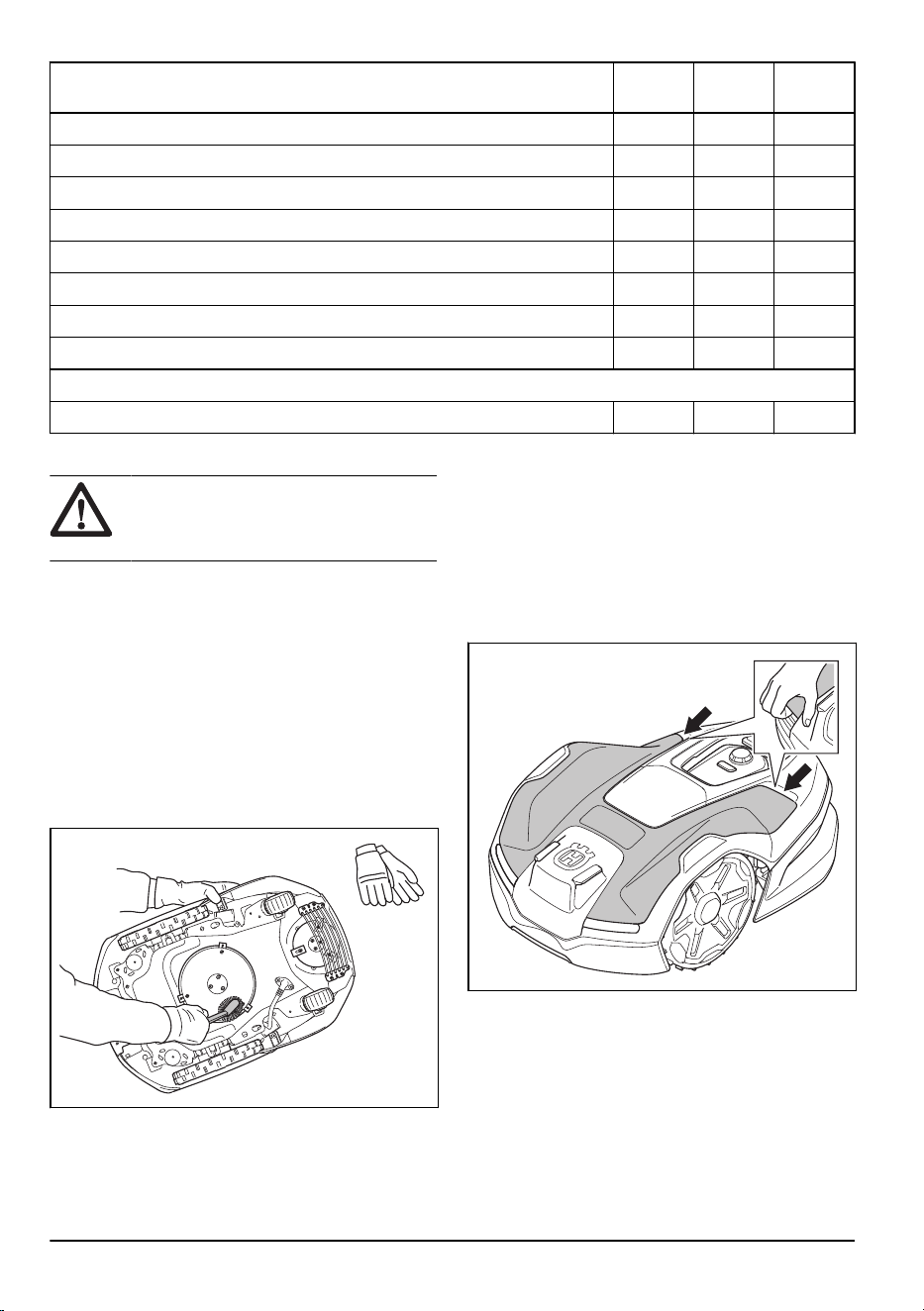

To prepare Weekly Every
year
Every
third year
Examine the skid plate and skid plate bearing. O
Examine the rubber bellows in the cutting height adjustment system. O
Examine the rubber bellows for the collision columns. O
Replace the rubber bellows for the collision columns. O
Examine and clean the airflow filter. O
Replace the airflow filter. O
Do a check of the tightening torque of chassis screws. O
Open the chassis and replace all sealing strips. O
Last step
Use a software service tool to do a function test of the functions of the product. O
7.3 Clean the product
CAUTION: Do not use a high-pressure
washer to clean the product. Do not use
solvents for cleaning.
The product does not operate satisfactorily in slopes if
the wheels are blocked with grass. Clean the product
with a brush or running water from a water hose.
Husqvarna recommends to use a special cleaning and
maintenance kit. Speak to your Husqvarna servicing
dealer for more information.
7.3.1 To clean the blade discs and blade
disc guard
Examine the blade disc and blades and clean the blade
disc guard weekly.
1. Put the product onto its side.
2. Clean the blade discs and the blade disc guard
with a brush and running water.
7.3.2 To clean the chassis and body of the
product
To clean the product fully, the top cover and the body of
the product can be removed. If the product is dirty, use a
weak soap solution if necessary. Use a brush or a water
hose to clean the product. Do not use a high-pressure
washer to clean the product.
1. Set the product to OFF.
2. Carefully pull the top cover at the rear.
3. Hold the chassis with one hand and remove the
body with a fast and short pull upwards and
towards the front of the product.
42
- Maintenance 2369 - 003 -
WARNING: If your hands come
between the body of the product and
the chassis, there is a risk of injury.
4. Hold the front wheel with one hand and remove
the front part of the body with a fast and short
pull upwards. Do the same procedure on the other
side.
5. Put the body of the product adjacent to the chassis
of the product or tilt it against a wall.
7.3.3 To clean the wheels
The product does not operate satisfactorily in slopes if
the wheels are blocked with grass.
• Use a soft brush to clean the wheels.
• If it is necessary, remove the wheel cover with a
flat screwdriver.
7.3.4 To clean the charging station
WARNING: Disconnect the power
supply from the power outlet before
maintenance, or when you clean the
charging station or power supply.
• Remove grass, twigs and other objects from the
charging station.
• Use a brush or a water hose to clean the charging
station.
7.4 Battery
CAUTION:
Charge the battery fully
before you put the product into storage. If
the battery is not fully charged it can cause
damage to the battery.
If the operating time of the product is shorter than usual
between charges, this means that the battery is at the
end of its life cycle. Replace the battery to extend the
operating time.
Note:
The battery life is related to the length of
the season and how many hours a day the product
operates. A long season or many hours of operation
a day means that the battery must be replaced more
regularly.
2369 - 003 - Maintenance - 43
7.5 Replacement of the blades
WARNING: Husqvarna can only
guarantee safety if you use Husqvarna
original blades with the embossed crowned
H-mark logotype.
WARNING: You must replace the
screws when you replace the blades. The
used screws can wear quickly and make the
blade come loose, this can cause serious
injury.
Replace worn or damaged blades for a safe operation.
Replace the blades regularly for a satisfactory cut result
and a low energy use. All 3 blades and screws must
be replaced at the same time to get a balanced cutting
system.
7.5.1 To replace the blades
1. Set the product to OFF.
2. Put the product with the blade disc up on a clean
and soft surface.
3. Rotate the skid plate until the holes align with the
screws for the blade.
4. Remove the 3 blades and 3 screws.
5. Attach new blades and screws.
6. Make sure that the blades can move freely.
44
- Maintenance 2369 - 003 -
8 Troubleshooting
8.1 Messages
The messages in the table below are shown in Automower
®
Connect and Automower
®
Access. Speak to your
Husqvarna representative if the same message shows frequently.
Message Cause Action
Wheel motor
blocked, right
The drive wheel is blocked by grass or other
objects.
Examine the drive wheel and remove the
grass or other object.
Wheel motor overloa-
ded, left/right
Wheel drive problem,
right/left
The drive wheel is blocked by grass or other
objects.
Examine the right drive wheel and remove
the grass or other objects. If the problem
stays, speak to your authorized service cen-
ter.
Cutting system
blocked
The cutting system is blocked by grass or
other objects.
Examine the cutting system and remove the
grass or other objects.
Cutting height
blocked
Grass or other objects are wound around
the cutting height adjustment, or between the
blade disc and chassis.
Examine the blade disc and the bellows
around the cutting height adjustment, and re-
move any grass or other objects that may
have got stuck.
Edge cutting system
blocked
The edge cutting system is blocked by grass
or other objects.
Examine the edge cutting system and re-
move the grass or other objects.
Imbalanced edge cut-
ting system
The product has discovered vibrations in the
edge blade disc.
Examine that the blades and screws are not
damaged or worn. Make sure that all blades
are correctly installed and that there is only
one blade attached in each position on the
blade disc.
2369 - 003 - Troubleshooting - 45
Message Cause Action
No loop signal
The power supply or the low-voltage cable
are not connected.
Examine the LED status on the charging sta-
tion. If the LED is not lit, it indicates that there
is no power. Examine the power outlet con-
nection and whether an earth-fault breaker
has tripped. Make sure that the low-voltage
cable is connected to the charging station.
The power supply or low-voltage cable are
damaged.
Replace the power supply or low-voltage ca-
ble.
ECO mode
is activated and the product has
attempted to start outside the charging sta-
tion.
Put the product in the charging station. Start
the product.
The product does not find the loop signal
from the charging station.
Put the product in the charging station and
generate a new loop signal. Refer to
To in-
stall the boundary wire on page 30
.
Disturbances from metal objects (fences, re-
inforcement steel) or buried cables.
For a wire installation, move the boundary
wire and/or make more islands in the work
area to increase the signal strength.
For an EPOS
™
installation, change the posi-
tion of the charging station.
For a wire installation, the boundary wire is
not connected to the charging station.
Make sure that the boundary wire connectors
are fitted properly to the charging station. Re-
place connectors if damaged. Refer to
To in-
stall the boundary wire on page 30
.
For a wire installation, the boundary wire is
crossed on its way to and from an island.
Make sure that the boundary wire is installed
correctly. Refer to
To enable the loop signal
on page 34
.
For a wire installation, the boundary wire is
broken.
Check the signal given by the LED on the
charging station. If the LED indicates break
in the boundary wire, find out where the
break is. Replace the damaged section of the
loop with a new loop wire and splice using
an original coupler. Refer to
To install the
boundary wire on page 30
.
For a wire installation, the product is too far
from the boundary wire.
Redo the installation of the boundary wire so
that all parts of the work area is maximum
m / ft. from the boundary wire.
46 - Troubleshooting 2369 - 003 -
Message Cause Action
Outside work area
The boundary wire connections to the charg-
ing station are crossed.
Make sure that the boundary wire is connec-
ted correctly. Refer to
To install the boundary
wire on page 30
.
The boundary wire is too close to the edge of
the work area.
Make sure that the boundary wire has been
laid according to the instructions. Refer to
To
install the boundary wire on page 30
.
The boundary wire, virtual boundary or virtual
transport paths are installed in an area with
too steep slope.
The boundary wire is laid in the wrong direc-
tion around an island.
Disturbances from metal objects (fences, re-
inforcement steel) or buried cables close by.
Move the boundary wire and/or make more
islands in the work area to increase the sig-
nal strength.
The product finds it hard to distinguish the
signal from another product installation close
by.
Put the product in the charging station and
generate a new loop signal. Refer to
New
loop signal on page 37
.
Upside down
The product is leaning too much or has
turned over.
Turn the product the right way up.
Mower tilted
The product tilts too much. Move the product to a level area.
Lifted
The lift sensor has been enabled because
the product has been lifted.
Make sure that the body of the product body
can move freely around its chassis. Remove
or make an island around objects that can
cause the body to be lifted. If the problem
stays, speak to your authorized service cen-
ter.
Trapped
The product is blocked in a small area be-
hind a number of obstacles.
Examine if there are obstacles which make it
hard for the product to move away from this
location.
Slipped
The product slips because there is an obsta-
cle.
Remove the obstacle.
The product slips because of wet grass. Wait until the lawn is dry before you start the
product again.
The product has hit an obstacle and stopped
or the wheels cannot move on the wet grass.
Free the product and rectify the reason for
the lack of drive. If it is due to wet grass,
wait until the lawn has dried before using the
product.
The product slips because the slope is too
steep.
Isolate the steep slope with boundary wire.
Refer to
To put the boundary wire in a slope
on page 26
.
The product slips because the slope is too
steep when it follows the guide wire.
Make sure that the guide wire is installed
diagonally in the slope. Refer to
To put the
boundary wire in a slope on page 26
.
2369 - 003 - Troubleshooting - 47
Message Cause Action
Collision
The body of the product cannot move freely
around its chassis.
Make sure that the body of the product can
move freely around its chassis. Examine that
the body of the product is correctly installed
and there is no dirt blocking it. If the problem
stays, speak to your authorized service cen-
ter.
Alarm! Mower stop-
ped
The alarm was started because the product
was stopped.
Enter the PIN code to disable the alarm. The
settings for the alarm can be changed in the
Security
menu. Refer to
Security on page 36
.
The alarm was started because the product
was lifted.
The alarm was started because the product
was tilted.
Alarm! Mower was
moved
The alarm was started because the product
was moved.
Alarm! Outside Geo-
Fence
The alarm was started because the product
was outside the GeoFence.
Temporary problem
Temporary electronic or firmware problem in
the product.
Update the firmware via FOTA. Restart the
product. If the problem stays, speak to your
authorized service center.
Electronic problem
Temporary electronic or firmware problem in
the product.
Restart the product.
If the problem stays, speak to your approved
servicing dealer.
Loop sensor problem
Tilt sensor problem
Invalid sub-device
combination
STOP button prob-
lem
Connectivity problem
Safety function faulty
Invalid system config-
uration
Lift sensor problem
Collision sensor
problem
Radar problem
Temporary battery
problem
Battery problem
Temporary battery or firmware problem in the
product.
Restart the product. If the problem stays,
speak to your approved servicing dealer.
Incorrect type of battery. Use only original batteries recommended by
the manufacturer.
48 - Troubleshooting 2369 - 003 -
Message Cause Action
Empty battery
For an installation with boundary wire:
The product cannot find the charging station.
Change the position of the guide wire. Refer
to
To install the guide wire on page 30
.
Check the installation settings about how to
find the charging station. Refer to
To find the
charging station on page 35
.
For an EPOS
™
installation:
The product cannot find the charging station.
The product has no accurate position and
cannot find the charging station.
There is an obstacle that causes the product
to not find the charging station.
The battery is spent. Replace the battery. Refer to
Battery on
page 43
.
The charging station’s antenna is defective. Check if the indicator lamp in the charging
station flashes red. Refer to
To install the
guide wire on page 30
.
Battery needs re-
placement
The battery state of health is low. Replace the battery. Speak to your author-
ized service center.
Battery near end of
life
The battery state of health is critically low. Replace the battery. Speak to your author-
ized service center.
Temperature restric-
tion
The product does not operate if the battery
temperature is too high or too low.
The product starts to operate again when the
temperature is between the set limits and the
schedule settings let the product to operate.
Make sure that the charging station is put in
an area with protection from the sun.
Charging current too
high
The battery charges with a too high current.
The power supply unit is incorrect or dam-
aged.
Make sure that the power supply unit and
charging station are not damaged. Make
sure the that you use the correct power sup-
ply unit and charging station. Restart the
product. If the problem stays, speak to your
authorized service center.
Charging system
problem
There is corrosion or dirt on the charging
plates and contact plates.
Restart the product. Clean the charging
plates on the product and the contact plates
on the charging station.
Temporary electronic or firmware problem in
the product.
Restart the product. If the problem stays,
speak to your approved servicing dealer.
No power in charging
station
The power supply unit is incorrect or dam-
aged.
Examine the power supply unit. Replace if
necessary.
Power failure. Find and correct the cause of the power fail-
ure.
The product cannot charge because there is
no contact between the contact plates and
the charging plates.
Make sure that the charging plates and the
contact plates are in contact. Clean the con-
tact plates and charging plates.
2369 - 003 - Troubleshooting - 49
Message Cause Action
Charging station
blocked
The product cannot go into the charging sta-
tion because it is blocked or the baseplate of
the charging station is tilted or bent.
Examine why the product cannot go into the
charging station. Remove any objects and
make sure that the baseplate of the charging
station is level.
The product cannot go into the charging sta-
tion because it is blocked or the baseplate of
the charging station is tilted or bent.
Examine why the product cannot go into the
charging station. Remove any objects and
make sure that the baseplate of the charging
station is level.
Stuck in charging sta-
tion
The product cannot leave the charging sta-
tion because it is blocked or it slips on the
baseplate of the charging station.
Examine why the product cannot leave the
charging station. Remove any objects and
clean the baseplate of the charging station.
FlexiFence problem
The battery of the FlexiFence accessory is
low. The FlexiFence accessory does not op-
erate when the battery is empty. The product
can cut in the stay-out zone if you start the
product before you charge the FlexiFence
accessory.
Park the product and charge the FlexiFence
accessory before you start the product.
The temperature in the FlexiFence accessory
is a higher than the maximum limit and is set
to off.
Put the product in an area with protection
from the sun. Let the temperature of the
FlexiFence accessory decrease before you
start the product.
Slope too steep
The product stopped because the slope is
too steep.
Change the installation of the boundary wire
to exclude this steep part of the work area.
EPOS plug-in not
found
The EPOS Plug-in has been installed earlier,
but cannot be found.
Make sure that the EPOS Plug-in is installed
correctly and that the cable is connected. Re-
start the product. If the problem stays, speak
to your authorized service center.
Charging station
communication prob-
lem
The mower cannot communicate with the
charging station.
Create a new loop signal or reinstall your
charging station under map view in the app.
If the problem stays speak to your authorized
service center.
Power failure Find and correct the cause of the power fail-
ure.
Invalid firmware con-
figuration
The firmware in the product is not updated. Update the firmware to the latest version.
Map problem
The map object file is incorrect. Do a check of the map in the app. Adjust the
map and save it.
Delete the map and do a new installation.
Accessory power
problem
There is a power problem with the accessory
port.
Switch off the product and disconnect and re-
connect the accessory to the accessory port.
Restart the product. If the problem stays,
speak to your service center.
50 - Troubleshooting 2369 - 003 -
Message Cause Action
Destination not
reachable
The product cannot reach the destination be-
cause there is a stay-out blocking the way to
the work area.
Edit or remove the stay-out zone or make a
new installation of the work area.
For EPOS
™
installation, there is no transport
path to the work area.
Edit or remove the stay-out zone or make a
new installation of the work area.
For EPOS
™
installation, the way back to the
charging station is blocked by an obstacle.
Remove the obstacle.
For EPOS
™
installation, the way to the main-
tenance point is blocked by an obstacle.
Destination blocked
The way of the destination is blocked by an
obstacle.
Remove the obstacle that blocks the way to
the destination.
The way of the destination is blocked by a
stay-out zone.
Edit or remove the stay-out zone or make a
new installation of the work area.
For EPOS
™
installation, there is no transport
path to the work area.
Make a transport path to the work area.
Boundary wire prob-
lem
The boundary wire for the
Support by wire
function is damaged or not installed correctly.
Examine that the boundary wire is connected
correctly to the charging station. Examine all
the splices on the boundary wire. Examine if
the boundary wire is damaged and repair it if
it is necessary.
Unexpected cutting
height adj
The cutting height adjustment cannot move. Examine the cutting height adjustment and
remove grass or other objects. If the problem
stays, speak to your approved servicing deal-
er.
Limited cutting height
range
Cutting height prob-
lem
Cutting system imbal-
ance
The product has discovered vibrations in the
blade disc.
Make sure that the blades and screws are
not damaged and worn. Make sure that all
blades are correctly installed and that there
is only one blade attached in each position
on the blade disc. Clean the blades and the
cutting disc.
Guide 1 not found
Guide 2 not found
Guide 3 not found
The guide wire you have installed before is
not found.
Examine if the guide wire is not correctly
connected to the charging station or the
boundary wire. Examine if there is a break
in the guide wire. Refer to
Finding breaks in
the loop wire on page 55
.
GPS navigation prob-
lem
Problem with the GPS assisted navigation
equipment.
Restart the product. If the problem stays,
speak to your authorized service center.
Weak GPS signal
The GPS signal is blocked in large parts of
the work area.
If possible, remove objects that can cause a
blockage of the GPS signal.
Disable the GPS navigation function and use
the lawn coverage function. Refer to
Lawn
coverage on page 35
.
Work area tampered
The charging station or the reference station
was moved.
Do a new installation of the map.
2369 - 003 - Troubleshooting - 51
Message Cause Action
Too many waypoints
There are too many waypoints in the current
work area.
Do a new installation of the work area, stay-
out zone and transport paths. Divide the cur-
rent work area into more work areas.
No correction data
available
Technical problems with EPOS
™
through the
Husqvarna
®
Cloud.
Restart the product. If the problem remains,
the message requires action by authorized
service technician.
The product does not have cellular connec-
tion and cannot receive correction data.
Make sure that you have cellular coverage in
all parts of the area where the product oper-
ates.
Searching for posi-
tion
Weak satellite signal to the reference station. The satellite signal is temporarily weak. The
product will start to operate when the satellite
signals are good.
Examine the installation of the reference sta-
tion.
Weak satellite signal to the product. The satellite signal is temporarily weak. The
product will start to operate when the satellite
signal is good.
Examine if there is an object between the
product and the sky that causes interference
with the satellite signal. Remove the object
or do a new installation to not include these
parts in the work area. Refer to
Installation of
the map objects on page 19
.
Reference station
communication prob-
lem
The product is not connected to the refer-
ence station.
Do a pairing operation between the product
and the reference station.
The reference station is not installed correct-
ly.
Examine the installation of the reference sta-
tion.
The product does not receive the radio signal
from the reference station in all areas where
the product operates.
Test if the product has radio signal from the
reference station in all of the work area. If
not, make a new installation of the reference
station or a new installation of the map. Refer
to
Installation of the map objects on page 19
.
Power failure. Examine and correct the cause for the power
failure of the reference station.
There is an error in the reference station and
the LED indicator flashes red.
Disconnect the power to the reference sta-
tion and connect it again to restart the refer-
ence station. If the problem stays, speak to
your approved servicing dealer.
There is interference with another reference
station or other radio systems in the area.
Restart the product. If the problem stays,
speak to your approved servicing dealer.
8.2 LED indicator of the charging station
The LED indicator of the charging station is green when
the installation is correct. If the LED indicator of the
52 - Troubleshooting 2369 - 003 -
charging station is not green, follow the troubleshooting
table below.
Speak to your local Husqvarna representative or go to
www.husqvarna.com for more information.
LED indicator Cause Action
Constant green The signals of the charging station are good. No procedure is necessary.
Flashes green The signals of the charging station are good
and
ECO mode
is enabled.
No procedure is necessary.
Flashes blue The boundary wire is not connected to the
charging station.
Connect the boundary wire to the charging
station.
The boundary wire is damaged. Replace the damaged section of the boun-
dary wire with new boundary wire.
Flashes red Interference in the antenna of the charging
station.
Speak to your local Husqvarna representa-
tive.
Constant red Error in the circuit board or incorrect power
supply in the charging station.
The error must be corrected by an authorized
service technician. Speak to your local Husq-
varna representative.
8.3 Symptoms
If the product does not operate as usual, follow the symptoms table below. Speak to your Husqvarna customer
service if you cannot find the cause for the fault.
Symptoms
Cause Action
Edges of the lawn
are not satisfactorily
cut.
The blade disc guard for the EdgeCut blade
disc is clogged.
Clean the blade disc guard for the EdgeCut
blade disc.
The edges of the lawn were not cut before
the installation of the product.
Use a grass trimmer to cut the edges of the
lawn.
The grass is thick and grows quickly. Increase the scheduled cutting time for the
product.
The product has diffi-
culty docking.
The guide wire is not put straight in a line
and correct distance from the charging sta-
tion.
Do a check of the installation of the charging
station. Refer to
To install the charging sta-
tion on page 29
The guide wire is not put in the slot in the
charging station plate.
Make sure that the guide wire is put straight
in a line and put in the slot in the charging
station plate. Refer to
To install the guide
wire on page 30
.
The charging station is not on a level sur-
face.
Put the charging station on a level surface.
Refer to
To examine where to put the charg-
ing station on page 24
.
The product operates
at the incorrect time.
The time or the date in the product is not
correct.
Set the time or date. Refer to
Time & date on
page 36
.
The start and stop times for operating are
incorrect.
Change the
Schedule
settings. Refer to
Schedule on page 33
.
2369 - 003 - Troubleshooting - 53
Symptoms Cause Action
There is vibration in
the product.
The cutting system is not in balance because
of damaged blades.
Examine the blades and screws and replace
them if necessary. Refer to
Replacement of
the blades on page 44
.
The cutting system is not in balance because
of too many blades in the same position.
Do a check that only one blade is attached at
each screw.
Different thickness of blades are installed on
the product.
Do a check if the blades are of different thick-
ness and replace if necessary.
The product oper-
ates, but the blade
disc does not rotate.
The product searches for the charging sta-
tion, or is moving to the starting point.
Usual operation for the product. The blade
disc does not rotate when the product is
searching for the charging station.
The product operates
for shorter periods
than usual between
charges.
Grass or other object causes a blockage to
the blade disc.
Remove and clean the blade disc. Refer to
Clean the product on page 42
.
The battery is at the end of its life cycle. Replace the battery. Refer to
Replacement of
the blades on page 44
.
Blunt blades. More energy is necessary
when cutting the grass.
Replace the blades. Refer to
Replacement of
the blades on page 44
.
Mowing and charg-
ing times are shorter
than usual.
The battery is at the end of its life cycle. Replace the battery. Refer to
Battery on
page 43
.
The product is
parked for hours in
the charging station.
The product has operated the maximum cut-
ting time for the day.
No action. Refer to
Schedule on page 33
.
The hatch is closed but the START button is
not pushed.
Push the STOP button to open the hatch.
Enter the PIN code and confirm with the OK
button. Push the START button and then
close the hatch.
Parking mode is enabled. Change the operating mode. Refer to
Oper-
ating modes - Start on page 39
.
The product does not operate if the battery
temperature is too high or too low.
Make sure that the charging station is put in
an area with protection from the sun.
The cutting result is
not satisfactory.
The product operates for a small number of
hours per day.
Increase the cutting time. Refer to
Schedule
on page 33
.
For the shape of the work area it is necessa-
ry to adjust the settings for
Lawn Coverage
to cover all parts of the work area.
Change the settings of the areas where the
product starts to cut and how often. Refer to
Lawn coverage on page 35
.
The work area is too large. Decrease the size of the work area or extend
the schedule. Refer to
Schedule on page 33
.
Blunt blades. Replace all the blades. Refer to
Replace-
ment of the blades on page 44
.
Long grass in relation to the set cutting
height.
Increase the cutting height and then lower it
when the grass is shorter.
Collection of grass on the blade disc or
around the motor shaft.
Remove the collection of grass and clean the
product. Refer to
Clean the product on page
42
.
54 - Troubleshooting 2369 - 003 -
Symptoms Cause Action
The battery is empty
and you put the prod-
uct in the charging
station, but it does
not charge and can-
not be set to ON.
If the battery has been deeply discharged,
it will take a long time to charge the battery
and before the product can be set to ON.
Keep the product in the charging station for
24 hours and test if the product can be set
to ON. If the problem stays, speak to your
authorized service technician.
8.4 Finding breaks in the loop wire
Breaks in the loop wire are usually the result of
unintentional physical damage to the wire such as when
gardening with a shovel. In countries with ground frost,
also sharp stones that move in the ground can damage
the wire. Breaks can also occur due to the wire being
stretched excessively during installation.
Mowing the grass too low right after the installation can
damage wire insulation. Damage to the insulation may
not cause disruptions until several weeks or months
later.
CAUTION: Always select the maximum
cutting height the first weeks after
installation and then lower the height one
step at a time every second week until the
desired cutting height has been reached.
A damaged splicing of the loop wire can also lead to
disruptions several weeks after the splice was done.
A faulty splice can, for example, be the result of the
coupler not being pressed together hard enough with a
pair of pliers, or that a coupler of lower quality than the
original coupler has been used.
Note: Please first check all known splices before
further troubleshooting is done.
A wire break can be located by gradually halving the
distance of the loop where the break may have occurred
until there is only a very short section of the wire left.
The following method does not work if
ECO mode
is
activated. Make sure first that
ECO mode
is turned off.
Refer to
ECO mode on page 34
.
1. Check that the indicator lamp in the charging
station flashes blue, which indicates a break in
the boundary loop. Refer to
LED indicator of the
charging station on page 52
.
2. Check that the boundary wire connections to the
charging station are properly connected and not
damaged. Check that the indicator lamp in the
charging station is still flashing blue.
3. Switch the connections between the guide wire
and the boundary wire in the charging station.
Start by switching connection AL and G1. Some
models have additional guide wires . The same
procedure can be followed for them.
If the indicator lamp is lit with a solid green light,
then the break is somewhere on the boundary wire
between AL and the point where the guide wire is
connected to the boundary wire (thick black line in
the illustration).
Guide
AL
G1
To rectify the fault you will need boundary wire,
connector(s) and coupler(s):
a) If the suspected boundary wire is short then it
is easiest to exchange all of the boundary wire
between AL and the point where the guide wire is
connected to the boundary wire (thick black line).
b) If the suspected boundary wire is long (thick
black line) then do as follows: Put AL and G1
back to their original positions. Then disconnect
AR. Connect a new loop wire to AR. Connect the
other end of this new loop wire at the middle of the
suspected wire section.
2369 - 003 -
Troubleshooting - 55
AR
If the indicator lamp now is green, then the
break is somewhere in the wire between the
disconnected end to the point where the new wire
is connected (thick black line below). In that case,
move the connection for the new wire closer to
the disconnected end (roughly at the middle of
the suspected wire section) and check again if the
indicator lamp is green.
Continue until only a very short section of the wire
remains which is the difference between a solid
green light and a flashing blue light. Then follow
instruction in step 5 below.
4. If indicator lamp still flashes blue in step 3
above:Put AL and G1 back in their original
positions. Then switch AR and G1. If indicator lamp
now is lit with a solid green light then disconnect
AL and connect a new boundary wire to AL.
Connect the other end of this new wire at the
middle of the suspected wire section. Follow the
same approach as in 3a) and 3b) above.
5. When the break is found, the damaged section
must be replaced with a new wire. Always use
original couplers.
56 - Troubleshooting 2369 - 003 -
9 Transportation, storage and disposal
9.1 Transportation
The supplied Li-ion batteries obey the Dangerous Goods
Legislation requirements.
• Obey all applicable national regulations.
• Obey the special requirement on package and
labels for commercial transportations, including by
third parties and forwarding agents.
• For how to remove the battery, refer
to the complete Operator's manual on
www.husqvarna.com.
9.2 To put the product into storage
CAUTION: Charge the battery fully
before you put the product into storage. If
the battery is not fully charged it can cause
damage to the battery.
• Charge the product fully. Refer to
To charge the
battery on page 40
.
• Set the product to OFF. Refer to
To set the product
to OFF on page 39
.
• Clean the product. Refer to
Clean the product on
page 42
.
• Put the product in a dry, frost-free area.
• We recommend to put the product in the package
of the product or put the product with all wheels on
level ground. You can also hang the product on a
Husqvarna wall hanger. Speak to your Husqvarna
representative for more information about available
wall hangers.

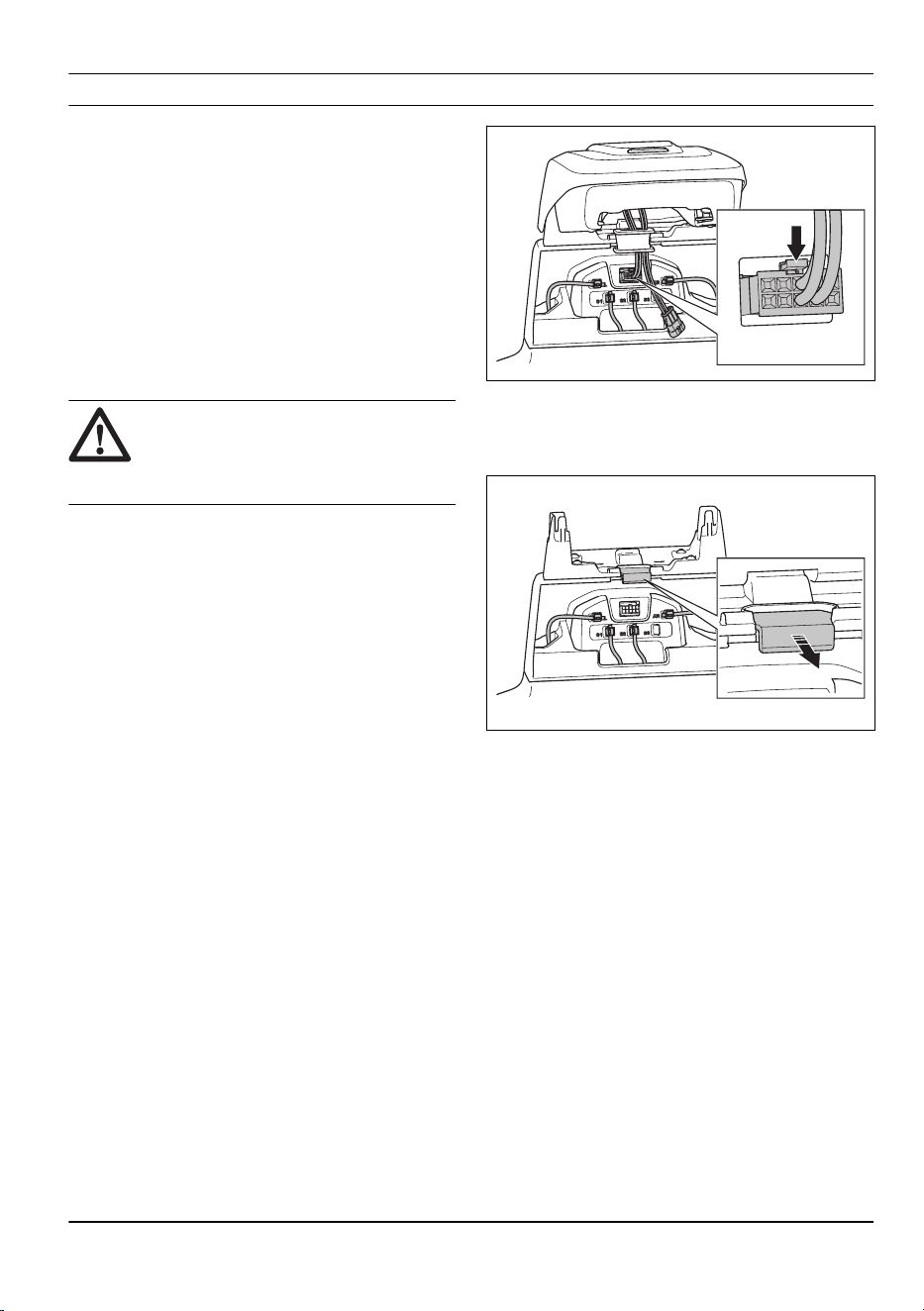

9.3 To put the charging station into
storage
You can remove the top of the charging station and put
it into storage. It is not necessary to put the baseplate of
the charging station into storage.
1. Lift and tilt the top of the charging station and open
the hatch.
2. Disconnect the power supply unit from the
charging station and from the power outlet.
3. Disconnect the cable.
4. Remove the grommet with the cables.
5. Pull the top of the charging station up and remove
it.
6. Close the sealing lid.
7. Close the hatch.
8. Put the power supply unit and the top of the
charging station in a dry, frost-free area.
9.4 To install the charging station after
storage
1. Open the hatch.
2. Push in the sealing lid.
3. Attach the top of the charging station.
2369 - 003 -
Transportation, storage and
disposal - 57

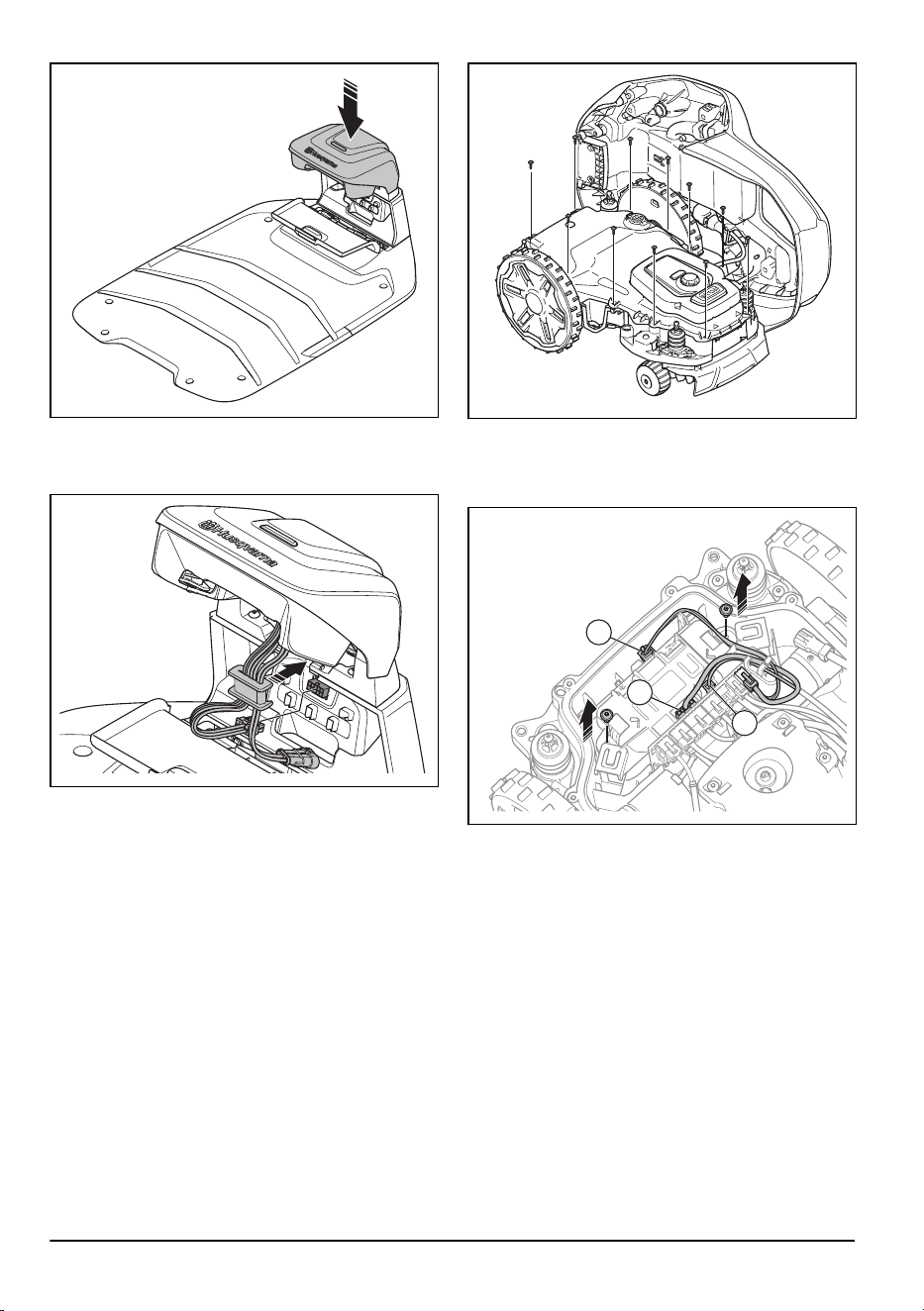

4. Lift and tilt the top of the charging station.
5. Put the grommet with the cables into position.
6. Connect the cable to the charging station.
7. Connect the power supply unit to the power outlet
and to the charging station.
8. Close the hatch.
9.5 Disposal
• Obey the local recycling requirements and
applicable regulations.
• For questions about how to remove the battery,
refer to
To remove the battery on page 58
.
9.5.1 To remove the battery
1. Set the product to OFF.
2. Remove the body of the product, refer to
To clean
the chassis and body of the product on page 42
.
3. Remove the 12 screws.
4. Remove the warranty seal and lift up the lower
chassis.
5. Disconnect the 2 cables (A) and (B) from the
battery.
A
B
C
6. Disconnect the cable (C) from the front loop circuit
board.
7. Remove the 2 screws for the battery holder.
8. Remove the battery.
58
- Transportation, storage and disposal 2369 - 003 -
10 Technical data
10.1 Technical data
Dimensions Automower
®
305E NERA
Automower
®
310E NERA
Automower
®
405XE NERA
Automower
®
410XE NERA
Length, cm/in. 68/26.8 68/26.8 68/26.8 68/26.8
Width, cm/in. 44/17.2 44/17.2 44/17.2 44/17.2
Height, cm/in. 28/11.0 28/11.0 28/11.0 28/11.0
Weight, kg/lb 12.2 / 27 12.2 / 27 12.1 / 27 12.1 / 27
Electrical system Automower
®
305E NERA
Automower
®
310E NERA
Automower
®
405XE NERA
Automower
®
410XE NERA
Battery, Lithium-Ion 18.0 V/2.0 Ah Art.
No.
593 74 20-03,
593 74 20-04,
593 74 20-06
593 74 20-03,
593 74 20-04,
593 74 20-06
Battery, Lithium-Ion 18. V/4.9 Ah Art.
No.
590 81 01-02 590 81 01-02
Battery, Lithium-Ion 18.0 V/5.0 Ah Art.
No.
536 81 24-01,
590 81 01-01,
590 81 01-03
536 81 24-01,
590 81 01-01,
590 81 01-03
Battery, Lithium-Ion 18.5 V/5.0 Ah Art.
No.
536 81 24-02 536 81 24-02
Battery, Lithium-Ion 18.0 V/5.2 Ah Art.
No.
590 81 01-04 590 81 01-04
Power supply (28V DC), V AC 100-240 100-240 100-240 100-240
Low-voltage cable length, m/ft 10/32.8 10/32.8 10/32.8 10/32.8
Mean energy consumption at maxi-
mum use
7 kWh/month 11 kWh/month 11 kWh/month 13 kWh/month
Charging current, A DC 2.2 2.2 2.2 2.2
Type of Power Supply Unit
13
FW7438/28/D/XX
/Y, ADP-60PR
XX
FW7438/28/D/XX
/Y, ADP-60PR
XX
FW7438/28/D/XX
/Y, ADP-60PR
XX
FW7438/28/D/XX
/Y, ADP-60PR
XX
Average mowing time, min 50 50 100 100
Average charging time, min 40 40 90 90
13
XX, YY can be any alphanumeric characters or blank for marketing purpose only, no technical differences.
2369 - 003 - Technical data - 59
Boundary wire antenna Automower
®
305E NERA
Automower
®
310E NERA
Automower
®
405XE NERA
Automower
®
410XE NERA
Operating Frequency Band, Hz 100-80000 100-80000 100-80000 100-80000
Maximum magnetic field
14
, dBuA/m 82 82 82 82
Maximum Radio-frequency power
15
,
mW@60m
<25 <25 <25 <25
Sound data
16
Automower
®
305E NERA
Automower
®
310E NERA
Automower
®
405XE NERA
Automower
®
410XE NERA
Sound level, perceived, dB (A) 60 60 60 60
Measured sound power noise level,
dB (A)
60 60 59 59
Noise emissions uncertainties, KWA
dB (A)
1 1 2 2
Sound pressure noise level at the op-
erator’s ear
17
, dB (A)
52 52 51 51
Mowing Automower
®
305E NERA
Automower
®
310E NERA
Automower
®
405XE NERA
Automower
®
410XE NERA
Power consumption during cutting,
W+/- 20%
20 20 25 25
Number of guides 2 2 3 3
Narrowest possible passage, cm/in. 60/24 60/24 60/24 60/24
Maximum slope for work area
18
, % 30 30 30 30
Maximum slope for boundary wire, % 20 20 20 20
Maximum length boundary wire, m/ft 800/2600 800/2600 800/2600 800/2600
Maximum length guide loop
19
, m/ft 400/1300 400/1300 400/1300 400/1300
Maximum distance to boundary wire
m/ft
35/115 35/115 35/115 35/115
Maximum operating time, mowing and
charging, h/day
15 24 15 24
Area capacity - irregular, m
2
/ acre, +/-
20%
600/0.15 1000/0.25 600/0.15 1000/0.25
Area capacity - systematic with
EPOS
™
, m
2
/ acre, +/- 20%
900/0.23 1500/0.37 900/0.23 1500/0.37
14
Measured according to EN 303 447.
15
Maximum active output power to antennas in the frequency band in which the radio equipment operates.
16
Determined according to Directive 2006/42/EC and standard EN 50636-2-107. Except Sound level, perceived
that is measured according to ISO 11094:1991.
17
Sound pressure noise uncertainties K
pA
, 2-4 dB (A)
18
Terrain wheels are available as accessory to improve the slope performance.
19
The guide loop is the loop that if formed by the guide wire and the part of the boundary wire from the junction
with the guide wire to the right connection in the charging station.
60 - Technical data 2369 - 003 -
Main blade disc Automower
®
305E NERA
Automower
®
310E NERA
Automower
®
405XE NERA
Automower
®
410XE NERA
Cutting system 3 pivoted cutting
blades
3 pivoted cutting
blades
3 pivoted cutting
blades
3 pivoted cutting
blades
Cutting motor speed, rpm 2300 2300 2300 2300
Cutting height, cm/in. 2-5.5/0.8-2.2 2-5.5/0.8-2.2 2-5.5/0.8-2.2 2-5.5/0.8-2.2
Cutting width, cm/in. 22/8.7 22/8.7 22/8.7 22/8.7
EdgeCut blade disc Automower
®
305E NERA
Automower
®
310E NERA
Automower
®
405XE NERA
Automower
®
410XE NERA
Cutting system 3 pivoted cutting
blades
3 pivoted cutting
blades
3 pivoted cutting
blades
3 pivoted cutting
blades
Cutting motor speed, rpm 2670 2670 2670 2670
Cutting height, cm/in. 4.5/1.8 4.5/1.8 4.5/1.8 4.5/1.8
Cutting width, cm/in. 14/5.5 14/5.5 14/5.5 14/5.5
IP-code Automower
®
305E NERA
Automower
®
310E NERA
Automower
®
405XE NERA
Automower
®
410XE NERA
Robotic lawn mower IPX5 IPX5 IPX5 IPX5
Charging station IPX5 IPX5 IPX5 IPX5
Power supply IP44 IP44 IP44 IP44
Frequency Band Support
Automower
®
Connect 2G GSM 850 MHz, E-GSM 900 MHz, DCS 1800 MHz, PCS 1900 MHz
Automower
®
Connect 4G Band 12 (700 MHz), Band 13 (700 MHz), Band 17 (700 MHz), Band
28 (700 MHz), Band 85 (700 MHz), Band 20 (800 MHz), Band 5
(850 MHz), Band 18 (850MHz), Band 19 (850 MHz), Band 26 (850
MHz), Band 8 (900 MHz), Band 4 (1700 MHz), Band 66 (1700
MHz), Band 3 (1800 MHz), Band 2 (1900 MHz), Band 25 (1900
MHz), Band 39 (1900 MHz), Band 1 (2100 MHz)
Power Class
Bluetooth
®
Output power 9 dBm
Automower
®
Connect 2G Power Class 4 (GSM/E-GSM) 33 dBm
Power Class 1 (DCS/PCS) 30 dBm
Power Class E2 (GSM/E-GSM) 27 dBm
Power Class E2 (DCS/PCS) 26 dBm
Automower
®
Connect 4G Power Class 3 23 dBm
2369 - 003 - Technical data - 61
Wi-Fi Automower
®
310E NERA/Automower
®
410XE NERA
Frequency band support
20
Channel 1-11 (2412-2462 MHz)
Channel 12-13 (2467-2484 MHz)
Channel 14
Operating frequency band, MHz 2402-2480
Maximum transmitted power, dBm 20
Husqvarna AB does not guarantee full compatibility between the product and other types of wireless systems such as
remote controls, radio transmitters, hearing loops, underground electric animal fencing or similar.
10.1.1 Registered trademarks
The
Bluetooth
®
word mark and logos are registered trademarks owned by
Bluetooth SIG, inc.
and any use of such
marks by Husqvarna is under license.
The Wi-Fi CERTIFIED
™
logo is a registered trademark of Wi-Fi Alliance
®
. This product is Wi-Fi Alliance
®
certified.
20
Channel 12-14 is only used in countries where it is available.
62 - Technical data 2369 - 003 -
2369 - 003 - Technical data - 63
www.husqvarna.com
AUTOMOWER
®
is a trademark owned by Husqvarna AB.
Copyright
©
2025 HUSQVARNA. All rights reserved.
Original instructions
1144028-26
2025-02-24
