EN, English
Operator's manual
HUSQVARNA AUTOMOWER
®
520/550
Read the operator's manual carefully and make sure that you
understand the instructions before you use the product.
Contents
1 Safety
1.1 Safety definitions...................................................3
1.2 General safety instructions....................................3
1.3 Safety instructions for installation..........................4
1.4 Safety instructions for operation............................4
1.5 Safety instructions for maintenance...................... 4
1.6 Battery safety........................................................ 4
1.7 To lift and move the product..................................5
2 Introduction
2.1 Support..................................................................6
2.2 Product description............................................... 6
2.3 Product overview...................................................7
2.4 Symbols on the product........................................ 8
2.5 Symbols in Automower
®
Connect.........................8
2.6 Symbols on the battery......................................... 9
2.7 General manual instructions................................. 9
2.8 Overview of the settings structure in
Automower
®
Connect (1).......................................... 10
2.9 Overview of the settings structure
Automower
®
Connect (2).......................................... 11
2.10 Overview of the settings structure in
Automower
®
Connect (3) (Bluetooth
®
short-
range connectivity only)............................................ 12
3 Installation
3.1 Introduction - Installation..................................... 13
3.2 Main components for installation.........................13
3.3 To prepare for installation................................... 13

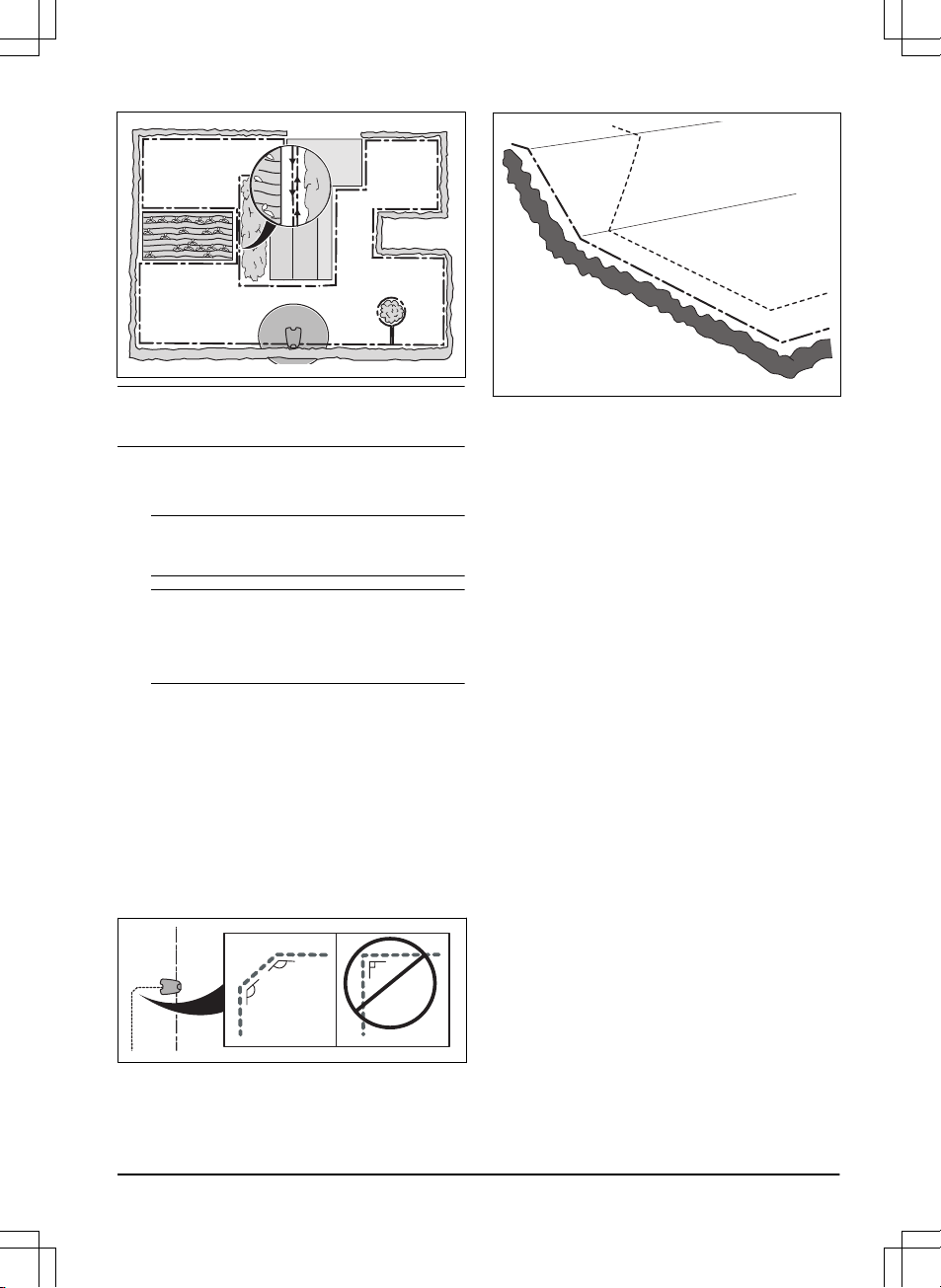

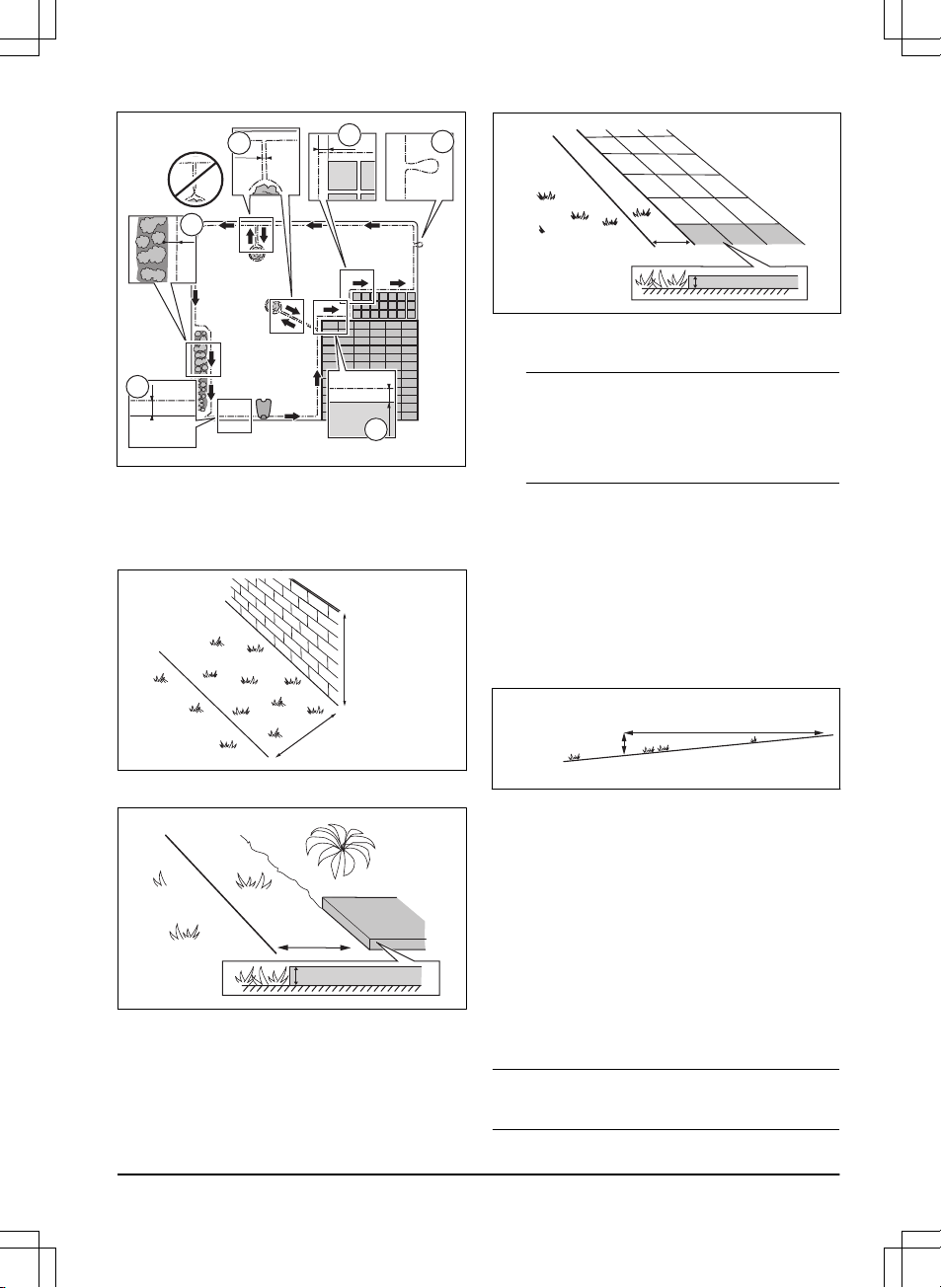

3.4 Before the installation of the wires...................... 13
3.5 Installation of the product.................................... 18
3.6 To put the wire into position with stakes............. 20
3.7 To bury the boundary wire or the guide wire.......20
3.8 To extend the boundary wire or the guide wire... 20
3.9 After the installation of the product......................20
3.10 Automower
®
Connect ...................................... 21
3.11 Settings in Automower
®
Connect......................22
4 Operation
4.1 Main switch......................................................... 29
4.2 Start.....................................................................29
4.3 Operating mode - Start........................................29
4.4 Operating mode - Park........................................29
4.5 To stop the product............................................. 30
4.6 To set the product to OFF................................... 30
4.7 To charge the battery.......................................... 30
5 Maintenance
5.1 Introduction - maintenance..................................31
5.2 Maintenance schedule........................................ 31
5.3 Clean the product................................................32
5.4 Replacement of the blades................................. 33
5.5 Replace the wheel brushes.................................33
5.6 Battery.................................................................33
5.7 Winter service..................................................... 33
6 Troubleshooting
6.1 Introduction - troubleshooting..............................35
6.2 Fault messages...................................................35
6.3 Information messages.........................................40
6.4 LED indicator lamp on the charging station........ 42
6.5 LED indicator lamp on the product......................42
6.6 Symptoms........................................................... 43
6.7 Finding breaks in the loop wire........................... 44
7 Transportation, storage and disposal
7.1 Transportation..................................................... 47
7.2 Storage................................................................47
7.3 Disposal.............................................................. 47
8 Technical data
8.1 Technical data.....................................................48
8.2 Registered trademarks........................................50
9 Original EU Declaration of Conformity

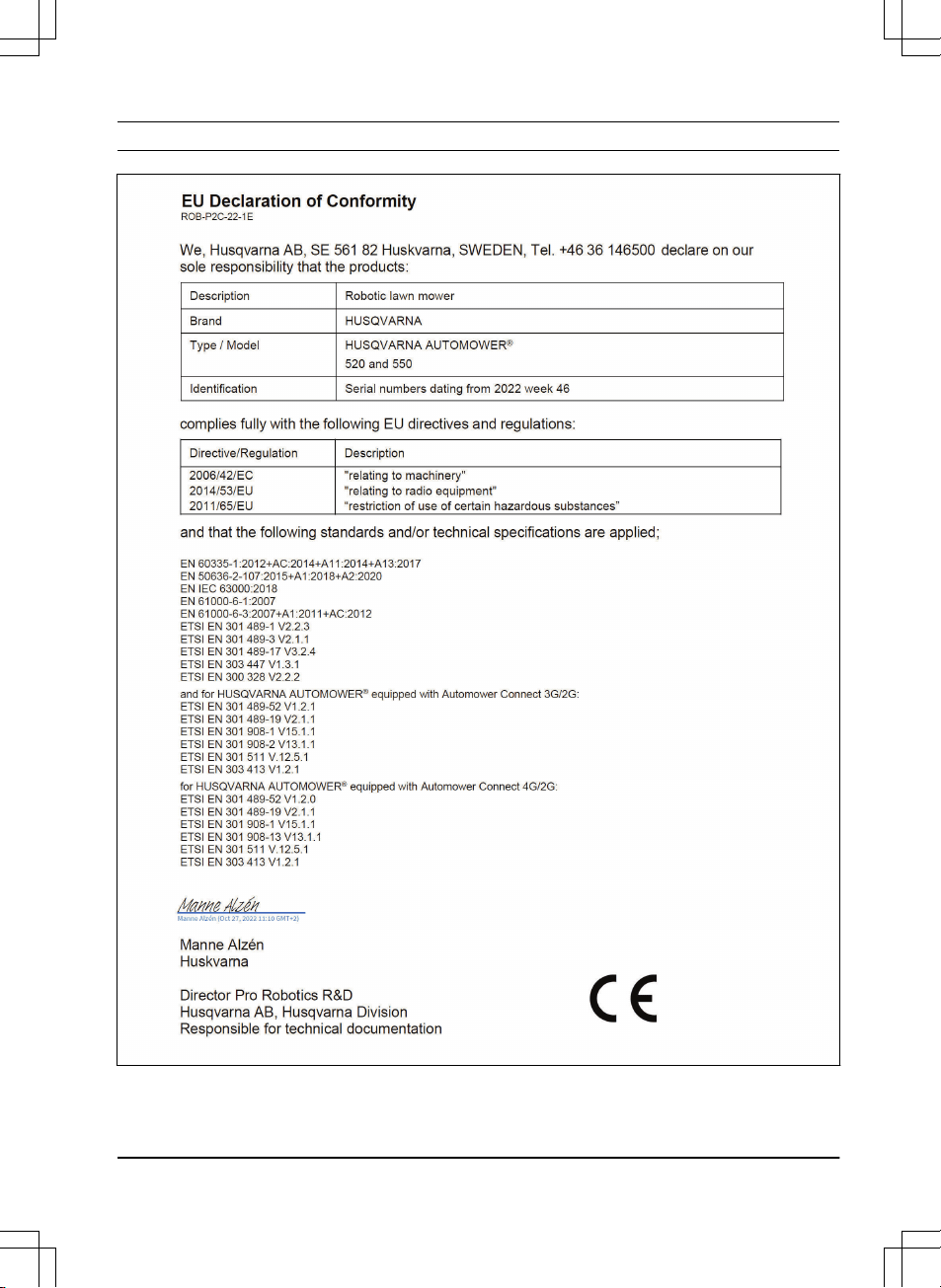

10 EU Declaration of Conformity
11 Original UK Declaration of Conformity
2 1439 - 015 - 23.11.2022
1 Safety
1.1 Safety definitions
Warnings, cautions and notes are used to point out
specially important parts of the manual.
WARNING: Used if there is a risk of
injury or death for the operator or bystanders
if the instructions in the manual are not
obeyed.
CAUTION: Used if there is a risk of
damage to the product, other materials or
the adjacent area if the instructions in the
manual are not obeyed.
Note: Used to give more information that is necessary
in a given situation.
1.2 General safety instructions
WARNING: Read the warning
instructions that follow before you use the
product.
• Read the Operator’s manual carefully and make
sure you understand the instructions before you
use the product. Keep for future reference.
• This appliance is not intended for use by children
or persons with reduced physical, sensory or
mental capabilities (that could affect a safe
handling of the product), or lack of experience
and knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
However, EU requirements allows this appliance
to be used by children aged from 8 years and
above and persons with reduced physical, sensory
or mental capabilities or lack of experience and
knowledge, if they have been given supervision
or instruction concerning use of the appliance in
a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by
children without supervision.
• The product must only be used with the equipment
recommended by Husqvarna. All other types of
use are incorrect.
• Do not use the product when persons, especially
children, or animals are in the work area.
• Warning signs must be put around the work area
of the product if it operates in public areas. The
signs must have the text that follows: Warning!
Automatic lawn mower! Keep away from the
machine! Supervise children!
• Do not touch moving hazardous parts, such as the
blade disc, before it has come to a complete stop.
• Set the product to OFF before you clear a
blockage, do maintenance or examine the product,
and if the product starts to vibrate abnormally.
Examine the product for damage before you start
the product again. Do not use the product to it is
defective.
• If an injury or accident occur, get medical aid.
• Do not put power supply cable and extension cable
in the work area. This can cause damage to the
cables.
• Do not connect a damaged cable or plug, or touch
a damaged cable, before it is disconnected from
the power outlet. Disconnect the plug from the
power outlet if the cable becomes damaged while
in operation. A worn or damaged cable increases
the risk of electrical shock. A damaged cable must
be replaced by service personnel.
• When you connect the power supply to the power
outlet, use a residual-current device (RCD) with a
tripping current of maximum 30 mA.
• Only charge the product in the included charging
station. For safe disposal of the battery, refer to
Disposal on page 47
. Incorrect use may result in
electric shock, overheating or leaking of corrosive
liquid from the battery. In the event of leakage of
electrolyte, flush with water/neutralizing agent. Get
medical aid if corrosive liquid comes in your eyes.
• Use only original batteries recommended by
Husqvarna. Product safety cannot be guaranteed
with other than original batteries. Do not use non-
rechargeable batteries.
• Follow the installation instructions that includes to
specify the work area, refer to
Installation on page
13
.
• Follow the instructions about to start and operate
the product, refer to
Operation on page 29
.
• If there is a risk of thunderstorm, Husqvarna
recommends that the power supply and all the
wires to the charging station are disconnected
to decrease the risk of damage to electrical
components. Connect the power supply and all
the wires again if there is no longer a risk of
thunderstorm. It is important that all wires are
connected correctly.
• Follow the maintenance instructions and if
necessary use Husqvarna original spare parts,
refer to
Maintenance on page 31
.
• For technical data such as weight, dimensions and
noise emission values, refer to
Technical data on
page 48
.
• The operator is responsible for accidents or
dangers that occurs to other persons or property.
1439 - 015 - 23.11.2022 Safety - 3
• The product must only be operated, maintained
and repaired by persons that are fully conversant
with its special characteristics and safety
regulations.
• It is not permitted to change the initial design of the
product.
• Obey national regulations about electrical safety.
• Husqvarna does not guarantee full compatibility
between the product and other types of
wireless systems such as remote controls, radio
transmitters or equivalent.
• The built-in alarm is very loud. Be careful,
especially if the product is handled indoors.
• Operation and storage temperature range is 0-50
°C / 32-122 °F. Temperature range for charging is
0-45 °C / 32-113 °F. Too high temperatures can
cause damage to the product.
1.3 Safety instructions for installation
WARNING: Read the warning
instructions that follow before you use the
product.
• Do not install the charging station, including any
accessory, at a location that is below, or within 60
cm / 24 in. from, any combustible material. In case
of malfunction, heating of the charging station and
the power supply may occur and create a potential
risk of fire.
• Do not put the power supply at a height where
there is a risk it can be put in water. Do not put the
power supply on the ground.
• Do not encapsulate the power supply. Condensed
water can harm the power supply and increase the
risk of electrical shock.
• Applicable to USA/Canada. If power supply is
installed outdoors: Risk of Electric Shock. Install
only to a covered Class A GFCI receptacle (RCD)
that has an enclosure that is weatherproof with the
attachment plug cap inserted or removed.
• Do not install the charging station where there is a
risk of standing water.
1.4 Safety instructions for operation
WARNING: Read the warning
instructions that follow before you use the
product.
• Keep your hands and feet away from the rotating
blades. Do not put your hands or feet near or
below the product when it is set to ON.
• Use the park mode or set the product to OFF when
persons, especially children or animals are in the
work area. Refer to
To set the product to OFF
on page 30
. Husqvarna recommends to set the
product to operate when the work area has no
activity. The product can cause injury to animals at
night in work area, for example hedgehogs. Refer
to
Schedule on page 22
.
• Make sure that there are no objects such as
stones, branches, tools or toys on the lawn. The
blades can be damaged if it hits an object.
• Do not lift the product or move it when it is set to
ON.
• Do not to let the product collide with persons or
animals. If a person or animal comes in the way of
the product, stop the product immediately. Refer to
To stop the product on page 30
.
• Do not put objects on top of the product or its
charging station.
• Do not use the product if the STOP button does
not work.
• Always set the product to OFF when it is not in
operation. The product can only start when you
enter the correct PIN code.
• Do not use the product at the same time as a
pop-up sprinkler. Use the
Schedule
function so the
product and pop-up sprinkler do not operate at the
same time. Refer to
Schedule on page 22
.
• Do not let the product operate when there is
standing water in the work area. For example when
heavy rain forms pools of water.
1.5 Safety instructions for maintenance
WARNING: Read the warning
instructions that follow before you do
maintenance on the product.
• Set the product to OFF when you do maintenance
on the product.
• Do not use a high-pressure washer to clean the
product. Do not use solvents to clean the product.
• Disconnect the plug to the charging station before
you clean or do maintenance of the charging
station.
1.6 Battery safety
WARNING: Read the warning
instructions that follow before you use the
product.
• Lithium-ion batteries can explode or cause fire if
disassembled, short-circuited, exposed to water,
fire, or high temperatures. Handle carefully, do
not dismantle, open the battery or use any type
of electrical/mechanical abuse. Avoid storage in
direct sunlight.
4 - Safety 1439 - 015 - 23.11.2022

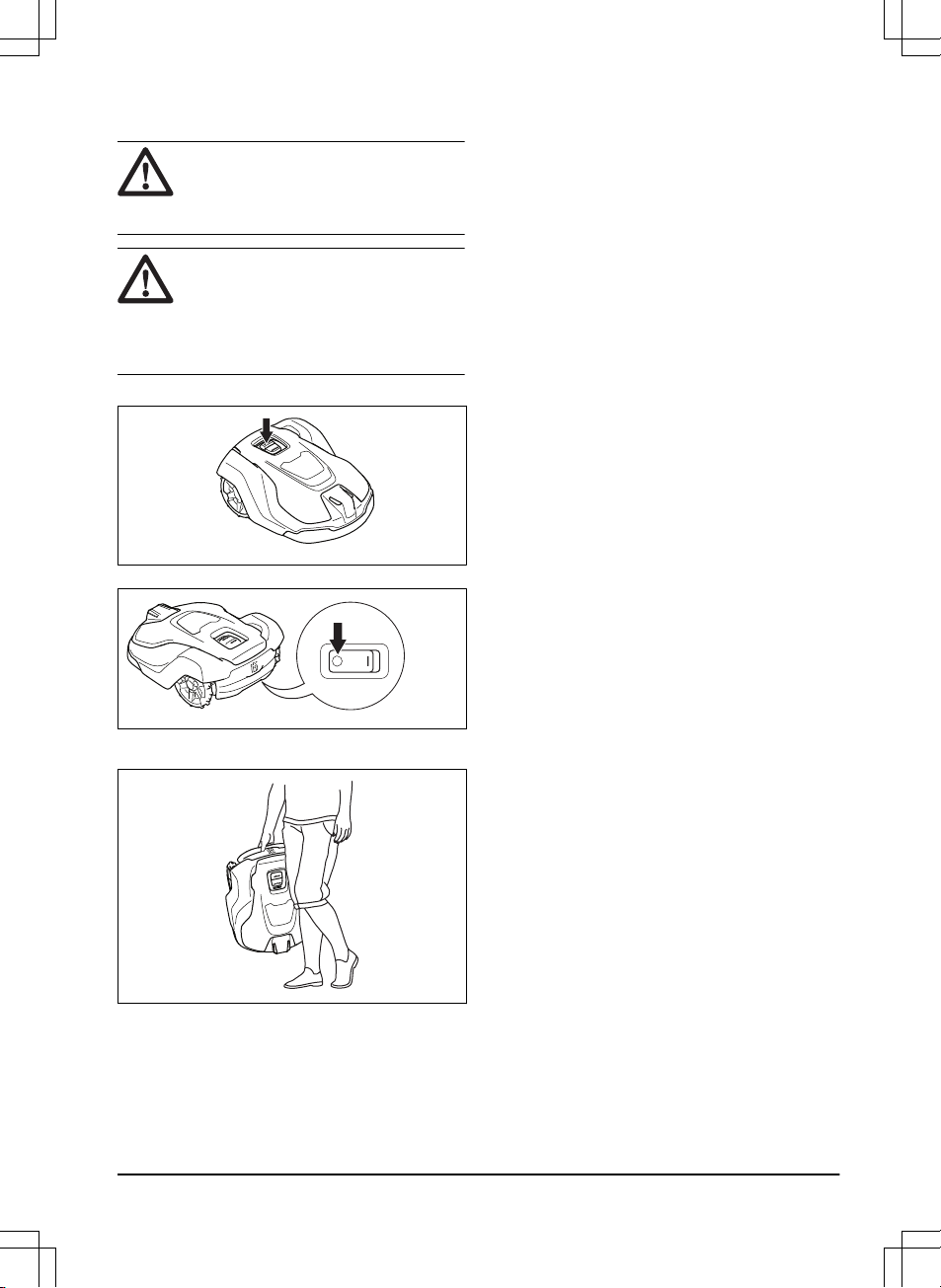

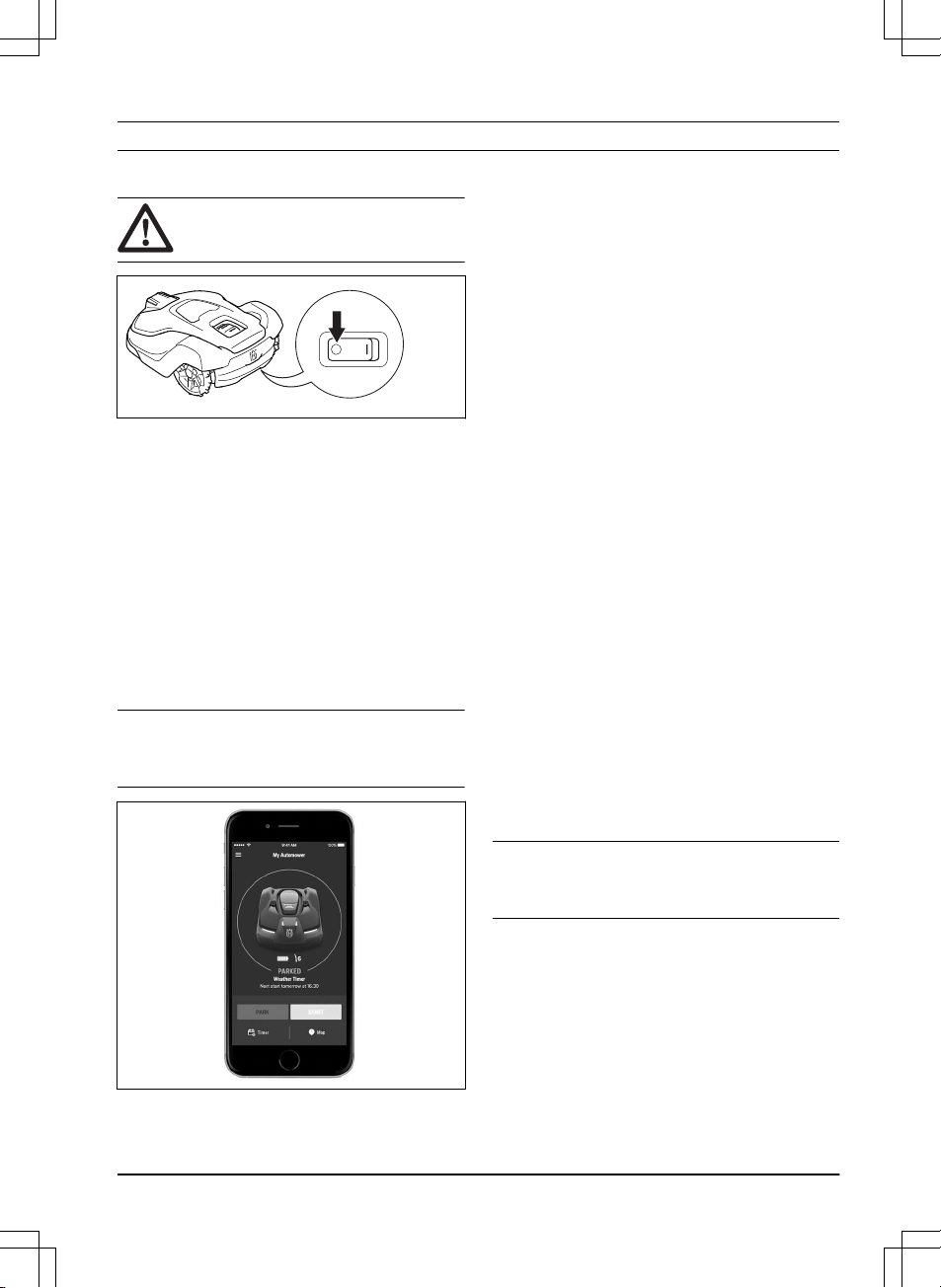

1.7 To lift and move the product
WARNING: The product must be set to
OFF before you lift the product. The product
is disabled when the
Main switch is set to
the
0
position.
CAUTION: Do not lift the product when
it is parked in the charging station. It can
cause damage to the charging station and/or
the product. Push the
STOP button and
pull the product out of the charging station
before you lift it.

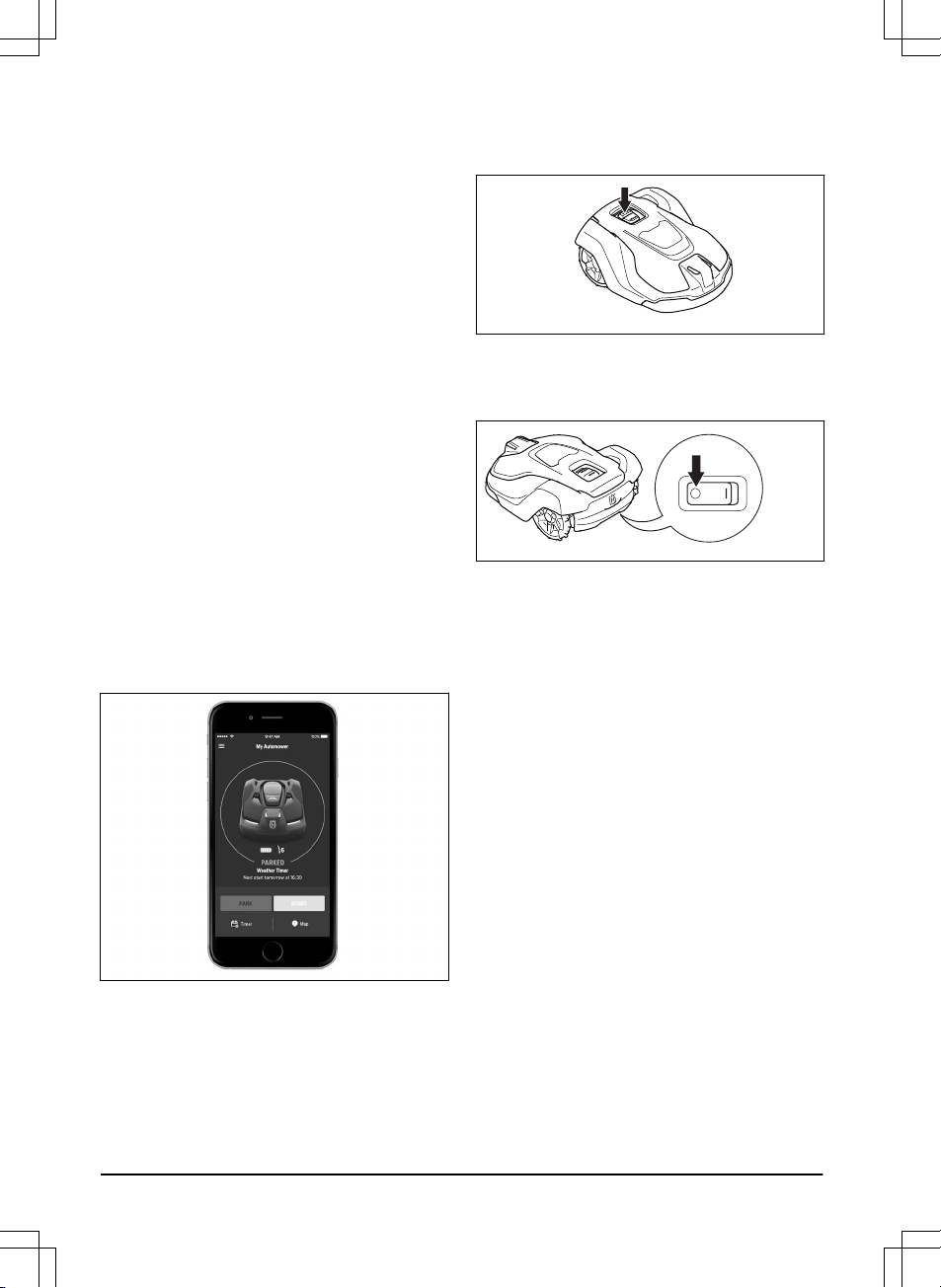

1. Push the STOP button to stop the product.
2. Set the Main switch to the
0
position.
3. Lift the product by the handle with the blade disc
away from your body.
1439 - 015 - 23.11.2022 Safety - 5
2 Introduction
Serial number:
Product number:
PIN code:
The serial number and the product number are on the product rating plate and on the product carton.
• Register your product on www.husqvarna.com. Enter the serial number of the product, the product number and
the date of purchase to register your product.
2.1 Support
For support about the product, speak to your Husqvarna
servicing dealer.
2.2 Product description
Note: Husqvarna regularly updates the appearance
and function of the products. Refer to
Support on page
6
.
The product is a robotic lawn mower. The product has a
battery power source and cuts the grass automatically. It
continuously alternates between mowing and charging.
The movement pattern is random, which means that the
lawn is mowed evenly and with less wear. The boundary
wire and the guide wire controls the movement of the
product within the work area. Sensors in the product
senses when it is approaching the boundary wire. The
front of the product always passes the boundary wire
by a specific distance before the product turns around.
When the product hits an obstacle or approaches the
boundary wire the product selects a new direction.
The operator selects the operation settings in the
Automower
®
Connect app. The app shows the selected
and possible operation settings, and the operation mode
of the product.
2.2.1 Mowing technique
The frequent cutting technique improves the grass
quality and decreases the use of fertilizers. Collection
of grass is not necessary.
2.2.2 Find the charging station
The product operates until the battery state of charge
is low, then it starts to go to the charging station. The
product has 3 search methods to find the charging
station. Refer to
To find the charging station on page
24
.
2.2.3 Automower
®
Connect
Automower
®
Connect is a mobile application that makes
it possible to select the operation settings remotely.
Refer to
Automower
®
Connect (Bluetooth
®
only) on
page 28
.
6 - Introduction 1439 - 015 - 23.11.2022
2.3 Product overview
Automower® 520 Automower® 550
1
4
6
10
7
17
16
8
5
2
3
9
24
27
25
28
26
22
18
20
21
19
23
14
13
11
12
15
1. Body
2. LED indicator lamp of the product
3. STOP/START button
4. Ultrasonic sensors
5. Front wheels
6. Rear wheels
7. LED indicator lamp of the charging station
8. Contact plates
9. Park button
10. Charging station
11. Cutting system
12. Chassis box with electronics, battery and motors
13. Handle
14. Main switch
15. Rating plate (including product identification code)
16. Blade disc
17. Skid plate
18. Measurement gauge
19. Low-voltage cable
20. Alarm decal
21. Cable markers
22. Power supply
1
23. Screws to attach the charging station
24. Operator’s manual and Quick Guide
25. Couplers for the loop wire
2
26. Loop wire for boundary wire and guide wire
3
1
The appearance can be different for different markets.
2
Is a part of the Installation kit which is purchased separately.
3
Refer to note 2.
1439 - 015 - 23.11.2022 Introduction -
7
27. Stakes
4
28. Connector for the loop wire
5

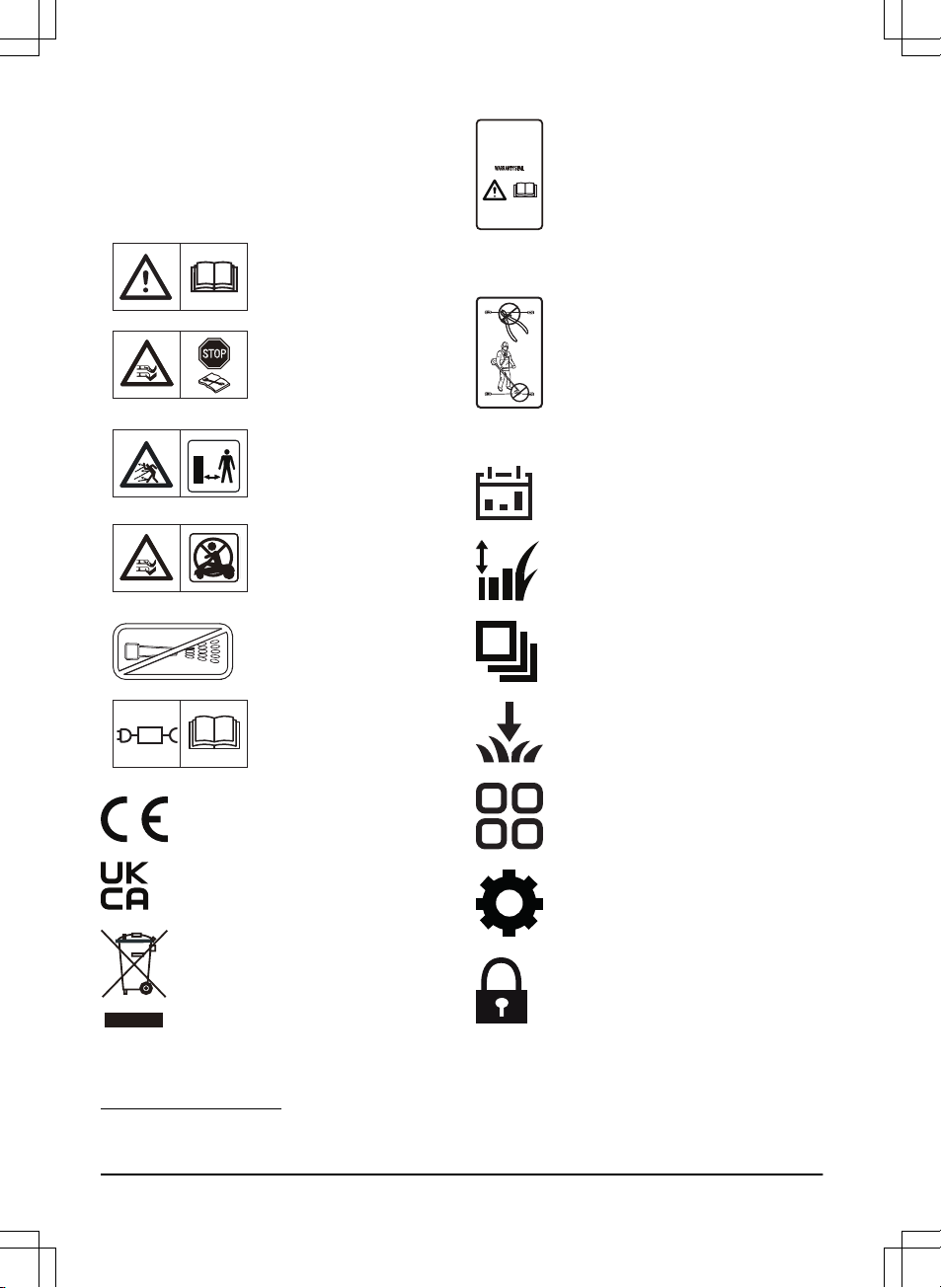

2.4 Symbols on the product
These symbols can be found on the product. Study them
carefully.
WARNING: Read the user
instructions before operating
the product.
WARNING: Disable the prod-
uct before working on or lift-
ing the product.
WARNING: Keep a safe dis-
tance from the product when
operating. Keep your hands
and feet away from the rotat-
ing blades.
WARNING: Do not ride on
the product. Do not put your
hands or feet close to or un-
der the product.
Do not use a high-pressure
washer or even running water
to clean the product.
Use a detachable power sup-
ply as defined on the rating
label next to the symbol.
This product complies with the applicable
EU Directives.
This product complies with the applicable
UK Directives.
It is not permitted to dispose this product
as normal household waste. Ensure that
the product is recycled in accordance with
local legal requirements.
The chassis contains components which
are sensitive to electrostatic discharge
(ESD). The chassis must also be resealed
in a professional manner. For these
reasons the chassis shall only be opened
by authorized service technicians. A
broken seal can result in the entire or
parts of the guarantee no longer being
valid.
The low-voltage cable must not be
shortened, extended or spliced.
Do not use a trimmer nearby the low-
voltage cable. Be careful when trimming
edges where the cables are placed.
2.5 Symbols in Automower
®
Connect
The schedule menu is used to set when
the product cuts the lawn.
The cutting height menu allows the
operator to set the cutting height of the
product.
The operation menu is used for manual
settings for the operation.
The installation menu is used for manual
settings for the installation.
The accessories menu is used for settings
made for the accessories.
The settings menu is used to set the
general product settings. (Only available
for Bluetooth
®
short-range connectivity)
The security menu lets the operator select
between 3 security levels. (Only available
for Bluetooth
®
short-range connectivity)
4
Refer to note 2.
5
Refer to note 2.
8 - Introduction 1439 - 015 - 23.11.2022
Automower
®
Connect is where the
operator enables and disables the
Automower
®
Connect module on the
product. (Only available for Bluetooth
®
short-range connectivity)
2.6 Symbols on the battery
WARNING: Lithium-ion batteries can
explode or cause fire if disassembled,
short-circuited or handled roughly. Do not
expose to water, fire or high temperature.
Read the user instructions.
Do not discard the battery into fire and do
not expose the battery to a heat source.
Do not immerse the battery into water.
2.7 General manual instructions
The following system is used in the Operator’s Manual
to make it easier to use:
• Text written in
italics
is a text that is in the
Automower
®
Connect app, or is a reference to
another section in the Operator’s manual.
• Text written in bold is one of the buttons on the
product or in Automower
®
Connect.
1439 - 015 - 23.11.2022 Introduction -
9
2.8 Overview of the settings structure in Automower
®
Connect (1)
Operation
Cutting time
Low
High
Intensity
Weather timer
Spiral cutting
Cutting height
ECO mode
Medium
Low
High
Medium
Very low Very high
Schedule
Edit
Overview Schedule settings
Change current
Schedule settings
Add new
Schedule settings
Cutting height TargetHeight
10 - Introduction 1439 - 015 - 23.11.2022
2.9 Overview of the settings structure Automower
®
Connect (2)
Installation
Find
charging station
Drive
past wire
Reversing
distance
Exit anglesCorridor widthLawn coverage
Charging
station signal
Follow
boundary wire
Follow guide
1/2/3
GPS assisted
navigation (default)
Area 1/2/3/4/5
How often
Boundary corridor
Guide
1/2/3 corridor
Sector 1 Sector 2
Exit angle
(Min)
ProportionExit angle
(Max)
Exit angle
(Min)
ProportionExit angle
(Max)
Accessories
UltrasonicMower house
1439 - 015 - 23.11.2022 Introduction - 11
2.10 Overview of the settings structure in Automower
®
Connect (3) (Bluetooth
®
short-range connectivity only)
General
Security
Create new
loop signal
New loop signal
GeoFenceChange PIN code Theft protection
Time
lock
Require
PIN code
Alarm STOP button
pressed
Carried
away
Time & date Reset to factory settings
Mower time Mower date Time & date
from phone
Initiate
new pairing
Automower® Connect
Connected
/Not connected
Remove mower
from paired accounts
Signal strength
/No signal
12 - Introduction 1439 - 015 - 23.11.2022
3 Installation
3.1 Introduction - Installation
WARNING: Read and understand the
safety chapter before you install the product.
CAUTION: Use original spare parts and
installation material.
Note: Refer to www.husqvarna.com for more
information about installation.

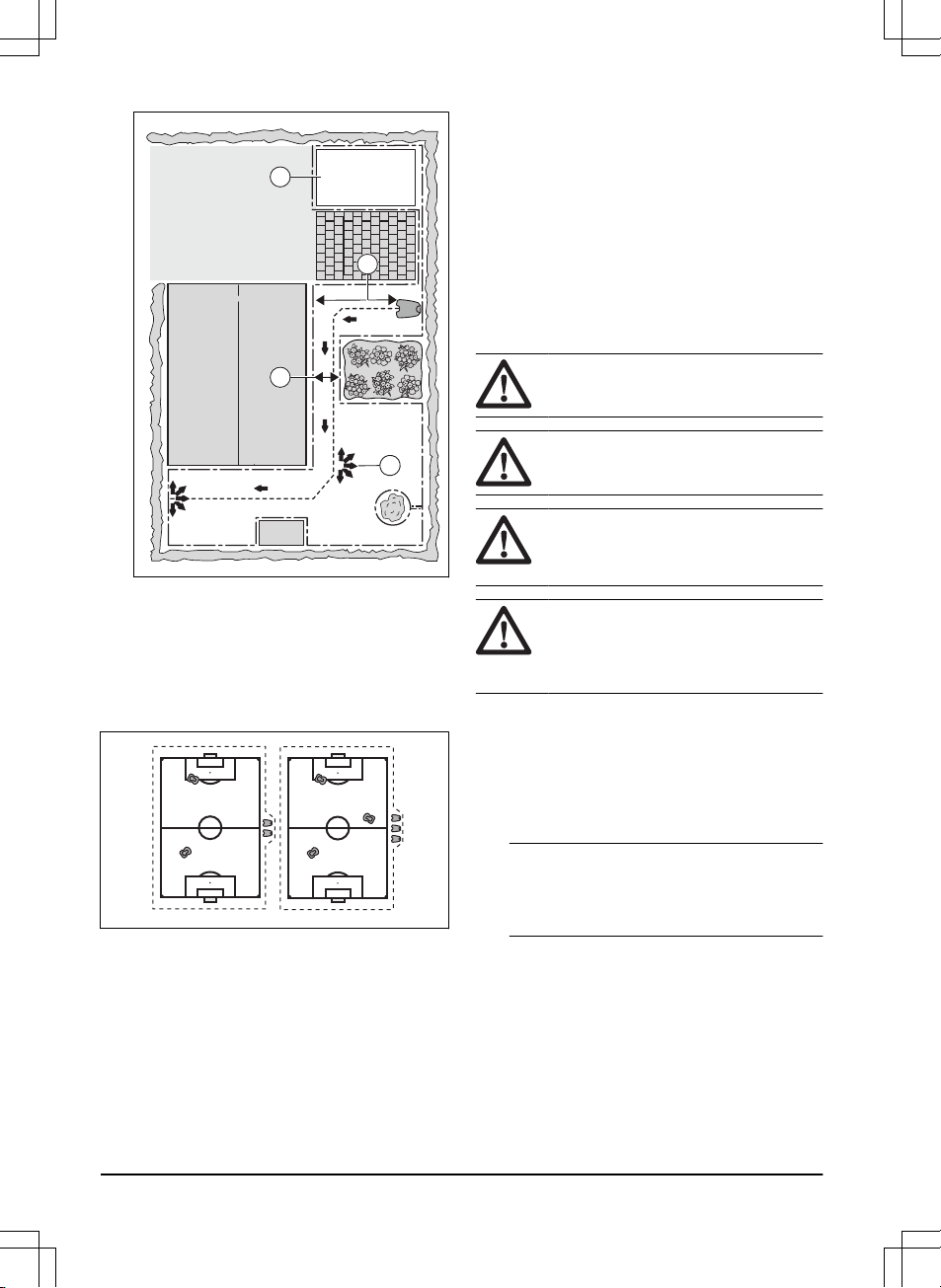

Automower
®
550 has the Automower
®
Club Solution
where you can use 2 or 3 products in the same
installation, refer to
Automower
®
Club Solution on page
18
.
3.2 Main components for installation
The installation involves the following components:
• A robotic lawn mower that mows the lawn
automatically.
• A charging station, which has 3 functions:
• To send control signals along the boundary
wire.
• To send control signals along the guide wire
so that the product can follow the guide wire
to specific remote areas in the garden and
can find its way back to the charging station.
• To charge the product.
• A power supply, which is connected to the
charging station and a 100-240V power outlet.
• Loop wire, which is laid around the work area
and around objects and plants that the product
must not run into. The loop wire is used both as
boundary wire and guide wire.
3.3 To prepare for installation
Read the installation chapter before you start the
installation. Prepare the installation carefully to make the
product operate satisfactorily.
• Make a blueprint of the work area and include all
obstacles. This makes it easier to examine where
to put the charging station, the boundary wire and
the guide wire.
• Make a mark on the blueprint where to put the
charging station, the boundary wire and the guide
wire.
• Make a mark on the blueprint where the guide wire
connects to the boundary wire. Refer to
To install
the guide wire on page 19
.
• Fill in holes in the lawn to make it level.
CAUTION: Holes with water in
the lawn can cause damage to the
product.
• Cut the grass before you install the product. Make
sure that the grass is maximum 10 cm / 4 in.
Note: The first weeks after installation the sound level
when the product cuts the grass can be higher than
usual. The sound level decreases after some time.
3.4 Before the installation of the wires
You can select to attach the wires with stakes or bury
them. You can use the 2 procedures for the same work
area.
CAUTION: If you use a dethatcher
in the work area, bury the boundary wire
and the guide wire to prevent them from
damage.
3.4.1 To examine where to put the charging
station
• Keep a minimum 2 m / 7 ft. of free space in front of
the charging station. Refer to
To examine where to
put the guide wire on page 17
.
• Keep a minimum of 150 cm / 60 in. of free space
to the right and left of the center of the charging
station.
• Put the charging station near a power outlet.
• Put the charging station on a level surface.
• The baseplate of the charging station must not be
bent.
max. 5 cm / 2"
max. 5 cm / 2"
• If the work area has two parts separated with a
steep slope, we recommend to put the charging
station in the lower section.
1439 - 015 - 23.11.2022 Installation -
13

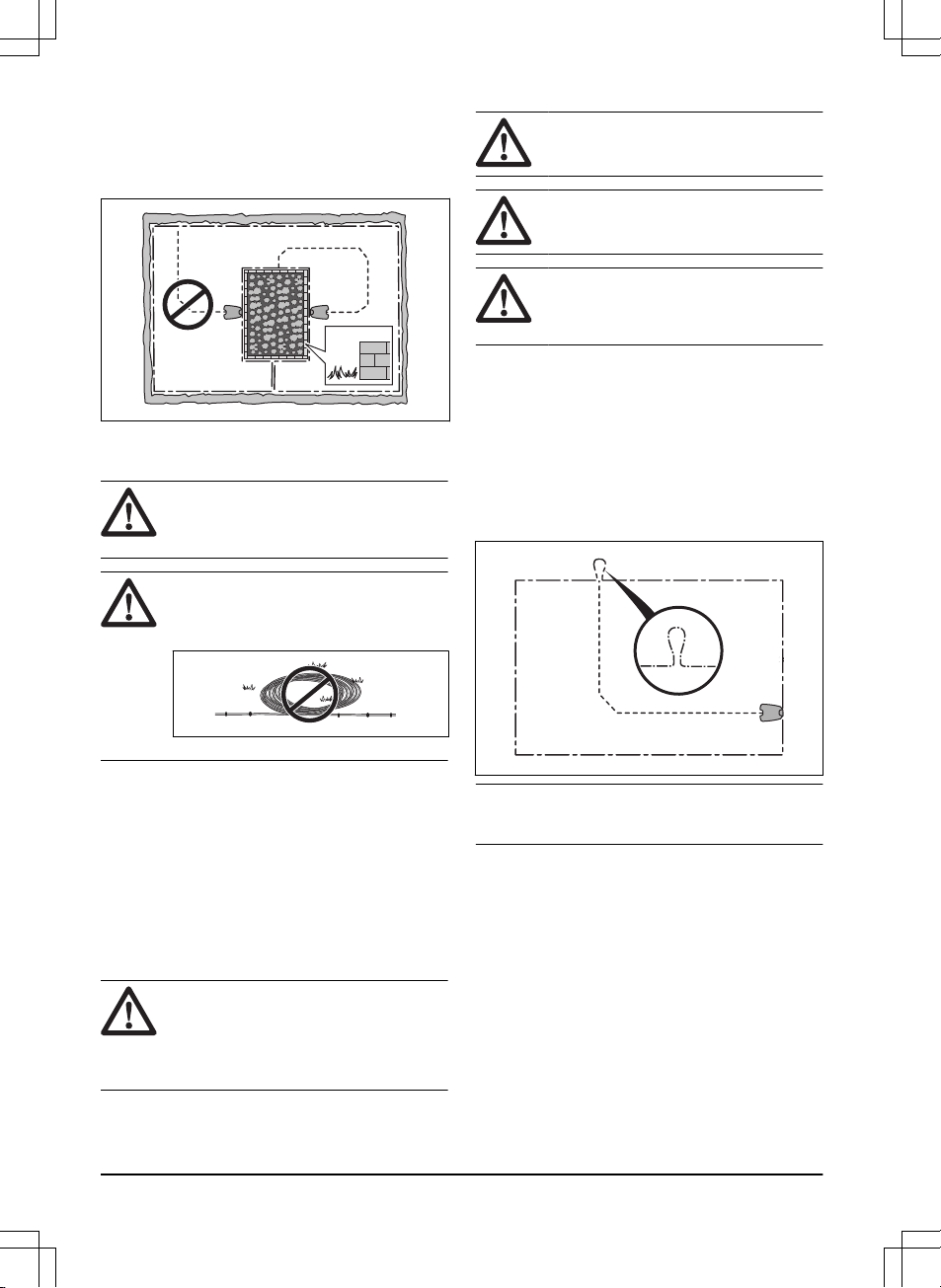

• Put the charging station in an area with protection
from the sun.
• If the charging station is installed on an island,
make sure to connect the guide wire to the island.
Refer to
To make an island on page 16
.
3.4.2 To examine where to put the power
supply
CAUTION: Make sure that the blades
on the product do not cut the low-voltage
cable.
CAUTION: Do not put the low-voltage
cable in a coil or below the charging station
plate. The coil causes interference with the
signal from the charging station.
• Put the power supply in an area with a roof and
protection from the sun and rain.
• Put the power supply in an area with good airflow.
• Use a residual-current device (RCD) with a tripping
current of maximum 30 mA when you connect the
power supply to the power outlet.
Low-voltage cables of different lengths are available as
accessories.
3.4.3 To examine where to put the
boundary wire
CAUTION: There must be a barrier of
minimum 15 cm / 6 in. in height between
the boundary wire and water bodies, slopes,
precipices or public roads. This will prevent
damage to the product.
CAUTION: Do not let the product
operate on gravel.
CAUTION: Do not make sharp bends
when you install the boundary wire.
CAUTION: For careful operation
without noise, isolate all obstacles such as
trees, roots and stones.
The boundary wire should be put as a loop around the
work area. Sensors in the product senses when the
product approaches the boundary wire, and the product
selects another direction. All parts of the work area must
be maximum 35 m / 115 ft. from the boundary wire.
To make the connection easier between the guide wire
and the boundary wire, it is recommended to make an
eyelet where the guide wire will be connected. Make the
eyelet with approximately 20 cm / 8 in. of the boundary
wire.
Note: Make a blueprint of the work area before you
install the boundary wire and guide wire.
14 - Installation 1439 - 015 - 23.11.2022
A
B
C
E
D
F
• Put the boundary wire around all of the work area
(A). Adapt the distance between the boundary wire
and obstacles.
• Put the boundary wire 35 cm / 14 in. (B) from an
obstacle that is more than 5 cm / 2 in. high.
35 cm /14
"
> 5 cm / 2
"
• Put the boundary wire 30 cm / 12 in. (C) from an
obstacle that is 1-5 cm / 0.4-2 in. high.
1-5 cm / 0.4 - 2"
30 cm / 12"
• Put the boundary wire 10 cm / 4 in. (D) from an
obstacle that is less than 1 cm / 0.4 in. high.
10 cm / 4"
max 1 cm / 0.4"
• If you have a paving stone path that is in level with
the lawn, put the boundary wire below the paving
stone.
Note: If the paving stone is minimum 30 cm / 12
in. wide, use the factory setting for the
Drive Past
Wire
function to cut all the grass adjacent to the
paving stone. Refer to
Drive Past Wire on page
26
.
• If you make an island, put the boundary wire that
runs to and from the island near together (E). Put
the wires in the same stake. Refer to
To make an
island on page 16
.
• Make an eyelet (F) where the guide wire is to be
connected to the boundary wire.
3.4.3.1 To put the boundary wire in a slope
The product can operate in 45% slopes. Slopes that are
too steep must be isolated with the boundary wire. The
gradient (%) is calculated as height per m. Example: 10
cm / 100 cm = 10%.
10 cm/ 4"
100 cm/ 40"
10%
• For slopes steeper than 45% inside the work area,
isolate the slope with boundary wire.
• For slopes steeper than 15% along the outer edge
of the lawn, put the boundary wire 20 cm / 8 in. (A)
from the edge.
• For slopes adjacent to a public road, put a barrier
of minimum 15 cm / 6 in. along the outer edge of
the slope. You can use a wall or a fence as a
barrier.
3.4.3.2 Passages
A passage is a section that has boundary wire on each
side and that connects 2 parts of the work area. The
distance between the boundary wire on each side in the
passage must be a minimum of 60 cm / 24 in.
Note: If a passage is less than 2 m / 6.5 ft. wide,
install a guide wire through the passage.
1439 - 015 - 23.11.2022 Installation - 15

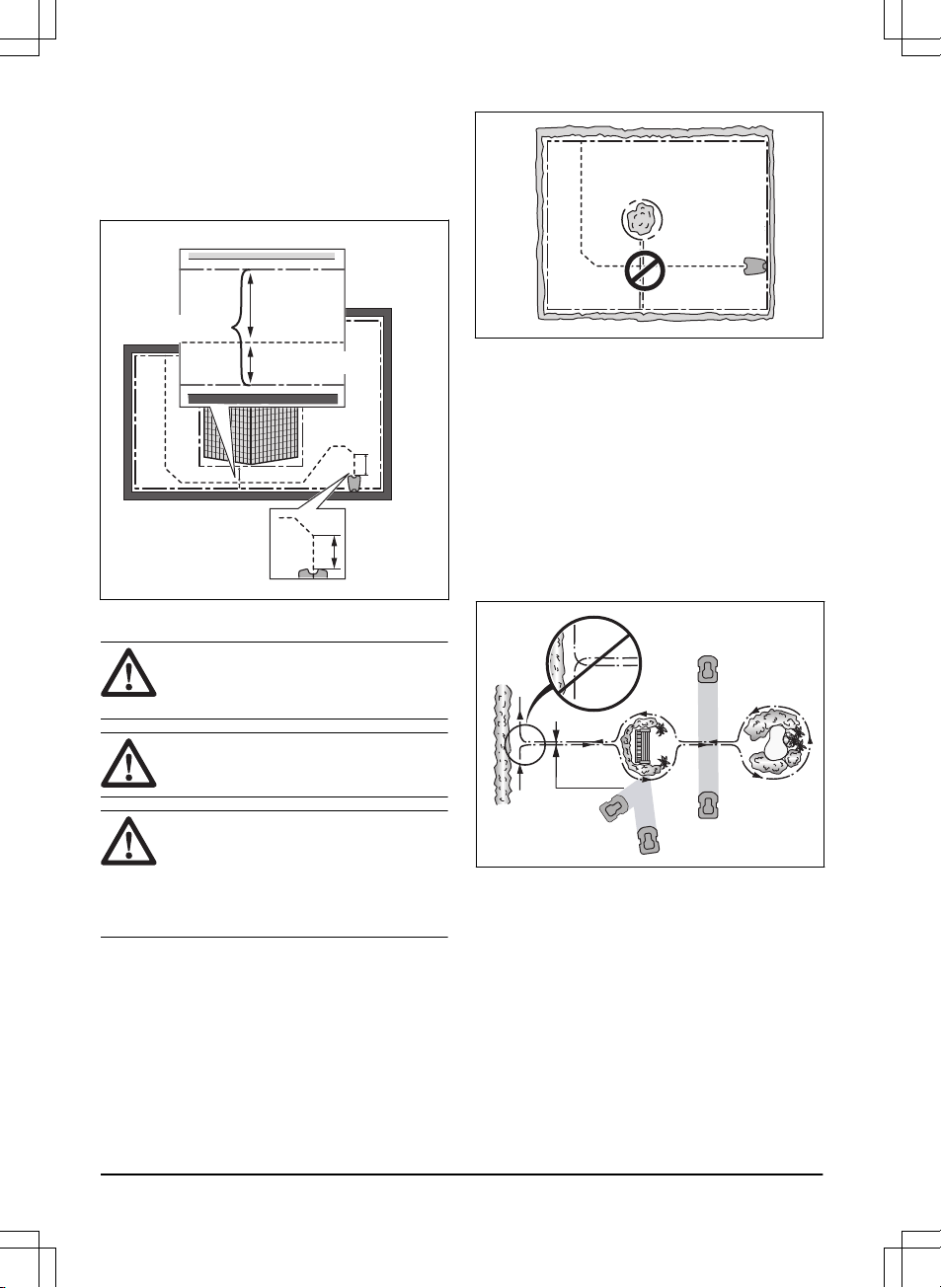

The recommended minimum distance between the
guide wire and the boundary wire is 30 cm / 12 in. The
product always runs to the left of the guide wire as seen
facing the charging station. It is recommended to have
as much free area as possible to the left of the guide
wire (A).
>2 m / 6.5 ft
A
>30 cm / 12"
>60 cm / 24"
3.4.3.3 To make an island
CAUTION: Do not put a section
of boundary wire across the other. The
sections of boundary wire must be parallel.
CAUTION: Do not put the guide wire
across the boundary wire.
CAUTION: Isolate or remove obstacles
that are less than 15 cm / 5.9 in. in height.
Isolate or remove obstacles that slope
slightly, for example, stones, trees or roots.
This will prevent damage to the blades of the
product.
To make an island, isolate areas in the work area with
the boundary wire. We recommend to isolate all stable
objects in the work area.
Some obstacles are resistant to a collision, for example,
trees or bushes that are more than 15 cm / 5.9 in. in
height. The product will collide with the obstacle and
then select a new direction.
• Put the boundary wire to and around the obstacle
to make an island.
• Put the 2 sections of boundary wire to and from the
island close together. This will make the product
run across the wire.
• Put the 2 sections of boundary wire in the same
stake.
0 cm / 0
"
3.4.3.4 To make a secondary area
Make a secondary area (B) if the work area has 2 areas
that are not connected with a passage. The work area
with the charging station is the main area (A).
16 - Installation 1439 - 015 - 23.11.2022
B
A
Note: The product must be manually moved between
the main area and the secondary area.
• Put the boundary wire around the secondary area
(B) to make an island. Refer to
To make an island
on page 16
.
Note: The boundary wire must be put as 1 loop
around all of the work area (A + B).
Note: When the product cuts grass in the
secondary area, the
Secondary area
mode must
be selected. Refer to
Operating mode - Start on
page 29
.
3.4.4 To examine where to put the guide
wire
• Put the guide wire in a line at a minimum of 2 m / 7
ft. in front of the charging station.
• Make as much free area as possible to the left of
the guide wire when facing the charging station.
Refer to
To examine where to put the charging
station on page 13
.
• Put the guide wire minimum 30 cm / 12 in. from the
boundary wire.
• Do not make sharp bends when you install the
guide wire.
135º
135º
90º
• If the work area has a slope, put the guide wire
diagonally across the slope.

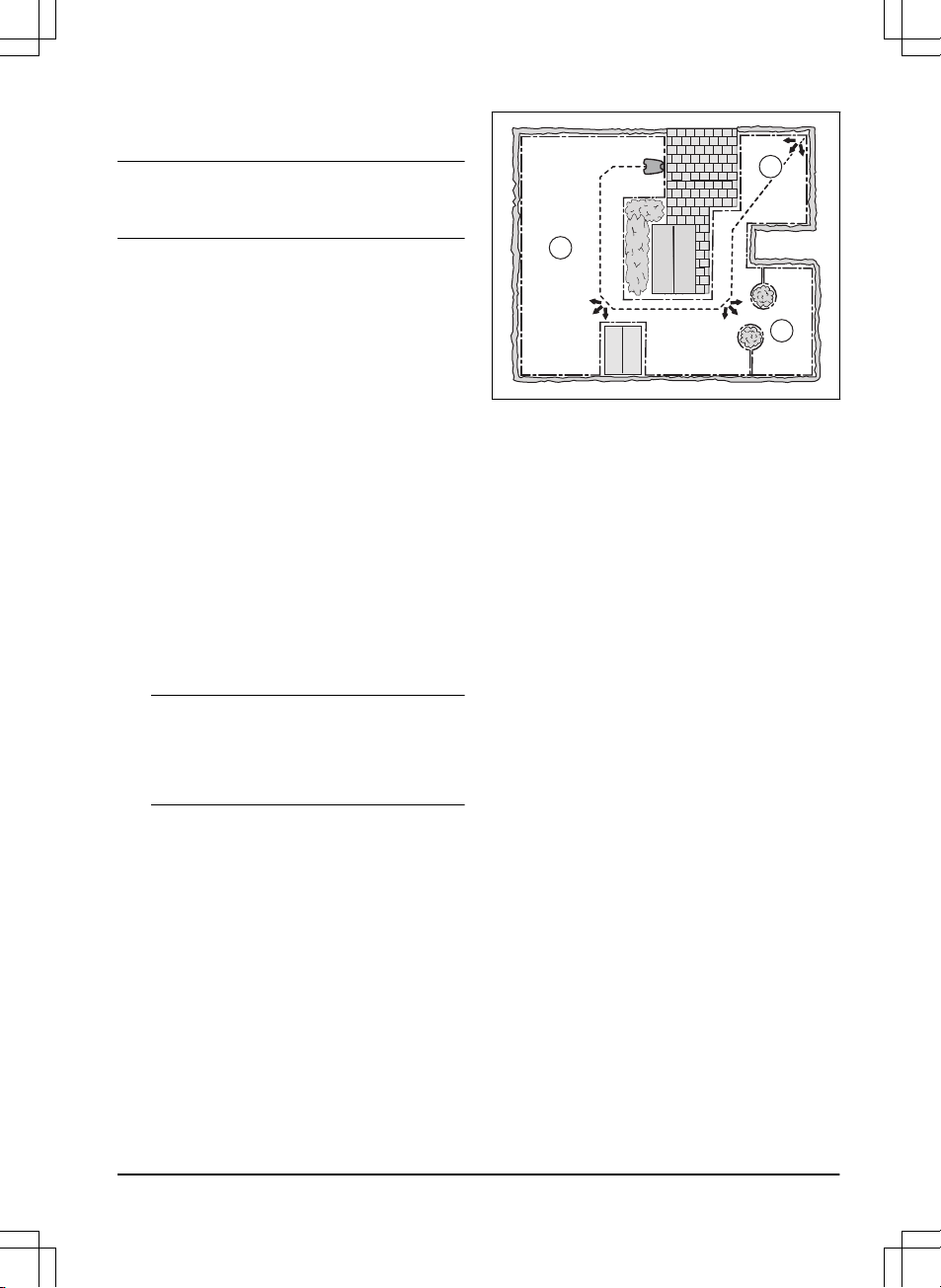

3.4.5 Work area examples
• If the charging station is put in a small area (A),
make sure that the distance to the boundary wire
is at a minimum 3 m / 10 ft. in front of the charging
station.
• If the work area has a passage (B) with no
guide wire installed, the recommended minimum
distance between the boundary wires is 2 m / 6.5
ft. With a guide wire installed through the passage,
the recommended minimum distance between the
boundary wires is 60 cm / 24 in.
• If the work area has areas which are connected by
a narrow passage (B), you can set the product to
first follow and then leave the guide wire after a
certain distance (C). The settings can be changed
in
Lawn coverage on page 25
.
• Use the GPS Assisted Navigation that helps the
product select the most optimal operation. Refer to
Lawn coverage on page 25
.
• If the work area includes a secondary area
(D), refer to
Secondary area on page 29
. Put
the product in the secondary area and select
Secondary area mode
.
1439 - 015 - 23.11.2022 Installation -
17
B
D
C
A
3.4.6 Automower
®
Club Solution
Automower
®
Club Solution makes it possible to use
2 or 3 products in one installation. It requires special
configuration in the product and the installation of the
boundary wires and charging stations is different. To
use Automower
®
Club Solution, speak to your local
Husqvarna representative.
The installation of the boundary wire and charging
stations must be made in parallel. Maximum width of the
work area is 70 m / 230 ft.
The changes when using the Automower
®
Club Solution
configuration are:
• The product follows the boundary wire clockwise to
find the charging station.
• You cannot use guide cables.
• You cannot use the
Park button.
• The blade disc speed and noise level increases.
3.5 Installation of the product
3.5.1 Installation tools
• Hammer/plastic mallet: To simplify putting the
stakes into the ground.
• Edge cutter/straight spade: To bury the boundary
wire.
• Combination pliers: For cutting the boundary wire
and pressing the connectors together.
• Adjustable plier: For pressing the couplers
together.

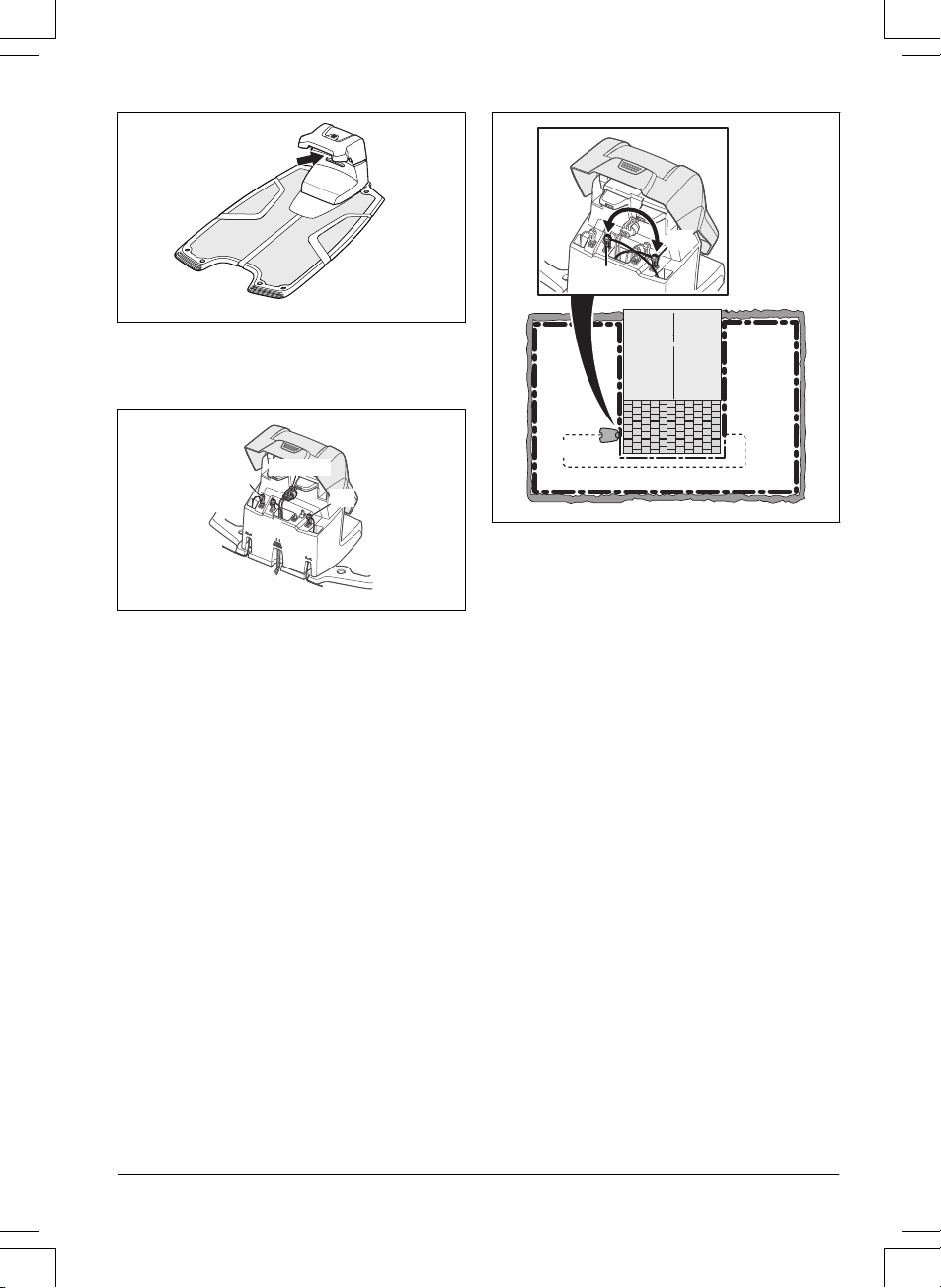

3.5.2 To install the charging station
CAUTION: Do not make new holes in
the charging station plate.
CAUTION: Do not put your feet on the
baseplate of the charging station.
WARNING: The power supply cable
and extension cable must be outside the
work area to avoid damage to the cables.
WARNING: Make sure that the plugs of
the low-voltage cable and the power supply
unit are clean and dry before you connect
them.
When connecting the power supply, only use a power
outlet that is connected to a residual-current device
(RCD).
1. Read and understand the instructions about where
to put the charging station. Refer to
To examine
where to put the charging station on page 13
.
2. Put the charging station in the selected area.
Note: Do not attach the charging station with
the screws to the ground until the guide wire is
installed. Refer to
To install the guide wire on page
19
.
3. Connect the low-voltage cable to the charging
station.

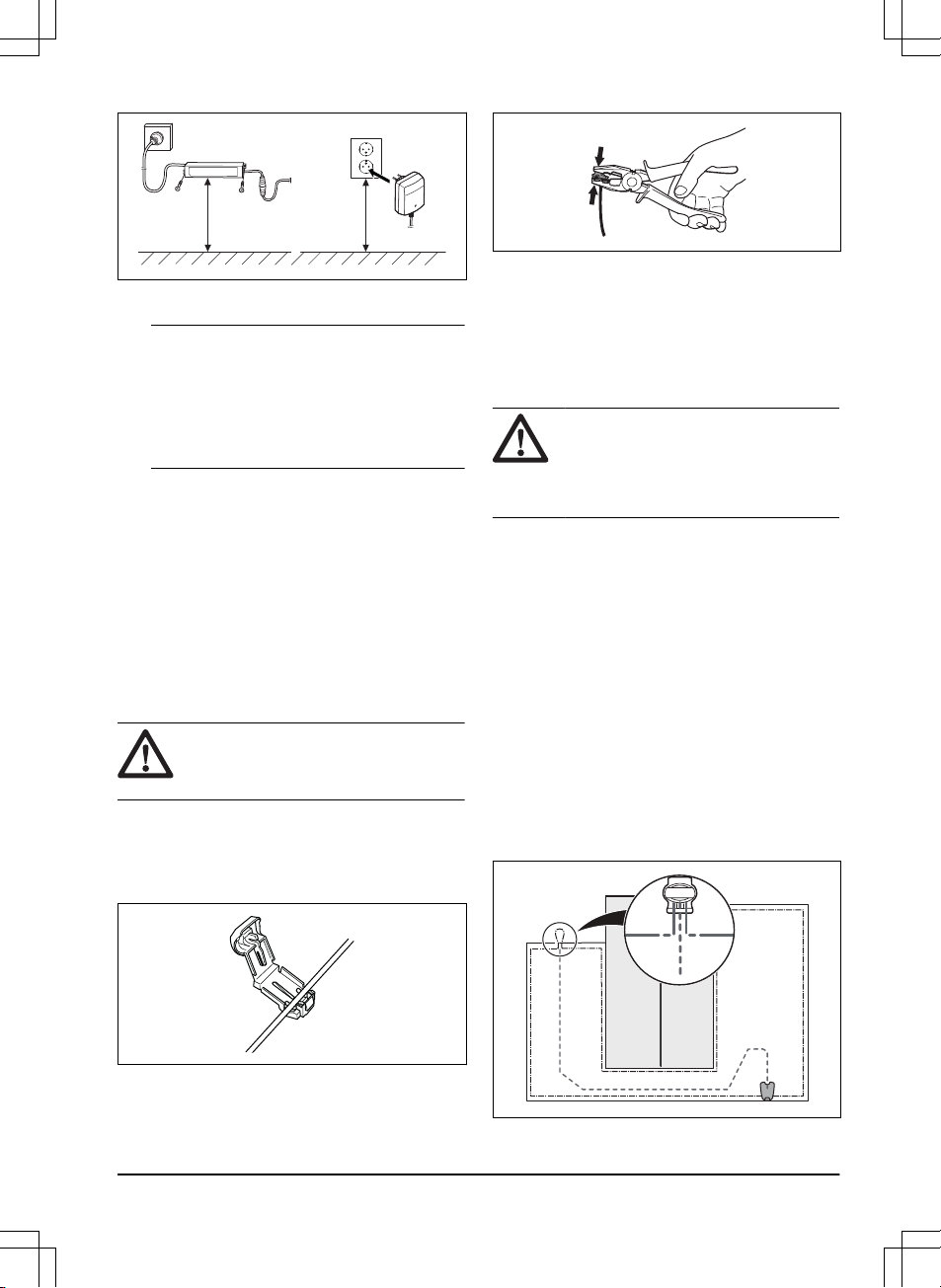

4. Put the power supply at a minimum height of 30
cm / 12 in.
18 - Installation 1439 - 015 - 23.11.2022
min 30 cm / 12”
5. Connect the power supply cable to a 100-240V
power outlet.
Note: When the charging station is connected, it
is possible to charge the product. Put the product
in the charging station while the boundary and
guide wires are being laid. Switch on the product
to start charging the product. Refer to
Main switch
on page 29
. Do not continue with any product
settings before the installation is complete.
6. Put the low-voltage cable in the ground with stakes
or bury the cable. Refer to
To put the wire into
position with stakes on page 20
or
To bury the
boundary wire or the guide wire on page 20
.
7. Connect the wires to the charging station after
the installation of boundary wire and guide wire is
complete. Refer to
To install the boundary wire on
page 19
and
To install the guide wire on page
19
.
8. Attach the charging station to the ground with the
supplied screws after the guide wire is installed.
Refer to
To install the guide wire on page 19
.
3.5.3 To install the boundary wire
CAUTION: Do not put remaining wire in
a coil. The coil causes interference with the
product.
1. Put the boundary wire around all of the work
area. Start and complete the installation behind the
charging station.
2. Open the connector and put the boundary wire in
the connector.
3. Close the connector with a pair of pliers.
4. Cut the boundary wire 1-2 cm / 0.4-0.8 in. above
each connector.
5. Push the right connector onto the metal pin on the
charging station with the mark "AR".
6. Push the left connector onto the metal pin on the
charging station with the mark "AL".
3.5.4 To install the guide wire
CAUTION: Twinned cables, or a
screw terminal block that is insulated with
insulation tape are not satisfactory splices.
Soil moisture will cause the wire to oxidize
and after a time result in a broken circuit.
1. Open the connector and put the wire in the
connector.
2. Close the connector with a pair of pliers.
3. Cut the guide wire 1-2 cm / 0.4-0.8 in. above each
connector.
4. Push the guide wire through the slot in the
charging station plate.
5. Push the connector onto the metal pin on the
charging station with the mark "G1", if applicable,
also for "G2" and "G3".
6. Disconnect the charging station from the power
outlet.
7. Put the end of the guide wire at the eyelet on the
boundary wire.
8. Cut the boundary wire with a pair of wire cutters.
9. Connect the guide wire to the boundary wire with a
coupler.
1439 - 015 - 23.11.2022 Installation - 19
a) Put the 2 ends of the boundary wire and the
end of the guide wire into the coupler.
Note: Make sure that you can see the ends
of the wires through the transparent area of
the coupler.
b) Push the button on the coupler with an
adjustable pliers.
10. Attach the guide wire to the ground with stakes or
bury the guide wire in the ground. Refer to
To put
the wire into position with stakes on page 20
or
To bury the boundary wire or the guide wire on
page 20
.
11. Connect the charging station to the power outlet.
3.6 To put the wire into position with
stakes
CAUTION: Make sure that the stakes
hold the boundary wire and the guide wire
against the ground.
CAUTION: Cutting the grass too low
right after installation can damage the wire
insulation. Damage to the insulation may
not cause disruptions until several weeks or
months later.
1. Put the boundary wire and the guide wire on the
ground.
2. Put the stakes at a maximum of 30 cm / 12 in.
distance from each other.
3. Attach the stakes to the ground with a hammer or a
plastic mallet.
Note: The wire is overgrown with grass and not visible
after a few weeks.
3.7 To bury the boundary wire or the
guide wire
• Cut a groove in the ground with an edge cutter or a
straight shovel.
• Put the boundary wire or the guide wire 1-20 cm /
0.4-8 in. into the ground.
3.8 To extend the boundary wire or the
guide wire
Note: Extend the boundary wire or the guide wire if it
is too short for the work area. Use original spare parts,
for example couplers.
1. Disconnect the charging station from the power
outlet.
2. Cut the boundary wire or the guide wire with a pair
of wire cutters where it is necessary to install the
extension.
3. Add wire where it is necessary to install the
extension.
4. Put the boundary wire or the guide wire into
position.
5. Put the wire ends into a coupler.
Note: Make sure that you can see the ends of
the boundary wire or the guide wire through the
transparent area of the coupler.
6. Push down the cover on the coupler with
adjustable pliers to attach the wires in the coupler.
7. Put the boundary wire or the guide wire into
position with stakes.
8. Connect the charging station to the power outlet.
3.9 After the installation of the product
3.9.1 To do a visual check of the charging
station
1. Make sure that the indicator LED lamp on the
charging station has a green light.
20 - Installation 1439 - 015 - 23.11.2022
2. If the indicator LED lamp does not have a green
light, do a check of the installation. Refer to
LED
indicator lamp on the charging station on page 42
and
To install the charging station on page 18
.
3.9.2 To do the basic settings
When the product is switched on for the first time, there
are some basic settings to do before the product can
start to operate. You must for example pair the product
and the charging station, and you can choose to enable
the theft protection in GeoFence. Refer to
GeoFence
on page 28
. You must also pair the product and the
Automower
®
Connect app to be able to change the
settings and operate the product. Refer to
Automower
®
Connect on page 21
.
1. Switch on the product.
Note: The Bluetooth
®
pairing mode is active
for 3 minutes. If pairing has not been successful
within this time period, switch off the product.
Wait until the LED status indicator is not lit, and
then switch on the product again.
2. Enter the factory PIN code.
3. Log in to your Husqvarna account in the
Automower
®
Connect app.
4. Start Bluetooth
®
on your mobile device.
5. Select
My mowers
in the Automower
®
Connect
app, and then select the plus sign (+).
6. Select model. The Automower
®
Connect app
searches for available products within short-range
(Bluetooth
®
).
7. Select product.
8. Follow the instructions in the Automower
®
Connect
app.
Note: It is only necessary to pair the Automower
®
Connect app and the product once.
Note: To disconnect the Automower
®
Connect app,
the app must be fully closed down.
3.10 Automower
®
Connect
The app gives 2 modes of connectivity: Long-
range cellular connectivity and Short-range Bluetooth
®
connectivity.
The product can connect to mobile devices that have
the Automower
®
Connect app installed. Automower
®
Connect is a free app for your mobile device. The
Automower
®
Connect app gives extended functions to
your Husqvarna product. You can:
• See the status of your product.
• Change settings to your product.
• Get extended product information.
• Get an alarm if the product moves out of the work
area.
• See statistics of your product.
Note: All countries do not support Automower
®
Connect because of regional specified cellular systems.
The included Automower
®
Connect lifetime service only
applies if there is a third part sub-supplier of 2G/3G/4G
available in the operational area.
The Automower
®
Connect app is preferable if you have
one or few products installed. For users with several
products we recommend you to use Husqvarna Fleet
Services
™
. Refer to
Husqvarna Fleet Services
™
on
page 28
.
3.10.1 To install the Automower
®
Connect
app
1. Download the Automower
®
Connect app on your
mobile device.
2. Sign up for a Husqvarna account in the
Automower
®
Connect app.
3. An e-mail is sent to the registered e-mail address.
Follow the instructions in the e-mail in less than 24
hours to validate your account.
4. Log in to your Husqvarna account in the
Automower
®
Connect app.
3.10.2 To pair Automower
®
Connect and
the product
1. Do step 1-7 in
To do the basic settings on page 21
.
2. Obey the instructions in the Automower
®
Connect
app.

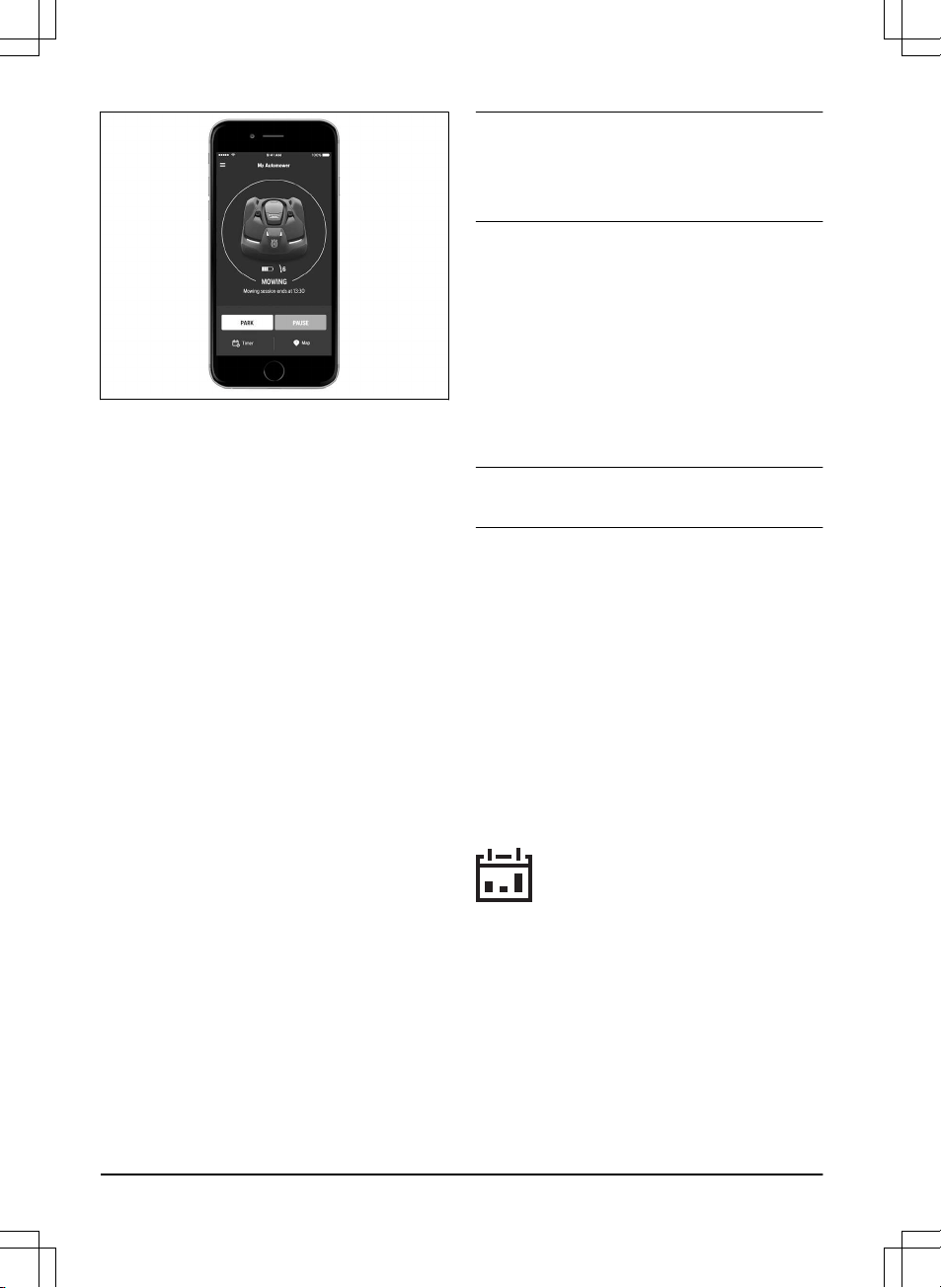

3.10.3 Dashboard
The dashboard shows the current status of the product
both visually and in text. It is very easy to control the
product by selecting the options, for example
Park
.
In the lower part of the dashboard there are shortcuts to
the
Schedule settings
and the
Map
. The dashboard also
shows symbols according to below:
1. The battery status shows the battery state of
charge. A flash is shown over the battery symbol
when the product charges its battery. A plug is
shown over the battery symbol when the product is
in the charging station without charging.
2. Cutting height.
1439 - 015 - 23.11.2022 Installation - 21
For more information about the operating modes
Start,
Park
and
Pause
, refer to
Operation on page 29
.
3.10.4 Account
In this menu there is an overview of the account settings
and you can log off from the app.
3.10.4.1 To set the unit format
1. Select the unit format
Metric
or
Imperial
.
3.10.5 My mowers
When choosing
My mowers
you can manage all the
products paired to your account, as well as add new
ones. If there are several paired products it is possible to
select one of them as
Current mower
.
To pair a new product to the Automower
®
Connect app:
1. Select the plus sign (+).
2. Select model.
3. Follow the instructions in the Automower
®
Connect
app to finalize the pairing.
3.10.6 Automower
®
Direct
Automower
®
Direct uses short-range Bluetooth
®
communication, and is included in Automower
®
520/550.
Automower
®
Direct is useful if the operator has the
Automower
®
Connect app and the PIN code, but has
not created a Husqvarna account. Automower
®
Direct
is also useful if the connection with the product is only
temporary.
Husqvarna cannot guarantee the time period or
coverage of the long-range cellular connectivity. There is
therefore a possibility to communicate with the product
through Bluetooth
®
if you are in short-range of the
product. You can use Automower
®
Direct without a
Husqvarna account as long as you have the product PIN
code.
Note: The Automower
®
Direct connection is only
valid as long as you are within Bluetooth
®
range. If
you move out of Bluetooth
®
range, you will loose the
Automower
®
Direct connection and you must do the
connection process again.
3.10.6.1 To start to use Automower
®
Direct
1. Download the Automower
®
Connect app on your
mobile device.
2. Select Automower
®
Direct on the start screen of
the Automower
®
Connect app.
3. Start Bluetooth
®
on your mobile device and on the
product, refer to
To do the basic settings on page
21
.
4. Select the product to pair with in the Automower
®
Connect app.
5. Enter the PIN code for the product.
Note: You have access to the menus and functions as
long as you are within Bluetooth
®
short-range.
3.10.7 Map
The map shows the current position of the product and
the set centerpoint for GeoFence.
3.10.7.1 Map settings
1. Open
Map
in the main menu.
2. Select the settings symbol.
3. Enable or disable
Movement path
.
4. Enable or disable
GeoFence radius
.
5. Select
Map view
or
Satellite view
.
3.11 Settings in Automower
®
Connect
The product has factory settings but the settings can be
adapted to each work area.
3.11.1 Schedule
In
Schedule
you can change the schedule settings for
the product.
The schedule function controls which hours the product
should operate and not operate. When the product is
not operating it is parked in the charging station. The
operating hours and days can be seen in an overview in
the Automower
®
Connect app.
The default schedule setting allows the product to
operate around the clock 7 days a week. This
is normally a suitable setting for a work area
corresponding to the maximum capacity. If the work
area is less than the maximum capacity the schedule
22 - Installation 1439 - 015 - 23.11.2022
should be used to minimize wear on the grass and to the
product.
The table shows the approximate number of hours the
product must operate each day for a specified area
dimension.
Area Automower
®
520
Automower
®
550
500 m
2
/0.12 acre 7 3.5
1000 m
2
/0.25 acre 14 7
1500 m
2
/0.37 acre 22 10.5
2000 m
2
/0.5 acre 14
2500 m
2
/0.62 acre 17.5
3000 m
2
/0.75 acre 21
3500 m
2
/0.86 acre 24
There are 3 different quality levels that you can select
which decides the cutting frequency:
• Pro sport quality: Used for premium sports fields
or golf courses that are cut everyday at low cutting
height. For a well-managed, lush, and dense turf.
• Pro quality: Used for sports fields and golf courses
at medium ambition level. Also used for facilities
with high demands on grass quality with medium
grass height and normal dense quality of turf.
• Regular quality: Used for green spaces with lower
demands. This means areas with less grass
growth, high cutting height and normal to low
dense quality of turf.
Quality Operation frequency
Pro sport quality Each day
Pro quality Each second day
Regular quality Each third day
3.11.1.1 To edit the schedule settings
1. Select
Settings > Schedule > Edit
in the app.
2. Select the pencil symbol in the app.
3. Select which days of the week and hours the
product must operate.
4. Select
Save
.
3.11.1.2 To add a new schedule setting
1. Select
Settings > Schedule > Edit
in the app.
2. Select the plus sign in the app.
3. Select which days of the week and hours the
product must operate.
4. Select
Save
.
3.11.2 Cutting height
3.11.2.1 Adjust the cutting height
The cutting height can be varied from MIN (2 cm / 0.8
in.) to MAX (6 cm / 2.5 in.).
Note: During the first week after a new installation, the
cutting height must be set to MAX to avoid damaging the
loop wire. After this, the cutting height can be lowered
step by step every second week until the desired cutting
height has been reached.
To adjust the cutting height with Automower
®
Connect
The cutting height can be adjusted from MIN to MAX
1. Select
Settings > Cutting height
.
2. Move the horizontal bar to set the cutting height.
3. Select
Save
.
TargetHeight
Use the TargetHeight function to lower the cutting height
from MAX to the specified cutting height gradually during
10 days. If you change the cutting height manually
during this time it will disable the TargetHeight function.
To set the TargetHeight
1. Select
Settings
>
Cutting height
.
2. Select on/off to enable or disable the
TargetHeight
function.
3. Select
Save
.
3.11.3 Operation
In the Operation's menu it is possible to change the
settings of the
Weather timer, ECO mode
and
Spiral
cutting
.
3.11.3.1 Spiral cutting
If the product enters an area where it senses the grass
is longer than average, it can change the movement
pattern to
Spiral cutting
. This means that the product
mows in a spiral pattern to faster cut the area with
longer grass. It is possible to set the intensity of the
Spiral cutting
.
Very low / Low
intensity means that
Spiral
cutting
begins less often.
High / Very high
intensity
means that
Spiral cutting
begins more often.
1439 - 015 - 23.11.2022 Installation -
23
Note:
Spiral cutting
is only started in the
Main area
mode. Cutting in the
Secondary area
mode does not let
the product to start
Spiral cutting
.
Spiral Cutting
does not
start in slopes steeper than 15%.
1. Select
Settings > Operation
in the app.
2. Select
On/Off
to enable or disable
Spiral cutting
.
3. Select
Settings > Spiral Cutting > Use > Intensity
to select the level of the function.
4. Select
Save
.
3.11.3.2 Weather timer
Weather timer
automatically adjust the cutting time to
the growth of the grass. The product is not permitted to
operate more than the schedule settings.
Note: When using
Weather timer
, it is recommended
to make as much operating time as possible available
for
Weather timer
. Do not restrict the schedule more
than necessary.
The first operation of the day is set by the schedule
settings. The product always complete 1 mowing cycle,
and then
Weather timer
selects if the product will
continue to operate or not.
Note:
Weather timer
is reset if the product does not
operate for more than 50 hours, or if a
Reset of all user
settings
is done.
Weather timer
is not changed if a
Reset
of schedule settings
is done.
To set the Weather timer
1. Select
Settings > Operation
in the app.
2. Select
on/off
to enable or disable the
Weather
timer
.
Note: If the cutting results are not satisfactory,
the cutting time can be adjusted. Set the cutting
time
High
to cut for a longer time or
Low
to cut for
a shorter time.
3. Select
Save
.
3.11.3.3 ECO mode
If
ECO mode
is activated, it switches off the signal in the
boundary loop, the guide wire and the charging station,
when the product is parked or is charging.
Note: Use
ECO mode
to save energy and avoid
interference with other equipment, for example hearing
loops or garage doors.
Note: To start the product manually in the work area,
push the
STOP button before you remove the product
from the charging station. If not, the product cannot be
started in the work area.
To set the ECO mode
1. Select
Settings > Operation
in the app.
2. Select
on/off
to enable or disable the
ECO mode
function.
3. Select
Save
.
3.11.4 Installation
In the Installation menu it is possible to adapt the
settings of the product for best mowing result.
3.11.4.1 To find the charging station
The product can be set to search for the charging station
in 3 methods:
•
Charging station signal
•
Follow boundary wire
•
Follow guide wire
The factory setting is set to use the 3 search methods
at the same time. Use the factory setting to find the
charging station as fast as possible and to keep the risk
of tracks on the lawn to a minimum. The product always
starts to search for the
Charging station signal
. After
a specified time interval, it also uses
Follow guide
and
Follow boundary wire
.
Causes why the product cannot follow the wire:
• Obstacles near the wire have not been isolated.
• The charging station, the boundary wire or the
guide wire are not installed according to the
instructions in
To install the charging station on
page 18
,
To install the boundary wire on page 19
and in
To install the guide wire on page 19
.
To change the signal range of the charging station
For some installations it is necessary to decrease the
signal of the charging station. For example when the
charging station is put near an obstacle such as a
bush or wall and the signal reaches to the other side
24 - Installation 1439 - 015 - 23.11.2022
of the obstacle. The product knows that it is close to
the charging station and tries to dock, but the objects
prevents it. The options are
min
,
avg
(average) or
max
.
Note: The recommended setting is
max
. It is usually
better to move the charging station, than to decrease the
range of the charging station signal.
1. Select
Settings > Installation > Find charging
station
in the app.
2. Select signal range.
3. Select
Save
.
To set the delay time for the guide wire and the
boundary wire
1. Select
Settings > Installation > Find charging
station
in the app.
2. Select
on/off
to enable or disable to follow the wire.
3. Move the horizontal bar to set the time delay.
4. Select
Save
.
3.11.4.2 Lawn coverage
The product has GPS Assisted Navigation that helps the
product select the most optimal operation.
Use the
Lawn coverage
function to set the settings to
manual.
To set the GPS function
1. Select
Installation > Settings > Lawn coverage
in
the app.
2. Select
on/off
to disable or enable the GPS
function.
Note: When GPS assisted navigation is enabled
it is used while there is a GPS service. The GPS
assisted navigation is used even if manual settings
have been made. Only when GPS service is not
available, the manual settings are used.
3. Select
Save
.
To set the Lawn Coverage function
The
Lawn Coverage
function is used to guide the
product to remote parts of the work area. If the work
area includes remote parts that are connected with
narrow passages, the
Lawn Coverage
function is useful
to to keep a well-cut lawn in all parts of the yard. You
can set a maximum of 5 remote areas where the product
starts to cut the lawn.
With the
Lawn Coverage
function the product first
follows and then leaves the guide wire after a certain
distance and starts to mow the lawn.
Area A, approximately 50%
Area B, approximately 30%
Area C, approximately 20%
A
C
B
Each area can be enabled or disabled, without having to
enter the settings again.
1. Select
Settings > Installation > Lawn coverage
in
the app.
2. Select
on/off
to disable the GPS function to set the
Lawn Coverage
.
3. Select on/off
Area 1-5
to activate the area.
4. Move the horizontal bar to set which wire
the product will follow. The product can follow
Boundary wire left
,
Boundary wire right
or one of
the guide wires.
5. Move the horizontal bar to set the distance the
product must follow the wire. The product then
leaves the wire and starts to cut the lawn. Refer to
To measure the distance from the charging station
on page 25
.
6. Move the horizontal bar to set how often the
product goes to each area. At all other times, the
products starts to cut near the charging station.
The percentage is equal to the percentage of the
area in relation to the complete work area.
a) Measure the area.
b) Divide the measured area with the total work
area.
c) Convert the result to percentage.
d) Move the horizontal bar to set the distance
from the charging station.
7. Select
Save
.
The default settings lets the product follow the guide
wire 300 m / 980 ft. in 20% of the times it leaves the
charging station. If the guide wire is less than 300 m /
980 ft. the product will follow it to the point where the
guide wire is connected to the boundary wire.
To measure the distance from the charging station
1. Put the product in the charging station.
2. Select
Settings > Installation > Lawn coverage
in
the app.
1439 - 015 - 23.11.2022 Installation -
25
3. Move the horizontal bar to set the distance to the
charging station to maximum.
4. Select
Test: Area 1-5 setup
.
5. Follow the instructions in the app to start the test.
6. Push the
STOP button when the product is at
the distance you select to measure. The distance
shows in the app.
To do a test of the Lawn Coverage function
1. Put the product in the charging station.
2. Select
Settings > Installation > Lawn coverage
in
the app.
3. Select
Test: Area 1-5 setup
.
4. Follow the instructions in the app to start the test.
5. The product will run to the starting point for this
area.
3.11.4.3 Corridor width
The boundary wire corridor is the area adjacent to
the boundary wire and the guide corridor is the area
adjacent to the guide wire. The product uses the
corridors to find the charging station. When the product
moves in the direction of the charging station, it always
moves to the left of the guide wire.
The corridor width is adjusted automatically. Only some
times it is necessary to enter manual settings. The
corridor width can be set between 0-9. If guide corridor
width is set to 0, the product straddles the guide wire.
The factory setting is 6 for the boundary wire and 9 for
the guide wire.
To set the corridor width
1. Select
Settings > Installation > Corridor width
in the
app.
2. Move the horizontal bar to set the width.
3. Select
Save
.
Note: Make the corridor width as wide as possible for
a minimum risk of lines in the lawn.
3.11.4.4 Exit angles
In the factory setting the product moves out from the
charging station in a direction in the 90°-270° exit sector.
Change the exit angles to make it easier for the product
to find the work areas. If the charging station is put
in a passage, 2 exit angles, for example 70°-110° and
250°-290°, can be used. When 2 exit angles are used,
it is necessary to set how frequently the product must
move out from the charging station in Sector 1. Use
the Proportion function to set how frequently the product
must use each sector. For example 75% means that the
product moves out from the charging station in Sector 1
on 75% of the times and 25% of the times in Sector 2.
To set the exit angles
1. Select
Settings > Installation > Exit angles
in the
app.
2. Move the horizontal bar to set the angles in
degrees for the sectors, and proportion as a
percentage.
3. Select
Save
.
3.11.4.5 Reversing distance
The reversing distance makes the product move in
reverse for a set distance, before the product starts to
cut the lawn. The factory setting is 60 cm / 24 ft.
To set the reversing distance
1. Select
Settings > Installation > Reversing distance
in the app.
2. Move the horizontal bar to set the distance.
3. Select
Save
.
3.11.4.6 Drive Past Wire
The front of the product always moves past the
boundary wire by a specified distance before the product
moves back into the work area. The factory setting for
the
Drive Past Wire function
function is 31 cm / 12 in.
You can select a distance of 20-50 cm / 8-20 in.
Note: With the factory setting the product will cut 11
cm / 4 in. past the wire.
Note: If the
Drive Past Wire
distance is changed,
the distance will change along the boundary wire
everywhere in the work area.
To set the Drive past wire
1. Select
Settings > Installation > Drive past wire
in
the app.
2. Move the horizontal bar to set the distance.
3. Select
Save
.
26 - Installation 1439 - 015 - 23.11.2022
3.11.5 Accessories
Settings for accessories mounted on the product can be
made in this menu.
3.11.5.1 To avoid collisions with the Automower
®
house
When this option is enabled, the wear on the product
and the Automower
®
house is reduced, but it can result
in more uncut grass around the charging station.
1. Select
Settings > Accessories > Mower house
in
the app.
2. Select
on/off
to enable or disable the function.
3. Select
Save
.
3.11.5.2 To set the ultrasonic
1. Select
Settings > Accessories > Ultrasonic
in the
app.
2. Select
on/off
to enable or disable the function.
3. Select
Save
.
3.11.6 General (Bluetooth
®
only)
This function is used to set time and date, or to reset to
default settings.
3.11.6.1 Time & date
The time and date can be changed manually, or by
using the time and date from the mobile device.
To set the time & date
1. Select
Settings > General > Time & Date
in the
app.
2. Select
Time & Date from phone
or select the pencil
to enter the correct time and date.
3. Select
Save
.
3.11.6.2 Reset to factory settings
The user settings can be reset to factory settings.
Note:
PIN code, Loop signal, Messages
and
Date &
Time
will not be reset.
To reset to factory settings
1. Select
Settings > General > Reset
in the app.
2. Select
Reset to factory settings
.
3.11.7 Security (Bluetooth
®
only)
The security settings controls the PIN code, the
GeoFence and other security functions. The correct PIN-
code must be entered to get access to the
Security
menu in the Automower
®
Connect app.
3.11.7.1 New loop signal
The loop signal is randomly selected to create a unique
link between the product and the charging station. In
rare cases, there may be a need to generate a new
signal, for instance if 2 adjacent installations have a very
similar signal.
To create a New loop signal
1. Put the product in the charging station.
2. Select
Security > New loop signal > Create new
loop signal
in the app.
3. Select
Save
.
4. Wait for confirmation that the loop signal has been
generated. This usually takes about 10 seconds.
3.11.7.2 To change the PIN code
1. Select
Security > Change PIN code
in the app.
2. Enter the PIN code.
3. Enter the new PIN code.
4. Enter the new PIN code to confirm.
5. Make a note of the new PIN code in Memo. Refer
to
Introduction on page 6
.
3.11.7.3 Theft protection
In the
Theft protection
menu it is possible to set the
alarm duration and also what events should trigger the
alarm. The factory setting is to require PIN code and the
alarm duration is 1 min.
Time lock
The time lock can be set between 1 to 100 days. The
factory setting is 30 days. When the selected number
of days has gone by, the product continues to operate
as usual. To enter new settings the PIN code must be
entered.
Require PIN code
This function means that the product cannot be operated
or controlled after the STOP button has been pushed
without first entering the correct PIN code. If the
incorrect PIN code is entered 5 times, the product is
locked for a time. The lock is extended for each new
incorrect try.
Alarm duration
There is a possibility to set how long the alarm signal
should last. A setting between 1 and 10 minutes is
possible.
1439 - 015 - 23.11.2022 Installation -
27
STOP button pressed
If the alarm
"STOP button pressed"
is enabled, the
alarm goes off if someone presses the
STOP button and
the PIN code is not entered within 30 seconds.
Carried away
If the alarm
Carried away
is enabled, the product senses
unexpected motions, and the alarm goes off.
To set the Theft protection
1. Select
Settings > Security > Theft protection
in the
app.
2. Select the on/off button to enable or disable
the
Time lock, Require PIN code, STOP button
pressed
and
Carried away
.
3. Move the horizontal bar to select the duration of
the alarm.
3.11.7.4 GeoFence
GeoFence is a GPS-based theft protection that makes
a virtual fence for the product. If the product is more
than a set distance away from the center position the
product will be deactivated and an alarm will start. The
PIN code is needed to deactivate the alarm and to start
the product again.
To set the center position and radius for the GeoFence
function
1. Select
Settings > Security > GeoFence
in the app.
2. Put the product in a central position of the work
area.
3. Select the
on/off
button to enable or disable the
GeoFence function. The center position will be set
to the current position of the product.
4. Use the horizontal bar to set the radius.
3.11.8 Automower
®
Connect (Bluetooth
®
only)
In
Automower
®
Connect
you can enable or disable the
Automower
®
Connect module. You can also see the
signal strength, connectivity status, initiate new pairing
or remove the product from the paired accounts.
3.11.9 Messages (Bluetooth
®
only)
In this menu the previous fault and information
messages can be found. For some of the messages,
there are tips and advice to help to rectify the fault.
Note: The
Messages
menu is only available for
Bluetooth
®
short-range connectivity.
If the product is disrupted in any way, for example it
is trapped or the battery is low, a message is saved
relating to the disruption and the time it happened.
If the same message is repeated several times, this
may indicate that an adjustment to the installation or the
product is required. Refer to
Installation on page 13
.
3.11.10 Husqvarna Fleet Services
™
Husqvarna Fleet Services
™
is a cloud solution that
gives the commercial fleet manager an overview of
all products. It also gives the fleet manager the
possibility to control all products remotely. Husqvarna
Fleet Services
™
is included for Automower
®
520/550.
For more information about Husqvarna Fleet Services
™
,
refer to www.husqvarna.com.
3.11.10.1 To connect to the product with Husqvarna
Fleet Services
™
1. Download the Husqvarna Fleet Services
™
app and
Automower
®
Connect app to your mobile device.
2. Make a Husqvarna Fleet Services
™
account
(www.husqvarna.com).
3. Log on to the Husqvarna Fleet Services
™
app.
4. Set the
Main switch on the product to the
1
position.
Note: The Bluetooth
®
pairing operation mode
of the product is enabled for 3 minutes. If the
pairing operation between the product and the
mobile device is not completed in 3 minutes, set
the product to OFF and then set the product to ON.
5. Select the plus sign (+) in the Husqvarna Fleet
Services
™
app.
6. Select
Automower
®
and then
Automower
®
Pro
.
The Husqvarna Fleet Services
™
app searches for
available products within short-range (Bluetooth
®
).
7. Select the product.
8. Select
Acquire pairing code
to connect the product
to your Husqvarna Fleet Services
™
account.
9. Obey the instructions in the Husqvarna Fleet
Services
™
app.
Note: It is only necessary to do a pairing operation of
the Husqvarna Fleet Services
™
app and the product one
time.
28 - Installation 1439 - 015 - 23.11.2022
4 Operation
4.1 Main switch
WARNING: Read and understand the
safety chapter before you use the product.
• Set the Main switch to the
1
position to start the
product.
• Set the Main switch to the
0
position to set the
product to OFF.
4.2 Start
1. Set the Main switch to the
1
position.
2. Open the Automower
®
Connect app.
3. Select the
Dashboard
.
4. Select
Start
in the Automower
®
Connect app.
If the product is parked in the charging station,
it only goes from the charging station when the
battery is fully charged and if the schedule is set to
let the product to operate.
Note: Make sure that the START button on top of the
product is in the correct position. The product does not
start if the
STOP button is enabled.
4.3 Operating mode - Start
When
Start
has been selected the following operation
selections can be selected.
• Main area
• Override schedule
• Secondary area
4.3.1 Main area
Main area
is the standard work mode where the product
cuts grass and charges automatically.
1. Open the Automower
®
Connect app.
2. Select
Dashboard
in the Main menu.
3. Select
Start
4. Select
Resume on main area
to start the product.
4.3.2 Override schedule
Any schedule settings can be temporarily overridden by
selecting
Override schedule
.
1. Select
Dashboard
in the Main menu.
2. Select
Start
.
3. Slide the horizontal bar of
Override schedule
to
find a suitable override duration. It is possible to
override the schedule up to 7 days.
4. Select a suitable override duration.
4.3.3 Secondary area
To cut secondary areas the operating mode
Secondary
area
must be selected. In this mode, you must move
the product manually between the main area and the
secondary area. The product cuts for a selected period
of time or until the battery is empty. When the battery
is empty the product stops. Put the product in the
charging station to charge the battery. When the battery
is charged, the product moves out of the charging
station and stops. The product is now prepared to start
operation, but needs confirmation from you first.
Note: If you want to cut the main area after the battery
is charged, set the product to
Main area
mode before
you put the product in the charging station.
4.4 Operating mode - Park
When selecting
Park
the following operation selections
can be chosen.
• Park until further notice
• Start with schedule
• Parking duration
1439 - 015 - 23.11.2022 Operation - 29
4.4.1 Park until further notice
The operation mode
Park
means that the product goes
back to the charging station where it stays until a new
operation mode is selected and the START button is
pushed.
4.4.2 Start on next schedule
The product goes back to the charging station where it
stays until the next schedule setting let the product to
operate. Use the operation selection to stop operation
temporary, for example for irrigation or for games on the
lawn.
4.4.3 Parking duration
The product goes back to the charging station and
stays for the selected park duration. Use the operation
selection to temporary stop an ongoing mowing cycle
and let the product to stay in the charging station.
4.4.4 The charging station's park button
The
PARK button on the charging station is used to
call the product back to the charging station.
Park
in
the Automower
®
Connect app offers the same function.
The PARK button on the charging station is useful for
instance when the product operates in a large work
area and the operator does not have access to the
Automower
®
Connect app.
An LED in the PARK button is lit when the button
has been pressed. The LED diode goes out when the
product is parked in the charging station.
The product stays in the charging station until
Start
in
the Automower
®
Connect app is activated.
4.4.5 Operating mode - Pause
When selecting
Pause
in the Automower
®
Connect app,
the product stop the current activity and pause. The
product is paused until either
Park
or
Start
is selected
in the Automower
®
Connect app.
4.5 To stop the product
1. Push the
STOP button to make the product and
the cutting motor stop.
4.6 To set the product to OFF
1. Push the STOP button.
2. Set the Main switch to the
0
position.
4.7 To charge the battery
When the product is new or after long-term storage, the
battery can be empty. Charge the battery before you
start the product.
1. Set the
Main switch to the
1
position.
2. Put the product into the charging station until the
charging plates touch the contact plates.
3. Do a check that the product charges in the
Automower
®
Connect app.
30 - Operation 1439 - 015 - 23.11.2022
5 Maintenance
5.1 Introduction - maintenance
WARNING: Set the product to OFF
before you do maintenance on the product.
WARNING: Use protective gloves.
For better operation and lifetime of the product, make
sure to clean the product regularly and replace worn
parts.
When the product is new, examine the blade discs and
blades each week. If the wear is low, you can increase
the interval for the next time you examine the blade
discs and blades. Examine the blade discs and the
blades more regularly if there is much wear.
It is important that the blade disc rotates easily and that
the edges of the blades are not damaged. The usual
lifetime of the blades are 2 to 5 weeks. The conditions
that follow can increase or decrease the lifetime of the
blades:
• Operation time and dimension of the work area.
• Length and thickness of the grass.
• Soil, sand and use of fertilizers.
• Objects such as cones, tools, stones and roots in
the work area.
Note: The cut result can be unsatisfactory if the
blades are blunt. Refer to
Replacement of the blades
on page 33
on how to replace the blades.
5.2 Maintenance schedule
The maintenance schedule shows how to do
servicing and maintenance on the product. Follow the
maintenance schedule for a better operation and to
increase the lifetime of the product.
X = The instructions are given in this operator's manual.
O = The instructions are not given in this operator's
manual. Speak to your approved servicing dealer.
To prepare Weekly Every
year
Every
third year
Clean the product. Refer to
Clean the product on page 32
. X
Examine the product for damage and wear. X
Do an update of the firmware. O
Do a check of the servicing messages for recommended upgrades. O
Servicing
Examine the blades and replace the blades and blade screws if it is necessary.
Refer to
Replacement of the blades on page 33
.
X
Examine and polish the contact plates on the charging station. X
Examine and polish the charging plates on the product. X
Charge the battery fully before you put the product into storage. Refer to
To
charge the battery on page 30
.
X
Examine the wheels for wear. O
Examine and clean the collision columns. Do a check of the tightening torque on
the front and rear collision columns.
O
Make sure that the product is docking and charging correctly. O
Examine the cable and connector to the charging plates on the body of the
product.
O
1439 - 015 - 23.11.2022 Maintenance - 31

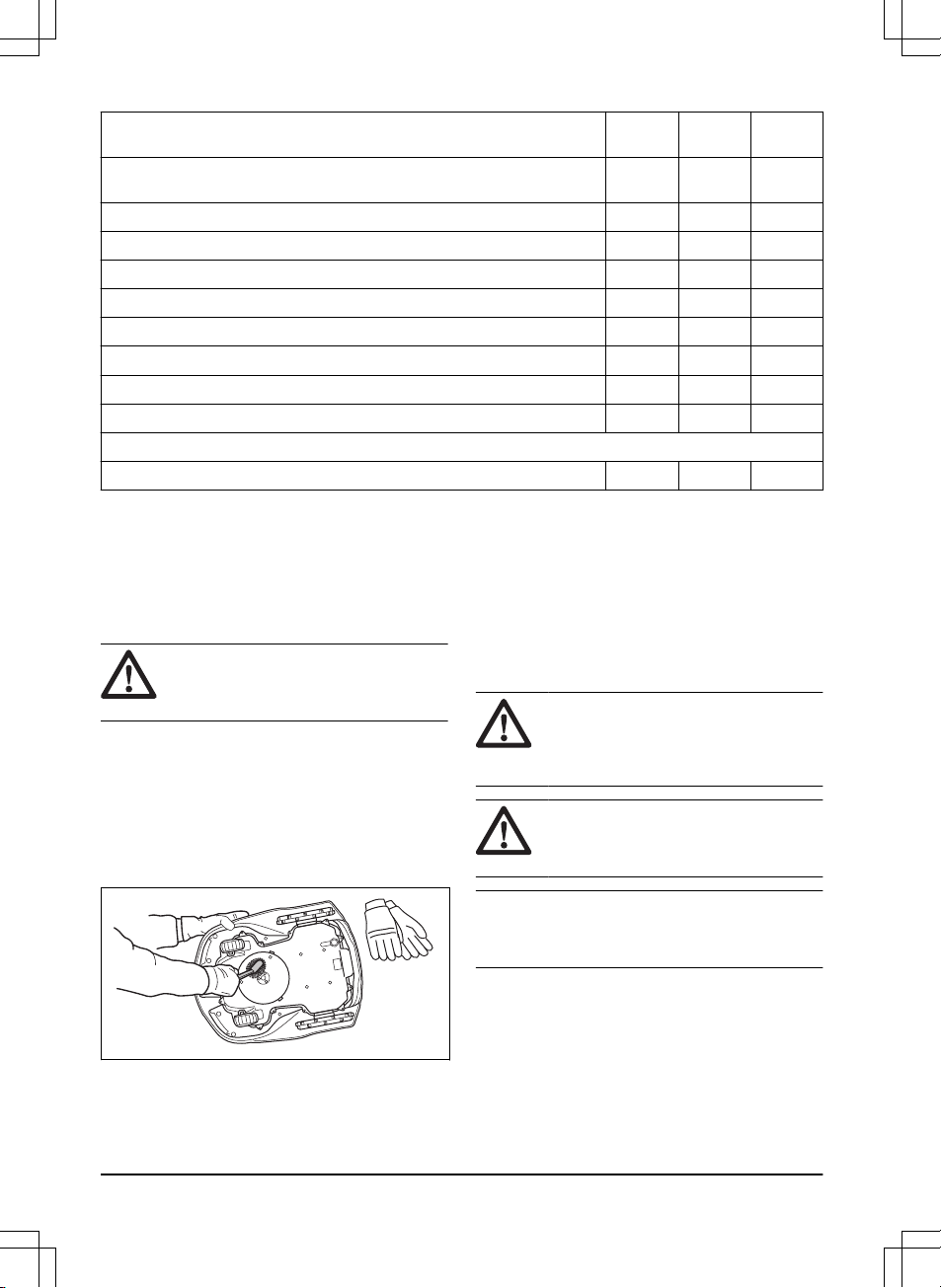

To prepare Weekly Every
year
Every
third year
Examine the rubber grommets on the chassis to make sure that it is sealed
correctly.
O
Examine the skid plate and skid plate bearing. O
Examine the rubber bellows in the cutting height adjustment system. O
Examine the rubber bellows for the collision columns. O
Replace the rubber bellows for the collision columns. O
Examine and clean the airflow filter. O
Replace the airflow filter. O
Do a check of the tightening torque of chassis screws. O
Open the chassis and replace all sealing strips. O
Last step
Use a software service tool to do a function test of the functions of the product. O
5.3 Clean the product
It is important to keep the product clean. A product with
large amounts of grass stuck to it will not cope as well
with slopes. It is recommended to clean using a brush.
Husqvarna recommends to use a special cleaning and
maintenance kit, available as an accessory. Contact
your Husqvarna representative for more information.
CAUTION: Never use a high-pressure
washer to clean the product. Never use
solvents for cleaning.
5.3.1 To clean the chassis and blade disc
Examine the blade disc and blades weekly.
1. Set the
Main switch to the
0
position.
2. Put the product onto its side.
3. Make sure that the blades are not damaged and
that the blades and blade disc can rotate freely.
4. Clean the blade disc and chassis with a brush.
5.3.2 To clean the chassis
• Clean the bottom of the chassis with a brush or a
moist cloth.
5.3.3 To clean the wheels
The product does not operate satisfactorily in slopes if
the wheels are blocked with grass.
• Use a soft brush to clean the wheels.
5.3.4 To clean the body of the product
• Use a moist cloth and a weak soap solution to
clean the body of the product.
5.3.5 To clean the charging station
WARNING: Disconnect the power
supply from the power outlet before
maintenance, or when you clean the
charging station or power supply.
CAUTION: Do not use a high-pressure
washer or running water to clean the
charging station.
Note: The product cannot enter the charging station
if there are objects in the charging station. Clean the
charging station regularly.
• Remove grass, twigs and other objects from the
charging station.
32 - Maintenance 1439 - 015 - 23.11.2022

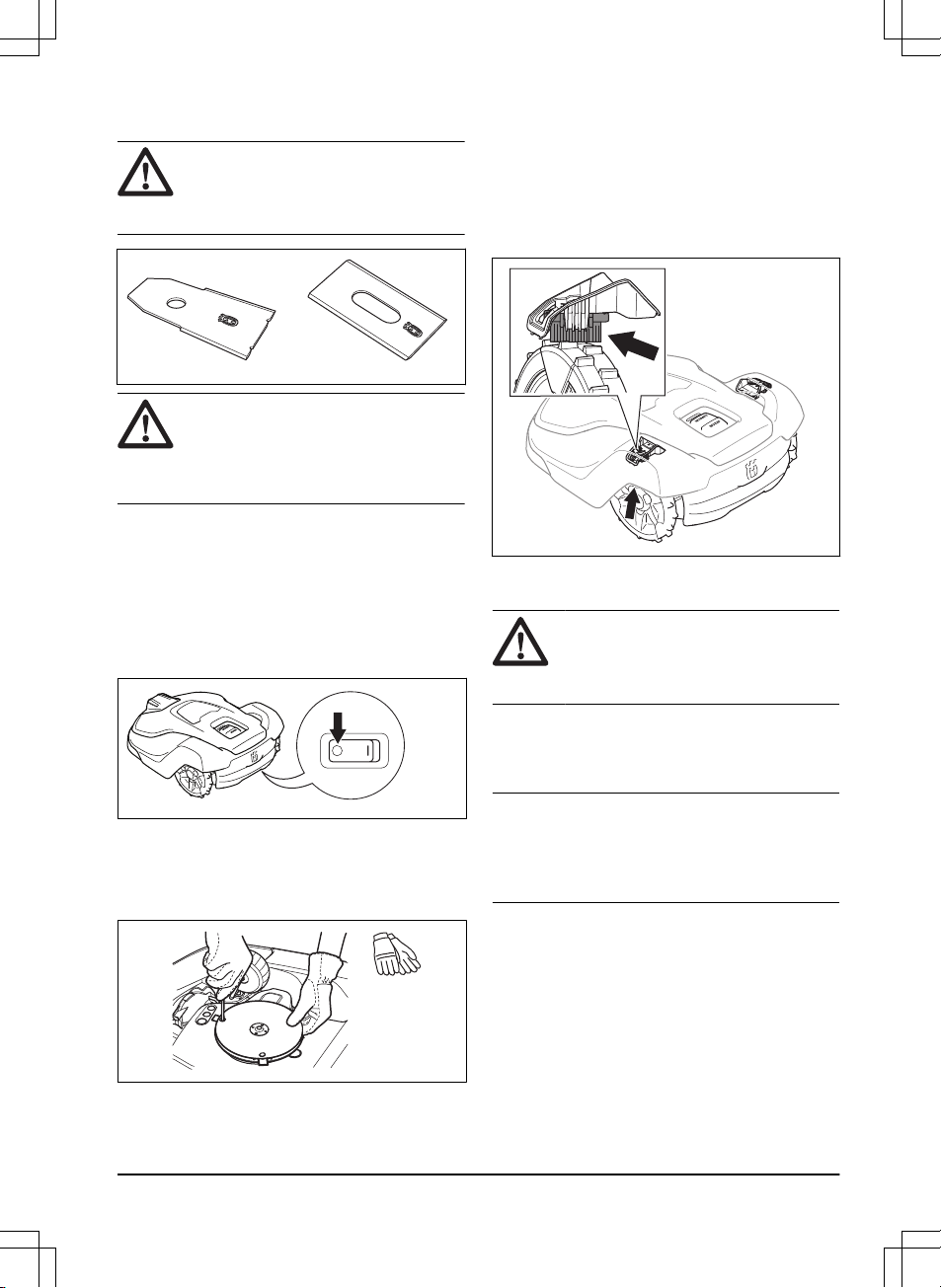

5.4 Replacement of the blades
WARNING: Husqvarna can only
guarantee safety if you use Husqvarna
original blades with the embossed crowned
H-mark logotype.
WARNING: You must replace the
screws when you replace the blades. The
used screws can wear quickly and make the
blade come loose, this can cause serious
injury.
Replace worn or damaged blades for a safe operation.
Replace the blades regularly for a satisfactory cut result
and a low energy use. All 5 blades and screws must
be replaced at the same time to get a balanced cutting
system.
5.4.1 To replace the blades
1. Push the STOP button.
2. Set the Main switch to the
0
position.
3. Put the product with the blade disc up on a soft
and clean surface.
4. Rotate the skid plate until its holes align with the
screws for the blade.
5. Remove the 5 screws with a screwdriver.
6. Remove the 5 blades.
7. Attach 5 new blades and screws.
8. Make sure that the blades can pivot freely.
5.5 Replace the wheel brushes
The wheel brushes on the product removes grass
from the wheels of the product. Examine the wheel
brushes regularly and replace them when they are worn.
Husqvarna recommends to replace the wheel brushes
each 5-10 weeks.
5.6 Battery
CAUTION: Charge the battery fully
before you put the product into storage. If
the battery is not fully charged it can cause
damage to the battery.
If the operating time of the product is shorter than usual
between charges, this means that the battery is at the
end of its life cycle. Replace the battery to extend the
operating time.
Note: The battery life is related to the length of
the season and how many hours a day the product
operates. A long season or many hours of operation
a day means that the battery must be replaced more
regularly.
5.7 Winter service
Take your product to your Husqvarna central service for
service prior to winter storage. Regular winter service
will maintain the product in good condition and create
the best conditions for a new season without any
disruptions.
Service usually includes the following:
• Thorough cleaning of the body, the chassis, the
blade disc and all other moving parts.
• Testing of the product’s function and components.
1439 - 015 - 23.11.2022 Maintenance - 33
• Checking and, if required, replacing wear items
such as blades and bearings.
• Testing the product’s battery capacity as well as a
recommendation to replace battery if necessary.
• If new firmware is available, the product is
updated.
34 - Maintenance 1439 - 015 - 23.11.2022
6 Troubleshooting
6.1 Introduction - troubleshooting
All messages can be found in the
Messages
menu in Automower
®
Connect. More suggestions for steps to take in the
event of malfunction or symptoms can be found on www.husqvarna.com.
Note: The
Messages
menu is only available for short-range connectivity (Bluetooth
®
).
6.2 Fault messages
The list below shows a number of fault messages that may be shown in the app. Speak to your local Husqvarna
representative if the same message shows frequently.
Message Cause Action
Wheel motor blocked
Grass or other objects is wound around the
drive wheel.
Examine the drive wheel and remove the
grass or other object.
Cutting system
blocked
Grass or other objects is wound around the
blade disc.
Examine the blade disc and remove the
grass or other object.
The blade disc are in a pool of water. Move the product and prevent the collection
of water in the work area.
Cutting height
blocked
Grass or other objects is wound around the
cutting height adjustment, or between the
blade disc and chassis.
Examine the blade disc and the bellows
around the cutting height adjustment, and re-
move any grass or other objects that may
have got stuck.
Trapped
The product is blocked in a small area be-
hind a number of obstacles.
Examine if there are obstacles which make it
hard for the product to move away from this
location.
1439 - 015 - 23.11.2022 Troubleshooting - 35
Message Cause Action
No loop signal
The power supply or the low-voltage cable is
not connected.
Examine the LED status on the charging sta-
tion. If there is no power to the charging
station, the LED is not lit. Examine the pow-
er outlet connection and if a residual-current
device is engaged. Make sure that the low-
voltage cable is connected to the charging
station.
The power supply or the low-voltage cable is
damaged.
Replace the power supply or low-voltage ca-
ble.
The boundary wire is not connected to the
charging station.
Make sure that the boundary wire connectors
are fitted properly to the charging station. Re-
place connectors if damaged. Refer to
To in-
stall the boundary wire on page 19
.
Boundary wire broken. Examine the LED on the charging station. If
the LED indicates that there is a break in
the boundary wire, find out where the break
is. Replace the damaged section of the loop
with a new loop wire. Use an original coupler
to make a splice of the loop ends. Refer to
Finding breaks in the loop wire on page 44
.
ECO mode
is activated and the product has
attempted to start outside the charging sta-
tion.
Put the product in the charging station. Start
the product. Refer to
Start on page 29
.
The boundary wire is crossed on its way to
and from an island.
Make sure that the boundary wire is put
down correctly. Refer to
To install the boun-
dary wire on page 19
.
The product does not find the loop signal
from the charging station.
Put the product in the charging station and
generate a new loop signal. Refer to
New
loop signal on page 27
.
Disturbances from metal objects (fences, re-
inforcement steel) or buried cables close by.
Try to move the boundary wire and/or make
more islands in the work area to increase the
signal strength.
The product is too far from the boundary
wire.
Redo the installation of the boundary wire so
that all parts of the work area is maximum 35
m / 115 ft. from the boundary wire.
Wrong PIN code
An incorrect PIN code has been entered. 5
tries are permitted, and the product is then
blocked for a period of time.
Enter the correct PIN code. Speak to your
local Husqvarna representative if you forget
the PIN code.
36 - Troubleshooting 1439 - 015 - 23.11.2022
Message Cause Action
Outside work area
The boundary wire connections to the charg-
ing station are crossed.
Make sure that the boundary wire is connec-
ted correctly to the charging station. Refer to
To install the boundary wire on page 19
.
The boundary wire is too close to the edge of
the work area.
Make sure that the boundary wire is put
down correctly. Refer to
To install the boun-
dary wire on page 19
.
The work area slopes too much by the boun-
dary loop.
The boundary wire is laid in the wrong direc-
tion around an island.
Disturbances from metal objects (fences, re-
inforcement steel) or buried cables close by.
Try to move the boundary wire and/or make
more islands in the work area to increase the
signal strength.
The product finds it hard to distinguish the
signal from another product installation close
by.
Put the product in the charging station and
generate a new loop signal. Refer to
New
loop signal on page 27
.
Empty battery
The product cannot find the charging station. Change the position of the guide wire. Refer
to
To install the guide wire on page 19
.
Check the installation settings about how to
find the charging station. Refer to
To find the
charging station on page 24
.
The battery is spent. Replace the battery. Refer to
Battery on
page 33
.
The charging station’s antenna is defective. Check if the indicator lamp in the charging
station flashes red. Refer to
LED indicator
lamp on the charging station on page 42
.
This problem requires action by authorized
service technician.
Slipped
The product has hit an obstacle and stopped
or the wheels cannot move on the wet grass.
Free the product and rectify the reason for
the lack of drive. If it is due to wet grass,
wait until the lawn has dried before using the
product.
The work area includes a steep slope. Maximum guaranteed slope is 45%. Steeper
slopes should be isolated. Refer to
To put
the boundary wire in a slope on page 15
.
The guide wire is not laid at an angle on a
slope.
If the guide wire is laid on a slope, it must be
laid at an angle across the slope. Refer to
To
examine where to put the boundary wire on
page 14
.
Wheel motor overloa-
ded
Grass or other objects is wound around the
drive wheel.
Examine the drive wheel and remove grass
or other objects.
1439 - 015 - 23.11.2022 Troubleshooting - 37
Message Cause Action
Charging station
blocked
The contact between the charging plates and
contact plates may be poor and the product
has made a number of attempts to charge.
Put the product in the charging station and
check that the charging plates and contact
plates make good contact.
An object is obstructing the product. Remove the object.
The charging station is tilted or bent. Confirm that the charging station is placed on
a fully flat and horizontal ground. The charg-
ing station must not be tilted or bent.
Stuck in charging sta-
tion
The product slips on the baseplate. Clean the baseplate.
There is an object in the way of the product
preventing it from leaving the charging sta-
tion.
Remove the object.
Upside down
The product is leaning too much or has
turned over.
Turn the product the right way up.
Mower tilted
The product is tilted more than the maximum
angle.
Move the product to a flat area.
Needs manual charg-
ing
The product is set to the
Secondary area
op-
erating mode.
Place the product in the charging station.
This behavior is normal and no action is re-
quired.
Next start hh:mm
The schedule setting prevents the product
from operating.
Change the schedule settings. Refer to
Schedule on page 22
.
The clock on the product is not correct. Set the time. Refer to
Time & date on page
27
.
Lifted
The lift sensor is engaged because the prod-
uct hit an object or/and is blocked.
Free the product. If the problem stays, speak
to your approved servicing dealer.
Collision sensor
problem, front/rear
The body of the product can not move freely
around its chassis.
Remove dirt or objects between the chassis
and the body to make sure that the body can
move freely around the chassis.
The product has become stuck. Free the product and rectify the reason.
Wheel motor blocked
right/left
Grass or other object is wrapped around the
drive wheel.
Clean the wheels and around the wheels.
Alarm! Mower switch-
ed off
The alarm was activated because the prod-
uct was switched OFF.
Adjust the mower security settings in the
Se-
curity
menu. Refer to
Security (Bluetooth
®
only) on page 27
.
Alarm! Mower stop-
ped
The alarm was activated because the prod-
uct was stopped.
Alarm! Mower lifted
The alarm was activated because the prod-
uct was lifted.
Alarm! Mower tilted
The alarm was activated because the prod-
uct was tilted.
38 - Troubleshooting 1439 - 015 - 23.11.2022
Message Cause Action
Electronic problem
Temporary electronic or firmware related is-
sue in the product.
Restart the product.
If the problem stays, speak to your approved
servicing dealer.
Loop sensor prob-
lem, front/rear
Tilt sensor problem
Temporary problem
Wheel drive problem,
right/left
Invalid device combi-
nation
Ultrasonic problem
GPS navigation prob-
lem
Temporary battery
problem
Faulty mix of batter-
ies
Charging system
problem
There is corrosion or dirt on the charging
plates and contact plates.
Restart the product. Clean the charging
plates on the product and the contact plates
on the charging station.
Temporary electronic or firmware problem in
the product.
Restart the product. If the problem stays,
speak to your approved servicing dealer.
Battery problem
Temporary battery or firmware related issue
in the product.
Restart the product.
If the problem stays, speak to your approved
servicing dealer.
Wrong type of battery Use only original batteries recommended by
the manufacturer.
Battery temperature
outside limits
The product does not operate if the battery
temperature is too high or too low.
The product starts to operate again when the
temperature is between the set limits and the
schedule settings let the product to operate.
Make sure that the charging station is put in
an area with protection from the sun.
Charging current too
high
Wrong or faulty power supply unit. Restart the product.
If the problem stays, speak to your approved
servicing dealer.
Connectivity problem
Potential problem on the connectivity circuit
board in the product.
Restart the product.
If the problem stays, speak to your approved
servicing dealer.
Cutting system major
imbalance
There is vibrations in the blade disc. Continued operation can cause damage to
the cutting system. Examine that the blades
and screws are not damaged or worn. Make
sure that all blades are correctly installed and
that there is only one blade attached in each
position on the blade disc.
1439 - 015 - 23.11.2022 Troubleshooting - 39
6.3 Information messages
The list below shows a number of information messages that may be found in the
Messages
menu in the Automower
®
Connect app. Contact your local Husqvarna representative if the same message appears often.
Message Cause Action
Low battery
The product cannot find the charging station. Change the position of the guide wire. Refer
to
To install the guide wire on page 19
.
Make sure that the installation settings about
how to find the charging station is correct.
Refer to
To find the charging station on page
24
.
The battery is spent. Replace the battery. Refer to
Battery on
page 33
.
The charging station’s antenna is defective. Check if the indicator lamp in the charging
station flashes red. Refer to
LED indicator
lamp on the charging station on page 42
.
This problem requires action by authorized
service technician.
Settings restored
Confirmation that a
Reset all user settings
has been carried out.
This is normal. No action required.
Limited cutting height
The cutting height adjustment cannot move. Examine the cutting height adjustment and
remove grass or other objects. If the problem
stays, speak to your approved servicing deal-
er.
Unexpected cutting
height adj
Limited cutting height
range
Cutting height prob-
lem
Cutting height
blocked
Cutting system imbal-
ance
The product has discovered vibrations in the
blade disc.
Verify that the blades and screws are in-
tact and not worn out. Verify that all blades
are correctly mounted. Check that no dou-
ble blades are mounted on any of the three
blade positions.
Slope too steep
The product stopped because the slope is
too steep.
Change the installation of the boundary wire
to not include this steep part of the work
area. Refer to
To install the boundary wire
on page 19
.
Guide 1 not found
Guide 2 not found
Guide 3 not found
The guide wire is not connected to the charg-
ing station.
Check that the guide wire’s connector is
tightly connected to the charging station. Re-
fer to
To install the guide wire on page 19
.
Break in the guide wire. Find out where the break is. Replace the
damaged section of the guide wire with a
new loop wire and splice using an original
coupler.
The guide wire is not connected to the boun-
dary loop.
Check that the guide wire is connected cor-
rectly to the boundary loop. Refer to
To in-
stall the guide wire on page 19
.
40 - Troubleshooting 1439 - 015 - 23.11.2022
Message Cause Action
Guide calibration
failed
The product has failed to calibrate the guide
wire.
Check that the guide wires are installed ac-
cording to the instructions. Refer to
To install
the guide wire on page 19
. The next time the
product moves out from the charging station,
a new guide calibration is done.
Guide calibration ac-
complished
The product has succeeded to calibrate the
guide wire.
No action required.
GPS navigation prob-
lem
Problem with the GPS assisted navigation
equipment.
Contact your local Husqvarna representative
if this message appears often.
Weak GPS signal
The sky is blocked in large parts of the work
area.
If possible, remove objects that can cause a
blockage of the GPS signal.
Disable the GPS navigation function and use
the lawn coverage function. Refer to
Lawn
coverage on page 25
.
Difficult finding home
The product has been following the boundary
wire several laps without finding the charging
station.
The installation has not been done correctly.
Refer to
Installation on page 24
.
Wrong corridor width setting on boundary
wire. Refer to
Corridor width on page 26
.
The product was started on a Secondary
area with the Main area setting.
Temporary problem
with the server.
Please try again. Contact your local Husqvarna representative
if this message appears often.
Connection problems
Problem with the Automower
®
Connect mod-
ule
Restart the product. If there still is a connec-
tion problem, try to unpair the product
(My
mowers)
and then pair it again. If the prob-
lem remains, contact your local Husqvarna
representative.
Connection settings
restored
Settings for wireless connectivity have been
restored due to an error.
Check and revise settings if necessary.
SIM card requires
PIN
The SIM card must be unlocked. Make sure the correct SIM PIN has been
entered into the mower's menu (Network >
SIM card). Contact your local Husqvarna rep-
resentative if this message appears often.
SIM card locked
The SIM card must be replaced. Contact your local Husqvarna representative.
SIM card not found
Automower
®
Connect requires a SIM card to
be inserted in the mower.
Contact your local Husqvarna representative.
GeoFence problem
The GeoFence is not work due to poor (or
no) communication with the system.
Contact your local Husqvarna representative.
1439 - 015 - 23.11.2022 Troubleshooting - 41
6.4 LED indicator lamp on the charging station
For a fully functional installation, the indicator lamp in the charging station must emit a solid or flashing green light. If
any other color than green is visible, follow the troubleshooting guide below.
There is more help on www.husqvarna.com. If you still need help, please contact your local Husqvarna
representative.
Light Cause Action
Green solid light Good signals No action required
Green flashing light The signals are good and
ECO mode
is acti-
vated.
No action required. For more information on
ECO mode
. Refer to
ECO mode on page 24
.
Blue flashing light The boundary loop is not connected to the
charging station.
Check that the boundary wire connectors are
fitted properly to the charging station. Refer
to
To install the boundary wire on page 19
.
Break in the boundary loop. Find out where the break is. Replace the
damaged section of the loop with a new loop
wire and splice using an original coupler.
Red flashing light Interruption in the charging station’s antenna. Contact your local Husqvarna representative.
Red solid light Fault in the circuit board or incorrect pow-
er supply in the charging station. The fault
should be rectified by an authorized service
technician.
Contact your local Husqvarna representative.
6.5 LED indicator lamp on the product
There is a LED indicator lamp on top of the product, which shows the current status:
Light Cause Action
Green solid light The product is either mowing the lawn, or
leaving the charging station.
No action required.
Blue solid light The product is either paused, parked, charg-
ing or is searching for the charging station.
No action required.
Yellow solid light The
STOP button has been pressed. Press the START button on top of the prod-
uct to start it again.
Red solid light The product has stopped due to an error. Clear the error by pressing the
STOP button,
and then activate the product by pressing the
START button on top of the product.
Yellow flashing light The product requests the PIN code. The PIN code needs to be confirmed in the
Automower
®
Connect app before the product
can be activated.
There is more help on www.husqvarna.com. If you still need help, please contact your local Husqvarna
representative.
42 - Troubleshooting 1439 - 015 - 23.11.2022
6.6 Symptoms
If your product does not work as expected, follow the symptoms guide below.
There is a FAQ (Frequently Asked Questions) on www.husqvarna.com which provides more detailed answers to a
number of standard questions. Contact your local Husqvarna representative if you still cannot find the reason for the
fault.
Symptoms Cause Action
The product has diffi-
culty docking.
The boundary wire is not laid in a long
straight line that is far enough out from the
charging station.
Check that the charging station has been
installed correctly. Refer to
To install the
charging station on page 18
The charging station is on a slope. Place the charging station on a surface that
is entirely level. Refer to
To examine where
to put the charging station on page 13
.
The product runs at
the wrong time
The product clock needs to be set. Set the clock. Refer to
Time & date on page
27
.
The start and stop times for mowing are in-
correct.
Reset the start time and stop time settings
for mowing. Refer to
Schedule on page 22
.
The product vibrates. Damaged blades lead to imbalance in the
cutting system.
Inspect the blades and screws and replace
them if necessary. Refer to
Replacement of
the blades on page 33
.
Too many blades in the same position lead
to imbalance in the cutting system.
Check that only one blade is fitted at each
screw.
Different versions (thickness) of Husqvarna
blades are used.
Check if the blades are of different versions.
The product runs, but
the blade disc does
not rotate.
The product searches for the charging sta-
tion.
No action. The blade disc does not rotate
when the product is searching for the charg-
ing station.
The product mows
for shorter periods
than usual between
charges.
Grass or other foreign object blocks the
blade disc.
Remove and clean the blade disc. Refer to
To clean the chassis and blade disc on page
32
.
The battery is spent. Replace the battery. Refer to
Battery on
page 33
.
Both the mowing and
charging times are
shorter than usual.
The battery is spent. Replace the battery. Refer to
Battery on
page 33
.
The product is
parked for hours in
the charging station.
The product is parked due to a schedule set-
ting, or because
Park until further notice
has
been chosen in the app.
Open the app and edit the schedule settings,
or go to
Dashboard
and start the product.
The product does not operate if the battery
temperature is too high or too low.
The product starts to operate again when the
temperature is between the set limits and the
schedule settings let the product to operate.
Make sure that the charging station is put in
an area with protection from the sun.
The product often
moves in circles or
spirals.
Spiral cutting is a natural part of the product's
movement patter.
Adjust the intensity of spiral cutting. This
function can be disabled if necessary. Refer
to
Spiral cutting on page 23
.
1439 - 015 - 23.11.2022 Troubleshooting - 43
Symptoms Cause Action
The product turns
round and stays on a
small area for several
minutes.
This is completely normal for the product.
The product have GPS assisted navigation
that contributes to an even result.
No action.
Uneven mowing re-
sults.
The product works too few hours per day. Increase the mowing time. Refer to
Schedule
on page 22
.
The
Weather timer
senses that the lawn has
been mowed more than it actually has. In-
crease the intensity level in the
Weather tim-
er
. Disable the
Weather timer
if this does not
help.
The settings for the
Lawn coverage
function
are incorrect in relation to the layout of the
work area. Note: Not applicable if GPS assis-
ted navigation is enabled.
Do a check of the settings for the
Lawn cov-
erage
function. Refer to
Lawn coverage on
page 25
Lawn coverage.
The shape of the work area requires the use
of
Area 1-5
for the product to find its way to
all remote areas. Note: Not applicable if GPS
assisted navigation is enabled.
Use
Area 1-5
to steer the product to a re-
mote area. Refer to
Lawn coverage on page
25
.
Work area is too large. Try to limit the work area, or to extend the
work time. Refer to
Schedule on page 22
.
Dull blades. Replace all the blades. Refer to
Replace-
ment of the blades on page 33
.
Long grass in relation to the set cutting
height.
Increase the cutting height and then succes-
sively lower it.
Accumulation of grass by the blade disc or
around the motor shaft.
Check that the blade disc rotates freely and
easily. If not, screw off the blade disc and
remove grass and foreign objects. Refer to
To clean the chassis and blade disc on page
32
.
6.7 Finding breaks in the loop wire
Breaks in the loop wire are usually the result of
unintentional physical damage to the wire such as when
gardening with a shovel. In countries with ground frost,
also sharp stones that move in the ground can damage
the wire. Breaks can also occur due to the wire being
stretched excessively during installation.
Mowing the grass too low right after the installation can
damage wire insulation. Damage to the insulation may
not cause disruptions until several weeks or months
later.
CAUTION: Always select the maximum
cutting height the first weeks after
installation and then lower the height one
step at a time every second week until the
desired cutting height has been reached.
A defective splicing of the loop wire can also lead to
disruptions several weeks after the splice was done.
A faulty splice can, for example, be the result of the
coupler not being pressed together hard enough with a
pair of pliers, or that a coupler of lower quality than the
original coupler has been used.
Note: Please first check all known splices before
further troubleshooting is done.
A wire break can be located by gradually halving the
distance of the loop where the break may have occurred
until there is only a very short section of the wire left.
The following method does not work if
ECO mode
is
activated. Make sure first that
ECO mode
is turned off.
Refer to
ECO mode on page 24
.
1. Check that the indicator lamp in the charging
station flashes blue, which indicates a break in the
boundary loop. Refer to
LED indicator lamp on the
charging station on page 42
.
44 - Troubleshooting 1439 - 015 - 23.11.2022
2. Check that the boundary wire connections to the
charging station are properly connected and not
damaged. Check that the indicator lamp in the
charging station is still flashing blue.
AR
AL
G1
POWER
3. Switch the connections between the guide wire
and the boundary wire in the charging station.
Start by switching connection AL and G1. Some
models have additional guide wires . The same
procedure can be followed for them.
If the indicator lamp is lit with a solid green light,
then the break is somewhere on the boundary wire
between AL and the point where the guide wire is
connected to the boundary wire (thick black line in
the illustration).
Guide
GUIDE
AL
To rectify the fault you will need boundary wire,
connector(s) and coupler(s):
a) If the suspected boundary wire is short then it
is easiest to exchange all of the boundary wire
between AL and the point where the guide wire is
connected to the boundary wire (thick black line).
b) If the suspected boundary wire is long (thick
black line) then do as follows: Put AL and G1
back to their original positions. Then disconnect
AR. Connect a new loop wire to AR. Connect the
other end of this new loop wire at the middle of the
suspected wire section.
1439 - 015 - 23.11.2022 Troubleshooting -
45
AR
If the indicator lamp now is green, then the
break is somewhere in the wire between the
disconnected end to the point where the new wire
is connected (thick black line below). In that case,
move the connection for the new wire closer to
the disconnected end (roughly at the middle of
the suspected wire section) and check again if the
indicator lamp is green.
Continue until only a very short section of the wire
remains which is the difference between a solid
green light and a flashing blue light. Then follow
instruction in step 5 below.
4. If indicator lamp still flashes blue in step 3
above:Put AL and G1 back in their original
positions. Then switch AR and G1. If indicator lamp
now is lit with a solid green light then disconnect
AL and connect a new boundary wire to AL.
Connect the other end of this new wire at the
middle of the suspected wire section. Follow the
same approach as in 3a) and 3b) above.
5. When the break is found, the damaged section
must be replaced with a new wire. Always use
original couplers.
46 - Troubleshooting 1439 - 015 - 23.11.2022
7 Transportation, storage and disposal
7.1 Transportation
The supplied Li-ion batteries obey the Dangerous Goods
Legislation requirements.
• Obey all applicable national regulations.
• Obey the special requirement on package and
labels for commercial transportations, including by
third parties and forwarding agents.
7.2 Storage
• Fully charge the product. Refer to
To charge the
battery on page 30
.
• Disconnect the product with the main switch. Refer
to
To set the product to OFF on page 30
.
• Clean the product. Refer to
Clean the product on
page 32
.
• Keep the product in a dry, frost free space.
• Keep the product with all wheels on level ground
during storage, or use a Husqvarna wall hanger.
• If you keep the charging station indoors,
disconnect and remove the power supply and all
the connectors from the charging station. Put the
end of each connector wire in a container with
grease.
Note: If you keep the charging station outdoors, do
not disconnect the power supply and the connectors.
7.3 Disposal
• Obey the local recycling requirements and
applicable regulations.
• For questions about how to remove the battery,
refer to
To remove the battery on page 47
.
7.3.1 To remove the battery
CAUTION: Only remove the battery
when you dispose the product. When you
remove the warranty seal, the Husqvarna
warranty is no longer applicable.
1. Disconnect the product with the Main switch. Refer
to
To set the product to OFF on page 30
.
2. Pull out the grommet on the charging cable at the
very front of the product, and carefully remove the
connector.
3. Lift the cover, one corner at a time.

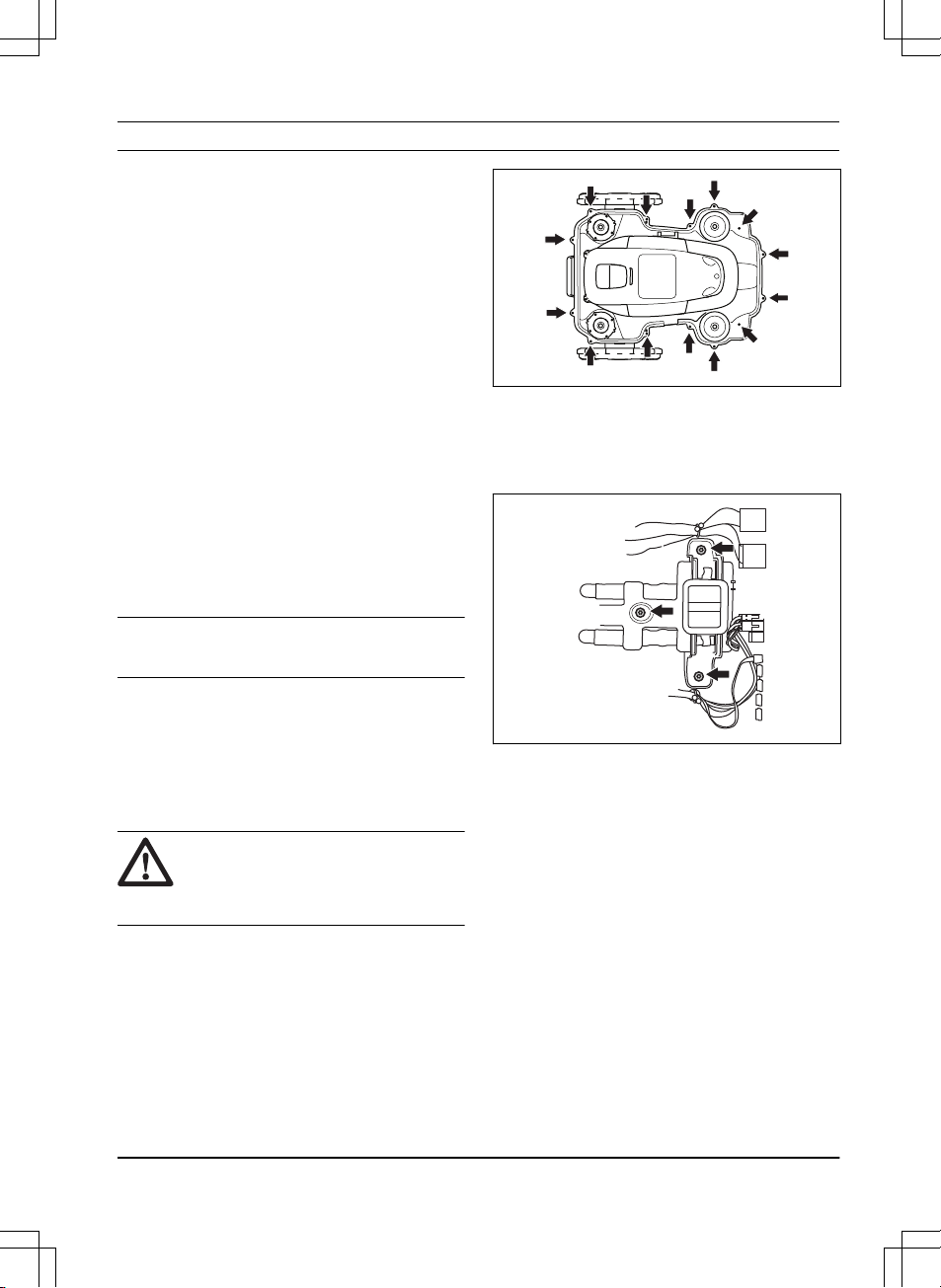

4. Remove the 14 screws with a Torx 20.
5. Lift the rear edge of the top section of the chassis.
6. Disconnect the cable from the main circuit board.
7. Remove the top section of the chassis.
8. Remove the 3 screws that holds the battery with a
Torx 20.
9. Disconnect the battery connection from the main
circuit board.
10. Open the battery cover and remove the battery.
1439 - 015 - 23.11.2022 Transportation, storage
and disposal -
47
8 Technical data
8.1 Technical data
Dimensions Automower
®
520 Automower
®
550
Length, cm / in. 72 / 28.3 72 / 28.3
Width, cm / in. 56 / 22 56 / 22
Height, cm / in. 31 / 12 31 / 12
Weight, kg / lb 13.3 / 29.3 12.9 / 28.4
Electrical system Automower
®
520 Automower
®
550
Battery, Lithium-Ion 18.5 V/4.0 Ah Art. No. 593 11 41-06
Battery, Lithium-Ion 18 V/5.2 Ah Art. No. 588 14 64-01 (2 pcs.) 5.2
Ah/ battery
Battery, Lithium-Ion 18V, 4.0 Ah, Art. No 593 11 41-02, 593 11
42-01, 593 11 41-04, 580
68 33-03, 593 11 41-05,
593 11 41-08
Battery, Lithium-Ion 18.25V, 4.0 Ah, Art. No 593 11 41-03, 593 11
42-02, 580 68 33-04
Battery, Lithium-Ion 18V, 5.0 Ah, Art. No 593 11 84-01, 593 11
84-03, 588 14 64-02, 593
11 84-04, 593 11 84-05,
593 11 84-06 (2 pcs.) 5.0
Ah/battery
Battery, Lithium-Ion 18V, 4.9 Ah, Art. No 593 11 84-02, 588 14
64-03 (2 pcs.) 4.9 Ah/bat-
tery
Power supply (28V DC), V AC 100-240 100-240
Low-voltage cable length, m / ft 10 / 33 10 / 33
Mean energy consumption at maximum use 17 kWh/month 23 kWh/month
Charging current, A DC 2.2 7
Type of Power Supply Unit
6
ADP-60JR XX,
FW7438/28/D/XX/Y
ADP-200JR XX,
FW7458/28/D/XX/Y
Average mowing time, min 75 270
Average charging time, min 50 60
6
XX, YY can be any alphanumeric characters or blank for marketing purpose only, no technical differences.
48 - Technical data 1439 - 015 - 23.11.2022
Boundary wire antenna Automower
®
520 Automower
®
550
Operating Frequency Band, Hz 100-80000 100-80000
Maximum magnetic field
7
, dBuA/m 82 82
Maximum Radio-frequency power
8
, mW @60m <25 <25
Sound data
9
Automower
®
520 Automower
®
550
Sound level, perceived, dB (A) 64 65
Measured sound power noise level, dB (A) 64 65
Noise emissions uncertainties K
WA
, dB (A) 3 2
Sound pressure noise level at the operator’s ear
10
, dB
(A)
56 57
Mowing Automower
®
520 Automower
®
550
Cutting system 5 pivoted cutting blades
Maximum cutting motor speed, rpm 2300 2300
Power consumption during cutting, W +/- 20 % 30 35
Cutting height, cm / in. 2-6 / 0.8-2.4 2-6 / 0.8-2.4
Cutting width, cm / in. 24 / 9.4 24 / 9.4
Narrowest possible passage, cm / in. 60 / 24 60 / 24
Maximum slope for cutting area, % 45 45
Maximum slope for boundary wire, % 15 15
Maximum length boundary wire, m / ft 800 / 2600 800 / 2600
Maximum length guide loop
11
, m / ft 400 / 1300 400 / 1300
Maximum distance to boundary wire, m / ft 35 / 115 35 / 115
Working area capacity, pro sports quality 1700 / 0.4 3500 / 0.9
Working area capacity, pro quality 2400 / 0.6 5000 / 1.25
Working area capacity, regular quality 3000 / 0.75 6000 / 1.5
IP-code Automower
®
520 Automower
®
550
Robotic lawn mower IPX4 IPX4
Charging station IPX1 IPX1
Power supply IP44 IP44
7
Measured according to EN 303 447.
8
Maximum active output power to antennas in the frequency band in which the radio equipment operates.
9
Determined according to Directive 2006/42/EC and standard EN 50636-2-107. Except Sound level, perceived
that is measured according to ISO 11094:1991.
10
Sound pressure noise uncertainties K
pA
, 2-4 dB (A).
11
The guide loop is the loop that if formed by the guide wire and the part of the boundary wire from the junction
with the guide wire to the right connection in the charging station.
1439 - 015 - 23.11.2022 Technical data -
49
Frequency Band Support
Bluetooth
®
Frequency range 2400.0-2483.5 MHz
Automower
®
Connect 2G GSM 850 MHz, E-GSM 900 MHz, DCS 1800 MHz, PCS 1900 MHz
Automower
®
Connect 3G Band 19 (800 MHz), Band 5 (850 MHz), Band 8 (900 MHz), Band 2 (1900
MHz), Band 1 (2100 MHz)
Automower
®
Connect 4G Band 12 (700 MHz), Band 17 (700 MHz), Band 28 (700 MHz), Band 13 (700
MHz), Band 20 (800 MHz), Band 26 (850 MHz), Band 5 (850 MHz), Band 19
(850 MHz), Band 8 (900 MHz), Band 4 (1700 MHz), Band 3 (1800 MHz), Band
2 (1900 MHz), Band 25 (1900 MHz), Band 1 (2100 MHz), Band 39 (1900 MHz)
Power Class
Bluetooth
®
Output power 8 dBM
Automower
®
Connect 2G Power Class 4 (GSM/E-GSM) 33 dBm
Power Class 1 (DCS/PCS) 30 dBm
Power Class E2 (GSM/E-GSM) 27 dBm
Power Class E2 (DCS/PCS) 26 dBm
Automower
®
Connect 3G Power Class 3 24 dBm
Automower
®
Connect 4G Power Class 3 23 dBm
Deviations from this general technical data are included in the country specific chapters.
Full compatibility cannot be guaranteed between the product and other types of wireless systems such as remote
controls, radio transmitters, hearing loops, buried electric animal fencing or similar.
The products are made in England or the Czech Republic. See information on the rating plate. Refer to
Product
overview on page 7
.
8.2 Registered trademarks
The
Bluetooth
®
word mark and logos are registered trademarks owned by
Bluetooth SIG, inc.
and any use of such
marks by Husqvarna is under license.
50 - Technical data 1439 - 015 - 23.11.2022
9 Original EU Declaration of Conformity
1439 - 015 - 23.11.2022 Original EU Declaration of
Conformity - 51
10 EU Declaration of Conformity
We, Husqvarna AB, SE 561 82 Huskvarna, SWEDEN,
Tel. +46 36 146500 declare on our sole responsibility
that the product:
Description Robotic lawn mower
Brand Husqvarna
Type/Model HUSQVARNA AUTOMOWER
®
520/550
Identification Serial numbers dating from 2022 week 46
complies fully with the following EU directives and
regulations:
Regulation Description
2006/42/EC "Relating to machinery"
2014/53/EU "Relating to radio equipment"
2011/65/EU "Restriction of use of certain hazardous substances"
and that the following harmonized standards and/or
technical specifications are applied;
• EN 60335-1:2012+AC:2014+A11:2014+A13:2017
• EN 50636-2-107:2015+A1:2018+A2:2020
• EN IEC 63000:2018
• EN 61000-6-1:2007
• EN 61000-6-3:2007+A1:2011+AC:2012
• ETSI EN 301 489-1 V2.2.3
• ETSI EN 301 489-3 V2.1.1
• ETSI EN 301 489-17 V3.2.4
• ETSI EN 303 447 V1.3.1
• ETSI EN 300 328 V2.2.2
and for HUSQVARNA AUTOMOWER
®
equipped with
Automower Connect 3G/2G:
• ETSI EN 301 489-52 V1.2.1
• ETSI EN 301 489-19 V2.1.1
• ETSI EN 301 908-1 V15.1.1
• ETSI EN 301 908-2 V13.1.1
• ETSI EN 301 511 V.12.5.1
• ETSI EN 303 413 V1.2.1
for HUSQVARNA AUTOMOWER
®
equipped with
Automower Connect 4G/2G:
• ETSI EN 301 489-52 V1.2.0
• ETSI EN 301 489-19 V2.1.1
• ETSI EN 301 908-1 V15.1.1
• ETSI EN 301 908-13 V13.1.1
• ETSI EN 301 511 V.12.5.1
• ETSI EN 303 413 V1.2.1
Manne Alzén
Huskvarna
Director Pro Robotics R&D. Husqvarna AB, Husqvarna
Division. Responsible for technical documentation.
52 - EU Declaration of Conformity 1439 - 015 - 23.11.2022
11 Original UK Declaration of Conformity
1439 - 015 - 23.11.2022 Original UK Declaration of
Conformity - 53
54 - Original UK Declaration of
Conformity
1439 - 015 - 23.11.2022
1439 - 015 - 23.11.2022 Original UK Declaration of
Conformity - 55
www.husqvarna.com
AUTOMOWER
®
is a trademark owned by Husqvarna AB.
Copyright
©
2022 HUSQVARNA. All rights reserved.
Original instructions
1143004-26
2022-11-23
