Read before use & keep for future reference.
GRANDFALLS PRESSURE
WASHER WITH 65FT
PRESSURE HOSES
Model P115-G20Pro/P115-G20-SLI-Pro
P115-G20BPro/P115-G20B-SLI-Pro
For more information visit giraffetools.com or contact our customer service by sending an email to service@giraffetools.com
3
MANUAL CONTENTS
Product Information
What’s Included
Open-Box Check
Safety Rules
Tools Requirement
Using Steps
After Use Tips
Problems Solution
Warranty
Recommended Products
03
04
05
05
09
09
1 3
1 5
1 6
1 8
------------
------------------
-----------------
----------------------
--------------
-----------------------
-------------------------
-------------------
-------------------------------
-----------
Note: Installation Template is attached separately.
3

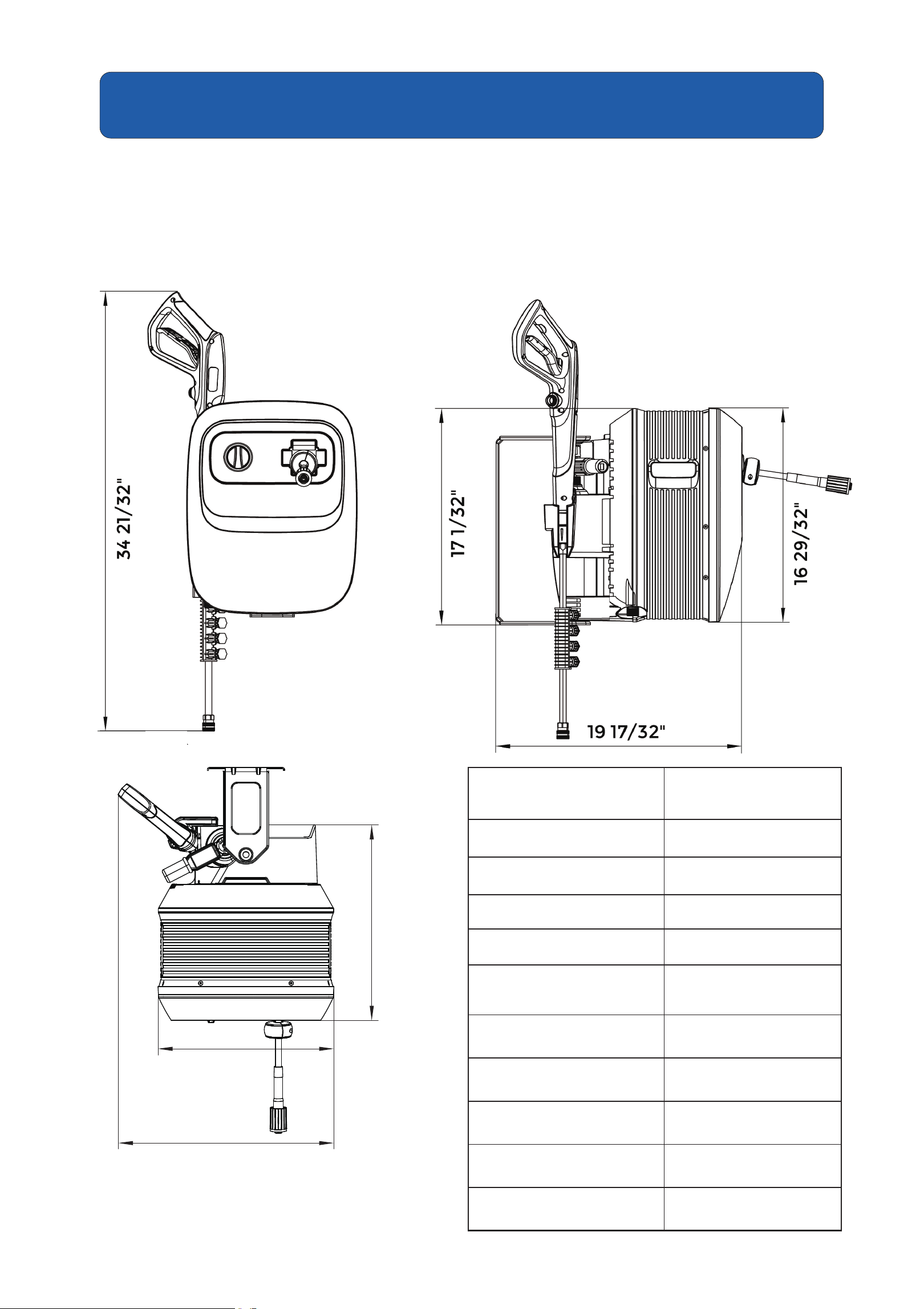

PRODUCT INFORMATION
Thank you for choosing Giraffe Tools Grandfalls Pressure Washer Series. Before using the
pressure hose reel, please read the following installation instructions and refer to them
when necessary.
Drill Size 12mm
Pressure Hose Length 65ft
Rated Voltage/Freq 120V / 60Hz
Power 1800W
Electric Current 15A
Max Water Inlet
Temperature
140°F/60°C
Power Cord Length 6ft
Peak Pressure 2500 PSI
Rated Max Pressure 1900 PSI
Max Flow 2.2 GPM
Rated Flow 1.2 GPM
14 63/64"
13 15/32"
16 3/4"
4 5

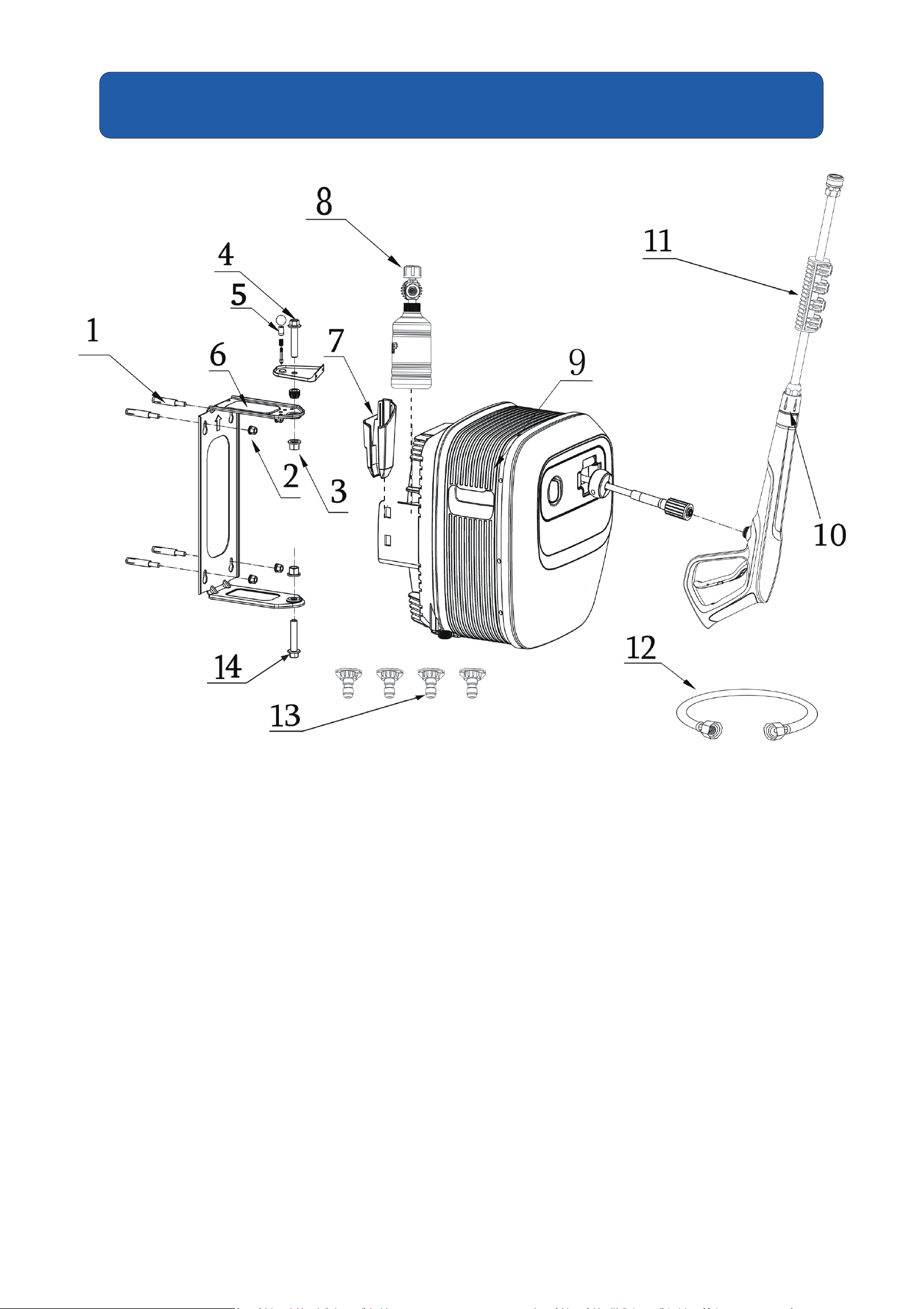

WHAT’S INCLUDED
4 x Expansion Bolts: M8*70
4 x Expansion Nuts: M8
2 x Expansion Nuts: M12
Expansion Bolts: M12*80
Rotating Bracket
Wall Base
Foam Pot Hanger
Foam Pot
Pressure Washer
Metal High Pressure Gun
Metal Gun Lance
5FT Lead-in Hose(One end with lter)
4 x Quick-Connect Nozzles(0°, 15°, 25°, 40° )
Expansion Bolts: M12*60
1.
2.
3.
4.
5.
6.
7.
8
9.
10.
11.
12.
13.
14.
5
OPEN-BOX CHECK
SAFETY RULES
1. Conrm that the above parts are included in your package.
2. Check for any scratches or damage done to the product.
3. If your product is missing parts or has visible damage upon receipt, please contact
the Giraffe Tools customer service team.
Note: If you notice an initial aroma upon opening your package,this is due to the sealed
environment in which the package traveled overseas.
Safety “Must Nos”
DO NOT use the appliance with inammable or toxic liquids, or any products which
are not compatible with the correct operation of the appliance. EXPLOSION OR
POISONING HAZARD
DO NOT direct the water jet towards the unit itself, electrical parts or towards other
electrical equipment. ELECTRIC SHOCK HAZARD
DO NOT direct the water jet towards people or animals. INJURY HAZARD
DO NOT touch the plug and/or socket with wet hands. ELECTRIC SHOCK HAZARD
DO NOT allow children or incompetent persons to use the appliance. INJURY
HAZARD
DO NOT use the appliance if the electrical cable is damaged. ELECTRICI SHOCK
AND SHORT CIRCUIT HAZARD
DO NOT use the appliance if some important components like electrical cable, high
pressure hose, gun and safety devices etc are damaged. EXPLOSION AND ELECTRIC
1.
2.
3.
4.
5.
6.
7.
Foam Pot
Pressure Washer
Metal High Pressure Gun
Metal Gun Lance
5FT Lead-in Hose(One end with lter)
4 x Quick-Connect Nozzles(0°, 15°, 25°, 40° )
Expansion Bolts: M12*60
6 7
SHOCK HAZARD
DO NOT jam the trigger in the opening position. ACCIDENT HAZARD
Check the data plate attached to the appliance. If not available, please contact the
dealer. Do Not use the appliance without data plate because it’s not sure safe or
dangerous.
DO NOT tamper with or adjust the setting of safety valve or the safety devices.
EXPLOSION HAZARD
DO NOT alter the original diameter of the spray head nozzle and other operation
setting;
Make sure that the high pressure hose are free of being pressed by car or other heavy
objects or cut by sharp objects;
DO NOT leave the appliance unattended ACCIDENT HAZARD
When directed towards tyres, tyre valves or other pressurized components, the high
pressure jet is potentially dangerous. Do not use the rotating nozzle kit, and always
keep the jet at a distance of at least 30 cm during cleaning. EXPLOSION HAZARD
DO NOT use this appliance to clean fragile objects. DAMAGE HAZARD
Check that the electrical supply voltage and frequency correspond to those specied
on the appliance data plate.
The appliance should only be connected to a mains power supply equipped with an
adequate earth connection.
DO NOT use the appliance after drinking alcohol, taking medicine or being tired;
DO NOT direct the jet towards the not strong wall to avoid damage and danger;
Use only extension electrical cable with waterproof plug and socket;
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
7
All electrical conductors MUST BE PROTECTED against the water jet. SHORT CIRCUIT
HAZARD
The appliance MUST ONLY BE CONNECTED to an adequate power supply in
compliance with all applicable regulations. ELECTRIC SHOCK HAZARD
Use of a safety residual current circuit-breaker (R.C.C.B) will provide
additionalprotection for the operator:
Appliance without plug MUST be installed by qualied staff;
Use only authorized electrical extension leads with suitable conductor gauge.
High pressure may cause parts to rebound: wear all the protective clothing and
equipment needed to ensure the operator’s safety. INJURY HAZARD
Plug MUST be pulled out after shutting the appliance or the appliance might start
automatically or burn itself;
Holding the gun rmly before triggering it. INJURY HAZARD
COMPLY WITH the requirements of the local water supply company. According to EN
12729(BA), the appliance may only be connected to the mains drinking water supply if
a back ow prevented valve with drain facility is installed in the supply hose.
1.
2.
3.
4.
5.
6.
7.
8.
SAFETY “MUSTS”
Connecting or replace plug and electrical cable MUST be carried out by qualied staff;
DO NOT pull ercely when discharging the plug;
Electrical cable should be far away from re and sharp object;
Cut the power supply immediately in case of breakdown or stop and find out the
reason before re-start the appliance;
To be sure the appliance standing on dry surface.
21.
22.
23.
24.
25.
8 9
CONTAMINATION HAZARD
Maintenance and/or repair of electrical components MUST be carried out by qualied
staff. ACCIDENT HAZARD
Shut down the appliance, cut power supply and water supply. Then, discharge the
residual pressure by triggering the gun before disconnecting the unit hose. INJURY
HAZARD
Before using the appliance, CHECK every time that the screws are fully tightened and
that there are no broken or worn parts. ACCIDENT HAZARD
ONLY USE detergents which will NOT corrode the coating materials of the high
pressure hose/electrical cable. EXPLOSION AND ELECTRIC SHOCK HAZARD
ENSURE that all people or animals keep a minimum distance of 16yd. (15M) away.
INJURY HAZARD
The unit should xed when it’s working.
This appliance can NOT be stored in damp environment;
When stopping the appliance, shut the appliance’s switch before pulling plug out;
Use only original or manufacturer approved spare parts for safety sake
Total Stop (motor stops when trigger released) does NOT always keep effective and
the appliance can NOT be at Total Stop for long time. If ineffective ( for inner seal
damaged, local voltage too low etc), MUST turn off the switch to stop the machine
during working;
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
9
Do not tamper with or adjust the safety valve setting.
Safety valve and/or pressure limiting valve.
The safety valve is also a pressure limiting valve.
When the gun trigger is released, the valve opens and the water recirculates
through the pump inlet or is discharged onto the ground.
Safety catch (see Connection of gun and hose)
Prevent accidental spraying of water.
Air outlet on plastic case and it should NOT be blocked during operation, or re or
electric shock hazard is possible
SAFETY “MUSTS”
Caution – Danger!
1.
2.
3.
TOOLS REQUIREMENT
●
Electric drill
●
Hammer
●
Wrench
●
Socket set or a Phillips screwdriver
Due to the weight of the pressure washer and the pulling force during use, the bracket
base must be installed on a solid surface. As a matter of convenience, please install the
pressure washer close to your cordon socket and make sure the plug can reach that
socket.
USING STEPS
Choose a Place
10 11
Tips: Please measure the correct drill bit width to use. Ensuring the wall anchors
have a secure t, you may drill slightly under size since masonry materials all have
different sizing properties.
Note: Please install the pressure washer at a height of approximately 24-32in above
the ground to maximize the function of auto-retraction.
Use the installation template to mark the location of the 4 holes.
Use a drill bit with a diameter of 12mm (recommend a 29/64" or 15/32" or 31/64" drill)
and a length of more than 100mm / 3 47/50in. to drill 60mm / 2 9/25in. deep holes.
Please ensure the diameter after drilling is between 12mm / 47/100in. to 12.5mm /
49/100in.
Hammer the wall anchor into the 4 holes.
Hold the bracket base in place, put the nut in and then tighten it.
1.
2.
3.
4.
Installing the Bracket
Tips: Depth and the diameter after drilling are important. If the hole is too deep
and the wall anchor is rotating, use a matchstick or similar tool to tighten the hole
tightly.
Note: The rotating bracket is designed to x the pressure washer without shaking
during use.
11
Slide the pressure washer bracket onto the wall base, use 2 expansion bolts and nuts
to tighten it.
Fixing the matching end of the hose rmly into the gun handle. See gure 1 and 2.
Tighten the connector by hand only. Loosen the high pressure hose to avoid twist.
1.
2.
3.
4.
Setting Up Pressure Washer

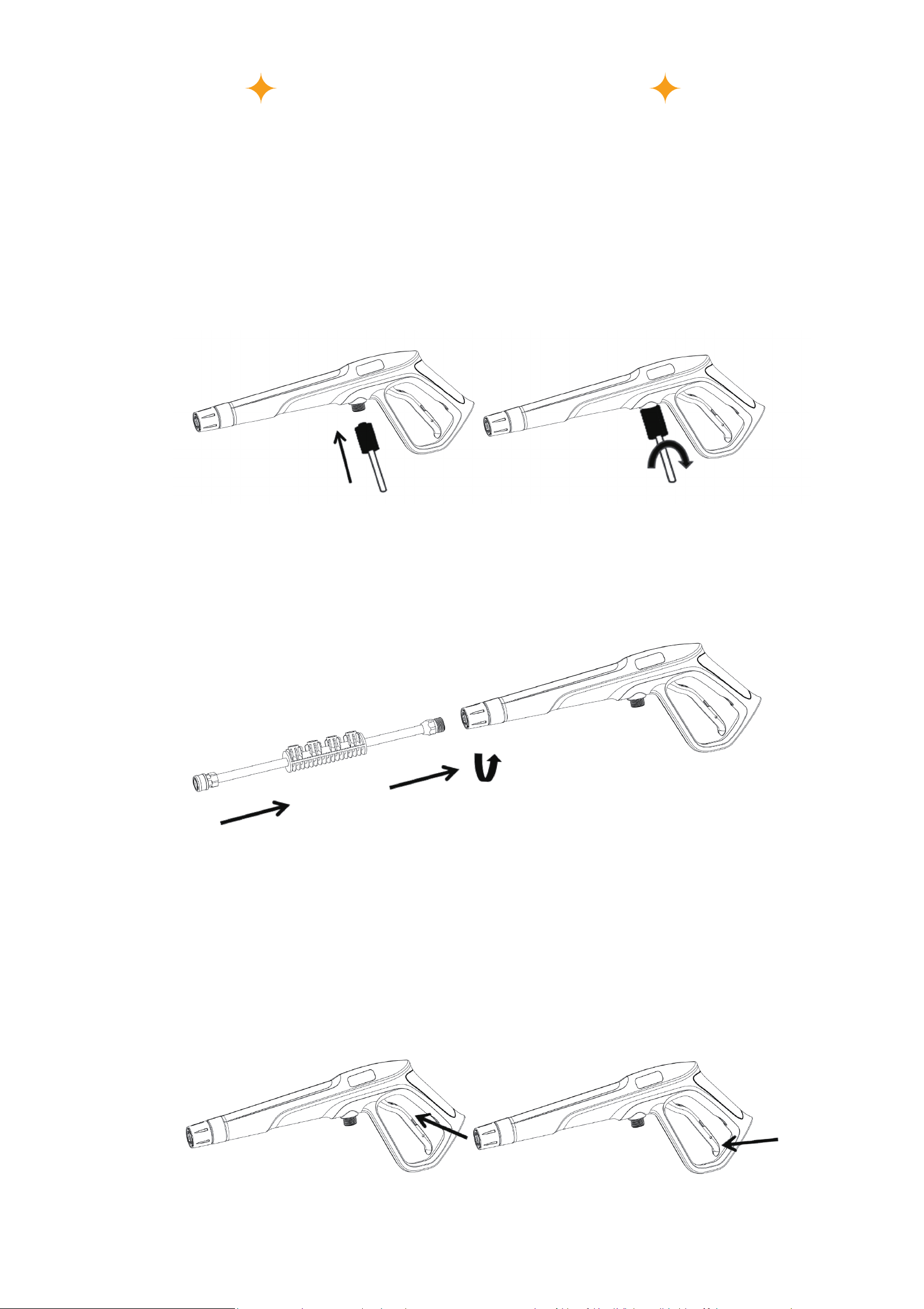

Figure 1&2: Pressure Hose Connect
Connect the lance to pressure gun. See gure 3.
Push the trigger lock button, ensure the trigger in the “OFF” position. See figure 4
and 5.
Figure 3: Lance Connect
Figure 4&5: Trigger Lock
12 13

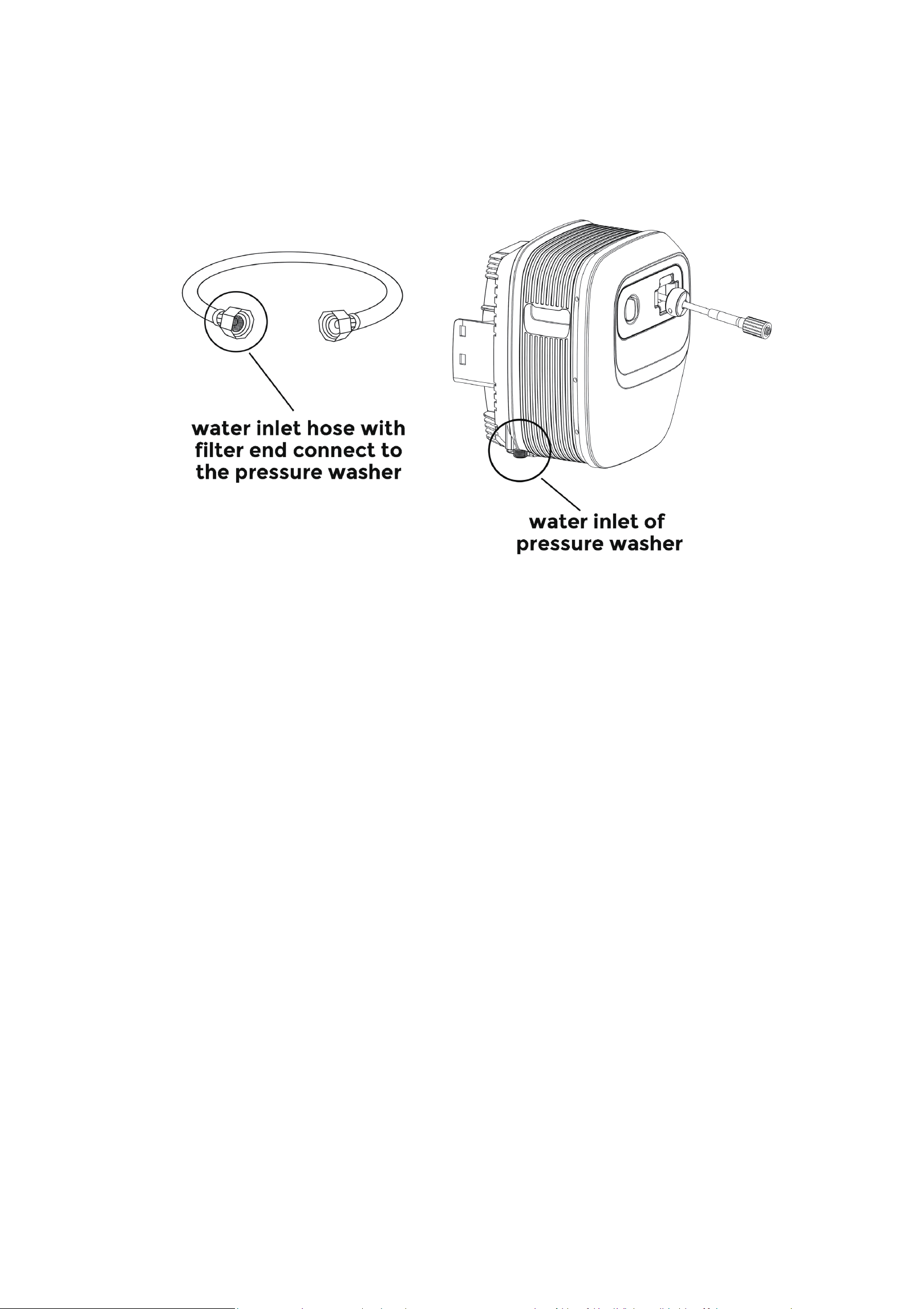

Connect the water inlet hose (end with filter) to the water inlet end of the
pressure washer by hand and tighten it by hand (Please make sure that there is no
debris blockage on the lter side of the water inlet hose). See gure 6.
Turn the water supply on, making sure that the tap is fully open. Release the trigger
lock.
Trigger the gun to expel the air in the unit before its working.
Turning the ON/OFF switch to the “OFF” position.
Put plug into socket of main electric power.
Choose the appropriate size nozzle for your work. Use your hands to connect the
quick-connect collar slightly downward, the required nozzle will be stuck in the quick-
connect collar, release hands and hear the sound of click, indicating that the nozzle is
successfully connected. See gure 7.
5.
6.
7.
8.
9.
10.
Figure 6: Water Inlet Hose Connect
CAUTION: Please do not use tools such as wrenchs to tighten it. That will damage to
the machine.
13

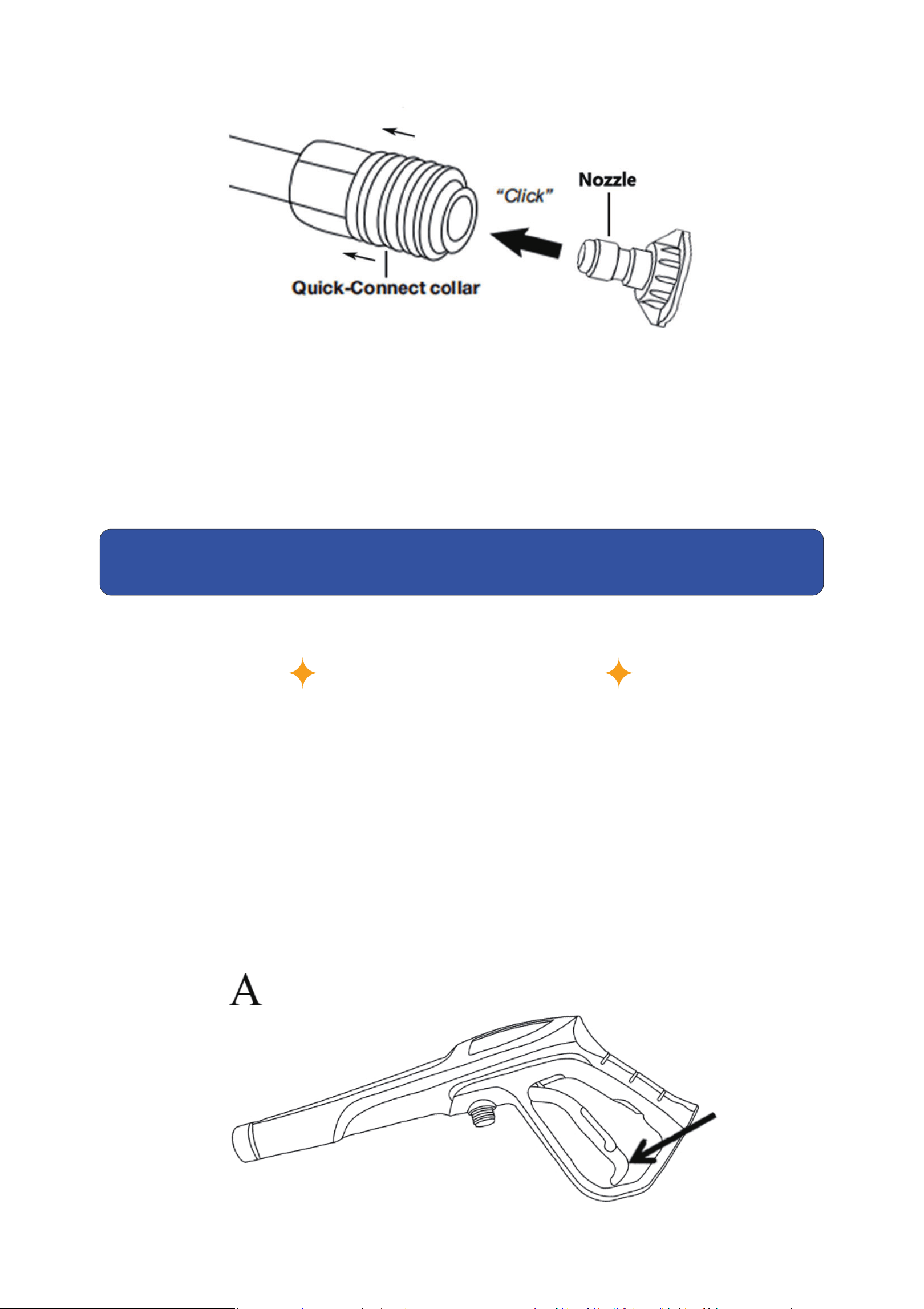

Figure 7: Nozzle Connect
How to Retract
In order to enhance your experience with Giraffe Tools and extend the life of the pressure
hose reel.
First, when the cleaning task is done, please turn to the state of “OFF”, and then turn off
the water supply.
Second, when the high-pressure hose is filled with water after use, its automatic
retracting function will be greatly affected. Please press the handle first to release
pressure and drain the excess water. Figure A for your reference.
AFTER USE TIPS
14 15
Storage During Winter
Switch to the state of “OFF”
Turn off the water supply tap
Remove the plug from the socket
Discharge the residual pressure from the gun until all the water has come out of the
nozzle
Drain and wash out the detergent tank at the end of the working session. To wash out
the tank, use clean water instead of the detergent
Roll the pressure hoses
Engage the gun safety catch
To better maintain the performance of the pressure washer, please dismantle
the pressure washer and store it indoors during winter
When you use it again, please make sure to check whether there is any icing
in the water hose rst. If it is partially frozen, do not pull out the high-pressure
hose, please wait for it to melt before using it normally
1.
2.
3.
4.
5.
6.
7.
8.
9.
Last, store your pressure gun.

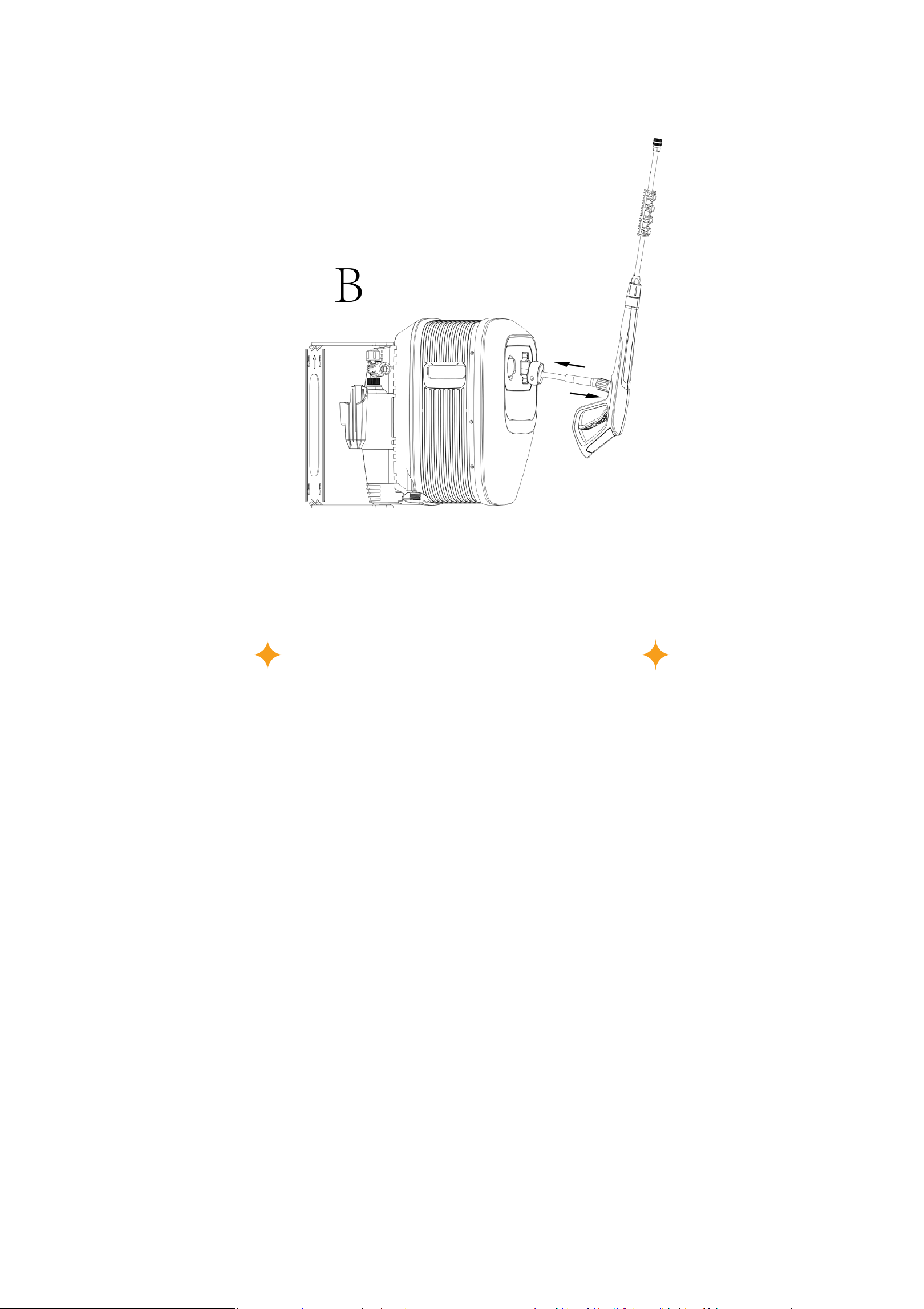

Third, after releasing the pressure, please hold the pressure gun and pull the pressure
hose a little out, and then, retracting the pressure hose to the whole reel. Figure B for
your reference.
15
PROBLEMS SOLUTUION
PROBLEM
PROBABLE CAUSE
SOLUTION
Pressure drops
during use
Water intake from external
tank
Connect appliance to the
mains water supply
Intake water too hot Reduce temperature
Nozzle clogged Clean nozzle
O-ring to one-way valve broken
Replace the broken
component
Intake lter dirty Clean lter
Motor “sounds” but
fails to start
Insufcient power supply
Check that the voltage of the
mains power supply line is the
same as that on the plate
Voltage loss due to use of
extension cable
Check characteristics of
extension cable
Appliance not used for long
period of time
Contact your nearest
Authorized Service Centre
Problems with TSS device
Contact your nearest
Authorized Service Centre
Water leakage
Seals worn
Have the seals replaced at your
nearest Authorized Service
Centre
Safety valve tripped and
discharging
Contact an Authorized Service
Centre
Water leakage from the water
inlet
Please use the wrench to
connect the garden hose and
the black threaded collar of
the water inlet lter
16 17
Oil leakage Seals worn
Contact your nearest
Authorized Service Centre
Motor started
when gun is not
triggered
Nozzle clogged Clean nozzle
High pressure system or pump
hydraulic circuit not watertight
Contact your nearest
Authorized Service Centre
Appliance works
intermittently
Safety valve soften or nozzle
clogged
Clean the nozzle or contact
your nearest Authorized
Service Centre
No water out when
triggering the gun
Nozzle clogged Clean the nozzle
WARRANTY
At Giraffe Tools, we conduct rigorous testing on every machine before it leaves the factory
and perform a lifetime test on every thousand machines to ensure they will withstand
many years of use beyond the warranty period.
In addition to our thorough testing, we offer a 24-month warranty on all original Giraffe
Tools new products. The following specics apply:
Giraffe Tools warrants its products against defects in parts and materials for a period
of 24 months from the original purchase date. Please note that this warranty does not
apply to products acquired second hand.
All warranty periods commence on the date of purchase and are non-transferable.
The warranty is limited to the provision of a replacement or refund free of charge
within the specified period, provided that the above conditions are met, and the
original proof of purchase is presented.
1.
2.
3.
17
Process:
For quality-related warranty claims, items will be replaced with a new item of equal
value when available. In situations where a replacement is not available or preferred,
Giraffe Tools will offer a full refund.
Warranties on all replacements follow the same 24-month warranty time frame as
the original defective item. Warranties on fully refunded products will be voided after
the refund is released.
4.
5.
●
Buyers must provide sufcient proof of purchase.
●
Giraffe Tools must document what happens when buyers troubleshoot the product.
●
Visible proof depicting the defect, such as pictures or videos, is required.
●
It may be necessary to return an item for quality inspection.
●
For defective items that Giraffe Tools needs to have returned, warrantion those replace-
ments are voided if the wrong item is returned to Giraffe Tools or if the defective item is not re-
turned.
Valid proof of purchase:
●
Order number from online purchases made through Giraffe Tools or Giraffe
Tools’s authorized resellers.
●
Sales invoice that shows a description of the product along with its price.
Not Covered Under Warranty:
●
Purchases from unauthorized resellers.
●
Alterations not carried out or authorized by Giraffe Tools authorized resellers.
●
Products without sufcient proof of purchase.
●
Second-hand products.
●
Items that have expired their warranty period.
●
Damage from misuse of products, including, but not limited to, improper stor-
age, falls, extreme temperatures, water, and improper operation of devices.
18 19
If you are interested in the above products, you can visit giraffetools.com or search for
Giraffe Tools on Amazon
RECOMMENDED PRODUCTS
5/8" Retractable Hose
Reel, 60-115ft
1/2" Retractable Hose
Reel, 78-155ft
Retractable Air
Hose Reel
Grandfalls
Pressure Washer
Grandfalls Pressure
Washer, 65ft
Pressure Hoses
25-100ft
Hose Reel Cart
150-250ft
Hybrid Hose with
Swivel Grip 2.5-100ft
Customized Garden
Hose 6-100ft
Scan code to visit Giraffe Tools
store on Amazon.com
Scan code to visit giraffetools.com Scan code to join our
facebook group
19
WE WILL DO THE HEAVY LIFTING
giraffetools.com
service@giraffetools.com
To purchase Giraffe Tools products and more, visit giraffetools.com or
search for Giraffe Tools on Amazon.com.
+1 (833)583-0881
(9am - 5pm EST)
Complete your registration online for a
100 DAYS WARRANTY EXTENSION
