MODEL HP174-G30/HP174-G30-SLI
Read before use & keep for future reference.
GRANDFALLS
PRESSURE WASHER PRO
For more information visit giraffetools.com or contact our customer service by sending an email to service@giraffetools.com
3
MANUAL CONTENTS
Important Safety Instructions
Product Description
Product Information
What’s Included
Open-Box Check
Tools Requirement
Fix Wall Base
Assembly
Replace High Pressure Hoses
After Use Tips
Problems Solution
Warranty
Recommended Products
03
09
10
1 1
1 2
1 2
1 2
1 4
1 6
1 8
2 0
2 1
2 3
--
-------------
------------
------------------
----------------
--------------
----------------------
-------------------------------
-------
--------------------------
--------------------
--------------------------------
------------
3
IMPORTANT SAFETY INSTRUCTIONS
All Operators Must Read These
Instructions Before Use
WARNING! This indicates a hazardous situation, which, if not avoided, could result in
deathor serious injury.
CAUTION! This indicates a hazardous situation, which, if not avoided, could result in
minor or moderate injury.
DANGER! This indicates a hazardous situation, which, if not followed, will result in death
or serious injury.
WARNING! This appliance is not intended for use by children or by unassisted,
unsupervised
persons whose physical, sensory, or mental capabilities prevent them from using it safely.
Children should be supervised to ensure that they do not play with the appliance. Before
starting up your machine, please check it carefully for any defects. If you nd any, do not
start up your machine. Contact Giraffe Tools via service@giraffetools.com or call the
Giraffe Tools customer service center at +1 (833)583-0881 (9 am - 5 pm EST).
WARNING! When using the pressure washer, basic safety precautions should always be
followed to reduce the risk of re, electric shock, and personal injury. These include:
General Safety
Know your product—Know how to stop the machine and bleed pressure quickly.
Thoroughly familiarize yourself with the controls.
Keep bystanders away—All visitors and pets should be kept a safe distance away from
the work area.
Use the right product—Do not use this machine for any job except that for which it is
intended.
●
●
●
4 5
Dress properly—Do not wear loose clothing or jewelry. They can get caught in moving
parts. Protective rubber gloves and non-slip footwear are recommended when working
outdoors.
CAUTION! — Exercise caution to avoid slipping or falling. Wear protective footwear that
will protect your feet and improve your footing on slippery surfaces.
Stay alert—Watch what you are doing. Use common sense. Do not operate the
pressure washer when you are tired or under the inuence of alcohol or drugs.
Do not overreach—Keep proper footing and balance at all times.
Avoid unintentional starting—Do not carry a plugged-in machine with your nger on
the trigger. Make sure the switch is off before plugging in the machine.
Do not abuse the cord—NEVER carry the machine by the cord or yank the cord to
disconnect it from the receptacle. Keep the cord away from heat, oil, and sharp edges.
Use safety glasses—Also use safety footwear, snug-tting clothing, protective gloves,
hearing and head protection.
Check the water temperature —This pressure washer is not meant to pump hot
water. NEVER connect it to a hot water supply as it will signicantly reduce the life of
the pump.
Store indoors—NEVER store the pressure washer outdoors or where it could freeze.
The pump could be seriously damaged.
Ground Fault Circuit Interrupter (GFCI) — Protection should be provided on the
circuits or outlets to be used for this pressure washer. Receptacles are available having
built-in GFCI protection and may be used for this measure of safety.
Inspect electrical cables —The insulation of the power cord should be perfectly
intact. If the power cord is damaged or shows any signs of wear or tear, do not use the
pressure washer. Contact Giraffe Tools via service@giraffetools.com or call the Giraffe
Tools customer service center at +1 (833)583-0881 (9 am - 5 pm EST).
●
●
●
●
●
●
●
●
●
●
●
5
WARNING! Do not use this appliance without reading this instruction manual.
WARNING! The use of other incorrect cleaning agents or chemicals may adversely affect
the safety of the appliance.
WARNING! Do not use the appliance within range of persons unless they are wearing
protective clothing.
WARNING! High-pressure jets can be dangerous if subject to misuse. The jet must not
be directed at persons, pets, live electrical equipment, or the appliance itself.
Do not direct the jet at yourself or others to clean clothes or footwear.
Risk of explosion—Do not spray ammable liquids.
Disconnect the tool—Disconnect from the electrical power supply before performing
any maintenance task.
Keep children away—This electric power washer must not be used by children or
untrained personnel.
To ensure appliance safety, use only original replacement parts from the manufacturer
or those approved by the manufacturer.
●
●
●
●
●
WARNING! Water that has owed through the machine is considered to be non-potable.
WARNING! During cleaning, maintenance, or when replacing parts, the machine must
be disconnected from its power source by removing the plug from the socket outlet.
WARNING! Do not use the appliance within range of persons unless they are wearing
protective clothing.
WARNING! High-pressure hoses, fittings, and couplings are important for the safe
operation of the appliance. Use suitable hoses, ttings, and couplings recommended by
the manufacturer.
6 7
Check for damaged parts—Do not use the appliance if the supply cord or other
important parts of the appliance are damaged (e.g. pump, safety devices, high-
pressure hoses, trigger gun).
●
WARNING! If an extension cord is used, the plug and socket must be of watertight
construction.
WARNING! Inadequate extension cords can be dangerous.
This high-pressure washer MUST NOT be used at temperatures below 32°F (0°C).
●
WARNING! Power cords on drums should always be completely unwound to prevent the
cord from overheating.
Power cord connections should be kept dry and off the ground.
If the power cord is damaged, do not use the appliance. Contact Giraffe Tools via
service@giraffetools.com or call the Giraffe Tools customer service center at +1
(833)583-0881 (9 am - 5 pm EST).
Keep the machine on a stable, at surface during handling, transportation, and storage.
A sudden overturn of the machine can cause bodily injury.
In the event of an accident or breakdown, switch off the machine immediately. (If
contact with detergent occurs, rinse with an abundance of clean water.)
●
●
●
●
Electrical Safety
ATTENTION: If there are problems with the electrical MAINS, short voltage drops may
appear when starting the equipment. This can, in turn, inuence other equipment (e.g.
cause the machine to not work). (If you require assistance, contact your local supply
authority for further information.)
7
WARNING! Electrical Shock Hazard – Before starting up, please check it carefully for any
defects. If you nd any, do not start up your machine and contact Giraffe Tools.
The following should be observed when connecting the pressure washer to the electric
supply:
The electric supply connection should be performed by a qualied person.
The electric supply to this appliance includes a device that will interrupt the earth
circuit (GFCI).
●
●
IMPORTANT: Only use water without any impurities. If there is a risk of running sand into
the inlet water, an additional lter should be installed.
Safety Devices
The unload valve can reduce pressure if it exceeds preset values. The spray gun features a
locking device. When the lock is activated, the spray gun cannot be operated.
1. Thermal sensor — A thermal sensor protects the motor against overloading. The
machine will restart after a few minutes when the thermal sensor has cooled.
2. Ground fault circuit interrupter (GFCI) protection — A GFCI should be provided on
the circuit(s) or outlet(s) to be used for the pressure washer. Receptacles are available
having built-in GFCI protection and may be used for this measure of safety.
3. It is not recommended to use an extension cord with this pressure washer. The unit
comes standard with a 6 ft GFCI power cable. Using an extension cord may cause a drop
in line voltage resulting in loss of power and overheating.
4. Do not abuse the cord. Never pull the pressure washer by the cord or yank the cord
to disconnect it from the receptacle. Keep the cord away from heat, oil, and sharp edges.
8 9
WARNING
Electric shock may cause SEVERE INJURY or DEATH. Heed these warnings:
●
Do not allow any part of the electric pressure washer to make contact
with water while it is in operation. If the appliance becomes wet while
turned off, wipe dry before starting.
●
Suggest not use an extension cord. The pressure washer comes equipped
with a 6 ft power cable.
●
Do not touch the appliance or its plug with wet hands. Wearing rubber
boots offers some protection.
Risk of Electrocution
Inspect the cord before using it.
Do not use it if the cord is damaged.
Keep all connections dry and off the ground.
Do not touch the plug with wet hands.
Keep the cord away from heat and sharp edges.
Do not spray electrical apparatus and wiring.
●
●
●
●
●
●
Risk of Explosion
Do not spray ammable liquids.
Do not use acids, bases, solvents, or any flammable material in this product. These
substances can cause physical injuries to the operator and irreversible damage to the
machine.
●
●
9
Additional Safety Instructions
High-pressure: keep clear of nozzle.
Injection hazard: equipment can cause serious injury if the spray penetrates the skin.
Do not point the gun at anyone or any part of the body.
In case of skin penetration, seek medical aid immediately.
Before servicing, cleaning, or removing any parts, shut off the power and relieve
pressure.
This machine is not suitable for connection to the potable water mains.
●
●
●
●
●
●
PRODUCTION DESCRIPTION
Purpose
This high-electric power washer is intended for residential use to clean vehicles,
machines, buildings, facades, etc.
●
Areas of Application
Never use the machine in potentially explosive areas under any circumstances!
The operating temperature must be between 32°F (0°C) and 140°F (60°C).
Do not cover or modify the spray wand or the spray nozzles in any way.
The high-pressure electric power washer is designed to be used with cold or lukewarm
water; higher temperatures can damage the pump.
Do not use water that is dirty, gritty, or contains any chemical products, as these could
impair operation and shorten the life of the machine.
●
●
●
●
●
10 11

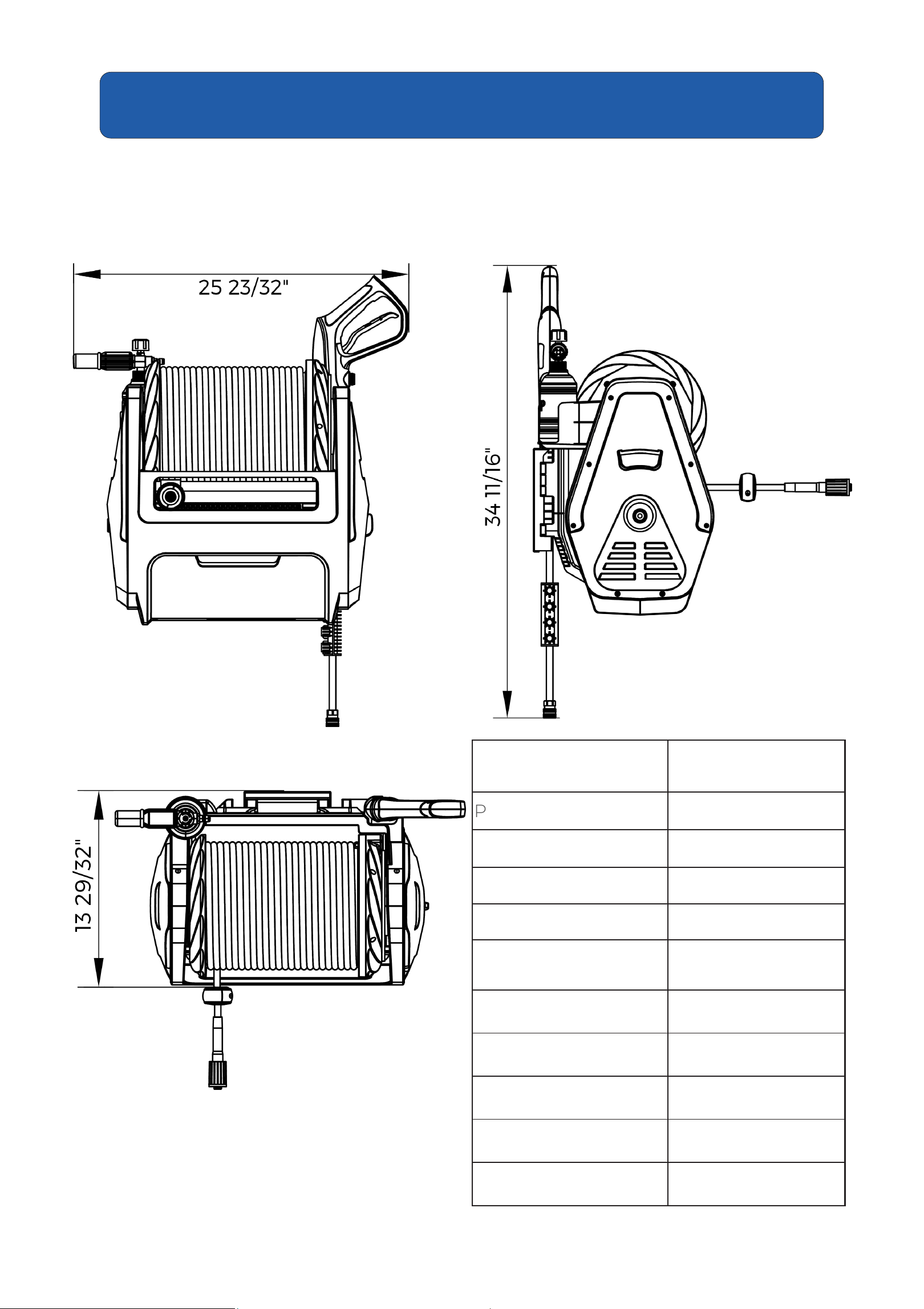

Drill Size 12mm
Pressure Hose Length 100ft
Rated Voltage/Freq 120V / 60Hz
Power 1800W
Electric Current 15A
Max Water Inlet
Temperature
140°F / 60°C
Power Cord Length 6ft
Peak Pressure 3700PSI
Rated Max Pressure 2700PSI
Max Flow 1.6GPM
Rated Flow 1.2GPM
PRODUCTION INFORMATION
Thanks for choosing Giraffe Tools. Before using the pressure washer, please read the
owner’s manual and safety instructions carefully. Compare the illustration below to the
electric pressure washer to familiarize yourself with the installation data for this product.
11

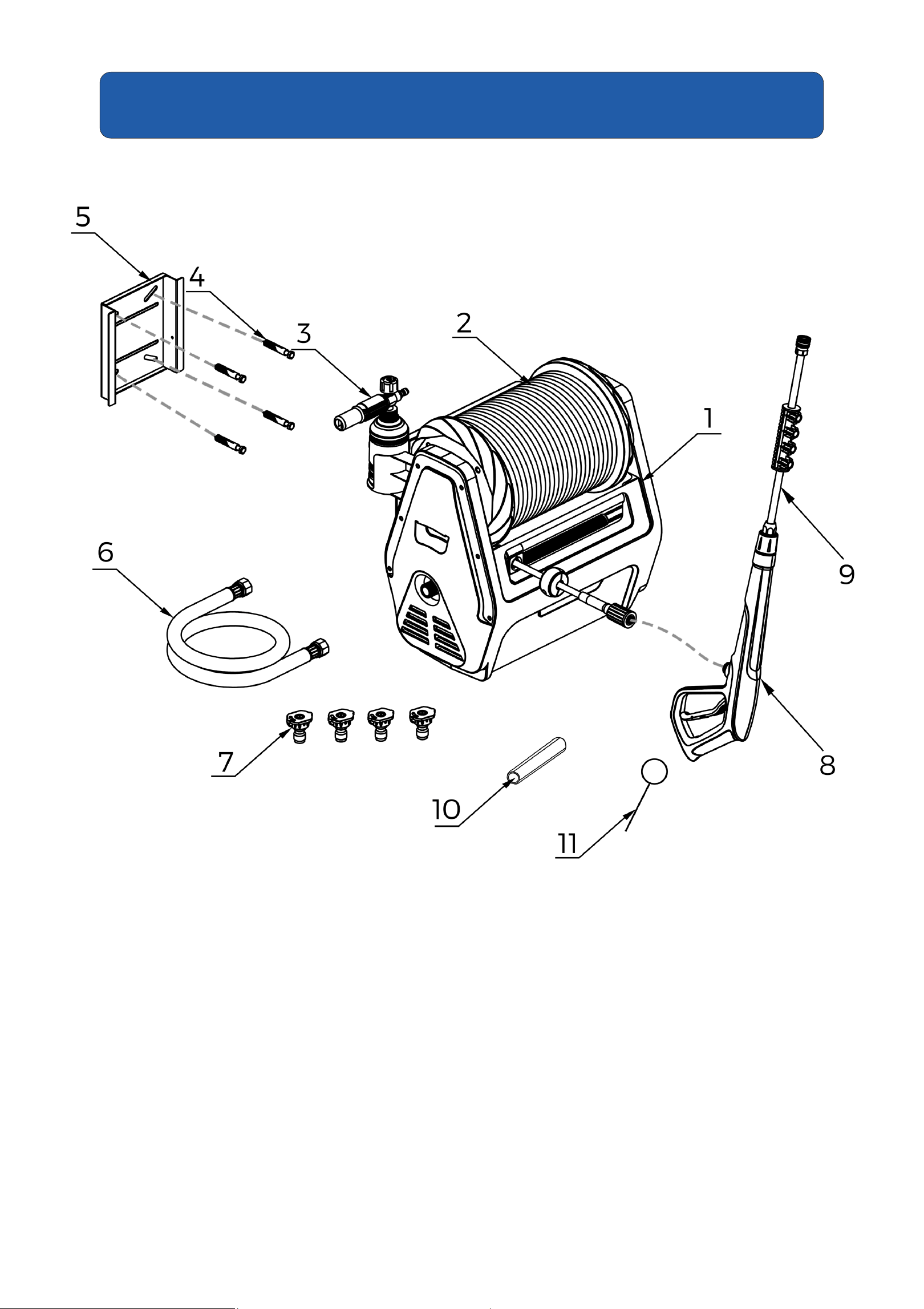

WHAT’S INCLUDED
Electric Pressure Washer
100ft Replaceable Pressure Hoses
Metal Foam Pot
Four (4) M8-60 Expansion Bolts, M8-70
Hexagon Socket Self-tapping Screws
Wall Fixed Base
Lead-in Hose
Four (4) Quick-Connect Nozzles
(0°, 15°, 25°, 40° )
Trigger Gun
Spray Wand
Hub Pin
Needle Clean-out Tool
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
1 1.
12 13
OPEN-BOX CHECK
Note: If you notice an initial aroma upon opening your package, this is due to the sealed
environment in which the package traveled overseas.
Conrm that the above parts are included in your package.
Check for any scratches or damage done to the product.
If your product is missing parts or has visible damage upon receipt, please contact
the Giraffe Tools customer service team via service@giraffetools.com or call the
Giraffe Tools customer service center at +1 (833)583-0881 (9 am - 5 pm EST).
1.
2.
3.
TOOLS REQUIREMENT
Electric drill
Hammer
Wrench
Screwdriver
●
●
●
●
FIX WALL BASE
Chosen a location for your pressure hose reel, follow the figure 1 of the wall base
template to mark the location of 4 holes for drilling, or place the wall base itself up to
the wall to mark the location of the screw holes for drilling.
1.
Note: Please install the machine at a height of approximately 24-32in above the
ground to maximize the function of auto-retract.
13
Use a 12mm diameter drill bit to drill the 4 marked holes. Hole depth is important.
You may choose to measure a 2.6in depth on the drill bit itself and mark it with a
small piece of tape so you know when you’ve drilled the appropriate depth into the
wall. Using a correctly sized drill bit will ensure a secure installation of the wall base. To
make sure the wall anchors have a secure t, you may choose to drill a slightly smaller
hole rst, then size up if it proves too small for the wall anchor.
Hammer the wall anchors into the 4 drilled holes.

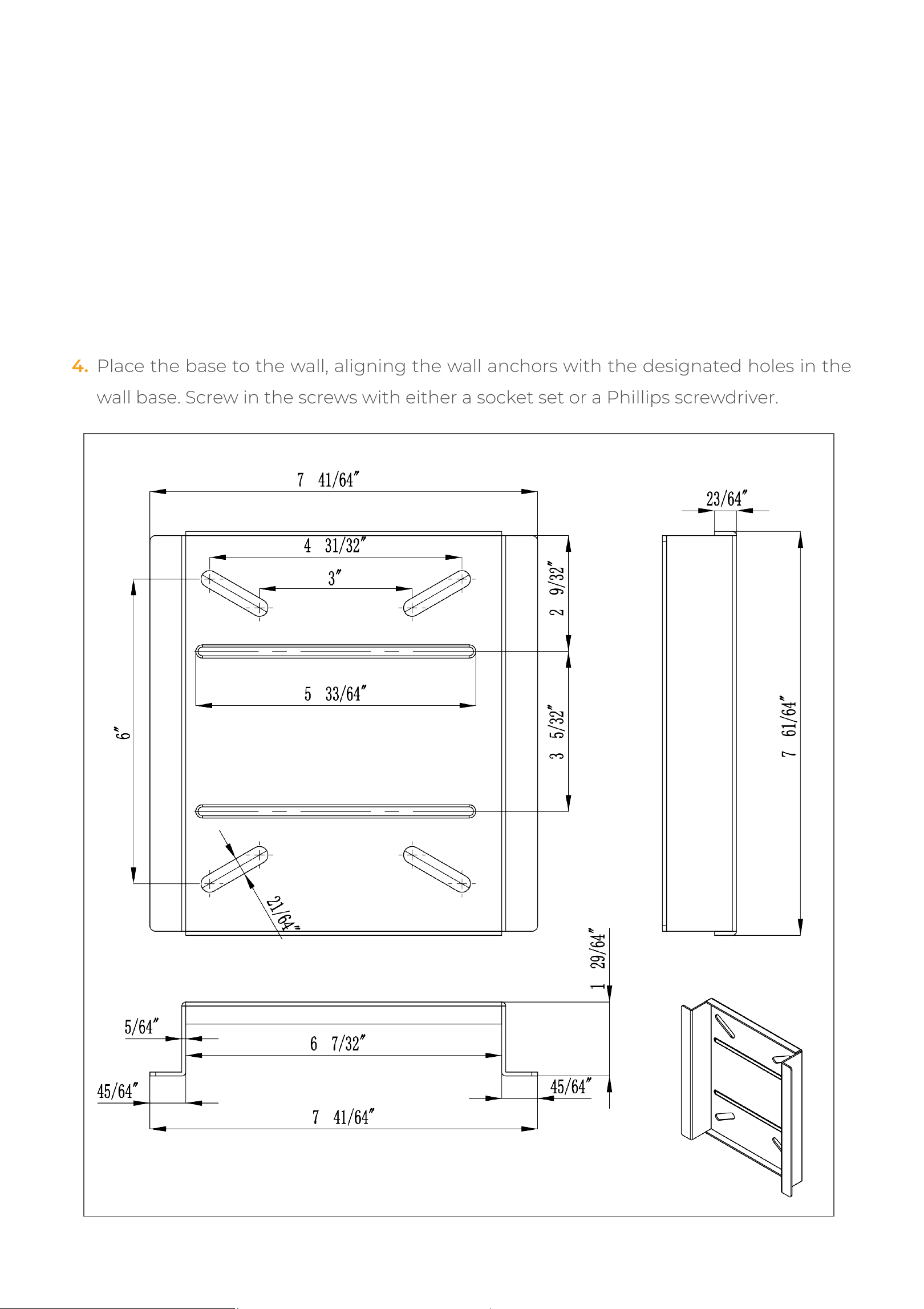

Place the base to the wall, aligning the wall anchors with the designated holes in the
wall base. Screw in the screws with either a socket set or a Phillips screwdriver.
2.
3.
4.
Fig. 1
14 15
ASSEMBLY

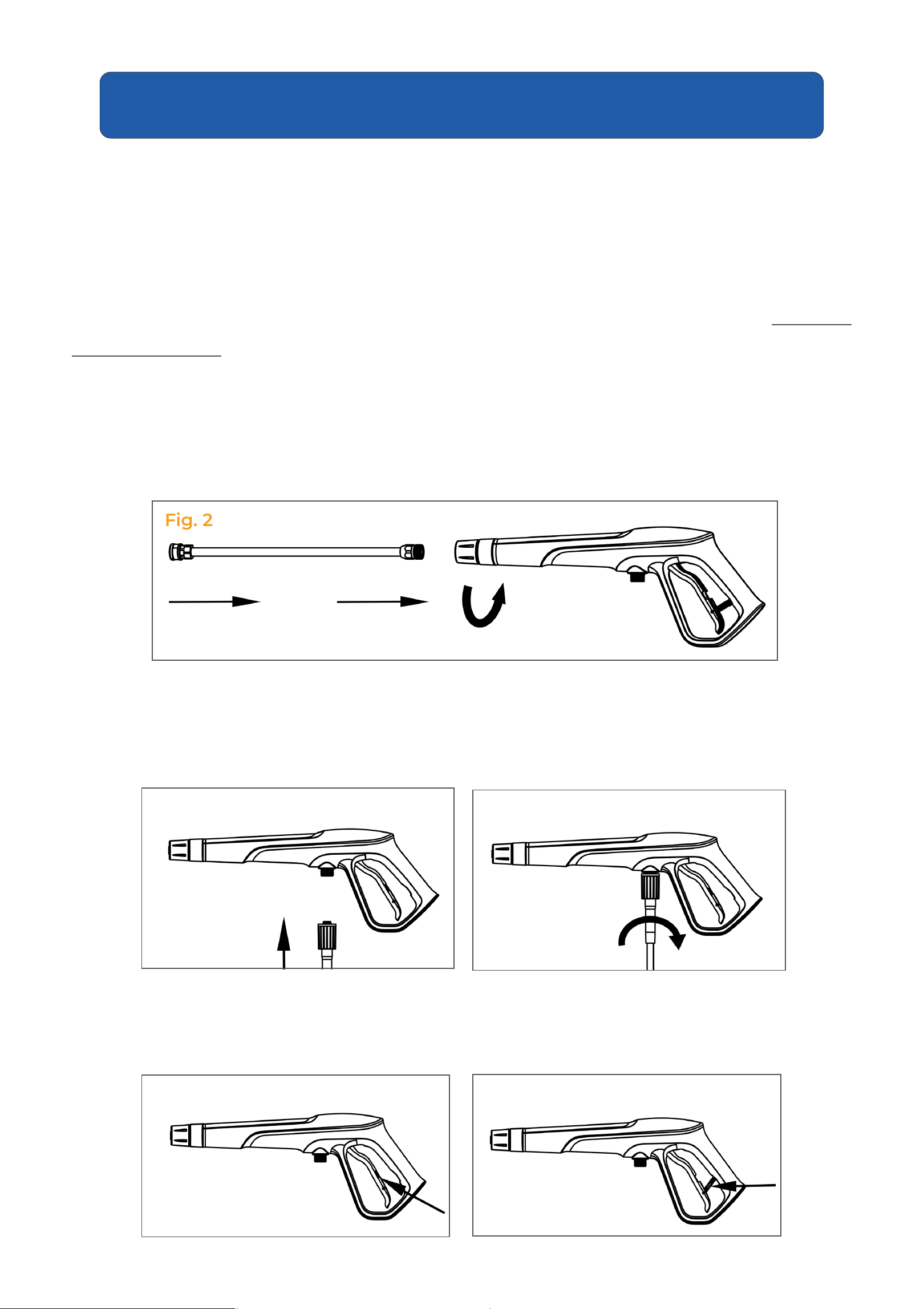

Fit the spray wand into the trigger gun and rotate the collar until the two parts are
completely locked (Fig. 2).
1.
ATTENTION: During the use of the machine, please do not work continuously for more
than one hour to avoid the situation that the pump temperature is too high and causes
the machine not to work. If the machine does not work, please turn the machine off
cool down, and turn it on again, if you can not solve it, please send a video to service@
giraffetools.com, we will reply and solve your problem ASAP.
Fig. 2
Fixing the matching end of the hose rmly into the gun handle (Fig. 3&4). Tighten the
connector by hand only. Loosen the high-pressure hose to avoid twisting.
2.
Fig. 3
Push the trigger lock button, and ensure the trigger is in the “OFF” position (Fig. 5&6).3.
Fig. 5 Fig. 6
Fig. 4
15

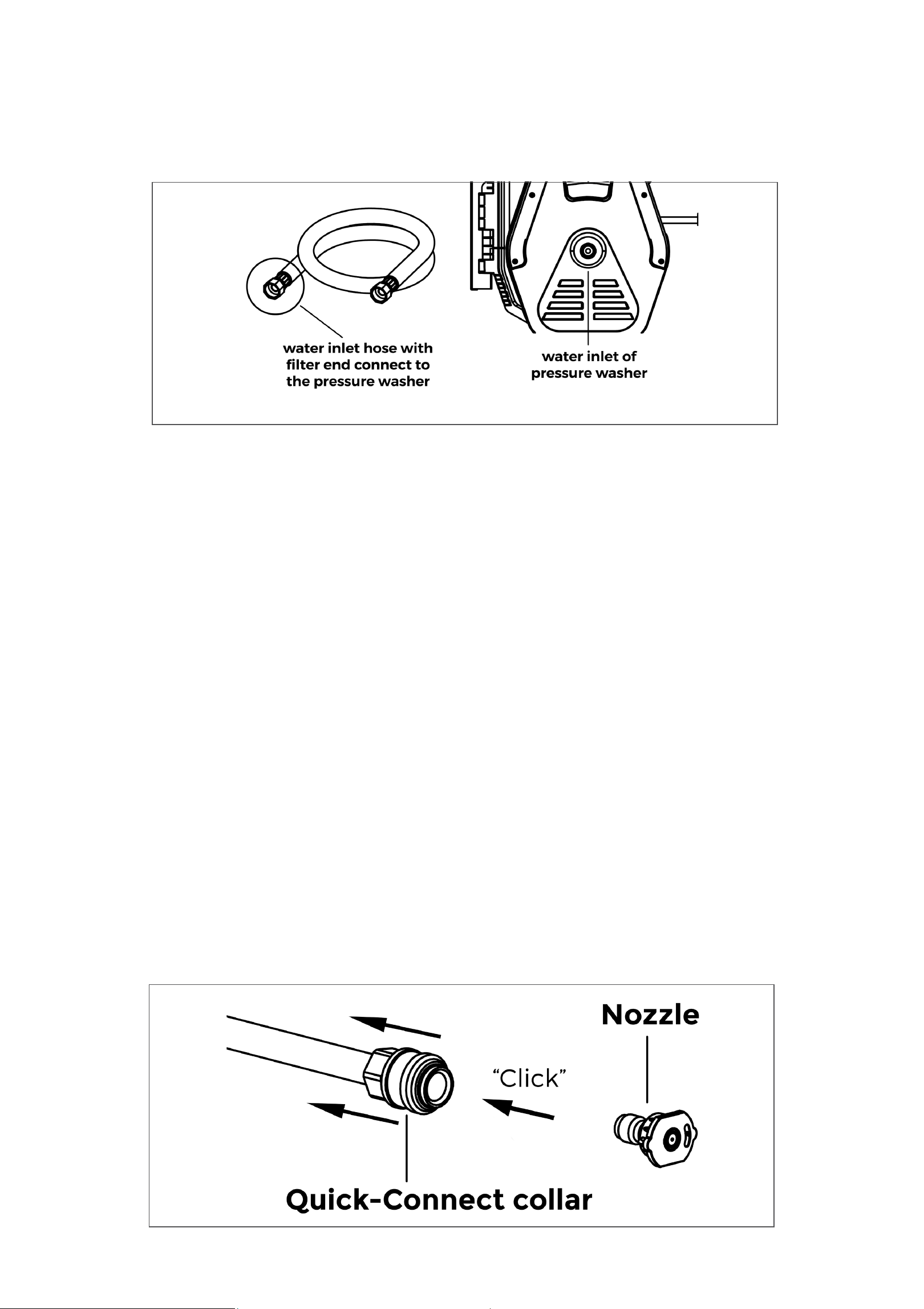

Connect the water inlet hose (end with lter) to the water inlet end of the pressure
washer by hand and tighten it by hand (Please make sure that there is no debris
blockage on the lter side of the water inlet hose) (Fig. 7).
4.
Fig. 7
CAUTION: Please do not use tools such as a wrench to tighten it. That will damage
the machine.
Turn the water supply on, making sure that the tap is fully open. Release the trigger lock.5.
CAUTION: We recommend keeping the inlet water pressure less than 0.8MPa
(116 PSI) during the use of the pressure washer to prevent the machine from not
working or the inlet hose from blowing up during usage.
Trigger the gun to expel the air in the unit before it's working.
Turn the ON/OFF switch to the “OFF” position.
Put the plug into the socket of the main electric power.
6.
7.
8.

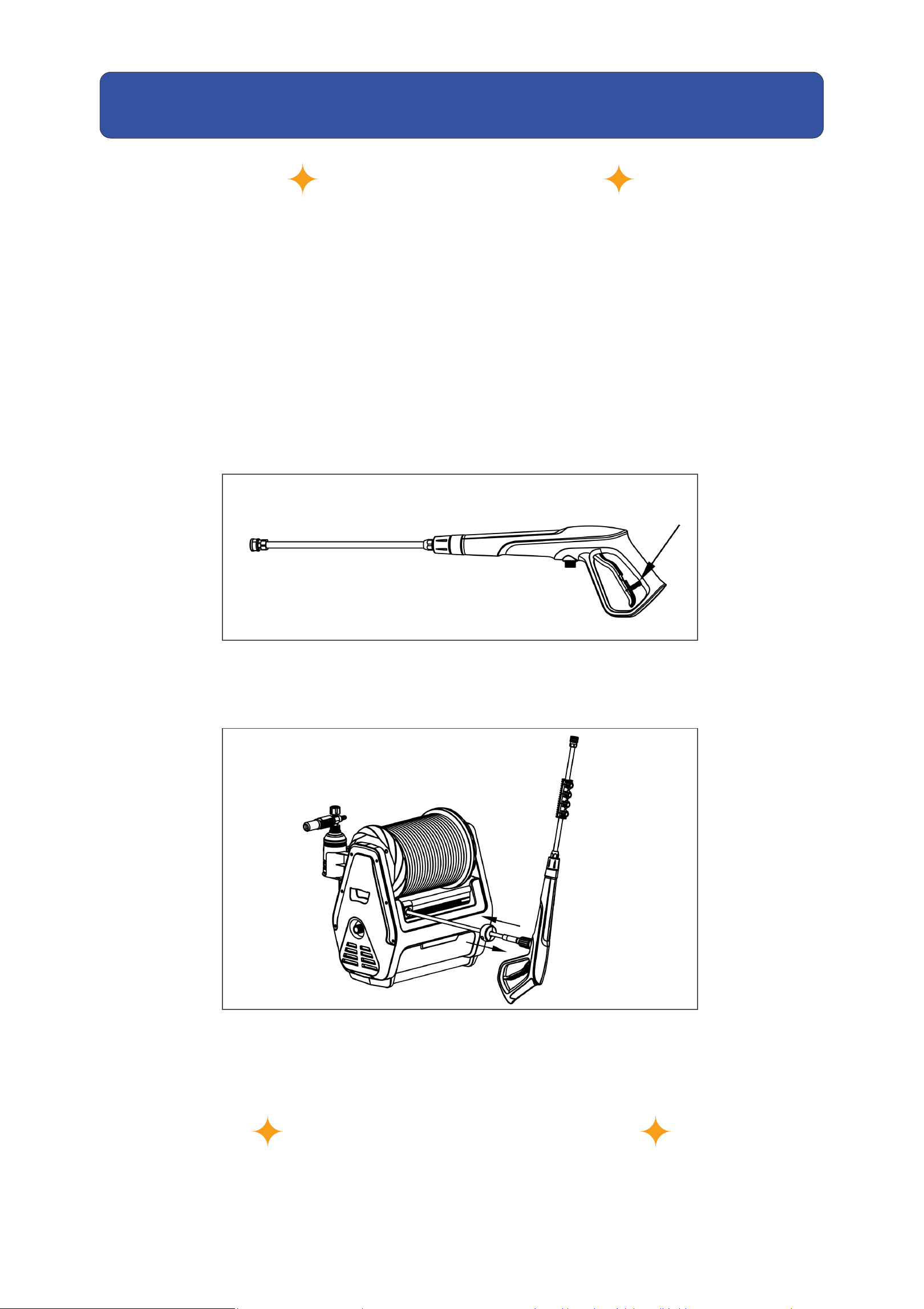

Choose the appropriate size nozzle for your work. Use your hands to connect the
quick-connect collar slightly downward, the required nozzle will be stuck in the quick-
connect collar, release your hands and hear the sound of the click, indicating that the
nozzle is successfully connected (Fig. 8).
9.
Fig. 8
16 17
Step 1: Preparation
1.1
Turn off the water faucet and turn off the power switch.
1.2
Trigger the gun to release pressure inside the item.
1.3
Disconnect the high pressure hose and the high pressure gun, and place the
pressure gun in the storage of the pressure washer.
REPLACE HIGH PRESSURE HOSES

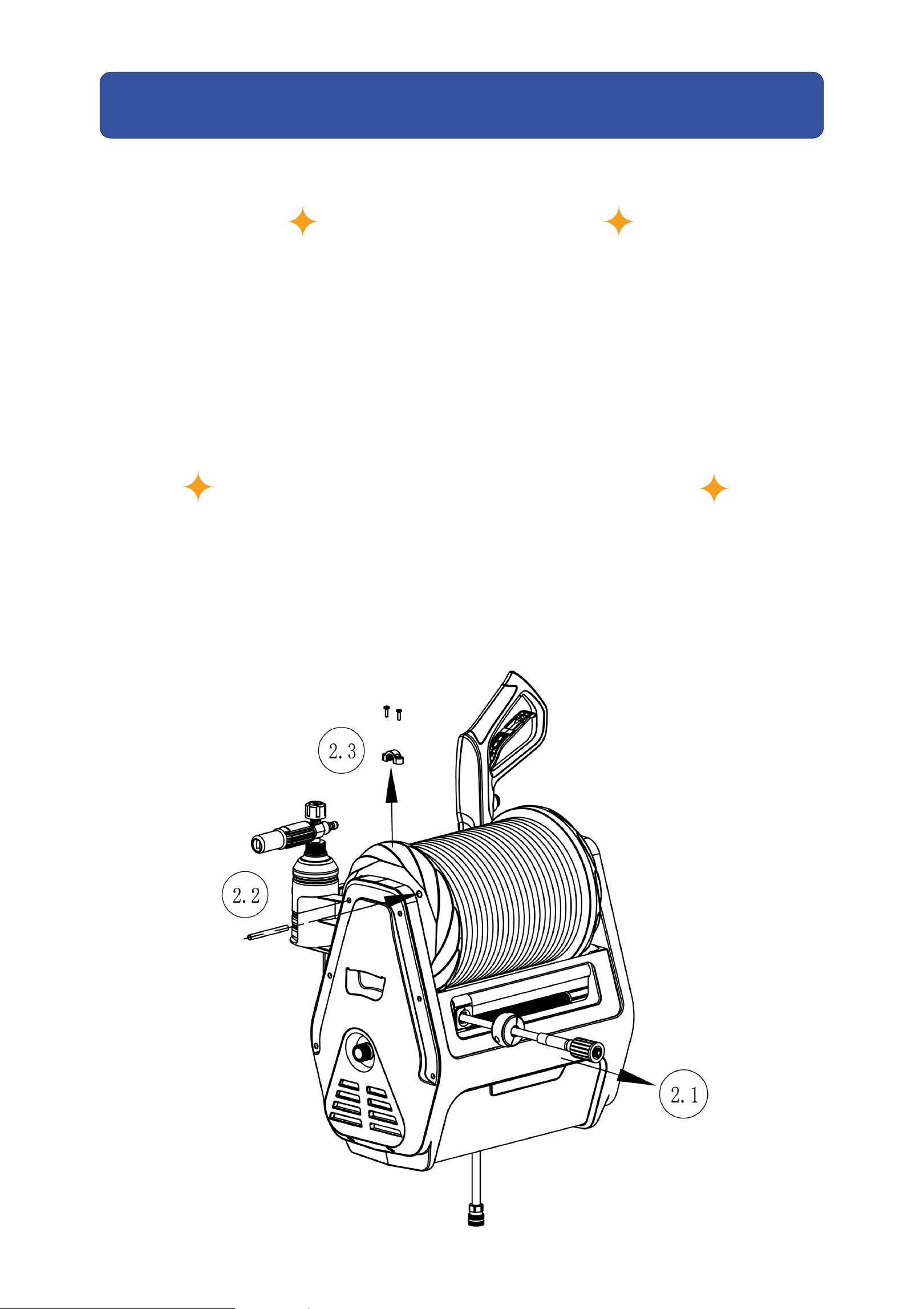

Step 2: Pull Out the High Pressure Hose
2.1 Pull out the entire high-pressure hoses.
2.2 Use the hub pin to hold the reel, refer to arrow 2.2.
2.3 Use a suitable screwdriver to remove the pressure hose hoop, refer to arrow 2.3.
17

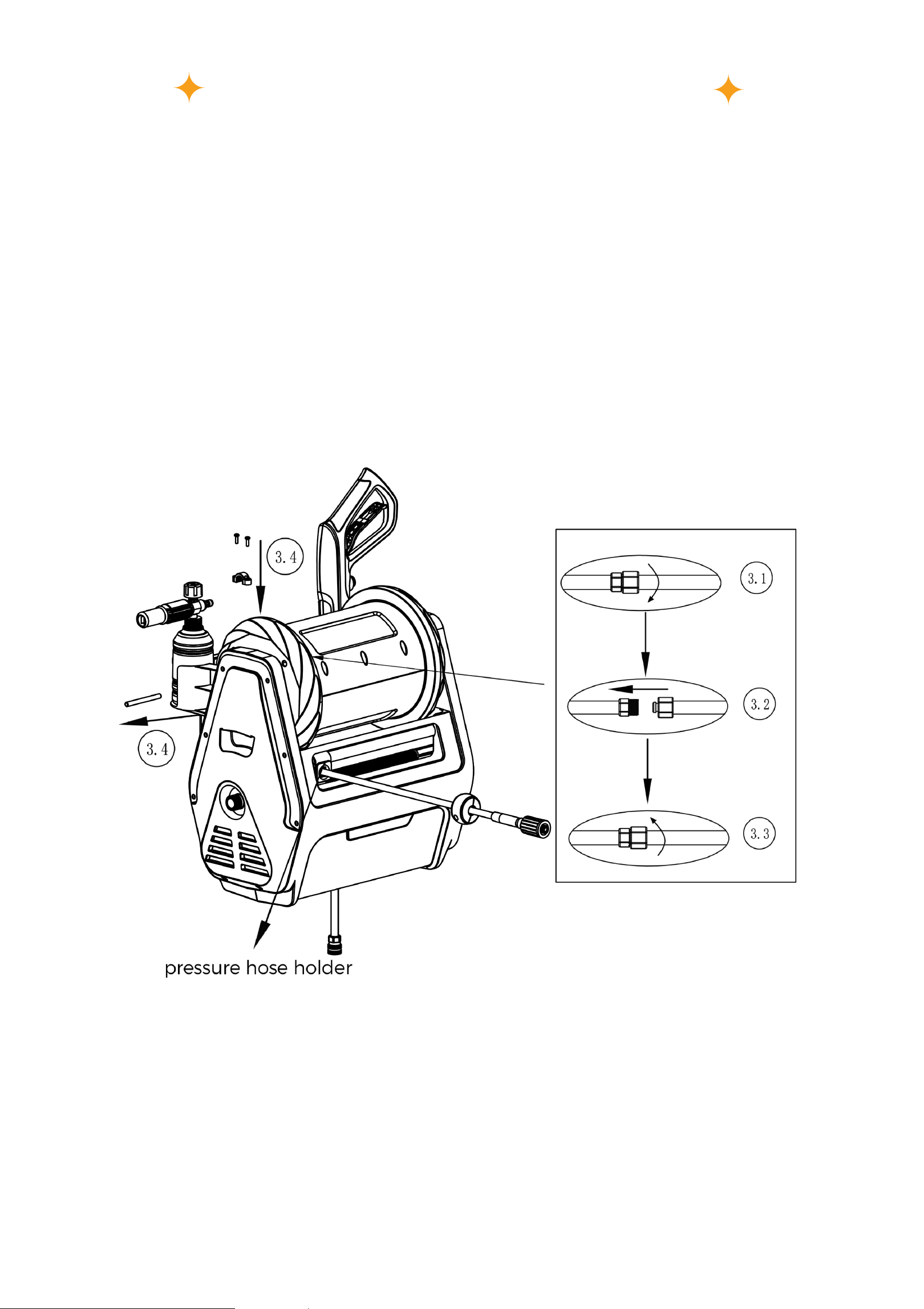

Step 3: Replace the High Pressure Hose
3.1 Use two wrenches to disconnect the high pressure hose in the opposite direction.
Refer to arrow 3.1.
3.2 Insert the new high pressure hose through the pressure hose holder.
3.3 Connect the new high-pressure hose to the shorter pipe tting of the machine.
3.4 Use a screwdriver to tighten the pressure hose hoop. Pull out the hub pin, and pull
the high pressure hose by hand to make it retract slowly, and the replacement of
high pressure hose is completed.
Note: DO NOT directly let the high pressure hose automatically retract, the huge
retraction shock will damage to the machine and make it useless.
18 19
AFTER USE TIPS
How to Retract
In order to enhance your experience with Giraffe Tools and extend the life of the pressure
washer.
First, when the cleaning task is done, please turn to the state of “OFF”, and then turn off
the water supply.
Second, when the high-pressure hose is filled with water after use, its automatic
retracting
function will be greatly affected. Please press the handle rst to release pressure and
drain the excess water. Figure A for your reference.
Third, after releasing the pressure, please hold the pressure gun and pull the pressure hose a
little out, and then, retract the pressure hose to the whole reel. Figure B for your Reference.
Last, store your pressure gun.
Winterizing + Long-Term
Switch to the state of “OFF”.
Turn off the water supply tap.
1.
2.
Fig. A
Fig. B
19
Remove the plug from the socket.
Discharge the residual pressure from the gun until all the water has come out of the
nozzle, and clean the nozzle with a needle clean-out tool.
Drain and wash out at the end of the working session.
Engage the gun safety catch.
3.
4.
5.
6.
CAUTION! Always store your pressure washer in a location where the temperature will
not fall below 32°F (0°C). The pump in this machine is susceptible to permanent damage
if it freezes. FREEZE DAMAGE IS NOT COVERED BY THE WARRANTY.
Store the pressure washer indoors in a dry, covered area where it is not subject to
adverse weather conditions.
It is important to store this product in a frost-free area.
Always empty water from all hoses, and the pump before storing. If you must store your
pressure washer in a location where the temperature falls below 32°F (0°C), you can
minimize the chance of damage to your machine by utilizing the following procedure:
Disconnect all water connections.
Turn on the machine for a few seconds until the remaining water in the pump exits.
Turn it off immediately.
Do not allow the high-pressure hose to become kinked.
Store the machine and accessories in a room that does not reach freezing
temperatures.
Do not store near a furnace or other sources of heat that may dry out the pump seals.
Operate the pressure washer with a non-corrosive/non-toxic anti-freeze, a pump saver,
or a pump protector before storing it for the winter.
●
●
●
●
●
●
●
●
●
Switch to the state of “OFF”.
Turn off the water supply tap.
WARNING! Always store your pressure washer in a location where the temperature will
not fall below 32°F (0°C). The pump in this machine is susceptible to permanent damage
if it freezes. FREEZE DAMAGE IS NOT COVERED BY THE WARRANTY.
CAUTION! To better maintain the performance of the pressure washer, please dismantle
the pressure washer and store it indoors during winter.
CAUTION! When you use it again, please make sure to check whether there is any icing
in the water hose first. If it is partially frozen, do not pull out the high-pressure hose,
please wait for it to melt before using it normally.
20 21
PROBLEMS SOLUTION
PROBLEM
PROBABLE CAUSE
SOLUTION
Machine refuses
to start
●
Power failure.
●
Machine not plugged into
a working receptacle.
●
Defective socket.
●
Fuse has blown
●
Defective extension cord.
●
Check to make sure machine
is plugged into a working outlet.
●
Check the power cord and
reset the GFCI.
●
Try a different outlet.
●
Replace fuse. Switch off any
other machines that are using
the same circuit.
●
Try the unit without an
extension cord.
Machine starts,
but no water
comes out
●
Pump/hoses or accessories
frozen.
●
No water supply.
●
Nozzle blocked.
●
Wait for pump/hoses or
accessories to thaw.
●
Connect inlet water.
●
Clean the nozzle.
Machine often
starts and stops
by itself
●
Pump/spray gun is leaking.
●
Trigger mechanism is
broken.
●
Please contact Giraffe Tools
customer service team via
service@giraffetools.com or
call the Giraffe Tools customer
service center at +1 (833)583-
0881 (9 am - 5 pm EST).
Pressure drops
during use
●
Pump sucking air.
●
Valves dirty, worn out, or
stuck.
●
Pump seals worn out.
●
Water intake from external
tank.
●
Insufcient water supply
to the pump inlet plumbing
system.
●
Intake water too hot.
●
Check the hoses and
connections are airtight.
●
Clean or replace valves/seals.
●
Connect appliance to the mains
water supply.
●
Clean the nozzle.
●
Reduce temperature.
21
Water leakage
●
Seals worn.
●
Safety valve tripped and
discharging.
●
Water leakage from the
water inlet.
●
Please contact Giraffe Tools
customer service team via
service@giraffetools.com or
call the Giraffe Tools customer
service center at +1 (833)583-
0881 (9 am - 5 pm EST).
Oil leakage
●
Seals worn.
●
Please contact Giraffe Tools
customer service team via
service@giraffetools.com or
call the Giraffe Tools customer
service center at +1 (833)583-
0881 (9 am - 5 pm EST).
Appliance works
intermittently
Safety valve soften or nozzle
clogged.
Clean the nozzle or Giraffe
Tools customer service team
via service@giraffetools.com or
call the Giraffe Tools customer
service center at +1 (833)583-
0881 (9 am - 5 pm EST).
WARRANTY
At Giraffe Tools, we conduct rigorous testing on every machine before it leaves the factory
and perform a lifetime test on every thousand machines to ensure they will withstand
many years of use beyond the warranty period.
In addition to our thorough testing, we offer a 24-month warranty on all original Giraffe
Tools new products. The following specics apply:
Giraffe Tools warrants its products against defects in parts and materials for a period
of 24 months from the original purchase date. Please note that this warranty does not
1.
22 23
apply to products acquired second hand.
All warranty periods commence on the date of purchase and are non-transferable.
The warranty is limited to the provision of a replacement or refund free of charge
within the specified period, provided that the above conditions are met, and the
original proof of purchase is presented.
2.
3.
Process:
For quality-related warranty claims, items will be replaced with a new item of equal
value when available. In situations where a replacement is not available or preferred,
Giraffe Tools will offer a full refund.
Warranties on all replacements follow the same 24-month warranty time frame as
the original defective item. Warranties on fully refunded products will be voided after
the refund is released.
4.
5.
●
Buyers must provide sufcient proof of purchase.
●
Giraffe Tools must document what happens when buyers troubleshoot the product.
●
Visible proof depicting the defect, such as pictures or videos, is required.
●
It may be necessary to return an item for quality inspection.
●
For defective items that Giraffe Tools needs to have returned, warrantion those replace-
ments are voided if the wrong item is returned to Giraffe Tools or if the defective item is not re-
turned.
Valid proof of purchase:
●
Order number from online purchases made through Giraffe Tools or Giraffe
Tools’s authorized resellers.
●
Sales invoice that shows a description of the product along with its price.
Not Covered Under Warranty:
●
Purchases from unauthorized resellers.
●
Alterations not carried out or authorized by Giraffe Tools authorized resellers.
●
Products without sufcient proof of purchase.
●
Second-hand products.
●
Items that have expired their warranty period.
●
Damage from misuse of products, including, but not limited to, improper stor-
age, falls, extreme temperatures, water, and improper operation of devices.
23
If you are interested in the above products, you can visit giraffetools.com or search for
Giraffe Tools on Amazon
RECOMMENDED PRODUCTS
5/8" Retractable Hose
Reel, 60-115ft
1/2" Retractable Hose
Reel, 78-155ft
Retractable Air
Hose Reel
Grandfalls
Pressure Washer
Grandfalls Pressure
Washer, 65ft
Pressure Hoses
25-100ft
Hose Reel Cart
150-250ft
Hybrid Hose with
Swivel Grip 2.5-100ft
Customized Garden
Hose 6-100ft
Scan code to visit Giraffe Tools
store on Amazon.com
Scan code to visit giraffetools.com Scan code to join our
facebook group
WE WILL DO THE HEAVY LIFTING
giraffetools.com
service@giraffetools.com
To purchase Giraffe Tools products and more, visit giraffetools.com or
search for Giraffe Tools on Amazon.com.
+1 (833)583-0881
(9am - 5pm EST)
Complete your registration online for a
100 DAYS WARRANTY EXTENSION
