Introduction - BJL666
FM/AM/SW
3
BAND WORLD RECEIVER

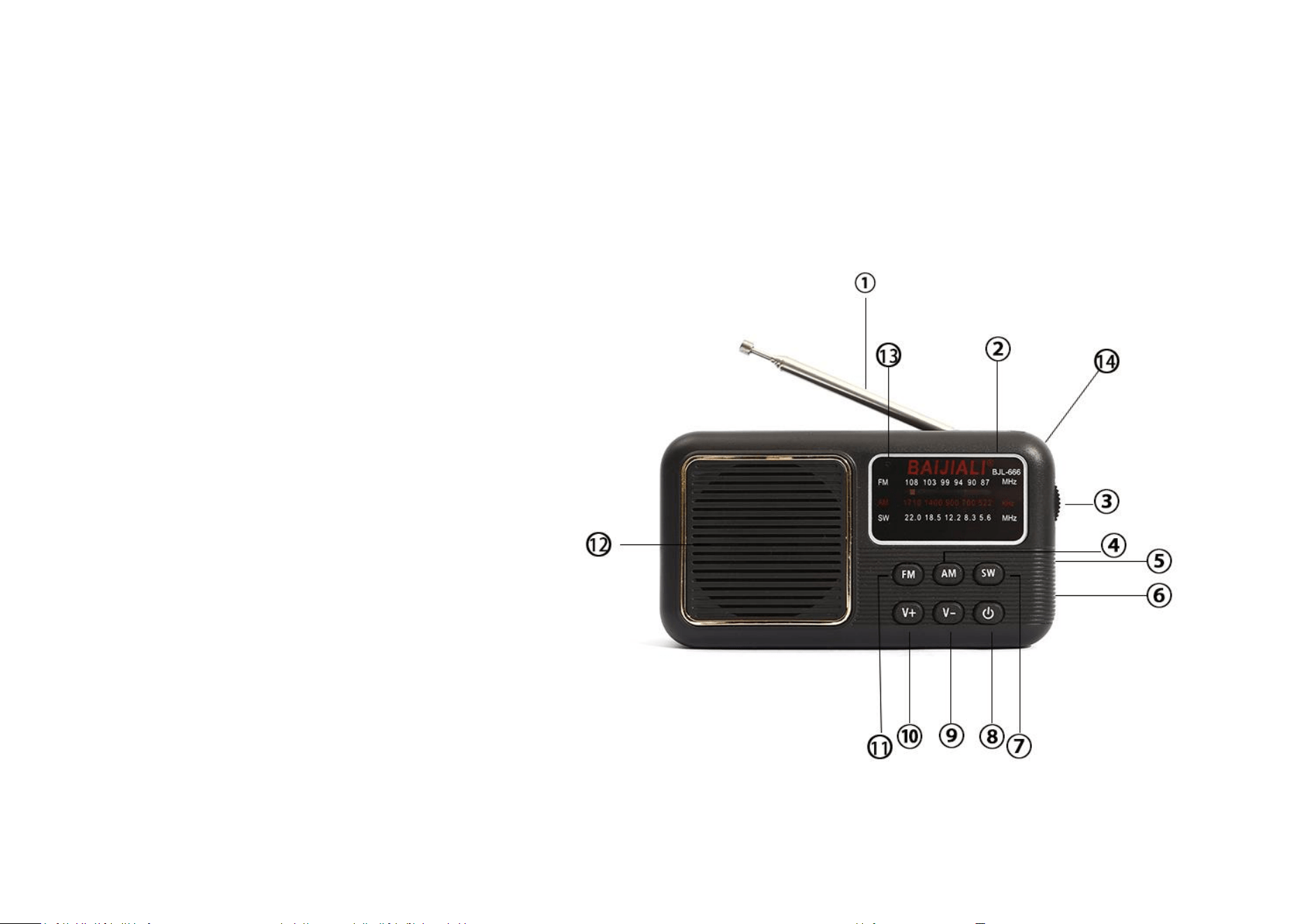

(1)Telescopic Antenna
(2)Tuning Frequency Indicating Window
(3)Tuner
(4)AM Band Selector
(5)Earphones Jack
(6)Power Jack
(7)SW Band Selector
(8)Power Switch
(9)Volume reduction
(10)Volume reduction
(11)FM Jack
(12)Horn
(13)Power Indicator
(14)Hand Belt
OPERATION

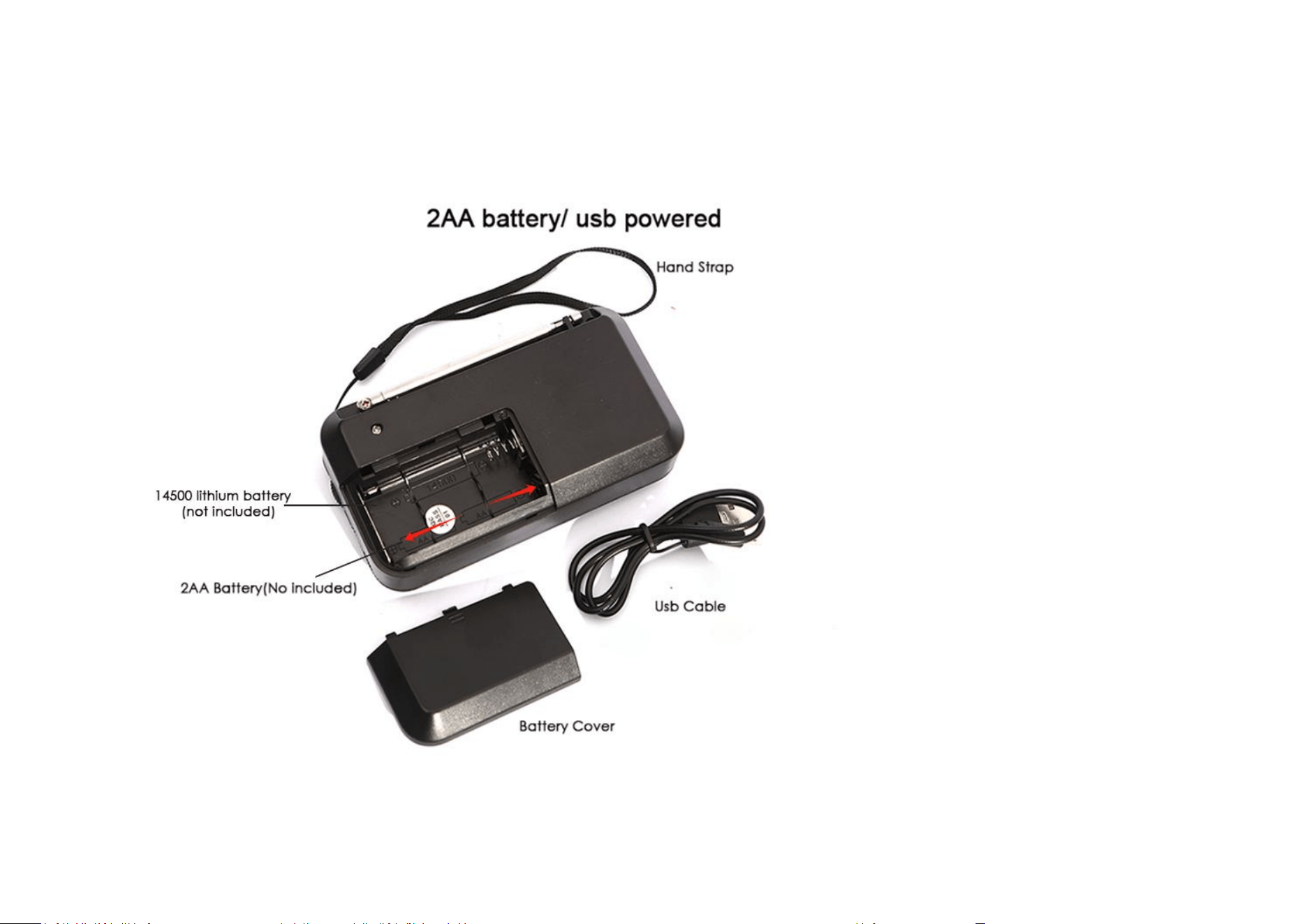

1. Battery operation
Powered 1: 14500 Lithium battery(no included).
Powered 2: 2*AA batteries.
Powered 3: USB cable powered.
Please Note: When you don't want to use the radio for a long time. please take out the batteries from the unit.
2.Select broadcast band by moving the function switch to your desired band.
3.Adjust the volume to optimum listening level.
4.Tune the turning to select desired station.
5.External the TELESCOPIC ANTENNA for optimum reception on FM or SW.
Frequency: AM:522~1710KHz
SW: 5.6~22.0MHz
FM: 76~108MHz
Horn: 50mm, 4 Ω 3W
Power Supply: 2*AA batteries /14500 Lithium battery(no included) /USB cable powered
1 . Open the battery door and load the (2×AA)battery into the battery bin according to the direction
indicated in the battery bin.
NOTE:Push the battery bin cover in the direction indicated.
2.Turn on the power switch, observe the band instruction, choose to listen to FM/AM/SW band program.
3.After turning on the power switch, turn the volume and choose the right volume to listen.
4.Rotate the tuning knob, observe the frequency indicator window and the pointer, select the radio
program you want to listen to.
5.When listening to FM/SW band radio, pull out the telescopic antenna and change the length and
angle of the antenna to get the best listening effect.
6.AM band is received by magnetic antenna in the machine, and the best listening effect can be
obtained by rotating the direction of the radio.
7.In order not to interfere with other people's rest, you can use earphone to listen to,the earphone plug into
the earphone jack (the machine speaker automatically disconnected ), then use the earphone to listen to.
8.If the listening time is long or the radio effect is not good, please open the battery bin and replace the battery
according to the labeled polarity in the battery bin.
9.When you don't want to listen, turn the power switch to turn off the power supply.
