Features:
•
Compact Design and Comfortable Seat
• Leak-Proof & Odorless Sealing Design
• Easy to Install with Installation Kits Inclusion
• Made from High-density Polyethylene
• Easy to Use One-way, Ergonomic Foot Pedal: Partially Press to Add Water
and Fully Press to Flush
• Home-like Comfort with Ergonomic Toilet Seat Design
• Anti-splash Rim that Keeps Water in Bowl and Conceals Rinse Jets
• Water-saving, T-type Water Outlet for Full-bowl Flush Coverage
• Extreme Low Flush Technology Uses as Little as 1 pint /0.5 Liter Per Flush
• High-Gloss Surface and Easy to Clean
• Soft Close Seat for More Comfort
• With a Hand Sprayer
• Powerful and Ecient Jet Rinsing
• Eectively Removes Residue and Comfortable Grip
• Ergonomic Elongated Handle
• Suitable for Cleaning Floors, Toilets, Bathing Pets, and Watering Plants
• Ideal for Indoors and Outdoor Use
What's in the Box:
•
Gravity Flush Toilet
• Hand Sprayer
• Metal Floor Flange
• Install Kits
• Water Hose Connector
Technical Specs:
•
Construction Material: HDPE, PP
• Flow Rate Recommended: 3.0-5.0* gpm / 11.4-18.9 lpm
• Static Pressure Recommended: 29-72 PSI / 200-500 kPa
• Weight Capacity: 440 lbs.
• Item Weight: 13.8 -lbs.
• Product Dimensions (L x W x H): 19.1’’ x 15.4’’ x 19.7’’ -inches
California Prop 65 Warning
WARNING:
This product may expose you to chemicals, which is known to
the state of California to cause cancer, birth defects and other
reproductive harm. Do not ingest.
For more info go to: www.P65warnings.ca.gov
Toilet seatt
T ush nozzle
Toilet base
Toilet pedal
Drain valve
Toilet lid
1/2 inch water inlet
10mm
mounting hole
www.SereneLifeHome.com
3
Caution
1. Please always assemble according to the instructions.
2. Floor ange and 4 self-tapping screws are included.
3. Press the foot pedal to touch the ground until opening the ush valve.
4. Ensure water supply pressure is no more than 58 psi.
5. Hot water above 104°F is forbidden.
Product List
Product and Mounting Dimension
Floor mounting kit
A
B
C
D
E
F
G
H
I
J
Bolt and rubber case
www.SereneLifeHome.com
4
The outside diameter of the toilet drain outlet: 95mm / 3.7”;
The inner diameter of the toilet drain outlet: 87mm / 3.4”
How to install toilet
1. To replace an older toilet, turn o the water supply to the toilet. Remove and
drain the water supply line. Remove toilet hold-down bolts/screws.
Remove the toilet from the oor. Remove and discard the old ange seal and
hold-down bolts. Verify the center of the oor ange is at least 7.9" (200mm)
from the back wall (Fig. 1).
2. When installing a new oor ange, ensure that the toilet mounting holes are
located at the correct angle (Fig. 1). The oor ange must be secured to the
oor with a minimum of four screws. Insert the two supplied T-bolts into the
slots in the oor ange (Fig. 2).
3. Verify that the oor ange seal is installed on the base of the toilet.
Carefully set the toilet over the oor ange. Align the holes in the toilet base
with the T-bolts as the toilet is lowered onto the oor ange.
4. Install the oor mounting nuts onto the T-bolts. When tightening, the base
should be securely attached and at against the oor. Attach the bolt covers
onto the nuts.
5. Connect the water supply line to the 1/2 inch water inlet and turn on the
water supply line (Fig. 3). Flush the toilet several times and check for leaks.
Ref.
A 390mm / 15.4”
B 500mm / 19.7”
C 233mm / 9.2”
D 485mm / 19.1”
E 380mm / 15.0”
F 890mm / 35.0”
Ref.
G Minimum: 200mm / 7.9”
H Minimum: 200mm / 7.9”
I Minimum: 200mm / 7.9”
J 170mm / 6.7”
www.SereneLifeHome.com
5

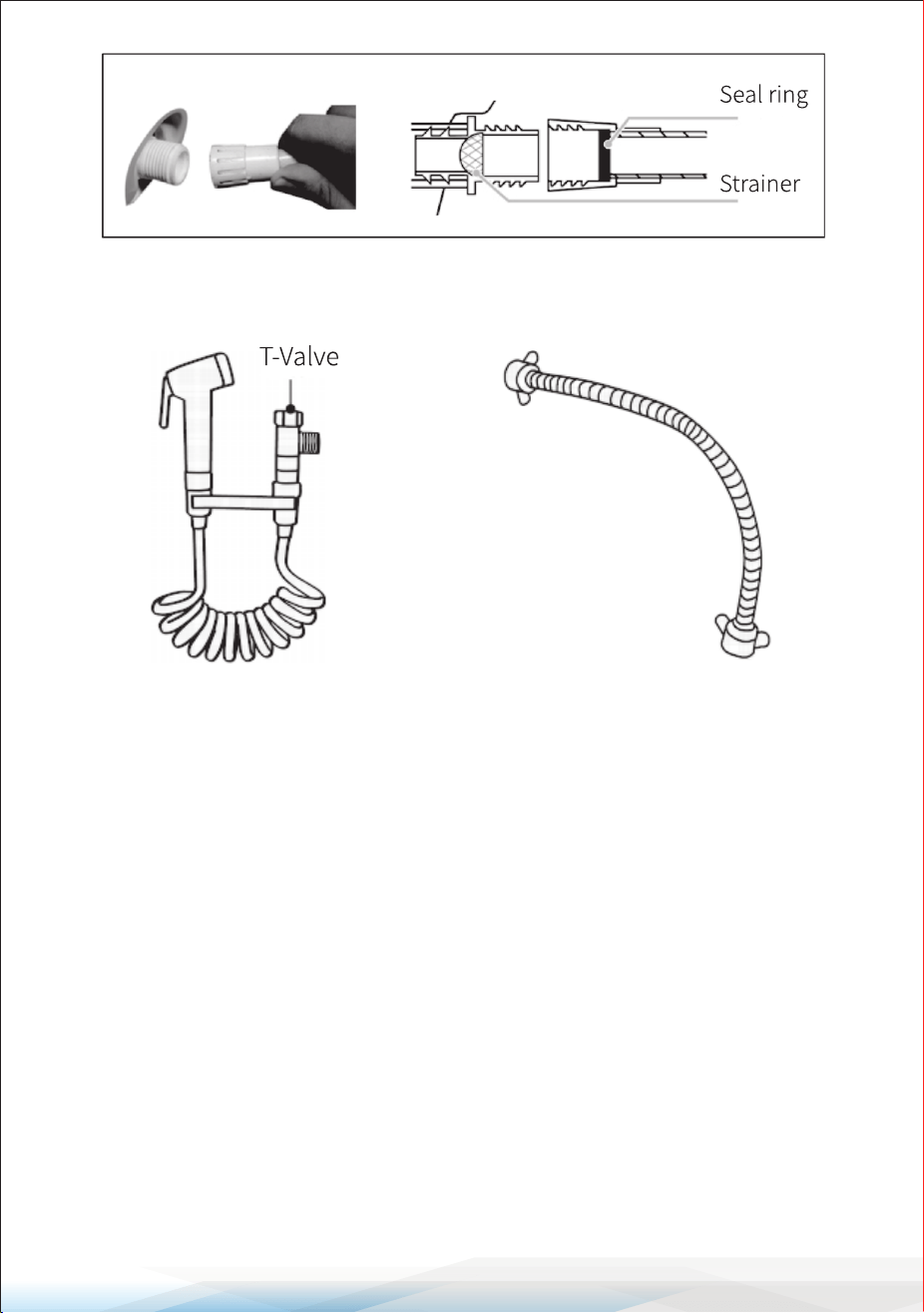

How to Install Handheld Sprayer and Water Supply
Handheld Sprayer Water Supply Hose
1. Connect one end of the T-valve to the exible sprayer hose and the other end
to the 1/2 inch water supply hose. Then connect the other side of the exible
sprayer hose to the sprayer, and connect the other side of the 1/2 inch water
supply hose to the toilet.
2. Screw the sprayer hose to the sprayer head.
3. Put the sprayer in the holder.
How to Operate Toilet

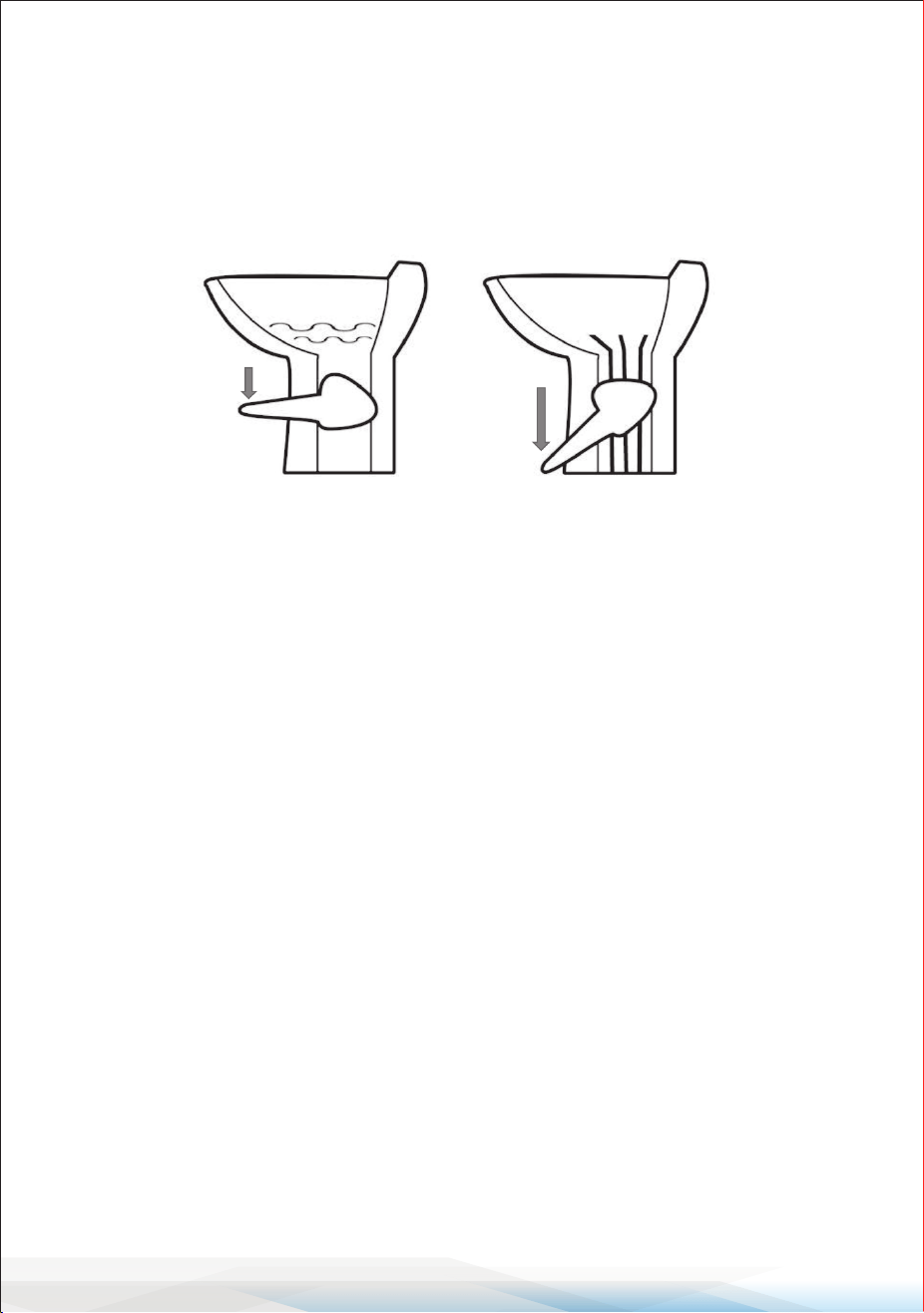

1. Add Water to Bowl: To add water to the toilet, press the ush pedal partway
down. Water ows into the bowl while the ush valve remains closed. If the
ush valve moves, release the pedal slightly. Adding water to an empty bowl
helps prevent holding tank odors from entering the living space. Adding water
is recommended prior to ushing solids and toilet paper (Fig. 4).
Fig. 3
www.SereneLifeHome.com
6
2. Flush Toilet: To ush, press the pedal down until it contacts the oor.
Release the pedal after completing the ush (Fig. 5). When ushing liquids,
press the pedal for 1-2 seconds. When ushing solids, press the pedal until
the contents in the bowl are rinsed. Flushing longer than necessary will cause
the holding tank to ll too quickly. A small amount of water will collect in the
bowl after ushing, creating an airtight seal.
Flush Valve/Seal Cleaning
After a period of time, mineral deposits from hard water may build up on the
ush ball or seal, resulting in a slow water leak. To prevent this, periodically
clean the ush valve and seal.
1. Remove minor debris from the ush valve and seal by slowly pressing and
releasing the ush pedal several times. This will loosen and rinse debris from
the surfaces. Repeat several times for stubborn buildup (use a soft bristle
brush if necessary).
2. Lubricate the ush valve and seal periodically with silicone spray or paste
lubricant.
Winterization and Storage
This toilet is not intended for use when exposed to temperatures below
freezing. Before storing the toilet, you need to drain water from the toilet
according to the following procedures:
1. Turn o the water supply to the toilet.
2. Remove the water supply line from the water inlet.
3. Place a small container under the inlet to collect draining water.
4. Press the ush pedal and allow the water to completely drain from the water
5. Leave the water line disconnected until the threat of freezing temperatures
disappears.
Fig. 4 Fig. 5
Register Product
Thank you for choosing SereneLife. By registering your product,
you ensure that you receive the full benets of our exclusive
warranty and personalized customer support.
Complete the form to access expert support and to keep your
SereneLife purchase in perfect condition.
www.SereneLifeHome.com
7
How to Maintain and Clean
Regular maintenance and cleaning of the toilet are essential to ensure it
remains in good working condition and to extend its lifespan.
1. Regular Cleaning: Clean the toilet bowl regularly with a non-abrasive toilet
cleaner and a toilet brush. Wipe down the exterior surfaces of the toilet with a
mild disinfectant cleaner and a soft cloth.
2. Deep Cleaning: Periodically deep clean the toilet to remove any stubborn
stains or buildup. Use a toilet bowl cleaner specically designed to remove
mineral deposits and hard water stains.
3. Seal and Valve Maintenance: Inspect the ush valve and seal regularly for
any signs of wear or damage. Clean the ush valve and seal as described in
the "Flush Valve/Seal Cleaning" section. Apply silicone spray or paste lubricant
to the ush valve and seal to maintain a proper seal and smooth operation.
4. Check for Leaks: Regularly check the water supply line, connections, and the
base of the toilet for any signs of leaks. Tighten any loose connections and
replace any damaged components as necessary.
5. Ventilation: Ensure the bathroom is well-ventilated to prevent mold and
mildew growth. Use an exhaust fan or open windows during and after using
the shower or bath to reduce humidity levels.
By following these maintenance and cleaning guidelines, you can keep your
toilet in excellent condition and ensure it operates eciently for years to come.
