INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these
instructions carefully before starting the installation and keep this manual handy for future reference. If you
have any another query, please contact our dealer or local vendor from whom you have purchased the
product. They are trained and ready to serve you at the best. The warranty is valid for 3 years from the date
of purchase. The warranty does not apply to damage caused by incorrect installation or abnormal wear
and tear. The company gives no warranty against damage to any surface due to incorrect removal and
installation of the product. The products are suitable for 10-12 Hours Daily operation. Usage of product for
24 Hours a day would void the warranty. This product is warranted for manufacturing defects only.
MULTI-LANGUAGE
MANUAL QR CODE
Please scan the QR code
to access the manual in
multiple languages.
IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: SUPPORT@V-TAC.EU
FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS.
V-TAC EUROPE LTD. BULGARIA, PLOVDIV 4000, BUL.L.KARAVELOW 9B
INSTRUCTION MANUAL
LED SOLAR FLOOD LIGHT
COLOR
CHANGING
3-IN-1
This marking indicates that this
product should not be disposed
of with other household wastes.
Caution, risk of electric shock.

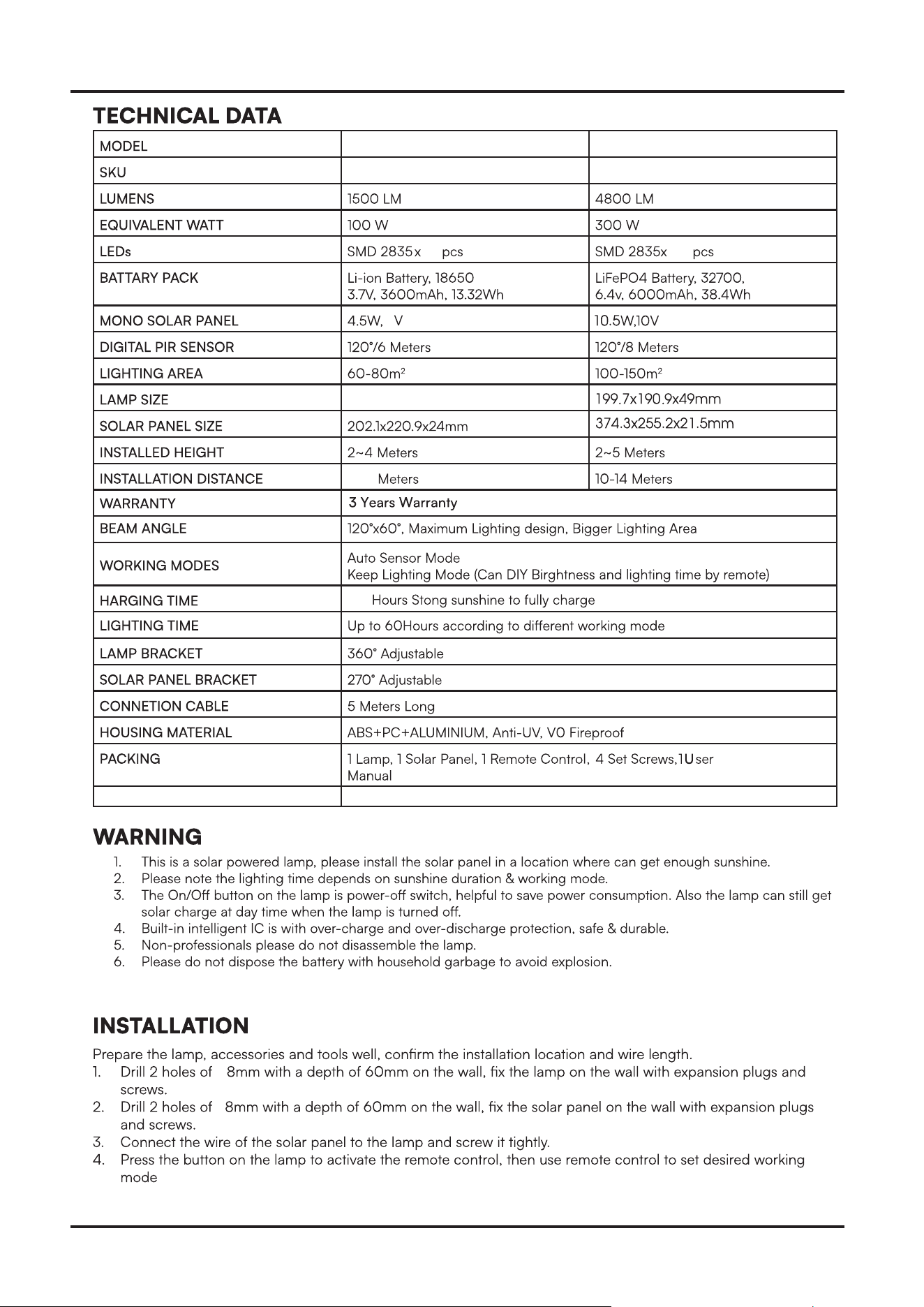

VT-411 CCT VT-432CCT
6-8
23756
IK RATING IK07
24277
180
6
152.7x146.8x31.2mm
5-6
Ø
Ø
and CCT.
88
2-6
mode and CCT by remote
KEEP LIGHTING MODE (
DEFAULT MODE)
WORKING MODES
Lamp automatically lights up at night and turns to full
brightness when motion is detected in the range, then
turns to 5% brightness in 30 seconds of no motion.
SENSOR MODE
120°
120°
120°
Lamp automatically lights up at night and keeps 60%
for 3 hours, aer which lamp turns to Sensor Mode.
Aer 3 hours
Aer 3 hours
120°
120°
In this mode, you can select the desired lighting time
and brightness by the remote control.
For example:
Press + + , the lamp will work as below:
Lamp automatically lights up at night and keeps 40%
brightness for 5 hours, aer which lamp turns to Sensor Mode.
40%
5H
Firstly, please press the button on the lamp, lamp turns on and
automatically enter Keep Lighting Mode (
Default Mode
).
Press the button again, lamp turns o.
Aer the lamp is turned on, then please use remote control to
select demanded work mode and CCT.
On/O Button
* Please remove the insulating film of the remote control before use.
* Remote control distance: 6 meters.
* Each time you press a button on the remote, the lamp flashes once.
* ON/OFF switch on the remote control has memory function.
* Lighting brightness and time can only be adjusted in Keep Lighting Mode.
AND CCT
On/O
Switch color temperature
Keep Lighting Mode
Remove this film before use.
MODE
8H
60% 40%
20%
5H
H12
3H
CCT
Sensor Mode
Lighting Brightness
Lighting Time
Indicator Light Status During the Day
Indicator Light Status At Night
Working Status of Solar Lamp
Always on Lamp is fully charge.
Flashes every 3 seconds Solar panel is charging normally.
O
The ambient sunlight is not strong enough
to get the solar panel charged.
Working Status of Solar Lamp
O Lamp discharges and works well.
Flashes every second
Lamp discharges and works well, but
battery power is less then 30%.
REMOTE CONTROL SAFETY INSTRUCTIONS
• Before using this product, make sure that all parts are configured correctly according to
the instructions in the attached instruction.
• The product should not be used by persons under 5 years of age without supervision by a
parent or guardian.
• Ensure that the power batteries are configured correctly and have the appropriate param-
eters as specified by the manufacturer.
• This product contains battery type "Secondary" (rechargeable).
• Electrical and electronic equipment that has become waste is known as old equipment/device. Old
devices must not be disposed of with other household waste.
• Owners of old devices at the end of its service life must return the device by taking them to the collection
points set up by public waste disposal authorities or distributors. This return does not entail any costs for
you.
• Owners of old devices have an obligation to remove accessible batteries / rechargeable batteries as well
as non-destructively removable lamps from the old device prior to return. This does not apply if old
devices are being prepared for reuse with the participation of a public law firm.
• Battery removal warning: The battery contained in this product must be removed only by professional
personnel only. The battery must never be removed by the end user, if not removed correctly it could
damage the battery which could cause fire.
• Batteries removed from an old electronic device should be disposed of separately. This return of battery
does not entail any costs for you and the user is obliged to return the battery.
• Please make sure that this product is not powered on when removing the battery. Fire hazard! Avoid
short-circuiting the contacts of a detached battery. Do not incinerate the battery. Please handle the
battery with Caution!
• If electrical appliances or batteries are disposed of in landfills or dumps, hazardous substances can leak
into the groundwater and get into the food chain, damaging your health and well-being.
• The symbol of "Crossed rubbish bins "indicates that this product should not be disposed of with other
household wastes and must be collected separately from unsorted municipal waste at the end of its
service life.
• Please use the link below to view the online directory of the collection and return
points:https://www.ear-system.de/ear-verzeichnis/sammel-und-ruecknahmestellen
IMPORTANT NOTES
VTAC EUROPE LTD. IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: SUPPORT@V-TAC.EU
FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS.
V-TAC EUROPE LTD. BULGARIA, PLOVDIV 4000, BUL.L.KARAVELOW 9B
V-TAC UK LTD. IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT PLEASE REACH OUT TO US AT
SUPPORT@VTACEXPORTS.COM V-TAC, 5A TUNGSTEN PARK, DOWNS ROAD, WITNEY, OXFORDSHIRE, OX29 0AX
MAINTENANCE & WARNING
• Do not use solvents, petrol, etc. Otherwise the light will be damaged.
• Clean the light with a dry, lint-free cloth.
• Check the solar panel for dirt regularly. If dirt or is present remove it to guarantee flawless
function of the product.
• Especially during the winter, keep the product free from snow and ice.
• Confirm installation direction is correct (solar panel should be at top)
• Confirm no objects blocking the solar panel to receive sunlight
• Keep away from the fire.
• Don’t immerse in the water
