INTRODUCTION & WARRANTY
WARNING
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these
instructions carefully before starting the installation and keep this manual handy for future reference. If
you have any another query, please contact our dealer or local vendor from whom you have purchased
the product. They are trained and ready to serve you at the best. The warranty is valid for 2 years from the
date of purchase. The warranty does not apply to damage caused by incorrect installation or abnormal
wear and tear. The company gives no warranty against damage to any surface due to incorrect removal
and installation of the product. This product is warranted for manufacturing defects only.
• Please make sure to turn o the power before starting the installation.
• Installation should only be done by a certified electrician.
• The light source of this luminaire is not replaceable; when the light source reaches its end of life
the whole luminaire shall be replaced.
• If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced
by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.
• Must be connected to waterproof terminal box
• For outdoor use
This marking indicates that this
product should not be disposed
of with other household wastes.
Caution, risk of electric shock.
MULTI-LANGUAGE
MANUAL QR CODE
Please scan the QR code
to access the manual in
multiple languages.
LED FLOODLIGHT WITH SOLAR PANEL &
BATTERY INDICATOR
INSTRUCTION MANUAL

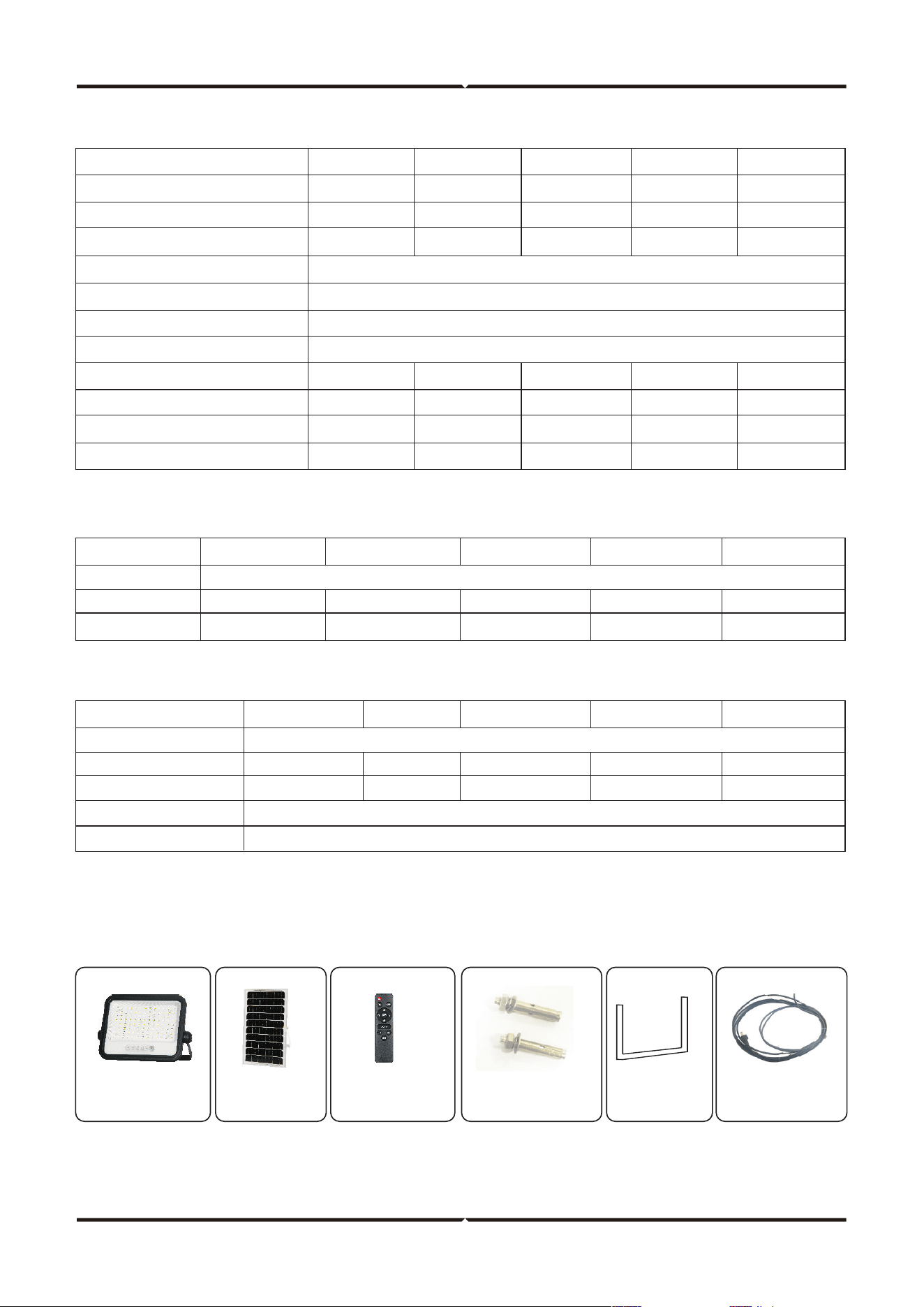

TECHNICAL DATA
SOLAR PANEL SPECIFICATION
BATTERY SPECIFICATION
PACKAGE CONTENT
Solar light Solar panel Remote control Expansion screw U-frame 3m wire
MODEL
SKU
LUMENS
DIMENSION (MM)
COLOR TEMPERATURE
BODY TYPE
IK RATING
OPERATING TEMPERATURE
LED CHIP (SMD2835)
PRODUCT WEIGHT
MAX MOUNTING HEIGHT
PROJECTED AREA(M2)
VT-54W
24082
700 lm
185x143x57
VT-104W
24083
1000 lm
233x178x57
VT-204W
24084
1700 lm
285x215x58
VT-304W
24085
2400 lm
322x248x57
VT-404W
24086
3000 lm
350x275x57
6V/6W
260*174mm
6V/8W
280*210mm
6V/12W
350*210mm
6V/20W
390*300mm
6V/25W
390*360mm
MODEL
PANEL
WATT
DIMENSION
VT-104W VT-204W VT-304W VT-404WVT-54W
3.2V
3.8AH
3.2V
7.6AH
3.2V
10AH
3.2V
15AH
3.2V
20AH
MODEL
TYPE
VOLTAGE
CAPACITY
CHARGING TIME
WORKING TIME
LiFePO4
VT-104W VT-204W VT-304W VT-404WVT-54W
28pcs 50pcs 104pcs 135pcs 198pcs
Monocrystalline silicon
4-6H
12H
7500-8000K (7 CCT Selectable)
ABS+PC
IK05
-10°C to 50°C
NOTE: In order to maintain the IP protection of the product, the cable
entry/gland should be installed on the bottom side.

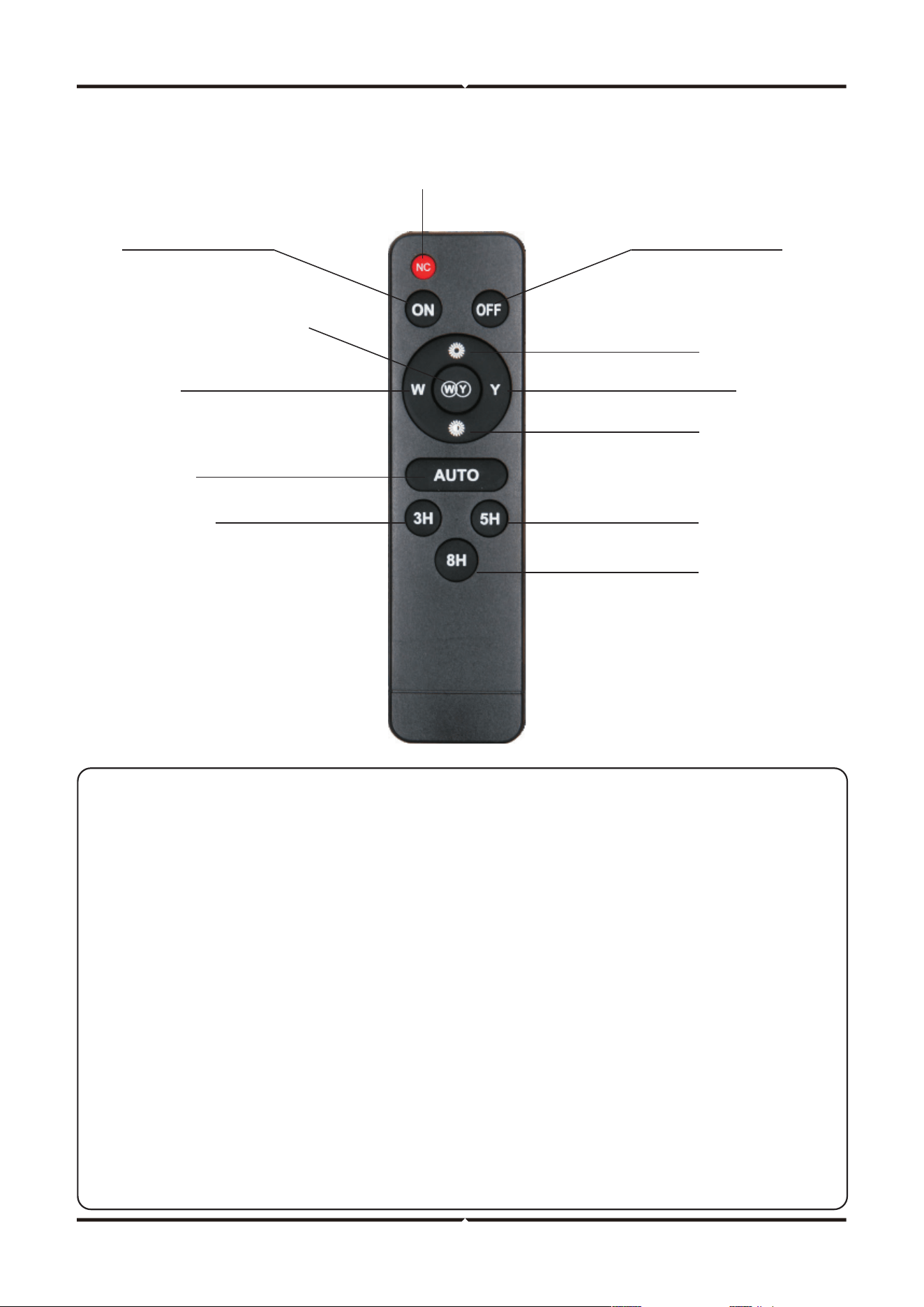

REMOTE INSTRUCTIONS
5000K
F
orce to turn on the lights
(
Optical control is n ull)
Optically
Controlled Mode
Force to turn off the lights
(Optical control is null)
High bright
Low bright
5 hours regular
8 hours regular
3 hours regular
From 2000K up to 8000K From 8000K down to 2000K
8000K
7000K
6000K
4000K
3000K
2000K
5000K
8000K
7000K
6000K
4000K
3000K
2000K
5000K
Adjus table color temperature Adjus table color temperature
REMOTE CONTROL SAFETY INSTRUCTIONS
• Before using this product, make sure that all parts are configured correctly according
to the instructions in the attached instruction.
• The product should not be used by persons under 5 years of age without supervision
by a parent or guardian.
• Ensure that the power batteries are configured correctly and have the appropriate
parameters as specified by the manufacturer.
SOLAR PANEL MAINTENANCE & WARNING
• Do not use solvents, petrol, etc. Otherwise the light will be damaged.
• Clean the light with a dry, lint-free cloth.
• Check the solar panel for dirt regularly. If dirt or is present remove it to guarantee
flawless function of the product.
• Especially during the winter, keep the product free from snow and ice.
• Confirm installation direction is correct (solar panel should be at top)
• Confirm no objects blocking the solar panel to receive sunlight
• Keep away from the fire.
• Don’t immerse in the water
Double-click to switch to highlight mode
INSTALLATION INSTRUCTIONS
INSTALLATION & OPERATION INSTRUCTIONS
PRE-CHARGED BATTERY
• The solar light comes partially charged from the factory. Before installation, please check that
the light is functioning correctly.
AUTO MODE ACTIVATION
• Press the 'AUTO' (red) button to enable the day-night sensor mode.
• The light will automatically turn ON at night and turn OFF during the day.
Note: The remote control must be pointed directly at the receiver on the floodlight for proper
operation.
REMOTE CONTROL RANGE
• The eective remote control distance is approximately 8–10 meters.
INSTALLATION STEPS

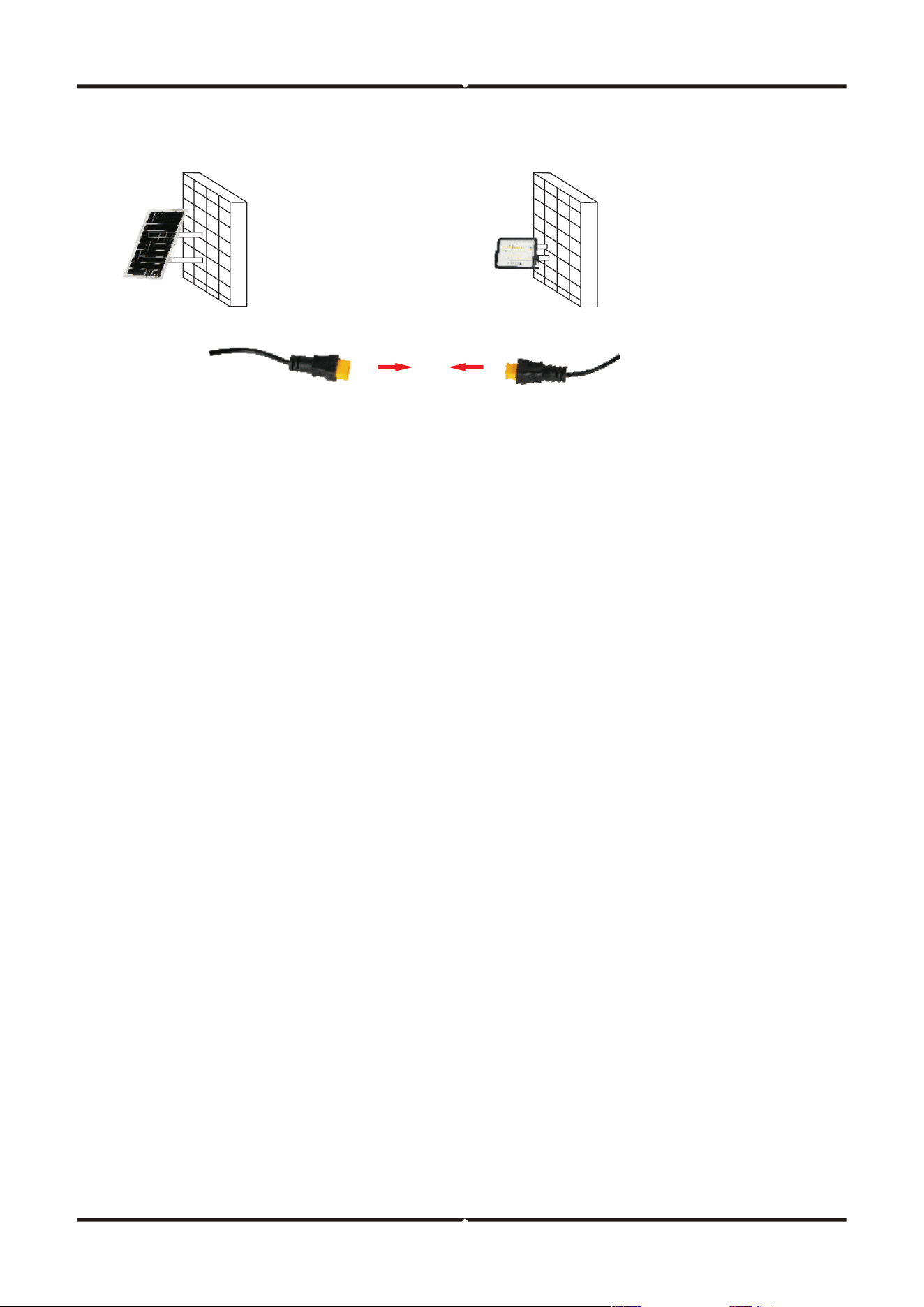

• a. Mount the lamp on the wall using the two expansion screws provided (refer to the diagram
above).
• b. Adjust the angle of the solar panel to face direct sunlight for optimal charging.
• c. Avoid installing the lamp in low-lying areas to prevent water accumulation or submersion.
CONNECTING THE UNIT
• Connect the two plugs and securely tighten the waterproof cap. The system will then enter
charging mode.
FINAL CHECK
• Once installation is complete, ensure all components are firmly secured and the unit is safely
mounted.
Plug the twist aer the twist cap
Tips: The battery must be fully charged before using 3-5 rainy days.
Use 2 expansion screws to
fix the solar panels on the wall
Use 2 expansion screws to
fix the solar lamp on the wall
V-TAC WEST EUROPE LTD. IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: [email protected]
FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS.
V-TAC WEST EUROPE LTD. GROUND FLOOR, 71 LOWER BAGGOT STREET, DUBLIN 02, IRELAND DO2 P593
V-TAC UK LTD. IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT PLEASE REACH OUT TO US AT
[email protected] V-TAC, 5A TUNGSTEN PARK, DOWNS ROAD, WITNEY, OXFORDSHIRE, OX29 0AX
• This product contains battery type "Secondary" (rechargeable).
• Electrical and electronic equipment that has become waste is known as old equip-
ment/device. Old devices must not be disposed of with other household waste.
• Owners of old devices at the end of its service life must return the device by taking them
to the collection points set up by public waste disposal authorities or distributors. This
return does not entail any costs for you.
• Owners of old devices have an obligation to remove accessible batteries / rechargeable
batteries as well as non-destructively removable lamps from the old device prior to
return. This does not apply if old devices are being prepared for reuse with the participa-
tion of a public law firm.
• Battery removal warning: The battery contained in this product must be removed only by
professional personnel only. The battery must never be removed by the end user, if not
removed correctly it could damage the battery which could cause fire.
• Batteries removed from an old electronic device should be disposed of separately. This
return of battery does not entail any costs for you and the user is obliged to return the
battery.
• Please make sure that this product is not powered on when removing the battery. Fire
hazard! Avoid short-circuiting the contacts of a detached battery. Do not incinerate the
battery. Please handle the battery with Caution!
• If electrical appliances or batteries are disposed of in landfills or dumps, hazardous
substances can leak into the groundwater and get into the food chain, damaging your
health and well-being.
• The symbol of "Crossed rubbish bins "indicates that this product should not be disposed
of with other household wastes and must be collected separately from unsorted munici-
pal waste at the end of its service life.
• Please use the link below to view the online directory of the collection and return
points:https://www.ear-system.de/ear-verzeichnis/sammel-und-ruecknahmestellen
IMPORTANT NOTES
