Note:
For simplicity, we will take TL-SG105 for example throughout this Guide.
Installation Guide
5/8/16-Port Gigabit Desktop Switch
© 2025 TP-Link 7100002145 REV7.2.0

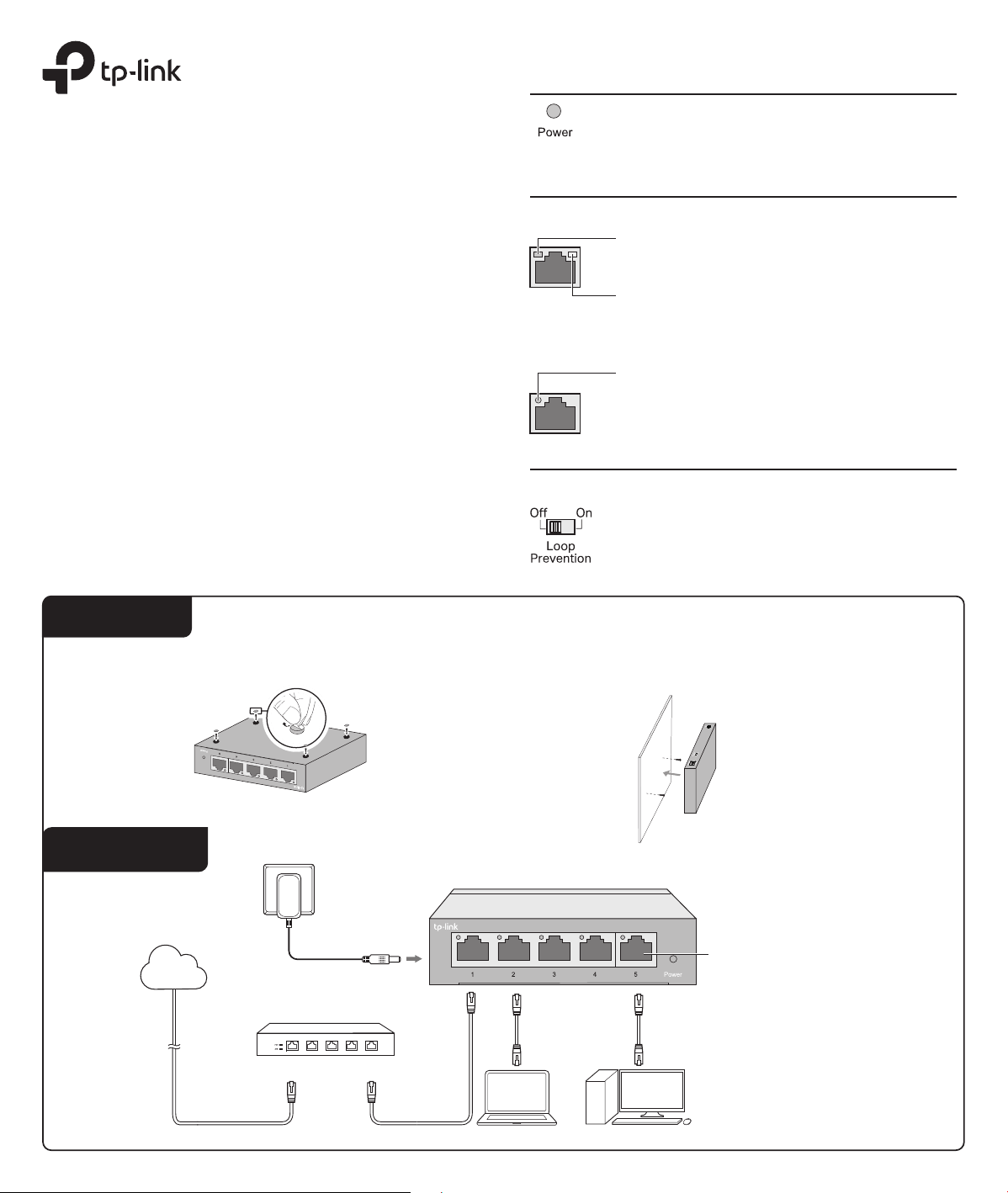

Connection
Ethernet Ports (1-5)
PC
PC
Gateway
LAN PortWAN Port
Internet
TL-SG105
Power Adapter
Installation
Desktop:
Attach the supplied feet to the bottom of the switch to prevent it from slipping
when placed on a desktop.
Note: For detailed information, please refer
to the Wall Mounting Guide on the device’s
support page.
Wall-mounting:
Drill two holes on the wall according to the mounting holes on the bottom of
the switch, then secure the switch to the wall with two suitable screws (not
provided).
Link/Act
5-port Gigabit Desktop Switch
TL-SG105
Link/Act
5-port Gigabit Desktop Switch
TL-SG105
On: Power on
O: Power o
Flashing: (TL-SG105/TL-SG105S/TL-SG108/TL-SG108S)
Loop occurs in the network topology
Panel Explanation
Power LED
Switch
Link/Act LED
On: Running at 10/100/1000 Mbps
O: No device is linked to the corresponding port
Quick ashing: Transmitting/receiving data
Slow ashing: Loop is detected on the corresponding port
On: The switch will monitor and address loop-related
issues within the network structure to prevent disruptions
caused by redundant pathing
O: (default) The switch will not try to monitor or address
loop-related issues
1000M (Green)
On: Running at 1000 Mbps
10/100M (Yellow)
On: Running at 10/100 Mbps
Flashing: Transmitting/receiving data
Flashing: Transmitting/receiving data
For TL-SG116:
For other models:
For TL-SG105/TL-SG105S/TL-SG108/TL-SG108S:
Operating Temperature
Storage Temperature
Operating Humidity
Storage Humidity
Environmental and Physical Specications
TL-SG116: -5 ˚C to 40 ˚C (23 ˚F to 104 ˚F)
Other models: 0 ˚C to 40 ˚C (32 ˚F to 104 ˚F)
-40 ˚C to 70 ˚C (-40 ˚F to 158 ˚F)
10% to 90%RH non-condensing
5% to 90%RH non-condensing
Q1. The Power LED is not lit.
Q2. The Link/Act LED is not lit when a device is connected
to the corresponding port.
Frequently Asked Questions (FAQ)
The Power LED should be lit when the power system is working
normally. If the Power LED is not lit, check as follows:
A1:
Make sure the power adapter is connected to the switch with
power source properly.
A2
: Make sure the voltage of the power supply meets the requirements
of the input voltage of the switch.
A3:
Make sure the power source is ON.
It is recommended that you check the following items:
A1:
Make sure that the cable connectors are rmly plugged into the
switch and the device.
A2:
Make sure the connected device is turned on and works normally.
A3:
The cable must be less than 100 meters long (328 feet).
Q3. Why does the switch fail to detect and block a loop
from occurring in the network topology when Loop
Prevention is enabled?
A:
When this switch is connected to other non-terminal devices, such
as switches of other brands, and the device is incapable of correctly
processing or forwarding loop detection packets, the Loop
Prevention function will be limited. It is recommended to connect
the terminal devices directly to this switch or connect non-terminal
devices with complete forwarding capability to this switch.
Safety Information
Do not use any other chargers than those recommended.
Keep the device away from water, re, humidity or hot environments.
Adapter shall be installed near the equipment and shall be easily accessible.
Do not use damaged charger or USB cable to charge the device.
Use only power supplies which are provided by manufacturer and in the origin
packing of this product. If you have any questions, please don’t hesitate to contact us.
Do not attempt to disassemble, repair, or modify the device. If you need service, please
contact us.
EU Declaration of Conformity
For TL-SG116:
TP-Link hereby declares that the switch is in compliance with the essential requirements and other relevant
provisions of directives 2014/30/EU, 2014/35/EU, 2011/65/EU and (EU)2015/863.
The original EU declaration of conformity may be found at https://www.tp-link.com/en/support/ce/
For other models:
TP-Link hereby declares that the switch is in compliance with the essential requirements and other relevant
provisions of directives 2014/30/EU, 2014/35/EU, 2009/125/EC, 2011/65/EU and (EU)2015/863.
The original EU declaration of conformity may be found at https://www.tp-link.com/en/support/ce/
UK Declaration of Conformity
TP-Link hereby declares that the switch is in compliance with the essential requirements and other
relevant provisions of the Electromagnetic Compatibility Regulations 2016 and Electrical Equipment
(Safety) Regulations 2016.
The original UK declaration of conformity may be found at https://www.tp-link.com/support/ukca/
For technical support and other information, please visit
https://www.tp-link.com/support/?type=smb, or simply
scan the QR code.
To ask questions, find answers, and communicate with TP-Link users or
engineers, please visit https://community.tp-link.com/business to join
TP-Link Community.
Model
TL-SG105
TL-SG105S
TL-SG108
TL-SG108S
TL-SG116
Power Adapter
T050060-2C1
T050060-2C1
T050060-2C1
T050060-2C1
T120100-2C1
Manufacturer
TP-Link
TP-Link
TP-Link
TP-Link
TP-Link
Explanation of the symbols on the product label
產品標籤上符號的解釋
Note: The product label can be found at the bottom of the product.
Symbols may vary from products.
注意：產品標籤可在產品底部找到。符號可能因產品而異。
Symbol
符號
Explanation
說明
Class II equipment
二級設備
Class II equipment with functional earthing
具有接地功能的二級設備
Alternating current
交流電
Direct current
DC 電壓
Polarity of DC power connector
輸出端點的極性
For indoor use only
僅供室內使用
Dangerous voltage
危險電壓
Caution, risk of electric shock
請注意，有觸電的危險
Energy eciency marking
能源效率標誌
Protective earthng
保護接地
Earth
接地
Frame or chassis
框架或外殼
Functional earthing
功能接地
Caution, hot surface
請注意，表面過熱
Caution
警告
Operator's manual
操作手冊
Stand-by
待機
"ON"/"OFF" (push-push)
“開啟”/”關閉”（按壓式）
Fuse
保險絲
Fuse is used in neutral N
保險絲用於中性線 N
RECYCLING
回收
This product bears the selective sorting symbol for Waste electrical
and electronic equipment (WEEE). This means that this product must
be handled pursuant to European directive 2012/19/EU in order to be
recycled or dismantled to minimize its impact on the environment.
Users have the choice to give their product to a competent
recycling organization or to the retailer when they buy new
electrical or electronic equipment.
這個產品帶有歐盟指令 2012/19/EU 中關於廢棄電氣電子設備（WEEE）的
選擇性分類標誌。這意味著，該產品必須按照該指令處理，以便進行回收
或拆解，從而最大限度地減少對環境的影響。
用戶可以選擇將產品交給有資格的回收機構，或在購買新的電器或電子設
備時將其交給零售商進行回收。
Caution, avoid listening at high volume levels for long periods
請小心，避免長時間以高音量收聽。
Disconnection, all power plugs
斷線，所有電源插頭
m
Switch of mini-gap construction
迷你間隙結構開關
µ
Switch of micro-gap construction (for US version)
Switch of micro-gap / micro-disconnection construction (for other
versions except US)
小間隙結構開關（US 版本）
小間隙/小斷開結構的開關（非 US 版）
ε
Switch without contact gap (Semiconductor switching device)
無接觸間隙的開關（半導體開關設備）
限用物質含有情況標示聲明書
產品元件名稱
PCB
外殼
電源供應器
其他及其配件
限用物質及其化學符號
備考1： "○"系指該項限用物質之百分比含量未超出百分比含量基準值。
備考2： " - " 系指該項限用物質為排除項目。
○ ○ ○ ○○
○ ○ ○ ○ ○
鉛
Pb
○
○
-
-
鎘
Cd
○
○
汞
Hg
○
○
六價鉻
Cr
+6
○
○
多溴聯
苯
PBB
○
多
溴二苯醚
PBDE
○
○
Wall Mounting Requirements
For TL-SG105/TL-SG105S/TL-SG108S:
To mount the device on a wall, use 2 screws which complies with ANSI B1.1 4#,
(5#), 6#, 8# standard and are more than 7.5 mm in length. When the screws are xed
on the wall, the distance between the screw head and the wall should be more
than 1.5 mm.
TL-SG108:
To mount the device on a wall, use 2 screws which complies with ANSI B1.1 4#,
(5#), 6#, 8# standard and are more than 8.5 mm in length. When the screws are xed
on the wall, the distance between the screw head and the wall should be more
than 1.5 mm.
TL-SG116:
To mount the device on a wall, use 2 screws which complies with ANSI B1.1 4#,
(5#), 6# standard and are more than 8.5 mm in length. When the screws are xed
on the wall, the distance between the screw head and the wall should be more
than 1.5 mm.
牆面安裝要求
TL-SG105/TL-SG105S/TL-SG108S
將設備安裝到牆上，需使用 2 顆符合 ANSI B1.1 4#、(5#)、6#、8# 標準、長度大於 7.5mm
的螺絲，螺絲固定在牆上時，螺絲頭與牆面的距離應大於 1.5mm。
TL-SG108:
將設備安裝到牆上，需使用 2 顆符合 ANSI B1.1 4#、(5#)、6#、8# 標準、長度大於 7.5mm
的螺絲，螺絲固定在牆上時，螺絲頭與牆面的距離應大於 1.5mm。
TL-SG116:
將設備安裝到牆上，需使用 2 顆符合 ANSI B1.1 4#、(5#)、6# 標準、長度大於 8.5mm 的
螺絲，螺絲固定在牆上時，螺絲頭與牆面的距離應大於 1.5mm。
FCC STATEMENT
Responsible party:
TP-Link Systems Inc.
Address: 10 Mauchly, Irvine, CA 92618
Website: https://www.tp-link.com/us/
Tel: +1 626 333 0234
Fax: +1 909 527 6804
E-mail: [email protected]
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment o and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/ TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received, including interference that may
cause undesired operation.
Any changes or modications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Product Name: 5-Port Gigabit Desktop Switch
Model Number: TL-SG105
Product Name: 5-Port Gigabit Desktop Switch
Model Number: TL-SG105S
Product Name:
8-Port Gigabit Desktop Switch
Model Number: TL-SG108
Product Name: 8-Port Gigabit Desktop Switch
Model Number: TL-SG108S
Product Name: Power Adapter
Model Number:
T050060-2B1
Responsible party:
TP-Link Systems Inc.
Address: 10 Mauchly, Irvine, CA 92618
Website: https://www.tp-link.com/us/
Tel: +1 626 333 0234
Fax: +1 909 527 6804
E-mail: [email protected]
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment o and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/ TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received, including interference that may
cause undesired operation.
Any changes or modications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Product Name: Power Adapter
Model Number:
T120100-2B1
Responsible party:
TP-Link Systems Inc.
Address: 10 Mauchly, Irvine, CA 92618
Website: https://www.tp-link.com/us/
Tel: +1 626 333 0234
Fax: +1 909 527 6804
E-mail: [email protected]
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment o and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/ TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received, including interference that may
cause undesired operation.
Any changes or modications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Component Name Model
Power Adapter T050060-2B1
Industry Canada Statement
TL-SG116: CAN ICES-003 (A)/NMB-003(A)
TL-SG105/TL-SG105S/TL-SG108/TL-SG108S: CAN ICES-003 (B)/NMB-003(B)
CE Mark Warning
Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність
вимогам нормативних документів та вимогам, що передбачені чинними
законодавчими актами України.
BSMI Notice
安全諮詢及注意事項
請使用原裝電源供應器或只能按照本產品注明的電源類型使用本產品。
清潔本產品之前請先拔掉電源線。請勿使用液體、噴霧清潔劑或濕布進行清潔。
注意防潮，請勿將水或其他液體潑灑到本產品上。
插槽與開口供通風使用，以確保本產品的操作可靠並防止過熱，請勿堵塞或覆蓋開口。
請勿將本產品置放於靠近熱源的地方。除非有正常的通風，否則不可放在密閉位置中。
請不要私自拆開機殼或自行維修，如產品有故障請與原廠或代理商聯繫。
警告：為避免電磁干擾，本產品不應安裝或使用於住宅環境。(For TL-SG116 only)
For the EU countries, use only the power adapters listed below:
Standard
Protocol
Interface
Specications
General Specications
Data Transfer Rate
Network Media (Cable)
LED Indicators
Transfer Method
MAC Address Learning
Frame Forward Rate
Wall Mountable
Distance Between
Mounting Holes
Yes
TL-SG105/TL-SG105S: 39 mm
TL-SG108/TL-SG108S: 94 mm
TL-SG116: 204.8 mm
10Base-T: 14881pps/Port
100Base-TX: 148810pps/Port
1000Base-T: 1488095pps/Port
IEEE802.3, IEEE802.3i, IEEE802.3u, IEEE802.3ab,
IEEE802.3x, IEEE802.1p
CSMA/CD
Ethernet:
10 Mbps (Half Duplex), 20 Mbps (Full Duplex)
Fast Ethernet:
100 Mbps (Half Duplex), 200 Mbps (Full Duplex)
Gigabit Ethernet:
2000 Mbps (Full Duplex)
10BASE-T:
2-pair UTP/STP (≤100m) of Cat. 3 or above
100BASE-TX:
2-pair UTP/STP (≤100m) of Cat. 5 or above
1000BASE-T:
4-pair UTP/STP (≤100m) of Cat. 5e or above
5/8/16 10/100/1000 Mbps Auto-Negotiation
RJ45 Ports
Power, Link/Act LED
Store-and-Forward
Automatically learning, automatically aging
For TL-SG116: This is a class A product. In a domestic environment, this product
may cause radio interference, in which case the user may be required to take
adequate measures.
この装置は、クラスA情報技術装置です。この装置を家庭環境で使用す
ると電波妨害を引き起こすことがあります。この場合には使用者が適
切な対策を講ずるよう要求されることがあります。 VCCI-A
We, TP-Link Systems Inc., has determined that the equipment shown as above has
been shown to comply with the applicable technical standards, FCC part 15. There is no
unauthorized change is made in the equipment and the equipment is properly
maintained and operated.
Issue Date: 2025-10-17
Component Name Model
Power Adapter T120100-2B1
Product Name: 16-Port Gigabit Desktop Switch
Model Number: TL-SG116
Responsible party:
TP-Link Systems Inc.
Address: 10 Mauchly, Irvine, CA 92618
Website: https://www.tp-link.com/us/
Tel: +1 626 333 0234
Fax: +1 909 527 6804
E-mail: [email protected]
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference
in which case the user will be required to correct the interference at his own expense.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received, including interference that may
cause undesired operation.
Any changes or modications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
