User Guide
Quality, Design and Innovation
home.liebherr.com/fridge-manuals
Contents
1 Appliance at a glance............................................ 3
1.1 Scope of delivery.......................................................... 3
1.2 Overview of the appliance and features.................. 3
1.3 SmartDevice.................................................................. 3
1.4 Appliance range of use............................................... 4
1.5 Conformity..................................................................... 4
1.6 SVHC substances according to REACH regulation. 4
1.7 EPREL database........................................................... 4
2 General safety instructions.................................. 4
3 Putting into operation........................................... 6
3.1 Switching on appliance............................................... 6
3.2 Inserting the components.......................................... 6
4 Storage.................................................................. 6
4.1 Information regarding storage................................... 6
4.2 Fridge compartment.................................................... 6
4.3 EasyFresh ..................................................................... 6
4.4 Storage times............................................................... 7
5 Saving energy........................................................ 7
6 Controls................................................................. 7
6.1 Controls and displays.................................................. 7
6.1.1 Status display..............................................................7
6.1.2 Navigation.................................................................... 7
6.1.3 Operating structure.................................................... 7
6.1.4 Display symbols.......................................................... 8
6.2 Control concept............................................................ 8
6.2.1 Activating/deactivating the function..................... 8
6.2.2 Selecting function value........................................... 8
6.2.3 Activating/deactivating settings.............................8
6.2.4 Selecting the setting value.......................................8
6.2.5 Go to the Customer menu......................................... 9
6.3 Appliance functions..................................................... 9
Turn off appliance.......................................................9
WiFi.............................................................................. 9
Temperature...............................................................10
Temperature unit.......................................................10
SuperCool...................................................................10
PowerCool.................................................................. 10
PartyMode*.................................................................11
HolidayMode...............................................................11
SabbathMode............................................................ 11
E-Saver........................................................................ 11
CleaningMode............................................................ 12
Display brightness.................................................... 12
Door alarm..................................................................12
Entry lock....................................................................12
Info...............................................................................12
Reminder.....................................................................12
Demo mode............................................................... 13
Reset........................................................................... 13
6.4 Fault messages............................................................ 13
6.4.1 Warnings.................................................................... 13
7 Features................................................................. 14
7.1 Door rack....................................................................... 14
7.2 Shelves.......................................................................... 14
7.3 Dividing shelf*.............................................................. 15
7.4 VarioSafe*..................................................................... 15
7.5 Drawers.......................................................................... 17
7.6 EasyFresh-Safe cover.................................................. 17
7.7 Adjusting the moisture levels.................................... 18
7.8 Pull-out board with bottle basket*........................... 18
7.9 Glass shelves................................................................ 19
7.10 Bottle holder................................................................. 19
8 Maintenance.......................................................... 19
8.1 FreshAir carbon filter................................................... 19
8.2 Disassembling / assembling pull-out systems...... 20
8.3 Defrosting the appliance............................................ 20
8.4 Cleaning the appliance............................................... 20
9 Customer help....................................................... 21
9.1 Technical specifications............................................. 21
9.2 Operating noises.......................................................... 21
9.3 Technical fault.............................................................. 22
9.4 Customer Service......................................................... 23
9.5 Model plate................................................................... 23
10 Shutting down....................................................... 23
11 Disposal................................................................. 23
11.1 Preparing appliance for disposal.............................. 23
11.2 Disposing of the appliance in an environmentally
friendly manner............................................................ 23
The manufacturer is continually working on the further
development of all types and models. Please be aware that
we reserve the right to make changes to the shape, equip‐
ment and technology.
Symbol
Explanation
Read instructions
Please read the information in these instruc‐
tions carefully to understand all of the benefits
of your new appliance.
Full instructions on the internet
You can find detailed instructions on the
internet using the QR code on the front
of these instruction or by entering the
service number at home.liebherr.com/fridge-
manuals.
The service number can be found on the serial
tag:
Fig. Example illustration
2 * Depending on model and options
Symbol Explanation
Check appliance
Check all parts for transport damage. If you
have any complaints, please contact your
agent or customer service.
Differences
These instructions apply to a range of models,
so differences are possible. Sections that
apply to certain models only are marked with
an asterisk (*).
Instructions and results
Instructions are marked with a .
Results are marked with a .
Videos
Videos about the appliances are available on
the YouTube channels of Liebherr-Hausgeräte.
These operating instructions apply to:
R(D) ...
42../ 46../ 50../ 52..
Kf/ Ksfe 46../ 52..
SR ... 52..
1 Appliance at a glance
1.1 Scope of delivery
Check all parts for transport damage. Contact your
dealer or customer service in the event of complaints.
(see 9.4 Customer Service)
Your new appliance comes with the following parts:
-
Standalone appliance
-
Features (depending on the model)
-
Installation materials (depending on the model)
-
“Quick Start Guide”
-
“Installation Guide”
-
Service Brochure
1.2 Overview of the appliance and
features
Fig. 1 Example illustration
Temperature range
(A)
Fridge compartment (B) EasyFresh
(C) Coldest zone
Features
(1)
Controls (9) Outlet
(2) Fan with FreshAir acti‐
vated charcoal filter
(10) Serial tag
(3) Separable storage
shelf*
(11) Vegetable drawer*
(4) Storage shelf (12) Bottle rack*
(5) VarioSafe* (13) Bottle holder
(6) Bottle shelf* (14) Can rack
(7) EasyFresh safe cover (15) Lever handle*
(8) EasyFresh safe
Note
u
Shelves, drawers and baskets are arranged for optimum
energy efficiency when the appliance is delivered.
Changing how the shelves, for example, are inserted in
the fridge compartment does not have any impact on
energy consumption.
1.3 SmartDevice
SmartDevice is the networking solution for your refrigerator.
If your appliance SmartDevice-enabled or compatible, you
can quickly and easily connect your appliance to your
WiFi. With the SmartDevice app, you can operate your appli‐
ance from a mobile device. Additional functions and setting
options are available in the SmartDevice SmartDevice app.
Appliance at a glance
* Depending on model and options 3
SmartDevice-
compatible appli‐
ance:
Your appliance is compatible for use
with the SmartDeviceBox. You must
first purchase and install the Smart‐
DeviceBox. In order to connect your
appliance to the WiFi, you need to
download the SmartDevice app.
More information
about SmartDe‐
vice:
smartdevice.liebherr.com
Purchasing the
SmartDeviceBox
in the Liebherr-
Hausgeräte store:
home.liebherr.com/shop/de/deu/
smartdevicebox.html
Downloading the
SmartDevice app:
After installing and configuring the
SmartDevice, you can connect your
appliance to the WiFi using the
SmartDevice app and the WiFi appli‐
ance function (see WiFi) .
Note
The SmartDevice function is not available in the following
countries: Russia, Belarus, Kazakhstan.
You cannot use the SmartDeviceBox.
1.4 Appliance range of use
Intended use
The appliance is only suitable for cooling
food products in a domestic or household-like
environment. This includes, for example, use:
-
in staff kitchens, bed and breakfast estab‐
lishments,
-
by guests in country houses, hotels, motels
and other accommodation,
-
for catering and similar services in the
wholesale trade.
The appliance is not suitable for freezing
food;
The appliance is not suitable as a built-in
unit.
All other types of use are not permitted.
Foreseeable misuse
The following applications are expressly
forbidden:
-
Storing and refrigerating medicines, blood
plasma, laboratory preparations or similar
substances and products based on the
Medical Device Directive 2007/47/EC
-
Use in areas at risk of explosions
Misusing the appliance may lead to damage
to the goods stored or they may spoil.
Climate classifications
Depending on the climate classification the
appliance is designed to operate in restricted
ambient temperatures. The climate classifica‐
tion applying to your appliance is printed on
the rating plate.
Note
u
Keep to the specified ambient tempera‐
tures in order to guarantee that the appli‐
ance works properly.
Climate clas‐
sification
for ambient temperatures of
SN 10 °C to 32 °C
N 16 °C to 32 °C
ST 16 °C to 38 °C
T 16 °C to 43 °C
SN-ST 10 °C to 38 °C
SN-T 10 °C to 43 °C
1.5 Conformity
The refrigerant circuit has been tested for leaks. The appli‐
ance complies with the applicable safety regulations and
with the corresponding directives.
The full text of the EU Declaration of Conformity is available
on the following website: www.Liebherr.com
1.6 SVHC substances according to
REACH regulation
You can check whether your appliance contains SVHC
substances according to REACH regulation at the following
link: home.liebherr.com/de/deu/de/liebherr-erleben/nach‐
haltigkeit/umwelt/scip/scip.html
1.7 EPREL database
Details about energy labelling and ecodesign requirements
will be available on the European product database (EPREL)
from 1st March 2021. You can access the product database
at the following link: https://eprel.ec.europa.eu/ You will be
asked to enter the model ID. You can find the model ID on
the nameplate.
2 General safety instructions
Please keep these operating instructions in a
safe place so you can refer back to them at
any time.
If you pass the appliance on, please hand
these operating instructions to the next user.
Read these operating instructions carefully
before use to ensure safe and correct use of
the appliance. Follow the instructions, safety
instructions and warning messages included
General safety instructions
4 * Depending on model and options
at all times. They are important for ensuring
you can operate and install the appliance
safely and without any problems.
Danger for the user:
-
This device can be used by children and
people with impaired physical, sensory or
mental abilities or with a lack of experi‐
ence and knowledge provided that they
are supervised or have received instruction
in the safe use of this device, and about
the resulting hazards. Children must not
play with this appliance. Cleaning and user
maintenance work must not be carried out
by children without adult supervision. Chil‐
dren aged between 3 and 8 are allowed
to load and unload the appliance. Children
below the age of 3 must be kept away from
the appliance unless they are under contin‐
uous adult supervision.
-
The socket must be easily accessible so
that the appliance can be disconnected
quickly from the electricity in an emer‐
gency. It must not be located in the area
behind the appliance.
-
When disconnecting the appliance from the
supply, always take hold of the plug. Do not
pull the cable.
-
In the event of a fault pull out the mains
plug or deactivate the fuse.
-
Do not damage the mains power cable. Do
not operate the appliance with a defective
mains power cable.
-
Only customer service or other specially
trained staff may repair or perform other
operations on the appliance.
-
Only assemble, connect and dispose of the
appliance according to the instructions.
Fire hazard:
-
The coolant used (information on the model
plate) is ecofriendly but also flammable.
Any leaking coolant may ignite.
•
Do not damage the refrigerant circuit
pipes.
•
Do not handle ignition sources inside the
appliance.
•
Do not use electrical appliances inside
the appliance (e.g. steam cleaners,
heaters, ice cream makers, etc.).
•
If the refrigerant leaks: remove any naked
flames or ignition sources from the
vicinity of the leakage point. Properly air
the room. Inform customer services.
-
Do not store explosives or sprays using
combustible propellants such as butane,
propane, pentane, etc. in the appliance. To
identify these spray cans, look for the list
of contents printed on the can, or a flame
symbol. Gases possibly escaping may ignite
due to electrical components.
-
Keep burning candles, lamps and other
items with naked flames away from the
appliance so that they do not set the appli‐
ance on fire.
-
Please be sure to store alcoholic drinks
or other packaging containing alcohol in
tightly closed containers. Any alcohol that
leaks out may be ignited by electrical
components.
Danger of tipping and falling:
-
Do not misuse the plinth, drawers, doors
etc. as a step or for support. This applies
particularly to children.
Danger of food poisoning:
-
Do not consume food which has been
stored too long.
Danger of frostbite, numbness and pain:
-
Avoid prolonged skin contact with cold
surfaces or refrigerated/frozen goods or
take protective measures, e.g wear gloves.
Danger of injury and damage:
-
Hot steam can lead to injury. Do not use
electrical heating or steam cleaning equip‐
ment, open flames or defrosting sprays to
defrost.
-
Do not use sharp implements to remove the
ice.
Risk of crushing:
-
Do not hold the hinge when opening and
closing the door. Fingers may get caught.
Symbols on the appliance:
This symbol may be located on the
compressor. It relates to the oil in the
compressor and makes reference to the
risk that: Swallowing or inhaling can be
fatal. This advice is only relevant to recy‐
cling. There is no danger in normal opera‐
tion.
This symbol is located on the compressor
and indicates the danger of flammable
materials. Do not remove the sticker.
This or a similar sticker may be located
on the rear of the appliance. This sticker
indicates that there are vacuum insulation
panels (VIP) or perlite panels in the door
and/or housing. This advice is only relevant
to recycling. Do not remove the sticker.
Please note the warning messages and other
specific advice in the other chapters:
General safety instructions
* Depending on model and options 5
DANGER indicates an immediately
hazardous situation which will
lead to death or serious injuries if
it is not avoided.
WARNING indicates a hazardous situation
which may lead to death or serious
injuries if it is not avoided.
CAUTION indicates a hazardous situation
which may lead to minor or
moderate injuries if it is not
avoided.
NOTICE indicates a hazardous situation
which may lead to damage to
property if it is not avoided.
Note indicates useful instructions and
tips.
3 Putting into operation
3.1 Switching on appliance
Ensure that the following conditions are met:
q
Appliance is set up and connected according to installa‐
tion instructions.
q
All adhesive strips, adhesive and protective films as well
as transport safety devices in and on the appliance are
removed.
q
All marketing leaflets are removed from the drawers.
Fig. 2
u
Switch on the appliance using the control panel next to
the display.
w
The status display appears.
The appliance starts in DemoMode:
If the appliance starts in DemoMode, you can deactivate
DemoMode within the next 5 minutes.
Fig. 3
u
Press Confirm next to the display for 3 seconds.
w
DemoMode is deactivated.
Note
The manufacturer recommends:
u
Place the food inside: Wait for around 6 hours until the
set temperature is reached.
3.2 Inserting the components
Note
Accessories can be purchased from the Liebherr-
Hausgeräte store at home.liebherr.com/shop/de/deu/
zubehor.html.
u
Insert the supplied components to make the most of your
appliance.
4 Storage
4.1 Information regarding storage
WARNING
Risk of fire
u
Do not use any electrical appliances in the food area of
the appliance unless recommended by the manufacturer.
Note
The energy consumption increases and the cooling power
goes down if ventilation is not sufficient.
u
Always keep air slots clear.
Observe the following specifications for storage:
-
Keep the air vents on the inside of the rear wall free.
-
Keep the air vents on the fan free.
-
Package or cover foods that readily take on or give off
odours or taste in closed containers.
-
Package raw meat or fish in clean, closed containers.
This will prevent meat or fish from touching or dripping
onto other food.
-
Keep liquids in closed containers.
-
Leave space between goods to ensure good air circula‐
tion.
-
Store food according to the instructions on the pack‐
aging.
-
Always observe the best-before date indicated on the
packaging.
Note
Failure to follow these guidelines can lead to foodstuffs
spoiling.
4.2 Fridge compartment
The air circulation in the appliance creates different temper‐
ature zones. You will find the different temperature zones in
the appliance and equipment overview. (see 1.2 Overview of
the appliance and features)
4.2.1 Arranging your food properly
u
Upper area and door: Store butter, cheese, tinned food
and tubes.
u
Coldest temperature zone: Store perishable foods such
as pre-cooked meals, meat and lunch meats.
u
Bottom shelf: Store raw meat or fish.
4.3 EasyFresh
EasyFresh is great for non-packaged foods, such as fruit
and vegetables.
The humidity in the compartment depends on the moisture
content of the chilled goods placed in it, and also depends
on how often the compartment is opened. You can regulate
the humidity level. (see 7.7 Adjusting the moisture levels)
Putting into operation
6 * Depending on model and options
4.3.1 Arranging your food properly
u
Store unpackaged fruit and vegetables.
If the humidity is too high:
u
Regulate the humidity. (see 7.7 Adjusting the moisture
levels)
4.4 Storage times
Refer to the specified storage times as a guide.
In the case of foods with a minimum shelf life, the date
indicated on the packaging still applies.
4.4.1 Fridge section
Always follow the best-before date stated on the packaging.
5 Saving energy
-
Pay attention to good ventilation. Do not cover ventilation
holes or grids.
-
Always keep the fan air slits clear.
-
Do not install the appliance in direct sunlight, next to an
oven, radiator or similar.
-
Energy consumption depends on the installation condi‐
tions, e.g. the ambient temperature (see 1.4 Appliance
range of use) . A warmer ambient temperature can
increase the energy consumption.
-
Open the appliance for as short a time as possible.
-
The lower the temperature is set the higher the energy
consumption.
-
Sort your food: home.liebherr.com/food.
-
Keep all food properly packed and covered. This prevents
frost from forming.
-
Only take food out for as long as necessary so that it
doesn’t warm up too much.
-
Inserting warm food: allow to cool down to room temper‐
ature first.
-
For longer periods of absence, use HolidayMode
(see HolidayMode) .
6 Controls
6.1 Controls and displays
The display provides a quick overview of the temperature
setting and the status of functions and settings. You
can control the functions and settings either by deacti‐
vating/activating them or by selecting a value.
6.1.1 Status display
Fig. 4
(1)
Temperature display of
the fridge section
The Status display shows the set temperature and is the
home display. From there, you can navigate to the options
and settings.
6.1.2 Navigation
Navigate in the menu to access the individual functions.
An audible signal sounds after confirming a function or
setting. If no selection is made after 10 seconds the display
switches to the Status display.
The appliance is operated with the buttons next to the
display.
Fig. 5
(1)
Navigation arrow left/
right
(2) Confirm
Navigation arrow left/right Fig. 5 (1):
-
Navigating in the menu. After the last menu page, it goes
back to the first one.
Confirm Fig. 5 (2):
-
Activating/deactivating a function.
-
Open a submenu.
-
Confirm a selection. After confirmation the display
switches back to the menu.
Back to Status display: in the fastest manner:
-
Close and open the door.
-
or wait 10 seconds. The display switches to the Status
display.
6.1.3 Operating structure
The controls are explained by a template. The display
changes depending on the function or settings.
Menus without a submenu
Fig. 6
(1)
Status deactivated /
status activated white
bar in the top area
(3) Menu: Function name or
menu: Setting name
(2) Symbol or activated
value
Menus with a submenu
Saving energy
* Depending on model and options 7
Fig. 7
(1) Menu: Function name
or menu: Setting name
(3) Symbol or activated
value
(2) Status (4) Submenu: function name
or submenu: Setting
name
(2) off / on
You can navigation as follows:
-
Press the left/right Fig. 5 (1) arrow to navigate.
-
Press Confirm Fig. 5 (2) to open the submenu Fig. 7 (4).
•
Press the left/right Fig. 5 (1) arrow to navigate.
•
Set a new value: Press Confirm Fig. 5 (2) to select an
active value Fig. 6 (1).
•
Back to the menu: Press Confirm Fig. 5 (2) to select the
active value Fig. 6 (2).
6.1.4 Display symbols
Display symbols provide information on the current appli‐
ance status:
Symbol
Appliance status
Standby
The appliance or temperature zone
is switched off.
Flashing number
Appliance is working. Temperature
flashes until the set value is
reached.
Flashing symbol
Appliance is working. Setting is
made.
Bar grows steadily
Function is activated.
6.2 Control concept
6.2.1 Activating/deactivating the function
You can activate/deactivate the following functions:
Symbol
Function
SuperCool
x
PowerCool
x
*
PartyMode
x
*
HolidayMode
E-Saver
x
When function is on, the appliance works harder. This
means appliance noise when operating may be louder for
a short while, and more energy will be consumed.
u
Press the navigation arrows Fig. 5 (1) repeatedly until the
function is displayed.
u
Press Confirm Fig. 5 (2).
w
You hear the confirmation tone.
w
Status appears in the menu.
w
Function is on/off.
6.2.2 Selecting function value
With the following functions you can set a value in the
submenu:
Symbol Function
Setting the temperature
Switch the appliance on/off
u
Tap the navigation arrows Fig. 5 (1) repeatedly until the
function is displayed.
u
Press Confirm Fig. 5 (2).
u
Select the setting value with the navigation arrows
Fig. 5 (1).
Setting the temperature
u
Press Confirm Fig. 5 (2).
w
You hear the confirmation tone.
w
Status: On Fig. 6 (1) appears briefly in the submenu
Fig. 7 (4).
w
Display switches back to the menu.
6.2.3 Activating/deactivating settings
You can activate/deactivate the following settings:
Symbol
Setting
WiFi
1
Entry lock
2
SabbathMode
2
Cleaning Mode
2
Reminders
1
Reset
2
Switch off
2
u
Tap the navigation arrows Fig. 5 (1) repeatedly until the
settings appear.
u
Press Confirm Fig. 5 (2).
u
Tap the navigation arrows Fig. 5 (1) repeatedly until the
desired setting is displayed.
1
Activate setting (shortpress)
u
Press Confirm Fig. 5 (2).
w
You hear the confirmation tone.
w
Status appears in the menu.
w
Setting is on / off.
2
Activate setting (longpress)
u
To Confirm Fig. 5 (2), press for 3 seconds.
w
You hear the confirmation tone.
w
Status appears in the menu.
w
Display changes.
6.2.4 Selecting the setting value
With the following settings you can set a value in the
submenu:
Controls
8 * Depending on model and options
Symbol Settings
Brightness
Door alarm
Temp. unit
u
Tap the navigation arrows Fig. 5 (1) repeatedly until
settings
appears.
u
Press Confirm Fig. 5 (2).
u
Tap the navigation arrows Fig. 5 (1) repeatedly until the
desired setting is displayed.
u
Press Confirm Fig. 5 (2).
u
Select the setting value with the navigation arrows
Fig. 5 (1).
u
Press Confirm Fig. 5 (2).
w
You hear the confirmation tone.
w
Status appears briefly in the submenu.
w
Display switches back to the menu.
6.2.5 Go to the Customer menu
You can see the following settings in the Customer menu:
Symbol
Function
Software
u
Press the navigation arrows Fig. 5 (1) repeatedly until the
settings
appear.
u
Press Confirm Fig. 5 (2).
u
Press the navigation arrows Fig. 5 (1) repeatedly until the
appliance information appears in the display.
u
Press Confirm Fig. 5 (2).
u
Enter the numerical code 151.
w
The customer menu appears.
u
Press the navigation arrows Fig. 5 (1) repeatedly in the
customer menu until the desired setting appears.
1
Select the value
u
Press Confirm Fig. 5 (2).
w
You hear the confirmation tone.
w
Status appears briefly in the display.
w
Display switches back to the menu.
2
Activate the setting
u
ToConfirm Fig. 5 (2), press for 3 seconds.
w
You hear the confirmation tone.
w
Status appears on the display.
w
The symbol flashes as long as the appliance is working.
6.3 Appliance functions
Turn off appliance
This setting turns off the whole appliance.
Switching off the entire appliance
Fig. 8
u
Activating/deactivating (see 6.2 Control concept) .
w
Off: Display goes black.
WiFi
Use this function to connect your appliance to WiFi. You can
then operate it via the SmartDevice app on a mobile device.
You can also use this function to disconnect or reset the
WiFi connection.
To connect your device to WiFi, you need the SmartDevi‐
ceBox.
More information on the SmartDevice: (see 1.3 SmartDevice)
Note
The SmartDevice function is not available in the following
countries: Russia, Belarus, Kazakhstan.
You cannot use the SmartDeviceBox.
Establishing the WiFi connection for the first time
Make sure that the following requirements are fulfilled:
q
You have purchased and inserted a SmartDeviceBox.
(see 1.3 SmartDevice)
q
You have installed the SmartDevice app (see
apps.home.liebherr.com).
q
Registration in the SmartDevice app is completed.
u
Call up the settings menu. (see 6.2 Control concept)
u
Tap the navigation arrow repeatedly until the corre‐
sponding function is displayed.
Fig. 9
u
Carry out action steps according to the illustration.
w
Connection is established.
Disconnecting from the WiFi
u
Call up the settings menu. (see 6.2 Control concept)
u
Tap the navigation arrow repeatedly until the corre‐
sponding function is displayed.
Controls
* Depending on model and options 9
Fig. 10
u
Carry out action steps according to the illustration.
w
There is no connection.
Resetting the WiFi connection
u
Call up the settings menu. (see 6.2 Control concept)
u
Tap the navigation arrow repeatedly until the corre‐
sponding function is displayed.
Fig. 11
u
Carry out action steps according to the illustration.
w
WiFi connection and other WiFi settings are reset to
factory settings.
Showing information about the WiFi connection
u
Call up the settings menu. (see 6.2 Control concept)
u
Tap navigation arrow repeatedly until corresponding
function is displayed.
Fig. 12
u
Carry out action steps according to the illustration.
Temperature
Use this function to set the temperature.
The temperature depends on the following factors:
-
How often the door is opened
-
How long the door is open for
-
The room temperature of the installation site
-
The type, temperature and amount of food
Temperature zone Recommended setting
Fridge compart‐
ment
5 °C
Setting temperature
Fig. 13
u
Carry out action steps according to the illustration.
w
Temperature is set.
Temperature unit
This setting enables you to switch between Celsius and
Fahrenheit as the temperature unit.
Selecting the setting value
u
Set the value (see 6.2 Control concept) .
SuperCool
This function selects the lowest cooling temperature. This
gives you colder storage temperatures.
This function is relevant to the fridge section Fig. 1 (A)
Use:
-
Cool large amounts of food quickly.
Activating/deactivating the function
u
Using the fridge section: activate the function when you
add the goods.
u
Activating/deactivating (see 6.2 Control concept) .
The function automatically turns off. The appliance goes
back to normal mode. The temperature adjusts itself to the
set level.
PowerCool
This function provides the perfect blanket temperature to
cool your food.
This function refers to the fridge section Fig. 1 (A).
Use:
-
At higher room temperatures (from approx. 35 °C )
Controls
10 * Depending on model and options
-
When humidity is high e.g. on summer days
-
When storing moist goods, to avoid condensation
building up inside
Activating/deactivating the function
u
Activating/deactivating (see 6.2 Control concept) .
Note
The fan can run even when function is deactivated. This
ensures optimal temperature distribution in the appliance.
w
Function activated: Energy consumption of the appliance
is slightly increased.
PartyMode*
This option offers an assortment of special functions and
settings that are useful if you are having a party.
The following functions are on:
-
SuperCool
All the functions can be adjusted flexibly and separately.
Changes are discarded when the function turns off.
Activating/deactivating the function
u
Activating/deactivating (see 6.2 Control concept) .
w
On: All functions are activated at the same time.
w
Deactivated: Previously set temperatures are restored.
After 24 hours the function turns off automatically.
HolidayMode
This function minimises the energy consumption during
an extended absence. The temperature of the refrigerator
compartment is set to 15 °C and this is displayed on the
status screen when the temperature has been reached.
Use:
-
Save energy if you plan to be away for a while.
-
Avoid coming home to bad smells and mould.
Activating/deactivating the function
u
Empty everything from the fridge section.
u
Activating/deactivating (see 6.2 Control concept) .
w
On: Fridge temperature is raised.
w
Off: the previously set temperature is restored.
SabbathMode
With this function you can activate or deactivate the
SabbathMode. If you activate this function, some electronic
functions will be switched off. This allows your appliance to
meet religious requirements on Jewish holidays such as the
Sabbath and comply with STAR-K Kosher certification.
Appliance status with active SabbathMode
The status display continuously shows SabbathMode.
All functions in the display except the Deactivate
SabbathMode function are locked.
Active functions remain active.
The display stays lit when you close the door.
The interior lighting is off.
Reminders are disabled. The set time intervals are paused.
Reminders and warnings are not displayed.
There is no door alarm.
Appliance status with active SabbathMode
There is no temperature alarm.
The defrost cycle only works for the specified time without
taking account of appliance use.
After a power failure, the appliance returns to
SabbathMode.
Appliance status
Note
This appliance has certification from the “Institute for
Science and Halacha”. (www.machonhalacha.co.il)
You can find a list of STAR-K-certified appliances at
www.star-k.org/appliances.
Activating SabbathMode
WARNING
Danger of food poisoning from spoiled food!
If you have SabbathMode activated and a power failure
occurs, no message appears in the status display about the
power failure. Once the power is restored, the appliance
continues to operate in SabbathMode. The power failure
may mean that food spoils and the consumption of this food
could lead to food poisoning.
After a power failure:
u
Do not consume food that was frozen and has thawed
out.
u
Call up the settings menu. (see 6.2 Control concept)
u
Tap the navigation arrow repeatedly until the corre‐
sponding function is displayed.
3s
Fig. 14
u
Carry out action steps according to the illustration.
w
SabbathMode is activated.
w
Status display continuously shows SabbathMode.
Deactivating SabbathMode
u
Call up the settings menu. (see 6.2 Control concept)
u
Tap the navigation arrow repeatedly until the corre‐
sponding function is displayed.
3s
Fig. 15
u
Carry out action steps according to the illustration.
w
SabbathMode is deactivated.
E-Saver
This function activates or deactivates the energy-saving
mode. When you activate this function, the energy
consumption decreases and the temperature increases by
2 °C in the appliance. The food remains fresh, but the shelf
life is shortened.
Controls
* Depending on model and options 11
Temperature zone Recommended
setting (see
Temperature)
Temperature
when E-Saver
activated
Fridge
compartment
5 °C 7 °C
Temperatures
Activating E-Saver
u
Tap navigation arrow repeatedly until corresponding
function is displayed.
E-Saver
E-Saver
Fig. 16
u
Carry out action steps according to the illustration.
w
Energy-saving mode is activated.
Deactivating E-Saver
u
Tap navigation arrow repeatedly until corresponding
function is displayed.
E-Saver
E-Saver
Fig. 17
u
Carry out action steps according to the illustration.
w
Energy-saving mode is deactivated.
CleaningMode
Use this setting to easily clean the appliance.
This setting refers to the fridge section Fig. 1 (A).
Use:
-
Clean the fridge section by hand.
What happens on the appliance when this setting is on:
-
The fridge section is switched off.
-
Reminders and warnings are not shown. There is no
acoustic signal.
Activating/deactivating settings
u
Activating/deactivating the setting (see 6.2 Control
concept) .
w
On: fridge section is off. Light stays on.
w
Off: preset temperature is restored.
After 60 min the setting turns off automatically. The appli‐
ance then continues running in normal mode.
Display brightness
Set the brightness level of the display.
You can set the following brightness levels:
-
40%
-
60%
-
80%
-
100%
Choose the setting
u
Set the level (see 6.2 Control concept) .
Door alarm
Set the time before the door alarm (see Close the door)
sounds.
The options are as follows:
-
1 min
-
2 min
-
3 min
-
Off
Choose the setting
u
Set the time (see 6.4 Fault messages) .
Entry lock
This setting prevents unintentional use of the appliance,
e.g. by children.
Use:
-
Avoid settings being changed unintentionally.
-
Avoid the appliance being switched off unintentionally.
-
Avoid the temperature being changed unintentionally.
Activating/deactivating settings
u
Activating/deactivating. (see 6.2 Control
concept)
Info
This setting allows the appliance information to be read out
as well as access to the customer menu.
It provides the following information:
-
Model name
-
Index
-
Serial number
-
Service number
Show appliance data
u
Tap the navigation arrows Fig. 5 (1) repeatedly until the
settings appear.
u
Press Confirm Fig. 5 (2).
u
Tap the navigation arrows Fig. 5 (1) repeatedly until the
information is displayed.
u
Read the appliance info.
Reminder
Reminders are given out acoustically by a beep and visually
by a symbol in the display. The signal gets louder until the
alert stops.
Replace FreshAir active carbon filter
This message appears when the air filter needs replacing.
u
Change the air filter every six months.
u
Confirm the message with OK.
w
The service interval resets.
Controls
12 * Depending on model and options
w
The air filter guarantees the air quality in the fridge.
Activating the setting
u
Activating/deactivating (see 6.2 Control concept) .
Demo mode
Demo mode is a special feature for dealers who want to
demonstrate appliance features. If you activate demo mode,
all refrigeration functions are deactivated.
If you switch on your appliance and “Demo” appears in the
status display, then demo mode is already activated.
If you activate and then deactivate demo mode, the appli‐
ance will be reset to factory defaults. (see Reset)
Activating demo mode
Fig. 18
Fig. 19
u
Carry out action steps according to the illustration.
w
Demo mode is activated.
w
Appliance is switched off.
u
Switch on the appliance. (see 3.1 Switching on appliance)
w
“DEMO” appears in the status display.
Deactivating demo mode
Fig. 20
Fig. 21
u
Carry out action steps according to the illustration.
w
Demo mode is deactivated.
w
Appliance is switched off.
u
Switch on the appliance. (see 3.1 Switching on appliance)
w
Appliance is reset to factory settings.
Reset
This function resets all settings to the factory settings. All
settings that you have made thus far will be reset to their
original values.
Activating the setting
u
Activate (see 6.2 Control concept) .
6.4 Fault messages
Fault messages appear in the display. There are two catego‐
ries of fault message:
Category
Meaning
Message Reminder of general procedures. You can carry
out these procedures to eliminate the message.
Warning Appears when there are malfunctions. A signal
sounds in addition to the display. The signal
becomes louder until you acknowledge by
tapping the display. You can eliminate simple
defects yourself. For more serious defects, you
must contact customer service.
6.4.1 Warnings
Close the door
This message appears if the door is open for too long.
You can set how long it takes for this message to appear .
u
Stop alarm: Confirm the message.
-or-
u
Close the door.
Controls
* Depending on model and options 13
Error
This message appears if there is a fault with the appliance.
An appliance component indicates a fault.
u
Open the door.
u
Note down the fault code.
u
Confirm the message.
w
The signal tone stops.
w
The status display appears.
u
Close the door.
u
Contact customer service. (see 9.4 Customer Service)
7 Features
7.1 Door rack
7.1.1 Move/remove the door rack
Fig. 22
u
Slide the rack upwards.
u
Pull forwards.
u
Re-insert it in reverse order.
7.1.2 Disassembling the door rack
The door rack can be taken apart for cleaning.
Fig. 23
u
Disassemble the door rack.
7.2 Shelves
7.2.1 Adjusting/removing the shelves
The shelves are prevented from being pulled out acciden‐
tally by pull out stops.
Fig. 24
u
Lift the shelf and pull forward.
w
Line up the side runner.
u
Adjust the height of the shelf: Lift or lower it to the
desired height and slide it in.
-or-
Fig. 25
u
Remove the shelf completely: Pull it out to the front.
u
Easier removal: Set the shelf at an angle.
u
Insert the shelf again: Slide it in all the way.
w
The pull-out stoppers point downwards.
w
The pull-out stoppers are behind the front support.
You can also remove the shelf above the EasyFresh
compartments.
Fig. 26
Removing the shelf:
u
Lift the shelf at the front and back.
u
Pull it out towards you.
Do not store any goods on the compartment cover below!
Inserting the shelf:
u
Place the shelf at an angle, sloping down towards the
back.
w
The pull-out stoppers point downwards.
u
Slide the shelf into place.
7.2.2 Dismantling the shelves
The shelves can be dismantled for cleaning.
Fig. 27
u
Dismantling the shelf.
Features
14 * Depending on model and options

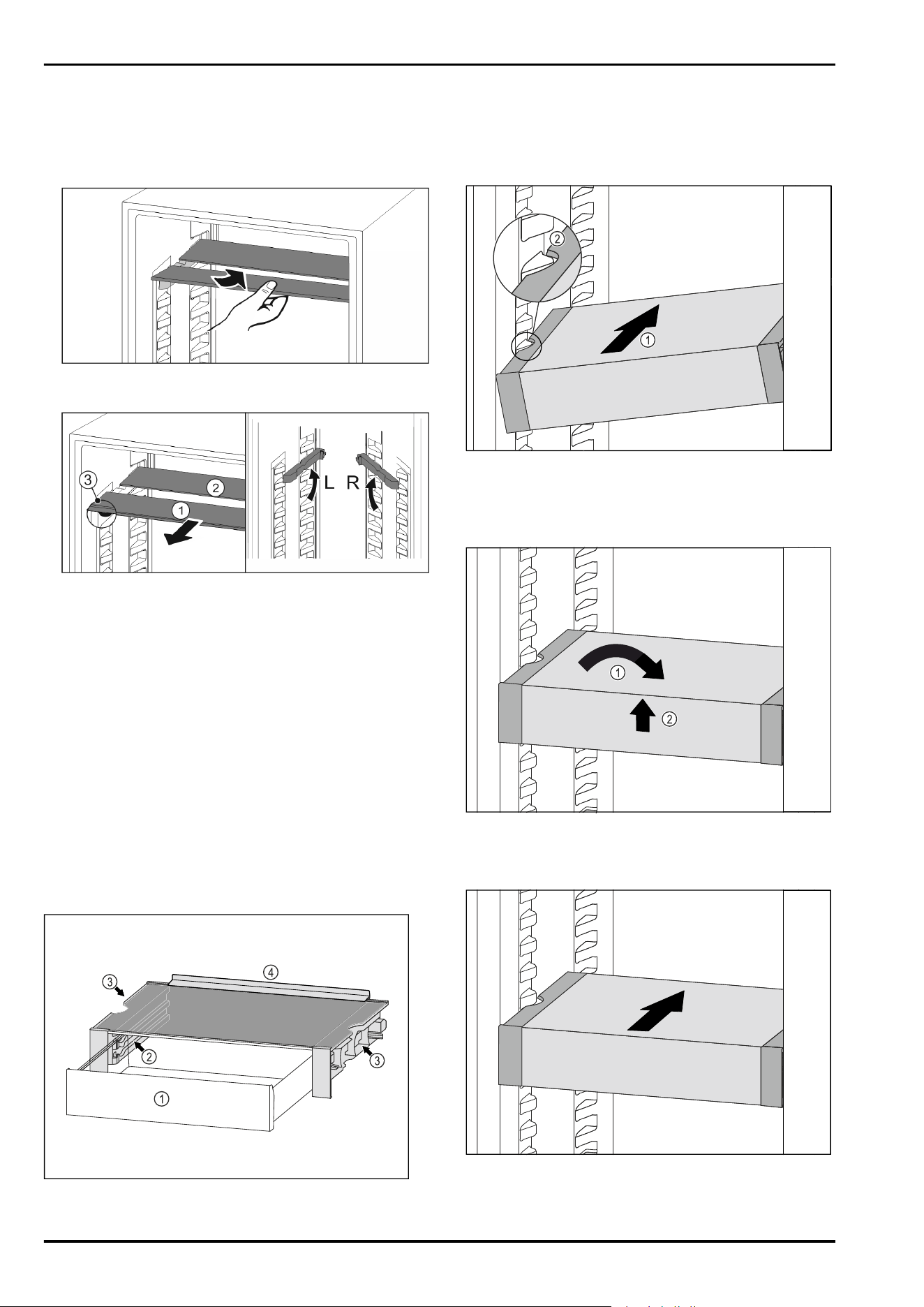

7.3 Dividing shelf*
7.3.1 Using the dividing shelf
The shelves are prevented from being pulled out acciden‐
tally by pull out stops.
Fig. 28
u
Push the dividing shelf underneath as shown.
Fig. 29
Adjusting the height:
u
Pull the glass panels out Fig. 29 (1) from the front, one at
a time.
u
Release the support rails and click in at the height you
want.
u
Slide in the glass panels one at a time.
w
Flat pull-out stoppers at the front, right behind the
support rails.
w
High pull-out stoppers at the back.
Using both shelves:
u
Hold the glass panel with one hand and pull it to the
front.
w
The glass panel Fig. 29 (1) and trim strip are at the front.
w
The stops Fig. 29 (3) point down.
7.4 VarioSafe*
The VarioSafe offers space in the refrigerator compartment
for small groceries, packages, tubes and jars, for example.
Fig. 30
(1)
VarioSafe drawer (3) Recesses on the left and
right side panel
(2) Side panels with ribs
for VarioSafe drawer
(4) Stop edge
7.4.1 Inserting the VarioSafe
Fig. 31
u
Insert the VarioSafe into the refrigerator compartment at
an angle Fig. 31 (1) until the recesses in the side Fig. 31 (2)
of the VarioSafe are at the level of the support rib in the
refrigerator compartment.
Fig. 32
u
Set VarioSafe straight. Fig. 32 (1)
u
Lift VarioSafe at the front. Fig. 32 (2)
Fig. 33
u
Lift VarioSafe up toward the front.
u
Push VarioSafe in to the rear.
u
Lower VarioSafe.
Features
* Depending on model and options 15
w
VarioSafe audibly engages.
w
VarioSafe is inserted.

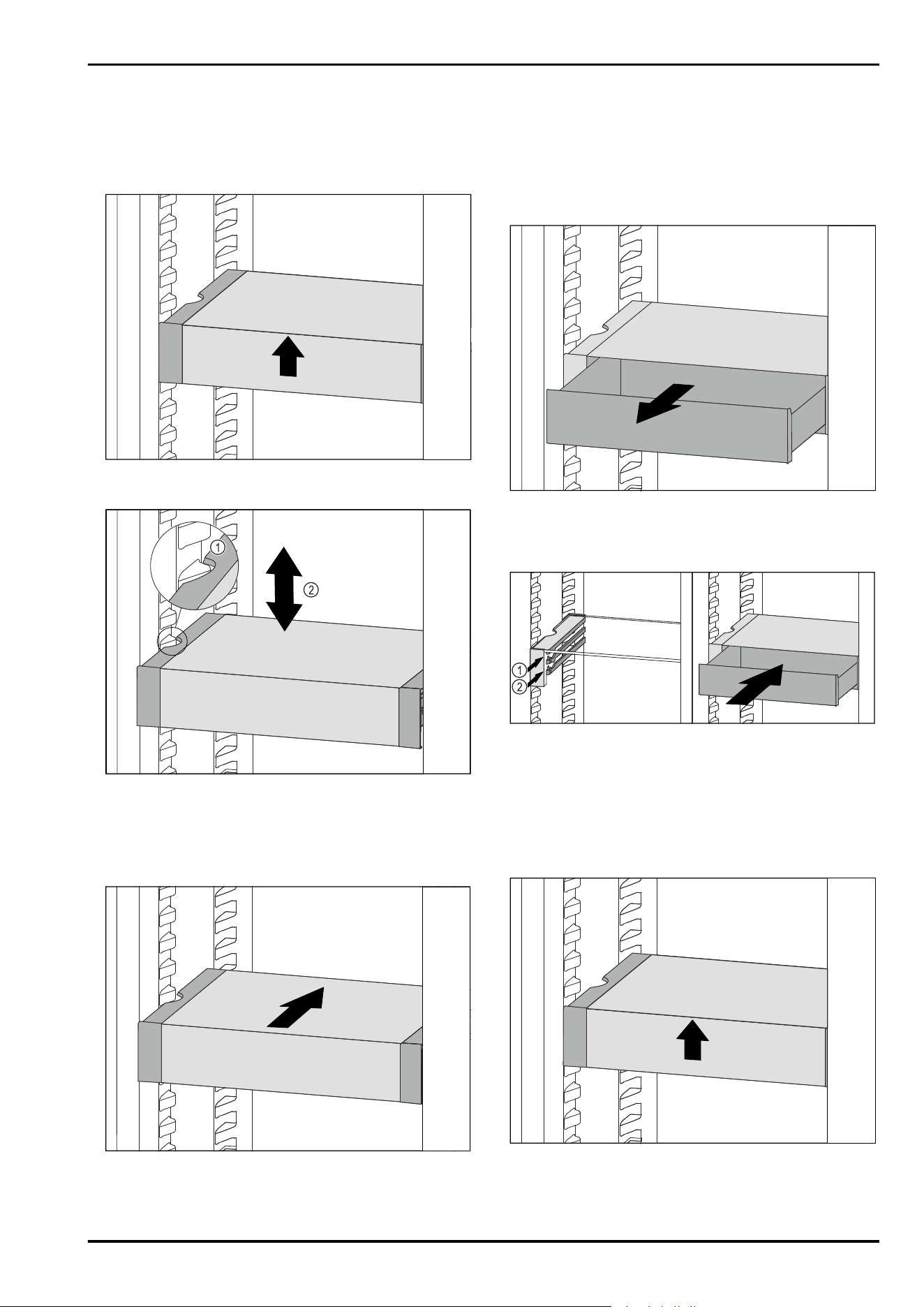

7.4.2 Repositioning the VarioSafe
You can move the VarioSafe as a whole in the refrigerator
compartment.
Fig. 34
u
Lift VarioSafe at the front.
Fig. 35
u
Pull VarioSafe forwards until the recesses in the side of
the VarioSafe are at the level of the support rib in the
refrigerator compartment. Fig. 35 (1)
u
Move VarioSafe up or down in the refrigerator compart‐
ment until the desired height is reached. Fig. 35 (2)
Fig. 36
u
Lift VarioSafe at the front.
u
Push VarioSafe in to the rear.
w
VarioSafe audibly engages.
w
VarioSafe is offset in height.
7.4.3 Moving the VarioSafe drawer
You can use the VarioSafe drawer at two different heights.
If you would like to store taller foodstuffs in the VarioSafe
drawer, slide the VarioSafe drawer in on the bottom rib. If
you would like to store smaller foodstuffs in the VarioSafe
drawer, slide the VarioSafe drawer in on the top rib.
Fig. 37
u
Pull out the VarioSafe drawer as far as it will go.
u
Lift the VarioSafe drawer up at the front.
u
Remove the VarioSafe drawer to the front.
Fig. 38
u
Lift the VarioSafe drawer up at the front.
u
Place the VarioSafe drawer behind the stoppers on
desired rib Fig. 38 (1) or Fig. 38 (2).
w
VarioSafe drawer is offset in height.
7.4.4 Removing the VarioSafe
You can remove the VarioSafe as a whole.
Fig. 39
u
Lift VarioSafe at the front.
Features
16 * Depending on model and options
Fig. 40
u
Pull VarioSafe forwards Fig. 40 (1) until the recesses in
the side of the VarioSafe are at the level of the support
rib in the refrigerator compartment. Fig. 40 (2)
Fig. 41
u
Set VarioSafe in refrigerator compartment at an angle.
Fig. 41 (1)
u
Take VarioSafe out to the front. Fig. 41 (2)
w
VarioSafe is removed.
7.4.5 Disassembling the VarioSafe
You can disassemble the VarioSafe into its individual parts if
you want to clean the VarioSafe or if you need to install or
remove parts.
Fig. 42
u
Remove VarioSafe as a whole. (see 7.4.4 Removing the
VarioSafe)
u
Disassemble VarioSafe according to the illustration.
7.5 Drawers
You can remove the drawers for cleaning.
The way to remove/insert the drawers varies depending
on the pull-out system. Your appliance can contain various
pull-out systems.
Note
The energy consumption increases and the cooling power
goes down if ventilation is not sufficient.
u
Always leave the fan air vents clear on the back wall!
7.5.1 Drawer on rails
Removing drawer
Fig. 43
u
Remove drawer as shown in the illustration.
Inserting drawer
Fig. 44
u
Insert drawer as shown in the illustration.
7.6 EasyFresh-Safe cover
You can remove the compartment cover for cleaning.
7.6.1 Removing the compartment cover
Fig. 45
When the drawers are removed:
u
Pull the lid up at the front to the opening in the retaining
parts Fig. 45 (1).
u
Lift from the back and pull it up and out Fig. 45 (2).
Features
* Depending on model and options 17
7.6.2 Inserting the compartment cover
Fig. 46
If the text THIS SIDE UP points upwards:
u
Insert the lip of the cover over the opening of the rear
bracket Fig. 46 (1) and click into place Fig. 46 (2).
u
Position the cover where you want it (see 7.7 Adjusting
the moisture levels) .
7.7 Adjusting the moisture levels
You can adjust the moisture in the drawer yourself by
adjusting the compartment cover.
The compartment lid is attached to the drawer and can be
hidden by a shelf or additional drawers.
Fig. 47
Low air humidity
u
Open the drawer.
u
Slide the compartment cover forwards.
w
With the drawer closed: Gap between the cover and the
compartment.
w
The air moisture in the Safe decreases.
High air moisture
u
Open the drawer.
u
Slide the cover back.
w
With the drawer closed: The cover seals the compart‐
ment.
w
The air moisture in the Safe increases.
If there is too much moisture in the compartment:
u
Choose the setting “low air moisture”.
-or-
u
Remove any excess moisture with a cloth.
7.8 Pull-out board with bottle basket*
Removable bottle baskets on the pull-out board offer plenty
of space to store bottles. You can remove the bottle baskets
to make room for a drinks crate in the pull-out board.
7.8.1 Using the bottle basket
Fig. 48
u
Slide the bottle rack at the edges.
w
The bottles are prevented from falling over.
7.8.2 Disassembling the pull-out board
The pull-out board is mounted on a glass panel with pull-out
rails.
You can dismantle the pull-out board for cleaning.
Removing the pull-out board
u
Remove the bottle baskets.
Fig. 49
u
To remove the pull-out board with glass panel: Gently lift
the glass panel at the front Fig. 49 (1) and pull out to the
front Fig. 49 (2).
Fig. 50
u
Slide the pull-out board all the way in Fig. 50 (1).
u
Release the clips at the back Fig. 50 (2).
u
Remove the pull-out board from the front Fig. 50 (3).
Inserting the pull-out board
Features
18 * Depending on model and options
Fig. 51
u
Place centrally on the rails Fig. 51 (1).
u
Slide the pull-out board all the way in Fig. 51 (2).
u
Press down at the back until it clicks into place Fig. 51 (3).
u
To insert the pull-out board with glass panel: Slide to the
rear.
7.9 Glass shelves
You can remove the glass shelves under the drawers for
cleaning.
7.9.1 Removing / inserting the glass shelf
Make sure that the following requirements are fulfilled:
q
Glass shelf under the drawer: The drawer has been
removed. (see 7.5 Drawers)
q
Pull-out board under the bottle basket: Bottle basket
has been removed. (see 7.8 Pull-out board with bottle
basket*) *
Removing glass shelf
Fig. 52 Example illustration of glass shelf
u
Lift glass shelf at the front. Fig. 52 (1)
u
Take out glass shelf to the front. Fig. 52 (2)
Inserting glass shelf
Fig. 53 Example illustration of glass shelf
u
Position glass shelf at an angle behind the stoppers. (see
Fig. 53)
u
Lower glass shelf.
u
Slide in glass shelf to the back.
7.10 Bottle holder
7.10.1 Using the bottle holder
Fig. 54
u
Push the bottle holder onto the bottles.
w
The bottles are prevented from falling over.
7.10.2 Removing the bottle holder
Fig. 55
u
Move the bottle holder all the way to the right.
u
Push the bottle holder to the back to remove.
8 Maintenance
8.1 FreshAir carbon filter
The FreshAir carbon filter is in the compartment above the
fan.
It guarantees the best air quality.
q
Replace the carbon filter every 6 months.
When the reminder is set, a message on the display
prompts you to change it.
q
The carbon filter can be disposed of with the regular
household waste.
Note
FreshAir activated charcoal filters can be purchased
from the Liebherr-Hausgeräte store at home.liebherr.com/
shop/de/deu/zubehor.html.
Maintenance
* Depending on model and options 19
8.1.1 Removing the FreshAir carbon filter
Fig. 56
u
Pull out the compartment Fig. 56 (1).
u
Remove the carbon filter Fig. 56 (2).
8.1.2 Inserting the FreshAir carbon filter
Fig. 57
u
Insert the carbon filter as shown in the diagram
Fig. 57 (1).
w
The carbon filter clicks into place.
If the carbon filter is pointing downwards:
u
Push the compartment in Fig. 57 (2).
w
The carbon filter is now ready for use.
8.2 Disassembling / assembling pull-
out systems
8.2.1 Notes on disassembly
You can disassemble some of the pull-out systems for
cleaning. Your appliance can contain a variety of pull-out
systems.
The following pull-out systems can be disassembled or
cannot be disassembled:
Pull-out system
can be disassembled /
cannot be disassembled
Drawer on rails cannot be disassembled
Pull-out board with
bottle basket*
can be disassembled (see 8.2.2 Pull-
out board with bottle basket*) *
8.2.2 Pull-out board with bottle basket*
Disassembling pull-out system
Make sure the following prerequisites are met:
q
Bottle basket has been removed. (see 7.8 Pull-out board
with bottle basket*)
q
Glass shelf has been removed. (see 7.9 Glass shelves)
Fig. 58 Glass shelf with rails
u
Push up front click-in hooks. Fig. 58 (1)
u
Move the pull-out rails to the side Fig. 58 (2) and to the
rear Fig. 58 (3).
Installing pull-out system
Fig. 59 Glass shelf with rails
u
Hook in rail at the back. Fig. 59 (1)
u
Hook in rail at the front. Fig. 59 (2)
8.3 Defrosting the appliance
WARNING
Improper defrosting of the appliance!
Injuries and damage.
u
Do not use mechanical equipment or other methods to
speed up the defrosting process other than those recom‐
mended by the manufacturer.
u
Do not use electrical heating or steam-cleaning appli‐
ances, naked flames or defroster sprays to defrost.
u
Do not use sharp objects to remove ice.
Defrosting is performed automatically. The water from the
thawing process drains through the outlet and evaporates.
Water drops or a thin layer of frost or ice can form on the
back wall; this is a completely normal part of the applian‐
ce’s function. This must not be removed.
A layer of frost or ice can from briefly due to the energy-
optimised control of the device.
u
Clean the drain opening regularly (see 8.4 Cleaning the
appliance) .
8.4 Cleaning the appliance
8.4.1 Ready
WARNING
Danger of electric shock!
u
Remove the refrigerator connector or interrupt the power
supply.
WARNING
Risk of fire
u
Do not damage the refrigeration circuit.
u
Empty the appliance.
u
Remove mains connector.
-or-
u
Activate CleaningMode. (see CleaningMode)
Maintenance
20 * Depending on model and options
8.4.2 Clean the housing
NOTICE
Improper cleaning!
Damage to the appliance.
u
Only use soft cleaning cloths and ph-neutral all-purpose
cleaners.
u
Do not uses abrasive sponges or steel wool which may
cause scratches.
u
Do not use any sharp or abrasive cleaning agents, nor
any that contain sand, chloride or acid.
WARNING
Risk of injury and damage as a result of hot steam!
Hot steam can lead to burns and can damage the surfaces.
u
Do not use any steam cleaners!
u
Wipe the housing down with soft, clean cloth. If very
dirty, use lukewarm water with a neutral cleaner. Glass
surfaces can also be cleaned with glass cleaner.
8.4.3 Cleaning the interior
NOTICE
Improper cleaning!
Damage to the appliance.
u
Only use soft cleaning cloths and ph-neutral all-purpose
cleaners.
u
Do not uses abrasive sponges or steel wool which may
cause scratches.
u
Do not use any sharp or abrasive cleaning agents, nor
any that contain sand, chloride or acid.
u
Plastic surfaces: clean by hand with a soft clean cloth,
lukewarm water and a little detergent.
u
Metal surfaces: clean by hand with a soft clean cloth,
lukewarm water and a little detergent.
u
Drain hole: remove deposits using a thin item (for
example a cotton bud).
8.4.4 Clean the components
NOTICE
Improper cleaning!
Damage to the appliance.
u
Only use soft cleaning cloths and ph-neutral all-purpose
cleaners.
u
Do not uses abrasive sponges or steel wool which may
cause scratches.
u
Do not use any sharp or abrasive cleaning agents, nor
any that contain sand, chloride or acid.
Clean with a soft, clean cloth, lukewarm water and some
detergent:
- Door rack
- Shelf
- Dividing shelf*
- VarioSafe*
- Bottle basket and pull-out panel*
- EasyFresh-Safe cover
- Drawer
Wash in the dishwasher up to 60 °C:
- Bottle rack
- Holder of the dividing shelf*
u
To disassemble components: see the relevant section.
u
Clean the components.
8.4.5 After cleaning
u
Wipe the appliance and the components dry.
u
Connect and switch on the appliance.
The temperature is cold enough:
u
Place the food inside.
u
Repeat cleaning regularly.
9 Customer help
9.1 Technical specifications
Temperature range
Cooling 2 °C to 9 °C
Maximum component capacity
Features Appliance
width
550 mm
(see instal‐
lation
instruc‐
tions,
appliance
dimen‐
sions)
Appliance
width
600 mm
(see
installa‐
tion
instruc‐
tions,
appliance
dimen‐
sions)
Appliance
width
700 mm
(see instal‐
lation
instruc‐
tions, appli‐
ance
dimen‐
sions)
Pull-out board* 20 kg* 20 kg* 20 kg*
9.2 Operating noises
The appliance makes different noises when it is on.
-
At higher temperatures the appliance uses less energy
but works for longer. It is quieter.
-
At lower temperatures the food is cooled faster. It is
louder.
Examples:
•
Functions on (see 6.3 Appliance functions)
•
Fan running
•
Food recently added
•
High ambient temperature
•
Door open for a while
Noise
Possible cause Type of noise
Bubbling and
splashing
Coolant flowing
into the cooling
circuit.
Normal operating
noise
Hissing Coolant sprays
into the cooling
circuit.
Normal operating
noise
Humming The appliance
is cooling. The
volume depends
on the cooling
output.
Normal operating
noise
Suction noises Soft-closing door
is being opened
and closed.
Normal operating
noise
Humming and
rustling
The fan is running. Normal operating
noise
Clicking Components are
switched on and
off.
Normal switching
noise
Rattling or
humming
Valves or flaps are
working.
Normal switching
noise
Customer help
* Depending on model and options 21
Noise Possible
cause
Type of noise Lifting
Vibration Improper
setup
Defective
noise
Level the
appliance
using the
adjustable
feet.
Rattling Components,
items inside
the appliance
Defective
noise
Secure
components.
Leave
enough
space
between the
items.
9.3 Technical fault
Your appliance is designed and built to ensure it works reli‐
ably and has a long service life. In the unlikely event that
a fault occurs during operation, please check whether it is
due to an operating error. If so, you will be charged for the
callout and repair costs even if it falls within the warranty
period.
You can fix the following faults yourself.
9.3.1 Appliance function
Defect Cause Remedy
The appliance is
not working.
→ The appliance is not switched on.
u
Switch the appliance on.
→ The power plug is not properly
plugged into the socket.
u
Check the power plug.
→ There is something wrong with the
power outlet fuse.
u
Check the fuse.
→ Power cut
u
Keep the appliance closed.
u
Protecting food: Lay freezer packs on top of the food or
use another freezer if the power is off for a prolonged
period.
u
Do not re-freeze defrosted food,
→ The appliance plug does not fit the
appliance properly.
u
Check the appliance plug.
Temperature is not
cold enough.
→ The appliance door is not closed
properly.
u
Close the appliance door.
→ Not enough ventilation.
u
Keep ventilation grille clear, and clean it.
→ The ambient temperature is too
high.
u
Solution: (see 1.4 Appliance range of use) .
→ The appliance was opened too
many times or for too long.
u
Wait to see if the required temperature corrects itself.
If not, contact Customer Service. (see 9.4 Customer
Service)
→ The temperature is set incorrectly.
u
Turn down the temperature and check after 24 hours.
→ The appliance is too close to a heat
source (oven, radiator, etc).
u
Move the appliance or the heat source.
The door seal is
defective or needs
to be replaced for
another reason.
→ The door seal can be replaced. It
can be replaced without the need
for special tools.
u
Contact Customer Service. (see 9.4 Customer Service)
The appliance
builds up too much
ice or condensa‐
tion.
→ The door seal may have slipped out
of its groove.
u
Check that the door seal is well fitted in the groove.
The appliance is
hot to touch on the
outside*.
→ The heat of the refrigeration circuit
is used to avoid condensation.
u
This is normal.
Customer help
22 * Depending on model and options
9.3.2 Features
Defect Cause Remedy
The internal light
does not come on.
→ The appliance is not switched on.
u
Switch the appliance on.
→ The door was open for longer than
15 minutes.
u
Interior lighting turns off automatically after approx. 15
min. with the door open.
→ The LED interior light is faulty or
the lid is damaged.
u
Contact Customer Service. (see 9.4 Customer Service)
9.4 Customer Service
First check whether you can rectify the fault yourself
(see 9 Customer help) . If you cannot rectify the problem,
contact Customer Service.
You can find the address in the enclosed brochure “Liebherr-
Service” or at home.liebherr.com/service.
WARNING
Unprofessional repair!
Injuries.
u
Have any repairs and action - not expressly specified -
on the appliance and mains cable carried out by service
personnel only. (see 8 Maintenance)
u
A damaged mains cable may only be replaced by the
manufacturer, the manufacturer’s Customer Service or a
similarly qualified person.
u
In the case of appliances with an IEC connector, the
change may be made by the customer.
9.4.1 Contacting Customer Service
Make sure that the following appliance information is avail‐
able:
q
Appliance name (model and index)
q
Service no. (Service)
q
Serial no. (S no.)
u
Call up the appliance information via the display.
(see Info)
-or-
u
Refer to the type plate for appliance information.
(see 9.5 Model plate)
u
Note down the appliance information.
u
Notify customer service: Report errors and the appliance
information.
w
This will help us to provide you with a faster, more accu‐
rate service.
u
Follow further instructions from Customer Service.
9.5 Model plate
The model plate is behind the drawers on the inside of the
appliance.
Fig. 60
(1)
Appliance description (3) Serial no.
(2) Service no.
u
Note the data on the model plate.
10 Shutting down
u
Empty the appliance.
u
Switch off appliance. (see Turn off appliance)
u
Remove mains connector.
u
Remove appliance connector if required: Remove and
move from left to right at the same time.
u
Clean appliance. (see 8.4 Cleaning the appliance)
u
Leave the door open to avoid bad smells building up.
11 Disposal
11.1 Preparing appliance for disposal
Liebherr uses batteries in some of its appli‐
ances. In the EU, for environmental reasons,
legislation obliges the end user to remove
these batteries before disposing of old appli‐
ances. If your appliance contains batteries, a
corresponding notice is attached.
Lamps If you can remove the lamps yourself without
destroying them, also remove these before
disposal.
u
Take the appliance out of operation.
u
Appliances with batteries: remove the batteries. For
description, see Maintenance chapter.
u
If possible: remove lamps without destroying them.
11.2 Disposing of the appliance in an
environmentally friendly manner
The appliance still contains
valuable materials and must
be disposed of separately from
unsorted municipal waste.
Dispose of batteries separately
from the old appliance. To do
this, you can return the batteries
free of charge to retailers as
well as recycling centres and
collection centres for recyclable
materials.
Lamps Dispose of removed lamps
via the respective collection
systems.
Shutting down
* Depending on model and options 23
For Germany: You can dispose of the appli‐
ance free of charge via the
class 1 collection containers
at the local recycling and
recyclable material collection
centres. When purchasing a new
fridge/freezer, if the sales area
> 400 m
2
, retailers will also take
back the old appliance free of
charge.
WARNING
Leaking coolant and oil!
Fire. The coolant contained in the appliance is eco-friendly,
but also flammable. The oil contained in the appliance
is flammable. Escaping coolant and oil can ignite if the
concentration is high enough and in contact with an
external heat source.
u
Do not damage the pipelines of the coolant circuit and
the compressor.
u
Transport the appliance without damaging it.
u
Dispose of batteries, lamps and the appliance according
to the above specifications.
Disposal
24 * Depending on model and options
Disposal
* Depending on model and options 25
home.liebherr.com/fridge-manuals
fridge
Issue date: 20231013
Part number index: 7080430-02
Liebherr-Hausgeräte Marica EOOD
Bezirk Plovdiv
4202 Radinovo
Bulgarien
