User Guide
fridge
20241122
7086301 - 00
K.. 23..
Contents
1 Appliance at a glance............................................ 2
1.1 Description of appliance and equipment................. 2
1.2 Appliance range of use............................................... 2
1.3 Conformity..................................................................... 3
1.4 SVHC substances according to REACH regulation. 3
1.5 EPREL database........................................................... 3
1.6 Spare parts.................................................................... 3
1.7 Installation dimensions............................................... 3
1.8 Saving energy............................................................... 3
2 General safety instructions.................................. 4
3 Controls and displays............................................ 5
3.1 Operating and control elements................................ 5
4 Putting into operation........................................... 5
4.1 Transporting the appliance........................................ 5
4.2 Installing the appliance.............................................. 5
4.3 Changing over the door hinges................................. 6
4.4 Sliding into the row of units....................................... 8
4.5 Disposing of packaging............................................... 8
4.6 Connecting the appliance........................................... 8
4.7 Switching on the appliance........................................ 8
5 Control................................................................... 8
5.1 Refrigerating food........................................................ 8
5.2 Setting the temperature............................................. 9
5.3 Shelves.......................................................................... 9
5.4 Door racks..................................................................... 9
6 Maintenance.......................................................... 9
6.1 Defrosting...................................................................... 9
6.2 Cleaning the appliance............................................... 9
6.3 Replacing the interior lighting................................... 10
6.4 Customer service......................................................... 10
6.5 Energy efficiency class lighting................................ 10
7 Malfunctions......................................................... 10
8 Decommissioning.................................................. 12
8.1 Switching off the appliance....................................... 12
8.2 Taking the appliance out of service.......................... 12
9 Disposal................................................................. 12
9.1 Preparing appliance for disposal.............................. 12
9.2 Disposing of the appliance in an environmentally
friendly manner............................................................ 12
The manufacturer works constantly on the further develop‐
ment of all the types and models. Therefore please under‐
stand that we have to reserve the right to make design,
equipment and technical modifications.
To get to know all the benefits of your new appliance,
please read the information contained in these instructions
carefully.
The instructions apply to several models. Differences may
occur. Text relating only to specific appliances is marked
with an asterisk (*).
Instructions are marked with a , and results are marked
with a .
1 Appliance at a glance
1.1 Description of appliance and equip‐
ment
Note
u
Place food inside the appliance as shown in the diagram.
This allows the appliance to save energy during opera‐
tion.
u
Shelves, drawers and baskets are arranged for optimum
energy efficiency on delivery.

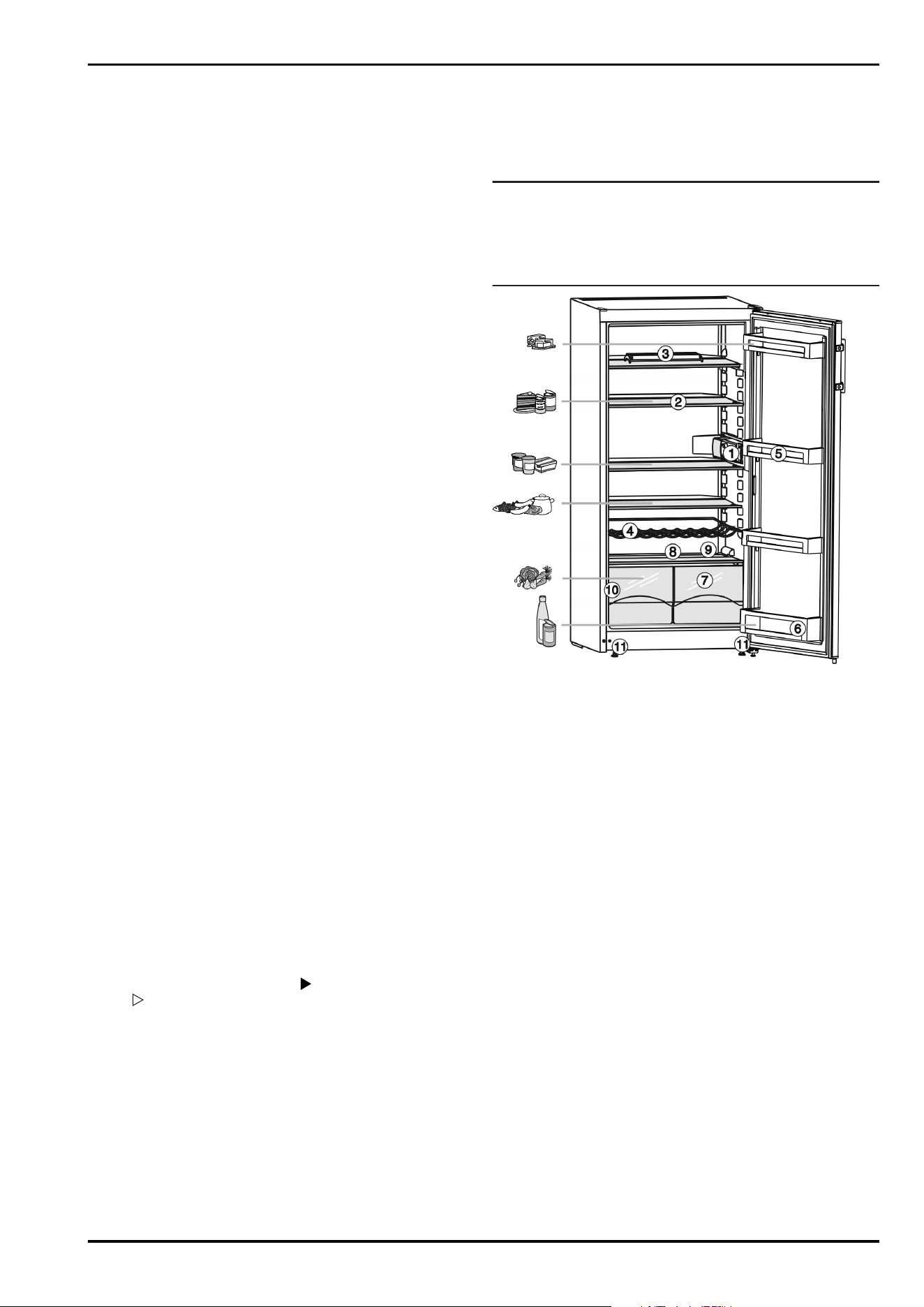

Fig.1
(1)
Thermostat housing,
interior lighting
(7) Vegetable bins
(2) Shelf, adjustable (8) Coldest area
(3) Egg tray (9) Drain opening
(4) Bottle rack* (10) Type plate
(5) Door rack, adjustable (11) Adjustable feet, rear
rollers for transport
(6) Door rack for large
bottles
1.2 Appliance range of use
Intended use
The appliance is only suitable for cooling
food products in a domestic or household-like
environment. This includes, for example, use:
-
in staff kitchens, bed and breakfast estab‐
lishments,
-
by guests in country houses, hotels, motels
and other accommodation,
-
for catering and similar services in the
wholesale trade.
The appliance is not suitable for freezing
food;
The appliance is not suitable as a built-in
unit.
All other types of use are not permitted.
Foreseeable misuse
Appliance at a glance
2 * Depending on model and options
The following applications are expressly
forbidden:
-
Storing and refrigerating medicines, blood
plasma, laboratory preparations or similar
substances and products based on the
Medical Device Directive 2007/47/EC
-
Use in areas at risk of explosions
Misusing the appliance may lead to damage
to the goods stored or they may spoil.
Climate classifications
Depending on the climate classification the
appliance is designed to operate in restricted
ambient temperatures. The climate classifica‐
tion applying to your appliance is printed on
the rating plate.
Note
u
Keep to the specified ambient tempera‐
tures in order to guarantee that the appli‐
ance works properly.
Climate clas‐
sification
for ambient temperatures of
SN 10°C to 32°C
N 16°C to 32°C
ST 16°C to 38°C
T 16°C to 43°C
SN-ST 10°C to 38°C
SN-T 10°C to 43°C
1.3 Conformity
The refrigerant circuit has been tested for leaks. The appli‐
ance complies with the applicable safety regulations and
with the corresponding directives.
For the EU
market:
The appliance complies with directive
2014/53/EU.
For the GB
market:
The appliance complies with Radio
Equipment Regulations 2017 SI 2017 No.
1206.
The full text of the EU Declaration of Conformity is available
on the following website: www.Liebherr.com
1.4 SVHC substances according to
REACH regulation
You can check whether your appliance contains SVHC
substances according to REACH regulation at the following
link: home.liebherr.com/de/deu/de/liebherr-erleben/nach‐
haltigkeit/umwelt/scip/scip.html
1.5 EPREL database
Details about energy labelling and ecodesign requirements
will be available on the European product database (EPREL)
from 1st March 2021. You can access the product database
at the following link: https://eprel.ec.europa.eu/ You will be
asked to enter the model ID. You can find the model ID on
the nameplate.
1.6 Spare parts
The spare parts availability for functional parts and stock‐
able parts of the equipment is 15 years.
1.7 Installation dimensions

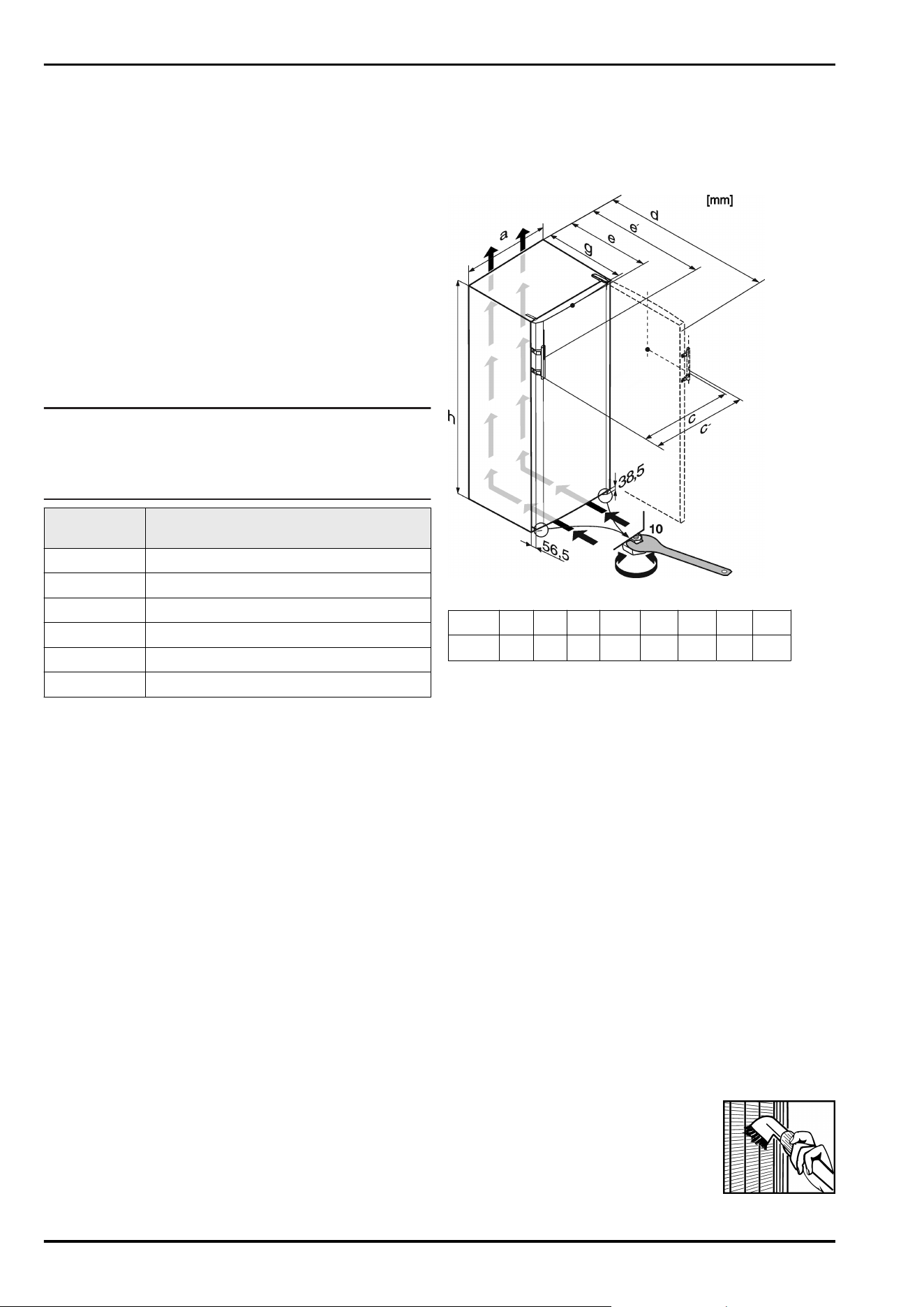

Fig.2
Model
a c c' d e e' g h
K.. 23.. 550 560 592
1131
x
630
x
660
x
615
x
1140
x
For appliances supplied with wall spacers, the measure‐
ment increases by 35mm (see4.2 Installing the appliance) .
1.8 Saving energy
-
Pay attention to good ventilation. Do not cover ventilation
holes or grids.
-
Do not place the appliance in direct sunlight or near radi‐
ators or similar sources of heat.
-
If the appliance is placed directly next to an oven,
the energy consumption may increase slightly. This is
dependent on the service life and usage intensity of the
oven.
-
Energy consumption depends on the installation condi‐
tions, e.g. the ambient temperature (see 1.2 Appliance
range of use) . A warmer ambient temperature can
increase the energy consumption.
-
Open the appliance for as short a time as possible.
-
The lower the temperature is set the higher the energy
consumption.
-
Sort your food: home.liebherr.com/food.
-
Keep all food properly packed and covered. This prevents
frost from forming.
-
Only take food out for as long as necessary so that it
doesn’t warm up too much.
-
Inserting warm food: allow to cool down to room temper‐
ature first.
Dust deposits increase energy consump‐
tion:
-
For refrigerators with heat exchangers
dust the metal grid on the back of the
appliance once a year.
Appliance at a glance
* Depending on model and options 3
2 General safety instructions
Please keep these operating instructions in a
safe place so you can refer back to them at
any time.
If you pass the appliance on, please hand
these operating instructions to the next user.
Read these operating instructions carefully
before use to ensure safe and correct use of
the appliance. Follow the instructions, safety
instructions and warning messages included
at all times. They are important for ensuring
you can operate and install the appliance
safely and without any problems.
Danger for the user:
-
This device can be used by children and
people with impaired physical, sensory or
mental abilities or with a lack of experi‐
ence and knowledge provided that they are
supervised or have received instruction in
the safe use of this device, and about the
resulting hazards.
Children must not play with this appliance.
Cleaning and user maintenance work must
not be carried out by children without adult
supervision. Children aged between 3 and
8 are allowed to load and unload the appli‐
ance. Children below the age of 3 must be
kept away from the appliance unless they
are under continuous adult supervision.
-
The socket must be easily accessible so
that the appliance can be disconnected
quickly from the electricity in an emer‐
gency. It must not be located in the area
behind the appliance.
-
When disconnecting the appliance from the
supply, always take hold of the plug. Do not
pull the cable.
-
In the event of a fault pull out the mains
plug or deactivate the fuse.
-
Do not damage the mains power cable. Do
not operate the appliance with a defective
mains power cable.
-
Repairs, interventions on the appliance and
the replacement of mains connection line
may only be carried out by AfterSales
Service or other suitably trained specialist
personnel.
-
Only assemble, connect and dispose of the
appliance according to the instructions.
Fire hazard:
-
The coolant used (information on the model
plate) is ecofriendly but also flammable.
Any leaking coolant may ignite.
•
Do not damage the refrigerant circuit
pipes.
•
Do not handle ignition sources inside the
appliance.
•
Do not use electrical appliances inside
the appliance (e.g. steam cleaners,
heaters, ice cream makers, etc.).
•
If the refrigerant leaks: remove any naked
flames or ignition sources from the
vicinity of the leakage point. Properly air
the room. Inform customer services.
-
Do not store explosives or sprays using
combustible propellants such as butane,
propane, pentane, etc. in the appliance. To
identify these spray cans, look for the list
of contents printed on the can, or a flame
symbol. Gases possibly escaping may ignite
due to electrical components.
-
Keep burning candles, lamps and other
items with naked flames away from the
appliance so that they do not set the appli‐
ance on fire.
-
Please be sure to store alcoholic drinks
or other packaging containing alcohol in
tightly closed containers. Any alcohol that
leaks out may be ignited by electrical
components.
Danger of tipping and falling:
-
Do not misuse the plinth, drawers, doors
etc. as a step or for support. This applies
particularly to children.
Danger of food poisoning:
-
Do not consume food which has been
stored too long.
Danger of frostbite, numbness and pain:
-
Avoid prolonged skin contact with cold
surfaces or refrigerated/frozen goods or
take protective measures, e.g wear gloves.
Danger of injury and damage:
-
Hot steam can lead to injury. Do not use
electrical heating or steam cleaning equip‐
ment, open flames or defrosting sprays to
defrost.
-
Do not use sharp implements to remove the
ice.
Risk of crushing:
-
Do not hold the hinge when opening and
closing the door. Fingers may get caught.

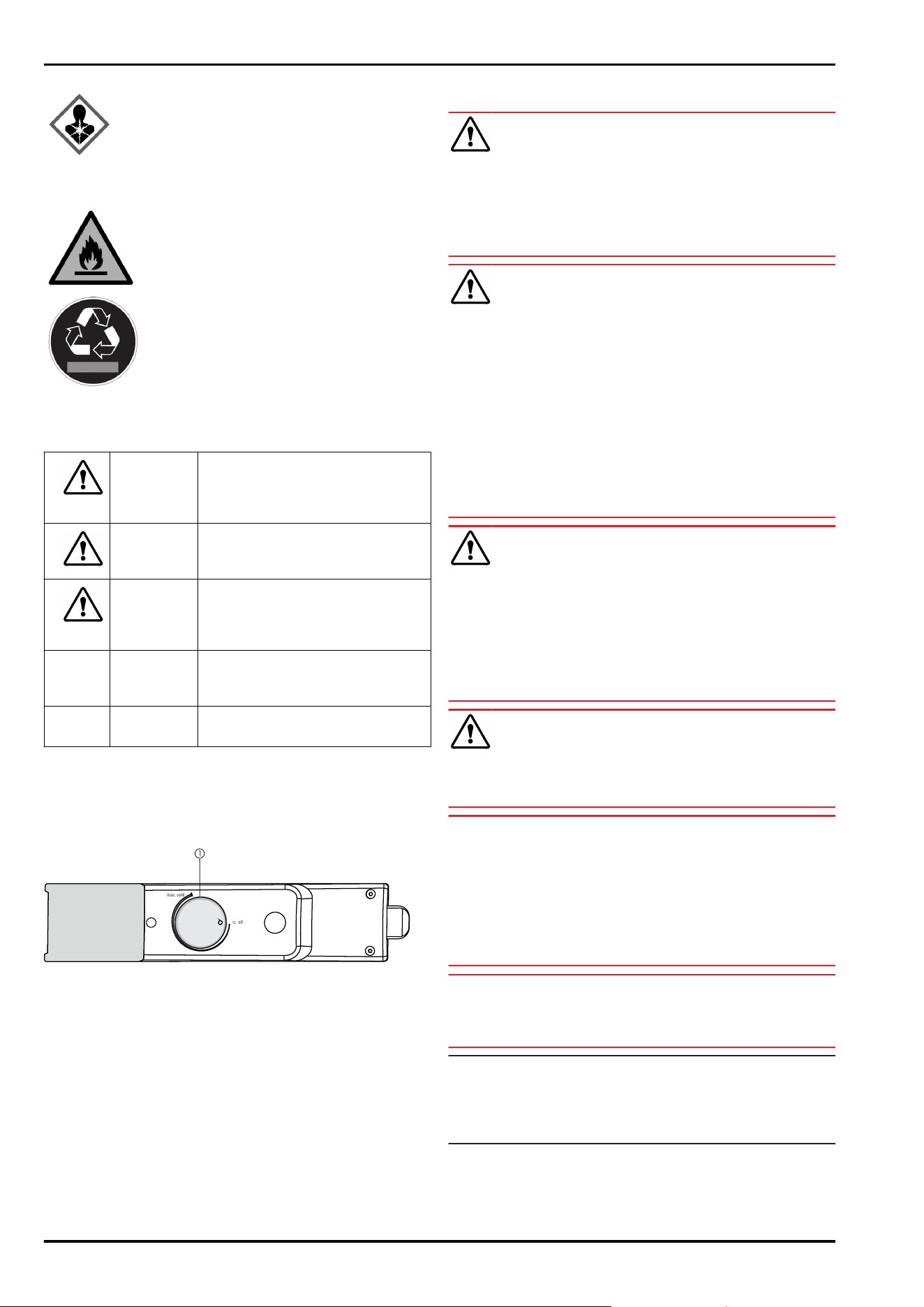

Symbols on the appliance:
General safety instructions
4 * Depending on model and options
This symbol may be located on the
compressor. It relates to the oil in the
compressor and makes reference to the
risk that: Swallowing or inhaling can be
fatal. This advice is only relevant to recy‐
cling. There is no danger in normal opera‐
tion.
This symbol is located on the compressor
and indicates the danger of flammable
materials. Do not remove the sticker.
This or a similar sticker may be located
on the rear of the appliance. This sticker
indicates that there are vacuum insulation
panels (VIP) or perlite panels in the door
and/or housing. This advice is only relevant
to recycling. Do not remove the sticker.
Please note the warning messages and other
specific advice in the other chapters:
DANGER
indicates an immediately
hazardous situation which will
lead to death or serious injuries if
it is not avoided.
WARNING indicates a hazardous situation
which may lead to death or serious
injuries if it is not avoided.
CAUTION indicates a hazardous situation
which may lead to minor or
moderate injuries if it is not
avoided.
NOTICE indicates a hazardous situation
which may lead to damage to
property if it is not avoided.
Note indicates useful instructions and
tips.
3 Controls and displays
3.1 Operating and control elements
Fig.3
(1)
Temperature control
4 Putting into operation
4.1 Transporting the appliance
u
Transport the appliance only in suitable packaging.
u
Transport the appliance upright.
u
Do not transport the appliance on your own.
4.2 Installing the appliance
WARNING
Fire hazard due to dampness!
If live parts or the mains lead become damp this may cause
short circuits.
u
The appliance is designed for use in enclosed areas. Do
not operate the appliance outdoors or in areas where it is
exposed to splash water or damp conditions.
WARNING
Danger of fire due to incorrect positioning!
If the mains cable or plug touches the back of the appli‐
ance, the vibration can damage the mains cable or the plug
resulting in a short circuit.
u
Make sure the mains cable is not trapped under the appli‐
ance when you position the appliance.
u
Stand the appliance so that it is not touched by connec‐
tors or main cables.
u
Do not connect any appliances to sockets in the area of
the back of the appliance.
u
Do not place and operate multi-sockets/power distribu‐
tors and other electronic devices (such as halogen trans‐
formers) at the back of the appliances.
WARNING
Leaking coolant and oil!
Fire. The coolant contained in the appliance is eco-friendly,
but also flammable. The oil contained in the appliance
is flammable. Escaping coolant and oil can ignite if the
concentration is high enough and in contact with an
external heat source.
u
Do not damage the pipelines of the coolant circuit and
the compressor.
WARNING
Fire hazard and danger of damage!
u
Do not place appliances emitting heat e.g. microwaves,
toasters etc. on the appliance!
NOTICE
Covered vents!
Damage. Appliance can overheat, which can reduce the
service life of various parts of the appliance and lead to
operational impairments.
u
Always make sure there is good ventilation.
u
Always keep vents or ventilation grids in the appliance
housing and in the kitchen furniture (fully integrated
appliance) unobstructed.
NOTICE
Risk of damage due to condensate!
u
Do not install the appliance directly alongside a further
refrigerator/freezer.

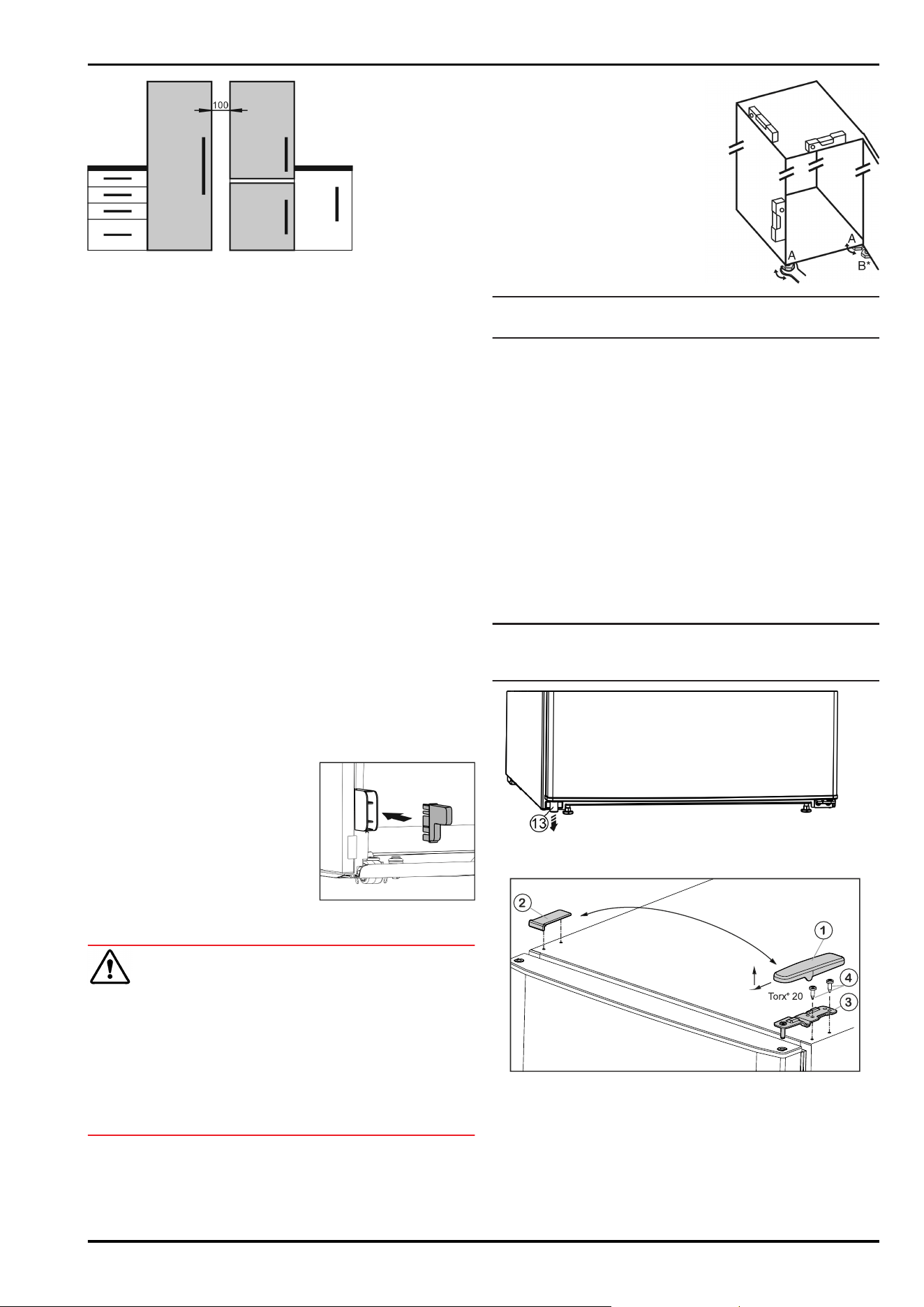

Note
If multiple appliances are placed next to each other, allow a
distance of 100 mm between the appliances. Condensation
will build up between the side walls of the appliances if this
distance is not maintained.
Controls and displays
* Depending on model and options 5
Fig.4
q
Before you connect the appliance, report any damage
immediately to the delivery company.
q
The floor of the installation site must be horizontal and
even.
q
Do not install the appliance in direct sunlight, next to an
oven, radiator or similar.
q
Install the appliance with the rear panel up against the
wall and always use the supplied wall spacers (see
below).
q
Only ever move the appliance when it is empty.
q
The surface supporting the appliance must be at the
same level as the surrounding floor.
q
Do not install the appliance on your own.
q
The more refrigerant there is in the appliance, the larger
the space that it is installed in must be. If the space is
too small, any leak may create a flammable mixture of
gas and air. For every 8 g of refrigerant, the installation
space must be at least 1 m
3
. Information regarding the
coolant can be found on the type plate inside the appli‐
ance.
u
Detach the connecting cable from the rear of the appli‐
ance, removing the cable holder at the same time
because otherwise there will be vibratory noise!
u
Remove the protective film from the decorative trims.
u
Remove all transit supports.
To achieve the specified energy consumption, use the
spacers, which are supplied with some appliances. This
increases the appliance depth by approx. 35 mm. The
appliance will work properly without the spacers but will
consume slightly more energy.
u
If your appliance comes with
wall spacers, mount these on
the back of the appliance,
bottom left and right.
u
Dispose of packaging material (see 4.5 Disposing of
packaging) .
CAUTION
Risk of injury or damage from the appliance tipping or the
door falling open!
If the additional adjustable foot on the base support is not
correctly positioned on the floor, there is a risk of the door
falling open or the appliance tipping. This can lead to injury
or property damage.
u
Unscrew the additional adjustable foot on the support
until it reaches the floor.
u
Then turn it another 90°.
u
Align the appliance so that it
stands firmly and on a level
by applying the accompa‐
nying spanner to the adjust‐
able-height feet (A) and
using a spirit level.
u
Then support the door:
Extend the adjustable foot
at the turn hinge (B) until it
rests on the floor and then
make a further 90° turn.
Note
u
Clean the appliance (see6.2Cleaning the appliance) .
If the appliance is installed in a very damp environment,
condensate may form on the outside of the appliance.
u
Always see to good ventilation at the installation site.
4.3 Changing over the door hinges
You can change over the door hinges if necessary.
Ensure that the following tools are to hand:
q
Torx 20
q
Torx 15
q
Screwdriver
q
If necessary, cordless screwdriver
q
Second person for fitting work, if needed
4.3.1 Removing the door
Note
u
Remove any food from the door racks before removing
the door, so that no food falls out.
Fig.5
u
Remove the spacer Fig. 5 (13) from under the left-hand
side of the door.
Fig.6
u
Pull the cover Fig.6(1) forwards and upwards.
u
Lift off the cover Fig.6(2).
Putting into operation
6 * Depending on model and options
CAUTION
Risk of injury if the door tips!
u
Take good hold of the door.
u
Set down the door carefully.
u
Unscrew top bearing block Fig. 6 (3) (2x Torx® 20)
Fig.6(4) and lift off in upward direction.
u
Lift out the door and set aside.
4.3.2 Relocating the bearing components

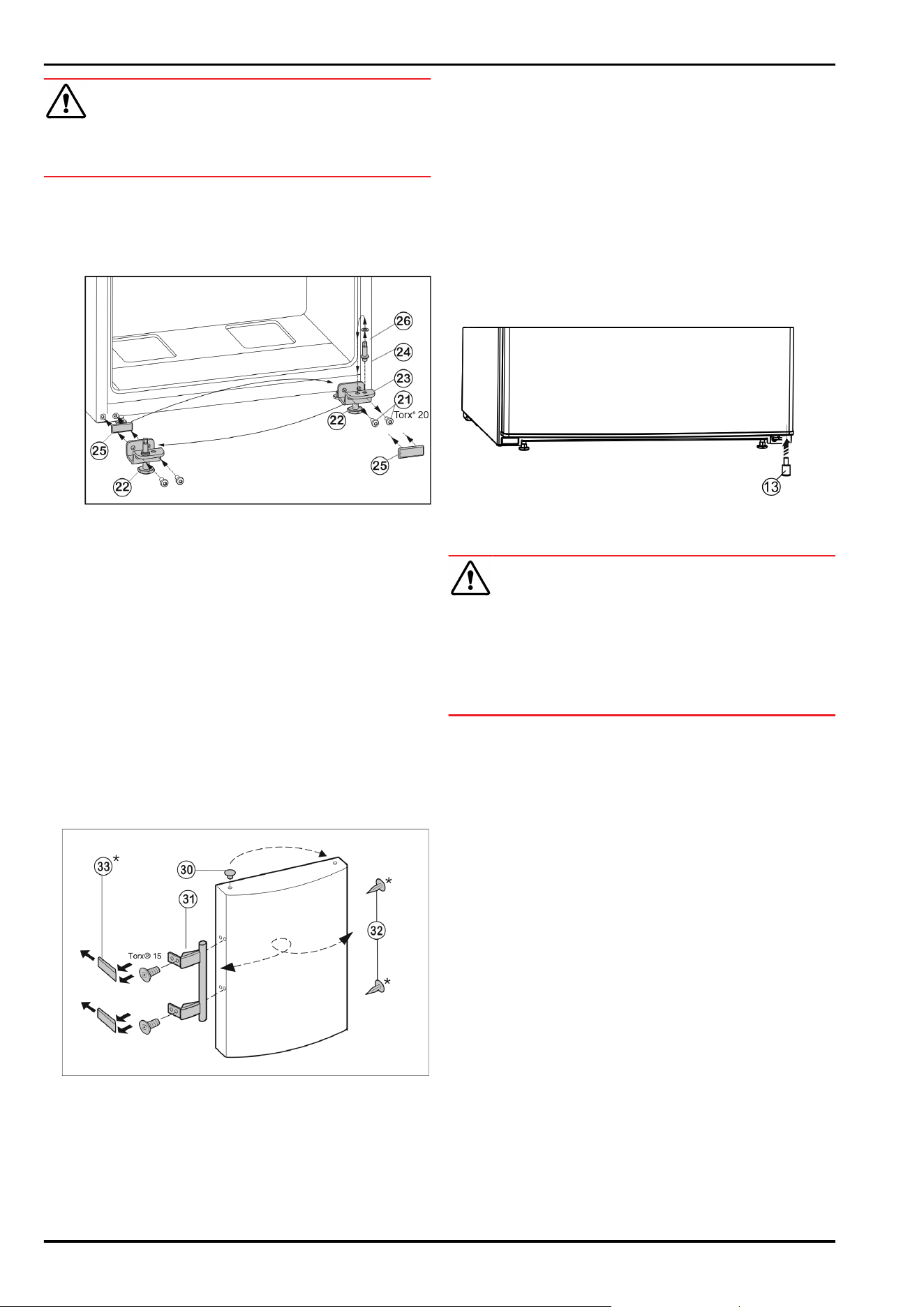

Fig.7
u
Unscrew fastening screws Fig.7(21).
u
Remove the lower bearing block Fig.7(23), complete with
bearing bolt Fig. 7 (24), washer Fig. 7 (26) and adjustable
foot Fig.7(22).
u
Unscrew the bearing bolt Fig. 7 (24), complete with
washer Fig. 7 (26), re-locate it into the mounting hole on
the opposite side of the bearing block and tighten again.
u
Carefully remove the cover plate Fig. 7 (25) and re-locate
it to the other side.
u
Screw on the lower bearing block Fig. 7 (23), complete
with bearing bolt Fig.7(24), washer Fig.7(26) and adjust‐
able foot Fig. 7 (22) to the new hinge side, with the help
of a cordless screwdriver if necessary, and tighten (with
4 Nm) once again.
4.3.3 Transferring the handle
u
Lift the stopper Fig. 8 (30) out of the door bearing bush
and transfer it.
Fig.8
u
Detach door handle Fig. 8 (31), stoppers Fig. 8 (32) and
pressure plates Fig. 8 (33) plates and transfer to the
opposite side
u
When fitting the pressure plates at the opposite side, pay
attention that they engage properly.
4.3.4 Fitting the lower door
u
Lower the door from above onto the bearing bolt
Fig.7(24).
u
Close the door.
u
Install the upper bearing block Fig.6(3) on the new hinge
side and in the door.
u
Screw in the upper bearing block tightly (with 4 Nm)
(2x Torx® 20) Fig. 6 (4). Use a cordless screwdriver if
necessary.
u
Slide on the cover Fig. 6 (1) on the opposite side from the
outside and snap it into place.
u
Slide on the cover Fig. 6 (2) on the opposite side from
above until it snaps into place.
u
Unscrew the adjustable foot Fig. 7 (22) on the lower
bearing block Fig.7(23) until it touches the floor.
Fig.9
u
Insert the spacer Fig. 9 (13) back under the right-hand
side of the door, as this is important for the stability of
the appliance.
WARNING
Danger of injury due to door falling out!
If the bearing parts are not screwed on tightly enough, the
door may fall out. This can result in serious injuries. In
addition, the door may not close with the result that the
appliance does not cool properly.
u
Screw the bearing brackets on firmly with 4Nm.
u
Check all screws and retighten them if necessary.
Putting into operation
* Depending on model and options 7
4.4 Sliding into the row of units

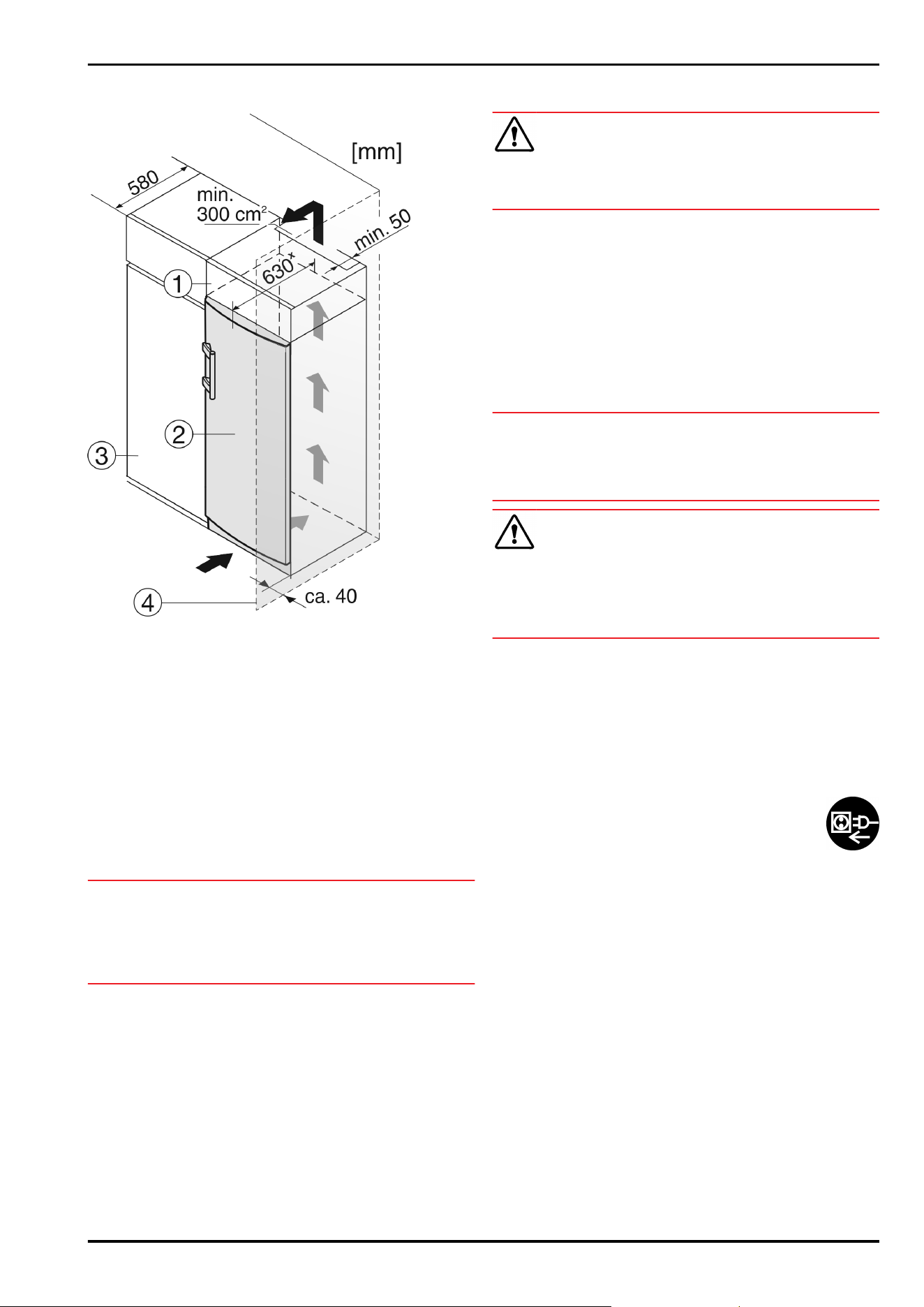

Fig. 10
(1)
Top cupboard (3) Kitchen cabinet
(2) Appliance (4) Wall
x
For appliances with supplied wall spacers, the dimension
must be increased by 35 mm (see 4.2 Installing the appli‐
ance) .
The appliance can be built into kitchen units. A top
cupboard Fig. 10 (2) can be added above the appliance in
order to bring the appliance Fig. 10(1) up to the height of the
fitted kitchen units.
When fitting kitchen cupboards around the appliance (max.
depth 580 mm), you can install the appliance directly next
to the kitchen cupboard Fig. 10 (3). The appliance protrudes
34 mm
x
to the side and 50 mm
x
in the centre of the appli‐
ance in relation to the kitchen cupboard front.
NOTICE
Danger of overheating due to insufficient air ventilation!
The compressor may be damaged if there is insufficient air
ventilation.
u
Take care to ensure adequate air ventilation.
u
Observe the ventilation requirements.
Ventilation requirements:
-
At the back of the top cupboard, there must be a ventila‐
tion shaft at least 50mm deep across the top cupboard’s
entire width.
-
The ventilation gap cross-section under the ceiling must
be at least 300cm
2
.
-
The wider the ventilation clearance, the more efficiently
the appliance will run.
If the appliance is set up with the hinges next to a wall
Fig. 10 (4), the distance between the appliance and the
wall must be at least 40 mm. This is how far the handle
protrudes when the door is open.
4.5 Disposing of packaging
WARNING
Danger of suffocation due to packing material and plastic
film!
u
Do not allow children to play with packing material.
The packaging is made of recyclable materials:
-
corrugated board/cardboard
-
expanded polystyrene parts
-
polythene bags and sheets
-
polypropylene straps
-
nailed wooden frame with polyethylene panel*
u
Take the packaging material to an official collecting
point.
4.6 Connecting the appliance
NOTICE
Danger of damage to incorrect connection!
Damage to the appliance.
u
Do not connect the appliance to a stand-alone inverter,
e.g. solar power systems and petrol generators.
WARNING
Danger of fire due to incorrect connection!
Burns.
Damage to the appliance.
u
Do not use an extension cable.
u
Do not use distributor blocks.
The type of current (alternating current) and voltage at the
installation site have to conform with the data on the type
plate (see1Appliance at a glance) .
The socket must be properly earthed and fused. The tripping
current for the fuse must be between 10A and 16A.
The socket must be easily accessible so that the appliance
can be quickly disconnected from the supply in an emer‐
gency. It must be outside the area of the rear of the appli‐
ance.
u
Check the electrical connection.
u
Plug in the power plug.
4.7 Switching on the appliance
u
Turn the temperature controller Fig. 3 (1) clockwise to the
position of the middle temperature point between off and
max cold .
w
The interior lighting is on.
5 Control
5.1 Refrigerating food
The coldest areas are directly above the vegetable compart‐
ments and along the back wall. The warmest area is at the
top front and in the door.
u
Store perishable foods such as ready-to-eat meals, meat
and sausages in the coldest area. Place butter and
preserves in the top area and in the door. (see 1 Appli‐
ance at a glance)
u
Use reuseable plastic, metal, aluminium, glass containers
and foil wrap to store food.
Control
8 * Depending on model and options
u
Always store raw meat and fish in clean, sealed
containers on the bottom shelf of the refrigerator, to
prevent them coming into contact with or dripping onto
other foods.
u
Foods that easily absorb or give off smell or taste, as
well as liquids, should be stored in sealed containers or
covered.
u
Use the front area of the base shelf only to tempora‐
rily set down refrigerated foods, for example while rear‐
ranging or sorting the contents. Remember not to leave
refrigerated foods here as they could shift to the back or
tip over when you close the door.
u
Do not pack foods too closely together, as the air needs
to circulate.
5.2 Setting the temperature
The temperature is adjustable clockwise between “off” and
“max cold” (coldest temperature, greatest cooling capacity).
We recommend the middle control position, which ensures
an average cold room temperature of approx. 5°C.
u
Turn temperature control Fig.3(1).
The temperature depends on the following factors:
- How often the door is opened
- How long the door is open for
- The room temperature of the installation site
- The type, temperature and amount of frozen items
u
If necessary, adjust the temperature with the control.

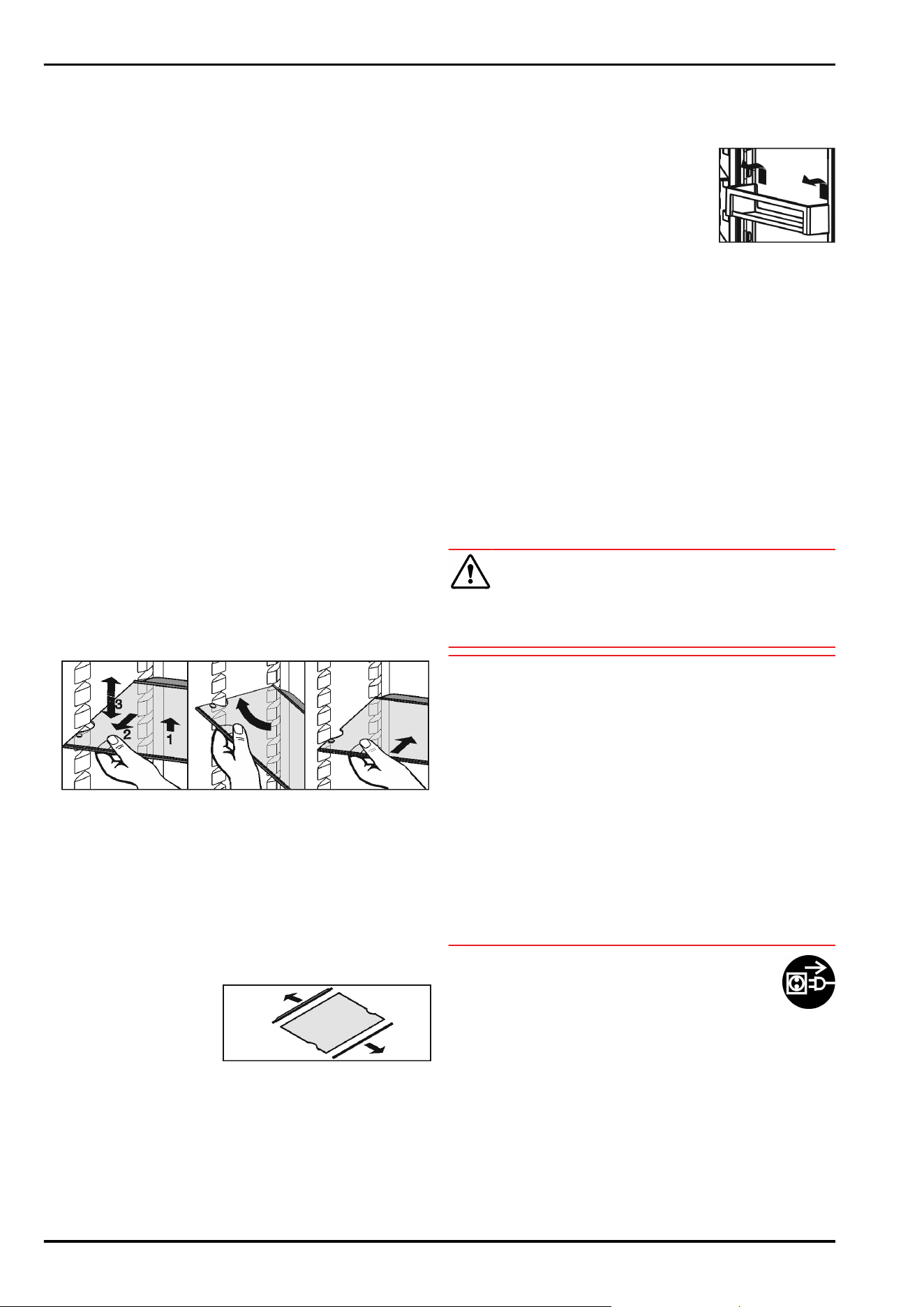

5.3 Shelves
5.3.1 Moving or removing shelves
The shelves are prevented from being pulled out acciden‐
tally by pull out stops.
Fig.11
u
Lift the shelf and pull forward a little.
u
Adjust the height of the shelf. To do this move the slots
along the supports.
u
In order to remove the shelf fully, place it at a slant and
pull out towards the front.
u
Insert shelf with the raised edge pointing upwards at the
back.
w
The food does not freeze onto the rear wall.
5.3.2 Dismantling shelves
u
The shelves can
be dismantled for
cleaning.
5.4 Door racks
5.4.1 Moving the storage rack
u
Remove storage rack according to
illustration.
6 Maintenance
6.1 Defrosting
6.1.1 Defrosting refrigerator compartment
The fridge compartment defrosts automatically. The
defrosted water will evaporate. Water drops or a thin layer
of frost or ice can form on the back wall; this is a completely
normal part of the machine’s function.
u
Clean the drain hole at regular intervals to allow the
defrost water to drain (see6.2Cleaning the appliance) .
6.2 Cleaning the appliance
Clean the appliance regularly.
WARNING
Risk of injury and damage as a result of hot steam!
Hot steam can lead to burns and can damage the surfaces.
u
Do not use any steam cleaners!
NOTICE
Incorrect cleaning damages the appliance!
u
Do not use cleaning agents in concentrated form.
u
Do not use any scouring or abrasive sponges or steel
wool.
u
Do not use any sharp or abrasive cleaning agents, nor
any that contain sand, chloride or acid.
u
Do not use chemical solvents.
u
Do not damage or remove the type plate on the inside of
the appliance. It is important for the customer service.
u
Do not pull off, bend or damage cables or other compo‐
nents.
u
Do not allow any cleaning water to enter the drain
channel, ventilation grille or electrical parts.
u
Please use soft cleaning cloths and a universal pH-
neutral cleaning agent.
u
Please use cleaning and care products suitable for
contact with foodstuffs in the appliance interior.
u
Empty appliance.
u
Pull out the power plug.
u
Clean the vent grille regularly.
w
Dust deposits increase energy consumption.
u
Clean plastic outer and inner surfaces with lukewarm
water and a little washing-up liquid.
u
Only use a soft clean cloth to wipe side walls with a
paint finish. In the case of heavy soiling, use lukewarm
water with neutral cleaning agent.
u
Use only a soft clean cloth to wipe door surfaces with a
paint finish. In the case of heavy soiling, use a little water
or neutral cleaning agent. A micro-fibre cloth can be used
optionally.
Maintenance
* Depending on model and options 9
Do not treat the lettering on the painted door surfaces with
harsh, abrasive agents. Wipe off any dirt with a soft cloth
and some water or neutral cleaner.
u
Clean drain hole: Remove deposits
with a narrow instrument, e.g. a
cotton bud.
u
Most of the parts can be dismantled for cleaning: see the
relevant chapter.
u
Clean drawers by hand with lukewarm water and a little
washing up liquid.
u
Clean other items of equipment by hand with lukewarm
water and a little washing-up liquid.
After cleaning:
u
Wipe dry the appliance and items of equipment.
u
Connect the appliance and switch it on again.
When the temperature is sufficiently cold:
u
Put the food back inside.

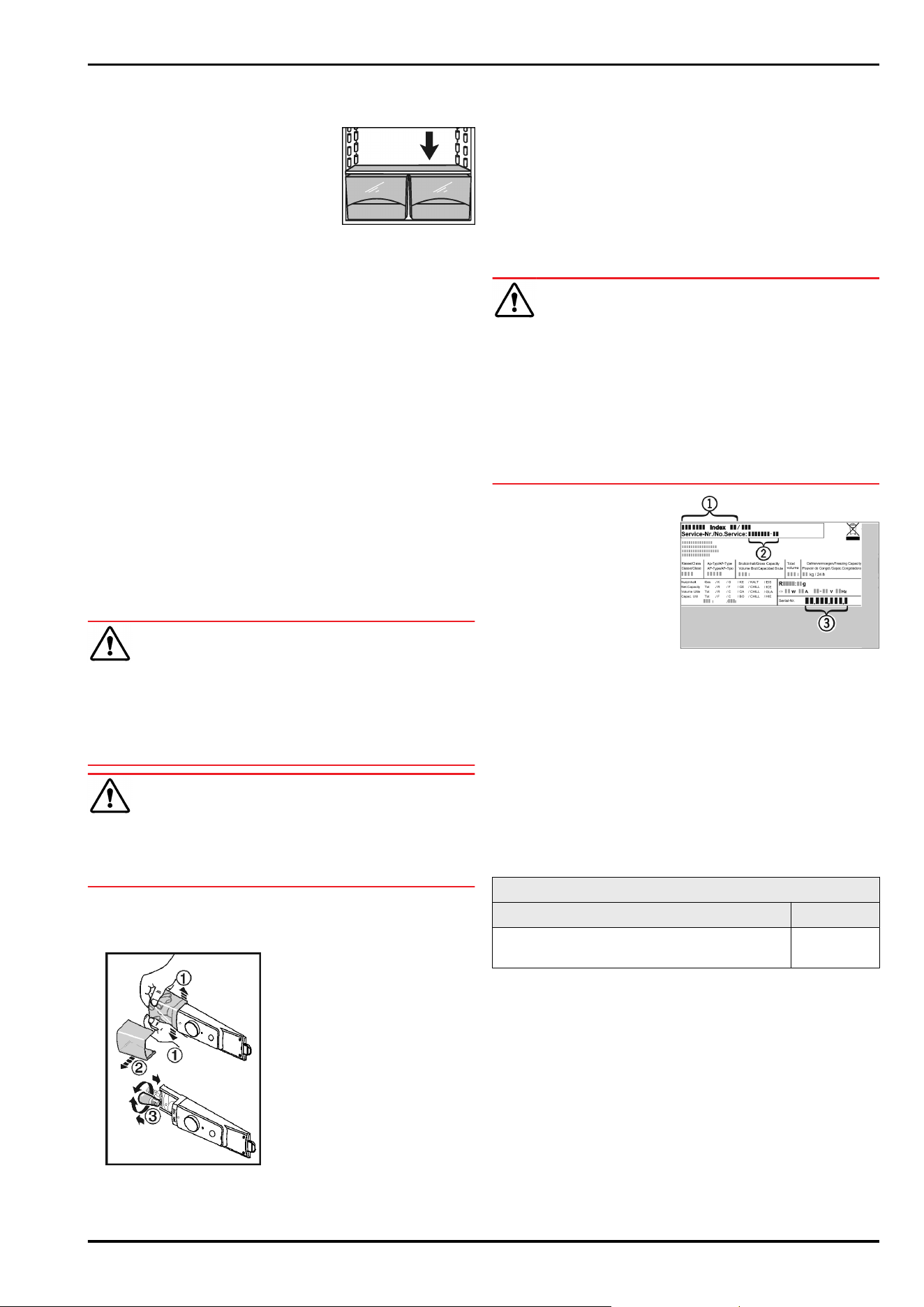

6.3 Replacing the interior lighting
An LED lamp is used as standard illumination for the interior
space in the appliance.
The power supply (AC) and voltage at the operating
point must comply with the details on the rating plate
(see1Appliance at a glance) .
When an LED is used:
q
Only use the original LED lamp from the manufacturer,
max. 15 W. The lamp can be obtained from customer
service or a specialist dealer (see6.4 Customer service) .
WARNING
Risk of injury from LED light!
The light intensity of the LED lighting corresponds to risk
group RG 2.
If the cover is removed:
u
Do not look directly into the light at close quarters
through optical lenses. Doing so may damage your eyes.
WARNING
Fire hazard from the LED light!
If different LED lights are used, there is a danger of over‐
heating or fire.
u
Use the manufacturer's original LED light.
If the lamp is faulty, replace it as follows:
u
Switch the appliance off.
u
Unplug the mains plug or switch the circuit breaker off.
Fig.12
u
Push the lamp cover in and apart at the front Fig. 12 (1),
and remove to the side Fig.12(2) as shown in the illustra‐
tion.
u
Replace the lamp. Fig.12(3)
u
Push the lamp cover on again and engage.
6.4 Customer service
First check whether you can rectify the fault yourself
(see 7 Malfunctions) . If you cannot rectify the problem,
contact Customer Services. You can find the address in the
enclosed Customer Service Directory.
WARNING
Unprofessional repair!
Injuries.
u
Have any repairs and action - not expressly specified -
on the appliance and mains cable carried out by service
personnel only. (see6 Maintenance)
u
A damaged mains cable may only be replaced by the
manufacturer, the manufacturer’s Customer Service or a
similarly qualified person.
u
In the case of appliances with an IEC connector, the
change may be made by the customer.
u
Read the appli‐
ance designation
Fig. 13 (1), service
No. Fig. 13 (2) and
serial No. Fig. 13 (3)
off the model plate
located inside the
appliance on the
left-hand side.
Fig.13
u
Notify the customer service, specifying the fault, appli‐
ance designation Fig. 13 (1), service No. Fig. 13 (2) and
serial No. Fig.13(3).
w
This will help us to provide you with a faster and more
accurate service.
u
Keep the appliance closed until the customer service
arrives.
w
The food will stay cool longer.
u
Pull out the mains plug (not by pulling the connecting
cable) or switch off the fuse.
6.5 Energy efficiency class lighting
Lighting
Energy efficiency class
1
Light source
This product contains an energy efficiency
class G light source
LED
1
The appliance may contain light sources with different
energy efficiency classes. The lowest energy efficiency class
is indicated.
7 Malfunctions
Your appliance is designed and manufactured for a long
life span and reliable operation. If a malfunction nonethe‐
less occurs during operation, check whether it is due to a
handling error. In this case you will have to be charged for
the costs incurred, even during the warranty period. You
may be able to rectify the following faults yourself:
Malfunctions
10 * Depending on model and options
Defect Cause Remedy
Appliance does not
work.
→ The appliance is not switched on.
u
Switching on the appliance.
→ The power plug is not properly
inserted in the wall socket.
u
Check power plug.
→ The fuse of the wall socket is not in
order.
u
Check fuse.
The compressor
runs for a long
time.
→ The compressor switches to a
low speed when little cold is
needed. Although the running time
is increased as a result, energy is
saved.
u
This is normal in energy-saving models.
A LED on the
bottom rear of
the appliance (at
the compressor)
flashes regularly
every 15 seconds*.
→ The inverter is equipped with a
diagnostic LED.
u
The flashing is normal.
Excessive noise.
→ Due to the various speed steps,
speed-regulated* compressors can
generate different running noises.
u
The sound is normal.
A bubbling and
gurgling noise.
→ This noise comes from the refrig‐
erant flowing in the refrigeration
circuit.
u
The sound is normal.
A quiet clicking
noise.
→ The noise is produced whenever
the refrigeration unit (motor) auto‐
matically switches on or off.
u
The sound is normal.
A hum. It is briefly
a little louder
when the refrig‐
eration unit (the
motor) switches
on.
→ The refrigeration increases auto‐
matically when fresh food has just
been placed in the appliance or the
door has been left open for a while.
u
The sound is normal.
→ The ambient temperature is too
high.
u
Solution: (see1.2 Appliance range of use)
Vibration noises
→ The appliance is not standing
firmly on the floor. As a result
objects and adjacent units start
to vibrate when the refrigerator is
running.
u
Align the appliance using the adjustable feet.
u
Keep bottles and jars apart.
The outer surfaces
of the appliance
are warm*.
→ The heat of the refrigeration circuit
is used to prevent condensate from
forming.
u
This is normal.
The temperature is
not cold enough.
→ The door of the appliance is not
properly closed.
u
Close the door of the appliance.
→ Insufficient ventilation.
u
Keep ventilation grille clear, and clean it.
→ The ambient temperature is too
high.
u
Solution: (see1.2 Appliance range of use) .
→ The appliance was opened too
frequently or for too long.
u
Wait to see whether the appliance reaches the required
temperature by itself. If not, please contact the after
sales service (see6 Maintenance) .
→ The appliance is too close to a
source of heat (stove, heater etc).
u
Change the position of the appliance or the source of
heat.
The internal light
does not come on.
→ The appliance is not switched on.
u
Switch the appliance on.
Malfunctions
* Depending on model and options 11
Defect Cause Remedy
→ The lamp (if the model comes with
an LED lamp) is faulty.
WARNING
Risk of injury from LED light!
The light intensity of the LED lighting corresponds to risk
group RG 2.
If the cover is removed:
u
Do not look directly into the light at close quarters
through optical lenses. Doing so may damage your eyes.
u
Change the lamp (see6 Maintenance) .
8 Decommissioning
8.1 Switching off the appliance
u
Turn temperature control Fig.3(1) to off.
8.2 Taking the appliance out of service
u
Empty the appliance.
u
Switch off the appliance (see8Decommissioning) .
u
Remove mains connector.
u
Clean the appliance (see6.2 Cleaning the appli‐
ance) .
u
Leave the door open to prevent odour.
9 Disposal
9.1 Preparing appliance for disposal
Liebherr uses batteries in some of its appli‐
ances. In the EU, for environmental reasons,
legislation obliges the end user to remove
these batteries before disposing of old appli‐
ances. If your appliance contains batteries, a
corresponding notice is attached.
Lamps If you can remove the lamps yourself without
destroying them, also remove these before
disposal.
u
Take the appliance out of operation. (see 8.2 Taking the
appliance out of service)
u
If possible: remove lamps without destroying them.
9.2 Disposing of the appliance in an
environmentally friendly manner
The appliance still contains
valuable materials and must
be disposed of separately from
unsorted municipal waste.
Dispose of batteries separately
from the old appliance. To do
this, you can return the batteries
free of charge to retailers as
well as recycling centres and
collection centres for recyclable
materials.
Lamps Dispose of removed lamps
via the respective collection
systems.
For Germany: You can dispose of the appli‐
ance free of charge via the
class 1 collection containers
at the local recycling and
recyclable material collection
centres. When purchasing a new
fridge/freezer, if the sales area
> 400 m
2
, retailers will also take
back the old appliance free of
charge.
WARNING
Leaking coolant and oil!
Fire. The coolant contained in the appliance is eco-friendly,
but also flammable. The oil contained in the appliance
is flammable. Escaping coolant and oil can ignite if the
concentration is high enough and in contact with an
external heat source.
u
Do not damage the pipelines of the coolant circuit and
the compressor.
u
Observe the notes on transporting the appliance.
(see4.1 Transporting the appliance)
u
Transport the appliance without damaging it.
u
Dispose of batteries, lamps and the appliance according
to the above specifications.
Decommissioning
12 * Depending on model and options
Disposal
* Depending on model and options 13
Liebherr-Hausgeräte Marica EOOD
4202 Radinovo
Bezirk Plovdiv
Bulgarien
home.liebherr.com
