EN
3-IN-1 STICK VACUUM CLEANER
Translation of the original manual
SVC 8726BK
SVC 8726BK
A
14
1
5
6
7
2
3
4
8
9
13 12 11 10
15
17
16
21
19
20
18
23
24
B
12
13
3
4
1 2
5
6 7 8 9 10 11
22
25
C1
D
C2
E
F
G1
G4
G2
G3
G6G5
G8G7
- 1 -
12/2024
2024, .
EN
3-in-1 stick vacuum cleaner
User Manual
Important safety instructions
READ CAREFULLY AND STORE FOR FUTURE USE.
• This vacuum cleaner may be used by children 8 years
of age and older and by persons with reduced physical,
sensory or mental impairments or by inexperienced
persons, if they are properly supervised or have been
informed about how to use this vacuum cleaner in asafe
manner and understand the potential dangers.
• Children must not play with the appliance. Cleaning
and maintenance performed by the user must not be
performed by unsupervised children.
• In the event that the power adapter is damaged, it must be
replaced with an original type. For areplacement power
adapter, please contact an authorised service centre. It is
forbidden to use the appliance if it has adamaged power
adapter.
WARNING:
Avoid coming into contact with the rotating parts of
the vacuum cleaner'shand accessories. There is
arisk of getting caught on these parts and possible
injury.
- 2 -
12/2024
2024, .
• Only use the vacuum cleaner with the original power
adapter, charging base and accessories that were supplied
with it.
• This vacuum cleaner is designed for use in households, offices and similar types of areas. Do not use in industrial surroundings.
• Do not expose the vacuum cleaner to direct sunlight and do not place it near an open fire or appliances that are asource of heat.
• Before connecting the adapter to apower socket, check that the technical details on its rating label match the electrical voltage in the power socket.
• Make sure the adapter power cord is not touching ahot surface or sharp objects. Position the adapter power cord so that it will not be tripped over.
• Never submerge the vacuum cleaner, the charging base or the power adapter in water or any other liquid and do not wash it under running water.
• Before turning on the vacuum cleaner, make sure that it is correctly assembled and that all inflow and outflow filters are installed in their place.
• When the vacuum cleaner is running, ensure that the air outlets and the suction opening are not blocked.
• Do not use the vacuum cleaner to vacuum the following items:
- smouldering cigarettes, burning items, matches or embers;
- water and other liquids;
- flammable or volatile materials;
- sharp items, e.g. broken glass, needles, pins, etc.;
- flour, wall plaster, cement and other building materials;
- larger pieces of paper or plastic bags, which can easily block the suction hole.
• Vacuuming of some types of floors or floor surfaces can create an electrostatic discharge, which presents no danger to the user.
• Always turn off the vacuum cleaner when leaving it without supervision, after finishing using it and before cleaning it.
• Disconnect the power adapter from the power socket before cleaning it and after it has finished charging.
• Disconnect the power adapter from the power socket by pulling on the plug, never pulling on the power cord. Otherwise, this could damage the
power adapter or the socket.
• If the power adapter is damaged, it must be replaced with an original type. For areplacement power adapter, please contact an authorised service
centre.
• Do not use the vacuum cleaner if it is not working correctly, if it has been damaged or has been submerged in water.
• Do not repair the vacuum cleaner yourself or make any adjustments to it. Have all repairs or adjustments performed at an authorised service centre.
By tampering with the appliance, you risk voiding your legal rights arising from unsatisfactory performance or quality warranty.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
EXPLANATION OF SYMBOLS PLACES ON THE PRODUCT OR IN THE ACCOMPANYING DOCUMENTATION
This product meets all the basic requirements of the applicable EU directives.
This symbol on products or original documents means that used electric or electronic products must not be added to ordinary municipal
waste.
Safety class for electrical shock protection:
Class II – Electrical shock protection is provided by double or heavy-duty insulation.
House symbol (domestic use)
The product is intended for household use only. The product is not intended for outdoor use.
Thoroughly read the all the instructions before using the product.
DISPOSAL OF BATTERIES
Prior to disposing of the product or handing it over at aspecialised collection facility, it is necessary to ensure that the battery is removed.
Before removing the battery, it is necessary to start the vacuum cleaner and wait until it is completely flat. The battery contains
environmentally damaging substances and therefore does not belong in standard household waste. Their correct disposal will be
performed by the respective collection facility.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
- 3 -
12/2024
2024, .
• Thank you for purchasing aSENCOR brand product and we hope that
you will be happy with it.
• Prior to using this appliance, please read the user'smanual
thoroughly, even in cases, when one has already familiarised
themselves with previous use of similar types of appliances. Only use
the appliance in the manner described in this user’smanual. Keep
this user'smanual in asafe place where it can be easily retrieved for
future use.
• We recommend saving the original cardboard box, packaging
material, purchase receipt and responsibility statement of the vendor
or warranty card for at least the duration of the legal liability for
unsatisfactory performance or quality. In the event of transportation,
we recommend that you pack the appliance in the original box from
the manufacturer.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DESCRIPTION OF THE VACUUM CLEANER
Description of the pump unit
A1 Accessories connection hole
A2 Dust container release button
A3 Cap with inflow filter clip
A4 Inflow filter
A5 Speed setting button
A6 On/Off button
A7 Handle
A8 Battery charging indicator
light
A9 Power adapter connection
socket
A10 Rechargeable battery
A11 Outflow filter
A12 Tubular filter
A13 Transparent dust container
A14 Button for releasing the
bottom of the dust container
for fast emptying of dust and
dirt
A15 Battery release button
A16 Motor unit release clip
A17 Metal tube
A18 Floor nozzle
A19 Floor nozzle release clip
A20 Protective cover
A21 LED diodes
A22 Electric rotary brush
A23 Lock
A24 Rotary brush removal cover
A25 Travel wheels
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DESCRIPTION OF ACCESSORIES
B1 Rotary brush "Cat&Dog Mini"
with independent motor
B2 Rotary brush release clip
B3 Protective cover
B4 Rotary brush
B5 Dial lock of rotary brush
B6 Combination crevice nozzle
B7 Crevice nozzle brush
B8 Brush extend/retract button
B9 Combination attachment for
upholstery andfurniture
B10 Attachment brush
B11 Brush extend/retract button
B12 Holder
B13 Power adapter
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Not shown
Dowels Screws
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ASSEMBLING AND DISASSEMBLING THE VACUUM CLEANER
1. Assembling and disassembling the upright vacuum cleaner

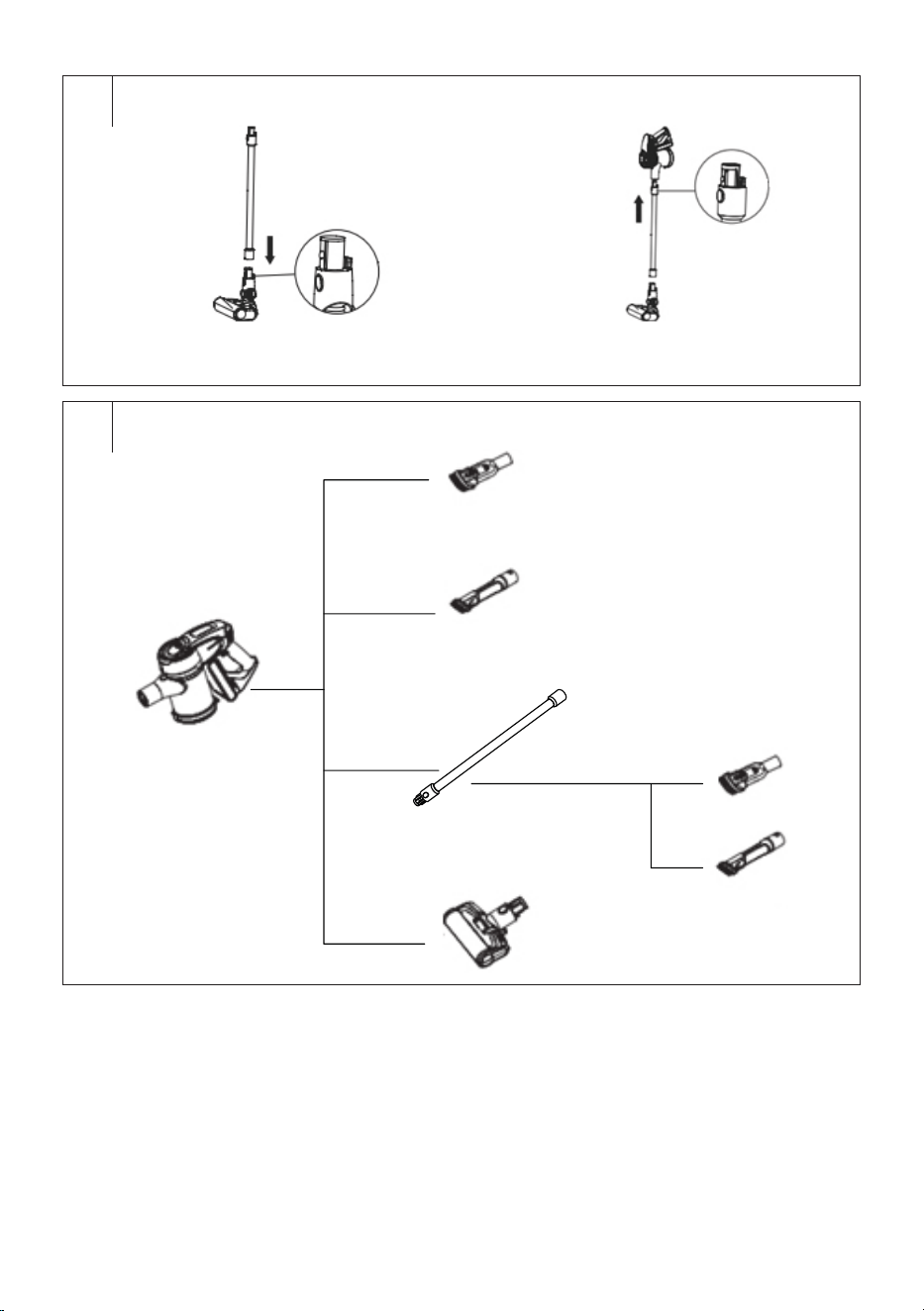

• Place the floor nozzle on an even, dry and stable surface. Put the tube
on to the floor nozzle in such away that the connectors in the rear part
of the floor nozzle align with the opening inside the tube – see figure
C1. Push the tube in until you hear aclick.
• Insert the outlet hole of the motor unit into the tube in such away that
the connectors in the rear part of the nozzle align with the opening
inside the outlet hole – see figure C2.
• If you need to disassemble the upright vacuum cleaner, press the
motor unit release clip. Then press the floor nozzle release clip.
2. Assembling and disassembling the vacuum cleaner with accessories
• In order to perfectly clean your home, you can attach some of the
supplied accessories to the motor unit outlet. Simply remove the
accessory by pulling it out of the motor unit outlet. On the rotary
brush, first press its release clip.
1) Rotary brush "Cat&Dog Mini" with independent motor
The "Cat&Dog" rotary brush is the suitable for removing animal fur,
hair, etc., while at the same time being suitable for vacuuming hard-
to-reach places. Its use is not limited to the home, and can be used
for vacuuming the car. It quickly and effectively removes hair, animal
fur and other materials from car seats, upholstery, pillows and other
textile surfaces.
2) Combination crevice nozzle
It is suitable for vacuuming hard to reach places (e.g. windows,
corners, book shelves, areas between mattresses, upholstery, etc.).
Press and hold down the button and slide out the brush by moving
it forward. Retract the brush by pressing the button and moving it
backwards.
3) Combination attachment for upholstery andfurniture
This attachment is suitable for vacuuming surfaces such as furniture
or upholstery. Press and hold down the button and slide out the
brush by moving it forward. Thanks to its fine bristles, it is suitable
for removing dust and dirt from fine surfaces such as curtains,
drapes, etc. Retract the brush by pressing the button and moving it
backwards.
Note:
The various options for combining the accessories are
shown in figure D.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CHARGING THE BATTERY
• The battery can be charged either installed in the motor unit or
removed from the motor unit.
• Connect the connector of the power adapter into the socket on the side
of the battery and the power adapter plug into apower socket.
• The indicator light will be lit red. As arule, the first charge takes 5
hours. The battery is charged when the indicator light is lit green. Then
disconnect the connector from the socket of the power adapter and
pull the plug out of the power socket.
• When you finish cleaning and have cleaned out the appliance, place it
back into the stand so that the battery can recharge.
• Keep the charging adapter plugged in permanently. The electronics
in the appliance control the battery charging process and ensure that
it is always optimally charged. When the battery is fully charged,
the electronics interrupt the charging process and resume it when it
is necessary to charge the battery again. There is no need to worry
about wasting electricity.
• Disconnect the charging adapter from the power socket only in the
event of a long term absence. When you return, plug it back into the
socket so that the vacuum cleaner is again ready for use.
Note:
When the battery is almost flat, the vacuum cleaner
will stop running in order to prevent the battery from
discharging fully.
To ensure the long operational lifetime of the battery, we
recommend fully charging the battery before first use and
to discharge it fully before recharging it again.
EN
3-in-1 stick vacuum cleaner
User'smanual
- 4 -
12/2024
2024, .
INSERTING AND REMOVING THE BATTERY

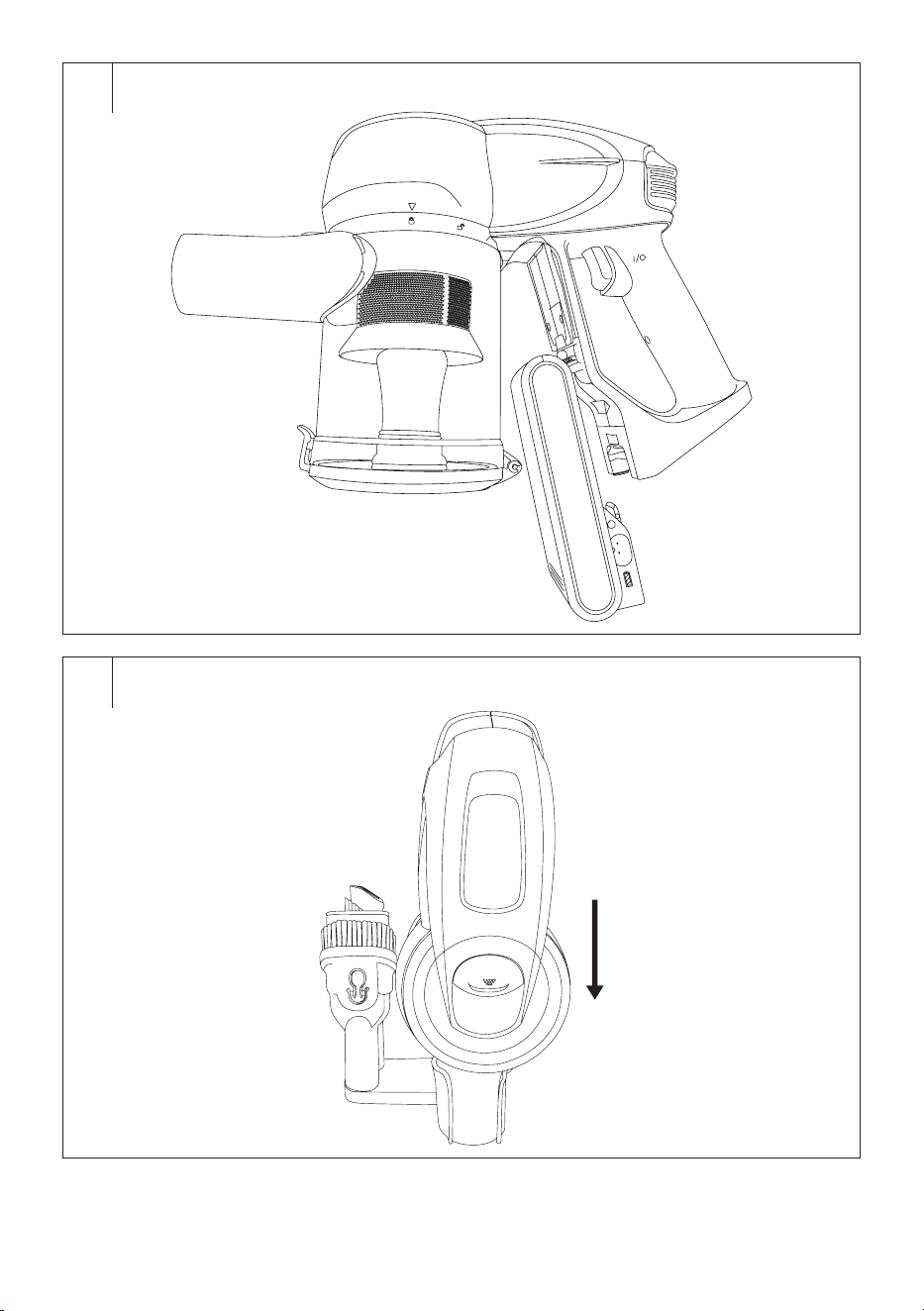

1. Inserting the battery: Carefully turn the motor unit upside down and
insert the charged battery so that the grooves on the battery slide
into the guide guiding grooves on the motor unit – see figure E. Push
down on the battery until you hear aclick. The battery can only be
inserted in one way.
Warning:
Never insert the battery in reverse or by using
excessive force. This could damage it.
2. Removing the battery: If you need to remove the battery, press the
button on the battery that will release it. Carefully pull it out of the
motor unit.
Warning:
When not using the vacuum cleaner for an extended
period of time, take the battery out of it and store it in
acool, dry location. Regularly recharge the battery.
Store the battery away from metal objects to prevent
excessive discharging from occurring.
USING THE UPRIGHT VACUUM CLEANER
1 Assemble the upright vacuum cleaner according to the instructions
in section "ASSEMBLING AND DISASSEMBLING THE UPRIGHT
VACUUM CLEANER".
2. Insert the charged battery into the motor unit.
3. Press the On/Off button and the vacuum cleaner will start.
4. The speed of the appliance can be set using the speed setting
button. Repeatedly press this button to switch the speeds in the
following order:
I(low speed – provides an extend vacuuming time)
II (high speed – vacuuming with high power)
III (turbo speed – vacuuming with maximum power)
5. When you have finished vacuuming, turn the vacuum cleaner off by
pressing the On/Off button.
Note:
The electric rotary brush will stop automatically in the event
that it is blocked, e.g. by aforeign object or alarge amount
of hair or fur. This is asafety feature that protects the brush
against damage. If this happens, turn the vacuum cleaner
off by pressing the On/Off button and remove the jammed
object or hair from the brush.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
STORING DURING NORMAL USE
• The vacuum cleaner model SVC 8726BK is supplied with aholder
that can be mounted on awall. Select such alocation where the
holder will be easily accessible with sufficient free space around it.
Mounting the holder on the wall
1. Put the holder against the wall and using apencil, mark out the
locations where it will be necessary to drill holes.
2. Drill two holes and insert dowels into them.
3. Put the holder against the wall and into the holes in the holder insert
screws and screw them in using ascrewdriver. Check that the holder
does not move in any way and that the screws are firmly tightened.
Storing the motor unit and accessories
• The holder is designed to be able to store the motor unit and
accessories in it.
• Insert the motor unit and selected accessories that you use most often
into the holder, you have two tips available for them – see figure F.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CLEANING AND MAINTENANCE
• Always make sure that the vacuum cleaner is turned off before
cleaning it. Remove the battery from the motor unit.
Cleaning the motor unit and accessories
• To clean the outer parts of the vacuum cleaner, use asoft cloth dipped
in lukewarm water. Do not use aggressive cleaning agents, paint
thinners or solvents. Using these solutions could damage the surface
of the appliance.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CLEANING THE UPRIGHT VACUUM CLEANER
Emptying the dust container
• It is recommended to always empty out the dust container after every
use. If, however, the level of dust and dirt reaches the MAX mark, it is
necessary to immediately dump out the dust container.
1. Remove the attached accessory from the motor unit.
2. Take the motor unit over to agarbage bin so that the bottom of the
dust container points downwards.

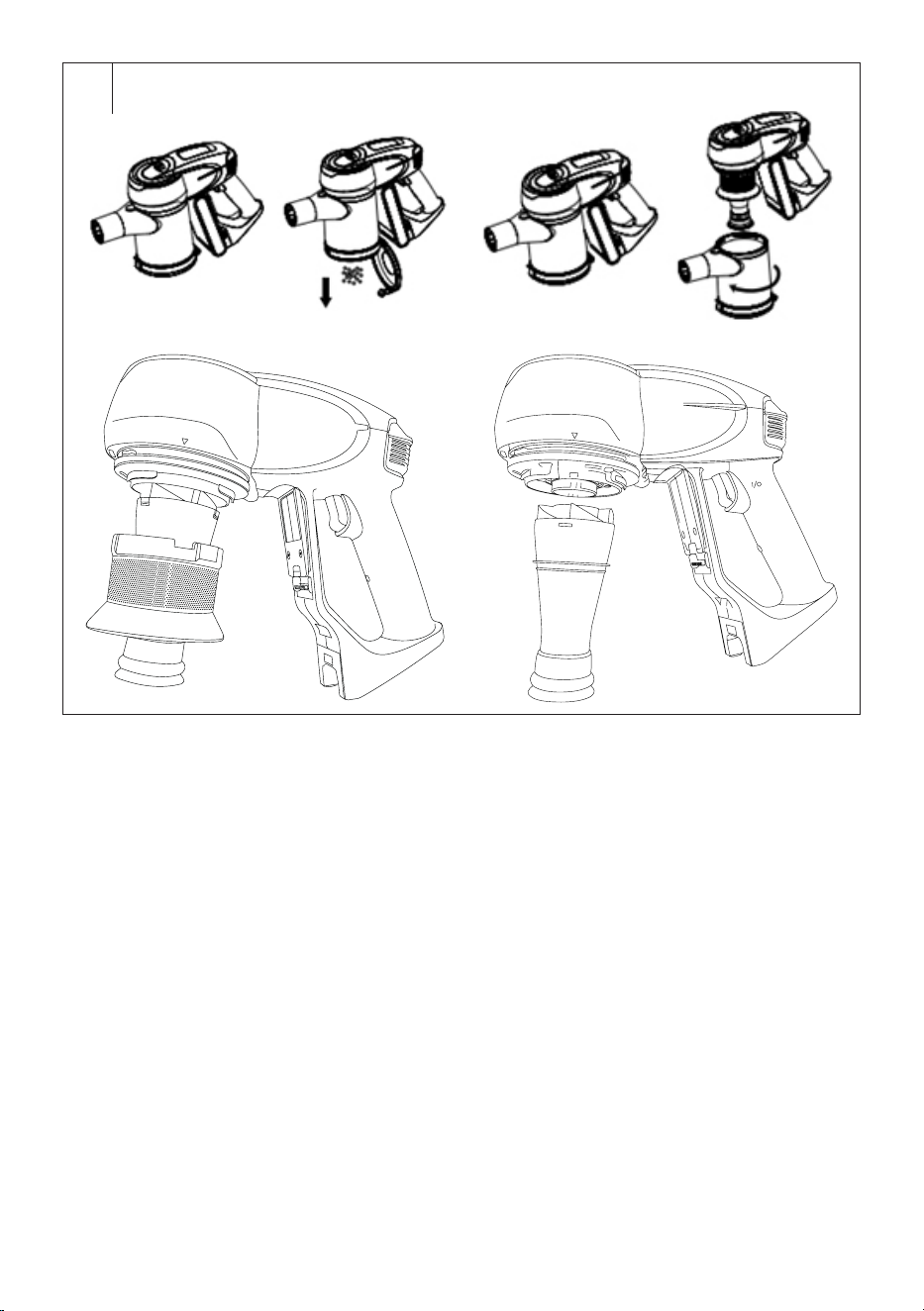

3. Press the bottom release button and the bottom will be released and
open up – see figure G1.
4. In this way, you will dump the contents of the container directly into
the garbage bin.
5. Use your hand to close the bottom of the container. The bottom of
the dust container is securely locked in place when you hear aclick.
Cleaning the dust container
• Regularly clean the dust container to prevent unpleasant odours from
being created.
1. Remove the attached accessories from the motor unit and dump out
the dust container according to the above mentioned instructions.
2. Press the dust container release button and simultaneously turn the
dust container anticlockwise until the arrow on the motor unit points
at the symbol. Carefully remove it from the motor unit – see
figure G2.
3. Wipe the inside walls of the dust container using asoft lightly
dampened sponge. Wipe dry using aclean wiping cloth.
4. To release the outer filter, turn it clockwise until the arrow on the
filter points at the symbol. Carefully remove it downwards from
the motor unit – see figure G3. Carefully remove the tubular filter
downwards from the motor unit – see figure G4.
5. Remove dust and dirt from both filters. If necessary, you can rinse
them under clean running water. Then wipe them dry using aclean
wiping cloth.
Warning:
Never install the filters if they are wet or damp. Make
sure that they are completely dry before installing
them.
6. Put the tubular filter on to the motor unit.
7. Put the outer filter on to the motor unit so that the arrow on the filter
is aligned with the symbol. Then turn the filter anticlockwise until
the arrow on the filter points at the symbol and you hear aclick.
8. Put the dust container on to the motor unit so that the arrow on the
motor unit points at the symbol . Turn it clockwise until the arrow
on the motor unit points at the symbol. The dust container is
securely locked in place when you hear aclick.
Cleaning and replacing of the inflow filter
• We recommend that the inflow filter is cleaned regularly to ensure the
proper operation of the vacuum cleaner. Depending on the frequency
of use of the vacuum cleaner, replace the filter every 3 to 6 months.
1. Hold the cover and pull it out upwards.

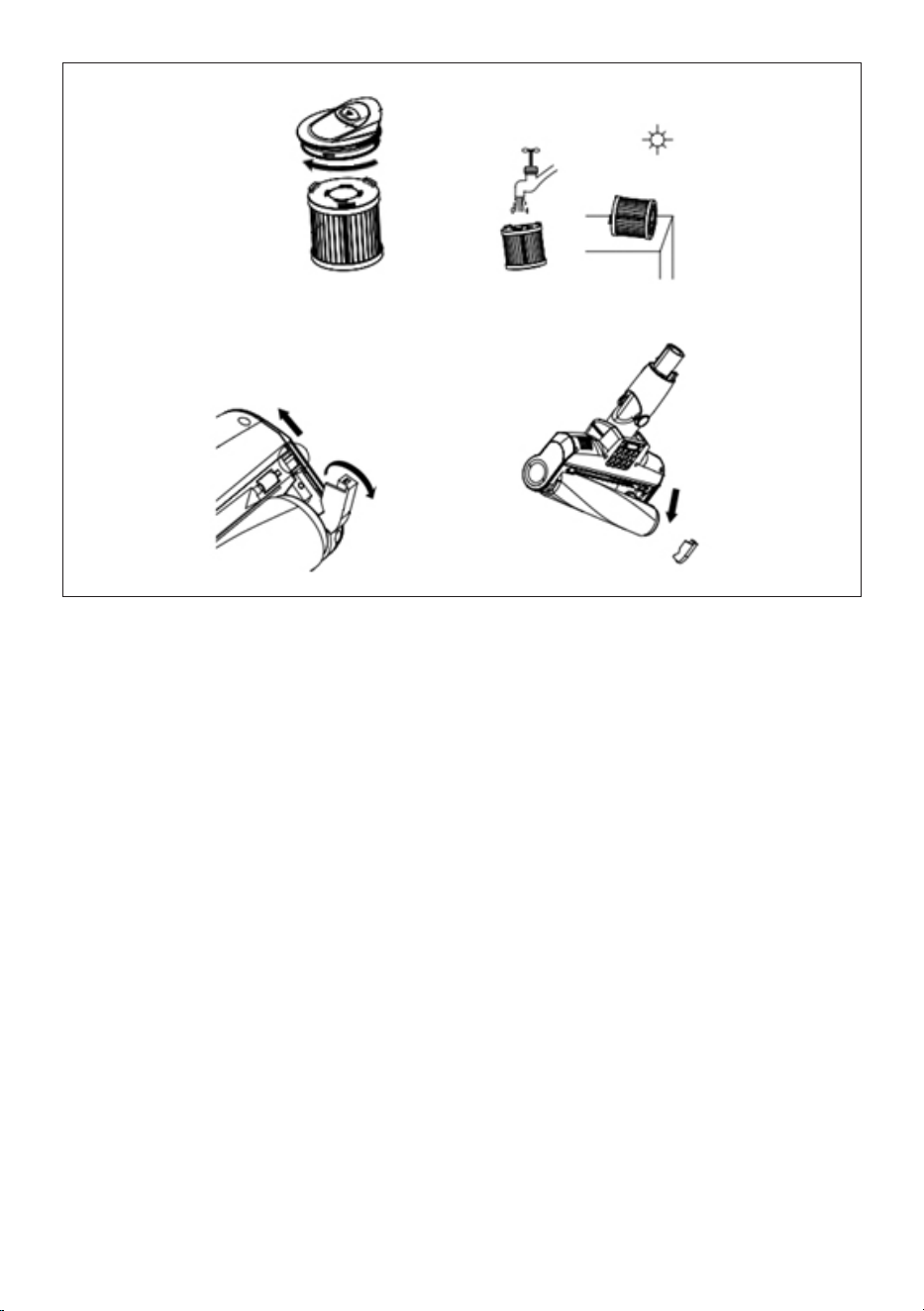

2. Turn the filter clockwise to release it – see figure G5.
3. Tap the filter out over agarbage bin. If the inflow filter is heavily
soiled, wash it under clean running water – see figure G6. Allow it to
dry naturally.
4. Insert the inflow filter into the bottom part of the cover so that the
tabs on the filter are aligned with the groves inside the cover. Turn
the filter anticlockwise until you feel resistance.
5. Insert the cover with the installed filter into the motor unit.
Cleaning the floor nozzle
• It is necessary to regularly clean the floor nozzle to ensure the
required level of continuous suction power.
- 5 -
12/2024
2024, .
1. Take the floor nozzle off the vacuum cleaner and turn it upside down.
2. Slide the lock upwards to release the side cover – see figure G7.
Take it off.
3. Carefully remove the rotary brush – see figure G8.
4. Remove any wound on hair, fur and other dirt from the rotary brush.
To speed up the removal of wound on hair or fur, you can use
scissors.
5. Wipe out the internal area of the floor nozzle using adry wiping
cloth.
6. Insert the clean rotary brush back into the floor nozzle.
7. Finally, put on the side cover.
Cleaning the Cat&Dog brush
• It is necessary to regularly clean the "Cat&Dog Mini" brush to ensure
the required level of continuous suction power.
1. Take the rotary brush out off the vacuum cleaner and turn it upside
down.
2. Turn the lock to release the brush, and pull it out – see figure B4/B5.
3. Remove any wound on hair, fur and other dirt from the brush. To
speed up the removal of wound on hair or fur, you can use scissors.
4. Wipe out the internal area of the rotary brush using adry wiping
cloth.
5. Insert the brush back in and turn the lock until you hear aclick.
Storage
• When not using the vacuum cleaner, clean it according to the
aforementioned instructions and take the battery off the motor unit.
• Before storing it, check that the vacuum cleaner and all its accessories
are thoroughly clean and dry.
• Store the appliance in adry, clean and well-ventilated location not
exposed to extreme temperatures and out of children'sreach.
• We recommend that you regularly recharge batteries, i.e. every
6months.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TROUBLESHOOTING
• Before you decide to contact an authorised service centre, please read
through the following table:
Problem Possible cause Solution
The vacuum
cleaner will not
turn on.
The battery is flat. Recharge the battery
before using the vacuum
cleaner.
The suction hole is
clogged.
Remove dust and dirt
from the suction hole.
The vacuum cleaner
is not properly
assembled.
Check that all the
components are
properly assembled.
Suction power is
weak
The dust container
is full or the filters
are dirty.
Empty out the dust
container and clean the
filters.
There is alarge
amount of hair and fur
wound on to the rotary
brush.
Clean the rotary brush.
The battery has
ashort lifetime.
The battery is not fully
charged.
Recharge the battery.
The battery is at the
end of its lifetime.
Purchase anew battery.
Attention:
If you problem is not specified in the above table
or the specified problem continues to persist, stop
using the vacuum cleaner, turn it off and contact an
authorised service centre.
TECHNICAL SPECIFICATIONS
Power adapter
Input ........................................................................ 100 – 240 V~, 50/60 Hz, 1.0 A
Output ..................................................................................................30 V , 0.6 A
Electrical shock protection class ............................................................................... II
Vacuum cleaner
Power input .........................................................................................................400 W
Electric rotary brush ............................................................................................. 30 W
Electric Cat&Dog rotary brush ............................................................................. 5 W
Battery ................................................................. Li-Ion / 25.2 V / 2 500 mAh
Time required for charging to full capacity ...................approximately 4 – 5 h
Operating time when fully charged ......................................... up to 50 minutes
Noise level .....................................................................................................≤ 83 dB(A)
Dust container capacity .....................................................................................0.58 l
The declared noise emission level of the appliance is ≤ 83 dB(A), which
represents alevel Aof acoustic power with respect to areference acoustic
power of 1 pW.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF
USED PACKAGING MATERIALS
Dispose of used packaging material at asite designated for waste in your
municipality.
DISPOSAL OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT
For proper disposal, renewal and recycling, hand these appliances over
to determined collection points. Alternatively, in some European Union
states or other European countries you may return your appliances to the
local retailer when buying an equivalent new appliance. Correct disposal
of this product helps save valuable natural resources and prevents
potential negative effects on the environment and human health, which
could result from improper waste disposal. Ask your local authorities or
collection facility for more details. In accordance with national regulations
penalties may be imposed for the incorrect disposal of this type of waste.
For business entities in European Union states
If you want to dispose of electrical or electronic equipment, ask your
retailer or supplier for the necessary information.
Disposal in other countries outside the European Union.
If you wish to dispose of this product, request the necessary information
about the correct disposal method from the local council or from your
retailer.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Changes to text and technical parameters reserved.
FAST ČR, a.s.
U Sanitasu 1621
CZ-251 01 Říčany
www.sencor.eu
info@sencor.com
