INSTALLATION GUIDE
for the
SB-F-RNGSCG4/10TW1
SKU# 94684
2019 & Up Ford Ranger SuperCrew
• Installation requires appropriate tools and safety equipment.
Professional installation is recommended.
• If you prefer to perform your own installation, please read this
installation guide completely before beginning.
• Before cutting or drilling, check for potential obstacles behind
mounting surfaces.
• Mount this product securely to prevent damage or injury in
severe conditions.
INSTALLATION
DIFFICULTY:
ESTIMATED TIME:
1 HOUR
Enclosure Type: Sealed
Driver Type: 10TW1-2
Nominal Impedance: 2 ohms
Continuous Power Handling: 300 watts (RMS method)
Continued on Next Page
2
5
OUT
OF
SB-F-RNGSCG4/10TW1 INSTR_SKU# 011554

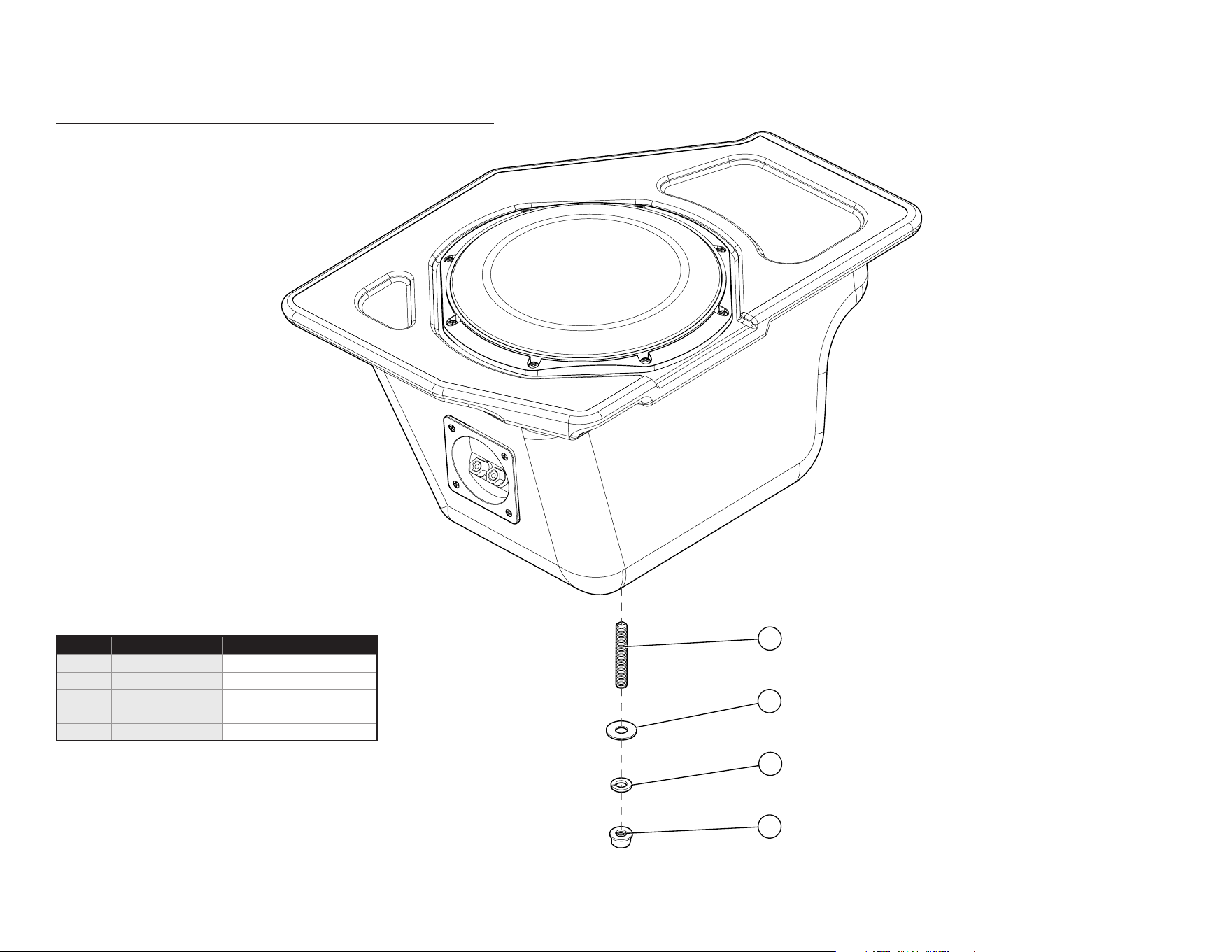

INCLUDED HARDWARE
4
3
2
1
Continued on Next Page
Page 2 • JL Audio, Inc., 2022
SB-F-RNGSCG4/10TW1 INSTR_SKU# 011554
BOM ID Qty SKU Description
1 1 153640 3/8 - 16 x 2-1/2” Set Screw
2 1 151096 3/8” Flat Washer
3 1 151081 3/8” Split Lock Washer
4 1 150196 3/8 - 16 Hex Nut
5 1 151345 Wax Square (not shown)

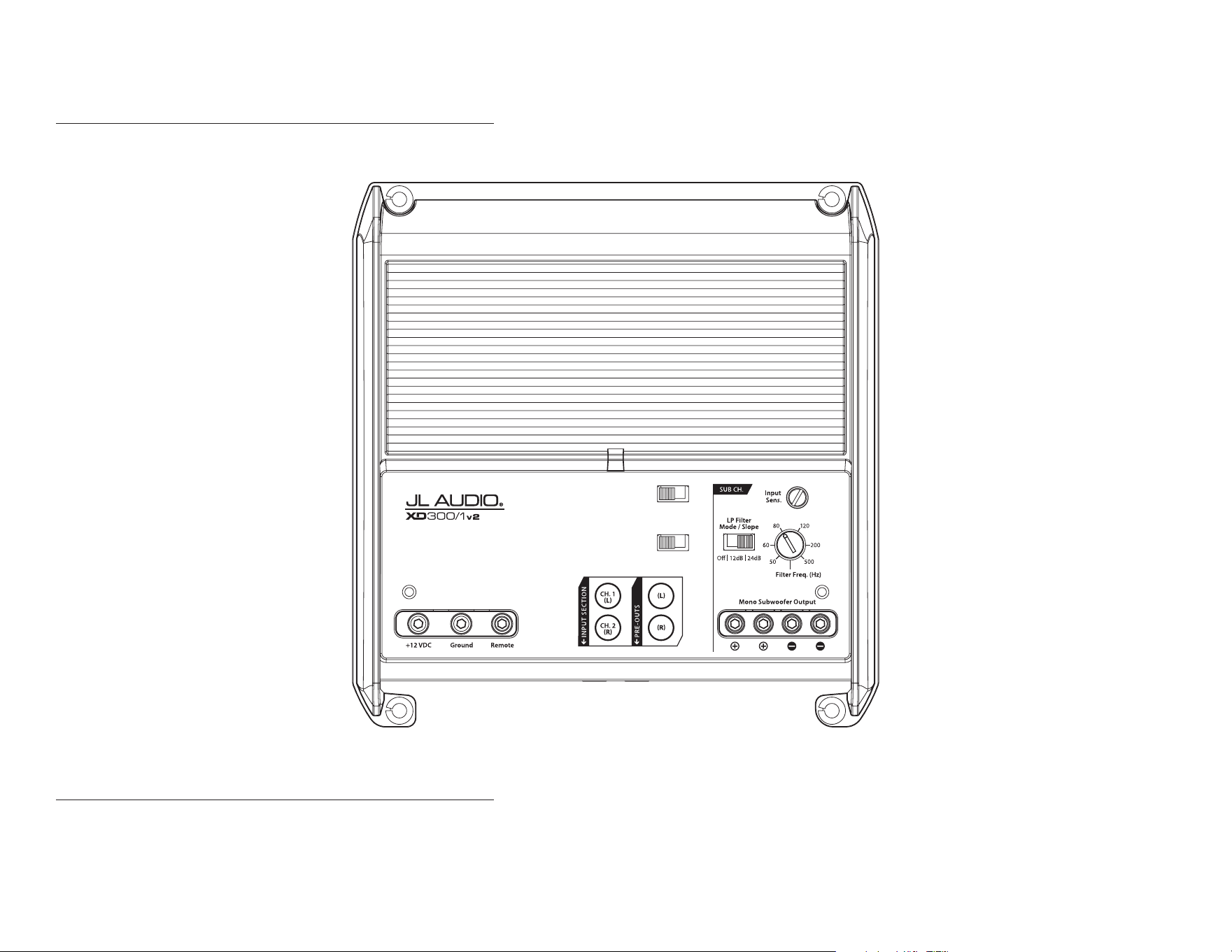

POWER RECOMMENDATION
JL Audio recommends high quality ampliers such as the JL Audio XD300/1v2. The diagram below shows the recommended crossover settings for the XD300/1v2. For a detailed description of the
amplier settings, consult the owner’s manual for the amplier. If another amplier is being used, please reference this illustration and use similar settings on that amplier.
Rem.
|
Oset
|
Signal
Input Voltage
Low
|
High
Turn-On Mode
Monoblock Subwoofer Amplifier
CONNECTIONS
Using quality power, signal, and speaker wire is essential in ensuring the performance of your Stealthbox®. JL Audio recommends using a 4 AWG power kit such as the XD-PCS4-1B for your
Stealthbox® amplier. Other kits are available should you be using more than one amplier. Signal wire such as the JL Audio Premium Audio Interconnect Cables should be used to provide signal for
both channels of the amplier. JL Audio recommends using 12 AWG speaker wire for subwoofers such as our XC-BCS12-25.
Continued on Next Page
Page 3 • JL Audio, Inc., 2022
SB-F-RNGSCG4/10TW1 INSTR_SKU# 011554
Page 4 • JL Audio, Inc., 2022 Continued on Next Page

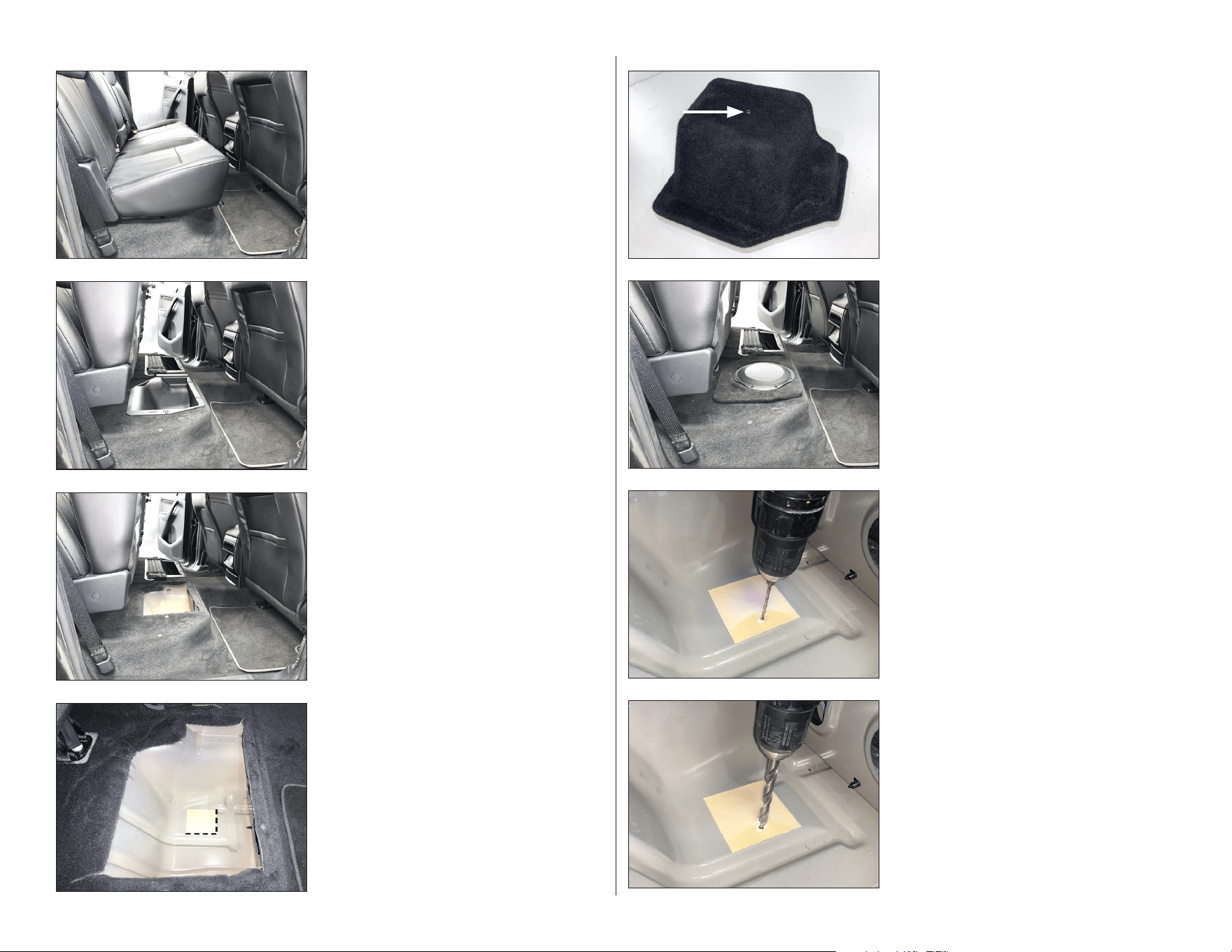

STEP 8
Using a 3/8” drill bit, carefully enlarge the holes
in the floor and heat shield, then remove the
Wax Square.
STEP 7
Carefully remove the enclosure, ensuring the
Wax Square remains affixed to the floor.
Using a 1/8” drill bit, carefully drill through the
center of the impression in the Wax Square and
through the vehicle floor and the heat shield
below.
STEP 6
Set the enclosure into position inside the
vehicle, as shown. Firmly press down on the
enclosure so that the 3/8 - 16 x 1-1/4” Set Screw
leaves an impression in the Wax Square.
STEP 5
Carefully place the enclosure on a flat surface
with the subwoofer facing down.
Thread a 3/8 - 16 x 1-1/4” Set Screw into the
threaded insert on the bottom of the
enclosure, leaving approximately 1/8” exposed.
STEP 4
Remove the adhesive backing from the Wax
Square, and affix it to the floor in the corner of
the flat section of the floor, as shown.
STEP 3
Remove the clips around the flange of the
underseat storage pocket on the passenger
side, then remove the storage pocket from the
vehicle.
STEP 2
Fold the seat bottom up.
STEP 1
Empty the rear seat area.
SB-F-RNGSCG4/10TW1 INSTR_SKU# 011554
Page 5 • JL Audio, Inc., 2022
CONGRATULATIONS!
You have completed the installation for this model! Enjoy your new Stealthbox®!
All specifications are subject to change without notice. “JL Audio®” and “How we play®” are registered trademarks of JL Audio, Inc. “Ahead of the Curve” and its respective logo are trademarks
of JL Audio, Inc.
Printed in USA • ©2022 JL Audio, Inc. • For more detailed information please visit us online at www.jlaudio.com.
(954) 443-1100
www.jlaudio.com
JLA-SKU# 94684 • ver. 11.30.2022 • 10369 NORTH COMMERCE PARKWAY • MIRAMAR, FLORIDA • 33025 • USA
®
MID/HIGH FREQUENCY DRIVER FITMENT
A variety of JL Audio coaxial and component systems will t in the factory speaker locations of your vehicle.

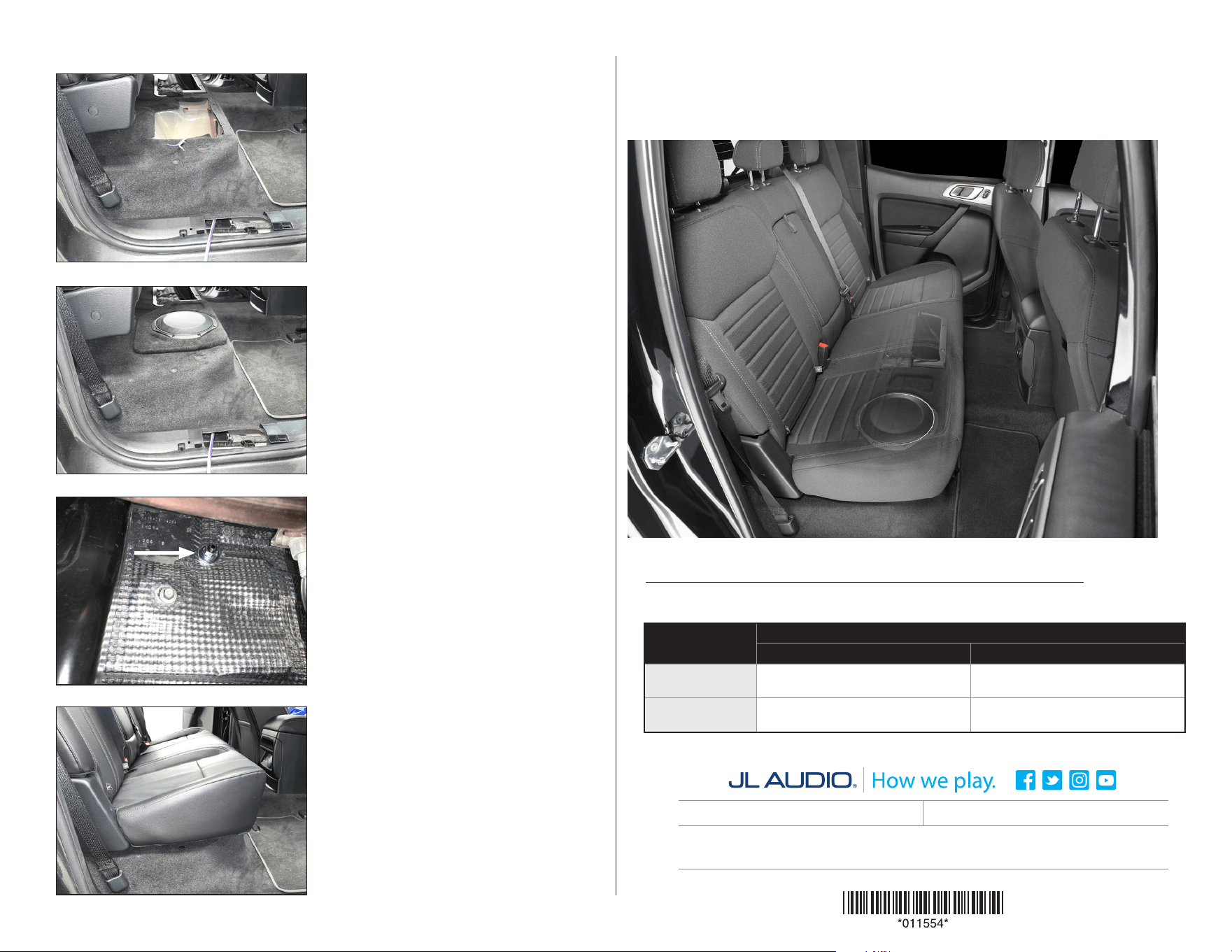

STEP 9
Unclip and remove the passenger side door sill
panel. Route speaker cable under the carpet
from the enclosure location to the sill, and
route the cable as
necessary.
SB-F-RNGSCG4/10TW1 INSTR_SKU# 011554
ST EP 11
From under the vehicle, slide a 3/8” Flat
Washer, 3/8” Split Lock Washer, and 3/8 - 16
Hex Nut over the 3/8 -16 x 1-1/4” Set Screw, and
fully tighten.
STEP 10
Back the 3/8 - 16 x 1-1/4” Set Screw out of the
threaded insert until approximately 3/4” is
exposed.
Connect the speaker cable to the terminal cup
on the side of the enclosure, and place the
Stealthbox® into position, allowing the 3/8 - 16
x 1-1/4” Set Screw to pass through the holes in
the floor and heat shield.
STEP 12
Reinstall the door sill panel.
Fold the seat bottom back down.
Location / OEM
Speaker Size
Suggested JL Audio Speaker Models
Coaxial Models Component Models
Front Doors /
6.5-inch
C1-650x
(1)
, C2-650x
(1)
, C5-650x
(1)
C1-650
(1)
, C2-650
(1)
, C3-650
(1)
,
C5-650
(1)
, C7-650cw
(1,2)
Rear Doors /
6.5-inch
C1-650x
(1)
, C2-650x
(1)
, C5-650x
(1)
C1-650
(1)
, C2-650
(1)
, C3-650
(1)
,
C5-650
(1)
, C7-650cw
(1,2)
1 - Installation may require adaptor, 2 - Component woofer only
