Warning read all safety warnings and all instrrctions.
Work area safety
Electrical safety
Personal safety
Power tool use and care
Battery tool use and care

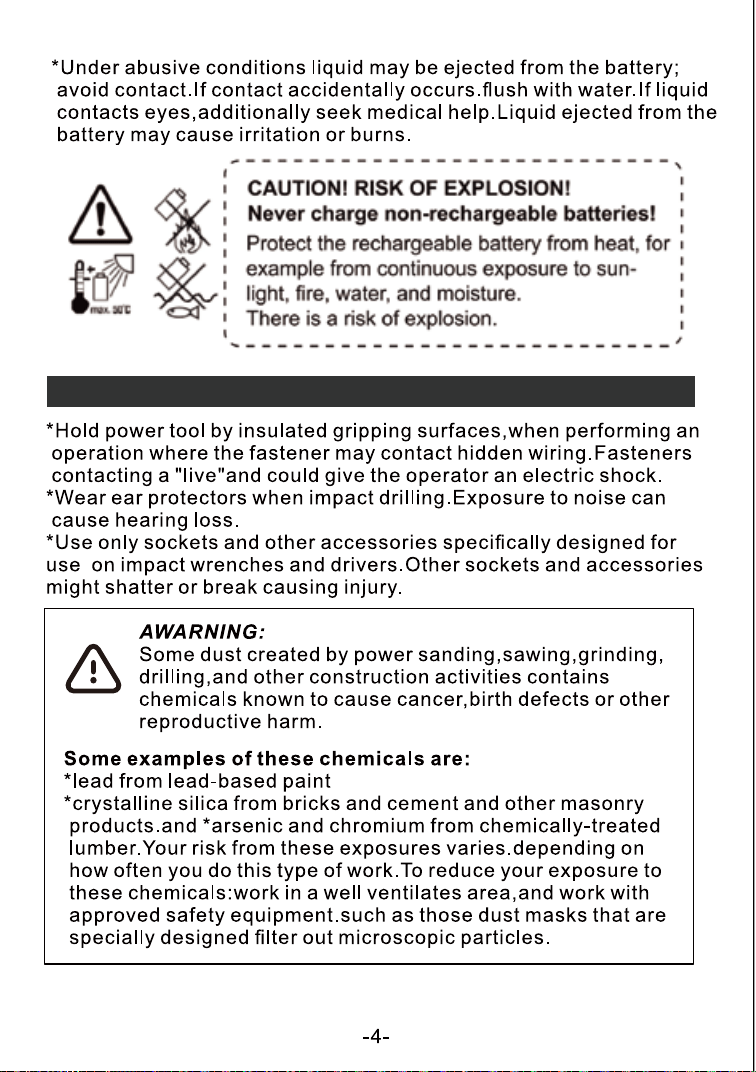

Specific safety rules
Model
Volts DC
Square Drive
Max Torque
No Load Speed
Impact Per Minute
WH760
21V
1/2”(12.7mm)
1000N.m
0-2400RPM
0-2300IPM

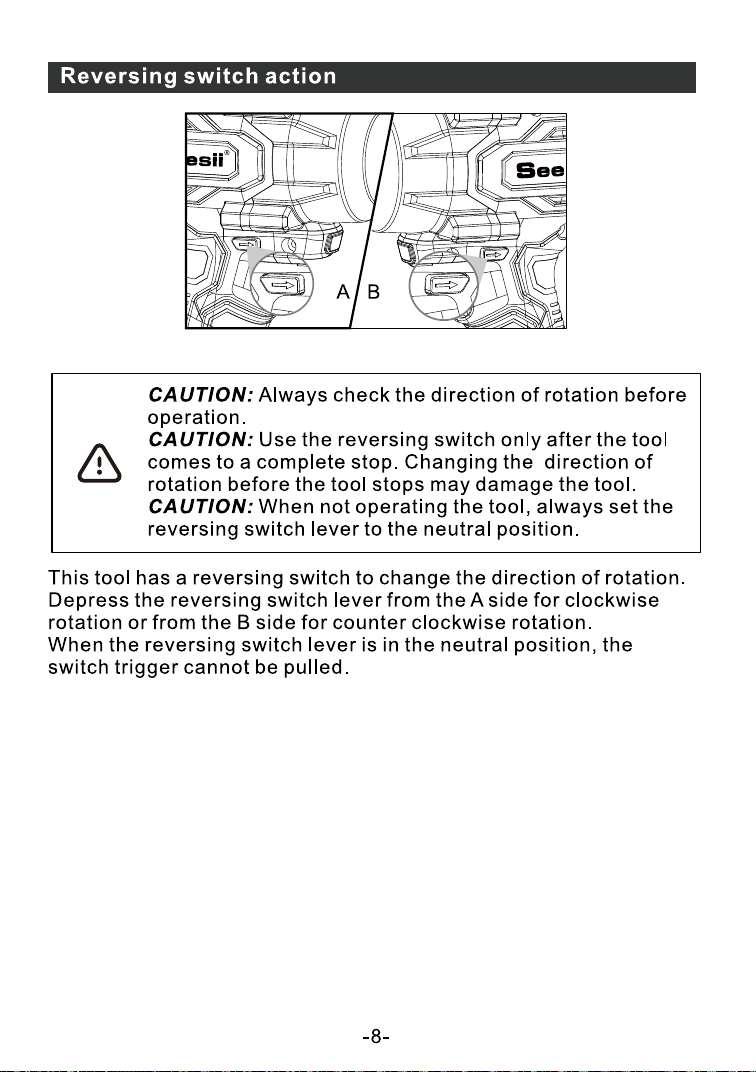

A Forawrd Siwtch/ B Reverse Switch
three steps:High,Medium or High.
2400RPM/2300IPM
RPM/IPM
Low
Forward/ Reverse Mode
High
1400RPM/1500IPM
Medium
1800RPM/1800IPM
MODE
3 2 1
MODE
3 2 1
MODE
3 2 1
After the battery is fully charged remove the charger plug from
the outlet and remove the battery from the charger.
When the machine is not being condition.The battery is used to
ensure that it is recharged at least once every 3 months.
Indicator Light
Red
Green
Status
Charging
Charging completed
Charging the Battery with Charger
Do not expose the battery to extreme conditions such as high temperature
or shock. Other wise, it will cause personal injury due to the leakage of the
electrolytic solution
Before charging, check that the surface of the battery is clean and dry.
Before using for the first time, the battery needs to be fully charged.
Light turns green
Light turns red
Warranty Policy
Every Seesii tool is thoroughly inspected and tested before leaving
the factory. It is warranted to be free of defects from workman ship
and materials for the period of THREE YEAR from the date of
original purchase.
Should any trouble develop during this three year period, return the
COMPLETE tool, to Seesii's Service Centers. lf inspection shows
the trouble is caused by defective workmanship or material, Seesii
will repair (or we can replace it) without charge.
This Warranty does not apply where:
Repairs have been made or attempted by others.
Repairs are required because of normal wear and tear.
The tool has been abused, misused or improperly maintained.
Alterations have been made to the tool.
SEESII THREE YEAR WARRANTY
