WH710
WH800
Cordless Impact Wrench
Warning read all safety warnings and all instrrctions.
Work area safety
Electrical safety
Personal safety
Power tool use and care
Battery tool use and care
Specific safety rules

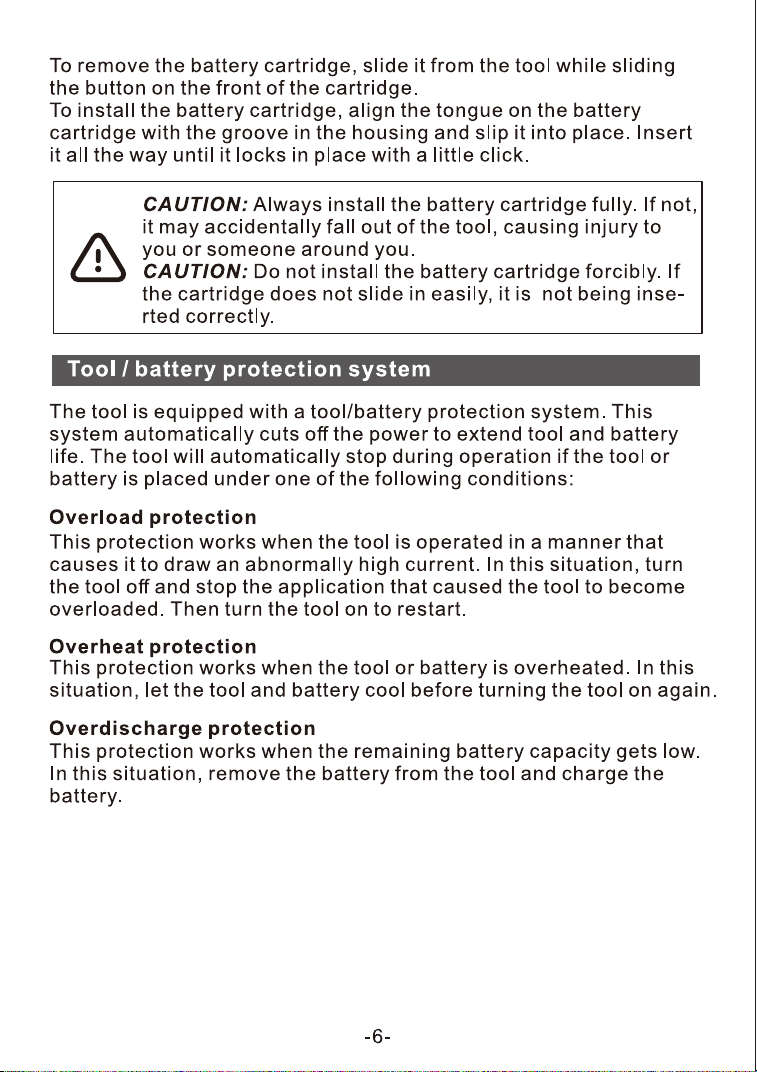

Battery cartridge
Max Fastening Torque
Max Nut-busting Torque
No load speed (RPM)
Impacts per minute
Square drive
Volts DC
Model
12.7 mm (1/2″)
SE4000D
494Ft-lbs (670N.m)
579Ft-lbs (800N.m)
0-1700/min
0-2100/min
0-2400/min
0-2500/min
0-2900/min
0-3300/min
21V
WH710
12.7 mm (1/2″)
SE5000D
738Ft-lbs (1000N.m)
960Ft-lbs (1300N.m)
0-2000/min
0-2500/min
0-3000/min
0-2800/min
0-3300/min
0-3800/min
21V
WH800
When the tool is in reverse mode, there is a brake-stop mode. Press the
button of the control panel to switch to the continuous operation mode.
Application mode
(Displayed on panel)
Mode
Brake Stop
Continuous operation
Brake Stop Mode
H M L
H M L
three steps:High,Medium or High.
Assembling or
disassembling
furniture, scaffolds
and frameworks.
0-2500/min
0-2800/min
Maximum blows
（WH710/WH800)
Low
Medium
High
0-2900/min
0-3300/min
0-3300/min
0-3800/min
H M L
H M L
H M L
After the battery is fully charged remove the charger plug from
the outlet and remove the battery from the charger.
When the machine is not being condition.The battery is used to
ensure that it is recharged at least once every 3 months.
Indicator Light
Red
Green
Status
Charging
Charging completed
Charging the Battery with Charger
Do not expose the battery to extreme conditions such as high temperature
or shock. Other wise, it will cause personal injury due to the leakage of the
electrolytic solution
Before charging, check that the surface of the battery is clean and dry.
Before using for the first time, the battery needs to be fully charged.
Light turns green
Light turns red
1. Put the O-ring on the
impact socket.
WH710:
WH800:
3. Insert the pin through the
hole in the impact socket.
Note:
a). There are no holes in the square drive of the WH800.
b). Friction Ring has been installed on the square drive.
1. Fit the impact socket onto the square drive to complete the
installation. (To remove the impact socket, simply pull it off)
4. Move the position of the
O-ring into the groove to retain
the pin.
2. Fit the impact socket onto
the square drive so that the
hole in the impact socket is
aligned with the hole in the
square drive. (To remove the
impact socket, simply pull it
off)
Warranty Policy
Every Seesii tool is thoroughly inspected and tested before leaving
the factory. It is warranted to be free of defects from workman ship
and materials for the period of THREE YEAR from the date of
original purchase.
Should any trouble develop during this three year period, return the
COMPLETE tool, to Seesii's Service Centers. lf inspection shows
the trouble is caused by defective workmanship or material, Seesii
will repair (or we can replace it) without charge.
This Warranty does not apply where:
Repairs have been made or attempted by others.
Repairs are required because of normal wear and tear.
The tool has been abused, misused or improperly maintained.
Alterations have been made to the tool.
SEESII THREE YEAR WARRANTY
