User guide
Gaming Monitor
S27DG60*S S27DG61*S S27FG60*S
S27FG81*S S32FG81*S
S27FG90*X
(Singapore only: S27DG602SE / S27DG610SE / S27FG602SE / S27FG812SE / S32FG812SE / S27FG900XE)
(Saudi Arabia only: S27DG602SM / S27DG612SM / S27FG602SM / S27FG810SM / S32FG810SM / S27FG900XM)
The colour and the appearance may differ depending on the product, and the content in the manual is
subject to change without prior notice to improve the performance.
The contents of this manual are subject to change without notice to improve quality.
© Samsung
Samsung owns the copyright for this manual.
Use or reproduction of this manual in parts or entirety without the authorization of Samsung is
prohibited.
Trademarks other than that of Samsung are owned by their respective owners.
Table of contents
Before Using the Product
Safety Precautions 4
Electricity and Safety 4
Installation 5
Operation 6
Cleaning 8
Correct posture to use the product 8
Preparations
Installation 9
Attaching the Stand 9
Precautions for moving the product 11
Checking the space around the product 12
Adjusting the Product Tilt and Height 12
Rotating the Product 14
Wall Mount Kit Specifications (VESA) 15
Control Panel 16
2
Menu
Game 27
Picture 29
PIP 33
OnScreen Display 33
System 33
Support 36
Installing the Software
Easy Setting Box 37
Restrictions and Problems with the Installation 37
System Requirements 37
Driver Installation 37
Connecting and Using a Source Device
Read below before connecting the product. 17
Ports 18
Connecting and Using a PC 19

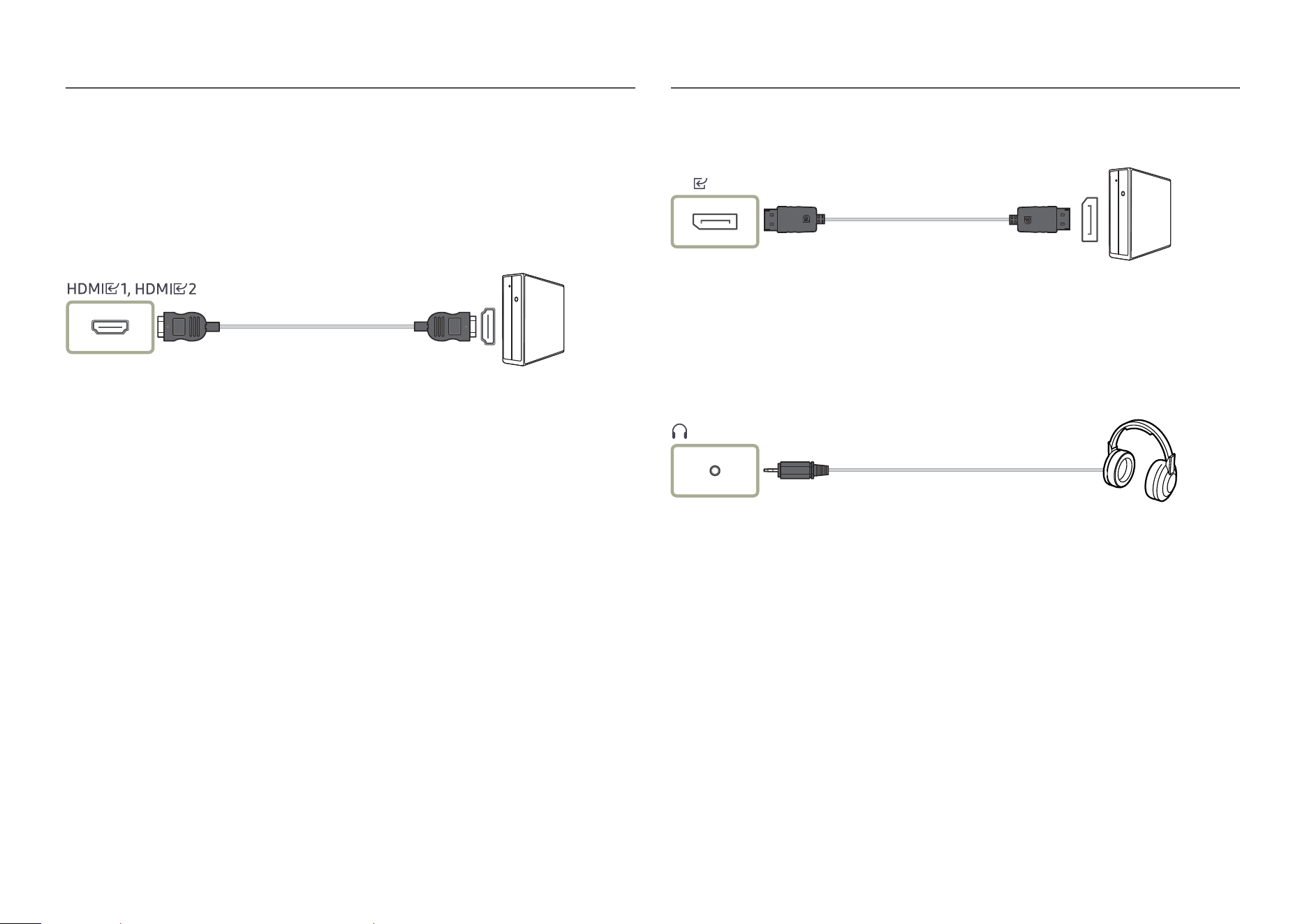

Connection Using the HDMI Cable 19
Connection Using an DP Cable 19
Connecting to headphones or earphones 19

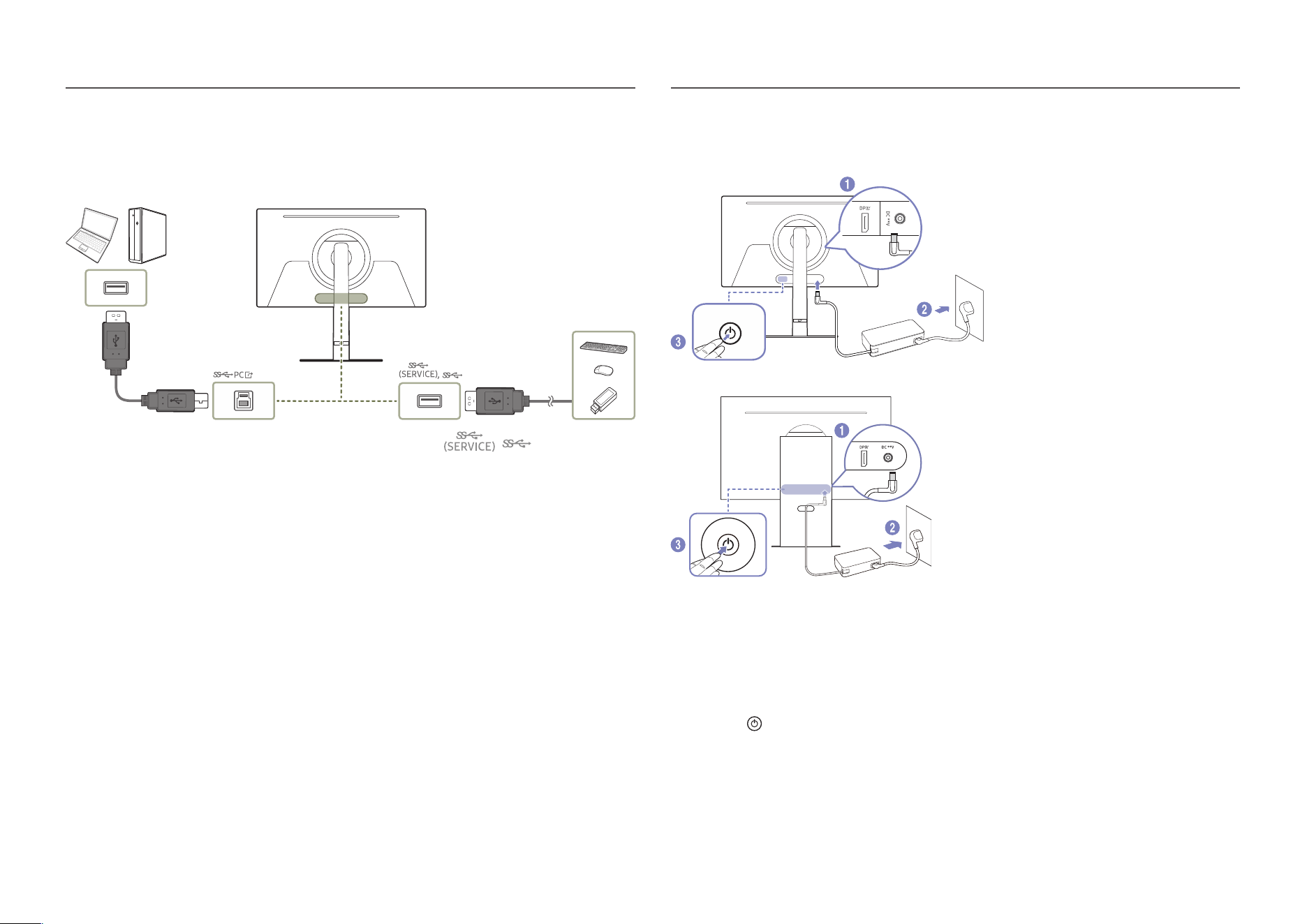

Connecting the Product to a PC as a USB HUB 20
Connecting the Power 20
Using the 3D Monitor 21
To view 3D content: 21
Read before using the 3D monitor 21
Installing the 3D monitor 22
Launching Odyssey 3D Hub 23
Playing a game 23
Converting 2D to 3D 23

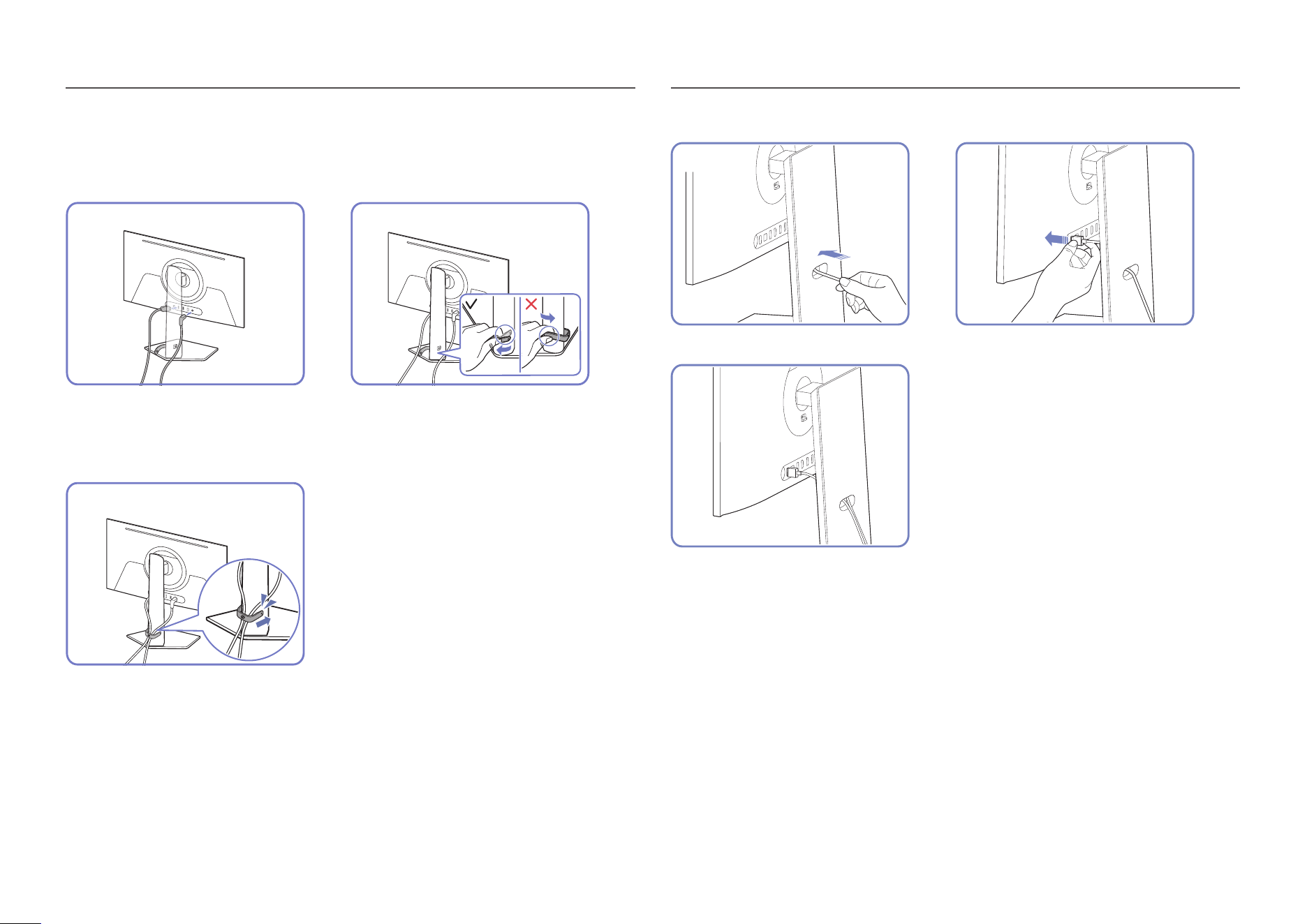

Tidying Up the Cables 25
Setting Optimum Resolution 26
List of graphic cards supporting HDR10 26
Using the Panel Care feature 26
Precautions for preventing image retention 26
Protection of the Product screen through
Panel Care
26
Table of contents
3
Appendix
Responsibility for the Pay Service (Cost to
Customers) 47
Not a product defect 47
A Product damage caused by customer's fault 47
Others 47
FreeSync (for AMD graphics card) 48
Adaptive-Sync (for NVIDIA graphics card) 49
Troubleshooting Guide
Requirements Before Contacting Samsung
Customer Service Centre 38
Product diagnosis (Screen issue) 38
Checking the Resolution and Frequency 38
Check the following. 38
Q & A 41
Specifications
General 42
Standard Signal Mode Table 44
4
Safety Precautions
Warning
A serious or fatal injury may result if instructions are not followed.
Caution
Personal injury or damage to properties may result if instructions are not followed.
CAUTION
RISK OF ELECTRIC SHOCK. DO NOT OPEN.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). THERE
ARE NO USER SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO QUALIFIED PERSONNEL.
This symbol indicates that high
voltage is present inside. It is
dangerous to make any kind of
contact with any internal part of this
product.
AC voltage: Rated voltage marked
with this symbol is AC voltage.
This symbol indicates that this
product has included important
literature concerning operation and
maintenance.
DC voltage: Rated voltage marked
with this symbol is DC voltage.
Class II product: This symbol indicates
that a safety connection to electrical
earth (ground) is not required. If this
symbol is not present on a product
with a mains lead, the product
MUST have a reliable connection to
protective earth (ground).
Caution. Consult instructions for use:
This symbol instructs the user to
consult the user manual for further
safety related information.
Electricity and Safety
Warning
• Do not use a damaged power cord or plug, or a loose power socket.
• Do not use multiple products with a single power socket.
• Do not handle the power cord with a wet body part.
• Insert the power plug all the way in so it is not loose.
• Connect the power plug to a grounded power socket (type 1 insulated devices only).
• Do not bend or pull the power cord with force. Be careful not to leave the power cord under a heavy
object.
• Do not place the power cord or product near heat sources.
• Clean any dust around the pins of the power plug or the power socket with a dry cloth.
Caution
• Do not disconnect the power cord while the product is being used.
• Only use the power cord provided with your product by Samsung. Do not use the power cord with
other products.
• Keep the power socket where the power cord is connected unobstructed.
‒ The power cord must be disconnected to cut off power to the product when an issue occurs.
• Hold the plug when disconnecting the power cord from the power socket.
Before Using the Product
5
Installation
Warning
• DO NOT PLACE CANDLES, INSECT REPELLANTS OR CIGARETTES ON TOP OF THE PRODUCT. DO NOT
INSTALL THE PRODUCT NEAR HEAT SOURCES.
• Do not install the product in poorly ventilated spaces such as a bookcase or closet.
• Install the product at least 10cm away from the wall to allow ventilation.
• Discard the plastic packaging that the product is packaged in, immediately after unpacking.
‒ Plastic packaging material can cause suffocation if it is handled improperly.
• Do not install the product on an unstable or vibrating surface (insecure shelf, sloped surface, etc.)
‒ The product may fall and become damaged and/or cause an injury.
‒ Using the product in an area with excess vibration may damage the product or cause a fire.
• Do not install the product in a vehicle or a place exposed to dust, moisture (water drips, etc.), oil, or
smoke.
• Do not expose the product to direct sunlight, heat, or a hot object such as a stove.
‒ The product lifespan may be reduced or a fire may result.
• Edible oil, such as soybean oil, can damage or deform the product. Do not install the product in a
kitchen or near a kitchen counter.
Caution
• Do not drop the product while moving.
• Do not set down the product on its front.
• When installing the product on a cabinet or shelf, make sure that the bottom edge of the front of
the product is not protruding.
‒ The product may fall and become damaged and/or cause an injury.
‒ Install the product only on cabinets or shelves of the right size.
• Set down the product gently.
‒ Product failure or personal injury may result.
• Installing the product in an unusual place (a place exposed to a lot of fine dust, chemical
substances, extreme temperatures or a significant presence of moisture, or a place where
the product will operate continuously for an extended period of time) may seriously affect its
performance.
‒ Be sure to consult Samsung Customer Service Centre if you want to install the product at such a
place.
• Before assembling the product, place the product down on a flat and stable surface so that the
screen is facing downwards.
• In the same series, the colour can vary depending on the size.
6
• Do not insert metallic objects (chopsticks, coins, hairpins, etc) or objects that burn easily (paper,
matches, etc) into the product (via the vent or input/output ports, etc).
‒ Be sure to power off the product and disconnect the power cord when water or other foreign
substances have entered the product. Then contact Samsung Customer Service Centre.
• Do not place objects containing liquid (vases, pots, bottles, etc) or metallic objects on top of the
product.
‒ Be sure to power off the product and disconnect the power cord when water or other foreign
substances have entered the product. Then contact Samsung Customer Service Centre.
• Do not use liquid fumigators containing chemicals, such as mosquito repellent or air freshener,
around the product.
‒ If steam comes in contact with the product surface or enters the product, it may cause stains or
malfunction.
Operation
Warning
• There is a high voltage inside the product. Never disassemble, repair or modify the product
yourself.
‒ Contact Samsung Customer Service Centre for repairs.
• To move the product, first disconnect all the cables from it, including the power cord.
• If the product generates abnormal sounds, a burning smell or smoke, disconnect the power cord
immediately and contact Samsung Customer Service Centre.
• Do not hang on to or climb on the product.
‒ The product may tip over or fall, causing injury or death.
• If the product is dropped or the outer case is damaged, turn off the power and disconnect the
power cord. Then contact Samsung Customer Service Centre.
‒ Continued use can result in a fire or electric shock.
• Do not put heavy objects, toys or snacks on top of the product.
‒ Hanging on to the product to get a toy or snack may cause heavy objects to fall or the product to
tip over, resulting in injury or death.
• During a lightning or thunderstorm, power off the product and remove the power cord.
• Do not drop objects on the product or apply impact.
• Do not move the product by pulling the power cord or any cable.
• If a gas leakage is found, do not touch the product or power plug. Also, ventilate the area
immediately.
• Do not lift or move the product by pulling the power cord or any cable.
• Do not use or keep combustible spray or an inflammable substance near the product.
• Ensure the vents are not blocked by tablecloths or curtains.
‒ An increased internal temperature may cause a fire.
7
Caution
• Leaving the screen fixed on a stationary image for an extended period of time may cause
afterimage burn-in or defective pixels.
‒ Set the screen to power-saving mode or moving-picture screen saver when not using the
product for an extended period of time.
• Disconnect the power cord from the power socket if you do not plan on using the product for an
extended period of time (vacation, etc).
‒ Dust accumulation combined with heat can cause a fire, electric shock or electric leakage.
• Use the product at the recommended resolution and frequency.
‒ Your eyesight may deteriorate.
• Do not put AC/DC adapters together.
• Remove the plastic bag from the AC/DC adapter before you use it.
• Do not let water enter the AC/DC adapter device or get the device wet.
‒ An electric shock or fire may result.
‒ Avoid using the product outdoors where it can be exposed to rain or snow.
‒ Be careful not to get the AC/DC adapter wet when you wash the floor.
• Do not put the AC/DC adapter near to any heating apparatus.
‒ Otherwise, a fire may result.
• Keep the AC/DC adapter in a well-ventilated area.
• If you place the AC/DC power adapter hanging with the cord input facing upwards, water or other
foreign substances could enter the Adapter and cause the Adapter to malfunction.
Make sure to rest the AC/DC power adapter flat on a table or the floor.
• Do not hold the product upside-down or move it by holding the stand.
‒ The product may fall and become damaged or cause an injury.
• Looking at the screen too close for an extended period of time can deteriorate your eyesight.
• Do not use humidifiers or stoves around the product.
• Take a break for at least 5 minutes after using the product for 1 hour.
• Do not touch the screen when the product has been turned on for an extended period of time as it
will become hot.
• Exercise caution when storing the remote control batteries and small accessories, so they are not
swallowed.
‒ If swallowed, consult a physician immediately.
• Exercise caution when adjusting the product angle.
‒ Parts of the human body may become caught and could be injured.
‒ Tilting the product at an excessive angle may cause the product to fall and an injury may result.
• Do not place heavy objects on the product.
‒ Product failure or personal injury may result.
• When using headphones or earphones, do not turn the volume too high.
‒ Having the sound too loud may damage your hearing.
8
Cleaning
High-glossy models can develop white stains on the surface if an ultrasonic wave humidifier is used
nearby.
―
Contact your nearest Samsung Customer Service Centre if you want to clean the inside of the product
(Service fee will be charged.)
Do not press the monitor screen. There is a risk of damaging it.
―
Exercise care when cleaning as the panel and exterior of advanced LCDs are easily scratched.
―
The product screen is vulnerable to fingerprints, as there is no protective film on it. (S27FG90*X models
only)
Take the following steps when cleaning.
1
Power off the product and PC.
2
Disconnect the power cord from the product.
―
When removing the power cord, hold the plug. Never hold the plug with a wet body part. Otherwise, an
electric shock may result.
3
Wipe the product with a clean, soft and dry cloth.
Wet a soft cloth in water, wing it out well, and then use the cloth to wipe the exterior of the product
clean.
‒ Do not apply a cleaning agent that contains alcohol, solvent, or surfactant to the product.
‒ Do not spray water or detergent directly on the product.
4
Connect the power cord to the product when cleaning is finished.
5
Power on the product and PC.
Correct posture to use the product
Use the product in the correct posture as follows:
• Straighten your back.
• Allow a distance of 45 to 50cm in 2D mode between your eye and the screen, and look slightly
downward at the screen.
• Keep your eyes directly in front of the screen.
• Adjust the angle so light does not reflect on the screen.
• Keep your forearms perpendicular to your upper arms and level with the back of your hands.
• Keep your elbows at about a right angle.
• Adjust the height of the product so you can keep your knees bent at 90 degrees or more, your heels
attached to the floor, and your arms lower than your heart.
• Do the Eye excercises or blink frequently, then eye fatigue will be relieved.
9
Preparations
Installation
Attaching the Stand
―
The colour and shape of parts may differ from what is shown. Specifications are subject to change without
notice to improve quality.
―
Disassembly is the reverse order of assembly.
S27DG60*S / S27DG61*S / S27FG60*S / S27FG81*S / S32FG81*S
1
Check the direction of the arrow on the stand base. Align the direction of the arrow on the stand base
with the front direction of the stand neck, and then insert the stand neck from top to bottom.
Turn the stand neck clockwise to fasten it to the base. Lift the stand slightly and check that the PUSH
button on the bottom of the base protrudes.
2
Push the assembled stand into the main body in the direction of the arrow as shown in the figure.
Confirm that the stand is tightly fastened. If has not been fully lowered, lower it while holding it with
your hand.
3
Stand up the monitor as shown in the figure.
10
4
Stand assembly is complete.
Separating the stand neck from the stand base
Lift the assembled stand slightly and press the PUSH button on the bottom of the base.
While holding down the PUSH button, turn the stand neck anticlockwise to remove it.
S27FG90*X
1
2
Put the stand base onto the
stand neck as the direction
shown in the figure. Check
that the stand neck is firmly
connected.
Tightly fasten the connecting
screw at the bottom of the
stand base.
3
4
Push the assembled stand into the main body in the direction of
the arrow as shown in the figure.
Confirm that the stand is tightly fastened. If
has not been fully
lowered, lower it while holding it with your hand.
Stand assembly is complete.
11
Precautions for moving the product
―
The colour and shape of parts may differ from what is shown. Specifications are subject to change without
notice to improve quality.
S27DG60*S / S27DG61*S / S27FG60*S / S27FG81*S / S32FG81*S
• Hold the lower corners or edges of the
product when moving it.
• Do not directly apply pressure on the
screen.
• Do not hold the screen when moving the
product.
• Do not hold the product upside down only
by the stand.
• Do not press down on the product. There is
a risk of damaging the product.
• Be careful not to get any body parts caught. • Do not arbitrarily remove the panel film. If
not observed, the warranty service may be
restricted.
S27FG90*X
• Hold the lower corners or edges of the
product when moving it.
• Do not directly apply pressure on the screen.
• Do not hold the screen when moving the
product.
• Do not hold the product upside down
only by the stand.
• Do not press down on the product. There is a
risk of damaging the product.
• Be careful not to get any body parts
caught.
12
Checking the space around the product
Make sure to have enough space for ventilation when placing the product. An internal temperature rise
may cause fire and damage the product. Maintain enough space around the product as shown in the
diagram when installing the product.
―
The exterior may differ depending on the product.
S27DG60*S / S27DG61*S / S27FG60*S / S27FG81*S / S32FG81*S
S27FG90*X
Adjusting the Product Tilt and Height
―
The colour and shape of parts may differ from what is shown. Specifications are subject to change without
notice to improve quality.
S27DG60*S / S27DG61*S / S27FG60*S / S27FG81*S / S32FG81*S
-2.0° (±2.0°) ~ 25.0° (±2.0°) 120.0 mm (±5.0 mm)
S27FG90*X
-3.0° (±3.0°) ~ 15.0° (±3.0°)
120.0 mm (±5.0 mm)
• The product tilt and height can be adjusted.
• Hold the top centre of the product and adjust the height carefully.
• When adjusting the stand height, you may hear a noise. This noise is generated because the ball
inside the stand slides when the stand height is adjusted. It is a normal noise and not a product
malfunction.
• When adjusting the left/right angles of the product, there may be a slight gap in the connection
area of the stand base. This is normal and does not indicate a malfunction of the product.
13
Caution
―
The colour and shape of parts may differ from what is shown. Specifications are subject to change without
notice to improve quality.
S27DG60*S / S27DG61*S / S27FG60*S / S27FG81*S / S32FG81*S
• Grasp the left and right sides of the monitor and adjust the swivel.
• Grasp the centre of the monitor and adjust the height.
• Do not hold the moving area of the stand when adjusting the tilt or height of the product. It may
cause injury.
• When installing the product on a cabinet or shelf, make sure that the bottom edge of the front of
the product is not protruding.
S27FG90*X
• Grasp the centre of the monitor and adjust the height.
• Do not hold the moving area of the stand when adjusting the tilt or height of the product. It may
cause injury.
• Do not put an object around the lower part of the product. The product or object may get damaged
when adjusting the product height.
After adjusting the product tilt and height, if the screen is not level, take the following actions.
• Hold the bezel at both side edges and adjust the monitor angle until the screen becomes level. (Be
careful not to directly hold the LCD display.)
14
Rotating the Product
―
The colour and shape of parts may differ from what is shown. Specifications are subject to change without
notice to improve quality.
S27DG60*S / S27DG61*S / S27FG60*S / S27FG81*S / S32FG81*S
-92.0° (±2.0°) ~ 92.0° (±2.0°)
-30.0° (±3.0°) ~ 30.0° (±3.0°)
S27FG90*X
-92.0° (±2.0°) ~ 92.0° (±2.0°)
You can rotate your product as shown below.
S27DG60*S / S27DG61*S / S27FG60*S / S27FG81*S / S32FG81*S
6
3
4 5
21
S27FG90*X
21
4 5 6
3
• Be sure to fully extend the stand before rotating the product.
• If you rotate the product without fully extending the stand, the corner of the product may hit the
floor and get damaged.
• When rotating the product, be careful not to damage the product by hitting the object or stand.
15
Wall Mount Kit Specifications (VESA)
―
Install your wall mount on a solid wall perpendicular to the floor. Before attaching the wall mount to
surfaces other than plaster board, please contact your nearest dealer for additional information. If you
install the product on a slanted wall, it may fall and result in severe personal injury. Samsung wall mount
kits contain a detailed installation manual and all parts necessary for assembly are provided.
• Do not use screws that are longer than the standard length or do not comply with the VESA
standard screw specifications. Screws that are too long may cause damage to the inside of the
product.
• When installing the wall mount other than the specified product, its installation may be difficult.
• For wall mounts that do not comply with the VESA standard screw specifications, the length of the
screws may differ depending on the wall mount specifications.
• Do not fasten the screws too firmly. This may damage the product or cause the product to fall,
leading to personal injury. Samsung is not liable for these kinds of accidents.
• Samsung is not liable for product damage or personal injury when a non-VESA or non-specified
wall mount is used or the consumer fails to follow the product installation instructions.
• Do not mount the product at more than a 15 degree tilt.
• Standard dimensions for wall mount kits are shown in the table follow.
Product
Wall mount bracket
Model name
VESA screw hole specs
(
* ) in millimetres
Standard
Screw
Quantity
S27DG60*S
S27DG61*S
S27FG60*S
S27FG81*S
S32FG81*S
100.0 x 100.0
7. 5 ~ 10.5 mm
+ Wall
mount
bracket
M4 4
S27FG90*X 6.5 ~ 8.5 mm
―
Do not install your Wall Mount Kit while your product is turned on. It may result in personal injury due to
electric shock.
16
Control Panel
―
The colour and shape of parts may differ from what is shown. Specifications are subject to change without
notice to improve quality.
―
You can turn on the product with the
button, and then use the Function Key Guide. Function Key Guide
appears when the button is pressed while the product is On.
S27DG60*S / S27DG61*S S27FG60*S / S27FG81*S / S32FG81*S
Function Key Guide
PRESS(ENTER)
<Rear>
LEFT
RIGHT
Power LED
Power LED
DOWN
Custom Key
Return
UP
S27FG90*X
<Rear>
Function Key Guide
PRESS(ENTER)
LEFT
Power LED
RIGHT
Camera
DOWN
Custom Key
Return
UP
Parts Description
Use this multi-directional button to turn on the power or navigate
menus.
Power LED
This LED is power status indicator.
―
You can select the power LED operation to be enabled or disabled on
the menu screen. (
→ System → Power LED On)
Function Key Guide
To use the Function Key Guide, press the button when the screen
is turned on.
Custom Key
• Custom Key is used to directly access the function set in Setup
Custom Key.
• Setup Custom Key
―
Go to
→ System → Setup Custom Key and change the custom key.
Camera
Converts 2D images into 3D through the camera lens.
―
For details on using the 3D monitor and camera, refer to the Using the
3D Monitor section.
―
This function is supported by the S27FG90*X model only.
Changes the input source. A message will appear on the top left
corner of the screen if the input source has been changed.
Source
Displays the main on-screen menu.
Menu
/
Turns off the product.
Power Off
Exits from the menu page.
Return
17
Connecting and Using a Source Device
Read below before connecting the product.
1
Before connecting the product, check the shapes of both ports of the supplied signal cables and
the shapes and locations of the ports on the product and external device.
2
Before connecting the product, make sure you remove the power cords from both the product and
the external device to prevent damage to the product due to a short circuit or over current.
3
After all signal cables have been properly connected, connect the power cords back to the product
and the external device.
4
After connecting is completed, make sure you read the manuals to acquaint yourself with the
product functions, precautions and other information required to use the product properly.
5
To use Max specifications of our products, check the support specifications of the cable version you
use.
―
Connecting parts may differ in different products.
―
Provided ports may vary depending on the product.
18
Ports
―
The functions available may vary depending on the product model. The colour and shape of parts may
differ from what is shown. Specifications are subject to change without notice to improve quality. Refer to
the actual product.
S27DG60*S / S27DG61*S / S27FG60*S / S27FG81*S / S32FG81*S
S27DG60*S S27DG61*S
S27FG60*S S27FG81*S S32FG81*S
Port Description
Connects to a PC using a USB cable.
―
This port can only connect to a PC.
Connect to a USB device.
Used to update the software.
Connect to a USB device.
Connect to an audio output device such as headphones or earphones.
HDMI 1
Connects to a source device using an HDMI cable.
HDMI
2
DP Connects to a PC using a DP cable.
DC **V Connects to the AC/DC adapter.
S27FG90*X
Port Description
Connect to a USB device.
Used to update the software.
Connects to a PC using a USB cable.
―
This port can only connect to a PC.
Connect to a USB device.
HDMI 1
Connects to a source device using an HDMI cable.
HDMI
2
DP Connects to a PC using a DP cable.
DC **V Connects to the AC/DC adapter.
19
Connecting and Using a PC
Select a connection method suitable for your PC.
Connection Using the HDMI Cable
―
It is recommended to use the HDMI cable provided as components. If not provided, be sure to use
authorised cable for HDMI cable connections. If you use a unauthorised HDMI cable, the image quality may
be degrade.
Connection Using an DP Cable
DP
―
It is recommended to use the DP cable provided as an accessory. If not provided, be sure to use a DP cable
of 1.5 m or below.
―
Use a VESA certified DP 1.2 cable or higher and its gender.
Connecting to headphones or earphones
―
Use headphones or earphones when activating sound with an HDMI-HDMI or DP cable.
―
The headphones or earphones jack supports only the 3 conductor tip-ring-sleeve (TRS) type.
―
S27DG60*S / S27DG61*S / S27FG60*S / S27FG81*S / S32FG81*S models only.
20
Connecting the Product to a PC as a USB HUB
Using the product as a hub, connect and use various source devices with the product at a time.
―
Port names and the number of ports may differ, depending on the model.
―
To detect and start a USB device faster, connect the USB device to the
, port on the
product. The read/write rate will be affected by the USB device and your PC.
―
For USB-related problems caused by OS, drive programmes or software, please contact relevant suppliers.
―
With the launch of various USB devices on the market, we cannot guarantee that our products are matched
with all USB devices.
―
For an external mass-storage HDD requiring external power supply, be sure to connect it to a power source.
―
The company is not liable for problems or damages to an external device caused by using an unauthorised
cable for the connection.
―
Some products do not follow the USB standard, and it may cause a malfunction of the device.
―
It is recommended that users use USB devices of 5V/1A or lower.
Connecting the Power
S27DG60*S / S27DG61*S / S27FG60*S / S27FG81*S / S32FG81*S
HDMI IN DP IN
S27FG90*X
1
Connect the power cord to the AC/DC adapter. Then, connect the AC/DC adapter to the DC **V port
on the back of the product.
‒ Rated power consumption for adapters differs depending on the model. Use an adapter that
meets the power consumption specification of the model.
2
Next, connect the power cord to the power outlet.
3
Press the button on the back of the product to turn it on.
―
The input voltage is switched automatically.
21
Using the 3D Monitor
• This feature is supported in the S27FG90*X models only.
• Experience outstanding 3D effects through eye-tracking and view-mapping technologies, without
having to wear 3D glasses.
• Play 3D games and videos through Odyssey 3D Hub.
• Convert 2D videos into 3D videos.
‒ For details on your 3D monitor, please visit the Samsung website at http://www.samsung.com,
and refer to the User guide.
To view 3D content:
• Make sure the camera is not exposed to direct light.
• Do not cover your face, so that your entire face can be recognized.
• Center your face in the camera, and make sure the camera is pointed at your face.
• Make sure the device’s screen resolution is set to 3840 x 2160.
• 3D experience is limited to one person at a time.
• Avoid making sudden, large movements of your head.
• Please watch 3D content within the recommended viewing distance (55–95 cm).
• The optimal viewing angle for watching 3D videos is 25 degrees to the left and right of the front of
the screen.
CAUTION
Before using the 3D function, read the following precautions:
• Some viewers may experience discomfort while watching 3D content, such as dizziness, nausea or
headaches. If you experience these symptoms, stop watching 3D content and rest.
• Watching 3D content for long periods of time can cause eye fatigue. If this happens, please stop
watching 3D and rest.
Read before using the 3D monitor
• Users can only view games that are compatible with Samsung Odyssey 3D Hub.
• Odyssey 3D Hub is dedicated software for Odyssey 3D, and allows users to play 3D games and to
convert 3D videos.
• The product's 3D conversion is only supported through the Odyssey 3D Hub software installed on a
computer.
• AMD graphics cards may not convert some 2D videos to 3D.
• Some video players may not support 3D conversion.
• 3D conversion is supported on NVIDA graphics cards only.
• In pivot mode, the Edge Lighting feature and 3D effects are not supported.
• To connect and use multiple monitors, set the 3D monitor as the primary monitor.
• 3D functionality may be limited when using multiple Odyssey 3D monitors.
• 3D conversion is not supported when DRM content is enabled.
• Odyssey 3D Hub may not work properly when HDR mode is enabled.
• 3D conversion supports video conversion only and may not work with games.
22
• To enable 3D conversion, make sure Odyssey 3D Hub is running and the video is in full screen
mode.
• Available 3D effects may differ, depending on the game content and the computer specifications.
• There may be some latency during conversion from 2D videos to 3D videos.
• If you watch 3D content in a space directly exposed to sunlight or lighting, the clarity may appear
poor.
• Displayed content may not be seen as intended, depending on the ambient light intensity.
• Users with a large difference in visual acuity between the left and right eyes may not be able to
perceive three-dimensionality. The degree to which users perceive three-dimensionality may
differ.
• Momentary screen flickering may be experienced during the process of face recognition using the
eye tracking function.
• For content that is not guaranteed to be convertible to 3D using Odyssey 3D Hub, the 3D
conversion performance may degrade or conversion may not work at all.
‒ This feature supports video content conversion only and may not work with games.
Installing the 3D monitor
―
Before installing the monitor, check the Recommended computer specifications for Odyssey 3D Hub.
―
Set the 3D input port, using the input selection menu on the product (e.g., HDMI, DP).
1
Connect the product to your computer, using a USB cable.
‒ Use the USB cable that came with the product.
2
Install the Odyssey 3D Hub software.
‒ Odyssey 3D monitors can achieve normal 3D effects through Odyssey 3D Hub software only.
‒ Odyssey 3D Hub software can be downloaded from the Samsung website.
Alternatively, install it by searching for “Samsung Odyssey 3D Hub” in the Microsoft Store.
* Downloading Odyssey 3D Hub software
1) Visit the Samsung website at http://www.samsung.com/support.
2) Search for the model name you purchased, using the model search box. (e.g., LS27FG90*)
3) Download and install the Odyssey 3D Hub software.
4) Follow the on-screen instructions to complete the installation.
3
Reboot the computer.
‒ Be sure to reboot the computer after installing Odyssey 3D Hub software.
If you do not reboot the computer, the software may not work properly.
‒ To view content at the highest refresh rate, change the related settings in the OSD menu.
Change the DisplayPort Ver. value to 1.4 and Input Port Ver. value to 2.0↑.
‒ From the OSD menu on the monitor, set the input source for the 3D computer’s main monitor (e.g.,
HDMI, DP).
(Menu path: Game → 3D PC Selection → Select Input Source)
23
Launching Odyssey 3D Hub
1
Click the Odyssey 3D Hub icon on the desktop.
2
At the top of the screen, a red light illuminates when the camera turns on.
‒ Open Device Manager in Windows, and check that the stereo camera is enabled.
‒ If security software is installed, it may block the camera. Turn off the security settings on the
computer (e.g., USB and COM port security settings).
‒ If security software is blocking the camera, the camera may not open when you run the camera
app in Windows.
3
If 3D effects are achieved on the Odyssey 3D Hub home screen, the software has been installed
successfully.
‒ Set HDR to Off in Windows.
Playing a game
1
In Odyssey 3D Hub, click a game to open its Steam page.
2
Log in to the Steam site and install the desired game.
3
When the game installation is complete, select the installed path of the game from Odyssey 3D
Hub.
4
Start playing the game.
‒ Already-installed games automatically start when they are selected.
Converting 2D to 3D
―
This is supported on NVIDIA graphics cards only.
1
When Odyssey 3D Hub is running, run an app that supports full screen mode from the computer’s
desktop (e.g., YouTube).
2
Run the app in full screen mode.
3
From the bottom right of the screen of the running app, select the desired screen mode (available
mode options: 2D mode and side-by-side mode).
4
3D conversion is performed according to the selected mode.
24
Recommended computer specifications
Minimum PC specifications for installing Odyssey 3D Hub software
OS Hardware
• Windows 10, 64-bit, version 22H2
• Windows 11, 64-bit
• At least 4GB of free HDD space required (current installed capacity: 2.9GB)
• DDR memory with capacity of at least 2GB (PC motherboard)
Recommended specs for 3D operation by function
Content Function
Recommended
specs
NVIDIA (PC) AMD (PC) Intel (PC)
Intel Notebook
Graphic Card
Mac
Video
3D conversion
CPU (Minimum)
Intel: i7 or later
AMD: Ryzen7 1700X or later
Not support Not support
Not support Not support
GPU (Minimum)
3 series: RTX 3080 or later
4 series: RTX 4070 or later
DDR DDR5-5600 32GB 2 ea (PC motherboard)
PCIe PCIe 5.0
Side-by-side
conversion
CPU (Minimum)
Intel: i7 or later
AMD: Ryzen7 1700X or later
Intel: i7 or later
AMD: Ryzen7 1700X or later
Support
GPU (Minimum)
3 series: RTX 3080 or later
4 series: RTX 4070 or later
6 series: RTX 6900 XT or later
7 series: RTX 7900 or later
DDR DDR5-5600 32GB 2 ea (PC motherboard)
PCIe PCIe 5.0
Game
Odyssey 3D Hub
Game
CPU (Minimum)
Performance is dependent of computer game content.
It depends on the complexity of the game and the required
computer resources (e.g., Khazan, Lies of P).
Support
GPU (Minimum)
DDR
PCle
―
Screen flickering or tearing may occur at low refresh rates (e.g., 60 Hz, 120 Hz), depending on the computer’s graphic capability.
25
Tidying Up the Cables
S27DG60*S / S27DG61*S / S27FG60*S / S27FG81*S / S32FG81*S
1
2
Connect the corresponding cables. Pull the right side of the HOLDER-STAND
CABLE to remove from the stand. The left side
of the HOLDER-STAND CABLE can be damaged
when pulled forcibly.
1
3
Put both cables in the cable holder on the
stand (HOLDER-STAND CABLE) to organise the
cables, as shown in the figure.
Assembly is complete.
S27FG90*X
1
2
Pass cables through the hole on the stand. Connect the cables to the corresponding ports.
3
Organise cables by passing them through the
hole on the stand, as shown in the figures.
26
Setting Optimum Resolution
An information message about setting optimum resolution will appear if you power on the product for
the first time after purchase.
Select a language on information message and change the resolution on your PC to the optimum
setting.
―
If the optimum resolution is not selected, the message will appear up to three times for a specified time
even when the product is turned off and on again.
―
If you want to set the optimum resolution for your computer, please refer to (Q&A) → “How can I change the
resolution?”
List of graphic cards supporting HDR10
HDR10 is accessible only on Windows 10 systems equipped with graphic cards that support Play Ready
3.0 Digital Rights Management (for protected HDR content). Use graphic cards listed below for HDR10.
• NVIDIA GeForce 1000 series or higher
• AMD Radeon™ RX 400 series or higher
• Intel UHD Graphics 600 series or higher
―
Graphic cards that support hardware-accelerated 10-bit video decoding for HDR video codecs are
recommended.
Using the Panel Care feature
Protects the panel to prevent problems with the product screen.
―
If your OLED Product displays the same still image for 10 minutes, Screen Saver is automatically activated.
Screen Saver cannot be turned off, to ensure protection of pixels.
Precautions for preventing image retention
• If a still screen is displayed for an extended period of time, image retention or bad pixels may occur.
―
Examples of still screens that cause image retention.
―
A still image, or an image with objects fixed to a spot (e.g., desktop icon, fixed windows such as menus,
logos, etc).
―
Menu items or icons fixed to a spot in a web browser or webpage.
―
The icons or logos of menu items or source devices (e.g., game console, set top box, PC, etc) fixed to a
spot.
―
A playing video being kept paused for an extended period of time.
―
Use of an input source that has a different aspect ratio from the screen size for an extended period of
time (e.g., full screen mode of 16:9 or 4:3 ratio videos).
• To prevent image retention and other issues with the product screen, the Panel Care feature
protects the screen.
Protection of the Product screen through Panel Care
Adjusts settings to protect the screen.
―
For details on how to configure Panel Care settings, navigate to Menu > System and refer to the Panel Care
menu.
27
Menu
Function Key Guide →
―
The functions available may vary depending on the product model. The colour and shape of parts may
differ from what is shown. Specifications are subject to change without notice to improve quality.
Game
2nd Description
3D PC Selection Select a 3D-enabled PC.
―
S27FG90*X models only.
Response Time Accelerate the panel response rate to make video appear more vivid
and natural.
―
It is best to set Response Time to Standard or Faster when you are not
viewing a movie or game.
―
This option is not available when Adaptive-Sync is set to On.
―
This menu is not available when PIP Mode is enabled.
―
S27FG90*X models only.
2nd Description
Adaptive-Sync Adaptive-Sync technology is solution that eliminates screen tearing
without all the usual lag and latency.
―
This option is not available when Ultrawide Game View is set to On.
(S27DG60*S / S27DG61*S / S27FG81*S / S32FG81*S / S27FG90*X
models only.)
―
This menu is not available when PIP Mode is enabled.
(S27DG60*S / S27DG61*S / S27FG81*S / S32FG81*S / S27FG90*X
models only.)
―
This option is not available when DP version 1.1 or HDMI version1.4.
FreeSync Premium Pro /
FreeSync Premium
FreeSync technology is solution that eliminates screen tearing
without all the usual lag and latency. FreeSync can be operated
when you use AMD's graphic card with supporting FreeSync
solution.
For more information, see FreeSync (for AMD graphics card) page.
―
This menu is not available when PIP Mode is enabled.
(S27DG60*S / S27DG61*S / S27FG81*S / S32FG81*S / S27FG90*X
models only.)
―
This option is not available when DP version 1.1 or HDMI version1.4.
―
The names and positions of OSD menu items may differ, depending on
the model.
28
2nd Description
Ultrawide Game View Set the game screen’s ratio to wide for more immersive gaming.
―
This menu is not available when PIP Mode is enabled.
―
This menu is not available when Adaptive-Sync is enabled.
―
S27DG60*S / S27DG61*S / S27FG81*S / S32FG81*S / S27FG90*X
models only.
Black Equalizer Adjust the brightness of the dark areas.
As the value gets closer to 1, the darker areas of the screen become
brighter, making it easier to find enemies when playing a game. To
find enemies more easily during a game, use a lower value.
As the value gets closer to 10, the darker areas of the screen become
darker and the contrast increases.
―
This menu is not available when Eye Saver Mode is enabled.
―
The Black Equalizer feature is only activated at a certain AV
resolution, such as 720P @ 60 Hz and 1080P @ 60 Hz.
―
This menu is not available when PIP Mode is enabled.
(S27DG60*S / S27DG61*S models only.)
Virtual Aim Point • Off: Virtual Aim Point is not available while Off is selected.
• / / / / / : Select the preferred aim point
style.
• Reset Position: Restore the aim point position to the default.
―
This menu is not available when PIP Mode is enabled.
(S27DG60*S / S27DG61*S / S27FG81*S / S32FG81*S / S27FG90*X
models only.)
Infinity Core Lighting Turn on or off the LED lighting behind the screen.
―
S27DG60*S / S27FG60*S / S27FG81*S / S32FG81*S models only.
Edge Lighting Adjust the brightness of the LED lighting under the screen.
―
S27FG90*X models only.
2nd Description
Screen Size Select the best screen size and ratio.
―
This option is not available when Ultrawide Game View is set to On.
(S27DG60*S / S27DG61*S / S27FG81*S / S32FG81*S / S27FG90*X
models only.)
―
This menu is not available when PIP Mode is enabled.
(S27DG60*S / S27DG61*S / S27FG81*S / S32FG81*S / S27FG90*X
models only.)
In PC mode
• Auto: Display the picture according to the aspect ratio of the
input source.
• Wide: Display the picture in full screen regardless of the aspect
ratio of the input source.
In AV mode
• 4:3: Display the picture with an aspect ratio of 4:3. Suitable for
videos and standard broadcasts.
• 16:9: Display the picture with an aspect ratio of 16:9.
• Screen Fit: Display the picture with the original aspect ratio
without cutting off.
―
The function may not be supported depending on the ports provided
with the product.
―
Changing the Screen Size is available when the following conditions
are satisfied.
―
The input source is 480p, 576p, 720p, or 1080p and product can
display normally (Not every model can support all of these signals.).
―
This can only be set when the external input is connected through
HDMI/DP and PC/AV Mode is set to AV.
29
2nd Description
Picture Mode In AV mode
When the external input is connected through HDMI/DP and PC/
AV Mode is set to AV, Picture Mode has eleven picture settings
(Dynamic, Standard, Eco, Movie, Game Standard, RPG, RTS, FPS,
Sports, Original, Custom) that are preset at the factory. You can
activate either Dynamic, Standard, Eco, Movie, Game Standard, RPG,
RTS, FPS, Sports, Original or Custom. You can select Custom which
automatically recalls your personalised picture settings.
• Dynamic: Select this mode to view a sharper image than in
Standard mode.
• Standard: Select this mode when the surroundings are bright.
• Eco: This screen is provided to save energy.
• Movie: Select this mode when the surroundings are dark. This
will save power and reduce eye fatigue.
• Game Standard: Obtain a picture quality suitable for playing
games.
• RPG: This mode is optimised for 3D graphics and instant
messaging on the RPG (Role Playing Game) game screen.
2nd Description
Picture Mode This menu provides an optimum picture quality suitable for the
environment where the product will be used.
―
This menu is not available when PIP Mode is enabled.
(S27DG60*S / S27DG61*S models only.)
―
This menu is not available when Eye Saver Mode is enabled.
In PC mode
• Entertain: Obtain the clear and vivid picture quality with colour
enhancement.
• Graphic: Obtain the quality of Image contents without colour
enhancement.
• Eco: This screen is provided to save energy.
• Game Standard: Obtain a picture quality suitable for playing
games.
• RPG: This mode is optimised for 3D graphics and instant
messaging on the RPG (Role Playing Game) game screen.
• RTS: Increase the colour temperature and contrast ratio to
improve visibility of the RTS (Real-Time Strategy) screen and
minimap.
• FPS: Increase the brightness of darker areas of the FPS (First-
Person Shooter) game screen. This mode increases visibility of
your enemies during a FPS (First-Person Shooter) game.
• Sports: Obtain the brightness and sharpness of monitors
suitable for enjoying sports contents.
• Original: Obtain the pure picture quality of contents without
colour enhancement.
• Custom: Customise the screen settings.
30
2nd Description
Picture Mode • RTS: Increase the colour temperature and contrast ratio to
improve visibility of the RTS (Real-Time Strategy) screen and
minimap.
• FPS: Increase the brightness of darker areas of the FPS (First-
Person Shooter) game screen. This mode increases visibility of
your enemies during a FPS (First-Person Shooter) game.
• Sports: Obtain the brightness and sharpness of monitors
suitable for enjoying sports contents.
• Original: Obtain the pure picture quality of contents without
colour enhancement.
• Custom: Select this mode when you want to adjust the image
according to your preferences.
―
The Picture Mode feature is only activated at a certain AV resolution,
such as 720P @ 60 Hz, 1080P @ 60 Hz and 2160P @ 60 Hz.
Brightness You can adjust the general brightness of the picture. (Range: 0~50)
A higher value will make the picture appear brighter.
―
This menu is not available when Eye Saver Mode is enabled.
Contrast Adjust the contrast between the objects and background. (Range:
0~50)
A higher value will increase the contrast to make the object appear
clearer.
―
This menu is not available when PIP Mode is enabled.
(S27DG60*S / S27DG61*S models only.)
2nd Description
Sharpness Make the outline of objects more clear or blurry. (Range: 0~20)
A higher value will make the outline of objects clearer.
―
This menu is not available when PIP Mode is enabled.
(S27DG60*S / S27DG61*S models only.)
Color Adjust the colour saturation levels. Colour saturation intensifies as
the value nears 50. (Range: 0~50)
―
This menu is not available when PIP Mode is enabled.
(S27DG60*S / S27DG61*S models only.)
―
This menu is not available when Eye Saver Mode is enabled.
Tint (G/R) Adjust the ratio of green to red tint levels. Increasing values
intensifies the saturation of red and green colours.
―
This menu is not available when PIP Mode is enabled.
(S27DG60*S / S27DG61*S models only.)
―
This menu is not available when Eye Saver Mode is enabled.
Local Dimming Control the brightness of individual areas on the screen to maximize
contrast automatically.
―
This menu is not available when PIP Mode is enabled.
―
This menu is not available when Eye Saver Mode is enabled.
―
S27FG90*X models only.
Contrast Enhancer Automatically balance the contrast to prevent excessive differences
between bright and dark areas.
―
This menu is not available when PIP Mode is enabled.
(S27DG60*S / S27DG61*S models only.)
―
This menu is not available when Eye Saver Mode is enabled.
31
2nd Description
Gamma Adjust the middle level of luminance.
―
This menu is not available when PIP Mode is enabled.
(S27DG60*S / S27DG61*S models only.)
―
This menu is not available when Eye Saver Mode is enabled.
Shadow Detail Adjust the brightness of dark images. Black detail increases as the
value nears 5.
―
This menu is not available when PIP Mode is enabled.
(S27DG60*S / S27DG61*S models only.)
―
This menu is not available when Eye Saver Mode is enabled.
Color Space Settings / Color
Space
Configure colour space settings to refine the spectrum of colours on
your screen.
―
This menu is not available when PIP Mode is enabled.
(S27DG60*S / S27DG61*S models only.)
―
This menu is not available when Eye Saver Mode is enabled.
―
The names and positions of OSD menu items may differ, depending on
the model.
2nd Description
HDR Tone Mapping Automatically adjusts the brightness with tone mapping processing
according to HDR content information.
―
This menu is not available when PIP Mode is enabled.
(S27DG60*S / S27DG61*S / S27FG81*S / S32FG81*S / S27FG90*X
models only.)
Color Tone Select a colour tone that best suits your viewing needs.
―
This menu is not available when PIP Mode is enabled.
(S27DG60*S / S27DG61*S models only.)
―
This menu is not available when Eye Saver Mode is enabled.
White Balance Adjust the colour temperature of the picture so that white objects
appear brighter.
―
This menu is not available when PIP Mode is enabled.
(S27DG60*S / S27DG61*S models only.)
―
This menu is not available when Eye Saver Mode is enabled.
Red
Adjust the red saturation level. Values closer to 50 mean greater
intensity for the colour.
Green
Adjust the green saturation level. Values closer to 50 mean greater
intensity for the colour.
Blue
Adjust the blue saturation level. Values closer to 50 mean greater
intensity for the colour.
Reset
Restore the white balance settings to the default values.
32
2nd Description
Peak Brightness Adjust the maximum brightness for a brighter screen.
―
This menu is not available when PIP Mode is enabled.
(S27DG60*S / S27DG61*S / S27FG81*S / S32FG81*S models only.)
―
This menu is not available when Eye Saver Mode is enabled.
―
S27DG60*S / S27DG61*S / S27FG60*S / S27FG81*S / S32FG81*S
models only.
Black Level If a DVD player or set-top box is connected to the product via HDMI,
image quality degradation (contrast/colour degradation, black level,
etc.) may occur, depending on the connected source device.
In such case, Black Level can be used to adjust the image quality.
• Auto: Select this mode if you want Normal or Low to be
automatically selected depending on the signal.
• Normal: Select this mode when there is no contrast ratio
degradation.
• Low: Select this mode to reduce the black level and increase the
white level when there is a contrast ratio degradation.
―
This menu is not available when PIP Mode is enabled.
(S27DG60*S / S27DG61*S / S27FG81*S / S32FG81*S / S27FG90*X
models only.)
―
This function is only available in HDMI1 or HDMI2 mode.
―
Black Level may not be compatible with some source devices.
―
Adjust the Black Level because the image quality may differ
depending on the external device.
2nd Description
Eye Saver Mode Set to an optimum picture quality suitable for eye relaxation.
When Eye Saver Mode is 'On', the blue light that wavelength is
around 400nm will decrease, and it will provide an optimum picture
quality suitable for eye relaxation.
Screen Adjustment
• H-Position: Move the screen to the left or right.
• V-Position: Move the screen up or down.
―
This option is only available when PC/AV Mode is set to AV.
―
This menu is only available when Screen Size is set to Screen Fit in AV
Mode.
When a 480P, 576P, 720P or 1080p signal is input in AV mode and the
product can display normally, select Screen Fit to adjust horizontal
position and vertical position in 0-6 levels.
―
This menu is only available when Adaptive-Sync is set to Off in AV
Mode.
Calibration Report View the Calibration Report.
―
S27FG81*S / S32FG81*S / S27FG90*X models only.
Picture Reset Restore all picture settings to the factory default.
33
OnScreen Display
2nd Description
Language Set the menu language.
―
A change to the language setting will only be applied to the onscreen
menu display.
―
It will not be applied to other functions on your PC.
Display Time The OSD menu will automatically disappear if the menu is not used
for a specified period of time.
Display Time is a function to specify the time which you want the
OSD menu to disappear.
System
2nd Description
SeeColors Mode Allows users with colour blindness to experience rich colours.
Enable this feature to customise colours to suit your viewing
conditions, to experience richer colours on the screen.
―
Some menus are not available when SeeColors Mode is in use.
―
This function may not be supported depending on the model.
Save Energy Reduce power consumption by adjusting brightness settings.
PIP
―
S27DG60*S / S27DG61*S / S27FG81*S / S32FG81*S / S27FG90*X models only.
2nd Description
PIP Mode
Turn PIP Mode on or off.
Screen Size
Select sub-screen size.
Screen Position
Select the position of the sub-screen from the available options.
Source
Select the source for each screen.
Sound Source
Set which screen you want to hear the sound for.
Screen Ratio
Choose the size and aspect ratio of the picture displayed on screen.
In PC mode
• Auto / Wide
In AV mode
• 4:3 / 16:9 / Screen Fit
―
The function may not be supported depending on the ports provided
with the product.
―
Changing the Screen Ratio is available when the following conditions
are satisfied.
―
The input source is 480p, 576p, 720p, 1080p or 2160p and product
can display normally (Not every model can support all of these
signals.).
―
This can only be set when the external input is connected through
HDMI, DP and PC/AV Mode is set to AV.
―
The Screen Ratio feature is only activated at a certain AV resolution,
such as 720P @ 60 Hz, 1080P @ 60 Hz and 2160P @ 60 Hz.
34
2nd Description
PC/AV Mode Set PC/AV Mode to AV. The picture size will be enlarged.
This option is useful when you view a movie.
―
Products with a display area of 16:9 or 16:10 are only supported.
―
If the product is in HDMI1, HDMI2, DisplayPort mode and the screen
says Check the cable connection and the settings of the source device.
press the
button to display the Function Key Guide screen and then
select → System → PC/AV Mode → HDMI1, HDMI2, DisplayPort → PC
or AV.
DisplayPort Ver. Select your Displayport.
―
Incorrect settings may cause the screen to go blank. If this occurs,
check the device specifications.
―
If the product (in DisplayPort mode) is displaying the message Check
the cable connection and the settings of the source device. press the
button to display the Function Key Guide screen and then select
→ System → DisplayPort Ver..
―
If setting the DisplayPort Ver. to 1.1, for the bandwidth limitation of
the DisplayPort 1.1 protocol, the actual maximum output refreshing
rate of the graphics cards cannot achieve the level of 120 Hz / 144 Hz /
165 Hz.
―
If the PC has entered BIOS mode and the BIOS screen does not appear,
go to the following path and then select the mode.
→ System →
DisplayPort Ver..
2nd Description
 Volume
Adjust the Volume controlling the
button LEFT/RIGHT.
―
To activate the Mute function, access the Volume control screen, then
use the
button to move the focus down.
To deactivate the Mute function, access the Volume control screen,
then increase or decrease the Volume.
Off Timer Plus Off Timer
• Off Timer: Turn on Off Timer mode.
• Turn Off After: The off timer can be set within a range of 1 to
23 hours. The product will automatically power off after the
specified number of hours.
―
This option is only available when Off Timer is set to On.
―
For products for the market in some regions, the Off Timer is set to
automatically activate 4 hours after the product powers on. This is
done in accordance with power supply regulations. If you do not want
the timer to activate, go to
→ System → Off Timer Plus and set Off
Timer to Off.
Eco Timer
• Eco Timer: Turn on Eco Timer mode.
• Eco Off After: The Eco Off After can be set between 10 and 180
minutes. The product will automatically power off after the
specified time has elapsed.
―
This option is only available when Eco Timer is set to On.
35
2nd Description
Input Port Ver. Select an HDMI version. (1.4 / 2.0↑)
―
The supportable device and resolution may differ depending on its
version.
―
When the version is changed, the screen may blink.
―
If you set the HDMI mode to 1.4, some high resolutions may not be
supported because of bandwidth limitation of the HDMI 1.4 protocol.
―
When the setting is not appropriate, a blank screen may appear. In
this case, check the specifications of the device.
―
Set HDMI mode to 1.4 if the monitor is connected to an HDMI device
and the monitor does not display the screen properly, displays a blank
screen, or does not play sound at all.
Auto Source Switch+ By activating, a new connected source is displayed automatically.
―
This function may not be supported depending on the model or
geographical area.
Panel Care Adjusts settings to protect the screen.
―
S27DG60*S / S27FG60*S / S27FG81*S / S32FG81*S models only.
Logo Brightness
Prevents screen issues by lowering the brightness of fixed images,
such as logos and banners.
Pixel Refresh
Adjusts pixels to provide a clearer screen.
2nd Description
Key Repeat Time Control the response rate of a button when the button is pressed.
Acceleration, 1 sec, or 2 sec can be selected. If No Repeat is selected,
a command responds only once when a button is pressed.
Power LED On Configure the settings to enable or disable the power LED located at
the lower part of the product.
• Working: The power LED is on when the product is turned on.
• Stand-by: The power LED is on when the product is turned off.
Setup Custom Key Set the custom key so that your chosen function can be set up
directly.
• Eye Saver Mode / PIP / Ultrawide Game View / Black Equalizer /
Virtual Aim Point / Infinity Core Lighting / Auto Source Switch+
/ Picture Mode
―
PIP is only available on the S27DG60*S / S27DG61*S / S27FG81*S /
S32FG81*S / S27FG90*X models.
―
Ultrawide Game View is only available on the S27DG60*S / S27DG61*S
/ S27FG81*S / S32FG81*S / S27FG90*X models.
―
Infinity Core Lighting is only available on the S27DG60*S / S27FG60*S
/ S27FG81*S / S32FG81*S models.
VRR Control By optimising the video signal processing, this additional function
mitigates screen flicker.
While playing any game or content that causes screen flicker, use
the VRR Control function with setting it to On.
36
Support
2nd Description
Self Diagnosis Perform this test when you experience a problem with your
monitor's picture.
―
Never turn off the power nor change the input source during self
diagnosis. If possible, try not to interrupt testing.
Software Update Update software using an update file on a USB device.
1
Save the update file (in .bin or .img format) that you downloaded
from the Samsung website (http://www.samsung.com) to a USB
storage device.
2
Connect the USB device to the port on the monitor.
Select → Support → Software Update.
3
Follow the instructions on the screen to proceed with update.
4
Your product will turn itself off and on again automatically after
completing update, and then turn off your product.
5
Remove the power cord from the power outlet and then
reconnect the cord after turning off.
―
To perform software update by using a USB memory, first format the
USB memory to FAT32.
―
When performing update, make sure that only one BIN or IMG file (.bin
or .img) is saved in the root directory.
2nd Description
Software Update
―
Upon updates, save only either the .bin or .image file, downloaded
from the Samsung website, to the root directory.
―
If the No update files found on your USB device. Please check your
USB device and try again. message is displayed, this is probably due
to the following reasons.
―
A USB memory is not connected to the
port.
―
The files in the connected USB memory are not compatible formats.
―
There are no valid update files found in the connected USB memory.
(There are no update files saved in the memory or the file names
are incorrect.)
―
Do not turn off the product until the update is complete. And prevent
the updating from any interruption as far as possible. In general, the
product returns to the previous version if an update is interrupted.
―
It may change the screen colour or blink during USB update, but it
is not a monitor problem. Since S/W update is performed normally,
please wait until the update is finished.
Information View product information like model name.
Register Product Discover how to register your product.
Reset All Return all the settings for the product to the default factory
settings.
37
Installing the Software
Easy Setting Box
Easy Setting Box enables users to use the product by partitioning multiple sections.
To install the latest version of Easy Setting Box, download it from the Samsung website.
(http://www.samsung.com)
―
The software may not work properly if you do not restart the PC after the installation.
―
The Easy Setting Box icon may not appear depending on the PC system and the product specifications.
―
If the shortcut icon does not appear, press the F5 key.
Restrictions and Problems with the Installation
The Easy Setting Box installation may be affected by the Graphics Card, Motherboard and the
Networking Environment.
System Requirements
OS Hardware
• Windows 7 32Bit/64Bit
• Windows 8 32Bit/64Bit
• Windows 8.1 32Bit/64Bit
• Windows 10 32Bit/64Bit
• Windows 11 32Bit/64Bit
• At least 32MB of memory
• At least 60MB of free space on the hard disk drive
Driver Installation
To install the latest version of the product driver, download it from the Samsung website.
(http://www.samsung.com)
―
You can set the optimum resolution and frequency for this product by installing the corresponding drivers.
38
Troubleshooting Guide
Requirements Before Contacting Samsung
Customer Service Centre
―
Before calling Samsung Customer Service Centre, test your product as follows. If the problem persists,
contact Samsung Customer Service Centre.
Product diagnosis (Screen issue)
If a problem occurs with the monitor screen, run Self Diagnosis to check that the monitor is working
properly.
Checking the Resolution and Frequency
If a resolution that is not supported (see the Standard Signal Mode Table) is selected, the Not Optimum
Mode message may appear for a short time or the screen may not be displayed properly.
―
The displayed resolution may vary, depending on the PC system settings and cables.
Check the following.
Caution
When the product makes popping (cracking) sound.
The sound may be caused by contraction or expansion from temperature change of external
components or internal circuit of the product.
This is NOT a product failure and does not affect the life of the product.
The product is getting hot.
It is normal for the product to generate some heat when used. The product has been tested and
proven to be safe. You can use it with confidence. The heat generated by the product when used does
not affect its performance or lifespan.
Installation issue (PC mode)
Blank spaces are found on all four sides of the screen when an HDMI cable is connected to the
product and PC.
The blank spaces found on the screen have nothing to do with the product.
Blank spaces on the screen are caused by the PC or graphics card. To resolve the problem, adjust the
screen size in the HDMI settings for the graphics card.
If the graphics card settings menu does not have an option to adjust the screen size, update the
graphics card driver to the latest version.
(Please contact the graphics card or PC manufacturer for further details about how to adjust the
screen settings.)
39
The screen is too bright. The screen is too dark.
Adjust Brightness and Contrast.
Screen colour is inconsistent.
Change the Color settings.
The colours on the screen have a shadow and are distorted.
Change the Color settings.
White does not really look white.
Change the Color settings.
There is no image on the screen and the power LED blinks every 0.5 to 1 second.
Check the cable connection between the product and PC, and ensure the connectors are locked.
Press any key on the keyboard or move the mouse to return to normal operating mode.
The product is operating in power-saving mode.
Text is blurry.
If using a Windows OS (e.g. Windows 7, Windows 8, Windows 8.1 or Windows 10): Go to Control Panel
→ Fonts → Adjust ClearType text and change Turn on ClearType.
Video playback is choppy.
Playback of high-definition large video files can be choppy. This may be because the video player is
not optimised for the PC resource.
Try playing the file on another video player.
Screen issue
The power LED is off. The screen will not turn on.
Check that the power cord is connected properly.
If a problem occurs with the monitor screen, run Self Diagnosis to check that the monitor is working
properly.
The message Check the cable connection and the settings of the source device. appears.
Check that the cable is properly connected to the product.
If the monitor is in HDMI1, HDMI2 or DisplayPort mode, press the
button to display the Function
Key Guide screen and select the → System → PC/AV Mode → HDMI1, HDMI2, DisplayPort → PC or
AV.
Not Optimum Mode is displayed.
This message appears when the signal from the graphics card exceeds the maximum resolution or
frequency for the product.
Change the maximum resolution and frequency to suit the product performance, referring to
Standard Signal Mode Table.
The images on the screen look distorted.
Check the cable connection to the product.
The screen is not clear. The screen is blurry.
Remove any accessories (video extension cable, etc.) and try again.
Set the resolution and frequency to the recommended level.
The screen appears unstable and shaky. There are shadows or ghost images left on the screen.
Check that the resolution and frequency for the PC are within the range of resolution and frequency
compatible with the product. Next, if required, change the settings, referring to Standard Signal
Mode Table in this manual and the Information menu on the product.
―
Available functions may differ depending on the model.
40
Sound issue
There is no sound.
Re-check the condition of the connected headphone or earphone or adjust the volume.
Check the volume.
Check whether the volume of the product or the source device is set to mute.
The volume is too low.
Adjust the volume.
If the volume is still low after turning it up to the maximum level, adjust the volume on your PC sound
card or software.
Video is available but there is no sound.
Sound cannot be heard if an HDMI-DVI cable is used to connect the input device.
Connect the device using an HDMI cable or a DP cable.
Source device issue
A beeping sound is heard when my PC is booting.
If a beeping sound is heard when your PC is booting, have your PC serviced.
Issues related to the stereo camera
The LED indicator camera at the top of the monitor does not work when using 3D.
Reset the camera if it does not work.
Resetting the camera
• The camera can be reset by removing the USB cable from the product and computer.
• Use the Device Manager in Windows on the computer.
‒ On the computer, navigate to Device Manager → Cameras → right-click with the mouse on 3D
Stereo WebCam → click Disable device menu to change it to Enable device.
• Turn the monitor off and then on again to reset the camera.
41
Q & A
―
Refer to the user manual for your PC or graphics card for further instructions on adjustment.
―
The path to the settings depends on the installed OS.
―
This function may not be supported depending on the model.
How can I change the frequency?
Set the frequency on your graphics card.
• Windows 7: Go to Control Panel → Appearance and Personalization → Display → Screen Resolution → Advanced settings → Monitor, and adjust Screen Refresh Rate under Monitor settings.
• Windows 8(Windows 8.1): Go to Settings → Control Panel → Appearance and Personalization → Display → Screen Resolution → Advanced settings → Monitor, and adjust Refresh rate under Monitor settings.
• Windows 10: Go to Settings → System → Display → Advanced display settings → Display adapter properties → Monitor, and adjust Screen refresh rate under Monitor settings.
How can I change the resolution?
• Windows 7: Go to Control Panel → Appearance and Personalization → Display → Screen Resolution → Adjust Resolution.
• Windows 8(Windows 8.1): Go to Settings → Control Panel → Appearance and Personalization → Display → Adjust Resolution, and adjust the resolution.
• Windows 10: Go to Settings → System → Display → Advanced display settings, and adjust the resolution.
How do I set power-saving mode?
• Windows 7: Go to Control Panel → Appearance and Personalization → Personalization → Screen Saver Settings → Power options or BIOS SETUP on the PC.
• Windows 8(Windows 8.1): Go to Settings → Control Panel → Appearance and Personalization → Personalize → Screen Saver Settings → Power options or BIOS SETUP on the PC.
• Windows 10: Go to Settings → Personalization → Lock screen → Screen timeout settings → Power & sleep or BIOS SETUP on the PC.
42
Specifications
General
Model Name
S27DG60*S / S27DG61*S / S27FG60*S S27FG81*S S32FG81*S S27FG90*X
Size
67.8 cm 67.7 cm 80.3 cm 68.4 cm
Display area
590.42 mm (H) x 333.72 mm (V) 589.97 mm (H) x 332.9 mm (V) 699.48 mm (H) x 394.73 mm (V) 596.736 mm (H) x 335.664 mm (V)
Pixel Pitch
0.2292 mm (H) x 0.2292 mm (V) 0.153 mm (H) x 0.153 mm (V) 0.1814 mm (H) x 0.1814 mm (V) 0.1554 mm (H) x 0.1554 mm (V)
Maximum Pixel Clock
S27DG60*S: 1670 MHz
S27DG61*S: 1120 MHz
S27FG60*S: 2455.25 MHz
2438.5 MHz 2438.5 MHz 1630 MHz
Power Supply
AC100-240V~ 50/60Hz
Based on the AC voltage of the adapter. For the DC voltage of the product, refer to the product label.
Signal connectors
HDMI, DisplayPort
Environmental conditions Operating
Temperature
S27DG60*S / S27DG61*S / S27FG81*S / S32FG81*S: 10 °C to 40 °C (50 °F to 104 °F)
S27FG60*S / S27FG90*X: 0 °C to 40 °C (32 °F to 104 °F)
Humidity: 10 % to 80 %, non-condensing
Storage
Temperature: -20 °C to 45 °C (-4 °F to 113 °F)
Humidity: 5 % to 95 %, non-condensing
43
• Plug-and-Play
This product can be installed and used with any Plug-and-Play compatible systems. Two-way data exchange between the product and PC system optimises the product settings. Product installation takes
place automatically. However, you can customise the installation settings if desired.
• Panel Dots (Pixels)
Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm) may be brighter or darker on the LCD panel. This does not affect product performance.
• Audio is played with the same sound settings as the connected device. Audio sound settings (e.g. the bit and sample rates) can be changed from the connected device.
• The above specifications are subject to change without notice to improve quality.
• For detailed device specifications, visit the Samsung website.
• Open Source License Notice
Open Source used in this product can be found on the following webpage (https://opensource. samsung.com).
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
―
This license may not be supported depending on the model or geographical area. Please refer to the samsung.com website for detailed information regarding FreeSync.
44
Standard Signal Mode Table
Model Name S27DG60*S S27DG61*S S27FG60*S S27FG81*S / S32FG81*S S27FG90*X
Synchronization
(PANEL Spec)
Vertical Frequency
48 ~ 360 Hz 48 ~ 240 Hz 48 ~ 500 Hz 48 ~ 240 Hz 48 ~ 165 Hz
Resolution Optimum resolution
2560 x 1440 @ 120 Hz 2560 x 1440 @ 120 Hz 2560 x 1440 @ 500 Hz 3840 x 2160 @ 240 Hz 3840 x 2160 @ 165 Hz
Maximum resolution
2560 x 1440 @ 360 Hz 2560 x 1440 @ 240 Hz 2560 x 1440 @ 500 Hz 3840 x 2160 @ 240 Hz 3840 x 2160 @ 165 Hz
―
When using dual monitors from your computer while in DSC mode at 2560 x 1440 @ 240 Hz or higher or when using PBP mode from the computer, the computer may not function properly due to the output limit of the
computer graphics card. If this happens, decrease the resolution and refresh rate from the computer.
If a signal that belongs to the following standard signal modes is transmitted from your PC, the screen will automatically be adjusted. If the signal transmitted from the PC does not belong to the standard signal
modes, the screen may be blank even though the power LED turns on. In such a case, change the settings according to the following table by referring to the graphics card user manual.
Resolution
Horizontal Frequency
(kHz)
Vertical Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
Port
HDMI IN DP IN
VESA, 640 x 480
31.469 59.940 25.175 -/- O O
VESA, 640 x 480
37.500 75.000 31.500 -/- O O
VESA, 800 x 600
37.879 60.317 40.000 +/+ O O
VESA, 800 x 600
48.077 72.188 50.000 +/+ O O
VESA, 800 x 600
46.875 75.000 49.500 +/+ O O
VESA, 1024 x 768
48.363 60.004 65.000 -/- O O
45
Resolution
Horizontal Frequency
(kHz)
Vertical Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
Port
HDMI IN DP IN
VESA, 1024 x 768
56.476 70.069 75.000 -/- O O
VESA, 1024 x 768
60.023 75.029 78.750 +/+ O O
VESA, 1152 x 864
67.500 75.000 108.000 +/+ O O
VESA, 1280 x 720
45.000 60.000 74.250 +/+ O O
VESA, 1280 x 800
49.702 59.810 83.500 -/+ O O
VESA, 1280 x 1024
63.981 60.020 108.000 +/+ O O
VESA, 1280 x 1024
79.976 75.025 135.000 +/+ O O
VESA, 1440 x 900
55.935 59.887 106.500 -/+ O O
VESA, 1600 x 900
60.000 60.000 108.000 +/+ O O
VESA, 1680 x 1050
65.290 59.954 146.250 -/+ O O
VESA, 1920 x 1080
67.500 60.000 148.500 +/+ O O
CEA, 720 x 480
31.469 59.940 27.000 -/- O O
CEA, 1920 x 1080
135.000 120.000 297.000 +/+ O O
CEA, 3840 x 2160
135.000 60.000 594.000 +/+ O -
Custom Timing, 2560 x 1440
96.479 59.999 277.860 +/- O O
Custom Timing, 2560 x 1440
192.958 119.999 555.720 +/- O O
4)
Custom Timing, 2560 x 1440
257.169 164.958 699.500 +/- O O
1)
Custom Timing, 2560 x 1440
385.851 239.957 1111.250 +/- O O
1)
Custom Timing, 2560 x 1440
578.878 359.999 1667.170 +/- O O
2)
Custom Timing, 2560 x 1440
385.545 239.767 1116.539 +/- O O
46
Resolution
Horizontal Frequency
(kHz)
Vertical Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
Port
HDMI IN DP IN
3)
Custom Timimg, 2560 x 1440
833.984 499.991 2455.250 +/- O -
3)
Custom Timimg, 2560 x 1440
833.984 499.991 2268.250 +/- - O
3)
Custom Timimg, 2560 x 1440
400.306 239.991 1178.500 +/- O O
Custom Timing, 1920 x 1080
96.479 59.999 277.860 +/- O O
Custom Timing, 1920 x 1080
289.352 239.927 625.000 +/- O O
4)
Custom Timing, 1920 x 1080
192.788 164.917 401.000 +/- O O
1)
Custom Timing, 1920 x 1080
434.144 359.986 937.750 +/- O O
3)
Custom Timimg, 1920 x 1080
625.434 499.947 1441.000 +/- O O
3)
Custom Timimg, 1920 x 1080
300.239 239.999 691.750 +/- O O
―
1)
This input signal is supported on S27DG60*S.
―
2)
This input signal is supported on S27DG61*S.
―
3)
This input signal is supported on S27FG60*S.
―
4)
This input signal is supported on S27FG90*X.
―
Horizontal Frequency
The time required to scan a single line from the left to the right side of the screen is called a horizontal cycle. The reciprocal number of a horizontal cycle is called horizontal frequency. Horizontal frequency is measured in
kHz.
―
Vertical Frequency
Repeating the same picture dozens of times per second allows you to view natural pictures. The repeat frequency is called "vertical frequency" or "refresh rate" and is indicated in Hz.
―
This product can be set to only one resolution for each screen size to obtain the optimum picture quality due to the nature of the panel. Using a resolution other than the specified resolution may degrade the picture quality.
To avoid this, it is recommended that you select the optimum resolution specified for your product.
―
Depending on the source device, 4K output from an AV device is supported only when the Adaptive-Sync is Off.
47
Appendix
Responsibility for the Pay Service (Cost to
Customers)
―
When the service is requested, in spite of in warranty, we may charge you for a visit from a service
technician in the following cases.
Not a product defect
Cleaning of the product, Adjustment, Explanation, Re-installation and etc.
• If a service technician is requested to give instructions on how to use product or simply adjusts
options without disassembling product.
• If a defect is caused by external environmental factors (Internet, Antenna, Wired Signal, etc.)
• If a product is reinstalled or devices are connected additionally after installing the purchased
product for the first time.
• If a product is reinstalled to move to a different spot or to move to a different house.
• If the customer requests instructions on how to use another company's product.
• If customer requests instructions on how to use the network or another company's programme.
• If customer requests software installation and setup for the product.
• If a service technician removes/cleans dusts or foreign materials inside of the product.
• If customer requests an installation additionally after purchasing a product through home-
shopping or online.
A Product damage caused by customer's fault
Product damage caused by customer's mishandling or wrong repair
If a product damage is caused by;
• External impact or drop.
• Use of supplies or separately sold product unspecified by Samsung.
• Repair from a person besides an engineer of outsourcing service company or partner of Samsung
Electronics Co., Ltd.
• Remodeling or repairing the product by customer.
• Using it with incorrect voltage or non-authorised electrical connections.
• Not following the "cautions" in User guide.
Others
• If product fails by natural disaster. (lightning, fire, earthquake, flood damage, etc)
• If consumable components are all used up. (Battery, Toner, Fluorescent lights, Head, Vibrator,
Lamp, Filter, Ribbon, etc.)
―
If customer requests a service in case the product has no defect, service fee may be charged. So please
read User guide first.
48
FreeSync (for AMD graphics card)
―
This function may not be supported depending on the model.
FreeSync technology is solution that eliminates screen tearing without all the usual lag and latency.
This feature will eliminate screen tearing and lag during game play. Improve your gaming experience.
The displayed FreeSync menu items on the monitor may vary, depending on the monitor model and
compatibility with the AMD graphics card.
• Off: Disable FreeSync.
• On: Turn on the AMD graphics cards' FreeSync function. You may experience intermittent flickers
when playing some games.
Apply the optimum resolution when using FreeSync.
The refresh rate setting method please refer to Q & A → How can I change the frequency?
―
This menu is not available when PC/AV Mode is set to AV.
―
This menu is not available when PIP Mode is enabled.
―
The FreeSync function is only enabled in HDMI1, HDMI2 or DisplayPort mode.
Use the HDMI/DP cable provided by the manufacturer when using FreeSync.
―
If the FreeSync function is in use and the text displayed on the PC screen looks blurry or corrupted, resolve
the issue by changing the resolution of the PC screen to the recommended resolution.
―
If the DisplayPort Ver. is set to 1.1, the FreeSync Premium / FreeSync Premium Pro mode is disabled.
―
If the DisplayPort Ver. is set to 1.2, the FreeSync Premium / FreeSync Premium Pro mode is disabled.
If you use the FreeSync function while playing a game, the following symptoms may occur:
• The screen may flicker depending on the type of graphics card, the game option settings, or the
video being played. Try the following actions: decrease the game setting values, change the
current FreeSync Premium / FreeSync Premium Pro mode to Off, or visit the AMD website to check
your graphics driver’s version and update it with the latest one.
• While you are using the FreeSync function, the screen may flicker due to variation of the output
frequency from the graphics card.
• The response rate during the game may fluctuate depending on the resolution. A higher resolution
generally decreases the response rate.
• The sound quality of the monitor may be degraded.
―
If you encounter any issues when using the function, contact the Samsung Service Centre.
―
If you change the screen resolution while the function is On, the screen may intermittently blank out due
to the graphic card. Set FreeSync Premium / FreeSync Premium Pro to Off and change the resolution.
―
The function is unavailable in the devices (e.g. AV devices) that have no AMD graphic card. If the function is
applied, the screen may have malfunction.
The models in the Graphics Cards list supports FreeSync
FreeSync can only be used with specific AMD graphics card models. Refer to the following list for
supported graphics cards:
Make sure to install the latest official graphics drivers from AMD that support FreeSync.
―
For additional AMD graphics card models that support the FreeSync feature, visit the official AMD website.
―
Select FreeSync Premium / FreeSync Premium Pro Off if you are using a graphics card from a different
manufacturer.
―
When applying the FreeSync function via the HDMI cable, it may fail to work due to the bandwidth
limitation of certain AMD graphics card.
• Radeon™ RX Vega series
• Radeon™ RX 500 series
• Radeon™ RX 400 series
• Radeon™ R9/R7 300 series (excluding R9
370/X, R7 370/X, R7 265)
• Radeon™ Pro Duo (2016 edition)
• Radeon™ R9 Nano series
• Radeon™ R9 Fury series
• Radeon™ R9/R7 200 series (excluding R9
270/X, R9 280/X)
49
Adaptive-Sync (for NVIDIA graphics card)
―
This function may not be supported depending on the model.
Adaptive-Sync technology is solution that eliminates screen tearing without all the usual lag and
latency.
This feature will eliminate screen tearing and lag during game play. Improve your gaming experience.
The displayed Adaptive-Sync menu items on the product may vary, depending on the product model
and compatibility with the NVIDIA graphics card.
• Off: Disable Adaptive-Sync.
• On: Enable the Adaptive-Sync feature with a higher screen frame rate. Screen tearing (abnormal
sync between the screen and content) is reduced in this mode. Note, however, that intermittent
screen flickering may occur during gameplay.
If you use the Adaptive-Sync function while playing a game, the following symptoms may occur:
• The screen may flicker depending on the type of graphics card, the game option settings, or the
video being played. Try the following actions: decrease the game setting values, or visit the NVIDIA
website to check your graphics driver’s version and update it with the latest one.
• When using the Adaptive-Sync function, the screen may flicker due to the fluctuation of output
frequency from the graphics card.
• The response rate during the game may fluctuate depending on the resolution. A higher resolution
generally decreases the response rate.
• The sound quality of the product may be degraded.
―
If you encounter any issues when using the function, contact the Samsung Service Centre.
―
When the resolution is changed while setting Adaptive-Sync, the screen tearing can happen intermittently.
Set Adaptive-Sync to Off and change the resolution.
―
The function is unavailable in the devices (e.g. AV devices) that have no NVIDIA graphics card. If the
function is applied, the screen may have malfunction.
―
Depending on the source device, 4K output from an AV device is supported only when the Adaptive-Sync is
Off.
―
Use the DisplayPort cable provided by the manufacturer when using Adaptive-Sync.
―
Install the latest NVIDIA graphics card driver to enable Adaptive-Sync.
―
Use Window 10 or higher to enable Adaptive-Sync.
―
If the Adaptive-Sync function is in use and the text displayed on the PC screen looks blurry or corrupted,
resolve the issue by changing the resolution of the PC screen to the recommended resolution.
―
If the DisplayPort Ver. is set to 1.1, the Adaptive-Sync mode is disabled.
―
If you set the HDMI Mode to 1.4, the Adaptive-Sync mode is disabled.
The models in the Graphics Cards list supports Adaptive-Sync
Adaptive-Sync can only be used with specific NVIDIA graphics card models. Refer to the following list
for supported graphics cards:
Make sure to install the latest official graphics drivers from NVIDIA that support Adaptive-Sync.
―
For additional NVIDIA graphics card models that support the Adaptive-Sync feature, visit the official
NVIDIA website.
―
Select Adaptive-Sync Off if you are using a graphics card from a different manufacturer.
―
When applying the Adaptive-Sync function through the DisplayPort cable, it may fail to work due to the
bandwidth limitation of certain NVIDIA graphics card.
• GeForce GTX 10 series • GeForce RTX 20 series
• GeForce RTX 30 series • GeForce RTX 40 series
