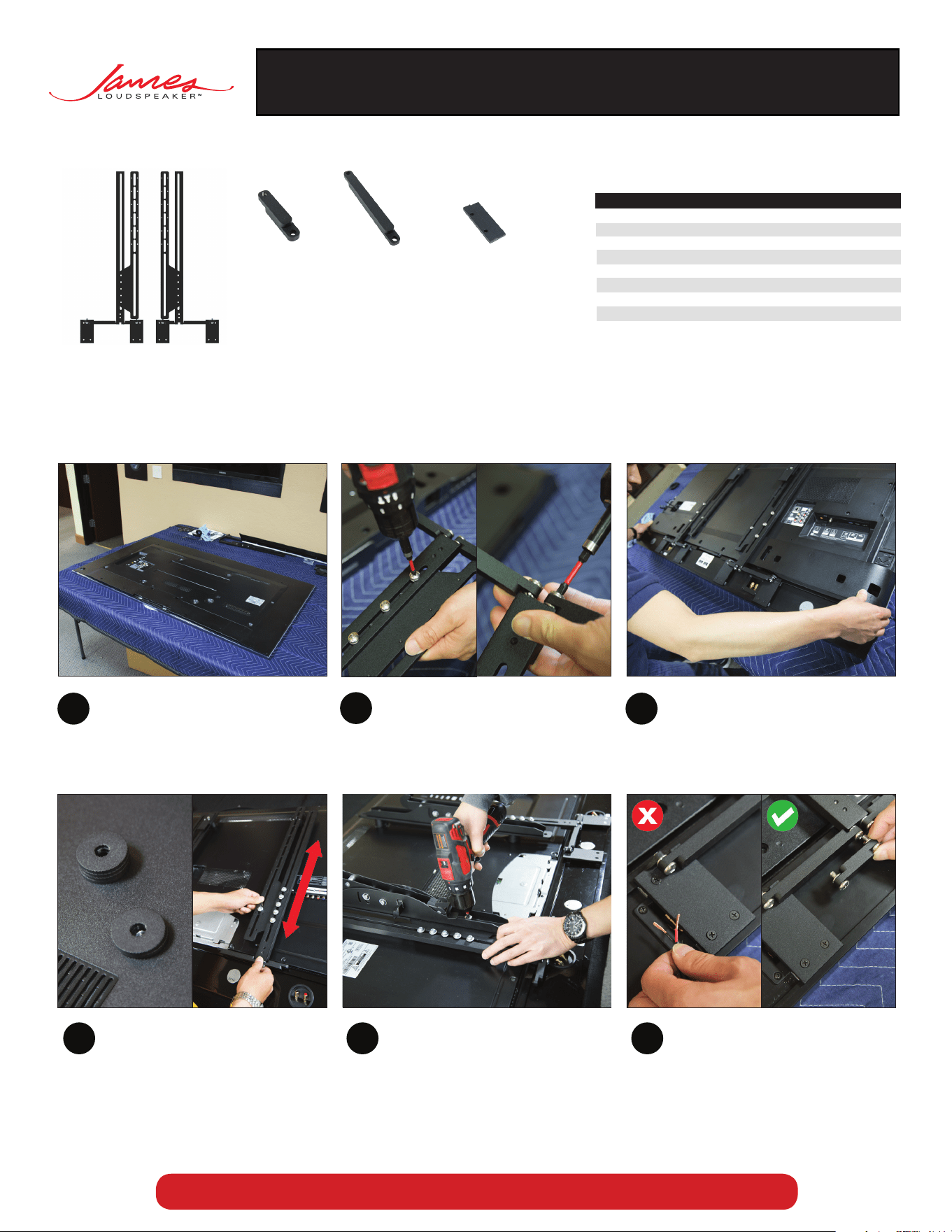

INSTALLATION GUIDE
SPL3 UNIVERSAL MOUNTING BRACKET
Installation guide for James Loudspeakers SPL3 SoundBar series universal mounting bracket.
Part Number: BRK.SPL3.UN
BRACKETS SUPPLIED HARDWARE
Part QTY Screws
E 28 Round Spacers (1.25” x 0.125”)
F 18 UNC 8-32 x 3/8” Flat Head Philips Screws
G 4 M8-50mm Pan Head Philips Screws
4 M8-45mm Pan Head Philips screws
4 M8-35mm Pan Head Philips screws
H 4 M6-50mm Pan Head Philips Screws
4 M6-45mm Pan Head Philips screws
4 M6-35mm Pan Head Philips screws
Place the TV on a padded flat surface.
Part A (Pre-Assembled)
(2) Fixed brackets, (2) Sliders,
(2) 2.5” swivel joints, part B,
(2) 5” swivel joints, part C,
(4) Bar Plates.
Loosen screws on bracket (Part A) and
pre-assembled swivel joists.
Place SoundBar evenly below the tv.
1
2
3
Determine the amount of spacers
needed (Part E). The bracket and slider
should slide up and down without
interference from TV.
Determine the screw size, M6 or M8,
required to mount your wall bracket to
the TV. Select either the M6 (Part H) or M8
(Part G ) hardware bag. 3 lengths are provided,
35mm, 45mm, and 50mm. Select the correct
length to match the spacer quantity (height) so
the screw properly holds the brackets and mount
to the TV.
(Non James TV bracket shown for illustration)
4 5 6
If the SoundBar terminals are blocked by
a bar plate, swap the swivel joint with the
alternate length, either 2.5” (Part B) or the
5” (Part C).
Part D
(8) Holding Tabs
Part B
(2) Additional
2.5˝ (63.5mm)
Swivel Joints
Part C
(2) Additional
5˝ (127mm)
Swivel Joints
Photo Needed!
IF YOU HAVE PURCHASED THE JAMES WALL MOUNT BRACKET – USE INSTRUCTIONS INCLUDED WITH MOUNT.

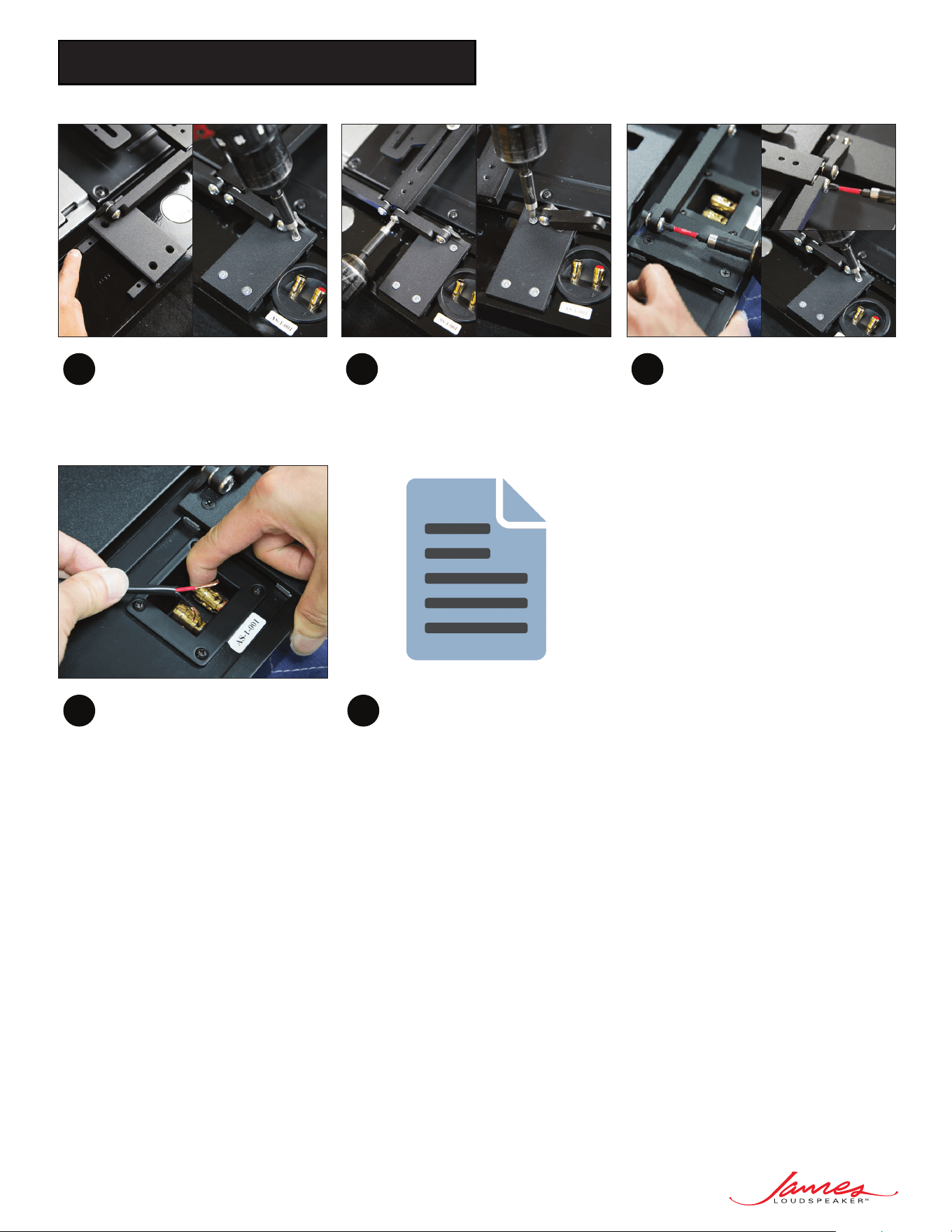

In order to secure the fourth screw on
the bar plate, you must first loosen
the swivel joint and rotate in order to
secure the screw tightly.
8
Make all final adjustments to swivel
joints and bracket tabs, make sure to
avoid stressed positions/alignments.
Lastly, tighten all screws on joints & tabs.
Ensure the SoundBar is still snug to the
TV.
9
Insert the holding tabs (Part D) into the
rear slots of the SoundBar and align
with the through-holes of the bar plates.
Secure loosely with the 8-32 x 3/8” flat head
Philips screws (Part F).
Connect wires to terminals, ensuring
polarity, before mounting to wall.
7
Follow the manufacturer’s instruction
for the wall mount installation,
and mount TV to mount
(will require 2 or more people).
10
James Loudspeaker | 535 Airpark Road, Napa, CA94558 | 707.265.6343 | www.JamesLoudspeaker.com
20160930
11
SPL3 UNIVERSAL MOUNTING BRACKET
