5.25" device bay to 3.5" SAS/SATA 6.0 Gbit/s
trayless hot-swap cage
Front Panel Storage
FS303 / FS304 / FS305
5 25" d i b t 3 5"
6
.0
G
bit
/
s
FS304
/
FS305
The following manual and guides were carefully prepared by the SilverStone engineering team to
help you maximize the potential of your SilverStone product. Please keep this manual for future
reference when upgrading or performing maintenance on your system. A copy of this manual can also
be downloaded from our website at:
Installation and system optimization guide:
Product Overview
Installation Chart
Indicator Status
Warranty
P.1
P.6
P.10
P.21
Product Overview
Front Panel Storage
1
Specifications
To accommodate PC user’s need for more storage flexibility and convenience, SilverStone created a line of front bay storage products
called the FS series. These are 5.25” bay chassis designed to fit 3.5” or 2.5” SAS/SATA drives. Equipped with release handle made out
of finely brushed aluminum, hot-swapping drives is extremely quick and comfortable. Built-in cooling fan behind the chassis ensures
drive and run cool for extended life while individual LED indicators let user easily monitor drive status in one glance. For security, each
drive tray also has metal key lock. For those that need to upgrade their current PC with more drives, SilverStone’s FS series is a great
choice.
FS303 FS304 FS305
Model
Color
Material
Form factor
Drive support
Transfer rate
Host interface
Power connector
Drive door security
Number of Key
LED indicator
Cooling fan
Switch button
Net weight
Dimension
SST-FS303B, SST-FS304B, SST-FS305B
Black
Aluminum and front bezel with plastic clip button
5.25” drive bay
3.5” SAS/SATA HDD or SSD
Up to 6 Gbit/s (dependent on drive speed)
7-Pin SATA connector X3 or SAS primary channel connection (FS303)
7-Pin SATA connector X4 or SAS primary channel connection (FS304)
7-Pin SATA connector X5 or SAS primary channel connection (FS305)
SATA 15-Pin X2
Triangle metal key lock design
2
Power ON : Blue
Accessing : Purple blinking
70mm fan x 1, 3000rpm (FS303)
80mm fan x 1, 3000rpm (FS304, FS305)
Fan speed
HDD LED
1.02kg (FS303)
1.45kg (FS304)
1.40kg (FS305)
High/Low
ON/OFF
Introduction

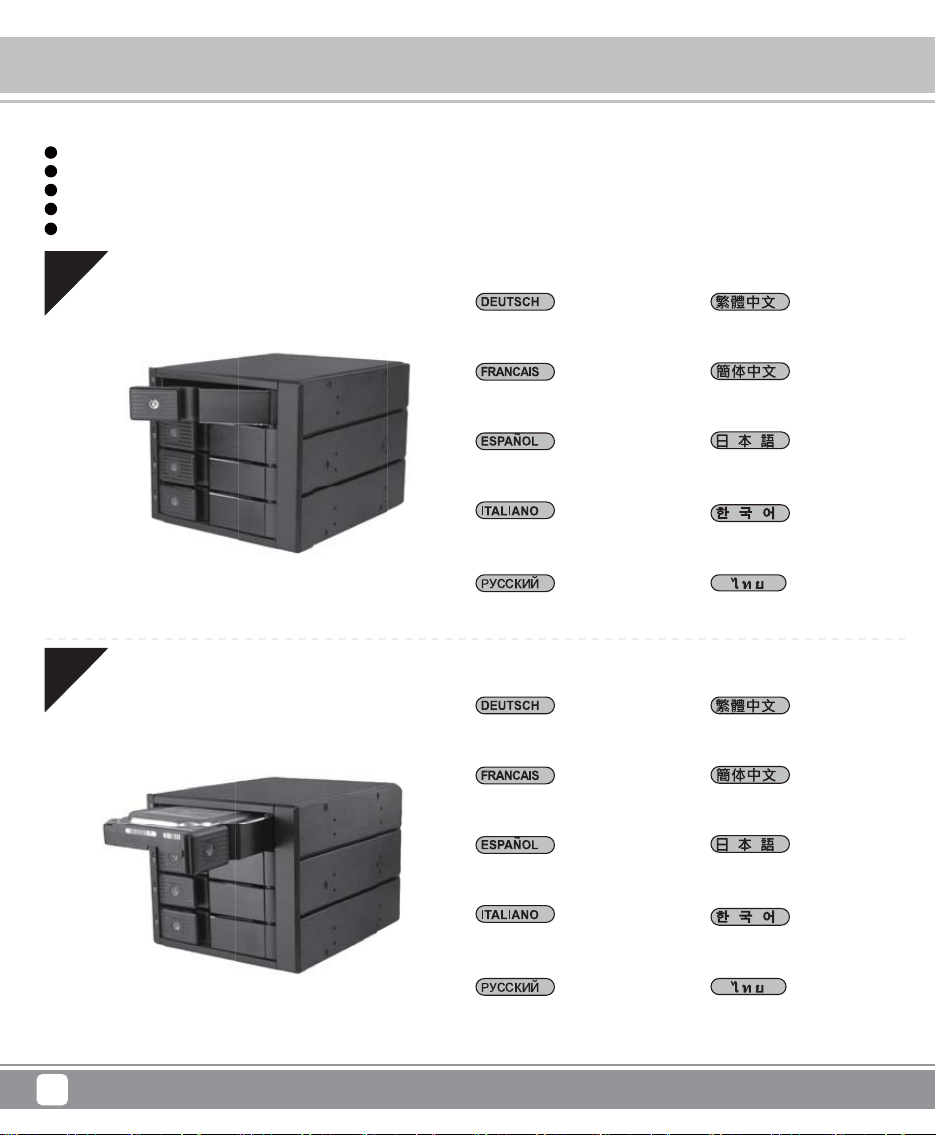

Fits 3.5” SAS/SATA 6Gbit/s drives in 5.25” device bay
Adjustable drive status LED and fan control system
Trayless & screwless design
Individual metal key lock for each drive for extra security
All aluminum body with beautiful hairline brushed finish
Independent drive status LED
Built-in cooling fan for excellent heat dissipation
Fully supports SATA Hot-Swap function
Special Features
o
r those that need to up
g
rade their current P
C
FS3
04
ho
ice
.
FS30
3
Sp
p
ecial Features
v
erStone created a line of front ba
y
sto
r
S
ATA drives.
Eq
uip
ped
with release ha
n
ble. Built-in coolin
g
fan behind the ch
a
m
onitor drive status in one
g
lance. For
s
e
drives, SilverStone’s FS se
FS305
C
with mor
e
146
X
mm (W) 84.5 mm (H)
X
195 mm (D) , FS303
146
X
mm (W) 126 mm (H)
X
199 mm (D) , FS305
146
X
mm (W) 125 mm (H)
X
98mm (D) , FS304
Product Overview
Front Panel Storage
2

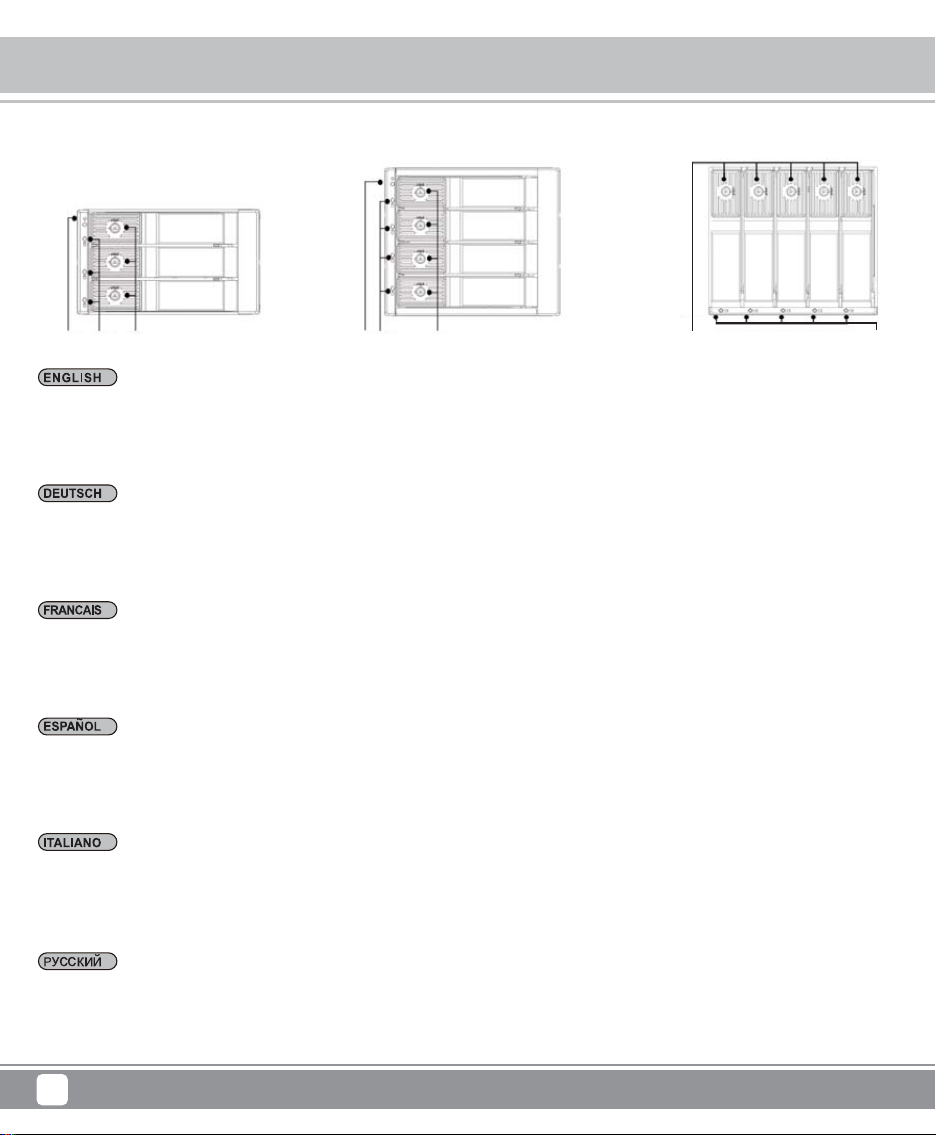

A1 = Power LED
A2 = HDD power & access LED
A3 = Triangle Safety lock
A1 = Strom LED
A2 = HDD/SSD Strom & LED ablesen
A3 = Dreieckigen Metallschloss
A1 = DEL power
A2 = HDD/SSD power & accès DEL
A3 = Serrure triangulaire de sécurité
A1 = Power LED
A2 = HDD/SSD indicador LED de power & acceso
A3 = Cerradura de seguridad de forma triángulo
A1 = Elettricità LED
A2 = HDD/SSD elettricità & accesso LED
A3 = Serratura di sicurezza triangolare
FS303 FS304 FS305
A1 = источника питания LED
A2 = Источник питания HDD/SSD и считывание индикаторов LED
A3 = Треугольный замок безопасности
A2
A1 A3
A2
A2A1
A1
A3
A3
Product Overview
Front Panel Storage
3
A1 = 電源LED狀態燈號
A2 = HDD 電源 & LED狀態燈號
A3 = 三角安全鎖
A1 = 电源LED状态灯号
A2 = HDD 电源 & LED状态灯号
A3 = 三角安全锁
A1 = 電源LED
A2 = HDD/SSD 電源& LED読み取ります
A3 = 三角形セキュリティロック
A1 =전원 LED
A2 = HDD/SSD 전원& 업로드 LED
A3 =삼각형 안전 열쇠
A1 = สวิตซ์ไฟ LED
A2 = สวิตซ์ไฟ HDD/SSD และการอ่านค่า LED
A3 = กุญแจสามเหลี่ยม
Product Overview
Front Panel Storage
4

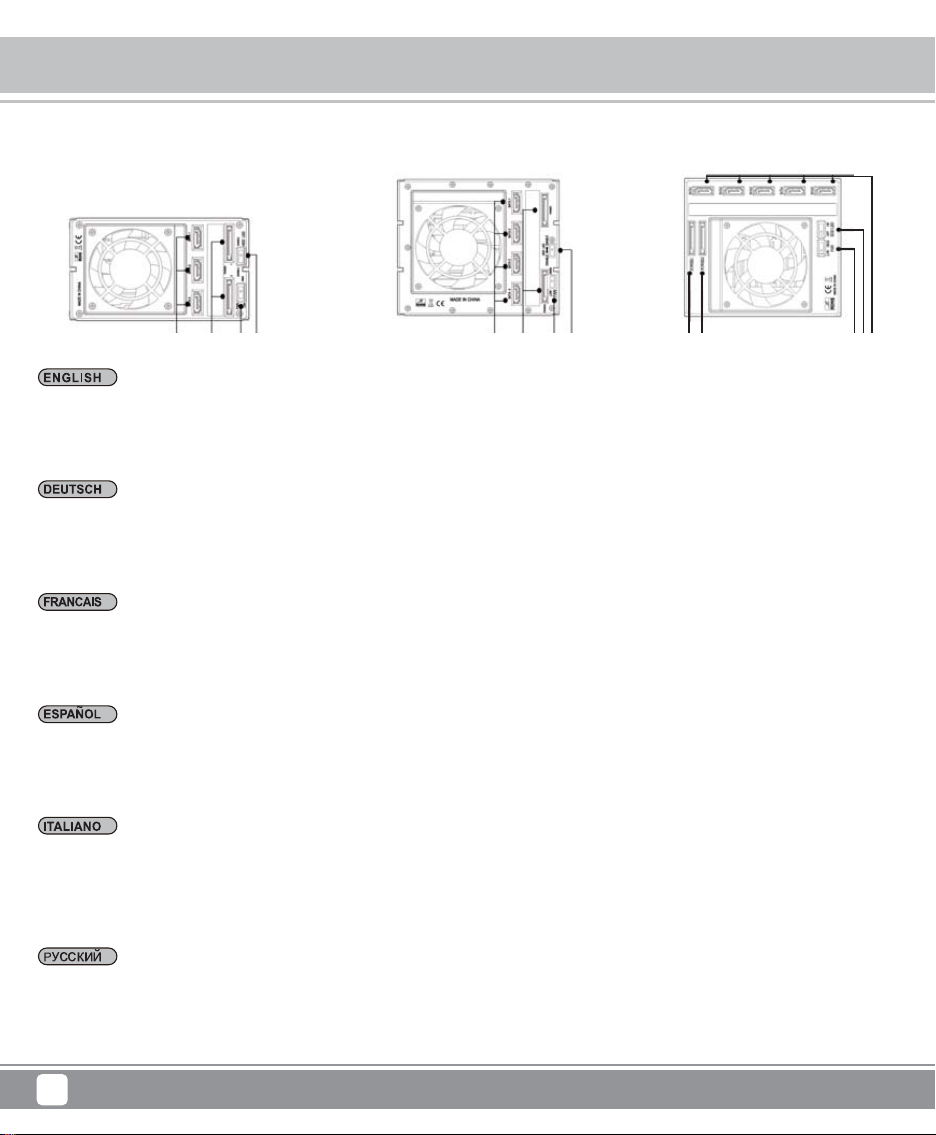

B1 = 7pin signal data connector
B2 = 15pin SATA power connector
B3 = FAN Speed switch Speed switch High (3000rpm)/Low (2400rpm)
B4 = HDD LED Switch (enable/disable)
B1 = SATA Datenübertragung Anschlüsse
B2 = 15pin Netzanschluss
B3 = Die Lüfterdrehzahl Schalter chnelle Geschwindigkeit (3000rpm) / langsame Geschwindigkeit (2400rpm)
B4 = HDD/SSD LED Schalter (Ein / Aus)
B1 = Câble de données signaux SATA
B2 = Câble d’alimentation SATA
B3 = Changement de la force de la ventilation Forte (3000rpm)/Faible (2400rpm)
B4= DEL HDD/SSD Allumer/Eteindre (ON/OFF)
B1 = 7pin conector señal de datos
B2 = 15pin SATA conector de alimentación
B3 = Interruptor de velocidad de ventilador Alto (3000rpm)/Bajo (2400rpm)
B4 = HDD/SSD LED Interruptor (activado/desactivado)
B1= SATA connettore segnale dati
B2 = SATA elettricità connettore
B3 = Interruttore di velocità ventola Veloce (3000rpm)/ Piano (2400rpm)
B4 = HDD/SSD LED interruttore (permettere / disabilitare)
FS303 FS304 FS305
B1
B2
B3
B4
B1
B2
B2
B2 B4
B3 B3 B1
B4
B1 = разъем передачи данных SATA
B2 = 15-контактный разъем питания SATA
B3 = переключатель скорости вентилятора Высокая скорость(3000 оборотов в минуту)/низкая скорость (2400оборотов в минуту)
B4 = переключатель индикатора LED HDD/SSD (вкл/выкл)
Product Overview
Front Panel Storage
5
B1 = 7pin資料接頭
B2 = 15pin SATA電源接頭
B3 = 風扇速度切換開關 快 (3000rpm)/慢(2400rpm)
B4 = HDD LED 開關 (開/關)
B1 = 7pin资料接头
B2 = 15pin SATA电源接头
B3 = 风扇速度切换开关 快 (3000rpm)/慢(2400rpm)
B4 = HDD LED 开关 (开/关)
B1 = 7pinデータ伝送コネクタ
B2 = 15pin SATA 電源コネクタ
B3 = 扇風機速度切換スイッチ高速(3000rpm)/低速(2400rpm)
B4 = HDD/SSD LED 切換スイッチ(オン/オフ)
B1 = SATA 데이터 전송 커넥터
B2 = 15pin 전원 커넥터
B3 =냉각팬 속도 전환 스위치 고속(3000rpm)/저속(2400rpm)
B4 = HDD/SSD LED 전환 스위치(개/폐)
B1 = SATA หัวต่อถ่ายโอนข้อมูลเอกสาร
B2 = 15pin SATA หัวต่อสวิตซ์ไฟ
B3 = สวิตซ์เปิดปิดสลับความเร็วของพัดลม ความเร็วสูง / ความเร็วต่ำ
B4 = HDD/SSD LED สวิตซ์เปิดปิด (เปิด/ ปิด)
Front Panel Storage
6
Installation Chart
have all components collected
check that all components do not have compatibility problems with each other or with the case
if possible, assemble the components outside the case first to make sure they are working
keep the motherboard manual ready for reference during installation
prepare a Phillips screwdriver.
1
2
3
4
5
Before you begin, please make sure that you
01
02
Entfernen Sie dieVorderrahmen
Ouvrir la lunette avant
Abrir el marco frontal
Aprire il frontalino

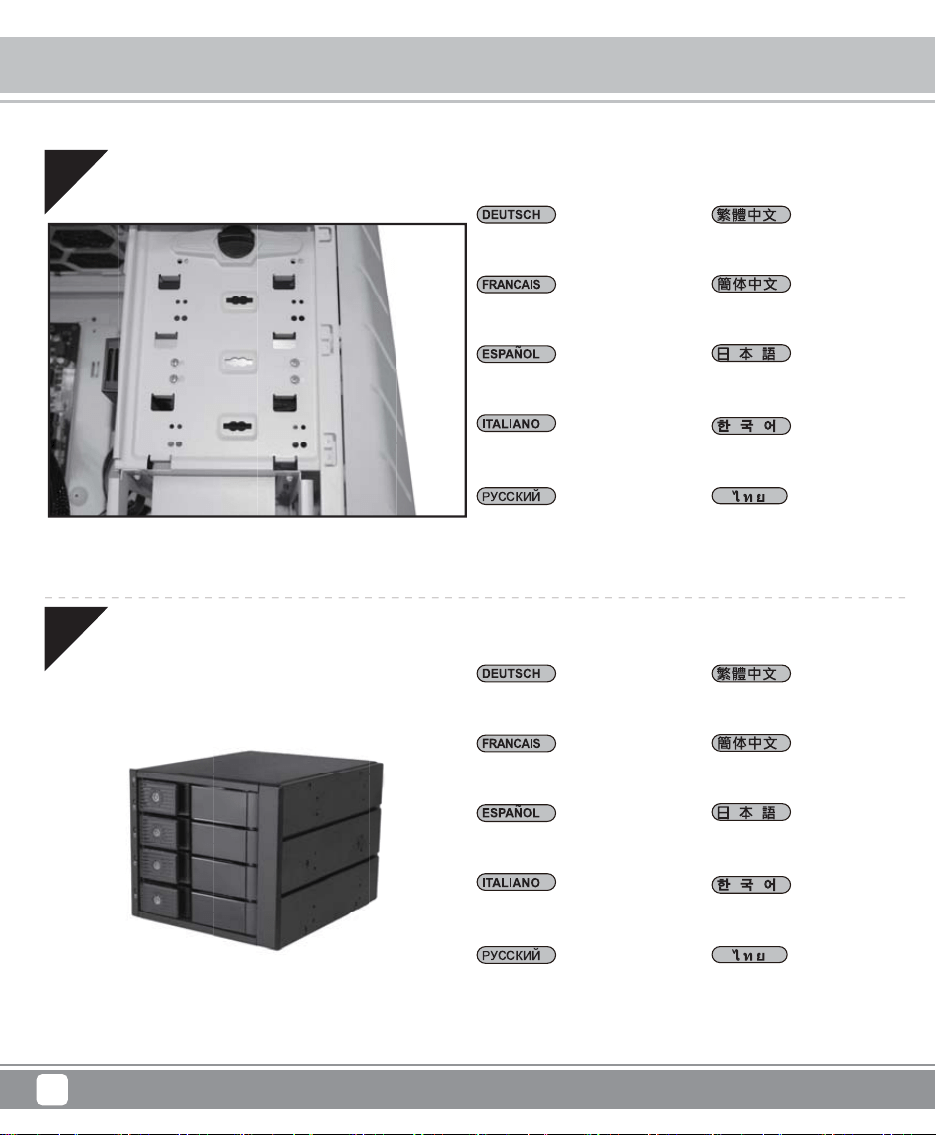

Open drive door
Открыть внешнюю панель
앞쪽 프레임을 엽니다
เปิดกรอบด้านหน้า
打開硬碟門
打开硬盘门
フロントフレームをオンにし
ます
Legen Sie die Festplatte ein
Installer le disque dur
Instalar la unidad de disco duro
Installare i dischi
Install drive
Установить жесткий диск
하드디스크를 장착합니다
ติดตั้งฮาร์ดดิสก์
安裝硬碟
安装硬盘
ハードディスクをインストール
します
Front Panel Storage
7
Installation Chart
03
04
Bauen Sie die Festplatte ins
Gehäuse ein
Installer le châssis du disque
dur dans l’emplacement
Instalar el chasis de disco en
la carcasa
Installare chassis dischi in caso

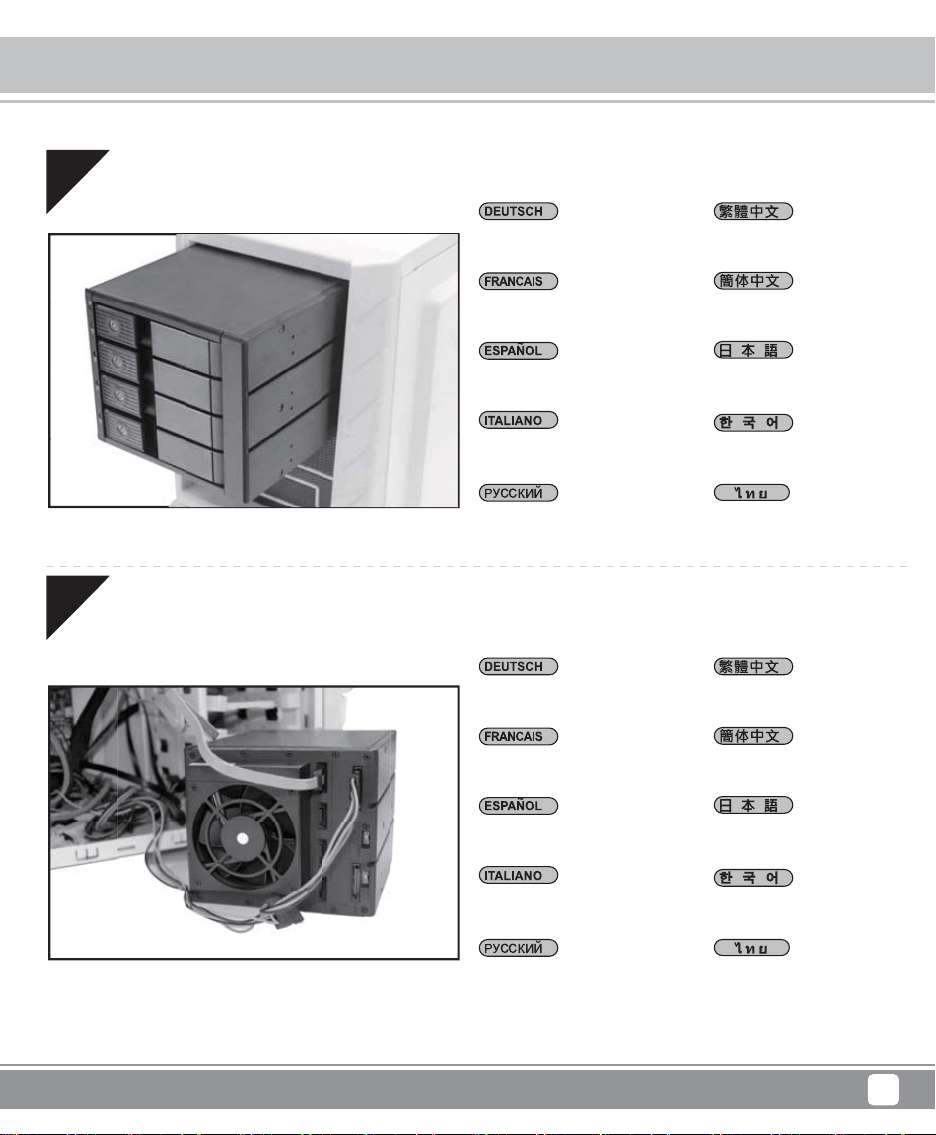

Install drive chassis into case
Установить жесткий диск в
отсек для носителей в корпусе
ПК
SATA와 전원 케이블을
연결합니다
ติดตั้งฮาร์ดดิสก์เข้ากับตัวถังให
้แน่น
放入機殼
放入机壳
ハードディスク固定台を機械
ケース中に入れます
Schließen Sie SATA an die
Leitung an
Brancher le SATA et le câble
d’alimentation
Conecta SATA y la cable de
alimentación
Collegare SATA e cavo di
alimentazione
Connect SATA and power cable
Соединить SATAс кабелем
источника питания
나사를 채웁니다
เชื่อมต่อ SATA เข้ากับสายสวิต
ซ์ไฟ
連接SATA 線與電源線
连接SATA 线与电源线
SATAを電力線と接続します
Front Panel Storage
8
Installation Chart
05
06
Schrauen Sie ein
Visser la vis
Asegurar con tornillos
Fissare con viti
Secure with screws
Закрутить винты
나사를 채웁니다
ล็อคสกรู
鎖上螺絲固定
锁上螺丝固定
ねじをしめる
Machen Sie den Vorderrahmen
zu
Fermer la lunette avant
Cerrar el marco frontal
Chiudere il frontalino
Close drive door
Закрыть панель
프레임을 닫습니다
ปิดกรอบด้านหน้า
關上硬碟門
关上硬盘门
フロントフレームをオフにし
ます
Front Panel Storage
9
Installation Chart
07
Komplettinstallation
Installation complète
Instalación completada
Completamento installazione
Установка завершена
설치가 완성되었습니다
ติดตั้งเสร็จ
完成
完成
インストール完 成
Installation complete
