2 TON TRIPOD UNDER HOIST SAFETY STAND
SAVE THIS MANUAL: KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY,
OPERATING, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE
PRODUCT’S SERIAL NUMBER ON THE BACK OF THE MANUAL NEAR THE ASSEMBLY DIAGRAM
(OR MONTH AND YEAR OF PURCHASE IF PRODUCT HAS NO NUMBER).
OWNER’S MANUAL AND SAFETY INSTRUCTIONS
ITEM: 58051
FOR QUESTIONS PLEASE CALL OUR CUSTOMER SUPPORT: (909) 628 4900 MON-FRI 9AM TO 3PM PST
GENERAL SAFETY WARNINGS
Read all safety warnings and instructions. Failure to follow the warnings and instructions may
result in serious injury. Save all warnings and instructions for future reference.
The warnings, precautions, and instructions discussed in this instruction manual cannot cover all possible
conditions and situations that may occur. It must be understood by the operator that common sense and
caution are factors which cannot be built into this product, but must be supplied by the operator. Read
carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to
follow the safety rules and other basic safety precautions may result in serious personal injury.
1
IMPORTANT SAFETY INFORMATION
DO NOT exceed rated capacity.
Use only on hard level surface.
DO NOT use the stand to support a vehicle.
Use stands in pairs to stabilize the vehicle before starting repairs.
Failure to heed these markings may result in personal injury and/ or property damage.
NO ALTERATIONS SHALL BE MADE TO THIS PRODUCT.
Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly and use.
Use as intended only. This Stand is designed to help prevent the tipping/ rocking of a vehicle while the
vehicle is engaged on an automotive lift.
Center load on saddle.
Keep bystanders out of the area during assembly.
DO NOT assemble when tired or when under the inuence of alcohol, drugs or medication.
Make sure the vehicle lift is rated to at least vehicle’s weight, in good working order, and securely locked
into place before using stand.
Assemble only according to these instructions. Improper assembly can create hazards.
Be aware of dynamic loading! Sudden load movement may briey create excess load causing product
failure.
Inspect before every use; DO NOT use if parts are loose or damaged.
DO NOT use for aircraft purposes.
This product is not a toy. DO NOT allow children to play with or near this item.
Maintain product labels and nameplates. These carry important safety information. If unreadable or
missing, contact Stark Tools for a replacement.
Weight capacity and other product capabilities apply to properly and completely assembled product only
2
INFORMATION
4
7
5
6
8
COMPLETED ASSEMBLY IMAGE

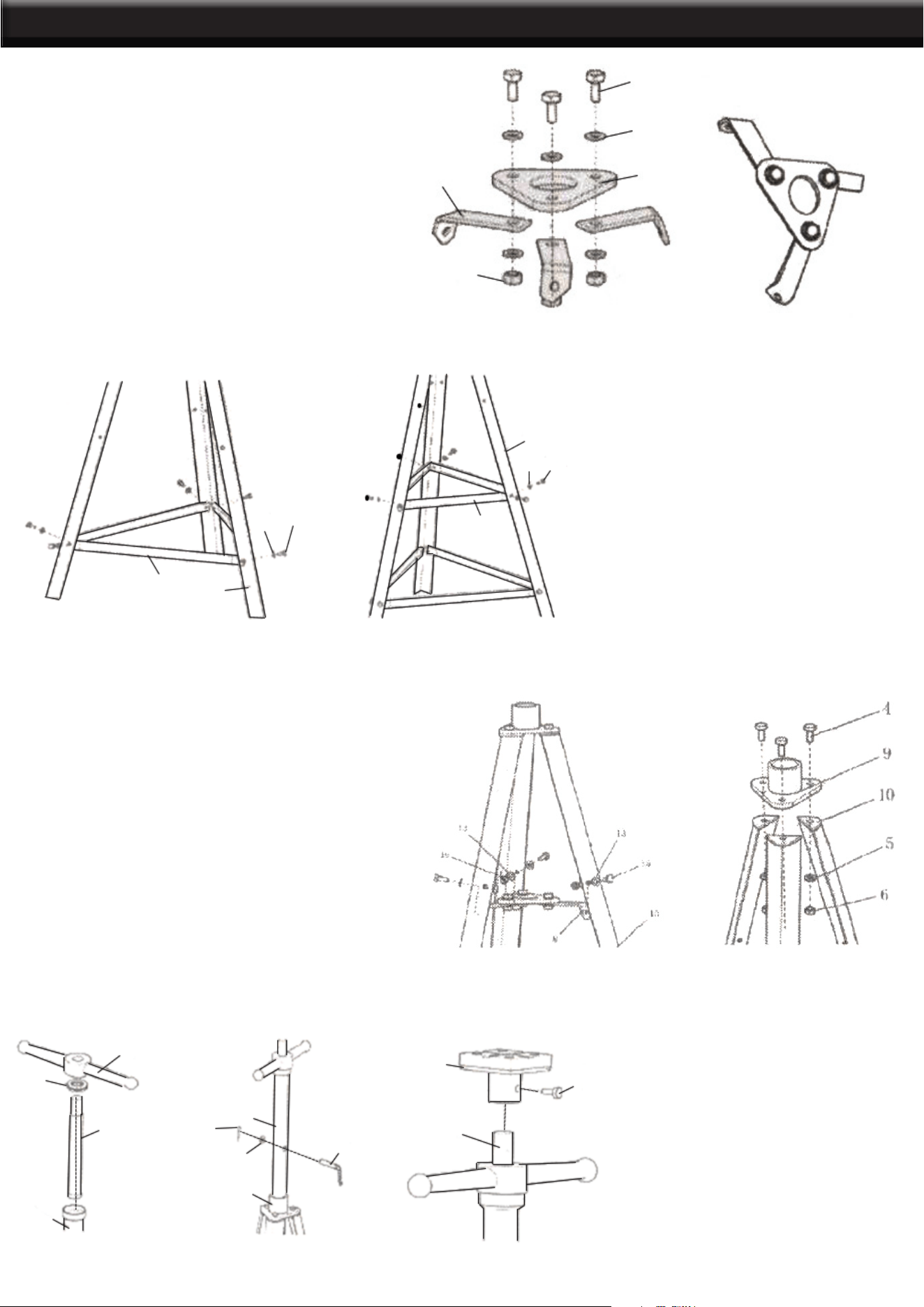

1. Attach Connector Plate (7) with
component hardware: L-Bracket (8) to
the Middle Bridge (7), using bolt M8x20 (4),
Washer 8 (5), nut M8 (6).
2. Tripod Assembly : Attach the pull
rod (11) with the support pillar (10),
using the plain washer M8 (13)
and bolt M8x16 (12). Attach the
short pull rod (14) with the support
pillar (10) using the plain washer
M8 (13) and bolt M8x16 (12).
11
10
13
12
14
10
13
12
3. Mount the middle bridge (8) with the support
pillar (10), using plain washer M8 (13) bolt
M8x20 (15) and nut M8 (16). mount the lock
plate (9) with the support pillar (10)using the
plain washer M8 (5), bolt M8x25 (4) and nut M8
(6).
18
3
19
20
23
9
21
22
19
17
18
20
4. Attach column (20) with handle
(17), install bearing assembly: First
install bearing base (18) screw the
handle (17) into the threaded rod
(19) and insert into column (20)
to adjust the position of the stand,
use the lock bolt (21), plain washer
M12 (22) and hitch pin clip (23).
Attach the saddle bracket using
bolt M8x20 (15).
3

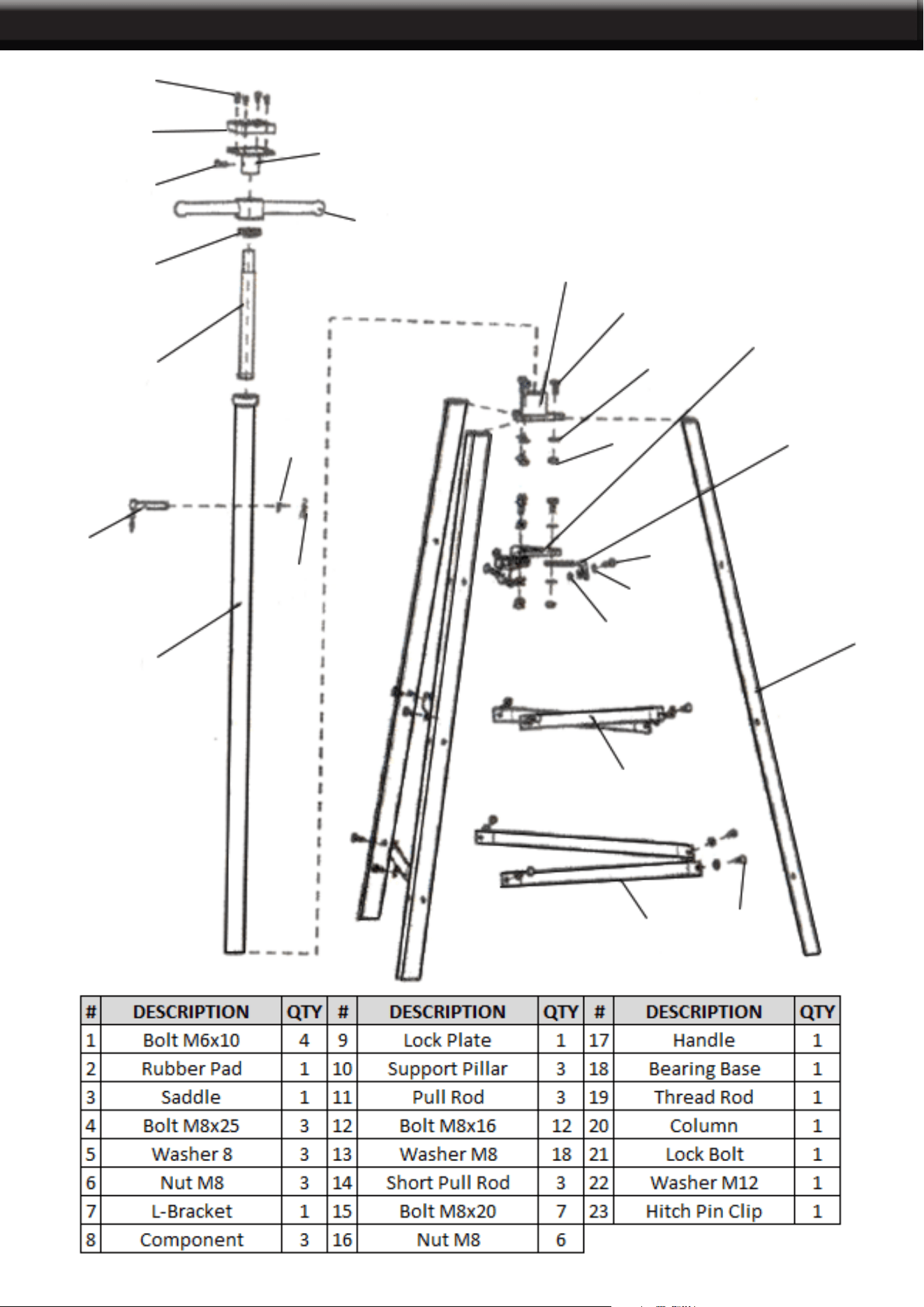

PARTS INFORMATION
1
2
3
15
9
4
5
6
7
8
18
19
15
13
16
21
22
23
20
14
10
12
11
17
PRODUCT MADE IN CHINA
3
4
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only and are not available
individually as replacement parts.
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY
DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR
DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT
HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS
QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR
DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE
UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER
ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL
PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION
OF REPLACEMENT PARTS THERETO.
PLEASE READ THE FOLLOWING CAREFULLY
DISCLAIMER
PRODUCT MADE IN CHINA
