Read all instructions before assembly and use.
KEEP INSTRUCTIONS FOR FUTURE USE.
ADULT ASSEMBLY REQUIRED
Due to the presence of small parts during assembly,keep
out of reach of children until assembly is complete.
THIS PRODUCT IS NOT INTENDED FOR INSTITUTIONAL OR COMMERCIAL USE.
When contacting Dream On Me you
will need to reference the above
numbers .They can also be found on
the label on the Crib End bottom rail.
To register your product for important safety alerts and updates to your product
please visit www.dreamonme.com and click on Product Registration.
style #: 658
MFG date
: Oct 2020

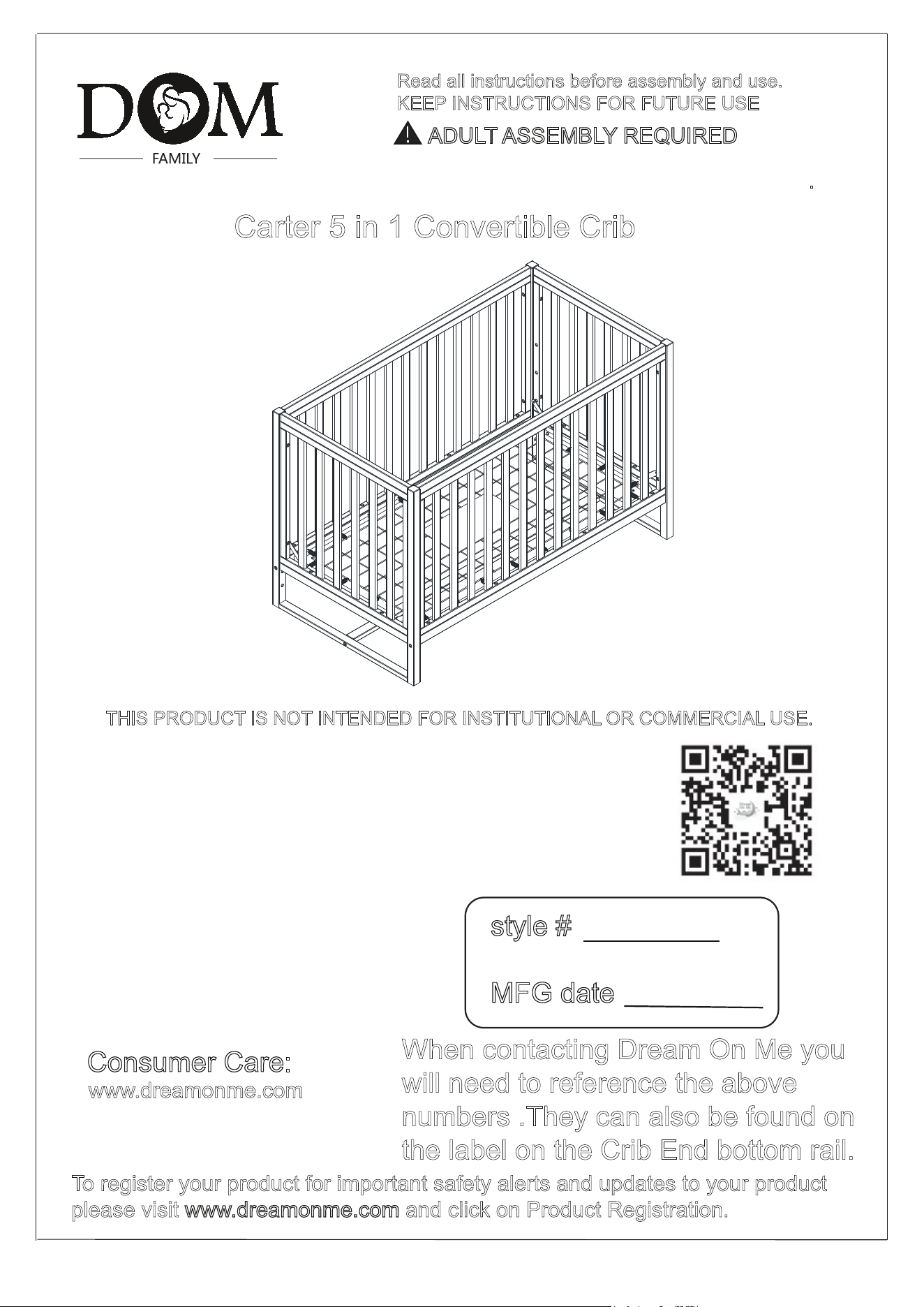

Carter 5 in 1 Convertible Crib
Consumer Care:
www.dreamonme.com
1532 S WASHINGTON AVE
Email: [email protected]
www.dreamonme.com
Scan the QR code to register your product
https://dreamonme.com/customercare/registration/
.
. Strangulation Hazard: Do not place crib near window or patio door where cords from blinds or
drapes may strangle a child.
CAUTION:
Fall Hazard: When child is able to pull to a standing position, set mattress to lowest position and
remove bumper pads, large toys and other objects that could serve as steps for climbing out.This
crib has an adjustable mattress support For the convenience of the parent when the baby is very
small, the mattress support may be used in the highest position.Important: with the mattress
support and mattress in the highest position, be absolutely sure that the top of the front crib side is
at least 3 inches higher then the top surface of the mattress.If it is not, lower the mattress support
and the mattress to the next highest position.
. Fall Hazard: Stop using crib when child begins to climb out or reaches a height of 35in(89cm),
whichever occurs first. The child should be placed in a youth or regular bed.
.
Check this product for damaged hardware, loose joints,loose bolts or other fasteners,missing parts,
or sharp edges before and after assembly and frequently during use.Securely tighten loose bolts
and other fasteners. Do not use crib if any parts are missing,damaged or broken.Contact Dream
On Me for replacement parts and instructional literature if needed.Do not substitute parts.
2
ANY MATTRESS USED IN THIS CRIB SHALL BE AT
LEAST 27 1/4 BY 51 5/8 IN. WITH A THICKNESS NOT
To reduce the risk of SIDS,pediatricians recommend healthy infants be placed
on their backs to sleep,
unless otherwise advised by your physician.
.
Infants can suffocate on soft bedding.Never add a pillow or comforter.Never place additional padding
under an infant.
.
.
Strangulation Hazard:STRINGS CAN CAUSE STRANGULATION! Do not
place items with a string
around a child’s neck, such as hood strings or pacifier cords. Do not suspend strings over a crib or attach
strings to toys. Strangulation Hazard: To help prevent strangulation tighten all fasteners.A child can trap
parts of the body or clothing on loose fasteners.
Failure to follow these warnings and the assembly instructions could result in
serious injury or death.
DO NOT use this crib if you cannot exactly follow the accompanying instructions.
WARNING:
.
.
Follow warnings on all products in a crib.
.
If refinishing,use a non-toxic finish specified for children’s products.
.
Never use plastic shipping bags or other plastic film as mattress covers because they can cause
suffocation.
.
Infants can suffocate in gaps between crib sides and a mattress that is too small.
.
Ensure a safe environment for the child by checking regularly, before placing the child in the crib,that
every component is properly and securely in place.
.
To avoid head injury, do not allow any child to play underneath the crib.
.
Never add an accessory such as a bassinet or changing table that extends over the sleeping area.
.
In Canada Only-Use a crib mattress that is no thicker than 15 cm and is of such a size that,when it
is pushed firmly against any side of the crib, it does not leave a gap of more than 3 cm between the
mattress and any part of the sides of the crib. Do not use this crib for a child who can climb out of it
or who is taller than 90 cm.
EXCEEDING 6 IN.
NOTES ON ASSEMBLY:
During the assembly process whenever using screws or bolts, check each by placing the screw/bolt
on the diagram of the item which is drawn actual size and design.Be sure to use the proper size and
shape specified in the instructions.
.
INFANTS HAVE DIED IN TODDLER BEDS FROM ENTRAPMENT.
Openings in and between bed parts can entrap head and neck of a small child.
NEVER use bed with children younger than 15 months.
ALWAYS follow assembly instructions.
The maximum user weight is 50Ibs(22.7kg)
WARNING:
.
To assemble this unit you may be required to place the unit on it’s side and face. It is strongly
recommended that assembly is done on a soft, non-abrasive surface to avoid damaging the finish.
NOTES ON USE:
Keep children and others safe by following these simple rules:
.
Do not
allow any child to play on furniture.
.
Always monitor your child’s activity when in the nursery.
NOTES ON CARE AND MAINTENANCE:
.
Do not
scratch or chip the finish.
STRANGULATION HAZARD
NEVER place bed near windows where cords from blinds or drapes may strangle a
NEVER suspend strings over a bed.
NEVER place items with a string,cord,or ribbon,such as hood strings or pacifier
around a child’s neck. These items may catch on bed parts.
WARNING
ENTRAPMENT HAZARD
To avoid dangerous gaps, any mattress used in this bed shall be a full-size crib
at least 51 5/8 in (1310mm) in length, 27 1/4 (690mm) in width and 4
thickness. The mattress thickness must not exceed 6 in(150mm).
CAUTION
.
Do not
allow climbing on any piece of furniture.
.
Do not
allow hanging from any piece of furniture.
.
Do not store the product or any parts in extreme temperatures and conditions such as a hot attic or
a damp, cold basement. These extremes can cause a loss of structural integrity.
.
Inspect the product periodically, contact Dream On Me for replacement parts or questions.
.
To preserve the luster of the high quality finish on your product, it is recommended to place a doily or
felt pad under any items you place on the finish.
.
Clean with a damp cloth, then a dry cloth to preserve the original luster and beauty of this fine finish.
.
Do not
use abrasive chemicals.
.
Do not spray cleaners directly onto furniture.
.
Lift slightly when moving on carpeting to prevent leg breakage.
.
Use of a vaporizer near furniture will cause wood to swell and finish to peel.
3
child.
cords,
mattress
in (100mm) in
TODDLER BED
4
Respecter les avertissements sur tous les produits du berceau.
L'assemblage par un adulte est nécessaire.
Les petites pièces peuvent présenter un danger d'étranglement avant l'assemblage.
Ci-joint s'il vous plaît trouver les instructions simples, étape par étape pour vous aider à
assembler rapidement vos produits. Avant de commencer, nous vous recommandons de
suivre les étapes ci-dessous:
1.Lire attentivement les instructions, s'il vous plaît.
2.Identifier toutes les pièces et le matériel.
3.Vous aurez besoin des outils suivants:
Tournevis tête phillips
Tournevis à tête plate
Marteau
Ne pas utiliser les perceuses ou pilotes
Pour protéger vos pièces lors de l'assemblage, placez-les sur une surface molle.
Pour nettoyer la surface, utiliser seulement l'eau et un chiffon humide.
Ne pas utiliser des nettoyants pour vitres ou des abrasifs de nettoyage car il va rayer la
surface et pourrait endommager le revêtement protecteur.
Le non-respect de ces avertissements et instructions peut entraîner des blessures graves
ou la mort.
Lisez toutes les instructions avant l'assembler du crèche, garder les instructions pour une
utilisation future.
À l'issue de l'assemblée, assurez-vous que toutes les vis, les boulons et les dispositifs de
fixation ont été bien serrés. Un contrôle fréquent doit être fait.
Ne jamais utiliser ce produit s'il y a des pièces desserrées ou manquantes, des joints lâches,
des pièces cassées ou maille/tissu déchiré. Vérifiez avant le montage et périodiquement
pendant l'utilisation. Contactez DREAM ON ME pour les pièces de rechange et des
instructions, si nécessaire. Ne jamais substituer les parties, y compris le produit des rails
latéraux, doivent être complètement érigé avant utilisation. Cesser d'utiliser le produit
lorsque l'enfant est capable de sortir ou atteint la hauteur de 35 pouces (890mm).
Ne placez jamais ce produit près de la fenêtre où les cordons de stores ou rideaux peuvent
étrangler un enfant.
Lorsque l'enfant est capable de tirer à la position debout, placez le matelas/base à la plus
basse position de réglage et enlever les bordures de protection, les gros jouets et d'autres
objets qui pourraient servir de marches pour grimper. Un enfant peut piéger les parties du
corps ou les vêtements sur des fixations desserrées. Ne jamais utiliser de sac en plastique
ATTENTION!
5
de transport ou tout autre film plastique pour recouvrir le matelas non vendu et conçus à
cette fin, ils peuvent provoquer la suffocation.
ATTENTION: Tout matelas utilisé dans ce lit doit être au moins 27-1/4 pouces (690mm) par
51-5/8 pouces (1310mm), avec une épaisseur n'excédant pas 6 pouces (150 mm), les
dimensions du matelas doivent être prises de la couture à la couture ou bord à bord dans le
cas échéant.
Ne jamais utiliser un matelas à eau avec ce produit.
Les cordes peuvent étrangler! Ne jamais placer des objets avec une chaîne autour du cou
de l'enfant, tels que les chaînes de capot ou de cordons de sucette. Ne jamais suspendre
de ficelles sur le produit ou attacher des ficelles aux jouets.
Les bébés peuvent être suffoqués dans les espaces entre un matelas trop petit ou trop
épais au côtés et des produits, ne jamais ajouter un matelas, un oreiller, une couette ou un
rembourrage sur un matelas mou.
Pour réduire le risque de SMSN, les pédiatres recommandent que les enfants en bonne
santé doivent être placés sur le dos pour dormir, sauf avis contraire de votre médecin.
Si la finition, utilisez un fini non toxique indiqué pour les produits pour enfants.
Les bébés peuvent suffoquer sur un matelas mou.
Ne jamais ajouter un coussin ou une couverture.
Ne placez jamais un rembourrage supplémentaire en vertu d'un nourrisson.
Pour aider à prévenir l'étranglement, serrer toutes les fixations. .
Un enfant peut piéger les parties du corps ou les vêtements sur des fixations desserrées.
Respecter les avertissements sur tous les produits du berceau.
Voir panneau tête et support du matelas du produit pour les avertissements.
Remplacer dentition ferroviaire si endommagé, fissuré ou lâche.
FABRIQUÉ EN CHINE
6
PARTS:MAKE SURE THAT ALL PRE-ASSEMBLED PARTS ARE TIGHT.
D. Mattress support (1 pc)
E. Center Base Rail (1 pc)
POUCH ATTACHED TO MATTRESS SUPPORT
-KEEP INSTRUCTIONS IN THIS POUCH
AFTER ASSEMBLY.
WARNINGS RELATED TO THE SAFE USE OF
THIS CRIB ARE PRINTED ON THE POUCH.
A: Left Crib End (1 pc )
C: Crib Side (2 pcs)
A1: Left Crib end back leg (1pc)
A2: Left Crib end front leg (1pc)
A3: Left Crib end (1pc)
A4: Left Crib End Bottom (1pc)
B1: Right Crib end back leg (1pc)
B2: Right Crib end front leg (1pc)
B3: Right Crib end (1pc)
B4: Right Crib End Bottom (1pc)
C1: Crib Side (2 pcs)
C2: Crib Side Top (2 pcs)
C3: Crib Side Bottom (2 pcs)
B: Right Crib End (1 pc )
A1
A2
B1
B2
A3
A4
B4
B3
C2
C1
C3
7
PARTS:
HARDWARE KIT IS PART #21598 FOR COLOR 209 OR #23486 FOR COLOR 607.
SEE FRONT COVER.
No drills necessary.
Do not use power
screwdriver
Phillips Screwdriver
(not supplied)
f. Wood dowels (8pcs)
a. M6 x 75mm BOLT x 4
d. BARREL NUT x 4
g. M4 ALLEN WRENCH SUPPLIED
c. M6 x15 mm BOLT x 4
b. M6 x 40 mm BOLT x 32
e. Cam Bolt x 4
h. Cam Lock x 4
8
SECTION 1: Crib Assembly
STEP 1
Parts and tools required to complete step.
b. M6 x 40 mm BO LT x 4
f. Wood dowels (2pcs)
g. M4 ALLEN
e. Cam Bolt x 2
h. Cam Lock x 2
A: Left Crib End (1 pc)
A1: Left Crib end back leg (1pc)
A2: Left Crib end front leg (1pc)
A3: Left Crib end (1pc)
A4: Left Crib End Bottom (1pc)
A1
A2
A3
A4
A2
A1
e
e
b
b
b
b
e
2x
A4
A3
A1
A2
2x
A6
A1
f
f
e
e
f
h
h
e
h
NOTE: AFTER ASSEMBLY, THE “STEPPED HOLES”
IN BOTH POSTS ARE ON THE SAME SIDE.
Attach Left Crib end back leg (A1) and Left Crib end front leg (A2) using Cam Bolts (e) , Tighten With the Phillips Screwdriver Wrench.
Attach Left Crib end back leg (A1) and Left Crib end front leg (A2) and Left Crib End Bottom (A4) to Left Crib end (A3)
using Bolts (b) and Cam Lock (h) and Wood dowels (f) , Tighten With the M4 Allen Wrench.
9
SECTION 1: Crib Assembly
STEP 2
Parts and tools required to complete step.
b. M6 x 40 mm BO LT x 4
f. Wood dowels (2pcs)
g. M4 ALLEN
e. Cam Bolt x 2
h. Cam Lock x 2
B: Right Crib End (1 pc)
B1: Right Crib end back leg (1pc)
B2: Right Crib end front leg (1pc)
B3: Right Crib end (1pc)
B4: Right Crib End Bottom (1pc)
B2
B1
e
e
B4
B3
B1
B2
2x
B6
B1
f
h
NOTE: AFTER ASSEMBLY, THE “STEPPED HOLES”
IN BOTH POSTS ARE ON THE SAME SIDE.
Attach Right Crib end back leg (B1) and Right Crib end front leg (B2) using Cam Bolts (e), Tighten With the Phillips Screwdriver Wrench.
Attach Right Crib end back leg (B1),Right Crib end front leg (B2) and Right Crib End Bottom (B4) to Right Crib end(B3).
B1
B2
B4
B3
e
2x
e
using Bolts (b) and Cam Lock (h) and Wood dowels (f) , Tighten With the M4 Allen Wrench.
10
SECTION 1: Crib Assembly
STEP 3
Parts and tools required to complete step.
b
b
b
b
b
b
b
b
b
.
M6 x 40 mm BO LT x 16
g. M4 ALLEN
Attach Crib side top (C2) and Crib side bottom (C3) to Crib side (C1)
using Bolts (b) , Tighten With the M4 Allen Wrench.
C: Crib Side (2 pcs)
C1: Crib Side (2 pcs)
C2: Crib Side Top (2 pcs)
C3: Crib Side Bottom (2 pcs)
C1
C2
C3
11
SECTION 1: Crib Assembly
STEP 4
Parts and tools required to complete step.
Attach The
Center Base Rail
(E) and
Crib Side
(C) to the assemblies from step 1 and assemblies from step 2 ,
using (f) wood dowels, (d) Barrel Nutand (a) 75 mm Bolts and
(b) 40mm bolts .
Tighten with the M4 Allen Wrench.
From Step 1 From Step 2
E. Center Base Rail (1 pc)
E
A4
a
a
b
b
a
f
f
f
d
d
d
2x
f. Wood dowels (2pcs)
a. M6 x 75 mm BOLT x 2
d. BARREL NUT x 2
g. M4 ALLEN
b. M6 x 40 mm BOLT x 4
D: Crib Side (1 pc)
A
B
C
E
c. M6 x15 mm BOLTx4
12
SECTION 1: Crib Assembly
STEP 5
D. Mattress support (1 pc)
Parts and tools required to complete step.
Attach the Mattress Support (D) in all corners using Bolt (c) in each corner.
Tighten with the Allen Wrench.
Localisez le support du matelas (D)
avec des onglets.Assurez-vous que le côté
lisse du support de matelas (D) est
confronté à la hausse.Positionner les
pattes du support de matelas (D) pour monter
à la position sélectionnée sur les jambes.Insérez
les boulons (c), les onglets et insertions filetés,
puis serrer avec une clé Allen .
The Warnings printed on the pouch
attached to the mattress support must
face up, the springs must face up. This crib
has adjustment positions, use the highest
only for new borns, move the mattress
down as the child grows.
WARNING:
Fall Hazard: When child is able to pull to
a standing position,set mattress to
lowest position and remove bumper
pads ,large toys and other objects that
could serve as steps for climbing out.
UP
M4 ALLEN WRENCH SUPPLIED
WARNINGS ON POUCH
MUST FACE UP
From Step 4
A
B
C
D
c
4x
B
C
D
13
SECTION 1: Crib Assembly
STEP 6
Parts and tools required to complete step.
AttachThe Crib Side (C) to The assembly from step 5 using bolts (b).Tighten All Bolts
with the allen wrench .
From Step 5
M4 ALLEN WRENCH SUPPLIED
C: Crib Side (1 pc)
b. M6 x 40 mm BOLT x 4
B
C
b
b
b
b
b
b
A
B
C
C
4X
14
SECTION 1: Crib Assembly
STEP 7
Parts and tools required to complete step.
Assenmbly Instruction
Booklet
Store the assembly instrucion booklet in the pouch attached to the mattress support. Store
all parts and tools separately, in a safe place.
WARNING:
SEE PAGE 2 FOR INFORMATION
1
Read all instructions before assembly and use.
KEEP INSTRUCTIONS FOR FUTURE USE.
ADULT ASSEMBLY REQUIRED
Due to the presence of small parts during assembly,keep
out of reach of children until assembly is complete.
THIS PRODUCT IS NOT INTENDED FOR INSTITUTIONAL OR COMMERCIAL USE.
Consumer Care:
www.dreamonme.com
When contacting Dream On Me you
will need to reference the above
numbers .They can also be found on
the label on the Crib End bottom rail.
To register your product for important safety alerts and updates to your product
please visit www.dreamonme.com and click on Product Registration.
style #: 658
MFG date
: Aug 2020
5 IN 1 CRIB
1532 S WASHINGTON AVE
PISCATAWAY TWP NJ 08854
OFFICE: 732-752-7220
CUSTOMER SERVICE: 732-366-1788
1
Read all instructions before assembly and use.
KEEP INSTRUCTIONS FOR FUTURE USE
.
ADU
LT ASSEMBLY REQUIRED
Due to the presence of small parts du
ring assembl
y,keep
out of reach of children un
til assembly is complete.
THIS PRODUCT IS NOT INTENDED FOR INSTITUTIONAL OR COMMERCIAL USE.
Consumer Care
:
www.dreamonme.com
When contacting Dream On Me you
will need to reference the above
numbers .They can also be found on
the label on the Crib End bottom rail.
To register your product for important safety alerts and updates to your product
please visit
ww
w.dreamonme.com
and click on Product Registration.
style #
: 658
MFG date
:
Aug
2020
5 IN 1 CRIB
1532 S WA
SHINGTON AVE
PISCATAW
AY TWP NJ 08854
OFFICE: 73
2-752-7220
CUSTOMER
SERVICE: 732-3
66-1788
Ai Bag
15
SECTION 2: Toddler Bed Conversion
STEP 1
Parts and tools required to complete step.
Remove the Front Rail installed in step 5 of section 1 Crib Assembly.
Allen wrench
Finished Crib
16
Stabilizer bar must be used when converted
to a toddler bed.
SECTION 2: Toddler Bed Conversion
STEP 2
WARNING:
SEE PAGE 3 FOR
TODDLER BED WARNINGS
The mattress support must be in the lowest positions.
Store all hardware safely.
Read all warnings on page 3.
As shown, use as a day bed or love seat sofa.
No Not use without stabilizer bar installed.
A toddler bed guardrail is available
for this crib. Please see your crib
retailer, visit www.dreamonme.com
or contact Consumer Care for more
information.
This crib uses Style #692 Guardrail.
(The toddler bed guardrail is sold separately.)
a
2x
A
C3
f
d
17
SECTION 3: Full Size Bed Conversion
STEP 1
Parts and tools required to complete step.
c:Allen wrench
From Section 3 Step 1
You have the option to convert crib to a full size bed II
Converting kit is sold separately
Split leg (2PCS)
Cross
Bar (7PCS)
Side Bar
(4PCS)
1.Insert the split leg to the left&right side
bar .
2.Connect the headboard Leg to the
left side bar and
the right side bar.
3.Connect the footboard Leg to the left&right side bar.
4.Connect the c to the left&right side bar. cross bar to the side bar.
I
(The Converting kit is sold separately Style#849)
18
SECTION 3: Full Size Bed Conversion II
STEP 1
Parts and tools required to complete step.
From Section 3 Step 1
Model shown is example only.
Styles may vary .
Modèle présenté à titre indicatif.
Les styles peuvent varier.
Left Foot Platform Post (1pc)
Not Supplied
Right Foot Platform Post(1pc)
Rail Post(6pcs)
ou have the option to convert crib to a full size bed II
1:Use the back rail as the headboard of full size
3:Connect the assembled parts and headboard o
hardware ) which are not included and sold sep
2:Connect the left foot platform and the right foot platform to the rail which are not included and
sold separately.
Converting kit is sold separately
Le Kit de conversion est fourni séparément
Vous avez la possibilité de convertir la crèche à un lit
de taille complète II
1.Utilisez le rail de la tête arrière du grand lit.
2.Connectez la plate-forme de pied gauche et la plate-
forme de pied droit sur les rails qui ne
sont pas inclus
3.Connectez les pièces assemblées et tête de lit de lit
de taille pour les kits (jambes, longuesrails et le
matériel)
qui ne
sont pas inclus et vendus
et vendu séparément.
séparément.
Not Supplied
Not Supplied
Not Supplied
(Hollywood bed frame sold separately)
19
To register your product for important safety alerts and updates to
your product please visit www.dreamonme.com
Please do not return this item to the store before contacting
us about missing parts or with any questions.
To report a problem, please log on to www.dreamonme.com and
contact us by phone at 732-366-1788
In the event that you need to contact our customer service
department please have the Style Number and MFG available.
Use the space below to make note of those numbers. They can be
found on the label on the Crib End bottom rail.
STYLE No: 658
COLOR
FTY
Lot No:
Pack Date:
Date of Purchase: (you should also keep your receipt)
20
LIMITED WARRANTY
workmanship and agrees to remedy any such defect.
This is solely limited to the repair or replacement of defective furniture
components and no assembly labor is included.
assembled, subjected to misuse or abuse or which has been altered or
repaired in any way.
rights which vary from State to State.
WARNING: Should this product become damaged, and/or components
are broken or missing, DO NOT USE
Enter our monthly giveaway!
Simply scan the QRcode to register.
Chat with us!
For any questions or concerns or feedback.
1532, S. Washington Avenue
Piscataway, NJ 08854
E-mail: [email protected]
www.dreamonme.com
Follow us on
to get your nursery featured on our social media.
@dreamonmeinc
@dreamonmeinc
