INTRODUCTION
This comprehensive planning guide provides you with the
framework and tools to achieve your desired design outcome
with Fisher & Paykel appliances. In this guide, you will find a
range of conceptual, detailed, and dimensional product
information to bring your ideas to life and create spaces that
truly reflect your vision.
NOTES
The models shown in this Planning Guide may not be available
in all markets and are subject to change at any time. Refer to
our website fisherpaykel.com for the latest document version.
Product specifications may vary from those shown.
This Planning Guide should not be used as installation guidance
for any product. Specific installation guidance will be available
with the product on delivery and on our website.
Design choices
Cooktop models 4
Specification Guide
90cm CI905ZZDTB5, CI905ZZDTG5 6
90cm CI905ZDTB5 7
80cm CI804ZZDTB5, CI804ZZDTG5 8
80cm CI804ZDTB5 9
60cm CI604ZZDTB5, CI604ZZDTG5 10
60cm CI604ZDTB5, CI604ZDTPB5 11
30cm CI302ZDTB5 12
Data sheets
90cm models 14
80cm models 15
60cm models 16
30cm models 17
Planning considerations
Cutout dimensions - proud and flush 19
Cooktop Ventilation 20
Services
Power requirements 22
Services 23
<< CONTENTS
© FISHER & PAYKEL LIMITED 2026 PAGE 390004888D PLANNING GUIDE SErIES 7 INDUctIoN cooktoPS - VErSIoN D - FEBrUArY 2026
DESIGN CHOICES
© FISHER & PAYKEL LIMITED 2026 PAGE 490004888D PLANNING GUIDE SErIES 7 INDUctIoN cooktoPS VErSIoN D - FEBrUArY 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
DESIGN CHOICES | INDUCTION COOKTOPS

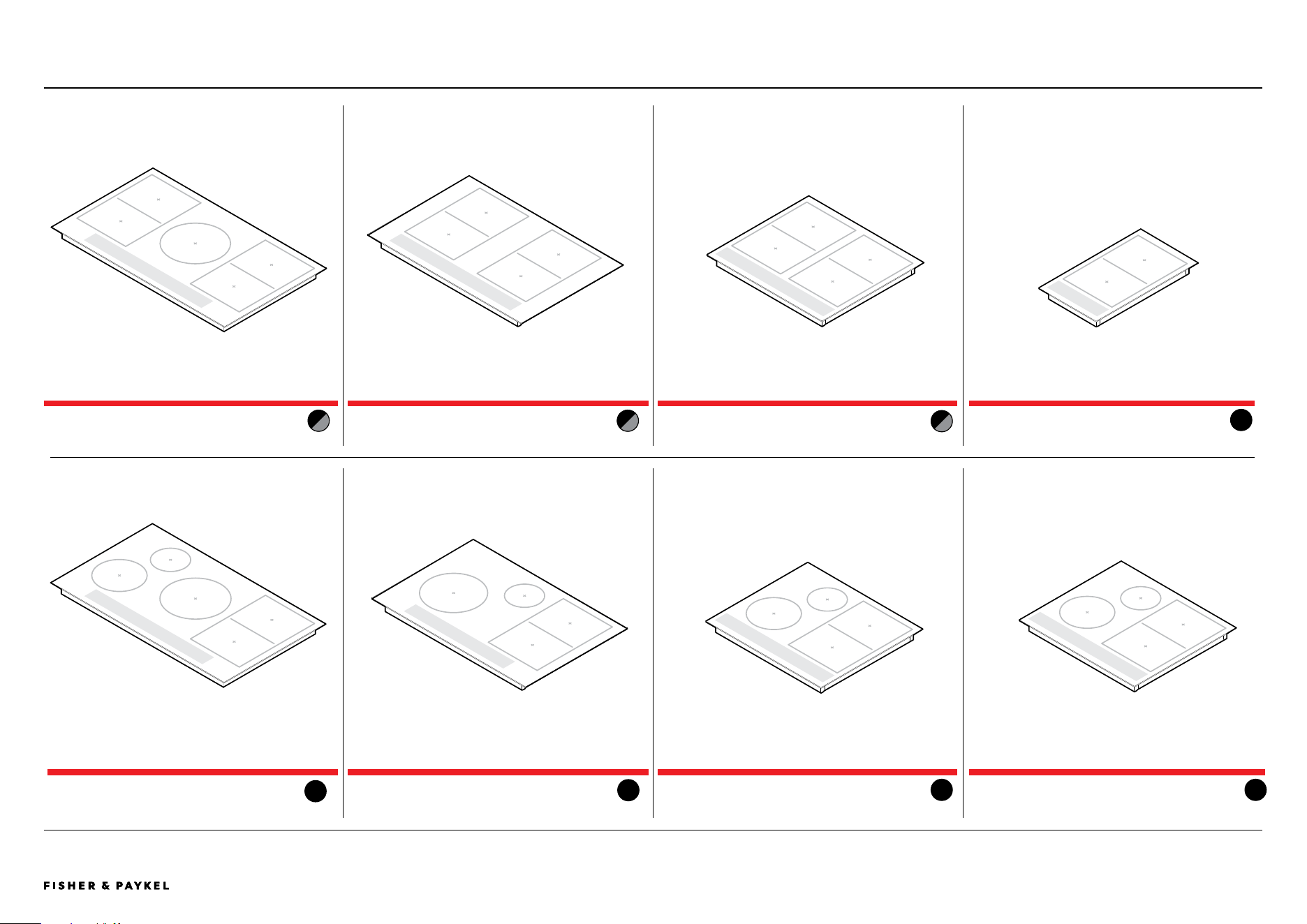

90CM 5 ZONE INDUCTION COOKTOP, 2 SMARTZONES
M
odel no: cI905ZZDtB5 Black, cI905ZZDtG5 Grey
900W x 530D x 54H
80CM 4 ZONE INDUCTION COOKTOP, 2 SMARTZONES
Model no: cI804ZZDtB5 Black, cI804ZZDtG5 Grey
800W x 530D x 54H
60CM 4 ZONE INDUCTION COOKTOP, 2 SMARTZONES
Model no: CI604ZZDTB5 Black, CI604ZZDTG5 Grey
600W x 530D x 54H
30CM 2 ZONE INDUCTION COOKTOP, 1 SMARTZONE
Model no: CI302ZDTB5 Black
300W x 530D x 54H
300W x 530D x 65H
90CM 5 ZONE INDUCTION COOKTOP, 1 SMARTZONE
Model no: cI905ZDtB5 Black
900W x 530D x 54H
80CM 4 ZONE INDUCTION COOKTOP, 1 SMARTZONE
Model no: cI804ZDtB5 Black
800W x 530D x 54H
60CM 4 ZONE INDUCTION COOKTOP, 1 SMARTZONE
Model no: cI604ZDtB5 Black,
600W x 530D x 54H
60CM 4 ZONE INDUCTION COOKTOP, 1 SMARTZONE
Low Power Model no: cI604ZDtPB5 Black,
low current 600W x 530D x 54H
<< CONTENTS
© FISHER & PAYKEL LIMITED 2026 PAGE 590004888D PLANNING GUIDE SErIES 7 INDUctIoN cooktoPS - VErSIoN D - FEBrUArY 2026
SPECIFICATION GUIDE
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 690004888D PLANNING GUIDE SErIES 7 INDUctIoN cooktoPS VErSIoN D - FEBrUArY 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
OVERVIEW
This 90cm induction cooktop brings streamlined style and
powerful performance to the kitchen, available in a sleek black
or subtle grey finish.
Install flush or slightly raised from the countertop for complete
design flexibility.
Five cooking zones, with SmartZone linking, accommodate
larger cookware and complex cooking needs.
Touch&Slide controls respond instantly for precise, intuitive
adjustments, with Pause and Recall functions for added control.
PRODUCT*
cI905ZZDtB5
90cm, Black, 5 Zone Induction Cooktop, 2 SmartZones
cI905ZZDtG5
90cm, Grey, 5 Zone Induction Cooktop, 2 SmartZones
*Some models may not be available in all markets, please check
fisherpaykel.com for more information.
FEATURES
1 Choose from a sleek black or subtle grey finish to suit any
kitchen style
2 Install flush or raised with the countertop for complete
design freedom
3 Five cooking zones, with SmartZone linking to create a
larger cooking surface
4 Pause and Recall functions allow cooking to resume with
settings restored
5 Touch&Slide controls for quick, accurate temperature
adjustments
6 Induction delivers instant heat response and precise control
across all temperatures
7 Gentle Heat functions for delicate cooking tasks
8 Surface stays cool unless cookware is detected, for added
peace of mind
9 Induction wastes less heat by heating only the cookware,
not the cooktop surface
!0 Spills won’t bake on, making the cooktop quick and easy
to clean
CI905ZZDTB5, CI905ZZDTG5
CI905ZZDTB5
SPECIFICATION GUIDE | INDUCTION COOKTOPS 90CM
CI905ZZDTG5
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 790004888D PLANNING GUIDE SErIES 7 INDUctIoN cooktoPS VErSIoN D - FEBrUArY 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
OVERVIEW
This 90cm induction cooktop brings streamlined style and
powerful performance to the kitchen, available in sleek black
styling.
Install flush or slightly raised from the countertop for complete
design flexibility.
Five cooking zones, with SmartZone linking, accommodate
larger cookware and complex cooking needs.
Touch&Slide controls respond instantly for precise, intuitive
adjustments, with Pause and Recall functions for added control.
PRODUCT*
cI905ZDtB5
90cm, Black, 5 Zone Induction Cooktop, SmartZone
*Some models may not be available in all markets, please check
fisherpaykel.com for more information.
CI905ZDTB5
CI905ZDTB5
SPECIFICATION GUIDE | INDUCTION COOKTOPS 90CM
FEATURES
1 Install flush or raised with the countertop for complete
design freedom
2 Five cooking zones, with SmartZone linking to create a
larger cooking surface
3 Pause and Recall functions allow cooking to resume with
settings restored
4 Touch&Slide controls for quick, accurate temperature
adjustments
5 Induction delivers instant heat response and precise control
across all temperatures
6 Gentle Heat functions for delicate cooking tasks
7 Surface stays cool unless cookware is detected, for added
peace of mind
8 Induction wastes less heat by heating only the cookware,
not the cooktop surface
9 Spills won’t bake on, making the cooktop quick and easy to
clean
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 890004888D PLANNING GUIDE SErIES 7 INDUctIoN cooktoPS VErSIoN D - FEBrUArY 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
OVERVIEW
This 80cm induction cooktop combines refined style with
powerful performance, available in a sleek black or subtle grey
finish to complement any kitchen.
It can be installed flush or slightly raised from the countertop.
With four cooking zones and SmartZone linking, it easily
accommodates larger cookware.
Touch&Slide controls deliver instant, intuitive temperature
adjustments, while Pause and Recall functions provide confident
control throughout cooking.
PRODUCT*
cI804ZZDtB5
80cm, Black, 4 Zone Induction Cooktop, 2 SmartZones
cI804ZZDtG5
80cm, Grey, 4 Zone Induction Cooktop, 2 SmartZones
*Some models may not be available in all markets, please check
fisherpaykel.com for more information.
CI804ZZDTB5, CI804ZZDTG5
CI804ZZDTG5
SPECIFICATION GUIDE | INDUCTION COOKTOPS 80CM
FEATURES
1 Choose from a sleek black or subtle grey finish to suit any
kitchen style
2 Install flush or raised with the countertop for complete
design freedom
3 Four cooking zones, with SmartZone linking to create a
larger cooking surface
4 Pause and Recall functions allow cooking to resume with
settings restored
5 Touch&Slide controls for quick, accurate temperature
adjustments
6 Induction delivers instant heat response and precise control
across all temperatures
7 Gentle Heat functions for delicate cooking tasks
8 Surface stays cool unless cookware is detected, for added
peace of mind
9 Induction wastes less heat by heating only the cookware,
not the cooktop surface
!0 Spills won’t bake on, making the cooktop quick and easy
to clean
CI804ZZDTB5
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 990004888D PLANNING GUIDE SErIES 7 INDUctIoN cooktoPS VErSIoN D - FEBrUArY 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
OVERVIEW
This 80cm induction cooktop combines sleek black styling with
precise, responsive performance. It can be installed flush or
slightly raised from the countertop.
With four cooking zones and SmartZone linking, it easily
accommodates larger cookware.
Touch&Slide controls deliver instant, intuitive temperature
adjustments, while Pause and Recall functions provide confident
control throughout cooking.
PRODUCT*
cI804ZDtB5
80cm, Black, 4 Zone Induction Cooktop, SmartZone
*Some models may not be available in all markets, please check
fisherpaykel.com for more information.
CI804ZDTB5
CI804ZDTB5
SPECIFICATION GUIDE | INDUCTION COOKTOPS 80CM
FEATURES
1 Install flush or raised with the countertop for complete
design freedom
2 Four cooking zones, with SmartZone linking to create a
larger cooking surface
3 Pause and Recall functions allow cooking to resume with
settings restored
4 Touch&Slide controls for quick, accurate temperature
adjustments
5 Induction delivers instant heat response and precise control
across all temperatures
6 Gentle Heat functions for delicate cooking tasks
7 Surface stays cool unless cookware is detected, for added
peace of mind
8 Induction wastes less heat by heating only the cookware,
not the cooktop surface
9 Spills won’t bake on, making the cooktop quick and easy to
clean
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 1090004888D PLANNING GUIDE SErIES 7 INDUctIoN cooktoPS VErSIoN D - FEBrUArY 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
OVERVIEW
This 60cm induction cooktop combines sleek design with
powerful performance, available in black or grey finishes to suit
any kitchen.
With four cooking zones and SmartZone linking, it adapts to
dierent cookware sizes.
Touch&Slide controls, Pause and Recall functions, and precise
induction technology provide confidence and control in every
dish.
PRODUCT*
cI604ZZDtB5
60cm, Black, 4 Zone Induction Cooktop, 2 SmartZones
cI604ZZDtG5
60cm, Grey, 4 Zone Induction Cooktop, 2 SmartZones
*Some models may not be available in all markets, please check
fisherpaykel.com for more information.
CI604ZZDTB5, CI604ZZDTG5
CI604ZZDTB5
SPECIFICATION GUIDE | INDUCTION COOKTOPS 60CM
FEATURES
1 Choose from a sleek black or subtle grey finish to suit any
kitchen style
2 Install flush or raised with the countertop for complete
design freedom
3 Four cooking zones, with SmartZone linking to create a
larger cooking surface
4 Pause and Recall functions allow cooking to resume with
settings restored
5 Touch&Slide controls for quick, accurate temperature
adjustments
6 Induction delivers instant heat response and precise control
across all temperatures
7 Gentle Heat functions for delicate cooking tasks
8 Surface stays cool unless cookware is detected, for added
peace of mind
9 Induction wastes less heat by heating only the cookware,
not the cooktop surface
!0 Spills won’t bake on, making the cooktop quick and easy
to clean
CI604ZZDTG5
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 1190004888D PLANNING GUIDE SErIES 7 INDUctIoN cooktoPS VErSIoN D - FEBrUArY 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
OVERVIEW
This 60cm induction cooktop combines sleek black styling with
precise, responsive performance.
With four cooking zones and SmartZone linking, it adapts to
dierent cookware sizes.
Touch&Slide controls, Pause and Recall functions, and precise
induction technology provide confidence and control in every
dish.
PRODUCT*
cI604ZDtB5
60cm, Black, 4 Zone Induction Cooktop, SmartZone
cI604ZDtPB5
60cm, Black, 4 Zone Induction Cooktop, SmartZone, Low
current
*Some models may not be available in all markets, please check
fisherpaykel.com for more information.
CI604ZDTB5, CI604ZDTPB5
CI604ZDTB5, CI604ZDTPB5
SPECIFICATION GUIDE | INDUCTION COOKTOPS 60CM
FEATURES
1 Install flush or raised with the countertop for complete
design freedom
2 Four cooking zones, with SmartZone linking to create a
larger cooking surface
3 Pause and Recall functions allow cooking to resume with
settings restored
4 Touch&Slide controls for quick, accurate temperature
adjustments
5 Induction delivers instant heat response and precise control
across all temperatures
6 Gentle Heat functions for delicate cooking tasks
7 Surface stays cool unless cookware is detected, for added
peace of mind
8 Induction wastes less heat by heating only the cookware,
not the cooktop surface
9 Spills won’t bake on, making the cooktop quick and easy to
clean
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 1290004888D PLANNING GUIDE SErIES 7 INDUctIoN cooktoPS VErSIoN D - FEBrUArY 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
OVERVIEW
This 30cm induction cooktop pairs sleek black glass styling with
precise, responsive performance.
Install flush or raised for design flexibility. Two zones can work
independently or combine as a SmartZone.
Touch&Slide controls, Pause and Recall functions, and low-heat
options provide control, convenience, and eciency for
everyday cooking.
PRODUCT*
cI302ZDtB5
30cm, Black, 2 Zone Induction Cooktop, SmartZone
*Some models may not be available in all markets, please check
fisherpaykel.com for more information.
FEATURES
1 Install flush or raised with the countertop for complete
design freedom
2 Link two cooking zones with SmartZone to accommodate
larger cookware
3 Pause and Recall functions allow cooking to resume with
settings restored
4 Touch&Slide controls for quick, accurate temperature
adjustments
5 Induction delivers instant heat response and precise control
across all temperatures
6 Gentle Heat functions for delicate cooking tasks
7 Surface stays cool unless cookware is detected, for added
peace of mind
8 Induction wastes less heat by heating only the cookware,
not the cooktop surface
9 Spills won’t bake on, making the cooktop quick and easy to
clean
CI302ZDTB5
CI302ZDTB5
SPECIFICATION GUIDE | INDUCTION COOKTOPS 30CM
<< CONTENTS
© FISHER & PAYKEL LIMITED 2026 PAGE 1390004888D PLANNING GUIDE SErIES 7 INDUctIoN cooktoPS - VErSIoN D - FEBrUArY 2026
DATA SHEETS
© FISHER & PAYKEL LIMITED 2026 PAGE 1490004888D PLANNING GUIDE SErIES 7 INDUctIoN cooktoPS VErSIoN D - FEBrUArY 2026
INDICATES CABINETRY / PRODUCT DATUM -------------------------
INDICATES CABINETRY CLEARANCES --------------------------------
INDICATES CUTOUT -------------------------------------------------------
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm (1/16''). Please read
the installation manual for detailed information on installing the product. For full installation
instructions & specifications visit fisherpaykel.com
CI905ZZDTB5, CI905ZZDTG5, CI905ZDTB5
Model no:
CI905ZZDTB5
CI905ZZDTG5
CI905ZDTB5
Product Dimensions mm
A Overall height of product (includes glass) 54
B Overall width of product 900
C Overall depth of product 530
D Glass height 4
E Chassis height (excluding glass) 50
F Chassis width 845
G Chassis depth 485
Cutout Dimensions mm
H Minimum width 850
I Minimum depth 490
J Minimum height 65
Minimum Clearances mm
Sides of cutout to combustible material 30
Back of cutout to combustible surface 39
Front of cutout to counter edge 35
Cooktop to overhead rangehood or cabinetry 650
Appliances or cabinetry below cooktop 65
Maximum depth of cabinetry over cooktop 330
Maximum width of cabinetry over cooktop 900
Weight
Packaged 16.5 kg
Unpackaged 14 kg
NOTE: Ventiiation is required for cooktops
DATA SHEET | SERIES 7 INDUCTION COOKTOPS
D
A
B
F
C
H
I
SIDE VIEW
FRONT VIEW
PLAN VIEW
DATUM: BENCHTOP
CLEARANCE: BELOW COOKTOP
E
G
J
ISOMETRIC VIEW
<< CONTENTS
© FISHER & PAYKEL LIMITED 2026 PAGE 1590004888D PLANNING GUIDE SErIES 7 INDUctIoN cooktoPS VErSIoN D - FEBrUArY 2026
INDICATES CABINETRY / PRODUCT DATUM -------------------------
INDICATES CABINETRY CLEARANCES --------------------------------
INDICATES CUTOUT -------------------------------------------------------
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm (1/16''). Please read
the installation manual for detailed information on installing the product. For full installation
instructions & specifications visit fisherpaykel.com
CI804ZZDTB5 | CI804ZZDTG5 | CI804ZDTB5
Model no:
CI804ZZDTB5
CI804ZZDTG5
CI804ZDTB5
Product Dimensions mm
A Overall height of product (includes glass) 54
B Overall width of product 800
C Overall depth of product 530
D Glass height 4
E Chassis height (excluding glass) 50
F Chassis width 715
G Chassis depth 485
Cutout Dimensions mm
H Minimum width 720
I Minimum depth 490
J Minimum height 65
Minimum Clearances mm
Sides of cutout to combustible material 30
Back of cutout to combustible surface 39
Front of cutout to counter edge 35
Cooktop to overhead rangehood or cabinetry 650
Appliances or cabinetry below cooktop 65
Maximum depth of cabinetry over cooktop 330
Maximum width of cabinetry over cooktop 800
Weight
Packaged 13 kg
Unpackaged 11 kg
NOTE: Ventiiation is required for cooktops
DATA SHEET | SERIES 7 INDUCTION COOKTOPS
D
A
B
F
C
H
I
SIDE VIEW
FRONT VIEW
PLAN VIEW
DATUM: BENCHTOP
CLEARANCE: BELOW COOKTOP
E
G
J
ISOMETRIC VIEW
<< CONTENTS
© FISHER & PAYKEL LIMITED 2026 PAGE 1690004888D PLANNING GUIDE SErIES 7 INDUctIoN cooktoPS VErSIoN D - FEBrUArY 2026

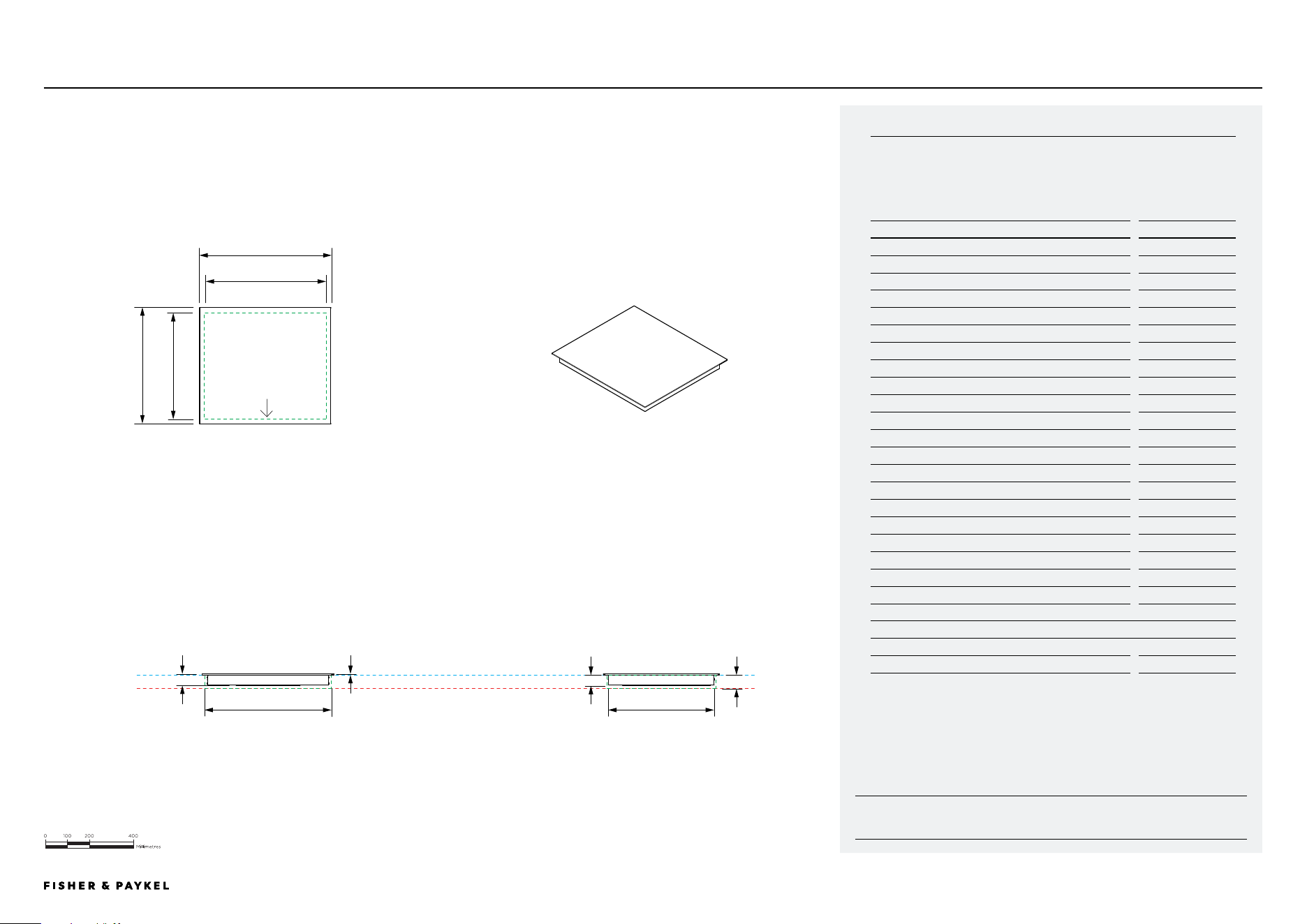

INDICATES CABINETRY / PRODUCT DATUM -------------------------
INDICATES CABINETRY CLEARANCES --------------------------------
INDICATES CUTOUT -------------------------------------------------------
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm (1/16''). Please read
the installation manual for detailed information on installing the product. For full installation
instructions & specifications visit fisherpaykel.com

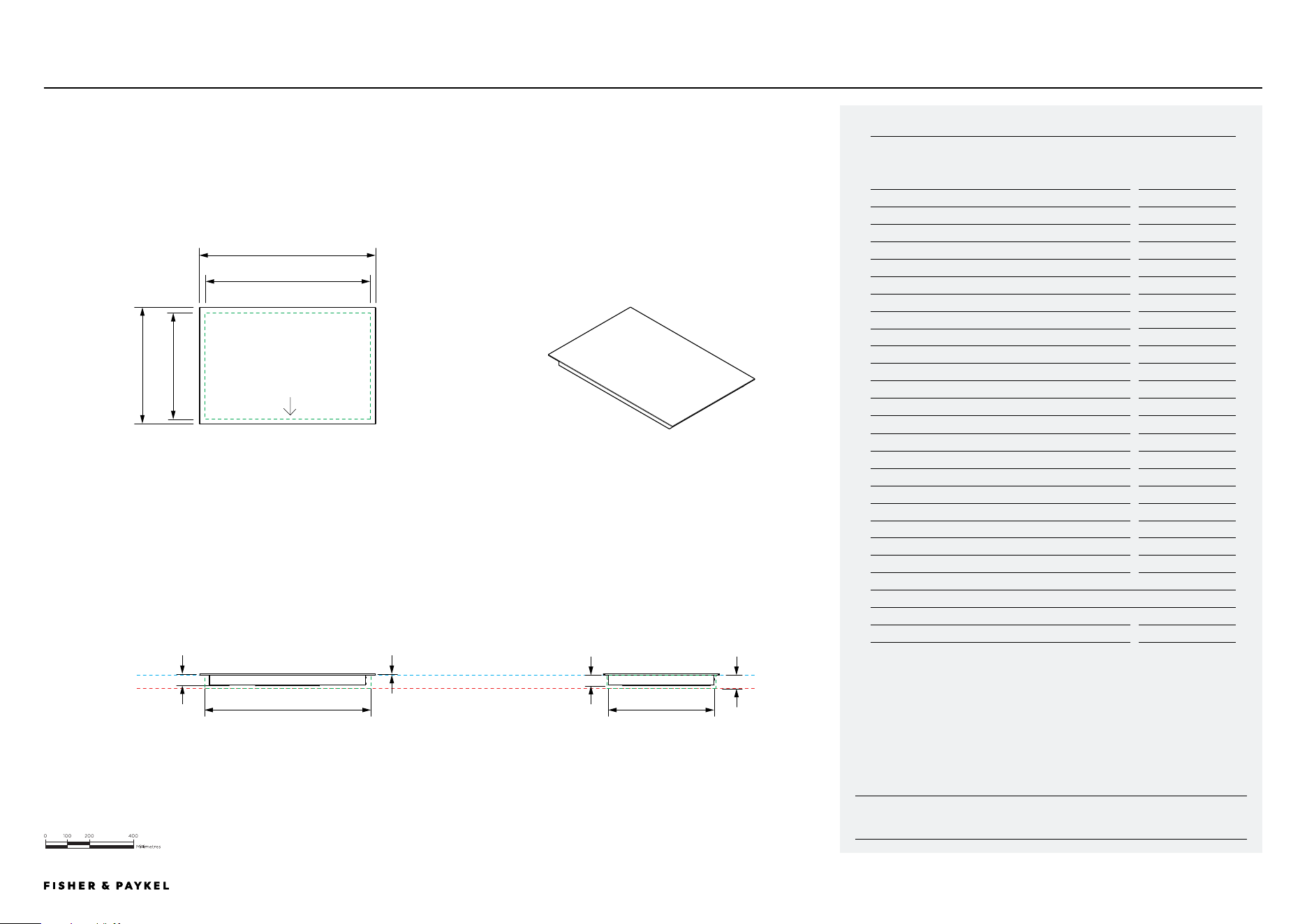

CI604ZZDTB5 | CI604ZZDTG5 | CI604ZDTB5 | CI604ZDTPB5
Model no:
CI604ZZDTB5
CI604ZZDTG5
CI604ZDTB5
CI604ZDTPB5
Product Dimensions mm
A Overall height of product (includes glass) 54
B Overall width of product 600
C Overall depth of product 530
D Glass height 4
E Chassis height (excluding glass) 50
F Chassis width 555
G Chassis depth 485
Cutout Dimensions mm
H Minimum width 560
I Minimum depth 490
J Minimum height 65
Minimum Clearances mm
Sides of cutout to combustible material 30
Back of cutout to combustible surface 39
Front of cutout to counter edge 35
Cooktop to overhead rangehood or cabinetry 650
Appliances or cabinetry below cooktop 65
Maximum depth of cabinetry over cooktop 330
Maximum width of cabinetry over cooktop 600
Weight
Packaged 10 kg
Unpackaged 8.5 kg
NOTE: Ventiiation is required for cooktops
DATA SHEET | SERIES 7 INDUCTION COOKTOPS
D
A
B
F
C
H
I
SIDE VIEW
FRONT VIEW
PLAN VIEW
DATUM: BENCHTOP
CLEARANCE: BELOW COOKTOP
E
G
J
ISOMETRIC VIEW
<< CONTENTS
© FISHER & PAYKEL LIMITED 2026 PAGE 1790004888D PLANNING GUIDE SErIES 7 INDUctIoN cooktoPS VErSIoN D - FEBrUArY 2026
INDICATES CABINETRY / PRODUCT DATUM -------------------------
INDICATES CABINETRY CLEARANCES --------------------------------
INDICATES CUTOUT -------------------------------------------------------
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm (1/16''). Please read
the installation manual for detailed information on installing the product. For full installation
instructions & specifications visit fisherpaykel.com

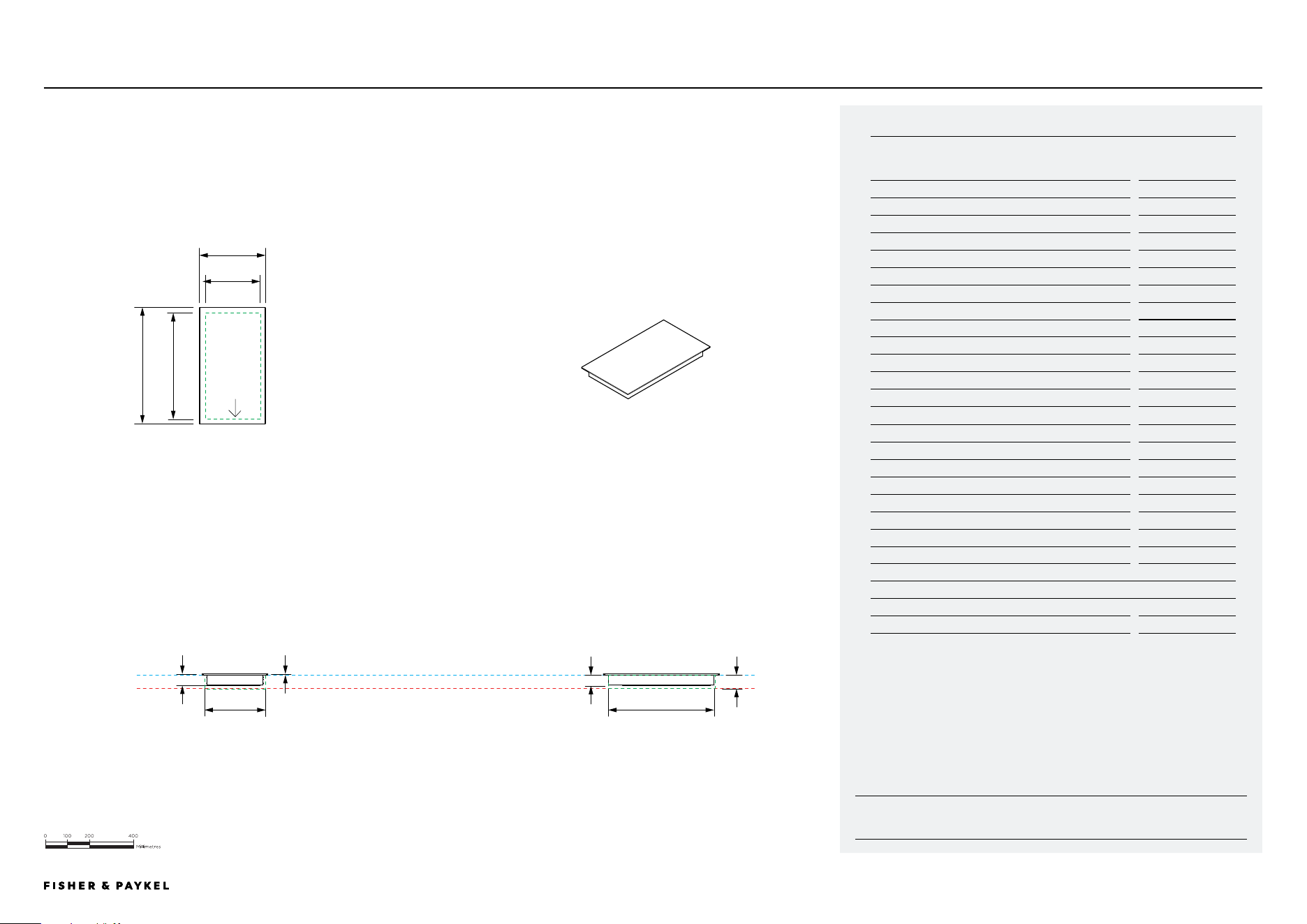

CI302ZDTB5
Model no:
CI302ZDTB5
Product Dimensions mm
A Overall height of product (includes glass) 54
B Overall width of product 300
C Overall depth of product 530
D Glass height 4
E Chassis height (excluding glass) 50
F Chassis width 260
G Chassis depth 485
Cutout Dimensions mm
H Minimum width 265
I Minimum depth 490
J Minimum height 65
Minimum Clearances mm
Sides of cutout to combustible material 30
Back of cutout to combustible surface 39
Front of cutout to counter edge 35
Cooktop to overhead rangehood or cabinetry 650
Appliances or cabinetry below cooktop 65
Maximum depth of cabinetry over cooktop 330
Maximum width of cabinetry over cooktop 300
Weight
Packaged 5.5 kg
Unpackaged 4.5 kg
NOTE: Ventiiation is required for cooktops
DATA SHEET | SERIES 7 INDUCTION COOKTOPS
D
A
B
F
C
H
I
SIDE VIEW
FRONT VIEW
PLAN VIEW
DATUM: BENCHTOP
CLEARANCE: BELOW COOKTOP
E
G
J
ISOMETRIC VIEW
<< CONTENTS
© FISHER & PAYKEL LIMITED 2026 PAGE 1890004888D PLANNING GUIDE SErIES 7 INDUctIoN cooktoPS - VErSIoN D - FEBrUArY 2026
PLANNING CONSIDERATIONS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 1990004888D PLANNING GUIDE SErIES 7 INDUctIoN cooktoPS VErSIoN D - FEBrUArY 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com

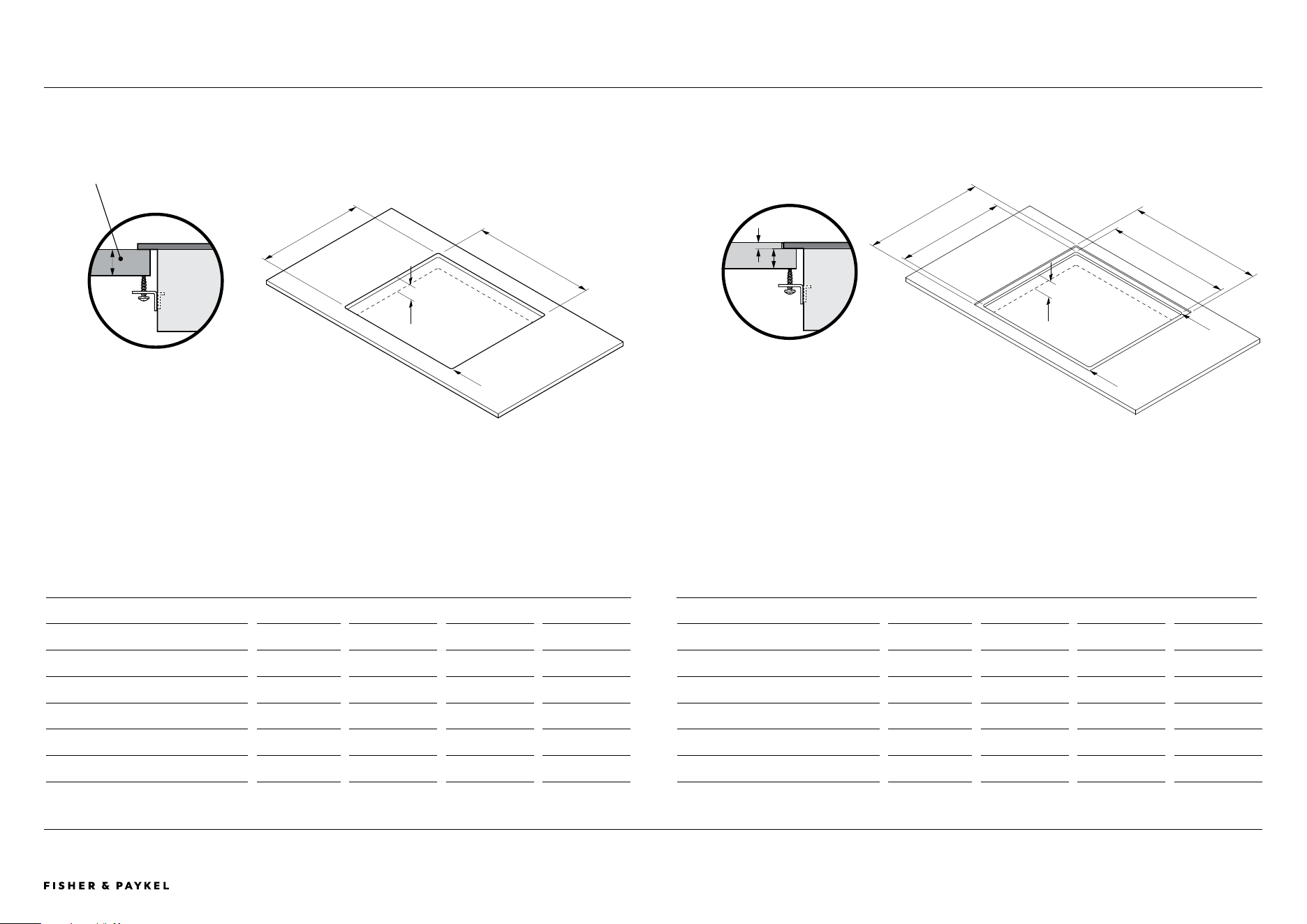

PROUD AND FLUSH CUTOUT DIMENSIONSPLANNING CONSIDERATIONS | SERIES 7 INDUCTION COOKTOPS
BENCHTOP CHASSIS CUTOUT DIMENSIONS
A
B
Cutout Dimensions - Proud 30cm Cooktop 60cm Cooktops 80cm Cooktops 90cm Cooktops
A Minimum thickness 18 18 18 18
B Width of cutout 265 560 720 850
C Depth of cutout 490 490 490 490
D Minimum height of cavity 65 65 65 65
E Maximum corner radius of cutout 10 10 10 10
DETAIL - FRONT VIEW
BENCHTOP WITH COOKTOP
ISO VIEW
BENCHTOP WITH CUTOUT
FOR PROUD INSTALL
C
ROUTED RECESS DIMENSIONS FOR FLUSH INSTALL
DETAIL - FRONT VIEW
BENCHTOP WITH COOKTOP
c
E
D
18mm minimum benchtop
height for function of
retention clips
Cutout Dimensions - Flush 30cm Cooktop 60cm Cooktops 80cm Cooktops 90cm Cooktops
F Height of routed recess 6.5 6.5 6.5 6.5
G Width of routed recess 305 605 805 905
H Depth of routed recess 535 535 535 535
I Maximum corner radius of recess 4 4 4 4
B
D
E
A
F
G
H
L
ISO VIEW
BENCHTOP WITH CUTOUT
FOR FLUSH INSTALL
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 2090004888D PLANNING GUIDE SErIES 7 INDUctIoN cooktoPS VErSIoN D - FEBrUArY 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
INDICATES CABINETRY / PRODUCT DATUM
INDICATES CABINETRY CLEARANCES
INDICATES CUTOUT
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm (1/16''). Please
read the installation manual for detailed information on installing the product. For full
installation instructions & specifications visit fisherpaykel.com
VENTILATION CLEARANCE BELOW COOKTOP
VENTILATION AT REAR OF COOKTOP
VENTILATION
VENTILATION OUTLET
Hot air must be able to exit at front of cabinets.
CLEARANCE REQUIREMENTS
To ensure adequate airflow
clearance is required below
cooktop to any appliance,
companion product or
obstruction.
INTAKE OPTION A:
SERVICE CHANNEL
Fresh air is drawn up from the toe
kick cavity through a service channel
at rear of cabinetry.
If cavities are tightly sealed,
ventilation holes in the toe kick panel
are required.
INTAKE OPTION B:
ADJACENT CABINETS
If a sucient ventilation at the rear
of the cooktop is not possible, add
two 2x Ø50 (2") holes in
the side wall to allow adequate
cooling air.
PROFILE VIEW
Benchtop.
Cabinetry rail.
Cabinetry front panel.
Air vent through rail.

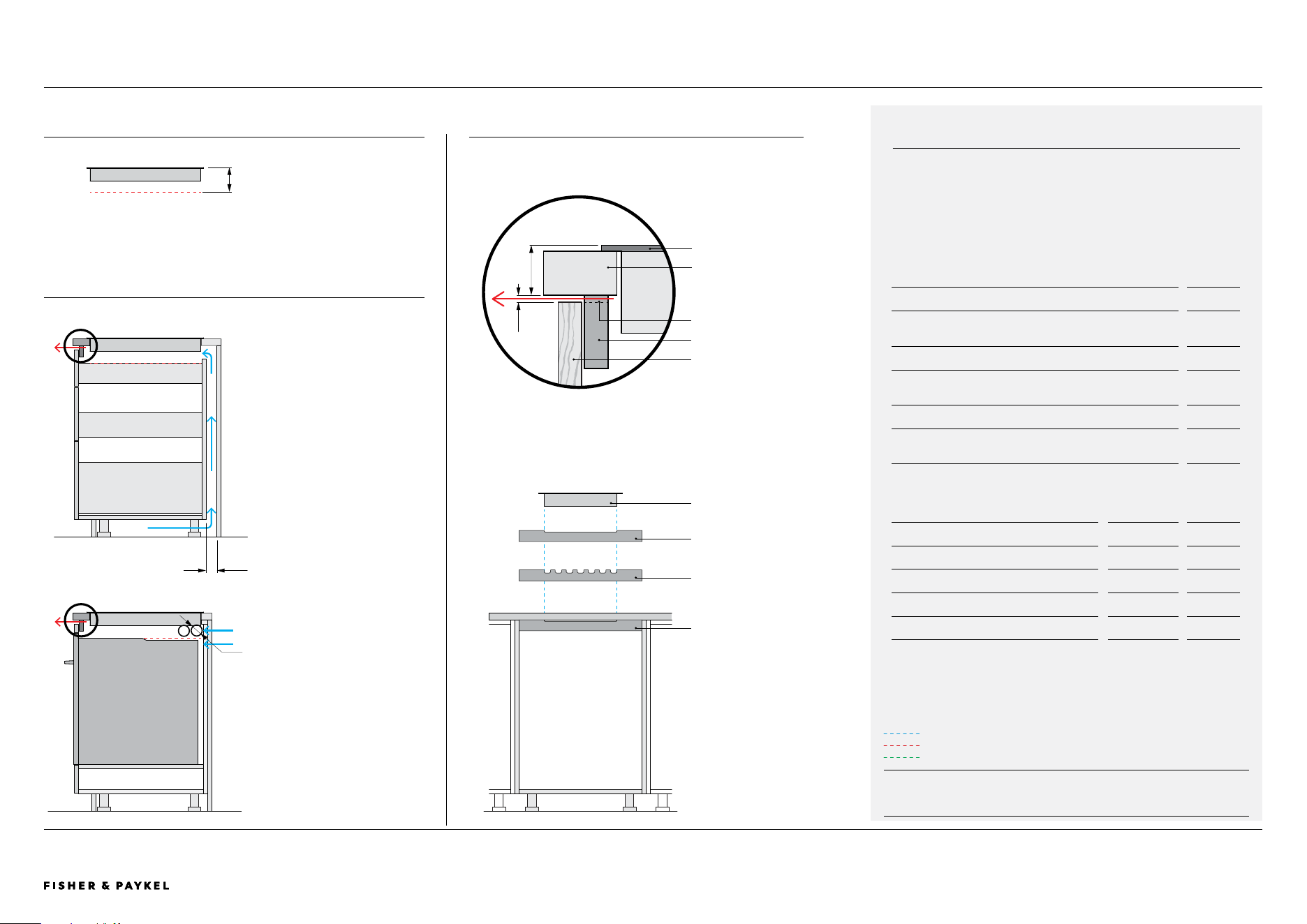

DETAIL 1 - PROFILE VIEW
VENTILATION AT FRONT
1
1
FRONT VIEW
EXAMPLE VENTILATION CUTOUTS IN CABINETRY RAIL
PLANNING CONSIDERATIONS | SERIES 7 INDUCTION COOKTOPS
VENTILATION OVERVIEW
Induction cooktops require adequate supply of cool air to ensure
optimum product performance.
There must be a 5mm air gap at the front of the cooktop.
Channels or cutouts are required in cabinetry to allow fresh air to
enter and hot air to exit.
Ventilation Dimensions mm
A Clearance from cook surface to any appliance,
companion product or obstruction below
65
B Minimum ventilation gap at rear of cabinet* 20
C Diameter of ventilation holes into adjacent
cabinets (4x required, 2x on each side of cabinet)*
50
D Ventilation gap at front of cabinet** 4
E Maximum distance of ventilation gap from top of
cooktop
40
*ventilation gap or holes required, not both
**gap must run width of chassis
Ventilation Gap at Front of Cooktop w x h cm
2
30cm cooktop 260 x 4mm 10.4
60cm cooktops 555 x 4mm 22.2
80cm cooktops 715 x 4mm 28.6
90cm cooktops 845 x 4mm 33.8
c
b
a
DATUM:
WIDTH OF CHASSIS
Rail.
Single cutout in rail, full width
of chassis, 4mm high.
Example of alternate cutout
where equivalent ventilation
area is achieved.
Cooktop.
VENTILATION AT FRONT OF COOKTOP
NOTE:
Other cabinetry details are
possible but must meet
clearances stated.
d
E
Cooktop.
PROFILE VIEW
PROFILE VIEW
Oven, drawer or other
obstruction.
Drawer, oven or other
obstruction.
<< CONTENTS
© FISHER & PAYKEL LIMITED 2026 PAGE 2190004888D PLANNING GUIDE SErIES 7 INDUctIoN cooktoPS - VErSIoN D - FEBrUArY 2026
SERVICES
© FISHER & PAYKEL LIMITED 2026 PAGE 2290004888D PLANNING GUIDE SErIES 7 INDUctIoN cooktoPS VErSIoN D - FEBrUArY 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com

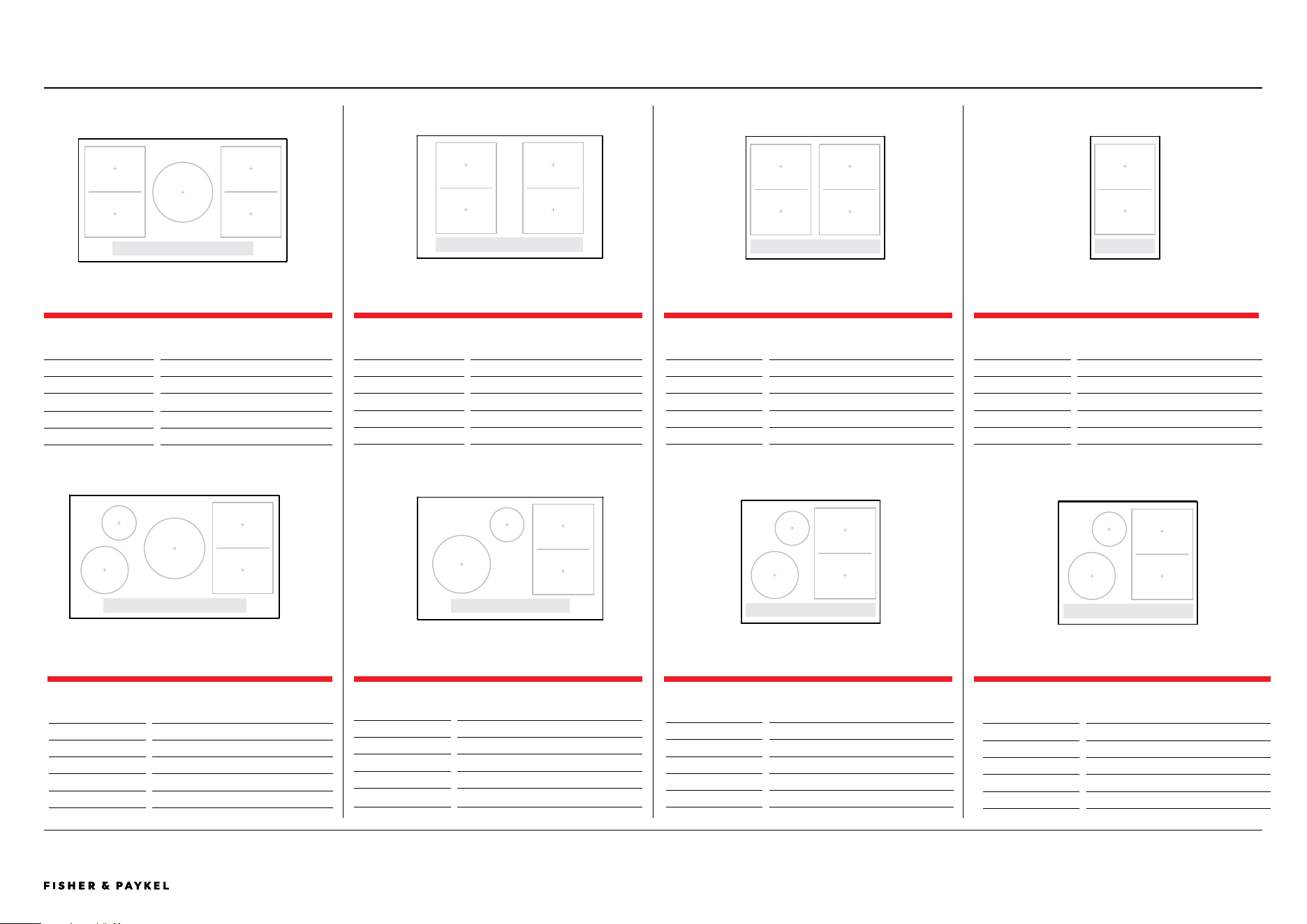

SERVICES | INDUCTION COOKTOPS
90CM 5 ZONE INDUCTION COOKTOP
Model no:
cI905ZZDtB5 Black, cI905ZZDtG5 Grey
Power Requirements
Rated power (W)
10400
Supply (Hz)
50/60Hz
Voltage (V)
220 - 240V
Dedicated circuit (A)*
32 A)
* New Zealand and Australia only
80CM 4 ZONE INDUCTION COOKTOP
Model no:
cI804ZZDtB5 Black, cI804ZZDtG5 Grey
Power Requirements
Rated power (W)
7400
Supply (Hz)
50/60Hz
Voltage (V)
220 - 240V
Dedicated circuit (A)*
20 A
* New Zealand and Australia only
60CM 4 ZONE INDUCTION COOKTOP
Model no:
cI604ZZDtB5 Black, cI604ZZDtG5 Grey
Power Requirements
Rated power (W)
7400
Supply (Hz)
50/60Hz
Voltage (V)
220 - 240V,
Dedicated circuit (A)*
20 A
* New Zealand and Australia only
30CM 2 ZONE INDUCTION COOKTOP
Model no:
cI302ZDtB5 Black
Power Requirements
Rated power (W)
3700
Supply (Hz)
50/60Hz
Voltage (V)
220 - 240V
Dedicated circuit (A)*
16 A
* New Zealand and Australia only
90CM 5 ZONE INDUCTION COOKTOP
Model no:
cI905ZDtB5 Black
Power Requirements
Rated power (W)
10400
Supply (Hz)
50/60Hz
Voltage (V)
220 - 240V
Dedicated circuit (A)*
32 A
* New Zealand and Australia only
80CM 4 ZONE INDUCTION COOKTOP
Model no:
cI804ZDtB5 Black
Power Requirements
Rated power (W)
7400
Supply (Hz)
50/60Hz
Voltage (V)
220 - 240V
Dedicated circuit (A)*
20 A
* New Zealand and Australia only
60CM 4 ZONE INDUCTION COOKTOP
Model no:
cI604ZDtB5 Black
Power Requirements
Rated power (W)
7400
Supply (Hz)
50/60Hz
Voltage (V)
220 - 240V,
Dedicated circuit (A)*
20 A
* New Zealand and Australia only
60CM 4 ZONE INDUCTION COOKTOP
Model no:
cI604ZDtPB5 Black, Low Current
Power Requirements
Rated power (W)
4400
Supply (Hz)
50/60Hz
Voltage (V)
220 - 240V,
Dedicated circuit (A)*
16 A
* New Zealand and Australia only
POWER REQUIREMENTS
<< CONTENTS
© FISHER & PAYKEL LIMITED 2026 PAGE 2390004888D PLANNING GUIDE SErIES 7 INDUctIoN cooktoPS VErSIoN D - FEBrUArY 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com

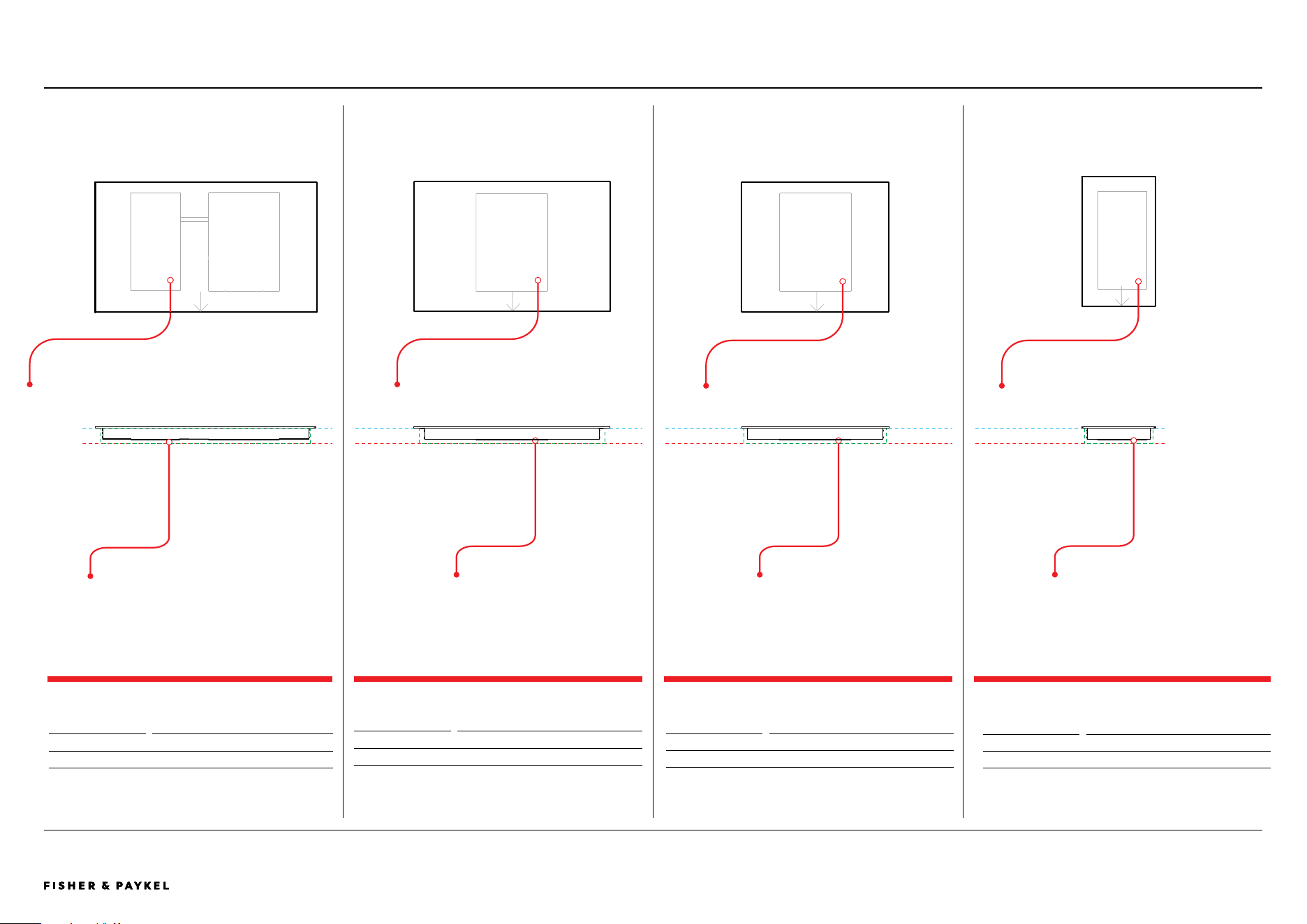

SERVICES | INDUCTION COOKTOPS
90CM 5 ZONE INDUCTION COOKTOPS
Model no:
cI905ZZDtB5, cI905ZZDtG5, cI905ZDtB5
Power cord not included
80CM 4 ZONE INDUCTION COOKTOPS
Model no:
cI804ZZDtB5, cI804ZZDtG5, cI804ZDtB5
Power cord not included
60CM 4 ZONE INDUCTION COOKTOPS
Model no:
cI604ZZDtB5, cI604ZZDtG5, cI604ZDtB5, cI604ZDtPB5
Power cord not included
30CM 4 ZONE INDUCTION COOKTOP
Model no:
cI302ZDtB5
Power cord not included
SERVICES
<< CONTENTS
