Safety information
WARNING!
Read the safety precautions in this manual before
installing, operating or servicing this product.
The following symbols are used to identify important safety information on the
product and in this manual:
Warning!
Safety
hazard. Risk
of severe
injury or
death.
Warning!
Powerful
light
emission.
Risk of eye
injury.
Warning!
See user
manual for
important
safety
information.
Warning!
Hazardous
voltage.
Risk of
lethal or
severe
electric
shock.
Warning!
Hot
surfaces.
Warning!
Fire hazard.
Warning! Risk Group 3 (high risk) product according to EN
62471. Possibly hazardous radiation emitted from this product.
May be harmful to the eyes. Do not stare at operating lamp
and do not view the light output with optical instruments or any
device that may concentrate the beam.
This lighting fixture is for professional use only and must be
installed by a qualified technician. It is not for household use. It
presents risks of severe injury or death due to fire hazards,
electric shock and falls. It produces a powerful, concentrated
beam of light that can create a fire hazard or a risk of eye
injury if the safety precautions below are not followed.
Install, operate and service Martin™ products only as directed
in their user manuals, or you may create a safety hazard or
cause damage that is not covered by product warranties.
Follow the safety precautions listed below and observe all
warnings in this manual and printed on the product. Keep this
user manual for future use.
RUSH™ MH 7 Hybrid User Manual 5
For the latest user documentation and other information for
this and all Martin™ products, please visit the Martin website
at http://www.martin.com
If you have any questions about how to install, operate or
service the fixture safely, please contact your Martin™
distributor (see www.martin.com/distributors for details) or call
the Martin™ 24-hour service hotline on +45 8740 0000, or in
the USA on 1-888-tech-180.
Respect all locally applicable laws, codes and regulations
when installing, operating or servicing the fixture.
Protection from electric shock
Do not expose the fixture to rain or moisture.
Disconnect the fixture from AC power before carrying out any
installation or maintenance work and when the fixture is not in
use.
Ensure that the fixture is electrically connected to ground
(earth).
Use only a source of AC power that complies with local
building and electrical codes and has both overload and
ground-fault (earth-fault) protection.
Socket outlets or external power switches used to supply the
fixture with power must be located near the fixture and easily
accessible so that the fixture can easily be disconnected from
power.
Replace defective fuses with ones of the specified type and
rating only.
Isolate the fixture from power immediately if the power plug or
any seal, cover, cable, or other component is damaged,
defective, deformed, wet or showing signs of overheating. Do
not reapply power until repairs have been completed.
Before using the fixture, check that all power distribution
equipment and cables are in perfect condition and rated for the
electrical requirements of all connected devices.
Use only Neutrik PowerCon cable connectors to connect to
power sockets.
Do not connect devices to power in a chain that will exceed the
electrical ratings of any cable or connector used in the chain.
6 RUSH™ MH 7 Hybrid User Manual
The supplied power input cable is rated 9 A and can safely
supply only one fixture with mains power. Do not connect any
device to the fixture’s MAINS OUT connector when using this
cable. If you replace this cable and also use the replacement
cable to supply only one fixture with mains power, the
replacement cable must also be rated 9 A minimum, have
three conductors 18 AWG or 0.75 mm² minimum conductor
size, have an outer cable diameter of 6 - 15 mm (0.2 - 0.6 in.)
and be temperature-rated to suit the application. In the USA
and Canada the cable must be UL listed, type SJT or
equivalent. In the EU the cable must be type H05VV-F or
equivalent.
To connect fixtures to mains power in a chain, you must first
obtain 14 AWG or 1.5 mm
2
power input and throughput cables
that are 16 A rated and temperature-rated to suit the
application. In the USA and Canada the cables must be UL-
listed, type SJT or equivalent. In the EU the cables must be
type H05VV-F or equivalent. Suitable cables with Neutrik
PowerCon connectors are available from Martin™ (see
‘Accessories’ on page 43). If you use these cables, you can
connect fixtures to power in a linked chain, MAINS OUT
throughput socket to MAINS IN input socket, but do not link
more than:
• two (2) RUSH MH 7 Hybrid fixtures in total at 100-120 V,
or
• four (4) RUSH MH 7 Hybrid fixtures in total at 200-240 V.
The voltage and frequency at the MAINS OUT socket are the
same as the voltage and frequency applied to the MAINS IN
socket. Only connect devices to the MAINS OUT socket that
accept this voltage and frequency.
Protection from burns and fire
Do not operate the fixture if the ambient temperature (T
a
)
exceeds 40° C (104° F).
The surface of the product casing can reach up to 100° C
(212° F) during operation. Avoid contact by persons and
materials. Allow the fixture to cool for at least 10 minutes
before handling.
Keep flammable materials well away from the fixture. Keep all
combustible materials (e.g. fabric, wood, paper) at least 0.2 m
(8 in.) away from the fixture head.
RUSH™ MH 7 Hybrid User Manual 7
Ensure that there is free and unobstructed airflow around the
fixture. Provide a minimum clearance of 0.5 m (20 in.) around
fans and air vents.
Do not illuminate surfaces within 10 m (33 ft.) of the fixture.
Do not attempt to bypass thermostatic switches or fuses.
Do not stick filters, masks or other materials onto any optical
component.
The fixture’s lenses can focus the sun’s rays inside the fixture,
creating a risk of fire and damage. Do not expose the front of
the fixture to sunlight or any other bright light source.
Protection from injury
Fasten the fixture securely to a fixed surface or structure when
in use. The fixture is not portable when installed.
Ensure that any supporting structure and/or hardware used
can hold at least 10 times the weight of all the devices they
support.
If suspending from a rigging structure, fasten two (2) suitable
rigging clamps to the fixture as described in this manual. Do
not use safety cables as the primary means of support.
If the fixture is installed in a location where it may cause injury
or damage if it falls, install as directed in this manual a
secondary attachment such as a safety cable that will hold the
fixture if a primary attachment fails. The secondary attachment
must be approved by an official body such as TÜV as a safety
attachment for the weight that it secures, must comply with EN
60598-2-17 Section 17.6.6 and must be capable of bearing a
static suspended load that is ten times the weight of the fixture
and all installed accessories.
Allow enough clearance around the head to ensure that it
cannot collide with an object or another fixture when it moves.
Check that all external covers and rigging hardware are
securely fastened.
Block access below the work area and work from a stable
platform whenever installing, servicing or moving the fixture.
Do not operate the fixture with missing or damaged covers,
shields or any optical component.
8 RUSH™ MH 7 Hybrid User Manual
Do not lift or carry the fixture by its head. Support the fixture by
its base only.
In the event of an operating problem, stop using the fixture
immediately and disconnect it from power. Do not attempt to
use a fixture that is obviously damaged.
Do not modify the fixture in any way not described in this
manual or install other than genuine Martin™ parts.
Refer any service operation not described in this manual to a
qualified technician.
Lamp safety
Install only a lamp that is approved by Martin™ for use in the
product.
Prolonged exposure to an unshielded discharge lamp can
cause eye and skin burns. Do not look at an exposed lamp
while it is lit. Do not operate the fixture with missing or
damaged covers, shields, lenses, ultraviolet screens or any
optical component.
A hot discharge lamp is under pressure and can explode
without warning. Allow the fixture to cool for at least 1 hour
before handling a lamp and protect yourself with safety
glasses and gloves.
Replace the lamp immediately if it becomes visually deformed,
damaged or in any way defective.
Monitor hours of lamp use. Replace the lamp before or when it
reaches its average lifetime as specified in this manual or by
the lamp manufacturer or if you notice a fall in light output. If
you exceed the average lamp lifetime, the lamp may explode
and damage the fixture.
If the quartz envelope of a discharge lamp is broken, the lamp
releases a small quantity of mercury and other toxic gases. If a
discharge lamp explodes in a confined area, evacuate the area
and ventilate it thoroughly for 30 minutes. Wear nitrile gloves
when handling a broken discharge lamp. Do not use a vacuum
cleaner to remove pieces of a broken lamp. Treat broken or
used discharge lamps as hazardous waste: put them in a
plastic bag and send to a specialist for disposal.
RUSH™ MH 7 Hybrid User Manual 9
Protection from eye injury
Warning! Risk Group 3 (high risk) product according to
EN 62471. Possibly hazardous optical radiation emitted from
this product.
Do not look directly into the product’s light output.
Do not look at operating lamp. Eye injury may result.
Do not expose persons to the product’s light output from a
distance of less than 1.5 m (5 ft.).
Avoid eye or skin exposure to unshielded product. UV emitted
from this product.
Do not look at the light output with magnifiers, telescopes,
binoculars or similar optical instruments that may concentrate
the light output.
Ensure that persons are not looking directly into the front of the
fixture when the product lights up suddenly. This can happen
when power is applied, when the product receives a DMX
signal, or when certain control menu items are selected.
To minimize the risk of eye irritation or injury, disconnect the
fixture from power at all times when the fixture is not in use
and provide well-lit conditions to reduce the pupil diameter of
anyone working on or near the fixture.
10 RUSH™ MH 7 Hybrid User Manual
Introduction
The RUSH™ MH 7 Hybrid is a powerful fixture with a high-intensity beam from
a Philips MSD Platinum 11R 250W short-arc discharge lamp. Designed to be
versatile, the RUSH™ MH 7 Hybrid gives you the flexibility of Beam, Spot and
Wash functionality. Its moving head is packed with motorized focus and 1:6
zoom, smooth full-range dimming, a strobing shutter and pulse effects, 12
static gobos, 8 user-replaceable rotating gobos, 13 color filters, 2 rotating
prisms and a frost filter. It provides 540° of pan and 250° of tilt. The short-arc
source and multiple effects make it ideal for live shows, TV events, stage,
concerts, and nightclubs.
The RUSH MH 7 Hybrid can be controlled using any DMX-compliant
controller. It is supplied with a 1.5 m (5 ft.) power cable ready for a local power
plug (not included) and two mounting brackets for attachment of suitable, user-
supplied rigging clamps.
Before using the product for the first time
1. Read ‘Safety information’ on page 4 before installing, operating or
servicing the fixture.
2. Unpack and ensure that there is no transportation damage before using
the fixture. Do not attempt to operate a damaged fixture.
3. If the fixture is not going to be hard-wired to a mains supply, install a local
power plug (not supplied) on the end of the supplied power cable.
4. Ensure that the voltage and frequency of the power supply match the
power requirements of the fixture.
5. Check the support pages on the Martin Professional website at
www.martin.com for the most recent user documentation and technical
information about the fixture. Martin™ user manual revisions are identified
by the revision letter at the bottom of the inside cover.
Note that whenever AC power is applied to the fixture, it will reset all effects
and functions to their home positions. Be prepared for the fixture head to
move. A reset usually takes around 50 seconds.
Maximizing lamp life
To obtain maximum output over the lifetime of the fixture’s lamp:
• Each time you power the lamp on, allow it to warm up for at least 5
minutes before you power it off.
• Before shutting down power completely, power the lamp off but leave
power applied to the fixture for a few minutes so that cooling fans can
prevent any momentary lamp temperature increase caused by heat from
surrounding components.
RUSH™ MH 7 Hybrid User Manual 11
Physical installation
Warning! Read ‘Safety information’ on page 4 before
installing the fixture.
The fixture is designed for indoor use only and must be used in
a dry location with adequate ventilation. Ensure that none of the
fixture’s ventilation slots are blocked.
Fasten the fixture to a secure structure or surface. Do not stand
it on a surface or leave it where it can be moved or fall over. If
you install the fixture in a location where it may cause injury or
damage if it falls, secure it as directed in this user manual using
a securely anchored safety cable that will hold the fixture if the
primary fastening method fails.
Do not use the fixture to illuminate surfaces within 10 m (33 ft.)
of the fixture.
Martin™ can supply safety cables and rigging clamps that are suitable for use
with the fixture (see ‘Accessories’ on page 43).
Fastening the fixture to a flat surface
The fixture can be fastened to a hard, fixed, flat surface. Ensure that the
surface and all fasteners used can support at least 10 times the weight of all
fixtures and equipment they will support.
Fasten the fixture securely. Do not stand it on a surface or leave it where it can
be moved or fall over. If you install the fixture in a location where it may cause
injury or damage if it falls, secure it as directed below with a securely anchored
safety cable that will hold the fixture if the primary fastening method fails.
Mounting the fixture on a truss
The fixture can be clamped to a truss or similar rigging
structure in any orientation. When installing the fixture
hanging vertically down, you can use an open-type clamp
such as a G-clamp. When installing in any other orientation,

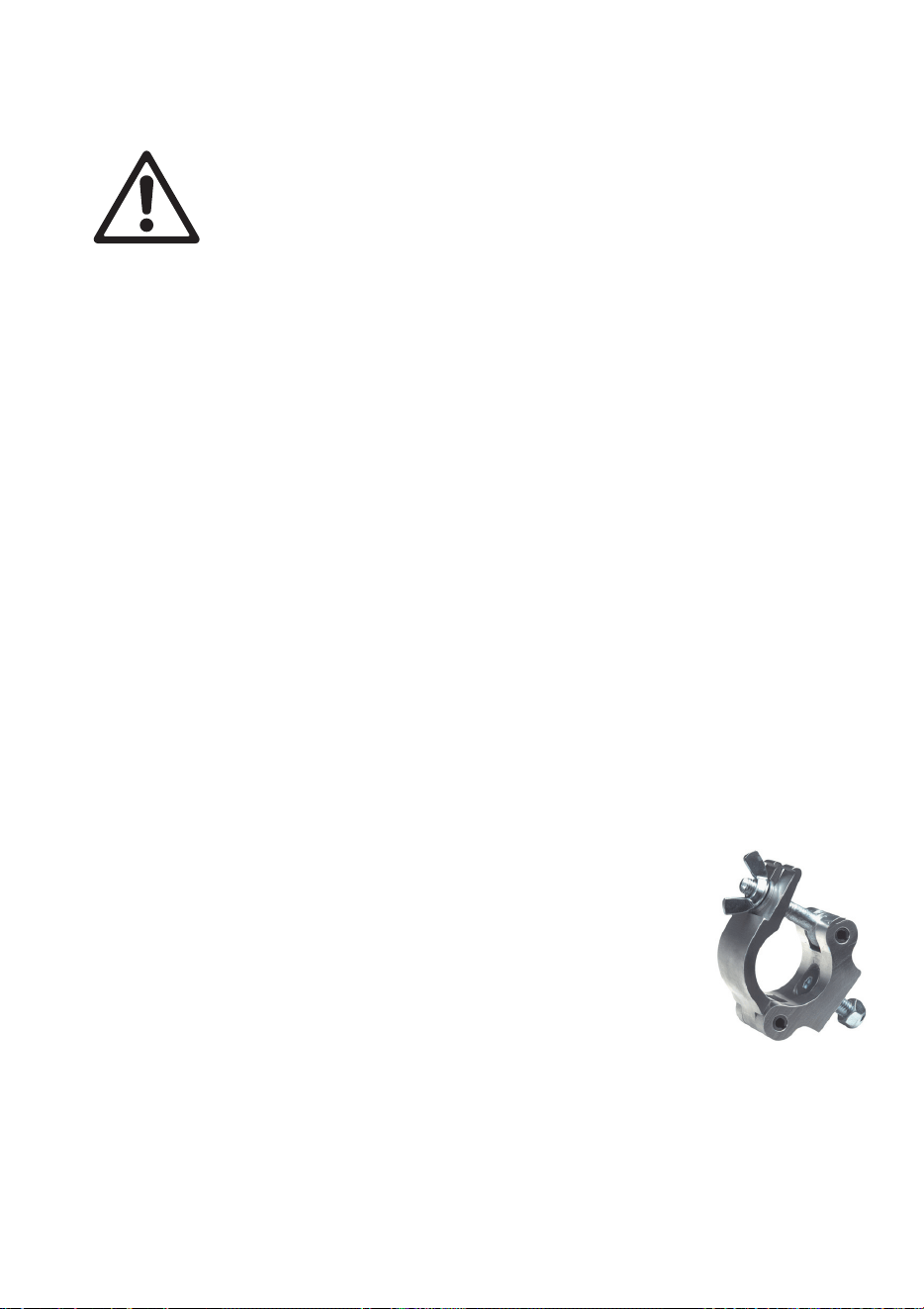

you must use a closed-type rigging clamp such as half-
coupler clamp (see illustration on right) that completely
encircles the truss chord.
To clamp the fixture to a truss:
1. Check that the rigging structure can support at least 10 times the weight of
all fixtures and equipment to be installed on it.
2. Block access under the work area.
12 RUSH™ MH 7 Hybrid User Manual
3. The fixture is supplied with two omega-type brackets to which rigging
clamps can be attached. Check that the rigging clamps are undamaged
and approved for the fixture’s weight. Bolt a rigging clamp securely to each
bracket. The bolts used must be M12, grade 8.8 steel minimum, and
fastened with self-locking nuts.
4. Fasten the omega brackets to the base of the fixture

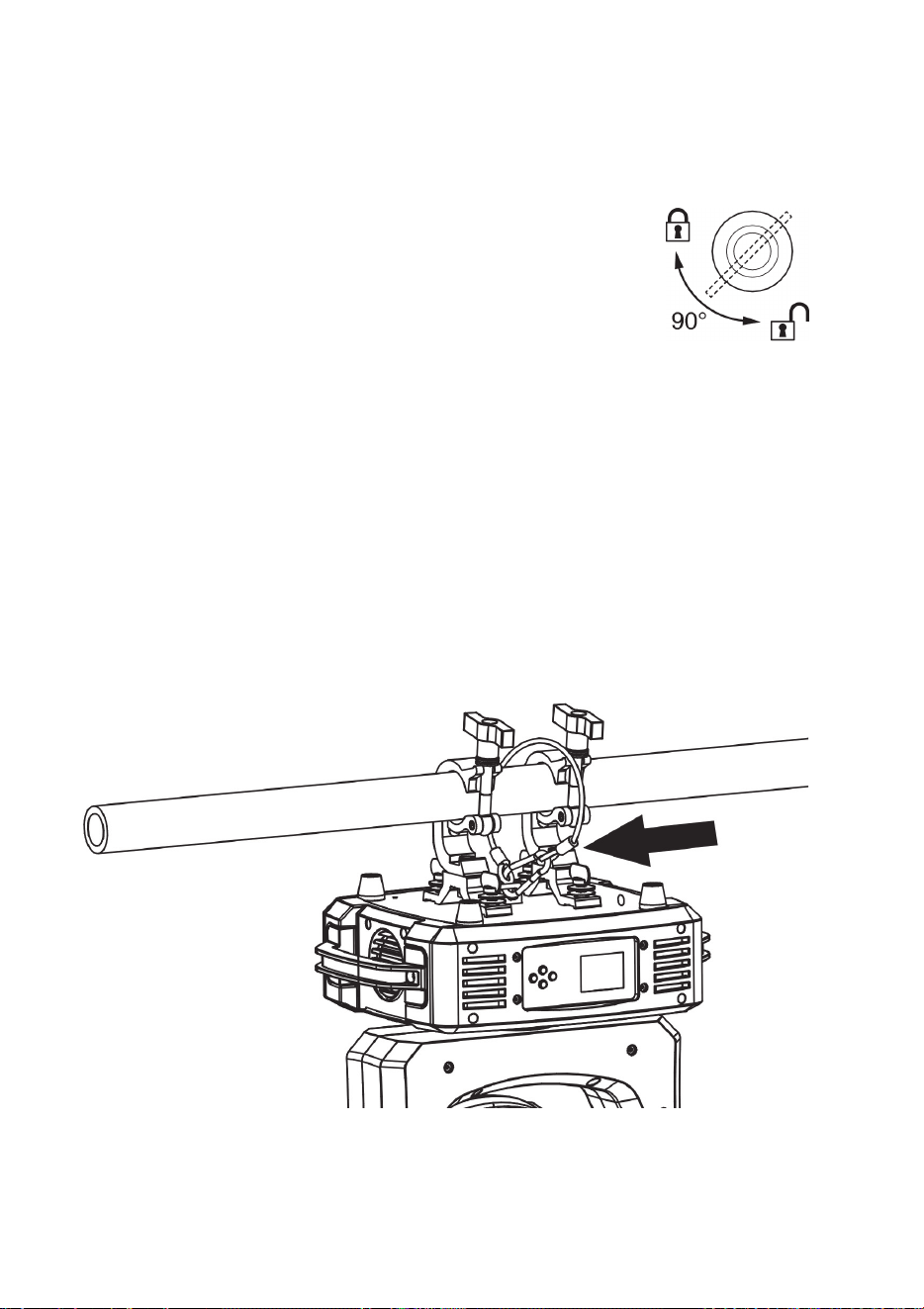

using the brackets’ quarter-turn fasteners. Turn quarter-
turn fasteners a full 90° to lock them (see illustration on
right).
5. Working from a stable platform, hang the fixture on the truss and fasten
the rigging clamps onto the truss.
6. Secure the fixture with a safety cable as directed below.
7. Check that the head will not collide with other fixtures or objects.
Securing with a safety cable
Secure the fixture with a safety cable (or other secondary attachment) that is
approved for the weight of the fixture so that the safety cable will hold the
fixture if a primary attachment fails.
Loop the safety cable through the eye bracket in the fixture’s baseplate (see
illustration below) and around a secure anchoring point.
RUSH™ MH 7 Hybrid User Manual 13
AC power
Warning! Read ‘Safety information’ on page 4 before
connecting the fixture to AC mains power.
Warning! The mains power input cable supplied with the
fixture is rated 9 A and can supply only one fixture with
mains power. Do not connect any device to the fixture’s
MAINS OUT power throughput socket when using this input
cable. If you wish to connect other fixtures to the MAINS
OUT socket, see ‘Linking fixtures to power in a chain’ on
page 14.
For protection from electric shock, the fixture must be grounded
(earthed). The power distribution circuit must be equipped with a
fuse or circuit breaker and ground-fault (earth-fault) protection.
Do not insert or remove live Neutrik PowerCon connectors to apply or cut
power, as this may cause arcing at the terminals that will damage the
connectors.
Socket outlets or external power switches used to supply the fixture with power
must be located near the fixture and easily accessible so that the fixtures can
easily be disconnected from power.
Do not use an external dimming system to supply power to the fixture, as this
may cause damage to the fixture that is not covered by the product warranty.
The fixture can be hard-wired to a building electrical installation if you want to
install it permanently, or a power plug (not supplied) that is suitable for the
local power outlets can be installed on the power cable.
If you install a power plug on the power cable, install a grounding type
(earthed) plug with integral cable grip that is rated minimum 250 V, 9 A. Follow
the plug manufacturer’s instructions and connect the wires in the power cable
as shown in this table:
The fixture has an auto-ranging power supply that accepts AC mains power at
100-240 V at 50/60 Hz. Do not apply AC mains power at any other voltage or
frequency to the fixture.
Live or L Neutral or N
Earth, Ground or
US system
Black White Green
EU system
Brown Blue Yellow/green
14 RUSH™ MH 7 Hybrid User Manual
Linking fixtures to power in a chain
The mains power input cable supplied with the fixture is rated 9 A and can
supply only one fixture with mains power. If you wish to connect fixtures to
power in a linked chain, you must obtain a 14 AWG or 1.5mm
2
power input
cable and 14 AWG or 1.5mm
2
throughput cables from Martin™ (see
‘Accessories’ on page 43).
Using these heavier gauge cables, you can relay mains power from one
RUSH™ MH 7 Hybrid fixture to another RUSH™ MH 7 Hybrid fixture by
connecting fixtures to power in a linked daisy-chain, MAINS OUT throughput
socket to MAINS IN input socket, but do not exceed the following safety limits:
Using 14 AWG or 1.5 mm
2
cables from Martin™, you can link:
• Maximum two (2) RUSH™ MH 7 Hybrid fixtures in total at 100-120 V, or
• Maximum four (4) RUSH™ MH 7 Hybrid fixtures in total at 200-240 V.
If you install a power plug on the 14 AWG / 1.5 mm
2
power input cable, install
a grounding type (earthed) plug with integral cable grip that is rated minimum
20 A, 250 V.
RUSH™ MH 7 Hybrid User Manual 15
Fixture overview

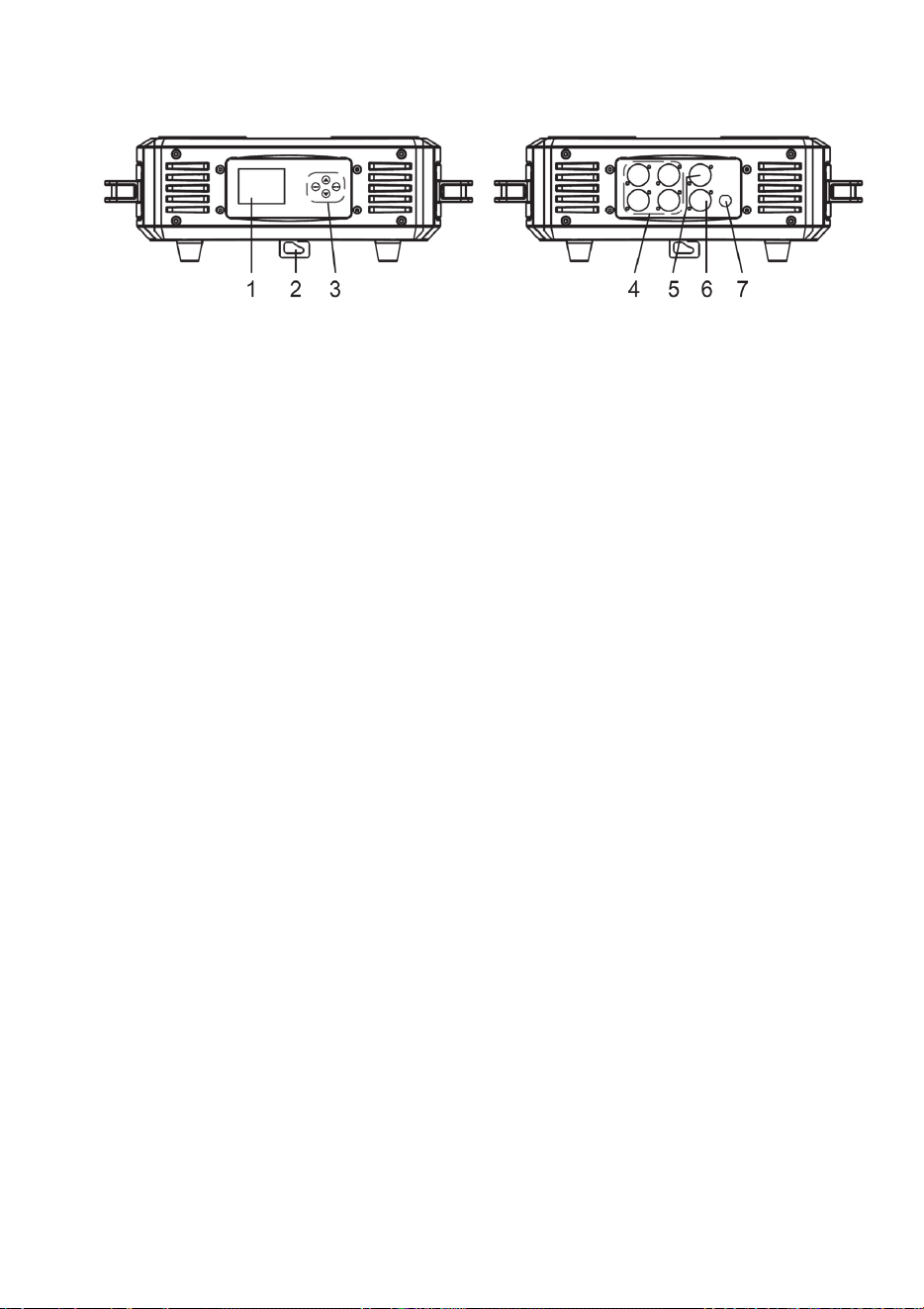

1 – LCD Display
While operating, the screen displays the fixture’s DMX address. The address
flashes if the DMX signal is lost. The display automatically turns off after a
user-settable delay.
2 – Secondary attachment point
A dedicated eye bracket is provided for securing a safety cable to the base. Do
not use the handles for secondary attachment.
3 – Control buttons
• MENU: Press to activate the menu. Within the menu, press to escape and
return to the previous level. Press and hold to exit the menu.
• DOWN: Press to scroll down through menu options.
• UP: Press to scroll up through menu options.
• ENTER: Press to confirm and save the menu selection. Press and hold to
exit the menu.
4 –XLR DMX input/output sockets
3 and 5-pin XLR sockets are provided for DMX input and output (throughput).
5 – Mains power input
Connect mains power to the blue Neutrik PowerCon input socket.
6 – Mains power throughput
The white Neutrik PowerCon socket can be used to supply power to other
fixtures only if you respect the safety precautions given in this manual (see
‘Safety information’ on page 4).
7 – Main Fuse
The fixture’s 5T 250V 8A fuse is located in a fuse holder next to the power
input/output connectors.
16 RUSH™ MH 7 Hybrid User Manual
Control data link
A DMX 512 data link is required in order to control the fixture via DMX. The
fixture has 3-pin and 5-pin XLR connectors for DMX data input and output.
Up to 32 devices can be linked together on a single daisy chain. The total
number of fixtures in one 512-channel DMX universe is limited by the number
of DMX channels required by the fixtures. Note that if independent control of a
fixture is required, it must have its own DMX channels. Fixtures that are
required to behave identically can share the same DMX address and
channels. To add more fixtures or groups of fixtures when the above limits are
reached, add a DMX universe and/or split the daisy-chained link into branches.
Tips for reliable data transmission
Use shielded twisted-pair cable designed for RS-485 devices: standard
microphone cable cannot transmit control data reliably over long runs. 24
AWG cable is suitable for runs up to 300 meters (1000 ft.). Heavier gauge
cable and/or an amplifier is recommended for longer runs. The pin-out on all
connectors is pin 1 = shield, pin 2 = cold (-), and pin 3 = hot (+). Pins 4 and 5
in the 5-pin XLR connectors are not used in the fixture but are available for
possible additional data signals as required by the DMX512-A standard.
Standard pin-out is pin 4 = data 2 cold (-) and pin 5 = data 2 hot (+).
To split the link into branches, use an opto-isolated splitter such as the
Martin™ DMX 5.3 Splitter. Terminate the link by installing a termination plug in
the output socket of the last fixture. The termination plug, which is a male XLR
plug with a 120 Ohm, 0.25 Watt resistor soldered between pins 2 and 3,
“soaks up” the control signal so it does not reflect and cause interference. If a
splitter is used, terminate each branch of the link.
Connecting the data link
To connect the fixture to data:
1. Connect the DMX data output from the controller to the closest fixture’s
male XLR DMX input connector.
2. Connect the first fixture’s DMX output to the DMX input of the next fixture
and continue connecting fixtures output to input.
3. Terminate the last fixture on the link with a DMX termination plug.
RUSH™ MH 7 Hybrid User Manual 17
Fixture setup
This section explains the fixture settings and utilities that the user has access
to via the control panel. Settings are retained when the fixture is powered off.
Only commonly used menu options for fixture setup are described in this
section. A complete map of the control menu structure and brief explanations
of their purposes can be found in ‘Control menus on page 38.
Using the control menus
To access the control menus, press the MENU button.
Navigate the menu structure using the ENTER, DOWN and UP buttons.
To select a menu option or to confirm a selection, press the ENTER button.
To return to a higher level in the menu structure without making a change,
press the MENU button.
To exit the control menus completely, press and hold the MENU button.
DMX address
Each fixture must be assigned a DMX address. The DMX address, also known
as the start channel, is the first channel used to receive instructions from a
DMX controller. The fixture is controlled using 21 DMX channels. If a fixture
has a DMX address of 1, it uses channels 1 through 21. The following fixture in
the DMX chain could then be set to a DMX address of 22.
For independent control, each fixture must be assigned its own control
channels. Two fixtures of the same type may share the same address if
identical behavior is desired. Address sharing can be useful for diagnostic
purposes and symmetric control, particularly when combined with the inverse
pan and tilt options.
To set the fixture’s DMX address:
1. Enter the control menu and select DMX FUNCTION. Press ENTER.
2. Select DMX ADDRESS and press ENTER.
3. Scroll up or down to the desired address setting.
4. Press ENTER to confirm your selection.
Lamp settings
Five minutes after the temperature in the head reaches the LAMP OFF
TEMPERATURE, which is fixed at 130° C (266° F), the lamp shuts down
automatically to protect from heat damage. The lamp restrikes automatically
when the temperature cools to the MAX ON AT TEMPERATURE, which is
fixed at 45° C (113° F).
18 RUSH™ MH 7 Hybrid User Manual
When the LCD display shows OFF, the lamp must be turned on manually.
On/Off
The lamp cannot be turned on if the head temperature is over 45° C (113° F).
To turn the lamp on or off via the control panel:
1. Enter the control menu and select Lamp Settings. Press ENTER.
2. Select ON or OFF and press ENTER.
3. Press ENTER to confirm or press MENU to exit.
State at Power
By default, the lamp strikes automatically when power is applied to the fixture.
To enable or disable this feature:
1. Enter the control menu and select Lamp Settings. Press ENTER.
2. Select State at Power and press ENTER.
3. Select OFF to disable automatic lamp strike at power up, or ON to enable.
4. Press ENTER to confirm or press MENU to exit.
On via DMX On
The lamp strikes automatically when the fixture receives DMX. To enable or
disable this feature:
1. Enter the control menu and select Lamp Settings. Press ENTER.
2. Select On Via DMX On and press ENTER.
3. Select ON to enable automatic lamp on with DMX or OFF to disable it.
4. Press ENTER to confirm or press MENU to exit.
Off via DMX
By default, the lamp can be turned off from the controller. To disable this
feature:
1. Enter the control menu and select Lamp Settings. Press ENTER.
2. Select Off Via DMX and press ENTER.
3. Select OFF to disable DMX lamp control or ON to enable it.
4. Press ENTER to confirm or press MENU to exit.
Fixture settings
Loss of DMX
If the fixture loses the DMX signal, it can either hold the look it was displaying
or black out. The default is HOLD. To change the setting:
1. Enter the control menu and select Fixture Set. Press ENTER.
2. Select Loss of DMX and press ENTER.
RUSH™ MH 7 Hybrid User Manual 19
3. Select Black Out or Hold.
4. Press ENTER to confirm or press MENU to exit.
Pan inverse, tilt inverse
These settings allow you to reverse DMX pan and tilt control. The default
setting is OFF. To reverse pan or tilt control:
1. Enter the control menu and select Fixture Set. Press ENTER.
2. Select Status Settings and press ENTER.
3. Select Pan inverse or Tilt inverse and press ENTER.
4. Select ON to reverse control, or OFF for normal control.
5. Press ENTER to confirm or press MENU to exit.
P/T Feedback
This setting allows you to turn off automatic pan/tilt correction. The default
value is ON. To change the setting:
1. Enter the control menu and select Fixture Set. Press ENTER.
2. Select Status Settings and press ENTER.
3. Select P/T Feedback and press ENTER.
4. Select OFF to disable automatic position correction or ON to enable it.
5. Press ENTER to confirm or press MENU to exit.
Hibernation
By default, the fixture turns off the lamp and goes into low power mode 15
minutes after loss of DMX. The fixture automatically resets and returns to full
power when DMX is restored. To disable this feature or change the delay:
1. Enter the control menu and select Fixture Set. Press ENTER.
2. Select Status Settings and press ENTER.
3. Select Hibernation and press ENTER.
4. Select OFF to disable hibernation. To enable hibernation, select a delay
time of 1 to 99 minutes.
5. Press ENTER to confirm or press MENU to exit.
BI.O.P/T Move
This setting enables automatic blackout during pan or tilt movement. The
default is OFF. To change the setting:
1. Enter the control menu and select Fixture Set. Press ENTER.
2. Select BI.O.P/T Move and press ENTER.
3. Select ON to enable automatic blackout, or OFF to disable it.
4. Press ENTER to confirm or press MENU to exit.
20 RUSH™ MH 7 Hybrid User Manual
BI.O. Other Move
This setting enables automatic blackout during gobo and color changes. The
default is OFF. To change the setting:
1. Enter the control menu and select Fixture Set. Press ENTER.
2. Select BI.O.Other Move and press ENTER.
3. Select ON to enable automatic blackout, or OFF to disable it.
4. Press ENTER to confirm or press MENU to exit.
Backlight auto off
The color LCD display automatically dims after a delay of from 2 to 60 minutes
after the last key press. The default delay is 5 minutes. To change the delay:
1. Enter the control menu and select Fixture Set. Press ENTER.
2. Select Display Setting and press ENTER.
3. Select Backlight auto off and press ENTER.
4. Select a delay from 2 to 60 minutes.
5. Press ENTER to confirm or press MENU to exit.
Clear Err. Info
A password must be entered to clear error codes from the display. The
password is “050”. To clear error codes from the display:
1. Enter the control menu and select Fixture Set. Press ENTER.
2. Select Service Setting and press ENTER.
3. At the Password prompt, press ENTER, scroll to 050 and press ENTER.
4. Select Clear Err. Info and press ENTER.
5. Select YES to clear the error codes, or NO to keep them.
6. Press ENTER to confirm or press MENU to exit.
Factory settings
To restore all settings to factory defaults:
1. Enter the control menu and select Fixture Set. Press ENTER.
2. Select Service Setting and press ENTER.
3. Select Factory settings and press ENTER.
4. Select YES to if you want to restore factory settings, or NO to keep
settings as they are.
5. Press ENTER to confirm.
RUSH™ MH 7 Hybrid User Manual 21
Fixture readouts
Total use time
To display the fixture’s total operating hours:
1. Enter the control menu and select Information. Press ENTER.
2. Select Time Information and press ENTER.
3. Select Total Use Time and press ENTER.
Lamp on hours
To display the number of hours since the lamp hours counter was reset:
1. Enter the control menu and select Information. Press ENTER.
2. Select Time Information and press ENTER.
3. Select Lamp On Hours and press ENTER.
To reset lamp hours after installing a new lamp:
1. Enter the control menu and select Information. Press ENTER.
2. Select Time Information and press ENTER.
3. Select Reset Lamp Time and press ENTER.
4. At the PASSWORD prompt press ENTER. Scroll to 038 and press
ENTER.
5. Select YES to reset the lamp counter, or NO to cancel.
6. Press ENTER to confirm or press MENU to exit.
Head Temperature
To display the temperature inside the head:
1. Enter the control menu and select Information. Press ENTER.
2. Select Head Temperature and press ENTER. The temperature is
displayed.
3. Press MENU to exit.
Offset menu
If an effect does not reset to its home position, you can callibrate it with a
position offset. The offset password is 050. To enter an offset:
1. Enter the control menu and select Offsetting. Press ENTER.
2. At the Calibration Password prompt, scroll to 050 and press ENTER.
3. Select an effect to adjust and press ENTER.
4. Use the UP and DOWN arrow buttons to increase or decrease the offset
value. When the effect is reaches its home position, press ENTER.
5. Press MENU to exit.
22 RUSH™ MH 7 Hybrid User Manual
Effects
This section describes the effects provided by the RUSH
™
MH 7 Hybrid. See
‘DMX protocol’ on page 33 for a full list of the DMX channels and values
required to control the different effects.
Hybrid functionality
Beam
Beam operation provides narrow-to-medium beam angles. Fixed gobos are
available, giving you eight pattern gobos and five iris gobos that you can select
if you want to further narrow the beam. Rotating gobos are not available.
To enable Beam operation, select ‘Open’ on the rotating gobo wheel (DMX
channel 5).
Spot
Spot operation also provides narrow-to-medium beam angles but a
beamsmoother lens is deployed, giving a more even projection. Fixed and
rotating gobos are available.
To obtain Spot operation, select ‘Spot’ or a rotating gobo (indexing, rotation or
shake) on the rotating gobo wheel (DMX channel 5).
Wash
Wash operation provides a diffuse wash effect and gives the widest beam
angle.
To obtain Wash operation, select ‘Enable Frost’ on DMX channel 12. For the
widest beam angle, set the rotating gobo wheel to ‘Open’ on DMX channel 5.
D
imming
Overall intensity can be precisely adjusted from 0 to 100% using 16-bit coarse
and fine control.
Strobe effects
A mechanical shutter provides instant open and blackout, random and variable
speed strobe from 1 to 12 flashes per second, and pulse effects.
RUSH™ MH 7 Hybrid User Manual 23
Gobos
The fixture contains two gobo wheels: a static gobo wheel and a rotating gobo
wheel that is available in Spot operation. Gobos are available in Wash
Operation but have little effect. See ‘Hybrid functionality’ above.
Note: When the ‘BI.O. Other Move’ personality setting is ON, the fixture blacks
out during color and gobo changes.
Rotating gobo wheel

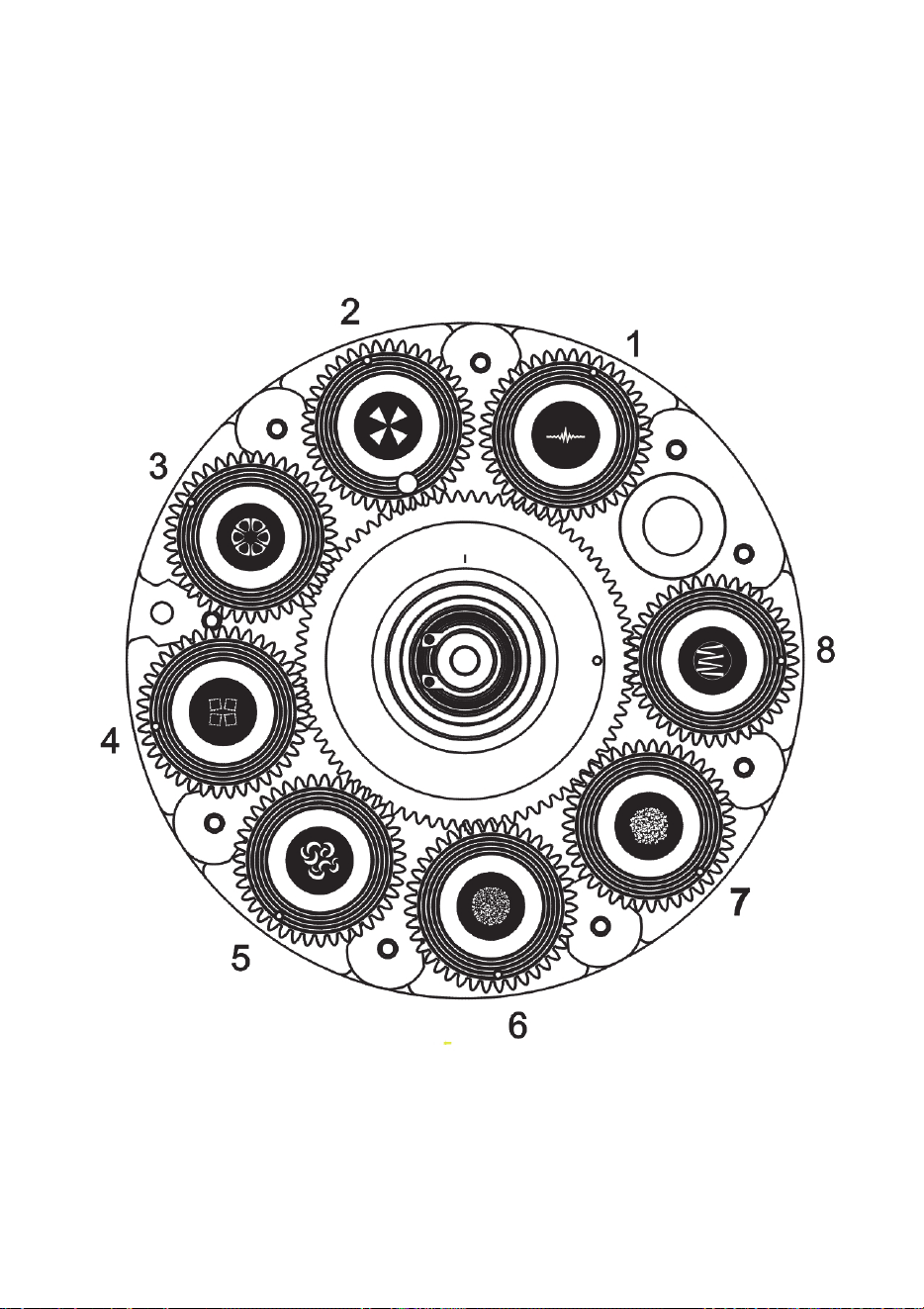

The Rotating gobo wheel provides eight user-replaceable rotating glass gobos
that can be set to indexed positions, continuously rotated or set to shake in
Spot operation.
24 RUSH™ MH 7 Hybrid User Manual
Iris 1
Iris 2
Iris 3
Iris 4
Iris 5
Gobo1
Gobo2
Gobo3
Gobo4
Gobo5
Gobo6
Gobo7
Gobo8
Open
Fixed gobo wheel
The fixed gobo wheel provides a full open position, five iris gobos and eight
pattern gobos.
The wheel can be scrolled in full-position steps or scrolled continuously to give
split gobo patterns. It can be rotated with variable speed and direction. It can
also be set to display random gobos at slow, medium and fast speeds.
RUSH™ MH 7 Hybrid User Manual 25
Colors
The color wheel provides the 13 colors filters listed below and an open white
position.
Colors can be selected in full position steps or continuously scrolled for split
colors. The color wheel can be rotated with variable speed and direction. It can
also be set to display random colors at slow, medium and fast speeds.
Slot 1: red
Slot 2: blue
Slot 3: green
Slot 4: magenta
Slot 5: yellow
Slot 6: light blue
Slot 7: pink
Slot 8: orange
Slot 9: aqua
Slot 10: purple
Slot 11: CTO
Slot 12: CTB
Slot 13: UV
Prisms
The RUSH
™
MH 7 Hybrid has two prisms: a four-facet linear prism and an
eight-facet radial prism. Both prisms can be set to indexed positions or rotated
continuously with variable speed and direction.
Frost
Deploying the frost filter sets the fixture to Wash operation and provides a
wider beam with a softer, diffuse light.
Focus
A motorized focus lens provides 16-bit coarse and fine adjustment of gobo
image sharpness.
Morphing effects are available by selecting a static gobo at the same time as a
rotating gobo and then shifting focus.
Zoom
A motorized zoom lens provides 16-bit coarse and fine control of the beam
angle. The beam angle range is as follows:
• Cutoff angle, Beam operation: 2.2° - 24°
• Cutoff angle, Spot operation: 2.5° - 24°
• One-tenth peak angle, Wash operation: 15° - 45°
26 RUSH™ MH 7 Hybrid User Manual
Pan and tilt
The fixture’s head can be panned through 540° and tilted through 250° with
16-bit coarse and fine control. Using the control menus it is possible to invert
pan or tilt movement. A position feedback circuit provides automatic position
correction.
Light output can be set to black out when the head moves using either the
‘Auto-blackout = ON’ command on DMX channel 21, or the BI.O.P/T Move
personality setting in the control menu.
RUSH™ MH 7 Hybrid User Manual 27
Maintenance
Warning! Read ‘Safety information’ on page 4 before
servicing the fixture.
Disconnect the fixture from mains power before cleaning or
servicing.
Service fixtures in an area where there is no risk of injury from
failing parts, tools or other materials.
The user may carry out the service operations described in
this manual. All other service operations must be carried out
by an authorized Martin™ service technician. Do not try to
repair the fixture yourself, as you may create a safety risk or
cause damage that is not covered by the product warranty.
Installation, on-site service and maintenance can be provided
worldwide by the Martin Professional™ Global Service
organization and its approved agents, giving owners access to
Martin’s expertise and product knowledge in a partnership that
will ensure the highest level of performance throughout the
product’s lifetime. Please contact Martin™ for details.
Cleaning
Excessive dust, smoke fluid, and particle buildup degrades performance,
causes overheating and will damage the fixture. Damage caused by
inadequate cleaning or maintenance is not covered by the product warranty.
External optical lenses must be cleaned periodically to optimize light output.
Cleaning schedules for lighting fixtures vary greatly depending on the
operating environment. It is therefore impossible to specify precise cleaning
intervals for the fixture. Environmental factors that may result in a need for
frequent cleaning include:
• Use of smoke or fog machines.
• High airflow rates (near air conditioning vents, for example).
• Presence of cigarette smoke.
• Airborne dust (from stage effects, building structures and fittings or the
natural environment at outdoor events, for example).
If one or more of these factors is present, inspect fixtures within their first 100
hours of operation to see whether cleaning is necessary. Check again at
frequent intervals. This procedure will allow you to assess cleaning
requirements in your particular situation. If in doubt, consult your Martin dealer
about a suitable maintenance schedule.
28 RUSH™ MH 7 Hybrid User Manual
Use gentle pressure only when cleaning, and work in a clean, well-lit area. Do
not use any product that contains solvents or abrasives, as these can cause
surface damage.
To clean the fixture:
1. Disconnect the fixture from power and allow it to cool for at least 10
minutes.
2. Vacuum or gently blow away dust and loose particles from the outside of
the fixture and the air vents at the back and sides of the head and in the
base with low-pressure compressed air.
3. Clean surfaces by wiping gently with a soft, clean lint-free cloth moistened
with a weak detergent solution. Do not rub glass surfaces hard: lift
particles off with a soft repeated press. Dry with a soft, clean, lint-free cloth
or low-pressure compressed air. Remove stuck particles with an
unscented tissue or cotton swab moistened with glass cleaner or distilled
water.
4. Check that the fixture is dry before reapplying power.
Replacing gobos
The rotating gobos supplied with the fixture can be replaced with custom glass
or stainless steel gobos. See ‘Interchangeable Gobos’ on page 42 for gobo
specifications.
Optical components have fragile
coatings and are exposed to very high
temperatures. Handle and store
components with care. Wear cotton
gloves while handling them. Keep them
perfectly clean and free of oil and
grease to reduce the risk of heat
damage.
To replace a rotating gobo:
1. Disconnect the fixture from power
and allow it to cool for at least 60
minutes.

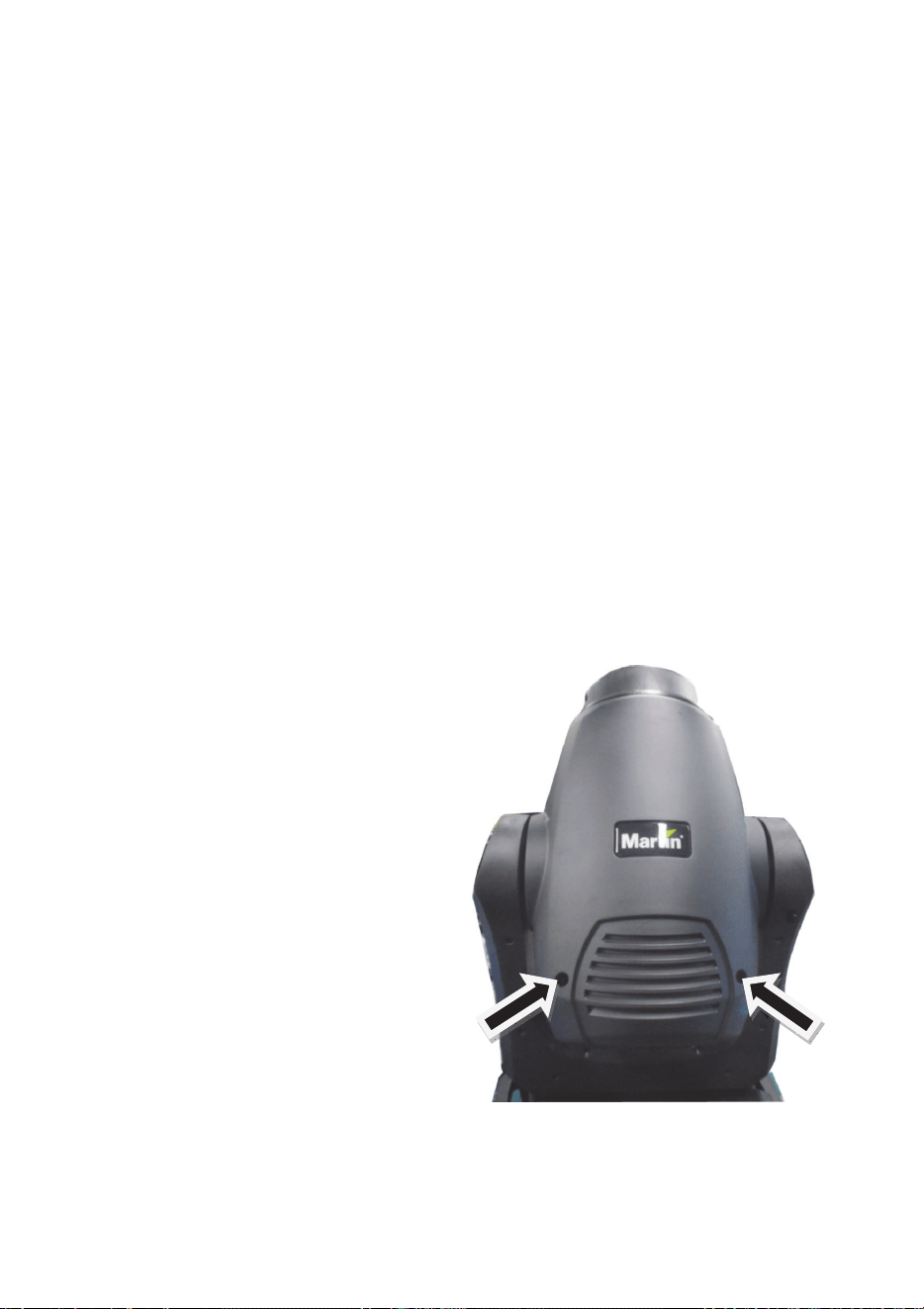

2. See illustration to right. Loosen the
screws indicated with an M4 TORX
screwdriver and remove the top
head shell.
RUSH™ MH 7 Hybrid User Manual 29
3. The rotating gobos sit in goboholders that slot into clips in the rotating
gobo wheel. Find the gobo you want to replace. Pull its goboholder away
from the gobo wheel slightly, then lift the goboholder out of its clip in the
wheel.

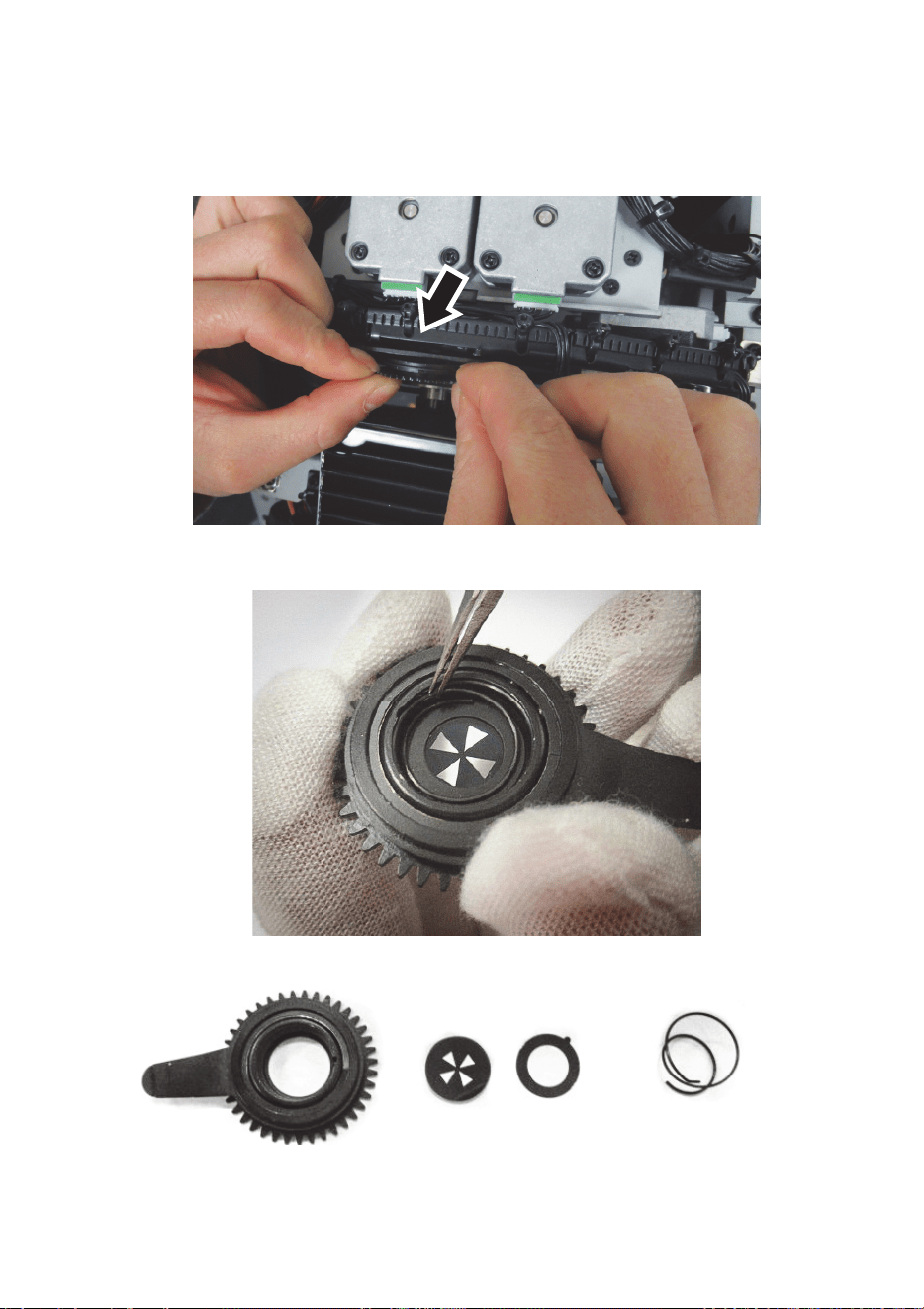

4. The gobo is held by a retaining spring. Use needle-nose pliers or a flat-
bladed screwdriver to release the end of the spring.
5. Remove spring, retaining ring and gobo.
6. Insert the new gobo in the holder with the reflective side facing down
(facing towards the lamp) and the dark side facing up.
30 RUSH™ MH 7 Hybrid User Manual
7. Insert the retaining ring, making sure the tab fits in the slot in the
goboholder.
8. Reinstall the retaining spring with the narrow end facing inwards, towards
the retaining ring. Make sure that the outer end of the spring is held
securely in place in the goboholder.
9. Reinstall the goboholder in the gobowheel, sliding the tab on the
goboholder under the clip on the gobowheel and making sure that the
teeth on the goboholder engage in the teeth on the gobo wheel.
10. Reinstall the head cover and be ready for the head to move when you
reapply power.
Lamp replacement
Warning! Wear safety glasses and gloves when handling
lamps.
Allow the fixture to cool for at least 1 hour before handling a
lamp.
To avoid the risk of a discharge lamp exploding in the fixture,
replace the lamp when it reaches its average lifetime (see ‘
Lamp’ on page 41).
Install only lamps that are approved by Martin™ for this fixture
(see ‘
Lamp’ on page 41).
If a lamp breaks, ventilate the room for 30 minutes, put on nitrile
gloves and remove the pieces. Put the pieces in a sealed plastic
bag and take them to your local waste facilities for specialist
recycling. Do not use a vacuum cleaner to clean up pieces of a
broken lamp.
The lamp must be perfectly clean and totally free of oil and grease. Never
touch the lamp with bare hands. If you contaminate the lamp, clean it with an
alcohol wipe and then dry it with a lint-free cloth.
RUSH™ MH 7 Hybrid User Manual 31

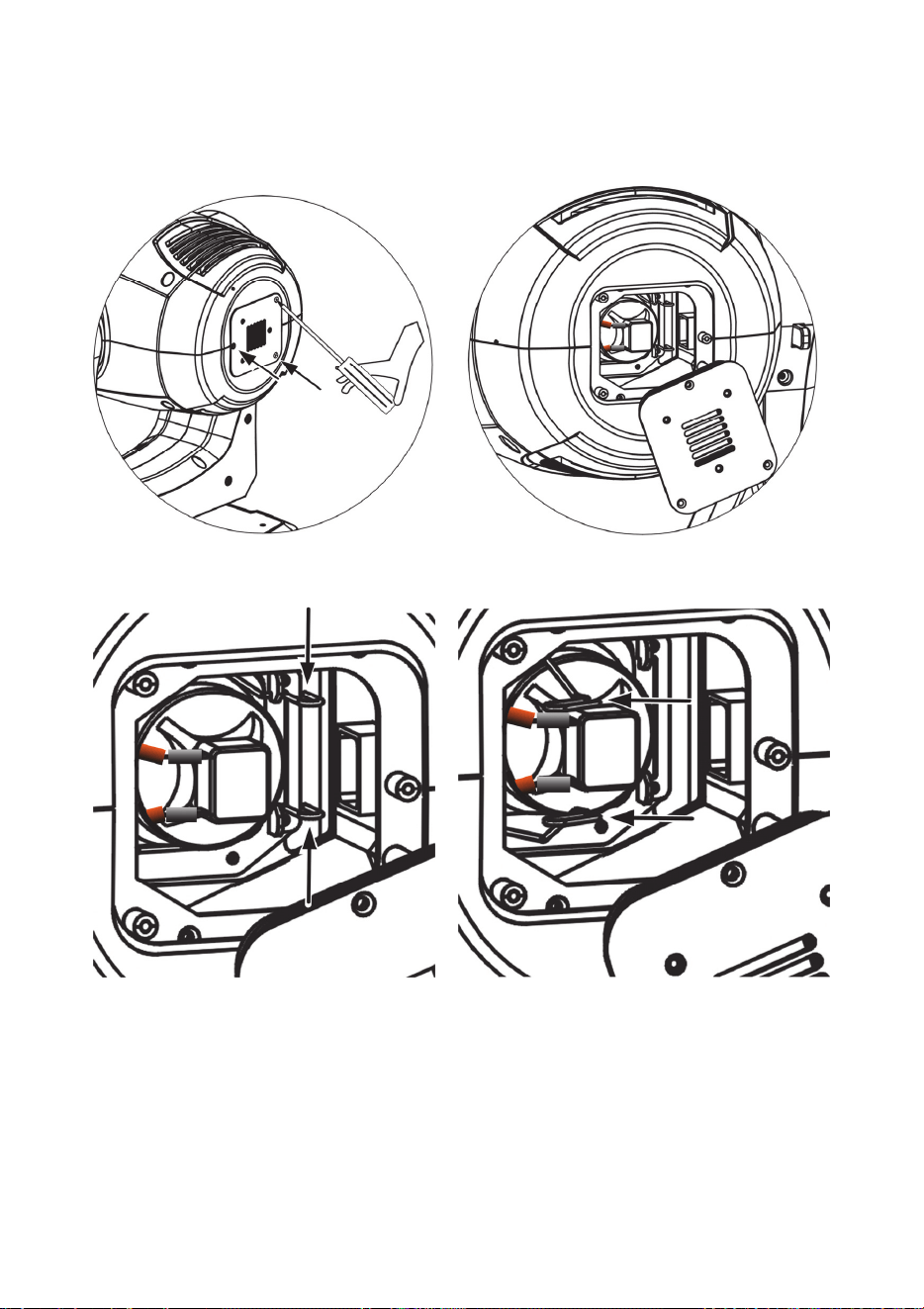

To replace the lamp:
1. Disconnect the fixture from power and allow it to cool for one hour.
2. Remove the lamp cover using a Phillips screwdriver.
3. Squeeze and unhook the ends of the lamp retaining spring. Pivot the
spring away from the lamp.
32 RUSH™ MH 7 Hybrid User Manual
4. Carefully pull the lamp wires off of the connection pins. Remove the lamp.
5. Avoid direct contact with the new lamp. Either wear clean lint-free cotton
gloves or hold the lamp with the included cloth. Remove the new lamp
from its packaging and attach the wires to the connection pins.
6. With the connection pins pointing to the left, away from the retaining spring,
seat the new lamp in the fixture. Secure the lamp with the retaining spring.
7. Reinstall the lamp cover before applying power.
8. Reset the lamp hours counter as described on page 21.

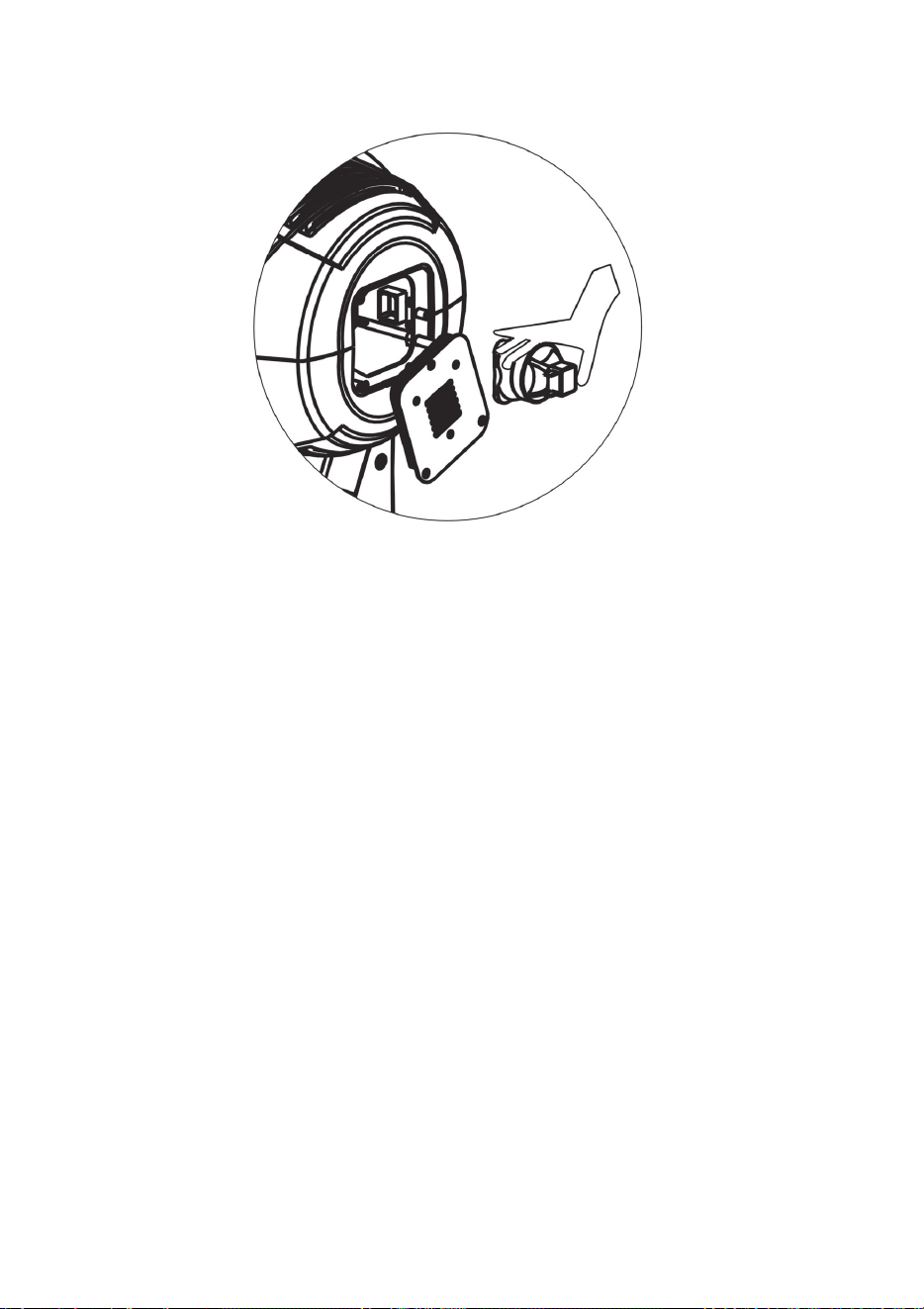

Replacing the primary fuse
If the fixture is completely dead, the fixture’s primary fuse may have blown and
it may be necessary to install a new fuse. Replace with a fuse of the same size
and specified rating only.
If you need to replace the fuse:
1. Disconnect the fixture from power and allow it to cool.
2. Unscrew the cap of the fuse holder (shown on page 15) and remove the
fuse.
3. Replace with a fuse of the same size and rating only.
4. Screw the fuse holder cap back on before reapplying power.
Service and repairs
Never try to repair the fixture by yourself as this may result in damage or
malfunction and it may potentially void your product warranty. The equipment
must only be serviced or repaired by an authorized Martin service technician.
RUSH™ MH 7 Hybrid User Manual 33
DMX protocol
Channel Value Function
1
Dimme
r
0-255 Intensity 0 → 100%
2
Dimmer, fine
0-255 Fine dimmer intensity adjustment
3
Shutte
r
0-31 Shutter closed
32-63 Shutter open
64-95 Strobe effect slow → fast
96-127 Pulse, fast close & slow open
128-159 Pulse, fast open & slow close
160-191 Sequential pulse effects
192-223 Random strobe effect slow → fast
224-255 Shutter open
4
Color wheel
Continuous scrolling (split colors possible)
0 Open
1-11 Open → Red
12 Red (Color 1)
13-22 Red → Blue
23 Blue (Color 2)
24-32 Blue → Green
33 Green (Color 3)
34-42 Green → Magenta
43 Magenta (Color 4)
44-52 Magenta → Yellow
53 Yellow (Color 5)
54-62 Yellow → Light blue
63 Light blue (Color 6)
64-73 Light blue → Pink
74 Pink (Color 7)
75-84 Pink → Orange
85 Orange (Color 8)
86-95 Orange → Aqua
96 Aqua (Color 9 )
97-105 Aqua → Purple
106 Purple (Color 10)
107-114 Purple → CTO
115 CTO (Color 11)
116-124 CTO → CTB
125 CTB (Color 12)
126-136 CTB → UV
137 UV (Color 13)
138-146 UV → Open
147 Open
34 RUSH™ MH 7 Hybrid User Manual
Channel Value Function
4
cont.
Stepped scrolling (full colors only)
148-151 Red
152-155 Blue
156-159 Green
160163 Magenta
164-167 Yellow
168-171 Light blue
172-175 Pink
176-179 Orange
180-183 Aqua
184-187 Purple
188-191 CTO
192-195 CTB
196-199 UV
Continuous rotation
200-220 Clockwise color wheel rotation, fast → slow
221-222 No rotation
223-243 Counterclockwise color wheel rotation, slow → fast
Random colors
244 - 247 Fast
248 - 251 Medium
252 - 255 Slow
5
Rotating gobos, function and selection
Gobo indexing (set indexed position on ch. 6)
0-11 Open
12-23 Beamsmoother
24-29 Gobo 1, indexed
30-35 Gobo 2, indexed
36-41 Gobo 3, indexed
42-47 Gobo 4, indexed
48-53 Gobo 5, indexed
54-59 Gobo 6, indexed
60-65 Gobo 7, indexed
66-71 Gobo 8, indexed
Gobo rotation (set speed and direction on ch. 6)
72-76 Gobo 1, rotating
77-81 Gobo 2, rotating
82-86 Gobo 3, rotating
87-91 Gobo 4, rotating
92-96 Gobo 5, rotating
97-101 Gobo 6, rotating
102-106 Gobo 7, rotating
107-111 Gobo 8, rotating
Rotating gobo shake
112-121 Gobo 1, shake
122-131 Gobo 2, shake
RUSH™ MH 7 Hybrid User Manual 35
Channel Value Function
5
cont.
132-141 Gobo 3, shake
142-151 Gobo 4, shake
152-161 Gobo 5, shake
162171 Gobo 6, shake
172-181 Gobo 7, shake
182-191 Gobo 8, shake
Rotating gobo wheel: wheel rotation
192-223 Clockwise rotation, fast → slow
224-255 Counterclockwise rotation, slow → fast
6
Rotating gobos, indexing and speed
If indexed gobo selected on ch. 5
0-255 Gobo angle, coarse, 0°-360°
If rotating gobo selected on ch. 5
0-31 No rotation (0º)
32-93 Clockwise gobo rotation, fast → slow
94-127 No rotation
128-189 Counterclockwise gobo rotation, slow → fast
190-255 No rotation (90º)
7
Rotating gobos,
f
ine indexing
0-255 Fine gobo indexed angle adjustment
8
0-2
3-5
6-8
9-11
12-14
15-17
18-20
21-23
24-26
27-29
30-32
33-35
36-38
39-41
42
43-53
54
55-64
65
66-76
77
Fixed gobos
Stepped scrolling
Open
Iris 1 (widest)
Iris 2
Iris 3
Iris 4
Iris 5 (narrowest)
Gobo 1
Gobo 2
Gobo 3
Gobo 4
Gobo 5
Gobo 6
Gobo 7
Gobo 8
Continuous scrolling
Open
Open → Iris 1 (widest)
Iris 1
Iris 1 → Iris 2
Iris 2
Iris 2 → Iris 3
Iris 3
36 RUSH™ MH 7 Hybrid User Manual
Channel Value Function
8
cont.
78-88
89
90-100
101
102-112
113
114-123
124
125-135
136
137-147
148
149-159
160
161-170
171
172-182
183
184-194
195
196-217
218-221
222-243
244-247
248-251
252-255
Iris 3 → Iris 4
Iris 4
Iris 4 → Iris 5
Iris 5
Iris 5 → Gobo 1
Gobo 1
Gobo 1 → Gobo 2
Gobo 2
Gobo 2 → Gobo 3
Gobo 3
Gobo 3 → Gobo 4
Gobo 4
Gobo 4 → Gobo 5
Gobo 5
Gobo 5 → Gobo 6
Gobo 6
Gobo 6 → Gobo 7
Gobo 7
Gobo 7 → 8
Gobo 8
Fixed gobo wheel continuous rotation
Clockwise rotation, fast → slow
No rotation
Counterclockwise rotation, slow → fast
Random slots
Fast
Medium
Slow
9
0-31
32-95
96-127
128-191
192-255
Rotating prisms, function and selection
Open (no prism)
Prism indexing (set angle on ch. 10)
4-facet prism, indexed
8-facet prism, indexed
Prism rotation (set speed and direction on ch. 10)
4-facet prism, rotating
8-facet prism, rotating
10
0-255
0-31
32-93
94-127
128-189
190-255
Rotating prisms, indexing and speed
If indexed prism selected on ch. 9
Indexed position, 0° → 360°
If prism rotation selected on ch. 9
Indexed position, 0° → 360°
No rotation (0º)
Forwards prism rotation, fast → slow
No rotation
Backwards prism rotation, slow → fast
No rotation (90º)
RUSH™ MH 7 Hybrid User Manual 37
11
0-255
Prism indexing, fine
Fine prism indexed position adjustment
12
0-127
128-255
Frost
No frost
Enable frost (Wash operation)
13
0-255
Zoom
Zoom, narrow → wide
14
0-255
Zoom, fine
Fine zoom angle
15
0-255
Focus
Focus, near → far
16
0-255
Focus, fine
Fine focus adjustment
17
0-255
Pan
Pan, 0° → 540°
18
0-255
Pan, fine
Fine pan adjustment
19
0-255
Tilt
Tilt, 0° → 250°
20
0-255
Tilt, fine
Fine tilt adjustment
21
0-19
20-29
30-39
40-59
60-79
80-84
85-87
88-90
91-93
94-96
97-99
100-104
105-109
110-115
116-121
122-255
Lamp on/off,
r
eset, personality settings
Reserved (no function)
Auto-blackout on
Auto-blackout off (default)
Lamp on
Lamp off
Reset all
Pan/tilt reset
Reset color wheel
Reset gobos
Reset shutter
Reset other effects
Control panel display on
Control panel display off
Parameter shortcuts on (default)
Parameter shortcuts off
Reserved (no function)
38 RUSH™ MH 7 Hybrid User Manual
Control menus
To access the control menus, press the MENU button. Use the UP and DOWN
buttons to navigate the menus. Select a menu option with the ENTER button.
For more information, see ‘Using the control menus’ on page 17.
Default fixture settings are shown in bold.
Menu Sub-menu Setting/Value Explanation
DMX Function
DMX Address 001-512 Set fixture’s DMX address
DMX Value PAN, TILT…
Displays DMX value received
on each channel
Information
Time Information
Total Use Time Fixture running time in hours
Lamp On Hours Lamp hours (resettable)
LampTime
Password
038
Enter password to reset lamp
hours
Reset Lamp Time YES/NO Reset lamp hours counter
Head Temperature
Displays head temperature in
°C or °F
Fan Info
Speed of each cooling fan
(RPM).
Encode Feedback
PAN ENCODE:
TILT ENCODE:
Feedback encoder level
Software Version
Displays software version of
each PCB
Lamp Control
On/Off ON/OFF Manually switch lamp on/off
State at Power ON/OFF Enable lamp on at power on
On via DMX On ON/OFF Enable lamp on via DMX
Off via DMX ON/OFF Enable lamp off via DMX
Max On at Temp. 45° C (113° F)
Maximum lamp restart
temperature (fixed setting)
Lamp Off Temp.
130℃(266° F)
A
utomatic lamp thermal
cutoff temperature (fixed
setting)
Fixture Set
Loss of DMX
Black out Black out @ DMX loss
Hold Hold last look @ DMX loss
Status Settings
Pan inverse ON/OFF Reverse pan control
Tilt inverse ON/OFF Reverse tilt control
P/T Feedback ON/OFF Toggle pan/tilt correction
Hibernation OFF, 1-99M (15) Set timing for standby mode
BI.O.P/T Move OFF/ON Blackout during pan or tilt
BI.O.Other Move OFF/ON
Blackout during color/gobo
change
RUSH™ MH 7 Hybrid User Manual 39
Menu Sub-menu Setting/Value Explanation
Fixture Set
Display Setting
Display inverse
A
UTO/ON/OFF Flip display 180°
Backlight auto 02-60m (5m) Set delay time for display off
Temperature Unit
Celsius/
Fahrenheit
Select unit for temp. display
Display Warning ON/OFF Toggle error code display
Password 050
Enter password to clear error
codes
Service Setting Clear Err. Info YES/NO Clear errors
Factory settings YES/NO
Reset fixture personalities to
factory default values
Reset Function
Reset All
Perform a reset of selected
effect(s)
Reset Pan&Tilt
Reset Colors
Reset Gobos
Reset Shutter
Reset Others
Fixture Test
Auto Test
Perform automatic test of all
functions
Manual Control PAN, TILT… Manually test each function
Offsetting
Calibration
Password
050
Enter password to access
offset menu
PAN, TILT,
COLOR 1…
0...255
Enter offset value to achieve
home/open position
40 RUSH™ MH 7 Hybrid User Manual
Troubleshooting
This section describes a few common problems that may occur during
operation and provides some suggestions for easy troubleshooting:
Symptom Potential Causes Remedies
No light from
fixture, or fans not
working.
Power supply issue
such as blown fuse,
faulty connector or
damaged cable.
Ensure that the mains
supply is connected and
supplying power to the
fixture.
Check all power
connections and cables.
Check and if necessary
replace the fixture fuse.
One of the control
channels is
unresponsive or
only responds
intermittently.
DMX setup or DMX link
fault.
Damaged step motor or
cable connection
between head and body.
See next section.
Contact your Martin
authorized distributor or
service center for
assistance.
Fixture does not
respond to DMX
control.
Incorrect DMX
addressing.
Fault in DMX network
due to connector or
cable problem.
Interference from
proximity to a high
voltage installation.
Ensure that fixture’s DMX
address matches address
set on DMX control
device.
Check that fixture DMX
LED is on, and if not,
check all DMX cables and
connections.
Ensure that DMX link is
terminated.
Move or shield link if it is
close to an unshielded
high-voltage installation.
Attempt to control the
fixture with another DMX
control device.
RUSH™ MH 7 Hybrid User Manual 41
Specifications
Physical

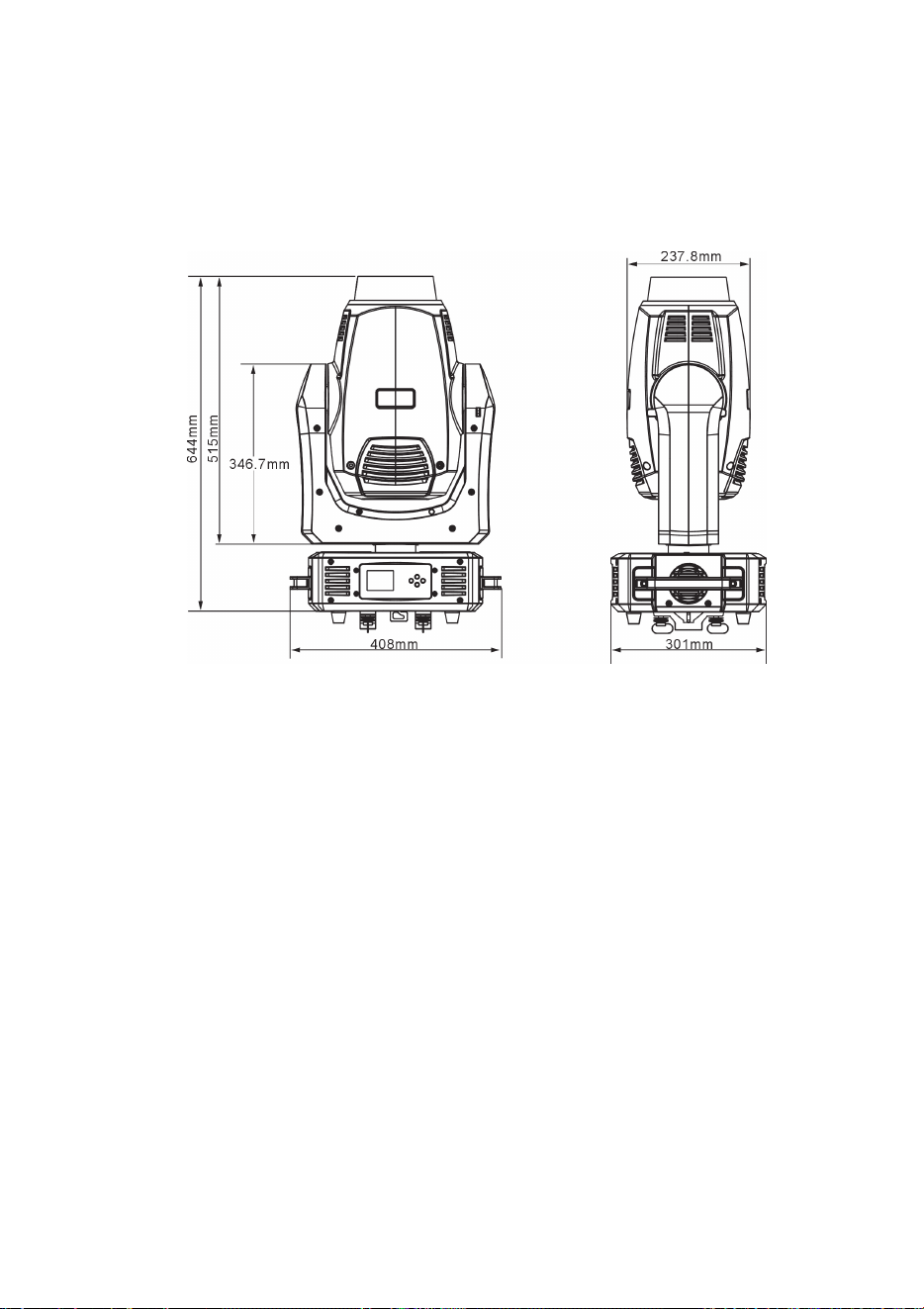

Dimensions (LxWxH)................... 301 x 408 x 644 mm (11.9 x 16.1 x 25.4 in.)
Weight ..................................................................................... 24 kg (52.9 lbs.)
Lamp
Approved lamp ............................................ Philips MSD Platinum 11R 250 W
Color temperature ................................................................................. 7800 K
Average lifetime* ............................................................................. 2000 hours
*Preliminary figure obtained under manufacturer´s test conditions
Dynamic Effects
Dimming ......................................................... 0-100%, coarse and fine control
Shutter ............................ Strobe and pulse effects, instant open and blackout
Colors .................................................... 10 colors plus CTO, CTB, UV & open
Rotating gobos ........... 8 gobos plus open, 16-bit indexing, rotation and shake
Static gobos ................................................. 5 iris gobos, 8 pattern gobos plus
open, wheel rotation and shake
Prisms ............. 4-facet linear, 8-facet radial, 16-bit indexing, variable rotation
Frost (Wash operation) .......................................................... motorized, on/off
Zoom ................................................ Motorized, 16-bit coarse and fine control
Focus ................................................ Motorized, 16-bit coarse and fine control
Pan ............................ 540°, 16-bit coarse and fine control, position correction
Tilt .............................. 250°, 16-bit coarse and fine control, position correction
42 RUSH™ MH 7 Hybrid User Manual
Optics
Cutoff angle, Beam operation ............................................................ 2.2° - 24°
Cutoff angle, Spot operation .............................................................. 2.5° - 24°
One-tenth peak angle, Wash operation ............................................. 15° - 45°
Interchangeable Gobos
Acceptable materials ............. Stainless steel or borosilicate glass with 450° C
high temperature resistant coating
Diameter ..................................... 14 mm, +0/-0.2 mm (0.55 in., +0/-0.0079 in.)
Max. image diameter, glass ..................................................... 8 mm (0.31 in.)
Max. image diameter, metal .................................................. 9.5 mm (0.37 in.)
Thickness, glass ......................1.1 mm, +0/-0.05 mm (0.045 in., +0/-0.002 in.)
Thickness, metal ................................................... 0.2 mm (0.008 in.) nominal
Control and Programming
Control ............................................................................ USITT DMX512/1990
DMX channels ............................................................................................... 21
Interface ................................................ Control panel with backlit LCD display
Construction
Color ......................................................................................................... Black
Housing .......................................... High impact flame retardant thermoplastic
IP rating .................................................................................................... IP 20
Installation
Mounting points .......................... Two quarter-turn brackets for rigging clamps
Location ................ Dry location only, must be fastened to surface or structure
Orientation .................................................................................................. Any
Minimum distance to illuminated surfaces .................................... 10 m (33 ft.)
Minimum distance to combustible materials ................................ 20 cm (8 in.)
Minimum clearance around fans and vents ............................... 50 cm (20 in.)
Connections
AC power input / throughput ............................................... Neutrik PowerCon
DMX data in/out ........................................................ 3-pin & 5-pin locking XLR
Electrical
AC power ............................................................ 100-240 V nominal, 50/60 Hz
Power supply unit ................................... Auto-ranging electronic switch mode
Fuse .......................................................................................... 5T 250 V 8.0 A
Typical power and current
120 V, 60 Hz ................................................................ 377 W, 3.1 A, PF 0.985
230 V, 50 Hz ................................................................ 372 W, 1.7 A, PF 0.978
Typical half-cycle RMS inrush current ....................................................... 16 A
Measurements made at nominal voltage. Figures are typical, not maximum,
allow for a deviation of +/- 10%.
RUSH™ MH 7 Hybrid User Manual 43
Thermal
Cooling ........................................................ Forced air, temperature-regulated
Maximum ambient temperature (T
a
max.) ................................. 40° C (104° F)
Minimum ambient temperature (T
a
min) .......................................... 0°C (32° F)
Total heat dissipation (calculated, +/- 10%) ............................... 1430 BTU/hr.*
Approvals
EU safety ....................... EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC .............................................. EN 55015; EN 55032; EN 55103-1, -2;
EN 61000-3-2,-3; EN 61000-4-2, -4, -5; EN 61547
US safety ............................................................................................. UL 1573
US EMC ............................................................. CFR Title 47 Part 15 Class A
Canadian safety ................................................................ CSA C22.2 No. 166
Canadian EMC ..................................................................... ICES-003 Class A
Australia/NZ (pending) ............................................................................. RCM
Included Items
Power cable, 1.5 m without mains plug
Two omega-type clamp attachment brackets with quarter-turn fasteners
Accessories
Installation hardware
Half-coupler clamp ..................................................................... P/N 91602005
G-clamp (vertical hanging suspension only) .............................. P/N 91602003
Cables, 16 A, for connection to power in chains
Power input cable, 14 AWG, SJT, 1.5 mm
2
, H05VV-F,
with PowerCon input connector, 3 m (9.8 ft.) ............................. P/N 11541508
Power relay cable, 14 AWG, SJT, 1.5 mm
2
, H05VV-F,
with PowerCon connectors, 1.4 m (4.6 ft.) ................................. P/N 11541509
Power relay cable, 14 AWG, SJT, 1.5 mm
2
, H05VV-F,
with PowerCon connectors, 2.25 m (7.4 ft.) ............................... P/N 11541510
Power relay cable, 14 AWG, SJT, 1.5 mm
2
, H05VV-F,
with PowerCon connectors, 3.25 m (10.7 ft.) ............................. P/N 11541511
Power connectors
Neutrik PowerCon NAC3FCA
power input connector, cable mount, blue ................................. P/N 05342804
Neutrik PowerCon NAC3FCB
power output connector, cable mount, light grey ....................... P/N 05342805
Related Items
RUSH™ Software Uploader 2 .................................................... P/N 91611770
44 RUSH™ MH 7 Hybrid User Manual
Ordering Information
RUSH™ MH 7 Hybrid in cardboard box .................................... P/N 90280100
Specifications subject to change without notice. For latest product
specifications, see www.martin.com
Photobiological Safety Warning
The label shown below is displayed on this product. If it becomes difficult or
impossible to read, it must be replaced using the illustration below to
reproduce a new label sized 88 x 34 mm, in black on a yellow background.
RISK GROUP 3
WARNING. UV emitted from this product.
Avoid eye or skin exposure to unshielded
product.
WARNING. Possibly hazardous optical
radiation emitted from this product. Do not look
at operating lamp. Eye injury may result.
Disposing of this product
Martin™ products are supplied in compliance with Directive
2012/19/EC of the European Parliament and of the Council
of the European Union on WEEE (Waste Electrical and
Electronic Equipment), where applicable. Help preserve the
environment! Ensure that this product is recycled at the end
of its life. Your supplier can give details of local
arrangements for the disposal of Martin products
