DESCRIPTION OF EQUIPMENT
Thank you for buying our automatic tire changer.It is the best quality .In order to proper operation and extended the
lifetime, pls read the instruction for each operation section carefully.
PREFACE：
Provide the “complete product code” and the” model of automatic tire changer”, so that we can provide you the technical
services and required parts better .At the same time, easy to operate the machine as technical parameters .If the data in
the specification is inconsistent with the label, please refer to the label.
THE DATA OF AUTOMATIC TIRE CHANGER:
SPECIFICATIONS
2
www.mechmaxx.com
SPECIFICATIONS
Voltage
Motor Power
Inside Rim Clamp Range
Outside Rim Clamp Range
Max Wheel Diameter
Wheel Width
Working Pressure
Bead Breaking Force
Type
Help Arm
Bead Blaster
Hex Shaft Locked Type
Mount Head
Inflator
Motorcycle Rim Adapter
Model TC968
110v / 60hz / 1 phase
1.5 HP
14-26 in
12-24 in
43 in
3-15 in
117-145 psi (8-10 bar)
6170 lbs
Tilt Back
Hand Held Bead Blaster
Pneumatic
Stainless Steel & Plastic
Foot-controlled
Sold Seperately, SKU: 200020
Right-side Assist Arm
TC9682
3
www.mechmaxx.com
SAFETY SIGNS
SAFETY SIGNS
The rating plate on your machine may show symbols. These represent important information about the product or instruc-
tions on its use.
Please periodically check the
oil level and drain the water
Max pressure
is 1.0MPa (10
bar) Do not
exceed the
required max
air pressure
STAND CLEAR WHILE INFLATING TIRE. TIRE
OR WHEEL FAILURE UNDER PRESSURE
MAY CAUSE SERIOUS INJURY OR DEATH.
DO NOT WEAR LOOSE CLOTHING,LONG
HAIR OR JEWELRY.MOVING PARTS CAN
SNAG AND PULL
KEEP HANDS CLEAR OF ALL PINCH POINTS
E
D
C
P
F
H
I
J
K
M
L
N
O
B
A
G
4
www.mechmaxx.com
DESCRIPTION OF EQUIPMENT
DESCRIPTION OF EQUIPMENT
E
D
C
P
F
V
Q
R
S
T
U
H
I
J
K
M
L
N
O
B
A
G

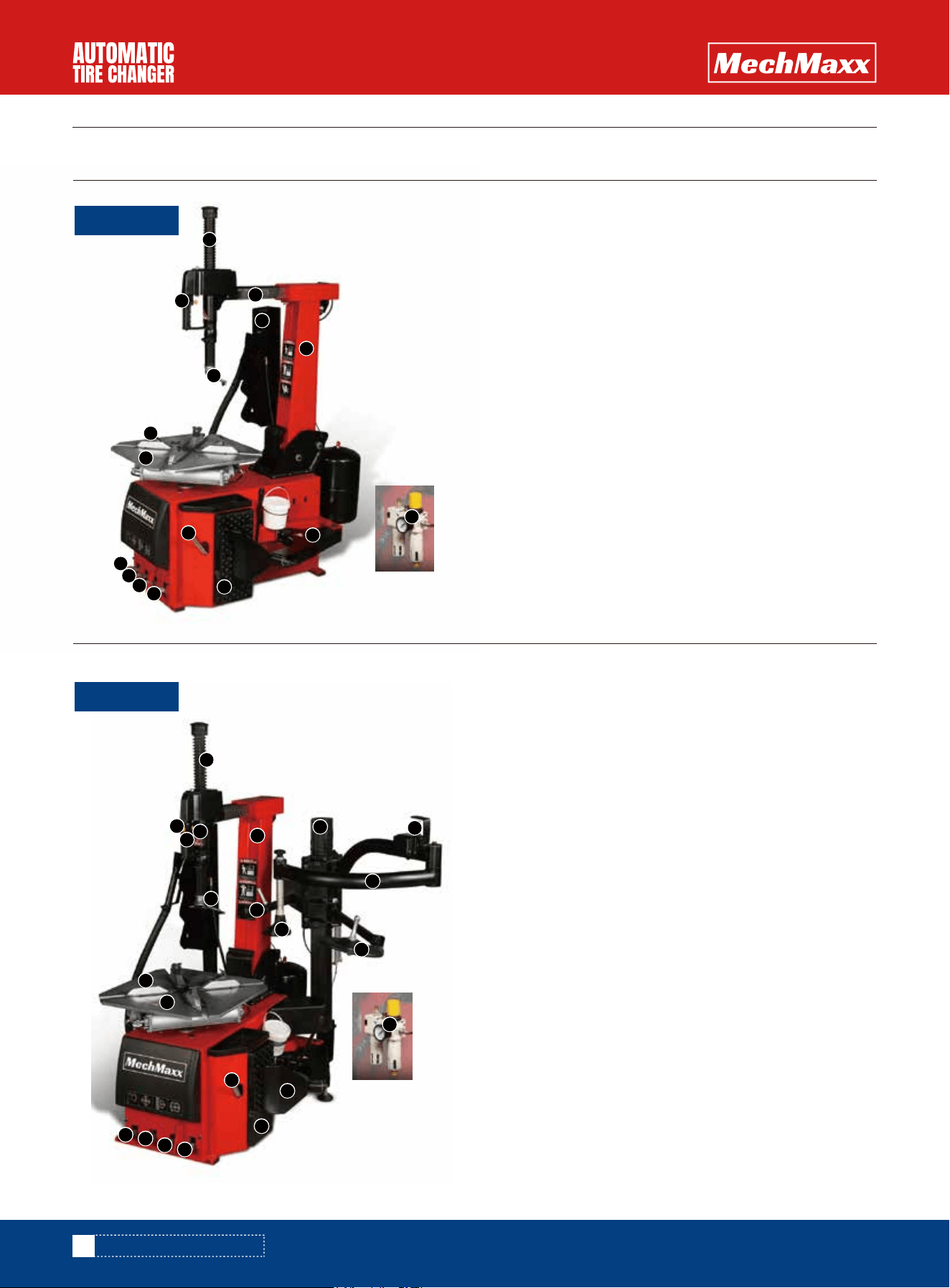

A. Clamps
B. Demount head
C. Pressure gauge
D. hexagon shaft
E. Horizontal arm
F. Column
G. Filter, regulator lubricator
H. Bead breaker
I. Rubber pad
J. Lever
K. Pedal control bead breaker
L. Pedal control clamp jaw
M. Pedal control turntable
N. Pedal control column tilt
O. Turntable
P. Locking button
Q. Helper arm control valve
R. Tire press arm
S. Lifting disc
T. Tire pressure roller
U. Drop center tool
V. Column of helper arm
TC968
TC9682
A. Clamps
B. Demount head
C. Pressure gauge
D. hexagon shaft
E. Horizontal arm
F. Column
G. Filter, regulator lubricator
H. Bead breaker
I. Rubber pad
J. Lever
K. Pedal control bead breaker
L. Pedal control clamp jaw
M. Pedal control turntable
N. Pedal control column tilt
O. Turntable
P. Locking button
5
www.mechmaxx.com
GENERAL DESCRIPTION
GENERAL DESCRIPTION
• The automatic tire changer is designed to facilitate to
mount and demount the tires which the rim sizes is
from 12"to 26" .
• Open protective boxes and plastic bags.
• Check whether the machine surface is intact and the
parts are missing and damaging.
• If any problem is found, please do not use the machine
and contact the supplier immediately.
• The manufacturer shall not be liable for any damage
caused by modification of the machine without the
manufacturer's approval.
• Manufacturers will immediately discontinue their safety
commitments if the user breaches safety rules and
causes damage of the machine's safety devices.
• If there is any damage to the safety warning sign during
the whole process, the customer can contact the
manufacturer according to the icon on page 2 to
replace the damaging icon as soon as possible.
• The tire changer must be transported with the original-
packaging.Place as indicated on the packing box.
• Move the packed machine by a forklift truck with corre-
sponding lifting capacity.
• The manufacturer shall not be liable for damage result-
ing from non-compliance with the instructions.
OPERATION INSTRUCTION
SAFETY OPERATION RULE
TRANSPORT
OPEN PACKAGE OPERATION
Operation against instruction is prohibit-
ed.
The tire changer must be operated by
trained personnel.
6
www.mechmaxx.com
INSTALLATION INSTRUCTION
INSTALLATION INSTRUCTION
Pic. 4
The installation position of the machine must meet the
standard of safe working.
• The automatic tire changer should be placed near the
main power supply and compressed air system.
• The minimum space of the installation position shall
not be lower than the space that be shown in figure 4 to
ensure normal operation without any restriction.
• If the machine is installed outdoors, a protective
shelter must be built.
• The compressed air system is connected to the
machine by a pipe joint (G) on the oil-water seperator
beside of the box .As shown in figure (5)
• When connecting the circuit of the machine, the circuit
must be equipped with safety fuse, grounding wire and
must be installed with 30mA automatic circuit breaker.
SPACE REQUIRED
RECOMMENDED FOOTPRINT
COMMISSIONING
The automatic tire changer is prohibited
to use in explosive gas
The electrical system must be operated by
a professional.
Before the machine is turned on, make
sure the user's voltage and air pressure
are consistent with the machine's require-
ments.

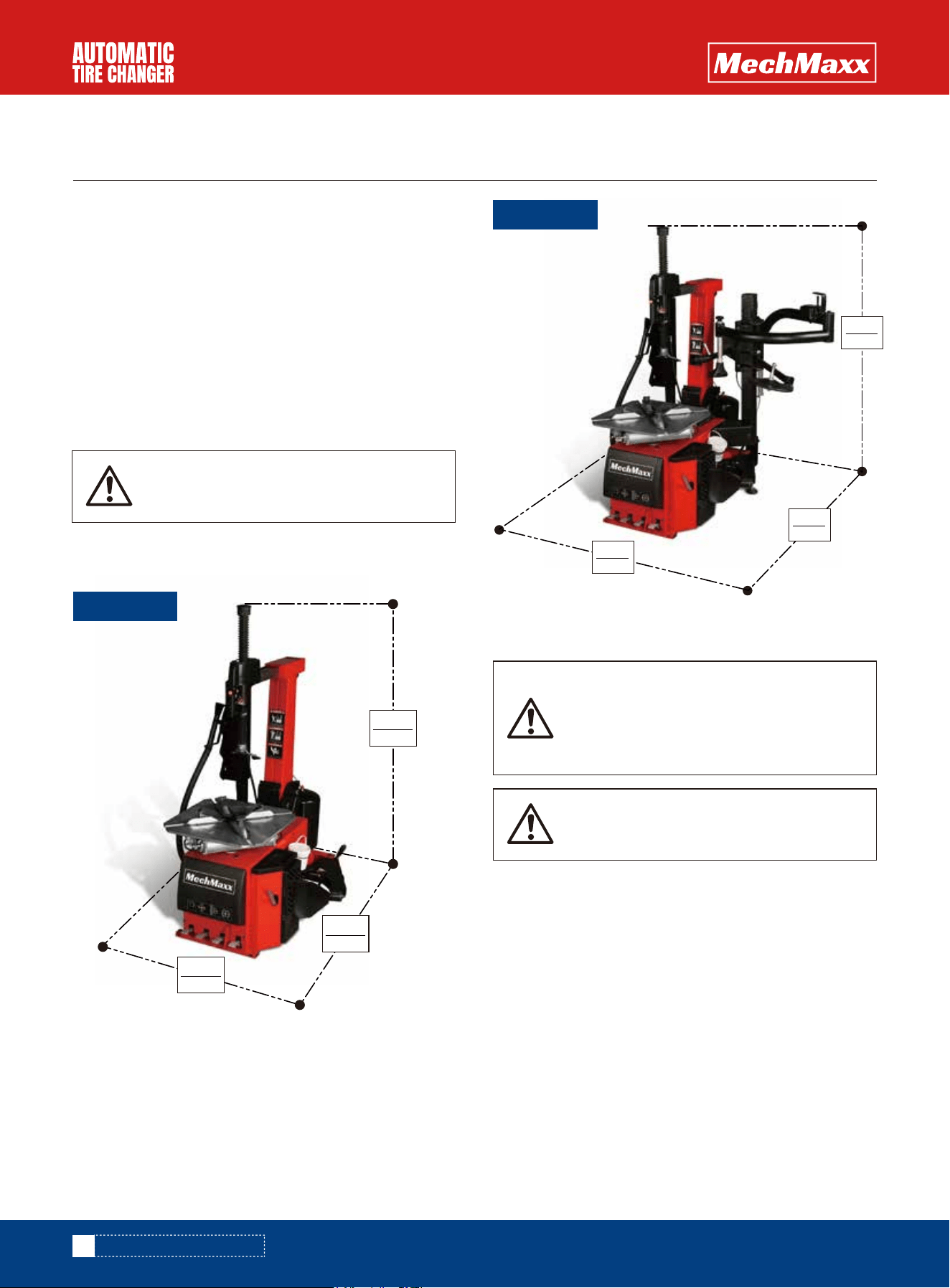

TC968
Pic. 4
2100mm
82.7”
1500mm
59”
2050mm
80.7”
TC9682
2100mm
82.7”
1500mm
59”
1100mm
43.3”
7
www.mechmaxx.com
INSTALLATION INSTRUCTION
Pic. 5
• When the pedal (M) is stepped on, the turntable (O)
should turn clockwise. When the pedal is raised, the
turntable should turn counterclockwise.
• When the pedal (K) is stepped on, the pressure tire
device (H) will start ;When the pedal is released, the
tire pressure device returns to its original position.
• When the pedal (L) is stepped on, four clamp jaws will
open (A); step on the pedal again and the clamp jaws
are closed.
• When the pedal (N) is stepped on,the vertical column
(F) will tilt backward. When the pedal is released, the
vertical column (F) returns to its original position.
• When the manual valve button (P) is in position 1, the
hexagon shaft and push-pullarm are locked, the work-
ing head is automatically located in the working
position.
• When the manual valve button (P) is in position 2, the
hexagon shaft and push-pull arm are released.
• Press exhaust valve button (C) on the air inflation
indicator box to discharge air from the pipe.
DEBUGGING MACHINE
Position 1 Position 2
• The clamps of tire changer have been adjusted to the
central position before leave factory, the clamp rim
from outside size is from 12 "to 24".inside size is from
14 "to 26".
• If you want to demount the larger or smaller rim, you can
adjust the position of the four clamps, as shown in
figure 6.
The operation is as follows:

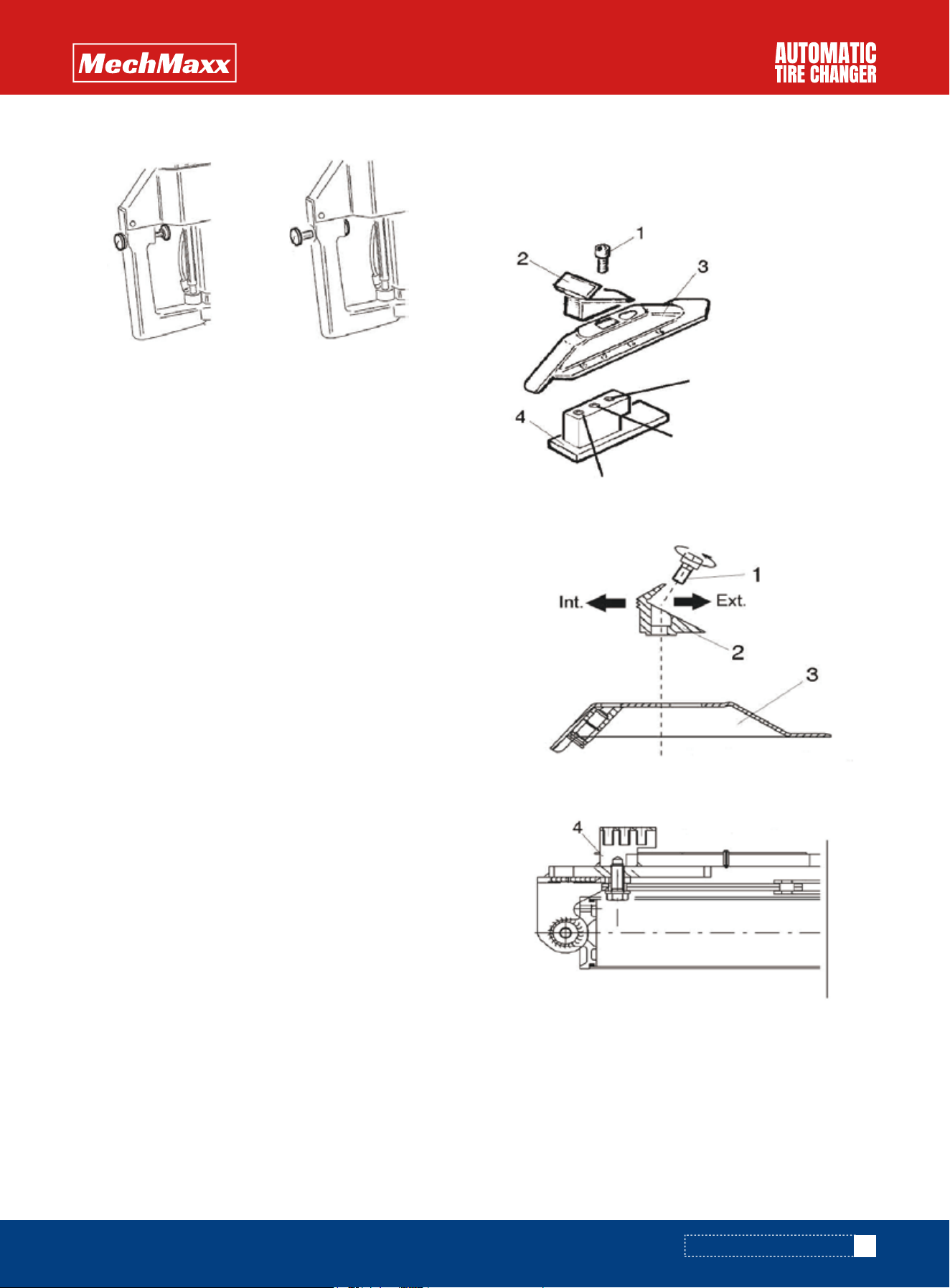

- use universal wrench unscrew the screw (1)
- mobile clamp jaw (2) and slider (3), the position corre-
sponding to one of the screw hole of the lock size
- tighten screw, universal wrench torque must be 72 N.m.
Note: the corresponding positions of the four clamps
should be ensured when the above adjustment is carried
out.
ADJUST THE JAW POSITION OF TURNTABLE
Rim clamp from outside 12”-22”/
Rim clamp from inside 14”-24”
Clamp rim outside13-23’’/
inside 15-25’’
Clamp rim outside14-24’’/
inside 16-26’’
Pic.6
8
www.mechmaxx.com
OPERATION
The operation of automatic tire changer is divided into the
following three parts:
A）breaking the bead B）demount tire C）mount tire
Mattersneedattention:
• More and more motorcycle rims are made from special
materials such as aluminum magnesium alloys and
carbon fiber, In order to lock into this kind of rim , must
use special repair tool of the motorcycle tire.
• To avoid damage, the turntable clamp jaw is fitted with
a plastic protective sleeve.
• Check the tire to see if it has emptied the gas. If not,
empty the gas
• Please close the clamp jaws of the turntable.
• Lean against the tire on the rubber pad (I) on the right
side of the automatic tire changer.
• Press the bead breaker closer to the edge of the rim
1cm (figure 6).It should be noted that the bead breaker
should be placed on the tire instead of the rim.
• Step on the pedal (K) and the pressure device is start-
ed. Release the pedal when the bead breaker completes
the operation or the rim is off.
• Gently rotate the tire and repeat in the rest of the tire
until the flange is completely off the rim. Repeat on the
other side of the tire.
• Step on the pedal (N) to tilt the column and open the
space above the turntable.
• Apply special lube to the wheel rim.
BREAKING THE BEAD
DEMOUNT TIRE
OPERATION
Please read the instruction manual care-
fully and note before operating the
machine.
You have to be very careful when you are
operating bead breaker. When the pedal is
operated, the breaker arm will swing
rapidly and forcefully, and any object
within the movable range of the breaker
arm is at risk of being crushed.
Discharge all air from the tire and remove
the balance lead from the tire.
Before any operation, check to see if the
tire is out of air. And ensure that the
balance lead has been removed from the
rim.
Make sure that behind the tire changer is
no man, then the vertical column tilt can
be carried out!
Not apply lube may result in wheel rim
damage.
Do not place your hand on the side wall of
the tire during operation of the turntable.
The clamp may be pressed to your hand
when it is open
Pic.6
Do not put your hand under the tire when
you lock the rim.
To properly lock the tires, place tire in the
center of the turntable.
H
Clamp the rim
• Step the pedal (L) to the central position and locate the
clamp (A) according to the reference scale of the
turntable.
• Place the tire on the clamp so that the rim is near the
lowest part of the clamp and step on the pedal (L) to
the bottom.
• Make the clamp (A) closed completely.
• Place the tire on the clamps and step the pedal L to
clamp the rim.
• Step pedal N, column F return to its original position.
• When manual control press-button P is on position 2,
hexagon shaft D is moving down until it is against edge
of the rim.
• When manual control press-button P in on position 1,
hexagon shaft D and push-pull horizontal arm are
locked. During locking process, working head may move
away from the rim 2mm in both vertical and horizontal
direction.(See pic. 7)
• While the crowbar in this position, rotate the turntable
O clockwise by pressing down on pedal M until the tire
is completely separated from the wheel rim.(Pic.7)
• Remove the inner tube if there is one, no need to unlock
the operating arm, just step the pedal N to tilt the
operating arm, and take the inner tube out.
• Repeat the same operation for the other bead.
• With the crowbar J interested between the bead and
the front section of mounting head, move the tire bead
over the mounting head with crowbar J.
Note: In order to avoid damaging the inner tube, if there is
one, it should be 10cm to the right of the mounting head
B about the above operation.
TIRE MOUNTING
9
www.mechmaxx.com
OPERATION
Keep your hands and body as far away as
possible from the moving parts when
operating the machine, to avoid getting
hurt.
It is dangerous to wear necklace, brace-
lets and loose clothes.
Note: To avoid explossion in inflating, it is
important to check the tire and rim.
Before mounting the tire, pay attention to
the following points:
• Don’t mount the tire if the outside of tire
is damaged.
• Whether the rim is dented or deformed.
In particular, there will be small cracks
in the rims of alloy wheels, which cannot
be seen with naked eyes, which will
damage the durability of wheel, so there
will also be risks in inflating process.
• Make sure that the wheel rim and tire
are of the same size. If you cann’t make
sure of it, don’t mount the tire.
Make sure that the rim is firmly fixed to
the clamps.
Don’t put your hands on the wheel: if you
put your hands between rim and mounting
head, it may getting hurt when column
return to its original position.
Pic.7
Don’t put your hands on the wheel: if you
put your hands between rim and mounting
head, it may getting hurt when column
return to its original position.
• Lubricate the tire beads with special grease in order to
avoid damaging them and to facilitate the mounting
operations.
• Clamp the rim firmly on the turntable.
• Move the tire so that the bead passes below the front
section of the mounting head is brought up against the
edge of the rear section of the mounting head itself.
• Keep the tire bead pursed down into the wheel rim
channel with your hands. Step pedal M to rotate the
turntable clockwise. Continue until you have covered
the entire circumference of the wheel rim.
• Insert the inner tube, if there is one. Repeat the above
operation for the other side of bead.
Note: When working with the rims of the same size, it is
not necessary always to lock and unlock the mounting
bar, just tilt and return to its original position about
column.
10
www. mechmaxx.com
OPERATION
Before operating the column tilting, make
sure that there is nobody standing behind
the column.
Don’t put your hands between tire and
clamps, avoiding body injury.
Turntable is always rotating clockwise
during mounting and demounting process,
unless the machine is something wrong or
operating mistakenly, it may rotate
anticlockwise.
Don’t put your hands under the tire during
clamping process.
In order to clamp the rim correctly, it
should be placed in central position about
the wheel on the turntable.
Keep your hands and body as far as away
from the operating arm when rotating the
turntable, avoiding body injury.
Pic.8
INFLATING
Tire changer is equipped with nozzle to inflate a tire.
Follow below instructions to inflate a tire：
• Connect the nozzle fitting to the tire valve.
• Check the wheel rim and the tire are of the same size.
• Check the wheel flange and rim are with enough lubrica-
tion.
• Press the nozzle trigger, in this stage, control the inflat-
ing pressure, until the tire fits to the rim completely.
• Continue to inflate the tire and check the inflating
pressure frequently, never to exceed the pressure
indicated by the manufacturer.
INFLATING TIRE WITH NOZZLE
11
www. mechmaxx.com
You have to inflate the tire carefully,
following below instructions strictly. Pls
note there is no protection device on
designing of the tire changer for the
safety of the operator on the machine or
surrounded machine if the tire explode
suddenly.
• A burst of tire or breakage of the rim
under pressure can both cause serious
injury or even death of the operator.
• Check carefully that the wheel rim and
the tire are of the same size.
• Check the state of wear of the tire and
there is no defects before beginning
the inflation stage.
• Inflate the tire with brief jets of air,
checking the pressure frequently.
• keep your hands and body as far as
possible from the tire in inflation stage.
Danger of burst：
• Remove the tire from the turntable, if
you need more inflating pressure, place
the tire in special protection cage to
continue the inflation operation.
• Never to exceed the maximum inflation
pressure.
• Keep your hands and body as far as
away from the tire.
• Only professionals are allowed to use
the machine. Other people are not
allowed to use or approach the machine
during the inflation stage.
INFLATING
Forklifts are needed to move fully automatic tire changer.
• Disconnect the electric power supply and compressed air system.
• Insert the crowbar on one side bottom of the tire changer, get the machine off the ground, and then insert the fork,
lifting it up.
• Place the tire changer in new position.
Note: Location of the new place must comply with national safety regulations.
If the tire changer need to be stored for some time，pls follow below instructions:
Disconnect all energy supplies and lubricate the slide of the clamps on the turntable to prevent oxidation.
RELOCATE
STORAGE
Make sure all energy supplier are disconnected when deciding to scrap the equipment.
• All nonferrous metals and nonmetals shall be disposed of as scrap in accordance with relevant laws and regulations.
• Process the oil inside the machine at the place specified by applicable law.
• Discard the remaining steel.
SCRAP
12
www. mechmaxx.com
RELOCATE
13
www. mechmaxx.com
MAINTENANCE
Untrained people is not allowed to carry out maintenance
work.
• Regular maintenance as described in the instructions
for correct operation and long lifetime of the tire chang-
er.
• If maintenance is not carried out regularly, the opera-
tion and reliability of the machine may be compromised,
thus placing the operator and anyone else in the vicinity
at risk.
• Damaged parts must be replaced exclusively by expert
personnel use the manufacturer’s spare parts.
• It is forbidden by national safety regulation to disas-
semble and replace safety devices (safety valves and
regulating valves).
• Clean the turntable once a week with WD-40 so as to
prevent the formation of dirt, and grease the clamp
sliding guides.
• Perform the following maintenance work once a month：

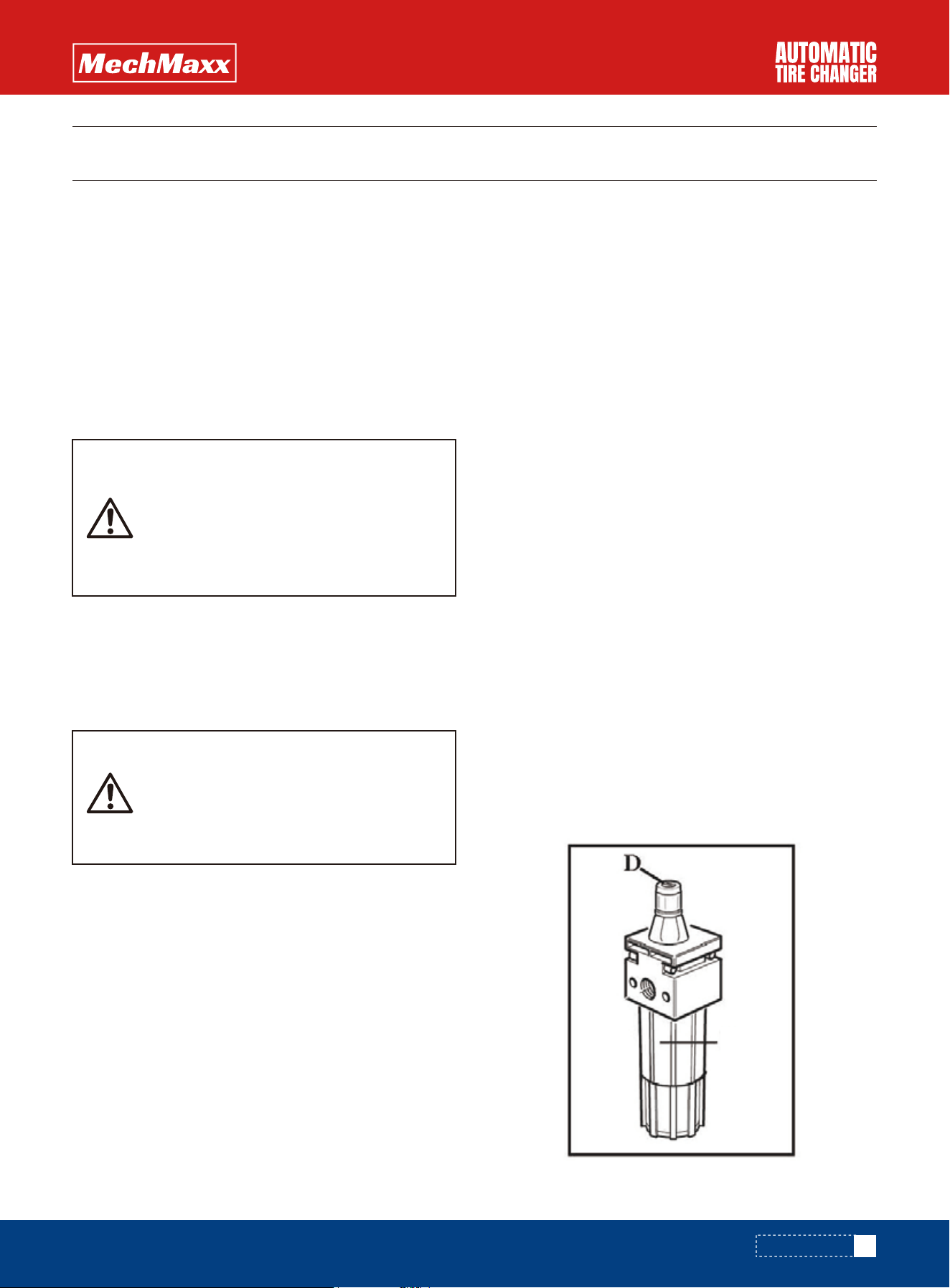

- Control the oil level of oil-water separator. If the level is
low, screw off the oil cup F before adding. Use only oils
specified by ISO HG with viscosity ISO VG32. Such as:
ESSO Febis K32,MOBIL Vacouline 1405,KLUBER32
- Step pedal bead breaker 3-4 times, checking if some oil
filled in oil cup G. If not, adjusting screw D.(Pic.10)
Note: After the first 20 days of work, retighten the clamp
tightening screws and screws on turntable slides（Pic.11
）
Note：In the event of a loss of power, check that the
drive belt is tight as follow：
Disconnect power supply before operation.
• Remove the left side body panel of tire changer,
unscrewing the four fixing screws。
• Tighten the drive belt by means of the special adjusting
screw X on the motor support。(Pic.12)
Note：If the working head is not locked or cannot be
stopped 2mm above the rim, the locking plate of the
operating arm shall be adjusted as shown in pic. 13.
If the working head is too far away from the rim in the
horizontal direction, adjust the adjusting screw of the
locking plate of the push-pull arm as shown in pic. 14 to
make the working head 2mm away from the rim in the
horizontal direction.
Note：For cleaning or replacing the silencer of opening/-
closing clamps A (See Pic.15）,proceed as follows：
1）Remove the left side panel of the machine body by
unscrewing the four fixing screws。
2）Unscrew the silencer put on pedal system L, on the
clamp A opening/closing pedal.
3）Clean by a jet of compressed air, or if damaged,
replace by the same spare parts。
Note：For cleaning or replacing the silencer of bead
breaker L, see pic. 15, and proceed as shown on previous
point 1& 3.
WARNING
MAINTENANCE
MAINTENANCE
Before carrying out any maintenance
work, disconnect the electric and pneu-
matic supplies.
Moreover, if it is necessary to break the
bead load less 3-4 times in order to let the
air in pressure go out the circuit.
In particular, the manufacturer shall not
be liable for any damage caused by users
using parts of other manufacturers or
damage by disassembly and damage of
safety devices.

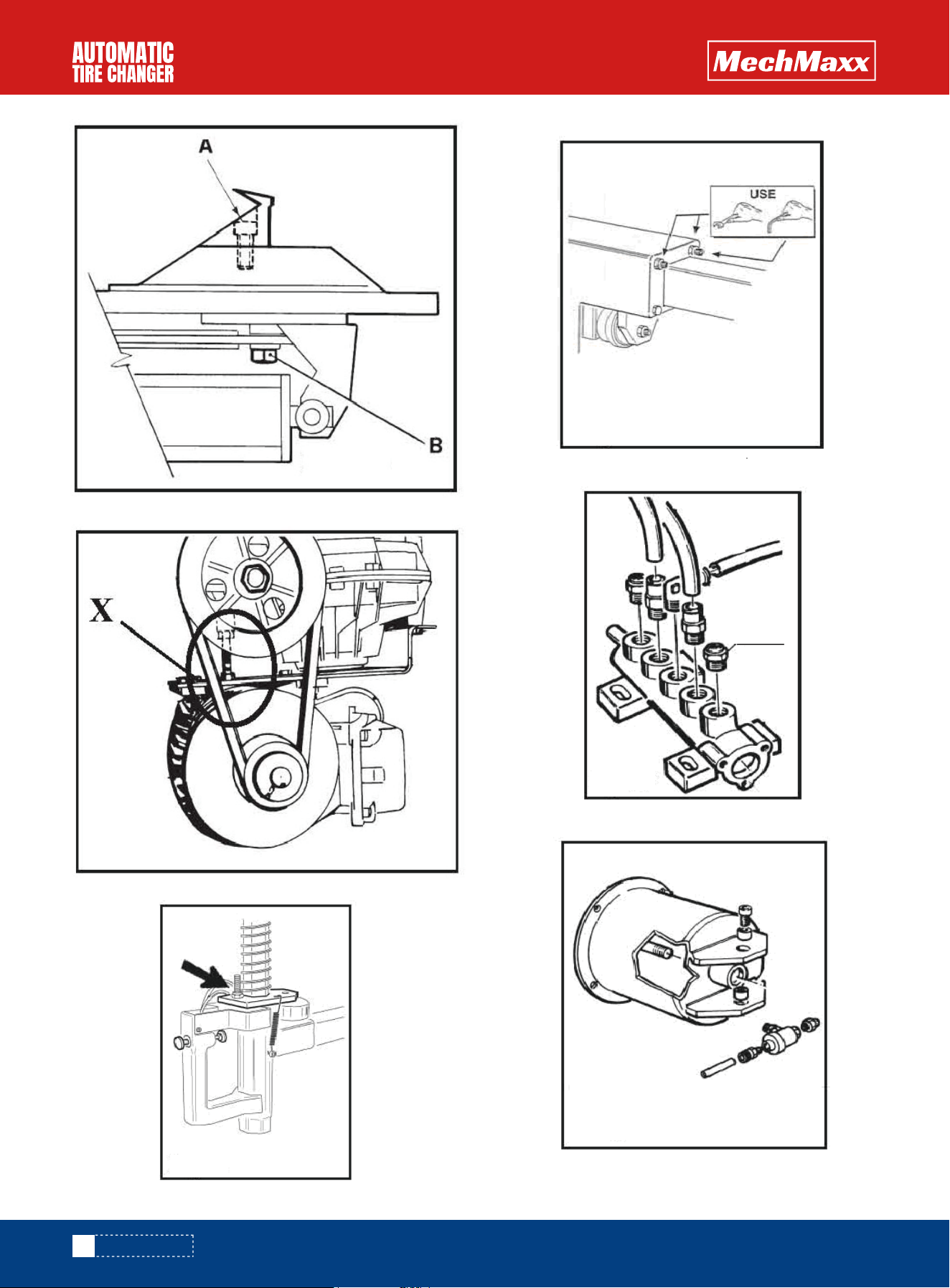

Pic.10
G
14
www.mechmaxx.com
MAINTENANCE
Pic.11
Pic.12
Pic.13
Pic.14
Pic.15
Pic.16
15
www.mechmaxx.com
TROUBLE SHOOTING
Turntable rotates only in one
direction
Turntable doesn`t rotate
Turntable doesn`t work
Clamp open/close slowly
Turntable doesn`t lock the rim
correctly
The working head touch the rim
when operation
Pedal should not be located in
working position
Bead breaker
operation difficult
Universal switch
1.Replace the belt
2.Replace the universal switch
3.Replace motor
Troubleshooting
Trouble
Cause
Universal switch is damaged
Belt loose
1.Locking place position is incorrect
or damaged
2.Turntable locking screw loose
Return spring damage
1.Clamp is damaged
2.Cylinder of turntable is damaged
1.Silencer trouble
2.Cylinder sealing ring of bead
breaker is damaged
1.Clean or replace the silencer
2.Replace the sealing ring
Adjust belt tension
1.Silencer trouble Clean or replace
1.Adjust or replace locking plate
2.Tighten screw
Replace the return spring
1.Replace clamp
2.Replace the sealing ring of cylinder
1.Belt is damage
2.Universal switch is damage
3.Motor trouble
TROUBLE SHOOTING
16
www.mechmaxx.com

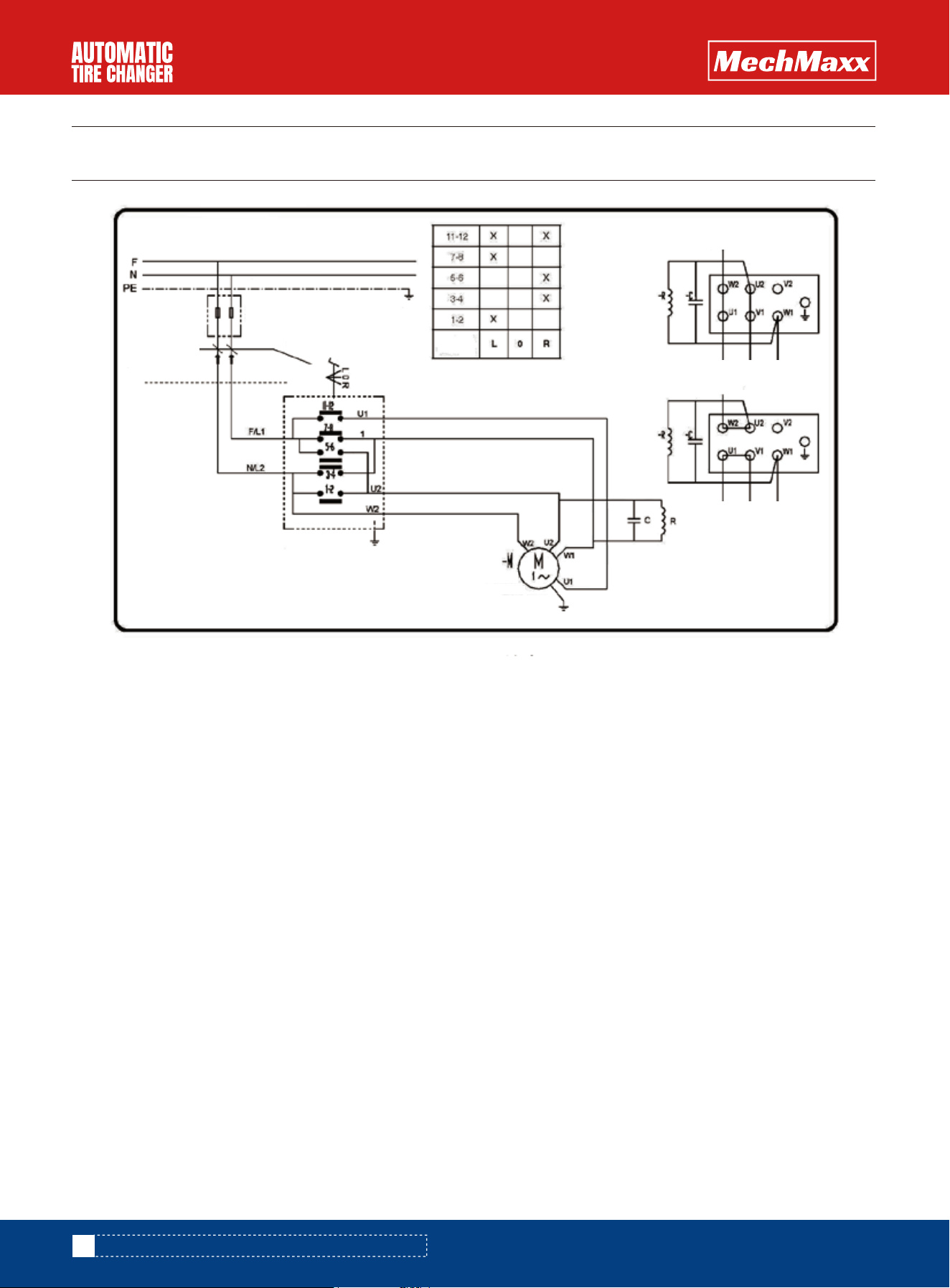

CIRCUIT DIAGRAM AND PNEUMATIC CONNECTION DIAGRAM
CIRCUIT DIAGRAM AND PNEUMATIC CONNECTION DIAGRAM
User-supplied
Socket and plug
Inverter switch
black red white
black red white
black
sensor
Inverter
17
www.mechmaxx.com

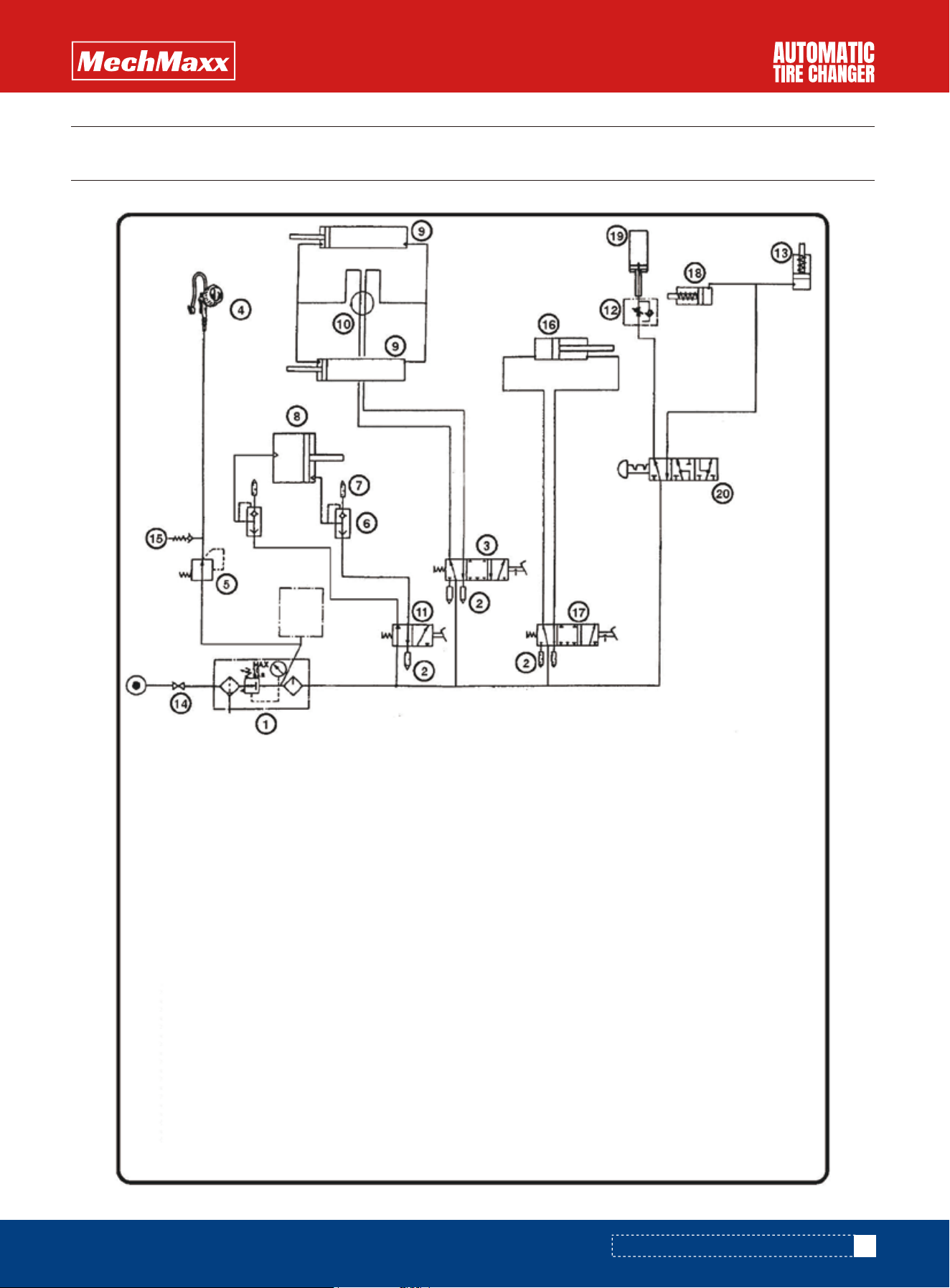

STANDARD PNEUMATIC SYSTEM DIAGRAM
STANDARD PNEUMATIC SYSTEM DIAGRAM
1. oil-water separator 11. Control valve of bead breaker
2. 1/8” silencer 12. Operating arm lock valve
3. control valve of turntable 13. Operating arm lock cylinder
4. air inflation gun 14. Ball valve
5.pressureregulatingvalve 15. safetyvalve
6. 1/4” quickexhaustvalve 16. Cylinder of controlling column tilt
7. 1/4” silencer 17. Control valve of column tilt
8. cylinder of bead breaker 18. Cylinder of locking push-pull arm
9 .cylinder of turntable 19. Cylinder of controlling operation arm
10. air guide 20. manualvalve
