EN
FR
PG.14
www.napoleon.com
N415-0416 DEC 08.21
APPLY SERIAL NUMBER LABEL FROM CARTON
Serial No.
XXXXXX000000
MODEL NO.
DO NOT DISCARD
Use this manual in conjuncon with your main manual to properly assemble your built-in grill. Refer to the
main manual for operang, cleaning, and maintenance instrucons. This grill is designed for NON-COMBUSTIBLE
enclosures only, and must be installed and serviced by a qualied installer to local codes.
RETAIN THIS MANUAL FOR FUTURE REFERENCE.
MODULAR CABINET ASSEMBLY INSTRUCTIONS
Wolf Steel Ltd.
214 Bayview Drive,
Barrie, Ontario, CANADA L4N 4Y8
Wolf Steel Europe BV
De Riemsdijk 22, 4004 LC, Tiel
The Netherlands
eu.inf[email protected]
2
EN
www.napoleon.com
N415-0416 DEC 08.21
Aluminum castings / stainless steel base
...........................................
10 years
Stainless steel tube burners
...............................................................
10 years
Hinges, slides and enclosures
...............................................................
3 years full coverage, plus 50% off until the 10th year
Stainless steel or porcelain sear plates 5 years full coverage, plus 50% off until the 10th year
.....................................
5 years full coverage, plus 50% off until the 10th year
Ceramic infrared burners (excluding screen)
................................
5 years full coverage, plus 50% off until the 10th year
All other parts
*Conditions and Limitations
This Limited Warranty creates a warranty period as specified in the
aforementioned table, for any product purchased through an authorized NAPOLEON
dealer, and entitles the original purchaser to the specified coverage in respect of
any component replaced within the warranty period, either by NAPOLEON or an
authorized NAPOLEON dealer, to replace a component of such product that has
failed in normal private use as a result of a manufacturing defect. The “50% off”
indicated in the table means the component is made available to the purchaser at
a 50% discount off the regular retail price of the component for the period
indicated. This Limited Warranty does not cover accessories or bonus items.
For greater certainty, “normal private use” of a product means that the product:
has been installed by a licensed, authorized service technician or contractor, in
accordance with the installation instructions included with the product and all
local and national building and fire codes; has been properly maintained; and has
not been used as a communal amenity or in a commercial application.
Similarly, “failure” does not include: over-firing, blow outs caused by
environmental conditions such as strong winds or inadequate ventilation,
scratches, dents, corrosion, deterioration of painted and plated finishes,
discoloration caused by heat, abrasive or chemical cleaners or UV exposure,
chipping of porcelain enameled parts, or damages caused by misuse, accident,
hail, grease fires, lack of maintenance, hostile environments such as salt or
chlorine, alterations, abuse, neglect or parts installed from other manufacturers.
Should deterioration of parts occur to the degree of non-performance (rusted
through or burnt through) within the duration of the warranted coverage, a
replacement part will be provided. The replacement component is the sole
responsibility of NAPOLEON defined by this Limited Warranty; in no event will
NAPOLEON be responsible for installation, labor or any other costs or expenses
related to the re-installation of a warranted part, for any incidental,
consequential, or indirect damages or for any transportation charges, labor costs
or export duties.
This Limited Warranty is provided in addition to any rights afforded to you by local
laws. Accordingly, this Limited Warranty imposes no obligation upon NAPOLEON
to keep parts in stock. Based on the availability of parts, NAPOLEON may at its
discretion discharge all obligations by providing a customer a prorated credit
towards a new product. After the first year, with respect to this Limited Warranty
NAPOLEON may, at its discretion, fully discharge all obligations with respect to
this warranty by refunding to the original warranted purchaser the wholesale price
of any warranted but defective part(s).
The bill of sale or copy will be required together with a serial number and a model
number when making any warranty claims from NAPOLEON.
NAPOLEON reserves the right to have its representative inspect any product or part
prior to honoring any warranty claim. You must contact NAPOLEON Customer Service
or an authorized NAPOLEON dealer to obtain the benefit of the warranty coverage.
www.napoleon.com
Napoleon President’s 10 Year Limited Warranty
NAPOLEON products are designed with superior components and materials, and are assembled by trained
craftsmen who take great pride in their work. This product has been thoroughly inspected by a qualified
technician before packaging and shipping to ensure that you, the customer, receive the quality product you
expect from NAPOLEON.
NAPOLEON warrants that components in your new NAPOLEON product will be free from defects in material and
workmanship from the date of purchase, for the following period:
.............................................
2 years
................................................................................
Porcelain-enameled cast iron cooking grids
Stainless steel lid, door and drawer panels
....................................
5 years full coverage, plus 50% off until the 10th year
3
EN
www.napoleon.com
N415-0416 DEC 08.21
!
WARNING!
This product can expose you to chemicals including nickel, which are known to the
State of California to cause cancer, and chemicals including bisphenol A, which are known to the
State of California to cause birth defects or other reproducve harm. For more informaon go to
www.P65Warnings.ca.gov.
!
!
PLANNING YOUR NAPOLEON MODULAR OUTDOOR ISLAND
With the Napoleon Outdoor Modular Islands, you can transform your backyard into a true barbecue oasis. The
versale modules can be arranged in a way that ts your grilling needs. The modules can be freestanding as an
outdoor kitchen or mounted against a non-combusble wall.
The cabinets are designed to be easy to assemble and install by either the home owner or private contractor.
Consider the following:
• All cabinets are 35” (889 mm) tall by 24” (610 mm) deep and 24” (610 mm) wide, except for the BUILT-IN
grill cabinets whose width correspond to the width of the grill head unit it was designed for.
• The fridge cabinet has a removable panel which allows access to the temperature control located at the
back of the fridge. Access to the panel must be ensured when the cabinet is installed.
• Each cabinet has 4 leveling feet for adjustment on even surfaces.
• The 2 drawer cabinets are made to t the Napoleon BUILT-IN series of grills only, which are available in
dierent sizes. Grill head installaon and operaon instrucons are detailed in the Owner’s Manual that
comes with it.
• The BUILT-IN series of grills can be ordered in either propane or natural gas conguraon. Knockouts are
present in the side and rear panels for easy piping and installaon. For those who order a propane grill, a
propane tank cabinet is available.
• The cabinets can be installed against a NON-COMBUSTIBLE wall of a house, a masonry or stucco half-wall,
or freestanding in an island conguraon.
• Ensure there is adequate venlaon behind the fridge cabinet – a minimum gap of 6” (150 mm) is required
between the back of the cabinet and adjacent structures.
• An oponal 4” (102 mm) spacer panel can be purchased and installed to ensure enough clearance for the
grill lid to open when installing against a wall. It also prevents debris or rodents from entering behind the
cabinets.
• A powder-coated 2” (51 mm) wide end panel can be purchased to cover the knockouts and mounng holes
in the outside panels in a run of cabinets, oering a nished look.
WARNING! All gas modicaons and/or installaons must be done by a qualied gas installer.
WARNING! Never block the vents located on the back of the fridge cabinet. Failure to do so can
result in the fridge overheang.
WARNING! Never place the fridge and fridge cabinet next to the grill head and grill head cabinet.
It is recommended to use the false top-drawer module IM-2DC when:
• Doors and drawers get in the way of each other if placed next to a 45
o
or 90
o
transion.
• A drawer, door, or paper towel/garbage module is placed next to the grill and the control panel prevents
them from fully opening and possible damages them.
• A side burner kit (oponal through your Napoleon Gas Grill dealer), or a sink will be installed. The space
behind the false drawer oers enough
clearance for the side burner valve and hose roung and for the
sink’s piping.

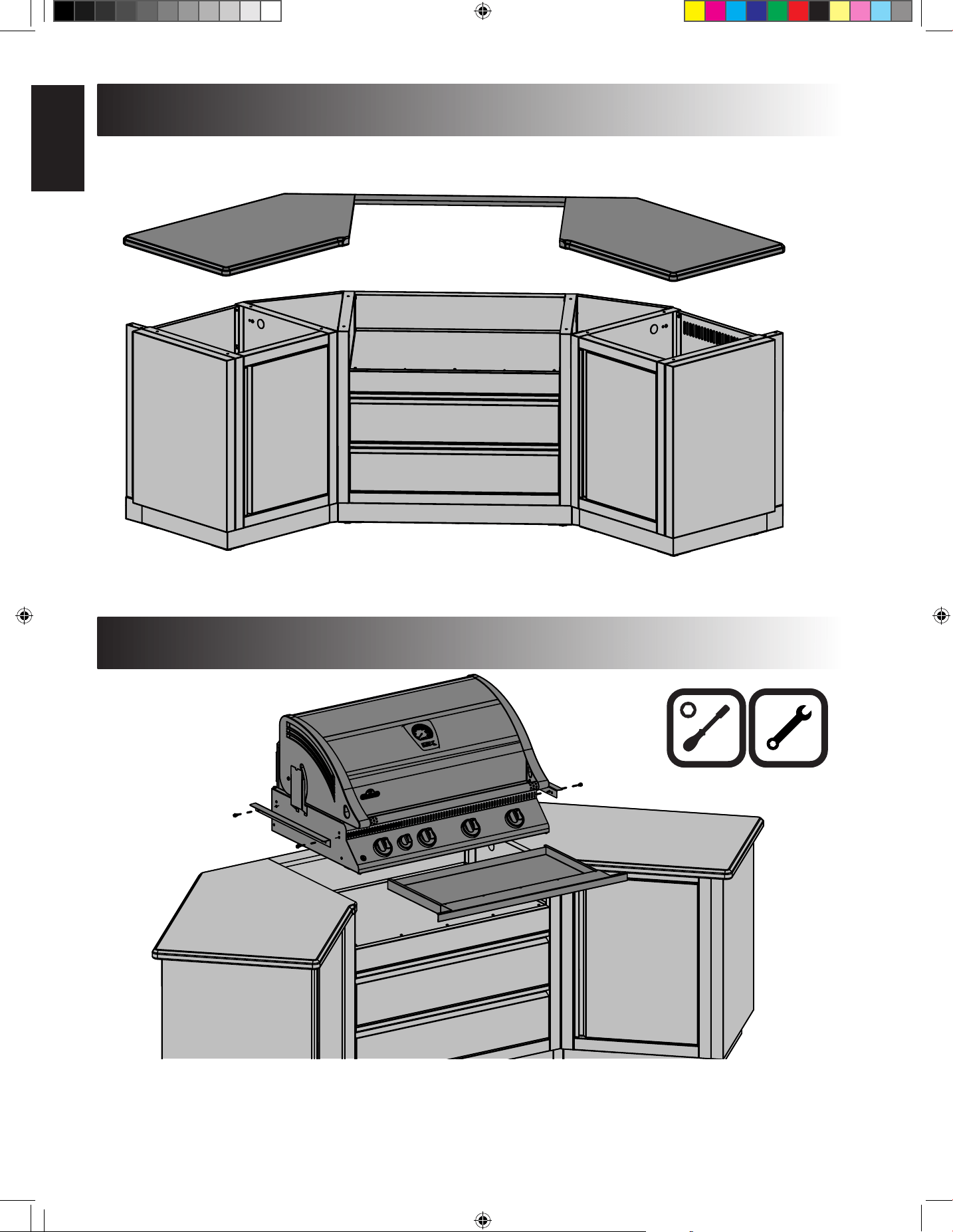

Counter top: must be ordered and supplied locally by the homeowner.
• It must be made of NON-COMBUSTIBLE material for a grill to be installed into it.
• It can be ordered in advance by drawing out the cabinet’s arrangement oor plan and adding up the width
measurements, allowing 1-2 inches (25 mm - 51 mm) of counter top overhang.
TIP! Most counter top manufacturers are willing to come and take measurements aer assembling the
cabinets to ensure a perfect t. Granite is a recommended choice of counter top material.
• For the drip pan to slide in and out properly, the grill head must be supported by a counter top with a
thickness between ½” (13 mm) and 1 ½” (38 mm).
• The built-in grill head comes with stainless steel brackets and hardware that allow the unit to rest on the
counter top above the corresponding island cabinet.
Decorave counter tops made of ceramic le set on top of cement ling board can be made to match your sur-
rounding backyard furniture colors.
4
EN
www.napoleon.com
N415-0416 DEC 08.21
3/8” (10mm)
TOOLS REQUIRED FOR ASSEMBLY (tools not included)
GAS AND ELECTRICAL PIPING
The piping up to the gas grill is the responsibility of the installer and piping should be located as shown
in the built-in instrucons. Do not use hose to connect the unit. It must be connected with either rigid
pipe, copper tube or an approved exible metal connector. The installaon must comply with CAN B149.1
Natural Gas and Propane installaon code in Canada, or to the Naonal Fuel Gas code, ANSI Z223.1 in the
United States. The minimum recommended piping size is NPS 1/2” for rigid pipe, and 1/2” OD for copper
tubing (based on a 20 run). Longer runs may require larger sizes to conform with CAN B149.1. Propane
Gas Installaon Code in Canada or to the Naonal Fuel Gas Code, ANSI Z223.1 in the United States.
Look to the manual that came with the gas grill for further instrucons.
To ease installaon and piping, removable knockouts have been provided in the side panels and in the
center of each backpanel. The knockouts in the side panels should be removed before the cabinets are
bolted in a row. Only remove the knockouts that are required for the piping of any gas, plumbing or
electrical lines.
KNOCKOUTS
5
EN
www.napoleon.com
N415-0416 DEC 08.21
IM-UTC
Knockouts have been punched in the sides and back panels to provide easy roung of gas or electrical piping.
Once the knockout has been removed a bushing must be installed to prevent the gas or electrical line being cut
on the edge of the hole. Gas piping and installaon must be done by a qualied gas installer.

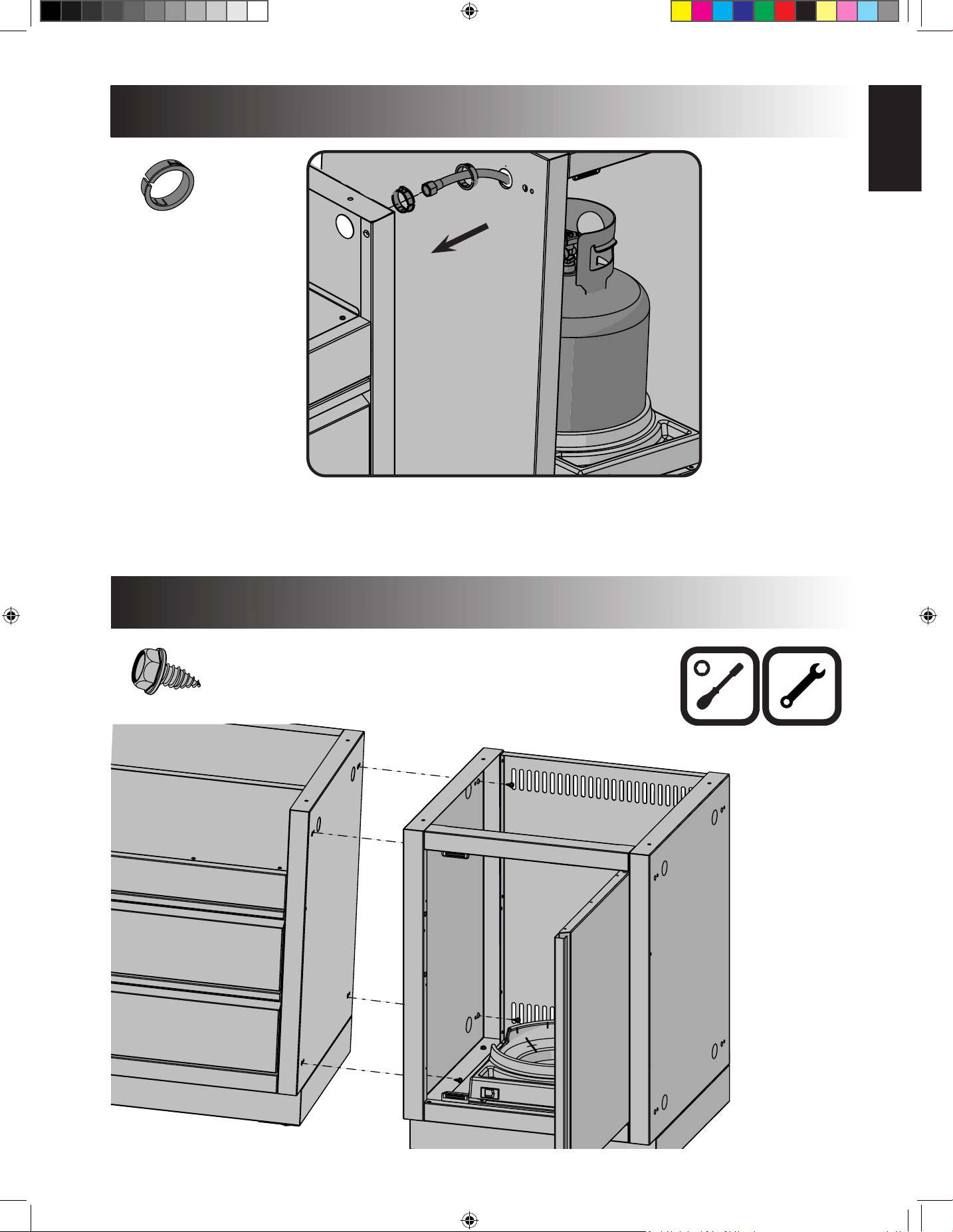

PROPANE SUPPLY HOSE ROUTING
N105-0012
x2

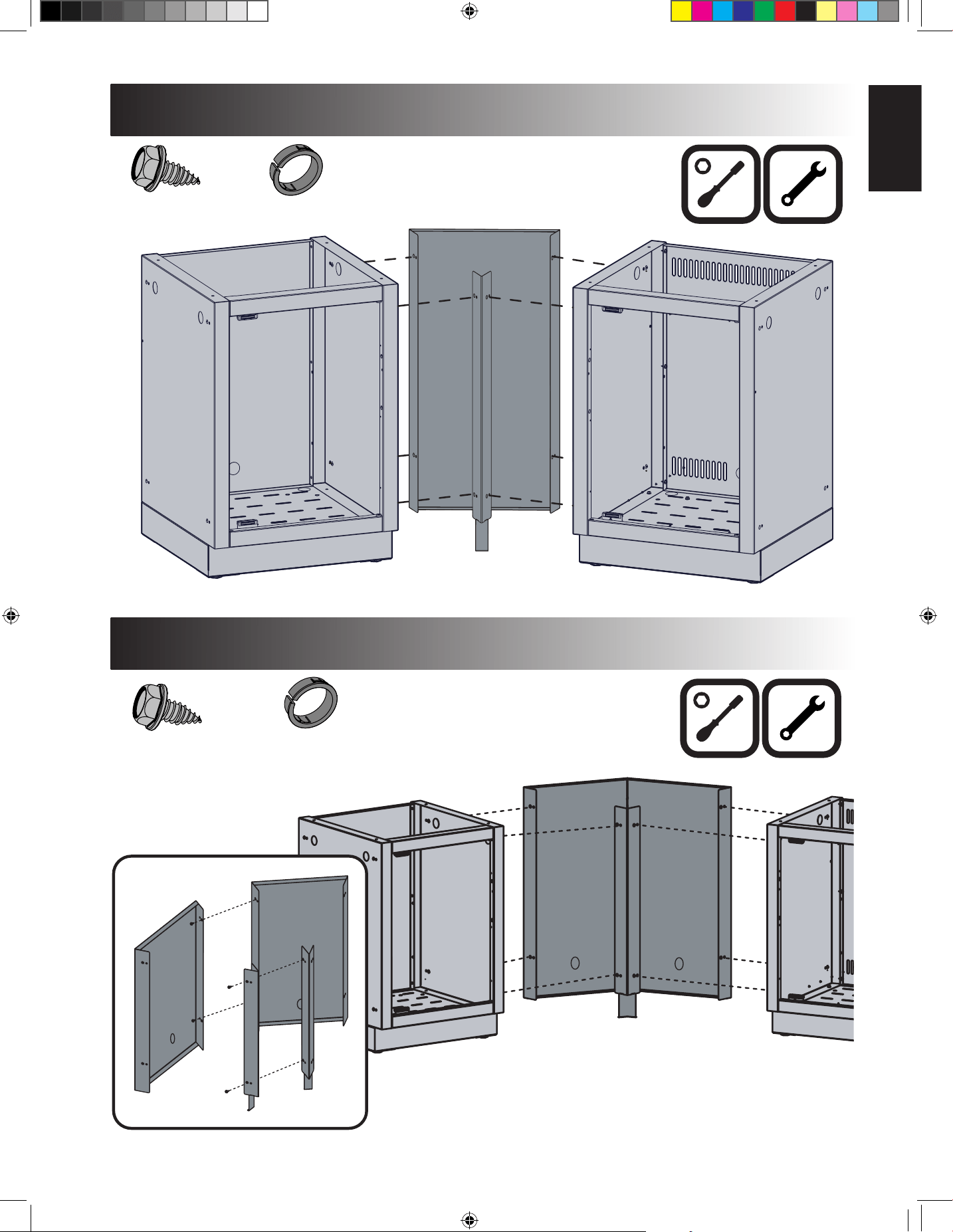

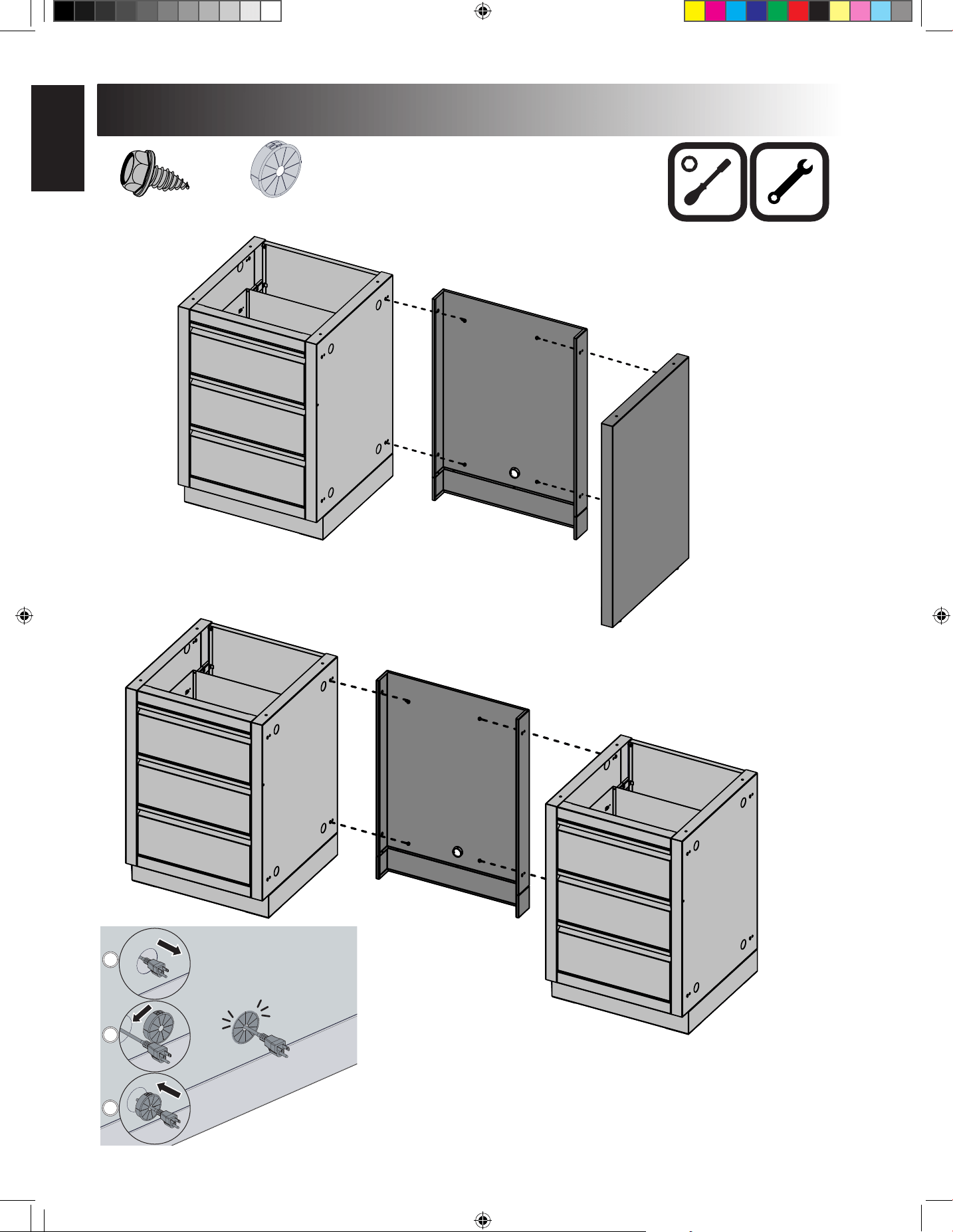

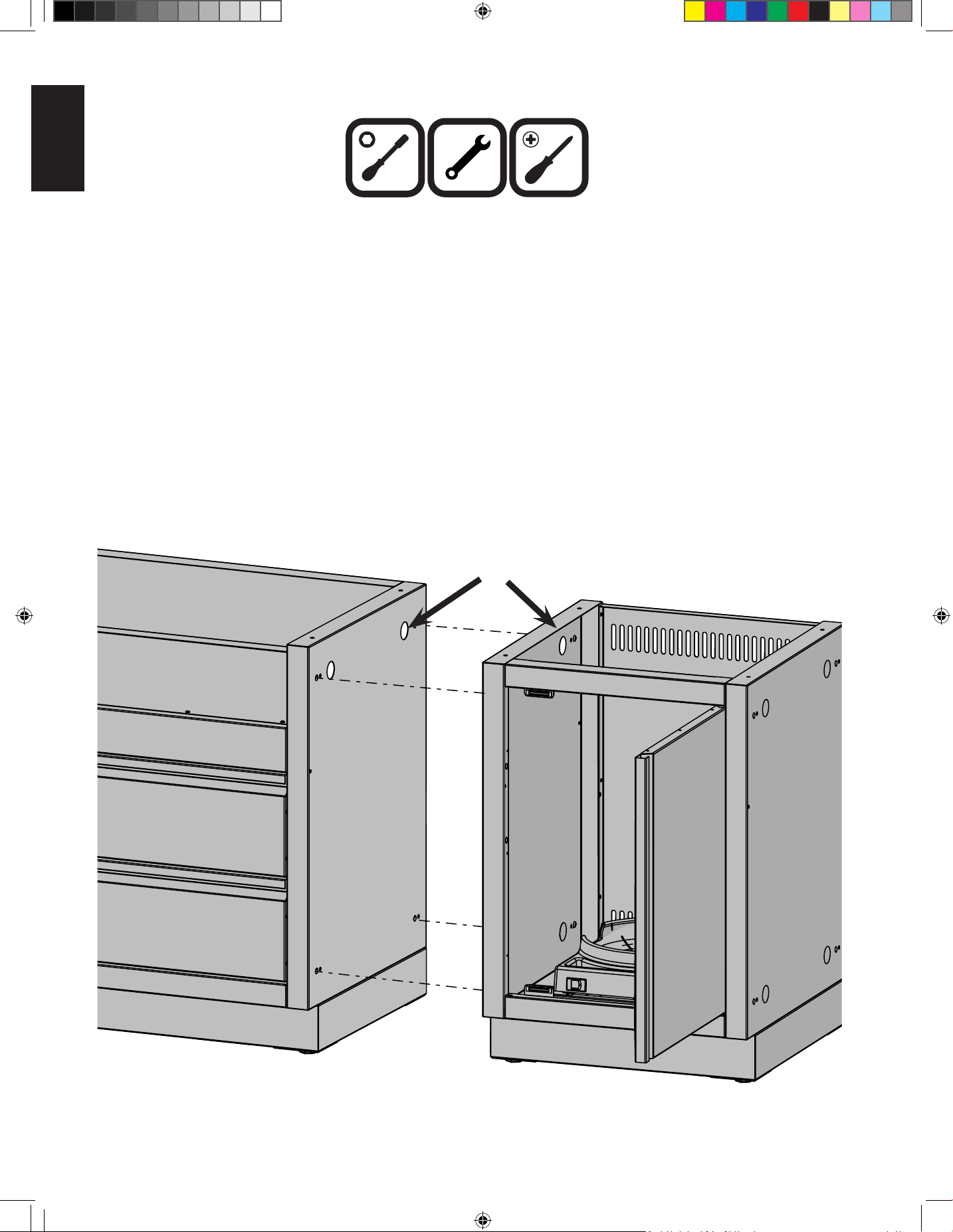

CABINET TO CABINET ASSEMBLY
N570-0086
x4
6
EN
www.napoleon.com
N415-0416 DEC 08.21

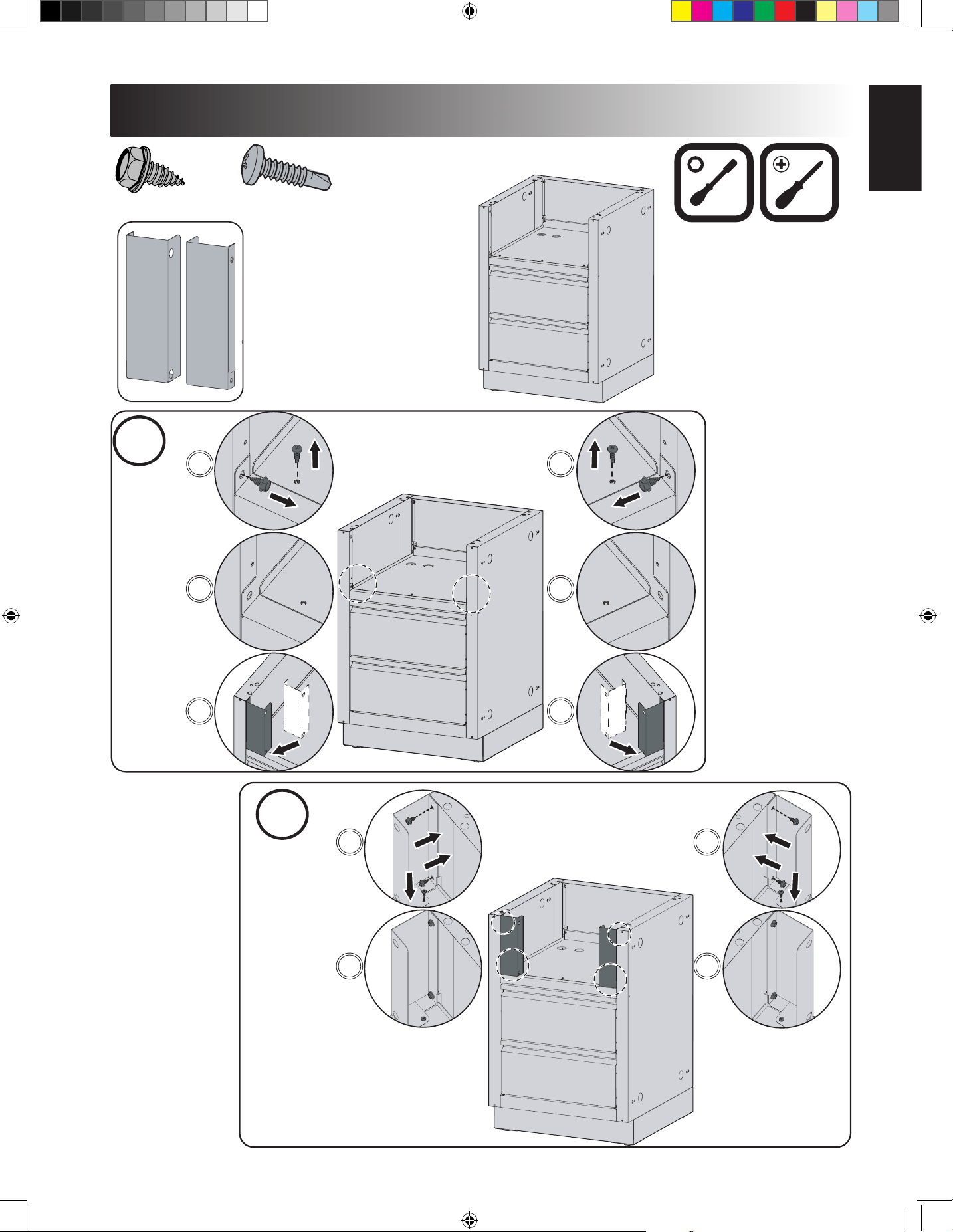

FRIDGE PANEL ATTACHMENT
IM-FMPD-CN / FEPD-CN
IM-FMP-CN / FEP-CN
N570-0086
x4
N105-0024
x1
2
1
3
IM-FMP-CN / IM-FMPD-CN
IM-FEP-CN/IM-FEPD-CN
7
EN
www.napoleon.com
N415-0416 DEC 08.21

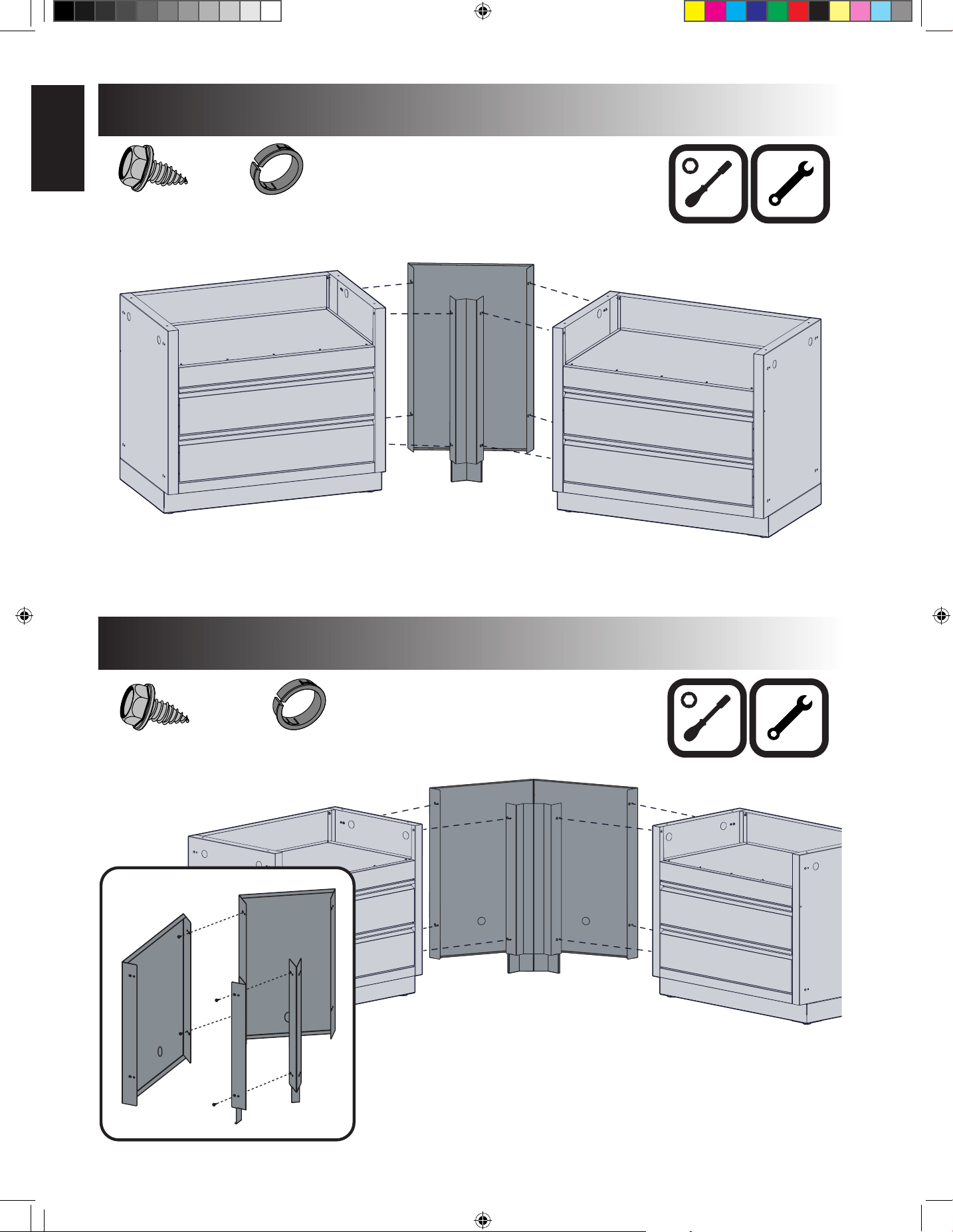

CABINET 45 DEGREE CONNECTION
IM-45T
N570-0086
x8
CABINET 90 DEGREE CONNECTION
IM-45T X 2
N570-0086
x12
N105-0012
x1
N105-0012
x2
8
EN
www.napoleon.com
N415-0416 DEC 08.21
CABINET 45 DEGREE CONNECTION
IM-45LT
N570-0086
x8
CABINET 90 DEGREE CONNECTION
IM-45LT X 2
N570-0086
x12
N105-0012
x1
N105-0012
x2
9
EN
www.napoleon.com
N415-0416 DEC 08.21

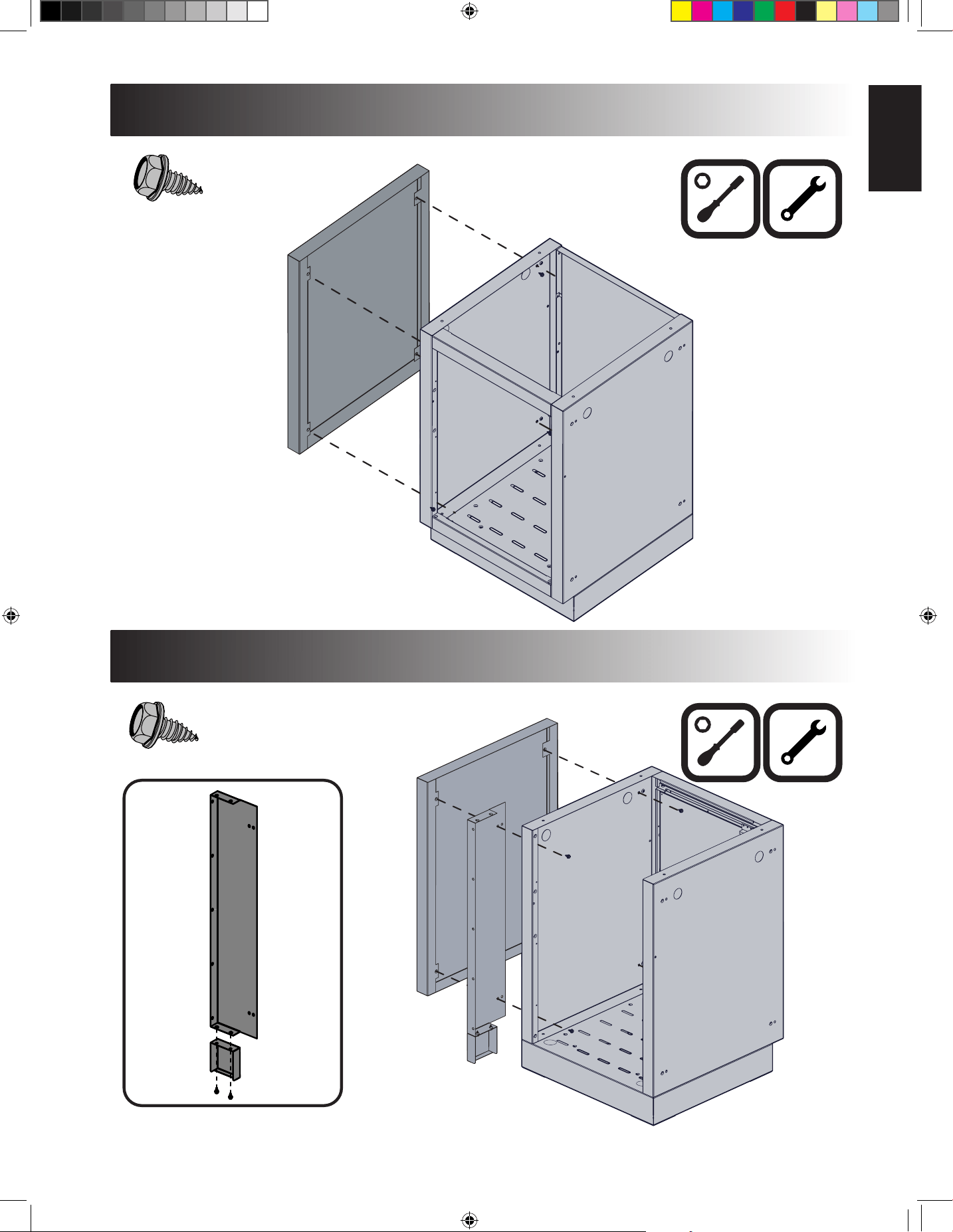

CABINET END PANEL KIT
IM-CEP
N570-0086
x4
CABINET END PANEL KIT
IM-CEP / IM-WSF
SHOWN WITH REAR PANEL REMOVED
N570-0086
x6
10
EN
www.napoleon.com
N415-0416 DEC 08.21

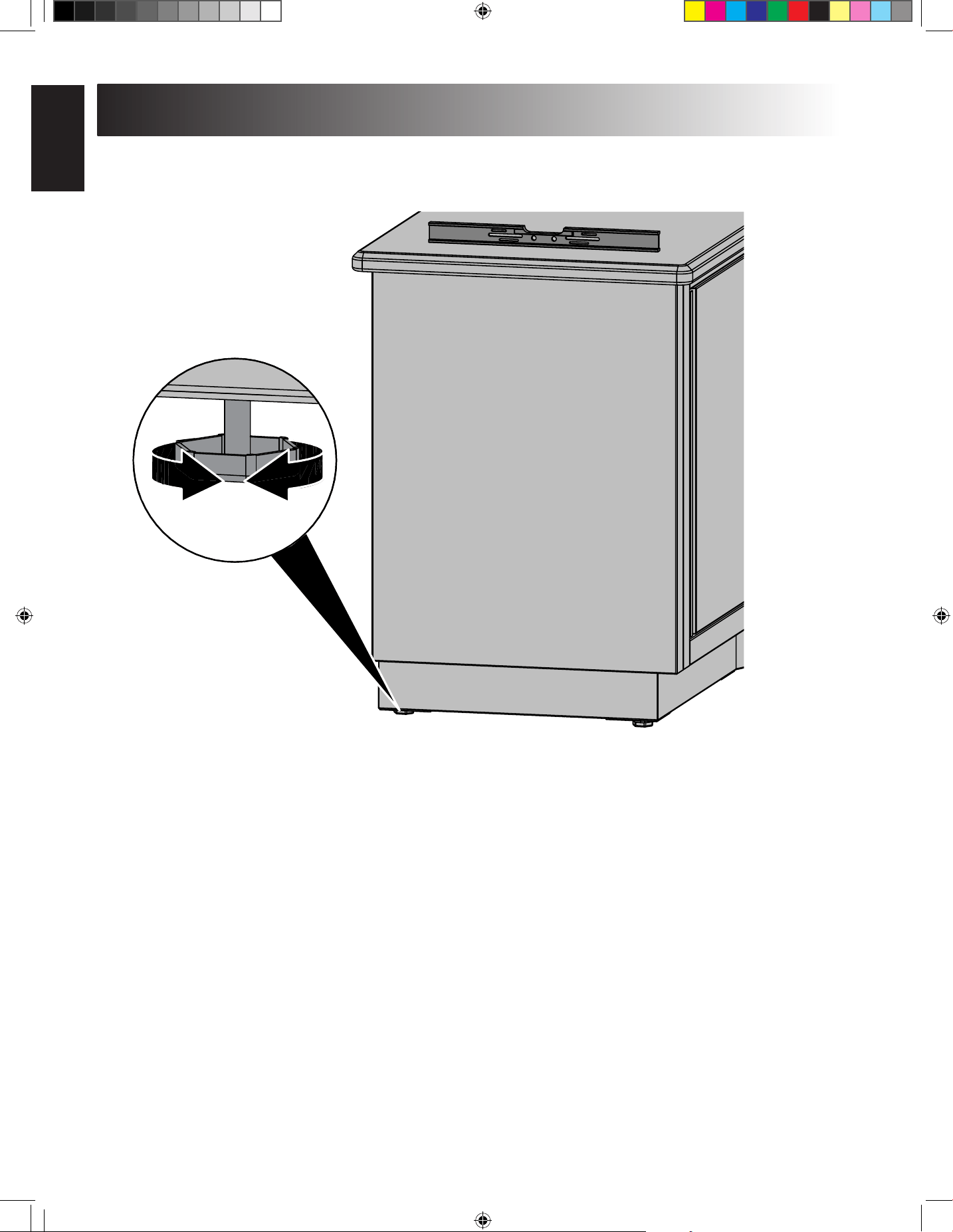

CABINET LEVELING PROCEDURE
N370-1064 Adapter Kit BIB18RT to BIB12RT
2
1
3
5
4
6
11
EN
www.napoleon.com
N415-0416 DEC 08.21
IM-UGC18-CN
1
2
2
1
4
3
N570-0086
x4
x2
N570-0013
12
EN
www.napoleon.com
N415-0416 DEC 08.21
COUNTERTOP TO BE FASTENED AS PER MANUFACTURER’S INSTRUCTIONS. HOLES HAVE BEEN PLACED ON
THE TOP FLANGE OF THE SIDE PANELS TO ALLOW FOR FASTENERS.
REFER TO BUILT-IN MANUAL THAT ACCOMPANIES THE GRILL FOR COMPLETE INSTRUCTIONS.
GAS PIPING MUST BE DONE BY A LICENSED GAS INSTALLER.
WE RECOMMEND USING THE IM-45LT WHEN MOUNTING GAS APPLIANCES IN 45˚ CORNERS.
THE IM-45T CAN BE USED FOR OTHER CABINETS.
13
EN
www.napoleon.com
N415-0416 DEC 08.21

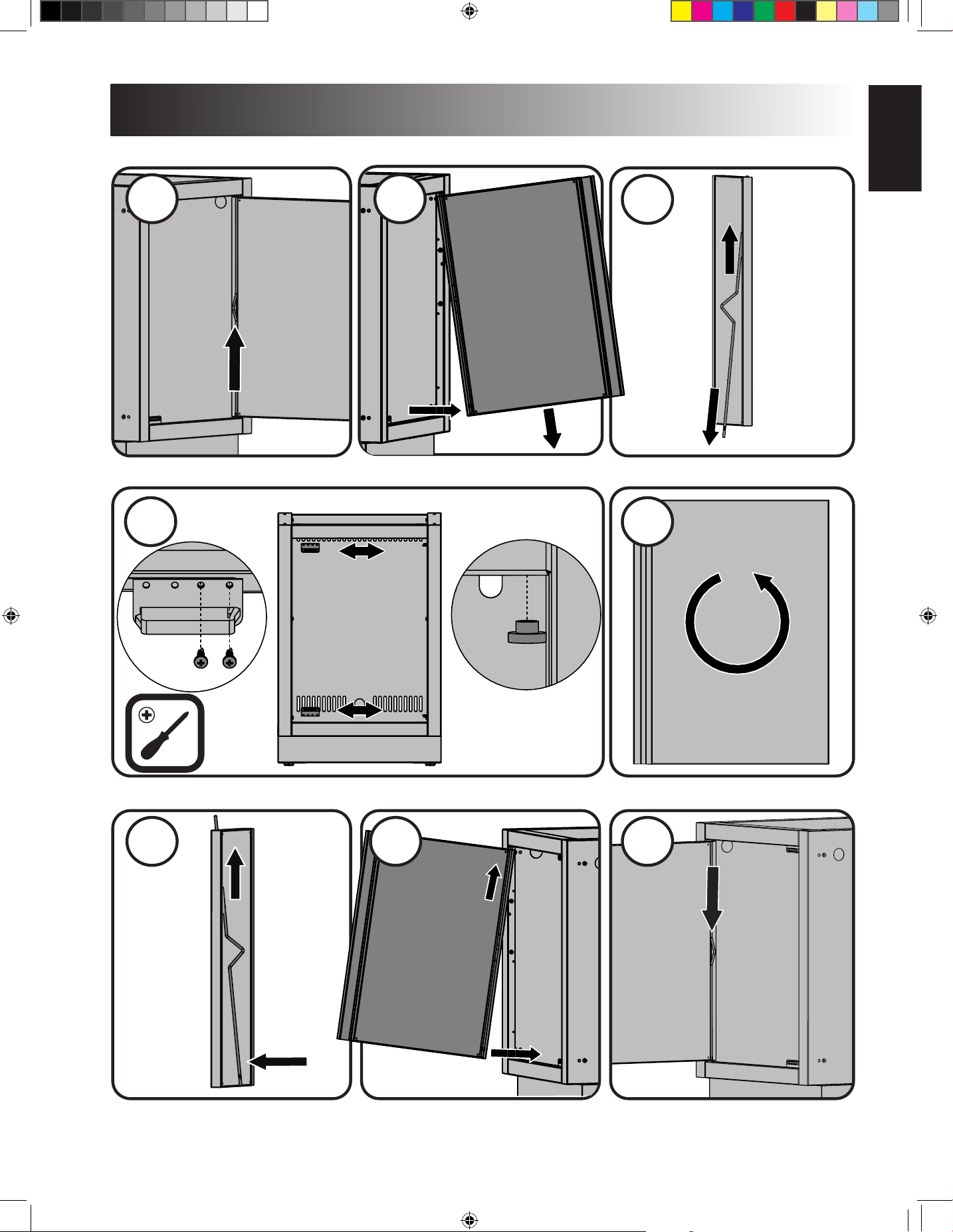

DOOR REVERSAL
3
5
6
4
7 8
1 2
14
EN
www.napoleon.com
N415-0416 DEC 08.21
Notes
KEEP YOUR RECEIPT AS PROOF OF PURCHASE TO VALIDATE YOUR WARRANTY.
Ordering Replacement Parts
Warranty Informaon
MODEL:
DATE OF PURCHASE:
SERIAL NUMBER:
(Record informaon here for easy reference)
For replacement parts and warranty claims, contact the Napoleon dealer where the product was purchased.
Before contacting the dealer, check the Napoleon Grills Website for more extensive cleaning, maintenance,
troubleshooting and parts replacement instructions at www.napoleon.com.
To process a claim, the following informaon is required:
1. Model and serial number of the unit.
2. Part number and descripon.
3. A concise descripon of the problem (‘broken’ is not sucient).
4. Proof of purchase (photocopy of the invoice).
In some cases, Napoleon could request to have the parts returned to the factory for inspecon before
providing replacement parts.
Before contacng Napoleon dealer, please note that the following items are not covered by the warranty:
• Costs for transportaon, brokerage or export dues.
• Labour costs for removal and reinstallaon.
• Costs for service calls to diagnose problems.
• Discolouraon of stainless steel parts.
• Part failure due to lack of cleaning and maintenance, or use of improper cleaners (oven
cleaner or other harsh chemicals).
