INSTRUCTIONS FOR USE
2
The Cubing PRO Mandoline is a versatile kitchen tool allowing you to cut
a wide variety of food in dierent thicknesses and several shapes.
• Fast and easy slices, cubes & juliennes
Slices: 10 dierent thickness settings
Juliennes: 3 dierent blade sets with exclusive
tiltable blades for a resistance-free movement
Cubes: 30 varieties of cubes
• Interchangeable blades and graters
Slicing V-Blade
Wavy Blade
Fine Grating Blade
Coarse Grating Blade
• Extra large safety pusher
Prevents all hand contact
with blades
• Notched on front
To fit over any bowl size
• Non-slip feet
For added stability
• Storage box
For safe storage
• Dishwasher safe
3

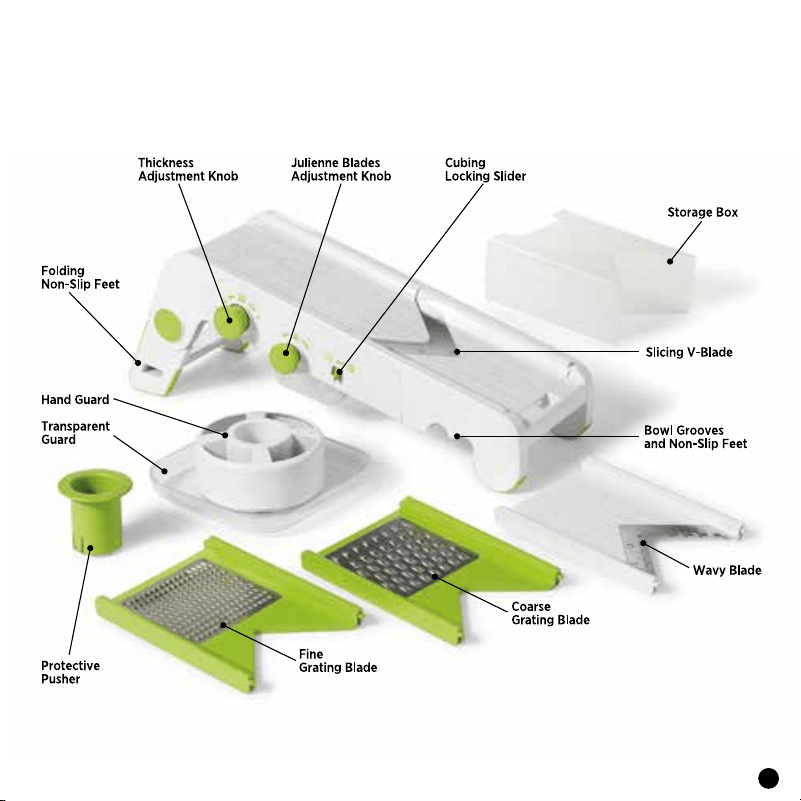

PARTS AND COMPONENTS
4
INTERCHANGEABLE BLADES & GRATERS
1. SLICING V-BLADE
Ideal for onions, cucumbers, tomatoes,
zucchinis, eggplants, potato chips
and much more.
2. WAVY BLADE
Ideal for cucumbers, potatoes, carrots
and make fancy-looking food.
3. FINE GRATING BLADE
Great for carrots, hash brown potatoes,
chocolate toppings and much more.
4. COARSE GRATING BLADE
Ideal for cheese, chocolate, carrots,
cabbage and much more.
5. TO CHANGE BLADE
Simply insert a finger in the middle opening,
lift the blade you want to take out and
insert the one of your choice.
BLADES STORAGE
• 3 blades can be put away in storage box
• For convenient storage, the box rests on
the mandoline by inserting the 2 tabs
underneath the blade box into the top
front notches of the slicer.
5
TO USE SLICING FUNCTION
10 dierent slice thicknesses from 0.04 to 0.4 in (1to 10mm)
1. Unfold folding legs from underside of slicer.
2. Place V-Blade or Wavy Blade on mandoline.
3. Pull out and turn thickness adjustment knob
(left dial) to desired thickness.
4. Hide julienne blades by pulling out and turning
julienne adjustment knob (right dial).
5. Fix food to the pins under the hand guard.
6. Begin slicing with fingers on hand guard.
ALWAYS USE COMPLETE SAFE GUARD
WHEN IN USE.
7. To slice small food such as carrots, remove the
small protective pusher and insert food into
narrow opening. The food will fall by itself
during each passage on the blade, no need
to apply pressure.
8. Once food gets smaller, push down with
protective pusher.
WARNING! NEVER PLACE THUMB OR
FINGERS INSIDE SMALL OPENING
WITHOUT THE PROTECTIVE PUSHER.
6
TO USE JULIENNE FUNCTION
1. Unfold folding legs from underside of slicer.
2. Place V-Blade on mandoline.
3. Pull out and turn thickness adjustment knob
(left dial) to desired thickness.
4. Pull out and turn julienne adjustment knob
(right dial) to raise the desired blades.
5. Push cubing locking slider to the right for
a resistance-free movement during the cut.
6. Fix food to the pins under the hand guard.
7. Begin slicing with fingers on hand guard.
ALWAYS USE COMPLETE SAFE GUARD
WHEN IN USE.
WARNING! NEVER PLACE THUMB OR FINGERS
INSIDE SMALL OPENING WITHOUT THE
PROTECTIVE PUSHER.
3 dierent julienne blades set
7
TO USE CUBING FUNCTION
Follow steps1 and 2 of the julienne function.
1. Turn thickness adjustment knob (left dial)
to desired thickness.
2. Turn julienne adjustment knob (right dial)
to raise the desired blades.
3. Push cubing locking slider to the left to block
the tiltable julienne blades.
4. Fix food to the pins under the hand guard.
5. Begin cubing with fingers on hand guard.
ALWAYS USE COMPLETE SAFE GUARD
WHEN IN USE.
WARNING! NEVER PLACE THUMB OR FINGERS
INSIDE SMALL OPENING WITHOUT THE
PROTECTIVE PUSHER.
Cubes in 3 easy steps
8
CLEANING
• Wash before first use.
• Pull out and turn thickness
adjustment knob to storing
position (rear platform adjusted
to the highest position).
• All pieces are dishwasher safe.
USEFUL TIPS
1. Holding the sides of the transparent guard will
release the pins and allow food to be properly
secured under the hand guard.
2. Food should fit completely inside pusher; you
may need to cut ends to do so. This will increase
stability of food.
3. First cut may be harder; starting by the shorter
side of vegetable may help.
4. When grating, turn thickness adjustment
knob so that the platform is leveled with the
grating blade.
5. Raw sweet potatoes being very hard and fibrous,
we recommend caution. Cutting sweet potatoes
require much more strength.
6. To turn julienne adjustment knob you must push
cubing locking slider to the right until you hear a
click to release the julienne blades.
7. You may cut in half longer foods such
as carrot and cucumber, this will make
self-feeding function easier.
8. Make delicious homemade chips using the
thinnest thickness options. Slice your potatoes,
add a small amount of salt and oil and put them
in the microwave on top of a parchment paper.
Cook at highest temperature for 2–5 minutes or
until potatoes are golden brown.
9
STORAGE
When not in use and for storage
• Fold legs into base.
• Turn thickness adjustable knob (left dial)
to storing position.
• Place storage box on top of mandoline by inserting
the 2 tabs underneath the blade box into the top front
notches of the slicer.
WARNING!
• Always use hand guards when in use. Never hold the food
directly in your hand.
• Never insert thumb or fingers in self-feeding opening.
• Always use the small protective pusher to pressure down
small food.
