20 IN. WALL FAN
SKU: 92027
WARNING
CAUTION
1. Read and save these instructions. Do not operate fan unless you have
read these instructions.
2. Unplug the fan before moving it or performing maintenance. Do not touch
the fan when your hands are wet.
3. Those who are not qualified electricians should not disassemble, repair or
rebuild the fan.
4. Unplug the fan when it is not in use.
5. DO NOT unplug the fan by pulling the cable cord. Unplug by holding the
plug and pulling.
6. DO NOT use the fan when there is damage to the cable cord or plug. If
the supply cord is damaged, it has to be replaced by the manufacturer, its
service agent or similarly qualified persons.
7. DO NOT use the fan with an extension cord.
8. DO NOT use the fan close to fires or flammable material.
9. DO NOT insert your hand or other objects into the grille or the movable
parts.
10. To reduce the risk of fire or electric shock, do not use this fan with any
solid-state speed control device.
11. DO NOT use this fan outdoors, this fan is designed for indoor use only.
1. Unplug the fan from the socket and clean it with a soft cloth.
2. DO NOT immerse the fan in liquid.
3. Fit the guard onto the fan before starting up the fan.
4. This fan is not intended for use by people (including children) with
reduced physical, sensory or mental capabilities or lack of experience
and knowledge unless they have been given supervision or instruction
concerning use of the fan by a person responsible for their safety.
Supervise children to ensure they do not play with the fan.
SAFETY INFORMATION
1
ASSEMBLY INSTRUCTION

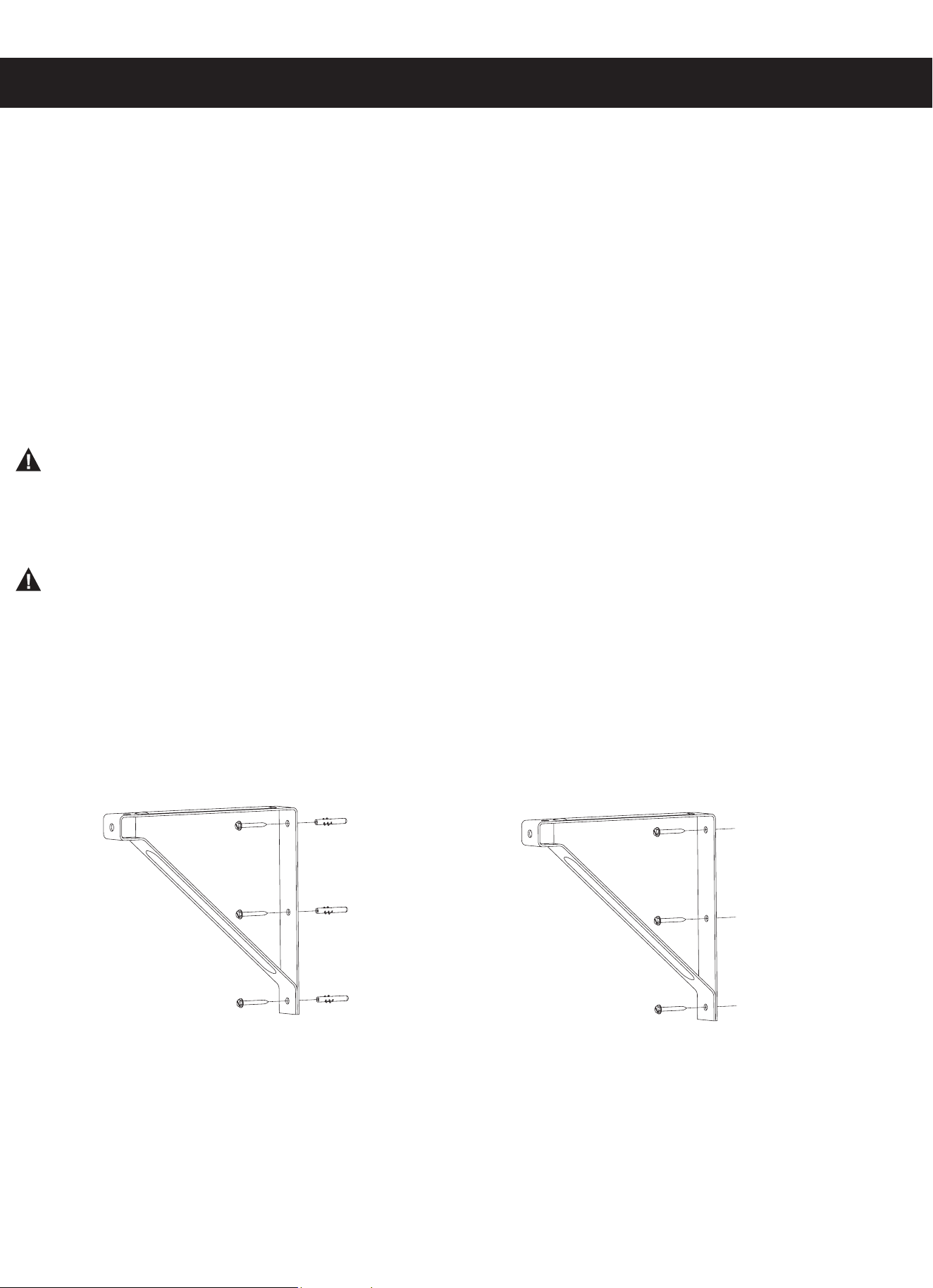

1. Mark the hole locations by using the brack
ets, then drill the holes.
A. For concrete wall installation, after drilling, you would insert the wall
anchors and tap them flush with the wall, position the bracket and then
screw the two bolts into the anchors, securely attaching the wall.
B. For wall stud installation, after drilling the smaller diameter pilot hole,
position the bracket and screw the two bolts into the wall until they are
secured.
a. concrete wall b. wall stud
2
CAUTION:
The fan is only suitable for concrete wall. Do not use for dry
wall mounting. Use the mounting accessories shipped with products for wall
mounting.
mounted and secured on a solid wall that is structurally sound to support the
fan and mounting bracket. The wall bracket along with the fan MUST NOT
be mounted on any surface that is subject to vibration, wobbling, movement
or the like. The fan MUST be mounted and properly secured to a STATION-
ARY structure.
WARNING:
This fan is to be mounted with the wall bracket, it MUST be
ASSEMBLY INSTRUCTION (CONTINUED)

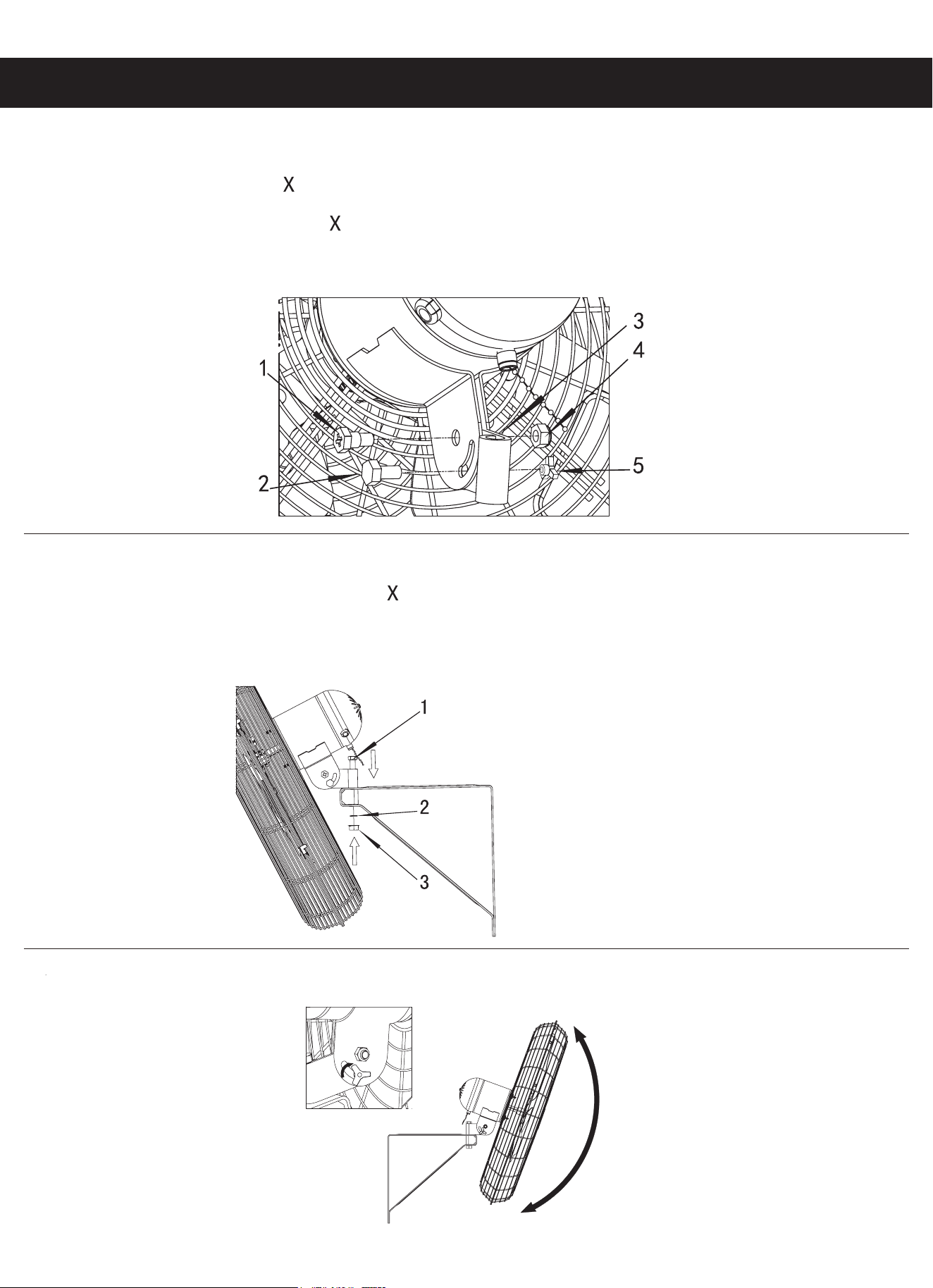

2. Insert the Upper Bracket into Motor Frame by screws as follow:
Firstly, No.1 screw M8
18 match No.4 Hexangular Nut.
3. Assemble the Upper Bracket with the wall bracket by screws as follow:
Firstly, insert No. 1 Screw M12
4. Loose Washer Nut M8 for adjusting the desired tilt angle of Fan Head,
and fix it again.
3
100 through the Upper Bracket
Secondly, connect the Lower Bracket with Upper Bracket by No. 1 Screw
Finally, fasten two bracket by No. 2 Spring washer and Hexangular Nut M12
20 match No.5 Washer Nut M8.
Secondly, No. 2 screw M8
Finally, the Upper Bracket No. 3 will fix into Motor frame.
OPERATION INSTRUCTION
Unplug the appliance before cleaning. Do not use water for cleaning metal
surfaces. Slightly moisten a cloth and wipe off the surfaces of the fan. In
order to remove dust from the grill, use a vacuum cleaner or remove the
front grill by removing the securing screws on the edge of the grill. After
cleaning, remount the grill. After doing this, fasten the screws on the edge
of the grill.
CARE AND CLEANING
4
1. Place the fan on a safe, flat surface where it can not fall or be pulled by
the cord.
2. Adjust the desired speed by pulling the chain switch
（Stop - Low- Medium - High）．

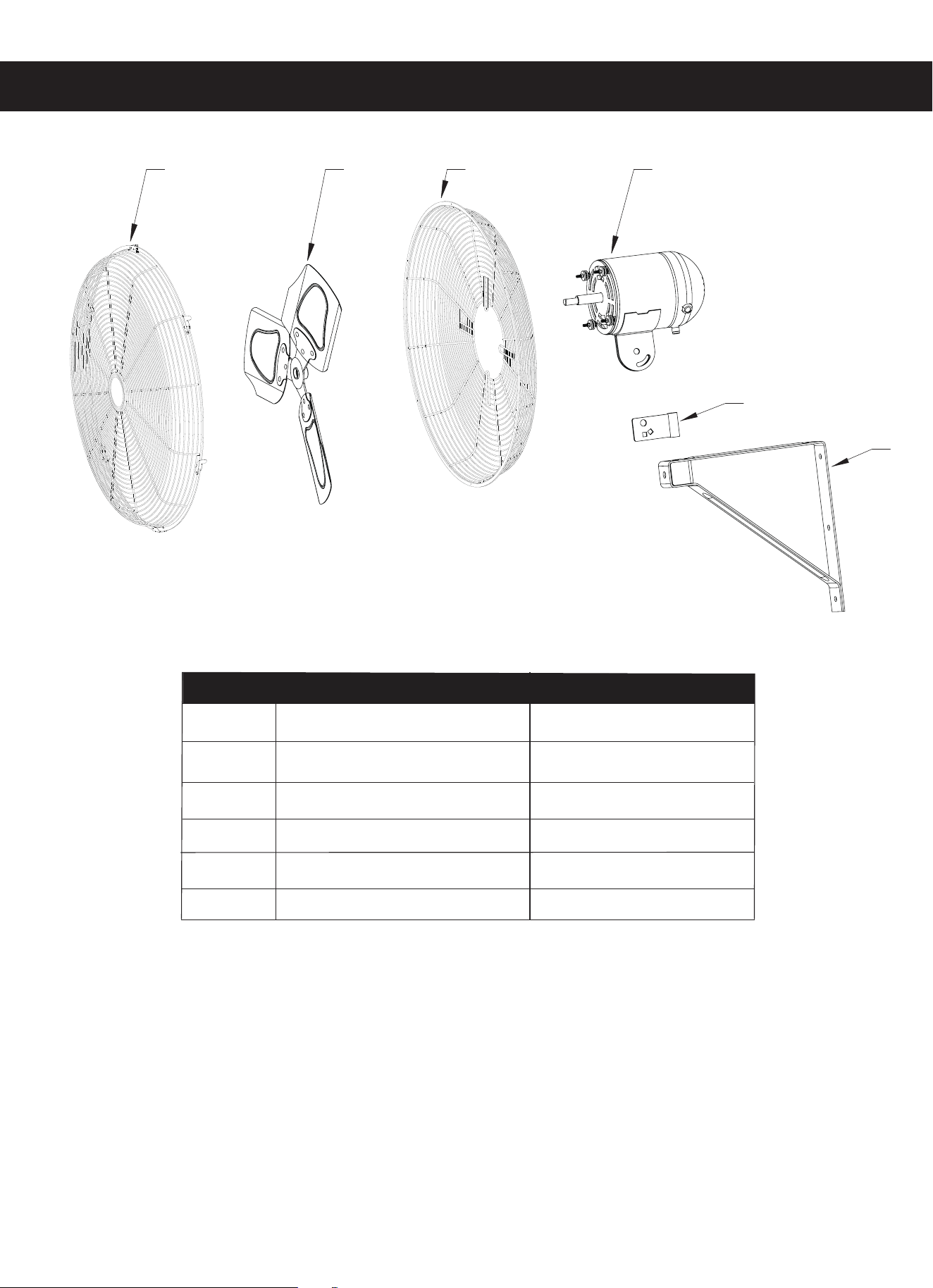

PART LIST
5
PART DESCRIPTION PART #
92027-01
92027-02
92027-03
92027-04
92027-05
A
B
C
D
E
Front Grill
Rear Grill
Blade
Motor
Upper Bracket
92027-06
F
Wall Bracket
A B C D
E
F
