Dryer
User manual
DV90F53A**
Untitled-5 1Untitled-5 1 2025-05-28 11:40:272025-05-28 11:40:27
English2
Contents
Safety information 4
What you need to know about the safety instructions 4
Important safety symbols 4
CALIFORNIA PROPOSITION 65 WARNING 7
IMPORTANT SAFETY INSTRUCTIONS 8
Warnings 9
Cautions 9
Regulatory notice 11
FCC Notice 11
IC Notice 12
Open Source Announcement 13
Security updates information 13
Installation requirements 14
Key installation requirements 14
Location considerations 14
Ducting requirements 19
Exhausting requirements 20
Gas requirements 21
Electrical requirements 22
Installation 24
What’s included 24
Step-by-step installation 26
Vent Blockage Test 33
Exhaust ducting guide 34
Door reversal 34
Before you start 37
Initial setup 37
Sort and load 38
Functional prerequisite 38
Rack Dry (applicable models only) 39
Untitled-5 2Untitled-5 2 2025-05-28 11:40:272025-05-28 11:40:27
English 3
Operations 40
LCD panel 40
Operating a cycle 42
Cycle overview 43
Settings 48
Special features 53
Drying guide 55
Maintenance 56
Cleaning 56
Troubleshooting 58
Checkpoints 58
Information codes 60
Specifications 61
Fabric care chart 61
Protecting the environment 62
Specification sheet 62
Untitled-5 3Untitled-5 3 2025-05-28 11:40:272025-05-28 11:40:27
SAVE THESE INSTRUCTIONS
English4
Safety information
Congratulations on your new Samsung dryer. This manual contains important information on the
installation, use and care of your appliance. Please take some time to read this manual to take full
advantage of your dryer’s many benefits and features.
What you need to know about the safety instructions
Please read this manual thoroughly to ensure that you know how to safely and efficiently operate the
extensive features and functions of your new appliance. Please store the manual in a safe location close
to the appliance for future reference. Use this appliance only for its intended purpose as described in this
instruction manual.
Warnings and Important Safety Instructions in this manual do not cover all possible conditions and
situations that may occur. It is your responsibility to use common sense, caution and care when installing,
maintaining and operating your dryer.
Because the following operating instructions cover various models, the characteristics of your dryer may
differ slightly from those described in this manual and not all warning signs may be applicable. If you have
any questions or concerns, contact your nearest service center or find help and information online at www.
samsung.com.
Important safety symbols
What the icons and signs in this user manual mean:
WARNING
Hazards or unsafe practices that may result in severe personal injury, death and/or property damage.
CAUTION
Hazards or unsafe practices that may result in personal injury and/or property damage.
NOTE
Indicates that a risk of personal injury or material damage exists.
These warning signs are here to prevent injury to yourself and others.
Please follow them explicitly.
After reading this manual, store it in a safe place for future reference.
Read all instructions before using the appliance.
As with any equipment that uses electricity and moving parts, potential hazards exist. To safely operate
this appliance, familiarize yourself with its operation and exercise care when using it.
Untitled-5 4Untitled-5 4 2025-05-28 11:40:272025-05-28 11:40:27
SAVE THESE INSTRUCTIONS
English 5
WARNING - Risk of Fire
• Clothes dryer installation must be performed by a qualified
installer.
• Install the clothes dryer according to the manufacturer’s
instructions and local codes.
• Do not install a clothes dryer with flexible plastic venting materials.
If flexible metal (foil type) duct is installed, it must be of a specific
type identified by the appliance manufacturer as suitable for
use with clothes dryers. Flexible venting materials are known to
collapse, be easily crushed, and trap lint. These conditions will
obstruct clothes dryer airflow and increase the risk of fire.
• Do not install a booster fan in the exhaust duct.
• To reduce the risk of severe injury or death, follow all installation
instructions.
• Save these instructions.
Untitled-5 5Untitled-5 5 2025-05-28 11:40:282025-05-28 11:40:28
SAVE THESE INSTRUCTIONS
Safety information
English6
WARNING - To reduce the risk of fire or
explosion:
• Do not dry items that have been previously cleaned, washed,
soaked, or spotted with gasoline, dry cleaning solvents, or other
flammable or explosive substances. They emit vapors that could
ignite or explode. Any material that has been in contact with a
cleaning solvent or flammable liquids or solids should not be placed
in the dryer until all traces of these flammable liquids or solids and
their fumes have been removed. There are many highly flammable
items used in homes, such as acetone, denatured alcohol, gasoline,
kerosene, some liquid household cleaners, some spot removers,
turpentine, waxes, and wax removers.
• Items containing foam rubber (which may be labeled latex foam)
or similarly textured rubberlike materials must not be dried on
a heat setting. Heated foam rubber materials can, under certain
circumstances, ignite spontaneously.
Untitled-5 6Untitled-5 6 2025-05-28 11:40:282025-05-28 11:40:28
SAVE THESE INSTRUCTIONS
English 7
WARNING - Fire or explosion hazard
• Failure to follow safety warnings exactly could result in serious
injury, death or property damage.
• Do not store or use gasoline or other flammable vapors and liquids
near this or any other appliance.
• Installation and service must be performed by a qualified installer,
service agency, or the gas supplier.
• Do not install a booster fan in the exhaust duct.
WARNING - What to do if you smell gas:
• Do not try to light any appliance.
• Do not turn on the appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Clear the room, building or area of all occupants.
• Immediately call your gas supplier from a neighbor’s phone. Follow
the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
CALIFORNIA PROPOSITION 65 WARNING
WARNING
Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Untitled-5 7Untitled-5 7 2025-05-28 11:40:282025-05-28 11:40:28
SAVE THESE INSTRUCTIONS
Safety information
English8
IMPORTANT SAFETY INSTRUCTIONS
WARNING
To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow basic
precautions, including the following:
1. Read all instructions before using this appliance.
2. Do not dry articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline,
dry-cleaning solvents, or other flammable or explosive substances, as they give off vapours that could
ignite or explode.
3. Risk of Suffocation and Injury from Entrapment: Do not allow children to play on or in the appliance.
Close supervision of children is necessary when the appliance is used near children.
4. Before the appliance is removed from service or discarded, remove the door to the drying compartment.
5. Do not reach into the appliance if the drum is moving.
6. Do not install or store this appliance where it will be exposed to the weather.
7. Do not tamper with controls.
8. Do not repair or replace any part of the appliance or attempt any servicing unless specifically
recommended in the user-maintenance instructions or in published user-repair instructions that you
understand and have the skills to carry out.
9. Do not use fabric softeners or products to eliminate static unless recommended by the manufacturer of
the fabric softener or product.
10. Do not use heat to dry articles containing foam rubber or similarly textured rubber-like materials.
11. Clean lint screen before or after each load.
12. Keep area around the exhaust opening and adjacent surrounding areas free from the accumulation of
lint, dust, and dirt.
13. The interior of the appliance and exhaust duct should be cleaned periodically by qualified service
personnel.
14. Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking oils may
contribute to a chemical reaction that could cause a load to catch fire. To reduce the risk of fire due to
contaminated loads, the final part of a tumble dryer cycle occurs without heat (cool down period). Avoid
stopping a tumble dryer before the end of the drying cycle unless all items are quickly removed and
spread out so that the heat is dissipated.
15. Do not use replacement parts that have not been recommended by the manufacturer (e.g. parts made
at home using a 3D printer).
16. (For Heat pump Clothes dryer) Sharp Edges – to reduce the risk of injury, use care when cleaning the
condenser or evaporator coil fins.
Untitled-5 8Untitled-5 8 2025-05-28 11:40:282025-05-28 11:40:28
SAVE THESE INSTRUCTIONS
English 9
Warnings
WARNING
• Ensure pockets are free of small, irregularly shaped hard objects and foreign material, i.e. coins, knives,
pins, etc. These objects could damage your dryer.
• Gas leaks may occur in your system, resulting in a dangerous situation.
Cautions
CAUTION
• Do not allow children or pets to play on, in, or in front of the appliance. Close supervision is necessary
when the appliance is used near children and pets.
• Before discarding or removing your dryer from service, remove the door to the drying compartment to
prevent children or animals from becoming trapped inside.
• Do not reach into the appliance when the drum is moving.
• Do not install or store this appliance where it will be exposed to the weather.
• Do not tamper with the controls.
• Do not repair, replace, or attempt to service any part of the appliance unless specifically instructed to in
the user-repair instructions and you have the understanding and skills to carry out the procedure.
• Do not use fabric softeners or products to eliminate static unless the softener or product is
recommended for dryer use by the manufacturer of the fabric softener or product.
• Clean the lint screen before or after each load.
• Keep the area around the exhaust opening and surrounding areas free from lint, dust, and dirt.
• The interior of the dryer and exhaust duct should be cleaned periodically by qualified service personnel.
• This appliance must be properly grounded. Never plug the power cord into a receptacle that is
not grounded adequately or not in accordance with local and national codes. See the installation
instructions for information about grounding this appliance.
• Do not sit on top of the dryer.
• Do not dry clothing with large buckles, buttons, or other heavy metal or solid objects.
• Gas leaks may not be detected by smell alone.
• Gas suppliers recommend you purchase and install a UL-approved gas detector.
• Install and use in accordance with the manufacturer’s instructions.
• Do not place items in your dryer that have been spotted or soaked with vegetable oil or cooking oil. Even
after being washed, these items may contain significant amounts of these oils.
Untitled-5 9Untitled-5 9 2025-05-28 11:40:282025-05-28 11:40:28
SAVE THESE INSTRUCTIONS
Safety information
English10
• Residual oil on clothing can ignite spontaneoulsy. The potential for spontaneous combustion increases
when items containing vegetable oil or cooking oil are exposed to heat. Heat sources such as your dryer
can warm these items, allowing an oxidation reaction in the oil to occur. Oxidation creates heat. If this
heat cannot escape, the items can become hot enough to catch fire. Piling, stacking, or storing these
kinds of items may prevent heat from escaping and can create a fire hazard.
• All washed and unwashed fabrics that contain vegetable oil or cooking oil can be dangerous.
Washing these items in hot water with extra detergent will reduce, but not eliminate, the hazard.
Always use the Cool Down cycle for these items to reduce their temperature. Never remove these items
from the dryer hot or interrupt the drying cycle until the items have run through the Cool Down cycle.
Never pile or stack these items when they are hot.
Untitled-5 10Untitled-5 10 2025-05-28 11:40:282025-05-28 11:40:28
SAVE THESE INSTRUCTIONS
English 11
Regulatory notice
FCC Notice
CAUTION
Any changes or modifications not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
This device complies with Part 15 of FCC Rules. Operation is Subject to following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received including interference that cause undesired
operation.
For products sold in the US and Canadian markets, only channels 1–11 are available. You cannot select any
other channels.
FCC STATEMENT:
This equipment has been tested and found to comply within the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorienting or relocating the receiving antenna
• Increasing the separation between the equipment and receiver
• Connecting the equipment to an outlet that is on a different circuit than the radio or TV.
• Consulting the dealer or an experienced radio/TV technician for help.
FCC RADIATION EXPOSURE STATEMENT:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated so there is at least 8 inches (20 cm) between the radiator
and your body. This device and its antenna(s) must not be colocated or operated in conjunction with any
other antenna or transmitter.
Untitled-5 11Untitled-5 11 2025-05-28 11:40:282025-05-28 11:40:28
SAVE THESE INSTRUCTIONS
Regulatory notice
English12
IC Notice
The term “IC” before the radio certification number only signifies that Industry Canada technical
specifications were met. Operation is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference, including interference that may cause undesired operation of
the device.
This Class B digital apparatus complies with Canadian ICES-003 .
Cet appareil numérique de la classe B est conforme á la norme NMB-003 du Canada.
For products sold in the US and Canadian markets, only channels 1–11 are available. You cannot select any
other channels.
IC RADIATION EXPOSURE STATEMENT:
This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated so there is at least 8 inches (20 cm)
between the radiator and your body. This device and its antenna(s) must not be colocated or operated in
conjunction with any other antenna or transmitter.
Untitled-5 12Untitled-5 12 2025-05-28 11:40:282025-05-28 11:40:28
SAVE THESE INSTRUCTIONS
English 13
Open Source Announcement
The software included in this product contains open source software. You may obtain the complete
corresponding source code for a period of three years after the last shipment of this product by sending an
email to mailto:oss.request@samsung.com .
It is also possible to obtain the complete corresponding source code in a physical medium such as a CD-
ROM; a minimal charge will be required.
The following URL http://opensource.samsung.com/opensource/SMART_AT_051/seq/0 leads to the
download page of the source code made available and open source license information as related to this
product. This offer is valid to anyone in receipt of this information.
Security updates information
Security updates are provided to strengthen the security of your device and protect your personal
information. For more information on security updates, visit https://security.samsungda.com.
• The website supports only some languages.
Untitled-5 13Untitled-5 13 2025-05-28 11:40:282025-05-28 11:40:28
English14
Installation requirements
Read through the following instructions before installing the dryer and keep this manual for future
reference.
WARNING
Certain internal parts are intentionally not grounded and may present a risk of electric shock only during
servicing.
Service Personnel - Do not contact the following parts while the appliance is energized: Control board and
inlet valve.
Key installation requirements
• A grounded electrical outlet.
• A power cord for electric dryers (except in Canada).
• Gas lines (for gas models) that must meet national and local regulations.
• An exhaust system made of rigid metal or flexible stiff-walled metal exhaust ducting.
WARNING
Remove the door from all discarded appliances to prevent a child from suffocating.
Location considerations
The dryer should be located where there is enough space at the front for loading the dryer, and enough
space behind for the exhaust system. This dryer is factory-ready for the rear exhaust option. To exhaust out
the bottom, right or the left, use the accessory exhaust kit. Instructions are included with the kit. Make sure
the room in which the dryer is located has enough fresh air. The dryer must be located where there are no
air-flow obstructions. For gas dryers, adequate clearance must be maintained as noted on the data plate to
ensure adequate air for combustion and the proper dryer operation.
The dryer must not be installed or stored in an area where it will be exposed to water and/or weather. The
dryer area must be kept clear of combustible materials, gasoline, and other flammable vapors and liquids.
A dryer produces combustible lint. The area around the dryer should be kept lint-free.
Untitled-5 14Untitled-5 14 2025-05-28 11:40:282025-05-28 11:40:28
English 15
Dimensions
Type Front loading dryer
Models DV90F53A**
Dimensions
(in. (mm))
A. Overall height 38.7 (984)
B. Width 27.0 (686)
C. Depth with door open 53.1 (1348)
D. Depth 31.4 (798)
Untitled-5 15Untitled-5 15 2025-05-28 11:40:282025-05-28 11:40:28
Installation requirements
English16
Clearance requirement
This clearance requirement is applicable for dryers only.
NOTE
• For washer's clearance requirement, see the washer's user manual.
• If the washer and dryer have different clearance requirements, use the one with the larger value.
Alcove or closet installations
WARNING
• The dryer must be exhausted to the outside to reduce the risk of fire when installed in an alcove or
closet.
• No other fuel-burning appliance should be installed in the same closet as the dryer.
• Place the dryer at least 18 in. (460 mm) above the floor for garage installation.
Minimum clearance for stable operation:
Sides Top Rear Front
1 in. (25 mm) 1 in. (25 mm) 4 in. (102 mm) 1 in. (25 mm)
If both the washer and a dryer are installed in the same location, the front of the alcove or closet must have
two unobstructed air openings for a combined minimum total area of 72 in.
2
(465 cm
2
).
Untitled-5 16Untitled-5 16 2025-05-28 11:40:292025-05-28 11:40:29
English 17
Undercounter installation
B
C
A
A 39.6 in. (1006 mm)
B 1 in. (25 mm)
C 1 in. (25 mm)
Pedestal installation
A 4 in. (102 mm)
B 6 in. (152 mm)
C 52.8 in. (1341 mm)
Untitled-5 17Untitled-5 17 2025-05-28 11:40:292025-05-28 11:40:29
Installation requirements
English18
This clearance requirement is applicable for washer and dryer pair installation.
Side by side installation Stacked installation
A 1 in. (25 mm)
B* 4 in. (102 mm)
C 2 in. (50 mm)
D 6 in. (152 mm)
E 77.6 in. (1971 mm)
(B*): This clearance requirement only applies to the dryer. For washer's clearance requirement, see the
washer's user manual.
Minimum space (B*) of 4” is required for best dryer performance. In case of insufficient space for duct
installation, properly sized vent kit is needed.
NOTE
Stacking (DV90F53A** : SKK-RW*)
Many of Samsung's washers and dryers can be stacked to maximize usable space. You can purchase an
optional stacking kit from your Samsung retailer. For details about stacking and compatible models, refer
to the user manual included in the stacking kit you purchase.
Untitled-5 18Untitled-5 18 2025-05-28 11:40:292025-05-28 11:40:29
English 19
Ducting requirements
Weather hood type
Recommended
Use only for short-run
installation
4” (10.2 cm)
2.5” (6.4 cm)
No. of 90° elbows Rigid Rigid
0 80 ft. (24.4 m) 74 ft. (22.6 m)
1 68 ft. (20.7 m) 62 ft. (18.9 m)
2 57 ft. (17.4 m) 51 ft. (15.5 m)
3 47 ft. (14.3 m) 41 ft. (12.5 m)
NOTE
* Use a 4-inch (10.2 cm) diameter rigid aluminum or galvanized steel duct.
If you integrate the dryer’s vent system with an existing exhaust system:
• Make sure the exhaust system meets all applicable local, state, and national regulations.
• Verify you are not using flexible plastic duct.
• Make sure to check for and remove all lint buildup from inside the existing ducts.
• Confirm the duct is not kinked or crushed.
• Make sure the exhaust hood damper opens and closes freely.
Manometer measurements
The static pressure in any exhaust system must not exceed 0.83 inches of water column or be less than 0.
Note that these values are measured with the dryer running with a manometer presented to the exhaust
duct that connects to the dryer. The dryer tumbler must be empty and lint filter clean.
Untitled-5 19Untitled-5 19 2025-05-28 11:40:302025-05-28 11:40:30
Installation requirements
English20
Exhausting requirements
The dryer must not be exhausted into a chimney, a wall, a ceiling, an attic, a crawl space, or a concealed
space of a building. Exhausting the dryer to the outside will prevent large amounts of lint and moisture
from being blown into the room.
In the United States and Canada
• All dryers must be exhausted to the outside.
• The required exhaust duct is 4 inches (10.2 cm) in diameter.
• See “ Ducting requirements” in the “ Installation” section for the maximum duct length and number of
bends that can be used.
• The total length of flexible metal duct must not exceed 7’ 10
1
/ 2” (2.4 m).
• Do not assemble the duct with screws or other fasteners that extend into the duct and catch lint.
• For the United States only: Use only those foil-type flexible ducts, if any, specifically identified for use
with the appliance by the manufacturer and that comply with the Outline for Clothes Dryer Transition
Duct. Use Subject 2158A.
Outside the United States and Canada
• Refer to the local codes.
WARNING
• You must exhaust the dryer to the outside to reduce the risk of fire when you install the dryer in an
alcove or closet.
• Do not use a plastic or non-metal flexible duct.
• If your existing ductwork is plastic, non-metal, or combustible, replace it with metal.
• Use only a metal exhaust duct that is non-flammable to ensure containment of exhaust air, heat, and
lint.
Untitled-5 20Untitled-5 20 2025-05-28 11:40:302025-05-28 11:40:30
English 21
Gas requirements
WARNING
• Use only natural or LP (liquid propane) gases.
• The installation must be conformed with local codes, or in the absence of local codes, with the national
fuel gas code, ANSI Z223.1/NFPA 54, latest revision(for the UNITED STATES), or with the natural gas and
propane installation code, CSA B149.1(for Canada).
• Gas dryers are equipped with a burner vent for use with natural gas. If you plan to use your dryer with
LP (liquid propane) gas, it must be converted for safe and proper performance by a qualified service
technician. (LNG models only)
You must check the burner of your model and use the proper LP Kit accordingly. To check the detail
information of the burner, open the door and check the rating label location on the door frame.
- 20,000 BTU: LPKIT-4/XAA (DC98-04114A)
- 22,000 BTU: LPKIT-3/XAA (DC99-00792A)
• A
1
/ 2” (1.27 cm) gas supply line is recommended and must be reduced to connect to the
3
/ 8” (1 cm) gas
line on your dryer. The National Fuel Gas Code requires that an accessible, approved manual gas shut-
off valve be installed within 6” of your dryer.
• Gas dryers installed in residential garages must be raised 18 inches (46 cm) above the floor.
• Additionally, a
1
/ 8” (0.3 cm) N.P.T. (National Pipe Thread) plugged tapping, accessible for test gauge
connection, must be installed immediately upstream of your dryer’s gas supply connection.
• Your dryer must be disconnected from the gas supply pipe system during any pressure testing of the
system.
• Do not reuse old flexible metal gas lines. Flexible gas lines must be designed and certified by the
standard for connectors for Gas Appliances, ANSI Z21.24 • CSA 6.10.
NOTE
• Your dryer uses an automatic ignition system to ignite the burner. There is no constant burning pilot.
• Any pipe joint compound used must be resistant to the action of any liquefied petroleum gas.
• As a courtesy, most local gas utilities will inspect a gas appliance installation.
Commonwealth of Massachusetts installation instructions
Your dryer must be installed by a licensed plumber or gas fitter. A “T” handle manual gas valve must be
installed in the gas supply line to your dryer. If a flexible gas connector is used to install your dryer, the
connector can be no longer than 3’ (36”).
WARNING
• Gas leaks may occur in your system, creating a dangerous situation.
• Gas leaks may not be detected by smell alone.
• Gas suppliers recommend you purchase and install a UL-approved gas detector.
• Install and use in accordance with the manufacturer’s instructions.
Untitled-5 21Untitled-5 21 2025-05-28 11:40:302025-05-28 11:40:30
Installation requirements
English22
Electrical requirements
The wiring diagram is located on the plate under the control panel or rear frame.
WARNING
• Improperly connecting the equipment grounding conductor can result in a risk of electric shock.
Check with a qualified electrician or serviceman if you are in doubt as to whether your dryer is properly
grounded. Do not modify the plug provided with your dryer – if it doesn’t fit the outlet, have a proper
outlet installed by a qualified electrician.
• To prevent unnecessary risk of fire, electrical shock, or personal injury, all wiring and grounding must be
done in accordance with local codes, or in the absence of local codes, in accordance with the National
Electrical Code, ANSI/NFPA No. 70-Latest Revision (for the U.S.) or the Canadian Electrical Code CSA
C22.1 – Latest Revisions and local codes and ordinances. It is your responsibility to provide adequate
electrical service for your dryer.
• All gas installations must be done in accordance with the national Fuel Code ANSI/Z2231 – Latest
Revision (for the U.S.) or CAN/CGA – B149 Installation Codes – Latest Revision (for Canada) and local
codes and ordinances.
Grounding
This dryer must be grounded. In the event of a malfunction or breakdown, the ground will reduce the risk of
electrical shock by providing a path of least resistance for the electrical current.
Gas models
WARNING
• Your dryer has a cord with an equipment-grounding conductor and a grounding plug. The plug must be
plugged into an appropriate outlet that is properly installed and grounded in accordance with all local
codes and ordinances.
• Do not modify the plug provided with your dryer – if it doesn’t fit the outlet, have a proper outlet
installed by a qualified electrician.
• Do not connect the ground wire to plastic plumbing lines, gas lines, or hot water pipes.
Electric models
WARNING
• Your dryer has an optional cord with an equipment-grounding conductor and a grounding plug. This
cord is sold separately.
• The plug must be plugged into an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
• Do not modify the plug provided with your dryer – if it doesn’t fit the outlet, have a proper outlet
installed by a qualified electrician.
• If a power cord is not used and the electric dryer is to be permanently wired, the dryer must be
connected to a permanently grounded metal wiring system, or an equipment grounding conductor
must be run with the circuit conductors and connected to the equipment grounding terminal or lead on
the dryer.
Untitled-5 22Untitled-5 22 2025-05-28 11:40:302025-05-28 11:40:30
English 23
Electrical connections
Before operating or testing, follow all grounding instructions in the “ Grounding” section. An individual
branch (or separate) circuit serving only your dryer is recommended.
Do not use an extension cord.
Gas models – U.S. and Canada
A 120 volt, 60 Hz AC approved electrical service with a 15-ampere fuse or circuit breaker is required.
Electric models – U.S. only
Most U.S. dryers require a 120 / 240 volt, 60 Hz AC approved electrical service. Some require 120 / 208 volt,
60 Hz approved electrical service. The electric service requirements can be found on the data label located
behind the door. A 30-ampere fuse or circuit breaker on both sides of the line is required.
• If a power cord is used, the cord should be plugged into a 30-ampere receptacle.
• The power cord is not provided with U.S. electric model dryers. This cord is sold separately.
Risk of Electric Shock
WARNING
When local codes allow, you can connect the dryer’s electrical supply with a new power supply cord kit,
marked for use with a dryer, that is U.L. listed and rated at a minimum of 120 / 240 volts, 30-amperes with
three No. 10 copper wire conductors terminated with closed loop terminals, open-end spade lugs with
turned up ends, or with tinned leads.
• Do not reuse a power supply cord from an old dryer. The power cord electric supply wiring must be
supported at the dryer cabinet by a suitable UL-listed strain relief.
• Grounding through the neutral conductor is prohibited for (1) new branch-circuit installations, (2)
mobile homes, (3) recreational vehicles, and (4) areas where local codes prohibit grounding through the
neutral conductor. (Use a 4-prong plug for a 4 wire receptacle, NEMA type 14-30R.)
Electric models – Canada Only
A 120 / 240 volt, 60 Hz AC approved electrical service fused through a 30-ampere fuse or circuit breaker on
both sides of the line is required.
NOTE
All Canadian models are shipped with the power cord attached. The power cord should be plugged into a
30-ampere receptacle. In Canada, you may convert a dryer to 120 / 208 volts.
Untitled-5 23Untitled-5 23 2025-05-28 11:40:302025-05-28 11:40:30
English24
Installation
This dryer must be installed by a qualified technician. The installer is responsible for connecting the dryer
to the main power while observing the relevant safety regulations of your area.
What’s included
Make sure all the parts are included in the product package. If you have a problem with the dryer or the
parts, contact a local Samsung customer center or the retailer.
01
02
03
04
05
01 Worktop 02 Control panel 03 Lint filter
04 Door 05 Exhaust duct
Untitled-5 24Untitled-5 24 2025-05-28 11:40:302025-05-28 11:40:30
English 25
Parts supplied
Y-connector Short water hose
Tools needed for installation
Pliers Cutting knife Pipe wrench
(gas models only)
Nut screwdriver
Level Phillips screwdriver Duct tape Wrench
LPG-safe compound
or Teflon Tape (for gas
installation)
WARNING
Packing materials can be dangerous to children. Keep all packing materials (plastic bags, polystyrene, etc.)
out of children’s reach.
Untitled-5 25Untitled-5 25 2025-05-28 11:40:322025-05-28 11:40:32
Installation
English26
Step-by-step installation
Make sure you have a qualified technician install the dryer. Step by step installation instructions start
below.
• Do not remove the protective film on the door before completing the product installation. If you remove
the protective film before the installation is complete, the door may get scratched or damaged during
installation.
• Make sure the installation location allows enough space for the dryer door to be fully open.
STEP 1 Install the exhaust system
1. Select a location and move the dryer to the site. For easy access, we recommend you install the dryer in
the same location as your washer.
2. To change the door direction, see “Door reversal” on page 34.
3. Install the exhaust system as instructed in the “ Exhaust ducting guide” section.
CAUTION
Before installing your dryer, remove the packing in the duct.
NOTE
• To move the dryer easily, lay two of the carton cushions from the packaging on the floor. Tip the dryer
on its side so it lies across both cushion-tops. Push the dryer so that it is near its final location, and then
set the dryer upright.
• Secure room around the dryer to facilitate ducting and wiring.
STEP 2 Connect the gas line (for gas models)
Before connecting the gas line, make sure you have read the “Gas requirements” section on page 21.
1. Remove the protective cap from the gas pipe.
2. Apply an LPG (Liquefied Petroleum Gas)-safe compound or 1.5 wraps of Teflon tape to all threaded
connections.
3. Connect the gas supply to the dryer. An additional fitting is required to connect the
3
/ 4” (1.9 cm) female
thread end of a flexible connector to the
3
/8” (1 cm) male threaded end on the dryer. Tighten up the
fitting over all threads.
4. Turn on the gas supply, and check for any leaks using a soap solution. If a leak is found, tighten the
connections and try again. Do not use an open flame to check for gas leaks.
Untitled-5 26Untitled-5 26 2025-05-28 11:40:322025-05-28 11:40:32
English 27
STEP 3 Connect the electrical wiring (for electric models)
Before connecting the electrical wiring, make sure you have read the “ Electrical requirements” section on
page 22.
3-wire system
A B C L2 L1
D
E
A. External ground connector
B. Neutral grounding wire (white)
C. Center silver-colored terminal block
screw
D. Neutral wire (white or center wire)
E.
3
/ 4” (1.9 cm) UL-listed strain relief
1. Loosen or remove the screws from the center
terminal block.
2. Connect the neutral wire (white or center wire) of the
power cable to the center, silver-colored terminal
screw of the terminal block. Tighten the screws.
3. Connect the other wires to outer terminal block
screws. Tighten the screws.
4. Tighten the strain relief screws.
5. Insert the terminal block cover into the rear panel of
the dryer. Then, secure the cover with a hold-down
screw.
CAUTION
• To convert from the 4-wire system to 3-wire system,
connect the ground strap to the terminal block
support to ground the dryer frame to the neutral
conductor.
• Ring-type terminals are recommended. If using strap
terminals, make sure they are tightened.
• Connect the power cord and check L1/L2/D (N)
voltage. If the voltage is low, it may not heat properly.
Review the “Electrical requirements” section on page
22 if needed.
Untitled-5 27Untitled-5 27 2025-05-28 11:40:322025-05-28 11:40:32
Installation
English28
4-wire system
F
A B C L2 L1
D
E
A. External ground connector
B. Neutral grounding wire (white)
C. Center silver-colored terminal block
screw
D. Neutral wire (white or center wire)
E.
3
/ 4” (1.9 cm) UL-listed strain relief
F. Neutral wire (white or center wire)
1. Remove the external ground connector’s screw and
connect the ground wire (green or unwrapped) of the
power cable to the screw.
CAUTION
- To connect the ground wire to the neutral position
without through contact A (cabinet ground),
contact a technician. This is not user serviceable.
- Ring-type terminals are recommended. If using
strap terminals, make sure they are tightened.
2. Loosen or remove the screws from the center
terminal block.
3. Connect the neutral wire (white or center wire)
and ground wire (white) to the center screw of the
terminal block. Tighten the screw.
4. Connect the other wires to the outer terminal block
screws. Tighten the screws.
5. Tighten the strain relief screws.
6. Insert the tab of the terminal block cover into the
rear slot of the dryer. Secure the cover with a hold-
down screw.
CAUTION
Connect the power cord and check L1/L2/D (N) voltage. If the voltage is low, it may not heat properly.
Review the “Electrical requirements” section on page 22 if needed.
WARNING
• All U.S. models are designed for a 3-wire system connection. The dryer frame is grounded to the
neutral conductor at the terminal block. A 4-wire system connection is required for new or remodeled
construction, mobile homes, or if local codes do not permit grounding through neutral. If you use the
4-wire system, you cannot ground the dryer frame to the neutral conductor at the terminal block.
• Remove the terminal block cover plate. Insert the power cord with a UL-listed strain relief through the
hole provided in the cabinet near the terminal block.
• A strain relief must be used. Do not loosen the nuts already installed on the terminal block. Be sure
they are tight. Use a
3
/8” (1 cm) deep well socket.
• Since january 1, 1996, the national electric code requires that new wiring (not existing) utilize a 4-wire
connection to this dryer.
Untitled-5 28Untitled-5 28 2025-05-28 11:40:332025-05-28 11:40:33
English 29

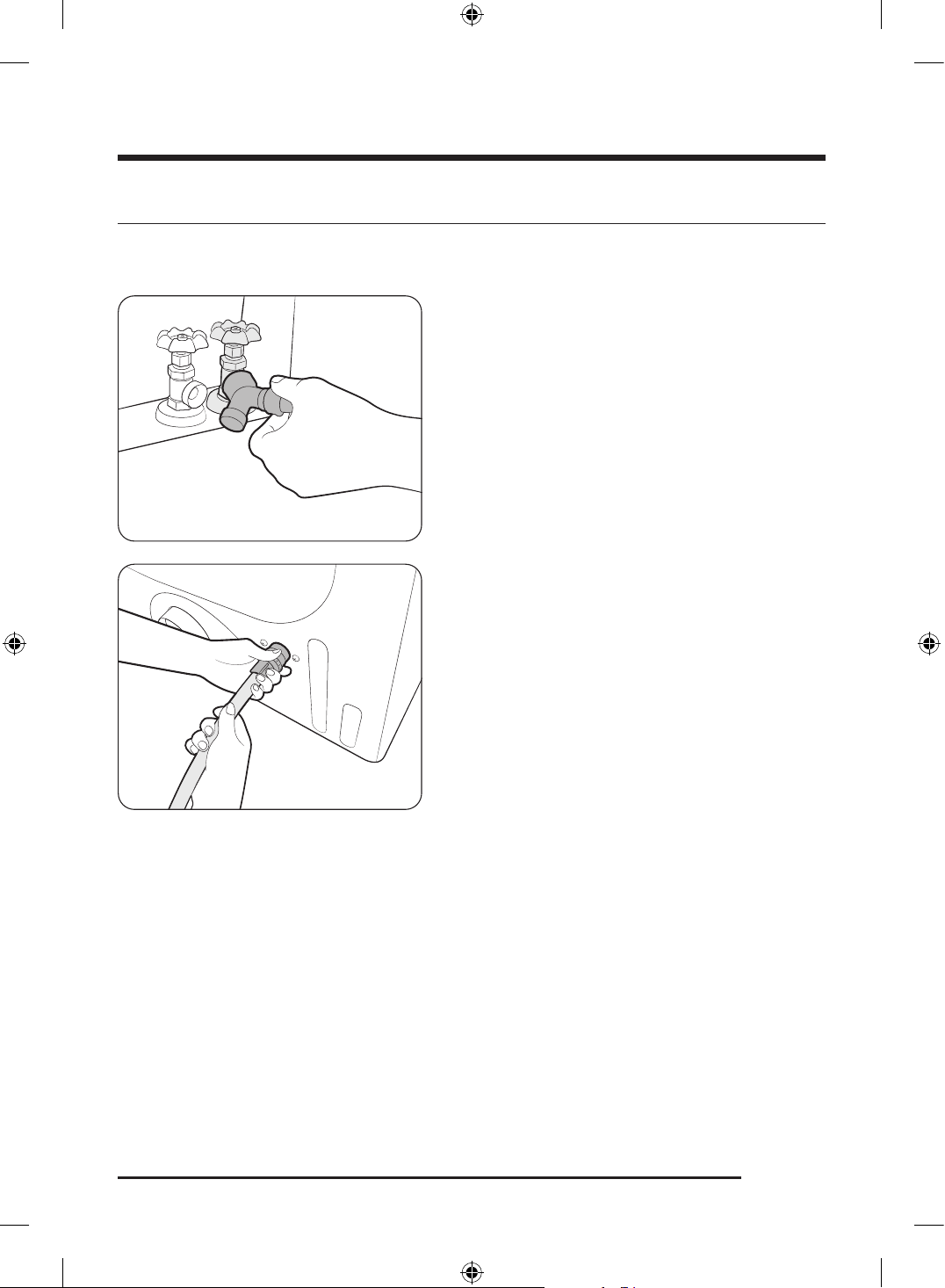

STEP 4 Connect the water hose
The dryer must be connected to a cold water tap using a water hose. A water hose is not provided with the
dryer and therefore you must purchase it separately.
1. Close the cold water tap. If you have a washer’s cold
water hose attached to the cold water tap, unscrew
and remove the hose. Then, connect the female end
of the Y-connector to the cold water tap.
2. Connect the straight end of the water hose to the
Y-connector. Tighten the hose coupling by hand.
3. Using pliers, tighten the coupling an additional two-
thirds turn. Do not overtighten. You can damage the
coupling.
4. Connect the angled end of the water hose to the
filling valve at the bottom rear of the dryer. Turn the
coupling by hand until it is tight.
5. Using pliers, tighten the coupling an additional two-
thirds turn. Do not overtighten. You can damage the
coupling.
6. If you detached the cold water hose from your
washer, attach the hose to the open end of the
Y-connector, tighten the coupling by hand until it is
tight, and then, using a pliers, tighten an additional
two-thirds turn.
7. Open the cold water tap, and then check for any
leaks.
If the Y-connector cannot be directly connected to the cold water tap, use the short hose. See the “ Using
the short hose as an extension” section on page 30.
Untitled-5 29Untitled-5 29 2025-05-28 11:40:332025-05-28 11:40:33
Installation
English30

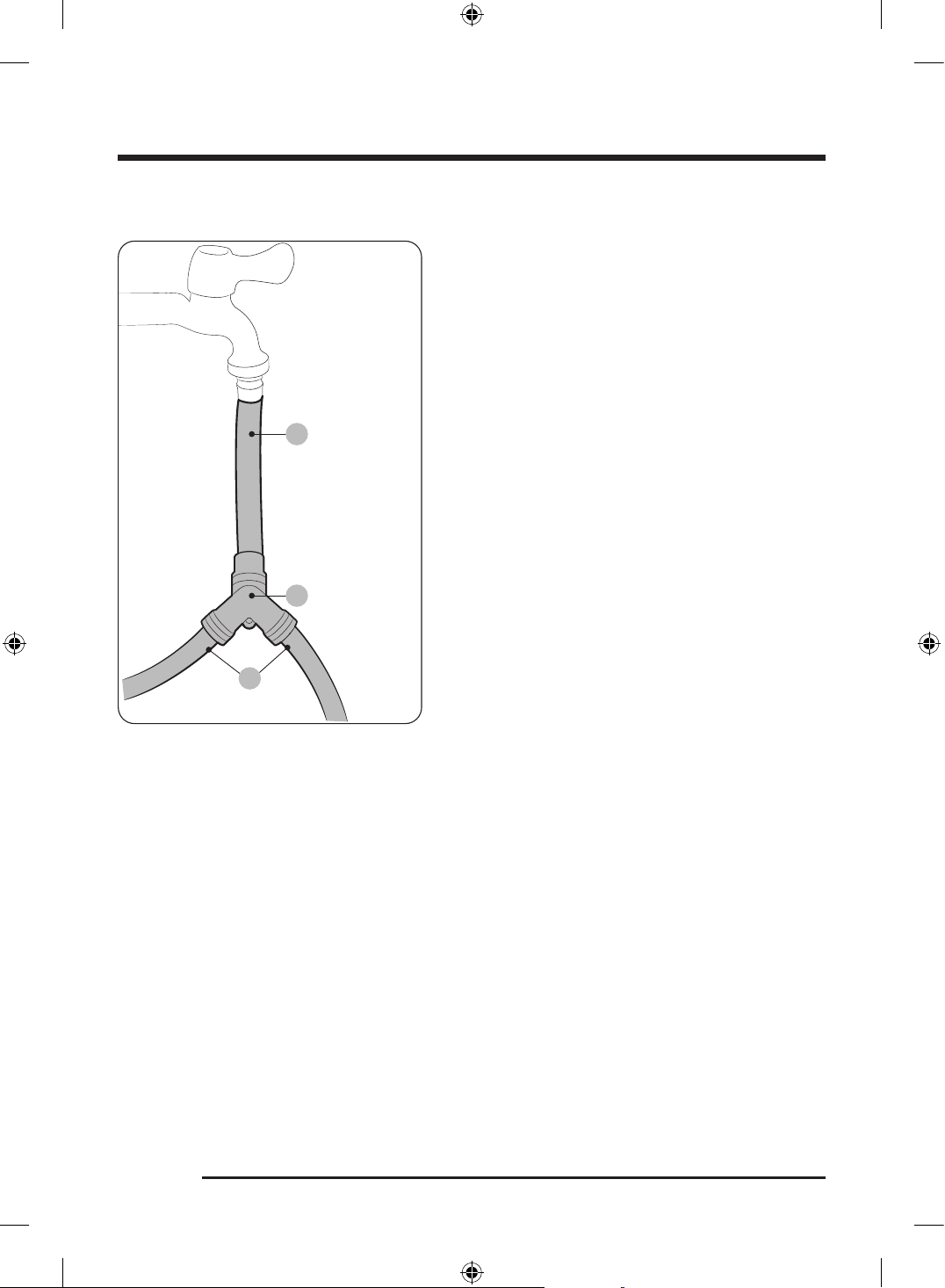

Using the short hose as an extension
B
A
C
1. Close the cold water tap. If you have a washer’s cold
water hose attached to the cold water tap, unscrew
and remove the hose. Then, connect the short hose
(B) to the cold water tap. Turn the coupling by hand
until it is tight.
2. Using pliers, tighten the coupling an additional two-
thirds turn. Do not overtighten. You can damage the
coupling.
3. Connect the Y-connector (A) to the brass male end
of the short hose. Turn the coupling by hand until it
is tight.
4. Using pliers, tighten the coupling an additional two-
thirds turn. Do not overtighten. You can damage the
coupling.
5. Connect the angled end of the water hoses (C) to the
filling valve at the bottom rear of the dryer. Turn the
coupling by hand until it is tight.
6. Using pliers, tighten the coupling an additional two-
thirds turn. Do not overtighten. You can damage the
coupling.
7. If you detached the cold water hose from your
washer, attach the hose to the free end of the
Y-connector, tighten the coupling by hand until it is
tight, and then, using a pliers, tighten an additional
two-thirds turn.
8. Open the cold water tap, and then check for any
leaks.
Untitled-5 30Untitled-5 30 2025-05-28 11:40:332025-05-28 11:40:33
English 31

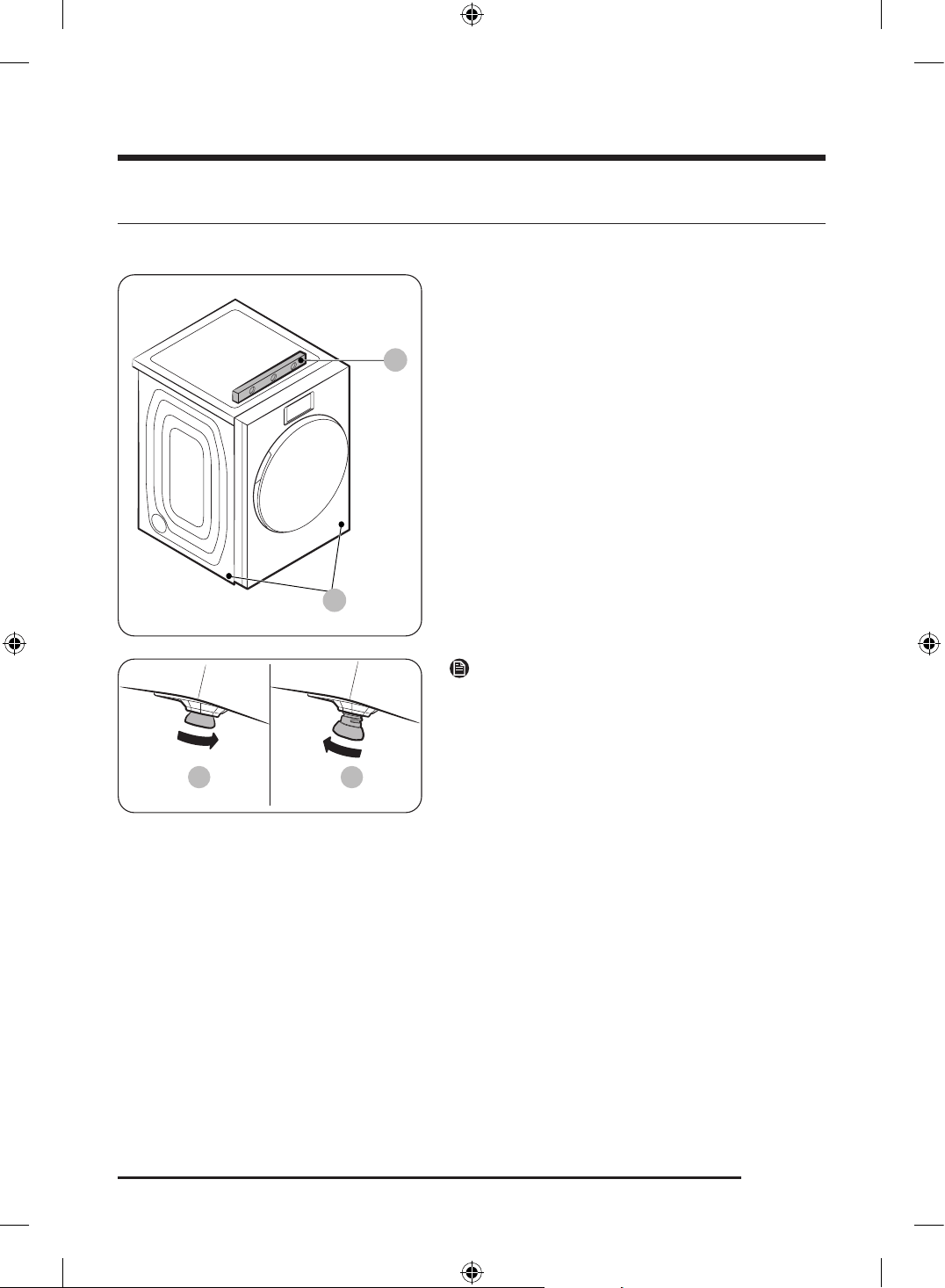

STEP 5 Level the dryer
To ensure optimal performance, the dryer must be level.
A
B
Using a level (A), check if the dryer is level side to side
and then front to back. If the dryer is not level, turn
the leveling feet (B) clockwise to lower the dryer or
counterclockwise to raise the dryer.
A B
NOTE
• To set the dryer to the same height as your washer,
fully retract (A) the leveling feet by turning them
counterclockwise, then loosen (B) the feet by turning
them clockwise. Once the dryer is the same height as
the washer, follow the directions above to level the
dryer.
• Adjust the leveling feet only as much as necessary to
level the dryer. Extending the leveling feet more than
necessary can cause the dryer to vibrate.
Untitled-5 31Untitled-5 31 2025-05-28 11:40:342025-05-28 11:40:34
Installation
English32
STEP 6 Power on (for gas models)
Make sure all gas connections, the exhaust line, and all wiring is connected correctly. Then, plug the power
cord into a power source and check the dryer’s installation and operation using the final checklist in Step 7
below.
STEP 7 Final Check
When installation is complete, confirm that:
• The dryer is plugged into an electrical outlet and grounded properly.
• The exhaust ductwork is connected, and the joints are taped.
• You have used rigid or stiff-walled flexible metal duct material, not plastic flexible duct.
• The dryer is level and is sitting firmly on the floor.
• The dryer starts, runs, heats, and shuts off properly.
• The gas is supplied properly with no leaks (For gas models only).
CAUTION
The burner may not ignite initially due to air in the gas line. Allowing your dryer to operate on a heat setting
will purge the line. If the gas does not ignite within 5 minutes, turn your dryer off and wait 5 minutes. Be
sure the gas supply to your dryer has been turned on. To confirm gas ignition, check the exhaust for heat.
Untitled-5 32Untitled-5 32 2025-05-28 11:40:342025-05-28 11:40:34
English 33
Vent Blockage Test
After the dryer is installed, run the Vent Blockage Test function to check if the duct system is properly
installed. Vent Blockage Test automatically detects the status of the ducts and reports any blockage or
problems. Proper ducting can reduce drying time and save energy.
NOTE
The Vent Blockage Test function must run when the dryer is cool. If the dryer warms up after the
installation check, run the Air Fluff cycle for several minutes to reduce its internal temperature.
Running the vent blockage test
1. Make sure the drum is empty, and then close the door. (If there are any clothes or other items in the
drum, the test will not give accurate results.)
2. Tap to turn the dryer on, swipe down from the top of the screen to access the Quick Panel and tap
Settings > Dryer > Vent Blockage Test.
3. Tap Start test to start the vent blockage test.
- The test takes about 2 minutes and " Testing… " is displayed during the test.
CAUTION
Do not open the door during the test.
NOTE
If you have started other procedures before running Vent Blockage Test , the dryer will not enter the Vent
Blockage Test mode.
4. After 2 minutes, when the test is complete, the results are displayed and the dryer sounds a tone. If
status of the duct system is normal, an alarm triggers with the "No problems detected" message. If the
duct system cannot exhaust properly, a problem and the solution appear on the display, and the dryer
sounds an alarm tone.
If there are any other problems, an information code appears in the display. For description about the
code, see the “Information codes” section on page 60.
- To stop or cancel Vent Blockage Test , tap to turn off your dryer.
- The results remain on the display for about 5 minutes and then automatically turn off. You can turn
the results off immediately by tapping .
- When resolving a problem, tap How to clean on the display to check the cleaning method.
NOTE
• During or after the test, the internal drum is hot. Use caution to prevent burns. The Vent Blockage Test
function is used to check for problems in the current duct system when the dryer is installed for the first
time.
• Even if the test result is normal (“ No problems detected ”), the duct system could be blocked slightly.
Properly install all ductwork according to the installation instructions in this manual.
Untitled-5 33Untitled-5 33 2025-05-28 11:40:342025-05-28 11:40:34
Installation
English34
Exhaust ducting guide
Ducting
1. Make sure the dryer is installed properly so the air exhausts freely.
2. Use 4-inch rigid metal ducts. Tape all joints including the dryer connection. Never use lint-trapping
screws.
3. To facilitate the exhaust, keep the ducts as straight as possible.
Cleaning
Clean all old ducts before installing the dryer, and make sure the vent flap opens and closes freely. We
recommend that you clean the exhaust system annually or on a regular basis.
WARNING
• To prevent fire, do not use plastic, thin-foil, or non-metal flexible ducts of any kind.
• Do not use a poor exhaust system because it slows down the dryer’s performance.
• Do not use excessively long ducts that have multiple elbows.
• Do not use crushed or clogged venting or ducts.
Door reversal
Type 1
1. Put a soft rug on the floor to rest the door on after
you have removed it. This will prevent the door from
being scratched.
2. Unplug the power cord.
3. Remove two door hinge screws.
4. Lift the door and remove it.
5. Remove the two screws that are above and below the
cut-out in the frame front.
Untitled-5 34Untitled-5 34 2025-05-28 11:40:352025-05-28 11:40:35
English 35

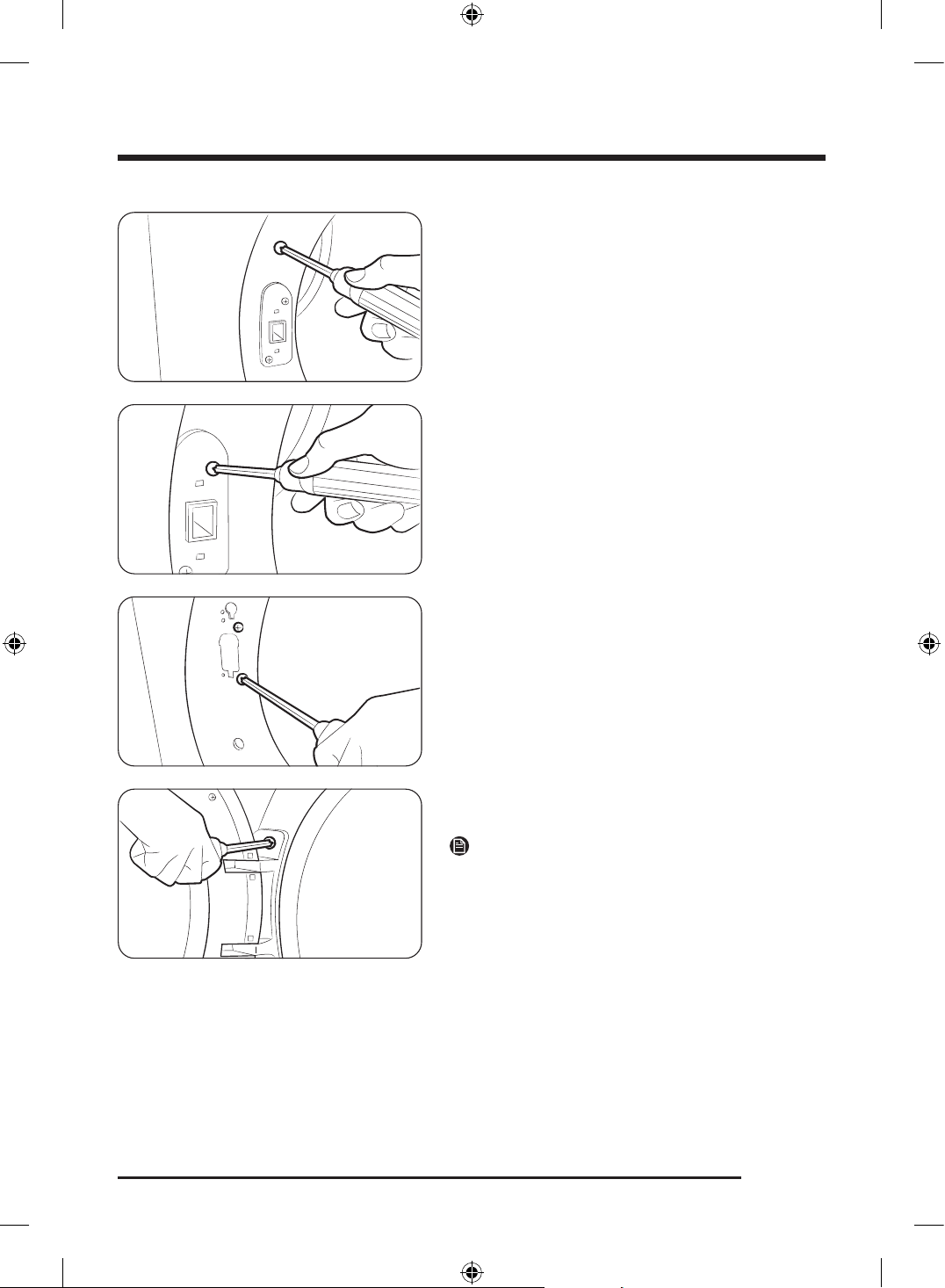

6. Remove the two screws above and below the lever
holder on the opposite side of the door opening.
7. Remove the two screws that hold the lever holder in
place, and then remove the lever holder.
8. Re-insert the two screws that held the lever holder
into the same screw holes, and then tighten.
9. Place the door on the other side, and then reattach it
to the dryer.
NOTE
Insert the head of the hook on the back of the hinge
into the hole above the cut out in the frame, and then
slide the door hinge down until it stops. Make sure the
protrusion on the back of the hinge is pressed into the
cut out before you tighten the hinge screws.
Untitled-5 35Untitled-5 35 2025-05-28 11:40:362025-05-28 11:40:36
Installation
English36

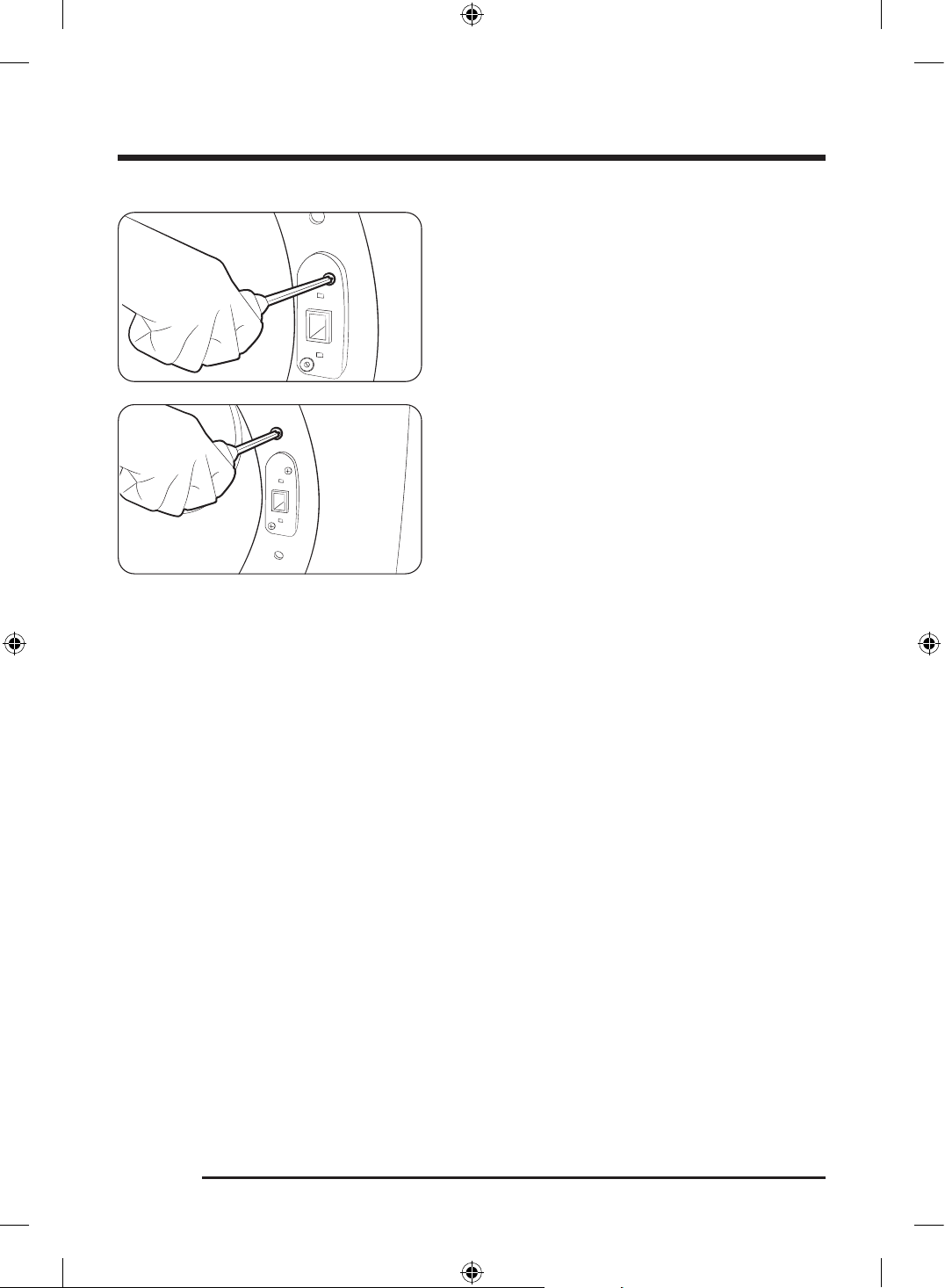

10. Push the lever holder into the cut out on the other
side of the door opening. Insert screws, and then
tighten as shown.
11. Re-attach the remaining screws to the remaining
holes above and below the lever holder, and then
tighten.
Untitled-5 36Untitled-5 36 2025-05-28 11:40:362025-05-28 11:40:36
English 37
Before you start
Initial setup
• When you turn on the dryer for the first time, the screen shows the initial setup process. Follow the on-
screen instructions to complete it.
• Once you select a language, the language selection screen will not reappear.
- You can change the language settings by swiping down from the top of the screen to access the
Quick Panel, then tapping > General > Language to change the language.
• The initial setup includes language selection and a brief tutorial.
• Tap Next to skip to the next screen.
NOTE
If the initial setup screen does not appear during the first use of the product, it does not indicate a problem
with the product. You can adjust the desired settings by selecting > General from the Home screen
or reset the product to try running the initial setup process by selecting > General > Reset > Reset all
settings .
Untitled-5 37Untitled-5 37 2025-05-28 11:40:362025-05-28 11:40:36
Before you start
English38
Sort and load
• Put one wash load in the dryer at a time.
• Do not mix heavy and lightweight items together.
• To improve drying efficiency for one or two items, add a dry towel to the load.
• For best results, untangle items before inserting them into the dryer. Tangled items may degrade the
drying efficiency or cause the door to open.
• Overloading reduces the tumbling action, resulting in uneven drying and wrinkling.
• Unless recommended on the care label, do not dry woolens or fiberglass items.
• Avoid drying unwashed items.
• Do not dry items soiled with oil, alcohol, gasoline, etc.
Functional prerequisite
Lint filter
A
To prevent a risk of fire, make sure to clean the lint filter
before or after every load.
1. Turn off the dryer.
2. Open the door and pull out the lint filter (A) from
inside the drum.
3. Open the lint filter by separating it at the top.
Remove the lint, and then clean the lint filter.
4. Close the lint filter, reinsert the lint filter into the
dryer, and then close the dryer door.
CAUTION
• Do not operate the dryer without the lint filter in
place.
• Do not use a damaged or broken lint filter. This may
reduce performance and/or cause fire.
Untitled-5 38Untitled-5 38 2025-05-28 11:40:362025-05-28 11:40:36
English 39
Rack Dry (applicable models only)
Some models come with a drying rack which is inserted into the drum at the factory. If your model came
with a drying rack, remove the rack from the drum before you use the dryer for the first time. To remove the
rack, pull the rack straight up, and then take it out of the drum. Remove the drying rack from its packaging
and store the rack for later use.
A
If a drying rack is not provided, you can purchase it
at a local Samsung service center. (Part Code : DC93-
00374G)
To use the drying rack, follow these steps:
1. Insert the drying rack (A) inside the tumbler with the
filter handle to the front.
2. Insert the rear legs of the drying rack into the
recessed areas of the rear wall, and then press down
the middle of the drying rack to secure it in place.
3. Put items to dry on the rack. Make sure to leave
space between the items for air flow.
4. Press Rack Dry or other Cycle Setting according to
rack drying suggestions below, then select the drying
time.
5. When the items are dry, remove the them from the
dryer, and then remove the drying rack.
Drying rack drying suggestions
Item Cycle settings
Washable sweaters (fold sweater into same shape
as rack and lay it flat on the rack)
Rack Dry or Time Dry with the Low temperature
setting
Stuffed toys (cotton or polyester fiber-filled)
Stuffed toys (foam or rubber-filled)
Air Fluff Foam rubber pillows
Sneakers
WARNING
• Make sure to unpack the drying rack before using it. Otherwise, the dryer can be damaged or its
performance diminished.
• Drying foam rubber, plastic, or rubber on a heat setting may damage the items and create a fire hazard.
Untitled-5 39Untitled-5 39 2025-05-28 11:40:372025-05-28 11:40:37
English40
Operations
WARNING
To reduce the risk of fire, electric shock, or injury to persons, read the Safety information before operating
the dryer.
LCD panel
02
0403
01
05
01 Power
Tap to turn the dryer on or off.
02 Display
The display shows current cycle information and estimated time remaining, or
an information message when a problem occurs.
03 App dock handler
Drag the App dock handler upward to open the App dock.
• The App dock handler only appears on the Home screen.
04 App tray button
Tap to view all available apps.
• App drawer: Tap App tray to open App drawer. You can open the App drawer
to quickly open the SmartThings, Timer, Bixby, Weather, Ring, Internet, or
Settings app.
05 App dock
App dock displays the icons to allow easier access to the frequently used apps.
• Maximum five icons are displayed in the App dock .
06 Quick Panel
Swipe down from the top of the screen to open the Quick Panel .
• The Quick Panel provides quick access to various settings.
• For more information on Quick Panel icons, see Display icon descriptions,
see page 41.
Untitled-5 40Untitled-5 40 2025-05-28 11:40:372025-05-28 11:40:37
English 41
Display icon descriptions
Home Tap to go to the Home screen.
Settings
Tap to enter the Settings menu.
• For more information on Settings, see page 48.
Lock This icon indicates the screen is locked.
Smart Control / Smart
Monitor
This icon indicates that the Smart Control / Smart Monitor is on.
Wi-Fi Tap to turn on or off the Wi-Fi .
Bluetooth
Tap to turn on or off the Bluetooth .
• Once you turn on the Bluetooth , you can connect to Bluetooth-
enabled devices near the washer.
Microphone Tap to turn on or off the microphone.
Start You can start the operation.
Pause
You can pause the operation.
• During the operation, tap the button to pause.
Untitled-5 41Untitled-5 41 2025-05-28 11:40:392025-05-28 11:40:39
Operations
English42
Operating a cycle
01
02
04
03
1. Tap to turn the power on.
2. Select the desired cycle.
- For more information on Cycle overview, see page 43.
3. Change the default cycle options.
- Tap Dryness , Dry Time , Drying Temp , Damp Alert , Wrinkle Prevent , Eco Dry , or Anti Static to change
the default cycle settings.
- Not all cycles have additional functions available.
4. Tap to start the operation.
- Once you set the cycle you want, the screen displays brief cycle descriptions and cycle duration. You
can also check the cycle progress, remaining cycle time, and information codes.
NOTE
To change the cycle, tap More cycles , and then select the desired cycle.
Untitled-5 42Untitled-5 42 2025-05-28 11:40:392025-05-28 11:40:39
English 43
Cycle overview
Cycle descriptions
You can add or delete cycles to personalize the cycle list by swiping down from the top of the screen to
access the Quick Panel , then tapping > Dryer > My cycles. See page 52 for more information.
NOTE
• Energy savings will vary depending on loads and cycles. Energy consumption could increase if the LCD
screen is set to stay on all year long.
• To ensure even drying results, you may need to reposition the items in the drum.
• Use the Towels cycle if you need to dry only the towels.
Sensor dry cycles
Cycle Description
Normal
• For cottons, bed linens, table linens, underwear, towels, or shirts.
• Default energy cycle for drying: Normal
- To access the Normal cycle on the LCD models, turn on the power,
and select Cycle > Normal.
AI OptiDry+
• AI OptiDry+ uses an enhanced sensor to detect the condition of a
load and intelligently optimizes the drying performance.
• Must check the clothing care label before using the AI OptiDry+
cycle.
Super Speed
• For drying synthetic fabrics fast and effectively.
• The shortened time may differ depending on the load/options.
• For best performance, the recommended load is 10 lbs. (4.5 kg) or
lower.
Heavy Duty
• For drying items made out of heavy fabrics, such as jeans, corduroys,
or work clothes, with high-temperature heat.
Delicates • For drying heat-sensitive items at a low temperature.
Towels • For bath towels, washcloths, and mats.
Bedding
• For bulky items such as blankets, sheets, comforters, and light
duvets.
Activewear
• For exercise wear and outdoor wear such as sports jerseys, training
pants, water-repellent jackets, and other performance clothing.
Thick fabrics like a zipper or Velcro closure of a jacket, or training
socks may not be completely dried.
Denim
• Use a stepped drying temperature to remove moisture from Jeans
and denim.
Untitled-5 43Untitled-5 43 2025-05-28 11:40:392025-05-28 11:40:39
Operations
English44
Cycle Description
Shirts • Use to dry a few items such as a shirt quickly.
Wool
• For machine washable and tumble dryable wool only.
• For best results, turn laundry inside out before drying.
Perm Press
• Dry wrinkle-free cotton, synthetic fabrics, knits, and permanent
press fabrics automatically.
Eco Normal
• For reducing energy usage. This cycle adjusts the cycle time and
temperature for increased efficiency.
Manual dry cycles
Cycle Description
Time Dry • You can set the cycle time from 10 minutes to 90 minutes.
Small Load
• Timed cycle for small load items.
• The default cycle time is 30 minutes. However, you may manually
change the cycle time if necessary.
Air Fluff • Tumbles the load in room temperature air.
Rack Dry
• Timed cycle for items that need to be dried on a drying rack. Turn
Navigation dial to select Rack Dry and tap Dry Time to set the drying
time between 10 minutes and 90 minutes.
Steam dry cycles
Cycle Description
Steam Sanitize+
• Use to sanitize items by applying steam and high-temperature heat
to the fabric.
• This cycle can make items soft and reduce smells. Confirm that the
laundry load is wet or partially wet before starting this cycle.
Wrinkle Away
• For best results, load 2-3 items at once. You can extend the drying
time by a 10-minute unit (starting from a minimum of 20 minutes),
depending on the item type or load. Confirm that the laundry load is
dry.
Steam Refresh
• Use to smooth out wrinkles and reduce odors in loads of one to four
items.
• With this cycle selected, a small amount of water is sprayed into the
dryer drum after several minutes of tumbling with heat. Confirm that
the laundry load is dry.
Untitled-5 44Untitled-5 44 2025-05-28 11:40:392025-05-28 11:40:39
English 45
Cycle options
You can change the following options for your dry cycles. Some options may be unavailable depending on
the selected cycle.
Option Description
Dryness
• Tap to change the dry level for the selected cycle. You can select
from level Damp to Very, but available level depends on the selected
cycle.
Dry Time
• Tap to select the cycle time for Small Load , Time Dry , Rack Dry ,
Air Fluff or Wrinkle Away. You can set the drying time between
10 minutes and 90 minutes. Available drying time depend on the
selected cycle.
Drying Temp
• Temperature can only be adjusted in Time Dry cycle. Tap to change
the temperature of the current cycle.
Wrinkle Prevent
• Reduces wrinkles by rotating the drum intermittently after
completing the dry cycle. Wrinkle Prevent provides approximately
180 minutes. The load is dry and can be removed at any time during
the Wrinkle Prevent cycle.
NOTE
" Off " on the screen indicates that the Wrinkle Prevent function is off.
" On " on the screen indicates that the Wrinkle Prevent function is on.
Damp Alert
• This function alerts you when shirts and other items that require
ironing are dry enough to be suitable for ironing.
Eco Dry
• With the Eco Dry activated, drying takes a longer time but power
consumption is reduced.
This function is available with Normal and Time Dry .
Anti Static
• Reduces static electricity that occurs from clothing friction. This
is done by spraying steam in a later stage of the drying cycle. This
option is only available with Normal, Heavy Duty, Perm Press,
Delicates, and Time Dry. In the Sensor Dry cycle, you can use this
function if the dryness setting is Normal or higher.
Untitled-5 45Untitled-5 45 2025-05-28 11:40:392025-05-28 11:40:39
Operations
English46
Cycle chart
NOTE
: factory setting, : can be selected
Cycle Recommended items Time Drying Temp
Normal Cotton, mixed loads of cotton and synthetic fabrics Medium
AI OptiDry+ Cotton, mixed loads of cotton and synthetic fabrics Medium
Time Dry Any load High (Extra Low~High)
Super Speed Synthetic fabrics High
Heavy Duty Heavy fabrics such as jeans, corduroys, heavy work clothes High
Small Load Small loads High
Delicates Underwear, lingerie Extra Low
Steam Sanitize+ Bedding, curtains, children's clothing High
Wrinkle Away Shirts, Trouser, Blouses High
Steam Refresh Shirts, trousers, comforters, pillows High
Towels Bath towels and similar items High
Bedding Blankets, sheets, comforters, pillows High
Activewear Exercise wear, sports jerseys Medium
Denim Jeans, Denim Medium
Shirts Shirt, Blouses Medium
Wool For machine washable and tumble dryable wool only Low
Perm Press Wrinkle-free cotton, synthetic fabrics Med Low
Eco Normal Cottons, work clothes, linens Extra Low
Air Fluff All types of fabric -
Rack Dry
Washable sweaters, Stuffed toys (cotton or polyester fiber
filled)
Extra Low
Untitled-5 46Untitled-5 46 2025-05-28 11:40:392025-05-28 11:40:39
English 47
NOTE
: factory setting, : can be selected
Cycle
Dryness Option
Very More Normal Less Damp
Damp
Alert
Wrinkle
Prevent
Eco Dry Anti Static
Normal
AI OptiDry+
Time Dry
Super Speed
Heavy Duty
Small Load
Delicates
Steam
Sanitize+
Wrinkle Away
Steam Refresh
Towels
Bedding
Activewear
Denim
Shirts
Wool
Perm Press
Eco Normal
Air Fluff
Rack Dry
Untitled-5 47Untitled-5 47 2025-05-28 11:40:402025-05-28 11:40:40
Operations
English48
Settings
Using Settings
1. Swipe down from the top of the screen to access the Quick Panel and tap to enter the Settings menu.
2. Tap General or Dryer .
3. Scroll through the screen to select the desired menu.
4. Change the settings or start the function.
NOTE
To return to the Home screen, tap < on the top left corner, or on the top right corner of the screen.
Settings menu description
General
Options Descriptions
Samsung account
You can log in to your Samsung account or create a new Samsung
account.
Connections
You can turn the Wi-Fi on or off. You can also use the Easy Connection
to connect your dryer to the SmartThings app to use the Smart Control
function.
• Wi-Fi : Tap to turn on or off the Wi-Fi.
The dryer's Wi-Fi is off by default. However, it turns on automatically
when you turn it on for the first time. The final Wi-Fi setting is
maintained regardless of the dryer’s power status.
- Once you turn on the dryer's Wi-Fi and connect to a network, the
dryer remains connected even when you turn off the power.
- The Wi-Fi indicates that the dryer is connected to the router
through the Wi-Fi connection.
• Easy Installation : You can easily install the SmartThings app on your
phone by scanning the QR code on the screen. You can connect your
dryer to the SmartThings app and control it remotely.
NOTE
Using the functions under the Connections menu may increase power
consumption.
Untitled-5 48Untitled-5 48 2025-05-28 11:40:402025-05-28 11:40:40
English 49
Options Descriptions
Lock
You can lock the dryer’s control to prevent children or infants from
accidentally starting the dryer or changing its settings.
• When this function is enabled, the touch screen become locked for
safety.
• You can enable or disable this function in any selected cycle.
• Tap and hold the Unlock button for 3 seconds to unlock.
NOTE
• When this function is enabled, all buttons are disabled except the
button.
• If you tap any button while this function is enabled, an alarm sounds
and the message “Locked” appears.
• If the door is opened while this function is enabled, an alarm sounds
and the message “The door is open. Close it and try again.” appears.
• If the door is closed while this function is enabled, an alarm sounds
and the message “Open door & check inside” appears.
• To clear a notification, disable this function or turn off the power.
Sounds
You can set the Sound mode , Sound theme , Volume , and Voice style .
• Sound mode : You can set the desired Sound mode from Voice , Tone ,
and Mute.
- The alert sound will remain on for safety purposes even if you set
the Sound mode to Mute.
• Sound theme : You can select the desired Sound theme . Tap a theme
once to preview the sound.
• Volume : You can adjust the volume for system and media sounds.
- Sound mode will automatically change to Voice if you adjust the
volume while the Sound mode is set to Mute.
• Voice style : You can select the desired Voice style . Tap a style once to
preview the sound.
Home device notifications
You can turn on or off the notifications for your home devices registered
on the SmartThings app.
Display You can set the Brightness and Font size .
Screen and style
You can cover and disable the screen when the dryer is not in use.
This applies only when the washer and dryer are connected.
Untitled-5 49Untitled-5 49 2025-05-28 11:40:402025-05-28 11:40:40
Operations
English50
Options Descriptions
Bixby
You can set the Voice wake-up and Sound feedback options for Bixby .
NOTE
• The microphone for voice recognition is built into the dryer’s
worktop.
- The best way to use the voice recognition function is to stand
within 3 feet (1 meter) of the dryer, reduce background noise,
and speak loudly and clearly at a steady pace toward the built-in
microphone.
• The voice recognition function may not work if you stand more than 3
feet (1 meter) away or speak too softly.
Microphone You can enable or disable the use of the microphone.
App lock You can set a passcode to lock an app.
Storage You can check the dryer's internal storage space.
Security status of your
devices
You can check the security status of all devices logged into your
Samsung account.
Language You can change the system language.
Date and time
You can set the time and date automatically or manually and set the
desired time format.
Untitled-5 50Untitled-5 50 2025-05-28 11:40:402025-05-28 11:40:40
English 51
Options Descriptions
Accessibility
You can set the Voice guide and Visibility enhancements settings.
• Voice guide : Enable this feature to receive voice guidance from your
dryer.
- Turn on the power, swipe down from the top of the screen to
access the Quick Panel, then tap - Accessibility - Voice guide -
Turn On to enable the feature.
- When the Voice guide feature is enabled, tapping an item once
will read it aloud, and tapping it twice will execute the action. You
can also navigate the screen by swiping in any direction with two
fingers.
- Some options in the menu may be unavailable while the Voice
guide feature is enabled.
NOTE
To disable the feature, follow these instructions. (single tap: select /
double-tap: execute):
1. Swipe down from the top of the screen to access the Quick Panel and
tap to enter the Settings menu.
2. In the Settings menu, swipe the screen with two fingers to find and
select Accessibility, and then double-tap to enter the menu.
3. Select Voice guide , and double-tap to enter the menu.
4. Select Off and double-tap to change the setting.
- Visibility enhancements : You can change the High contrast and
Text size settings to enhance the visibility.
Software update
You can download and install the latest version of the software. The
download begins automatically when the dryer is connected to Wi-Fi.
Support
You can check the user manual or start the remote support service.
• Get remote support for all your needs related to your appliance.
Reset
You can reset network settings or reset all settings.
• Reset network settings : Turn on the power, swipe down from the top
of the screen to access the Quick Panel and tap - General - Reset -
Reset network settings - Reset in that order.
- This will reset the Wi-Fi and SmartThings connection settings.
• Reset all settings : Turn on the power, swipe down from the top of
the screen to access the Quick Panel and tap - General - Reset -
Reset all settings - Reset in that order.
- This will reset all the settings, including network settings and
personal data.
- Your dryer resets to the factory setting.
• Restart : Restart the device.
Untitled-5 51Untitled-5 51 2025-05-28 11:40:402025-05-28 11:40:40
Operations
English52
Options Descriptions
About device
You can check the information of the dryer such as Status and Legal
information.
Dryer
Settings Descriptions
Drum light
This turns on the light inside the drum so you can check the items
inside.
AI Pattern
This function saves frequently used cycles and settings. When you turn
the function on, the dryer remembers the cycles you use most and their
settings ( Dryness , Dry Time , and Temperature ) and displays them in
frequency order.
• The default setting is On . Set it to Off if you do not want to use this
function.
• When you turn off the function, all the saved data resets.
• When the function is turned on, the recommended cycles are
displayed with the icon.
My cycles
Add or remove cycles to create a personal cycle list.
• You can only edit a cycle to create a personal cycle when the dryer is
not operating.
NOTE
• The Normal cycle cannot be removed from the list of cycles.
• You can also edit My cycles in the SmartThings app.
Vent Blockage Test
You can run the vent blockage test to check the vent condition.
• Empty the drum and clean the lint filter before starting the test.
Then, tap Start test.
• Check the display for any message. Follow the on-screen instructions
if any message appears.
Untitled-5 52Untitled-5 52 2025-05-28 11:40:412025-05-28 11:40:41
English 53
Special features
Smart Control
You can connect to the SmartThings app and control your dryer remotely.
Connecting your dryer
( Smart Control for electric model, Smart Monitor for gas model)
1. Download and open the SmartThings app on your smartphone or tablet (Android & iOS).
2. Tap to turn on the dryer.
3. Swipe down from the top of the screen to open the Quick Panel and tap .
4. Tap General > Connections > Easy Installation .
5. Follow the on-screen instructions to add the product to the app.
NOTE
• If your dryer fails to connect with the SmartThings app, try again.
• Check your router if you experience any Internet connection problems after connecting your dryer with
the SmartThings app.
• If the Wi-Fi is off, swipe down from the top of the screen to open the Quick Panel and tap to turn the
Wi-Fi on.
• Close the door before starting the Smart Control function.
• If you use your dryer for a while without connecting it to the SmartThings app, a pop-up message about
Smart Control will appear regularly for 3 seconds after 20th use.
Stay Connect (only available for electric models)
Set up the Stay Connect function in your SmartThings app to keep Smart Control turned on at the end of
a cycle. Your dryer stays connected to the app so you can send additional instructions, whether you are at
home or away.
1. If you turn on the Stay Connect function on the SmartThings app, the dryer will stay in standby after
completing a cycle.
- The Stay Connect function will remain active for up to 24 hours if the door remains closed.
2. The and appears on the LCD screen.
- The icons may not appear in certain circumstances.
3. You can conveniently control your dryer using the SmartThings app.
NOTE
The dryer switches to standby when operation is paused even if the machine is not connected to the
SmartThings app.
Untitled-5 53Untitled-5 53 2025-05-28 11:40:412025-05-28 11:40:41
Operations
English54
SmartThings
Wi-Fi connection
On your smartphone, go to Settings > General > Connections > Easy Connection > Connect via mobile app >
Connect and turn on the wireless connection and select an AP (Access Point).
• This appliance supports the Wi-Fi 2.4 GHz & 5.0 GHz protocols.
Download
On an app market (Google Play Store, Apple App Store, Samsung Galaxy Apps), find the SmartThings app by
searching for “ SmartThings ”. Download and install the app on your device.
NOTE
The app is subject to change without notice for improved performance.
In addition, the further updates on app or the function in the app may stop due to usability and security
reasons, even if updates are currently supported on your OS.
Log in
You must first log into SmartThings with your Samsung account. To create a new Samsung account, follow
the instructions on the app. You don’t need a separate app to create your account.
NOTE
If you have a Samsung account, use the account to log in. A registered Samsung smartphone user
automatically logs in.
To register your appliance to SmartThings
1. Make sure your smartphone is connected to a wireless network. If not, go to Settings and turn on the
wireless connection and select an AP (Access Point).
2. Open SmartThings on your smartphone.
3. If you see the message “ A new device is found. ”, select Add .
4. If no message appears, select + and select your appliance in a list of devices available. If your appliance
is not listed, select Device Type > Specific Device Model, and then add your appliance manually.
5. Register your appliance to the SmartThings app as follows.
a. Add your appliance to SmartThings . Make sure your appliance is connected to SmartThings .
b. When registration is complete, your appliance appears on your smartphone.
Untitled-5 54Untitled-5 54 2025-05-28 11:40:412025-05-28 11:40:41
English 55
Drying guide
The best way to dry items is to follow the instructions on the care label. If no drying instructions are
provided, see the following table for reference.
Items Description
Bedspreads & Comforters
Follow the care label instructions or dry using Bedding.
• Make sure the item is thoroughly dry before using or storing.
• May require repositioning in the drum to ensure even drying.
Blankets
Use Normal and dry only one blanket at a time for best tumbling action.
• Make sure blankets are thoroughly dry before using or storing.
Curtains & Draperies
Use Perm Press and the medium low temperature setting to help
minimize wrinkling.
• Dry curtains and draperies in small loads for best results and remove
as soon as possible after the cycle is complete.
Cloth Diapers Use Normal and the Medium temperature setting for soft, fluffy diapers.
Down–filled Items (jackets,
sleeping bags, comforters,
etc.)
Use Normal and the Medium temperature setting.
• Add a couple of dry towels to absorb moisture and shorten drying
time.
Foam Rubber (rug backs,
stuffed toys, shoulder pads,
etc.)
Do not dry on a heat setting.
WARNING
Drying a rubber item with heat may damage it or cause a fire.
Pillows
Use Normal.
• Add a couple of dry towels and a pair of clean sneakers to help the
tumbling action and to fluff the pillows.
• Do not dry kapok or foam pillows using a heated drying cycle.
Plastics (shower curtains,
outdoor furniture covers,
etc.)
Use Time Dry and the Low temperature settings depending on the care
label instructions.
WARNING
Do not dry:
• Fiberglass items (curtains, draperies, etc.)
• Woolens, unless recommended on the label
• Items spotted or soaked with vegetable or cooking oils
Untitled-5 55Untitled-5 55 2025-05-28 11:40:412025-05-28 11:40:41
English56
Maintenance
Keep the dryer clean for best performance and to lengthen its life cycle.
WARNING
Certain internal parts are intentionally not grounded and may present a risk of electric shock only during
servicing.
Service Personnel - Do not contact the following parts while the appliance is energized: Control board and
inlet valve.
Cleaning
Control panel
• Clean with a soft, damp cloth. Do not use abrasive substances.
• Do not spray liquid cleaning agents directly onto the dryer display.
• Some laundry pre-treatment soil and stain removers may damage the control panel.
• When using liquid cleaning agents, apply them to the cleaning cloth. Do not apply them directly to the
dryer. Wipe up any spills or overspray immediately.
Drum
• Remove any stains from the drum with an all-purpose cleaner.
• Tumble old towels or rags to remove any remaining stains or cleaning substances. Stains may still be
visible, but will not affect subsequent loads.
Powder coated drum
To clean the powder coated drum, use a damp cloth with a mild, non-abrasive cleaner suitable for easily
marred surfaces.
Remove cleaner residue and dry with a clean cloth.
Dryer exterior
• Clean with a soft, damp cloth. Do not use abrasive substances.
• Protect the surface from sharp objects.
• Do not place any heavy or sharp objects or a detergent container on the dryer. They can scratch or
damage the top cover of the dryer.
• The dryer has a high-gloss finish on the entire surface. Be careful not to scratch or damage the surface.
Exhaust system
• Check and clean the exhaust system on a regular basis to maintain optimum performance.
• The external exhaust hood must be cleaned frequently to ensure proper air flow.
Untitled-5 56Untitled-5 56 2025-05-28 11:40:412025-05-28 11:40:41
English 57
Vent sensor
The dryer features a vent sensor that detects and notifies you when it is time to clean the ductwork. Check
the following if you get the “ Check the lint filter or vent condition ” message when you turn on the dryer.
NOTE
• For duct installation, see Exhaust ducting guide on page 34 and Ducting requirements on page 19.
• The dryer may keep running even if the duct is clogged, but the drying time will be extended.
• When you get the message check the lint filter and the ducts, and clean them if necessary.
• If the message keep appears, it is because the duct is installed or connected with some restrictions (it’s
too long or has too many bends). This is not a system failure. However, drying time may be extended or
the drying performance may be degraded.
Untitled-5 57Untitled-5 57 2025-05-28 11:40:412025-05-28 11:40:41
English58
Troubleshooting
Checkpoints
If you encounter a problem with the dryer, first check the table below and try the suggestions.
Problem Action
Dryer does not start.
• Make sure the dryer is plugged in.
• Make sure the door is properly closed.
• Check the fuse or reset the circuit breaker.
• If you opened the door during a cycle, tap again.
• Clean the filter.
The dryer does not warm
up.
• Check your home’s circuit breakers or fuses.
• Some cycles do not require heat. Check the selected cycle again.
• For a gas dryer, make sure the gas supply is on.
• Clean the lint filter and exhaust duct.
• The dryer may have moved into the cool-down phase of the cycle.
• Turn off the Eco Dry option for the Normal or Time Dry cycles. When
the Eco Dry option is on, the dryer performs an air dry process in the
beginning of the cycle to reduce energy consumption. The air dry
process does not use heated air, so you may feel that the dryer is not
being heated, but this is normal.
Items are not dried.
Check all of the above. Additionally:
• Make sure the exhaust hood outside your home can open and close
freely.
• Check the exhaust system for lint buildup. Ducting should be inspected
and cleaned annually.
• Use a 4” rigid metal exhaust duct.
• Do not overload. 1 wash load = 1 dryer load.
• Dry heavy items and light weight items separately.
• Large, bulky items, such as blankets or comforters, may require
repositioning to ensure even drying.
• Make sure that your washer is draining properly and extracting
adequate water from the load.
• The load may be too small to tumble properly. Add a few towels and
restart the dryer.
• The load may be too large to tumble properly. Remove some items and
restart the dryer.
• Clean the lint filter.
Untitled-5 58Untitled-5 58 2025-05-28 11:40:422025-05-28 11:40:42
English 59
Problem Action
The dryer is too loud.
• Look for coins, loose buttons, nails, and other objects and remove them
immediately.
• Check the lint filter. Remove any items stuck inside the lint filter.
• Make sure the dryer is level and standing firmly on the floor.
• The dryer may hum due to air moving through the drum and fan. This is
normal.
• It is normal to hear the dryer gas valve or heating element cycle on and
off during the drying cycle.
Items are not dried evenly.
• Seams, pockets, and other parts of clothing are harder to dry than
others. This is normal.
• Sort heavy and light items separately.
There is a smell coming
from the dryer.
• The smell of paint, varnish, cleaning agents, and other household items
could have circulated in the air and entered the dryer. If you notice such
a smell, ventilate completely before using the dryer.
• If drying in an enclosed area, the dryer could cause the ambient
temperature to rise. Accordingly, make sure to open a window and
ventilate the area.
• Do not attempt to dry wet items after leaving them in the washing
machine or dryer for a long time.
The dryer turns off before
the items are dry.
• The load is too small. Throw in few additional items like towels and try
drying again.
The clothes have lint on
them.
• Always make sure the lint filter is clean before putting items into the
dryer. When drying items that generate a large amount of lint, you may
need to clean the lint filter in the middle of a cycle.
• Some fabrics (such as white towels) causes more lint and should be
dried separately from fabrics that lint attaches easily (such as black
linen pants).
• Check the inside of the pockets to make sure they are empty before
drying.
Items still wrinkled after
Wrinkle Prevent ( Wrinkle
Away , Wrinkle Release ).
• Small loads of 1 to 4 items work best.
• Load fewer items. Load similar-type items.
• Take out the items immediately after drying is complete.
Water drips from the
nozzle when the Steam
cycles starts.
• This is steam condensation. The dripping water will stop after a short
time.
Sprayed water is not
visible during Steam
cycles.
• Sprayed water is difficult to see when the door is closed.
Untitled-5 59Untitled-5 59 2025-05-28 11:40:422025-05-28 11:40:42
Troubleshooting
English60
Problem Action
Extended time.
• Sensor Dry automatically senses the moisture in the load and shuts the
dryer off when the selected dryness level is reached.
The drying time can change according to the type and amount of
laundry. See the cycle chart for reference.
If a problem persists, contact a local Samsung service center.
Information codes
If the dryer fails to operate, you may see an information code on the display panel. To determine what you
should do, check the list of codes in the table below, and then try the suggested actions.
Information code Meaning Action
DC
Operating the dryer with the door
open.
• Make sure the door is properly closed.
• Make sure laundry is not caught in the door
FC Invalid power source frequency.
• Try restarting the cycle.
• If this information code remains, contact a
Samsung service center.
AC
Electronic control problem (Invalid
Communication).
Contact a Samsung service center.
HC High temperature heating check.
• Clean the lint filter.
• If this information code remains, contact a
Samsung service center.
9C1
The electronic control needs to be
checked.
• Check if power cord is connected properly.
• Check if the electrical outlet is working
properly.
• If the information code remains, contact a
Samsung service center.
tC
The Thermistor1 resistance is very
low or high.
• Check for a clogged lint screen.
• Check if the vent system is restricted.
• If this information code remains, contact a
Samsung service center.
tC5
The Thermistor2 resistance is very
low or high.
• Check for a clogged lint screen.
• Check if the vent system is restricted.
• If this information code remains, contact a
Samsung service center.
dF Incorrect door switch. Contact a Samsung service center.
If any information code keeps appearing on the display, contact a Samsung service center.
Untitled-5 60Untitled-5 60 2025-05-28 11:40:422025-05-28 11:40:42
English 61
Specifications
Fabric care chart
The following symbols provide garment care direction. The clothing care labels include symbols for drying.
The use of symbols ensures consistency among garment manufacturers of domestic and imported items.
Follow care label directions to optimize garment life and reduce laundering problems.
Tumble Dry Cycles
Dry
Normal
Permanent Press
Delicate/Gentle
Do Not Dry (Used with Do Not Wash)
Do Not Tumble Dry
In the Shade (Added to Line Dry, Drip Dry or Dry Flat)
Line Dry/ Hang to Dry
Drip Dry
Dry Flat
Tumble Dry Heat Setting
Any Heat
High
Medium
Low
No Heat/ Air
Untitled-5 61Untitled-5 61 2025-05-28 11:40:452025-05-28 11:40:45
Specifccaiion
English62
Protecting the environment
This appliance is manufactured from recyclable materials. If you decide to dispose of this appliance, please
observe local waste disposal regulations. Cut off the power cord so that the appliance cannot be connected
to a power source. Remove the door so that animals and small children cannot get trapped inside the
appliance.
Specification sheet
Type Front loading dryer
Capacity (Cu.ft) 7.6
Water pressure (psi (kPa)) 20-116 (137-800)
Weight lb (kg) 121 (55)
Heater rating
Electric (W) 5300
Gas (BTU/hr) 20000
Power consumption (W) 5400
Untitled-5 62Untitled-5 62 2025-05-28 11:40:452025-05-28 11:40:45
English 63
LIMITED WARRANTY (U.S.A.)
SAMSUNG DRYER
LIMITED WARRANTY TO ORIGINAL CONSUMER PURCHASER WITH PROOF OF PURCHASE AND/
OR PROOF OF DELIVERY
This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS AMERICA, INC.
(SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by
SAMSUNG against manufacturing defects in materials or workmanship for the following limited warranty
periods, starting on the date of delivery to the original consumer purchaser:
One (1) Year All Parts and Labor
This limited warranty is valid only on products purchased and used in the United States that have been
installed, operated, and maintained according to the instructions attached to or furnished with the product.
To receive warranty service, the purchaser must contact SAMSUNG at the address or phone number
provided below for problem determination and service procedures. Warranty service can only be performed
by a SAMSUNG authorized service center. The original dated bill of sale and/or proof of delivery must be
presented upon request to SAMSUNG or SAMSUNG’s authorized service center to receive warranty service.
SAMSUNG will provide in-home service within the contiguous United States during the warranty period
at no charge, subject to availability of SAMSUNG authorized servicers within the customer’s geographic
area. If in-home service is not available, SAMSUNG may elect, at its option, to provide transportation of
the product to and from an authorized service center. If the product is located in an area where service by a
SAMSUNG authorized servicer is not available, you may be responsible for a trip charge or required to bring
the product to a SAMSUNG authorized service center for service.
To receive in-home service, product must be unobstructed and accessible to the service agent.
During the applicable warranty period, a product will be repaired, replaced, or the purchase price refunded,
at the sole option of SAMSUNG. SAMSUNG may use new or reconditioned parts in repairing a product, or
replace the product with a new or reconditioned product. Replacement parts and products are warranted
for the remaining portion of the original product’s warranty or ninety (90) days, whichever is longer. All
replaced parts and products are the property of SAMSUNG and you must return them to SAMSUNG.
Untitled-5 63Untitled-5 63 2025-05-28 11:40:452025-05-28 11:40:45
LIMITED WARRANTY (U.S.A.)
English64
This limited warranty covers manufacturing defects in materials or workmanship encountered in normal
household, noncommercial use of this product and shall not cover the following: damage that occurs
in shipment, delivery, installation, and uses for which this product was not intended; damage caused by
unauthorized modification or alteration of the product; product where the original factory serial numbers
have been removed, defaced, changed in any way, or cannot be readily determined; cosmetic damage
including scratches, dents, chips, and other damage to the product’s finishes; damage caused by abuse,
misuse, pest infestations, accident, fire, floods, or other acts of nature or God; damage caused by use of
equipment, utilities, services, parts, supplies, accessories, applications, installations, repairs, external
wiring or connectors not supplied or authorized by SAMSUNG; damage caused by incorrect electrical
line current, voltage, fluctuations and surges; damage caused by failure to operate and maintain the
product according to instructions; in-home instruction on how to use your product; and service to correct
installation not in accordance with electrical or plumbing codes or correction of household electrical or
plumbing (i.e., house wiring, fuses, or water inlet hoses). The cost of repair or replacement under these
excluded circumstances shall be the customer’s responsibility.
Visits by an authorized servicer to explain product functions, maintenance or installation are not covered
by this limited warranty. Please contact SAMSUNG at the number below for assistance with any of these
issues.
EXCLUSION OF IMPLIED WARRANTIES
IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR
A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW.
Some states do not allow limitations on how long an implied warranty lasts, so the above limitations or
exclusions may not apply to you. This warranty gives you specific rights, and you may also have other rights,
which vary from state to state.
Untitled-5 64Untitled-5 64 2025-05-28 11:40:452025-05-28 11:40:45
English 65
LIMITATION OF REMEDIES
YOUR SOLE AND EXCLUSIVE REMEDY IS PRODUCT REPAIR, PRODUCT REPLACEMENT, OR REFUND OF
THE PURCHASE PRICE AT SAMSUNG’S OPTION, AS PROVIDED IN THIS LIMITED WARRANTY. SAMSUNG
SHALL NOT BE LIABLE FOR SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT
LIMITED TO TIME AWAY FROM WORK, HOTELS AND/OR RESTAURANT MEALS, REMODELING EXPENSES,
LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS REGARDLESS OF
THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF
THE POSSIBILITY OF SUCH DAMAGES. Some states do not allow exclusion or limitation of incidental or
consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives
you specific rights, and you may also have other rights, which vary from state to state.
SAMSUNG does not warrant uninterrupted or error-free operation of the product. No warranty or
guarantee given by any other person, firm, or corporation with respect to this product shall be binding on
SAMSUNG.
To obtain warranty service, please contact SAMSUNG at:
Samsung Electronics America, Inc.
85 Challenger Road
Ridgefield Park, NJ 07660
1-800-SAMSUNG (726-7864)
www.samsung.com/us/support
Untitled-5 65Untitled-5 65 2025-05-28 11:40:452025-05-28 11:40:45
English66
Warranty (CANADA)
SAMSUNG DRYER
LIMITED WARRANTY TO ORIGINAL PURCHASER
This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS CANADA, INC.
(SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by
SAMSUNG against manufacturing defects in materials and workmanship for a limited warranty period of:
• One (1) year part and labor
This limited warranty begins on the original date of purchase, and is valid only on products purchased and
used in the Canada.
To receive warranty service, the purchaser must contact SAMSUNG for problem determination and service
procedures.
Warranty service can only be performed by a SAMSUNG authorized service center.
The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or
SAMSUNG’s authorized service center.
SAMSUNG will provide in-home service during the warranty period at no charge, subject to availability
within the Canada.
In-home service is not available in all areas.
To receive in-home service, product must be unobstructed and accessible to the service agent.
If service is not available, SAMSUNG may elect to provide transportation of the product to and from an
authorized service center.
SAMSUNG will repair, replace, or refund this product at our option and at no charge as stipulated herein,
with new or reconditioned parts or products if found to be defective during the limited warranty period
specified above.
All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG.
Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever is
longer.
This limited warranty covers manufacturing defects in materials and workmanship encountered in normal,
noncommercial use of this product and shall not apply to the following: damage that occurs in shipment;
delivery and installation; applications and uses for which this product was not intended; altered product
or serial numbers; cosmetic damage or exterior finish; accidents, abuse, neglect, fire, water, lightning,
or other acts of nature or God; use of products, equipment, systems, utilities, services, parts, supplies,
accessories, applications, installations, repairs, external wiring or connectors not supplied or authorized
by SAMSUNG that damage this product or result in service problems; incorrect electrical line voltage,
fluctuations and surges; customer adjustments and failure to follow operating instructions, maintenance
and environmental instructions that are covered and prescribed in the instruction book; product removal
and reinstallation; problems caused by pest infestations.
This limited warranty does not cover problems resulting from incorrect electric current, voltage or supply,
light bulbs, house fuses, house wiring, cost of a service call for instructions, or fixing installation errors.
SAMSUNG does not warrant uninterrupted or error-free operation of the product.
Untitled-5 66Untitled-5 66 2025-05-28 11:40:452025-05-28 11:40:45
English 67
EXCEPT AS SET FORTH HEREIN, THERE ARE NO WARRANTIES ON THIS PRODUCT EITHER EXPRESS OR
IMPLIED, AND SAMSUNG DISCLAIMS ALL WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED
WARRANTIES OF MERCHANTABILITY, INFRINGEMENT OR FITNESS FOR A PARTICULAR PURPOSE.
NO WARRANTY OR GUARANTEE GIVEN BY ANY PERSON, FIRM, OR CORPORATION WITH RESPECT TO THIS
PRODUCT SHALL BE BINDING ON SAMSUNG.
SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR
OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE
USE, MISUSE, OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE
CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE PURCHASE
PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED DAMAGE.
WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE,
OR INJURY TO PURCHASER AND PURCHASER’S PROPERTY AND TO OTHERS AND THEIR PROPERTY
ARISING OUT OF THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT.
THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF
THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY.
Some provinces do not allow limitations on how long an implied warranty lasts, or the exclusion or
limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to
you.
This warranty gives you specific rights, and you may also have other rights, which vary from province to
province.
To obtain warranty service, please contact SAMSUNG at:
Samsung Electronics Canada Inc.
2050 Derry Road West,
Mississauga, Ontario L5N 0B9 Canada
1-800-SAMSUNG (726-7864)
www.samsung.com/ca/support (English)
www.samsung.com/ca_fr/support (French)
Visits by a Service Engineer to explain functions, maintenance, or installation is not covered by warranty.
Please contact the Samsung call center at the number above for help with any of these issues.
Untitled-5 67Untitled-5 67 2025-05-28 11:40:452025-05-28 11:40:45
Scan this with your smartphone
This product qualifies for ENERGY STAR in the factory default
" Normal + Eco Dry " setting.
If you change the factory default setting or enable other features,
power consumption could increase and exceed the limits qualified
for ENERGY STAR.
QUESTIONS OR COMMENTS?
COUNTRY CALL OR VISIT US ONLINE AT
U.S.A 1-800-SAMSUNG (726-7864) www.samsung.com/us/support
CANADA 1-800-Samsung (726-7864)
www.samsung.com/ca/support (English)
www.samsung.com/ca_fr/support (French)
Untitled-5 68Untitled-5 68 2025-05-28 11:40:462025-05-28 11:40:46
