KODAK
DIGITAL CAMERA
User Manual
PIXPRO AZ653
1
BEFORE YOU START
Declaration of Conformity
Responsible Party: JK Imaging Ltd.
Address: JK Imaging Ltd., 14067 Stage Road, Santa Fe Springs, CA 90670 USA
Company Website: kodakpixpro.com
INDUSTRY CANADA
This device complies with Canadian RSS-247.
This device complies with Industry Canada license-exempt RSS standard (s). Operation
is subject to the following two conditions: (1) this device may not cause interference
and (2) this device must accept any interference, including interference that may cause
undesired operation of the device.
Ce dispositif est conforme à la norme CNR-247 d’Industrie Canada applicable aux
appareils radio exempts de licence. Son fonctionnement est sujet aux deux conditions
suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce
dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de
provoquer un fonctionnement indésirable.
Radiation Exposure Statement:
These requirements set a SAR limit of 1.6 W/kg averaged over one gram of tissue.
The highest SAR value reported under this standard during product certification for use
when properly worn on the body is 0.38 W/kg.
These requirements set a SAR limit of 4 W/kg averaged over ten gram of tissue.
The highest SAR value reported under this standard during product certification for use
on the limbs is 2.117 W/kg.
Ces exigences fixent une limite de DAS de 1,6 W/kg en moyenne sur un gramme de tissu.
La valeur maximale de DAS rapportée selon cette norme lors de la certification du
produit pour une utilisation correcte sur le corps est de 0,38 W/kg.
Ces exigences fixent une limite de DAS de 4 W/kg en moyenne sur dix grammes de tissu.
La valeur maximale de DAS rapportée selon cette norme lors de la certification du
produit pour une utilisation sur les membres est de 2,117 W/kg.
2
For Customers in Europe
This symbol [crossed-out wheel bin WEEE Annex IV] indicates separate collection
of electrical waste and electronic equipment in the European countries. Please do
not throw the equipment into domestic refuse. Please use the return and collection
systems available in your country for proper, safe disposal of this product.
“CE” mark indicates that this product complies with the European requirements
for safety, health, environment and customer protection. “CE” marked cameras are
intended for sales in Europe.
Europe – EU Declaration of Conformity
This device complies with the essential requirements of the R&TTE Directive
2014/53/EU. The following test methods have been applied in order to prove
presumption of conformity with the essential requirements of the R&TTE Directive
2014/53/EU:
- EN 62368-1:2014
Safety of Information Technology Equipment
- EN 50566:2017
Product standard to demonstrate compliance of radio frequency fields from
handheld and body- mounted wireless communication devices used by the general
public (30 MHz — 6 GHz)
- EN 62209-2:2010/A1:2019
Human exposure to radio frequency fields from handheld and bodymounted
wireless communication devices — Human models, instrumentation, and
procedures
Part 2: Procedure to determine the specific absorption rate (SAR) for wireless
communication devices used in close proximity to the human body (frequency
range of 30 MHz to 6 GHz)
3
- EN 300 328 V2.2.2 (2019-07)
Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband
transmission systems; Data transmission equipment operating in the 2.4GHz ISM
band andusing wide band modulation techniques; Harmonized EN covering the
essential requirements of article
- EN 301 489-1 V2.2.3 (2019-11)
Electromagnetic compatibility and Radio Spectrum Matters (ERM); Electro
Magnetic Compatibility (EMC) standard for radio equipment and services; Part 1:
Common technical requirements.
- EN 301 489 -17 V3.2.4 (2020-09)
Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic
Compatibility (EMC) standard for radio equipment; Part 17: Specific conditions for
Broadband Data Transmission Systems
Hereby, Sintai Optical (Shenzhen) Co., Ltd, declares that this PIXPRO AZ653 is
in compliance with the essential requirements and other relevant provisions of
Directive 2014/53/EU.
Manufacturer: Sintai Optical (Shenzhen) Co., Ltd
Address: Qiwei Ind Sec, 1st, 2nd, 4th & 5th Bldg, Lisonglang Village, Gongming
Street, Guangming New District, Shenzhen, Guangdong, China
Batteries: Please dispose of used batteries at designated collection centers.
Packaging: Please follow local regulations for the recycling of packaging.
For Customers in the U.S.A.
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
4
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio / TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
Radiation Exposure Statement:
This product complies with the FCC portable RF exposure limit set forth for an
uncontrolled environment and is safe for intended operation as described in this manual.
Additional RF exposure reduction can be achieved if the product can be kept as far as
possible from the user body or set the device to lower output power if such function is
available.
5
About this Manual
Thank you for purchasing this KODAK PIXPRO Digital Camera. Please read this manual
carefully and keep it in a safe place for future reference.
JK Imaging Ltd. reserves all rights of this document. No part of this published manual
may be reproduced, transmitted, transcribed, stored in a retrieval system or translated
into any language or computer language, in any form, by any means, without the prior
written permission of JK Imaging Ltd.
All trademarks mentioned in this manual are used for identification purposes only and
are properties of their respective owners and holders.
This manual provides you with instructions on how to use your new KODAK PIXPRO
Digital Camera. Every effort has been made to ensure that the contents of this manual
are accurate; however JK Imaging reserves the right to make changes without notice.
Throughout this manual, the following symbols are used to help you locate
information quickly and easily:
Indicates useful information.
The following symbols may be used throughout this manual to facilitate your
understanding of how to operate the camera:
[Item properties] : The optional properties in the camera interface are indicated by the
[ ] symbol.
6
SAFETY NOTES
Safety Notes for this Camera
Do not drop the camera or allow it to
hit solid objects.
Do not attempt to disassemble or
repair the camera.
Do not use or store the camera in dusty
places or on a beach to help prevent
dust or sand from entering the camera,
causing possible damage.
Do not use or store the camera in a hot
environment or in direct sunlight.
Do not use or store the camera near
powerful magnetic fields, such as a
magnet or transformer.
Avoid touching the lens of the camera.
Do not expose the camera to direct
sunlight for a long period of time.
To prevent the camera from being
damaged by moisture, do not use
or store the camera in very humid
environments, such as in rain or near
bodies of water.
If water accidentally comes in contact
with the camera, turn the camera off
immediately, remove the battery and
the memory card and dry it completely
within 24 hours.
When you take the camera from a cold
environment to a warmer environment,
condensation may occur. Please wait
for a reasonable period of time before
you turn the camera on.
Before you remove the battery and
memory card, the camera should be
turned off.
When you clean the body of the
camera, do not use abrasive, alcohol-
based or organic cleansers or solvents.
Use a professional lens cleaning cloth
and appropriate cleaner to wipe and
clean the lens.
Download your photos and remove the
memory card when you are going to
store the camera for long periods of
time.
If this camera is not in use for a long
period of time, please keep it in a dry
and clean storage location.
Our company will not pay
compensation for any failure of
playback including: pictures or
videos damaged or unrecoverable by
improper operation.
7
Safety Notes for Battery
Please use a battery that is the same
type as the one included.
Please use the attached charger to
charge the battery.
If battery fluid leaks inside the
camera, contact our customer service
department immediately. If battery
fluid leaks onto your skin, rinse your
skin immediately with clean water and
seek immediate medical attention.
Disposal of used batteries should be
carried out in accordance with your
local (national or regional) regulations.
To prevent the battery from being
damaged, do not drop the battery or
allow it to hit solid objects or to be
scratched by foreign objects.
Do not let the battery come in contact
with metal objects (including coins)
to avoid short circuiting, discharging,
excessive heat or possible leakage.
Do not attempt to disassemble the
battery.
Do not expose the battery to water.
Always keep the battery contacts dry.
Do not heat the battery or throw it into
a fire to avoid a possible explosion.
Do not store the battery in a hot
environment or in direct sunlight
.
If the battery overheats during
charging or use, stop charging or use
immediately. Turn off the product,
remove the battery carefully, and wait
until it cools down.
When the camera is stored for a long
period of time, remove the battery and
keep it in a safe, dry place that is not
accessible to infants and children.
In colder environments, the
performance of the battery could be
noticeably reduced.

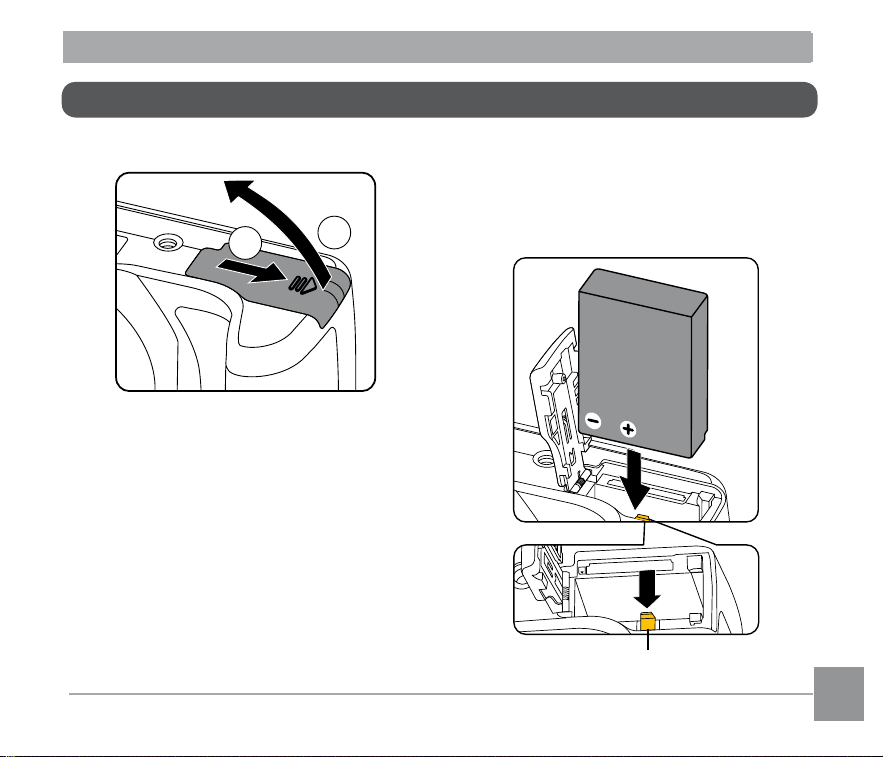

When you install the battery, align the
battery markings according to the
positive and negative markings inside
the camera battery compartment.
Never force the battery into the battery
compartment.
8
Safety Notes for Memory Card
We highly suggest buying only well-
known, name brand memory cards
to ensure peak performance and
reliability.
Format the memory card using the
camera before you use it or insert a
new one.
Do not drop the memory card or
allow it to hit solid objects to avoid
damaging it.
Do not attempt to disassemble or
repair the memory card.
Do not expose the memory card to
water. Always keep it dry.
Do not remove the memory card when
the camera is turned on. Otherwise,
the memory card and photo/video files
could be permanently damaged.
Do not directly edit the data on the
memory card. Copy the data to your
computer before you edit files.
When the camera is stored for long
periods of time, be sure to download
your photos and remove the memory
card. Store the memory card in a dry
environment.
Do not modify the name of the files
or folders of the memory card using
your computer. Modifying the file
names may cause the files to not
be recognized on the camera or a
possible permanent error may occur.
A photo taken with the camera
will be stored in the folder that is
automatically generated on the
memory card. Do not store photos
that are not taken using this camera in
these folders as the pictures cannot be
recognized during playback.
When you insert the memory card,
make sure the notch of the card
matches the markings on the top of
the camera card slot.
9
Other Safety Notes
Do not disconnect the power or turn the camera off during the update process. Doing
so may cause incorrect data to be written and the camera may not power on later.
Do not hang the neck strap of the camera around the neck of a child.
When using your camera on an airplane, observe the relevant rules specified by the
airline and FAA regulations.
Due to the limitations of manufacturing technology, the LCD may have a few dead
or bright pixels. These pixels do no effect the quality or performance of the camera,
photos or video.
Do not expose the camera’s LCD to water. In a humid environment, only wipe it with a
soft, dry, cleaning cloth.
If the LCD is damaged and the liquid crystal comes into contact with your skin, wipe
your skin with a dry cloth immediately and rinse it with clean water. If liquid crystal
comes into contact with your eyes, wash them with clean water at least for 15 minutes
and seek immediate medical attention. If you accidentally swallow liquid crystal, rinse
your mouth immediately and seek medical attention.
WARNING
Altering, tampering or modifying the any parts of AZ653 camera are unauthorized
and will void the manufacturer’s warranty and “could” void Federal and/or State
Compliance.
10
BEFORE YOU START .............1
SAFETY NOTES ....................6
CONTENTS ...........................10
GETTING READY ................... 14
Accessories Included ......................14
Installing Lens Cap and
Neck Strap .......................................15
Part Names ......................................16
Installing Battery and
Memory Card ...................................19
Charging the Battery .......................21
Turning Camera On and Off ...........23
Set your Language, Date / Time
after the First Power-On ............24
Set your Language, Date / Time .....24
Resetting your Language ..........25
Resetting Date / Time ...............26
MODE OVERVIEW ................27
LCD Display......................................27

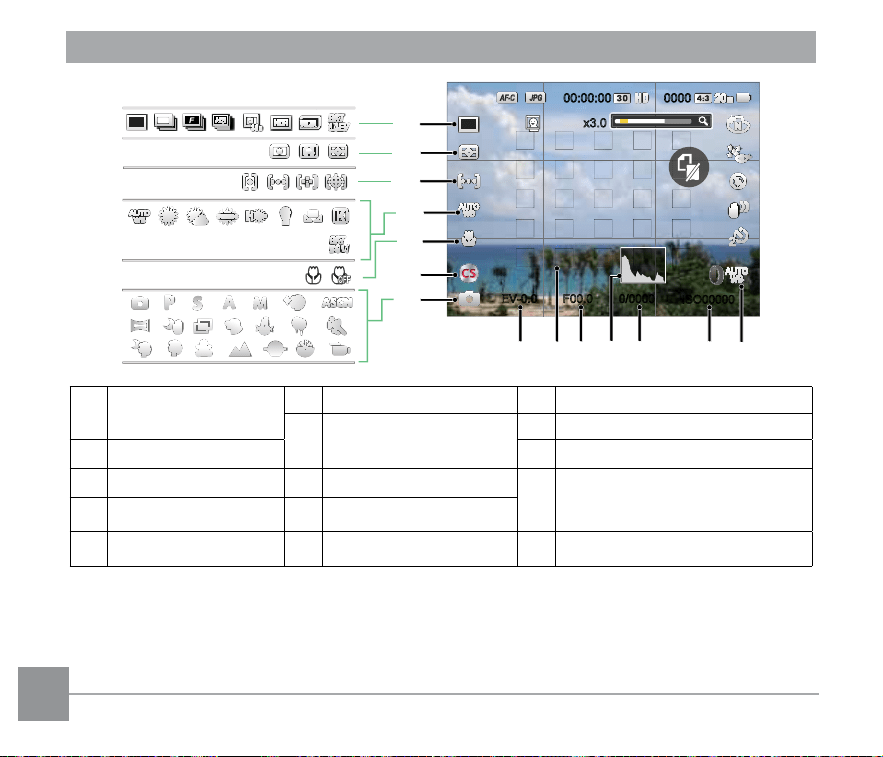

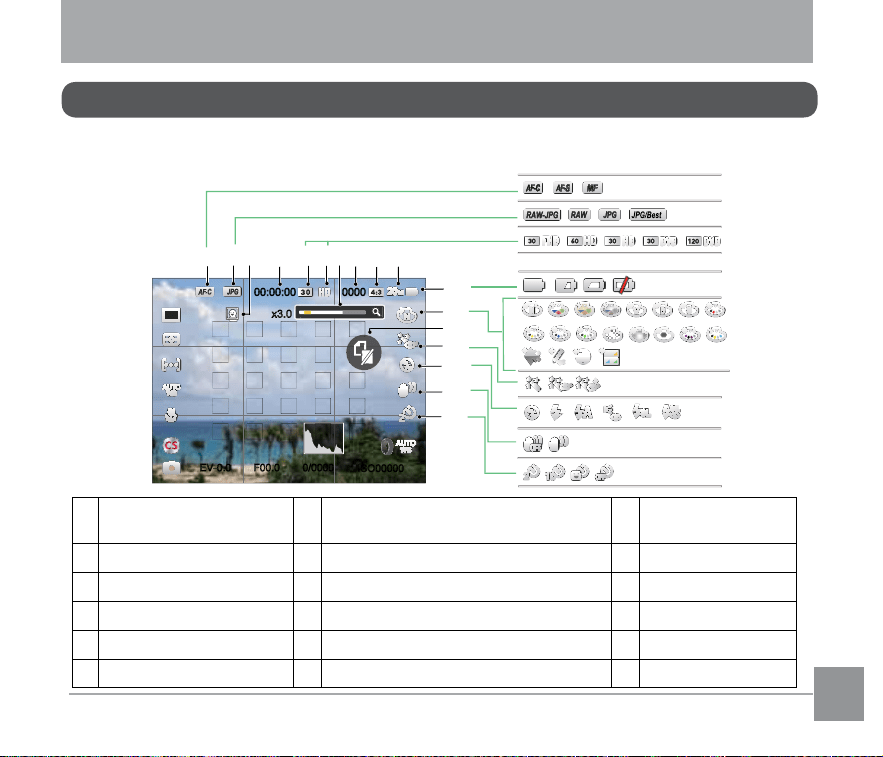

Overview of the Screen Icons in
Shooting Mode .........................27

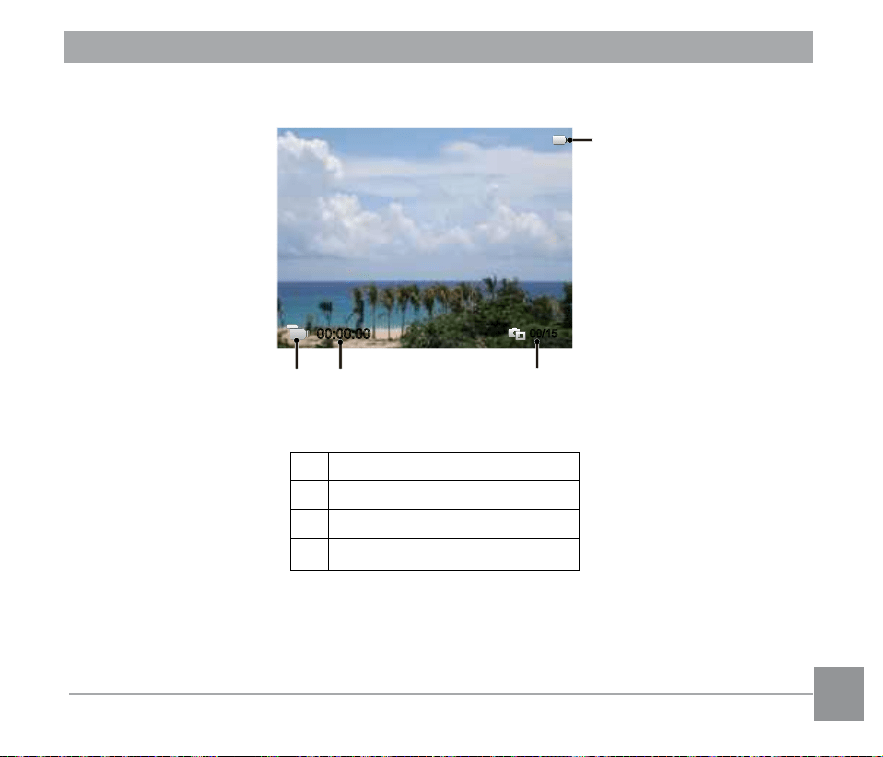

Overview of the Screen Icons in
Movie Mode ...............................29

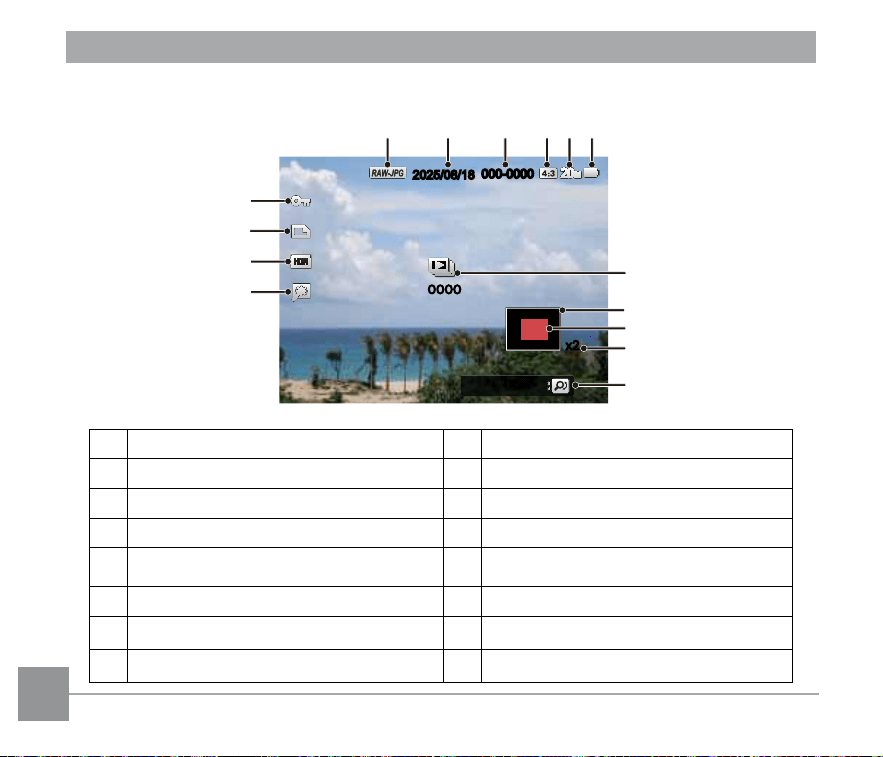

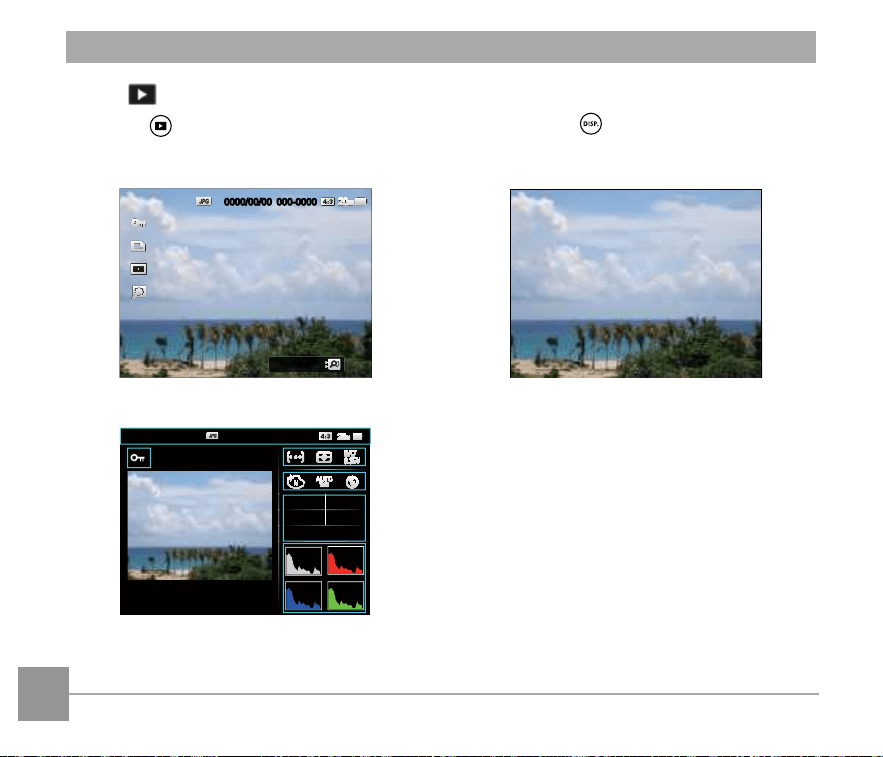

Overview of the Screen Icons in
Playback Mode ..........................30
How to Take Pictures .......................31
Using the Mode Dial ........................32

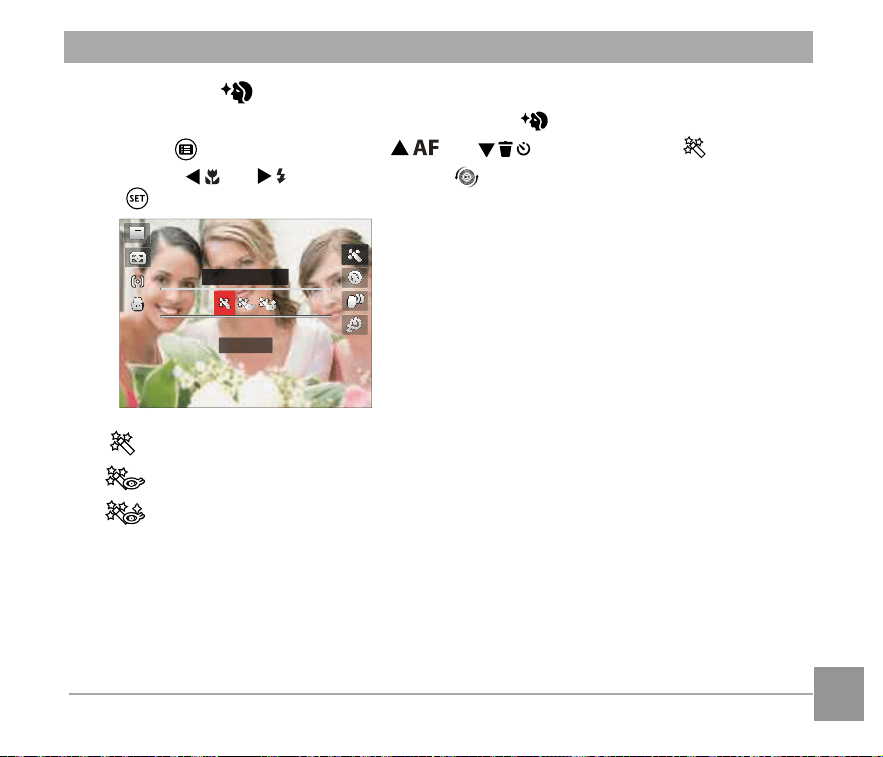

Face Beautifier
..................35

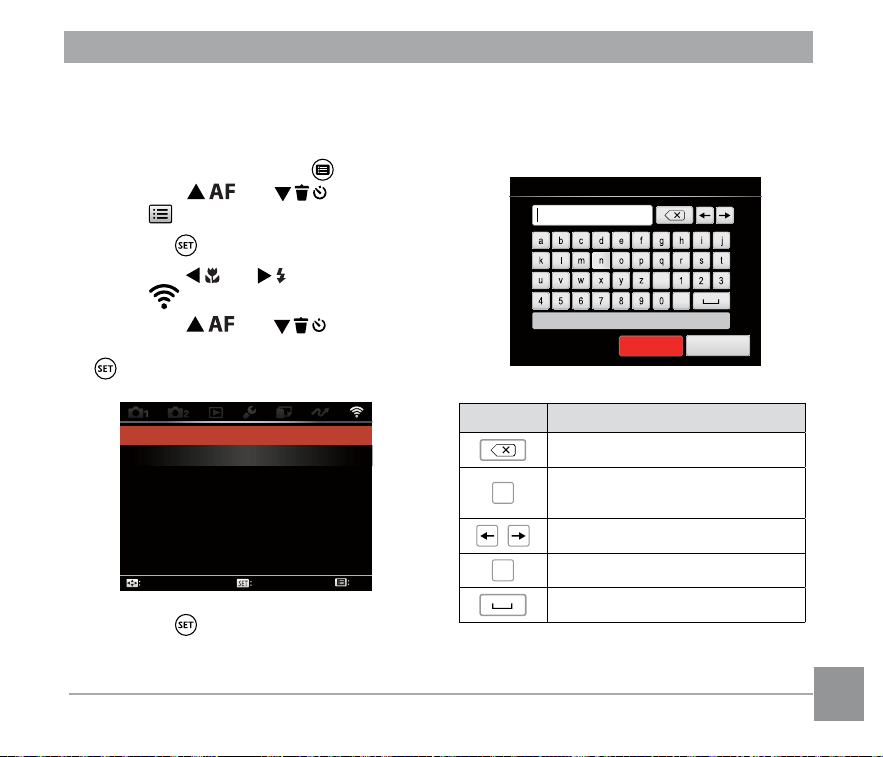

Wireless® Mode
..................36

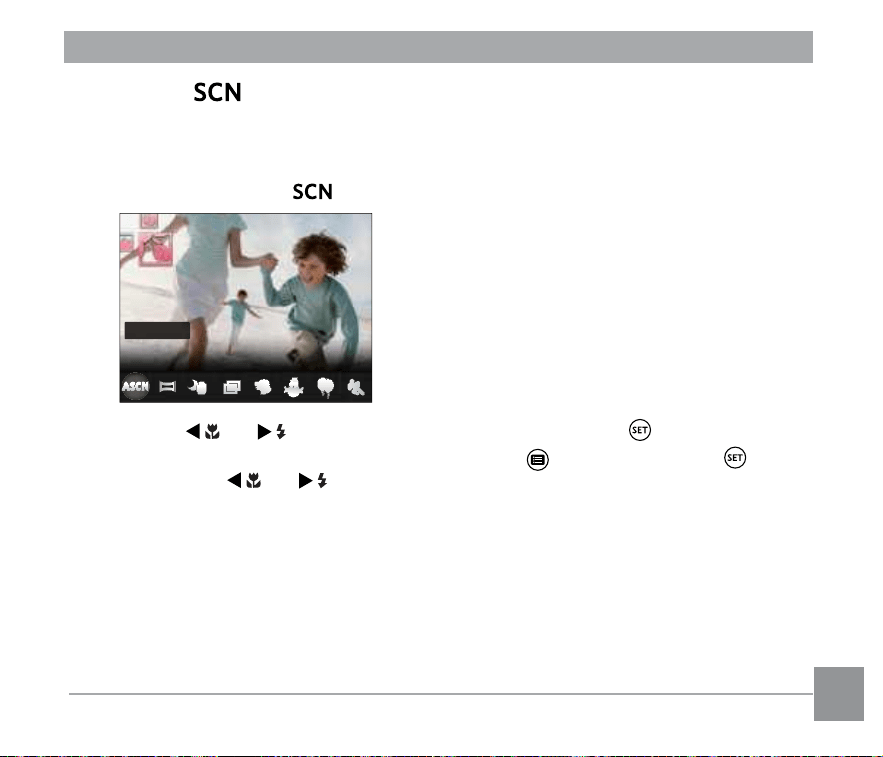

Scene Mode
....................43
Custom Settings (
) .............49
BASIC OPERATION ...............51

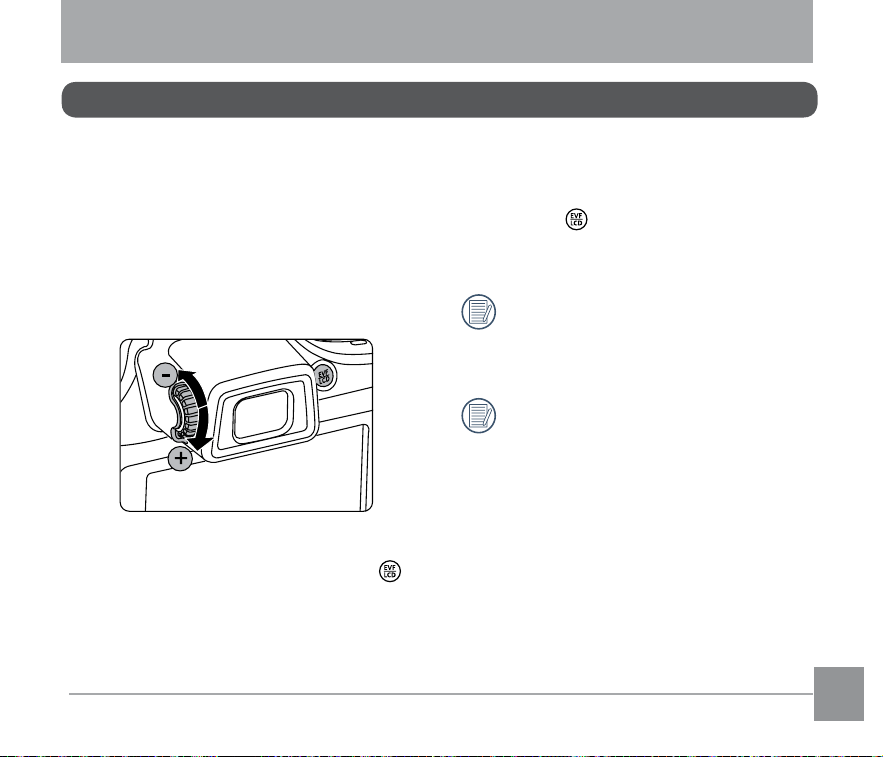

Using EVF (Electronic View
Finder) ..............................................51
CONTENTS
11

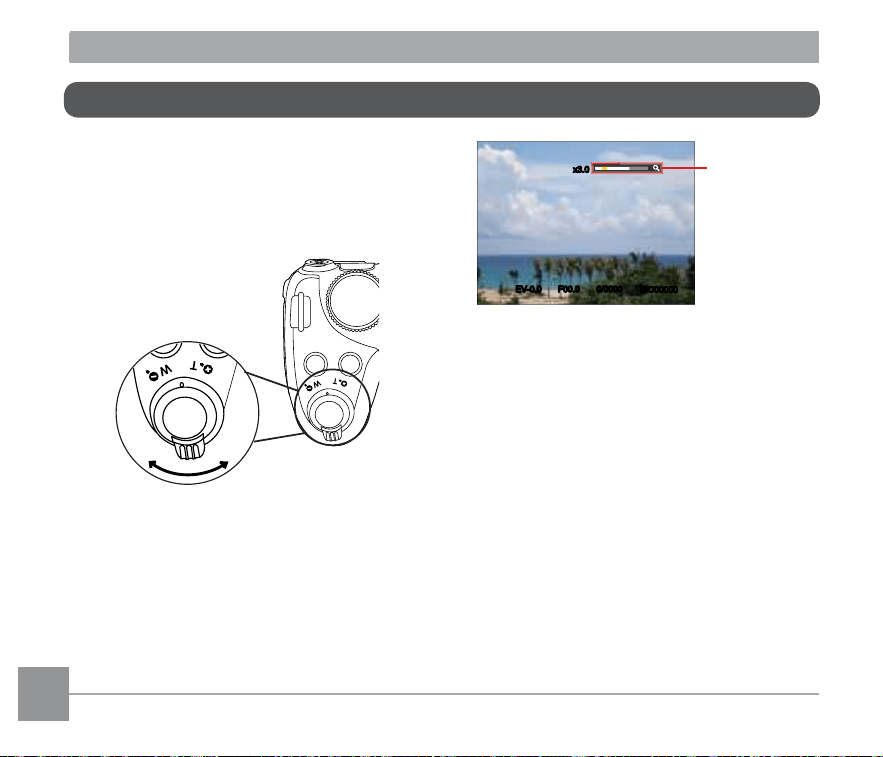

Using the Zoom Function................52

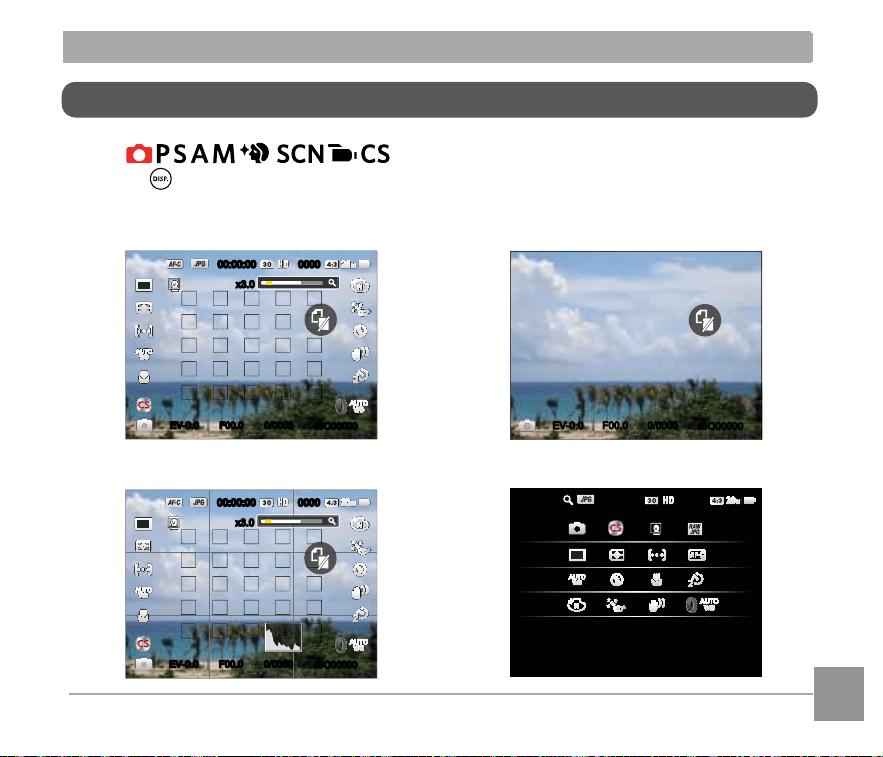

Display Setting ................................53

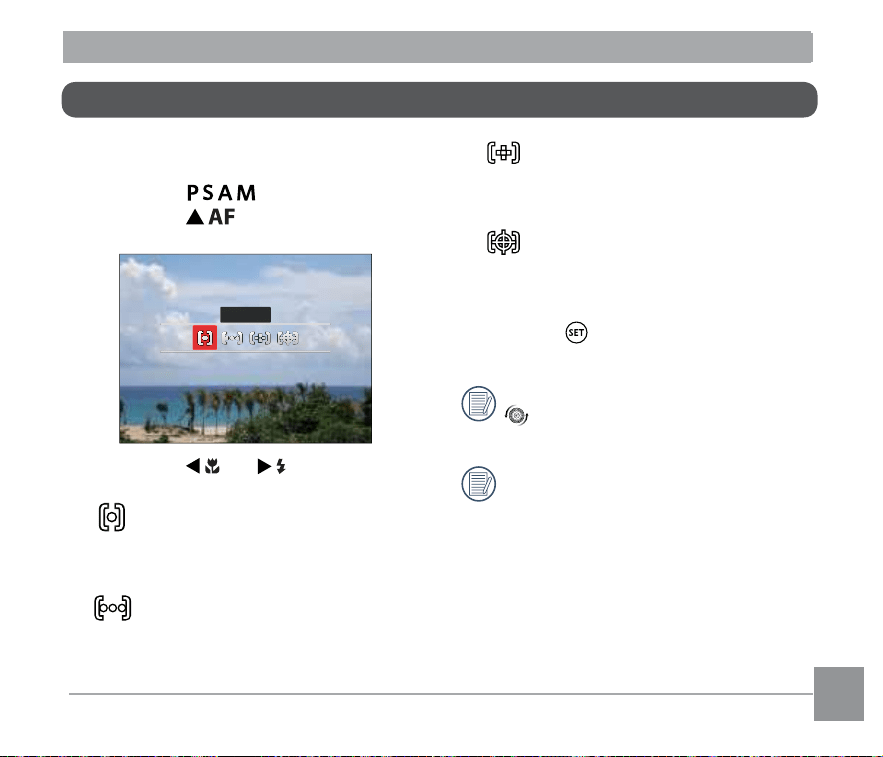

AF Area ............................................55
Macro Mode.....................................56

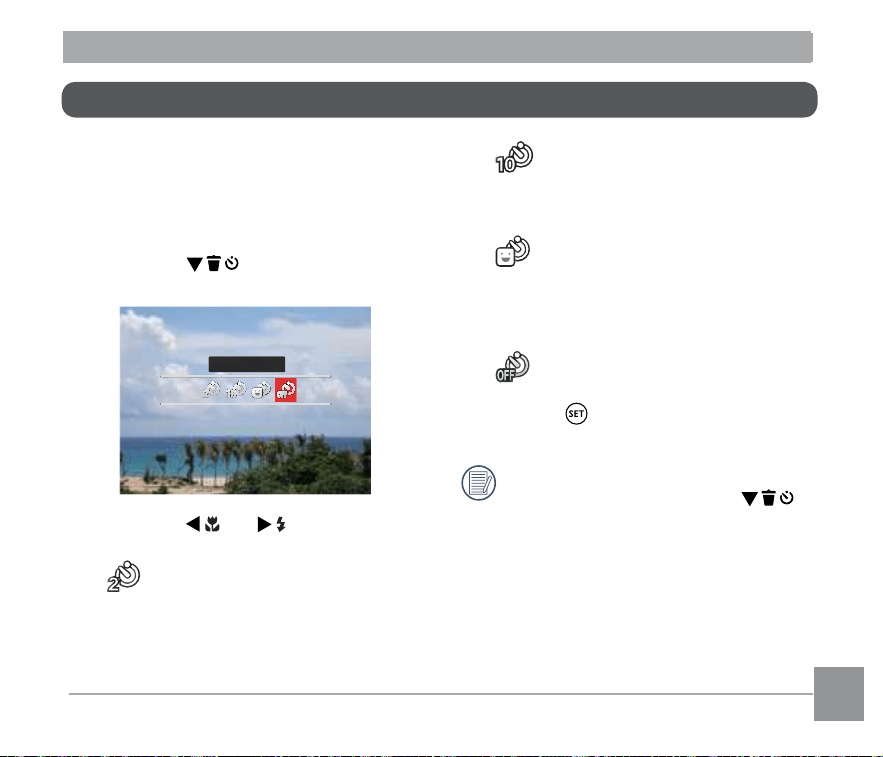

Self-Timer Mode .............................57

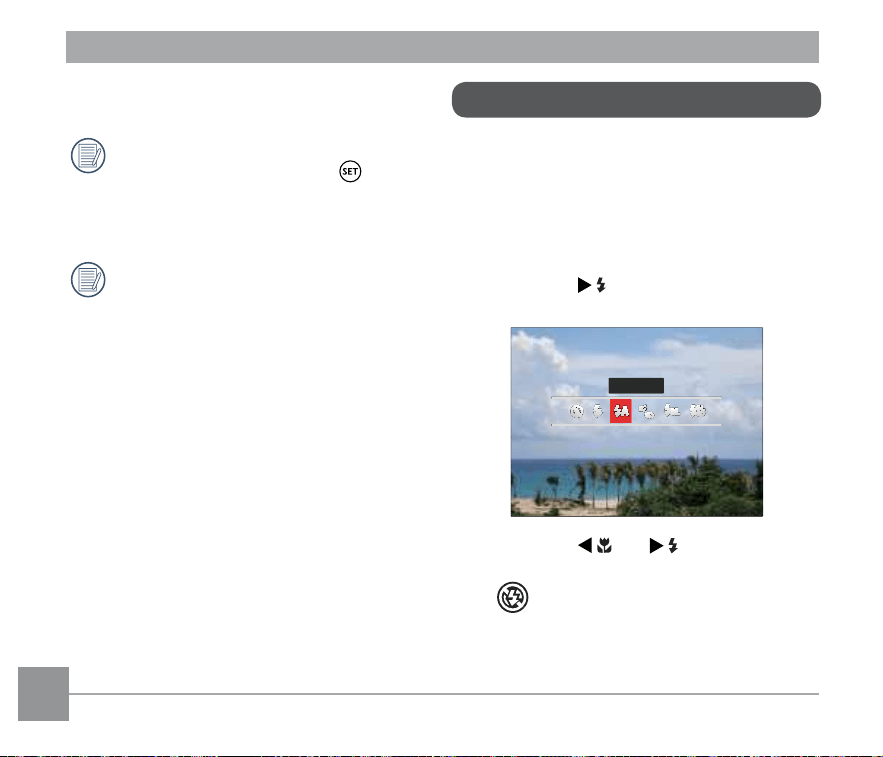

Flash Mode .....................................58

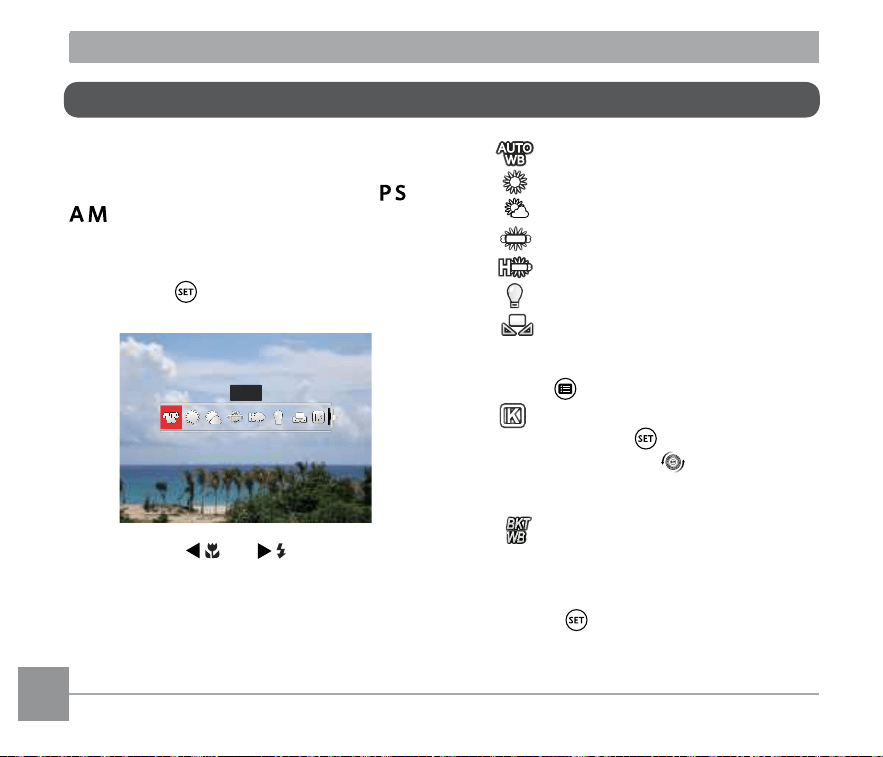

WB (White Balance) Mode ..............60
Continuous Shot Mode ...................62

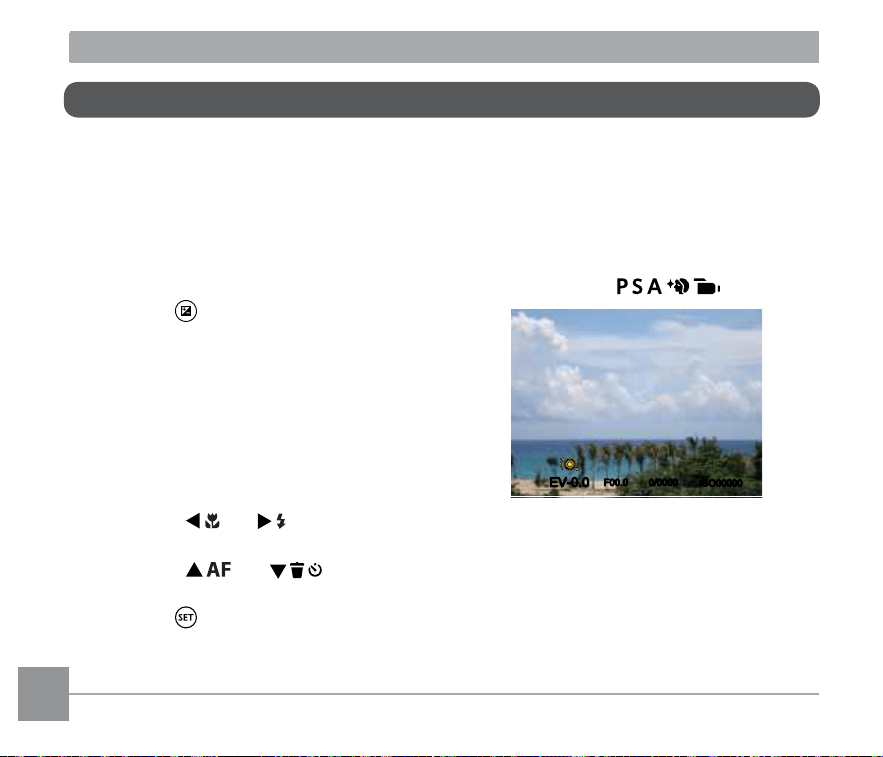

Exposure Compensation Functions
Setting .............................................64
EV Adjustment...........................64
ISO Adjustment .........................65
Shutter Speed Adjustment .......65
Aperture Adjustment ................66

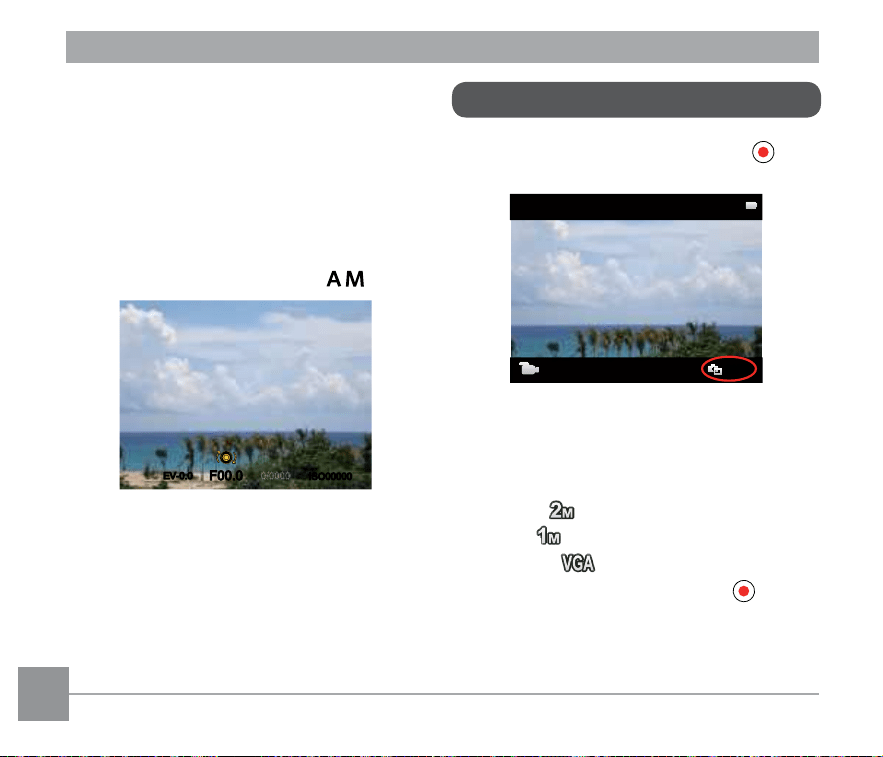

Using Quick Recording ...................66
“i” Button Function Menu ................67

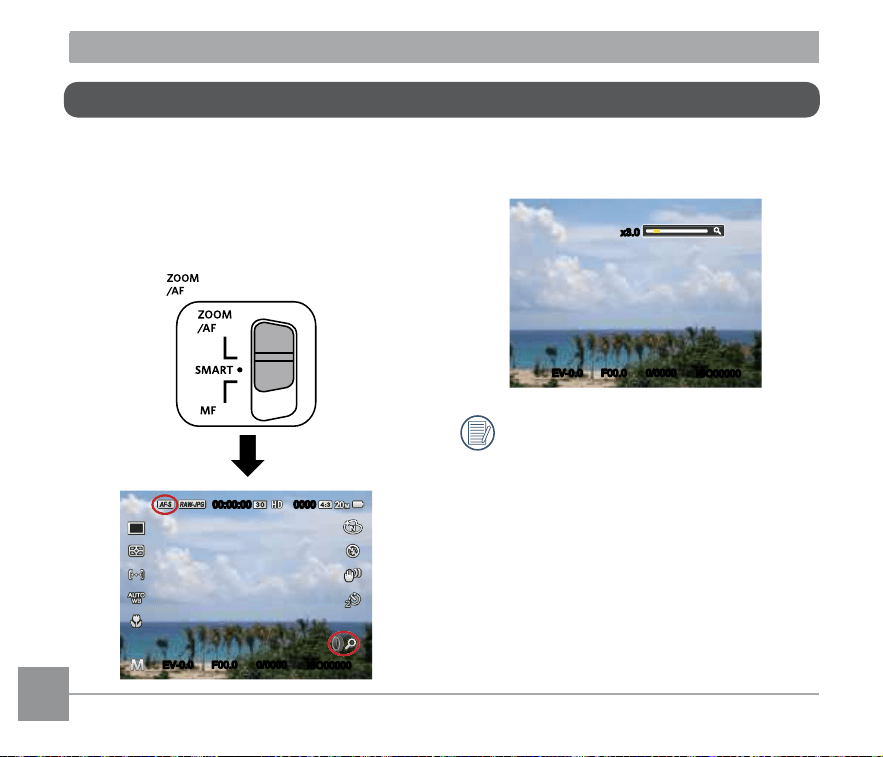

Using the Lens Function Ring .........68
Zoom / AF Mode .......................68

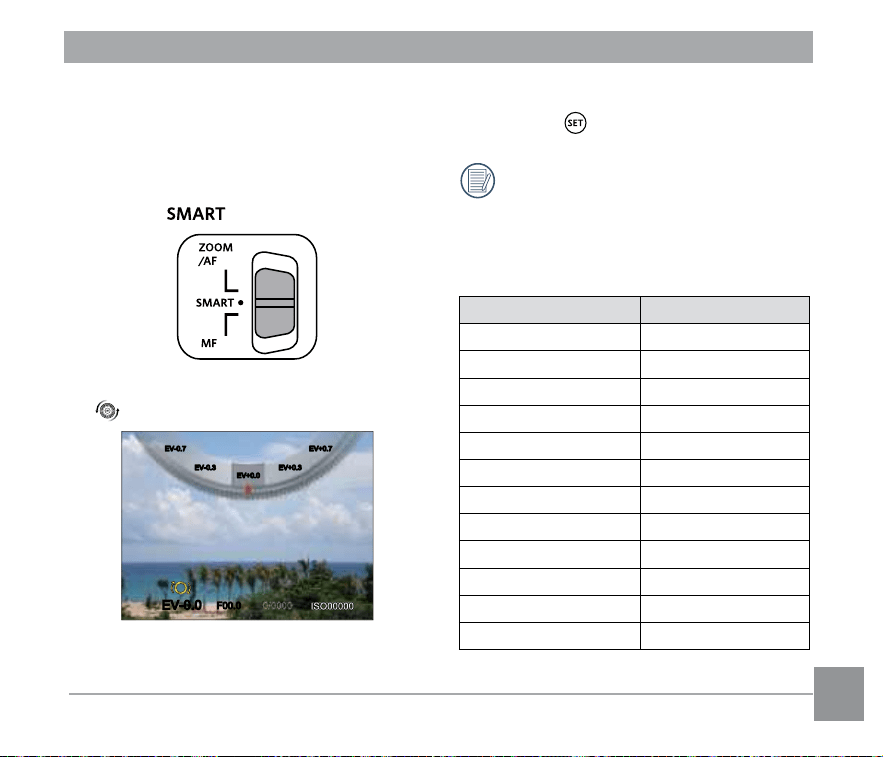

Function Ring (Smart) Mode ....69

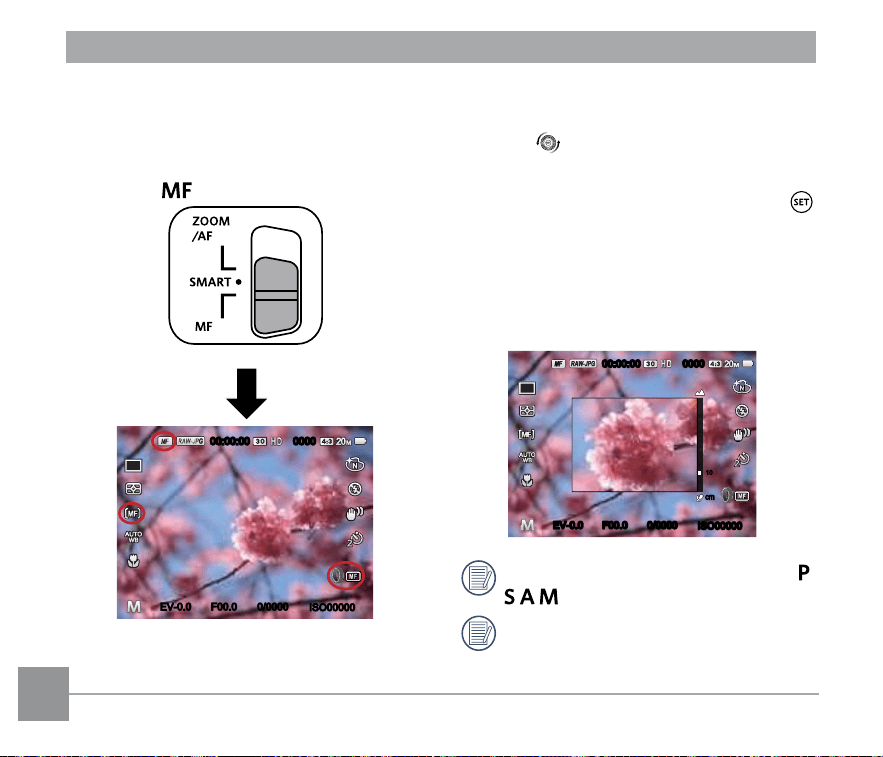

MF (Manual Focus) Mode ..........70
PLAYBACK ............................71

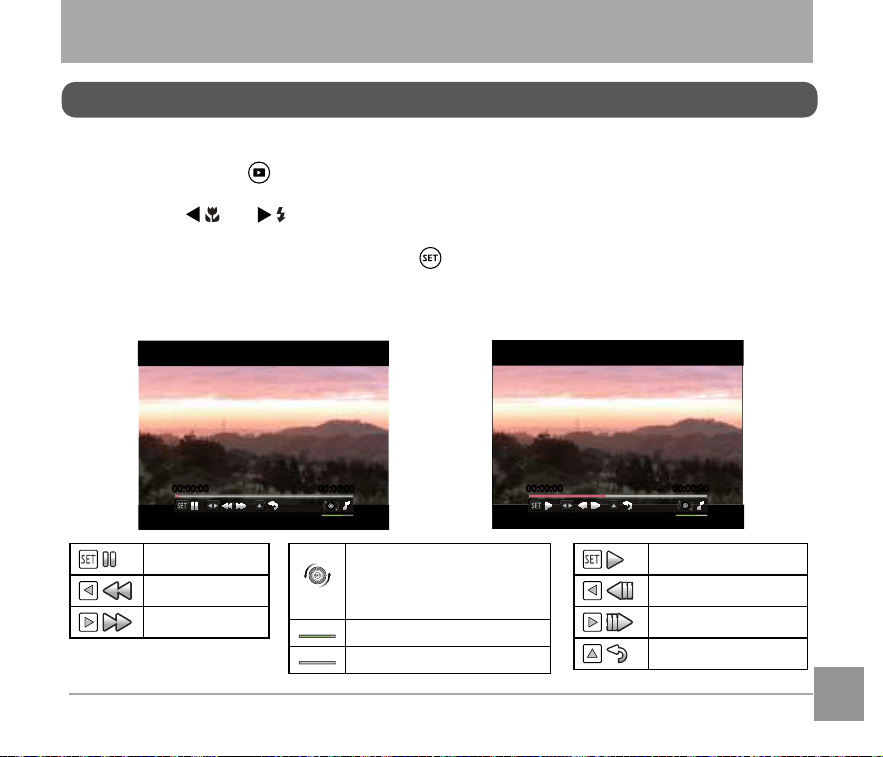

Viewing Photos and Videos ............71

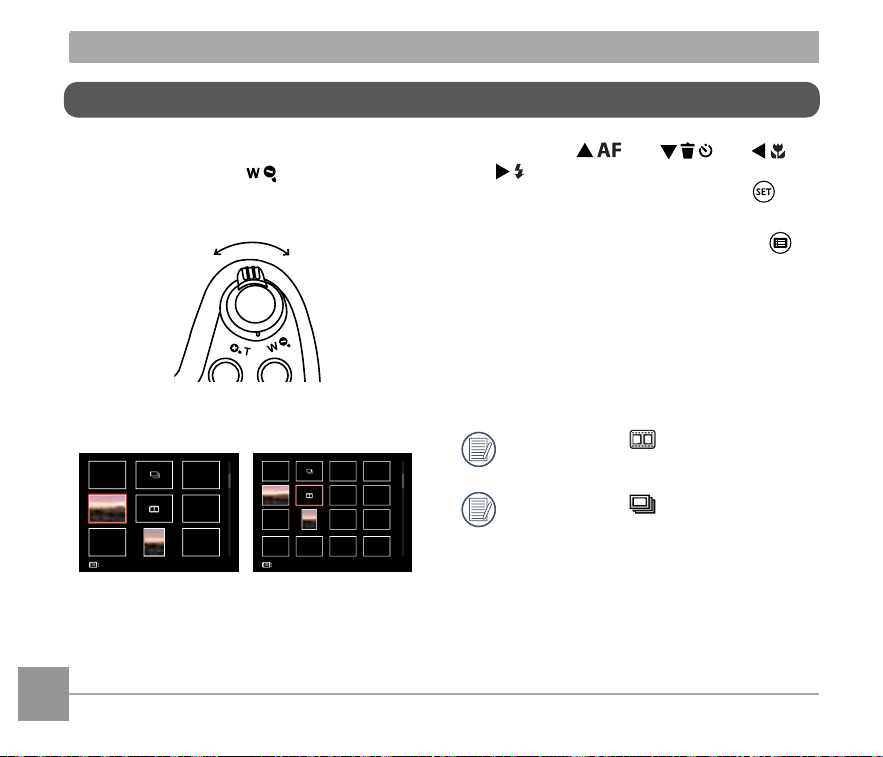

Thumbnail View ...............................72
Using Zoom Playback (for still
pictures only) ...................................73
Continuous Shot Group Playback ..74
Animation Panorama Play ...............75
Slideshow ........................................76
Deleting Photos and Videos ............77

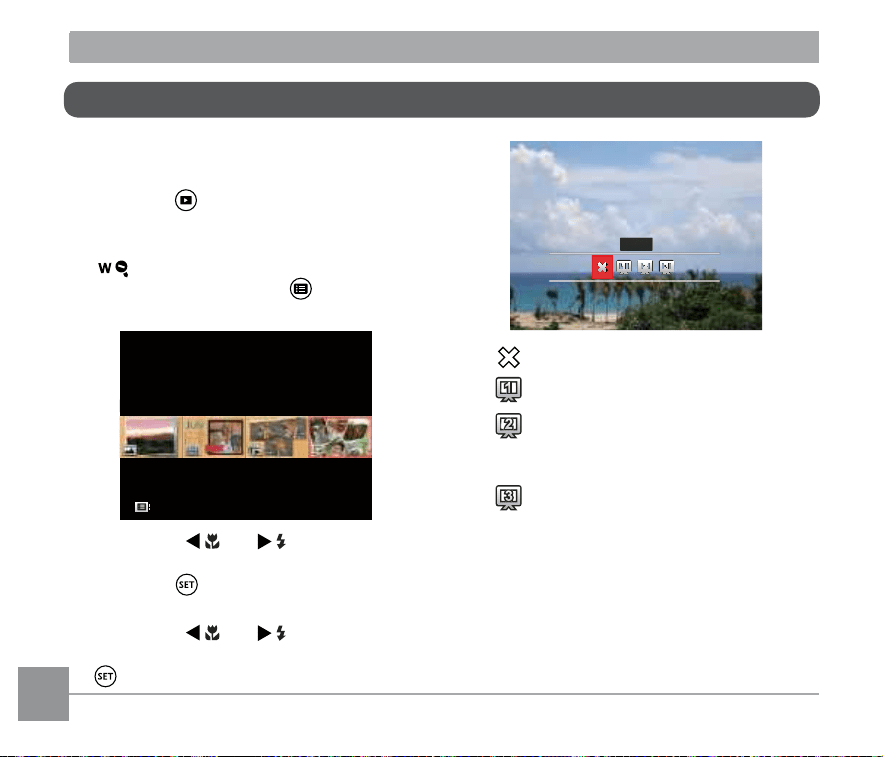

USING THE MENUS ..............78
Shooting Menu ................................78

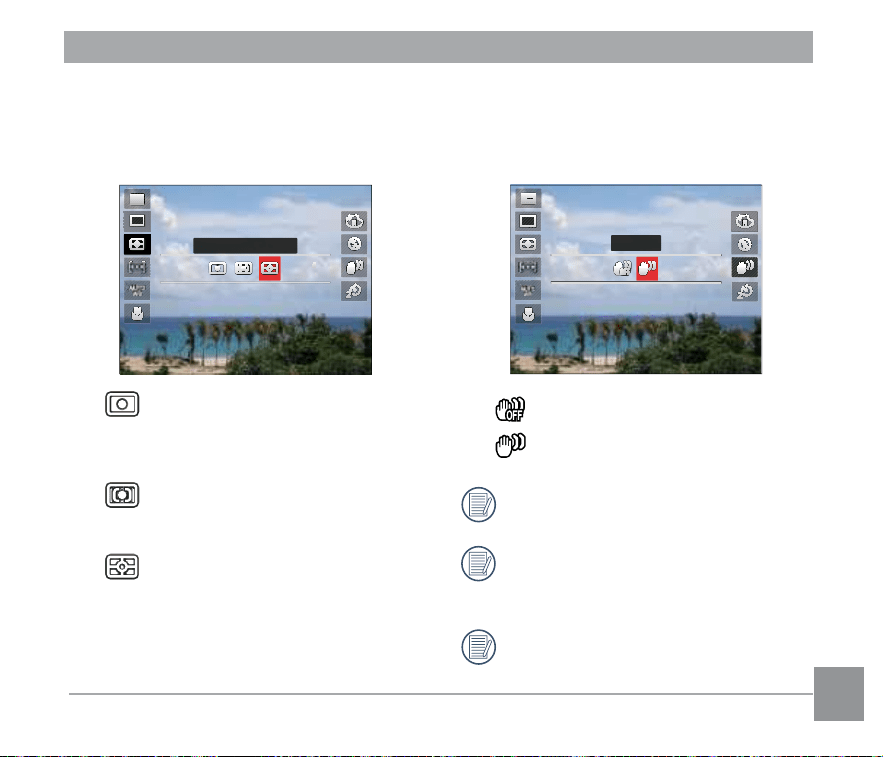

Expo Metering ...........................79
OIS (Optical Image
Stabilization) .............................79
12

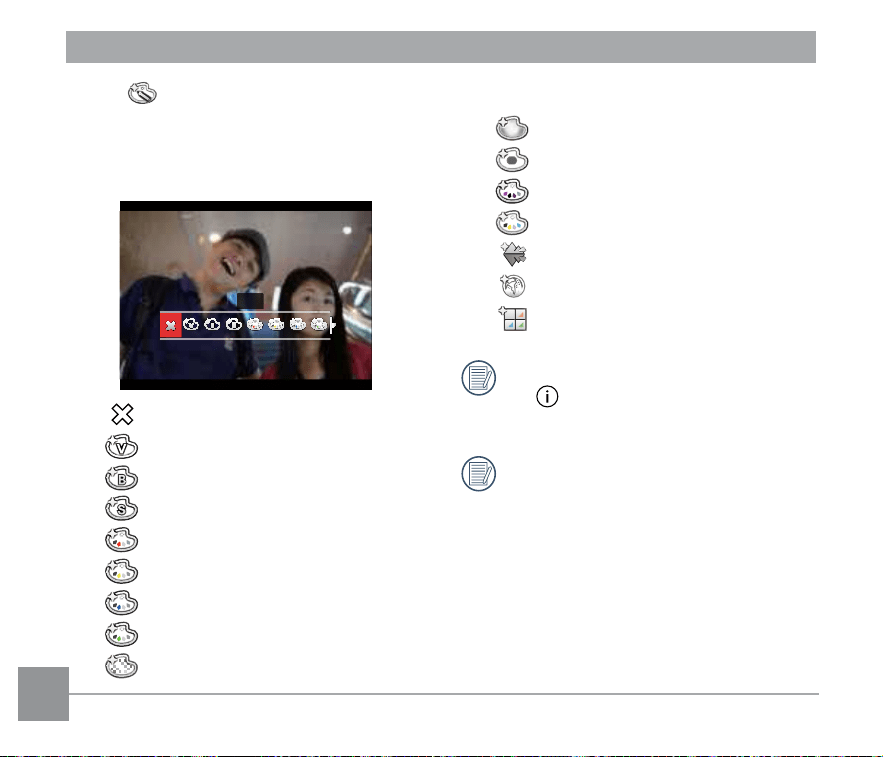

Beautifier ...................................80
Select Scene .............................80
Shoot Setting1 .................................81
Image Size .................................82
Movie Size .................................83
Quality .......................................84
MF (Manual Focus) Assist .........85
AF Assist Beam ..........................86
Digital Zoom ..............................86
Shoot Setting 2................................87
Date Imprint ..............................88
Quick Review.............................88
Continuous AF ..........................89

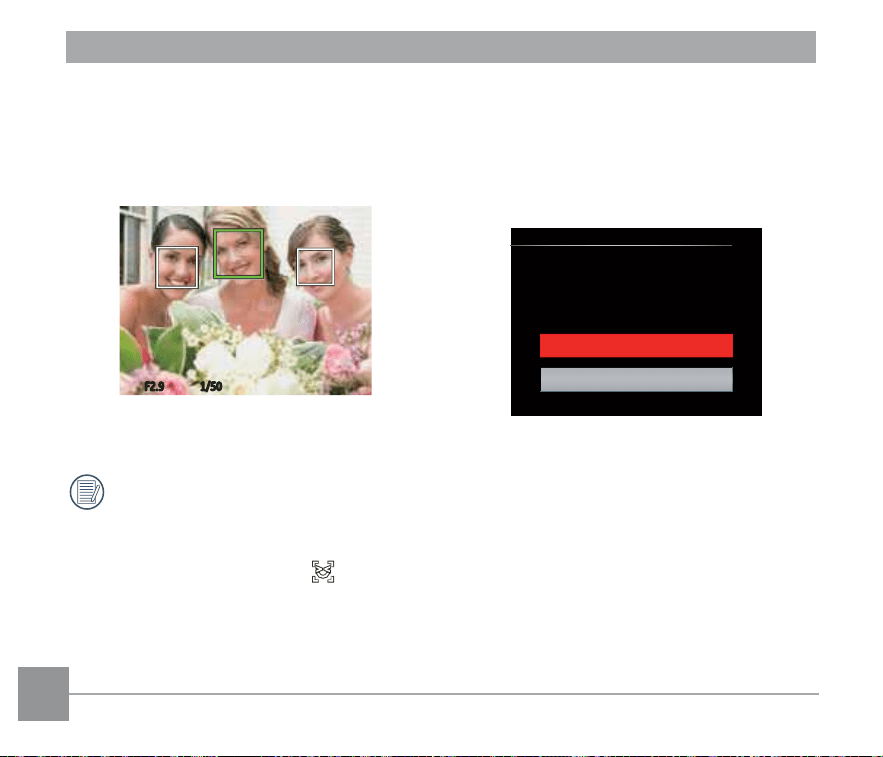

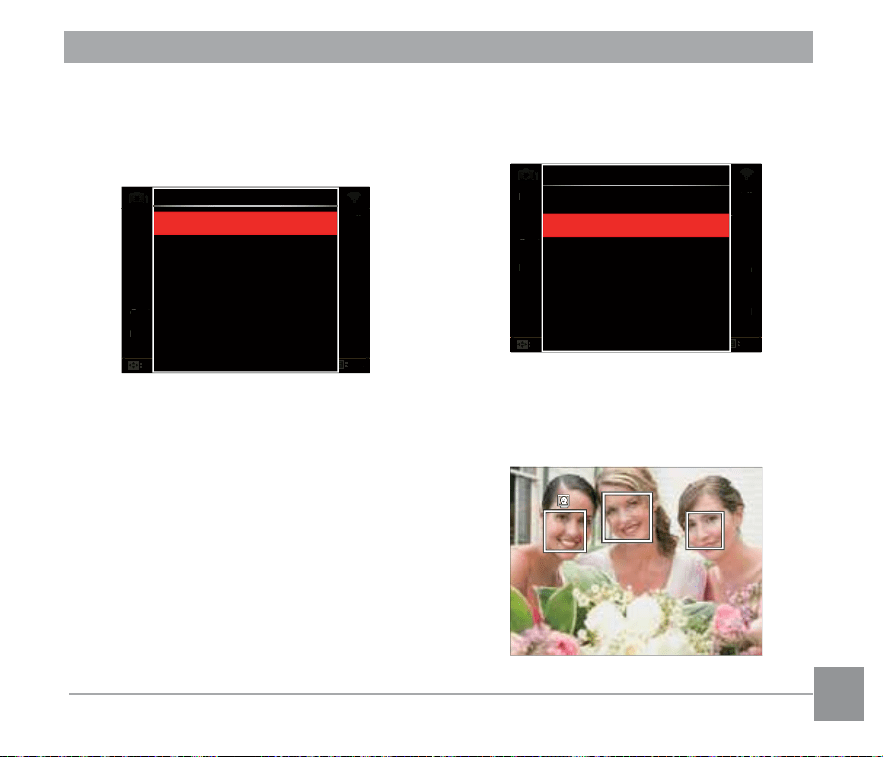

Face Detection ..........................89
Custom Settings .......................90
Function Ring (Smart) ...............91
Playback Menu ................................92
Menu
...................................92

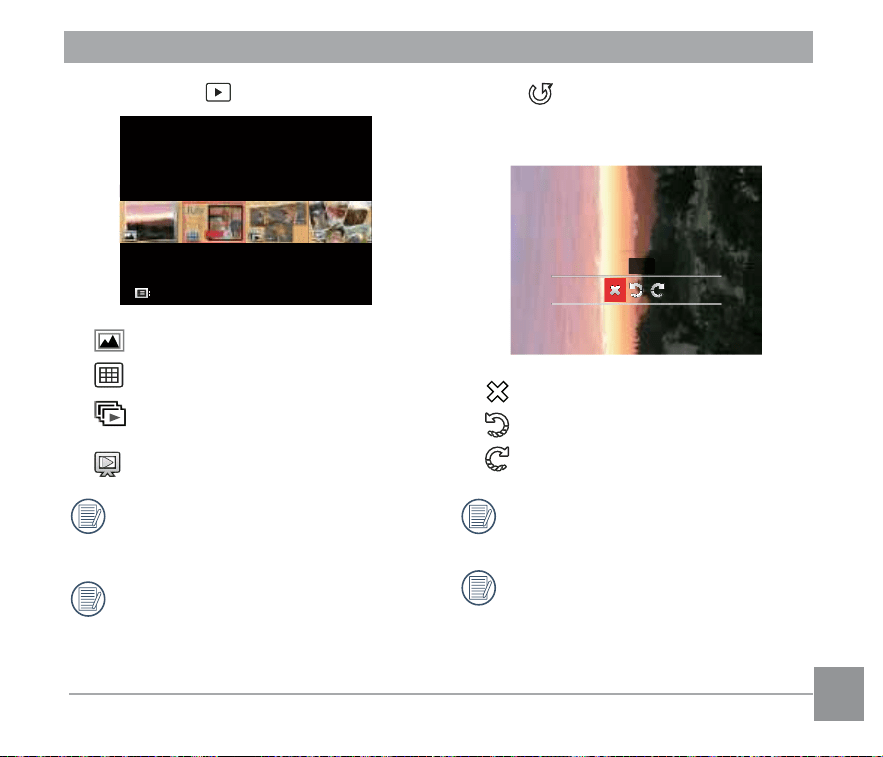

Display Mode
.......................93
Rotate
..................................93
Color
...................................94

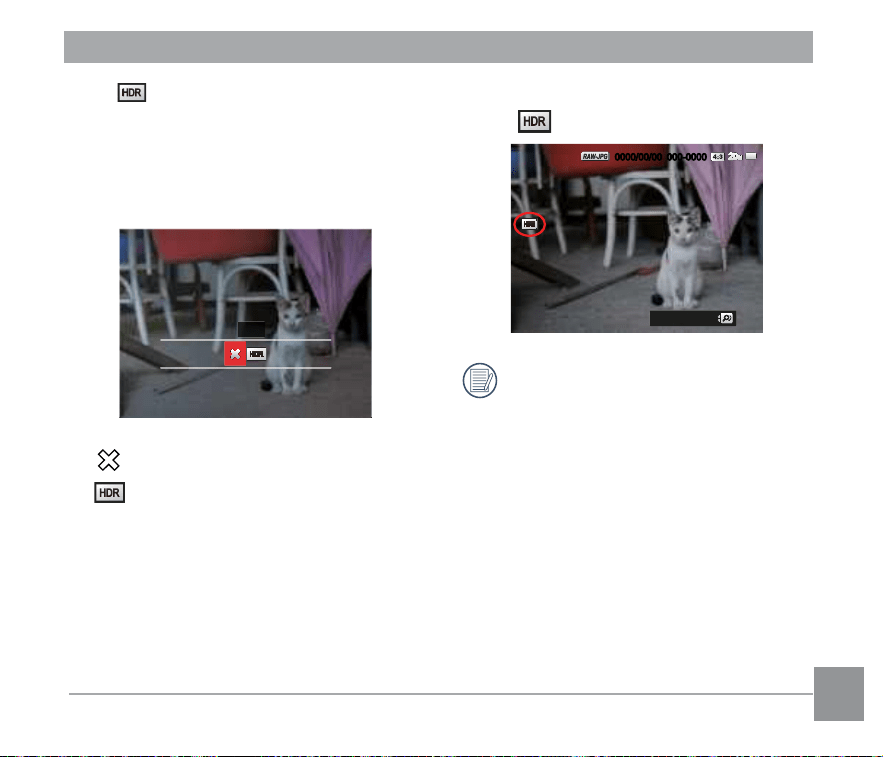

HDR
.....................................95
Touch-Up .............................96

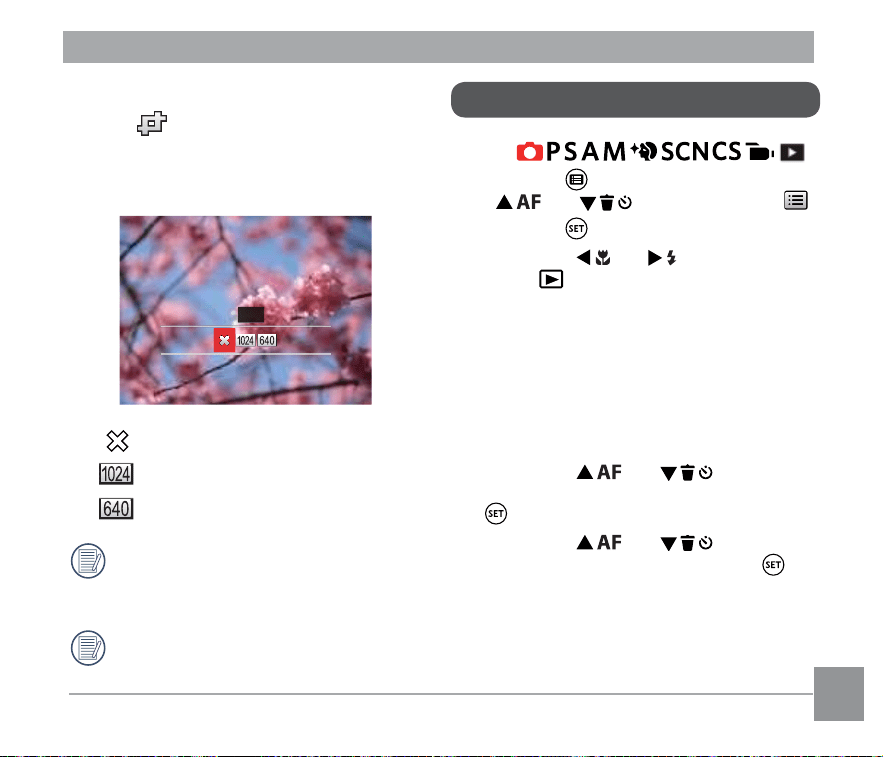

Resize
.................................97
Playback Settings ...........................97
Protect .......................................98
Delete ........................................98
DPOF (Digital Print Order
Format) ......................................99
Trim ............................................100
Play Slide Show .........................100
General Settings ..............................101
Sound Settings..........................102
Power Saver...............................102
Language ...................................103
World Time ................................103
13
Date & Time ...............................103
LCD Brightness ..........................103
File Settings .....................................104
Format .......................................105
Copy to Card .............................106
File Numbering ..........................106
Reset Settings ...........................107
Version ....................................... 107
CONNECTION SETTINGS .. 108

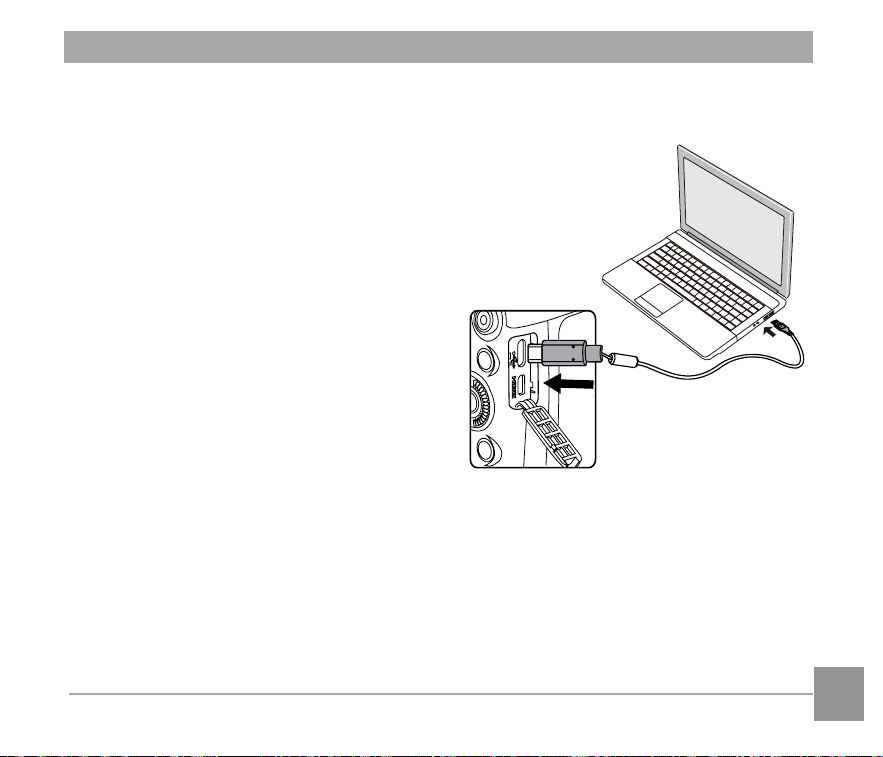

Connecting to a Computer .............108
Setting the USB Mode ..............108
Transferring Files to your
Computer ..................................109
Supported HDMI Connections .......110

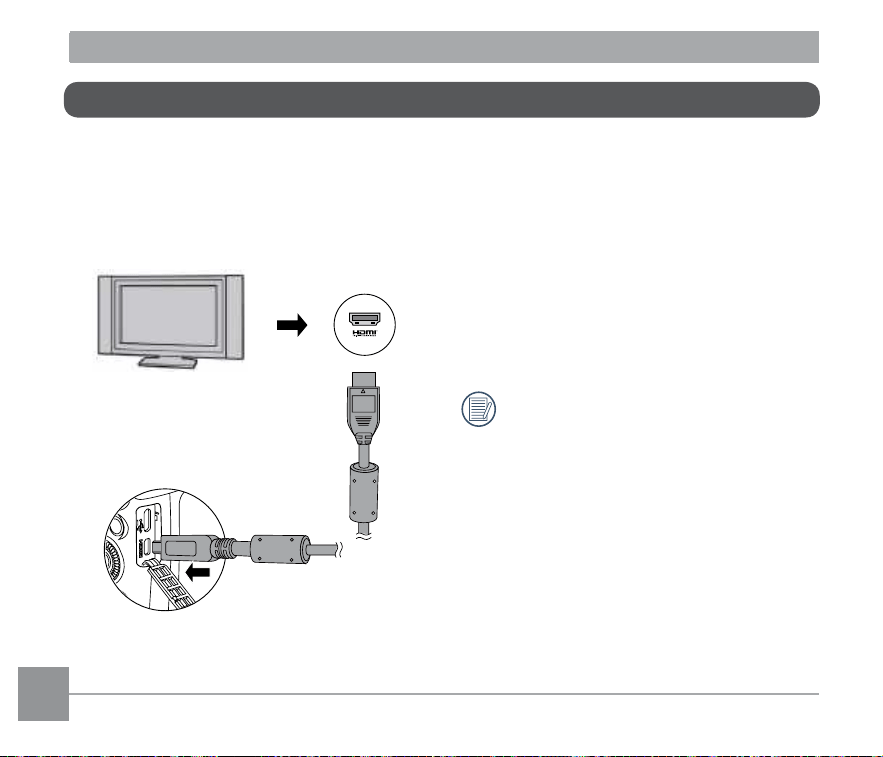

Connecting HDMI-Ready TV .....110
APPENDICES ........................111
Product Specifications ....................111
Prompts and Warning Messages ....115
Troubleshooting ..............................120
Memory Card Compatibility .....125
Trademarks ................................126
14
15
14
15
GETTING READY
Your camera box should contain the camera model you purchased along with the
following accessories. If anything is missing or appears to be damaged, please contact
your retailer first or our customer service center (Based on sales in different countries or
regions, the shape of the AC adapter will vary.)

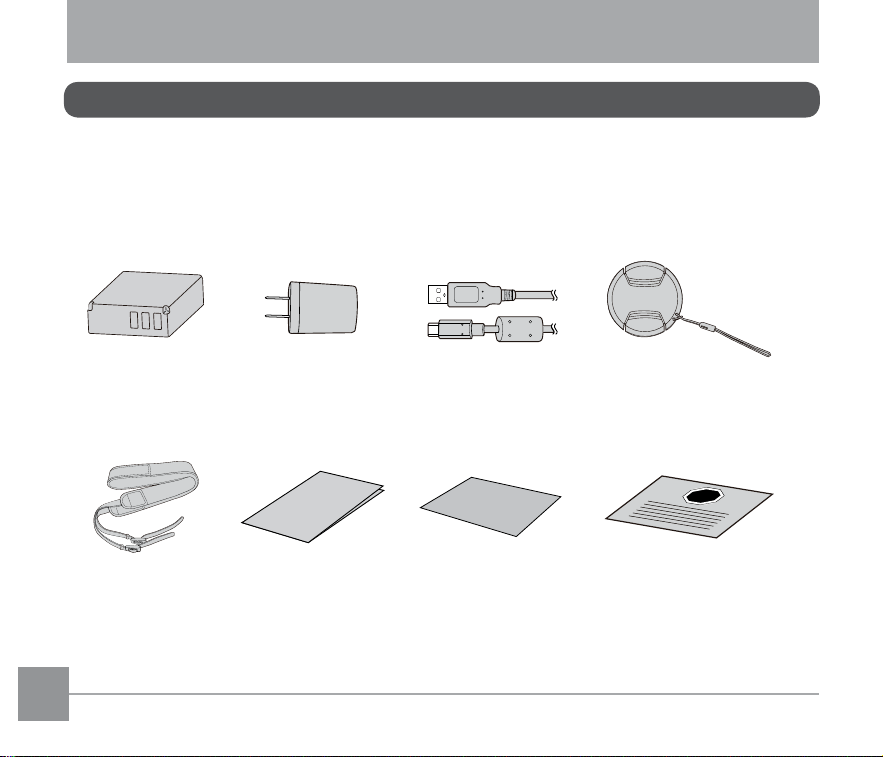

Accessories Included
Type-C USB Cable
Warranty Card
AC Adapter
Neck Strap
Rechargeable
Li-ion Battery
Warranty Card
Lens Cap With Strap
Quick Start Guide
Quick Start Guide
STOP
Service Card
14
15
14
15

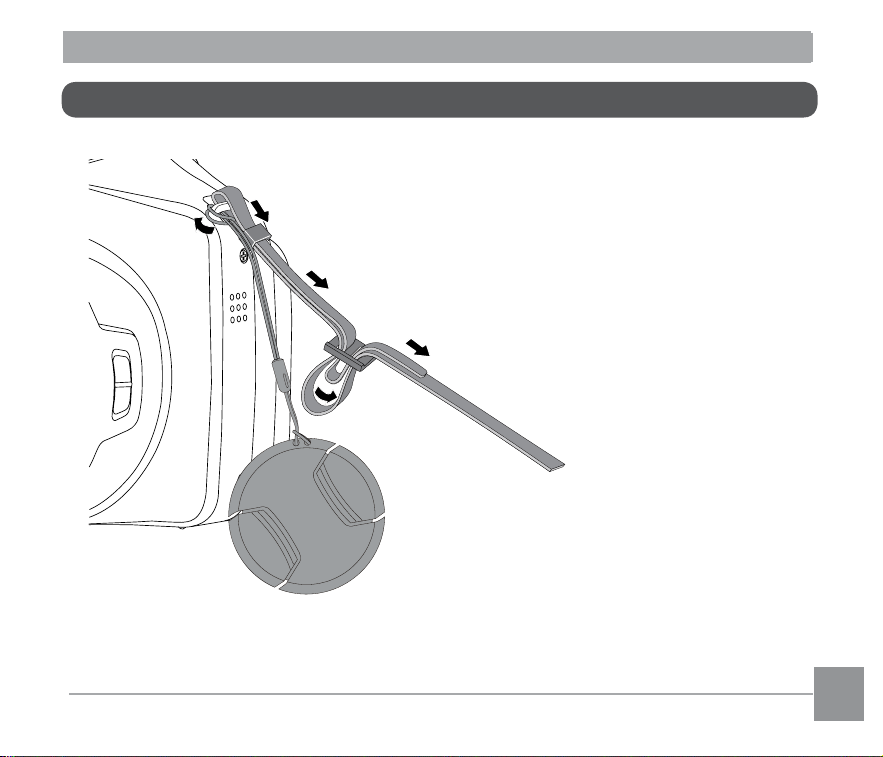

Installing Lens Cap and Neck Strap
16
17

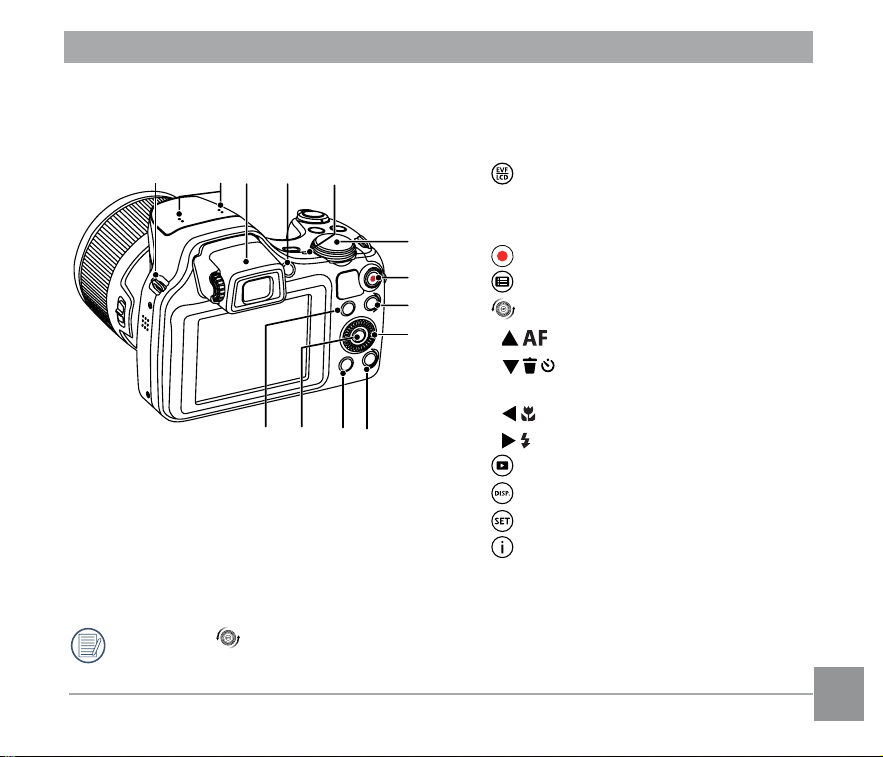

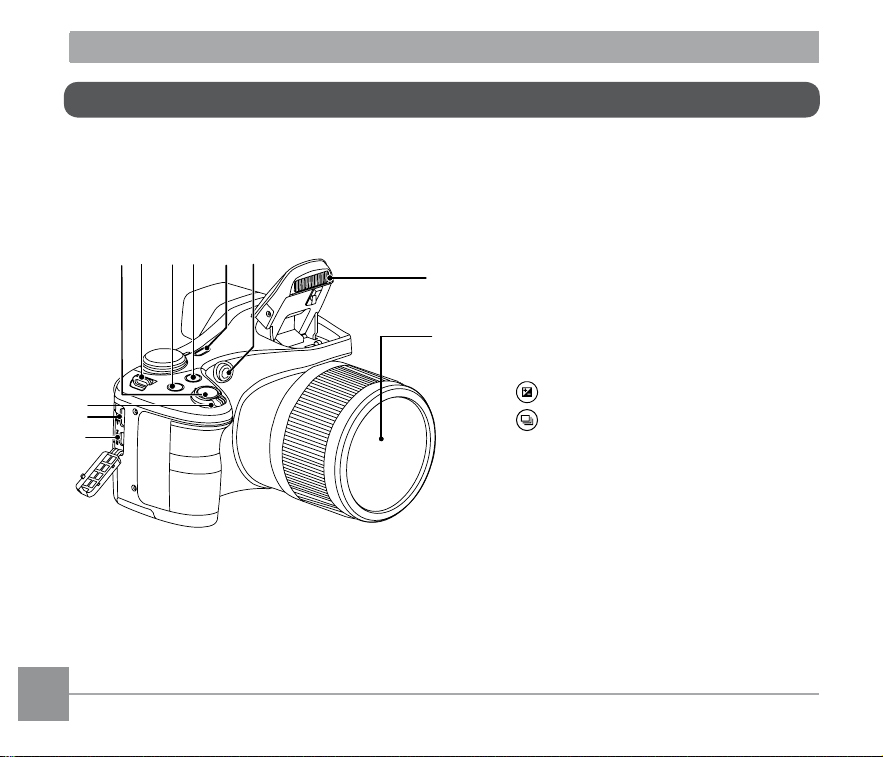

Part Names
11
10
1
2
3
987654
1. HDMI Port
2. USB-C Port
3. Zoom Lever
4. Shutter Button
5. Strap Eyelet
6.
Exposure Compensation Button
7.
Continuous Shot Button
8. Power Button
9. AF Assist Beam / Self-Timer Lamp
10. Flash Lamp
11. Lens
17
16
17
13
12
14
17
16
18
19
20212223
15
5
12. Microphone
13. Electronic View Finder (EVF)
14.
EVF / LCD Switch Button
15. Indicator Lamp
16. Mode Dial
17.
Quick Switch Video Record Button
18.
Menu Button
19.
Jog Dial
[
] AF Button / Up Button
[
] Delete Button / Self-Timer
Button / Down Button
[
] Macro Button / Left Button
[
] Flash Button / Right Button
20.
Playback Button
21.
Display Button
22.
SET Button
23.
“i” Button
Rotating the jog dial can be used to quickly select settings instead of using the up /
down / left / right buttons.
18
19
18

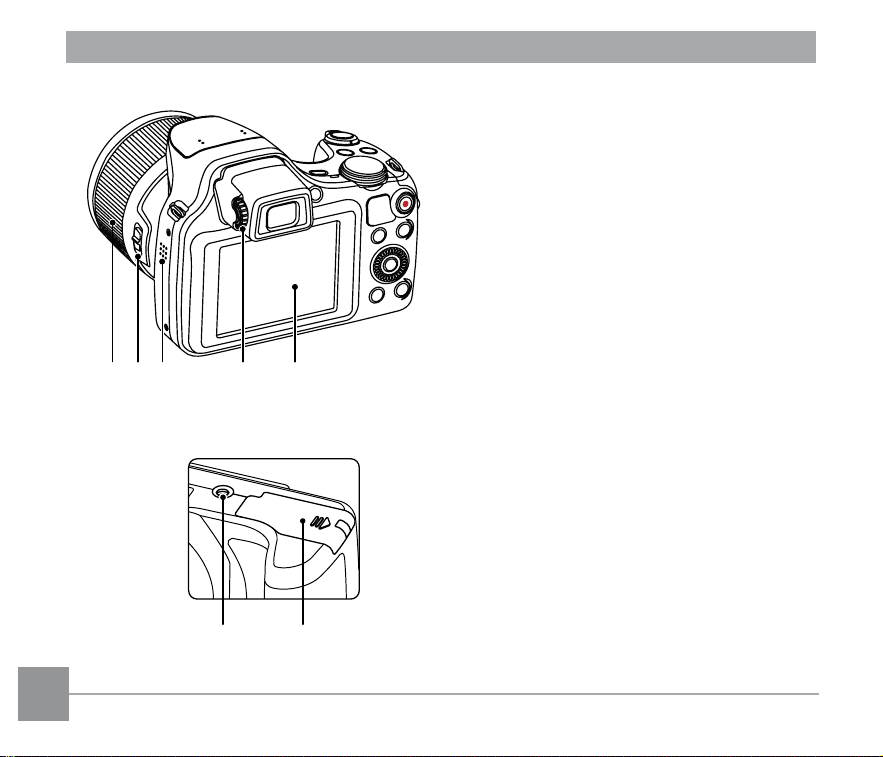

2425262728
24. LCD
25. Diopter Adjustment Knob
26. Speaker
27. Lens Function Ring Lever
28. Lens Function Ring
2930
29. Battery Cover
30. 1/4” Tripod Socket
18
19
2. Insert the battery into the battery
compartment corresponding to the
negative and positive directions as
illustrated in the picture. Push the
battery down until it locks in place.
1. Open the battery cover door.
2
1
Installing Battery and Memory Card
Battery Lock Knob
20
21
20
A standard SD memory card is not included in the camera packaging and needs to
be purchased separately. This camera takes a standard (SD / SDHC / SDXC) memory
card. We recommend using a name brand memory card that is Class 10 or higher
and has a capacity of 4GB to 1.5TB. The camera is not compatible with Micro SD,
Ultra, Ultra Plus, Extreme, XC, or adapters for any of these other memory cards.
To remove your memory card, open the battery cover door, gently press the
memory card to eject it and remove it carefully.

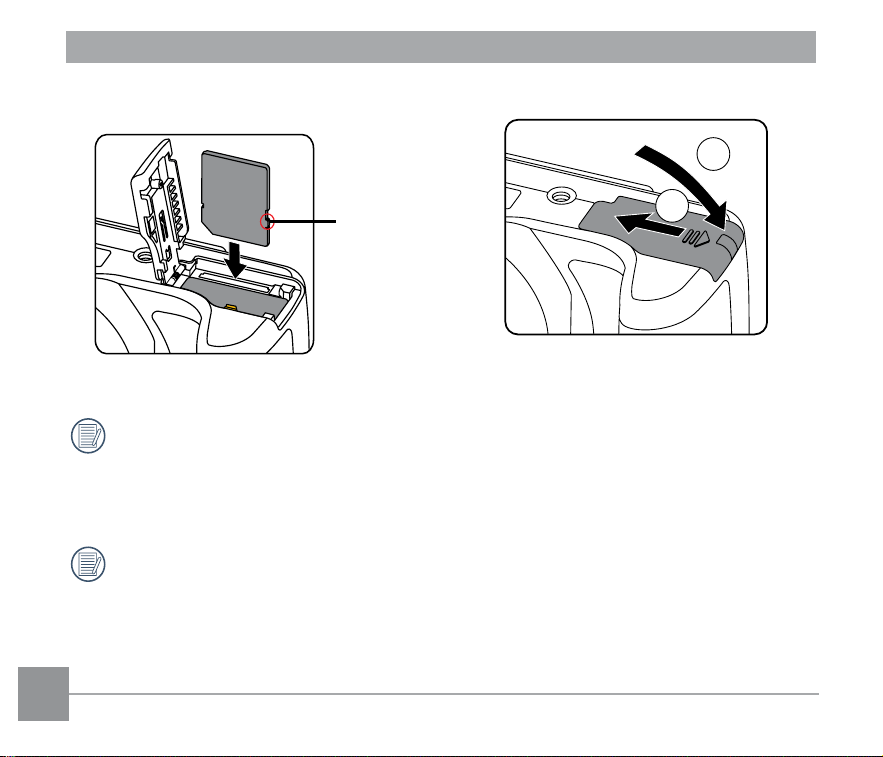

3. Insert the memory card into the memory
card slot as shown in the diagram:
4. Close the battery cover door.
1
2
Write Protection
Toggle Switch
20
21
Before you charge the battery, you should turn the camera off and insert the battery.
1. Connect the camera to the power charger using the supplied USB cable.
2. Insert the plug of the power charger into the power outlet to charge the battery.
1
2
After the battery is stored for long periods of time, use the supplied power charger
to charge the battery prior to use.
Charging the Battery
22
23
22
Indicator Lamp
Charging indicator:
Steady orange: Charging
Steady green: Charging complete
To maximize battery life, charge the battery for at least 4 hours the first time.
Please charge the battery indoors between 0°C and 40°C (32°F and 104°F).
22
23
Turning Camera On and Off
Press the Power button to turn the camera on. To turn the camera off, press the Power
button again.
Power Button
When the power is off, press and hold the playback button to power on and
enter Playback mode.
24
25
Set your Language, Date / Time
Set your Language, Date / Time
after the First Power-On
1. When you turn the camera on for
the first time, the language selection
screen appears.
2. Press the [
] / [ ] button to
select your desired language.
3. After you press the
button to
confirm your language selection, the
Date / Time settings screen will appear.
4. Press the [
] / [ ] button to
select the Date/Time to be adjusted:
Time is displayed in YYYY.MM.DD /
HH:MM.
5. Press the [
] / [ ] button to
adjust the value for the desired Date /
Time.
6. Press the
button to confirm the time
settings and the shooting screen will
appear.
Sound Settings
Power Saver Auto
Language
World Time Home
Date & Time
English
LCD Brightness
2017.04.29 00:00
ExitSet
Select
Soun
Po
w
e
Au
t
o
L
an
g
W
o
rl
d
Ho
m
e
Date
ng
lis
h
L
CD
B
0
0:0
0
Ex
it
S
e
Language
English
Français
Date & Time
:
..
08 18 00 00
H-M
2025
Exit
Select
Set
25
24
25
Sound Settings
Power Save
rA
uto
Language
World Time Home
Date & Time
English
LCD Brightness
2025.08.18 00:00
ExitSet
Select
Sound Settings
Power Saver Auto
Language
World Time Home
Date & Time
English
LCD Brightness
2017.04.29 00:00
ExitSet
Select
Soun
Po
w
e
Au
t
o
L
an
g
W
o
rl
d
Ho
m
e
Date
ng
lis
h
L
CD
B
0
0:0
0
Ex
it
S
e
Language
English
Français
Resetting your Language
After you set your language for the first
time, follow the instructions below to reset
your language.
1. Press the
button, press the
[ ] / [ ] button to select
and press the button to enter the
menu.
2. Press the [
] / [ ] button to
select .
3. Press the [
] / [ ] button
to select [Language] and press the
button to enter the menu.
4. Press the [
] / [ ] button to
select your desired language and press
the button to confirm.
5. Press the
button and the shooting
screen will appear.
26
27
26
Resetting Date / Time
After you set your Date / Time for the first
time, follow the instructions below to reset
date and time.
1. Press the
button, press the [ ] /
[ ] button to select , and press
the button to enter the menu.
2. Press the [
] / [ ] button to select
.
3. Press the [
] / [ ] button to
select [Date & Time] and press the
button to enter the menu.
4. Press the [
] / [ ] button to select
the Date / Time to be adjusted: Time is
displayed in YYYY.MM.DD / HH:MM.
5. Press the [
] / [ ] button to
press the value for your selected entry.
After you finish your settings, press the
button to confirm.
6. Press the
button and the shooting
screen will appear.
Sound Settings
Power Saver Auto
Language
World Time Home
Date & Time
English
LCD Brightness
2025.08.18 00:00
ExitSet
Select
Date & Time
:
..
08 18 00 00
H-M
2025
Exit
Select
Set
26
27
Overview of the Screen Icons in Shooting Mode
ISO00000
0/0000F00.0EV-0.0
00:00:00 0000
x3.0
1
2
3
4
5
6
8 9
10
12
14
15
16
11
7
17
13
1
Focus Mode
7
Zoom Display
(By turning the Zoom Lever)
13
No Memory Card
2
Quality
8
Number of Pictures in Static Mode
14
Beautifier
3
Face Detection
9
Ratio of Shooting Pixels
15
Flash Mode
4
Maximum Record Time
10
Image Size
16
OIS
5
Recording Speed (fps)
11
Battery Status
17
Self-Timer
6
Video Pixels
12
Color Effect
LCD Display
MODE OVERVIEW
28
ISO00000
0/0000F00.0EV-0.0
00:00:00
0000
x3.0
19202224 2123
31
30
29
28
27
26
25
18
18
Lens Function Ring
Custom Settings
23 Focus Frame 28 White Balance
24
Exposure
Compensation Value
29 AF Area
19
ISO Value 30 Expo Metering
20
Shutter Speed 25 Shooting Mode
31
Single / Continuous Shot /
HDR / WDR / AE Bracketing
21 Histogram 26 Custom Settings
22 Aperture Value 27 Macro Mode
29
Overview of the Screen Icons in Movie Mode
00:00:00
1
43 2
00/15
1
Battery Status
2
Number of Videos Captured
3
Continuous Recording Time
4
Movie Mode
30
31
30
Overview of the Screen Icons in Playback Mode
0000
000-0000
Thumbnail3x3
21 3 5 64
7
15
11
10
9
8
x2
12
13
14
2025/08/18
2025/08/18
1
Quality
9
Zoom Magnification Area
2
Capture Date
10
Image Zoom Ratio
3
File Name
11
Index Prompt
4
Shooting Pixel Ratio
12
Touch-Up
5
Image Size
13
HDR
6
Battery Status
14
DPOF File Icon
7
Continuous Shot Group Playback
15
File Protection Icon
8
Image Area
30
31

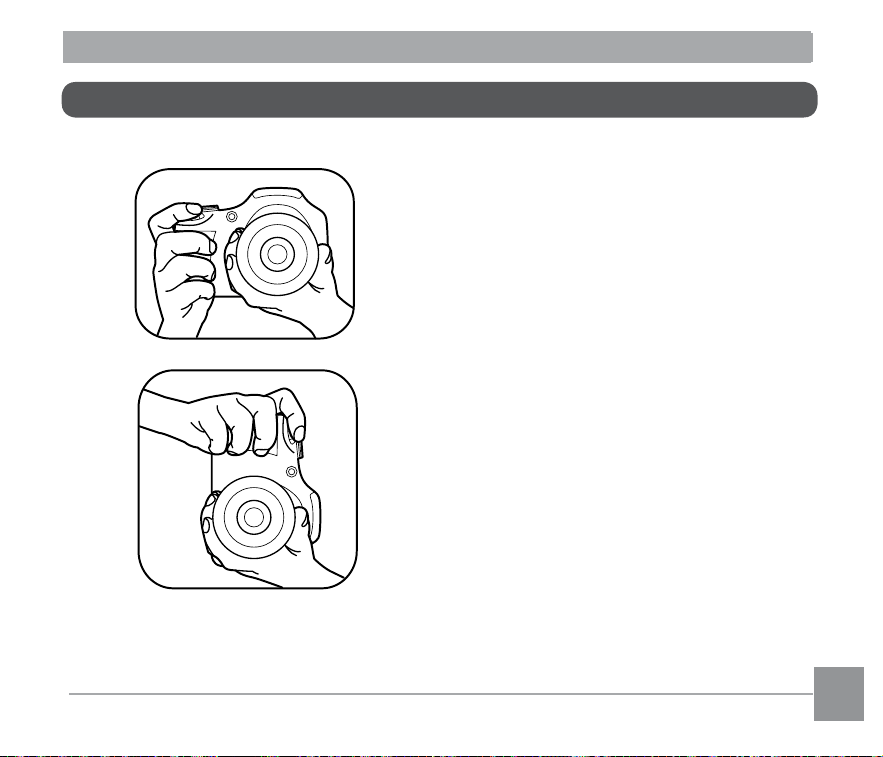

How to Take Photos
1. Hold the camera with both hands,
being careful to not block the flash and
lens with fingers.
2. Point the lens toward the subject you
want to take a picture of, then frame it
with the LCD.
3. Use the Zoom button to select Tele or
Wide positions to zoom in or out on
your subject.
4. Press the shutter button halfway down
to focus on the subject. When the
focus frame turns green, press the
shutter button down completely to
take the picture.
32
33
Using the Mode Dial
This camera provides a convenient Mode dial that allows you to manually switch between
different modes with ease. The available modes are listed below:
Mode Name Icon Description
Auto Mode
In this mode, the optimal conditions for taking pictures will
be set based on the subject and environment. It is the most
commonly used mode for taking pictures.
Program AE
Under different scenes, the user can switch the ISO and EV
value according to personal preference, the camera can
automatically set the shutter speed and aperture value.
Shutter Priority
Setting allows you to adjust the shutter speed / EV value and
ISO value. The camera automatically sets the aperture value
based on the shutter speed and ISO value to get the most
appropriate exposure value.
Aperture
Priority
In this mode, you can adjust the aperture size, EV and ISO values.
The large aperture is to highlight the object focused through
blurring the background, while the small aperture is for clear
focus on both the background and the object.
33
32
33
Manual Mode
This mode is for manually setting the aperture, shutter speed
and ISO value.
Face Beautifier
This mode automatically enhances facial features with skin
softening touches and eye brightening capabilities.
Wireless® Mode
Enable image transmission and remote control by connecting
smart device with Wireless®.
Scene Mode
Choose from 14 different pre-set scene types and effects for
your photos.
Movie Mode
Record videos.

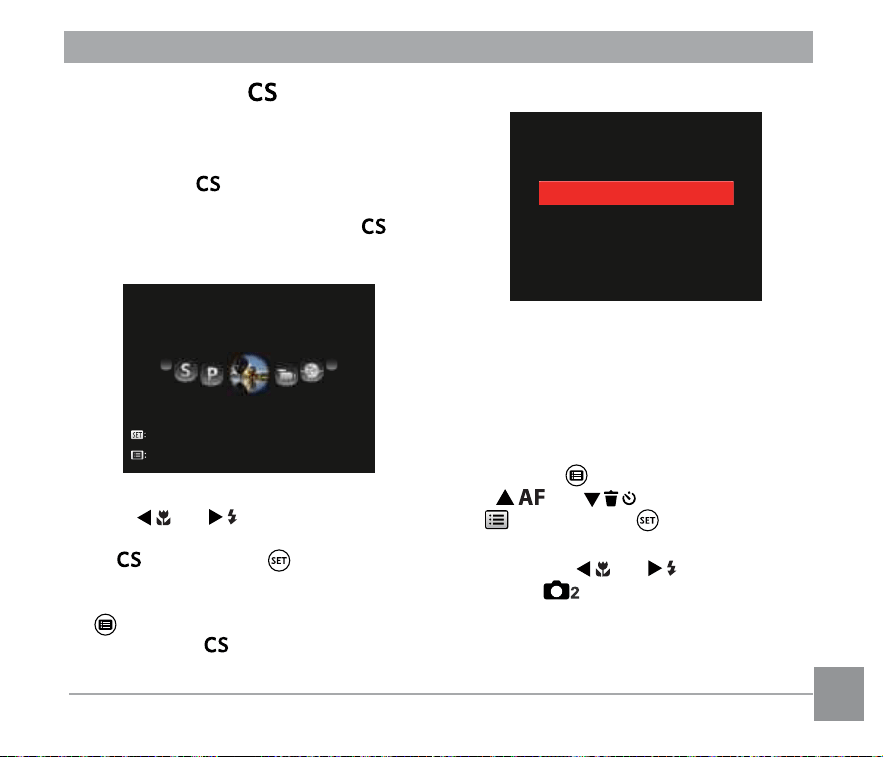

Custom Settings
The user can store frequently used shooting modes and
parameters. Switching to this mode enables quick adjustment.
34
Please refer to the table below if any nonadjustable options in mode:
(O: Available X: Not available)
Aperture Shutter EV ISO
X X O O
X O O O
O X O O
O O X O
1. Turn the mode dial to select the mode you want.
2. Press the
button to configure settings.
3. Press the [
] / [ ] button to select an adjustment setting.
4. Press the [
] / [ ] button to adjust the parameters.
5. Press the
button to confirm the settings and enter the shooting screen.
Please note that even if an option is not able to be adjusted in a particular mode, its
value will still be displayed on the shooting screen.
Mode
Options
35

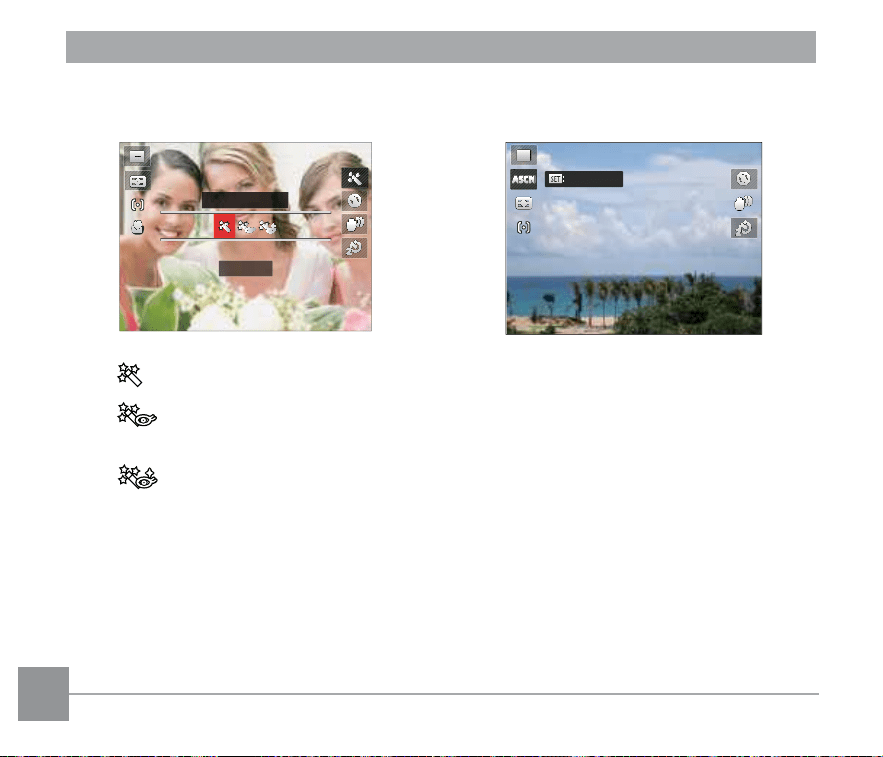

Face Beautifier
1. Turn the Mode dial to select Face Beautifier Mode ( ).
2. Press the
button and press the [ ] / [ ] button to select .
3. Press the [
] / [ ] button or turn the jog dial to select an option and press
the button to confirm and enter the shooting screen.
Beautifier:Eect 1
Skin Soften
• Effect 1: Skin Soften
•
Effect 2: Skin Soften + Eye Brightening
• Effect 3: Skin Soften + Eye Brightening + Eye Enlargement
36
Wireless® Mode
Enable image transmission and remote control by connecting smart device with
Wireless® communication.
Before utilizing Wireless® Mode, please review the following:
Your smart device operating system version needs to be iOS 16 or higher, or ANDROID
12.0 or higher. If not, please upgrade your smart device before using the APP.
Please do not use in places that have a high intensity magnetic fields, electrostatic
and electric wave interference (for example near a microwave oven), which may cause
failure in receiving signals.
To maintain a connection, please keep the camera within 10 meters (32.8 feet) without
signal shielding interference.
Please do not use Wireless® connection functionality on a plane.
The camera and the smart device can only be connected one to one.
Downloading the APP package:
Download a dedicated installation package from the application store (APP name:
PIXPRO Remote Viewer
) and then install it.
• ANDROID™ devices : Search and download the APP “PIXPRO Remote Viewer”
in Google play, and install it following the instructions on the
interface.
• iOS™ devices : Search and download the APP “PIXPRO Remote Viewer”
in APP
store, and install it following the instructions on the interface.
37
Rotate the mode dial to and then enter
the Wireless® selection interface.
WiFi Mode
Make image transmission and remote
control by connecting hand-held device
Next
* To ensure a stable connection, please
connect to the new camera in
Wireless settings.
* Ensure that the password is correct.
• Next: Enter the SSID interface.
Rotate the mode dial to disconnect.
Settings of Camera:
Press the [
] / [ ] button to
select options to be adjusted, and press
the button to enter the option setting
interface.
Wireless mode
Cancel
Change Password
Setting pre-connected device for the
following serial number:
SSID: PIXPRO AZ653_XXXX
WPA2-PSK: XXXXXXXX
• Change Password: Enter the WPA2
PSK password refresh
interface.
Yes: Create a new WPA2 PSK
password.
No: Back to previous page.
• Cancel: Back to previous page.
38
Every AZ653 camera is shipped
with a default factory Wireless®
password that is randomized and
unique to that camera and will not
change unless you wish to reset
the password with a new randomly
generated password. If you wish
to change the Wireless® password
in your AZ653 from the assigned,
unique factory password, you can
do so by selecting and using the
Change Password setting. If “Yes” is
selected, a new random password
will be generated and saved in the
camera until changed or if you use
the “Reset” function. If you reset
your AZ653 to the factory settings,
then the initial, randomly factory
assigned and unique Wireless®
password will be restored to your
camera. (Please refer to Reset
instructions on page 107).
Settings of Smart Device:
1. Enable the Wireless® feature of your
smart device and search surrounding
devices.
2. Select the name of camera SSID to be
connected and then input the eight-
digit number password after WPA2-PSK
on the camera.
3. Click the icon of the PIXPRO Remote
Viewer APP
to enable the APP.
Set up completion:
Once the APP is connected to the camera,
functional operation can be enabled on the
connected smart device.
39
Display of Wireless® Connection Status:
The Wireless® has successfully connected
but APP is not enabled.
Connected with device.
MAC address: xx:xx:xx
Disconnect
The Wireless® has successfully connected
and APP is enabled.
Connected with APP
XXXXX
Disconnect
40
To disconnect from Wireless®:
Wireless Mode
No
Yes
Disconnect from device?
• No: Keep Wireless® connected and
back to previous page.
• Yes: Disconnect and back to
Wireless® connection screen.
Disconnected from smart device
Wireless®:
Disconnected, please check
Wireless device and try again.
Back
• Back: Back to the SSID interface.
41
Setting
The name of this camera can be changed
under Wireless® settings.
1. In other modes, press the
button,
press the [ ] / [ ] button to
select .
2. Press the
button to enter the menu.
3. Press the [
] / [ ] button to
select
.
4. Press the [
] / [ ] button to
select the item to be set and press the
button to enter the menu.
MAC address
BC:CD:EF:01:02:03
PIXPRO AZ653
DSC device
Exit
Select
Set
5. Press the button to confirm settings
and then skip the menu.
DSC Device
The default name of DSC device is
[PIXPRO AZ653]. Change the name of
DSC device through typing.
Name between 1-18 Letters
PIXPRO AZ653
A/a
Cancel
DSC device
Save
#!?
Meanings of Interface Icons:
Icon Description
Delete the last letter
$D
Switch the display of letters
in capital and lowercase
Move the Cursor
#!?
Switch the symbol input
Input Space
42
MAC address
Check the wireless MAC address of this camera.
App Operating Instructions
Refer to the "PIXPRO Remote Viewer User Manual" located on the web:
Americas / Europe
http://kodakpixpro.com/Americas/ support/downloads.php
43
Scene Mode
You can select an appropriate mode from the 14 scene modes according to the type of
environment you are shooting in. The camera then automatically configures the most
appropriate settings for the best possible photos.
1. Rotate the Mode dial to
, then the LCD will display as below:
Auto Scence
The camera automatically detects
the most suitable shooting scene.
2. Press the [ ] / [ ] button to select a scene, and press the button to confirm.
3. If any need of changing the scene, please press the
button and then the button
and finally the [ ] / [ ] button to reselect the scene.
44
Scene Description
Auto Scene The camera automatically detects the type of scene.
Panorama Mode For shooting up to 360-degrees of landscape.
Handheld Night Reduce blur when shooting low light / illuminated scenes.
Multi Exposure Take several shots and overlap as a single image.
Cat / Dog
The camera automatically takes a picture when a dog or cat
face is detected.
Snow For subjects in the snow. Reduce underexposure.
Party
For subjects at night without using a tripod.
Capture sharp shots without blur.
Sport
For fast-moving subjects. Capture sharp action shots without
blur.
Night Portrait For portraits against night time scenery.
Portrait Most suitable for capturing people, focusing on their face.
Children For kids and pets. Flash is disabled for eye protection.
Landscape Speed adjusted for brilliant images.
Sunset For sunsets. Capture subjects in strong sunlight.
Fireworks
For fireworks at night. Slow shutter speed adjusted for brilliant
images. The use of a tripod is recommended with this setting.
45
Auto Scene (ASCN)
In “ASCN” scene mode, the camera can intelligently detect different environments and
automatically select the best scene and photo settings for you.
“ASCN” can intelligently detect the following scenes:
Mode Name Description
Auto
The camera automatically adjusts the exposure and focus to
ensure the best possible pictures.
Landscape
For landscapes, automatically adjusts the exposure to match the
background.
Backlit Portrait
When the sun or any other light source is behind you,
automatically adjusts the foreground exposure to produce the
best pictures possible.
Macro
The Macro setting is ideal for shooting small objects or close-up
photos.
Night
Landscape
For night scenes, automatically increases the ISO value to
compensate for low light.
Portrait
Most suitable for capturing people with focus on their faces.
Night Portrait
When you take portraits at night or in low light conditions,
automatically adjusts the exposure for people and night scenes.
46

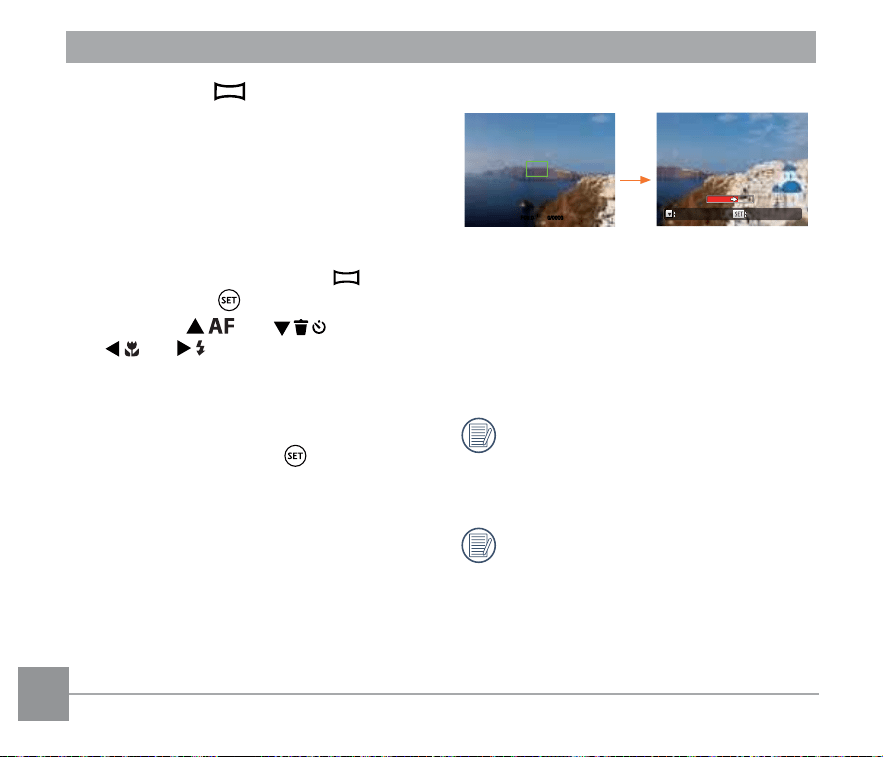

Panorama Mode
This feature allows you to capture a
panoramic view that will have significantly
more content than a single photograph.
Follow the arrow while keeping the
camera steady to seamlessly shoot an
ultra-wide scene of up to 360 degrees.
Follow the steps below:
1. Select the Panorama Mode (
) and
then press the button to confirm.
2. Press the [
] / [ ] /
[ ] / [ ] button to select a
shooting direction. (Should you not
select a direction, the default shooting
direction is “right”.) 2 seconds later, the
camera will be ready to take pictures.
You can also press the button or
press the shutter button halfway down
to be ready to take pictures.
3. Compose your shot on the LCD and
half press the shutter button to focus
on the subject. After focusing, fully
press the shutter button down to
take the first picture. At this time, the
process dialog of panorama mode
stitching appears on the screen.
0/0000F00.0
SaveCancel
4. Pan the camera according to the set
direction. When the range of motion
does not exceed the range that the
camera can detect, the progress
bar behind the arrow partially turns
red. When it completely turns red,
panorama mode shooting is finished.

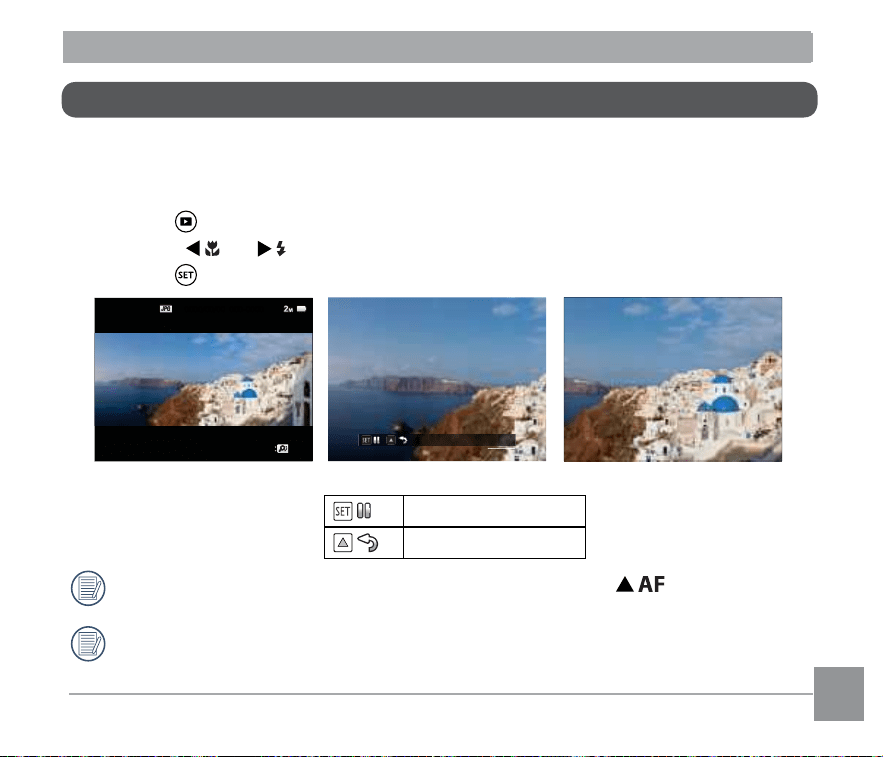

Panoramic image can be played
back by the method of flash playing.
Please see the animation panoramic
playback on page 75.
In Panorama Mode, the Flash, Self-
Timer, Macro Modes and Exposure
Compensation are not available.
Focus adjustment is also not available
at this time.
47
During panorama mode shooting,
press the button to interrupt
shooting and save the current
pictures taken. Press the [ ]
button to cancel shooting and not to
save the previously taken pictures.
During panorama mode shooting,
when the moving direction of
the camera is wrong or the angle
deviates from the internal settings,
the LCD shows a warning message
[Improper alignment. Please try
again.] and the current pictures
taken are saved.
Multi Exposure
Suitable for shooting moving objects (as
many as 6) in the same background.
Keep camera steady before
shooting. Press and hold the shutter
button to take 6 photos continuously
when it will stop automatically. To
stop shooting, release the shutter
button in the midway.
Objects shall be moved only from
left to the right in order to be
recorded. Objects moving from
other directions would not be
recorded.
Shooting effect will be influenced
if object is moving too fast or too
close.
Cat / Dog
1. It defaults to enabling the auto
shoot after entering the Cat / Dog
mode. When a face of cat or dog is
detected, the camera will take photos
automatically. Meanwhile, you also
may press down the shutter button to
shoot.
2. Press the [ ] button to enter
Auto Shoot menu. If this function is
disabled, you may only take photos
manually.
At most, 10 cat /dog faces can be
detected at one time.
48
Functions that can be adjusted in each scene are as below:
Scene Adjustable Functions
Auto Scene Flash*
1
/ Self-Timer
Panorama Mode None
Handheld Night Expo Metering / Self-Timer*
2
Multi Exposure Expo Metering
Cat/Dog Auto Shooting / Continuous Shot / Expo Metering / Macro
Snow Continuous Shot / Expo Metering / Flash/Self-Timer
Party Continuous Shot / HDR/Expo Metering / Flash / Self-Timer / Macro
Sport Continuous Shot / Expo Metering
Night Portrait HDR / Expo Metering / Self-Timer
Portrait Continuous Shot / HDR / Expo Metering / Flash / Self-Timer / Macro
Children Continuous Shot / Expo Metering
Landscape Expo Metering / Self-Timer*
2
Sunset HDR / WDR / Expo Metering / Flash / Self-Timer*
2
Fireworks Continuous Shot / Expo Metering / Self-Timer*
2
*
1
Means the flash as an option of Night Landscape mode in Auto Scene is non-adjustable.
*
2
Means Self-Timer smile is not included in the Self-Timer.
For continuous shot, there are only [Continuous Shot] and [Time-Lapse] for selection.
49
Custom Settings ( )
The user can store frequently used
shooting modes; and parameters and
switch to this mode for a quick adjustment.
Settings under mode (unset state or
state after reset):
1. Turn the Mode dial to select the
mode, and enter the setup screen, as
shown in the figure below:
Select one capture mode to define CS .
Auto Mode
Confirm
Exit
2. As shown in the figure above, press
the [ ] / [ ] button to select a
capture mode that you want to define
as
, and press the button to enter
the shooting screen.
3. As shown in the figure, press the
button, and choose whether to
continue the mode setting or rotate
the Mode dial to skip.
Or
Go to setting CS mode
Rotate the mode dial to skip.
Yes
For setting under other modes (use this
method to select a different custom
setting):
1. Select any mode to be stored.
2. Set your desired parameters in the
current mode.
3. Press the
button, press the
[ ] / [ ] button to select
, and press the button to enter
the menu.
4. Press the [
] / [ ] button to
select
.
50
51
50
7. Turn the mode dial to switch to the
custom settings ( ).
8. The photo settings you stored the last
time are used.
When the
mode is used for
the first time, there is no preset
parameter stored in the mode.
If you want to remove the parameter
setting of [Custom Settings], please
see the reset function on page 107
to operate.
5. Press the [ ] button select
[Custom Settings] and press the
button to enter the menu.
O
Face Detection
O
Custom Settings
Date Imprint
Quick Review
1 sec
Cont. AF O
Exit
Set
Select
Normal
Function Ring (Smart)
6. Select [Yes] to save or [No] to cancel.
Set camera to
Yes
Custom Settings
No
user custom mode
50
51
3. When the screen display is not clear,
rotate the dioptric adjustment knob to
adjust the screen sharpness.
4. Press the
button again or restart
the camera to switch back to the LCD
display.
The bending of light that takes
place in a lens is referred to as
refraction. The strength of refraction
is measured in diopters.
Diopter adjustment is aimed to
help nearsighted (-400 or less) or
farsighted (+200) individuals see
clearly through the viewfinder (EVF).
BASIC OPERATION
Using EVF (Electronic View Finder)
EVF functions as the LCD, which can be
used to observe the scene and objects
and for playback, preview and menu
operations.
EVF has the following advantages:
It will not be affected by ambient light
and may avoid poor composition due to
light reflection on the LCD.
Follow the steps below:
1. Turn the camera on and press the
button to switch to the EVF display. At
this time, the LCD will become black.
2. View the scenes and objects through
the EVF.
52
53
Your camera is equipped with two types
of zoom functions: Optical Zoom and
Digital Zoom. Toggle the Zoom Lever
of the camera to zoom in or out on the
subject while taking pictures.
Using the Zoom Function
Zoom Lever
ISO00000
0/0000F00.0EV-0.0
x3.0
Zoom
Indicator
When the Optical Zoom reaches the
threshold as Digital Zoom, release
and turn the Zoom lever to T to switch
between the Optical Zoom and Digital
Zoom.
52
53
Mode:
Press the button to switch among 4
screens.
Function Message Display
ISO00000
0/0000F00.0EV-0.0
00:00:00 0000
x3.0
Display with Grid and Histogram
ISO00000
0/0000F00.0EV-0.0
00:00:00 0000
x3.0
No Message Display
ISO00000
0/0000F00.0EV-0.0
Message Display
ISO00000
0/0000F00.0EV-0.0
00:00:00 0000
Display Setting
54
55
54
Function Message Display
000-00000000/00/00
Thumbnail3x3
Detailed Message Display
000mm
ISO00000
0/0000F00.0
EV-0.0
000-0000
0000/00/00
No Message Display
Mode:
Press the
button to display the playback screen, press the button to switch among
3 screens.
54
55
AF Area
In different photo shooting modes, you
can select different focus methods.
(Adjustable in mode)
1. Press the [
] button to display
the settings screen.
Center-AF
2. Press the [ ] / [ ] button to
select the following 4 modes:
Center-AF
The focus frame appears on the
center of the LCD to focus on the
subject.
Multi-AF
The camera automatically
focuses the subject in a wide
area to find the focus point.
Spot Focus
Choose the single-point focus
position within the scope of
focus.
Object Tracking
Smart tracking of the object
in motion under the focusing
shooting.
3. Press the
button to confirm the
settings and enter the shooting screen.
After enabling spot focus, turn the
jog dial to adjust the position of
focus point in the screen.
Object Tracking cannot be enabled
until the camera is focused. For
tracking the focus, you need to keep
the shutter semi-pressed.
56
57
Macro Mode
The Macro Setting is ideal for shooting small objects or close-up photos. This mode
allows you to focus on subjects very close to the camera.
1. Press the [
] button to enter the Macro Menu.
Macro O
2. Press the [ ] / [ ] button to select the following 2 modes:
•
Macro On
Select this option to focus on the object closer to the lens (At the W side, the
shooting distance should be more than 1 cm).
•
Macro Off
Select this option to disable Macro.
3. Press the
button to confirm the settings and enter the shooting screen.
56
57
Self-Timer Mode
Using this function to take pictures at
pre-set intervals. The camera can be set
to shoot after 2 seconds, 10 seconds after
pressing the shutter or when a smile is
detected.
1. Press the [
] button to enter the
Self-Timer menu.
Self-timer O
2. Press the [ ] / [ ] button to
select the following 4 modes:
•
Self-Timer 2 sec
A single picture is shot 2
seconds after the Shutter
button is pressed.
•
Self-Timer 10 sec
A single picture is shot 10
seconds after the shutter
button is pressed.
• Self-Timer Smile
Press the shutter button
and a picture will be taken
immediately after a smile is
detected.
• Self-Timer Off
Disables the Self-Timer.
3. Press the
button to confirm the
settings and enter the shooting screen.
When enabling the Self-Timer,
pressing the shutter or the [ ]
button can disable the Self-Timer
and return to the shooting screen
while keeping the Self-Timer setting.
58
59
Flash Mode
The flash provides supplemental light for
the scene. The flash is usually used when
shooting against the light to highlight the
object; it is also suitable for metering and
shooting in darker scenes to improve the
exposure.
1. Press the [
] button to enter the
flash settings menu.
Flash Auto
2. Press the [ ] / [ ] button to
select the following 6 modes:
•
Force Off
Flash is turned off.
When enabling the Smile Detection,
pressing the shutter or the
button
can disable the Self-Timer and return
to the shooting screen while keeping
the Self-Timer smile setting.
Self-Timer settings will remain after
completion of shooting with the
Self-Timer. They can be canceled by
switching modes or by turning the
camera off and then on again.
59
58
59
• Fill Flash
The flash goes off when a picture is taken, supplementing the existing light in
a scene and helping to eliminate shadows.
•
Flash Auto
Camera flash goes off automatically based on existing light conditions.
•
Red-Eye Reduction
The camera emits a brief pre-flash before the picture is taken to reduce red-
eye effects.
•
Slow Sync.
This allows you to take pictures of people at night that clearly show both your
subjects and the night time backdrop. The use of a tripod is recommended
when shooting with this setting.
•
Slow Sync.+Red-Eye Reduction
Use this mode for slow synchrony shots with red-eye reduction.
3. Press the
button to confirm the settings and enter the shooting screen.
After pressing the shutter button half way to achieve focus lock, the flash will
automatically pop up if needed.
60
61
The white balance function allows
adjustment of the color temperature for
different light sources. (Adjustable in
Mode)
Follow the steps below to set white
balance of the camera:
1. Press the
button to enter white
balance menu.
AWB
2. Press the [ ] / [ ] button to
select the following 9 modes:
• AWB
•
Daylight
•
Cloudy
•
Fluorescent
•
Fluorescent H
•
Incandescent
•
Manual WB
Set WB according to the
current light source, press the
button to set.
•
Color Temp. (1900K~10000K)
Press the button to enter
and turn the jog dial to
adjust the color temperature
value.
•
WB Bracketing
Press the shutter button once
to take three photos with
different WB settings.
3. Press the
button to confirm the
settings and enter the shooting screen.
WB (White Balance) Mode
61
60
61
WB Bracketing:
Press the
button to enter options and then press the [ ] / [ ] / [ ] /
[ ] button to adjust the shift and turn the jog dial to adjust the BKT value
(0, 1 and 2).
Rotate clockwise to adjust X axis (B-A). BKT value
Rotate counterclockwise to adjust Y axis (G-M). BKT value
Press the
button to confirm your settings.
WB Bracketing : BG±1
Shift
BKT
B9
1
2G
Confirm
WB bracketing is for setting the bracketing range. Shift to both sides for 3 spaces at
most. If at the page border, shift only to the other side and 2 photos can be taken. If
no shift, only one photo can be taken.
62
63
Functions that can be enabled under each
mode may be different.
Mode:
For setting the single, continuous shot,
Time-Lapse, HDR, WDR or AE bracketing
functions.
Please follow the following steps to set:
1. Press the
button to enter the
continuous shot menu.
Single
2. Press the [ ] / [ ] button to
select the following 8 modes:
•
Single
Capture a single shot only.
•
Continuous Shot
For taking more than one
picture continuously.
•
Cont.Shot-Fast (2M)
For continuous shot with 2M
pixels.
•
Cont.Shot-High Speed (VGA)
For continuous shot with VGA
pixel.
•
Time-Lapse
Take pictures based on the
preset interval (30sec/ 1min/
5min/ 10min).Press the
button to select the interval
time.
•
HDR (-1EV, 0EV, +1EV)
This setting is to control the
high dynamic image range in
taking still pictures, with vivid
effect in highlight and that
the effect in dark parts can
identify the outline and depth
of the object. (Use of tripod is
recommended)
Continuous Shot Mode
63
62
63

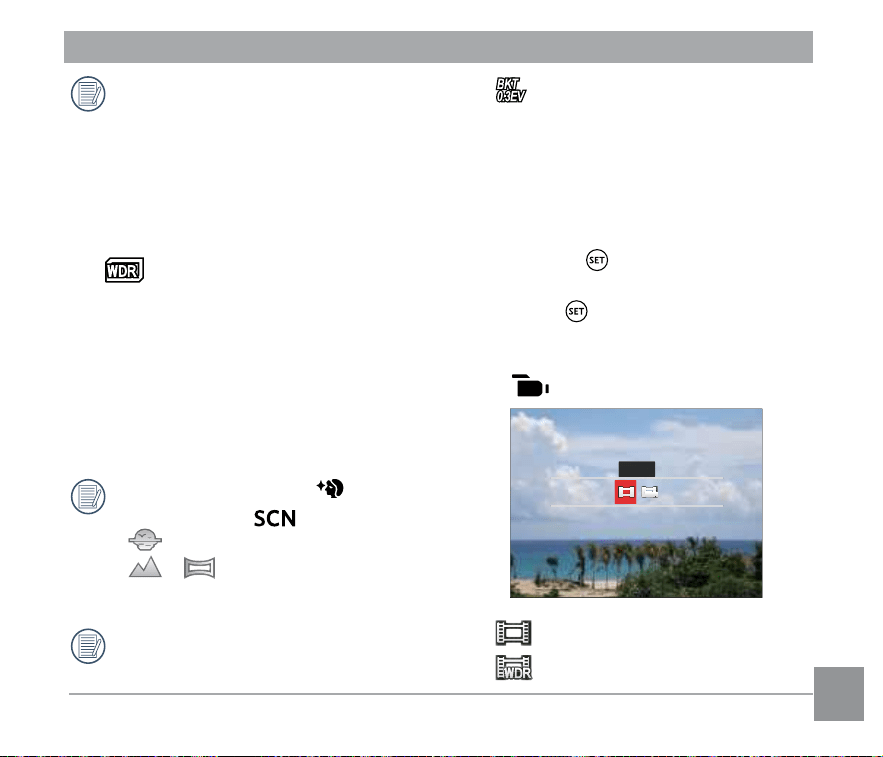

• HDR effect may be affected
by handshaking, light, subject
movement or shooting
environment.
• The flash is not available in HDR
mode.
• It may take longer to save a photo
in HDR.
• WDR (Wide Dynamic Range)
When the camera detects
that there is a big contrast in
brightness between scenes
and such scenes are against
the light, it will automatically
adjust the brightness and
saturation to capture an image
that better represents the
scene.
• WDR is not available in
mode.
• For WDR in the
mode:
: adjustable;
/ : unadjustable and on
by default;
Other modes: not available.

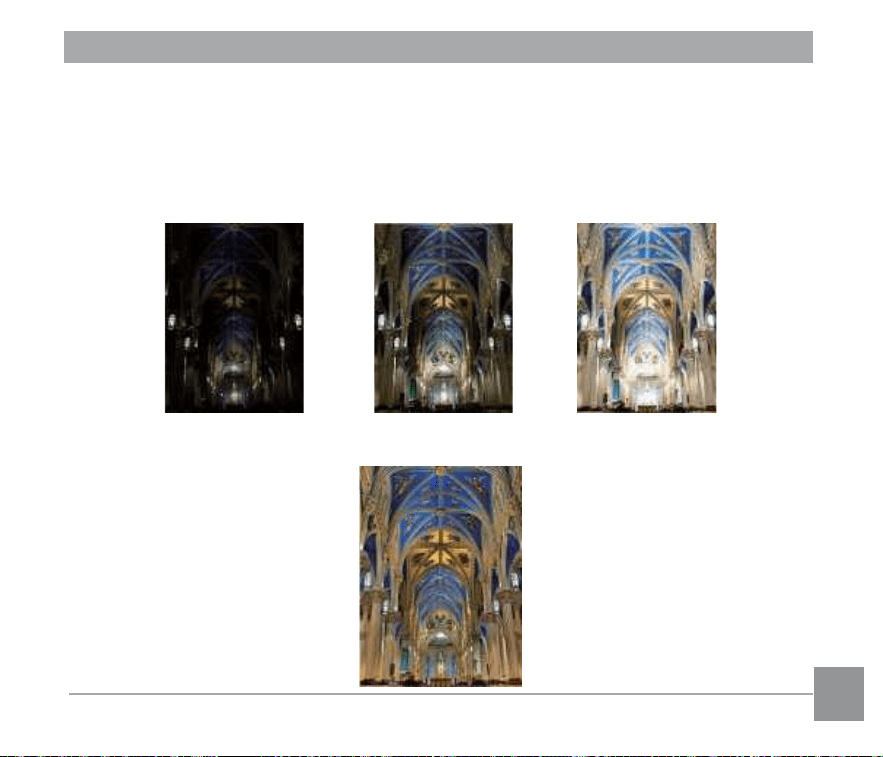

Please refer to page 123~124 for a
detailed explanation of HDR and
WDR effects.
•
AE Bracketing (0.3EV, 0.7EV,
1.0EV, 1.3EV, 1.7EV, 2.0EV)
The camera will automatically
and continuously take three
pictures separately with a
brightness of original, darker
and brighter as long as you
press the shutter once. Press
the button to select the
range of exposure.
3. Press the
button to confirm the
settings and then enter shooting
screen.
Mode:
Single
• Single
•
WDR
64
65
Exposure Compensation Functions Setting
The EV Function Menu of the camera
includes functions, such as EV (Exposure
Value) Adjustment, ISO, Shutter
Adjustment, Aperture Adjustment, etc.
Using the appropriate Function Settings
can improve your pictures.
Please follow the steps below to set:
1. Press the
button to display the
Settings screen.
4 options in [ Exposure Compensation
Functions Setting ]:
• EV Adjustment
• ISO Adjustment
• Shutter Speed Adjustment
• Aperture Adjustment
2. Press the [
] / [ ] button to
select the Setting options.
3. Press the [
] / [ ] button to
adjust the option values.
4. Press the
button to complete the
setting and enter shooting screen.

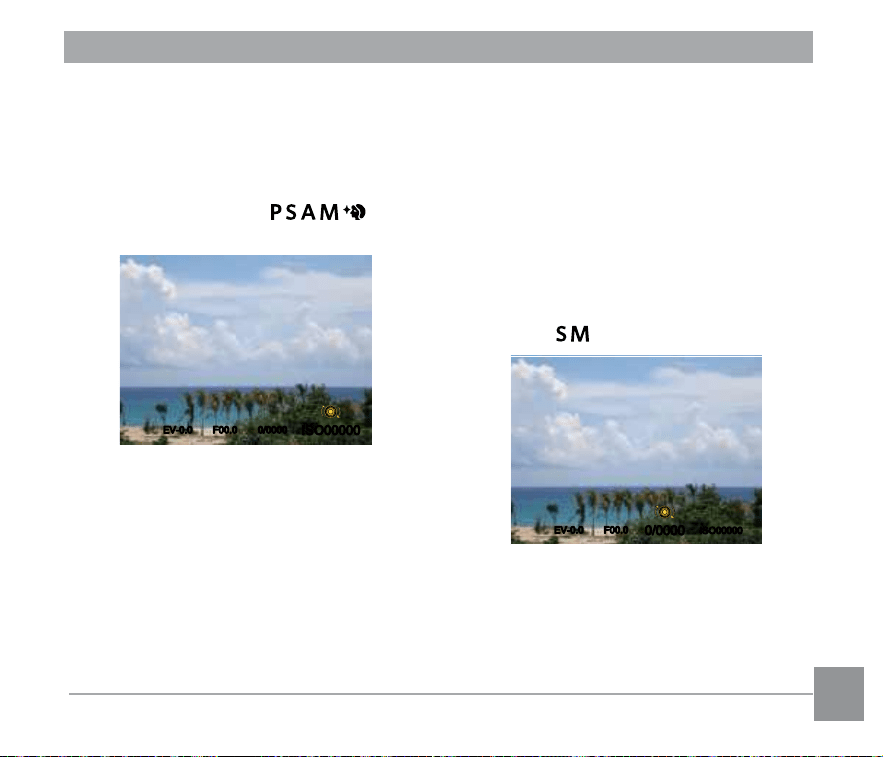

EV Adjustment
Set up Exposure Compensation to adjust
the picture brightness. If there is very high
contrast between the photographed object
and the background, the brightness of the
picture can be adjusted as necessary. (This
can be adjusted in Mode)
EV-0.0
ISO00000
0/0000F00.0
The adjustable range of exposure value is
from EV -3.0 to EV +3.0.
65
64
65
ISO Adjustment
ISO allows you to set the sensitivity of the
camera sensor. Please use a higher ISO
value in darker places and a lower value in
brighter conditions.
(This can be adjusted in
Mode)
ISO00000
0/0000F00.0EV-0.0
Options of ISO value: Auto (100~1600),
100, 200, 400, 800, 1600 and 3200.
Shutter Speed Adjustment
For shutter speed, the camera may
automatically set the aperture value
corresponding to the manually set shutter
speed so as to obtain a most suitable
exposure value. The movement of object
may be shown by adjusting the shutter
speed. High shutter value can help you
more clearly capture fast moving objects,
while low shutter value can better show
the movement of objects. (This can be
adjusted in Mode)
F00.0EV-0.0
ISO00000
0/0000
66
67
66
67
Aperture Adjustment
You can adjust the aperture size value.
Selecting a large aperture opening will
emphasize the point of focus and show
a blurry background and foreground. A
small aperture opening will keep both
the background and main object in clear
focus. (This can be adjusted in Mode)
F00.0
ISO00000
EV-0.0
0/0000
Using Quick Recording
In Photo Shooting Mode, press the
button to begin recording video.
00:00:00
00/15
15 pictures at most can be taken by
pressing the shutter when recording.
The sizes of images taken are as below
when playing them back:
FHD -> 2M
HD -> 1M
DVD -> VGA
Once you are finished, press the
button again to stop recording. The
camera will save the video and return to
the shooting screen.
66
67
66
67

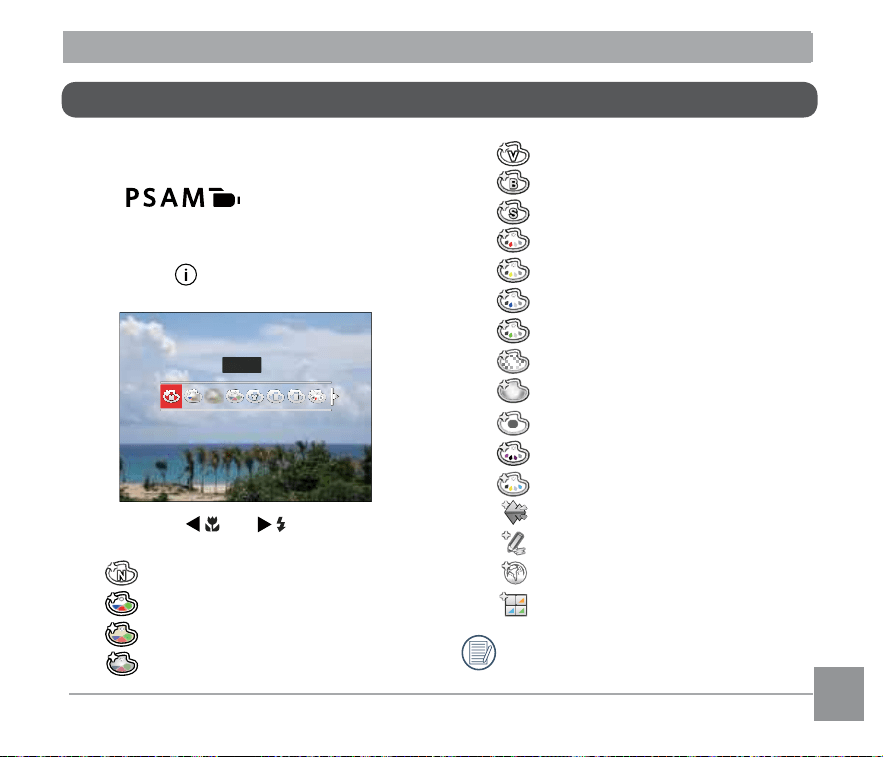

“i” Button Function Menu
Functions that can be enabled are
different under each mode.
Mode:
The image color setting allows you to
select different effects.
1. Press the
button to select the Image
color setting menu.
Normal
2. Press the [ ] / [ ] button to
select the image color setting options.
•
Normal
•
EKTACHROME Film
•
KODACHROME Film
•
KODACOLOR Film
•
Vivid
•
Black and White
•
Sepia
• Partial Color-Red
•
Partial Color-Yellow
• Partial Color-Blue
• Partial Color-Green
•
Dreamy
•
Vignetting
•
Salon
•
Punk
•
Negative
•
Reflection
•
Sketch
•
Fish Eye
•
4 Grids - Stylish(2M)
Fish Eye effect is not available when
shot size is 20M.
68
69
Using the Lens Function Ring
There is a lens function ring lever in one side
of the lens. Moving it up and down can switch
among ZOOM / AF, SMART and MF mode.
Zoom / AF Mode
Rotate the lens function ring for optical zoom.
1. Switch the lens function ring lever to
position .
ISO00000
0/0000F00.0EV-0.0
00:00:00
0000
2. Rotate the lens function ring to
optically zoom the object.
ISO00000
0/0000F00.0EV-0.0
x3.0
Rotating the lens function ring in
Zoom / AF mode is only for optical
zoom.
69
68
69
Function Ring (Smart) Mode
Rotate the lens function ring to set
parameters of aperture, shutter, ISO, EV,
etc.
1. Switch the lens function ring lever to
position
.
2. Rotate the lens function ring or turn the
jog dial to select options needed.
ISO00000
EV+0.0
EV+0.3
EV+0.7
EV-0.3
EV-0.7
EV-0.0
F00.0
0/0000
3. Press the button to complete the
setting and enter shooting screen.
The selection of functions of Function
Ring (Smart) in the menu is needed
before using Function Ring (Smart)
mode. The default setting is Normal.
(See P91 for details)
Options Referred Pages
Normal P64
Aperture Priority P66
Shutter Priority P65
EV P64
ISO P65
Continuous Shot P62
Color P67
White Balance P60
Image Size P82
Expo Metering P79
Flash P58
AF Area P55
70
71
70
MF (Manual Focus) Mode
Rotate the lens function ring for manual
focus.
1. Switch the lens function ring lever to
position
.
ISO00000
0/0000F00.0EV-0.0
00:00:00
0000
2. If the lens function ring is operated
or the jog dial is turned the focus
enlargement frame will appear on
the LCD. After clear focus is achieved
through manual adjustment, press the
button to close the focus enlargement
frame. The camera will return to the
normal shooting screen. Semi-pressing
the shutter button will have no effect;
you need to fully press the shutter button
to take a normal photo.
ISO00000
0/0000F00.0EV-0.0
10
cm
00:00:00
0000
Manual focus works only under the
mode.
The MF assist needs to be enabled in
the menu before it will function. (See
P85 for details)
70
71

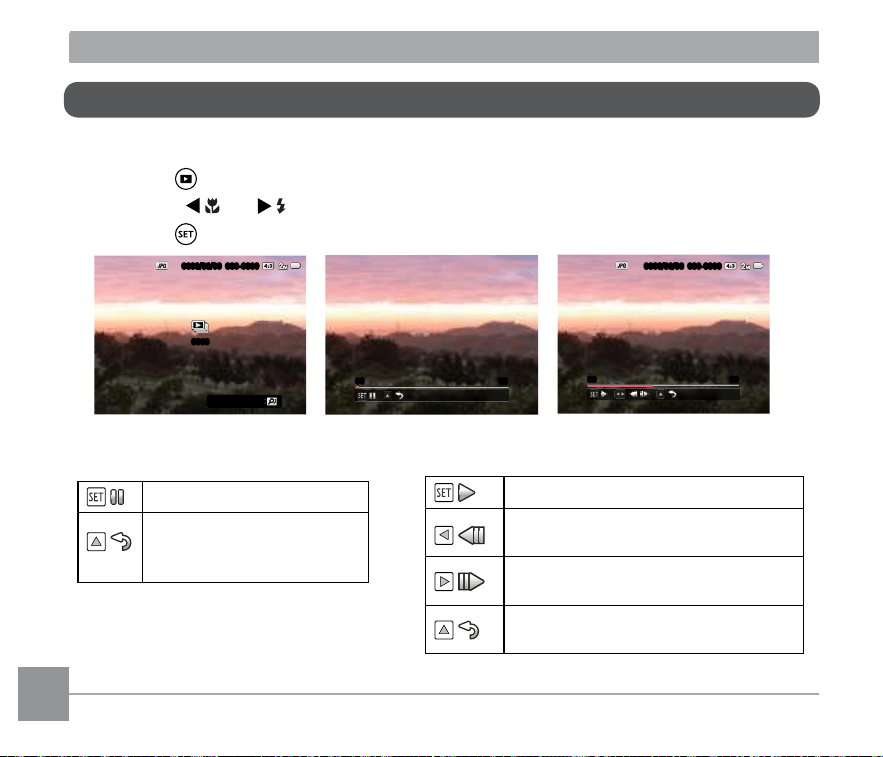

Viewing Photos and Videos
PLAYBACK
For viewing taken photos and videos on the LCD:
1. After pressing the button, the last photo or video clip taken will be displayed on
the LCD.
2. Press the [ ] / [ ] button to scroll through the photos or video clips stored in
the built-in memory or on the Memory Card.
3. To play a selected video clip, press the button to enter the movie playback mode.
An operation guide appears on the screen when playing back a video. Press the
appropriate buttons to enable the corresponding functions.
00:00:0000:00:00
00:00:0000:00:00
Under Playback Paused
Pause
Rewind
Fast Forward
Clockwise Volume Up
Counterclockwise
Volume Down
Volume
Mute
Play
Frame Backward
Frame Forward
Cancel Playback
72
73
Thumbnail View
When in Playback Mode, rotate the Zoom
Lever counter to the position to
display thumbnail images of the photos
and videos on the screen.
W Zoom Out T Zoom In
1. Slide the Zoom lever to switch
between 3x3 and 4x4 thumbnails.
Select index mode
Select index mode
2. Press the [ ] / [ ] / [ ] /
[ ] button to select a picture or
video clip to view and press the
button to restore it to the original size.
3. As shown in the picture, press the
button to select index mode.
4 options in [ Index Mode ] :
• Single Index
• Date Folder
• Cont. Group
• Slide Show
When the icon
appears, it means
this is a video file.
When the icon appears, it means
this is a continuous group file.
72
73
Using Zoom Playback (for still pictures only)
When playing back photos, you can also use the Zoom Lever to zoom in on the photos 2
to 8 times their original magnification.
1. Press the
button to switch to Playback Mode.
2. Press the [
] / [ ] button to select a picture to be zoomed in on.
3. Rotate the Zoom lever to
position to zoom in.
4. Roll the
jog dial clockwise to zoom in and counterclockwise to zoom out.
5. The bottom right corner of the LCD will display the number of times the image is
magnified and area of the photo shown.
x2
6. Press the [ ] / [ ] / [ ] / [ ] button to navigate and select a portion
of the photo to be zoomed in on.
7. Press the
button to return the image to its original scale.
Movie images cannot be magnified.
x2
74
75
High speed (VGA) and fast (2M) Continuous Shot images can be played back as a group.
1. Press the
button to enter Playback Screen.
2. Press the [
] / [ ] button to select Continuous Group.
3. Press the
button to start playback.
0000
0000
000-00000000/00/00
0000
Thumbnail3x3
000-00000000/00/00
Continuous Shot Group Playback
Cont. Group Playing Pause
Play
Previous Photo (loop available
only in Continuous Group)
Next Photo (loop available only in
Continuous Group)
Cancel Play (back to 1:1 playback
for Continuous Group)
Pause
Cancel Play (back to 1:1
playback for Continuous
Group)
Playing
Pause
74
75
Panoramic Animation Playing is to play full size image in accordance with the shooting
direction. After playing, it will automatically return to the static screen of panoramic
image.
1. Press the
button to enter Playback Screen.
2. Press the [
] / [ ] button to select animated panoramic photos.
3. Press the
button to play in selected shooting direction.
000-00000000/00/00
Thumbnail3x3
In the process of panoramic animation playback, press the [ ] button to stop
playing and return to the playback screen.
Picture will not be rotated during panorama play or pause.
Animation Panorama Play
Pause
Cancel Play
Video Panorama
Playing
Pause
76
77
Exit
• Exit
•
Type 1: Slow-in and slow-out
•
Type 2: Separate in middle and
move off to the left and
right
•
Type 3: Separate into blocks and
spin in
This setting allows you to view all the
stored images as a slideshow.
1. Press the
button to enter playback
screen.
2. Rotate the Zoom lever counter to the
position to display thumbnails
3x3 and then press the button to
select the index mode.
Slide show
Back
3. Press the [ ] / [ ] button to
select Slideshow Playing and then
press the button to enter slide
option.
4. Press the [
] / [ ] button to
select play effect and then press the
button to confirm.
Slideshow
76
77

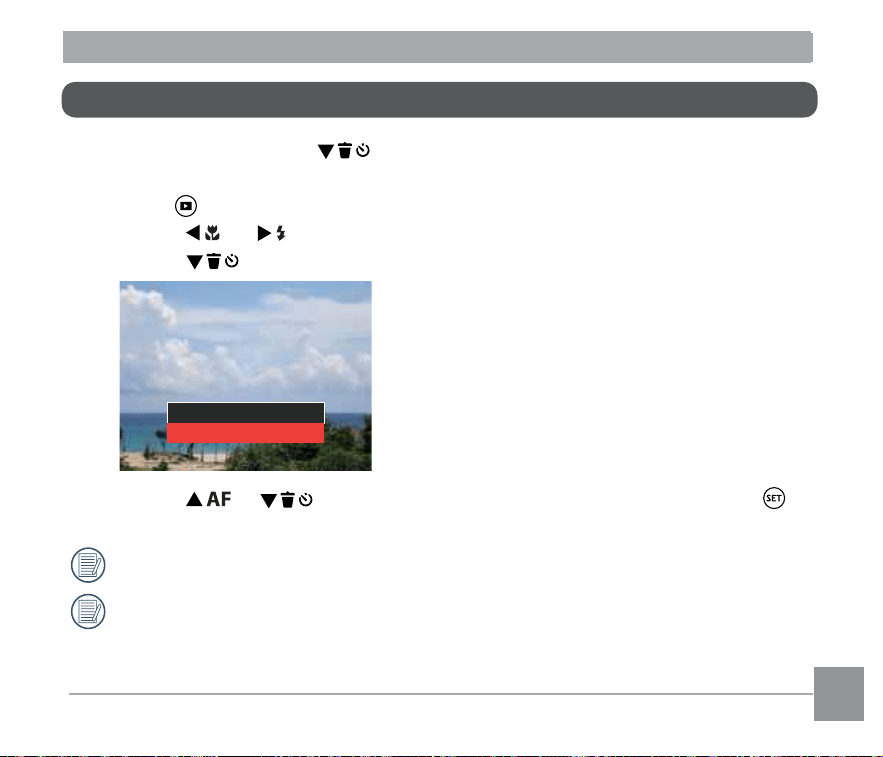

Deleting Photos and Videos
In Playback Mode, press the [ ] button to delete your photos and videos.
To delete photos or videos:
1. Press the
button to switch to playback mode.
2. Press the [
] / [ ] button to select the photos or videos to be deleted.
3. Press the [
] button and the deletion screen is displayed.
Delete One
Exit
4. Press the [ ]/[ ] button to select [Delete One] or [Exit] and press the
button to confirm.
Erased photos / video clips cannot be recovered.
Please refer to page 98 for instructions on deleting more than one image at a time.
78
79
Shooting Menu
USING THE MENUS
Mode:
1. In Shooting Mode, press the button
to enter the Shooting Menu.
12 options in [ Shooting Menu ]:
• Continuous Shot Mode (refer to P62)
• Expo Metering
• AF (Auto Focus) Area (refer to P55)
• WB (White Balance) Mode (refer to
P60)
• Macro Mode (refer to P56)
• Color (refer to P67)
• Flash mode (refer to P58)
• OIS (Optical Image Stabilization)
• Self-Timer Mode (refer to P57)
• Beautifier (Adjustable only in
Mode)
• Select Scene
(Adjustable only in
Mode)
• Menu
2. Press the [
] / [ ] button to
select the shooting menu to be set.
3. Press the [
] / [ ] button or turn
the jog dial to select options of
the shooting menu to be set and then
press the button to confirm.
Refer to the following pages for more
details about each setting.
Functions that can be enabled are
different under each mode.
79
78
79
OIS (Optical Image Stabilization)
This mode can help reduce photo blur
caused by unintentional shaking, or low
light.
OIS: On
• OIS: Off
•
OIS: On
Use this image stabilization mode in
dark environments.
Shooting in a windy or unstable
environment (such as a moving
vehicle) may cause blurry images.
You may not need OIS when using a
tripod.
Expo Metering
Use this setting to select the “target”
size of the camera’s field of view to be
metered.
Expo Metering: AiAE
• Spot
For metering the block
displayed in the center of the
screen.
•
Center
For metering the object in the
center of the screen.
•
AiAE (Artificial Intelligence AE)
Evaluates the light intensity at
multiple points in the frame
and automatically determines
the best value for the light
meter.
80
81
80
Beautifier
Select the effect for Face Beautifier Mode.
Beautifier:Eect 1
Skin Soften
• Effect 1: Skin Soften
•
Effect 2: Skin Soften +
Eye Brightening
•
Effect 3: Skin Soften +
Eye Brightening +
Eye Enlargement
Select Scene
Select a scene mode under SCN Mode.
Select Scene
.
80
81
Mode:
1. Press the button, press the [ ] /
[ ] button to select .
2. Press the
button to enter the menu.
3. Press the [
] / [ ] button to
select .
6 options in [Shoot Settings 1]:
• Image Size
• Movie Size
• Quality
• MF Assist
• AF Assist Beam
• Digital Zoom
Functions that can be enabled are
different under each mode.
Shoot Setting 1
4. Press the [ ] / [ ] button to
select the item to be set and press the
button to enter the menu.
5. Press the [
] / [ ] button
to select an option and press the
button to confirm.
82
Image Size
The Size setting refers to the image resolution in pixels. A higher image resolution allows
you to print that image in larger sizes without degrading the photo image quality.
Image Size
Movie Size
1920x1080 30fps
Quality
JPG Best
MF Assist
On
AF Assist Beam
Off
Digital Zoom
Off
Exit
Set
Select
30f
p
s
G
Bes
t
O
n
O
ff
Off
Exi
t
I
ma
ge
M
ovi
e
Q
uali
t
M
F A
s
A
F A
s
Digi
t
a
Se
Image Size
18M-3:2
15M-16:9
10M
5M
3M
20M
• 20M: High quality printing
• 18M-3:2: full size printing
• 15M-16:9: 16:9 display
• 10M: poster printing
• 5M: A3 printing
• 3M: A4 printing
• 2M-16:9: 4”x 6” printing
• VGA: E-Mail
The larger the number of recorded pixels, the larger the file size and the fewer files
that can be saved on your memory card.
83
Movie Size
Set the image resolution used during video recording.
Image Size
Movie Size
20M
1920x1080 30fps
Quality
JPG Best
MF Assist
On
AF Assist Beam
Off
Digital Zoom
Off
Exit
Set
Select
I
mag
e
M
ovi
e
20M
30
fps
Q
uali
t
G
Bes
t
M
F A
s
On
AF
As
Off
Di
g
it
a
Off
Exi
t
Se
Movie Size
1280x720 60fps
1280x720 30fps
640x480 30fps
640x360 120fps
1920x1080 30fps
Total time of video recorded for each setting:
No. Image Pixels Frames (fps) Recommendation
Recording Time
(approximate) (4GB)
1 1920 x 1080 * 30 Class 10 30 Minutes
2 1280 x 720 * 60 Class 10
33 Minutes
3 1280 x 720 * 30 Class 10
59 Minutes
4 640 x 480 30 Class 10
106 Minutes
5 640 x 360 120 Class 10 54 Minutes
84
* The longest recording time is 29
minutes at one time.
When recording in higher pixel
resolutions for extended periods of
time, this can cause the camera to
generate heat. This is not a camera
malfunction.
When the video format is set as
640 x 360 (120fps), shooting time
is 30 seconds, playback time is 2
minutes.
Sound recording is disabled when
640 x 360 (120fps) is chosen.
Quality
The Quality setting can be used to adjust
the image compression ratio.
Image Size
Movie Size
20M
1920x1080 30fps
Quality
JPG Best
MF Assist
On
AF Assist Beam
O
Digital Zoom
O
Exit
Set
Select
Imag
e
M
o
vi
e
2
0M
30f
p
s
Qua
li
G
B
est
M
F A
On
AF A
s
O
Di
g
it
a
O
E
x
i
t
Se
Quality
RAW
JPG Fine
JPG Best
RAW+JPG
• RAW+JPG (Available in mode)
Creates two images: one in RAW and
the other in JPG best.
• RAW (Available in
mode)
The image file will contain more data
that can be used for the purpose of
editing on a computer.
• JPG Fine
• JPG Best
85

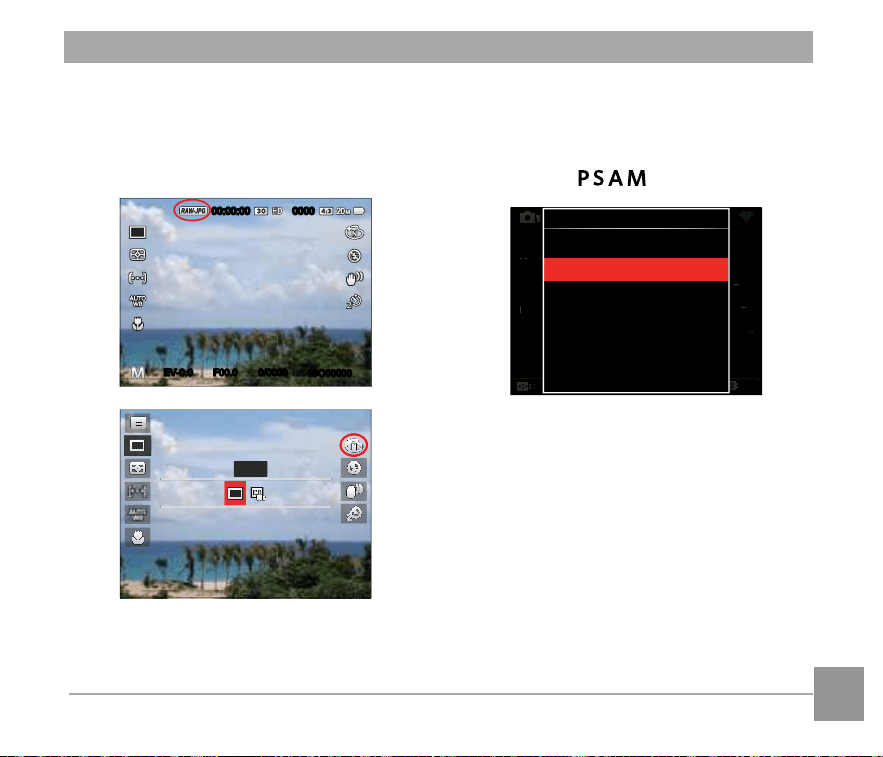

If RAW or RAW+JPG is selected, the
settings of Colour Effect, Continuous
Shot, Cont.Shot-Fast (2M), Cont.Shot-
High Speed (VGA), HDR and AE Bracketing
cannot be adjusted.
ISO00000
0/0000F00.0EV-0.0
00:00:00 0000
Single
MF (Manual Focus) Assist
Enables an enlarged focus window during
the use of manual focus to provide the
user better visibility for focus control.
(Adjustable in mode)
Image Size
Movie Size
20M
1920x1080 30fps
Quality
JPG Best
MF Assist
On
AF Assist Beam
O
Digital Zoom
O
Exit
Set
Select
Ima
ge
M
o
v
ie
20M
3
0
f
ps
Q
uali
G
B
est
M
F A
s
O
n
A
F A
s
O
D
i
g
it
a
O
E
x
it
Se
MF Assist
On
O
• Off
• On
86
87
86
AF Assist Beam
In a darker environment, the AF assist
beam setting can be turned on for better
focus.
Image Size
Movie Size
20M
1920x1080 30fps
Quality JPG Best
MF Assist
On
AF Assist Beam
O
Digital Zoom
O
Exit
Set
Select
Imag
Mo
v
ie
20M
3
0f
p
s
Q
ua
li
B
est
MF A
O
n
A
F A
s
O
Di
g
it
a
O
E
xi
t
Se
AF Assist Beam
On
O
• Off
• On
Digital Zoom
This setting is for adjusting digital zoom.
If this function is disabled, only optical
zoom can be used.
Image Size
Movie Size
20M
1920x1080 30fps
Quality JPG Best
MF Assist
On
AF Assist Beam
O
Digital Zoom
O
Exit
Set
Select
I
ma
g
Mo
v
ie
20
M
3
0
f
ps
Q
ual
i
G
B
es
t
M
F A
O
n
A
F A
s
O
Di
g
it
a
O
Ex
it
Se
Digital Zoom
On
O
• Off
• On
86
87
Mode:
1. Press the button, press the [ ] /
[ ] button to select .
2. Press the
button to enter the menu.
3. Press the [
] / [ ] button to
select .
6 options in [Shoot Settings 2]:
• Date Imprint
• Quick Review
• Continuous AF
• Face Detection
• Custom Settings
• Function Ring (Smart)
Functions that can be enabled are
different under each mode.
Shoot Setting 2
4. Press the [ ] / [ ] button to
select the item to be set and press the
button to enter the menu.
5. Press the [
] / [ ] button
to select an option and press the
button to confirm.
88
Date Imprint
Include a Date / Time stamp on the photo
image.
Normal
Function Ring (Smart)
O

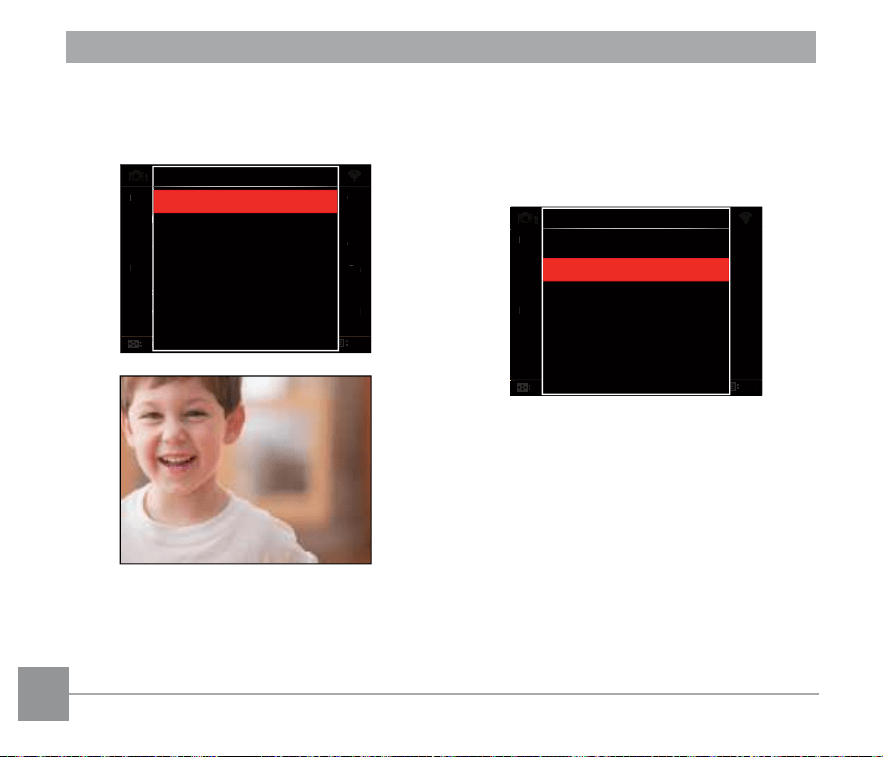

Face Detection
On
Custom Settings
Date Imprint
Quick Review
1 sec
Cont. AF O
Exit
Set
Select
o
rma
l
O
On
1
sec
O
E
x
it
Func
t
Face
C
ust
o
D
ate
Q
uic
k
Co
nt
Se
Date Imprint
Date
Date/Time
O
2025/08/18 00:00
• Off
• Date
• Date / Time
Quick Review
This option enables a quick review of
images immediately after capture. Each
picture will be displayed on the LCD
screen per the selections below.
Normal
Function Ring (Smart)
O
Face Detection
On
Custom Settings
Date Imprint
Quick Review
1 sec
Cont. AF O
Exit
Set
Select
o
rmal
Func
t
O
F
ace
O
n
Cust
o
Date
Quic
k
1
sec
C
ont
.
O
E
x
it
S
e
Quick Review
1 Sec
2 Sec
O
3 Sec
• Off
• 1 sec
• 2 sec
• 3 sec
89
Continuous AF
Use the Continuous AF setting to be able
to continuously focus automatically when
taking pictures.
Normal
Function Ring (Smart)
O
Face Detection
On
Custom Settings
Date Imprint
Quick Review
1 sec
Cont. AF O
Exit
Set
Select
o
rma
l
O
On
1
sec
O
Exi
t
F
unc
t
F
ace
C
ust
o
D
ate
Q
uic
k
Co
nt
.
Se
Cont. AF
On
O
• Off
• On
Face Detection
Detects and focuses on faces to make all
faces as clear as possible in Photo Mode.
Normal
Function Ring (Smart)
O
Face Detection
On
Custom Settings
Date Imprint
Quick Review
1 sec
Cont. A
FO
Exit
Set
Select
o
rma
l
O
On
1
se
c
O
Exi
t
Func
t
Face
Cust
o
Date
Q
uic
k
C
ont
.
S
e
Face Detection
On
O
1. Hold the camera steadily and then
focus on the object to detect its face.
A focus frame will appear at the face
on the screen when a face is detected.
90
2. Press the shutter button half-way down
to focus. The LCD will show a green
focus frame when the subject is in
focus.
1/50F2.9
3. Press the shutter button all the way
down to take pictures.
The closed eyes detection is usually
on. If the camera detects in the
course of quick review there is a
face with eyes closed, a prompt of
closed eyes will appear .
Custom Settings
Custom settings stores the current movie
shooting mode and its parameters.
The stored mode and parameters are
automatically used in Custom Settings
mode.
Set camera to
Yes
Custom Settings
No
user custom mode
• No
• Yes
91
Function Ring (Smart)
The options listed below can be set as
Function Ring (Smart) Custom. Once
set, the chosen function can be quickly
adjusted with the lens function ring
during shooting.
Normal
Function Ring (Smart)
O
Face Detection
On
Custom Settings
Date Imprint
Quick Review
1 sec
Cont. A
FO
Exit
Set
Select
o
rma
l
O
On
1
se
c
O
Exi
t
F
unc
t
F
ace
Cust
o
D
ate
Q
uic
k
Co
nt
.
S
e
Function Ring (Smart)
Normal
Aperture priority
Shutter priority
EV
ISO
Continuous Shot
• Normal
• Aperture Priority
• Shutter Priority
• EV
• ISO
• Continuous Shot
• Color
• White Balance
• Image Size
• Expo Metering
• Flash mode
• AF Area
92
93
Playback Menu
Mode:
1. Press the button to display the
playback screen and press the
button to enter the menu.
7 options in [Playback Menu]:
•
Menu
•
Display Mode
•
Rotate
•
Color
•
HDR
•
Touch-Up
•
Resize
2. Press the [
] / [ ] button to
select the playback desired and press
the button to enter.
3. Press the [
] / [ ] button to
select an option and press the
button to confirm.
Refer to the following pages for more
details about each setting.
Menu
7 options in [ Menu ]
• Shoot Settings 1
(See P81 for details)
• Shoot Settings 2
(See P87 for details)
• Playback Settings
(See P97 for details)
• General Settings
(See P101 for details)
• File Settings
(See P104 for details)
• Connection Settings
(See P108 for details)
• Wireless® Settings
(See P41 for details)
93
92
93
Display Mode
Date Folder
Date Mode: Arranged by date.
Back
Normal Mode: Display all images.
Date Mode: Arranged by date.
Cont. Photo Mode: Arranged by
Cont. Photo Group.
Slide Show
The Date Folder is displayed in date
order based on photo shooting date/
time.
If there is no continuous shot image
file in memory, continuous photo
mode cannot be enabled.
Rotate
You can use this setting to change the
orientation of the picture.
Exit
: Exit
: Turn Left
: Turn Right
Videos and panoramic pictures
cannot be rotated.
The rotated picture file will replace
the original photo.
94
• Vignetting
•
Salon
•
Punk (4M)
•
Negative (8M)
•
Reflection
•
Fish Eye
• 4 Grids - Stylish (2M)
In playing back single photos, press
the
button to enter the color
effect setting menu.
Fish Eye effect is not available when
shot size is 20M.
Color
This setting allows you to change the
picture color effect. The file is saved as a
new photo and stored in memory together
with the original photo.
Exit
• Exit
•
Vivid
•
Black and White
•
Sepia
•
Partial Color-Red
•
Partial Color-Yellow
•
Partial Color-Blue
•
Partial Color-Green
•
Dreamy
95
HDR
With the HDR function, pictures that
are overexposed may be corrected to
optimize the highlights and lowlights
captured to more accurately represent
the actual scene.
Exit
: Exit
: HDR
Select
with HDR :
000-00000000/00/00
Thumbnail3x3
After using the HDR function, the
image will be saved as a new file and
the original file is still stored in the
memory.
96
97
96
Select with touch-up:
Thumbnail3x3
000-00000000/00/00

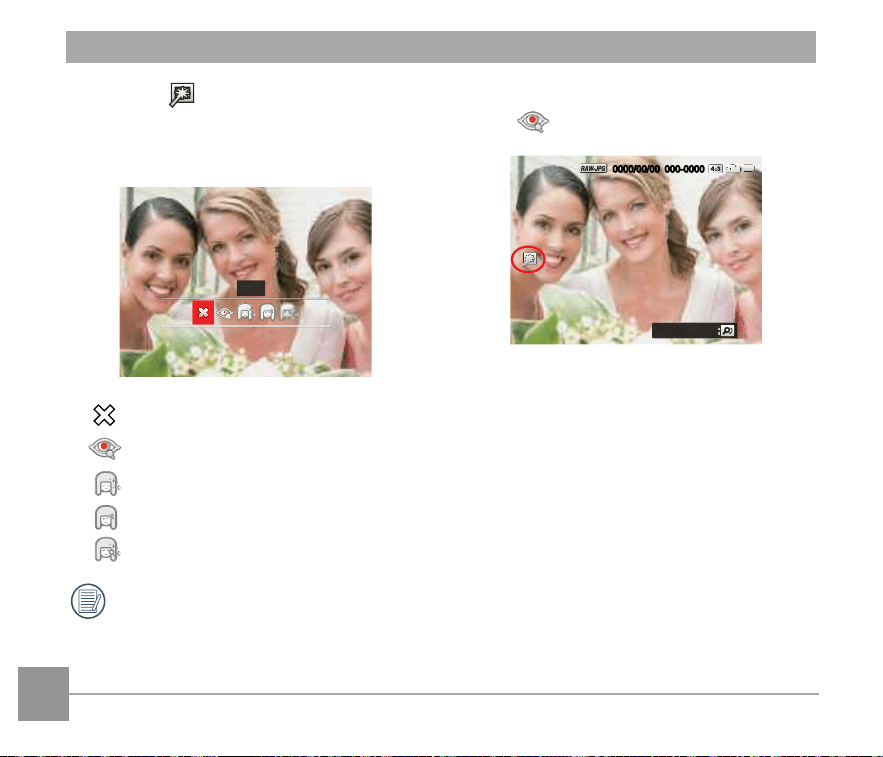

Touch-Up
The playback beauty feature allows for
beautification using three individual
effects.
Exit
: Exit
: Red-Eye Reduction
: Skin Soften
: Eye Brightening
: Eye Enlargement
The Touch-Up referred to is the
individual use of three effects. Beauty
Mode allows you to select one, two,
or all three of the effects combined.
96
97
Resize
This setting allows you to resize a picture
to a particular resolution and saves it as a
new picture.
Exit
: Exit
: Resize to 1024x768
: Resize to 640X480
Only for adjusting pictures with
high resolution to those with low
resolution.
Sizes of photos taken in panorama
mode or rotated cannot be adjusted.
Mode:
1. Press the button, press the
[ ] / [ ] button to select .
2. Press the
button to enter the menu.
3. Press the [
] / [ ] button to
select
.
5 options in [ Playback Settings ]:
• Protect
• Delete
• DPOF
• Trim
• Play Slide Show
4. Press the [
] / [ ] button to
select the item to be set and press the
button to enter the menu.
5. Press the [
] / [ ] button
to select an option and press the
button to confirm.
Refer to the following pages for more
details about each setting.
Playback Settings
98
Protect
To prevent any pictures or videos from
being accidentally erased, use this setting
to lock one or all of the files.
Play Slide Show
Protect
Delete
DPOF
Trim
Exit
Set
Select
P
la
y
S
P
rote
c
D
e
l
e
t
e
DP
OF
Tri
m
Ex
it
Se
Protect
One
Date Folder
Cont. Group
All
Reset
• One
Lock the selected photo or video
if they are unprotected; unlock the
selected photo or video if they are
protected.
• Date Folder
Protect all photos in the Date Folder.
• Cont. Group
Protect all photos in the Cont.
Group.
• All
Lock all photos or videos.
• Reset
Cancel all locked photos or videos.
Delete
You can delete one or all photo/video
files.
Play Slide Show
Protect
Delete
DPOF
Trim
Exit
Set
Select
Exi
t
Pl
a
y
S
P
r
o
t
e
De
l
e
t
DP
OF
Tri
m
S
e
Delete
Date Folder
Cont. Group
All
One
• One
Delete one photo or video.
• Date Folder
Delete all photos in the Date Folder.
• Cont. Group
Delete all photos in the Cont.
Group.
• All
Delete all photos or videos.
99
The “ ” indicator means a file
is protected. File protection must
be removed before a file can be
deleted.
Deleting files will cause DPOF
settings to be reset.
When one photo in the Cont. Group
and Date Folders is protected, it will
be kept but any other photos will be
deleted.
Deleted files will be permanently
deleted and will not be able to be
recovered or restored.
DPOF (Digital Print Order Format)
The DPOF feature allows you to compile
and select a group of pictures that you
would like to print and will save your
selection on the memory card so that you
can use the memory card to print without
having to individually specify the photos
you want to print.
Play Slide Show
Protect
Delete
DPOF
Trim
Exit
Set
Select
Exi
t
Pla
y
S
P
r
o
t
e
D
e
l
e
t
DP
OF
Tri
m
S
e
DPOF
All
Reset
One
• One
• All
• Reset
The printer that supports DPOF is
needed for photo printing.
100
101
100

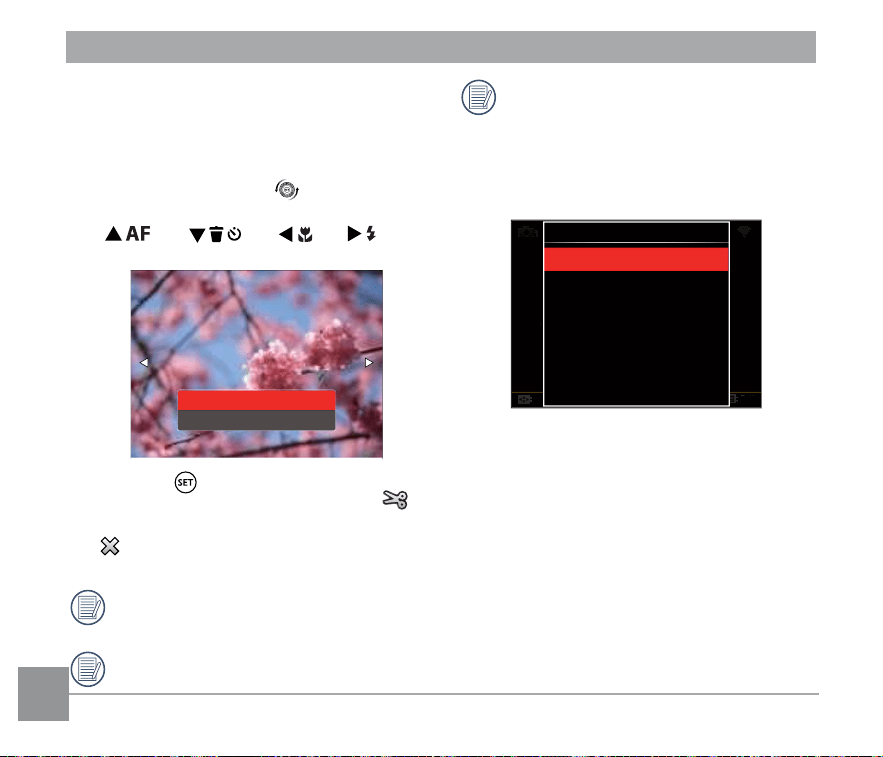

Trim
The Trim setting allows you to crop photos
and save them as new pictures.
1. Select [Yes] to confirm trim. Toggle the
zoom lever or turn the
jog dial to select
the aspect ratio and press the
[ ] / [ ] / [ ] / [ ]
buttons to adjust the part you want to trim.
Yes
Back
2. Press the button and the [Save
change?] prompt appears. Select [
] to
change and save the picture. Select
[
] to cancel changes and return to the
trim prompt screen.
The image cannot be clipped/trimmed
again once it has been clipped to
640X480.
Videos, RAW files cannot be trimmed.
A trimmed picture cannot be
trimmed again.
Play Slide Show
This setting allows you to view all the
stored images as a slideshow.
Play Slide Show
Protect
Delete
DPOF
Trim
Exit
Set
Select
P
lay
S
P
rot
e
De
l
et
D
P
OF
Tr
im
Exi
t
Se
Play Slide Show
Still Captures
Videos
All Files
Cont. Group
• All Files
To display and play back all images
in memory card.
• Still Captures
To display and play back images of
photo files in memory card.
• Videos
To play back movies on memory
card.
• Cont. Group
To only play back images arranged
by cont. group in memory card.
100
101
General Settings
Mode :
1. Press the
button, press the
[ ] / [ ] button to select .
2. Press the
button to enter the menu.
3. Press the [
] / [ ] button to
select .
6 options in [General Settings] :
• Sound Settings
• Power Saver
• Language
• World Time
• Date & Time
• LCD Brightness
4. Press the [
] / [ ] button to
select the item to be set and press the
button to enter the menu.
5. Press the [
] / [ ] button
to select an option and press the
button to confirm.
Refer to the following pages for more
details about each setting.
102
Power Saver
This setting allows you to save power
and get the maximum possible running
time for your camera's batteries. Turn the
LCD and camera off automatically after a
consecutive period of inactivity.
Sound Settings
Power Saver
Language
World Time
Home
Date & Time
English
LCD Brightness
2017.04.29 00:00
ExitSet
Select
Auto
S
oun
d
Po
w
e
r
L
an
g
u
W
o
r
ld
o
m
e
Da
t
e
&
g
lish
L
CD B
r
:
00
E
x
i
t
Se
le
Au
t
o
Power Saver
Auto
Normal
Best
• Auto
• Normal
• Best
Power
Saver
LCD power
off time
Turn off time
Auto 3 min 5 min
Normal
1 min 3 min
Best 30 s
1 min
Sound Settings
With this setting you may adjust the sound
volume.
Press the [
] / [ ] button to adjust
the volume and press the button to
confirm.
Sound Settings
Volume
Exit
Select
Set
103
Language
Refer to the “Reset your language” section
on page 25.
World Time
The World Time setting is a useful
function for your overseas trips. This
feature enables you to display the local
time on the LCD while you are abroad.
1. Press the [
] / [ ] button to
select the departure place ( ) and
destination ( ) fields.
2. Press the [
] / [ ] button to
select a city located in the same time
zone as that of the field. Press the
button to confirm settings.
Trindade, Martim Vaz
London, Iceland
World Time
Select
Set
Exit
Date & Time
Refer to the “Reset Date / Time” section
on page 26.
LCD Brightness
Use this setting to adjust the brightness of
your LCD.
Press the [
] / [ ] button to adjust
the brightness of screen and press the
button to confirm.
LCD Brightness
Select
Exit
Set
104
105
Mode:
1. Press the
button, press the
[ ] / [ ] button to select .
2. Press the
button to enter the menu.
3. Press the [
] / [ ] button to
select .
5 options in [File Settings] :
• Format
• Copy to Card
• File Numbering
• Reset Settings
• Version
File Settings
4. Press the [ ] / [ ] button to
select the item to be set and press the
button to enter the menu.
5. Press the [
] / [ ] button to
select [Yes] or [No] and press the
button to confirm.
Refer to the following pages for more
details about each setting.
105
104
105
Format
Please note: formatting enables you to delete all contents on the memory card and
camera’s built-in memory, including protected photo and movie files.
Doing so will clear all data.
No
Yes
Format
If you select [Yes] the camera will format its memory.
If there is no memory card in the camera, the built-in memory will be formatted; if
there is a memory card, only the memory card will be formatted.
106
Copy to Card
Use this setting to copy the files stored in
the built-in memory to a memory card.
Copy files from built-in memory to
No
Yes
Copy to Card
the memory card.
If there is no card available in the
camera, this function will not be
displayed.
File Numbering
After you take a picture or video clip,
the camera will save it with a sequential
number. You can use this to reset the file
numbering to 1.
Create a new directory and
No
Yes
File Numbering
reset the file number.
107
Version
Use this setting to view the current
camera firmware version.
FW Version: X.XX
Version
When there is a new firmware version in
the memory card, select [Yes] to update.
Current Ver: X.XX
New Ver: X.XX
Update Firmware?
No
Yes
Version
Reset Settings
Use this setting to restore the camera to
its original default settings.
No
Yes
Reset Settings
108
109
Connecting to a Computer
You can use a USB cable to connect the camera and copy (transmit) photos to a
computer other device.
Setting the USB Mode
The camera’s USB port can be used to connect to either a computer. The following steps
will allow you to ensure that the camera is correctly configured to connect with a PC.
1. Press the
button, press the [ ] / [ ] button to select and press the
button to enter the menu.
2. Press the [
] / [ ] button to select and press the button to confirm.
USB PC
Exit
Set
Select
US
B P
C
Ex
it
S
e
USB
PC
CONNECTION SETTINGS
109
108
109
Transferring Files to your Computer
The computer will automatically detect
the camera as a removable drive. Double-
click the “My Computer” icon on the
desktop to locate the removable drive and
to copy folders and files in the drive to a
directory on your PC as you would copy
any typical folder or file.
Follow the steps below to connect the
camera to a computer:
1. Make sure the computer is turned on.
2. Connect one end of the supplied USB
cable to the USB port on your camera.
3. Connect the other end of the cable
to an available USB port on your
computer.
4. After the transmission is complete,
disconnect the USB cable according
to your computer manufacturer's
instructions specifying how to safely
remove USB devices.
110
111
110
111
Supported HDMI Connections
HDMI (High Definition Multimedia
Interface), is a fully digital audio/video
transmission interface, through which
uncompressed audio and video signals
are transmitted.
Connecting HDMI-Ready TV
1. Use the cable with high resolution
output terminal (which should be
purchased separately) to connect the
camera to the television which meets
HDMI standards.
2. The camera will be automatically
detected by the TV.
3. After connecting via HDMI, the camera
enters Playback Mode.
Make sure the camera and the TV are
both turned on before connecting.
HDMI (Type D)
110
111
110
111
Sensor
Type 1/2.3” BSI CMOS
Effective Pixels 20.68 Megapixels
Total Pixels 21.14 Megapixels
Lens
Focal Length 4.3 mm (Wide) — 279.5 mm (Tele)
35 mm Film Equivalent 24 mm (Wide) — 1560 mm (Tele)
F number F2.9 (Wide) — F6.7 (Tele)
Lens Construction 14 groups 18 elements
Optical Zoom 65x
Focusing Range
Normal: (Wide) 50 cm ~ ∞, (Tele) 250 cm ~ ∞;
Macro: 1 cm ~ ∞ (Wide Only)
Autofocus System TTL Autofocus
Electronic Viewfinder Yes (-4 ~ +2 diopter)
Anti-Handshake Optical Image Stabilization
Digital Zoom 4x Digital Zoom (Combined Zoom: 260x)
Product Specifications
APPENDICES
Design and specifications are subject to change without notice.
112
Number of
Recording
Pixels
Still Image
(4:3)
20MP: 5184 × 3888
10MP: 3648 × 2736
5MP: 2592 × 1944
3MP: 2048 × 1536
0.3MP: 640 × 480
(3:2)
18MP: 5184 × 3456
(16:9)
15MP: 5120 × 2880
2MP: 1920 × 1080
Movie
1920 × 1080 (30fps), 1280 × 720 (60fps), 1280 × 720 (30fps),
640 × 480 (30fps), High-Speed Movie: 640 × 360 (120fps)
Image Compression Best, Fine
DCF, DPOF (Ver1.1) Support Yes
File Format
Still Image JPEG (Best, Fine), RAW, RAW+ JPEG (Best)
Movie MOV [Image: H.264; Audio: Linear PCM (Stereo)]
Shooting Modes
Auto Mode, Program AE, Shutter Priority, Aperture Priority,
Manual Mode, Face Beautifier, Wireless® Mode, Scene
Mode, Movie Mode, Custom Settings
Scene Mode
Auto Scene, Panorama Mode, Handheld Night, Multi
Exposure, Cat / Dog, Snow, Party, Sport, Night Portrait,
Portrait, Children, Landscape, Sunset, Fireworks
Detection Features Face, Smile, Blink, Cat, Dog
Photo Touch-Up
Red-Eye Reduction, Skin Soften, Eye Brightening, Eye
Enlargement
113
HDR Yes
Scan Panorama Up to 360°
LCD Display 3.0 inch (460k Pixels)
Image Auto Rotation Yes
ISO Sensitivity Auto (100~1600), ISO100 / 200 / 400 / 800 / 1600 / 3200
Focus Mode Single AF, Continuous AF, Object Tracking, Manual Focus
Focusing Area Selection
Single Area Focusing, 25-Area-Focusing, Face Detection,
Manual Area Focusing
Exposure Metering Method
Artificial Intelligence AE (AiAE), Center-Weighted Average,
Spot (Fixed to Center of Frame), Face AE
Exposure Control Method
Program AE (AE-Lock Available), Shutter Prior AE,
Aperture Prior AE
Exposure Compensation ± 3 EV in 1 / 3 Step Increments
Shutter Speed 1 / 2000 ~ 30 Seconds
Continuous Shooting Yes
Playback Modes
Single, Index (9 / 16 Thumbnails), Slide Show, Date, Burst
Shooting, Zoom (Approx. x2 ~ x8)
114
115
114
White Balance Control
AWB, Daylight, Cloudy, Fluorescent, Fluorescent H,
Incandescent, Manual WB, Color Temp. (1900K ~ 10000K)
Flash
Flash Method Pop-up (Auto)
Flash Modes
Force Off, Fill Flash, Flash Auto, Red-Eye Reduction, Slow
Sync., Slow Sync. + Red-Eye Reduction
Recording Media
Internal Memory: Approx. 15MB
SD / SDHC / SDXC Card (Up to 1.5TB Support)
[MMC Card Not Supported]
Multi-Language Support 27 Languages
Jacks USB 2.0 (Type-C), HDMI (Type D)
Wireless® Yes
Remote Control Yes (via iOS / ANDROID smart device)
Power
Rechargeable Li-ion Battery LB-070, 7.4V 1020mAh, In-
Camera Charging
Shooting Capability
(Battery Performance)
Approx. 400 Shots (Based on CIPA Standards)
Approx. 1h 30min for Video (@1080p/30fps)
Operation Environment Temperature: 0 ~ 40°C, Humidity: 0 ~ 90%
Dimensions (W × H × D) Approx. 126.0 × 89.0 × 111.4 mm (Based on CIPA Standards)
Weight Approx. 588g (Body only)
114
115
Prompts and Warning Messages
Message Description Action
Warning! Battery
exhausted.
Camera battery is depleted.
It is a warning indicating the
camera is going to shut off.
Charge battery or replace
with a charged battery.
Built-in memory error!
An error has occurred in the
built-in memory.
Try shutting the camera off
and turning it on again.
Warning! Do not turn
off your camera during
update!
The message appears during
the firmware update process.
The message disappears
after the camera update and
restart.
Battery temperature is
too high.
Battery has reached a
temperature that is not ideal for
operation.
The message will disappear
after 2 seconds.
Let the battery cool before
attempting to use the camera
again.
Please update
firmware after the
battery is fully
charged!
The firmware cannot be
updated when power is
insufficient.
Charge the battery fully
before reattempting to
update firmware.
116
Message Description Action
Cannot change
settings under this
mode.
Appears during shooting mode if a
function can not be set by rotating
the function ring.
Choose a different
mode in order to change
settings.
Improper alignment.
Please try again.
The offset is too big for panorama
shooting.
Remove the message
after 2 seconds and
return to shooting.
Connection Failed! Failure to connect to PC.
Remove cable, reinsert
cable, and retry
connection
In this capture ********
Still size limited to
** M
After choosing the image size in the
Function Ring (Smart), this message
may occur when the still size limit is
reached.
Remove the message
after 2 seconds and
return to shooting.
Capture reached
maximum limit
Press the shutter to capture images
in recording a video. If the number
of images captured exceeds 15,
there will be a prompt if you press
the shutter again.
The message will
disappear in 2 seconds
with no influence to
video recording.
117
Message Description Action
Write Protect ! The memory card is locked.
Turn off camera and remove SD
card. Slide tab on the side of card
to unlock.
Card Full !
The memory of the SD card
is full.
Either delete photos or videos
to create room on the card, or
replace with another card that has
available memory.
Memory Full !
The camera’s internal
memory is full.
Erase files or insert a memory
card that has available memory.
Exceeded maximum
folder number.
The folder number in the
card exceeds the maximum
folder number (999).
Copy the data to your PC, and
format the memory card.
Card Error !
The card cannot be
recognized after being
formatted.
Check that the SD card is
compatible with the camera.
Card is not
formatted.
An error has occurred with
the memory card.
Format the memory card. This will
erase all data on the card; be sure
to copy the data from the card
onto another device if you wish to
keep it.
118
Message Description Action
Slow access
When a card lower than Class 10
is recording movie above HD, it
may be accessed slowly and the
recording will not be continued.
Replace SD card with a Class
4 or higher card.
Cannot write to SD
card.
The camera cannot write to the SD
card.
Turn off the camera. Remove
and reinsert the SD card and
turn the camera on to try
again.
Check if the SD card is in
a locked position, or if the
memory is full.
No Picture!
When the play button is pushed
and there are no files on memory
card or in camera.
The message will disappear
after 2 seconds and return to
previous screen.
No continuous
group file.
When the camera switches from
Playback Mode to Cont. Playback
Mode, and there are no continuous
group files, this message will be
displayed.
The message will disappear
after 2 seconds and return to
Thumbnail 3x3 mode.
No Red-Eye
Detected!
No red-eye is detected when
selecting Red-Eye Removal in
Playback Touch-up.
The message will disappear
after 2 seconds and return to
the touch-up menu.
119
Message Description Action
Too many pictures for
fast processing.
During Playback by Date, the images
exceed specifications so it is not
possible to play by date.
The message will disappear
after 2 seconds and return
to Thumbnail 3x3 mode.
Unable to recognize
files.
The format of the file viewed is not
supported or the file is damaged
and cannot be recognized properly.
This message will only
disappear after the file is
deleted.
Protected!
Undeletable!
The file is protected and cannot be
deleted.
Unlocked file under
“Protect”, and make sure SD
card is unlocked.
This image cannot be
edited.
The file format does not support
editing or the edited file cannot be
edited again.
The message will disappear
after 2 seconds and return
to the original image.
Cannot edit because no
face detected!
A face cannot be delected in the
image in the touch-up menu.
The message will disappear
after 2 seconds and return
to the touch-up menu.
Suggest using tripod.
When continuous exposure mode
(Sunset, Multi Exposure, Fireworks,
Night Portrait) is enabled, this
prompt message is displayed
when the photo shooting screen is
displayed for the first time.
This message will disappear
after 2 seconds.
120
121
Troubleshooting
Problem Possible causes Solution
Camera does not turn
on
The battery has been
depleted.
The battery is not
inserted correctly.
Replace the battery.
Correctly reinstall the batteries.
Camera turns off
suddenly during
operation
The batteries have been
depleted.
Replace the battery.
Make sure the camera is actually
shutting off and not entering
Power Save Mode, where the LCD
will turn off after the camera has
been idle for a period of time.
The picture is blurry
Camera shakes while
taking a picture.
Turn on OIS Feature.
Please use tripod for high
magnification (above 15X) optical
zoom. If you are holding the
camera, be sure to use both
hands.
Images and video files
cannot be saved
The memory card is full.
The memory card is
locked.
Use another memory card or
delete unnecessary files.
Unlock the memory card.
121
120
121
Problem Possible Causes Solution
Saving data to memory
card is slow
Using a memory card below
Class 10 may result in slower
recording times.
Use a memory card with
write Class 10 or higher
to improve performance.
Cannot write to the
memory card
The memory card has been
locked.
Release the write lock
of the memory card or
replace with another
card.
Too many movies to
process
The number of pictures or
folders in the memory card
exceed the specifications, so
the playback of data folder
can not be displayed.
Delete unwanted files.
122
When shooting with stacked filters attached, the corners of the photo may turn dark
(vignetting effect) because the filter holder blocks light from reaching the camera
image sensor; especially, at wide angle zoom control settings. Please take test shots
and review the results when using stacked filters. (Filter size : Φ52mm)

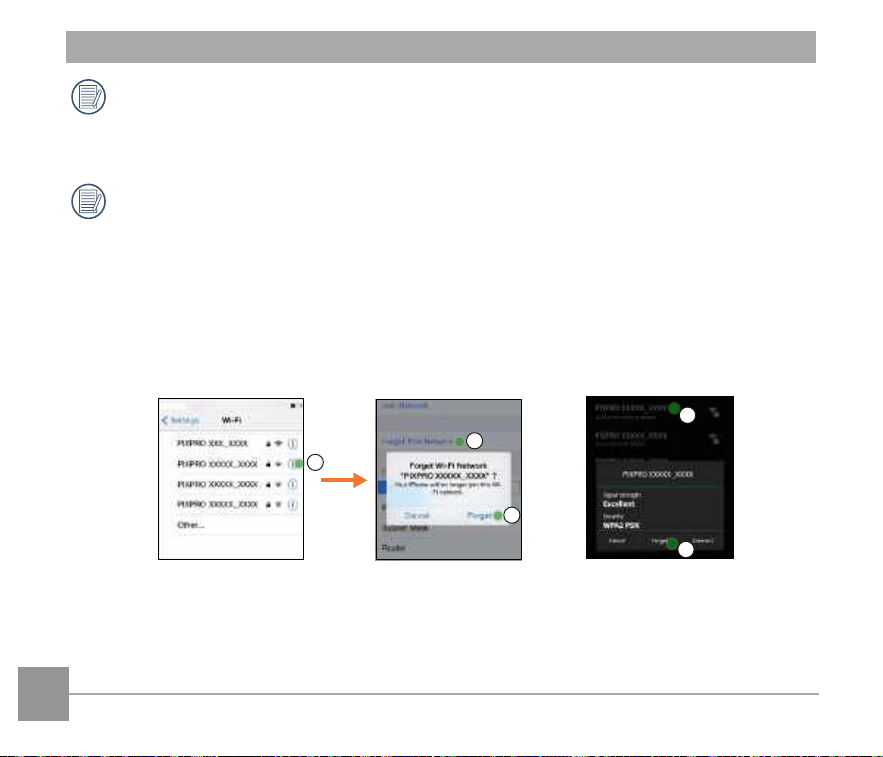

If you choose to change the factory assigned, random Wireless® password on
your AZ653 camera, please be sure to update and enter the new randomly
assigned password on your smart device. Some smart devices will automatically
remember and save any previously entered Wireless® password. Be sure to clear
the old password on your smart device manually before attempting to connect the
AZ653’s Wireless® to your device. (Depending upon your smart device make and
model, operation may vary, so please refer to your smart device user manual and
instructions.”
1
2
iOS™ Example Android™ Example
1
2
3
123
HDR- High Dynamic Range
HDR captures three photos taken at different exposure levels and combines them into
one photo. This optimizes all the details of the object or scene in the photo. Even the
features in darker areas can be viewed clearly. (The following pictures are an example of
HDR composition.)
Underexposed Normal exposure Overexposed
HDR Mode
124
WDR- Wide Dynamic Range
For high light, intense sunlight, or environments with artificial light, WDR allows PIXPRO’s
smart algorithm to correct shadows surrounding a subject. This makes it easier to
distinguish details in darker areas of the photo.
With WDR enabled video, clear images are provided when there are not only very bright
areas, but also very dark areas in the camera’s field of view. (The following pictures are an
example of WDR.)
Without WDR With WDR
125
Memory Card Compatibility
Refer to the chart below for compatible types of SD cards (✓ : Compatible X: Not Compatible)
micro
SD
micro
SDHC
micro
SDXC
Conversion
adapter to
SD card
SD SDHC SDXC
Format FAT12, 16 FAT32
exFAT -
FAT12, 16 FAT32
exFAT
Capacity Up to 2GB 4~32GB 64GB~2TB
-
Up to 2GB 4~32GB 64GB~2TB
Compatibility
X X X
✓ ✓ ✓ ✓
It indicates that the writing speed class will be displayed on the memory card.
Use a memory card with the appropriate writing speed for the video recording mode to be
recorded. (O: Recommended X: Not recommended)
Speed
Class
UHS
Speed Class
Video
Speed Class
Video Recording
4K FHD HD VGA
90MB/sec
V90
O O O O
60MB/sec
UHS-III V60
O O O O
30MB/sec
UHS-I V30
O O O O
10MB/sec
Class 10 V10
O O O O
6MB/sec
Class 6 V6
X X X X
4MB/sec
Class 4
X X X X
2MB/sec
Class 2
X X X X
126
Trademarks
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress
and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing
Administrator, Inc.
Microsoft and Windows are trademarks or registered trademarks of Microsoft
Corporation in the United States and/or other countries.
Macintosh, Mac OS, OS X and App Store are trademarks of Apple Inc., registered in
the U.S. and other countries.
SDXC logo is a trademark of SD-3C, LLC.
USB Type-C™ and USB-C™ are trademarks of USB Implementers Forum.
All other trademarks are the property of their respective owners.
Ver. 2.0
© 2026 JK Imaging Ltd. All Rights Reserved.
The Kodak and Kodachrome, Kodacolor and Ektachrome trademarks, logo and trade dress are used under license from Eastman Kodak Company.
All other logos, products or company names that are referred to in this document are trade names, trademarks or registered trademarks of their
respective owners and holders. The owners and holders are not affiliated with JK Imaging Ltd., our products or our website.
JK Imaging Ltd., 14067 Stage Road, Santa Fe Springs, CA 90670 USA
kodakpixpro.com
Made in Myanmar (Burma)
Document No/Sequence: U.DIS.0084.0226.en.02
