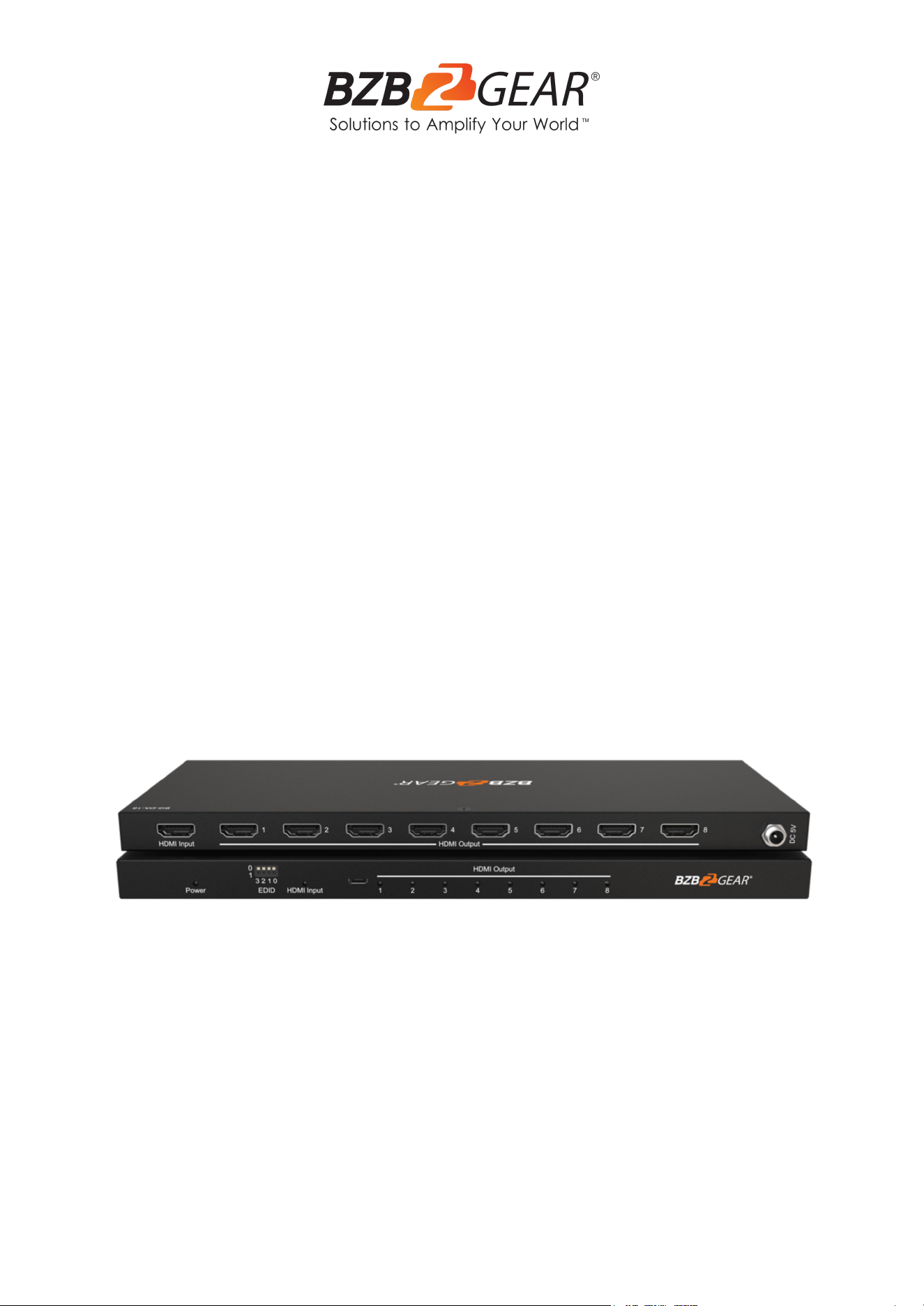

BG-DA-18
4K UHD 18Gbps 1x8 Ultra Slim HDMI Splitter
User Manual
BZBGEAR BG-DA-18 PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 2
BZBGEAR BG-DA-18 PRODUCT MANUAL
Table of Contents
Statement 4
Safety Precaution 4
Introduction 5
Features 5
Package Contents 5
Specifications 6
Application Example 7
Panel Descriptions 7
EDID Dip Switch Settings 8
Tech Support 9
Limited Product Warranty Terms 9
Mission Statement 10
Copyright 10
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 3
BZBGEAR BG-DA-18 PRODUCT MANUAL
Statement
Please read these instructions carefully before connecting, operating, or configuring this
product. Please save this manual for future reference.
Safety Precaution
● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion
during transportation, storage, and installation.
● The housing of this product is made of organic materials. Do not expose to any liquid,
gas, or solids which may corrode the shell.
● Do not expose the product to rain or moisture.
● Unplug this device during lightning storms
● Clean only with a soft dry microfiber cloth.
● To prevent the risk of electric shock, do not open the case. Installation and maintenance
should only be carried out by qualified technicians.
● Do not use the product beyond the specified temperature, humidity, or power supply
specifications.
● This product does not contain parts that can be maintained or repaired by users.
Damage caused by dismantling the product without authorization from BZBGEAR is not
covered under the warranty policy.
● Installation and use of this product must strictly comply with local electrical safety
standards.
● Only use accessories specified by the manufacture
● Product specifications may be subject to technical upgrades without further notice
● Do not hot plug when it is working.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 4
BZBGEAR BG-DA-18 PRODUCT MANUAL
Introduction
The BG-DA-18 is a compact HDMI splitter that allows you to distribute an HDMI signal to
eight outputs. With support for the latest HDMI 2.0 specifications, including HDR, you can
enjoy vivid visuals with 4K UHD resolution at 60Hz and 4:4:4 color depth. Additionally, the
splitter supports all HDMI audio formats, such as Dolby TrueHD, Atmos, and DTS-HD
Master Audio, for exceptional sound quality. With advanced EDID management and HDCP
2.2 compliance, you can expect seamless compatibility with your devices. Ideal for use in
home theaters, lecture rooms, presentation halls, showrooms, demo rooms, and public
commercial displays.
Features
● 1x HDMI input and 8x HDMI outputs
● HDMI 2.0 18Gbps specification including HDR
● Up to 4K UHD 60Hz 4:4:4
● All industry standard video resolutions including VGA-WUXGA and 480i-4K
● All known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master
Audio transmission
● Advanced EDID management
● HDCP 2.2 compliant.
Package Contents
● 1 x BG-DA-18
● 1 x Power Supply (12V DC 2A)
● 1 x User Manual
● 1 x Mounting Kit
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 5
BZBGEAR BG-DA-18 PRODUCT MANUAL
Specifications
Technical Specifications
Bandwidth
300MHz/6Gbps per Color
Video Input Connectors
1x HDMI Type A, 19-pin, female
Video Output Connectors
8x HDMI Type A, 19-pin, female
Supported Resolutions
Up to 4K@50/60Hz 4:4:4, Full 3D Pass-through
Suggested Cable Lengths
5m for 1080p@60Hz, 3m for 4K@60Hz 4:4:4
Mechanical Specifications
Dimensions (W x D x H)
273mm (W) x 109mm (D) x 13mm (H)
Weight
705g
Operating Temperature
0˚C~40˚C/32˚F~104˚F
Storage Temperature
−20˚C~60˚C/−4˚F~140˚F
Relative Humidity
20~90% RH (non-condensing)
Chassis Material
Aluminum
Color
Black
Power Supply
12V/2A DC
ESD Protection
Human body model:
±8 kV (air-gap discharge)
±4 kV (contact discharge)
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 6
BZBGEAR BG-DA-18 PRODUCT MANUAL

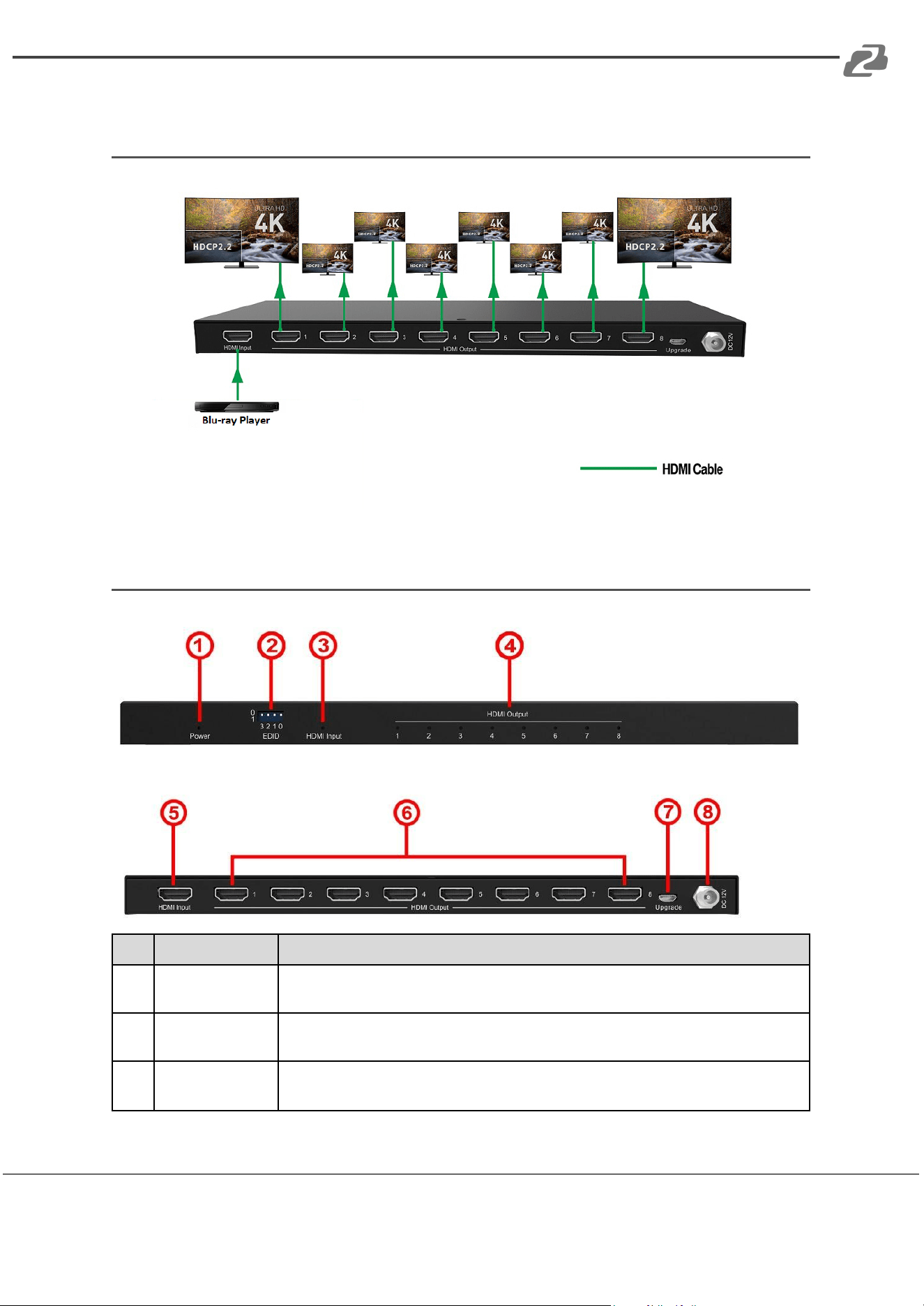

Application Example
Panel Descriptions
Front Panel
Rear Panel
No.
Name
Function Description
1
Power LED
Indicator
Illuminates when the unit is powered on.
2
EDID Dip Switch
Manage the EDID settings of the unit (see EDID Dip Switch Settings for more
information).
3
Input LED
Indicator
Illuminated when an HDMI input signal is detected.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 7
BZBGEAR BG-DA-18 PRODUCT MANUAL
4
Output LED
Indicators
The LED illuminates when the corresponding output detects a connected HDMI
display.
5
HDMI Input
Connect to a signal source such as a Blu-ray player or set-top-box.
6
HDMI Output 1-8
Connect to an HDMI display device such as a TV or projector.
7
F/W Upgrade Port
Connect a micro USB cable to upgrade the device firmware.
8
DC 12V
Locking power supply, connect to the provided power adapter.
EDID Dip Switch Settings
EDID DIP Switch
Setting Description
0000
HDMI 1080p@60, Audio 2CH PCM
0001
HDMI 1080p@60Hz, Audio 5.1CH PCM/DTS/DOLBY
0010
HDMI 1080p@60Hz, Audio 7.1CH PCM/DTS/DOLBY/HD
0011
HDMI 1080i@60Hz, Audio 2CH PCM
0100
HDMI 1080i@60Hz, Audio 5.1CH PCM/DTS/DOLBY
0101
HDMI 1080i@60Hz, Audio 7.1CH PCM/DTS/DOLBY/HD
0110
HDMI 4K@60Hz 4:2:0, Audio 2CH PCM
0111
HDMI 4K@60Hz 4:2:0, Audio 5.1CH PCM/DTS/DOLBY
1000
HDMI 4K@60Hz 4:2:0, Audio 7.1CH PCM/DTS/DOLBY/HD
1001
HDMI 4K@60Hz 4:4:4, Audio 2CH PCM
1010
HDMI 4K@60Hz 4:4:4, Audio 5.1CH PCM/DTS/DOLBY
1011
HDMI 4K@60Hz 4:4:4, Audio 7.1CH PCM/DTS/DOLBY/HD
1100
DVI 1280x1024@60Hz, Audio None
1101
DVI 1920x1080@60Hz, Audio None
1110
DVI 1920x1200@60Hz, Audio None
1111
Copy Output 1 EDID
(4 pins UP = 0, Down = 1)
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 8
BZBGEAR BG-DA-18 PRODUCT MANUAL
Tech Support
Have technical questions? We may have answered them already!
Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and
tips regarding our products. Here you will find our Knowledge Base
(bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step
troubleshooting instructions. Or explore our YouTube channel, BZB TV
(youtube.com/c/BZBTVchannel), for help setting up, configuring, and other helpful how-to
videos about our gear.
Need more in-depth support? Connect with one of our technical specialists directly:
Phone
1.888.499.9906
Email
support@bzbgear.com
Live Chat
bzbgear.com
Limited Product Warranty Terms
Pro Line: 5-year warranty from the date of purchase for AV/Broadcasting products bought
on or after August 1, 2024.
Essential Line: 3-year warranty from the date of purchase for AV/Broadcasting products
bought on or after August 1, 2024.
Cables: Lifetime Limited Product Warranty.
For complete warranty information, please visit bzbgear.com/warranty.
For questions, please call 1.888.499.9906 or email support@bzbgear.com.
