User’s Guide
MODEL
www.impecca.com
Window Air Conditioner
TABLE OF CONTENTS
WELCOME 3
IMPORTANT SAFETY INSTRUCTIONS 3
ELECTRICAL REQUIREMENTS 5
PACKING LIST 7
INSTALLATION & ASSEMBLY INSTRUCTIONS 8
USING YOUR AIR CONDITIONER 16
CARE AND CLEANING 17
TROUBLESHOOTING 18
CUSTOMER SUPPORT 20
ONE-YEAR LIMITED APPLIANCE WARRANTY (US) 21
2
ENGLISH
WELCOME
Thank you for purchasing this Window Air Conditioner Before operating this unit, please
read these instructions completely and keep the manual ready for further reference
IMPORTANT SAFETY INSTRUCTIONS
Before installing and using your air conditioner, please read this owner's manual
carefully Store thismanual in a safe place for future reference Your safety and the safety
of others is very important to us Please pay attention to all safety messages outlined in
this user manual
WARNING
To reduce the risk of fire, electrical shock or injury when using your air
conditioner, follow the basic precautions below:
• Plug into a grounded 3 prong outlet
• Do not remove the ground prong
• Do not use a plug adapter
• Do not use an extension cord
• Unplug the air conditioner before servicing
• Use two or more people to move and install the air conditioner
This is a safety alert symbol This symbol alerts you to potential hazards
that can harm you or others or even cause death All safety messages
will directly follow the safety alert symbol and/or the words "DANGER"
or "WARNING"
DANGER
Failure to immediately follow these instructions may cause serious injury or
even death
WARNING
All Safety messages alert you of potential hazards, how to reduce the chance of
injury, and what can happen if instructions are not followed correctly
3
ENGLISH
INTRODUCTION TO REFRIGERANTS R32
The refrigerants used for air conditioners are environmentally friendly hydrocarbons
R32 This kind of erant is combustible and odorless Moreover, it can burn and explode
under certain condition However, there will be no risk of burning and explosion if
you comply with the following table to install your air conditioner in a room with an
appropriate area and use it correctly
Compared with ordinary refrigerants, Refrigerant R32 is environmentally friendly and
do not destroy the ozone sphere and that its value of greenhouse eect is also very low
WARNING
• Please read the manual before installation, using, maintenance
• Do not use means to accelerate the defrosting process or to clean, other than those
recommended by the manufacturer
• Do not pierce or burn the appliance
• The appliance shall be stored in a room without continuously operating sources
(for example: open flames, an operating ignition gas appliance or an operating
electric heater )
• Please contact the nearest aer-sale service center when maintenance is necessary
At the time of maintenance, the maintenance personnel must strictly comply with
the Operation Manual provided by the corresponding manufacturer and any
nonprofessional is prohibited to maintain the air conditioner
• The handling, installation, storage, servicing and disposal must comply with the
provisions of gas-related national laws and regulations, and also national wiring
regulation
• It is necessary to clear away the refrigerant in the system when maintaining or
scrapping an air conditioner Be aware that refrigerants may not contain an odour
• This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or supervision or instruction concerning
use of the appliance by a person responsible for their safety
• Children should be supervised to ensure that they do not play with the appliance
• Unit operation limits: Outdoor side 61~110°F, 80%RH, indoor side 61~90°F, 80%RH
4
ENGLISH
ELECTRICAL REQUIREMENTS
WARNING
ELECTRICAL SHOCK
• Hazard Plug into a grounded 3 prong outlet
• Do not remove the ground prong
• Do not use an adapter
• Do not use an extension cord
• Failure to follow these instructions can result in death, fire, or electrical shock
The electrical ratings for your air conditioner are listed on the model and serial number
label located on the front le side of the unit (when facing the front) Specific electrical
requirements are listed in the chart below Follow the requirements below for the type
of plug on the power supply cord
Wiring Requirements Power Supply Cord
115 volt (103min —127max)
0-8 amps
10-amp time-delay fuse or circuit breaker
Use on single outlet circuit only
RECOMMENDED GROUND METHOD
For your personal safety, this air conditioner must be grounded This air conditioner
is equipped with a 3 prong power supply cord with a grounded plug To minimize
the possibility of electrical shock, the cord must be plugged into a 3 prong outlet and
grounded in accordance with all local codes and ordinances If a 3 prong outlet is not
available, it is the customer's responsibility to have a properly grounded 3 prong outlet
installed by a qualified electrician
IT IS THE CUSTOMER'S RESPONSIBILITY:
• To contact a qualified electrician
• To assure that the electrical installation is adequate and in conformance with the
National Electrical Code, ANSI/NFPA 70-latest edition, and all local codes and
ordinances
5
ENGLISH
LCDI POWER CORD AND PLUG
This air conditioner is equipped with an LCDI (Leakage Current Detection and
Interruption) power cord that is requiredby UL This power supply cord contains state-
of-the-art electronics that sense leakage current If the cord is damaged and leakage
occurs, power will be disconnected from the unit
The LCDI power cord and plug will remove the supply source via electrical disconnect
(circuit trip) if the nominal current leakage between the cord shield and either load
conductor exceeds a predetermined value The cord will remain deenergized until the
device has been manually reset This is intended to reduce the risk of a fire in the power
cord or combustible materials nearby The cord shields are not grounded and they must
be considered a shock hazards if exposed The cord shield must not be connected to
ground or to any exposed metal
The test and reset buttons on the LCDI Plug are used to check if the plug is functioning
properly
TO TEST THE PLUG:
• Plug power cord into a wall outlet
• Press the TEST Button, the circuit should trip and cut all power to
the air conditioner
• Press the RESET button for use
If a test is performed and the indicator light remains ON, the current
leakage has been detected Do not use the air conditioner or attempt
to reset the LCDI Plug Contact Customer Service for troubleshooting
recommendations
SAVE THESE
INSTRUCTIONS
6
ENGLISH

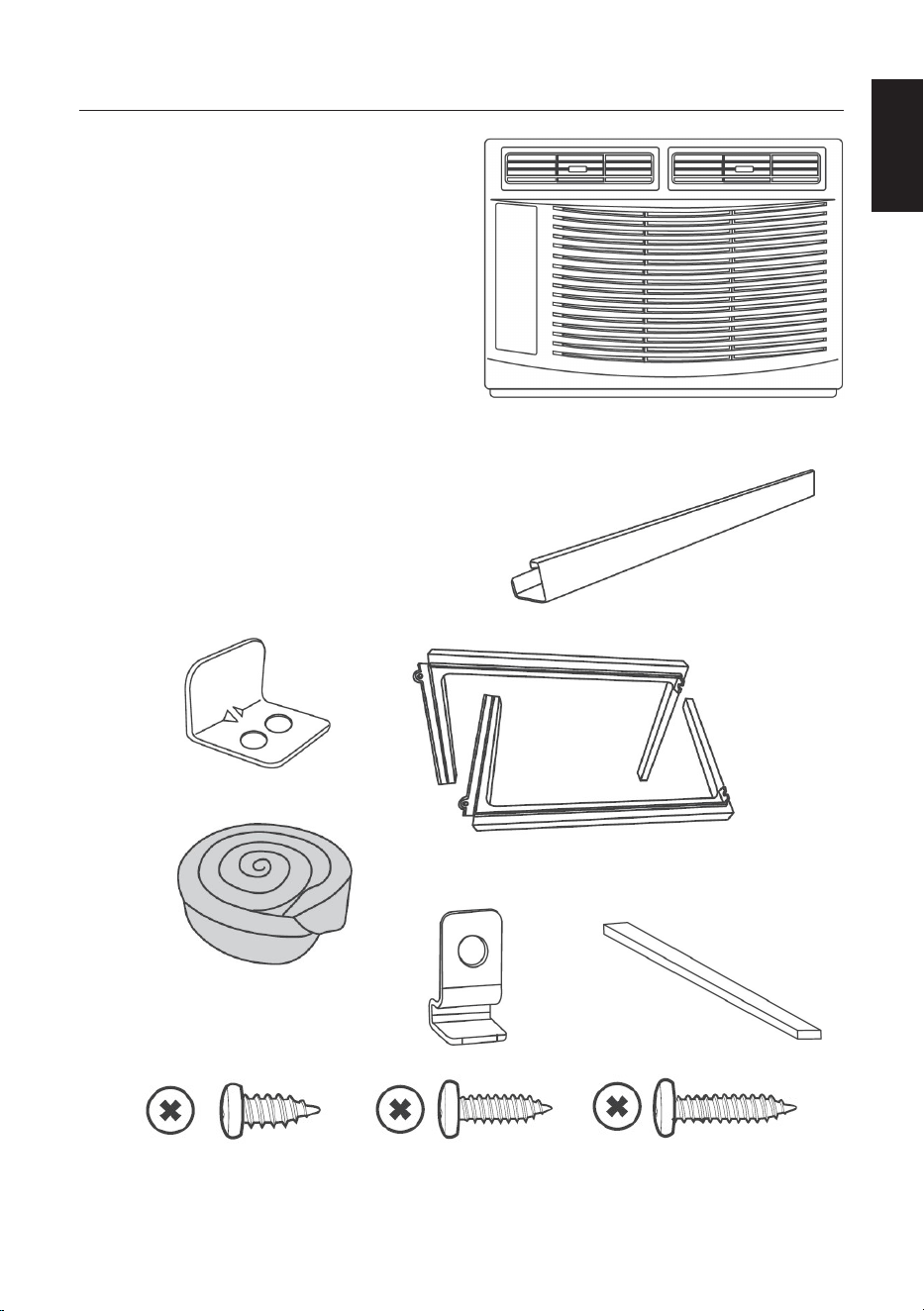

PACKING LIST
1. Window Air Conditioner (1)
2. Top Rail (With sponge) (1)
3. Sash Lock (Two holes) (1)
4. Filler Panels (2)
(With "Le" & "Right" remark on
the front face)
5. Window Sash Seal (Sponge) (1)
6. Lock Frame (2)
7. Foam Top Window Gasket (1)
(Thin sponge for back-up use )
8. 3/8" Screws (4)
9. 1/2" Screws (3)
10. 3/4" Screws (4)
❶
❿❾❽
❼
❻
❺
❹
❸
❷
7
ENGLISH
INSTALLATION & ASSEMBLY INSTRUCTIONS
Some assembly is required for your new air conditioner Please read and follow these
instructions carefully
• This air conditioner is designed to be installed in a standard double-hung window
with a window width between 23" and 34" (584mm-863 mm)
• The air conditioner can be installed without the accordion panels to fit in a narrow
window opening See the window dimensions

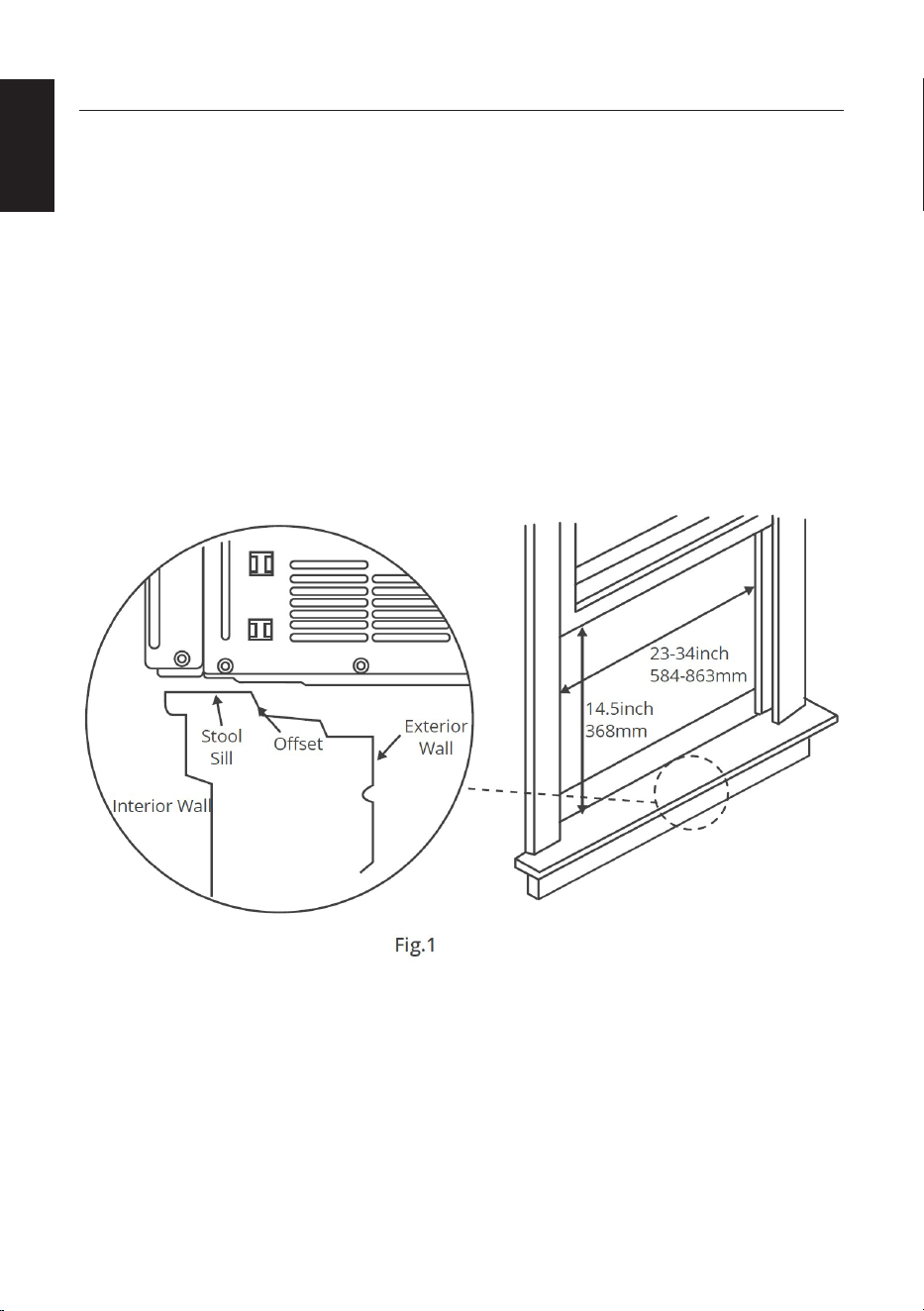

• The Lower Sash (the lower part of the window that moves up and down) must
allow for 14 5" of vertical dearance when open (See Fig 1)
• All supporting parts must be secured to firm wood, masonry, or metal
• The electrical outlet must be within reach of the power cord
• The air conditioner should be tilted about 3° for better drainage of condensate and
rainwater
NOTE:Save the product packaging and installation instructions for future reference
Store the air conditioner in the product box when not in use for an extended period of
time
8
ENGLISH
Top Rail Assembly

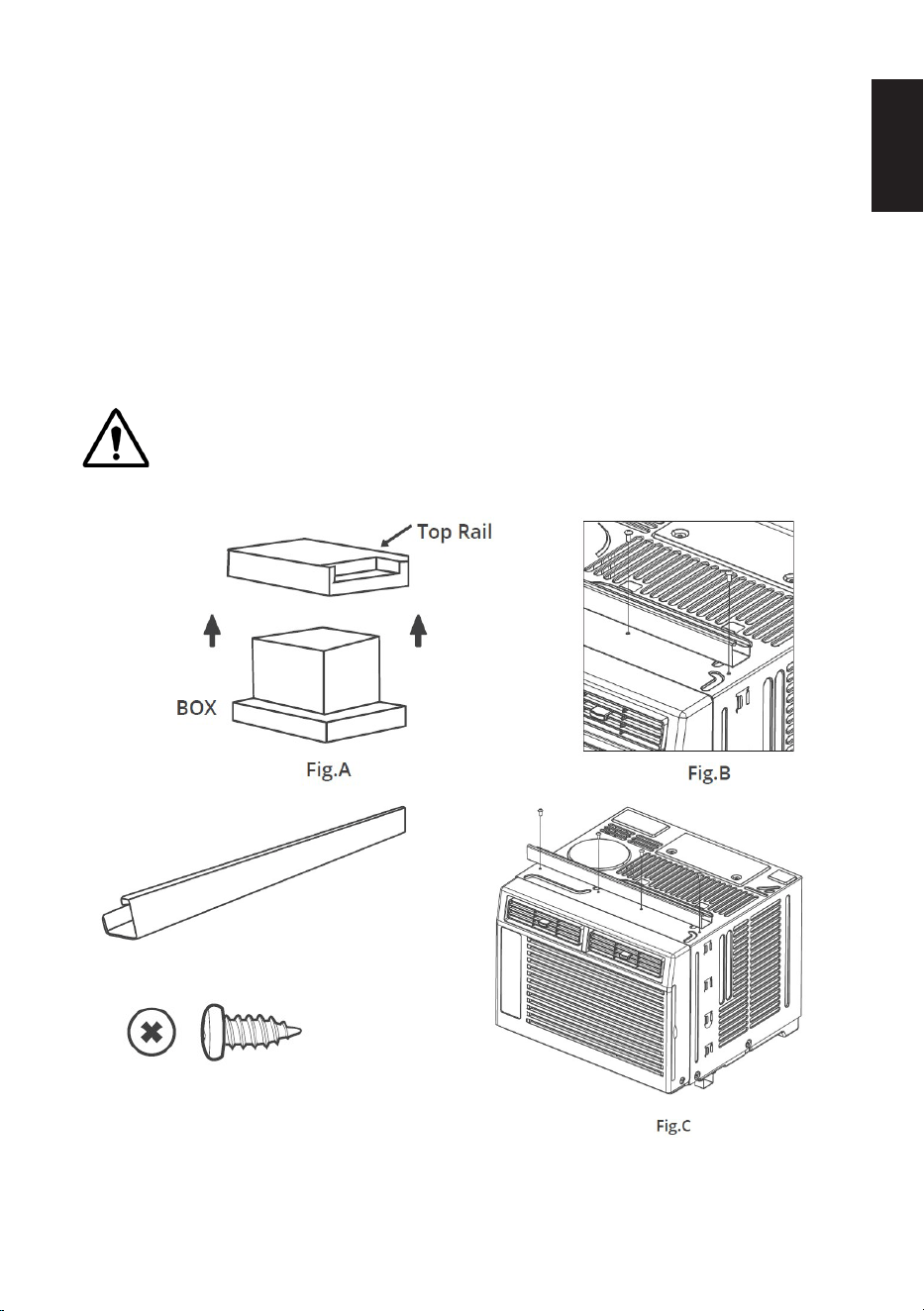

The top rail must be assembled prior to installing the air conditioner in the window
Tools Needed: Phillips Head Screw Driver
Attaching the Top Rail to the Air Conditioner
• Remove the air conditioner from the box and place on a hard and flat surface
• Remove top rail from the top of the packaging material as shown in Fig A
• Align the hole in the top rail with those in the top of the unit as shown in Fig B
• Secure the top rail to the unit with the 3/8" screws as shown in Fig C
CAUTION
When handling the unit, be careful to avoid cuts from the sharp metal edges
and aluminum fins on the front and rear coils
Top Rail (With sponge) *1
3/8"Screws *4
NOTE: For safety reasons, all 4 screws must be used to attach the top rail
9
ENGLISH
Accordion Panel Installation

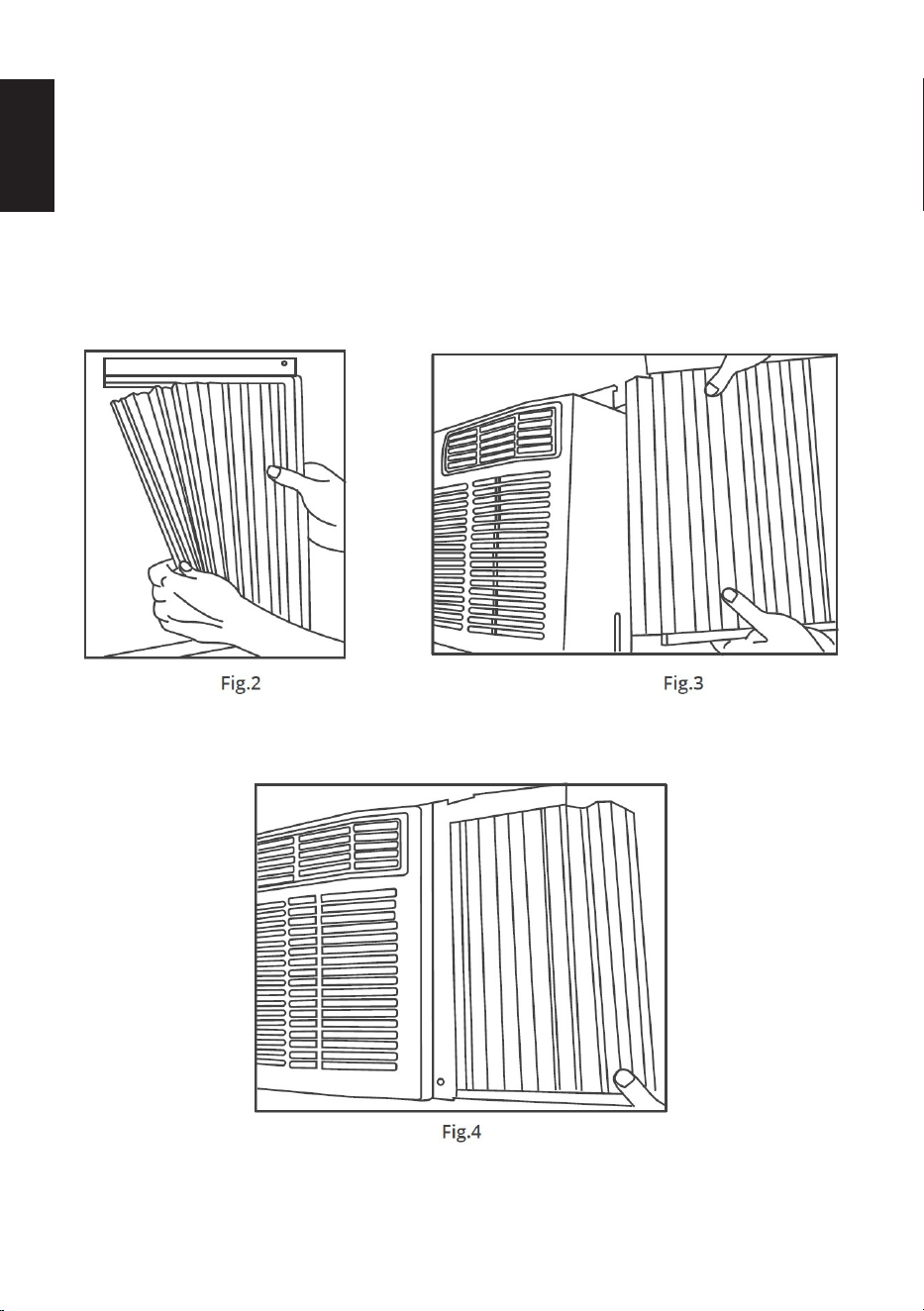

Now that you have installed the top rail, you can now install the accordion panels on
each side
• Place the air conditioner on a hard flat surface
• Locate the accordion panels in the box
• Gently pull the free end of the accordion panel (See Fig 2) Do this for both panels
• Slide the free end of the accordion panel into the side panel of the air conditioner
(See Fig 3) Do this for each side
• Once the accordion panels are slid into place adjust the top an d bottom rails of the
accordion panels into the top and bottom rails of the air conditioner (See Fig 4)
10
ENGLISH
Storm Window Requirements
A storm window frame will not allow the air conditioner to tilt properly which in turn
will keep it from draining properly

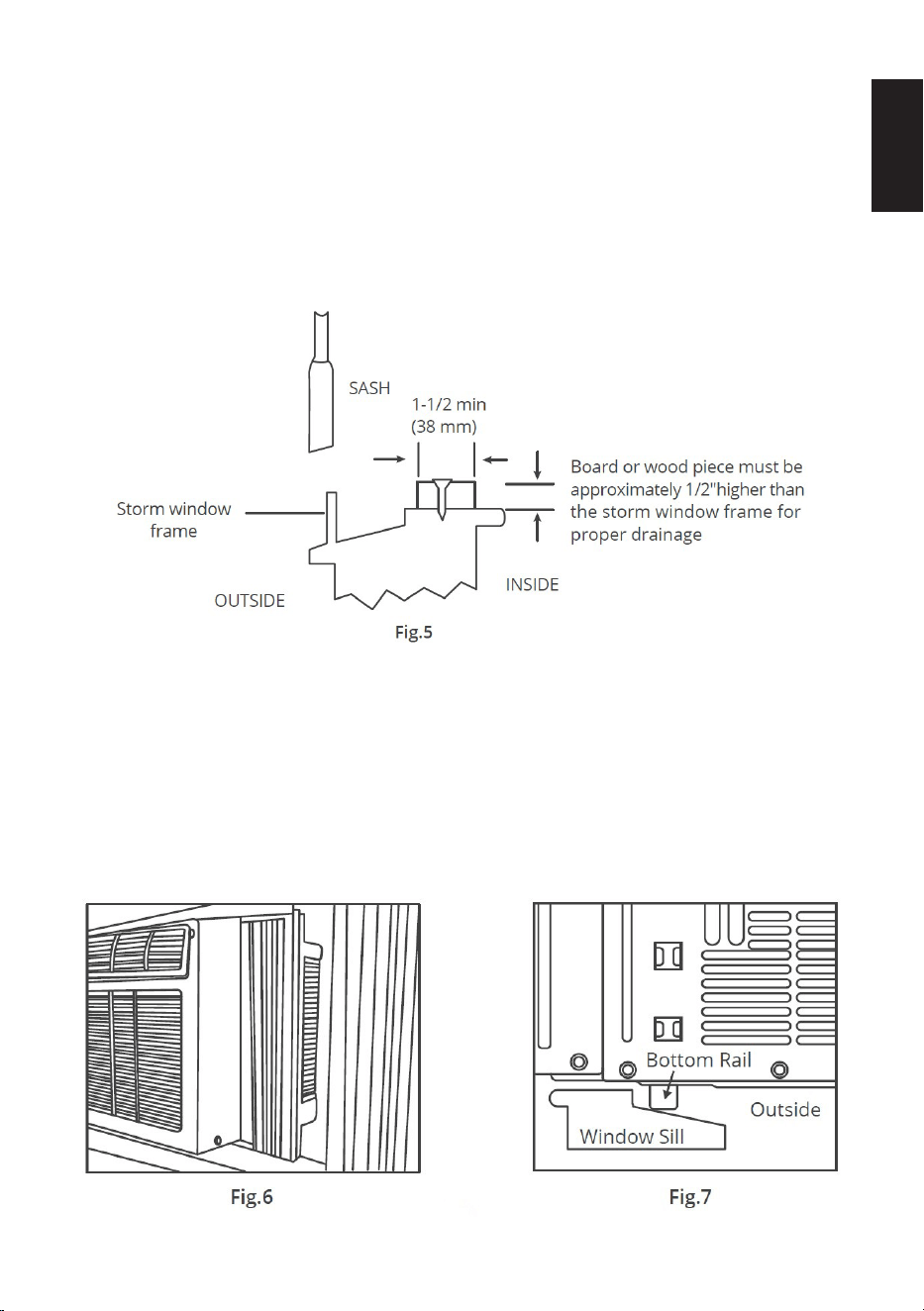

To adjust for this, attach a board or piece of wood to the sill The board or wood
piece should have a depth of at least 1-1/2" Make sure the board or piece of wood
is approximately 1/2" higher than the storm window frame This will allow the air
conditioner to tilt enough for proper drainage (See Fig 5)
Placing the Unit Inside a Window
• Place the air conditioner on the sill with the bottommounting rail against its back
edge Center the air conditioner and close the window securely behind the top
mounting rail The air conditioner should be 3° slightly tilted to the outside area
Use a level, about a 1/3 bubble will be the correct case slant to the outside (See
FIG 6 & FIG 7) (It is suggested to keep a downward angle to let accumulated rain
water drain out from the back side of the unit bottom )
11
ENGLISH
• Once the air conditioner is placed, extend both the le and right accordion panels
to the width of the window
Frame Lock, Sash Lock, and Foam Seal Installation
Mounting Hardware
Tools Needed:
1 Phillips Head Screw Driver
2 Drill (if plot holes are needed)

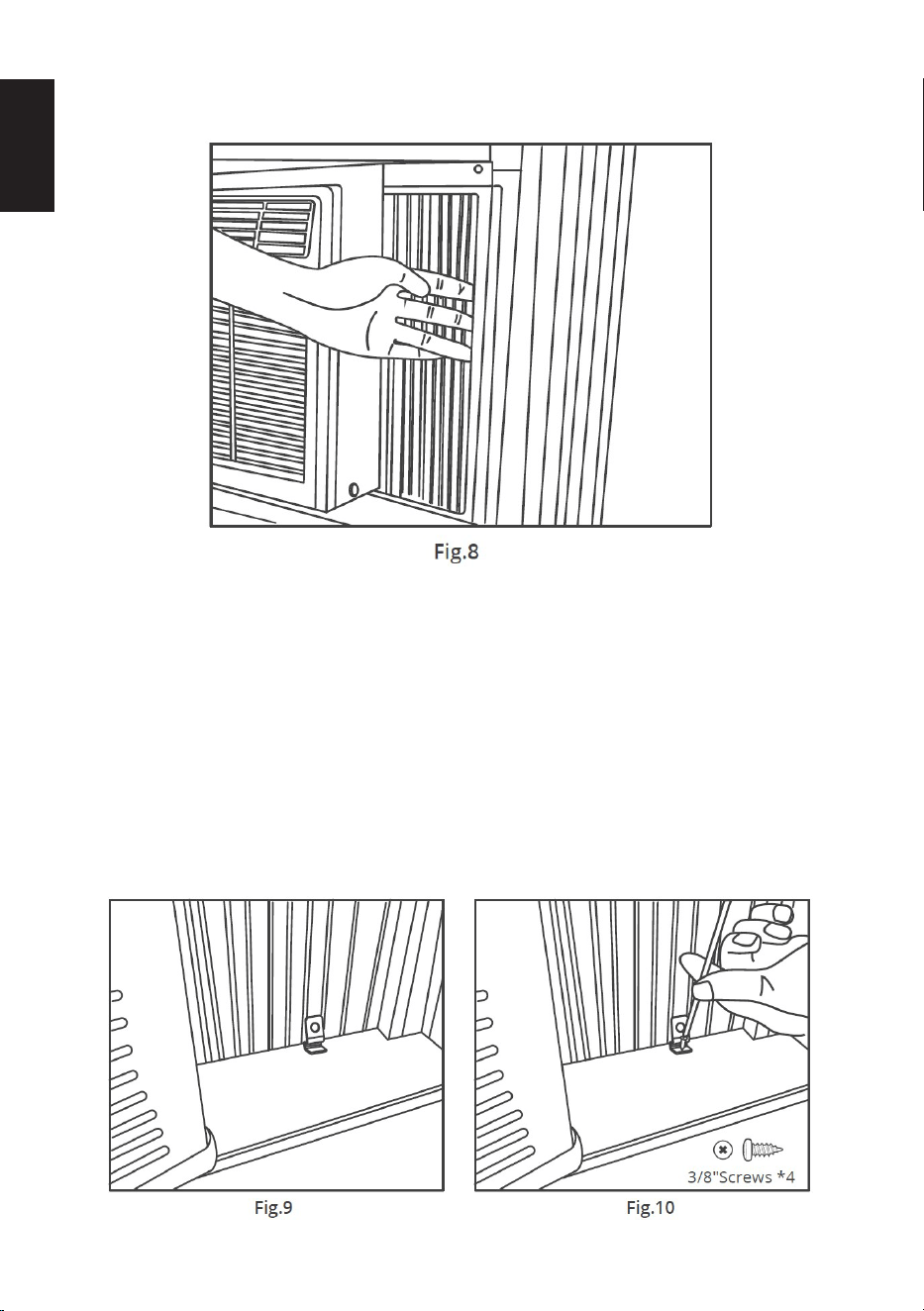

• Place the frame lock between the extended accordionpanels and the window sill
as show in Fig 9 Screw a 3/4" (19mm) locking screw through the frame lock anc
into the window sill (Fig 10)
12
ENGLISH

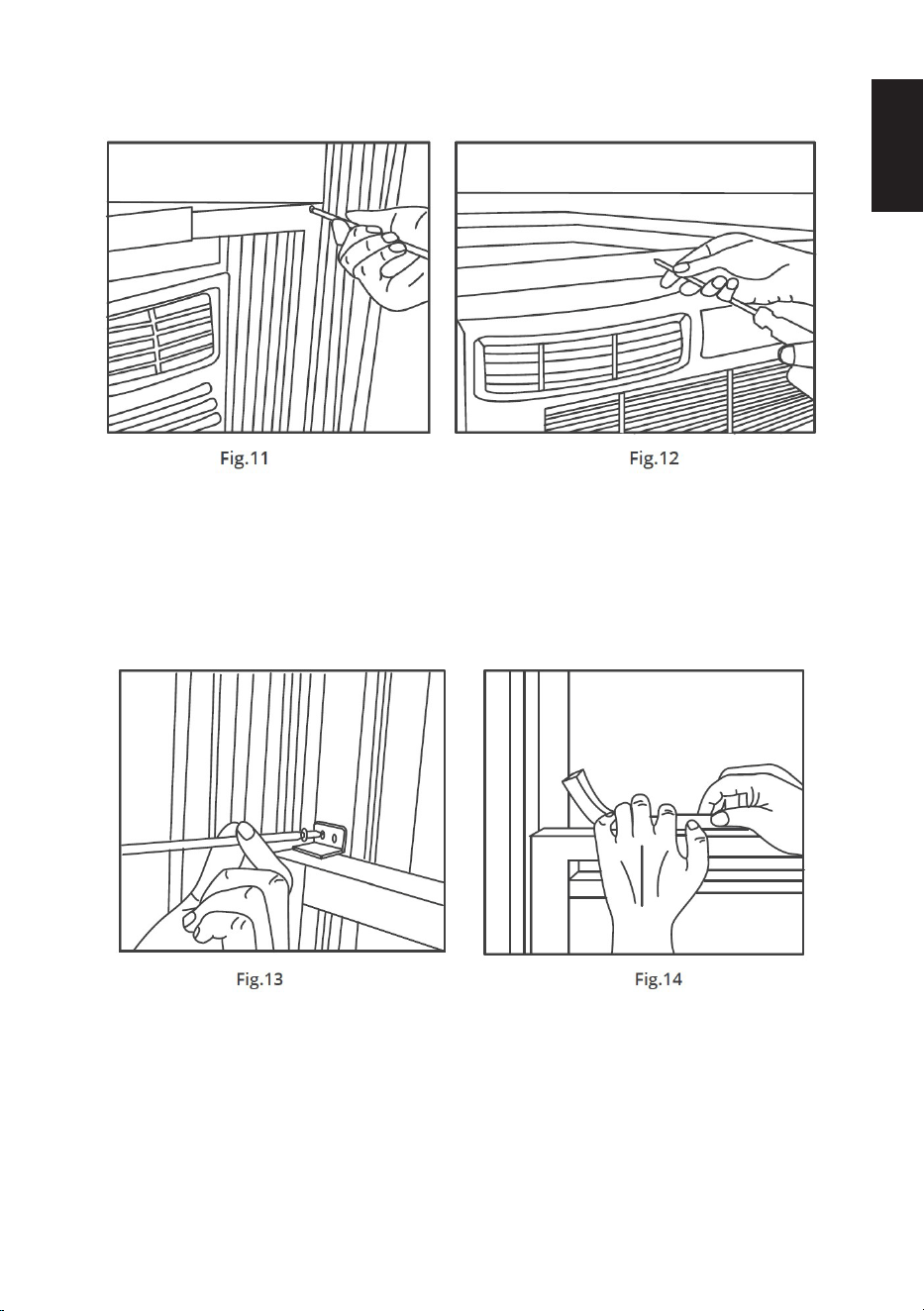

• Drive 1/2" screws into the top of the accordion panel frame and the top rail to
securely attach the window air conditioner to the lower sash (See Fig 11 Fig 12)
• To secure the lower sash into place, use the sash lock and a 3/4" screw as shown
below (See Fig 13)
• For added insulation, cut the supplied insulation foam to the width of the window
Insert the foam between the window sashes to prevent air and obj ects from
getting into the room (See Fig 14)
13
ENGLISH
Removing the Air Conditioner from the Window
• Turn the air conditioner o and unplug the power cord
• Remove the sash seal from between windows, and unscrew sash lock
• Remove the screws installed through the frame and frame lock
• Close (slide) the side panels into frame
• Keeping a firm grip on air conditioner, raise the sash and carefully "rock" air
conditioner backward to drain any condensate water in base of unit Be careful not
to spill any remaining water while liing unit from window
• Store parts with the air conditioner in the box
Introduction to Refrigerants R32
Before installing the appliance, you must read the manual carefully to get the safety
information and notes
When filling the combustible refrigerant, any of your rude operations may cause
serious injury or injuries to human body or bodies and object or objects
A leak test must be done aer the installation is completed
It is a must to do the safety inspection before maintaining or repairing an air
conditioner using combustible refrigerant in order to ensure that the fire risk is
reduced to minimum
It is necessary to operate the machine under a controlled procedure in order to ensure
that any risk arising from the combustible gas or vapor during the operation is reduced
to minimum
Requirements for the total weight of filled refrigerant and the area of a room to be
equipped with an air conditioner
1. Site Safety: Open Flames Prohibited, Ventilation Necessary
2. Operational Safety: Mind Static Electricity, Wear Protective Clothing, No Mobile
Devices
14
ENGLISH
3. Installation Safety
1) Refrigerant Leak Detector
2) Appropriate Installation Location
3) The le picture is the schematic diagram of arefrigerant leak detector
Please note that:
• The installation site should be in a well-ventilated condition
• The sites for installing and maintaining an air conditioner using Refrigerant R32
should be free from open fire or welding, smoking, drying oven or any o ther heat
source higher than 548°C which easily produces open fire
• When installing an air conditioner, it is necessary to take appropriate anti-static
measures such as wear anti-static clothing and/or gloves
• It is necessary to choose the site convenient for installation or maintenance
wherein the air inlets and outlets of the indoor and outdoor units should be
not surrounded by obstacles or close to any heat source or combustible and/or
explosive environment
• If the indoor unit suers refrigerant leak during the installat ion, all the personnel
should go out till the refrigerant leaks completely for 15 minutes If the product is
damaged, it is a must to carry such damaged product back to the maintenance
station and it is prohibited to weld the refrigerant pipe or conduct other operations
on the user's site
• It is necessary to choose the place where the inlet and outlet air of the indoor unit
is even
• It is necessary to avoid the places where there are other electrical products, power
switch plugs and sockets, kitchen cabinet, bed, sofa and other valuables right
under the lines on two sides of the indoor unit, and also prevent mechanical
damage from occurring
15
ENGLISH
USING YOUR AIR CONDITIONER
Normal Operating Sounds
• You may hear a pinging noise caused by water hitting the condenser, on rainy
days, or when the humidity is high This design feature helps remove moisture and
improve eiciency
• You may hear the thermostat click when the compressor cycles on and o
• Water will collect in the base pan during rain or days of high humidity The water
may overflow and drip from the outside part of the unit
• The fan may run even when the compressor is not on

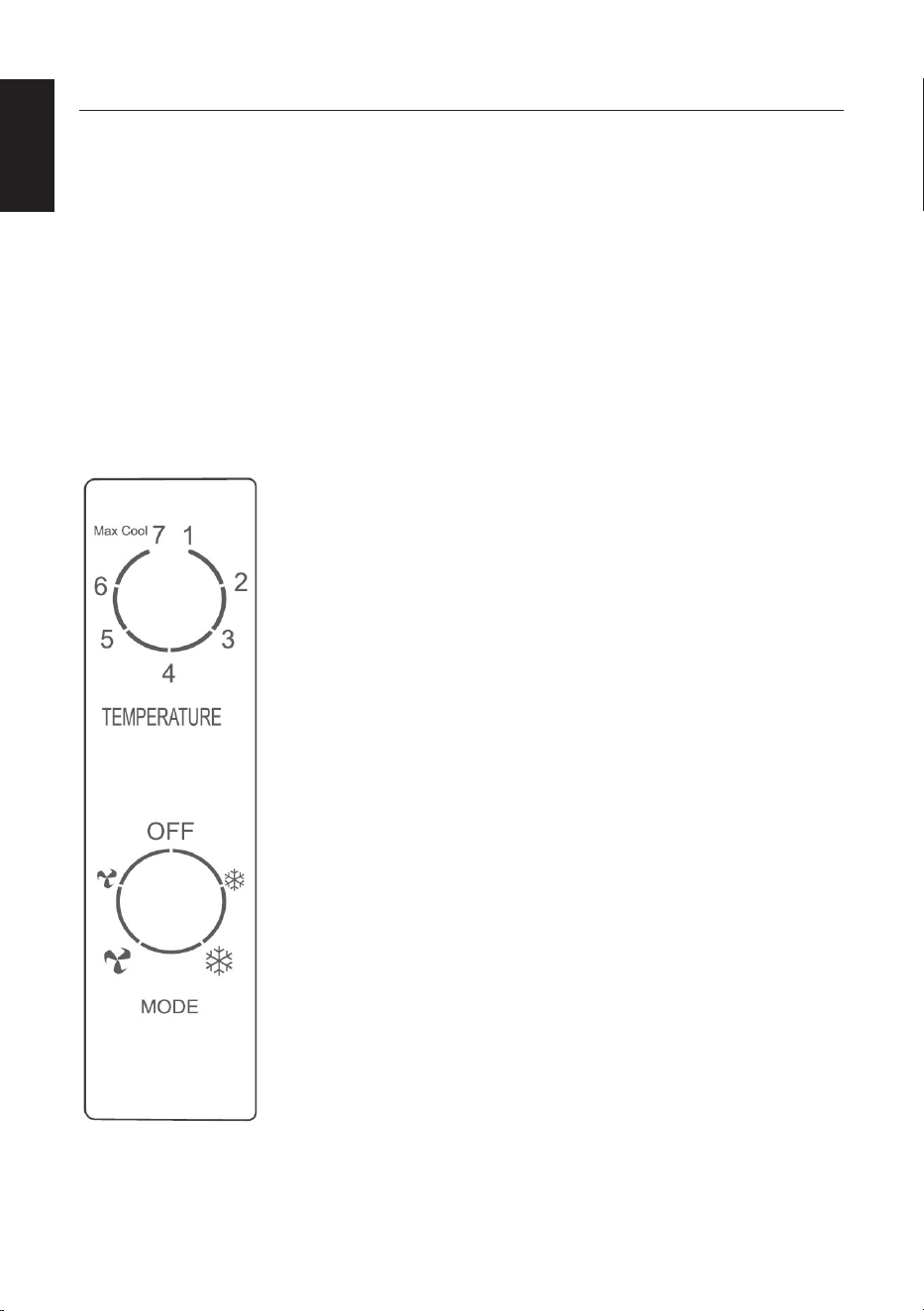

Manual Control Panel
1. Power:Turn the air conditioner on and o
2. Cooling Mode: Set to high cooling or low cooling mode In
high cooling mode, the fan will operate at high speed In low
cooling mode, the fan will operate at low speed
3. Fan Mode: Set to high fan or low fan mode In high fan
mode, the fan will operate at high speed In low fan mode, the
fan will operate at low speed
4. Thermostat: Turn the TEMP to the desired room
temperature, by set the knob to certain digital direction For
maximum cooling turn the TEMP dial to 7 (Max Cool) direction
Normal Operating Sounds:
• You may hear a pinging noise caused by water hitting the
conden ser
• You may hear the thermostat click when compressor on
and o
• The fan may operate even when the compressor is o
16
ENGLISH

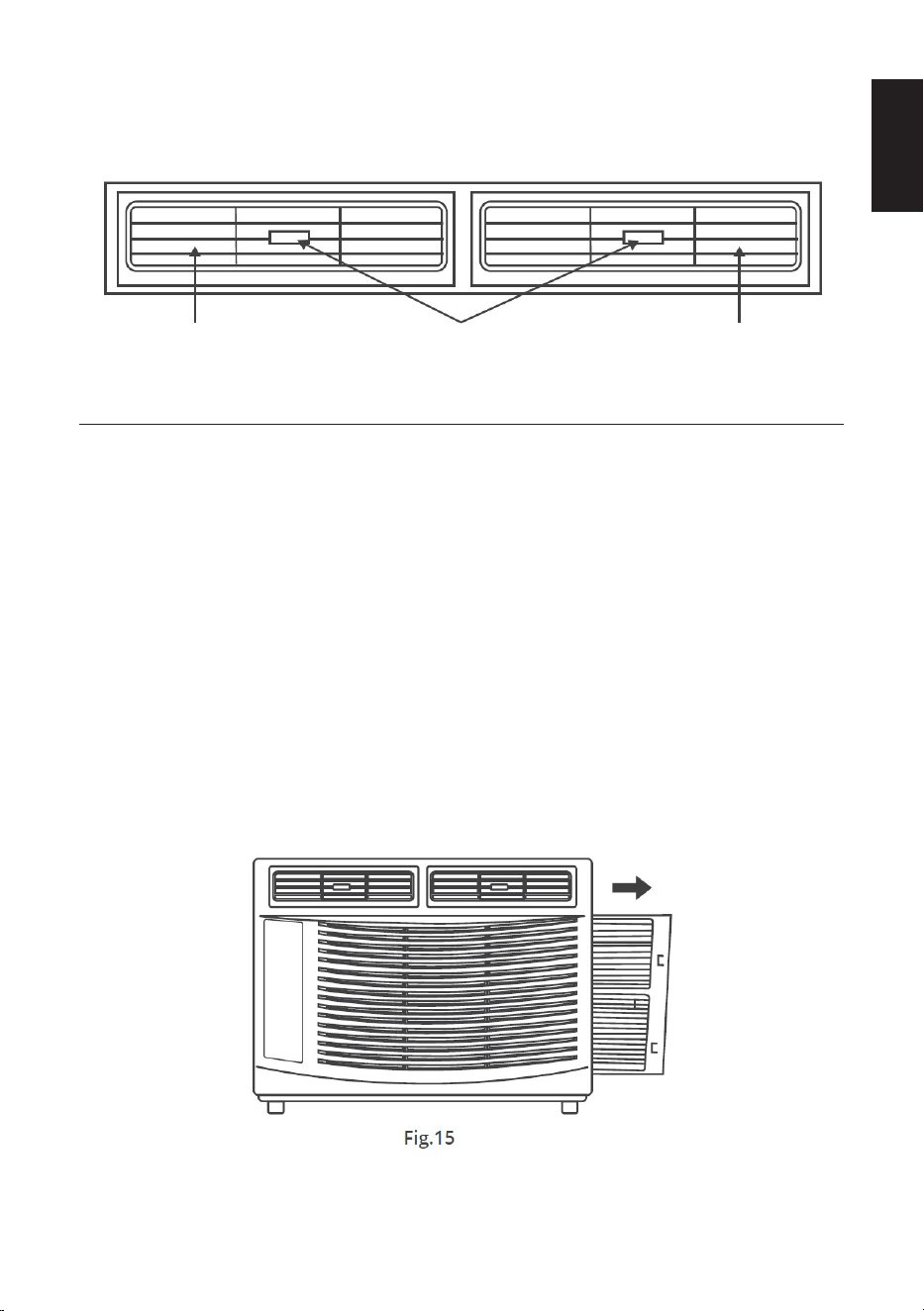

Directional Louvers:
Use the horizontal wheels to control horizontal airflow and the air deflectors to control
vertical airflow
Air Deflector Horizontal Wheel Air Deflector
CARE AND CLEANING
Air Filter Cleaning
The air filter should be checked at least once every month to se e if it needs cleaing
Trapped particles and dust can build up in the filter and may decrease airflow as well
as cause the cooling coils to accumulate frost
To clean the air filter:
• Take o the power plug, then remove the filter by sliding it out from the front right
side of the air conditioner (See Fig 15)
• Wash the filter using liquid dish soap and warm water Rinse the filter thoroughly
Gently shake the filter to remove excess water
• Let the filter dry completely before placing it into the air conditioner
• If you do not wish to wash the filter, you may vacuum the filter to remove the dust
and other particles
17
ENGLISH
Cabinet Cleaning
To clean the air conditioner cabinet:
• Unplug the air conditioner to prevent shock or a fire hazard Th e cabinet and
front panel of the air conditioner may be dusted with an oilfree cloth or washed
with a cloth dampened in a solution of warm water and mild liquid soap Rinse
thoroughly with a damp cloth and wipe dry
• Never use harsh cleaners, wax or polish on the cabinet front
• Be sure to wring excess water from the cloth before wiping around the controls
Excess water in or around the controls may cause damage to the air conditioner
Winter Storage
To store the air conditioner when it is not in use for an extended period of time,
remove it carefully from the window according to the installation instructions and
cover it with plastic or place it in the original box
TROUBLESHOOTING
Problem Possible Cause Possible Solutions
The Air Conditioner will not
start
The air conditioner is
unplugged
Make sure the air conditioner
plug is pushed completely
into the outlet
The fuse is blown/circuit
breaker is tripped
Check the house fuse/circuit
breaker box and replace the
fuse or reset the breaker
Power failure The unit will automatically re-
start when power is restored
There is a protective time
delay (approx 3 minutes)
to prevent tripping of the
compressor overload For this
reason, the unit may not start
normal cooling for 3 minutes
aer it is turned back on
The current interrupter
device is tripped
Press the RESET button
located on the power cord
plug
If the RESET button will not
stay engaged,discontinue
use of the air conditioner and
contact a qualified service
technician
18
ENGLISH
Problem Possible Cause Possible Solutions
The Air Conditioner does not
cool as it should
Airflow is restricted Make sure there are no
curtains, blinds, or furniture
blocking the front of the air
conditioner
The temperature control may
not be set correctly
Lower the set thermostat
temperature
The air filter is dirty Clean the filter See the
Cleaning and Care Section of
the manual
The room may be too warm Please allow time for the
room to cool down aer
turning onthe air conditioner
Cold air is escaping Check for open furnace
registers and cold air returns
The cooling coils are frozen See "Air Conditioner Freezing
Up" below
The Air Conditioner is
freezing up
Ice blocks the air flow and
stops the air conditioner from
cooling the room
Set the MODE dial to HIGH
FAN or HIGH COOL and set
the thermostat to a higher
temperature
Water is dripping outside Hot and humid weather This is normal
Water is dripping inside the
room
The air conditioner is not
correctly tilted outside
For proper water drainage,
make sure the air onditioner
is slightly tilted downward
from the front of the unit to
the rear
Water collects in the base pan Moisture removed from the
air is draining into the base
pan
This is normal for a short
period inareas with low
humidity and normal for a
longer period in areas with
high humidity
19
ENGLISH
CUSTOMER SUPPORT
Visit our website to contact us, find answers to Frequently Asked
Questions, and for other resources which may include an updated version of this user’s
manual
www.impecca.com
If you wish to contact us by phone, please be sure to have your model number and serial
number ready and call us between 9:00am and 6:00pm ET, at +1 866-954-4440
Keep tabs on Impecca’s newest innovations and enter contests via our social network
feeds:
www facebook com/Impecca/
www instagram com/impecca/
@impeccausa
20
ENGLISH
ONE-YEAR LIMITED APPLIANCE WARRANTY (US)
Impecca™ warrants this product against defects in material
and workmanship to the original purchaser as specified be-
low.
PARTS AND LABOR– if the product is determined to
have a manufacturing defect, within a period of one
year from the date of the original purchase, Impec-
ca™, at its own discretion, will repair or replace the
product parts at no charge to you in the U.S.A.
To obtain warranty service by an authorized Impecca™ ser-
vice center, please email us at: service@impecca.com to ob-
tain a Repair and Maintenance Authorization (RMA) number
and received instructions on how the repair and/or replace-
ment procedure will take place.
Any glass materials included with the appliance will
be covered for a period of 60 days from purchase.
Impecca™ specifically excludes from this warranty any
non-electric/mechanical attachments, accessories and
disposable parts including but not limited to outside case,
connecting cables, batteries and AC adapters. Impecca™ re-
serves the right to repair or replace defective products with
the same, equivalent or newer models.
We reserve the right to either repair or replace product at our
discretion. Replacement may be either new or refurbished
and while every endeavor will be made to ensure it is the
same model, if not possible it will be equal or higher spec-
ification.
Normal “Wear and Tear” is not covered by this warranty. Fur-
ther, Impecca™ hereby reserves the right to determine “Wear
and Tear” on any and all products. Tampering or opening the
product casting or shell will void this warranty in its entirety.
Exclusions: This warranty does not cover the following:
1. Any product that has a defaced or covered serial num-
ber.
2. Products that have been transferred to a second owner.
3. Rust on the interior or exterior of the unit.
4. Products listed as “As-Is” or “Refurbished.”
5. Food loss due to any product failure.
6. Window air conditioners installed in a wall.
7. The product if used in a commercial setting.
8. Service calls that do not involve product malfunction.
9. Service calls for a product ruined by not following the
provided instructions.
10. Service calls to correct improper installation.
11. Costs associated with making the product accessible
for servicing (including but not limited to removal of
trim/molding/cabinetry, etc.)
12. Service calls to replace any consumables such as light
bulbs, filters, etc.
13. Surcharges that may apply to service calls on weekends,
nights, holidays. Damages to the finish of appliance or
household furnishings due to installation of appliance.
14. Damages caused by any of the following: Acts of God;
fires; misuse; accidents; incorrect power supply; service
performed by unauthorized persons; use of non-genu-
ine Impecca parts, etc.
ALL IMPLIED WARRANTIES, INCLUDING IMPLIED WARRAN-
TIES OF MERCHANTABILITY AND FITNESS FOR A PARTICU-
LAR PURPOSE ARE LIMITED IN DURATION TO 1 YEAR FROM
THE DATE OF THE ORIGINAL RETAIL PURCHASE OF THIS
PRODUCT.
THESE WARRANTIES AND REMEDIES ARE THE SOLE AND
EXCLUSIVE WARRANTIES AND REMEDIES IN CONNECTION
WITH THE SALE AND USE OF THE PRODUCT. NO OTHER
WARRANTIES, ORAL OR WRITTEN, EXPRESSED OR IMPLIED,
ARE GIVEN.
IMPECCA™ IS NOT RESPONSIBLE OR LIABLE FOR ANY DAM-
AGE, WHETHER SPECIAL, INCIDENTAL, CONSEQUENTIAL,
DIRECT OR OTHERWISE, OR WHETHER KNOWN OR SHOULD
HAVE BEEN KNOWN TO IMPECCA™, INCLUDING LOST PROF-
ITS, GOODWILL, AND PROPERTY AND PERSONAL INJURY RE-
SULTING FROM ANY BREACH OF WARRANTY, THE INABILITY
TO USE THE PRODUCT OR UNDER ANY LEGAL THEORY IN
CONTRACT OR TORT. IMPECCA LIABILITY IS LIMITED TO THE
ACTUAL PURCHASE PRICE PAID TO THE RETAIL SELLER OF
THE DEFECTIVE PRODUCT.
No Impecca™ dealer, agent or employee is authorized to
make any modification, extension, change or amendment to
this warranty without the written consent and authorization
from Impecca™.
Some states do not allow the exclusion or limitation of im-
plied warranties or liability for incidental or consequential
damages, or do not allow a limitation on how long an im-
plied warranty lasts, so the above limitations or exclusions
may not apply to you. This warranty gives you specific legal
rights, and you have other rights, which vary from state to
state.
Note: Our Warranty center services only to Continental U.S.A.
ONE-YEAR LIMITED APPLIANCE WARRANTY (US)
21
ENGLISH
