BG-AUD-TCS
Stereo/Toslink/Coax Audio Extender Kit up to 950ft
User Manual
BZBGEAR BG-AUD-TCS PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 2
BZBGEAR BG-AUD-TCS PRODUCT MANUAL
TABLE OF CONTENTS
Statement 4
Safety Precaution 4
Introduction 5
Features 5
Packing List 5
Technical Specifications 6
Operation Controls and Functions 6
Application Example 7
Tech Support 8
Limited Product Warranty Terms 8
Mission Statement 8
Copyright 8
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 3
BZBGEAR BG-AUD-TCS PRODUCT MANUAL
Statement
Please read these instructions carefully before connecting, operating, or configuring this
product. Please save this manual for future reference.
Safety Precaution
● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion
during transportation, storage, and installation.
● The housing of this product is made of organic materials. Do not expose to any liquid,
gas, or solids which may corrode the shell.
● Do not expose the product to rain or moisture.
● Unplug this device during lightning storms
● Clean only with a soft dry microfiber cloth.
● To prevent the risk of electric shock, do not open the case. Installation and maintenance
should only be carried out by qualified technicians.
● Do not use the product beyond the specified temperature, humidity, or power supply
specifications.
● This product does not contain parts that can be maintained or repaired by users.
Damage caused by dismantling the product without authorization from BZBGEAR is not
covered under the warranty policy.
● Installation and use of this product must strictly comply with local electrical safety
standards.
● Only use accessories specified by the manufacture
● Product specifications may be subject to technical upgrades without further notice
● Do not twist or pull by force ends of the optical cable. It can cause malfunction.
● Do not hot plug when it is working.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 4
BZBGEAR BG-AUD-TCS PRODUCT MANUAL
Introduction
The BG-AUD-TCS is an audio extender kit that includes a transmitter and receiver. It is
designed to extend the stereo audio signals up to 170m while TOSLINK and digital COAX
audio signals can go up to 290m over a CAT cable.
Features
● Three audio inputs can be switched and selected: TOSLINK/COAX/Stereo.
● Three audio synchronous outputs: TOSLINK, COAX & RCA (L+R).
● The transmitter is powered by the receiver 12v/DC via PoC technology.
● The transmission distance of Stereo audio signal can up to 170m and the TOSLINK,
COAX audio signal up to 290m.
Packing List
● 1x Transmitter
● 1x Receiver
● 1x Power Adaptor (12V DC,1A)
● 4x Mounting Ears
● 8x Plastic Cushions
● 1x User Manual
● 1х Quick Start Guide
● 8x Screws
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 5
BZBGEAR BG-AUD-TCS PRODUCT MANUAL
Technical Specifications
Connections
Transmitter
Receiver
Input
TOSLINK, COAX or AUDIO
TP IN
Output
TP OUT
TOSLINK, COAX & RCA (L+R)
Technical
Audio Format
TOSLINK & COAX: PCM/Dolby/DTS; AUDIO: Stereo
Sound Channel
TOSLINK & COAX: 2.0-7.1
Frequency Response
20 Hz to 20 kHz, ±3 dB
Sample Rate
TOSLINK & COAX: 48k/96k/192k 16bit/18bit/24bit
Transmission Distance
Stereo: Up to 170m (CAT5e/6/7) TOSLINK/COAX: Up to 290m (CAT5e/6/7)
Power Supply
Input: 100VAC~240VAC, 50/60Hz; Output: 12VDC, 1A
Mechanical
Power Consumption
2.5W (Max)
Work Temperature
-10°C ~ +55°C
Humidity
10% ~ 90%
Net Weight
110g
119g
Dimensions (WxHxD)
88mm x 80mm x 21.5mm
Operation Controls and Functions

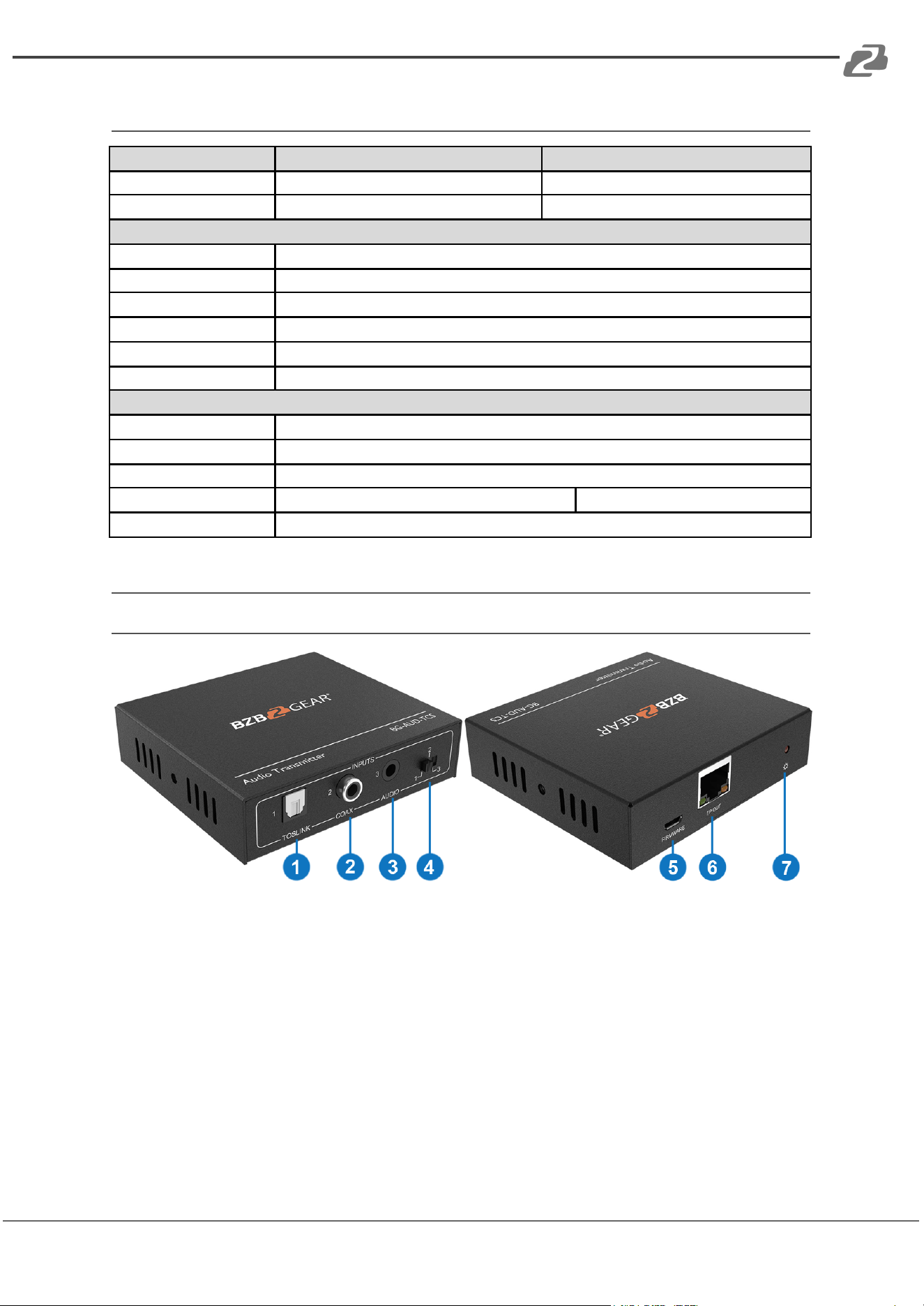

Transmitter Panel
1. TOSLINK: digital audio input port, connects to audio source.
2. COAX: digital audio input port, connects to audio source.
3. AUDIO: 3.5mm stereo mini audio input port, connects to audio source.
4. DIP: DIP switcher for selecting audio input source.
5. Firmware: Micro USB port for updating firmware.
6. TP OUT: RJ45 ports, connect to the “TP IN” port of Receiver.
7. Power Led: Red LED power indicator.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 6
BZBGEAR BG-AUD-TCS PRODUCT MANUAL

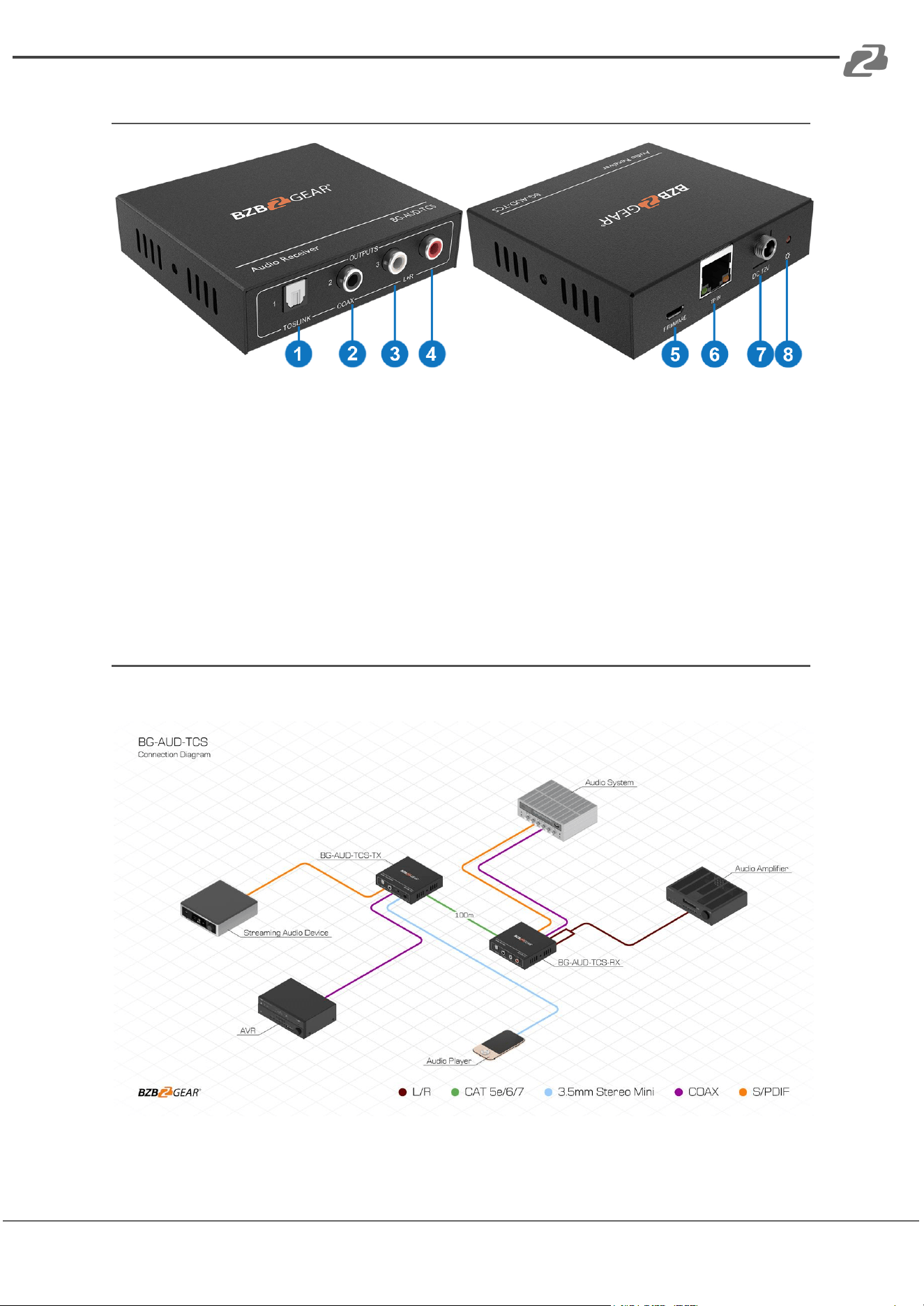

Receiver Panel
