BG-IPGEAR-XTREME-CORE
HDMI 2.1 4K@120Hz Over IP Multicast AV & Control Extension
System
User Manual
BZBGEAR BG-IPGEAR-XTREME-CORE PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 2
BZBGEAR BG-IPGEAR-XTREME-CORE PRODUCT MANUAL
TABLE OF CONTENTS
Statement 4
Safety Precaution 4
Introduction 5
Features 5
Packing List 6
Specifications 7
Operation Controls and Functions 9
Connection Diagram 11
IR Pass-Through 12
IR Pin Definition 12

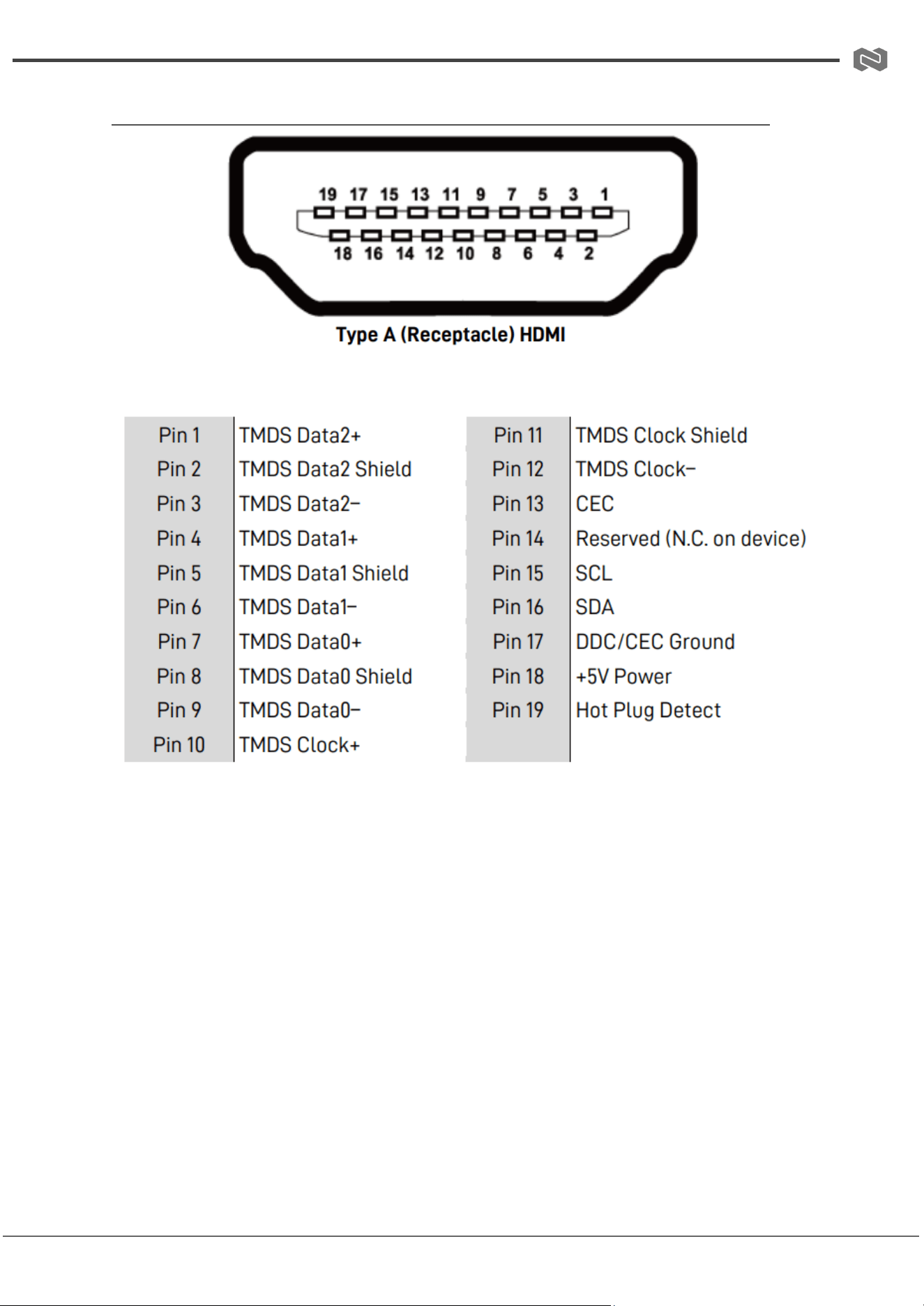

HDMI Pin Definition 13
Troubleshooting 14
Tech Support 15
Limited Product Warranty Terms 15
Mission Statement 16
Copyright 16
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 3
BZBGEAR BG-IPGEAR-XTREME-CORE PRODUCT MANUAL
Statement
Please read these instructions carefully before connecting, operating, or configuring this
product. Please save this manual for future reference.
Safety Precaution
● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion
during transportation, storage, and installation.
● The housing of this product is made of organic materials. Do not expose to any liquid,
gas, or solids which may corrode the shell.
● Do not expose the product to rain or moisture.
● To prevent the risk of electric shock, do not open the case. Installation and maintenance
should only be carried out by qualified technicians.
● Do not use the product beyond the specified temperature, humidity, or power supply
specifications.
● This product does not contain parts that can be maintained or repaired by users.
Damage caused by dismantling the product without authorization from BZBGEAR is not
covered under the warranty policy.
● Installation and use of this product must strictly comply with local electrical safety
standards.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 4
BZBGEAR BG-IPGEAR-XTREME-CORE PRODUCT MANUAL
Introduction
The BG-IPGEAR-XTREME-CORE is a professional HDMI 2.1 over IP multicast
extension system designed for ultra-low-latency transmission of uncompressed
UHD video, audio, USB, and control signals over standard 1Gb Ethernet
infrastructure. Supporting 4K@120Hz 4:4:4 with full HDCP 2.3 compliance, the
system delivers real-time performance suitable for live production, control rooms,
simulation, and high-frame-rate gaming applications. Video, audio, USB, and
control data can be extended up to 100 meters (330 ft) over Cat5e cabling while
maintaining signal integrity and synchronization.
The system supports point-to-point, point-to-many, and multicast configurations
when deployed with a managed 1GbE switch supporting IGMP snooping.
Proprietary encoding and decoding technology ensures sub-frame latency, stable
clocking, and consistent image quality across distributed endpoints. Integrated
Ethernet pass-through allows network or internet access at the remote endpoint,
reducing the need for additional cabling.
In addition to HDMI transport, the BG-IPGEAR-XTREME-CORE integrates
USB-C–based USB 3.1 Gen 1 and Gen 2 extension, balanced analog audio I/O,
bi-directional IR, full-duplex RS-232, and Power over Cable (PoC) support. The
platform is designed for scalable IP-based AV systems and supports web-based
configuration and firmware updates, with software architecture unified across the
O1Stream product family.
Features
● HDMI 2.1 over IP Multicast: Distributes full-bandwidth HDMI 2.1 signals over
standard 1GbE networks with multicast support
● 4K@120Hz 4:4:4 Performance: Delivers Ultra-HD video with no compression
artifacts or chroma loss
● Ultra-Low Latency: Less than one frame of latency for real-time, interactive
applications
● Advanced Control Integration: Supports bi-directional IR, RS-232, Ethernet, and
USB 3.1 extension
● Scalable Network Architecture: Supports point-to-point, point-to-many, and
multicast configurations
● High-Bit-Rate Audio Support: Passes uncompressed 7.1ch audio, Dolby TrueHD,
DTS-HD MA, and eARC/ARC
● Balanced Audio I/O: Professional balanced analog audio input and output via
terminal blocks
● HDCP 2.3 Compliance: Ensures compatibility with protected content sources
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 5
BZBGEAR BG-IPGEAR-XTREME-CORE PRODUCT MANUAL
● VRR & ALLM Support: Optimized for next-gen gaming and low-latency video
playback
● 100m Extension over Cat5e: Long-distance transmission without proprietary
cabling
● Integrated 1Gb Ethernet Interface: Supports AV distribution over managed IP
networks
● USB 3.1 Gen 1 & Gen 2 (USB-C): High-speed peripheral extension between TX and
RX
● EDID Management: Simplifies system integration and display compatibility
● HDCP & CEC Bypass: Improves interoperability with complex AV systems
● Full-Duplex RS-232 (up to 115,200 bps): Reliable serial control for professional
devices
● Metal Enclosure with Wall-Mounting: Durable, installation-ready design
● Web-Based Configuration & Firmware Updates: Simplified system setup and
maintenance
Packing List
● BG-IPGEAR-XTREME-CORE Transmitter (TX) ×1
● BG-IPGEAR-XTREME-CORE Receiver (RX) ×1
● 12V / 1A DC Power Adapter (US Plug) ×2
● IR 3.5 mm TX Cable (150 cm) ×1
● IR 3.5 mm RX Cable (150 cm) ×1
● 3-Pin Terminal Block (3.5 mm, 90°) ×2
● Bottom-mount Brackets (Elevated Type) ×4
● M3 × 4 mm Black Screws ×8
● M4 × 20 mm Flat Head Screws ×4
● User Manual ×1
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 6
BZBGEAR BG-IPGEAR-XTREME-CORE PRODUCT MANUAL
Specifications
Technical Specifications
HDMI Compliance
HDMI 2.1
HDCP Compliance
HDCP 2.3
Maximum Video Bandwidth
Up to 48Gbps (FRL 6)
Maximum Resolution
Up to 4K@120Hz 4:4:4
Transmission Distance
Up to 100 m (330 ft) over Cat5e
Network Interface (AV)
Integrated 1GbE (RJ-45)
Network Requirements
Managed 1GbE switch with IGMP Snooping (for multicast)
Distribution Modes
Point-to-Point, Point-to-Many, Multicast
Video Latency
< 1 frame
Video Processing
Proprietary multi-encode / decode
Audio Formats
Uncompressed 7.1ch HDMI, Dolby TrueHD, DTS-HD Master Audio
ARC / eARC Support
Yes
VRR / ALLM Support
Yes
EDID Management
Supported
HDCP / CEC Bypass
Supported
IR Pass-Through
Bi-directional (20 kHz – 60 kHz)
RS-232 Control
Full-duplex, up to 115,200 bps
Connectivity
USB Support
● USB Connector Type: USB-C
● USB Standards: USB 3.1 Gen 1 & USB 3.1 Gen 2
Ethernet Pass-Through
10/100 Mbps (Point-to-Point mode only)
Audio Connectivity
● Balanced Audio Level: 3.975 Vrms / 12 dBV (600Ω)
● Audio Connector: 5-pin terminal block (Balanced In / Out)
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 7
BZBGEAR BG-IPGEAR-XTREME-CORE PRODUCT MANUAL
HDMI Connector
Type-A (19-pin female)
USB Connector
USB Type-A, USB Type-C
RS-232 Connector
3-pin terminal block
IR Connector
3.5 mm (IR Blaster / IR Receiver)
Mechanical Specifications
Housing
Metal enclosure
Mounting
Wall-mountable
Power Supply
12V DC, PoC
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-20°C to 60°C (-4°F to 140°F)
Operating Humidity
20% to 90% RH (non-condensing)
ESD Protection
±15kV (air), ±8kV (contact)
PCB Construction
4-layer board, impedance controlled
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 8
BZBGEAR BG-IPGEAR-XTREME-CORE PRODUCT MANUAL
Operation Controls and Functions

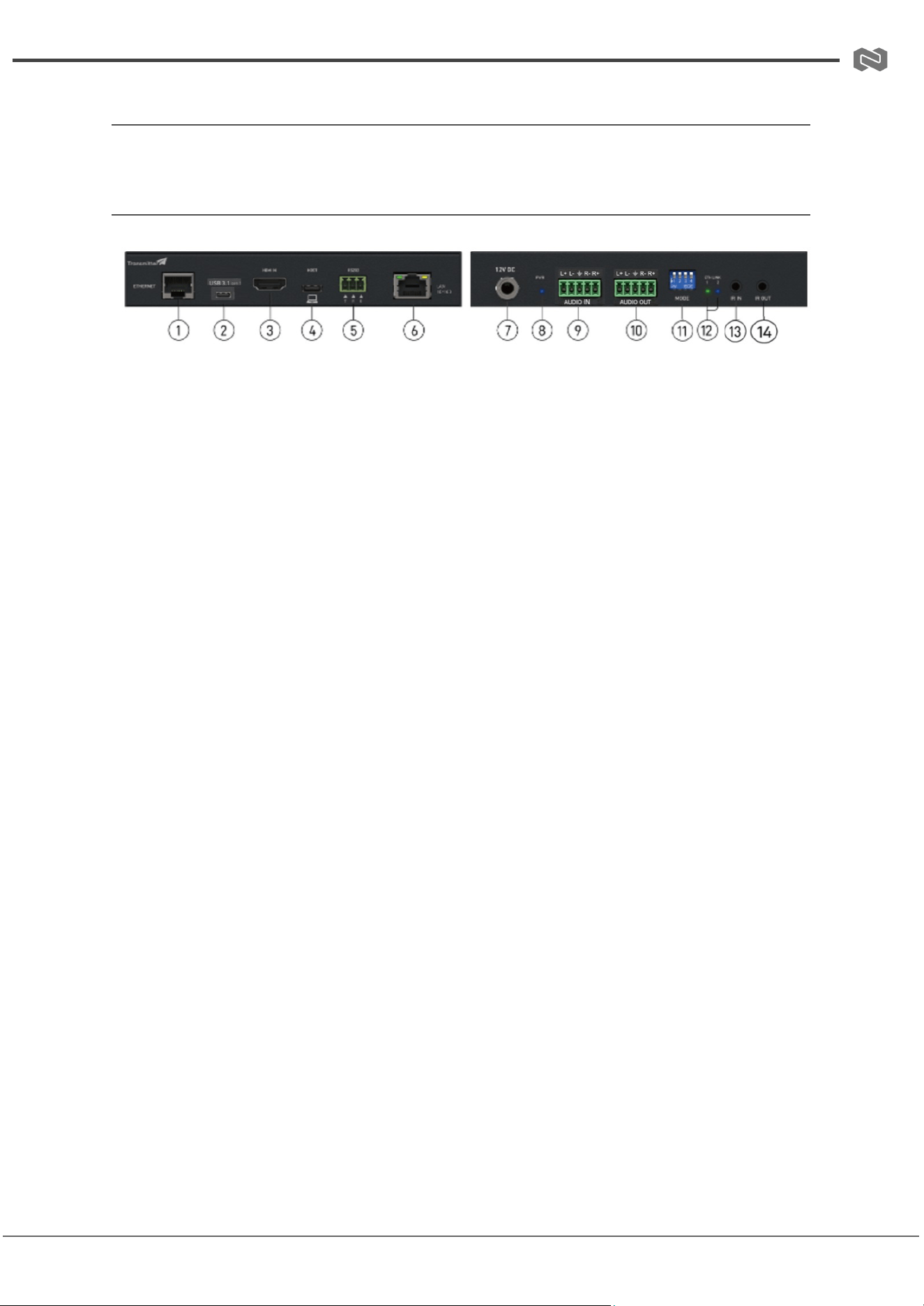

Transmitter Unit (BG-IPGEAR-XTREME-CORE-TX)
1. 1G Ethernet (PoC / AV OUT)
Connect a Cat5e or higher cable to link the transmitter to the receiver directly or to a
managed 1GbE network switch for IP-based AV distribution. Supports Power over
Cable (PoC).
2. USB 3.1 Gen 1 (USB-C)
Connect USB peripheral devices for extension to the receiving unit.
3. HDMI IN
Connect an HDMI source device such as a PC, media player, or gaming console.
4. USB 3.1 Gen 2 (USB-C)
Connect to a host PC for high-speed USB extension.
5. RS-232 Terminal Block
3-pin terminal block for serial control. Pin order (left to right): TX / RX / GND.
6. Ethernet Pass-Through (10/100 LAN)
Provides Ethernet pass-through for network or internet access at the remote
endpoint (supported in point-to-point mode only).
7. 12V DC Power Input
Interlocking power jack for connection to the supplied 12V DC power adapter.
8. Power LED Indicator
Illuminates when the transmitter is powered on.
9. Audio IN (Balanced, 5-Pin Terminal Block)
Balanced analog audio input for external audio sources.
10. Audio OUT (Balanced, 5-Pin Terminal Block)
Balanced analog audio output for routing audio to external equipment.
11. DIP Switch
Used for system configuration, including Ethernet pass-through and firmware
update mode selection.
12. LAN Status LED
Indicates Ethernet link status and activity.
13. IR Receiver Port (3.5 mm)
Connect the IR receiver to capture infrared control signals from a remote control.
14. IR Blaster Port (3.5 mm)
Connect the IR blaster to transmit infrared control signals to the source device.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 9
BZBGEAR BG-IPGEAR-XTREME-CORE PRODUCT MANUAL

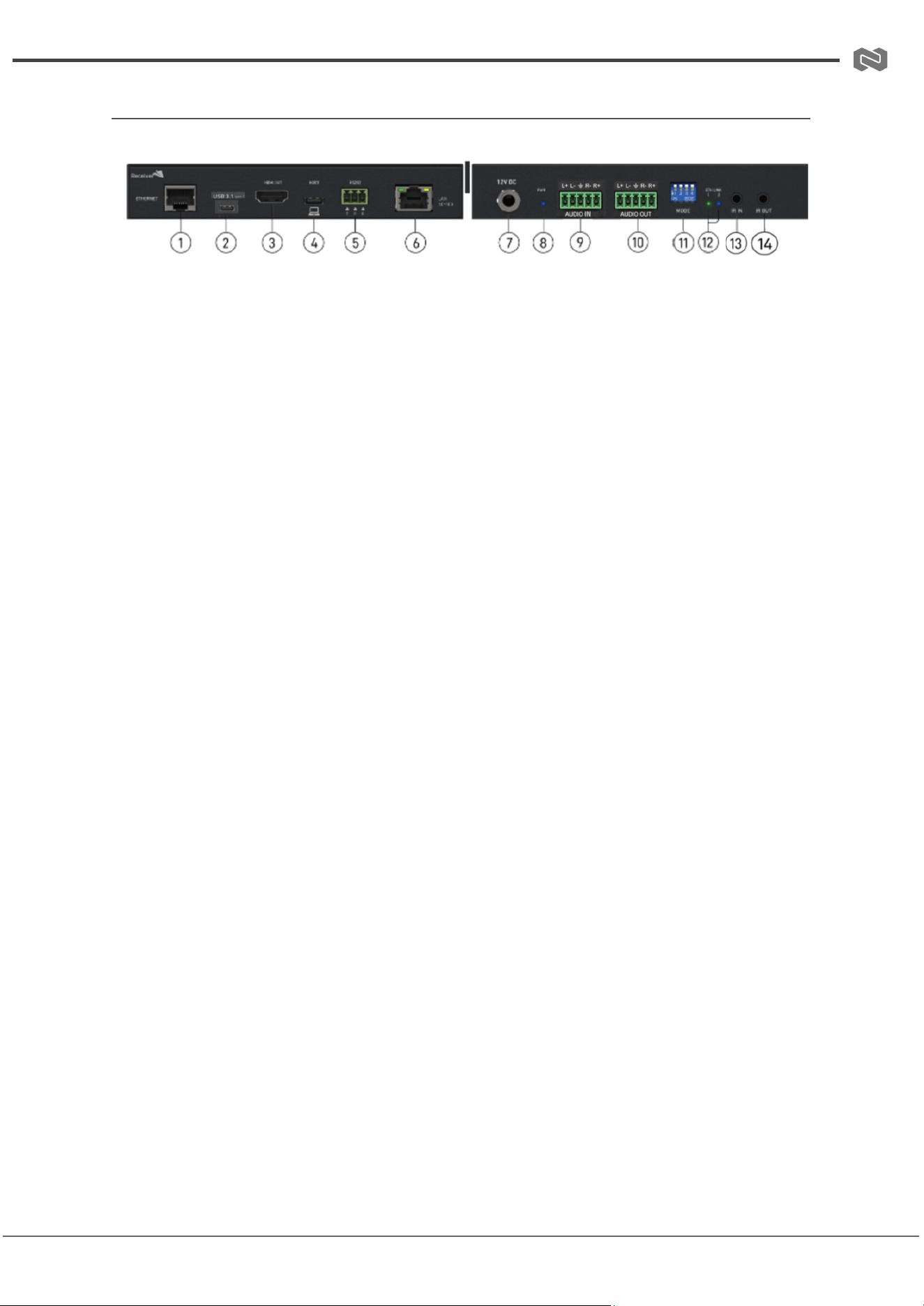

Receiver Unit (BG-IPGEAR-XTREME-CORE-RX)
1. 1G Ethernet (PoC / AV IN)
Connect a Cat5e or higher cable from the transmitter or a managed 1GbE network
switch. Supports Power over Cable (PoC).
2. USB 3.1 Gen 1 (USB-C)
Connect USB peripheral devices for extension from the transmitting unit.
3. HDMI OUT
Connect to an HDMI display such as a monitor, TV, or projector.
4. USB 3.1 Gen 2 (USB-C)
Connect to a host PC for high-speed USB extension.
5. RS-232 Terminal Block
3-pin terminal block for serial control. Pin order (left to right): TX / RX / GND.
6. Ethernet Pass-Through (10/100 LAN)
Provides Ethernet pass-through for network or internet access at the receiver
(supported in point-to-point mode only).
7. 12V DC Power Input
Interlocking power jack for connection to the supplied 12V DC power adapter.
8. Power LED Indicator
Illuminates when the receiver is powered on.
9. Audio IN (Balanced, 5-Pin Terminal Block)
Balanced analog audio input for external audio sources.
10. Audio OUT (Balanced, 5-Pin Terminal Block)
Balanced analog audio output for connection to powered speakers, mixers, or
amplifiers.
11. DIP Switch
Used for system configuration, including Ethernet pass-through and firmware
update mode selection.
12. LAN Status LED
Indicates Ethernet link status and activity.
13. IR Receiver Port (3.5 mm)
Connect the IR receiver to receive infrared control signals from the display-side
location.
14. IR Blaster Port (3.5 mm)
Connect the IR blaster to transmit infrared control signals to the display or
controlled device.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 10
BZBGEAR BG-IPGEAR-XTREME-CORE PRODUCT MANUAL

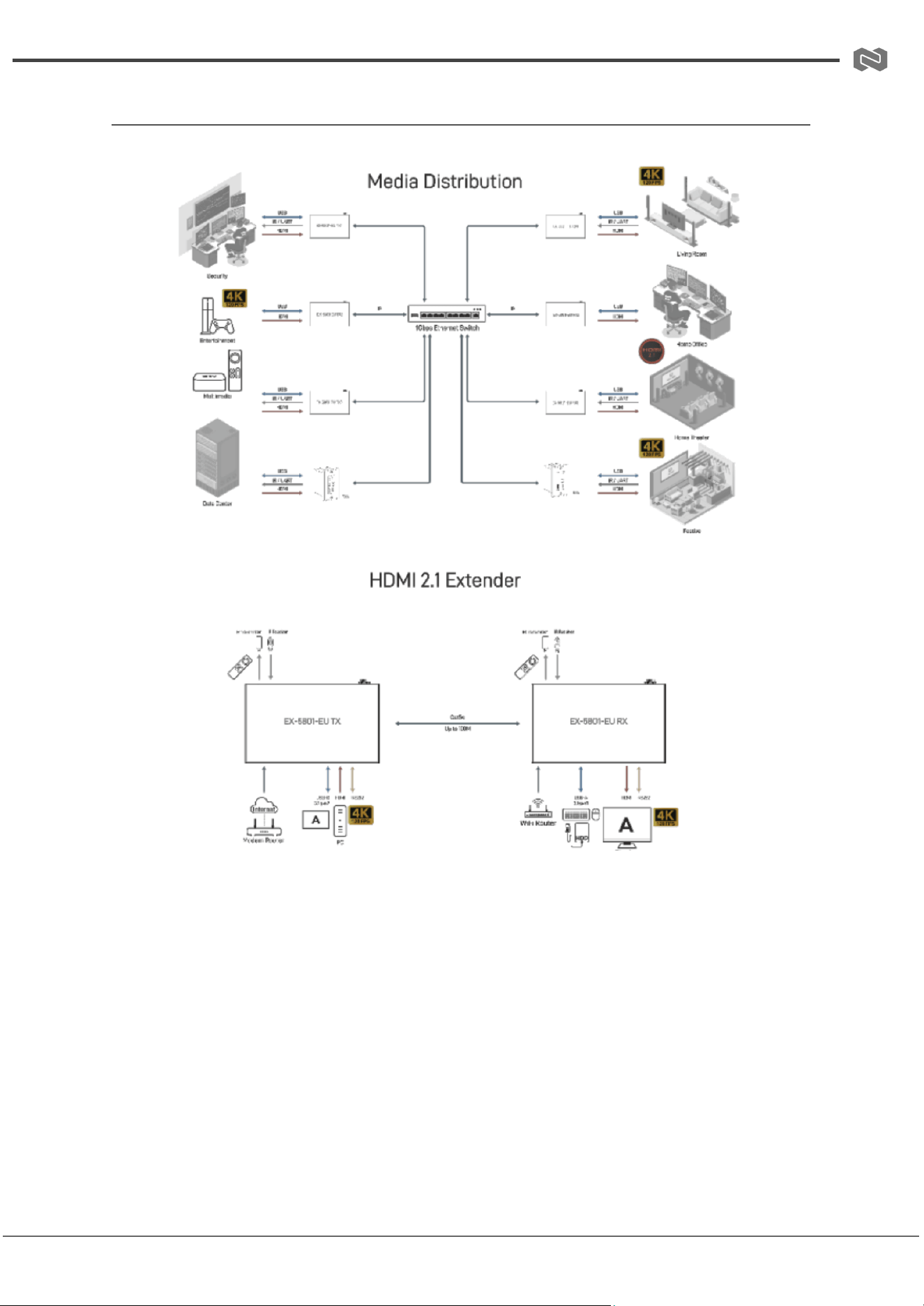

Connection Diagram
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 11
BZBGEAR BG-IPGEAR-XTREME-CORE PRODUCT MANUAL
IR Pass-Through
The BG-IPGEAR-XTREME-CORE supports bi-directional IR pass-through, allowing
infrared control signals to be transmitted between the transmitter (TX) and receiver (RX).

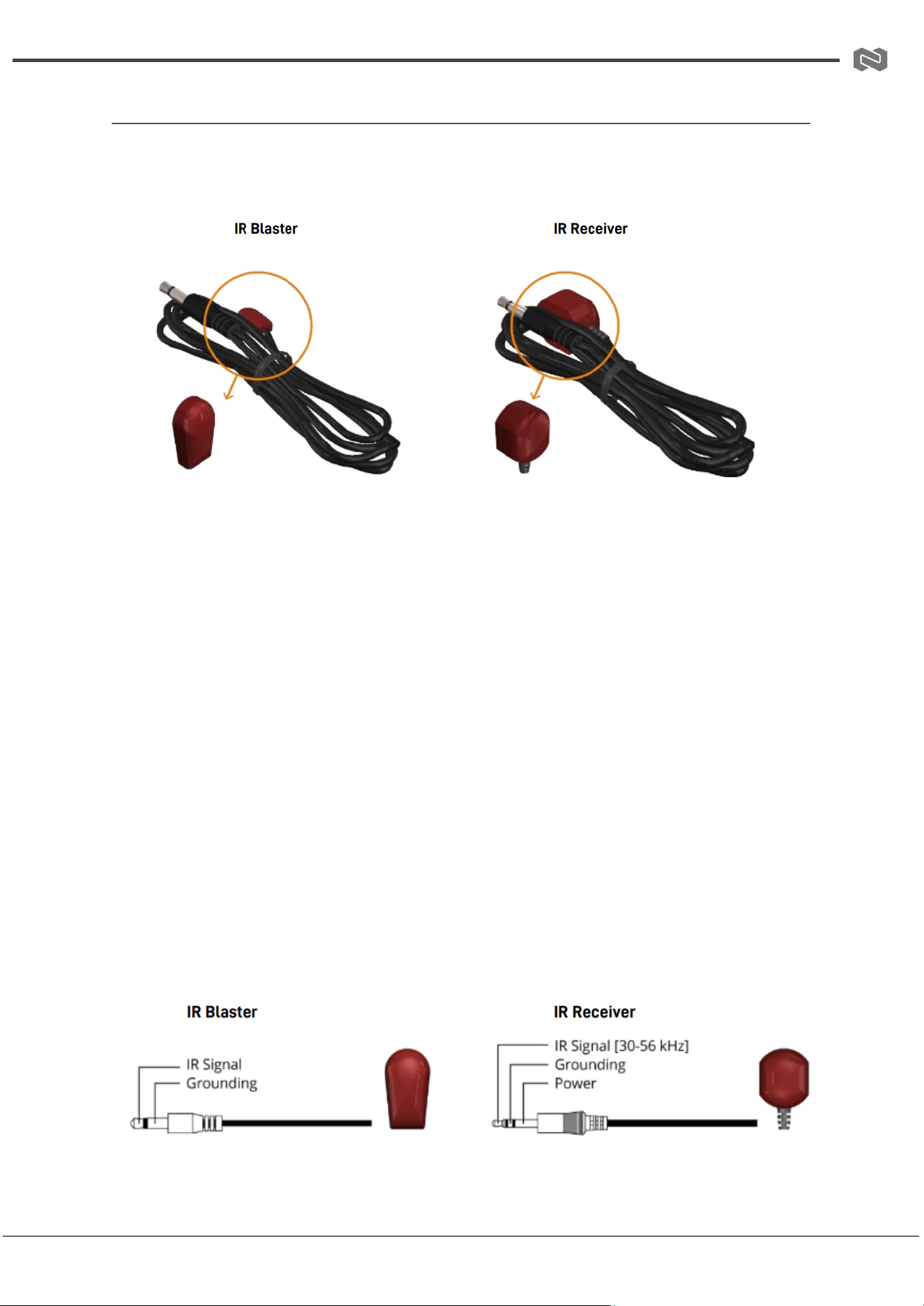

IR Connections
● IR Receiver (3.5 mm): Connect the IR receiver to capture IR commands from a
remote control.
● IR Blaster (3.5 mm): Connect the IR blaster and position it in front of the IR window
of the device to be controlled.
IR signals received on one unit are transmitted to the opposite unit and emitted through the
connected IR blaster. IR pass-through supports a full frequency range of 20 kHz to 60 kHz.
Installation Notes
● Ensure the IR receiver has a clear line of sight to the remote control.
● Place the IR blaster directly over or near the IR sensor of the target device.
● IR extension cables longer than 2 m (6 ft) are not recommended.
● Incorrect placement or connection may result in IR control failure and is not covered
under warranty.
IR Pin Definition
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 12
BZBGEAR BG-IPGEAR-XTREME-CORE PRODUCT MANUAL
HDMI Pin Definition
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 13
BZBGEAR BG-IPGEAR-XTREME-CORE PRODUCT MANUAL
Troubleshooting
Problems
Causes
Solutions
No Power / All LED off
Power supply not connected,
connected fully, or wrong power
supply.
Check if the power supply is
connected correctly and the
output voltage value is within
recommended specifications.
No sound or sound issues
The HDMI connection is faulty,
the audio format is not
supported by the displays, or
the source player is set to
another port for audio output
Check if the HDMI cables are
connected correctly.
Check if the audio format is
supported by the display and
that a user has not changed the
supported audio format on the
player`s audio output. Ensure
output settings from the HDMI
source device as set correctly.
No picture or picture flickers
The HDMI cable may be faulty
or the category cable quality is
faulty.
Check if the HDMI
and category cable connections
are correct and undamaged.
Change to another good
working HDMI cable or category
cable (CAT6 or better cable is
recommended).
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 14
BZBGEAR BG-IPGEAR-XTREME-CORE PRODUCT MANUAL
Tech Support
Have technical questions? We may have answered them already!
Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and
tips regarding our products. Here you will find our Knowledge Base
(bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step
troubleshooting instructions. Or explore our YouTube channel, BZB TV
(youtube.com/c/BZBTVchannel), for help setting up, configuring, and other helpful how-to
videos about our gear.
Need more in-depth support? Connect with one of our technical specialists directly:
Phone
1.888.499.9906
Email
support@bzbgear.com
Live Chat
bzbgear.com
Limited Product Warranty Terms
Pro Line: 5-year warranty from the date of purchase for AV/Broadcasting products bought
on or after August 1, 2024.
Essential Line: 3-year warranty from the date of purchase for AV/Broadcasting products
bought on or after August 1, 2024.
Cables: Lifetime Limited Product Warranty.
For complete warranty information, please visit bzbgear.com/warranty.
For questions, please call 1.888.499.9906 or email support@bzbgear.com.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 15
BZBGEAR BG-IPGEAR-XTREME-CORE PRODUCT MANUAL
Mission Statement
BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment
ranging from AVoIP, professional broadcasting, conferencing, home theater, to live
streaming solutions. We pride ourselves on unparalleled customer support and services.
Our team offers system design consultation, and highly reviewed technical support for all
the products in our catalog. BZBGEAR delivers quality products designed with users in
mind.
Copyright
All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed
to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual
contains no guarantee, standpoint expression or other implies in any form. Product
specification and information in this manual is for reference only and subject to change
without notice.
All rights reserved. No reproducing is allowed without acknowledgement.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 16
