Table of contents
1 Safety ...........................................4
1.1 General information................... 4
1.2 Intended use.............................. 4
1.3 Restriction on user group.......... 4
1.4 Safe installation ......................... 5
1.5 Safe use .................................... 7
1.6 Safe cleaning and mainten-
ance........................................... 9
2 Preventing material damage ....10
3 Environmental protection and
saving energy............................11
3.1 Disposing of packaging .......... 11
3.2 Save energy and conserve
resources................................. 11
3.3 Energy saving mode ............... 11
4 Installation and connection......11
4.1 Unpacking the appliance ........ 11
4.2 Contents of package ............... 11
4.3 Requirements for the install-
ation location ........................... 12
4.4 Removing the transit bolts ...... 13
4.5 Connecting the appliance ....... 14
4.6 Aligning the appliance............. 15
5 Before using for the first time ..16
5.1 Starting an empty washing
cycle ........................................ 16
6 Familiarising yourself with
your appliance...........................17
6.1 Appliance ................................ 17
6.2 Detergent drawer..................... 17
6.3 Control panel........................... 18
7 Display .......................................19
8 Buttons ......................................21
9 Programmes ..............................22
10 Accessories.............................25
11 Laundry....................................25
11.1 Preparing the laundry............ 25
11.2 Care symbols on the care
labels ..................................... 25
12 Detergents and care
products ..................................26
13 Basic operation .......................26
13.1 Switching on the appliance ... 26
13.2 Setting a programme ............ 26
13.3 Opening the door .................. 26
13.4 Loading laundry..................... 27
13.5 Inserting the measuring aid... 27
13.6 Using the measuring aid ....... 27
13.7 Adding detergent and care
product .................................. 28
13.8 Starting the programme ........ 28
13.9 Adding laundry ...................... 28
13.10 Cancelling the pro-
gramme ............................... 28
13.11 Unloading the laundry ......... 28
13.12 Switching off the appli-
ance..................................... 28
14 Childproof lock........................28
14.1 Activating the childproof
lock........................................ 28
14.2 Deactivating the childproof
lock........................................ 29
en
3
15 Basic settings..........................29
15.1 Overview of the basic set-
tings....................................... 29
15.2 Changing the basic set-
tings....................................... 29
16 Cleaning and servicing...........29
16.1 Cleaning the drum................. 29
16.2 Cleaning the detergent
drawer.................................... 30
16.3 Cleaning the drain pump....... 31
16.4 Cleaning the rubber gasket .. 33
17 Troubleshooting......................34
17.1 Emergency release ............... 39
17.2 Restart the appliance. ........... 39
18 Transportation, storage and
disposal ...................................39
18.1 Removing the appliance ....... 39
18.2 Inserting the transit bolts....... 39
18.3 Using the appliance again .... 39
18.4 Disposing of old appliance ... 40
19 Customer Service....................40
19.1 Product number (E-Nr.) and
production number (FD)........ 40
20 Consumption values...............41
20.1 Information for test institute... 41
21 Technical data .........................42
en
4
1 Safety
Observe the following safety instructions.
1.1 General information
¡ Read this instruction manual carefully.
¡ Keep the instruction manual and the product information safe
for future reference or for the next owner.
¡ Do not connect the appliance if it has been damaged in transit.
1.2 Intended use
Only use this appliance:
¡ for washing machine-washable fabrics and hand-washable wool
in accordance with the care label.
¡ with tap water and commercially available detergents and care
products suitable for washing machines.
¡ in private households and in enclosed spaces in a domestic en-
vironment.
¡ Up to an altitude of 4000 m above sea level.
1.3 Restriction on user group
This appliance may be used by children aged 8 or over and by
people who have reduced physical, sensory or mental abilities or
inadequate experience and/or knowledge, provided that they are
supervised or have been instructed on how to use the appliance
safely and have understood the resulting dangers.
Do not let children play with the appliance.
Cleaning and user maintenance must not be performed by chil-
dren unless they are being supervised.
Keep children under the age of 3 years and pets away from the
appliance.
en
5
1.4 Safe installation
WARNING‒Risk of electric shock!
Incorrect installation is dangerous.
▶ Connect and operate the appliance only in accordance with the
specifications on the rating plate.
▶ Connect the appliance to a power supply with alternating cur-
rent only via a properly installed socket with earthing.
▶ The protective conductor system of the domestic electrical in-
stallation must be properly installed. The installation must have
a sufficiently large cross section.
▶ When using a residual current circuit breaker, only use a type
with the mark.
▶ Never equip the appliance with an external switching device,
e.g. a timer or remote control.
▶ When the appliance is installed, the mains plug of the power
cord must be freely accessible. If free access is not possible, an
isolating switch must be integrated into the permanent electrical
installation according to the installation regulations.
▶ When installing the appliance, check that the power cable is not
trapped or damaged.
If the insulation of the power cord is damaged, this is dangerous.
▶ Never let the power cord come into contact with hot appliance
parts or heat sources.
▶ Never let the power cord come into contact with sharp points or
edges.
▶ Never kink, crush or modify the power cord.
WARNING‒Risk of fire!
It is dangerous to use an extended power cord and non-approved
adapters.
▶ Do not use extension cables or multiple socket strips.
▶ Only use adapters and power cords approved by the manufac-
turer.
▶ If the power cord is too short and a longer one is not available,
please contact an electrician to have the domestic installation
adapted.
en
6
WARNING‒Risk of injury!
The heavy weight of the appliance may result in injury when lifted.
▶ Do not lift the appliance on your own.
If this appliance is not correctly installed in a washer-dryer stack,
the installed appliance may fall.
▶ Only stack the dryer on a washing machine using the connec-
tion kit from the dryer manufacturer . No other installation
method is permitted.
▶ Do not install the appliance in a washer-dryer stack if the dryer
manufacturer does not offer a suitable connection kit.
▶ Do not install appliances from different manufacturers and with
varying depths and widths in a washer-dryer stack.
▶ Do not install a washer-dryer stack on a platform; the appli-
ances may tip over.
WARNING‒Risk of suffocation!
Children may put packaging material over their heads or wrap
themselves up in it and suffocate.
▶ Keep packaging material away from children.
▶ Do not let children play with packaging material.
CAUTION‒Risk of injury!
The appliance may vibrate or move when in use.
▶ Place the appliance on a clean, even, solid surface.
▶ Align the appliance using the appliance feet and a spirit level.
If hoses and power cords have been laid incorrectly, this causes a
tripping hazard.
▶ Lay hoses and power cords in such a way that there is no risk
of tripping.
If the appliance is moved by holding onto protruding components,
such as the appliance door, the parts may break off.
▶ Do not move the appliance by holding onto protruding parts.
CAUTION‒Risk of cutting!
Touching sharp edges on the appliance may lead to cuts.
▶ Do not touch the sharp edges on the appliance.
en
7
▶ Wear protective gloves when installing and transporting the ap-
pliance.
1.5 Safe use
WARNING‒Risk of electric shock!
If the appliance or the power cord is damaged, this is dangerous.
▶ Never operate a damaged appliance.
▶ Never pull on the power cord to unplug the appliance. Always
unplug the appliance at the mains.
▶ If the appliance or the power cord is damaged, immediately un-
plug the power cord or switch off the fuse in the fuse box and
turn off the water tap.
▶ Call customer services. →Page40
An ingress of moisture can cause an electric shock.
▶ Only use the appliance in enclosed spaces.
▶ Never expose the appliance to intense heat or humidity.
▶ Do not use steam- or high-pressure cleaners, hoses or sprays
to clean the appliance.
WARNING‒Risk of harm to health!
Children can lock themselves in the appliance, thereby putting
their lives at risk.
▶ Do not install the appliance behind a door as this may obstruct
the appliance door or prevent it from opening.
▶ With redundant appliances, unplug the power cord. Then cut
through the cord and damage the lock on the appliance door
beyond repair so that the appliance door will no longer close.
When spinning larger, waterproof items of laundry, imbalances
may arise and lead to injuries.
▶ Do not wash and spin larger items of laundry, such as blankets
or mattress covers, in the appliance.
WARNING‒Risk of suffocation!
Children may breathe in or swallow small parts, causing them to
suffocate.
▶ Keep small parts away from children.
▶ Do not let children play with small parts.
en
8
WARNING‒Risk of poisoning!
Detergents and care products may result in poisoning if con-
sumed.
▶ If accidentally swallowed, seek medical advice.
▶ Keep detergents and care products out of the reach of children.
WARNING‒Risk of explosion!
Laundry that has been pretreated with flammable cleaning agents
that contain solvents may cause an explosion in the appliance.
▶ Rinse pretreated laundry thoroughly with water before washing.
CAUTION‒Risk of injury!
The covering plate may break if you stand on or climb onto the
appliance.
▶ Do not stand on or climb onto the appliance.
The appliance may tip over if you sit on or lean against the open
door.
▶ Do not sit on or lean against the appliance door.
▶ Do not place any objects on the appliance door.
Reaching into the drum while it is still turning may cause hand in-
juries.
▶ Wait for the drum to come to a complete stop before reaching
inside.
CAUTION‒Risk of scalding!
When you wash at high temperatures, the detergent solution gets
hot.
▶ Do not touch the hot detergent solution.
CAUTION‒Risk of chemical burns!
If the detergent drawer is opened, detergent and care products
may spray out from the appliance. Contact with eyes or skin may
cause irritation.
▶ Rinse eyes and/or skin thoroughly with clean water if they come
into contact with detergents or care products.
▶ If accidentally swallowed, seek medical advice.
▶ Keep detergents and care products out of the reach of children.
en
9
1.6 Safe cleaning and maintenance
WARNING‒Risk of electric shock!
Improper repairs are dangerous.
▶ Never make any technical modifications to the appliance or its
features.
▶ Repairs to the appliance should only be carried out by trained
specialist staff.
▶ Only use genuine spare parts when repairing the appliance.
▶ If the power cord of this appliance is damaged, it must be re-
placed by the manufacturer, the manufacturer's Customer Ser-
vice or a similarly qualified person in order to prevent any risk.
An ingress of moisture can cause an electric shock.
▶ Before cleaning, pull out the mains plug or switch off the fuse in
the fuse box.
▶ Do not use steam- or high-pressure cleaners, hoses or sprays
to clean the appliance.
WARNING‒Risk of injury!
The use of non-original spare parts and non-original accessories
is dangerous.
▶ Only use the manufacturer's original spare parts and original ac-
cessories.
WARNING‒Risk of poisoning!
Poisonous fumes may be given off if you use cleaning agents that
contain solvents.
▶ Do not use cleaning agents that contain solvents.
en
10
Preventing material damage
2 Preventing material
damage
Preventing material damage
ATTENTION!
The functionality of the appliance
may be impaired if you use the
wrong quantity of fabric softener, de-
tergent, care product or cleaning
agent.
▶ Follow the dosage recommenda-
tions from the manufacturer.
Exceeding the maximum load capa-
city impairs the function of the appli-
ance.
▶ Observe the maximum load capa-
city for each programme and do
not exceed it.
→"Programmes", Page22
The appliance is secured for trans-
portation using transit bolts. Transit
bolts which have not been removed
may result in material damage and
damage to the appliance.
▶ Before starting up the appliance,
remove the transit bolts completely
and keep them in a safe place.
▶ Before transport, fit the transit bolts
fully in order to prevent damage in
transit.
Material damage may be caused if
the water inlet hose is connected in-
correctly.
▶ Tighten the screw connections on
the water inlet until they are hand-
tight.
▶ Connect the water inlet hose dir-
ectly to the water tap, without any
additional connecting elements
such as adapters, extensions or
valves.
▶ Ensure that the inner diameter of
the water tap is at least 17mm.
▶ Make sure that the length of the
thread on the connection to the
water tap is at least 10mm.
If the water pressure is too high or
too low, the appliance may not be
able to operate properly.
▶ Ensure that the water pressure in
the water supply system is at least
100kPa (1bar) and max.
1000kPa (10bar).
▶ If the water pressure exceeds the
maximum value specified, a pres-
sure-reducing valve must be in-
stalled between the drinking water
connection and the hose set of the
appliance.
▶ Do not connect the appliance to
the mixer tap of an unpressurised
hot-water boiler.
Modified or damaged water hoses
may result in material damage and
damage to the appliance.
▶ Never kink, crush, modify or cut
through water hoses.
▶ Only use the water hoses supplied
with the appliance or genuine
spare hoses.
▶ Never re-use water hoses that
have been used before.
Operating the appliance using water
that is dirty or too hot may lead to
material damage and damage to the
appliance.
▶ Only operate the appliance with
cold mains water.
Unsuitable cleaning products may
damage the surfaces of the appli-
ance.
▶ Do not use harsh or abrasive de-
tergents.
▶ Do not use cleaning products with
a high alcohol content.
▶ Do not use hard scouring pads or
cleaning sponges.
▶ Clean the appliance with nothing
but water and a soft, damp cloth.
▶ Remove all detergent residue,
spray residue or other residues im-
mediately if they come into contact
with the appliance.
en
11
Environmental protection and saving energy
3 Environmental protec-
tion and saving energy
Environmental protection and saving energy
3.1 Disposing of packaging
The packaging materials are environ-
mentally compatible and can be re-
cycled.
▶ Sort the individual components by
type and dispose of them separ-
ately.
3.2 Save energy and con-
serve resources
If you follow these instructions, your
appliance will use less electricity and
less water.
¡ Choose programs with low temper-
atures and longer wash times and
use maximum load capacity.
→Page22
¡ Add detergent based on the laun-
dry's degree of soiling.
¡ Reduce the washing temperature
for lightly and normally soiled laun-
dry.
¡ Set the maximum spin speed if
you want to dry the laundry in the
tumble dryer afterwards.
¡ Wash the laundry without prewash.
3.3 Energy saving mode
If you do not use the appliance for a
brief period, it automatically switches
to energy-saving mode. All displays
go out and Start / Reload flashes.
Energy-saving mode ends when you
use the appliance again.
Installation and connection
4 Installation and con-
nection
Installation and connection
4.1 Unpacking the appliance
ATTENTION!
Objects remaining in the drum that
are not designed for operation with
the appliance may cause material
damage and damage to the appli-
ance.
▶ Remove these objects, along with
all supplied accessories, from the
drum before starting the appliance.
1. Remove any packaging and pro-
tective covers completely from the
appliance.
→"Disposing of packaging",
Page11
2. Check the appliance for visible
damage.
3.
Open the door. →Page26
4. Remove any accessories from the
drum.
5. Close the door.
4.2 Contents of package
After unpacking all parts, check for
any damage in transit and complete-
ness of the delivery.
ATTENTION!
If the appliance is operated with in-
complete or defective accessories,
the appliance may not be able to op-
erate properly, or this may result in
material damage or damage to the
appliance.
▶ Do not operate the appliance with
incomplete or defective accessor-
ies.
en
12
▶ Replace the accessories in ques-
tion before operating the appli-
ance.
→"Accessories", Page25
Note:The appliance has undergone
a function test at the factory. This
may cause water stains in the appli-
ance, which the first wash cycle re-
moves.
The delivery consists of the following:
¡ Washing machine
¡ Accompanying documents
¡ Transit bolts
→"Removing the transit bolts",
Page13
¡ Cover caps
¡ Water inlet hose
→"Connecting the water inlet
hose", Page14
¡ Elbow for securing the water outlet
hose
4.3 Requirements for the in-
stallation location
WARNING
Risk of electric shock!
The appliance contains live parts.
Touching live parts is dangerous.
▶ Do not operate the appliance
without a cover cap.
WARNING
Risk of injury!
When using the appliance on a base,
the appliance may tip over.
▶ Always secure the feet of the appli-
ance to a base using the manufac-
turer's fixing brackets →Page25
before using the appliance for the
first time.
ATTENTION!
If residual water in the appliance
freezes, this may cause damage to
the appliance.
▶ Do not install or operate this appli-
ance anywhere that is liable to ex-
perience frost or outdoors.
If the appliance is tilted at an angle
greater than 40°, residual water may
leak out of the appliance and cause
material damage.
▶ Tilt the appliance carefully.
▶ Transport the appliance in an up-
right position.
Installation loca-
tion
Requirements
Base Secure the appli-
ance with fixing
brackets
→Page25.
Wooden joist
floor
Place the appli-
ance on a water-
resistant wooden
board (minimum
thickness of
30mm) which is
screwed tightly to
the floor.
Kitchen unit Only install the
appliance under-
neath a continu-
ous worktop that
is securely con-
nected to adja-
cent cabinets.
Required niche
width: 60cm.
en
13

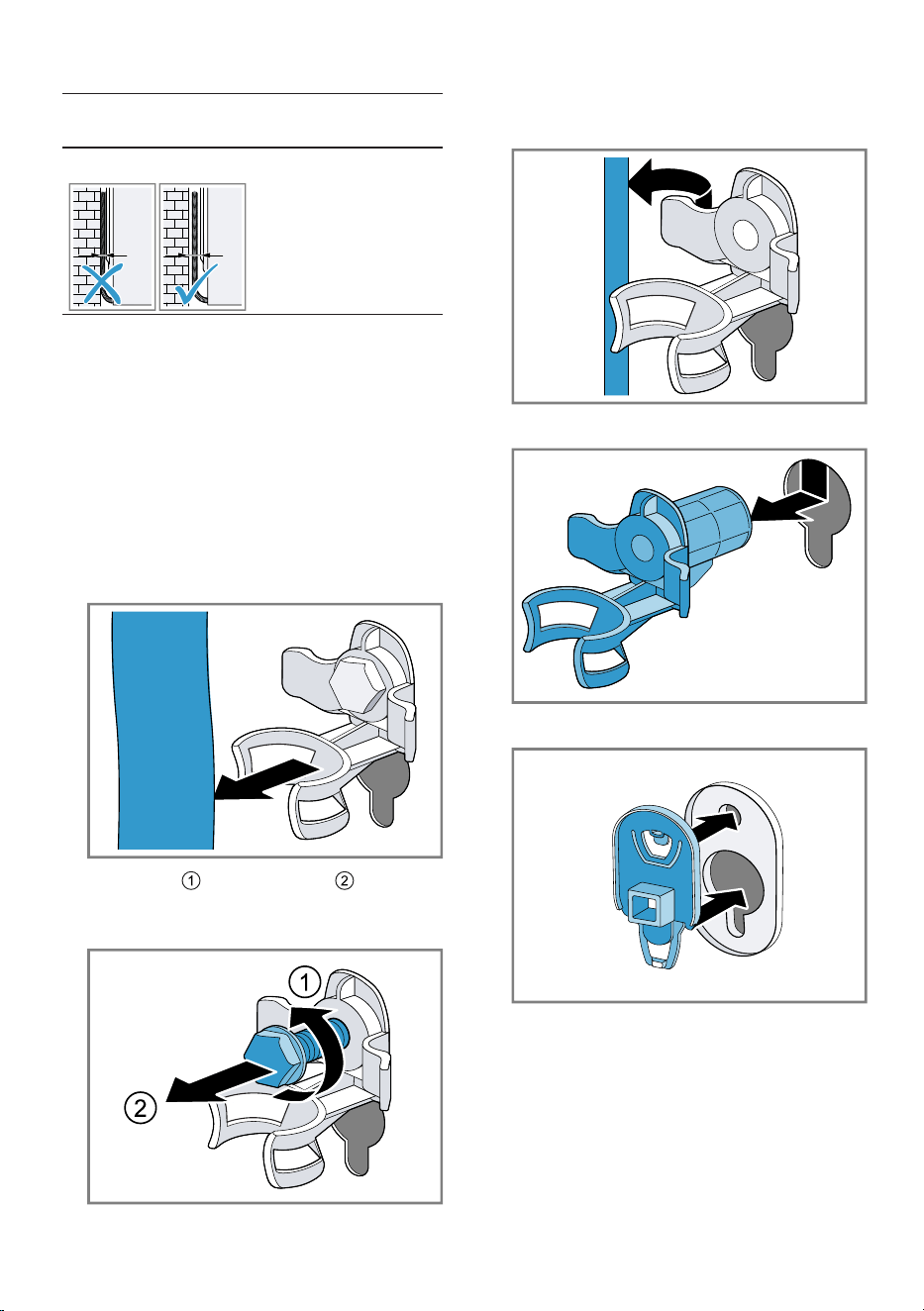

Installation loca-
tion
Requirements
Against a wall Do not trap the
power cord or
the hoses
between the wall
and the appli-
ance.
4.4 Removing the transit
bolts
The appliance is secured for trans-
portation using transit bolts on the
rear of the appliance.
Note:Keep the transit bolt screws
and the sleeves in a safe place for fu-
ture transport.
1. Pull the hose out of the holders.
2. Unscrew and remove all of
the screws for the 4 transit bolts
using a WAF 13 wrench.
3. Remove the power cable from the
holder.
4. Remove the 4 sleeves.
5. Put on the 4 cover caps.
en
14

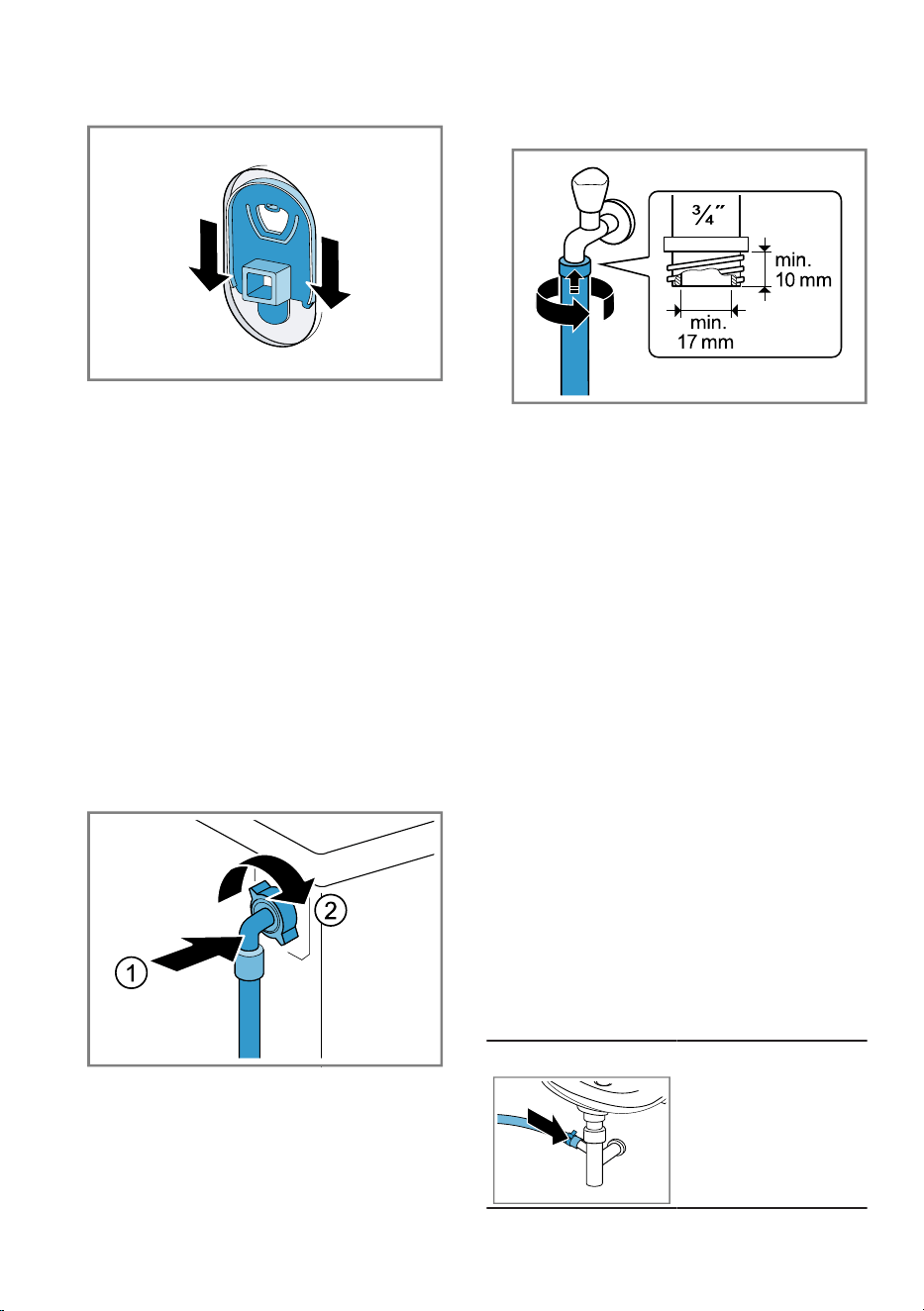

6. Push the 4 cover caps downwards.
Note:To install the transit bolts to
transport the appliance, perform
these steps again in the reverse or-
der.
4.5 Connecting the appliance
Connecting the water inlet hose
ATTENTION!
Material damage may be caused if
the water inlet hose is connected in-
correctly.
▶ Tighten the screw connections on
the water inlet until they are hand-
tight.
1. Connect the water inlet hose.
2. Connect the water inlet hose to a
tap (26.4mm=3/4").
3. Open the water tap carefully and
check that the connection points
are tight.
Water outlet connection types
This information is intended to help
you to connect this appliance to the
water outlet.
ATTENTION!
When draining, the water outlet hose
is subject to water pressure and may
come loose from the installed con-
nection point.
▶ Secure the water outlet hose
against unintentional loosening.
In the event of a blocked or covered
outlet, accumulated wastewater can
flow back into the appliance.
▶ Before operating the appliance, en-
sure that the wastewater drains
away quickly and eliminate any
blockages.
Note:Observe the draining heights.
The maximum draining height is
100cm.
Siphon Secure the con-
nection point with
a (24–40 mm)
hose clamp.
en
15
Sink Fix and secure
the water outlet
hose with an el-
bow.
→"Accessories",
Page25
Plastic pipe with
rubber sleeve or
gully
Fix and secure
the water outlet
hose with an el-
bow.
→"Accessories",
Page25
Connecting the appliance to the
electricity supply
Note:Your electrical domestic install-
ation for this appliance must comply
with the local legal provisions and
safety regulations, and should in-
clude a residual current circuit-
breaker.
1. Insert the mains plug of the appli-
ance's power cable in a socket
nearby.
The connection details of the appli-
ance can be found under Tech-
nical data →Page42.
2. Check the mains plug is inserted
properly.
4.6 Aligning the appliance
In order to reduce noise and vibra-
tion and to prevent the appliance
from moving, align the appliance cor-
rectly.
1. Use a WAF 17 wrench to loosen
the lock nuts in a clockwise direc-
tion.
2. To align the appliance, turn the ap-
pliance feet. Check that the appli-
ance is level using a spirit level.
All appliance feet must stand firmly
on the ground.
en
16

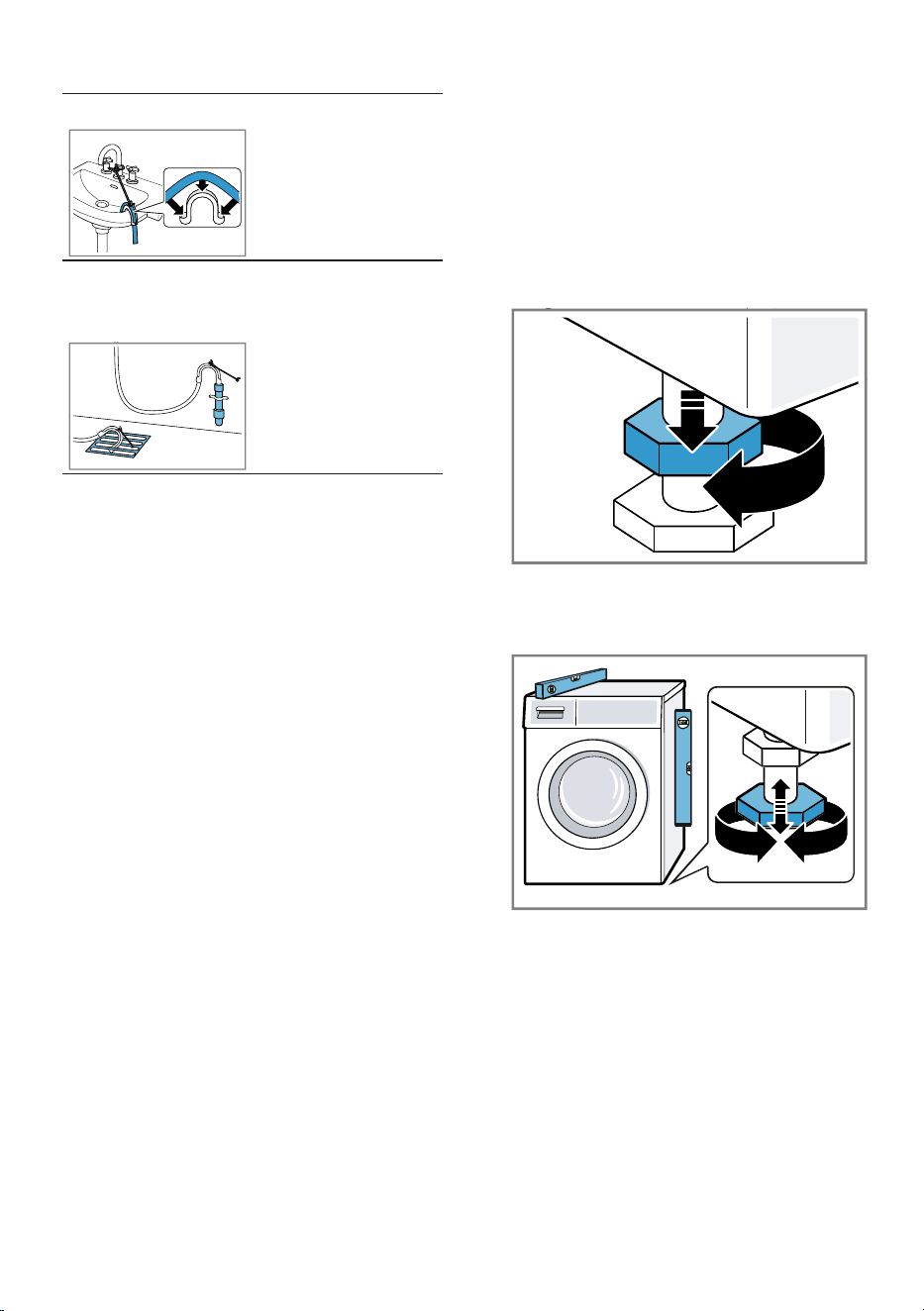

3. Use a WAF 17 wrench to tighten
the lock nuts against the housing
until they are hand-tight.
In doing so, hold the foot tight and
do not adjust its height.
Before using for the first time
5 Before using for the
first time
Before using for the first time
Prepare the appliance for use.
5.1 Starting an empty wash-
ing cycle
Your appliance was inspected thor-
oughly before leaving the factory. To
remove any residual water, run the
first wash cycle without any laundry.
1. Turn the programme selector to .
2. Close the door.
3. Pull out the detergent drawer.

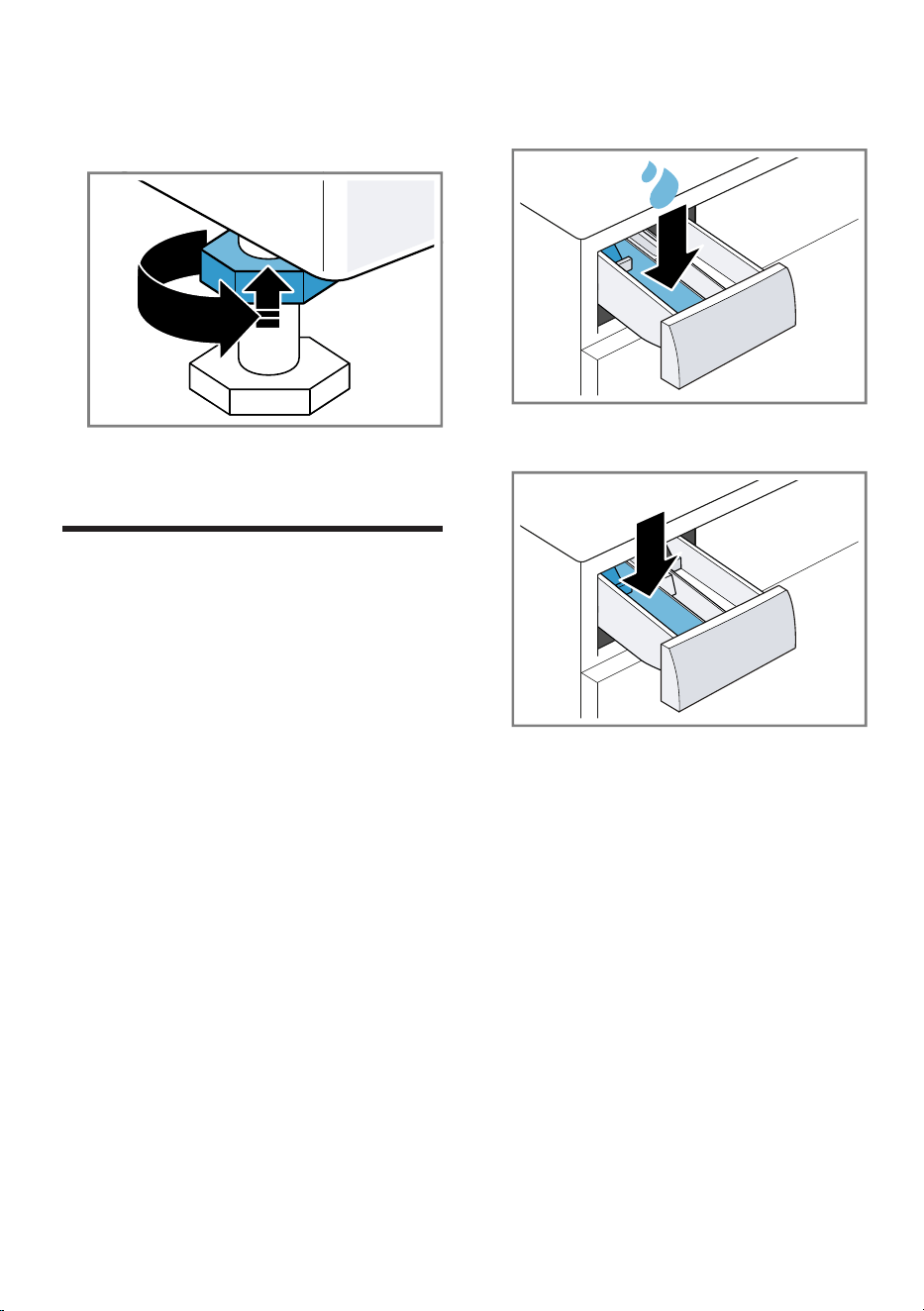

4. Pour approx. 1 litre of tap water
into compartment II.
5. Add washing powder containing
oxygen bleach to compartment II.
To prevent foaming, use only half
of the amount of detergent recom-
mended by the detergent manufac-
turer for light soiling. Do not use
detergent suitable for woollens or
delicates.
6. Push in the detergent drawer.
7. Press Start / Reload to start the
programme.
a The display shows the remaining
programme duration.
a After the programme has ended,
the display shows: End.
8. Start the first wash cycle or set the
programme selector to Off to
switch off the appliance.
→"Basic operation", Page26
en
17
Familiarising yourself with your appliance
6 Familiarising yourself with your appliance
Familiarising yourself with your appliance
6.1 Appliance

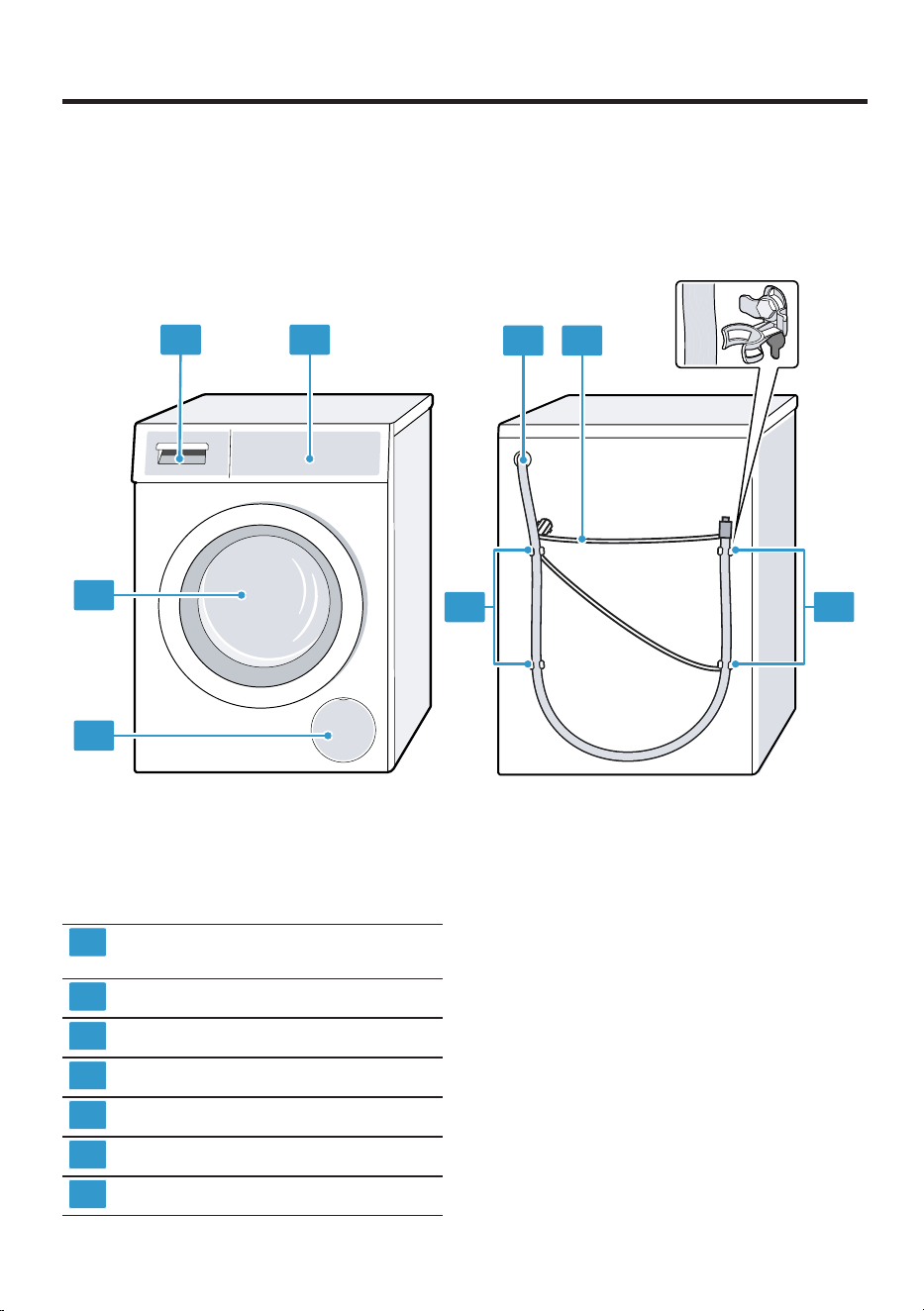

You can find an overview of the parts of your appliance here.
1
2
4
6
3
5
7
7
On certain models, specific details such as the colour and shape may differ
from those pictured.
1
Maintenance flap for the drain
pump →Page31
2
Door →Page26
3
Detergent drawer →Page17
4
Control panel →Page18
5
Water outlet hose →Page14
6
Power cord →Page15
7
Transit bolts →Page13

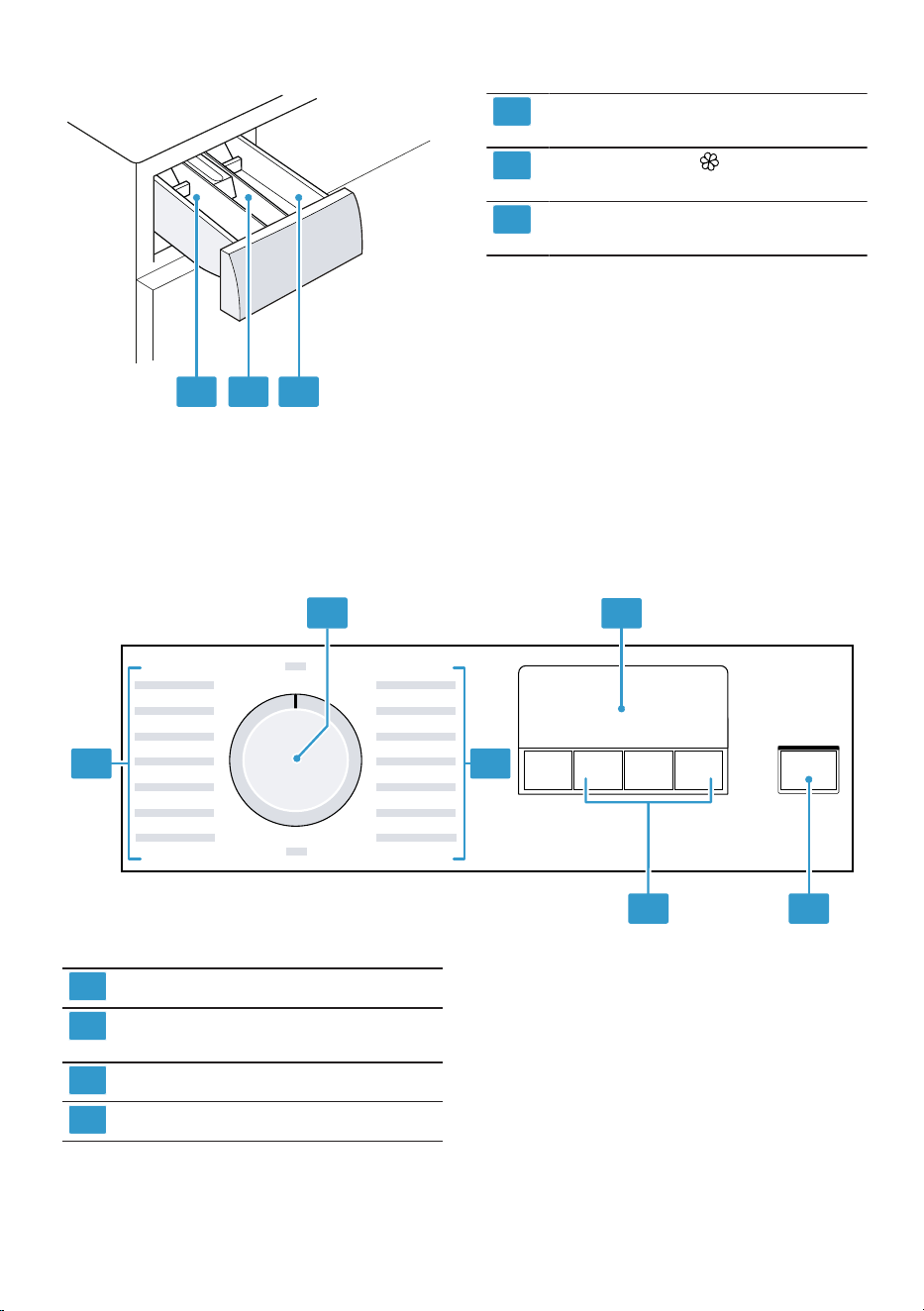

6.2 Detergent drawer
Note:Observe the manufacturer's in-
structions on the use and dosage of
the detergent and care product and
the information in the programme de-
scriptions.
en
18
1 2 3
1
Compartment II: Detergent for
the main wash
2
Compartment : Fabric
softener
3
Compartment I: Detergent for
prewash
6.3 Control panel
You can use the control panel to configure all functions of your appliance and
to obtain information about the operating status.
2
3
1 1
44
1
Programmes →Page22
2
Programme selector
→Page26
3
Display →Page19
4
Buttons →Page21
en
19
Display
7 Display
Display
The display shows the current settings, options or relevant information.
Depending on the programme status, the display shows some information in
the area, e.g. .
Example: Display
Display Description
0:40
1
Expected programme duration or programme time re-
maining in hours and minutes.
10
1
Program end time
→"Buttons", Page21
8.0
1
Recommendation for the maximum load capacity for the
selected program in kg.
– 0 – - 1400
Set spin speed in rpm. →Page21
– 0 –: No spin cycle, draining only
Start, cancel or pause
¡ Lights up: The programme is running and can be can-
celled or paused.
¡ Flashes: The programme can be started or continued.
Programme status: Washing
Programme status: Rinsing
1
Example
en
20
Display Description
Programme status: Spinning
End Programme status: Programme end
¡ Lights up: The childproof lock is activated.
¡ Flashes: The childproof lock is activated and the appli-
ance has been operated.
→"Deactivating the childproof lock", Page29
Shortened programme duration is activated.
→"Buttons", Page21
¡ Lights up: The door is locked and cannot be opened.
¡ Flashes: The door is not closed properly.
¡ Off: The door is unlocked and can be opened.
¡ No water pressure.
¡ The water pressure from the tap is too low.
1
Error code, error display, signal. →Page34
1
Example
en
21
Buttons
8 Buttons
Buttons
The selection of programme settings depends on the programme that is set.
Button Selection More information
Start / Reload ¡ Start
¡ Cancel
¡ Pause
Start, cancel or pause the pro-
gramme.
Speed Perfect ¡ Activate
¡ Deactivate
Activate or deactivate a shorter pro-
gramme duration.
Note:Energy consumption increases.
The washing result is not affected by
this.
Finish in Up to 24 hours Set the programme end time.
The programme duration is already in-
cluded in the set number of hours.
Once the programme has started, the
programme duration is displayed.
Spin Speed – 0 – - 1400 Adjust the spin speed or deactivate
the spin cycle.
Set spin speed in rpm.
If – 0 – is selected, the water is
drained and the spin cycle is deactiv-
ated. The laundry stays wet inside the
drum.
3 sec. ¡ Activate
¡ Deactivate
→"Childproof lock", Page28
en
22
Programmes
9 Programmes
Programmes
Notes
¡ The laundry's care labels provide you with additional information about pro-
gramme selection.
→"Care symbols on the care labels", Page25
¡ The programme's temperature setting guarantees that the recommended
temperature on the care label is not exceeded. The temperature that is
reached in the appliance may differ from the set temperature. This means
that the best possible washing performance is achieved with optimal energy
efficiency.
Programme Description Max.
load
(kg)
Cottons Wash hard-wearing items made from cotton or
linen.
Also suitable as a short program when you activate
Speed Perfect.
Programme setting:
¡ Max. 90 °C
¡ Max. 1400rpm
8.0
5.0
1
Eco 40-60 Wash items made from cotton or linen.
Note:Fabrics which can be washed from 40°C
up to 60°C as per the care symbol can be
washed together.
The washing performance corresponds to the best
possible washing performance class according to
the legal requirements.
For this programme, the washing temperature is
automatically adjusted depending on the load size,
in order to achieve the best possible energy effi-
ciency with the best possible washing result. You
cannot change the washing temperature.
The maximum spin speed is 1400 rpm.
8.0
Prewash Wash hard-wearing items made from cotton or
linen.
Programme with prewash for heavily soiled laundry.
Divide the detergent between the detergent drawer
for the prewash and the main wash. →Page17
Programme setting:
¡ Max. 40 °C
¡ Max. 1400rpm
8.0
5.0
1
1
Speed Perfect activated
en
23
Programme Description Max.
load
(kg)
Easy Care Wash items made from synthetic fabrics.
Programme setting:
¡ Max. 40 °C
¡ Max. 1200 rpm
4.0
Mixed Load Wash items made from cotton, linen or synthetic
fabrics.
Suitable for lightly soiled laundry.
Programme setting:
¡ Max. 40 °C
¡ Max. 1400rpm
4.0
Delicates / Silk Wash delicate, washable items made from silk, vis-
cose and synthetic fabrics.
Use a detergent that is suitable for delicates or silk.
Note:Wash especially delicate items or items with
hooks, eyelets or clips in a mesh laundry bag.
Tip:Gently cleaning the laundry reduces abrasion
of textile fibres and microplastic fibres.
Programme setting:
¡ Max. 30 °C
¡ Max. 800rpm
2.0
Wool Hand- or machine-washable items that are made
from wool or contain wool.
To prevent the laundry from shrinking, the drum
moves the items very gently with long pauses.
Use a detergent that is suitable for wool.
Programme setting:
¡ Max. 30 °C
¡ Max. 800rpm
2.0
Rinse Rinse and then spin the laundry, and drain the wa-
ter.
Programme setting: Max. 1400 rpm
–
Spin / Drain Spin the laundry and drain the water.
If you only want to drain the water, activate – 0 –.
The laundry is not spun.
Programme setting: Max. 1400 rpm
–
Hygiene Plus Wash hard-wearing items made from cotton or
linen.
Suitable for allergy sufferers and for strict hygiene
requirements.
6.5
1
Speed Perfect activated
en
24
Programme Description Max.
load
(kg)
Note:Once the set temperature has been reached,
it remains constant throughout the entire washing
process.
Programme setting:
¡ Max. 60 °C
¡ Max. 1400rpm
Super Quick
15'/30'
Wash items made from cotton or synthetic fabrics.
Short programme for small items of lightly soiled
laundry.
The programme duration is approx. 30 minutes.
If you wish to reduce the programme duration to 15
minutes, activate Speed Perfect. The maximum
load is reduced to 2.0kg.
Programme setting:
¡ Max. 30 °C
¡ Max. 1200rpm
4.0
2.0
1
1
Speed Perfect activated
en
25
Accessories
10 Accessories
Accessories
Use original accessories. These have been made especially for your appliance.
Use Order num-
ber
Water inlet hose ex-
tension
Extend the water inlet hose for cold water
or AquaStop (approx. 2.50 m).
WMZ2381
Water outlet hose
extension
Extend the water outlet hose (2.20m). 11057910
Fixing brackets Improves the stability of the appliance. WMZ2200
Elbow Secure the water outlet hose in place. 00655300
Liquid detergent in-
sert
Measure liquid detergent. 00605740
Washing machine
cleaners
Cleaning products for maintaining the ap-
pliance interior.
00311928
Laundry
11 Laundry
Laundry
11.1 Preparing the laundry
ATTENTION!
Objects remaining in the laundry may
damage the laundry and the drum.
▶ Remove all items from any pock-
ets in your laundry before using
the appliance.
Note
The appliance and fabrics are
protected when you prepare your
laundry.
¡ Brush off sand and soil
¡ Sort the laundry according to col-
our and textiles and observe the
care labels
¡ Close all zips, hook and loop
fasteners, hooks and eyes
¡ Tie cloth belts, cloth straps and
cords together
¡ Remove curtain fittings and lead
strips
¡ Wash small or particularly delicate
items in a mesh washing bag
¡ Wash large and small items of
laundry together
¡ Wash laundry with fresh stains im-
mediately
¡ Pretreat laundry with dried stains
and wash several times
¡ Load the laundry unfolded into the
drum
¡ Before loading the drum, any laun-
dry that has been pre-treated with
chlorine bleach should be rinsed
several times
11.2 Care symbols on the
care labels
Washing care symbols
Symbol Recommended pro-
gramme
Cottons (normal)
Easy Care (gentle)
Delicates/Silk for washing
by hand (particularly
gentle)
Woollens (hand wash)
en
26
Symbol Recommended pro-
gramme
(not suitable for machine-
washing)
Detergents and care products
12 Detergents and care
products
Detergents and care products
You can protect your appliance and
your laundry by selecting and using
the correct detergents and care
products.
The manufacturer's instructions for
use and dosage can be found on the
packaging.
Notes
¡ When using liquid detergents, only
use liquid detergents that are self-
flowing
¡ Do not mix different liquid deter-
gents
¡ Do not mix detergent and fabric
softener
¡ Do not use products that have ex-
pired or are highly congealed
¡ Do not use products containing
solvents, caustic agents or volatile
substances
¡ Do not use chlorine bleach
¡ Do not use dyes regularly as fixing
salt can damage stainless steel
¡ Do not use color-bleaching agents
in the appliance
Basic operation
13 Basic operation
Basic operation
13.1 Switching on the appli-
ance
Requirement:The appliance has
been correctly installed and connec-
ted. →Page11
▶ Turn the programme selector to a
programme.
13.2 Setting a programme
1. Turn the programme selector and
set the required programme.
→"Programmes", Page22
2. If required, adjust the programme
settings.
→"Buttons", Page21
The programme settings are not
saved permanently for the pro-
gramme.

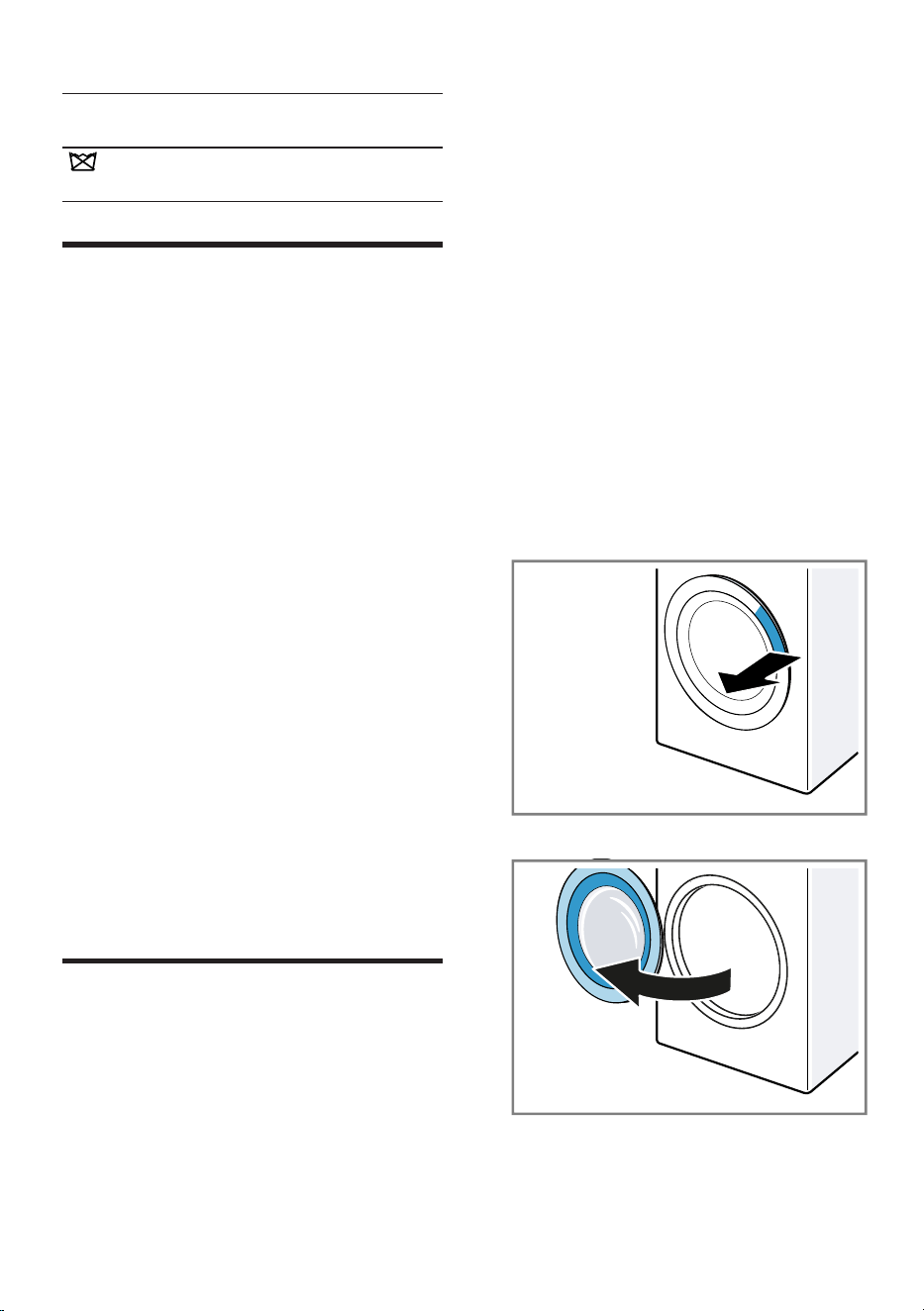

13.3 Opening the door
1. Grip under the door handle and
pull on the door.
2. Open the door.
en
27
13.4 Loading laundry
Note:To prevent creasing, note the
maximum load for the programmes.
→"Programmes", Page22
Requirements
¡ The laundry is prepared and sor-
ted.
→"Laundry", Page25
¡ The drum is empty.
1.
Open the door. →Page26
2. Place the laundry in the drum.
3. Close the door.
Ensure that there is no laundry
trapped in the door.
13.5 Inserting the measuring
aid

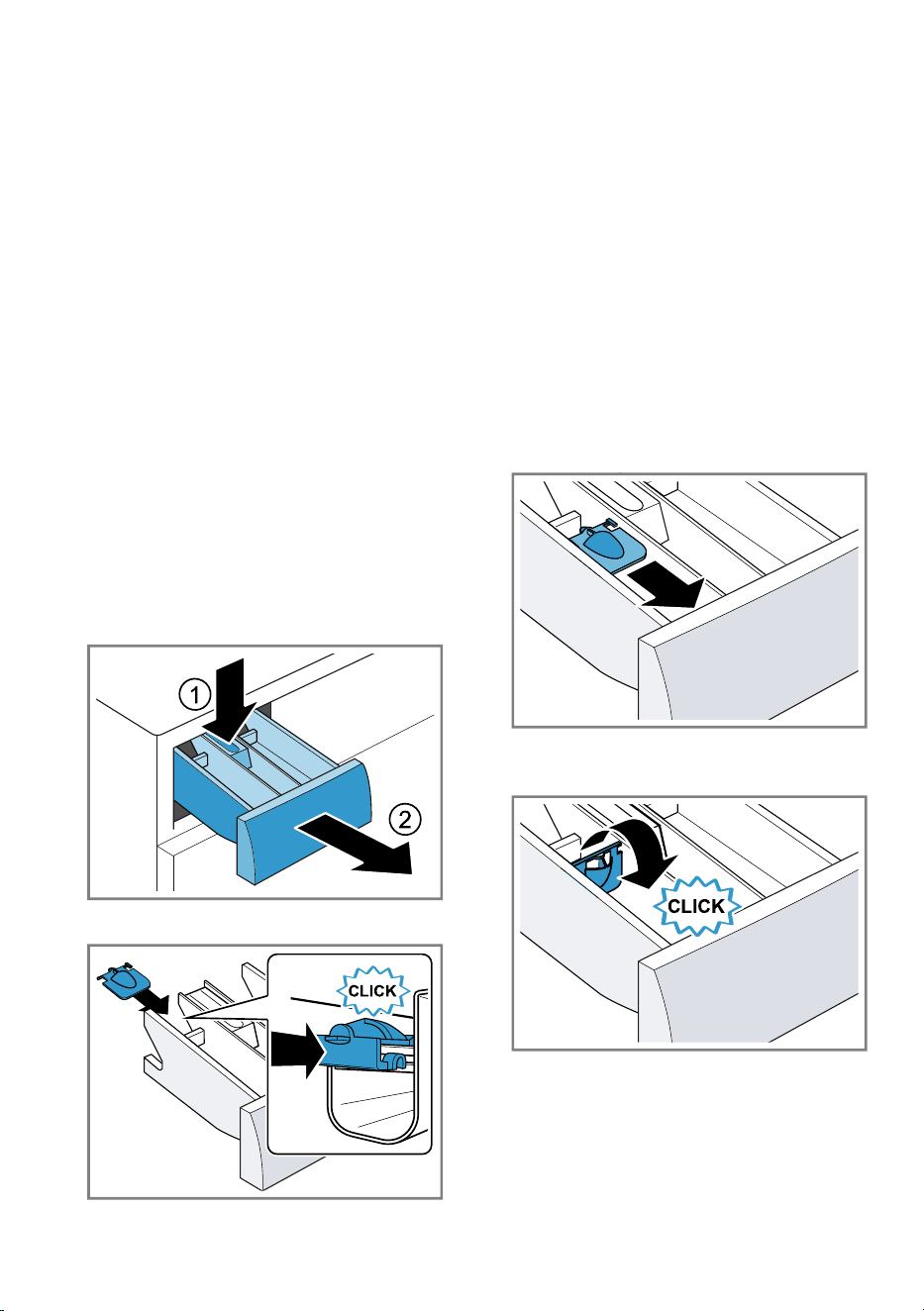

1. Pull out the detergent drawer.
2. Press down on the insert and re-
move the detergent drawer.
3. Insert the measuring aid.
13.6 Using the measuring aid
To more easily measure the liquid
detergent, you can use a measuring
aid in the detergent drawer.
Note:Do not use a measuring aid for
viscous detergents, for washing
powder, or when the prewash or pro-
gramme end time is activated.
Requirements
¡ The detergent drawer →Page17
has been pulled out.
¡ The measuring aid is inserted.
→Page27
1. Slide the measuring aid forwards.
2. Fold the measuring aid down and
click it into place.
en
28
13.7 Adding detergent and
care product
Note:Observe the information about
detergents and care products
→Page26.
1. Pull out the detergent drawer.
2. If required, use the dosing aid.
→Page27
3. Pour in the detergent.
→"Detergent drawer", Page17
4. If required, add the care product.
5. Push in the detergent drawer.
13.8 Starting the programme
Requirement:A programme is set.
→Page26
▶ Press Start / Reload.
a The drum rotates and load detec-
tion takes place. This can take up
to 2 minutes, after which water
enters the drum.
a The display shows the programme
duration or the programme end
time.
a After the programme has ended,
the display shows: End.
13.9 Adding laundry
After the programme starts, you can
remove or add laundry depending on
the programme status.
1. Press Start / Reload.
The appliance pauses.
Note:If you want to add laundry,
follow the instructions on the dis-
play.
→"Display", Page20
2.
Open the door. →Page26
3. Add or remove laundry.
4. Close the door.
5. Press Start / Reload.
13.10 Cancelling the pro-
gramme
1. Press Start / Reload.
2.
Open the door. →Page26
The appliance door remains
locked for safety reasons if the
temperature and water levels are
high.
– If the temperature is high, start
the Rinse programme.
– If the water level is high, start
the Spin programme or select a
suitable programme for draining.
→"Programmes", Page22
3.
Remove the laundry. →Page28
13.11 Unloading the laundry
1.
Open the door. →Page26
2. Remove the laundry from the
drum.
13.12 Switching off the appli-
ance
1. Turn the programme selector to
Off.
2. Turn off the tap.
3. Cleaning the rubber gasket.
→Page33
Note:Leave the appliance door and
the detergent drawer open to dry.
Childproof lock
14 Childproof lock
Childproof lock
Secure your appliance against being
operated unintentionally using the
controls.
14.1 Activating the childproof
lock
▶ Press on both 3 sec.buttons
for approx. 3seconds.
en
29
a The display shows .
a The control elements are locked.
a The childproof lock remains active
even after the appliance has been
switched off and in the event of a
power cut.
14.2 Deactivating the child-
proof lock
Requirement:To deactivate the
childproof lock, the appliance must
be switched on.
▶ Press on both 3 sec.buttons
for approx. three seconds.
So that the programme currently
running is not cancelled, the pro-
gramme selector must be set to
the initial programme.
a goes out on the display.
Basic settings
15 Basic settings
Basic settings
You can configure the basic settings
for your appliance to meet your
needs.
15.1 Overview of the basic
settings
1
2
3
4
5
Programme selector with programme
positions
2
Set the volume of the signal
at the end of the programme:
0 (off) to 4 (very loud)
3
Set the volume of the signal
tone emitted when the but-
tons are pressed:
0 (off) to 4 (very loud)
4
No basic setting.
5
Display the number of fin-
ished programmes.
15.2 Changing the basic set-
tings
1. Set the programme selector to po-
sition 1. →Page29
2. Press Spin Speedand, at the
same time, turn the programme
selector to position2.
a The display shows the current
value.
3. Use the programme selector to se-
lect the required basic setting.
→Page29
4. To change the value, press Finish
in.
5. To save the changes, switch off
the appliance.
Cleaning and servicing
16 Cleaning and servi-
cing
Cleaning and servicing
To keep your appliance working effi-
ciently for a long time, it is important
to clean and maintain it carefully.
16.1 Cleaning the drum
Clean the drum if you have carried
out 20 washing cycles at a temperat-
ure of 40°C or lower, or if you have
en
30
not used the appliance for a pro-
longed period, but at least once a
year.
CAUTION
Risk of injury!
Permanently washing at low temper-
atures and a lack of ventilation for
the appliance may damage the drum
and cause injury.
▶ Regularly run a programme for
cleaning the drum or wash at tem-
peratures of at least 60°C.
▶ Leave the appliance to dry after
every operation with the door
open, and leave the detergent
drawer to dry.
▶ Run the programme without laun-
dry but with washing powder that
contains oxygen bleach or a clean-
ing agent for caring for the inside
of the appliance.

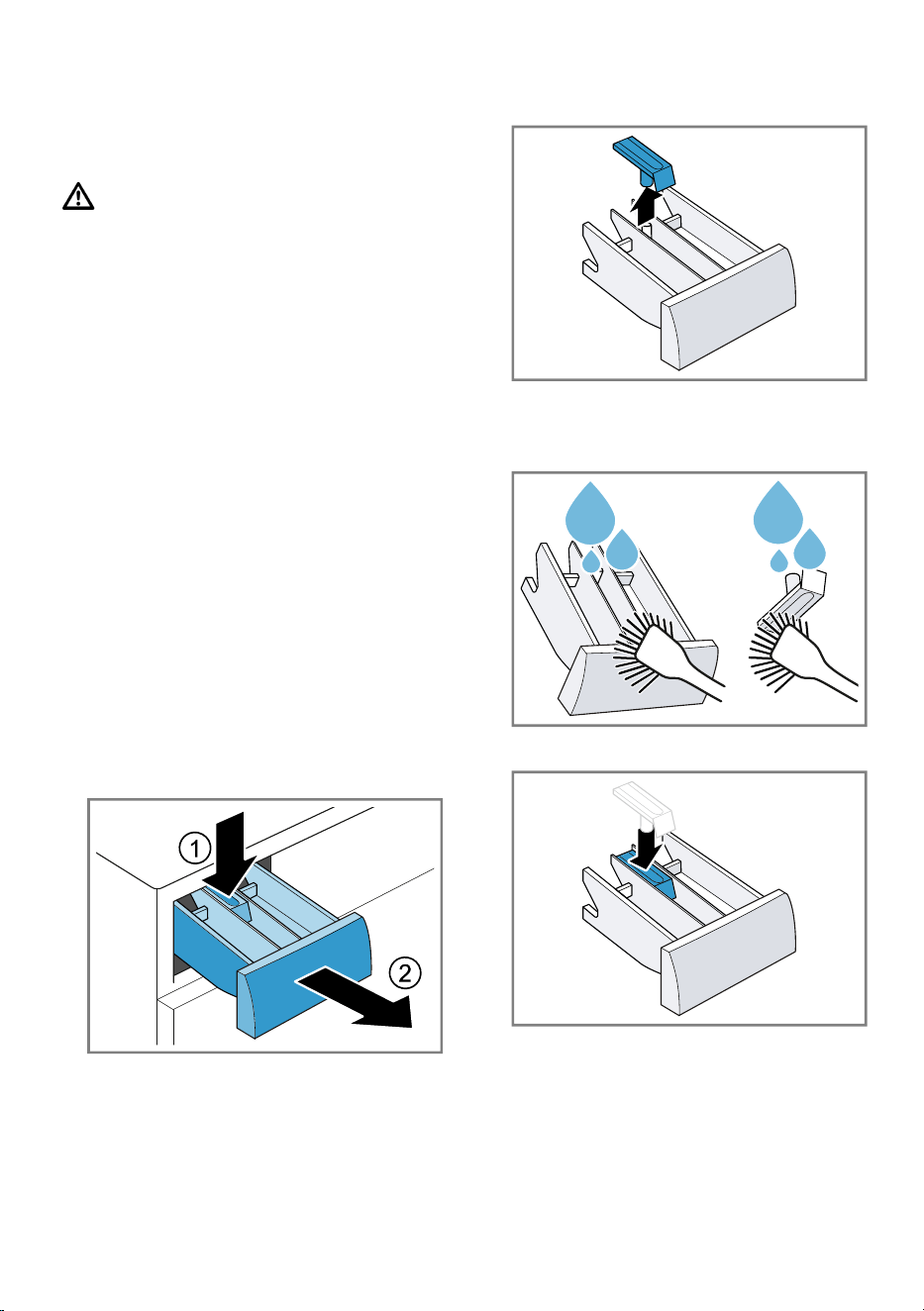

16.2 Cleaning the detergent
drawer
1. Pull out the detergent drawer.
2. Press down on the insert and re-
move the detergent drawer.
3. Pull out the insert upwards.
4. Clean the detergent drawer and in-
sert with water and a brush, and
then dry them.
5. Fit the insert and click it into place.
en
31
6. Clean the opening for the deter-
gent drawer.
7. Push in the detergent drawer.
16.3 Cleaning the drain pump
Clean the drain pump regularly, at
least once a year, as well as in the
event of faults, e.g. blockages or rat-
tling noises.

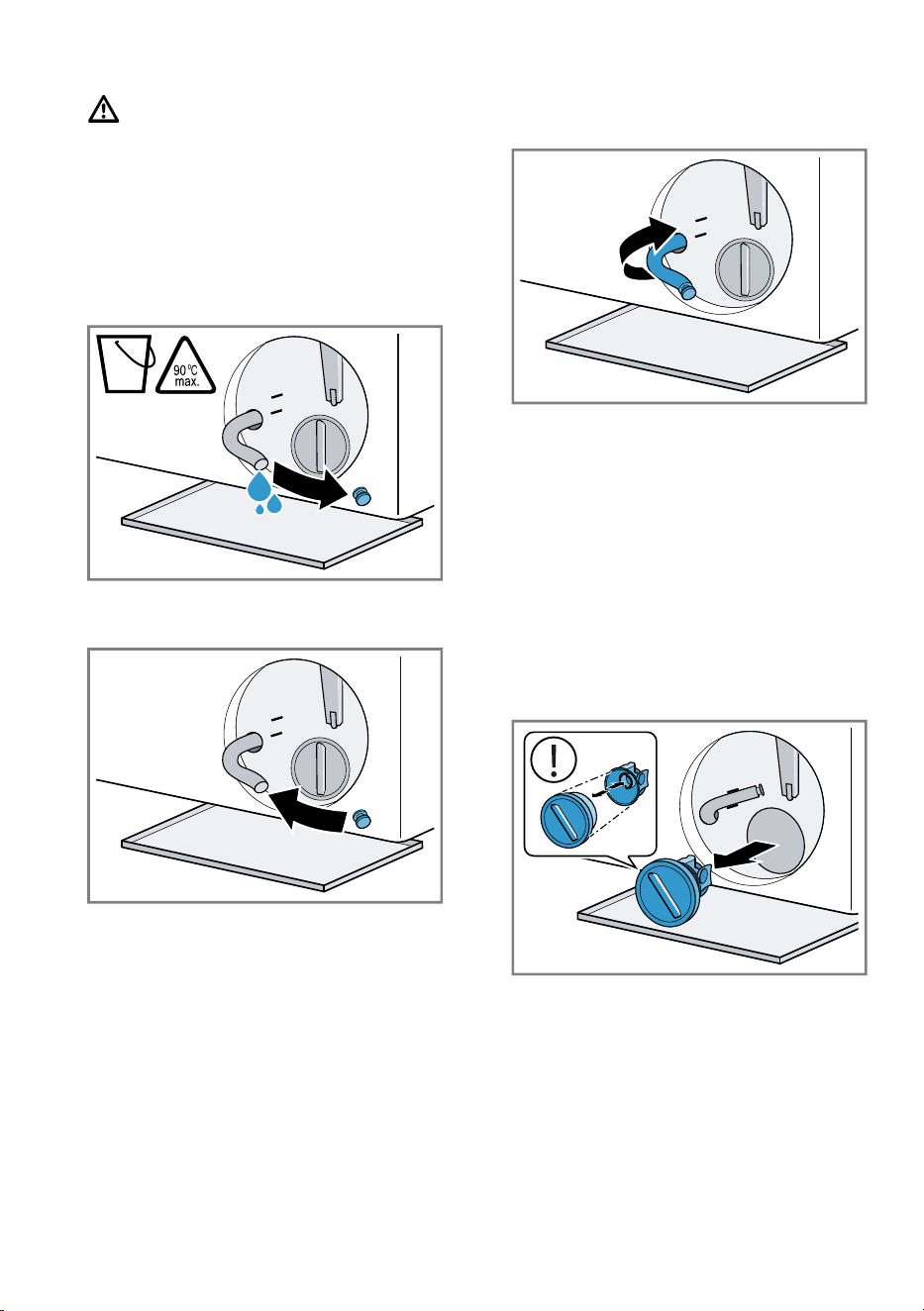

Emptying the drain pump
1. Turn off the tap.
2. Disconnect the appliance's mains
plug from the power supply.
3. Open and remove the mainten-
ance flap.
4. Slide a suitable receptacle under
the opening for draining the deter-
gent solution.
5. Take the drain hose out of the
holder.
en
32
6.
CAUTION-Risk of scalding!
When you wash at high temperat-
ures, the detergent solution gets
hot.
▶ Do not touch the hot detergent
solution.
To allow the detergent solution to
flow out into the container, remove
the sealing cap.
7. Once emptied, press firmly on the
locking cap.
8. Insert the drain hose into the
holder.
Cleaning the drain pump
Requirement:The drain pump is
empty. →Page31
1. Since water may remain in the
drain pump, unscrew the pump
cap carefully.
‒ The filter insert in the pump
housing may become stuck due
to coarse particles of dirt.
Loosen the dirt and remove the
filter insert.
The pump cap is comprised of two
parts which can be taken apart for
cleaning.
en
33

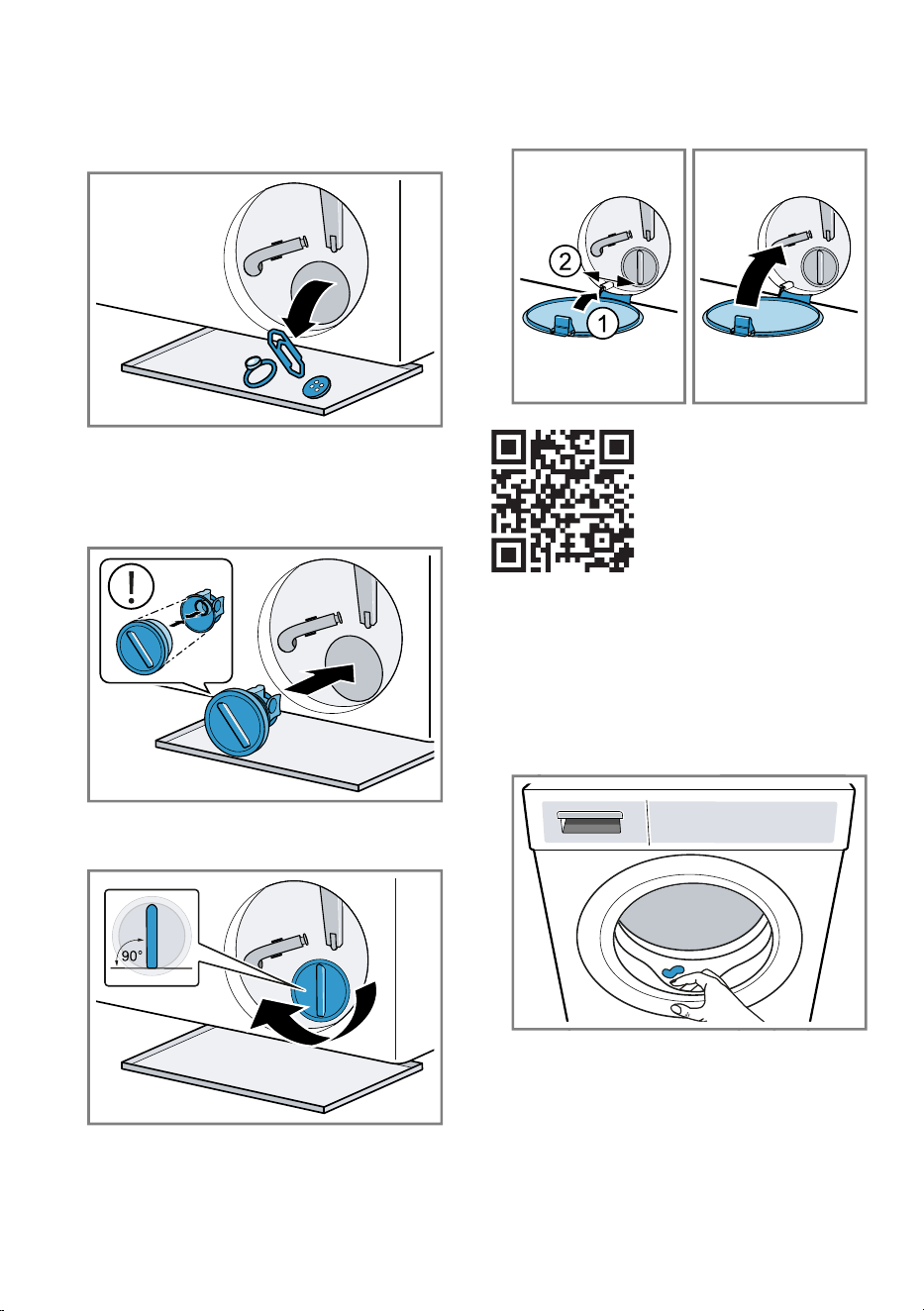

2. Clean the interior, the thread on
the pump cap and the pump hous-
ing.
3. Insert the pump cap.
‒ Ensure that the parts of the
pump cap are correctly as-
sembled.
4. Screw the pump cap as far as it
will go.
The handle on the pump cap must
be in a vertical position.
5. Insert and close the maintenance
flap.

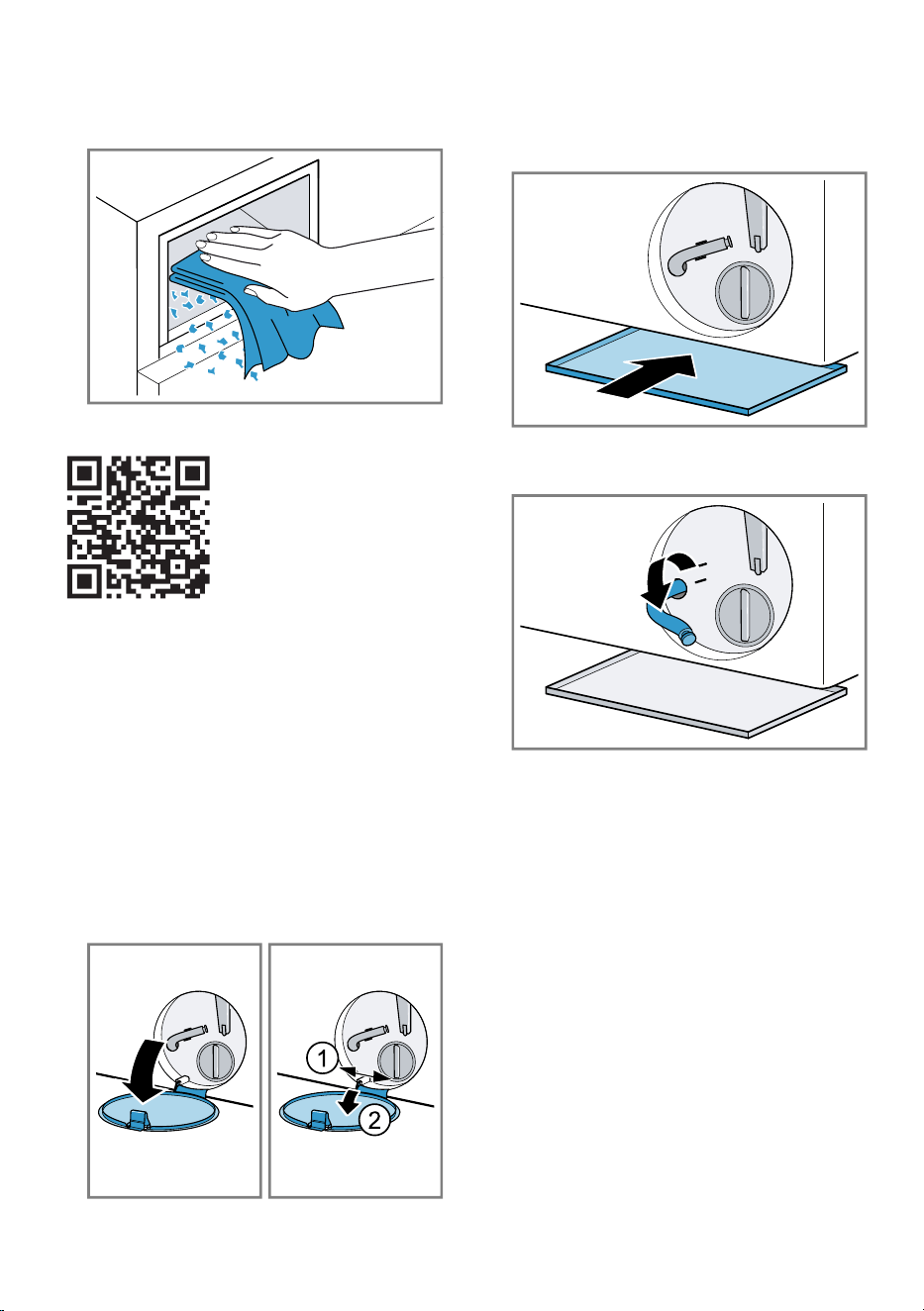

16.4 Cleaning the rubber gas-
ket
Clean the rubber gasket regularly.
1.
Open the door. →Page26
2. Remove any foreign objects and
fluff from the rubber gasket.
3. Clean the outside and the inside of
the rubber gasket with a damp
cloth and wipe dry.
en
34
Troubleshooting
17 Troubleshooting
Troubleshooting
You can rectify minor faults on your appliance yourself. Read the troubleshoot-
ing information before contacting after-sales service. This will avoid unneces-
sary costs.
WARNING
Risk of electric shock!
Improper repairs are dangerous.
▶ Never make any technical modifications to the appliance or its features.
▶ Repairs to the appliance should only be carried out by trained specialist
staff.
▶ Only use genuine spare parts when repairing the appliance.
▶ If the power cord of this appliance is damaged, it must be replaced by the
manufacturer, the manufacturer's Customer Service or a similarly qualified
person in order to prevent any risk.
Fault Cause and troubleshooting
The display goes out
and Start / Reload
flashes.
Energy-saving mode is active
▶ Press Start / Reload.
E:36 -10 / E:30 -80 /
E:18
The detergent solution
is not being pumped
out.
The water outlet hose is connected too high, is kinked
or trapped, or has been extended impermissibly.
▶ Check the installation of the water outlet hose.
→Page14
Drain pipe or water outlet hose is blocked.
▶ Clean the drain pipe and the water outlet hose.
The drain pump is blocked or the pump cover is not
installed correctly.
▶ Check that the pump cover is installed correctly.
→Page31
▶
Clean the drain pump. →Page31
Detergent dosage is too high.
▶ Reduce the amount of detergent for the next wash-
ing cycle with the same load.
E:36 -25 -26 Drain pump is blocked.
▶
Clean the drain pump. →Page31
E:60 -2B / E:32 /
H:32
The appliance has interrupted the spin cycle because
the laundry is unevenly distributed.
▶ Redistribute the laundry in the drum.
E:30 -10 / The tap is turned off.
▶ Turn on the tap.
The water inlet hose is kinked or jammed.
en
35
Fault Cause and troubleshooting
E:30 -10 / ▶ Check the installation of the water inlet hose.
→Page14
The filters in the water inflow are blocked.
▶ Clean the filters in the water inflow.
The water pressure is low.
▶ Check whether the tap has sufficient water pres-
sure.
The water level measuring system is defective.
With this error message, the appliance starts a drain-
ing process.
1. Wait approx. 5 minutes until the draining process
ends.
2. Restart the appliance.
If required, start the draining process again.
3. If the fault persists, call customer service.
→Page40
E:30 -20 Critical malfunction.
▶ Turn off the water tap.
With this error message, the appliance starts a drain-
ing process.
1. Wait approx. 5 minutes until the draining process
ends.
2. Restart the appliance.
If required, start the draining process again.
3. If the fault persists, call customer service.
→Page40
Detergent dosage is too high.
▶ Reduce the amount of detergent for the next wash-
ing cycle with the same load.
Additional water has been added.
▶ Do not add any extra water to the appliance while it
is operating.
en
36
Fault Cause and troubleshooting
All other error codes. Malfunction
1. Restart the appliance.
2. If the fault occurs again, disconnect the appliance
from the power supply for at least 30 seconds.
Unplug the appliance from the mains or switch off
the circuit breaker in the fuse box.
3. If the fault persists, call customer service.
→Page40
Please specify the exact error message when call-
ing. If possible, document the fault with photos and
videos.
flashes and the pro-
gramme is paused.
The appliance has detected fluctuations in the power
supply.
No action required. If the power supply is stable,
lights up and the programme continues to run as nor-
mal.
Heavy foam build-up. Detergent dosage is too high.
▶ Mix one tablespoon of fabric softener with 0.5 litres
of water and pour the mixture into compartment II
(not for outdoor clothing, sportswear or items
stuffed with down).
▶ Reduce the amount of detergent for the next wash-
ing cycle with the same load.
flashes. The door is not completely closed.
1. Ensure that there is no laundry trapped in the door.
2. Close the door.
The programme does
not start.
Childproof lock is activated.
▶
Deactivate the childproof lock. →Page29
Finish in is activated.
▶
Check whether Finish in is activated. →Page21
The programme is
paused or has been
interrupted, but the
door will not open.
The temperature is too high.
▶ Start the Rinse programme or wait until the temper-
ature has dropped.
Water level is too high.
▶ Start the Spin programme or a suitable draining
programme. →Page22
The door cannot be
opened due to a
power cut.
The door is locked.
▶ Open the door using the emergency release.
→Page39
Drum jerks after the
programme starts.
Not a fault. An internal motor test is started.
No action required.
en
37
Fault Cause and troubleshooting
Drum rotates, water
does not flow in.
Not a fault. Load detection is active for up to 2
minutes.
No action required.
No water is visible in
the drum.
Not a fault. Water is below the visible area.
No action required.
The spin cycle runs
several times.
Not a fault. The appliance eliminates an imbalance by
repeatedly redistributing the laundry.
No action required.
The appliance is vi-
brating, 'wandering'
and making loud
noises during the spin
cycle.
Appliance is not correctly aligned.
▶
Align the appliance. →Page15
The appliance feet are not fixed.
▶
Secure the appliance's feet. →Page15
Transit bolts have not been removed.
▶
Remove the transit bolts. →Page13
High spin speed not
reached.
The appliance is using a reduced spin speed to elim-
inate an imbalance.
No action required.
The programme dura-
tion changes during
the wash cycle.
Not a fault. The programme sequence is optimised
electronically, another rinse cycle is switched on due
to heavy foam build-up, or an imbalance is eliminated.
No action required.
Whooshing, hissing or
sucking noises.
Not a fault. Water is pumped in or detergent solution
is pumped out.
No action required.
Banging noises, rat-
tling in the drain
pump.
A foreign object is in the drain pump.
▶
Clean the drain pump. →Page31
There are detergent
residues on the laun-
dry.
Detergents may contain water-insoluble substances
that deposit on the laundry.
▶ Start the Rinse programme or brush out the laun-
dry after drying.
The laundry is too wet
after the spinning
cycle.
A low spin speed is selected.
▶ Start the Spinprogramme.
▶ The next time you run a wash cycle, set a higher
spin speed.
The appliance is using a reduced spin speed to elim-
inate an imbalance.
1. Redistribute the laundry in the drum.
2. Start the Spinprogramme.
en
38
Fault Cause and troubleshooting
Creasing. The selected programme is unsuitable for the type of
fabric.
▶
Set a suitable programme. →Page22
A high spin speed is selected.
▶ The next time you run a wash cycle, set a lower
spin speed.
The load is unsuitable.
▶ Observe the programme's maximum load capacity.
→Page22
▶
Prepare the laundry. →Page25
Water is leaking out at
the water inlet hose.
The water inlet hose is not correctly connected or is
damaged.
▶ Check the installation of the water inlet hose.
→Page11
Replace the water inlet hose if it is damaged.
Water is leaking out at
the water outlet hose.
The water outlet hose is not connected correctly or is
damaged.
▶ Check the installation of the water outlet hose.
→Page11
Replace the water outlet hose if it is damaged.
Water is leaking from
below the door.
Dirt on the door or seal causes leaks.
▶ Clean the door and the seal.
Detergent or fabric
softener drips off the
seal and collects on
the door or in the seal
fold.
There is too much detergent or fabric softener in the
detergent drawer.
▶ When dosing, observe the marking in the detergent
drawer. →Page28
Residual water is
present in the com-
partment .
Insert in compartment is blocked.
▶
Clean the detergent drawer. →Page30
Fabric softener re-
mains in the detergent
drawer.
The use of fabric softener is not supported for the se-
lected programme.
▶ Check whether the use of fabric softener is suppor-
ted for the selected programme. →Page22
Odours have formed
in the appliance.
Humidity and detergent residue may promote the
formation of bacteria.
▶
Clean the drum. →Page29
▶ If you are not using the appliance, leave the door
and detergent drawer open so that residual water
can evaporate.
en
39

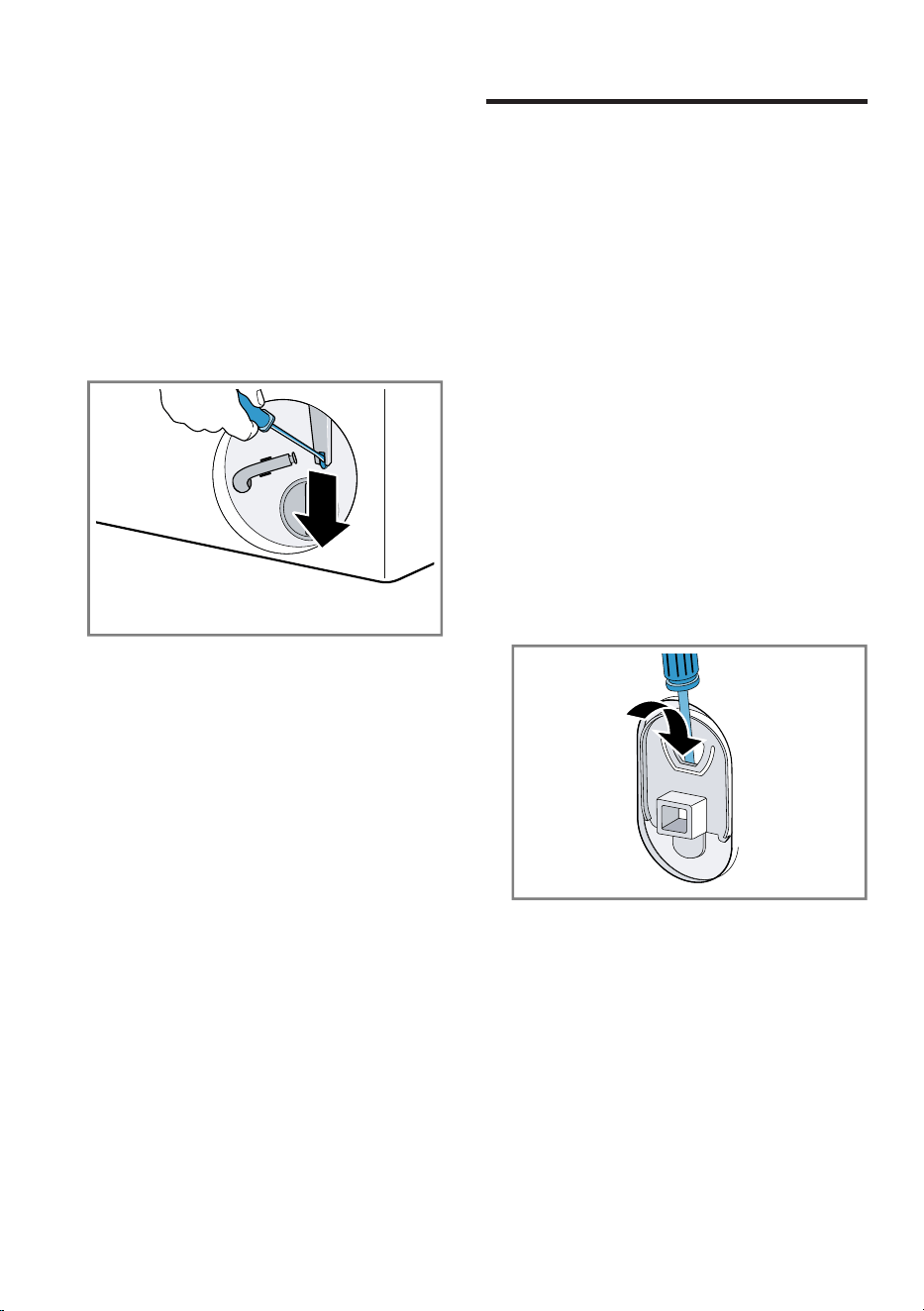

17.1 Emergency release
Releasing the door
Requirement:The drain pump is
empty. →Page31
1. ATTENTION! Escaping water may
cause material damage.
▶ Do not open the door if you can
see water through the glass.
Pull the emergency release down-
wards with a tool and release.
a The door lock is released.
2. Insert the maintenance flap and
lock it into place.
3. Close the maintenance flap.
17.2 Restart the appliance.
1. Restart the appliance.
2. If the fault occurs again, discon-
nect the appliance from the power
supply for at least 30 seconds.
Unplug the appliance from the
mains or switch off the circuit
breaker in the fuse box.
3. If the fault persists, call customer
service. →Page40
Please specify the exact error mes-
sage when calling. If possible, doc-
ument the fault with photos and
videos.
Transportation, storage and disposal
18 Transportation, stor-
age and disposal
Transportation, storage and disposal
18.1 Removing the appliance
1. Turn off the tap.
2. Empty the water inlet hose.
3. Unplug the appliance's mains plug.
4. Drain the water.
→"Cleaning the drain pump",
Page31
5. Detach the hoses.
18.2 Inserting the transit
bolts
Secure the appliance before trans-
portation using transit bolts in order
to prevent transport damage.
1. Use a screwdriver to remove the
cover caps.
Retain the cover cap.
2. Insert the 4 transit bolts.
18.3 Using the appliance
again
▶ For further information, see
→"Installation and connection",
Page11 and
→"Starting an empty washing
cycle", Page16.
en
40
18.4 Disposing of old appli-
ance
Valuable raw materials can be re-
used by recycling.
WARNING
Risk of harm to health!
Children can lock themselves in the
appliance, thereby putting their lives
at risk.
▶ Do not install the appliance behind
a door as this may obstruct the ap-
pliance door or prevent it from
opening.
▶ With redundant appliances, unplug
the power cord. Then cut through
the cord and damage the lock on
the appliance door beyond repair
so that the appliance door will no
longer close.
1. Unplug the appliance from the
mains.
2. Cut through the power cord.
3. Dispose of the appliance in an en-
vironmentally friendly manner.
Information about current disposal
methods are available from your
specialist dealer or local authority.
Customer Service
19 Customer Service
Customer Service
Detailed information on the warranty
period and terms of warranty in your
country is available from our after-
sales service, your retailer or on our
website.
If you contact Customer Service, you
will require the product number (E-
Nr.) and the production number (FD)
of your appliance.
The contact details for Customer Ser-
vice can be found in the enclosed
Customer Service directory or on our
website.
19.1 Product number (E-Nr.)
and production number
(FD)
You can find the product number (E-
Nr.) and the production number (FD)
on the appliance's rating plate.
Depending on the model, the rating
plate is located:
¡ On the inside of the door.
¡ On the inside of the maintenance
flap.
¡ On the rear of the appliance.
Make a note of your appliance's de-
tails and the Customer Service tele-
phone number to find them again
quickly.
en
41
Consumption values
20 Consumption values
Consumption values
The indicated consumption values are approximate.
The values may deviate from the indicated values depending on water pres-
sure, water hardness, water inlet temperature, room temperature, type of laun-
dry, amount and soiling of laundry, detergent used, fluctuations in the mains
voltage and selected settings.
Programme Temperat-
ure (°C)
Load (kg) Energy
consump-
tion
(kWh)
1
Water con-
sumption
(l)
1
Pro-
gramme
duration
(h:min)
1
Cottons 20 8.0 0.330 89.0 3:25
Cottons 40 8.0 1.210 89.0 3:25
Cottons 60 8.0 1.510 89.0 3:25
Easy Care 40 4.0 0.770 61.0 2:30
Mixed Load 40 4.0 0.630 44.0 1:05
Delicates / Silk 30 2.0 0.230 35.0 0:40
Wool 30 2.0 0.300 48.0 0:41
1
Values determined according to the valid version of IEC60456
20.1 Information for test insti-
tute
7
6
5
4
3
2
1
1
Layer 1: tablecoth
2
Layer 2: shirts, T-shirts, pillow
cases
3
Layer 3: shorts (all), wash
cloths (all), handkerchiefs (all)
4
Layer 4: shirts, T-shirts, pillow
cases
5
Layer 5: tablecloth
6
Drum
7
External circle: sheets, bath
towels
Pre-treatment of new appliance
Run two empty runs of Cottons
90°C with 1400rpm: The 1st run
with 50g detergent and 8g anti
sudsing agent, the 2nd run without
detergent and sudsing agent.
According to standard
AS NZS 2040.1-2005
AS NZS 2040.2-2005
AS NZ 6400-2016
Washing programme
60°C, 8.0kg, 1400rpm
Testing instructions
The dosage of detergent: 12.5g/kg
en
42
The dosage of anti sudsing agent:
2g/kg
Add the dry powder detergent into
main wash dispenser before start.
After detergent is flushed in add the
PBIS solution and anti-sudsing agent
as soon as possible.
Age of test loads
The average age of test load around
10-20 times is recommended to rep-
licate normal use.
Loading procedure
First, load the laundry items into the
drum by filling the external circle. Fill
possible gaps with wash clothes,
handkerchiefs and laundry items
without soil swatches. Afterwards,
load the laundry items into the drum
in layers as shown in the table and
pictures below.
Make sure that swatches are flat and
below the laundry item when loading
items into the drum.
Technical data
21 Technical data
Technical data
Appliance height 84.8cm
Appliance width 59.8cm
Appliance depth 58.8cm
Appliance depth
with door closed
63.2cm
Appliance depth
with door open
104.9cm
Weight 71.5kg
Maximum load 8.0kg
Mains voltage 220-240V,
50Hz
Minimum in-
stallation protec-
tion
10A
Nominal power 2300W
Water pressure ¡ Minimum:
100kPa
(1bar)
¡ Maximum:
1000kPa
(10bar)
Length of the wa-
ter inlet hose
150cm
Length of the wa-
ter outlet hose
150cm
Length of the
power cord
160cm
Thank you for buying a
Bosch Home Appliance!
Register your new device on MyBosch now and profit directly from:
• Expert tips & tricks for your appliance
• Warranty extension options
• Discounts for accessories & spare-parts
• Digital manual and all appliance data at hand
• Easy access to Bosch Home Appliances Service
Free and easy registration – also on mobile phones:
www.bosch-home.com/welcome
Looking for help?
You'll find it here.
Expert advice for your Bosch home appliances, help with problems
or a repair from Bosch experts.
Find out everything about the many ways Bosch can support you:
www.bosch-home.com/service
Contact data of all countries are listed in the attached service direct-
ory.
*9001944132*
9001944132 (041218)
en
BSH Hausgeräte GmbH
Carl-Wery-Straße 34
81739 München, GERMANY
www.bosch-home.com
A Bosch Company
