Bosch WAY32540AU 8kg Front Load Washing Machine User Manual

en Instruction Manual and Installation Instructions

Washing machine

WAY32540AU

Your new washing machine

You have chosen a premium washing machine made by Bosch.

Thanks to its innovative technologies, the washing machine is

distinguished by its perfect washing performance and its

economic consumption of water and energy.

Please take a couple of minutes to read and become familiar

with the advantages of your washing machine.

To meet the high quality demands of the Bosch brand, each

washing machine, which leaves our factory, is inspected

thoroughly to ensure that it functions properly and is in perfect

condition.

Further information on our products, accessories, spare parts

and services can be found at: www.bosch-home.com or contact

our customer service centres.

If the instructions for use and assembly describe various models,

reference is made to the differences at the appropriate places.

Explanation of the symbols

ã Warning!

This combination of symbol and signal word indicates a

potentially dangerous situation which may result in death or

serious injuries unless it is avoided.

ã Caution!

This combination of symbol and signal word indicates a

potentially dangerous situation which may result in slight or

minor injuries or damage to property and the environment.

Instructions on how best to use the appliance as well as other

useful information.

Contents

Instruction Manual and Installation Instructions

Before washing

Ø Intended use 4

Ø Safety instructions 5

Ø Protection of the environment 8

Ø Getting to know your appliance 9

Ø Detergent drawer 10

Ø Operating elements/Display elements 11

Ø The main points in brief 12

Operating the appliance

Ø Before each washing 13

Ø Washing 19

Ø After washing 22

Ø Programme overview 23

Ø Programme settings 27

Ø Consumption values 29

Ø Appliance settings 30

Ø Sensors – Your washing machine is so intelligent 32

Cleaning and maintenance

Ø Care and maintenance 33

Ø Emergency lock release, e.g. if power failure occurs 37

Ø Information on the display panel 38

Ø Faults, what to do? 39

Ø Customer service 41

Installing the appliance

Ø Standard accessories 42

Ø Installation 44

Ø Remove transportation protection devices 48

Ø Connecting the water 50

Ø Alignment 54

Ø Electrical connection 55

Ø Before the 1st washing 57

Ø Transportation, e.g. if moving house 58

Index 59

Before washing

Intended use

Ø For use in the household only.

Ø The washing machine is suitable for washing machine-

washable textiles and hand-washable wool in wash liquor.

Ø The washing machine is suitable to be operated with cold

drinking water and commercially available detergents and

care products which are suitable for use in washing

machines.

Ø When dosing all detergents, cleaning aids, cleaning products

and cleaning agents, always follow the manufacturer's

instructions.

Ø The washing machine may be operated by children from 8

years of age, by persons who have limited physical, sensory

or mental abilities and by persons who have inadequate

experience or knowledge, provided they are supervised or

have been instructed by a responsible person.

Ø Keep pets away from the washing machine!

Read and follow the operating and installation instructions and all

other information enclosed with the washing machine.

Retain documents for subsequent use.

Safety instructions

ã Warning!

Danger of death from electric shock!

Danger of death if live parts are touched.

– Never pull out the mains plug by tugging the power

cord.

– Insert/pull out the mains plug with dry hands only.

ã Warning!

Risk to children!

– Do not leave children unsupervised near the

washing machine.

– Children must not play with the washing machine.

– This will prevent children from locking themselves

in and suffocating.

On redundant appliances:

– Pull out the mains plug!

– Sever the power cord and discard together with

the plug.

– Destroy the lock on the washing-machine door.

– Children must not perform any cleaning or

maintenance work without supervision.

– When playing, children may become entangled in

the packaging/film and packaging parts or pull

them over their heads and suffocate.

Keep packaging, plastic film and packaging parts

out of the reach of children.

– When washing at high temperatures, the glass of

the washing machine door becomes hot.

Prevent children from touching the hot washing

machine door.

– Detergents and care products may cause

intoxication if consumed or eye and skin irritation if

touched.

Keep detergents and care products out of the reach

of children.

ã Warning!

Risk of explosion!

Items of washing pretreated with solvent detergents,

e.g. stain remover/petroleum ether, may cause an

explosion when the washing machine has been

loaded.

Before hand thoroughly rinse items of washing by

hand.

ã Caution!

Danger of scalding!

When washing at high temperatures, you may be

scalded if you touch the hot wash liquor (e.g.

if draining hot wash liquor into a washbasin or if

draining the washing machine in an emergency). Allow

detergent solution to cool down.

ã Caution!

Risk of damaging appliance!

– Cover plate may break!

Do not climb on the washing machine.

– Opened washing machine door may break off or

washing machine may overturn!

Do not lean on the open washing machine door.

ã Caution!

Danger when reaching into/gripping the rotating

drum!

If you reach into the rotating drum, you may injure your

hands.

Do not grip the rotating drum. Wait until the drum stops

rotating.

ã Caution!

Risk of coming into contact with liquid detergents/

care products!

If the detergent drawer is opened while the washing

machine is running, detergent/care product may spray

out.

Caution when opening the detergent drawer.

In case of eye/skin contact, rinse thoroughly.

If accidentally swallowed, seek medical advice.

Protection of the environment

Packaging/Old appliance

Hints and tips

Ø Utilise the maximum amount of washing for the particular

programme.

Ø Wash normally soiled washing without Pre-wash.

Ø Instead of Cottons 90 °C programme select Cottons 60 °C

and

EcoPerfect button. Comparable cleaning result with

significantly lower energy consumption.

Ø Energy saving mode: The display panel light goes out after

several minutes, Start/Reload A flashes. To activate the

light, select any button.

The energy-saving mode is not activated if a programme is

running.

Ø Automatic switch off: If the appliance is not operated for a

prolonged period, it automatically switches off before the

programme starts and when the programme has ended to

save energy. Switch on by pressing main switch

# button.

Ø If the washing is then dried in the tumble dryer, select spin

speed according to the instructions of the dryer

manufacturer.

)

Dispose of packaging in an environmentally friendly manner.

This appliance has been identified in accordance with the

European Directive 2002/96/EG on Waste Electrical and

Electronic Equipment (WEEE).

The Directive specifies the framework for an EU-wide valid return

and recycling of waste appliances.

Getting to know your appliance

'HWHUJHQWGUDZHU

FODFN

2SHUDWLQJ

HOHPHQWV

'LVSOD\

HOHPHQWV

'UXPOLJKW

GHSHQGLQJ

RQPRGHO

'RRU

6HUYLFHIODS

2SHQLQJ DQGFORVLQJWKHGRRU 6HUYLFHIODS

Detergent drawer

Dispenser I Detergent for prewash

Dispenser i

Softener, starch. Do not exceed the maximum load.

Dispenser II Detergent for main wash, water softener, bleach,

stain remover

Dispenser A for dosing liquid detergent (not for all models)

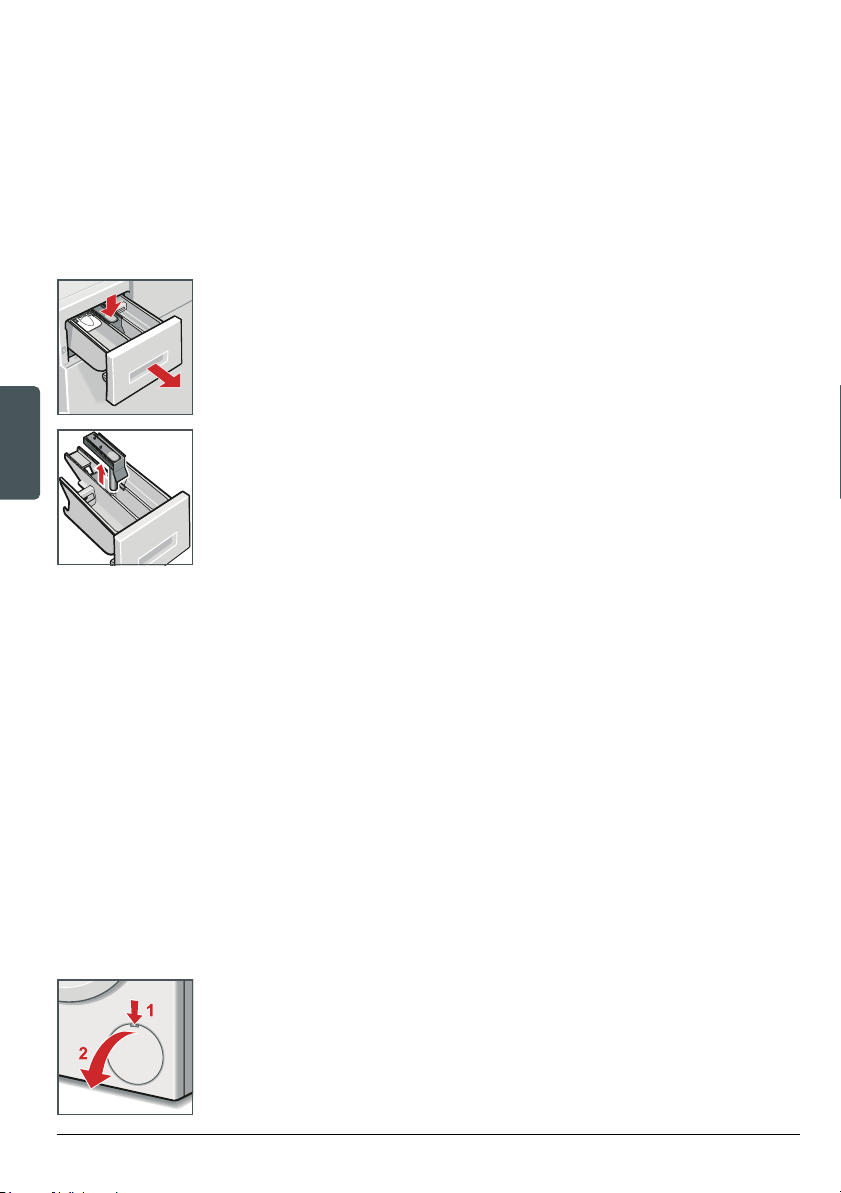

For models with insert for liquid detergent:

The detergent drawer features an insert which is used as a dosing aid for liquid detergent.

² Do not use insert:

– For gel-like detergents and washing powders.

– For programmes with Prewash or Ready in option.

Position insert for dosing liquid detergent:

Completely remove detergent drawer.

Push insert forwards.

For models without insert for liquid detergent:

Dose liquid detergent according to the manufacturer’s instructions.

Operating elements/Display elements

² All buttons are sensitive, they only need to be touched gently.

i Press the main switch # button. Switch

on and off the appliance.

j Programme selector – can be rotated in

either direction. Programme Overview,

refer to ~ Page 23

Programme settings:

~ Page 16, ~ Page 23

EcoPerfect

l SpeedPerfect

m Easy-Iron

n Pre-wash

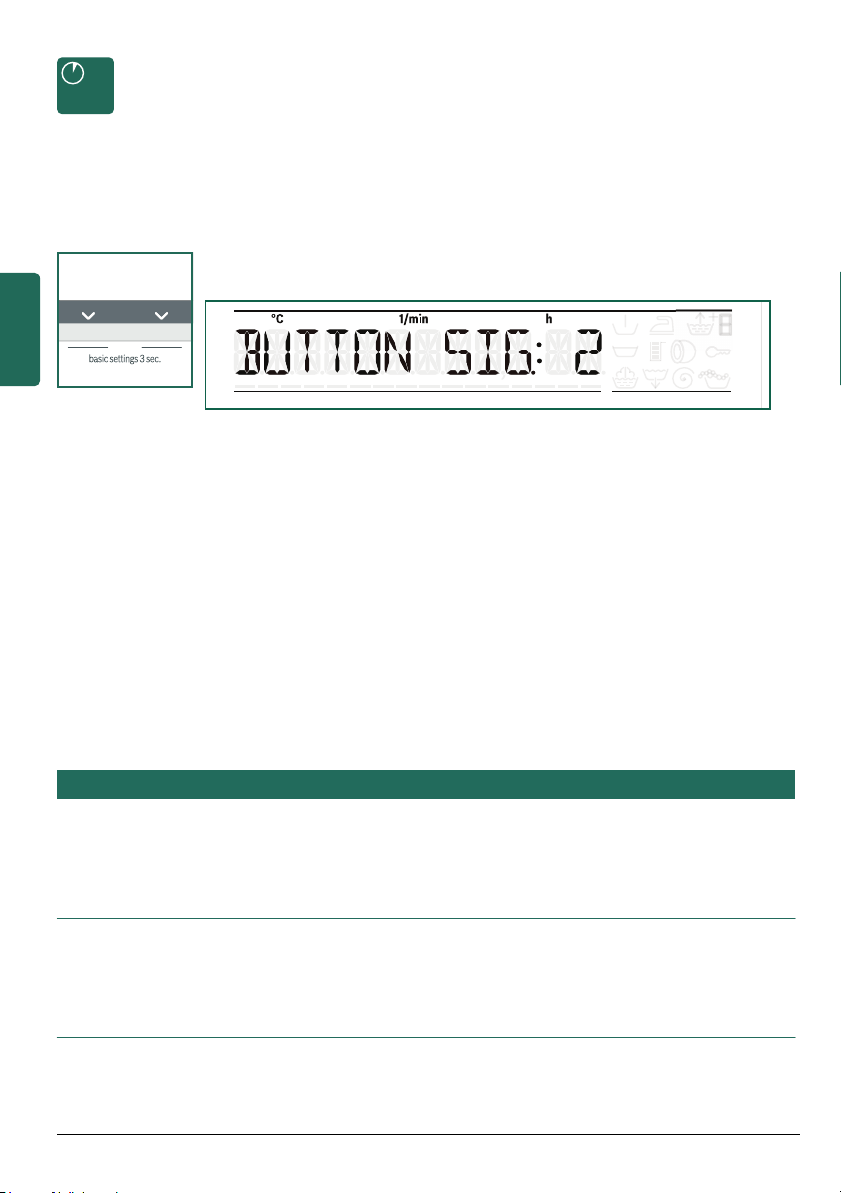

o Change appliance settings. Hold down

Temperature

Ö and Spin Ö buttons for

appliance settings (end signal, button

signal, language, Autom. switch off) for

approx. 3 seconds.

Overview of all settings ~ Page 30

p Temperature selection, Select spin

speed, End time preselection button

q Rinse Hold

h Display panel for settings and

information

r Start/Reload A button to start,

interrupt and cancel the programme

(e.g. Topping up the washing).

s Extra Rinse

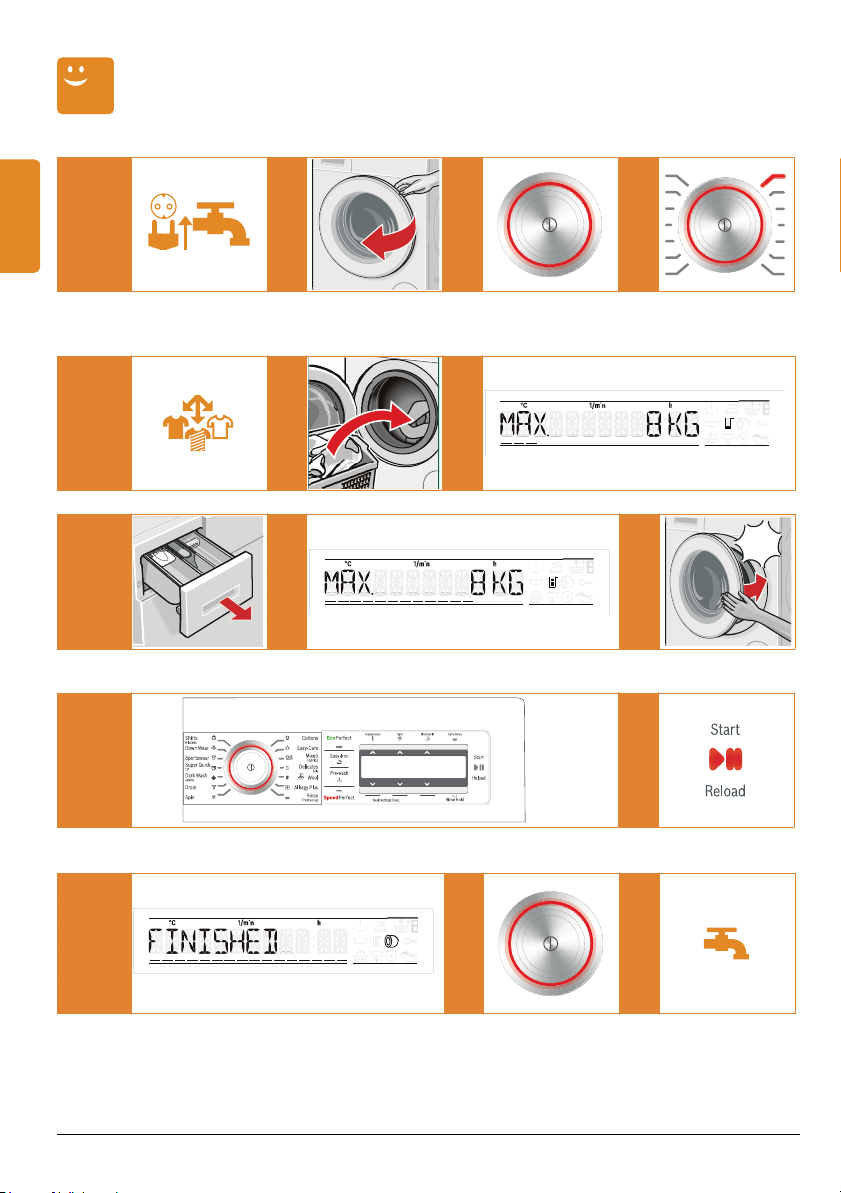

The main points in brief

@ @ @

Insert mains plug.

Turn the tap on.

Open the washing

machine door.

To switch on, press

the # button.

Select the pro-

gramme, e.g.

Cottons.

@ @

Sort the washing. Insert the washing. Do not exceed maximum load.

@ @

Open the detergent

drawer.

Dose detergent according to dosing recommen-

dation.

Close the washing

machine door.

FODFN

If required, change presettings of the selected programme and/or select

programme settings.

Select

Start/Reload A.

@ @

End of the programme For switching the

machine on, press

the # button.

Turn off the mains

supply (for models

without Aqua-Stop).

Operating the appliance

Before each washing

– Install and connect washing machine properly.

Refer to ~ Page 44

– Before the 1st wash, wash once without any washing.

~ Page 57

1. Preparing the washing

Sorting the washing according to:

Ø Type of fabric/fibre.

Ø Colour.

Ø Soiling.

Ø Follow manufacturer’s care information.

Ø Care label specifications:

Protecting the washing and the machine:

– When dosing all detergents, cleaning aids, cleaning products

and cleaning agents, always follow the manufacturer's

instructions.

– Keep detergents and agents for the pretreatment of washing

(e.g. stain remover, prewash sprays, ...) away from the

surfaces of the washing machine. Using a damp cloth,

immediately remove any fine spray residue and other

residue/droplets.

–Empty pockets.

– Remove metal parts (paper clips, etc.).

– Wash delicates in the net/bag (tights, underwired bras).

–Close zips, button up covers.

– Brush sand out of pockets and collars.

– Remove curtain fittings or include in the net/bag.

–Wash new items separately.

< ;

Cottons 95 °C, 90 °C

: 9 8

Coloureds 60 °C, 40 °C, 30 °C

B A >

Easy-Care 60 °C, 40 °C, 30 °C

A L >

Delicates 40 °C, 30 °C

W A L

> K

Hand and machine-washable silk and woollens cold, 40 °C,

30 °C

Do not wash laundry in the washing machine.

2. Preparing the appliance

Insert mains plug.

Turn on water tap.

3. Selecting programme and loading laundry in the drum

Open the washing machine door.

Check whether the drum has been completely emptied. If

required, empty. Otherwise, the load display may malfunction.

~ Page 32

Press the # button. The appliance is switched on.

Then always the Cottons programme preset at the factory is

displayed.

Displays for the Cottons programme:

– The indicator lamp is lit on the programme selector and

the main menu for the selected programme is indicated

on the display panel.

– For appliances with drum light:

After switching on the appliance, after opening and

closing the washing machine door as well as after starting

theprogramme, thedrum islit. Thelight goes out

automatically.

Select a programme.

You can use the displayed programme

or select another programme, Programme overview, refer

to ~ Page 23,

Insert the washing.

The load screen for the selected programme (e.g. for Cottons) is

indicated on the display panel. The load screen is indicated

when the door is opened or when the amount of washing

is changed.

– Unfold and load presorted items of washing. Mix large and

small items. Washing items of different size distribute

themselves better during the spin cycle. Individual items

of washing may cause an unbalanced load. ~ Page 32

– Do not load the laundry until the main menu for the

programme is displayed.

– The load bar progresses as the washing machine is loaded.

If the max. load is exceeded, the bar flashes. Do not exceed

indicated max. load. Overfilling reduces the washing result

and encourages creasing.

4. Add detergent and fabric care product

Pull out the detergent drawer.

Dosing in dispenser ~ Page 10 according to:

– Dosing recommendation on the display panel,

e.g. for Cottons:

Depending on the amount of washing in the washing

machine, a dosing recommendation is indicated on the

display panel. The indicated % refers to the dosage

recommendation of the detergent manufacturer.

Ø = 40 % of the recommendation of the detergent

manufacturer

Ù = 60 %

Ú = 75 %

Û = 100 %

–Soiling.

–Water hardness (depending on model can be determined

using enclosed water hardness strip or is available from

your water utility company).

– Manufacturer’s instructions.

– When dosing all detergents, cleaning aids, cleaning products

and cleaning agents, always follow the manufacturer's

instructions.

– Dilute viscous fabric softener and fabric conditioner with

water.

Prevents blockage of the overflow!

5. Changing programme settings

Take care not to trap any items of clothing between the loading

door and rubber seal.

Close the door.

The main menu for the selected programme is indicated again on

the display panel.

You can use the displayed presettings or adjust the selected

programme optimally to the items of washing by changing the

presettings or selecting additional settings.

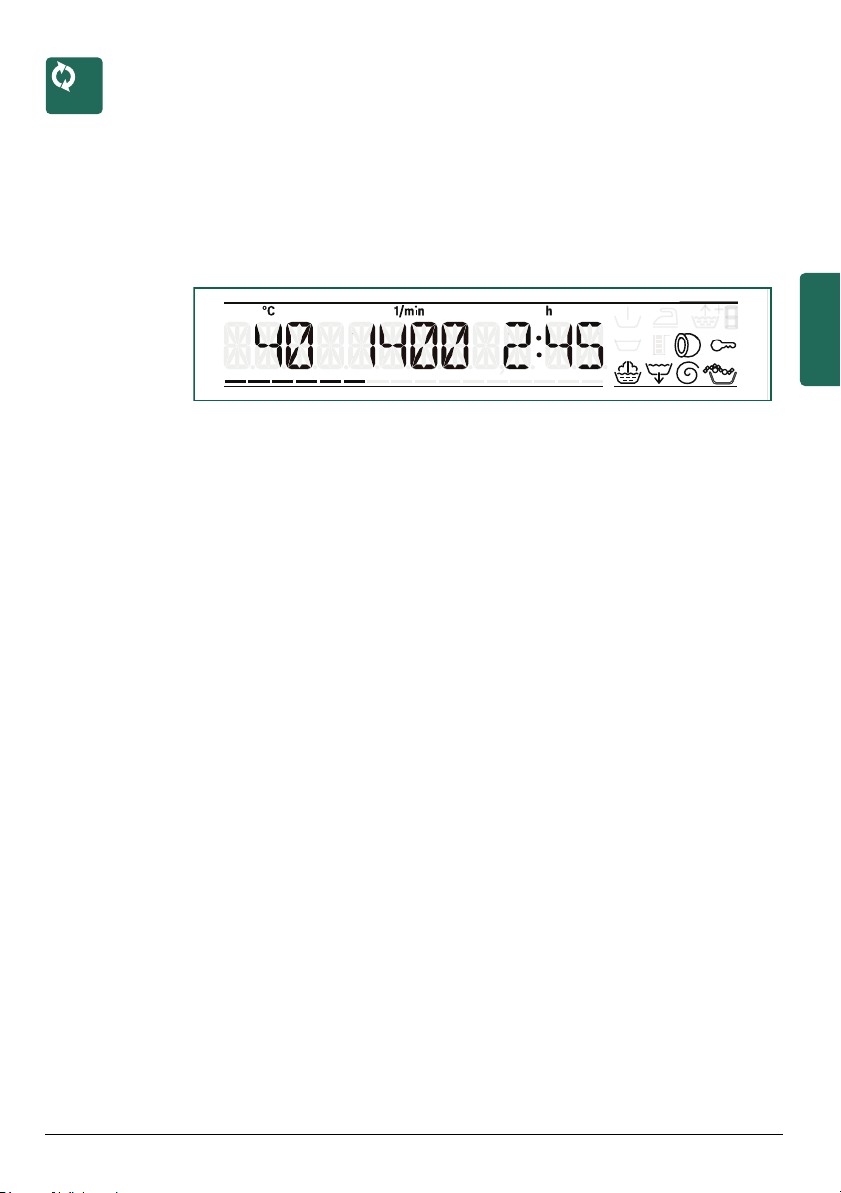

Ø Change Temperature, spin speed, Finished in time. Refer to

~ Page 23, ~ Page 27:

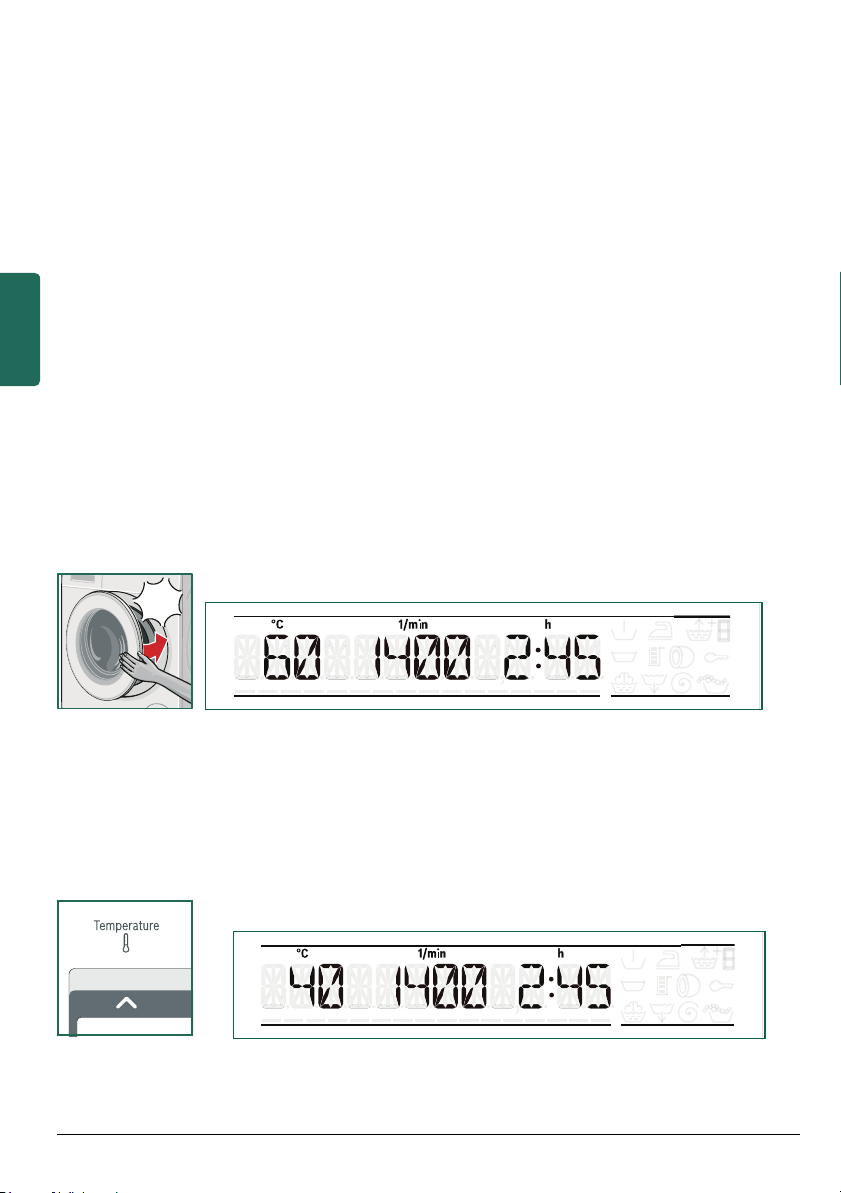

Selecting and changing e.g. the Temperature

× or Ö:

The settings are active without acknowledgement and are

displayed in the main menu.

FODFN

– If the buttons are held down, the set values automatically run

through (× downwards, Ö upwards).

– The respective programme duration is displayed by selecting

the programme. The programme duration is adjusted while

the programme is running if the programme duration requires

changing, e.g. due to changes in the programme settings,

foam detection, unbalanced load detection, the load or

soiling.

Ø Select addition programme settings:

~ Page 23, ~ Page 27

–

EcoPerfect

For saving energy with a comparable washing effect to the

standard programme. When selected, the display lamp is

lit.

–

SpeedPerfect

For a shorter wash time with a comparable washing effect

to the standard programme. Observe maximum load.

~ Page 23

When selected, the display lamp is lit.

Other settings can be selected depending on the model,

e.g. Rinse Hold button:

When selected, the button indicator lamp is lit and

a corresponding symbol is indicated on the display panel:

Easy-Iron button –

{

Pre-wash button – s

Extra Rinse button – Ý Ë, Ì, Í (Rinse cycles)

Rinse Hold button – $

6. Starting the programme

Ø Select Start/Reload A. The indicator light is on.

Washing

Programme sequence

While the programme is running, the programme progress

is indicated on the display panel via corresponding symbols and

a progress bar. The bar progresses in the course of the wash

cycles.

The combined symbol

á indicates the following programme

states:

! Pre-wash

ß Washing

O Rinse

Other symbols:

Þ Drain

B Spin

D Childlock has been activated

Å Overdosage of the detergent detected, additional rinse

cycles activated.

¼ is lit when the door is locked or unlocked.

During the washing

Ø Childlock

To prevent the set functions of the washing machine from

being accidentally changed, the childproof lock

can be activated when the programme has started.

Activate/deactivate: press Finished in

× for approx.

5seconds.

The activated childproof lock is indicated on the display

panel by the symbol

If the programme selector is adjusted or a button is selected

while the childproof lock is active, the

E symbol flashes

briefly.

Ø Topping up laundry

When the programme has started, washing can be reloaded

or taken out as required.

Select Start/Reload A.

– If there is a high water level, high temperature or if the drum

is rotating, the washing machine door remains locked for

reasons of safety and reload is not possible. Follow the

information on the display panel. To continue the programme,

select the Start/Reload

A button. The washing machine

door is locked and the programme continues automatically.

– Load display is not active during reloding.

– Do not leave washing machine door open for a prolonged

period – water could run out of the washing.

Ø Changing the programme

if you have mistakenly started a wrong programme.

1. Select Start/Reload

2. Select another programme.

3. Select Start/Reload A. The new programme starts from

the beginning.

Ø Cancelling the programme

For programmes at high temperature:

1. Select Start/Reload

2. Cool down laundry: select Rinse.

3. Select Start/Reload A.

For programmes at low temperature:

1. Select Start/Reload

2. Select Spin or Drain.

3. Select Start/Reload A.

Ø End of programme by Rinse Hold. Programme stops

in the last rinse cycle.

– Select Start/Reload A. The programme continues with

the drain and spin cycles (if required change spin speed).

– Ifonly thedrain cycle, butnot thespin cycle, isrequired,

select and start the Drain programme.

End of the programme

μ¸½¸Â¯´³ is indicated on the display panel.

If the symbol Å is also indicated on the display panel,

the washing machine has detected too much foam during the

wash programme and therefore automatically activates additional

rinse cycles to eliminate the foam.

Dose less detergent in the next wash cycle with the same load.

After washing

Open washing machine door and remove washing.

– Do not leave any items of washing in the drum. In the next

wash they may shrink or discolour something else.

– Remove any foreign objects from the drum and the rubber

seal – risk of rust.

– Leave detergent drawer and door open so that residual water

can evaporate.

Before switching the machine off:

– Always remove the washing. Otherwise, the load display may

malfunction.

– Always wait until the programme ends, as the appliance

could still be locked. Then switch the appliance on and wait

for the unlocking device.

Press the # button. Appliance is switched off.

Turn off the water tap.

Not required for Aqua-Stop models. ~ Page 64

Programme overview

The presettings of the

programmes are highlighted

in bold.

Programme/Type of washing Settings/Information

Name of the programme

Brief explanation of the programme and

for which textiles it is suitable.

max. load

selectable temperature as °C

selectable spin speeds in rpm,

the max. spin speed and the

presetting depends on the

model

possible programme settings

at the Easy-Iron programme

setting: possible spin speeds

in rpm

Cottons

Hard-wearing textiles, heat-resistant

textiles made of cotton or linen.

². * reduced load at

SpeedPerfect

setting

max. 8 kg/5 kg *

cold – 40 – 90 °C

0 ... 1200 ... 1600 rpm

¦,G,!,p,Ü,$

at p: 0 ... 800 rpm

Easy-Care

Textiles made of synthetic materials or

blended fabrics.

max. 3.5 kg

cold – 40 – 60 °C

0 ... 1200 rpm

¦,G,!,p,Ü,$

at p: 0 ... 600 ...800 rpm

Mixed Fabrics

Mixed load consisting of textiles made of

cotton and synthetics.

max. 3.5 kg

cold – 40 °C

0 ... 1400 ... 1600 rpm

¦,G,!,p,Ü,$

at p: 0 ... 600 ... 800 rpm

Delicates/Silk

For delicate, washable textiles, e.g. made

of silk, satin, synthetic fibres or blended

fabrics (e.g. silk blouses, silk scarf).

². For machine wash use detergent

suitable for delicates or silk.

max. 2 kg

cold – 30 – 40 °C

0 ... 600 ... 800 rpm

¦,G,!,p,Ü,$

at p: 0 ... 600 rpm

W Wool

Hand or machine-washable wool or rich-

wool textiles.

Especially gentle wash programme to

prevent shrinkage, longer programme

pauses (textiles rest in wash liquor).

². Wool is of animal origin, e.g.: angora,

alpaca, lama, sheep.

². For machine wash use detergent

suitable for wool.

max. 2 kg

cold – 30 – 40 °C

0 ... 800 rpm

Allergy Plus

Hard-wearing textiles.

². For especially sensitive skin,

extended wash cycle at higher water

level, additional rinse cycle.

². * reduced load at

SpeedPerfect

setting

max. 8 kg/5 kg *

cold – 40 – 60 °C

0 ... 1200 ... 1600 rpm

¦,G,p,Ü,$

at p: 0 ... 800 rpm

Rinse/Freshen up

Extra rinse with spin.

0 ... 1200 ... 1600 rpm

p,«,$

at p: 0 ... 800 rpm

Spin

Extra spin with selectable spin speed.

0 ... 1200 ... 1600 rpm

at p: 0 ... 800 rpm

Drain

the rinsing water, e.g. after Rinse Hold $

(without final spin cycle).

The presettings of the

programmes are highlighted

in bold.

Programme/Type of washing Settings/Information

Dark Wash/Jeans

Dark textiles made of cotton and dark

easy-care textiles.

Wash textiles inside out.

max. 3.5 kg

cold – 30 – 40 °C

0 ... 800 ... 1200 rpm

¦,G,!,p,Ü,$

at p: 0 ... 600 ... 800 rpm

Super Quick 15'

Extra short programme approx.

15 minutes, suitable for lightly soiled

washing as a small amounts of laundry.

max. 2 kg

cold – 30 – 40 °C

0 ... 800 ... 1200 rpm

Sportswear

Textiles made of microfibres for sport and

leisure time.

². The laundry must not be treated with

fabric softener.

². Before washing, remove all fabric

softener residue from detergent drawer

(all dispensers).

max. 2 kg

cold – 30 – 40 °C

0 ... 800 rpm

¦,G,!,p,Ü,$

at p: 0 ... 600 ... 800 rpm

Down Wear

Machine-washable textiles filled with

down, pillows, blankets or duvets.

². Wash large items individually. Use

mild detergent. Measure detergent

sparingly.

max. 2 kg

cold – 40 – 60 °C

0 ... 1200 rpm

¦,G,Ü,$

Shirts/Blouses

Non-iron shirts/blouses made of cotton,

linen, synthetics fibres or blended fabrics.

At the

p Easy-Iron setting, shirts/blous-

es are given a short spin only, hang up

dripping wet. ~ Self-smoothing effect.

² Wash shirts/blouses made of silk/

delicate materials in the Delicates/Silk

programme.

max. 2 kg

cold – 40 – 60 °C

0 ... 800 rpm

¦,G,!,p,Ü,$

at p: 0 ... 400 rpm

The presettings of the

programmes are highlighted

in bold.

Programme/Type of washing Settings/Information

Starching

The washing should not be treated with fabric softener.

Liquid starch can be used in all wash programmes. Pour starch

into the dispenser M according to manufacturer’s specifications

(if required clean beforehand).

Dyeing/Discolouring

Dye in household quantities only. Salt may attack stainless steel!

Observe specifications of the dye manufacturer! Do not discolour

washing in the washing machine!

Soaking

Pour soaking agent/detergent into dispenser II according to the

manufacturer’s instructions. Set programme selector to

Cottons 30 °C and select Start/Reload

A. After approx.

10 minutes select Start/Reload A. After the required soaking

time, reselect Start/Reload A, if the programme is to be

continued or changed.

Insert washing of the same colour. No additional detergent is

required, the soaking solution is used for washing.

Programme settings

Depending on the programme, you can use the programme

settings to adjust the washing process even more efficiently

to your items of washing.

Programme settings:

– are active without acknowledgement.

– not retained after appliance is switched off.

– can be selected or deselected or changed depending

on the programme progress.

Buttons Notes

Temperature

× , Ö

Before and during the programme the presettings

can be changed depending on the programme

progress.

The maximum temperature depends

on the programme and the maximum spin speed de-

pends on the programme and model.

Spin

× , Ö

Finished in × , Ö

Delays the Finished in time (end of programme).

Before the programme starts, the end of the pro-

gramme can be preselected in h steps up to

maximum 24h (h = Hour).

When the programme has started, the preselected

time is displayed e.g. for 8h and counts down until

the wash programme starts. Then the programme du-

ration is displayed, e.g. 2:30h.

When the programme has started, the preselected

time can be changed as follows:

1. Select Start/Reload

2. Select Finished in button and change Finished in

time.

3. Select Start/Reload A.

Finished in ×

To activate/deactivate the Childlock. ~ Page 20

EcoPerfect F

For saving energy.

SpeedPerfect G

For a shorter wash time.

Easy-Iron {

Reduces creasing by special spin sequence followed

by fluffing and reduced spin speed.

² Residual moisture of the washing is slightly in-

creased.

Pre-wash

For heavily soiled washing.

Pour detergent into dispensers I and II.

Extra Rinse

Ý Ë Rinse cycle

Ý Ì Rinse cycles

Ý Í Rinse cycles

Additional rinse cycles depending on the pro-

gramme, prolonged programme duration.

² Recommended application: for particularly sensi-

tive skin and/or in areas with very soft water.

Rinse Hold

The washing remains in the water after the last rinse

cycle. End the programme. ~ Page 21

Buttons Notes

Consumption values

Programme Additonal

function

Load Energy

consumption ***

Water *** Programme

duration ***

Cottons 30 °C * 8 kg 0.35 kWh 77 l 2:31 h

Cottons 40 °C * 8 kg 0.89 kWh 76 l 2:41 h

Cottons 60 °C * 8 kg 1.49 kWh 76 l 2:41 h

Cottons 60 °C

EcoPerfect ** 8 kg 0.85 kWh 57 l 3:56 h

Cottons 90 °C 8 kg 2.42 kWh 89 l 2:31 h

Easy-Care 40 °C * 3.5 kg 0.58 kWh 55 l 1:43 h

Mixed Fabrics

40 °C

3.5 kg 0.61 kWh 51 l 1:01 h

Delicates/Silk

30 °C

2 kg 0.15 kWh 34 l 0:43 h

Wool 30 °C 2 kg 0.20 kWh 39 l 0:40 h

* Programme setting for tests according to currently valid European standard EN60456.

Information about comparability tests: To test the test programmes, wash indicated load

size at maximum spin speed.

** To be used for normally soiled laundry. Programme setting for energy labelling

according to AS/NZS 2040.

*** The values may deviate from the stated values depending on water pressure and

hardness, room temperature, type and amount of laundry, detergents used, fluctuations

in the mains voltage and selected additional functions.

Appliance settings

The basic settings 3 sec. buttons (Temperature Ö and Spin

Ö), can be used to change the set values, e.g. the volume

of the button signals.

Simultaneously hold down basic settings 3 sec. buttons for

approx. 3 seconds:

Ø The access menu for changing the appliance settings

appears on the display panel.

Ø The Finished in ×, Ö buttons can be used to change

the set values.

If the buttons are held down, the set values automatically run

through.

Ø The Temperature ×, Ö and Spin ×, Ö buttons can be

used to select other settings.

If the buttons are held down, the set values automatically run

through.

Ø To end the settings, wait or hold down the basic settings

3 sec. buttons again.

Settings are retained after appliance is switched off.

Settings Set values Notes

´½³ Â¸¶½°» Ê = off

Ë = quiet

Ì = medium

Í = loud

Î = very loud

Adjust volume of the end signal.

±ÄÃÃ¾½ Â¸¶. Ê = off

Ë = quiet

Ì = medium

Í = loud

Î = very loud

Adjust volume of the button signals.

»°½¶Ä°¶´ ³´ = German

¶± = English

...

Change displayed language.

°ÄÃ¾ ¾μμ ËÏ (min.)

ÍÊ (min.)

Ë:ÊÊ (h=hour)

¾μμ

The appliance automatically switches off after

the selected time (=0 kWh energy consump-

tion). to switch on, press main switch button #

Settings Set values Notes

Sensors – Your washing machine is so

intelligent

Load adjust

Depending on the type of textile and load, the load adjust

optimally adjusts the water consumption in each programme.

Load sensor/Load display

The load sensor detects the load level in the washing machine

when the door is open. This is indicated by a progressing bar on

the display panel.

To ensure that the load sensor measures all the laundry, the drum

must be empty before the washing machine is switched on.

Dosing recommendation

A detergent dosage recommendation is displayed depending on

the selected programme and the detected load. ~ Page 15

By observing the recommended dosage, you will protect

the environment and reduce your household costs.

Unbalanced load detection system

The automatic unbalanced load detection system spins the

laundry several times to ensure even distribution.

For reasons of safety the speed is reduced or does not perform

a spin cycle if the washing is very unevenly distributed.

Distribute small and large items of washing in the drum.

Faults, what to do? ~ Page 39

Cleaning and maintenance

Care and maintenance

ã Warning!

Danger of death from electric shock!

Danger of death if live parts are touched.

Switch off the appliance. Pull out the mains

plug!

ã Caution!

Fire and explosion hazard!

If solvent cleaning agents, e.g. petroleum

ether, are used in the washing machine,

components may be damaged and toxic

fumes generated.

Do not use solvent-based cleaning agents.

ã Caution!

Washing machine may be damaged!

If solvent cleaning agents, e.g. petroleum

ether, are used on the washing machine,

the surfaces may be damaged.

Do not use solvent-based cleaning agents.

Machine housing/Control panel

Ø Remove detergent residue immediately.

Ø Wipe with a soft, damp cloth.

Ø Do not clean the appliance with a water jet.

Drum

Use chlorine-free cleaning agent, not steel wool.

Descaling

Not required if detergent dosed correctly. However, if this does

occur, follow the instructions of the descaling agent

manufacturer. Suitable descalers can be purchased on our

website or from customer service. ~ Page 41

Cleaning the detergent drawer

If it contains detergent or fabric softener residue:

Pull out, depress insert, take out drawer all the way.

Take out insert: using your finger, press insert upwards.

Clean detergent dispenser and insert with water and a brush

and dry.

Attach insert and lock into position (push cylinder onto guide

pin).

Insert detergent drawer.

Leave detergent drawer open so that residual water can

evaporate.

Drain pump blocked

ã Warning!

Danger of scalding!

Wash liquor is hot when washing at high

temperatures. You may be scalded if you

touch the hot wash liquor.

Allow detergent solution to cool down.

Turn the tap off to prevent more water from flowing in and to

ensure that it is drained via the pump.

Switch off the appliance. Pull out the mains plug!

Open service flap.

Take the drainage hose out of the holder.

Remove sealing cap, allow detergent solution to flow out.

Have a suitable container ready.

Push up the closing cap and place the drain hose back in its

holder.

Note: Residual water may run out.

Carefully unscrew the pump cover. Clean the interior, pump

cover thread and pump housing (fan impeller in the

detergent-solution pump must rotate).

Reinsert and screw on pump cover. Handle should be

vertical.

Close the service flap. If required, lock disengaged service

flap beforehand.

To prevent unused detergent from flowing into the outlet during

the next wash: Pour 1 litre of water into dispenser II and start the

Drain programme.

Drainage hose on the siphon blocked

Switch off the appliance. Pull out the mains plug!

Note: Residual water may run out!

Loosen hose clip, carefully remove drainage hose.

Clean drainage hose and siphon spigot.

Re-attach drainage hose and secure connection point with

hose clip.

Filter blocked in water inlet hose

First, release water pressure in the supply hose:

Turn off the tap!

Select any programme (except Spin/Drain).

Select Start/Reload A. Leave programme for approx. 40

seconds.

Press the # button. Appliance is switched off. Pull out the

mains plug!

Clean the filter:

Disconnect the hose from the water tap.

Clean filter with small brush.

and/or for standard and Aqua-Secure models:

Remove hose from the rear of the appliance.

Take out filter with pliers and clean.

Connect the hose and check for leaks.

Emergency lock release, e.g. if power

failure occurs

The programme continues running when the power supply is

restored. If the washing is still to be removed, the door can be

opened as described below:

ã Warning!

Danger of scalding!

Wash liquor and washing may be hot.

If touched, there is a risk of scalding.

If required, leave to cool down.

ã Caution!

Danger when reaching into/gripping the

rotating drum!

If you reach into the rotating drum, you may

injure your hands.

Do not grip the rotating drum. Wait until the

drum stops rotating.

ã Caution!

Water damage possible!

Leaking water may cause damage.

Do not open the door if you can still see

water through the glass.

Switch off the appliance. Pull out the mains plug!

Drain the water. ~ Page 34

Pull down emergency release with a tool and release.

Door can then be opened.

Information on the display panel

Display Cause/Remedy

²»¾Â´ ³¾¾Á

– Washing may be caught. Please open and close washing

machine door again and select Start/Reload A.

– If required, shut washing machine door or remove washing and

shut again.

– If required, switch appliance off and on again; set programme

and make individual settings; start programme.

»¾ËÆ Æ°Ã´Á

¿Á´ÂÂÄÁ´ ¾¿´½

Ã°¿

– Turn on tap fully.

– Supply hose kinked/jammed.

– Water pressure too low. Clean the filter.

¿Ä¼¿ ¸Â ±»¾²º´³

²»´°½ ¿Ä¼¿

– Drain pump blocked. Clean the drain pump. ~ Page 34

– The water drainage pipe/drain hose is blocked. Clean the

drainage hose on the siphon. ~ Page 35

³¾¾Á ¸Â »¾²º´³

Water level or temperature is too high.

Select Start/Reload A to continue the programme.

»¾²º¸½¶...

Ä½»¾²º¸½¶...

If the Start/Reload A button is pressed too frequently

(e.g. repeatedly reloading items of washing), the door lock may

overheat. Wait for the door lock to lock or unlock.

´: ÌÍ

not applicable without AquaStop

Water in the base pan, appliance leaking.

Call customer service! ~ Page 41

Error ´: XXX

Switch off appliance, wait 5 seconds and switch on again. If the

display is indicated again, call customer service. ~ Page 41

Faults, what to do?

Faults Cause/Remedy

Water is running out. – Correctly attach/replace drainage hose.

– Tighten screw-fitting on the supply hose.

Water not flowing in.

Detergent not

dispensed.

– Start/Reload

A not selected?

–Tap not open?

– Filter blocked? Clean the filter.

– Supply hose kinked or jammed?

Washing machine

door cannot

be opened.

– Safety function active. Stop programme?

– Rinse Hold

$ (without final spin) selected?

– Can be opened via emergency release only? ~ Page 37

Programme does

not start.

– Start/Reload A or Finished in time selected?

– Door closed?

– Childlock active? Deactivate.

Detergent solution is

not drained.

– Rinse Hold

$ (without final spin) selected?

– Clean the drain pump. ~ Page 34

– Clean outlet pipe and/or drainage hose.

Water not visible in

the drum.

Not a fault – water below the visible area.

Spin result not

satisfactory.

Washing wet/too

damp.

– Not a fault – unbalanced load detection system has stopped the

spin cycle, washing unevenly distributed.

Distribute small and large items of washing in the drum.

– Easy-Iron

p selected?

– Too low speed selected? ~ Page 23

Spin cycle activated

several times.

Not a fault – unbalanced load detection system adjusts imbalance.

Residual water in the

dispenser for care

product.

– Not a fault – effect of the care product not impaired.

– If required, clean insert. ~ Page 34

Odour formation in

the washing

machine.

Run Cottons 90 °C programme without washing.

Use standard detergent.

Loud noise

formation, vibrations

and “wandering”

during spin cycle.

– Appliance aligned?

Align the appliance. ~ Page 54

– Appliance feet fixed?

Secure appliance feet. ~ Page 54

– Transportation safety devices removed?

Remove transportation protection devices. ~ Page 48

Display panel/

indicator lights do

not function while

the appliance is

running.

– Power failure?

– Fuse tripped? Switch on/replace fuse.

– If the fault occurs repeatedly, call customer service. ~ Page 41

The programme

takes longer than

usual.

– Not a fault – unbalanced load detection system adjusts

imbalance by repeatedly distributing the washing.

– Not a fault – foam detection system active – several rinse cycles

are switched on.

Detergent residue

on the washing.

– Occasionally phosphate-free detergents contain water-insoluble

residue.

– Select Rinse/Freshen up or brush the laundry after washing.

In the pause status

Start/Reload

flashes very quickly

and a signal sounds.

– Water level too high. Washing cannot be reloaded. Immediately

close washing machine door.

– Select Start/Reload A to continue the programme.

If a fault cannot be rectified (switching the machine on and off) or a repair is required:

– Switch off the appliance and pull out the mains plug.

– Turn off the tap and call customer service. ~ Page 41

Faults Cause/Remedy

Customer service

If you cannot rectify the fault yourself, Faults, what to

do?~ Page 39, please contact our customer service. We will

always finds a suitable solution to avoid unnecessary visits by

technicians.

Please give customer service the product number (E-Nr.) and the

production number (FD) of the appliance.

Rely on the competence of the manufacturer.

out by trained service technicians who carry original spare parts.

These instructions can be

found on: inside of

washing machine door */

open service flap * and

rear of the appliance.

* depending on model

Product number Production number

(1U )'

Installing the appliance

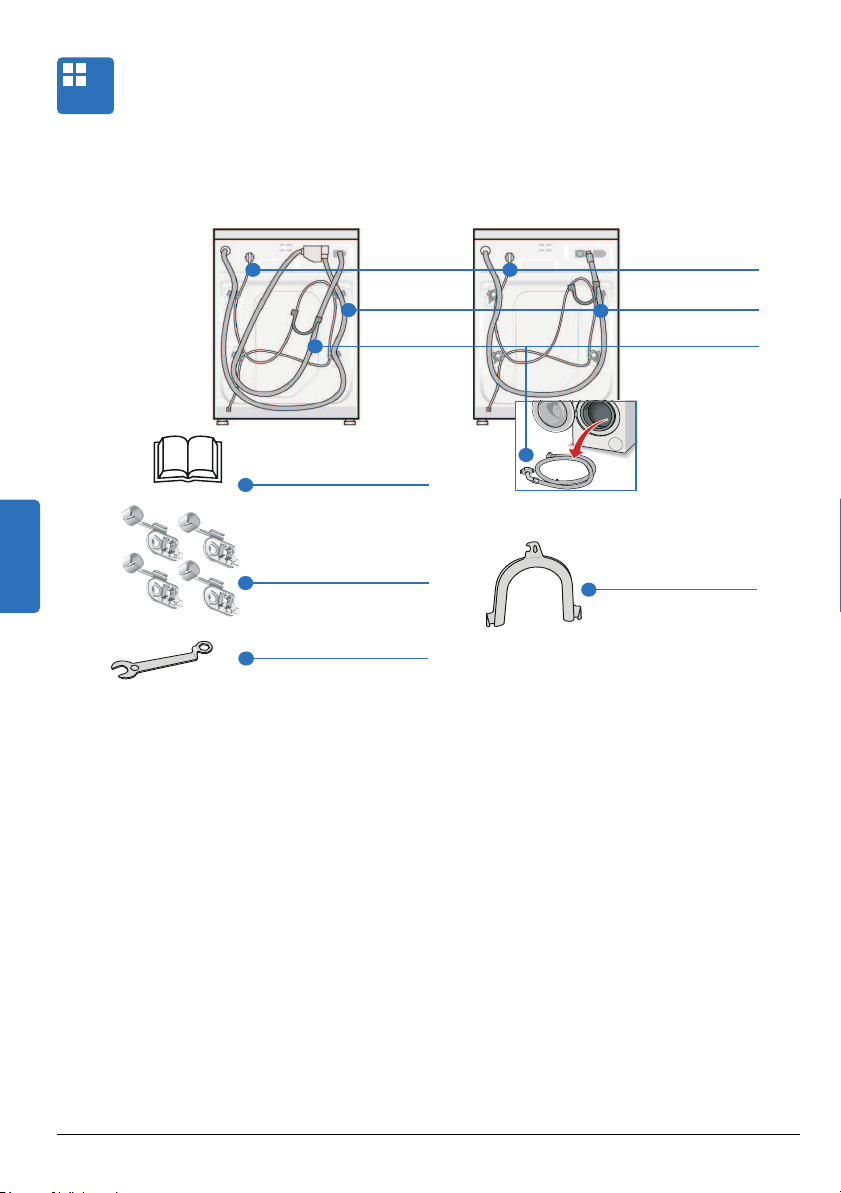

Standard accessories

Also required for connection of the water drainage hose to a

siphon:

1 hose clip Ø 24–40 mm (DIY store) is also required for

connection to a siphon. Connecting the water ~ Page 52

Useful tools:

Ø Spirit level for alignment.

Ø Socket wrench

size 13: for loosening the transportation protection devices

~ Page 48 and

size 17: for aligning the appliance feet. ~ Page 54

GHSHQGLQJRQPRGHO

$TXD6WRS 6WDQGDUG$TXD6HFXUH

0DLQVFDEOH

:DWHURXWOHW

:DWHULQOHW

(OERZ

IRUVHFXULQJWKH

ZDWHURXWOHWKRVH

6SDQQHU

,QVWUXFWLRQPDQXDODQG

,QVWDOODWLRQLQVWUXFWLRQV

&RYHUVZLWKKRVHFOLS

Hose and cable lengths

If the hose holders are used, the possible hose lengths are

reduced!

Available from dealer/customer service:

Ø Extension for Aqua-Stop or cold water inlet hose

(approx. 2.50 m).

Order no. WMZ2380, WZ10130, CZ11350, Z7070X0

Ø Longer supply hose (approx. 2.20 m), for standard model.

Technical specifications

aFP

aFP

aFP

aFP

aFPaFP

aFPaFP

PD[

FP

&RQQHFWLRQRQOHIWVLGH

&RQQHFWLRQRQULJKWVLGH

GHSHQGLQJRQPRGHO

Dimensions

(width x depth x height)

60 x 59 x 85 cm

Weight depending on modell: 63–83 kg

Mains connection Nominal voltage 220–240 V, 50 Hz

Nominal current 10 A

Nominal power 2300 W

Water pressure 100–1000 kPa (1–10 bar)

Installation

Humidity in the drum is caused by the final inspection.

Secure installation

ã Warning!

Risk of injury!

– The washing machine is heavy – caution:

take care when lifting it.

– If the washing machine is raised by

protruding components (e.g. washing

machine door), the components may

break off and cause injuries.

Donot lift the washing machine by its

projecting parts.

ã Caution!

Risk of stumbling!

If the hoses and power cord are installed

improperly, there is a risk of tripping and

injury.

Lay hoses and cables in such a way that

there is no risk of stumbling.

ã Caution!

Washing machine may be damaged!

– Frozen hoses may tear/burst.

Do not install the washing machine in an

area where there is a risk of frost or

outdoors.

– If the washing machine is raised by

protruding components (e.g. washing

machine door), the components may

break off and the washing machine may

be damaged.

Donot lift the washing machine by its

projecting parts.

– In addition to the safety information listed here, the local

water and electricity supplier may have special requirements.

– If in doubt, have the appliance connected by a technician.

ã Warning!

Risk of injury!

– The washing machine is heavy –

caution: take care when lifting it.

– If the washing machine is raised by

protruding components (e.g. washing

machine door), the components may

break off and cause injuries.

Do not lift the washing machine by its

projecting parts.

ã Caution!

Risk of stumbling!

If the hoses and power cord are installed

incorrectly, there is a risk of tripping and

injury.

Lay hoses and cables in such a way that

there is no risk of stumbling.

ã Caution!

Washing machine may be damaged!

– Frozen hoses may tear/burst.

Do not install the washing machine in an

area where there is a risk of frost or

outdoors.

– If the washing machine is raised by

protruding components (e.g. washing

machine door), the components may

break off and the washing machine may

be damaged.

Do not lift the washing machine by its

projecting parts.

– In addition to the safety information listed here, the local

water and electricity supplier may have special requirements.

– If in doubt, have the appliance connected by a technician.

Installation area

Stability is important to prevent the washing machine from

wandering!

– The installation area must be firm and level.

– Soft floors/floor coverings are not suitable.

Installing the appliance on a base or on a wooden joist

ceiling

ã Warning!

Washing machine may be damaged!!

The washing machine may wander during

the spin cycle and topple/fall off the base.

Always secure the washing machine feet

with fixing brackets.

Holding brackets: order no. WMZ 2200,

WX 9756, CZ 110600, Z 7080X0

If installing on a wooden joist ceiling:

– If possible, install the washing machine in a corner.

– Screw a water-resistant wooden panel (min. 30 mm thick) to

the floor.

Appliance installed under/between kitchen units

ã Warning!

Danger of death from electric shock!

Danger of death if live parts are touched.

The appliance cover plate must not be

removed.

–60cm cavity width required.

– Install washing machine only under a continuous worktop

connected firmly to the adjacent cupboards.

Remove transportation protection

devices

ã Caution!

Washing machine may be damaged!

Transit bolts which have not been removed

may damage e.g. the drum while the

washing machine is running.

Before using the appliance for the first time,

remove the 4 transportation protection

devices completely and keep in a safe

place.

ã Caution!

Washing machine may be damaged!

To prevent damage in transit when

transporting the washing machine

subsequently, always re-install the transit

bolts prior to transportation. ~ Page 58

Keep screw and sleeve screwed together.

Take the hoses out of the holders.

Take hoses out of the elbow and remove elbow.

Loosen and remove all 4 transportation lock screws.

Take the power cord out of the holders. Remove sleeves.

Prepare/separate cover.

Insert covers.

Lock covers firmly by pressing on the locking hook.

Insert hose holder.

Secure hoses in the hose holders.

Connecting the water

ã Warning!

Danger of death from electric shock!

Danger of death if live parts are touched.

Do not immerse Aqua-Stop safety device in

water (contains an electric valve).

– To prevent leakage or water damage, follow the instructions

in this chapter!

– Operate the washing machine with cold drinking water only.

– Do not connect to the mixer tap of an unpressurised hot-

water apparatus.

– Use only the supplied inlet hose or one purchased from an

authorised specialist outlet, not a used one!

– If in doubt, have the appliance connected by a technician.

Water inlet hose

Water inlet hose: do not kink, crush, modify or sever (strength is

no longer guaranteed).

Optimum water pressure in the mains:

100–1000 kPa (1–10 bar)

Ø When the tap is turned on, the water flow is at least 8 l/min.

Ø If the water pressure is higher, install a pressure reducing

valve.

Connect the water supply hose.

ã Warning!

Threads for screw connections may be

damaged!

If the screw connections are tightened too

tightly using a tool (pliers), the threads may

be damaged.

Tighten plastic screw-fittings by hand only.

to the tap (¾" = 26.4 mm):

on the appliance:

for Standard and Aqua-Secure models

Carefully turn on the tap and check that the connection points

are not leaking.

Screw connection is under water pipe pressure.

Water drainage hose

– Do not kink or protract the the water drainage hose.

– Height difference between the placement area and drainage

point: 0–maximum 100 cm

Drainage into a wash basin

ã Warning!

Water damage possible!

If the attached drainage hose slips out of

the washbasin due to high water pressure

when draining the washing machine,

leaking water may cause damage.

Secure the drainage hose to prevent it from

slipping out of the sink.

PLQPP

Aqua-Stop and Aqua-Secure Standard

PD[



PD[



ã Caution!

The appliance may be damaged.

If the end of the drainage hose is immersed

in the drained water, water may be drawn

back into the appliance!

– The plug must not be in the plug hole.

– When the water is being pumped out of

the washing machine, check that the

water drains away quickly enough.

– The end of the drainage hose must not

be immersed in the drained water!

Installing the drainage hose:

Drainage into a siphon

ã Warning!

Water damage possible!

If the drainage hose slips off the siphon

connection due to high water pressure

when draining the washing machine,

leaking water may cause damage.

Connection point must be secured with

hose clip, Ø 24–40 mm (specialist outlet).

Connecting

Drainage into a plastic pipe with rubber sleeve or into

a gully:

ã Warning!

Water damage possible!

If the drainage hose slips off the plastic

pipe due to high water pressure when

draining the washing machine, leaking

water may cause damage.

Secure the drainage hose to prevent it from

slipping out of the sink.

Connecting

Alignment

Loosen lock nut in a clockwise direction with a wrench.

Check alignment of the washing machine with a spirit level

and, if required, correct. Adjust the height by rotating the foot.

All four feet must be firmly on the floor.

The washing machine must not wobble!

Tighten the lock nut against the housing.

Grip the foot and do not adjust the height.

– The lock nuts on all four appliance feet must be screwed

tightly against the housing!

– Loud noise formation, intense vibrations and “wandering”

may be due to incorrect alignment!

Electrical connection

Electrical safety

ã Warning!

Danger of death from electric shock!

Danger of death if live parts are touched.

– Never pull out the mains plug by tugging

the power cord.

– Insert/pull out the mains plug with dry

hands only.

– Never pull out the mains plug during

operation.

– Connect the washing machine to an

alternating current via a correctly

installed earthed socket only.

– The mains voltage and voltage

specifications on the washing machine

(appliance rating plate) must match.

– Connected load as well as required fuse

are indicated on the appliance rating

plate.

Ensure that:

– Mains plug and socket match fit.

– Cable cross-section is adequate.

– Earthing system has been installed

correctly.

– A damaged power cord may

be replaced by an electrician only.

A replacement mains cable can be

obtained from customer service.

– Do not use multiple plugs/couplings or

extension cables.

– If a residual-current-operated circuit

breaker is used, use only a type which

features this symbol:

Only this symbol guarantees compliance

with currently valid regulations.

– The mains plug must be accessible at all

times.

Before the 1st washing

The washing machine was inspected thoroughly before leaving

the factory. To remove any water left over from testing

procedures, the first washing cycle should be carried out without

laundry in the machine.

The washing machine must have been installed and connected

properly. See chapter Installing ~ Page 54

Check the machine.

Never switch on a damaged machine. Inform your customer

service. ~ Page 41

Remove protective film from the fascia.

Insert mains plug.

Turn the tap on.

Switch on the appliance.

Close the washing machine door. Do not load any washing.

Select the Cottons programme.

Select the temperature 90 °C.

Open the detergent drawer.

10.

Pour approx. 1 litre of water (1¾ pt) into dispenser II.

11.

Add standard detergent to dispenser II according

to manufacturer’s instructions for light soiling.

To prevent frothing, use only half the recommended amount

of detergent. Do not use any standard or mild detergents.

12.

Close the detergent drawer.

13.

Select Start/Reload Ü.

14.

When the programme ends, switch off the appliance.

Your washing machine is now ready for use.

Transportation, e.g. if moving house

Preparatory work

Turn off the tap.

Release the water pressure in the supply hose.

Maintenance – Filter in the water inlet hose

Drain any residual detergent solution.

Maintenance – Drain pump blocked ~ Page 34

Isolate the washing machine from the power supply.

Remove the hoses.

Installing transportation protection devices

Remove covers and keep in a safe place.

If required, use a screwdriver.

Insert all 4 sleeves.

Clamp mains cable on the holders. Insert and tighten the

bolts.

Before switching on the appliance:

– Remove the transportation protection devices! ~ Page 48

– To prevent unused detergent from flowing into the outlet

during the next wash: Pour 1 litre of water into dispenser II

and start the Drain programme.

Index

Alignment, 54

basic settings 3 sec., 11, 30

Button

Easy-Iron, 11, 17, 27

EcoPerfect, 11, 17, 27

Extra Rinse, 11, 17, 28

Finished in, 11, 16, 27

Pre-wash, 11, 17, 28

Rinse Hold, 11, 17, 17, 28

SpeedPerfect, 11, 17, 27

Spin, 11, 16, 27

Start/Reload, 11

Temperature, 11, 16, 27

Buttons

basic settings 3 sec., 11

Cancelling

the programme, 21

Care, 33

Drum, 33

Machine housing/Control

panel, 33

Changing

the programme, 20

Childlock, 20, 27

Cleaning

the detergent drawer, 34

the filter, 36

the siphon, 35

Connecting the water, 50

Water drainage, 51

Water supply, 50

Consumption values, 29

Customer service, 41

Descaling, 34

Detergent drawer, 10

Discolouring, 26

Display panel, 11

Dosing recommendation, 32

Drain pump blocked, 34

Drum light, 14

Dyeing, 26

Easy-Iron, 11, 17, 27

EcoPerfect, 11, 17, 27

Electrical connection, 55

Emergency lock release, 37

End of the programme, 21

Extra Rinse, 11, 17, 28

Fascia, 11

Faults, what to do?, 39

Finished in, 11, 16, 27

Getting to know your appliance, 9

Hints and tips, 8 Hose and cable lengths, 43

Information on the display

panel, 38

Inserting

the laundry, 14, 15, 16

Installation, 44

Installing transportation

protection devices, 58

Intended use, 4

Load adjust, 32 Load sensor/Load display, 32

Maintenance, 33

Old appliance, 8

Packaging, 8

Pre-wash, 11, 17, 28

Programme overview, 23

Programme selector, 11

Programme sequence, 19

Programme

settings, 16, 23, 27

Protection of the

environment, 8

Quick-reference instructions, 12

Rinse Hold, 11, 17, 21, 28

Safety instructions, 5

Selecting

the programme, 15

Settings 3 sec., 30

Soaking, 26

Sorting

the washing, 13

SpeedPerfect, 11, 17

SpeedPerfect , 27

Spin, 11, 16, 27

Standard accessories, 42

Starching, 26

Starting the programme, 18

Technical specifications, 43

Temperature, 11, 16, 27

Topping up

the laundry, 20

Transport bolts, 48

Unbalanced load detection

system, 32

Unloading

the laundry, 22

Robert Bosch, Hausgeräte GmbH

Carl-Wery-Straße 34

81739 München

DEUTSCHLAND

9000758520 (9202)

*9000758520*

Aqua-Stop warranty

For appliances with Aqua-Stop only

In addition to warranty claims against the seller based on the contract

of sale and in addition to our appliance warranty we shall pay damages

under the following conditions:

If water damage is caused by a fault in our water safety system, we

shall make reparation for the damage with respect to private users.

The liability warranty applies to the service life of the appliance.

A claim can only be made under the warranty if the appliance and

Aqua-Stop have been correctly installed and connected according

to our instructions; this also includes a correctly installed Aqua-

Stop extension (original accessory).

Our guarantee does not apply to defective cables/hoses or to

fittings up to the connection on the tap.

Appliances which feature Aqua-Stop can be left unattended during

operation and it is not necessary to turn off the tap afterwards.

The tap should only be turned off if you are away for a prolonged

period, e.g. several weeks holiday.

To book an engineer visit and product advice

GB 0844 8928979 Calls from a BT landline will be charged at up to 3

pence per minute.

IE 01450 2655

Please find the contact data of all countries in the enclosed customer service list.

Bosch WAY32540AU 8kg Front Load Washing Machine

Product's Documents

User Manual

Specifications

Bosch WAY32540AU Questions and Answers
