en Table of contents
You can find additional information and explanations online.
Scan the QR code on the title page.
Table of contentsTable of contents
1Safety ............................................ 3
1.1 Definition of the signal
words ............................................. 3
1.2 General information .................... 3
1.3 Intended use ................................ 4
1.4 Restriction on user group .......... 4
1.5 Safe installation ........................... 4
1.6 Safe use ........................................ 6
1.7 Safe cleaning and mainten-
ance ............................................... 9
2Preventing material damage .... 10
3Environmental protection and
saving energy ............................ 11
3.1 Disposing of packaging ........... 11
3.2 Save energy and conserve re-
sources ....................................... 11
3.3 Energy saving mode ................ 11
4Installation and connection ...... 11
4.1 Unpacking the appliance ........ 11
4.2 Contents of package ................ 11
4.3 Requirements for the installa-
tion location ................................ 12
4.4 Removing foam parts ............... 13
4.5 Removing the transit bolts ...... 13
4.6 Tools for assembly ................... 14
4.7 Installing the appliance ............ 14

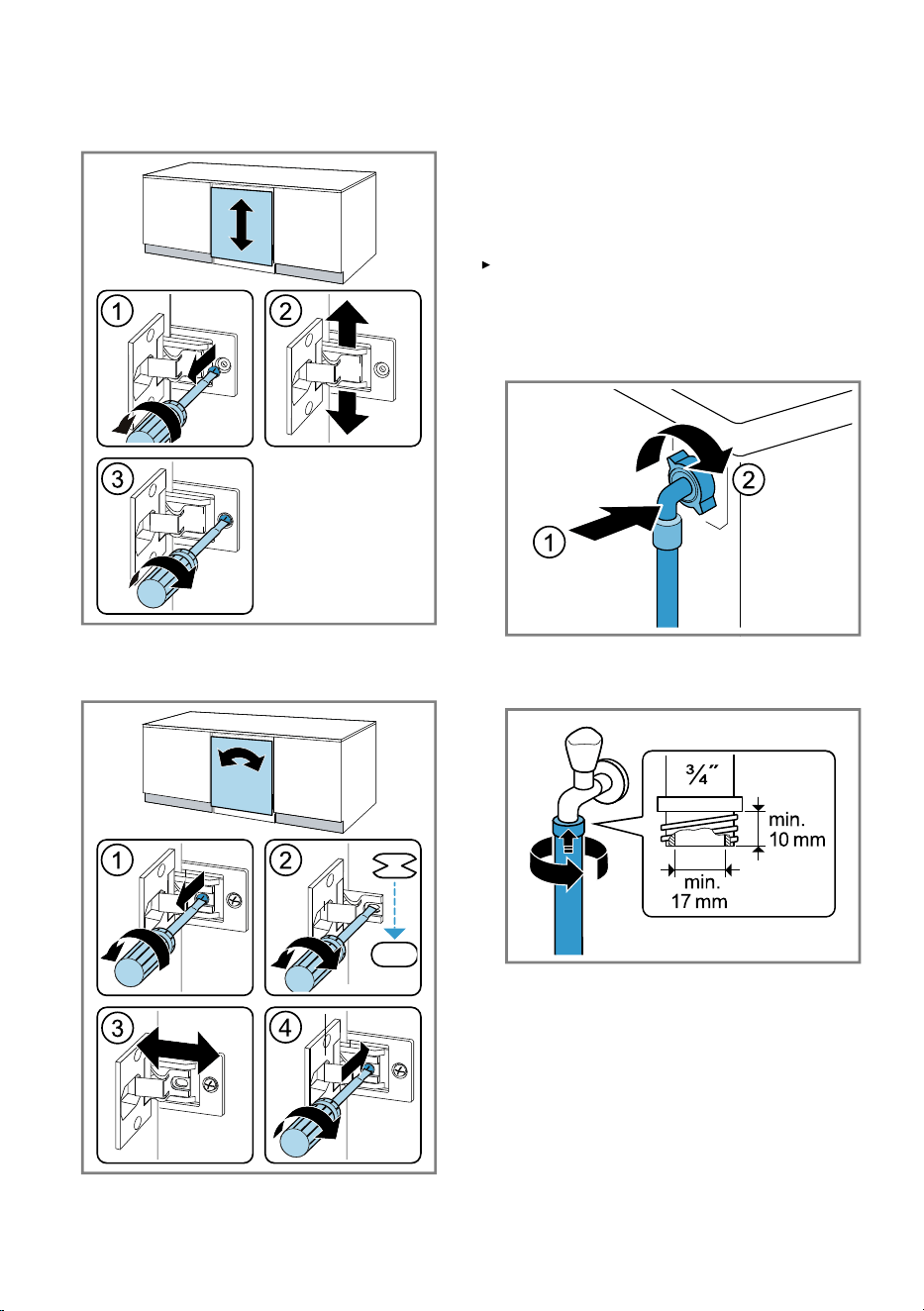

4.8 Connecting the appliance ....... 17
5Before using for the first time .. 18
5.1 Starting an empty washing
cycle ............................................ 18
6Familiarising yourself with
your appliance ........................... 19
6.1 Appliance .................................... 19
6.2 Detergent drawer ...................... 20
6.3 Control panel ............................. 21
7Display ........................................ 21
8Buttons ....................................... 23
9Programmes .............................. 23
10 Accessories ............................. 27
11 Laundry .................................... 27
11.1 Preparing the laundry ............ 27
11.2 Care symbols on the care la-
bels ............................................ 28
12 Detergents and care
products ................................... 28
13 Basic operation ....................... 29
13.1 Switching on the appliance .. 29
13.2 Setting a programme ............. 29
13.3 Saving programme set-
tings ........................................... 29
13.4 Opening the door ................... 29
13.5 Loading laundry ...................... 29
13.6 Adding detergent and care
product ..................................... 30
13.7 Starting the programme ........ 30
13.8 Soaking laundry ...................... 30
13.9 Adding laundry ........................ 30
13.10 Cancelling the washing pro-
gramme .................................. 30
13.11 Cancelling the drying pro-
gramme .................................. 30
13.12 Unloading the laundry ......... 31
13.13 Switching off the appli-
ance ........................................ 31
14 Dryness level ........................... 31
14.1 Changing the dryness level .. 31
15 Childproof lock ........................ 31
15.1 Activating the childproof
lock ............................................ 31
15.2 Deactivating the childproof
lock ............................................ 31
16 Cleaning and servicing ........... 32
2
Safety en
16.1 Cleaning the drum and clean-
ing fluff ...................................... 32
16.2 Cleaning the detergent
drawer ....................................... 32
16.3 Cleaning the drain pump ...... 33
16.4 Cleaning the rubber gasket .. 35
17 Troubleshooting ...................... 35
18 Transportation, storage and
disposal .................................... 40
18.1 Removing the appliance ....... 40
18.2 Inserting the transit bolts ....... 40
18.3 Using the appliance again .... 40
18.4 Disposing of old appliance ... 41
19 Customer Service ................... 41
19.1 Product number (E-Nr.) and
production number (FD) ........ 41
20 Consumption values ............... 42
21 Technical data ......................... 43
Safety 1 Safety
Observe the following safety instructions.
1.1 Definition of the signal words
This is where you can find explanations for the safety signal words
used in this manual.
WARNING
This indicates that death or serious injuries may occur as a result
of non-observance of this warning.
CAUTION
This indicates that minor or moderate injuries may occur as a res-
ult of non-observance of this warning.
ATTENTION
This indicates that damage to the appliance or other material
damage may occur as a result of non-compliance with this warn-
ing.
Note: This alerts you to important information.
1.2 General information
¡ Read this instruction manual carefully.
¡ Keep the instruction manual and the product information safe
for future reference or for the next owner.
¡ Do not connect the appliance if it has been damaged in transit.
3
en Safety
1.3 Intended use
Only use this appliance:
¡ for washing machine-washable fabrics and hand-washable wool
in accordance with the care label.
¡ with tap water and commercially available detergents and care
products suitable for washing machines.
¡ for drying and freshening up fabrics that are washed with water
and suitable for dryers.
¡ in closed rooms in the home and with similar applications, e.g.:
in canteens in shops, offices and other work environments; in
agricultural businesses; use by customers in hotels, motels and
other typical home environments; in bed and breakfasts.
¡ Up to an altitude of 4000 m above sea level.
1.4 Restriction on user group
This appliance may be used by children aged 8 or over and by
people who have reduced physical, sensory or mental abilities or
inadequate experience and/or knowledge, provided that they are
supervised or have been instructed on how to use the appliance
safely and have understood the resulting dangers.
Do not let children play with the appliance.
Cleaning and user maintenance must not be performed by chil-
dren unless they are being supervised.
Keep children under the age of 3 years and pets away from the
appliance.
1.5 Safe installation
WARNING‒Risk of electric shock!
Incorrect installation is dangerous.
Connect and operate the appliance only in accordance with the
specifications on the rating plate.
Connect the appliance to a power supply with alternating cur-
rent only via a properly installed socket with earthing.
The protective conductor system of the domestic electrical in-
stallation must be properly installed. The installation must have
a sufficiently large cross section.
4
Safety en
When using a residual current circuit breaker, only use a type
with the mark.
Never equip the appliance with an external switching device,
e.g. a timer or remote control.
Never connect the appliance to a circuit that is regularly
switched on and off by the energy supplier.
When the appliance is installed, the mains plug of the power
cord must be freely accessible. If free access is not possible, an
isolating switch must be integrated into the permanent electrical
installation according to the installation regulations.
When installing the appliance, check that the power cable is not
trapped or damaged.
If the insulation of the power cord is damaged, this is dangerous.
Never let the power cord come into contact with hot appliance
parts or heat sources.
Never let the power cord come into contact with sharp points or
edges.
Never kink, crush or modify the power cord.
WARNING‒Risk of fire!
It is dangerous to use an extended power cord and non-approved
adapters.
Do not use extension cables or multiple socket strips.
Only use adapters and power cords approved by the manufac-
turer.
If the power cord is too short and a longer one is not available,
please contact an electrician to have the domestic installation
adapted.
WARNING‒Risk of injury!
The heavy weight of the appliance may result in injury when lifted.
Do not lift the appliance on your own.
WARNING‒Risk of suffocation!
Children may put packaging material over their heads or wrap
themselves up in it and suffocate.
Keep packaging material away from children.
Do not let children play with packaging material.
5
en Safety
CAUTION‒Risk of injury!
The appliance may vibrate or move when in use.
Place the appliance on a clean, even, solid surface.
Align the appliance using the appliance feet and a spirit level.
If hoses and power cords have been laid incorrectly, this causes a
tripping hazard.
Lay hoses and power cords in such a way that there is no risk
of tripping.
If the appliance is moved by holding onto protruding components,
such as the appliance door, the parts may break off.
Do not move the appliance by holding onto protruding parts.
CAUTION‒Risk of cutting!
Touching sharp edges on the appliance may lead to cuts.
Do not touch the sharp edges on the appliance.
Wear protective gloves when installing and transporting the ap-
pliance.
1.6 Safe use
WARNING‒Risk of electric shock!
If the appliance or the power cord is damaged, this is dangerous.
Never operate a damaged appliance.
Never pull on the power cord to unplug the appliance. Always
unplug the appliance at the mains.
If the appliance or the power cord is damaged, immediately un-
plug the power cord or switch off the fuse in the fuse box and
turn off the water tap.
Call customer service.
Page41
An ingress of moisture can cause an electric shock.
Only use the appliance in enclosed spaces.
Never expose the appliance to intense heat or humidity.
Do not use steam- or high-pressure cleaners, hoses or sprays
to clean the appliance.
6
Safety en
WARNING‒Risk of harm to health!
Children can lock themselves in the appliance, thereby putting
their lives at risk.
The appliance must not be set up behind a lockable door, a
sliding door or a door with a hinge on the side opposite to the
appliance, which prevents appliance from opening fully.
With redundant appliances, unplug the power cord. Then cut
through the cord and damage the lock on the appliance door
beyond repair so that the appliance door will no longer close.
When spinning larger, waterproof items of laundry, imbalances
may arise and lead to injuries.
Do not wash and spin larger items of laundry, such as blankets
or mattress covers, in the appliance.
WARNING‒Risk of suffocation!
Children may breathe in or swallow small parts, causing them to
suffocate.
Keep small parts away from children.
Do not let children play with small parts.
WARNING‒Risk of explosion!
If there is coal dust or flour in the air around the appliance, this
may cause an explosion.
Keep the area around the appliance clean during operation.
WARNING‒Risk of poisoning!
Detergents and care products may result in poisoning if con-
sumed.
If accidentally swallowed, seek medical advice.
Keep detergents and care products out of the reach of children.
WARNING‒Risk of explosion!
Highly flammable objects such as lighters or matches may ignite
during the drying process.
Remove all highly flammable objects from any pockets in your
laundry before the drying process.
Unwashed laundry may ignite during drying.
Do not dry laundry in this appliance if the laundry has not been
washed first.
7
en Safety
If laundry has been contaminated with substances such as
cooking oil, acetone, alcohol, petrol, kerosene, stain-remover,
turpentine, wax and wax-remover, wash it in hot water with an
additional quantity of detergent before drying it in the appliance.
Rinse the laundry thoroughly with warm water and detergent be-
fore drying it in the machine.
Do not use the appliance if industrial chemicals have been used
to clean the laundry beforehand.
Laundry that has been pretreated with flammable cleaning agents
that contain solvents may cause an explosion in the appliance.
Rinse pretreated laundry thoroughly with water before washing.
WARNING‒Risk of fire!
If drying is interrupted early, the laundry is not cooled sufficiently
and may ignite.
Do not interrupt the drying programme early.
If drying is interrupted early, remove the laundry immediately
and spread it out.
CAUTION‒Risk of injury!
The covering plate may break if you stand on or climb onto the
appliance.
Do not stand on or climb onto the appliance.
The appliance may tip over if you sit on or lean against the open
door.
Do not sit on or lean against the appliance door.
Do not place any objects on the appliance door.
Reaching into the drum while it is still turning may cause hand in-
juries.
Wait for the drum to come to a complete stop before reaching
inside.
CAUTION‒Risk ofscalding!
When you wash at high temperatures, the detergent solution gets
hot.
Do not touch the hot detergent solution.
8
Safety en
CAUTION‒Risk of chemical burns!
If the detergent drawer is opened, detergent and care products
may spray out from the appliance.
Contact with eyes or skin may cause irritation.
Rinse eyes and/or skin thoroughly with clean water if they come
into contact with detergents or care products.
If accidentally swallowed, seek medical advice.
Keep detergents and care products out of the reach of children.
1.7 Safe cleaning and maintenance
WARNING‒Risk of electric shock!
Improper repairs are dangerous.
Never make any technical modifications to the appliance or its
features.
Repairs to the appliance should only be carried out by trained
specialist staff.
Only use genuine spare parts when repairing the appliance.
If the power cord of this appliance is damaged, it must be re-
placed by the manufacturer, the manufacturer's Customer Ser-
vice or a similarly qualified person in order to prevent any risk.
An ingress of moisture can cause an electric shock.
Before cleaning, pull out the mains plug or switch off the fuse in
the fuse box.
Do not use steam- or high-pressure cleaners, hoses or sprays
to clean the appliance.
WARNING‒Risk of injury!
The use of non-original spare parts and non-original accessories
is dangerous.
Only use the manufacturer's original spare parts and original ac-
cessories.
WARNING‒Risk of poisoning!
Poisonous fumes may be given off if you use cleaning agents that
contain solvents.
Do not use cleaning agents that contain solvents.
9
en Preventing material damage
Preventing material damage2 Preventing material
damage
ATTENTION
The functionality of the appliance
may be impaired if you use the
wrong quantity of fabric softener, de-
tergent, care product or cleaning
agent.
Follow the dosage recommenda-
tions from the manufacturer.
Exceeding the maximum load capa-
city impairs the function of the appli-
ance.
Observe the maximum load capa-
city for each programme and do
not exceed it.
Page23
Foam and foam rubber may deform
or melt during the drying process.
Objects such as foam rubber
(latex foam), shower caps, water-
proof textiles, rubberised items
and clothing or cushions with
sponge rubber padding must not
be dried in the appliance.
The appliance is secured for trans-
portation using transit bolts.
Transit bolts which have not been re-
moved may result in material dam-
age and damage to the appliance.
Before starting up the appliance,
remove the transit bolts completely
and keep them in a safe place.
Before transport, fit the transit bolts
fully in order to prevent damage in
transit.
Material damage may be caused if
the water inlet hose is connected in-
correctly.
Tighten the screw connections on
the water inlet until they are hand-
tight.
Connect the water inlet hose dir-
ectly to the water tap, without any
additional connecting elements
such as adapters, extensions or
valves.
Ensure that the inner diameter of
the water tap is at least 17mm.
Make sure that the length of the
thread on the connection to the
water tap is at least 10mm.
If the water pressure is too high or
too low, the appliance may not be
able to operate properly.
Ensure that the water pressure in
the water supply system is at least
100kPa (1bar) and max.
1000kPa (10bar).
If the water pressure exceeds the
maximum value specified, a pres-
sure-reducing valve must be in-
stalled between the water connec-
tion and the hose set of the appli-
ance.
Do not connect the appliance to
the mixer tap of an unpressurised
hot-water boiler.
Modified or damaged water hoses
may result in material damage and
damage to the appliance.
Never kink, crush, modify or cut
through water hoses.
Only use the water hoses supplied
with the appliance or genuine
spare hoses.
Never re-use water hoses that
have been used before.
Operating the appliance using water
that is dirty or too hot may lead to
material damage and damage to the
appliance.
Only operate the appliance with
cold mains water.
Unsuitable cleaning products may
damage the surfaces of the appli-
ance.
Do not use harsh or abrasive de-
tergents.
Do not use cleaning products with
a high alcohol content.
10
Environmental protection and saving energy en
Do not use hard scouring pads or
cleaning sponges.
Clean the appliance with nothing
but water and a soft, damp cloth.
Remove all detergent residue,
spray residue or other residues im-
mediately if they come into contact
with the appliance.
Environmental protection and saving energy3 Environmental protec-
tion and saving energy
3.1 Disposing of packaging
The packaging materials are environ-
mentally compatible and can be re-
cycled.
Sort the individual components by
type and dispose of them separ-
ately.
3.2 Save energy and conserve
resources
If you follow these instructions, your
appliance will use less electricity and
less water.
Choose programs with low temper-
atures and longer wash times and
use maximum load capacity.
Page23
Add detergent based on the laun-
dry's degree of soiling.
Reduce the washing temperature
for lightly and normally soiled laun-
dry.
Set the maximum spin speed if
you want to dry the laundry in the
appliance afterwards.
3.3 Energy saving mode
If you do not use the appliance for a
brief period, it automatically switches
to energy-saving mode.
Energy-saving mode ends when you
use the appliance again.
If you do not use the appliance for an
extended period, it switches itself off.
Installation and connection4 Installation and con-
nection
4.1 Unpacking the appliance
ATTENTION
Objects remaining in the drum that
are not designed for operation with
the appliance may cause material
damage and damage to the appli-
ance.
Remove these objects, along with
all supplied accessories, from the
drum before starting the appliance.
1.
Remove any packaging and pro-
tective covers completely from the
appliance.
Page11
2.
Check the appliance for visible
damage.
3.
Open the door.
Page29
4.
Remove any accessories from the
drum.
5.
Close the door.
4.2 Contents of package
After unpacking all parts, check for
any damage in transit and complete-
ness of the delivery.
ATTENTION
If the appliance is operated with in-
complete or defective accessories,
the appliance may not be able to op-
erate properly, or this may result in
material damage or damage to the
appliance.
Do not operate the appliance with
incomplete or defective accessor-
ies.
Replace the accessories in ques-
tion before operating the appli-
ance.
"Accessories", Page27
11
en Installation and connection
Note: The appliance has undergone
a function test at the factory. This
may cause water stains in the appli-
ance, which the first wash cycle re-
moves.
The delivery consists of the following:
Washer dryer
Accompanying documents
Transit bolts
Page13
Cover caps
Water inlet hose
Page17
Parts for the installation
Page14
4.3 Requirements for the in-
stallation location
WARNING
Risk of electric shock!
The appliance contains live parts.
Touching live parts is dangerous.
Do not operate the appliance
without a cover cap.
ATTENTION
If residual water in the appliance
freezes, this may cause damage to
the appliance.
Do not install or operate this appli-
ance anywhere that is liable to ex-
perience frost or outdoors.
If the appliance is tilted at an angle
greater than 40°, residual water may
leak out of the appliance and cause
material damage.
Tilt the appliance carefully.
Transport the appliance in an up-
right position.
Installation loca-
tion
Requirements
Base Secure the appli-
ance with fixing
brackets.
Installation loca-
tion
Requirements
Wooden joist
floor
Place the appli-
ance on a water-
resistant wooden
board (minimum
thickness of
30mm) which is
screwed tightly to
the floor.
Kitchen unit Only install the ap-
pliance under-
neath a continu-
ous worktop that
is securely con-
nected to adja-
cent cabinets. Re-
quired niche
width: 60cm.
Note: The use of
sliding plates
makes it easier to
slide the appli-
ance into the re-
cess. Moisten the
sliding plates with
a mixture of water
and washing-up li-
quid before push-
ing the appliance
in. Do not use
grease or oil to do
this.
"Accessories",
Page27
Against a wall Do not trap the
power cord or the
hoses between
the wall and the
appliance.
12
Installation and connection en
4.4 Removing foam parts
To prevent transport damage, the ap-
pliance is protected with foam parts
at the factory. Remove the foam
parts before switching on the appli-
ance.
WARNING
Risk of injury!
When the appliance is tilted, the ap-
pliance may tip over.
Tilt the appliance carefully.
Do not tilt the appliance on your
own.
ATTENTION
If the foam material is not removed, it
can cause damage to the appliance
when it is operated.
Before starting up the appliance,
remove all foam parts.
1.
Tilt the appliance backwards.
2.
Remove the foam parts on the un-
derside.
Do not dispose of the foam parts.
Use the foam parts when trans-
porting the appliance in the future.
Note: To insert the foam parts for
transportation into the appliance, per-
form these steps again in the reverse
order.
4.5 Removing the transit bolts
The appliance is secured for trans-
portation using transit bolts on the
rear of the appliance.
Note: Keep the transit bolt screws
and the washers in a safe place for
future transport.
Requirement: The foam parts are re-
moved.
Page13
1.
Pull the hose out of the holders.
2.
Unscrew and remove all of
the screws for the 4 transit bolts
using a WAF 13 wrench.
13
en Installation and connection
3.
Remove the power cable from the
holder.
4.
Put on the 4 cover caps.
Note: To install the transit bolts to
transport the appliance, perform
these steps again in the reverse or-
der.
4.6 Tools for assembly
You require the following tools for the
assembly:
Spirit level
WAF 13 wrench
WAF 17 wrench
Forstner 38mm drill bit
2 mm twist drill
Screwdriver
4.7 Installing the appliance
Preparing the appliance
1.
Measure the built-in niche.
2.
Lay the power cord as well as the
water inlet and water outlet hose.
3.
Slide the appliance in and, at the
same time, pull through the power
cord, water inlet and water outlet
hose.
4.
Connect the water inlet hose.
Page17
5.
Connect the water outlet hose.
Page17
6.
Align the appliance using a spirit
level.
Installing the cabinet door
Note: Metal elements may impair the
function of the control panel.
Do not use any cabinet doors with
metal elements in the area of the
control panel.
1.
Hold the cabinet door at the re-
quired height on the appliance and
14
Installation and connection en
mark the upper edge of the appli-
ance on the inside of the door.
Mark on the top edge of the appliance
at the left-hand stop
Mark on the top edge of the appliance
at the right-hand stop
2.
Mark the drill holes on the inside
of the cabinet door using the en-
closed template.
Place the template for the drill
holes on the mark for the top
edge of the appliance.
Mark for the holes at the left-hand stop
Mark for the holes at the right-hand
stop
3.
At the previously marked points,
use a Forstner 38mm drill to drill
15
en Installation and connection
the holes for the hinges. At the
previously marked points, use a
2mm twist drill to drill holes for the
screws.
4.
Insert the hinges into the holes
and screw them in.
5.
Screw on the counter plates for the
magnetic catches.
6.
Install the cabinet door on the ap-
pliance.
7.
Put the magnetic catches on the
appliance.
16
Installation and connection en
Aligning the cabinet door
Vertically aligning the cabinet door
Horizontally aligning the cabinet
door
4.8 Connecting the appliance
Connecting the water inlet hose
ATTENTION
Material damage may be caused if
the water inlet hose is connected in-
correctly.
Tighten the screw connections on
the water inlet until they are hand-
tight.
1.
Connect the water inlet hose.
2.
Connect the water inlet hose to a
tap (26.4mm=3/4").
3.
Open the water tap carefully and
check that the connection points
are tight.
Water outlet connection types
This information is intended to help
you to connect this appliance to the
water outlet.
17
en Before using for the first time
ATTENTION
When draining, the water outlet hose
is subject to water pressure and may
come loose from the installed con-
nection point.
Secure the water outlet hose
against unintentional loosening.
In the event of a blocked or covered
outlet, accumulated wastewater can
flow back into the appliance.
Before operating the appliance, en-
sure that the wastewater drains
away quickly and eliminate any
blockages.
Note: To avoid exceeding the max-
imum draining height of the appli-
ance, do not lay the water outlet hose
lower than 60 cm or higher than 100
cm above the installation surface of
the appliance at any point.
Siphon Secure the con-
nection point with
a (24–40 mm)
hose clamp.
Sink Fix and secure the
water outlet hose
with an elbow.
"Accessories",
Page27
Plastic pipe with
rubber sleeve
Fix and secure the
water outlet hose
with an elbow.
"Accessories",
Page27
Connecting the appliance to the
electricity supply
Note: Your electrical domestic install-
ation for this appliance must comply
with the local legal provisions and
safety regulations, and should in-
clude a residual current circuit-
breaker.
1.
Insert the mains plug of the appli-
ance's power cable in a socket
nearby.
The connection details of the appli-
ance can be found under Tech-
nical data
Page43
.
2.
Check the mains plug is inserted
properly.
Before using for the first time5 Before using for the
first time
Prepare the appliance for use.
5.1 Starting an empty washing
cycle
Your appliance was inspected thor-
oughly before leaving the factory. To
remove any residual water, run the
first wash cycle without any laundry.
1.
Press .
The switch-on process takes a few
seconds.
2.
Set the Drum Clean programme.
3.
Close the door.
4.
Pull out the detergent drawer.
5.
Pour approx. 1 litre of tap water
into compartment II.
18
Familiarising yourself with your appliance en
6.
Add washing powder containing
oxygen bleach to compartment II.
To prevent foaming, use only half
of the amount of detergent recom-
mended by the detergent manufac-
turer for light soiling. Do not use
detergent suitable for woollens or
delicates.
7.
Push in the detergent drawer.
8.
Start the programme.
Page30
9.
Start the first wash cycle or press
to switch off the appliance.
"Basic operation", Page29
Familiarising yourself with your appliance6 Familiarising yourself with your appliance
6.1 Appliance
You can find an overview of the parts of your appliance here.
2
3
4
5
1
6 7
88
On certain models, specific details such as the colour and shape may differ from those
pictured.
19
en Familiarising yourself with your appliance
Drain hose
Page33
Maintenance flap for the drain
pump
Page33
Door
Page29
Detergent drawer
Page20
Control panel
Page21
Power cord
Page18
Water outlet hose
Page17
Transit bolts
Page13
6.2 Detergent drawer
Note: Observe the manufacturer's in-
structions on the use and dosage of
the detergent and care product and
the information in the programme de-
scriptions.
1 2 3
Compartment II: Detergent for
the main wash
Compartment : Fabric softener
Compartment I: Detergent for
prewash
20
Display en
6.3 Control panel
You can use the control panel to configure all functions of your appliance and
to obtain information about the operating status.
2 3
1
1 4
4
Programmes
Page23
Programme selector
Page29
Display
Page21
Buttons
Page23
Display7 Display
The display shows the current settings, options or relevant information.
21
en Display
Depending on the programme status, the display shows some information in
the area, e.g. .
Example: Display
Display Description
0:40
1
Expected programme duration or programme time re-
maining in hours and minutes.
10h
1
Programme end time
00:00 - 1400 Set spin speed in rpm.
Page23
00:00 : No spin cycle, draining only
0 - 90 Set temperature in °C.
Page23
0 (cold)
End Programme status: Programme end
Lights up: The childproof lock is activated.
Flashes: The childproof lock is activated and the appli-
ance has been operated.
Page31
( ) The dryness level is activated.
Page31
( ) The dryness level is activated.
Page31
( ) The dryness level is activated.
Page31
Lights up: The door is locked and cannot be opened.
Off: The door is unlocked and can be opened.
1
Example
22
Buttons en
Buttons8 Buttons
The selection of programme settings and options to change these depend on
the programme that is set as well as the programme status.
Button Description
Switch the appliance on or off.
Temp. °C Adjust the temperature.
Spin Adjust the spin speed or deactivate the spin cycle.
If 00:00 is selected, the water is drained and the spin
cycle is deactivated. The laundry stays wet inside the
drum.
Start or pause the programme.
Speed Perfect Activate or deactivate a shorter programme duration.
Note: The energy consumption increases. The washing
result is not affected by this.
3 sec. Activate or deactivate the childproof lock.
Page31
3 sec. Save your individual programme settings.
Page29
3 sec. If you press and hold the button for approximately
3seconds, you can activate or deactivate operating sig-
nals and notification signals.
Dry Activate or deactivate washing with subsequent drying, or
change the dryness level.
Page31
Programmes9 Programmes
Note: The laundry's care labels provide you with additional information about
programme selection.
"Care symbols on the care labels", Page28
Programme Description Max.
load
(kg)
Wash-
ing
Max.
load
(kg)
Drying
Cottons Wash hard-wearing items made from cotton or
linen.
Also suitable as a short programme for nor-
mally soiled laundry when you activate Speed
Perfect.
8.0
5.0
1
5.0
1
Speed Perfect activated
23
en Programmes
Programme Description Max.
load
(kg)
Wash-
ing
Max.
load
(kg)
Drying
Programme setting:
Max. 90 °C
Max. 1400rpm
Eco 40-60 Wash items made from cotton or linen.
Note: Fabrics which can be washed from
40°C up to 60°C as per the care sym-
bol can be washed together.
The washing performance corresponds to the
best possible washing performance class ac-
cording to the legal requirements.
For this programme, the washing temperature
is automatically adjusted depending on the
load size, in order to achieve the best pos-
sible energy efficiency with the best possible
washing result. You cannot change the wash-
ing temperature.
The maximum spin speed is 1400 rpm.
8.0 –
1
Wash + Dry Wash and dry items made from cotton and
linen.
Note: Fabrics which can be washed from
40°C up to 60°C as per the care sym-
bol can be washed together.
The washing performance corresponds to the
best possible washing performance class ac-
cording to the legal requirements.
For this programme, the washing temperature
is automatically adjusted depending on the
load size, in order to achieve the best pos-
sible energy efficiency with the best possible
washing result. You cannot change the wash-
ing temperature.
The maximum spin speed is 1400 rpm.
5.0 5.0
Easy Care Wash items made from synthetic fabrics.
Programme setting:
Max. 60 °C
Max. 1200 rpm
4.0 2.5
1
Drying not possible
24
Programmes en
Programme Description Max.
load
(kg)
Wash-
ing
Max.
load
(kg)
Drying
Mixed Fab-
rics
Wash items made from cotton, linen or syn-
thetic fabrics.
Suitable for lightly soiled laundry.
Programme setting:
Max. 90 °C
Max. 1400rpm
4.0 4.0
Delicate/Silk Wash delicate, washable items made from
silk, viscose and synthetic fabrics.
Use a detergent that is suitable for delicates
or silk.
Note: Wash especially delicate items or items
with hooks, eyelets or clips in a mesh laundry
bag.
Programme setting:
Max. 30 °C
Max. 800rpm
2.0 –
1
Wool Hand- or machine-washable items that are
made from wool or contain wool.
To prevent the laundry from shrinking, the
drum moves the items very gently with long
pauses.
Use a detergent that is suitable for wool.
Programme setting:
Max. 30 °C
Max. 800rpm
2.0 –
1
Rinse/Spin Rinse and then spin the laundry, and drain the
water.
Programme setting: Max. 1400 rpm
– –
Spin/Drain Spin the laundry and drain the water.
Programme setting: Max. 1400 rpm
– –
Memory Set your saved programme with individual pro-
gramme settings.
– –
Hygiene
65°
Wash hard-wearing items made from cotton or
linen.
Suitable for allergy sufferers and for strict hy-
giene requirements.
4.0 4.0
1
Drying not possible
25
en Programmes
Programme Description Max.
load
(kg)
Wash-
ing
Max.
load
(kg)
Drying
Note: Once the set temperature has been
reached, it remains constant throughout the
entire washing process.
Programme setting:
Max. 60 °C
Max. 1400rpm
Drum Clean Clean and care for the drum.
Page32
Use this programme in the following cases:
Before using the appliance for the first time
If you regularly wash at temperatures of
40°C or lower
After a prolonged period of non-use
Use washing powder containing oxygen
bleach. Add the washing powder containing
oxygen bleach to compartment II for the main
wash.
Page20
Halve the amount of detergent to avoid foam-
ing.
Do not use fabric softener.
Do not use liquid detergent or detergent that
is intended for woollens or delicates.
–
1
–
2
Gentle Dry Dry items made from synthetic fabrics.
Gentle programme with low temperatures for
delicate fabrics.
–
1
2.5
Intensive
Dry
Dry items made from cotton or linen.
Intensive programme with temperatures for
hard-wearing fabrics.
–
1
5.0
Hygiene
Care
Pre-treat delicate fabrics hygienically.
The fabrics are pre-treated with hot steam up
to 65°C in order to kill bacteria.
After the fabrics have been pre-treated, they
are washed at low temperatures.
Programme setting:
Max. 90 °C
Max. 1400rpm
4.0 4.0
1
Washing not possible
2
Drying not possible
26
Accessories en
Programme Description Max.
load
(kg)
Wash-
ing
Max.
load
(kg)
Drying
Super Quick
15' Wash &
Dry 60'
Wash items made from cotton, linen or syn-
thetic fabrics.
Short programme for small items of lightly
soiled laundry.
Note: If you also want to dry the laundry after
washing it, press Dry.
Programme setting:
Max. 30 °C
Max. 800rpm
2.0 1.0
Accessories10 Accessories
Use original accessories. These have been made especially for your appliance.
Use Order num-
ber
Elbow Secure the water outlet hose in place. 00655300
Slide sheets Makes it easier to insert the appliance into
the installation recess.
00661827
Laundry11 Laundry
11.1 Preparing the laundry
WARNING
Risk of explosion!
Fillings made of polyamide, polyes-
ter, polyethylene, polypropylene or
polystyrene can leak out of openings
in items of laundry, melt during the
drying process and cause an explo-
sion in the appliance.
Do not dry items of laundry with
fillings made of polyamide, polyes-
ter, polyethylene, polypropylene or
polystyrene in the appliance.
ATTENTION
Objects remaining in the laundry may
damage the laundry and the drum.
Remove all items from any pock-
ets in your laundry before using
the appliance.
Note
The appliance and fabrics are protec-
ted when you prepare your laundry.
Brush off sand and soil
Sort the laundry according to col-
our and textiles and observe the
care labels
Close all zips, hook and loop
fasteners, hooks and eyes
Tie cloth belts, cloth straps and
cords together
27
en Detergents and care products
Remove curtain fittings and lead
strips
Wash small or particularly delicate
items in a mesh washing bag
Wash large and small items of
laundry together
Wash laundry with fresh stains im-
mediately
Pretreat laundry with dried stains
and wash several times
Load the laundry unfolded into the
drum
Spin the laundry before drying
Before loading the drum, any laun-
dry that has been pre-treated with
chlorine bleach should be rinsed
several times
11.2 Care symbols on the care
labels
Washing care symbols
Symbol Recommended pro-
gramme
Cottons (normal)
Easy Care (gentle)
Delicates/Silk for washing
by hand (particularly
gentle)
Woollens (hand wash)
(not suitable for machine-
washing)
Drying care symbols
Symbol Fabrics
Items made from cotton
and linen, e.g. towels, bed
linen, underwear
Items made from synthetic,
blended or delicate fab-
rics, e.g. functional gar-
ments, shirts
Symbol Fabrics
Do not tumble dry items
made from silk, nylon, air-
impermeable and rubber-
coated fabrics, synthetic
curtains
Detergents and care products12 Detergents and care
products
You can protect your appliance and
your laundry by selecting and using
the correct detergents and care
products.
The manufacturer's instructions for
use and dosage can be found on the
packaging.
Notes
When using liquid detergents, only
use liquid detergents that are self-
flowing
Do not mix different liquid deter-
gents
Do not mix detergent and fabric
softener
Do not use products that have ex-
pired or are highly congealed
Do not use products containing
solvents, caustic agents or volatile
substances
Do not use chlorine bleach
Do not use dyes regularly as fixing
salt can damage stainless steel
Only use colour and dirt catcher
sheets in a laundry net
Do not use color-bleaching agents
in the appliance
28
Basic operation en
Basic operation13 Basic operation
13.1 Switching on the appli-
ance
Requirement: The appliance has
been correctly installed and connec-
ted.
Page11
Press .
The switch-on process takes a few
seconds.
13.2 Setting a programme
1.
Turn the programme selector and
set the required programme.
Page23
2.
If required, adjust the programme
settings.
Page23
The programme settings are not
saved permanently for the pro-
gramme.
13.3 Saving programme set-
tings
You can save your individual pro-
gramme settings as favourites.
Requirement: A programme is set.
Page29
Press and hold 3 sec. for ap-
prox. 3 seconds.
To call up the saved programme,
set the Memory programme.
Note: To overwrite the saved pro-
gramme, repeat the steps above.
13.4 Opening the door
1.
Grip under the door handle and
pull on the door.
2.
Open the door.
13.5 Loading laundry
Note: To prevent creasing, note the
maximum load for the programmes.
Page23
Requirements
The laundry is prepared and sor-
ted.
Page27
The drum is empty.
1.
Open the door.
Page29
2.
Place the laundry in the drum.
3.
Close the door.
Ensure that there is no laundry
trapped in the door.
29
en Basic operation
13.6 Adding detergent and
care product
Note: Observe the information about
detergents and care products
Page28
.
1.
Pull out the detergent drawer.
2.
Pour in the detergent.
"Detergent drawer", Page20
3.
If required, add the care product.
4.
Push in the detergent drawer.
13.7 Starting the programme
Requirements
A programme is set.
Page29
The door is closed.
Press .
The display shows the programme
duration or the programme end
time.
After the programme has ended,
the display shows: "End".
13.8 Soaking laundry
Note: No additional detergent is re-
quired for soaking. The appliance
uses the filled detergent for soaking
and washing.
Requirements
The laundry is placed in the appli-
ance.
Page29
A programme has started.
Page30
1.
Press approx. 10minutes after
the programme start.
The programme pauses and the
laundry can soak.
2.
Press after the required soaking
time.
13.9 Adding laundry
After the programme starts, you can
remove or add laundry depending on
the programme status.
1.
Press .
The appliance switches off.
2.
Switch on the appliance.
Page29
To open the door, wait for approx.
1minute.
Note: If you want to add laundry,
follow the instructions on the dis-
play.
Page22
3.
Open the door.
Page29
4.
Add or remove laundry.
5.
Close the door.
6.
Start the programme.
Page30
13.10 Cancelling the washing
programme
1.
Press .
The appliance switches off.
2.
Switch on the appliance.
Page29
To open the door, wait for approx.
1minute.
3.
Open the door.
Page29
The appliance door remains
locked for safety reasons if the
temperature and water levels are
high.
– If the temperature is high, start
the Rinse/Spin programme.
– If the water level is high, start
the Spin/Drain programme or
select a suitable programme for
draining.
Page23
4.
Remove the laundry.
Page31
13.11 Cancelling the drying
programme
Note: The cooling process cools the
laundry before the programme end
so that the laundry is not damaged.
Do not interrupt the programme, and
wait for the door lock to open.
If you interrupt the programme, care-
fully open the door and allow warm
air to escape. Remove the laundry
30
Dryness level en
and spread out the items of laundry
to cool.
1.
Press .
The appliance switches off.
2.
Switch on the appliance.
Page29
To open the door, wait for approx.
1minute.
13.12 Unloading the laundry
1.
Open the door.
Page29
2.
Remove the laundry from the
drum.
13.13 Switching off the appli-
ance
1.
Press .
2.
Turn off the tap.
3.
Cleaning the rubber gasket.
Page35
Note: Leave the appliance door and
the detergent drawer open to dry.
Dryness level14 Dryness level
In some programmes, a dryness
level is predefined. The dryness level
defines how dry or damp your laun-
dry is after the programme ends.
Dryness
level
Description
( ) For normal, single-
layered laundry.
( ) The laundry is only
slightly dried. To pre-
vent creasing after
drying, hang the laun-
dry up.
( ) For normal, single-
layered laundry.
The laundry is still
slightly damp after the
programme ends. To
Dryness
level
Description
prevent creasing after
drying, iron the laun-
dry or hang it up.
14.1 Changing the dryness
level
For some programmes, you can
change the dryness level so that your
laundry will be drier or more damp.
1.
Set a washing and drying pro-
gramme or a drying programme.
Page23
The display shows the specified
dryness level.
2.
Press Dry repeatedly until the dis-
play shows your required dryness
level.
Childproof lock15 Childproof lock
Secure your appliance against being
operated unintentionally using the
controls.
15.1 Activating the childproof
lock
Press on both 3 sec.buttons for
approx. 3seconds.
During the activation, "CL" flashes
on the display.
The display shows .
The control elements are locked.
The childproof lock remains active
even after the appliance has been
switched off and in the event of a
power cut.
15.2 Deactivating the child-
proof lock
Requirement: To deactivate the
childproof lock, the appliance must
be switched on.
31
en Cleaning and servicing
Press on both 3 sec.buttons for
approx. three seconds.
goes out on the display.
Cleaning and servicing16 Cleaning and servi-
cing
ATTENTION
Heavy, sharp or rough objects may
damage the appliance.
Do not use hard or sharp objects,
abrasive cleaning products or steel
wool for cleaning.
Clean the appliance using only wa-
ter and a soft cloth.
16.1 Cleaning the drum and
cleaning fluff
Clean the drum if you have carried
out 20 washing cycles at a temperat-
ure of 40°C or lower, or if you have
not used the appliance for a pro-
longed period, but at least once a
year. Also clean the drum if you find
fluff on the laundry after drying.
CAUTION
Risk of injury!
Permanently washing at low temper-
atures and a lack of ventilation for
the appliance may damage the drum
and cause injury.
Regularly run a programme for
cleaning the drum or wash at tem-
peratures of at least 60°C.
Leave the appliance to dry after
every operation with the door
open, and leave the detergent
drawer to dry.
Run the Drum Clean programme
without laundry but with washing
powder that contains oxygen
bleach or a cleaning agent for
caring for the inside of the appli-
ance.
Note: If you only want to clean
fluff, you can do this without wash-
ing powder or cleaning agent.
16.2 Cleaning the detergent
drawer
Note: Scan the QR code to see an
animation of the process.
1.
Pull out the detergent drawer.
2.
Press down on the insert and re-
move the detergent drawer.
3.
Pull out the insert upwards.
32
Cleaning and servicing en
4.
Clean the detergent drawer and in-
sert with water and a brush, and
then dry them.
5.
Fit the insert and click it into place.
6.
Clean the opening for the deter-
gent drawer.
7.
Push in the detergent drawer.
16.3 Cleaning the drain pump
Clean the drain pump regularly, at
least once a year, as well as in the
event of faults, e.g. blockages or rat-
tling noises.
Note: Scan the QR code to see an
animation of the process.
Observe the following safety instruc-
tions before you start the animation.
Emptying the drain pump
CAUTION
Risk ofscalding!
When you wash at high temperat-
ures, the detergent solution gets hot.
Do not touch the hot detergent
solution.
1.
Turn off the tap.
2.
Switch off the appliance.
Page31
3.
Disconnect the appliance's mains
plug from the power supply.
4.
Remove the base panel.
5.
To drain the detergent solution,
slide a suitable receptacle under
the opening.
33
en Cleaning and servicing
6.
Pull the drain house out of the ap-
pliance.
7.
Remove the locking cap and allow
the detergent solution to fully drain
out into the receptacle.
8.
Push the locking cap onto the
drain hose.
9.
Push the drain hose into the appli-
ance.
Cleaning the drain pump
Requirement: The drain pump is
empty.
1.
Since water may remain in the
drain pump, unscrew and re-
move the pump cap carefully.
The filter insert in the pump
housing may become stuck due
to particles of dirt. Loosen the
dirt and remove the filter insert.
34
Troubleshooting en
2.
Clean the interior, the thread on
the pump cap and the pump hous-
ing.
Colour and dirt catcher sheets can
block the drain pump. Only use
colour and dirt catcher sheets in a
laundry net.
3.
Ensure that the impeller in the
drain pump can rotate.
4.
Insert the pump cap and screw it
on as far as it will go.
5.
Empty the receptacle with the de-
tergent solution.
6.
Install the base panel.
Before the next wash
To prevent unused detergent from
flowing straight into the outlet in the
next wash, run a suitable programme
for draining after you have emptied
the drain pump.
1.
Open the water tap.
2.
Insert the mains plug.
3.
Switch on the appliance.
4.
Pour 1litre of water into compart-
ment II.
5.
Select a suitable programme for
draining.
Page23
16.4 Cleaning the rubber gas-
ket
Clean the rubber gasket regularly.
1.
Open the door.
Page29
2.
Remove any foreign objects and
fluff from the rubber gasket.
3.
Clean the outside and the inside of
the rubber gasket with a damp
cloth and wipe dry.
Troubleshooting17 Troubleshooting
You can rectify minor faults on your appliance yourself. Read the troubleshoot-
ing information before contacting after-sales service. This will avoid unneces-
sary costs.
35
en Troubleshooting
WARNING
Risk of electric shock!
Improper repairs are dangerous.
Never make any technical modifications to the appliance or its features.
Repairs to the appliance should only be carried out by trained specialist
staff.
Only use genuine spare parts when repairing the appliance.
If the power cord of this appliance is damaged, it must be replaced by the
manufacturer, the manufacturer's Customer Service or a similarly qualified
person in order to prevent any risk.
Fault Cause and troubleshooting
E:21
The detergent solution
is not being pumped
out.
The water outlet hose is connected too high, is kinked
or trapped, or has been extended impermissibly.
Check the installation of the water outlet hose.
Page17
Drain pipe or water outlet hose is blocked.
Clean the drain pipe and the water outlet hose.
The drain pump is blocked or the pump cover is not in-
stalled correctly.
Check that the pump cover is installed correctly.
Page33
Clean the drain pump.
Page33
Detergent dosage is too high.
Reduce the amount of detergent for the next wash-
ing cycle with the same load.
E:10 The tap is turned off.
Turn on the tap.
The water inlet hose is kinked or jammed.
Check the installation of the water inlet hose.
Page17
The filters in the water inflow are blocked.
Clean the filters in the water inflow.
Scan the QR code to see an animation of the process.
All other error codes. Malfunction
1.
Restart the appliance.
36
Troubleshooting en
Fault Cause and troubleshooting
All other error codes.
2.
If the fault occurs again, disconnect the appliance
from the power supply for at least 30 seconds.
Unplug the appliance from the mains or switch off the
circuit breaker in the fuse box.
3.
If the fault persists, call customer service.
Page41
Please specify the exact error message when calling. If
possible, document the fault with photos and videos.
Heavy foam build-up. Detergent dosage is too high.
Mix one tablespoon of fabric softener with 0.5 litres
of water and pour the mixture into compartment II
(not for outdoor clothing, sportswear or items stuffed
with down).
Reduce the amount of detergent for the next wash-
ing cycle with the same load.
"CL" flashes. Childproof lock is activated.
Deactivate the childproof lock.
Page31
The programme does
not start.
Childproof lock is activated.
Deactivate the childproof lock.
Page31
The programme is
paused or has been
interrupted, but the
door will not open.
The temperature is too high.
Start the Rinse/Spin programme or wait until the
temperature has dropped.
Water level is too high.
Start the Spin/Drain programme or a suitable drain-
ing programme.
Page23
The door cannot be
opened due to a
power cut.
The door is locked.
To open the door, wait for approx. 1minute.
Drum jerks after the
programme starts.
Not a fault. An internal motor test is started.
No action required.
No water is visible in
the drum.
Not a fault. Water is below the visible area.
No action required.
The appliance is vi-
brating, 'wandering'
and making loud
noises during the spin
cycle.
Appliance is not correctly aligned.
Align the appliance.
The appliance feet are not fixed.
Secure the appliance's feet.
Transit bolts have not been removed.
Remove the transit bolts.
High spin speed not
reached.
The appliance is using a reduced spin speed to elimin-
ate an imbalance.
No action required.
37
en Troubleshooting
Fault Cause and troubleshooting
The programme dura-
tion changes during
the wash cycle.
Not a fault. The programme sequence is optimised
electronically or another rinse cycle is switched on due
to heavy foam build-up.
No action required.
The drying time is too
long.
The ambient temperature is higher than 30°C.
Ensure that the ambient temperature is below 30 °C.
The air circulation at the appliance's installation loca-
tion is insufficient.
Ventilate the appliance's installation location.
Fluff has accumulated in the drum.
Start the Drum Clean programme without any laun-
dry or detergent.
Water intake during
the drying phase.
Not a fault. The drying phase requires water.
No action required.
Spinning during the
drying phase.
Not a fault. Thermal spinning is active.
No action required.
Whooshing, hissing,
whirring or sucking
noises.
Not a fault. Water is pumped in, the process fan is act-
ive, or detergent solution is pumped out.
No action required.
Banging noises, rat-
tling in the drain
pump.
A foreign object is in the drain pump.
Clean the drain pump.
Page33
There are detergent
residues on the laun-
dry.
Detergents may contain water-insoluble substances
that deposit on the laundry.
Start the Rinse/Spin programme or brush out the
laundry after drying.
Fluff on the laundry. Fluff has accumulated in the drum.
Start the Drum Clean programme without any laun-
dry or detergent.
The laundry is too wet
after the spinning
cycle.
A low spin speed is selected.
Start the Spin/Drainprogramme.
The next time you run a wash cycle, set a higher
spin speed.
The appliance is using a reduced spin speed to elimin-
ate an imbalance.
1.
Redistribute the laundry in the drum.
2.
Start the Spin/Drainprogramme.
The laundry is too
damp.
The selected programme is unsuitable for the type of
fabric.
Set a suitable programme for subsequent drying.
Page23
38
Troubleshooting en
Fault Cause and troubleshooting
The laundry is too
damp.
The load is too large.
Observe the programme's maximum load capacity.
Page23
After the end of the programme, warm laundry feels
damper than it actually is.
1.
Remove the laundry from the drum as soon as the
drying programme has finished.
2.
Spread the items of laundry for cooling.
The selected dryness level is unsuitable.
Change the dryness level.
Page31
The load is too small.
Set a suitable programme for subsequent drying.
Page23
The laundry has not been spun sufficiently.
Always select the highest possible spin speed for
the washing programme in question.
Creasing. The selected programme is unsuitable for the type of
fabric.
Set a suitable programme.
Page23
A high spin speed is selected.
The next time you run a wash cycle, set a lower spin
speed.
The load is unsuitable.
Observe the programme's maximum load capacity.
Page23
Prepare the laundry.
Page27
The laundry lies in the drum for too long after drying.
1.
Remove the laundry from the drum as soon as the
drying programme has finished.
2.
Spread the items of laundry for cooling.
Easy Care fabrics have been dried for too long.
Change the dryness level.
Page31
Water is leaking out at
the water inlet hose.
The water inlet hose is not correctly connected or is
damaged.
Check the installation of the water inlet hose.
Page11
Replace the water inlet hose if it is damaged.
39
en Transportation, storage and disposal
Fault Cause and troubleshooting
Water is leaking out at
the water outlet hose.
E:11
The water outlet hose is not connected correctly or is
damaged.
Check the installation of the water outlet hose.
Page11
Replace the water outlet hose if it is damaged.
Water is leaking from
below the door.
Dirt on the door or seal causes leaks.
Clean the door and the seal.
Detergent or fabric
softener drips off the
seal and collects on
the door or in the seal
fold.
There is too much detergent or fabric softener in the
detergent drawer.
When dosing, observe the marking in the detergent
drawer.
Page30
Residual water is
present in the com-
partment .
Insert in compartment is blocked.
Clean the detergent drawer.
Page32
Fabric softener re-
mains in the detergent
drawer.
The use of fabric softener is not supported for the se-
lected programme.
Check whether the use of fabric softener is suppor-
ted for the selected programme.
Page23
Odours have formed
in the appliance.
Humidity and detergent residue may promote the form-
ation of bacteria.
Clean the drum.
Page32
If you are not using the appliance, leave the door
and detergent drawer open so that residual water
can evaporate.
Transportation, storage and disposal18 Transportation, stor-
age and disposal
18.1 Removing the appliance
1.
Turn off the tap.
2.
Switch off the appliance.
Page31
3.
Unplug the appliance's mains plug.
4.
Drain the water.
"Cleaning the drain pump",
Page33
5.
Detach the hoses.
18.2 Inserting the transit bolts
Secure the appliance before trans-
portation using transit bolts in order
to prevent transport damage.
1.
Use a screwdriver to remove the 4
cover caps.
Keep the cover caps.
2.
Insert the 4 transit bolts.
18.3 Using the appliance again
For further information, see Install-
ation and connection
Page11
and Starting an empty washing
cycle
Page18
.
40
Customer Service en
18.4 Disposing of old appli-
ance
Valuable raw materials can be re-
used by recycling.
WARNING
Risk of harm to health!
Children can lock themselves in the
appliance, thereby putting their lives
at risk.
The appliance must not be set up
behind a lockable door, a sliding
door or a door with a hinge on the
side opposite to the appliance,
which prevents appliance from
opening fully.
With redundant appliances, unplug
the power cord. Then cut through
the cord and damage the lock on
the appliance door beyond repair
so that the appliance door will no
longer close.
1.
Unplug the appliance from the
mains.
2.
Cut through the power cord.
3.
Dispose of the appliance in an en-
vironmentally friendly manner.
Information about current disposal
methods are available from your
specialist dealer or local authority.
This appliance is labelled
in accordance with
European Directive
2012/19/EU concerning
used electrical and elec-
tronic appliances (waste
electrical and electronic
equipment - WEEE).
The guideline determines
the framework for the re-
turn and recycling of
used appliances as ap-
plicable throughout the
EU.
Customer Service19 Customer Service
Function-relevant genuine spare parts
according to the corresponding Eco-
design Directive can be obtained
from Customer Service for a period
of at least 10years from the date on
which your appliance was placed on
the market within the European Eco-
nomic Area.
Furthermore, our Customer Service
will continue to provide you with
other function-relevant and storable
genuine spare parts for up to
15years from the date on which your
appliance was placed on the market.
For more information, please contact
our Customer Service team.
Note: Under the terms of the manu-
facturer's warranty the use of Cus-
tomer Service is free of charge.
Detailed information about the war-
ranty period and the warranty condi-
tions in your country is available via
the QR code on the enclosed docu-
ment on service contacts and war-
ranty conditions, from our customer
service or on our website.
You can find the contact details for
our customer service via the QR
code on the enclosed document on
service contacts and warranty condi-
tions or on our website.
19.1 Product number (E-Nr.)
and production number
(FD)
If you contact Customer Service, you
will require the product number (E-
Nr.) and the production number (FD),
which you can find on the appliance's
rating plate.
Depending on the model, the rating
plate is located:
On the inside of the door.
41
en Consumption values
Underneath the drum opening.
On the inside of the maintenance
flap.
On the rear of the appliance.
Make a note of your appliance's de-
tails and the Customer Service tele-
phone number to find them again
quickly.
Consumption values20 Consumption values
The following information is provided in accordance with the EU Ecodesign
Regulation. The values specified for programmes other than Eco 40-60 and
Wash + Dry are only given as a guide and were determined in accordance
with the applicable standards EN60456 and EN62512.
Programme Load
(kg)
Pro-
gramm
e dura-
tion
(h:min)
1
Energy
con-
sump-
tion
(kWh/
cycle)
1
Water
con-
sump-
tion (l/
cycle)
1
Max-
imum
temper-
ature
(°C) 5
mins
1
Spin
speed
(rpm)
1
Resid-
ual
mois-
ture
(%)
1
Eco 40-60
2
8.0 3:38 0.760 65.0 33 1400 53.00
Eco 40-60
2
4.0 2:48 0.415 43.0 31 1400 53.00
Eco 40-60
2
2.0 2:38 0.205 33.0 25 1400 53.00
Wash + Dry
2
5.0 9:20 4.000 93.0 35 - -0.1
Wash + Dry
2
2.5 6:30 2.100 60.0 28 - -0.1
Cottons
20°C
8.0 1:29 0.279 78.0 20 1400 53.00
Cottons
40°C
8.0 1:30 0.772 78.0 40 1400 53.00
Cottons
60°C
8.0 1:45 1.289 78.0 60 1400 53.00
Easy Care
40°C
4.0 1:27 0.560 60.0 40 1000 35.00
Mixed Fab-
rics 40°C
8.0 1:22 0.810 78.0 40 1000 65.00
Wool 30°C 2.0 1:00 0.330 60.0 30 600 80.00
1
Due to the influence of water pressure, hardness and inlet temperature, ambient tem-
perature, type, amount and soiling of laundry, detergent used, fluctuations in the
power supply and the selected additional functions, the actual values may deviate
from the stated values.
2
Test programme in accordance with the EU Ecodesign Directive and the EU Energy
Labelling Regulation with cold water (15°C).
42
Technical data en
Technical data21 Technical data
Appliance height 82.5cm
Appliance width 59.5cm
Appliance depth 52.5cm
Appliance depth
with door closed
54.0cm
Appliance depth
with door open
97.5cm
Weight 56.6kg
Maximum load 8.0kg
Mains voltage 220-240V, 50Hz
Minimum in-
stallation protec-
tion
10A
Nominal power 1900W
Power consump-
tion
Off mode: 0.50
W
Water pressure Minimum:
100kPa (1bar)
Maximum:
1000kPa
(10bar)
Length of the wa-
ter inlet hose
150cm
Length of the wa-
ter outlet hose
120cm
Length of the
power cord
200cm
More information about your model
can be found online at
https://
eprel.ec.europa.eu/qr/2332321
1
.
This web address is linked to the offi-
cial EU EPREL product database.
1
Only applies to countries in the European Economic Area
43
Many thanks for choosing a
Bosch home appliance!
Register your new appliance now on MyBosch and benefit directly from:
• Expert advice and tips to make the most of your appliance
• Options for warranty extension
• Discounts on spare parts and accessories
• Digital information for use and all appliance data to hand
• Easy access to Bosch Home Appliance Service
Simple to register, free of charge – including on mobile devices:
www.bosch-home.com/welcome
Need some help?
You can find it here.
Expert advice on your Bosch home appliances, help with problems or repairs by
professionals from Bosch.
Discover all the different ways Bosch can assist you:
www.bosch-home.com/service
The contact details of all countries are listed in the attached service directory.
BSH Hausgeräte GmbH
Carl-Wery-Straße 34
81739 München, GERMANY
www.bosch-home.com
A Bosch Company
Valid within Great Britain:
Imported to Great Britain by
BSH Home Appliances Ltd.
Grand Union House
Old Wolverton Road
Wolverton, Milton Keynes
MK12 5PT
United Kingdom
*9001995302*
9001995302 (060327)
en
WKD28260GB
