OWNER’S MANUAL
bObi Classic
™
Congratulations on your new intelligent floor cleaner! bObi is now at your
service. To see bObi at her best, please read the Quick Start Guide and this
manual thoroughly. Welcome to the bObsweep family and happy cleaning!
If you have any questions or concerns, feel free to contact our helpful team at
Our business hours are Monday – Friday 9 am – 5 pm, PST.
Congratulations!
Charging StationGet bObi
Ready to Clean
Important Safety
Instructions
Install the Battery 16
First Charge 17
First Clean 19
Buttons 20
Placement 24
Auto Charging 25
Manual Charging 27
Buttons 30
Syncing Remote 32
Navigational Buttons 33
Remote Control
Box Contents
Anatomy
14
6
28
10
22
8
FAQs End User
License Agreement
Warranty Information
Cleaning Schedule
Current Time & Day 38
Cleaning Schedule 40
Auto-Resume 43
Mini Mop 48
Dustbin 50
Main Brushes 54
Side Brush 58
UV Lamp 59
Front Wheel 60
Sensors 61
Blindfold Stickers 62
Storing 63
Error Codes 67
Home Checkup Test 72
Cleaning Behavior 83
Parts &
Maintenance
Troubleshooting
84
34 64
87 92
46
Basic safety precautions should always be followed, including the following:
• To protect against electrical shock, do not immerse any part of bObi — with the exception of her
mopping cloth — into water or other liquids. bObi’s dustbin may be washed with water only once
her motor has been removed.
• Turn bObi OFF and unplug her from outlet when she is not in use and before conducting
maintenance.
• If bObi, her remote control, charging station, or blOck (not included) has been damaged, do
not operate them. Contact our customer care center at [email protected].
• Do not handle bObi, her remote control, blOck (not included), or her charging station with wet
hands; use only on dry surfaces.
• Do not use bObi outdoors.
• bObi is not intended for use by persons (including children) with reduced physical or mental
capabilities, or lack of experience and knowledge, unless under the close supervision of a
person responsible for their safety.
• Do not pull or carry the charging station by the cord, use the cord as a handle, close a door
on the cord, or pull the cord around sharp edges or corners. Keep the cord away from heated
surfaces. To unplug the cord grasp the plug, not the cord.
• Do not mutilate or incinerate the battery, as it will explode at high temperatures.
• Leaks from battery cells can occur under extreme usage or temperature conditions. If the liquid
gets on skin, wash quickly with water. If the liquid gets into the eyes, flush them immediately
with clean water for a minimum of 10 minutes, and seek medical attention.
• Do not dispose of your battery in fire. Old batteries should be recycled safely (check with your
local recycler).
• Do not attempt to open the charging station. Repairs on the station should only be carried out
by our qualified customer care center.
• Do not expose bObi, her remote control, or charging station to temperatures higher than 113° F
(45° C), moisture, or humidity.
• Do not let bObi pick up toxic materials (chlorine bleach, ammonia, drain cleaner, etc.).
• Do not let bObi pick up anything that is burning or smoking, such as cigarettes, matches, or
hot ashes. Do not use bObi to pick up flammable or combustible liquids such as gasoline, nor
use her in areas where they may be present.
• Do not use bObi in an enclosed space filled with vapors given off by oil-based paint, paint
thinner, moth-proofing substances, flammable dust, or other explosive or toxic vapors.
Important Safety Instructions
• bObi is composed of electronic components that in rare and unintended cases can cause
hazards of heating, fire, and other malfunctions. Furthermore, because bObi is capable of
and intended for autonomous movement and cleaning, her use poses the risk of collision with
property, pets, and persons and unintended removal of articles, such as small valuables,
jewelry, or hair of persons or pets lying on the floor, among others.
• Do not look directly into the UV light.
• Do not use bObi for other than intended usage.
Declaration of Conformity
This device complies with Part 15 of the FCC rules. Operation is subject to the following two condi-
tions: (1) this device may not cause harmful interference, and (2) this device must accept any inter-
ference received, including interference that may cause undesired operation.
The manufacturer is not responsible for any radio or TV interference caused by unauthorized modi-
fications or change to this equipment. Such modifications or change could void the user’s authority
to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that inter-
ference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
8
Box Contents
1 bObi Classic
2 Charging Station
3 Spare Main Brush
4 Charging Adapter
5 Remote Control
6 Screwdriver
7 Spare Side Brush
8 Cleaning Tool
9 Pack of Screws
10 Blindfold Stickers
11 Mini-Mop Attachment
12 2 Microfiber Mopping Cloths
13 Spare Filter
14 Owner’s Manual, Quick Start Guide, Warranty Card
15 Syncing Tool
16 2 Spare Main Brush Holders
1
2
3
4
5
6
7
8
9
10
11 12
13
14
15
16
10
Top View
Anatomy
Top View
1 Cover
2 Touchscreen Buttons
3 Transmitter
4 Charging Indicator
5 Touch Sensors
6 Wall Sensors
7 Charging Inlet
8 Power Switch
Anatomy
1
2
3
5
6
7
8
4
11
Bottom View
1 Main Brush
2 Rubber Brush
3 Dustbin
4 Right Wheel
5 Left Wheel
6 Side Brush
7 Edge Sensors
8 Front Wheel
9 UV Light
10 Battery
R
L
1
2
5
4
6
7 78
9
10
3
12
1 Charging Station
2 Remote Control
1
2
13
Touchscreen Buttons
1 GO!
bObi will clean on her default cleaning mode
2 JUICE
bObi will search for her charging station to refuel
3 WAFFLE
bObi will clean a localized mess
2 31
Get bObi
Ready to Clean
16
Before bObi’s first clean, you must install her battery. Make sure bObi’s power
switch is turned OFF.
Install bObi’s Battery
Remove the battery cover
using a Phillips head
screwdriver.
Plug the battery in at the
circuit junction. Tuck the
wire into the side of the
compartment and slide
the battery in.
Replace the cover and
retighten the screws.
1 2 3
After installing bObi’s battery, charge bObi for 8 hours before first use.
17
Charge bObi
Plug the charging adapter into the side
of the charging station. The station’s
blue power light will turn on.
Place bObi on her charging station with
the metal nodes on her front resting
against the plates on her station.
bObi will chirp, her lights will flash, and the center light will blink to
indicate that she is charging. The other lights will disappear.
1 2
The center light on bObi
will remain solid when
she’s fully charged and
ready to clean.
18

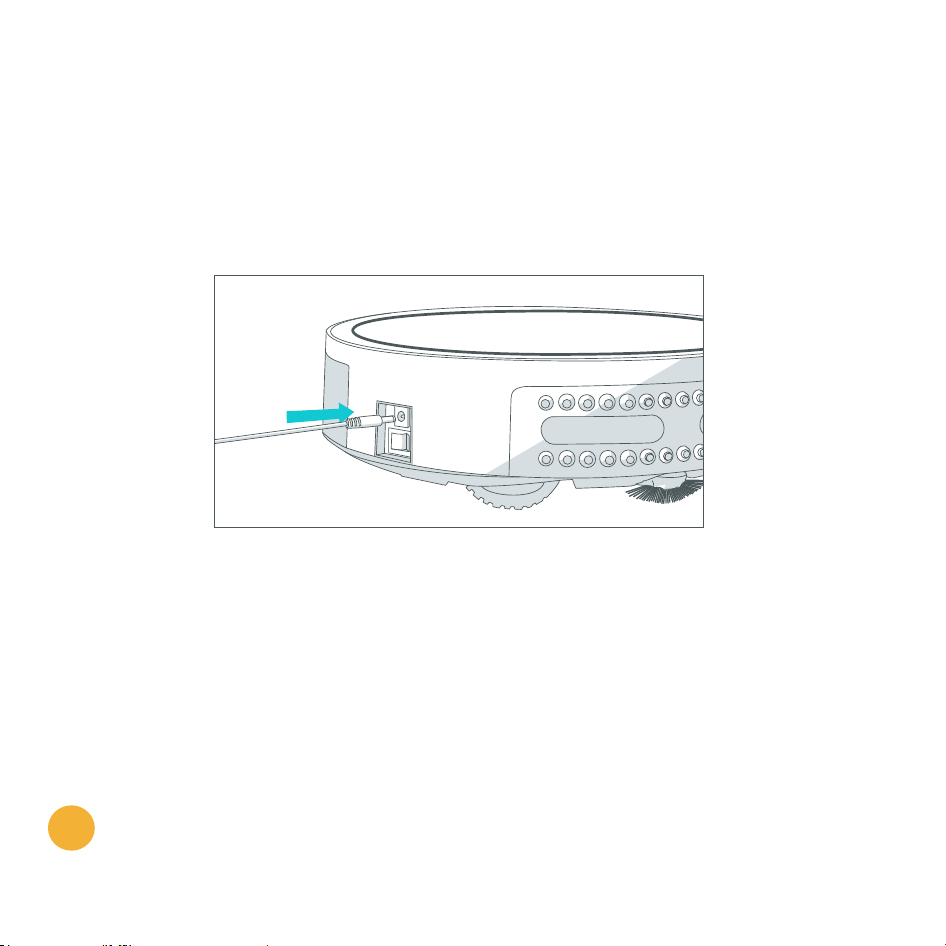

Alternatively, you may charge bObi by plugging the charging adapter into the
inlet above her power switch.
19
bObi is now ready to clean!
Flip her power switch ON, and press the GO! button on her cover or remote.
bObi will clean on her default setting.
If bObi is left idle with her power switch ON, her screen will go blank and she
will enter standby mode. To wake bObi, tap her touchscreen. To fully power off
bObi, flip her power switch OFF.
bObi’s First Clean
Clear the area of small
items and cords before
asking bObi to clean.
20
There are three touchscreen buttons on bObi: GO!, JUICE, and WAFFLE.
These buttons do not work while bObi is on her charging station. To use these
buttons, you must first remove bObi from her charging station.
Alternatively, you can use bObi’s remote to select her cleaning modes without
needing to remove her from her charging station.
Touchscreen Buttons
21
GO!
GO! is bObi’s default cleaning mode. bObi will clean a large area until her
battery reaches 15% capacity, and then she will return to her charging station.
JUICE
JUICE tells bObi to return to her charging station. bObi will not vacuum while
in JUICE mode.
WAFFLE
WAFFLE can be used to clean up small spills of dry substances. bObi will clean
an area of 10 square feet (1 square meter) for about 1 – 3 minutes before she
stops and enters standby mode.
Charging Station
• Position bObi’s charging station against a wall on a hard, flat surface.
• Make sure that there is at least 10 feet (3 m) of open space in front of the
charging station and 2 feet (0.5 m) on either side of the station.
Secure bObi’s charging adapter behind her station so the cord does not
get in her way while she is cleaning.
Charging Station Placement
2 ft (0.5 m)
2 ft (0.5 m)
10 ft (3 m)
25
bObi automatically searches for her charging station when her battery reaches
15% capacity. She will chirp, stop vacuuming, and display JUICE on her cover
while searching. When bObi detects her charging station, she will line herself
up, dock, and begin to charge.
If bObi has trouble finding her station, you likely need to sync the station.
To sync the charging station:
Auto Charging
Flip bObi’s power switch
OFF.
Plug the adapter into the
charging station.
Use the syncing tool that
came in bObi’s box to
press the sync button on
the back of the station.
1 2 3
Direct bObi to her charging station at
any time by pressing the JUICE button
on her cover or remote.
To prolong
bObi’s battery life,
ip her power switch
OFF when not in use.
While still pressing the sync button, flip
bObi’s power switch ON.
bObi will chirp twice to let you know the
sync was successful.
4 5
27

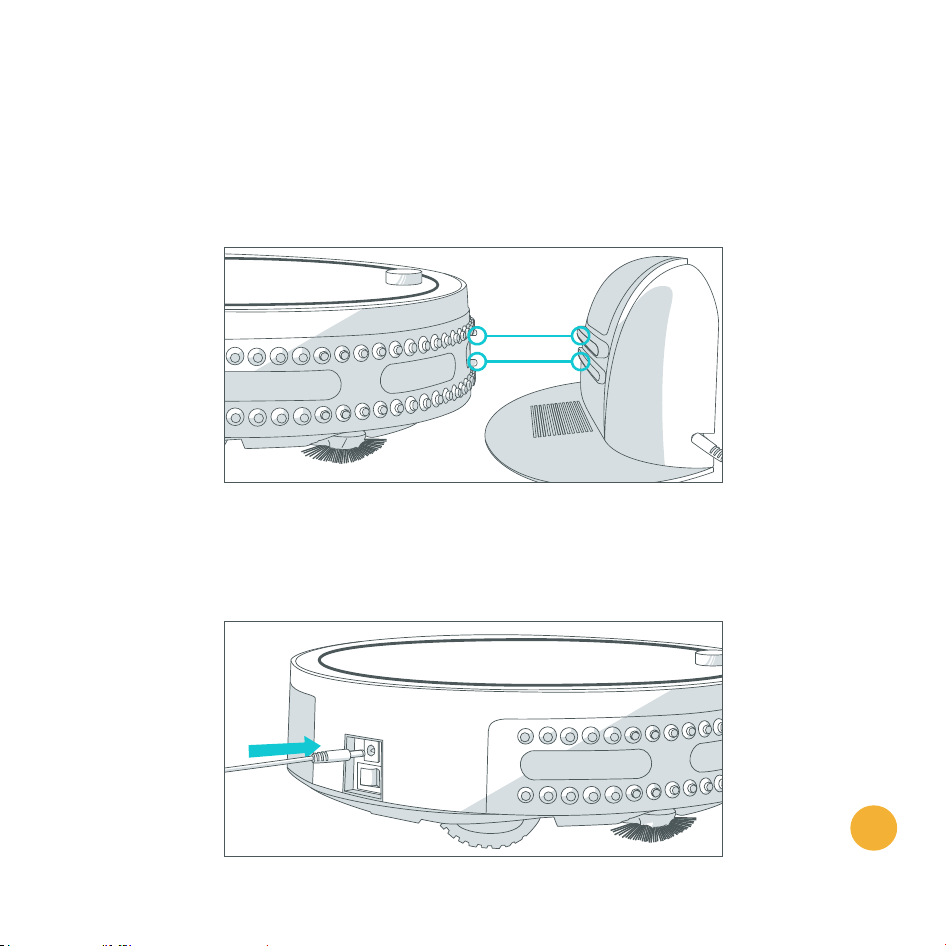

Using the charging station:
• Place bObi on her charging station with the metal nodes on her front resting
against the plates on her station.
Using the adapter:
• Plug the charging adapter directly into the inlet above bObi’s power switch.
Manual Charging
Remote Control
30

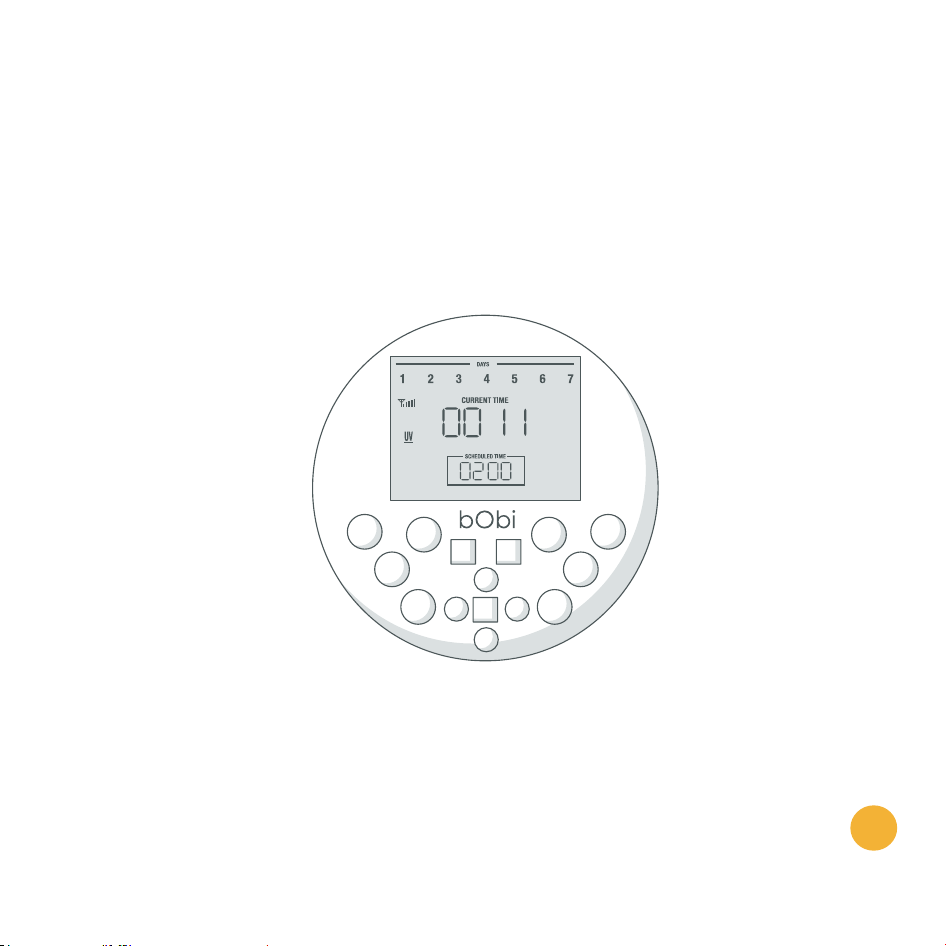

The remote control is your most useful tool when communicating with bObi. It
allows you to set bObi’s cleaning schedule and activate her cleaning modes.
Each time you select an action on the remote, bObi will chirp once before
performing the selected action.
1 CUR TIME (Current Time)
2 SCH TIME (Scheduled Time)
3 ALL/NONE
4 UV
5 HI/BYE
6 OK
7 Navigational Arrows
8 STOP
9 SPEED
10 JUICE
11 WAFFLE
12 GO!
Remote Control
5 6
2 12
1 11
3 10
4 9
7
8
31

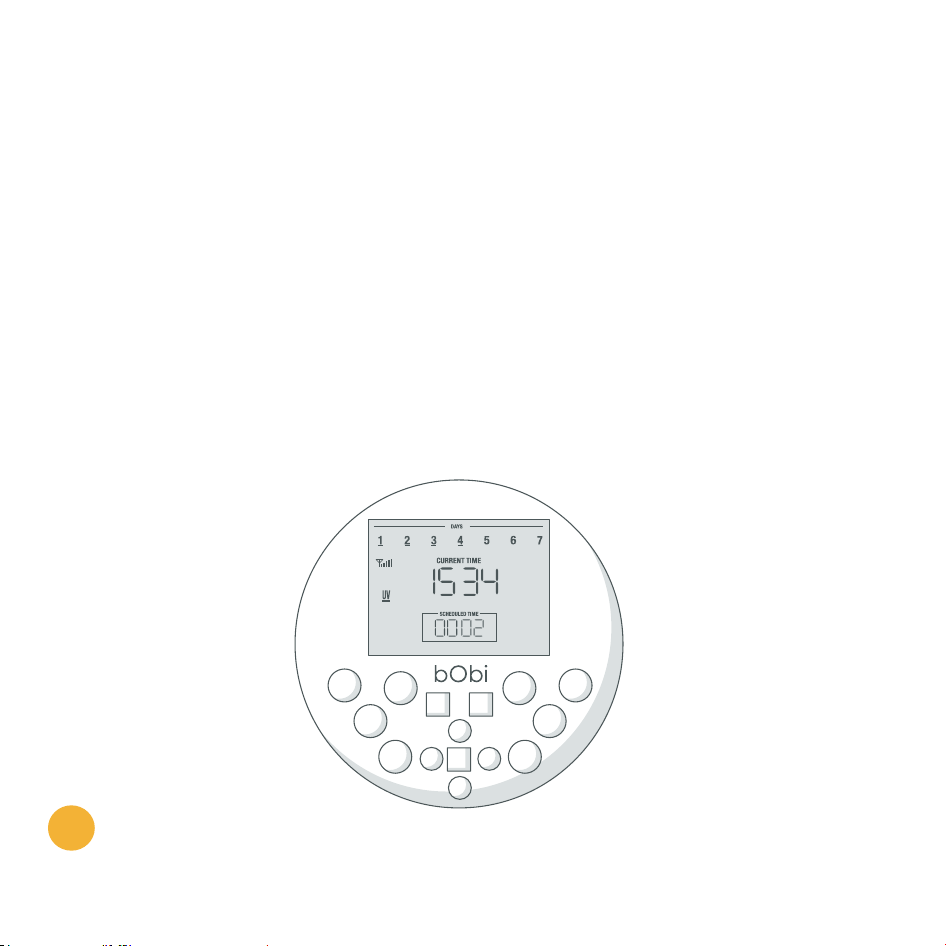

CUR TIME (Current Time)
• Sets the current time and weekday
SCH TIME (Scheduled Time)
• Sets bObi’s cleaning schedule
All/None
• Selects and deselects all weekdays
UV
• Turns bObi’s UV light ON and OFF
HI/BYE
• Puts bObi in and out of standby mode
OK
• Confirms selection
Navigational Arrows
• Guide bObi forward, backward, left, and right
STOP
• Pauses or resumes bObi’s movement
SPEED
• Alternates between bObi’s two speeds
JUICE
• Sends bObi to her charging station
WAFFLE
• bObi will clean a localized mess
GO!
• bObi will clean on her default cleaning mode
32
bObi’s remote control requires two AAA batteries (not included). Do not leave
the batteries in the remote if you are not using it on a regular basis. Keep the
remote at room temperature. If bObi is not responding to her remote, it likely
needs to be synced.
To sync bObi’s remote:
Syncing bObi with her Remote
Flip bObi’s power switch
OFF.
While holding down the
OK button on bObi’s re-
mote, flip bObi’s power
switch ON.
bObi will chirp twice to let
you know the sync was
successful.
1 2 3
If bObi does not chirp, repeat the process.
33
Using the navigational arrows:
Hold down the remote’s navigational buttons to keep bObi moving in the desired
direction. Release the button when you are done manually driving bObi.
bObi’s edge sensors are located along her front, not along her back. Do not
reverse bObi towards edges, as she will fall.
Cleaning
Schedule
36
bObi can be programmed to start cleaning on the days and time of your
choosing through her remote control. To set up bObi’s cleaning schedule, you
must first set the current time and weekday on her remote.

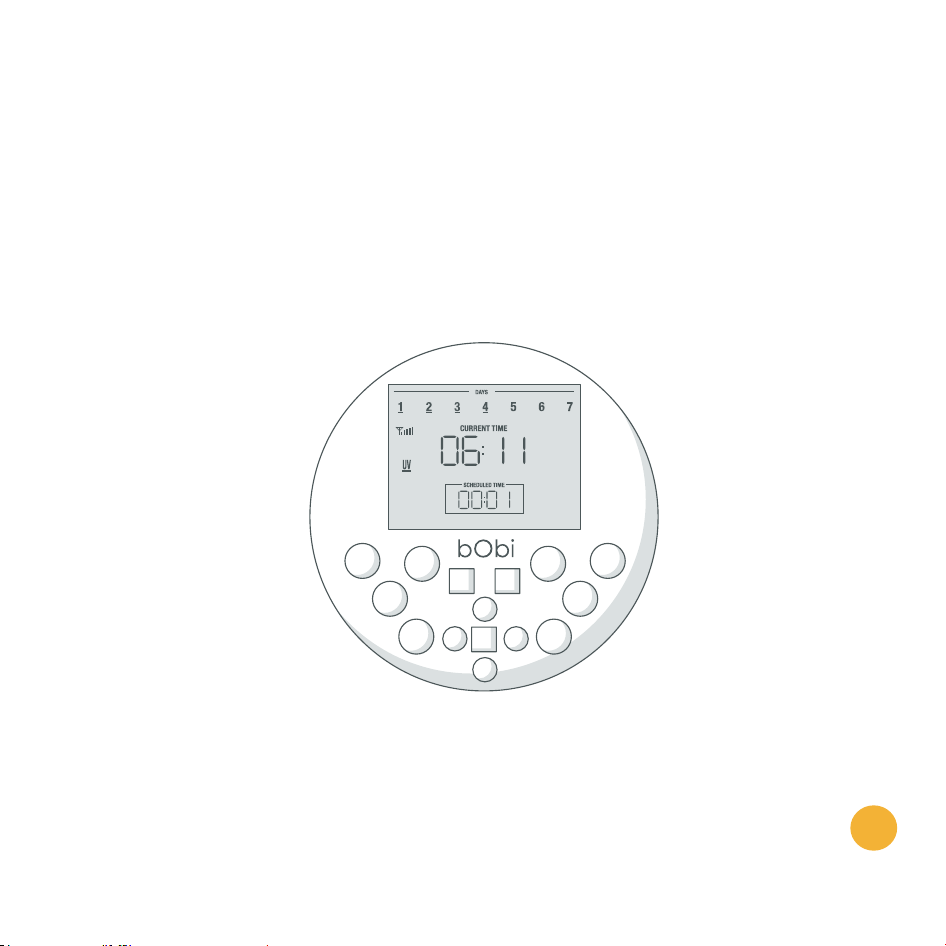

1 Weekdays
2 Signal Indicator
3 UV Indicator
4 Speed Indicator
5 Current Time
6 Scheduled Time
Set bObi’s Cleaning Schedule
DAYS
CURRENT TIME
1234567
SCHEDULED TIME
SPEED
UV
1
5
6
2
3
4
37
Weekdays
• Numbers 1 through 7 at the top of the screen represent days of the week:
1 = Monday 2 = Tuesday 3 = Wednesday 4 = Thursday
5 = Friday 6 = Saturday 7 = Sunday
Signal Indicator
• Lights up when bObi and her remote communicate
UV Indicator
• Indicates if the UV light is on or off
Speed Indicator
• Indicates bObi’s current cleaning speed
Current Time Indicator
• Displays the current time
Scheduled Time Indicator
• Displays bObi’s scheduled cleaning time
bObi uses a 24-hour clock. If you want bObi to start cleaning at 8:00 AM, set
her scheduled time to 08:00. If you want her to start at 8:00 PM, set it to 20:00.
8:00 AM is the default time. This time is displayed after installing new batteries
in the remote.
bObi will start cleaning on the scheduled
time even if her dustbin or brushes need
cleaning. Remember to regularly check
bObi’s dustbin and brushes to make
sure they are clean.
To set the current time on bObi’s remote:
Setting the Current Time
Make sure bObi’s power
switch is ON. Press the
CUR TIME button on bObi’s
remote.
The first hour digit will start
flashing. Use the FWD and
BACK buttons to adjust
the first hour digit.
Press the RGHT button to
move on to the next digits.
Use the FWD and BACK
buttons to adjust the hour
and minute digits.
1 2 3
39
Press the FWD and BACK
buttons to scroll through
the weekdays.
When you reach the
current weekday, press
CUR TIME again to save
your settings.
Press the RGHT button
until the frame around
number 1 at the top of the
screen starts to flash.
5 6 4
40

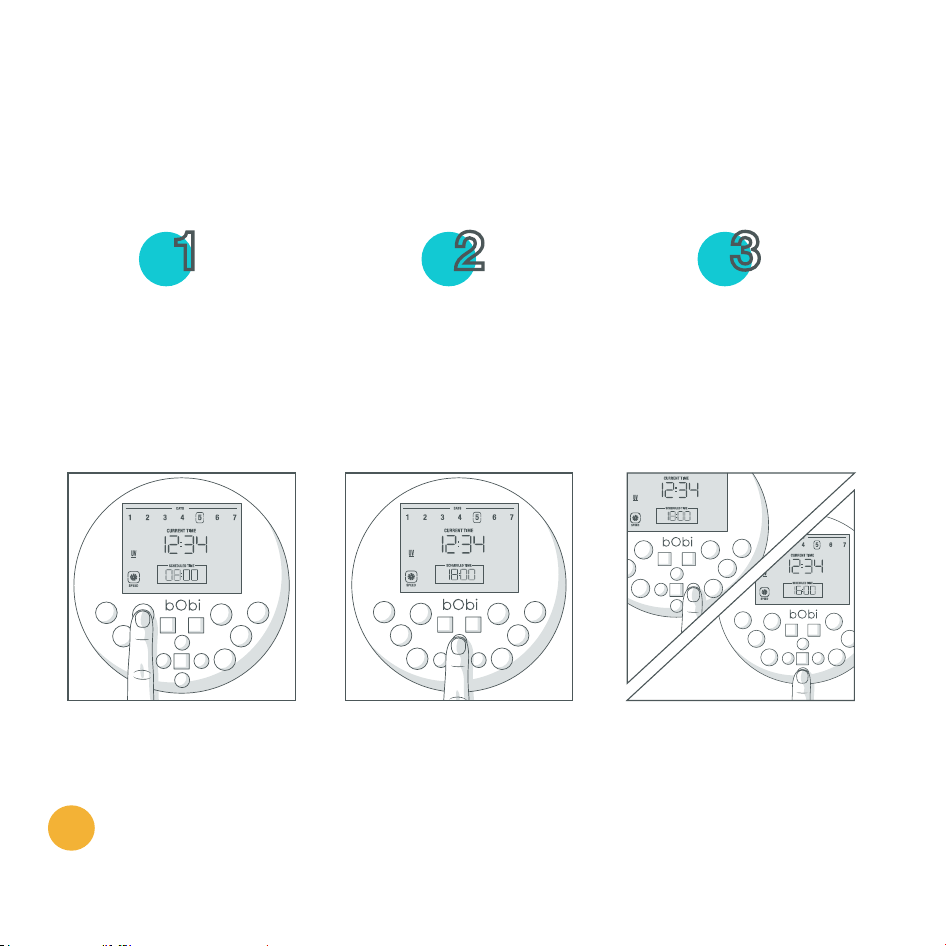

To set the cleaning time and days:
Setting a Cleaning Schedule
Make sure bObi’s power
switch is ON. Press the
SCH TIME button on bObi’s
remote.
The first hour digit under
SCHEDULE TIME will start
flashing. Use the FWD and
BACK buttons to adjust
the first hour digit.
Press the RGHT button to
move on to the next digits.
Use the FWD and BACK
buttons to adjust the hour
and minute digits.
1 2 3
41

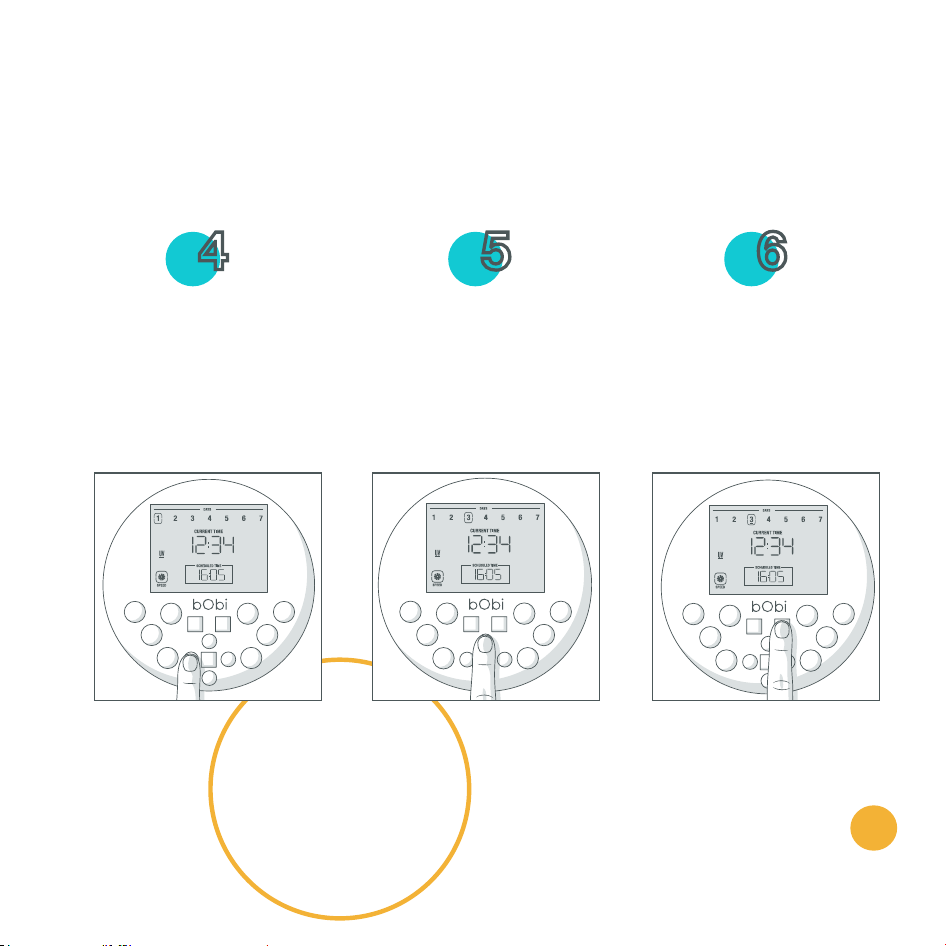

If you’d like bObi to clean
every day, press the ALL/
NONE button. Press the
ALL/NONE button again to
deselect all days.

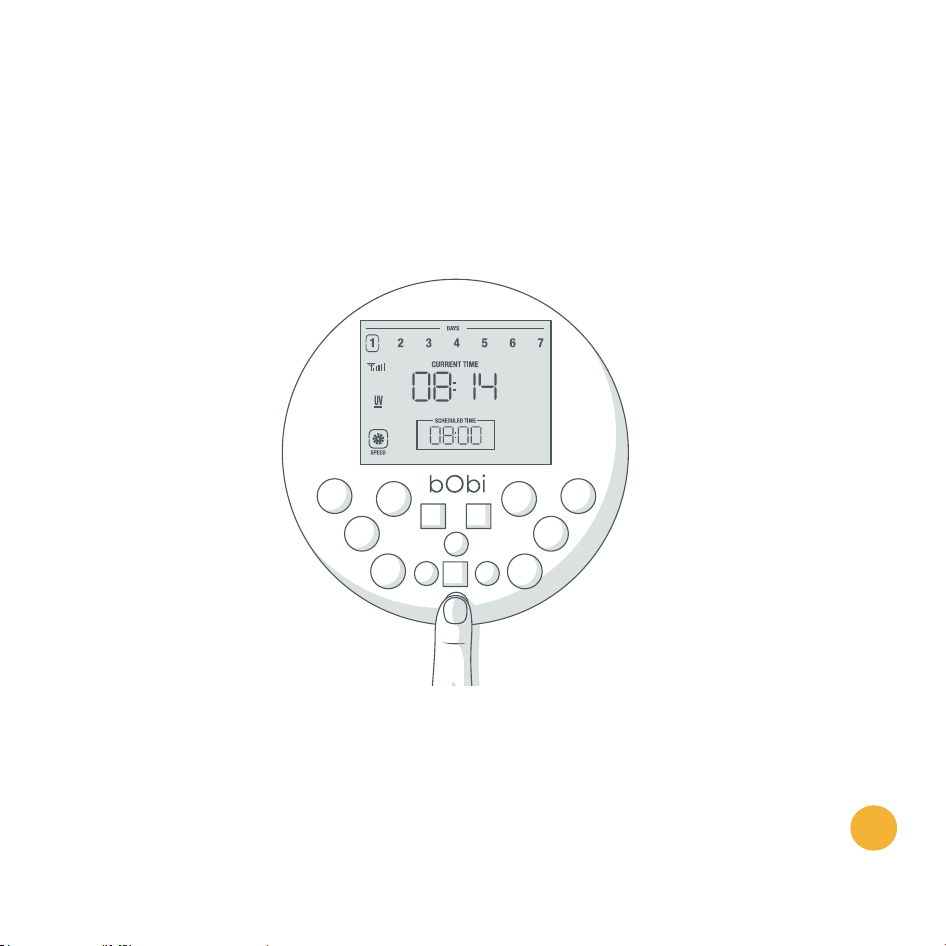

Press the RGHT button until
the frame around the first
day of the week, number 1,
begins to flash.
Press the FWD and BACK
buttons to scroll through
the weekdays.
Press OK to select a day
while the frame around
that day is flashing. Days
that are selected are un-
derlined. Press OK again
to deselect a day.
4 5 6
42

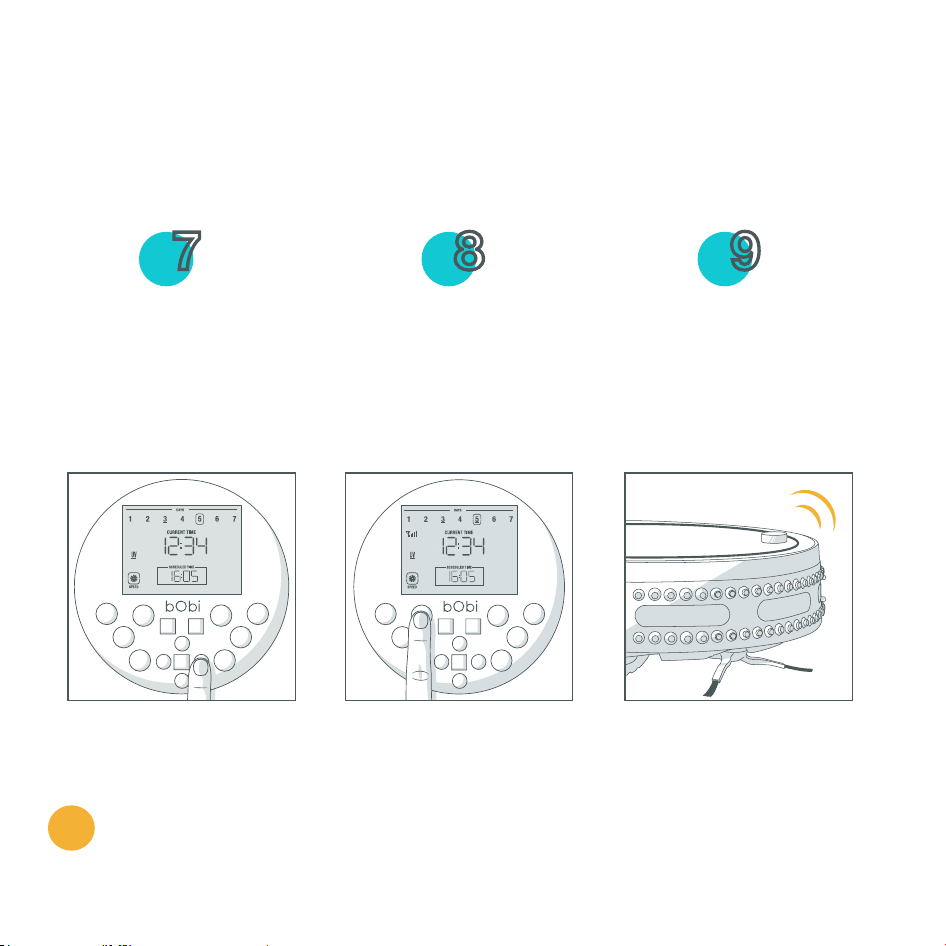

Use FWD and BACK to scroll
through weekdays and press
OK to select or deselect
cleaning for each day.
Press SCH TIME to save
your settings.
bObi will chirp to confirm
she has saved her new
schedule.
7 8 9
43

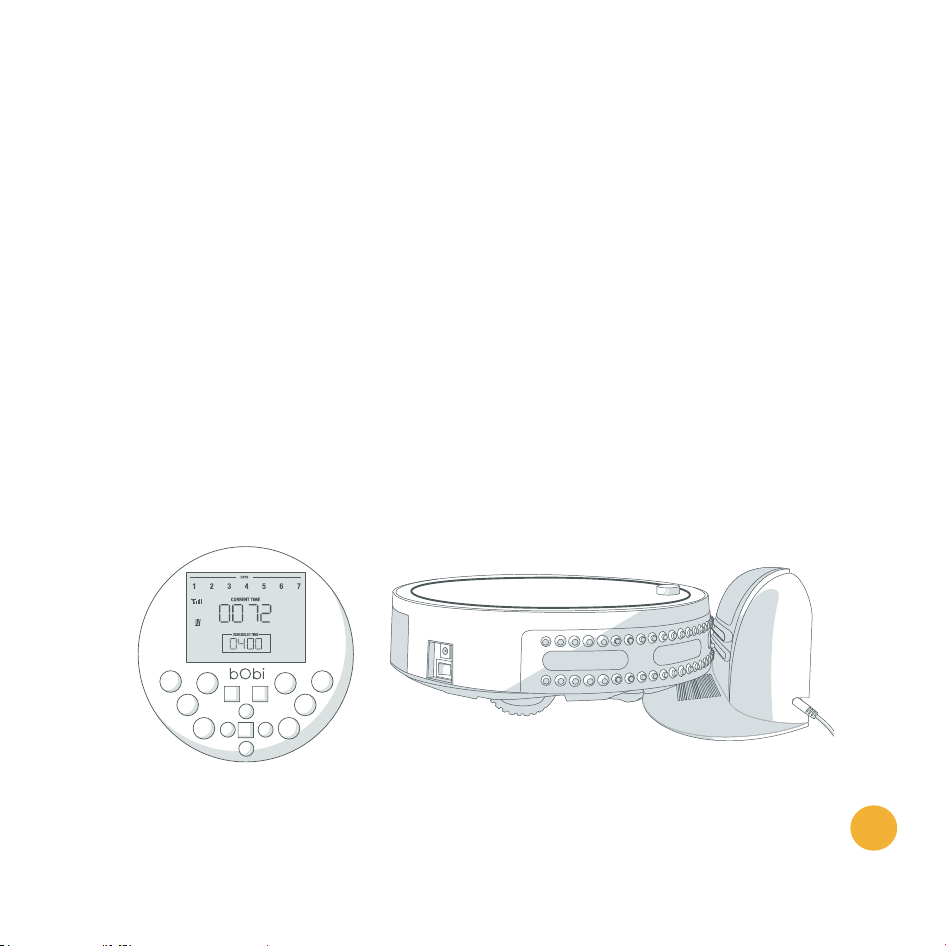

On auto-resume mode, bObi leaves her charging station EVERY TIME her battery is
full to perform “back-to-back” cleaning cycles.
To enable auto-resume:

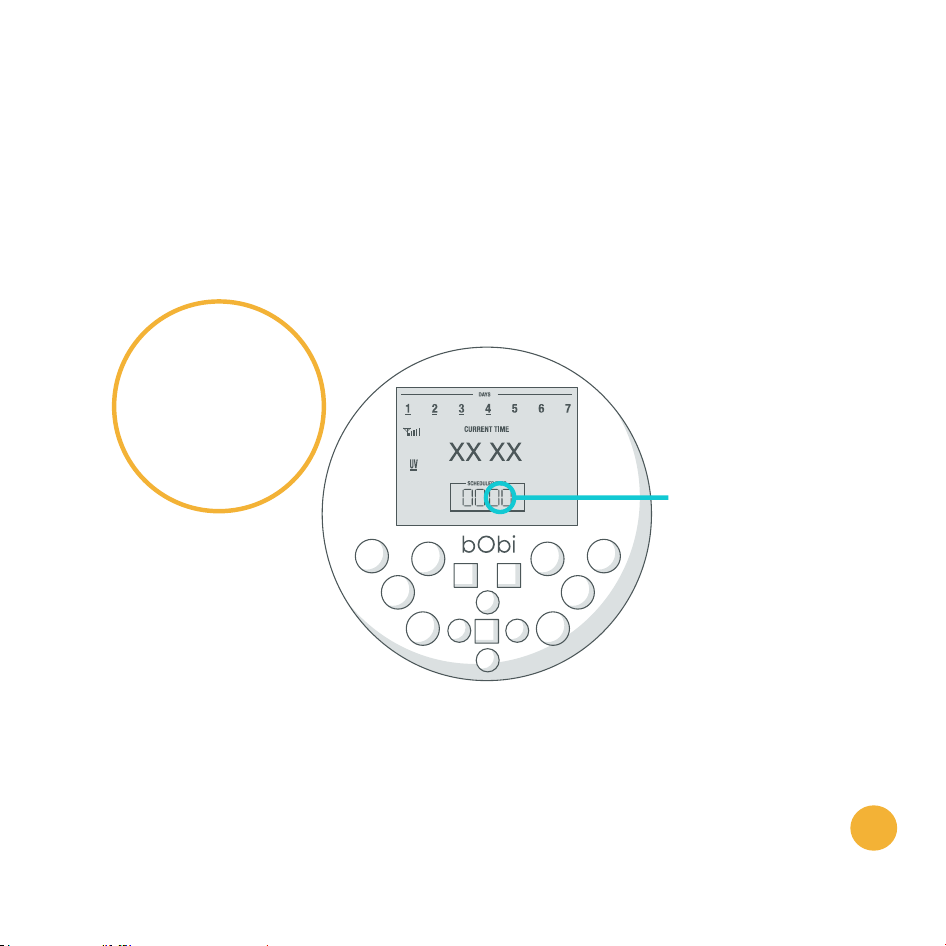

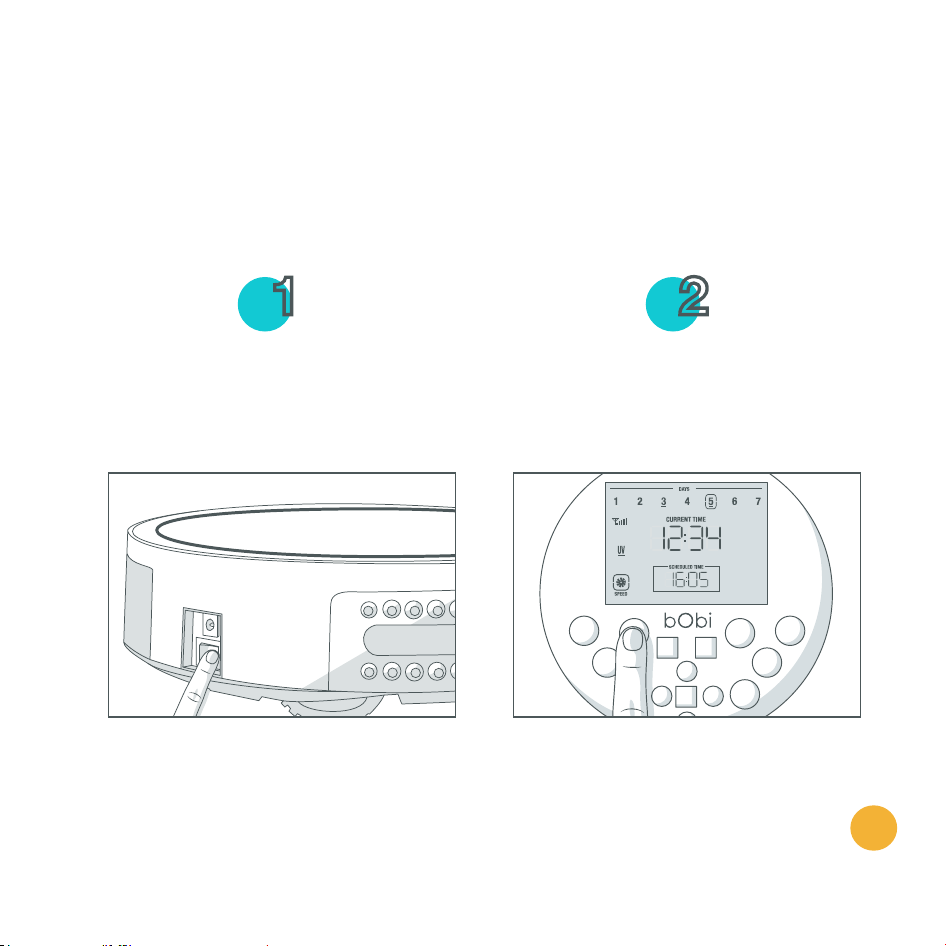

Auto-Resume
Make sure bObi and her remote are
synced and bObi’s power switch is ON.
Press the SCH TIME on bObi’s remote.
The first hour digit under SCHEDULE
TIME will start flashing.
1 2
44

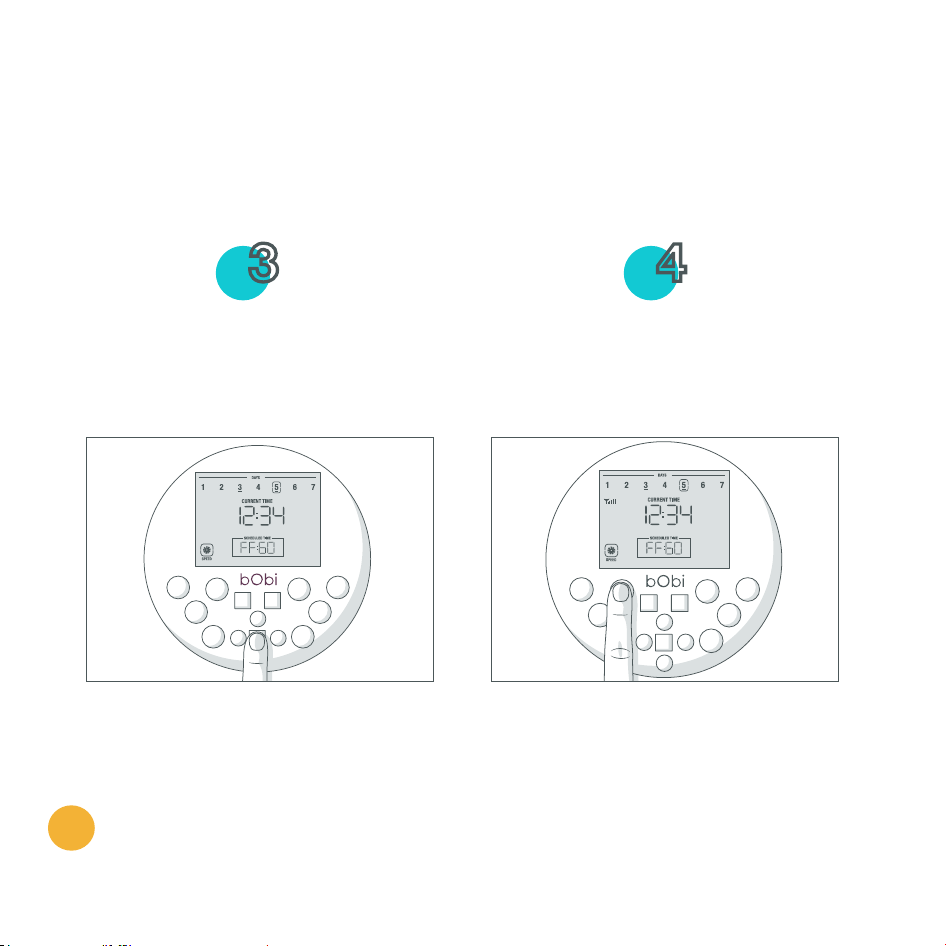

Press the STOP button and “FFG0”
— finish fueling and go — will appear on
the remote’s screen.
Press the SCH TIME button again to
save your settings.
3 4
45

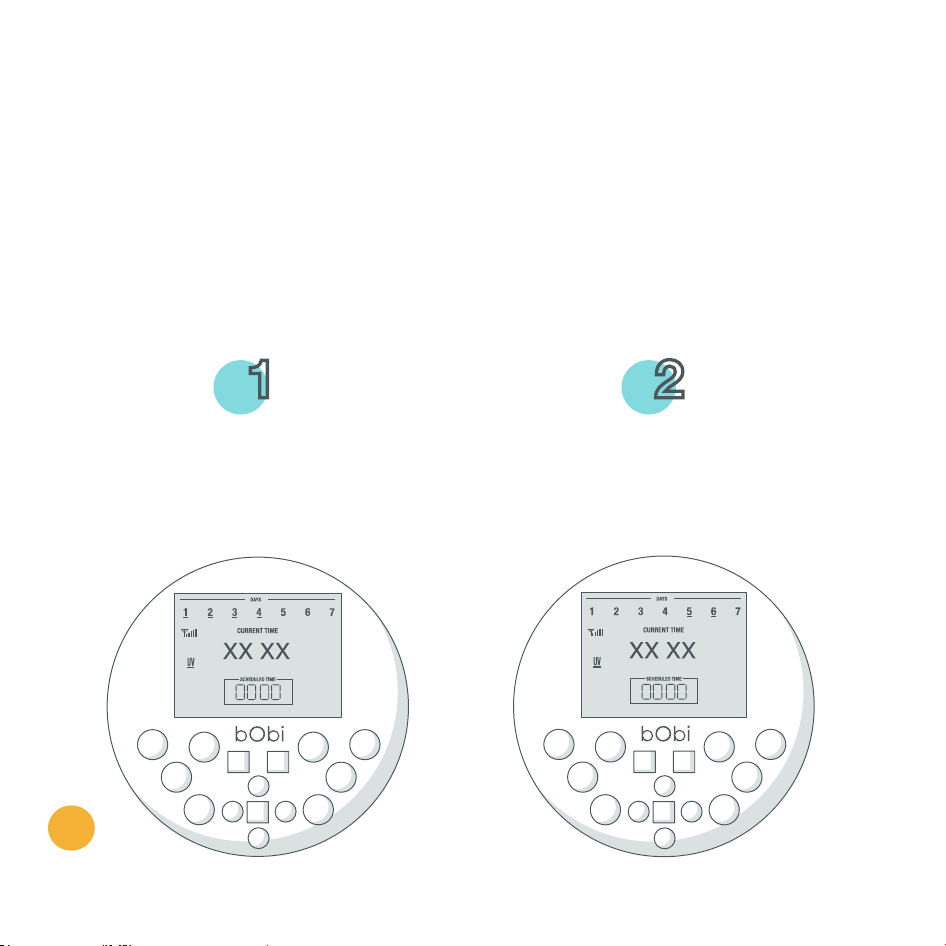

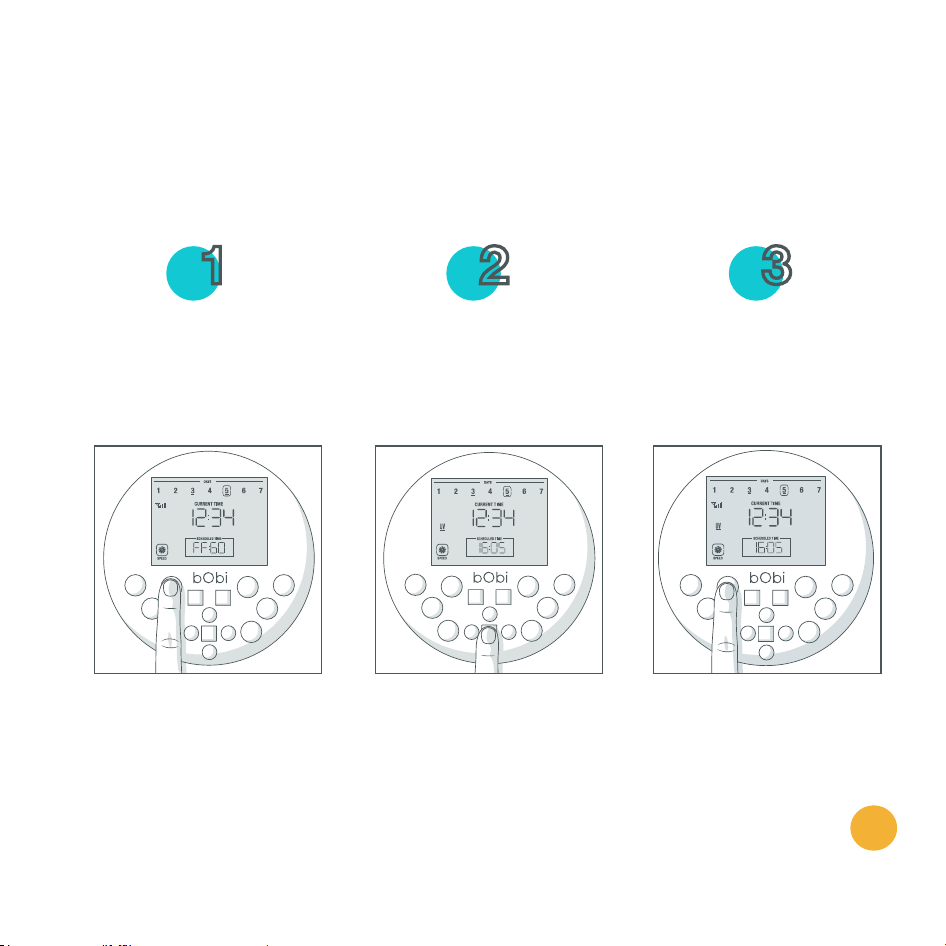

To disable auto-resume:
Press the STOP button
and “
FFG0” will reset to
the last saved time.
Press the SCH TIME
button again to save your
settings.
Press the SCH TIME
button on the remote.
2 3 1
Parts &
Maintenance
48
bObi comes with a mini-mop attachment and 2 microfiber mopping cloths,
which can be used dry or damp. bObi’s mini-mop can be used to remove small
stains from hard floors such as tile, laminates, and hardwood.
To use bObi’s mini-mop:
Mini-Mop
Align the two prongs of the
mini-mop attachment with
their notches on the under-
side of bObi’s dustbin.
Hold the attachment per-
pendicular to bObi and
press down gently until
the attachment snaps into
place.
Lay the attachment flat
along bObi’s underside
and lock it in place.
1 2 3
49
Remove the mini-mop
attachment when bObi
cleans rugs and carpets.
To detach bObi’s mop:
Grip the button on the back
of the mop attachment and
pull up to unlock.
Lift the attachment until it
is perpendicular to bObi,
then pull up to detach.
Remove the mopping
cloth from the mini-mop
attachment and wash
as needed.
1 2 3
50
Do not remove the
dustbin while bObi is
upside down.
Use the cleaning tool to remove remaining dirt and dust from the dustbin.
To use bObi’s mini-mop:

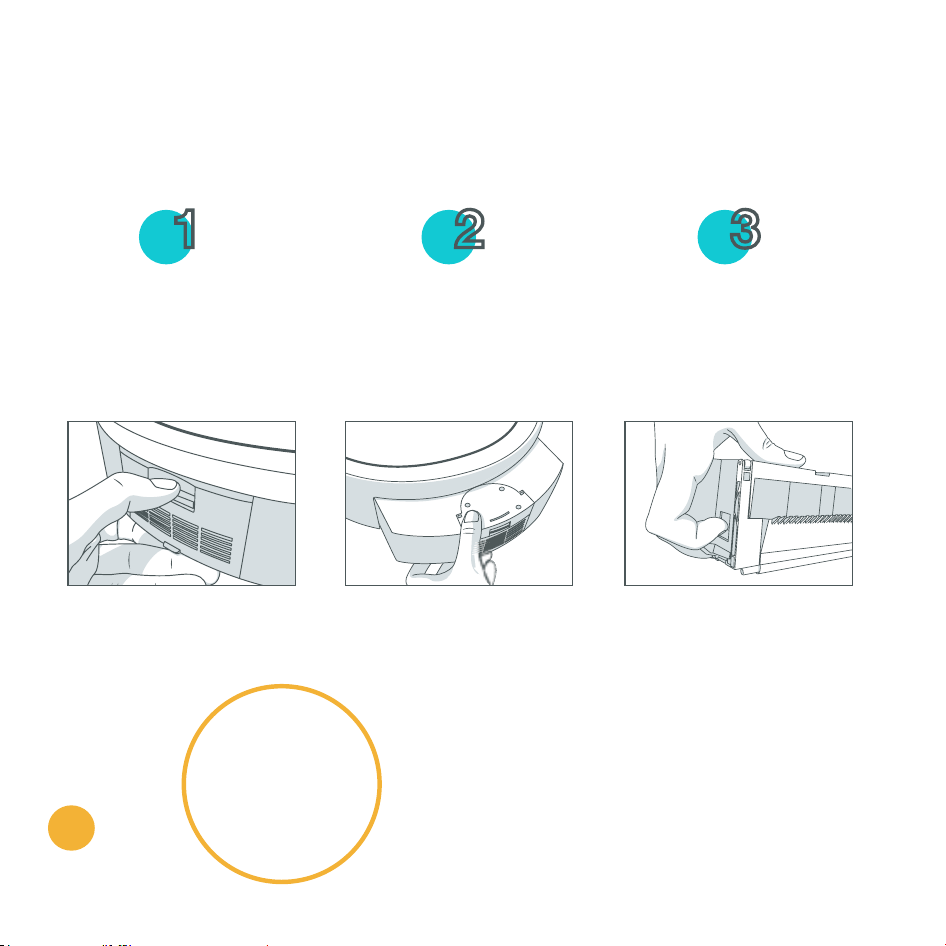

Dustbin
Hold down the eject
button on the back of the
dustbin
Pull the dustbin out.
Pull up the two color
clips on either side of the
dustbin with both hands.
This will release the gate.
1 2 3
51
It is recommended that
you change bObi’s filter
every 6 months if you
are using her regularly.
The filter captures fine particles and allergens, and prevents them from escap-
ing back into the air.
To clean the filter:

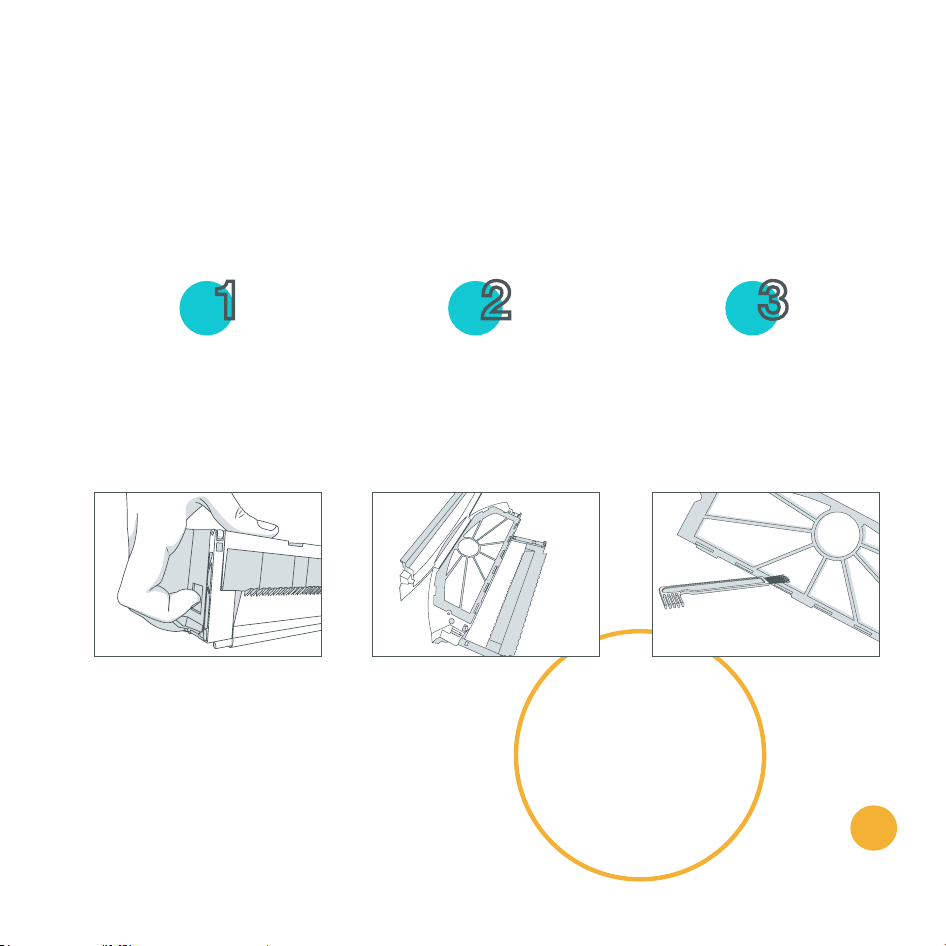

Filter
Eject the dustbin and
release the gate.
Flip the dustbin upside-
down and open the clear
filter cover.
Remove the filter and dust
it off using bObi’s cleaning
tool.
1 2 3
52
Do not wash or wet
the vacuum motor.
With the motor and filter removed, the dustbin may be washed with water.
One of bObi’s best features is her washable dustbin. To wash the dustbin, first remove
the vacuum motor and filter.

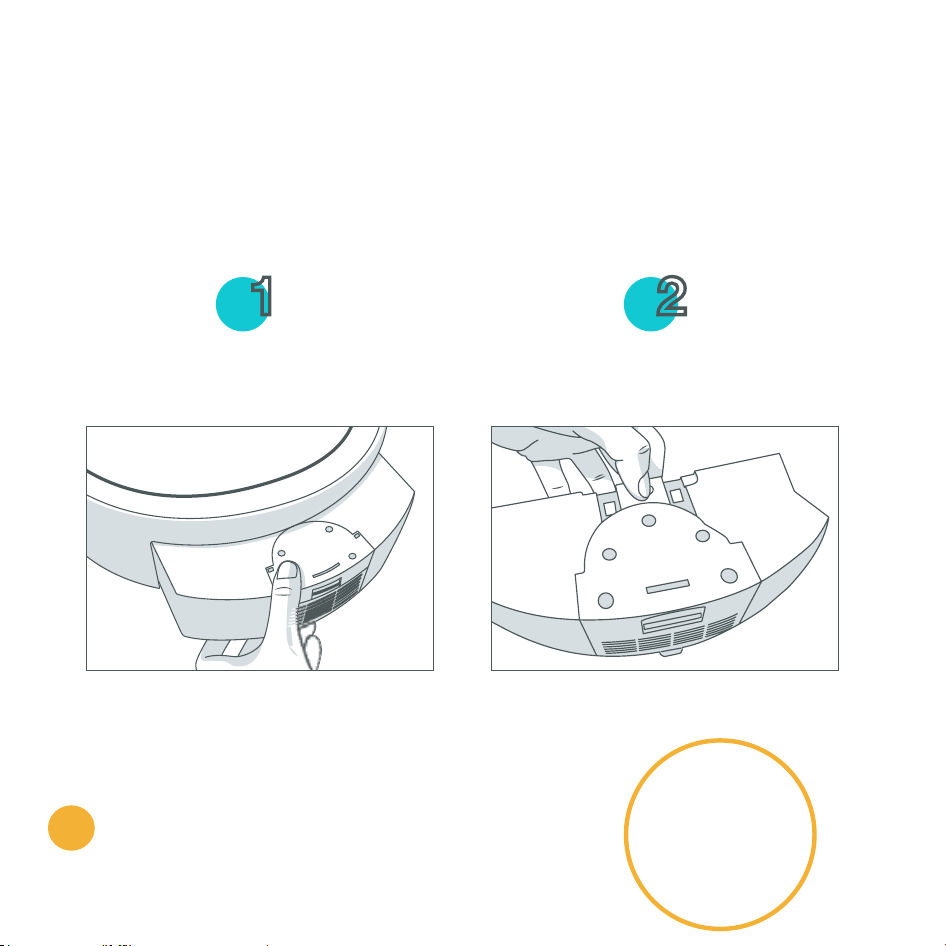

To remove the vacuum motor:
Washing the Dustbin
Eject the dustbin, and remove the filter. Push the button on top of the dustbin.
1 2
53

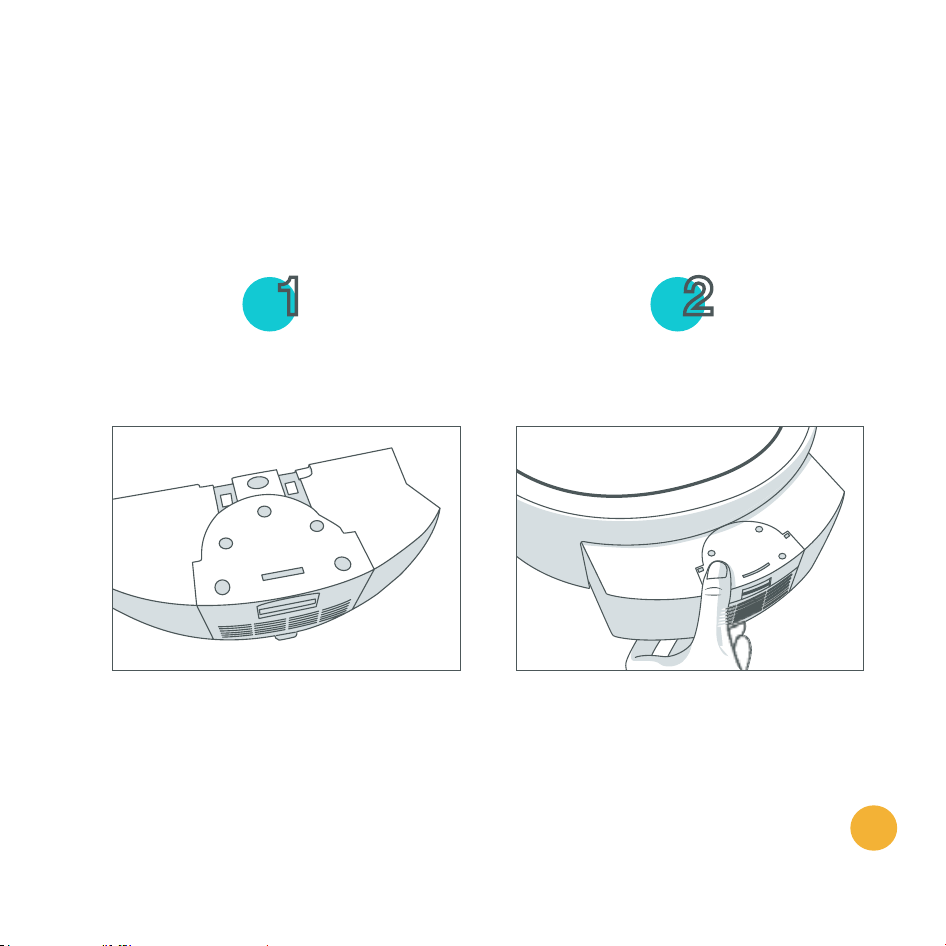

To reinstall the dustbin:
Replace the filter and vacuum motor. Slide the dustbin into bObi until it locks
properly.
1 2
54
bObi has one bristled brush and one rubber brush. It is recommended that you
remove and clean bObi’s main brushes every few cleaning cycles.

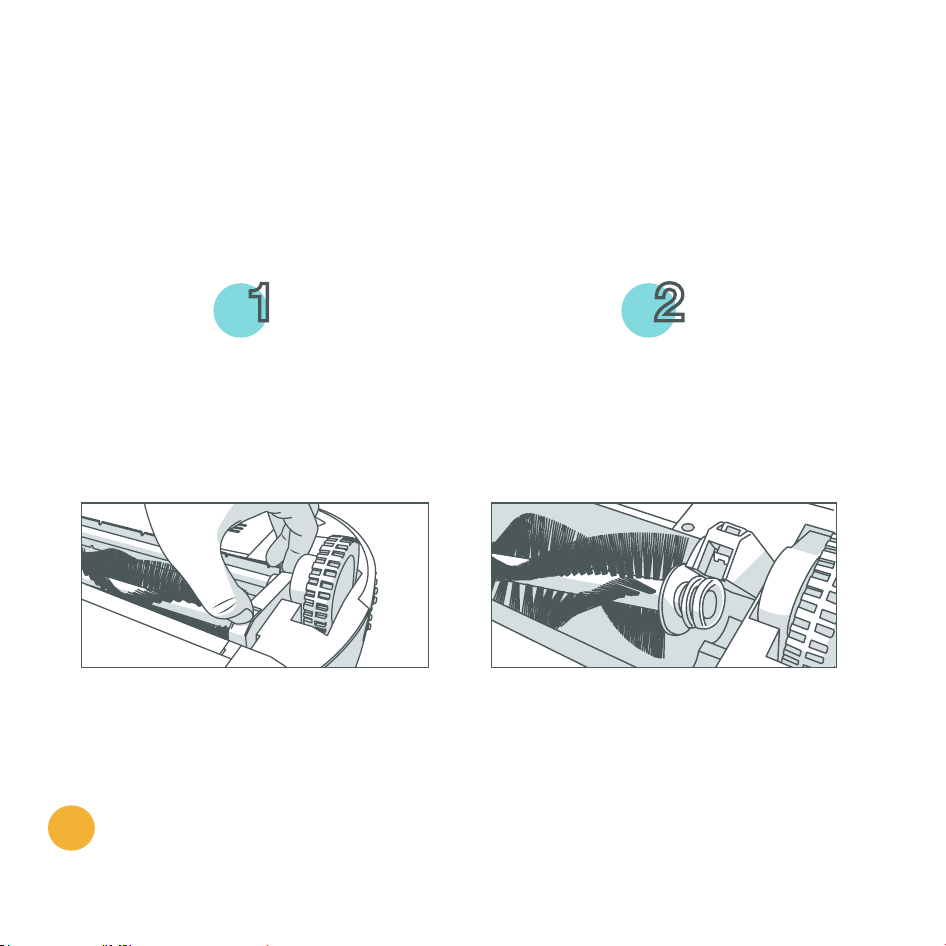

To remove and clean the main brushes:
Main Brushes
Flip bObi over and press the latch on
the side of the main brushes.
Lift the locking bar up and remove the
main brushes.
1 2
55

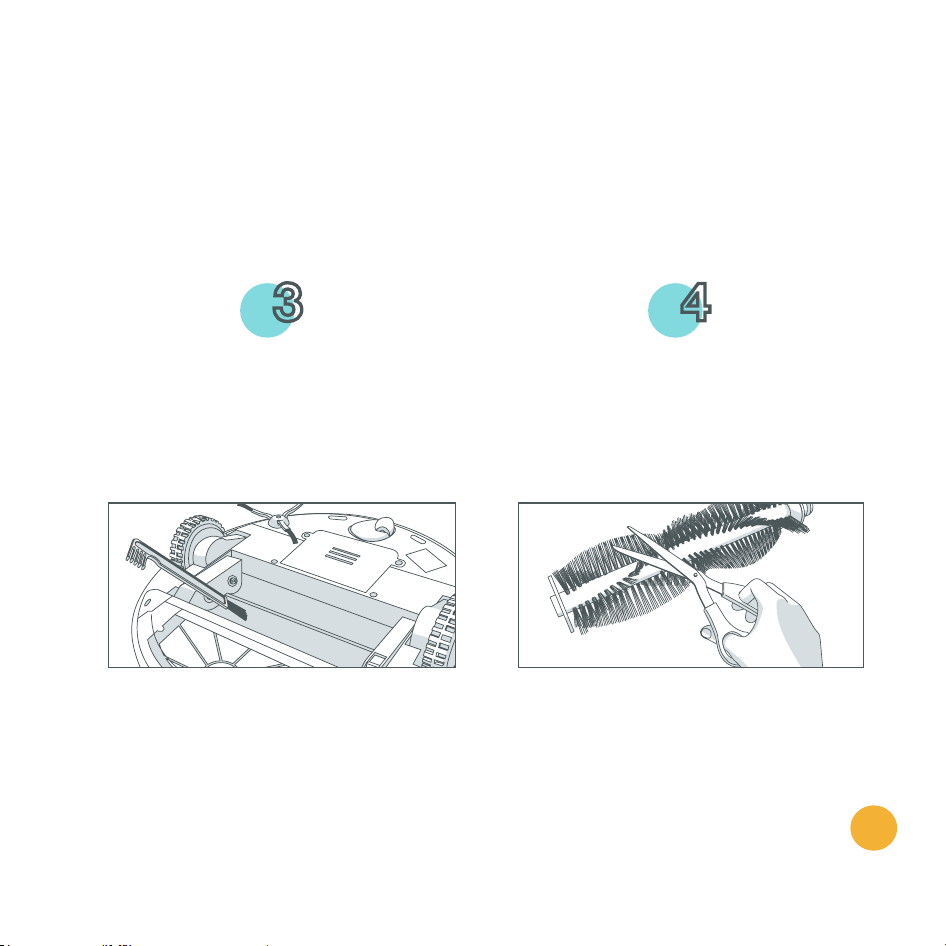

Use the cleaning tool to remove debris
from the ends of the brush as well as the
brush compartment.
You may use a pair of scissors to cut
away any hair or threads wrapped
around the brush, or a pair of tweezers
to remove congestion from the notches
where the main brush is held.
3 4
56

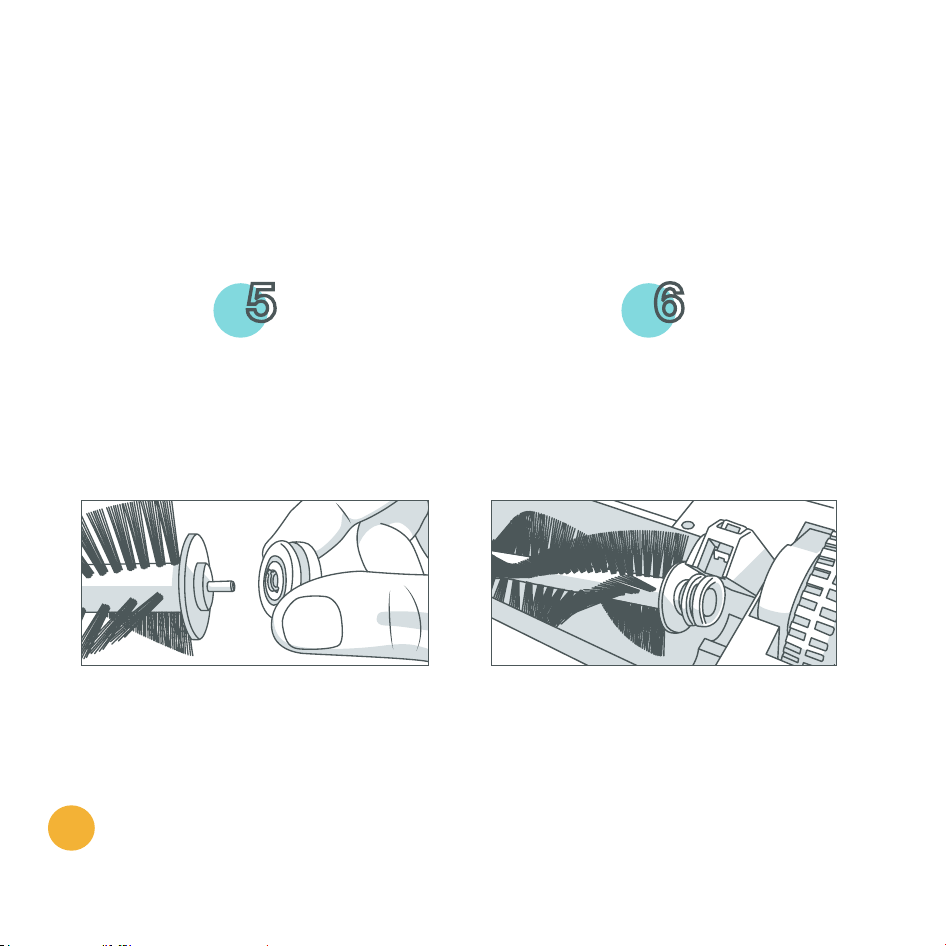

Remove and clean the rubber brush
ends. Make sure the metal cores remain
in place before replacing the brush ends.
Starting with the rubber brush, replace
the brushes. Insert the socket ends first,
and lower the rubber ends into place
under the latch bar.
5 6
57

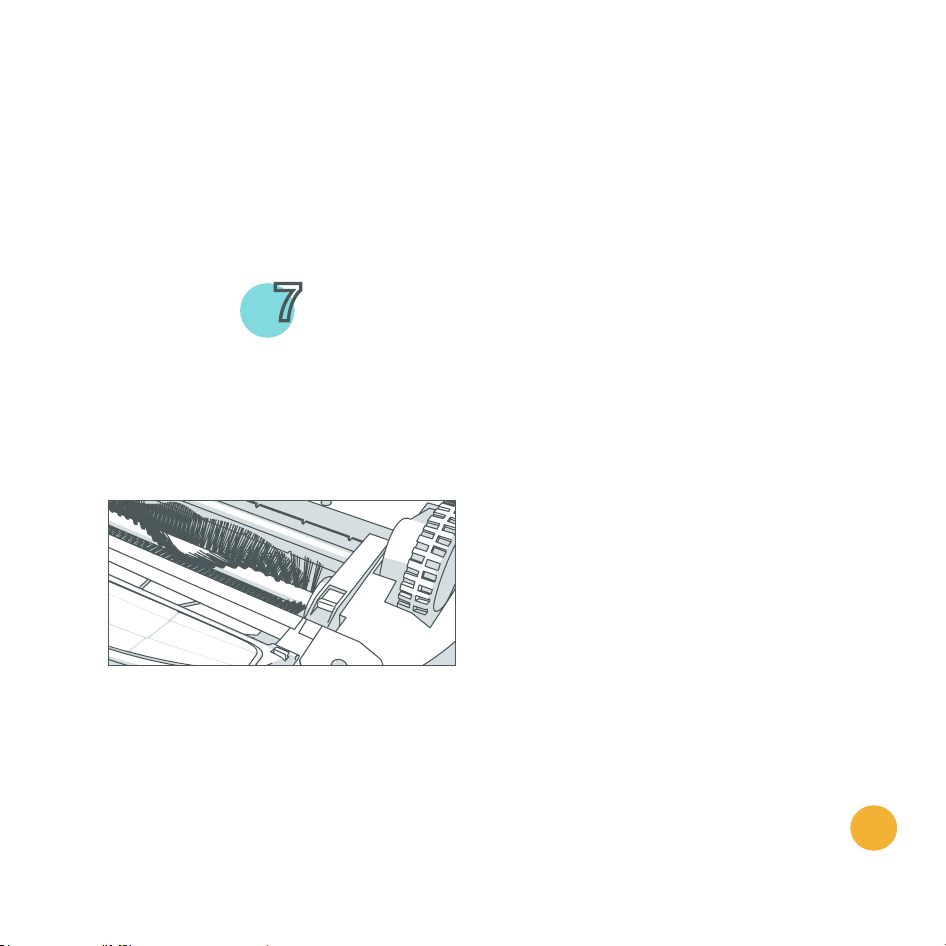

Lower the locking bar until it clicks and
locks into place.
7
58
bObi uses a side brush to clean along corners and walls. Dirt and dust trapped
around the brush can hinder its ability to move freely and reduce bObi’s efficiency.
To clean the side brush:

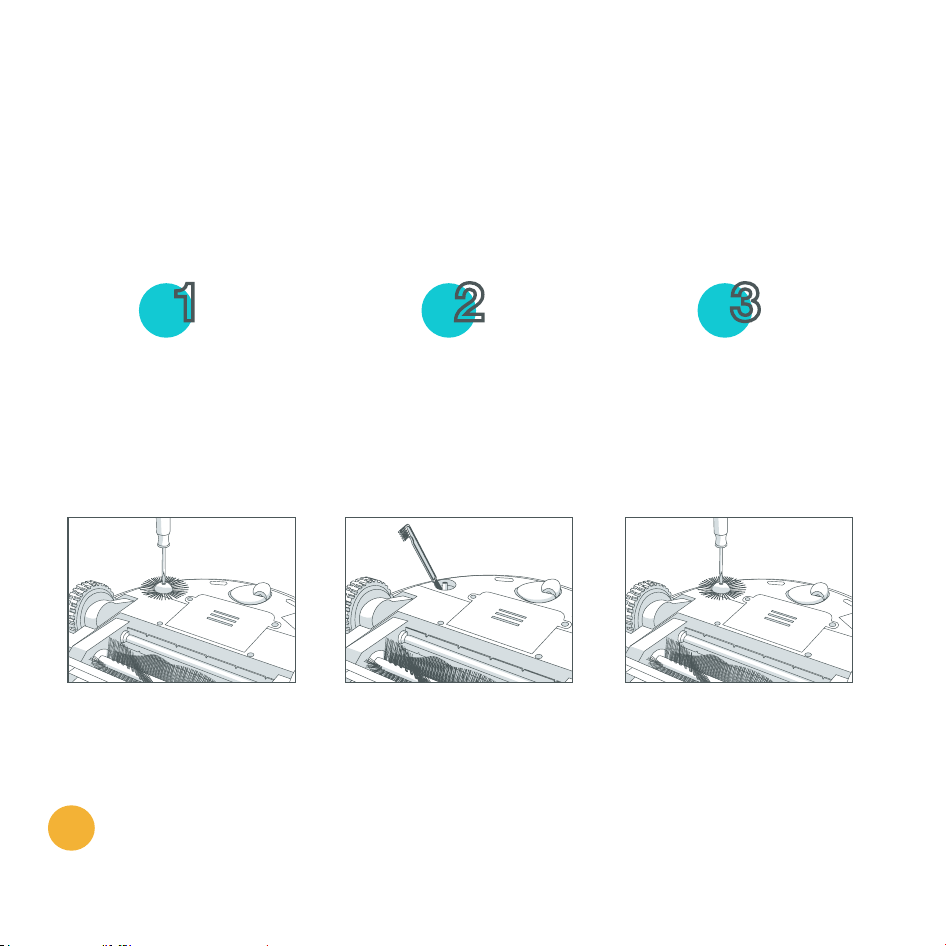

Side Brush
Remove the side brush
using a Phillips head
screwdriver.
Use the cleaning tool to
brush off hair tangled
around the side brush, as
well as the socket where
the side brush is held.
Replace the side brush
and retighten the screw.
1 2 3
59
bObi’s UV light is activated by default. The UV light is only visible while she
is cleaning.
To toggle the UV light ON and OFF:
• While bObi is cleaning, press the UV button on the remote.
UV Light
Do not look directly
into the UV light.
60

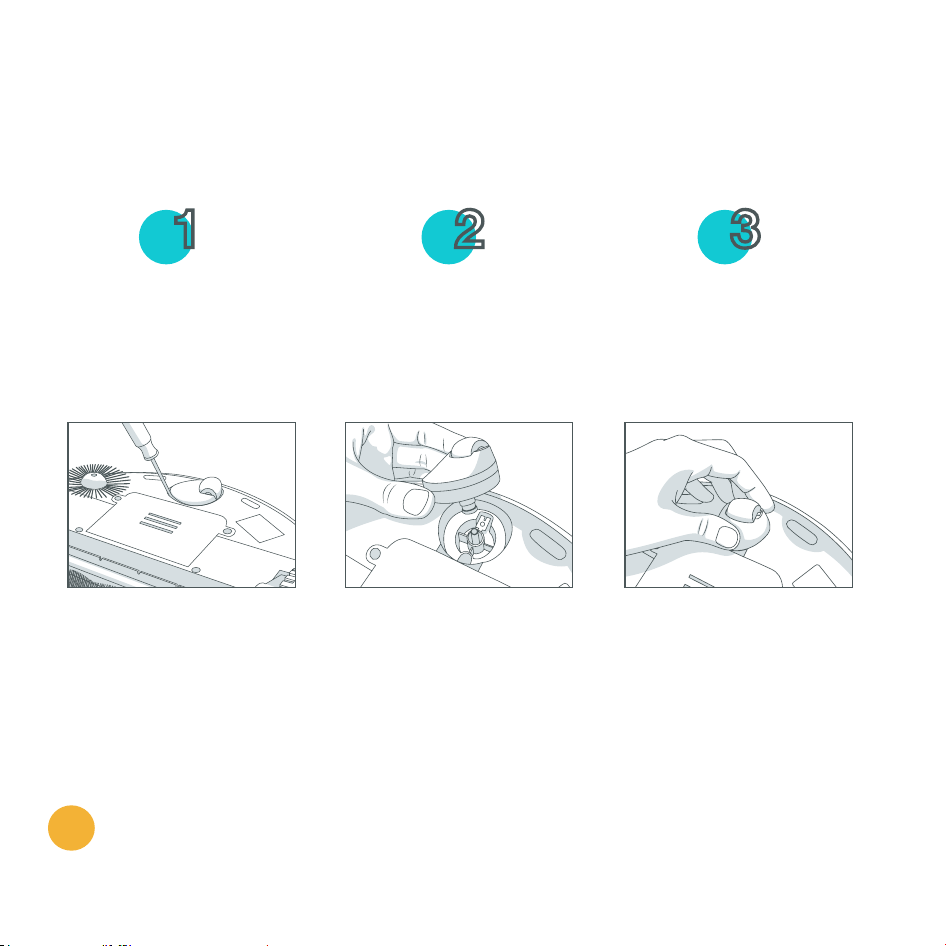

To remove and clean the front wheel:
Front Wheel
Using a flat head screwdriver
for leverage, pop the wheel
out of its socket.
Clean the wheel and the
socket where it is held.
Replace the wheel and
push it down until it locks
into place.
1 2 3
61

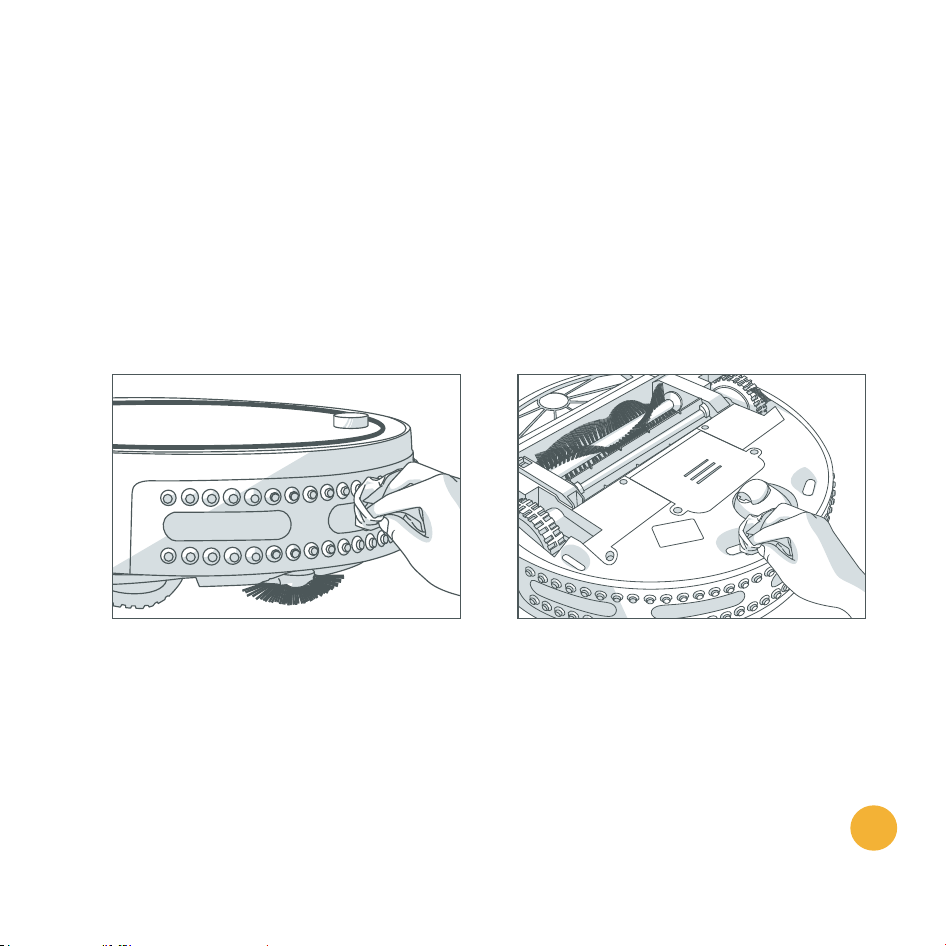

Dirt and dust on bObi’s wall and edge sensors can reduce her performance.
Regularly cleaning these sensors ensures that bObi keeps working at her best.
To clean bObi’s sensors:
• Wipe the wall and edge sensors using a cloth slightly dampened with cold
water or rubbing alcohol.
Sensors
62
Dark-colored carpet and certain floor patterns may seem like edges to bObi’s
edge sensors. If bObi displays Error Code 01 (Er 01) on her remote while working
on your carpet, you may need to “blindfold” her using the blindfold stickers that
came in her box.

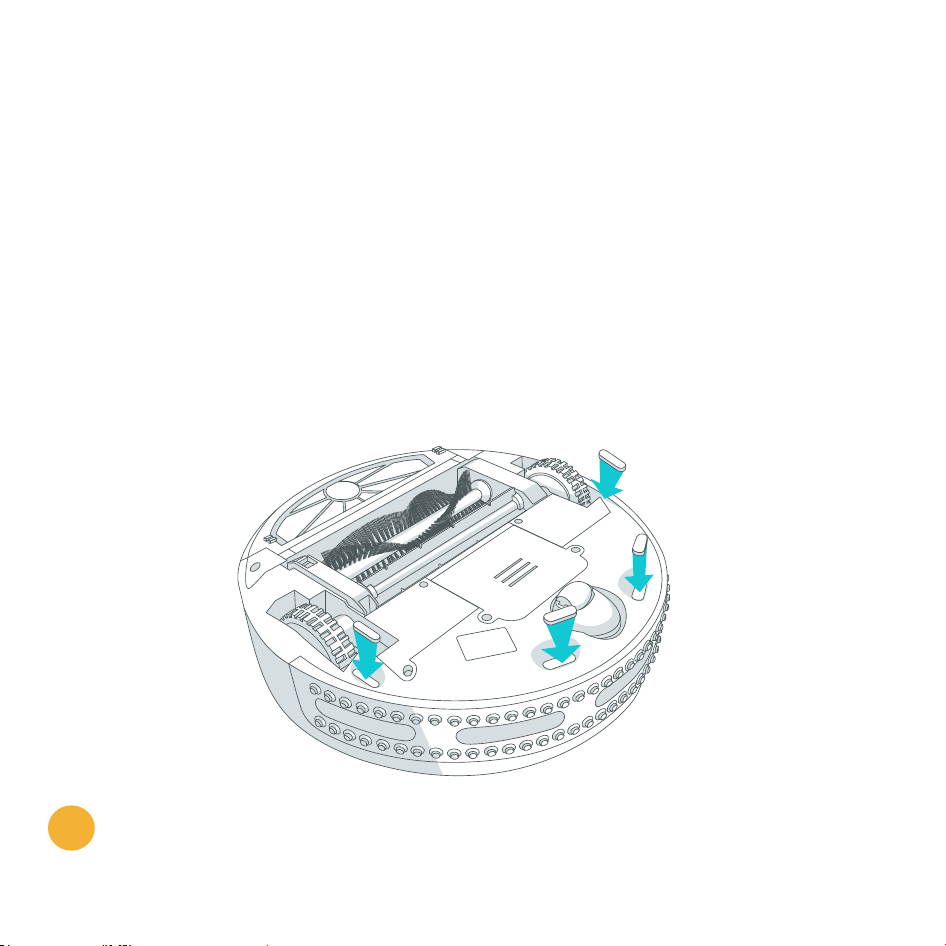

To blindfold bObi:
• Peel off the backs of each blindfold sticker and place one onto each of
bObi’s 4 edge sensors. Make sure each sensor is completely covered.
• Remember, while bObi is blindfolded, she will not be able to detect stairs
or edges!
Blindfold Stickers
63
bObi should not be left unused with her power switch ON for more than 5
days. If you are not using bObi for an extended period of time, switch her
OFF. Then, unplug the charging station, remove bObi’s battery, and store
everything in a dry place at room temperature.
Storing
Do not leave bObi
in direct sunlight.
Troubleshooting
& Checkup Test
66
When bObi faces an uncomfortable situation, she stops and displays ER and a
two-digit number on her remote. Each number corresponds to a certain issue
bObi is having.
If after attempting the suggested solutions bObi’s problem persists, you may want
to perform a home checkup test (see page 72). You may also contact our customer
care center at [email protected], or call 1-888-549-8847 for support in the
US and Canada. Our business hours are Monday – Friday 9 am – 5 pm, PST.
Visit owners.bobsweep.com or download the bObsweep App on your iOS or
Android device for handy video guides, or scan this QR code:
Troubleshooting
67

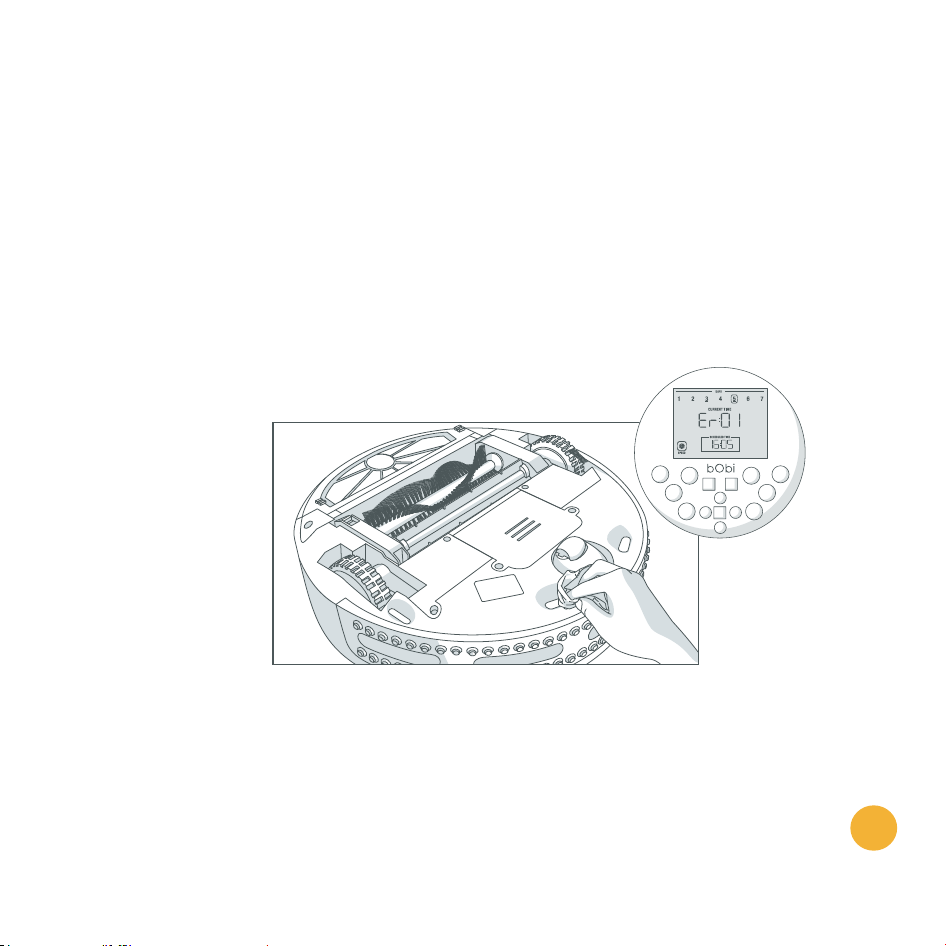

Error Code 01 (Er 01): Edge Sensors
bObi’s four, oval-shaped edge sensors are located on her underside, near
her bumper.
What to do:
• Clean the edge sensors using a clean, dry cloth or compressed air.
• If bObi displays Error Code 01 while working on dark-colored or
patterned flooring, you may need to blindfold her (see page 61).
Error Codes
68

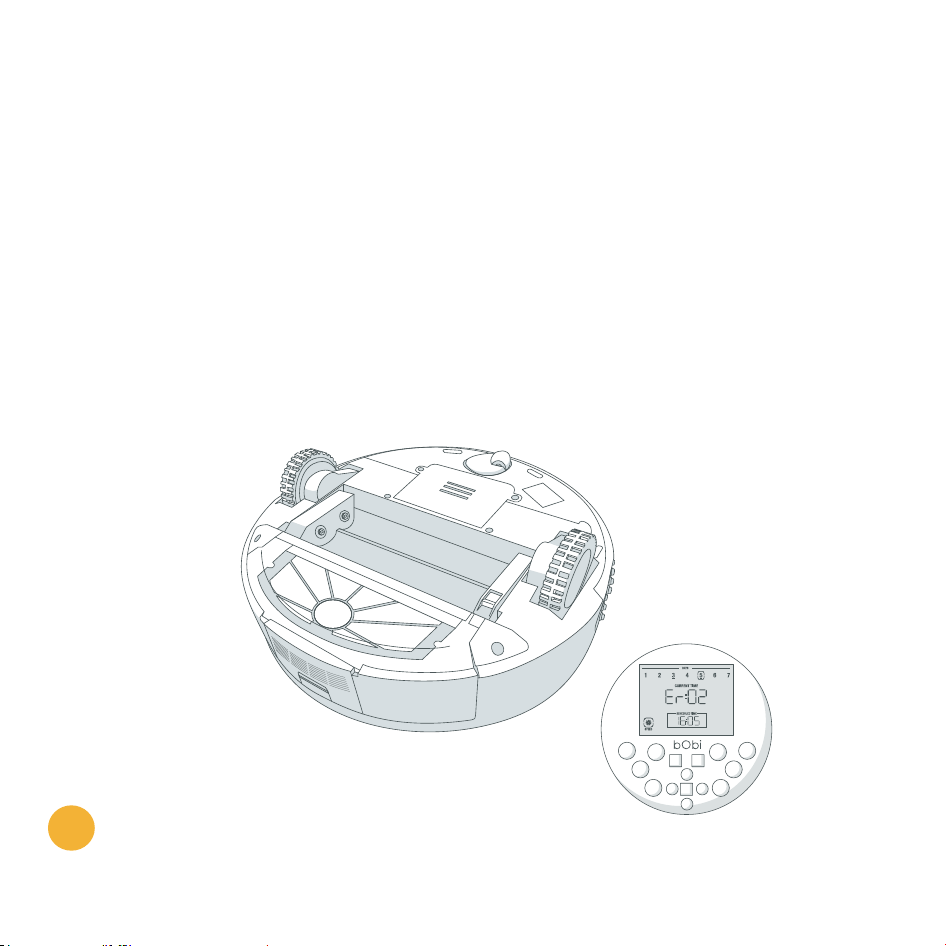

Error Code 02 (Er 02): Brushes
What to do:
• Remove bObi’s main and side brushes, and clean them thoroughly
from end to end (see page 54). You may use a pair of scissors to cut
hair or thread wrapped around bObi’s brushes, or a pair of tweezers
to remove congestion from the ends of the brushes.
• If bObi displays Error Code 02 while cleaning on a shag carpet or rug,
you may remove her main brushes and allow her to clean without them,
but she will not clean as effectively.
69
Error Code 03 (Er 03): Power System
What to do:
• Check bObi’s battery connection. Open the battery compartment
and unplug the battery. Wait 30 seconds, then reinstall the battery.
• Plug the charging adapter directly into the inlet above bObi’s power
switch. Let her charge for at least 8 hours.
70

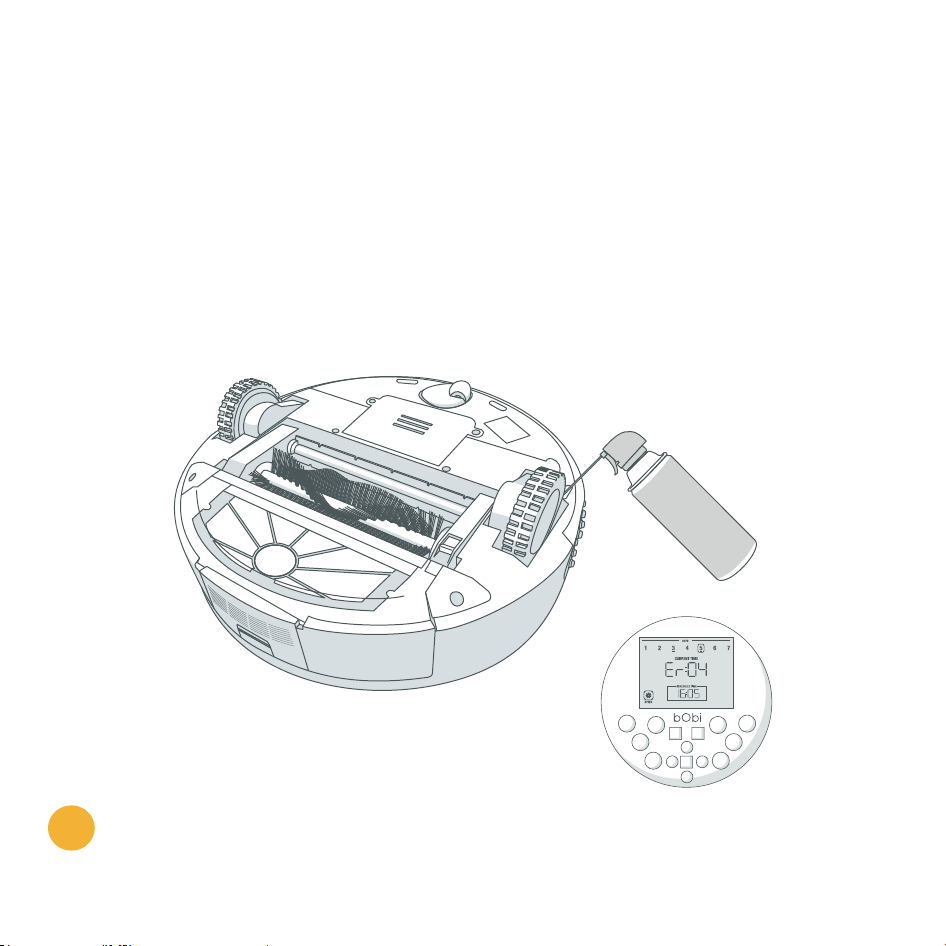

Error Code 04 (Er 04): Left/Right Wheels
What to do:
• Check bObi’s left and right wheels for jamming.
• Remove the two screws around each wheel and use compressed air
to remove debris inside the brush compartments.
71

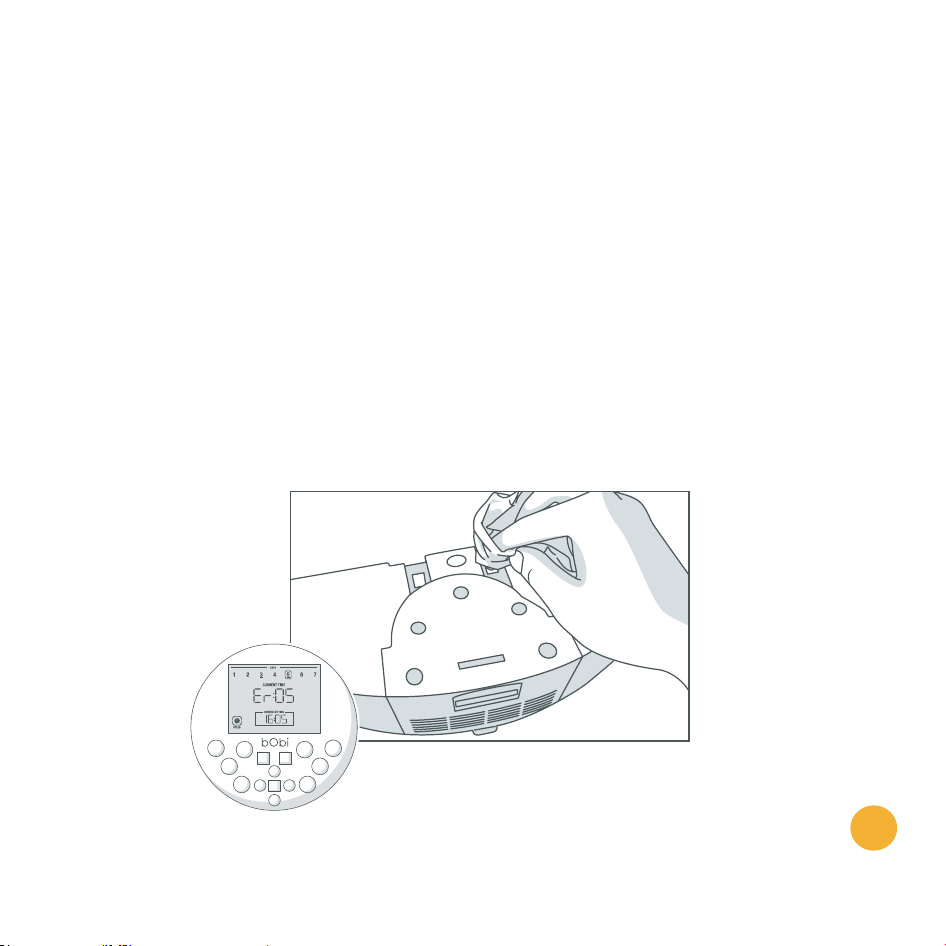

Error Code 05 (Er 05): Dustbin
What to do:
• Remove the dustbin and empty it. Turn the dustbin around and
gently wipe the metal plates on its bottom with a soft, dry cloth.
• Look at where the dustbin connects to bObi’s body. Under the red
plastic casing is the dustbin’s contact points. Make sure they spring
freely and are not stuck or bent.
• If one or both of the contact points are stuck, use a screwdriver to
gently pull them out.
• Carefully reinstall the dustbin while bObi is in the upright position, so
that the dustbin securely locks.
If bObi is not performing as well as she used to, you can diagnose the problem
with a simple home checkup test.
If bObi fails any part of the checkup test, she may need a replacement part. In
this case, please call our customer care center at 1-888-549-8847 for toll-free
support in the US and Canada, or email us at [email protected]. Our
business hours are Monday – Friday 9 am – 5 pm, PST.
To put bObi in checkup mode:
Home Checkup Test
Flip bObi’s power switch
OFF.
Press and hold the OK
button on the remote
while switching bObi’s
power switch ON. Contin-
ue holding the OK button.
bObi’s touchscreen but-
tons will start flashing.
While still holding down
the OK button on the
remote, simultaneously
press the WAFFLE and
JUICE buttons on bObi’s
cover.
1 2 3
73
bObi will beep twice to confirm that she is in checkup mode. You may now release
the OK button on the remote. The current and scheduled times should clear from
the remote, and GO!, JUICE, and WAFFLE should all remain lit on bObi’s cover.
The 5 lights above the touchscreen buttons should cycle sequentially.
bObi is now in checkup mode.
Press RGHT on bObi’s remote to cycle through each step of the checkup test.
Press LEFT to alternate between subsections of each step. The checkup mode
indicator shows which step of the test bObi is in.
Checkup Mode
Indicator
Note: The X’s are just a
placeholder. Four digit
number will vary.
74
Step 1: Edge and Wheel Sensors
The checkup mode indicator should read 0000. Numbers 1 – 4 at the top of
the remote represent bObi’s 4 edge sensors, and the numbers 5 and 6
represent the 2 ground sensors inside bObi’s left and right wheels.
Remove bObi’s side brush before testing her edge sensors.
With bObi on the floor, numbers 1 – 4
should be underlined to show that bObi’s
edge sensors are working.
Lift bObi about 6 inches (15 cm) off the
ground. The 4 lines under numbers 1 –
4 should disappear, and numbers 5 and
6 should be underlined.
1 2
75
Step 2: Firmware Version
While in mode 0000, press LEFT on the remote. The checkup mode
indicator should read 0001. The main 4-digit number in the center of the
screen indicates the firmware version of your bObi.
76
Step 3: Battery
While in mode 0001, press LEFT on the remote. The checkup mode
indicator should read 0002. The main 4-digit number in the center of the
screen indicates the voltage of bObi’s battery in millivolts (mv).
A fully charged battery should have a voltage between 1300 and 1600 mv.
If the voltage is below 1400 mv, charge bObi for at least 8 hours and repeat
this step. bObi should not be tested while she is charging.
If bObi is fully charged and the voltage is 0000 mv, bObi’s battery is
disconnected. Open the battery compartment and check the battery
connection.

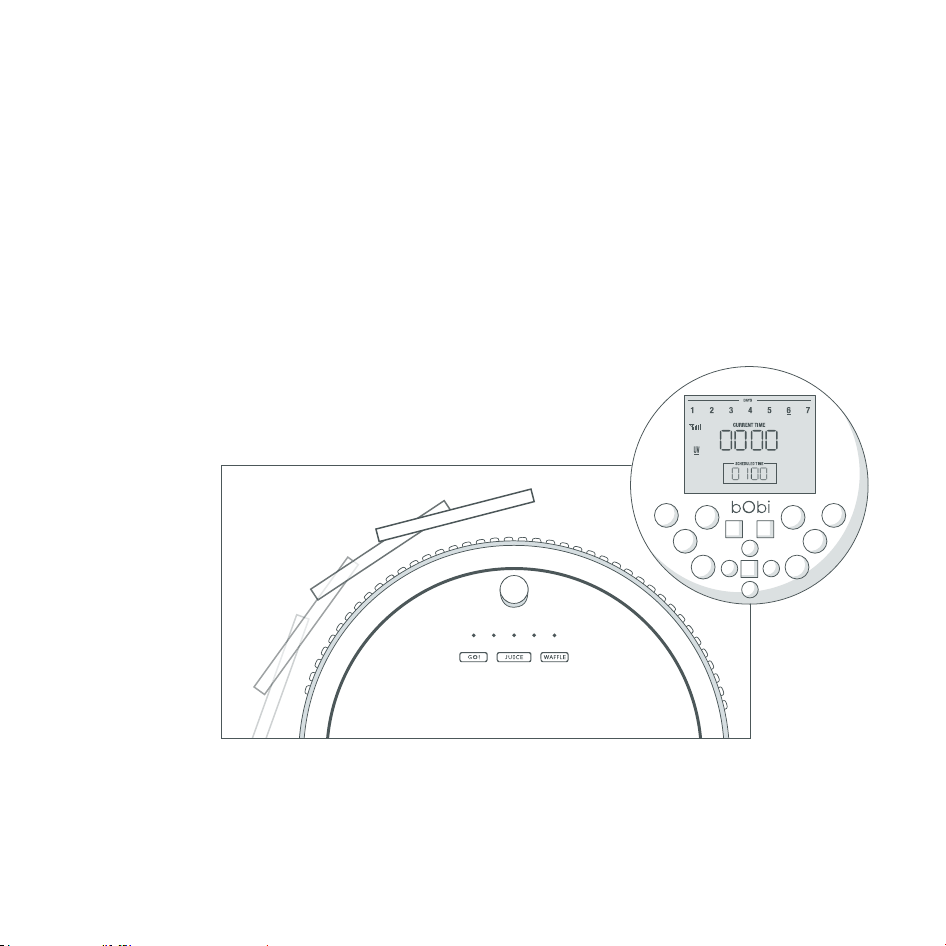

Step 4-1: Wall Sensors
While in mode 0002, press RGHT on the remote. The checkup mode indicator
should read 0100. Ignore the main 4-digit number in the center of the screen.
Use a thick, flat, and white surface to imitate a wall in front of bObi. Drag the
imitation wall from the left side of bObi’s front around to the right side. Numbers
1 – 5 at the top of the remote will become underlined one-by-one as you do this.
78

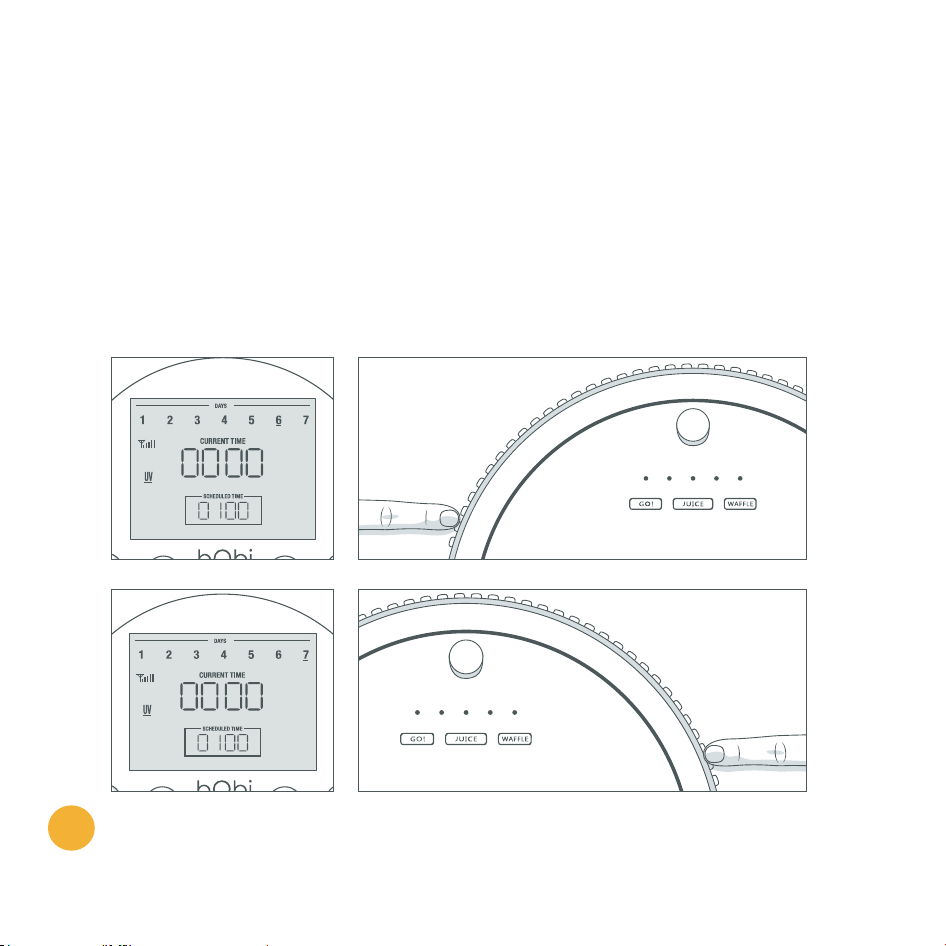

Step 4-2: Touch Sensors
Do not press any additional buttons. Ignore the numbers on the main 4-digit
number in the center of the screen. 80 touch sensors surround bObi’s front.
While in mode 0100, press on any of the touch sensors on the left side of
the bumper and the number 6 should be underlined. Do the same to the
right side and the number 7 should be underlined.
79
Step 5: Usage Counter
While in mode 0100, press RGHT on the remote. The checkup mode indicator
should read 0200. The main 4-digit number in the center of the screen
indicates the number of times bObi’s battery has been charged.
80

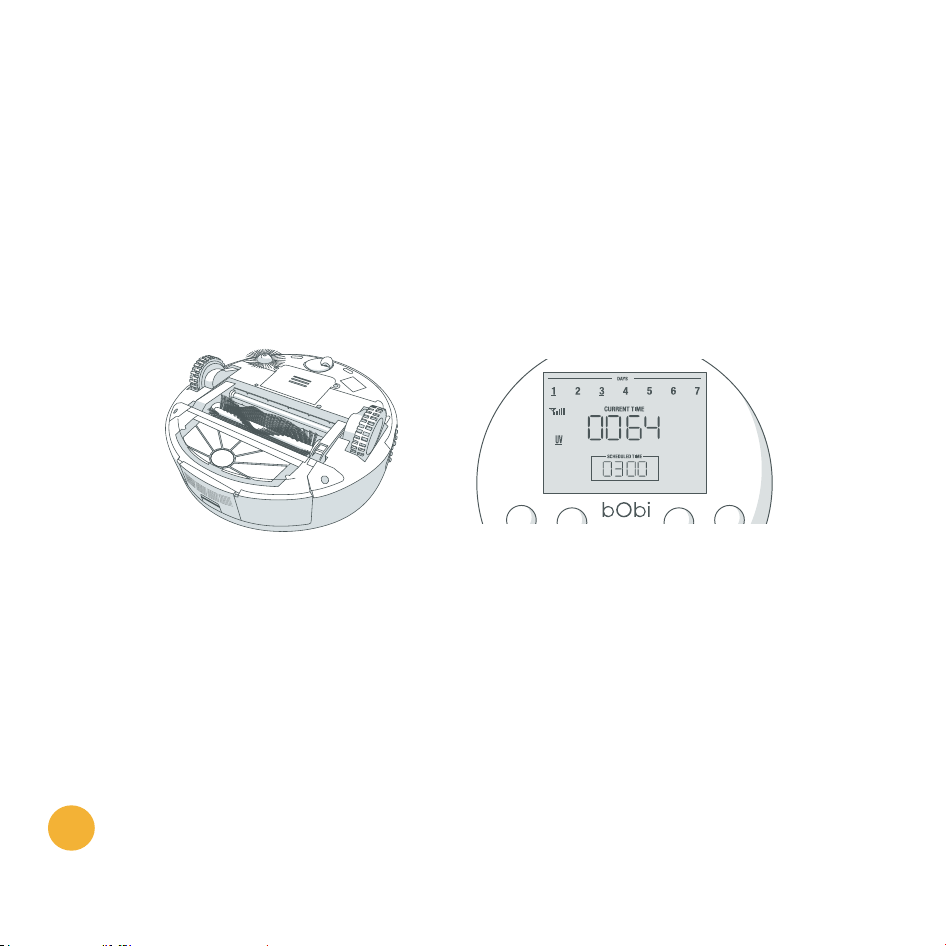

Step 6: Left and Right Wheels, Brushes, and Vacuum Motor
Flip bObi over onto a flat surface.
While in mode 0200, press RGHT on the remote. The checkup mode indicator
should read 0300. As soon as bObi enters this mode, her wheels should
drive forward, her brushes should rotate, and her vacuum motor should
run. Numbers 1 and 3 at the top of the remote should be underlined,
indicating that the left and right wheels’ speed sensors are working.
Left Wheel: While in mode 0300, the 4-digit number in the center of screen
indicates the current of bObi’s left wheel. Normal current ranges between 0020
and 0110.
Right Wheel: Press LEFT on the remote to enter checkup mode 0301. The
main 4-digit number in the center of screen indicates the current of bObi’s right
wheel. Normal current ranges between 0020 and 0110.
Main Brush: Press LEFT on the remote again to enter checkup mode 0302.
The main 4-digit number in the center of screen indicates the current of bObi’s
main brush. Normal current for the brushes is below 0280.
Vacuum Motor: Press LEFT on the remote again to enter checkup mode 0303.
The main 4-digit number in the middle of screen indicates the current of the
vacuum motor. Standard current ranges between 0160 and 0220.
81
Step 7: Charging Station
While in mode 0303, press RGHT on the remote. The checkup mode
indicator should read 0400.
The main 4-digit number in center of the screen should read 0000.
Place bObi on her charging station with the nodes on her front resting
against the plates on her station. The main 4-digit number in the center
of the screen will now indicate the current bObi is receiving from the
station. If bObi is not fully charged, the test mode indicator should read
between 0400 and 0800. A number between 0050 and 0100 means bObi
is fully charged and receiving less energy from her station. If the remote
displays 0000 while bObi is on her station, then she is not connecting
with it properly.
82
Exit Checkup Mode
To exit checkup mode, flip bObi’s power switch OFF at any time. When you
switch bObi back ON, bObi will return to her normal working mode, and the
remote will show the current time and scheduled time.
If everything responds properly, bObi’s internal parts are working correctly. If
you have any questions, contact our helpful team at [email protected],
for further assistance. Or, call us toll-free at 1-888-549-8847. Our hours are
Monday – Friday 9 am – 5 pm, PST.
1-888-549-8847
bObsweep
Customer Support
Subject: Troubleshooting
Good Afternoon bObsweep,
I’ve been though the Troubleshooting portion of my owner’s manual and
have been having trouble after step 4, could you further assist me?
83
bObi’s cleaning pattern may look quite different from the way a human would
clean. She may travel in a straight line, follow along walls, or zigzag across a
small area. Sometimes she may seem to be ignoring some spaces or spending
too much time on others — but don’t worry! Rest assured, bObi will efficiently
clean your home within the course of a full cycle — just check bObi’s dustbin
for the evidence!
It is best to let bObi work in her own way, even if her movements appear odd.
Picking her up and moving her around may confuse her and disrupt her cycle.
If you would like bObi to avoid a certain area, you may create an invisible, 10-
foot barrier with bObi blOck (available for purchase separately). Or, if you would
like to control bObi’s movements manually, feel free to use the navigation but-
tons on her remote.
bObi’s Cleaning Behavior
Warranty
& FAQs
86
Every bObi Classic purchased from an authorized seller includes a 1-year limited
warranty, 5 years of subsidized visits to the bObsweep hospital, a lifetime of cus-
tomer support. The warranty covers the battery and all labor and parts, except
consumables like brushes, filters, and mopping cloths. Postal charges are also not
covered by the warranty.
To purchase additional coverage plans, go to owners.bobsweep.com click on
bObi, and find coverage plans.
Even after bObi’s 1-year warranty is over, replacement parts and visits to the
bObsweep hospital are subsidized between 25% - 50% for 5 years from the date
she was first purchased.
To activate bObi’s warranty, keep your original receipt and register her online at
bobsweep.com/warranties/registerbobsweep.
Warranty Information
87
1. Where can I find bObi’s how-to videos?
bObi’s how-to videos can be found at bObi Classic’s owners’ corner at
owners.bobsweep.com.
2. How long should bObi’s battery last?
The exact time depends on the age of the battery and the type of surface
bObi is cleaning. Generally, the smoother the surface (e.g. hardwood or tile),
the longer the battery will last. When bObi is fully charged, she works on
average 60 minutes.
3. How often should I empty the dustbin?
It is recommended that you empty bObi’s dustbin after one or two cleaning
cycles, but that largely depends on the volume of cleaning that she does.
4. How often do I need to change bObi’s filter?
It is recommended that you clean bObi’s filter every week, and
replace the filter every 6 months.
5. How often should I clean bObi’s brushes?
Since the brushes do a lot of work picking up hair and larger debris, it is
recommended that you clean them every 1 to 4 uses (see page 54).
However, if you clean them more frequently, bObi will be able to store more
dirt in her dustbin, rather than on her brushes. If you notice a thick covering
of hair, dust, and debris on her brushes, remove and clean them. This
ensures they stay in good condition for a long time. Remember to also
clean the main brush compartment.
FAQs
88
6. My bObi won’t turn on no matter what I do.
If bObi does not start after flipping her power switch ON, her battery has
likely drained too low to operate. To recharge, place her on her charging
station with the metal nodes on her front resting against the plates on her
station. Alternatively, you can unplug the adapter from the charging station
and plug it directly into the inlet above bObi’s power switch. When bObi is
charging, the center light on her cover will blink. Let bObi recharge fully
before using again.
7. Why is my bObi beeping?
bObi beeps when she encounters problems cleaning and needs assistance.
In addition to beeping, she will display an Error Code (Er) on her remote, which
lets you know why she has stopped (see page 67).
8. bObi is having trouble finding her charging station. Where is the best
place to put the station?
bObi will find her station more easily if you place it in a central location
with plenty of space around it, so that she may detect it from afar. To facilitate
bObi’s docking, place the charging station against a wall on a flat surface (like
hardwood or tile flooring) instead of carpet. To increase bObi’s chance of
finding her station, place the station in a spot where bObi has a higher chance
of passing through.
9. I am having problems removing bObi’s brushes.
If the main or side brushes are difficult to remove, it is likely because hair,
string, or other debris have been caught in them and are clogging the areas
where they attach to bObi. You can use scissors to cut the hair wrapped
around either brush, until you are able to remove it.
89
10. bObi is getting stuck under some of my furniture or traveling into areas
with wires that tangle up the brush. How can I stop her from going into
these areas?
If bObi maneuvers under a piece of furniture and there is only one open
entrance, she may need a few minutes to figure out how to escape on
her own. You will not need to assist her when this happens, unless bObi
stops cleaning completely and starts beeping.
If you would like bObi to avoid a certain area, such as an area with wires, you
may use blOck (available for purchase separately) to create a digital barrier.
11. Why does bObi start cleaning even though I did not tell her to clean?
bObi will start up on her own when she is 1) scheduled to clean, or 2) when
she is on auto-resume mode.
First, make sure the “Current time and day” is set correctly on bObi’s
remote. Remember, bObi works on a 24-hour clock. If the current time
and date is incorrect, then bObi’s cleaning schedule will be out of sync.
Consult the Scheduling section of this manual (page 36) for detailed
instruction on how to set bObi’s cleaning schedule.
When bObi is on auto-resume mode, she displays “FFGO” on her remote,
below “Scheduled Cleaning.” On auto-resume, bObi automatically begins
cleaning after she has fully charged. To disable auto-resume, press the SET
CLEANING SCHEDULE button on bObi’s remote. Then press STOP.
“FFGO” will reset to the last time saved. Press SET CLEANING SCHEDULE
again to save your settings.
90
12. When is a good time to use the Waffle function?
The Waffle function is best for cleaning a small spill of dry substances. It is
a great way to target only one area that has become dirty, such as a spill
that must be swept or mopped in an otherwise clean area.
13. My bObi is stopping and showing an Error Code on the remote’s
screen. How can I fix this?
To understand bObi’s language, consult the Troubleshooting section of this
manual for the cause of the problem as well as the solution (see page 67).
14. Where can I buy spare parts?
Extra parts are available for purchase on our owners’ website, owners.
bobsweep.com. With bObi’s modular design and our how-to videos, you
can change each individual part easily if it gets old or worn out.
15. I have a question and need to contact bObsweep’s support team.
Our devoted team is ready to help you! You can reach us by phone or
email. Call us toll free at 1-888-549-8847 for support in the US and Canada,
or email us at [email protected]. Our business hours are Monday –
Friday 9 am – 5 pm, PST.
To find bObi’s how-to videos, repair videos, troubleshooting videos, and to
connect with your extended bObsweep family members, visit bObi Classic’s
owners’ corner at owners.bobsweep.com or download the bObsweep App on
your iOS or Android device.
End User License
Agreement
IMPORTANT - READ BEFORE USING. Do not use the robot (“Bobsweep”) accompanying this license agreement (“Agreement”) until you have
carefully read and agreed to the following terms and conditions.
By using the Bobsweep, you agree to the terms of this End User License Agreement (“EULA”) and any amendment or addenda accompanying
this Agreement. If you do not agree to the terms of this EULA, you may not use the Bobsweep. The Bobsweep contains an electronic and
software interface that allows you to control or modify its behavior, and remotely monitor its sensors.
THIS IS A LEGAL AGREEMENT. BY ACCESSING AND USING THE PRODUCT AND PRODUCT SOFTWARE, YOU ARE ACCEPTING AND
AGREEING TO THIS EULA ON BEHALF OF YOURSELF OR THE ENTITY YOU REPRESENT IN CONNECTION WITH THE ACCESS. YOU
REPRESENT AND WARRANT THAT YOU HAVE THE RIGHT, AUTHORITY, AND CAPACITY TO ACCEPT AND AGREE TO THIS EULA ON
BEHALF OF YOURSELF OR THE ENTITY YOU REPRESENT. YOU REPRESENT THAT YOU ARE OF SUFFICIENT LEGAL AGE IN YOUR
JURISDICTION OR RESIDENCE TO USE OR ACCESS THE PRODUCT SOFTWARE AND TO ENTER INTO THIS EULA. IF YOU DO NOT
AGREE WITH ANY OF THE PROVISIONS OF THESE TERMS, YOU SHOULD CEASE USING THE PRODUCT AND PRODUCT SOFTWARE.
Terms and Conditions
LICENSE: Subject to all of the terms of this Agreement, Bobsweep Inc. (“Bobsweep”) grants to you one (1) revocable, royalty-free, personal,
non- exclusive, nontransferable, non-assignable, non-commercial intellectual property license to use the Bobsweep software contained on the
Bobsweep, including the protocol for communicating with the Bobsweep software contained on the Bobsweep (“Bobsweep
Software”), to use the Bobsweep.
NONCOMMERCIAL LICENSE: You may use the Bobsweep Software and the Bobsweep only for personal, noncommercial, educational,
and research purposes. The Bobsweep Software and the Bobsweep may not be used for any other purpose, whether “for prot” or
“not for prot.” Any work performed or produced using the Bobsweep, including Your Software, cannot be performed or produced for
the benet of other parties for a fee, compensation, or any other reimbursement or remuneration. A separate license is required for each
additional use and/or individual user in all other cases. If you are an entity, Bobsweep grants you the right to designate one individual
within your organization to have the sole right to use the Bobsweep Software and the Bobsweep in the manner provided above.
RESTRICTIONS: You agree not to: (i) use or copy the Bobsweep Software or the Bobsweep except as provided in this Agreement; (ii) rent or lease
the Bobsweep Software or the Bobsweep to any third party; (iii) assign this Agreement or transfer the Bobsweep Software or the Bobsweep except
as provided in this Agreement; (iv) modify, adapt, or translate the Bobsweep Software or the Bobsweep in whole or in part except as expressly
provided in this Agreement; (v) reverse engineer, reverse compile, or disassemble the Bobsweep Software or the Bobsweep; or (vi) distribute,
sublicense or transfer the source code form of Your Software and derivatives thereof to any third party except as provided in this Agreement.
YOUR SOFTWARE : Use and distribution of any software that you create for your Bobsweep (“Your Software”) is also subject to the following
limitations: You (i) shall be solely responsible for any update or support obligation or other liability which may arise from your use or distribution,
(ii) shall not make any statement that Your Software is “certied,” or that its performance is guaranteed, by Bobsweep, (iii) shall not use
Bobsweep’s name or trademarks, (iv) shall prohibit disassembly and reverse engineering of the Bobsweep Software and the Bobsweep,
(v) shall not publish reviews of Bobsweep products designated as beta without written permission from Bobsweep, and (vi) shall indemnify,
hold harmless, and defend Bobsweep and its suppliers from and against any claims or lawsuits, including attorney’s fees, that arise or result
from Your Software, including your use and your distribution. TITLE: Title to the Bobsweep Software remains with Bobsweep or its suppliers.
The Bobsweep Software is licensed, not sold. Except as expressly provided herein, Bobsweep does not grant any express or implied
right to you under Bobsweep patents, copyrights, trademarks, or trade secret information. You will not remove any copyright or patent notice
from the Bobsweep Software or the Bobsweep. ONE-TIME TRANSFER: The initial user of the Bobsweep Software and the Bobsweep may
make a one-time permanent transfer of this Agreement, the Bobsweep Software, and the Bobsweep to another end user, provided that
the initial user retains no copies of the Bobsweep Software and the Bobsweep. This transfer must include the Bobsweep Software, the
Bobsweep, and all of the materials accompanying the Bobsweep (including all component parts and printed materials, any upgrades, and
this End User License Agreement document). The transfer may not be an indirect transfer, such as a consignment. Prior to the transfer, the
end user receiving the Bobsweep Software and the Bobsweep must agree to all the terms of this Agreement. NO WARRANTY AND LIMITED
REPLACEMENT: EXCEPT AS STATED IN THE LIMITED WARRANTY TO THE ORIGINAL PURCHASER, THE BOBSWEEP SOFTWARE
AND THE BOBSWEEP ARE PROVIDED “AS IS” WITH NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO
ANY IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, NON-INFRINGEMENT OF INTELLECTUAL
PROPERTY RIGHTS, OR ANY WARRANTY OTHERWISE ARISING OUT OF ANY PROPOSAL, SPECIFICATION, OR SAMPLE. NO ORAL
OR WRITTEN INFORMATION OR ADVICE GIVEN BY BOBSWEEP OR ITS AGENTS SHALL CREATE A WARRANTY. If the Bobsweep
Software or the Bobsweep is found to be defective in material or workmanship under normal use for a period of one (1) year from the date
of receipt, Bobsweep’s entire liability and your exclusive remedy shall be the replacement of the Bobsweep Software or the Bobsweep.
This oer is void if the defect results from accident, abuse, misapplication, or software that you developed for your Bobsweep. Any updates or
supplements to the Bobsweep Software or the Bobsweep provided to you after the expiration of the one (1) year period are not covered by any
warranty or condition, express, implied or statutory. SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES,
SO THE ABOVE EXCLUSION MAY NOT APPLY TO YOU. LIMITATION OF LIABILITY: THE ABOVE REPLACEMENT PROVISION IS THE
ONLY WARRANTY OF ANY KIND. BOBSWEEP OFFERS NO OTHER WARRANTY EITHER EXPRESS OR IMPLIED INCLUDING THOSE OF
MERCHANTABILITY, NON INFRINGEMENT OF THIRD- PARTY INTELLECTUAL PROPERTY OR FITNESS FOR A PARTICULAR PURPOSE.
NEITHER BOBSWEEP NOR ITS SUPPLIERS SHALL BE LIABLE FOR ANY DAMAGES WHATSOEVER (INCLUDING, WITHOUT LIMITATION,
VICARIOUS LIABILITY, CONSEQUENTIAL DAMAGES, INCIDENTAL DAMAGES, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS
INTERRUPTION, LOSS OF BUSINESS INFORMATION, OR OTHER LOSS) ARISING OUT OF THE USE OF OR INABILITY TO USE THE
BOBSWEEP SOFTWARE, THE BOBSWEEP, OR SOFTWARE THAT YOU DEVELOPED FOR YOUR BOBSWEEP, EVEN IF BOBSWEEP
HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. BECAUSE SOME JURISDICTIONS PROHIBIT THE EXCLUSION OR
LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, THE ABOVE LIMITATION MAY NOT APPLY TO YOU
UNAUTHORIZED USE: THE BOBSWEEP SOFTWARE AND THE BOBSWEEP ARE NOT DESIGNED, INTENDED, OR AUTHORIZED FOR
USE IN ANY AERONAUTICAL, NUCLEAR, MEDICAL, LIFE SAVING OR LIFE SUSTAINING SYSTEMS, OR FOR ANY OTHER APPLICATION IN
WHICH THE USE OF THE BOBSWEEP SOFTWARE OR THE BOBSWEEP COULD CREATE A SITUATION WHERE PERSONAL INJURY OR
DEATH MAY OCCUR. Should you use the Bobsweep Software or Bobsweep for any such unintended or unauthorized use, you shall indemnify
and hold harmless Bobsweep and its ocers, subsidiaries and aliates against all claims, costs, damages, and expenses, and reasonable
attorney fees arising out of, directly or indirectly, any claim of product liability, personal injury or death associated with such unintended or
unauthorized use, even if such claim alleges that Bobsweep was negligent regarding the design or manufacture of the Bobsweep Software,
the Bobsweep, or any part or portion thereof.
USER SUBMISSIONS: You agree that any material, information or other communication, including all data, images, sounds, text, and other
things embodied therein, that you transmit or post to a Bobsweep website or provide to Bobsweep (“Communications”) will be considered
non-condential. Bobsweep will have no condentiality obligations with respect to the Communications. You agree that Bobsweep and its
designees will be free to copy, modify, create derivative works, publicly display, disclose, distribute, license and sublicense through multiple
tiers of distribution and licensees, incorporate and otherwise use the Communications, including derivative works thereof, for any and all
commercial or non-commercial purposes without the payment of any royalty to you, and that such license will survive the termination of this
Agreement.
TERMINATION: This Agreement becomes eective on the date you accept this Agreement and will continue until terminated as provided for
in this Agreement. You may terminate this Agreement voluntarily at any time. Bobsweep may terminate this Agreement at any time if you are
in breach of any of its terms and conditions, and may refuse to license the Bobsweep Software or the Bobsweep to you after termination.
Upon termination by either party, you will immediately return to Bobsweep or destroy the Bobsweep Software and the Bobsweep and all your
copies thereof. Articles 5 and 7 through 17 of this Agreement shall survive such termination. U.S. GOVERNMENT RESTRICTED RIGHTS:
The Bobsweep Software and the Bobsweep are provided with “RESTRICTED RIGHTS.” Use, duplication or disclosure by the Government
is subject to restrictions set forth in FAR52.227-14 and DFAR252.227-7013 et seq. or its successor. Use of the Bobsweep Software or the
Bobsweep by the Government constitutes acknowledgment of Bobsweep’s rights in them.
NO EXPORT: You may not export the Bobsweep Software or the Bobsweep in violation of applicable export laws.
INTERPRETAT ION: The provisions of this Agreement are severable. If any provision of this Agreement is held to be unenforceable, such
provision shall be reformed only to the extent necessary to make it enforceable. Any law or regulation which provides that the language of a
contract shall be construed against the drafter shall not apply to this Agreement.
INTEGRATION: This Agreement represents the complete agreement concerning the subject matter hereof, and any and all understandings,
conversations and communications, proposals, and counterproposals, oral and written (including any draft of this Agreement) are merged
into and superseded by this Agreement and shall be of no force or eect, except as expressly provided herein. No such understandings,
conversations, communications, proposals, counterproposals or drafts shall be referred to in any proceeding concerning this Agreement.
Further, no understanding contained in this Agreement shall be modied, altered or amended, except by a writing signed by the party against
whom enforcement is sought.
ARBITRATION: All disputes relating to this Agreement (excepting any dispute relating to intellectual property rights) shall be subject to nal and
binding arbitration, with the losing party paying all costs of arbitration. Any arbitration relating to this Agreement shall be held in California, under
the auspices of an arbiter selected by Bobsweep. Any litigation relating to this Agreement shall be subject to exclusive venue and jurisdiction
in the federal and state courts of California, with the losing party responsible for costs, including without limitation, court costs and reasonable
attorneys fees and expenses.
APPLICABLE LAWS: Any claim arising under or relating to this Agreement shall be governed by the internal substantive laws of the
Commonwealth of California, without regard to its principles of conict of laws. The application of the United Nations Convention on Contracts
for the International Sale of Goods is expressly excluded.
bObsweep
® and © bObsweep Inc. All rights reserved.
