REVISED BULLETIN
SERVICE PARTS LIST
MILWAUKEE ELECTRIC TOOL CORPORATION
13135 W. LISBON RD., BROOKFIELD, WI 53005
Drwg. 2
BULLETIN NO.
STARTING
SERIAL NO.
WIRING INSTRUCTION
DATE
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
CATALOG NO.
5
1
3
8
4(4X)
2
6
9
10(5X)
11
7
13
3
4
12
1 6 9
10 11
14
5 7
8
1
2
Place
firm, even
pressure
along this
area to
snap in
place
3
Lock
Symbol

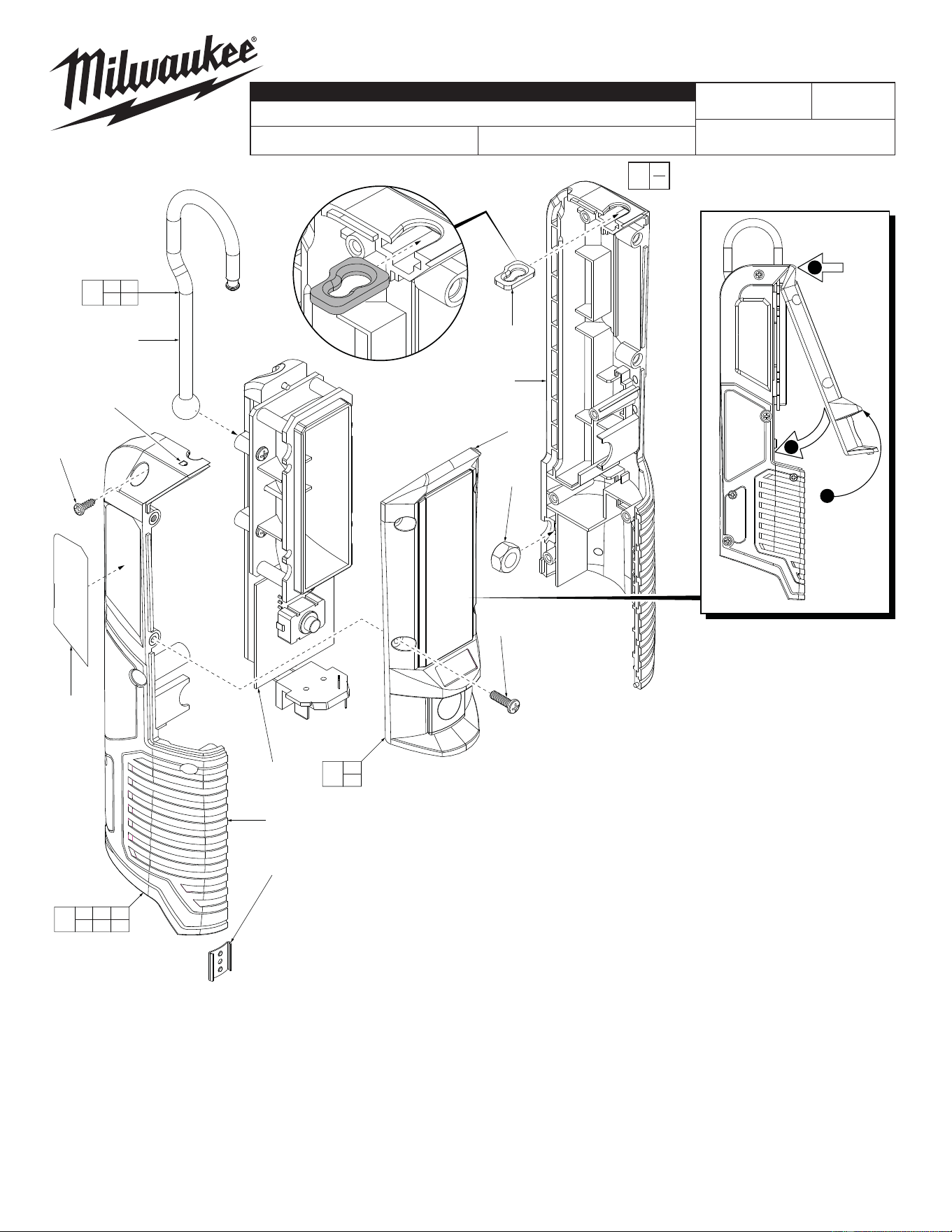

FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 --------------- Housing Halve - Left (1)
2 --------------- LED / PCBA Unit (1)
3 --------------- Housing Front with Lens (1)
4 --------------- M2.6 x 8mm Pan Hd. T-10 Screw (4)
5 --------------- Hook Lock (1)
6 --------------- Housing Halve - Right (1)
7 --------------- Hook with Ball (1)
8 --------------- Nut (1)
9 42-70-0055 Housing Clip (1)
10 --------------- M3 x 8mm Pan Hd. Plast. T-8 Screw (5)
11 12-20-2325 Service Nameplate (1)
12 14-38-0050 Housing Halve Kit (1)
13 14-38-0055 Housing Front Kit (1)
14 14-36-0125 Hook / Lock / Nut Kit (1)
54-06-2355
CORDLESS M12™ LED STICK LIGHT
2351-20
F29A
Feb. 2013
0
00
EXAMPLE:
Component Parts (Small #) Are Included
When Ordering The Assembly (Large #).
FIG. NOTES
4,10 Care must be used when securing fasteners in tool. To prevent
stripping do not over tighten. It is not recommended to use power
tools, hand tighten only. Torque screws #4 to 5-7 in/lbs (6-8 kg/cm).
Torque screws #10 to 3-4 in/lbs (3.5-4.5 kg/cm).
22 A clean, dry surface is essential for proper performance for
any adhesive system. The area intended for application of
any adhesive label or nameplate must be prepared by
cleaning with isopropyl alcohol. The solvent is to be applied
with a clean, lint free applicator and the surface allowed to
dry before applying the label or nameplate.
1. Place the Front Housing/Lens
Assembly at the top of the stick
light body as shown.
2. Carefully lower Front Housing
Assembly over the relector.
3. With fi rm even pressure, snap
the assembly into place and
secure with four screws (4).
Position Hook Lock (5)
with the bevel side
facing upward and the
narrow end facing the
lock symbol on right
housing halve (6).
