U S ER’S MANUAL
IDA-9
The NuPrime IDA-9 is an ultra-compact integrated amplifier delivering
powerful, high-resolution audio with precision and finesse. Its ultra-
low-noise GaN power supply ensures exceptional clarity, efficiency,
and speed. The IDA-9 outputs 200W x 2 @ 8Ω, supports PCM up to
384kHz and DSD256, and offers USB, Coaxial, Optical, Analog inputs,
plus an expansion port for Bluetooth or Wi-Fi modules.
Table of Contents
FCC Notice - Declaration of Conformity Information ..................................................................... 2
EU Declaration of Conformity
....................................................................................................... 3
Safety Instructions
......................................................................................................................... 4
Description
...................................................................................... 7
Revolutionary GaN Power Supply Technology
...............................................................................................................................
. 9
..........................
.............................................................................
. 13
NuPrime’s Limited Warranty and Limitation of Liabilities .............................................................23
.............................................................................................................
16
Performance Benefits
............................................................................................................................
18
1
www.nuprime-x.com
Gallium Nitride High Frequency High Efficiency Power Module (GaN HFHFPM)
Key Features
FCC Notice - Declaration of Conformity Information
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio co
mmunications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and r
eceiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
WARNING: Only peripherals complying with the FCC class B limits may be attached to this
equipment.
Changes or modifications made to this equipment, not expressly approved by us or parties
authorized by us could void the user’s authority to operate the equipment. This device com
plies
with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
2
www.nuprime-x.com
30 N Gould St. Ste N, Sheridan, WY
USA.
30 N Gould St. Ste N, Sheridan, WY 82801,
30 N Gould
EU Declaration of Conformity
Hereby, NuPrime Audio, Inc. declares that this device is in compliance with the essential
requirements and other relevant provisions of Directive 2004/108/EC.
The manufacturer of this product is NuPrime Audio, Inc.,
The Authorized Representative for EMC and product safety is NuPrime Audio, Inc.,
For any service or guarantee matters please refer to the addresses given in separate service or
guarantee documents.
For Customers in Europe
Disposal of Old Electrical & Electronic Equipment (Applicable in the European
Union and other European countries with separate collection systems)
This symbol on the product or on its packaging indicates that this product shall
not be treated as household waste. Instead it shall be handed over to the
applicable collection point for the recycling of electrical and electronic equipment
By ensuring this product is disposed of correctly, you
will help prevent potential
negative consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product. The
recycling of materials will help to conserve natural resources. For more detailed information
about recycling of this product, please contact your local Civic Office, your household waste
disposal service or the shop where you purchased the product.
St. Ste N, Sheridan, WY 82801,
3
www.nuprime-x.com
Safety Instructions
There are two categories of Safety Instructions included in this manual:
• Product Warnings, (i.e., what must never be done to assure avoiding those hazards that
• could cause bodily injury or property damage); and
• User Directions (i.e., what must always be done to assure the safe use of your device).
The Safety Instructions contained in this manual have been categorized in accordance with the
seriousness of the potential hazards thr
ough the use of Signal Words. Those Signal Words, and
their intended meanings, are as follows:
DANGER: Indicates that a failure to observe the Safety Instructions could result in death or
catastrophic bodily injury.
WARNING: Indicates that a failure to observe the Safety Instructions could result in serious
bodily injury.
CAUTION: Indicates that a failure to observe the Safety Instructions could result in minor bodily
injury or property damage.
NO
TE: Designates important information that relates to activities and/or conditions that might
result in loss of data and/or damage to your device.
Safe Use and Operation of Your Device
This equipment emits stray RF energy and will interfere with the reception of signals by airborne
electronic navigational devices or medical devices. Do not operate this equipment near any
sensitive medical devices.
WARNING: Use only grounded AC power cords.
Always immediately disconnect the powe
r to the equipment in the event the device emits an
unusual odor or sound or generates smoke.
4
www.nuprime-x.com
WARNING: Never attempt to disassemble, repair or make any modification to your device.
Disassembly, modification or any attempt at repair could cause bodily injury or property damage,
as well as damage to the device itself.
WARNING: Your device is not a toy. Never allow children to play with your device. Misuse, rough
or improper handling of your device by children could result in serious bodily injury for any of the
enumerated safety warnings in this manual. In addition, always keep all accessories and
components out of the reach of small children as small parts might present a choking hazard.
Seek immediate medical attention if choking occurs or if any small part has been swallowed.
CAUTION: Never raise the sound volume level too high when using your device with earphones.
An excessive sound volume level could cause damage to your hearing.
WARNING: To reduce the risk of re or electric shock, do not expose the unit to mo
isture or water.
Do not allow foreign objects to get into the enclosure. If the unit is exposed to moisture, or a
foreign object gets into the enclosure, immediately disconnect the power cord from the wall.
Take the unit to a qualified service person for inspection and necessary repairs.
Read all the instructions before connecting or operating the component.
Keep this manual so you can refer to these safety instructions.
Heed all warnings and safety informat
ion in these instructions and on the product itself. Follow
all operating instructions.
Do not use this unit near water.
You must allow a minimum 10 cm or 4 inches of unobstructed clearance around the unit.
Do not place the unit on a bed, sofa, rug, or similar surface that could block the ventilation
openings. If the unit is placed in a bookcase or cabinet, there must be ventilation of the cabinet to
allow proper cooling.
5
www.nuprime-x.com
any other appliance that
on the rear
Keep the component away from radiators, heat registers, stoves, or
produces heat.
The unit must be connected to a power supply only of the type and voltage speci ed
panel. Connect the component to the power outlet only with the supplied power supply cable or
an exact equivalent. Do not modify the supplied cable.
Do not route the power cord where it will be crushed, pinched, bent, exposed to heat, or
damaged in any way. Pay partic
ular attention to the power cord at the plug and where the cord
exits the back of the unit.
The power cord should be unplugged from the wall outlet during a lightning storm or if the unit is
to be left unused for a long period of time.
Immediately stop using the component and have it inspected and/or serviced by a quali ed
service agency if:
• The power supply cord or plug has been damaged.
• Objects have fallen or liquid has been spilled into the unit.
• The unit has
been exposed to rain.
• The unit shows signs of improper operation.
• The unit has been dropped or damaged in any way
6
www.nuprime-x.com
7
Description
Building on the legacy of the award-winning IDA-8 — honored with two Product of the Year Awards and a coveted
Golden Ear — the NuPrime IDA-9 takes this iconic hybrid Class A+D amplifier to new heights. Retaining the IDA-8’s
spacious, transparent, and luxuriously textured sound, the IDA-9 doubles the amplifier’s RMS output power while
maintaining the same compact form factor, delivering an even more dynamic, effortless, and refined listening
experience.
www.nuprime-x.com
8

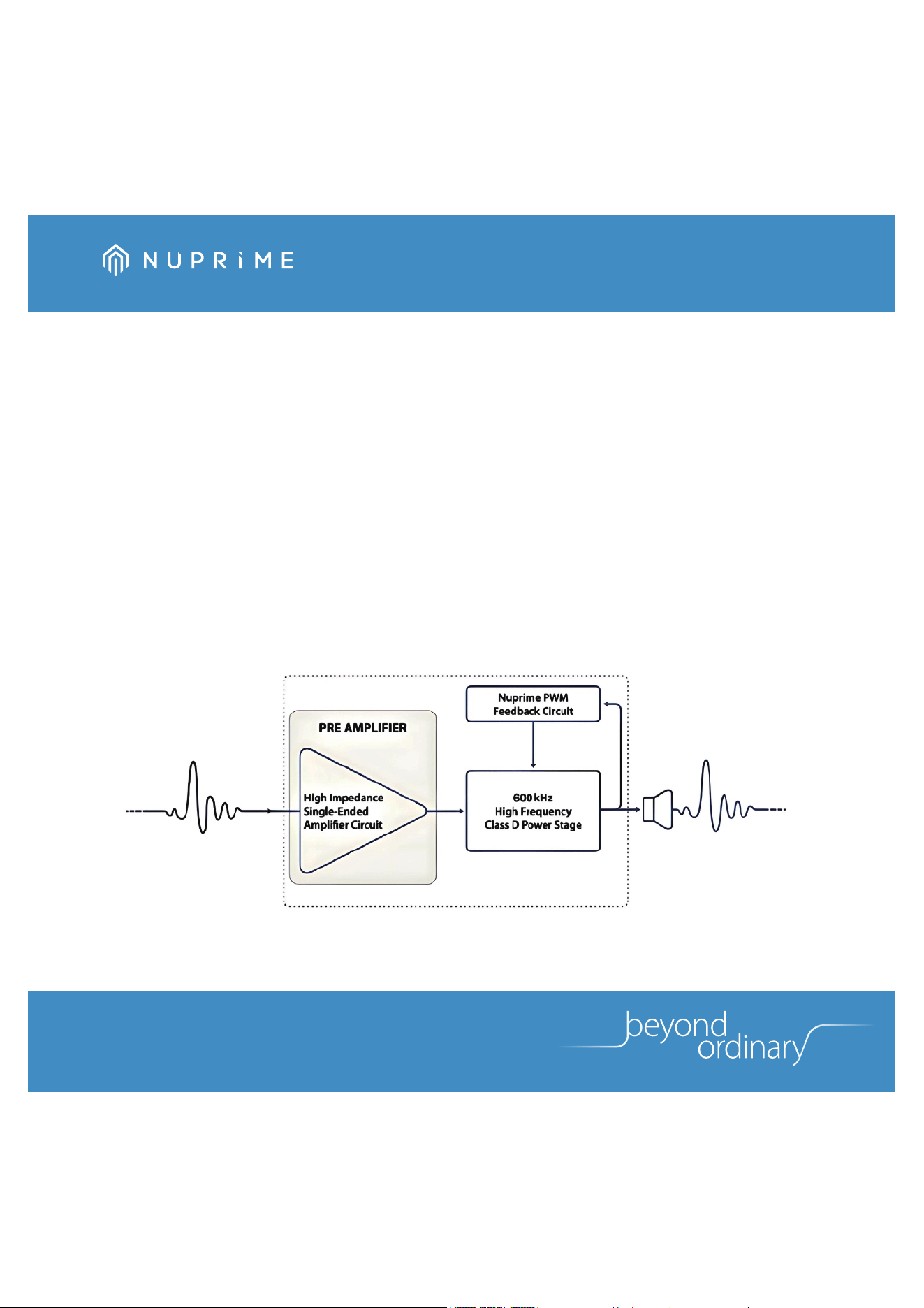

The IDA-9 is designed around the proven IDA-8 architecture with significant enhancements throughout. Its refined
Class A input stage and upgraded Class D switching MOSFET circuit now operate at 600 kHz, enabling high-resolution
audio performance while running cooler and more efficiently — reducing operating temperature by 30% for greater

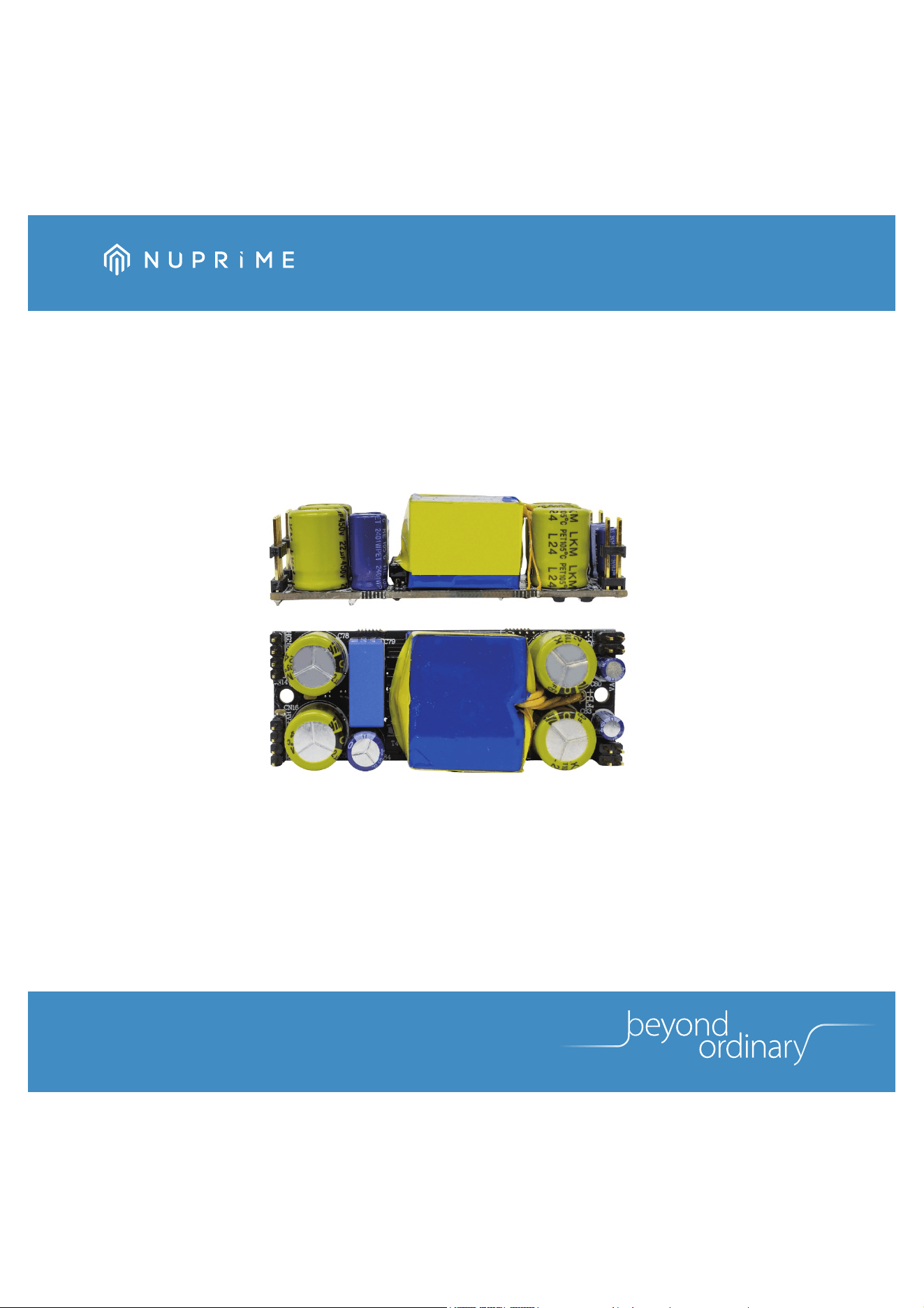

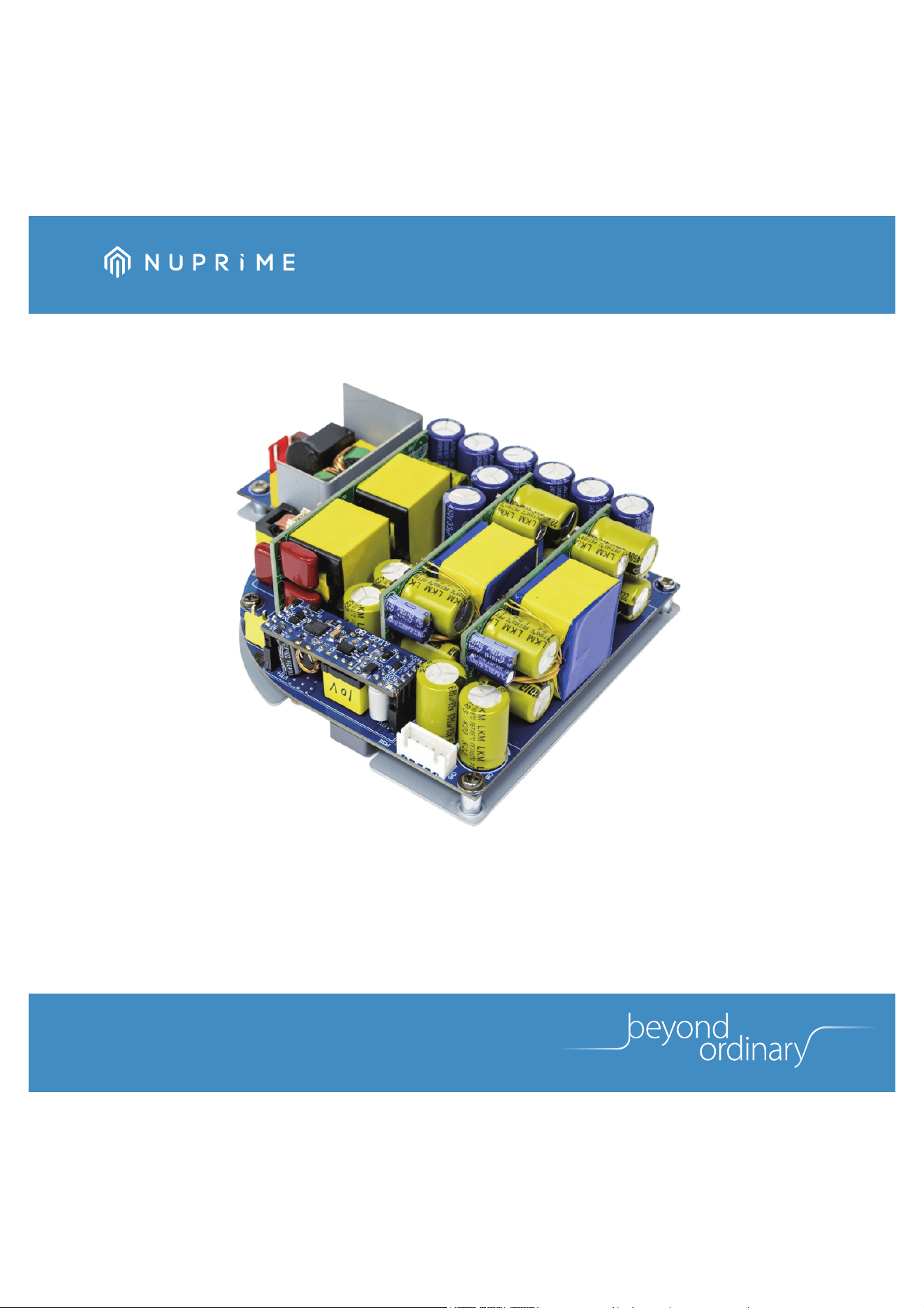

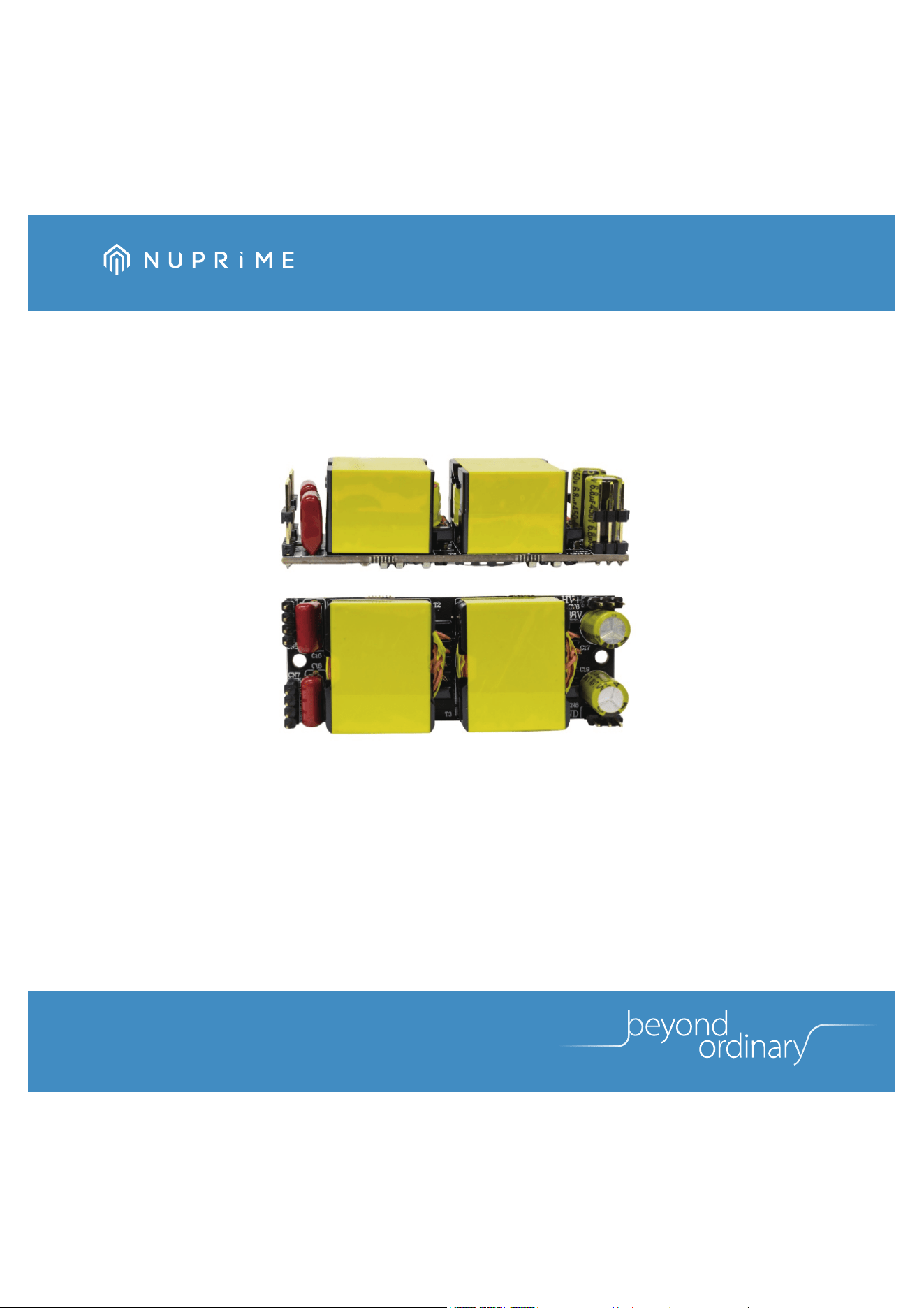

headroom and natural sound reproduction. NuPrime’s revolutionary ultra-low-noise GaN power supply employs a

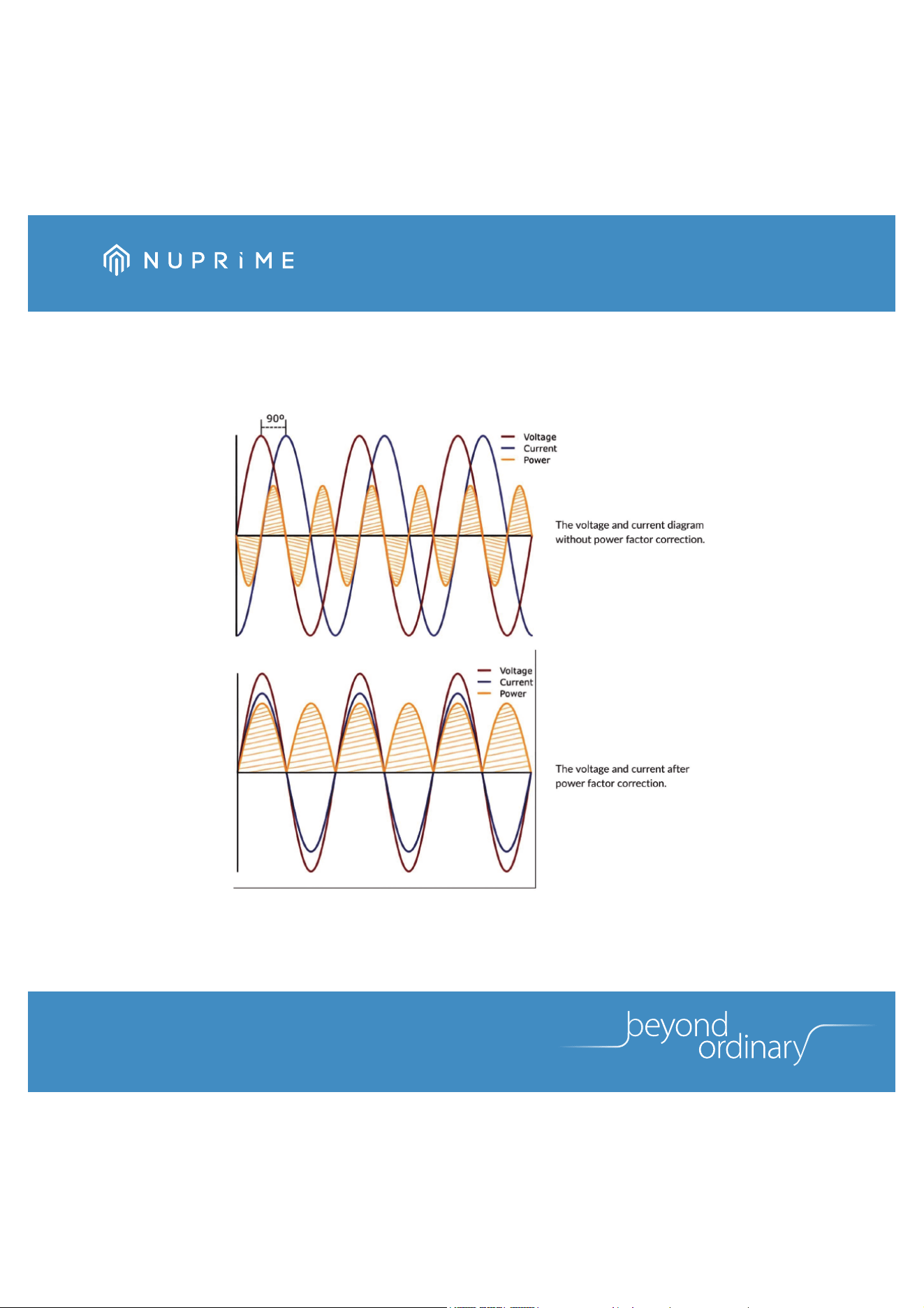

dual-phase interleaved GaN Power Factor Correction circuit, an advanced topology that ensures smoother power
delivery and minimal ripple current compared to traditional single-phase designs. Beyond the PFC stage,
new-generation GaN semiconductor modules drive a symmetrical dual supply system that provides balanced positive
and negative voltage rails for the amplifier’s differential circuit. Together, these twin GaN power blocks deliver a total
of 500 watts with peak current capability of 20 amperes, supporting an impressive 200 watts (RMS) per channel of
dynamic music power at 8 ohms. This GaN-based power architecture achieves unmatched thermal efficiency and
ultra-clean power delivery, producing a deep black background, exceptional channel separation, and breathtaking
clarity.
The result is a sound that’s neutral yet rich in detail, with excellent layering, tight bass, and an open, extended high
end — all while preserving the IDA series’ signature compact elegance and setting a new benchmark for modern
integrated amplifier design.
www.nuprime-x.com
9
Key Features

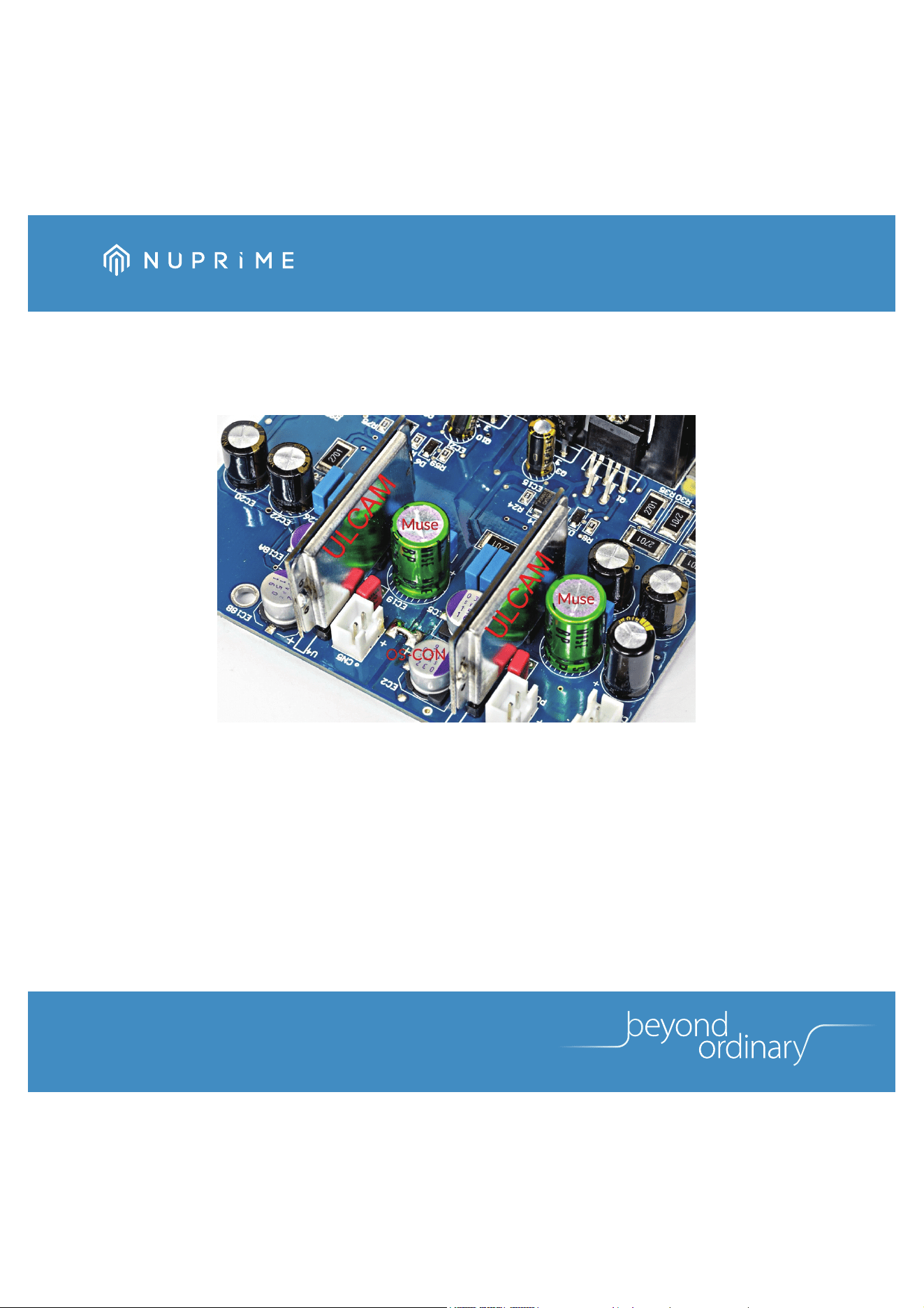

1, Class A Input Stage
● Ultra-Linear Class A Module (ULCAM) – The IDA-9’s revolutionary ULCAM technology combines the
audiophile-quality sound characteristics of Class A amplification with the dynamics, speed, and efficiency of
Class D operation. This hybrid approach delivers the best of both worlds without traditional compromises.
● Nichicon KZ MUSE Input Coupling Capacitors – Specifically chosen for their ability to deliver neutral, pure
sound with clean transparency, these capacitors contribute to excellent layering, tight bass response, and
penetrating high-frequency reproduction.
● OS-CON Capacitors in Single-Ended Class A Modules – These renowned capacitors are celebrated for their
warm, natural tone, superb high-frequency detail, and exceptional longevity. They ensure stable, high-quality
signal coupling and consistent audio performance over extended periods.
● Ultra-Low-Noise Input Stage – The input stage employs ultra-low-noise JFETs (Junction Field-Effect Transistors)
to achieve the lowest possible noise floor, ensuring pristine signal integrity from the very first stage of
amplification.
www.nuprime-x.com

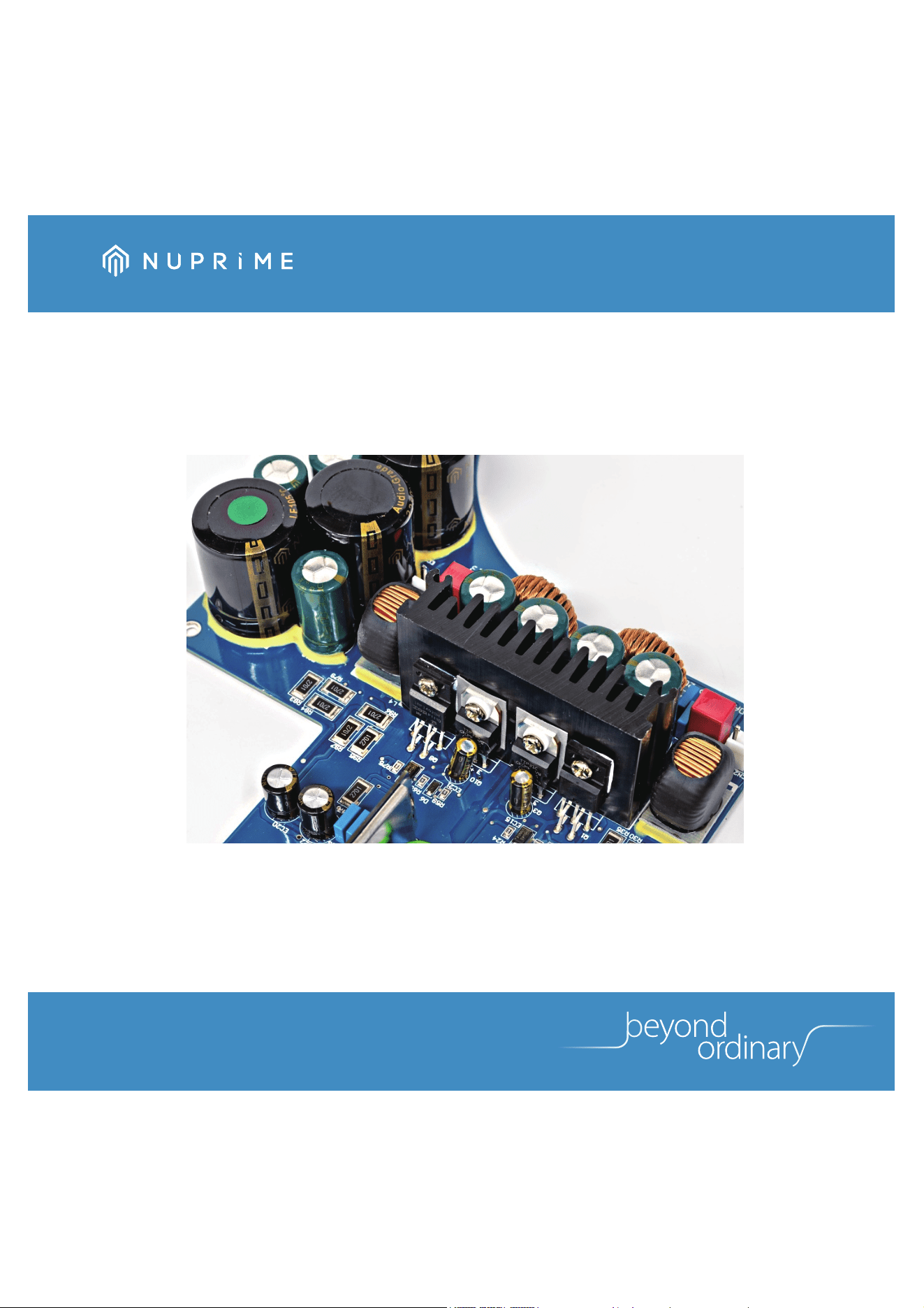

2, Advanced Class D Switching Circuit
The high-performance Class D switching MOSFET circuit operates at 600 kHz, enabling high-resolution audio
performance while reducing operating temperature by 30%. This thermal efficiency allows for greater headroom
and produces a more effortless, natural sound reproduction.
10
www.nuprime-x.com
3, Premium Component Selection

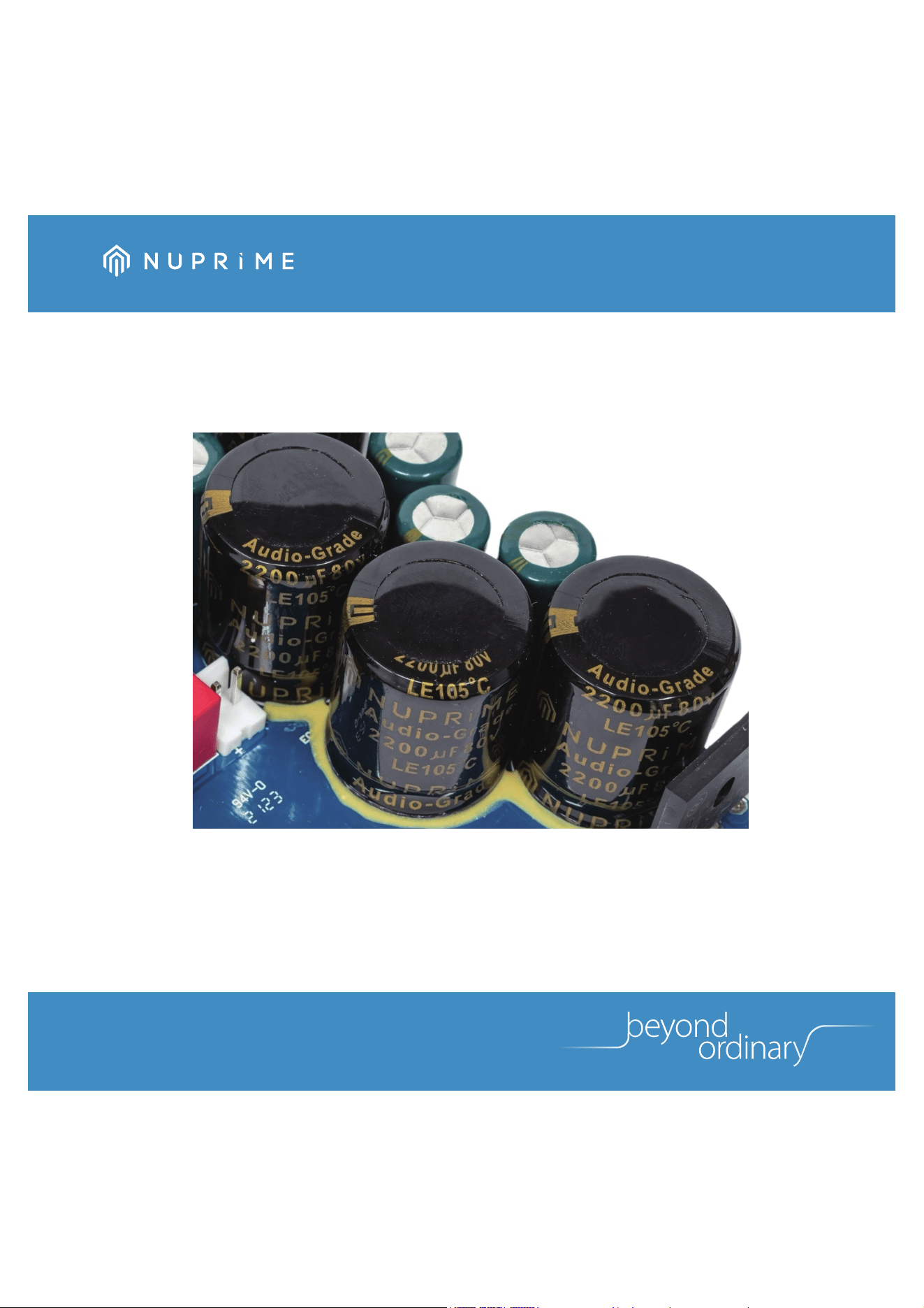

Custom Power Capacitors – Engineered specifically for Nuprime, these capacitors provide enhanced
instantaneous current delivery, ensuring the amplifier can respond immediately to dynamic musical demands.
WIMA and EPCOS Premium Audio Capacitors – The IDA-9 incorporates 14 high-end capacitors from the
WIMA MKP and EPCOS MKP series throughout the circuit for power rail bypassing. These premium
components, typically found in high-end audio equipment, deliver sweet, full-bodied tonal character with
fast response, low loss, and naturally balanced sound.
11
www.nuprime-x.com
12
4, DAC Performance
The integrated DAC supports high-resolution formats including USB PCM 384 and DSD256, with additional
capability for decoding DoP (DSD over PCM) formats via coaxial and optical inputs. Native DSD playback is
supported through both ASIO2.1 and DoP methods.

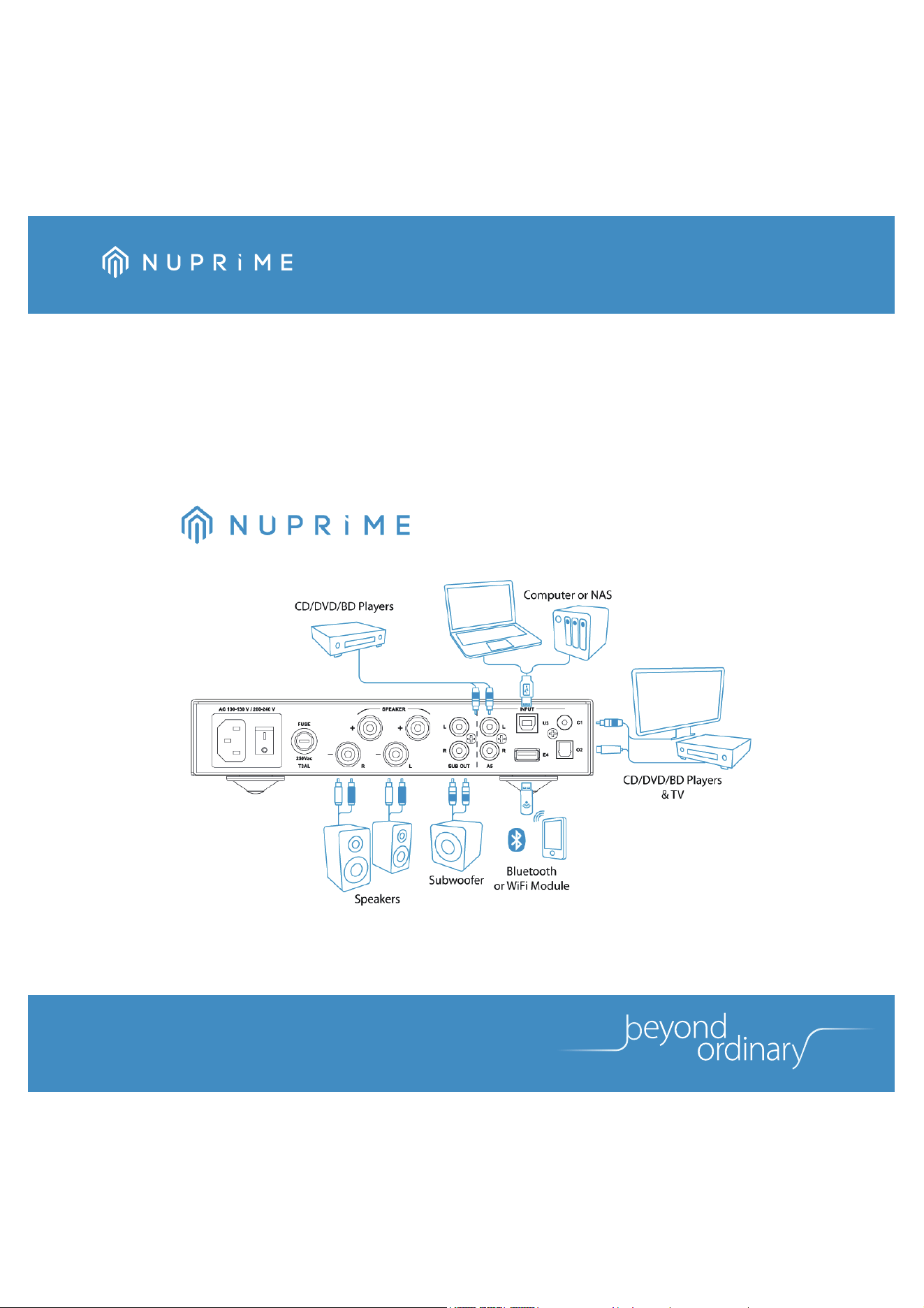

5, Connectivity and Control
Four digital inputs and one stereo analog input, accommodating virtually any source configuration.
6, Precision Volume Control – Features individually adjustable volume on each input for precise level matching of
sources, with full microprocessor control and memory retention. Volume adjustment is available in 99 precise
0.5dB increments for exact level setting.
7, USB Audio Compatibility – Includes dedicated NuPrime device driver software for Windows systems, while Mac
users can utilize standard driver software for plug-and-play operation.
8, Custom NuPrime isolation feet eliminate vibration transfer, ensuring optimal performance by preventing
mechanical interference with sensitive audio circuits.
9, Energy Efficient Operation – The IDA-9 maintains very low power consumption in standby mode, reflecting
modern energy-conscious design principles.
10, Includes a comprehensive remote control for convenient operation of all functions and settings.
www.nuprime-x.com
13
Revolutionary GaN Power Supply Technology
Advanced GaN Power Factor Correction
www.nuprime-x.com
15
At the heart of the IDA-9’s power supply architecture lies a sophisticated dual-phase interleaved GaN Power Factor
Correction (PFC) circuit. This innovative design approach delivers exceptional voltage regulation while maintaining
minimal noise levels and achieving ultra-high efficiency. The entire PFC module is housed within a remarkably
compact 75 × 30 × 25 mm enclosure, yet delivers an impressive 600 watts of output power.
The dual-phase interleaved topology represents a significant engineering advancement, allowing for smoother
power delivery and reduced ripple current compared to traditional single-phase designs. This results in cleaner
power conversion and improved overall system performance.
www.nuprime-x.com
16
Gallium Nitride High Frequency High Efficiency Power Module (GaN HFHFPM)
Beyond the PFC stage, the IDA-9 employs new-generation GaN semiconductor modules for the critical power
conversion stages that supply the amplifier circuits. These modules showcase the remarkable capabilities of GaN
technology, with each individual module maintaining the same compact 75 × 30 × 25 mm footprint while
delivering up to 250 watts of output power and instantaneous peak current capabilities of up to 10 amperes.
The choice of GaN semiconductors over traditional silicon-based solutions enables this extraordinary power
density while maintaining excellent thermal characteristics and switching efficiency. This translates to reduced
heat generation and improved long-term reliability.
www.nuprime-x.com
17
Symmetrical Dual Supply Architecture
Engineering Excellence Through Miniaturization
The IDA-9’s power supply design incorporates two independent GaN power blocks configured to create a
symmetrical dual supply system, providing both positive and negative voltage rails. This balanced approach
ensures optimal performance for the amplifier’s differential circuit topology.
Combined, these twin power blocks deliver a total output of 500 watts with peak current capability reaching 20
amperes. This substantial power reserve enables the IDA-9 to achieve an impressive 200 watts per channel of
music output power, ensuring dynamic headroom for even the most demanding musical passages.
Perhaps most remarkably, this advanced power supply system delivers performance equivalent to traditional
transformer-based power supplies while occupying only one-fourth the physical space and weighing merely 20%
of conventional designs. This dramatic reduction in size and weight opens new possibilities for amplifier design
and placement flexibility without compromising performance.
www.nuprime-x.com
Performance Benefits
The integration of GaN Power Factor Correction with GaN Power Modules creates a synergistic effect that delivers
multiple performance advantages. The system achieves exceptional efficiency with minimal energy loss, translating
to reduced operating costs and environmental impact. The high power output capability within such a compact form
factor represents a paradigm shift in power supply design philosophy.
18
www.nuprime-x.com
From an audio perspective, the GaN-based power supply contributes to the IDA-9’s sonic signature through fast,
detailed, and dynamic sound reproduction. The ultra-clean power delivery creates a deep black background that
enhances musical detail retrieval and provides excellent channel separation, allowing listeners to experience music
with exceptional clarity and precision. The NuPrime IDA-9’s GaN power supply technology represents a convergence
of advanced semiconductor engineering and audio design philosophy, delivering a solution that pushes the
boundaries of what’s possible in compact, high-performance amplifier design.
19
www.nuprime-x.com
20
Using Bluetooth and WiFi Audio Receivers and Dongles
NuPrime defined an USB Type-A port to carry S/PDIF data and 5V power for connecting to external wireless audio
receiver using just one standard USB cable.
The NuPrime Omnia WR-1, WR-2, BTR-HD, Stream Mini, and Stream Mini DAC wireless receivers have a micro USB
port that is compatible this specification. This allow a standard off-the-shelf USB-A to micro USB cable to be used
for power for the receiver as well as wireless audio data transfer in S/PDIF format.
● Inputs
● 1 x USB PCM / DSD Digital (PCM up to 384kHz & DSD up to DSD256)
● 1 x Coaxial Digital S/PDIF (PCM up to 192K supporting DoP format DSD64)
● 1 x Optical Digital S/PDIF (PCM up to 192K supporting DoP format DSD64)
● 1 x Bluetooth or WiFi receiver device (optional)
● 1 x Analog Stereo RCA (analog input will be digitized)
● Outputs
● 1 x pair of stereo speaker (binding posts) output
● 1 x pair of stereo RCA (2V*), variable (volume controlled) output, full range
www.nuprime-x.com
22
● USB Sampling Rates:Â 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz, 192KHz, 352.8KHz, 384KHz and
DSD 2.8MHz, 5.6MHz, 11.2MHz
● S/PDIF Sampling Rates: 44.1KHz, 48KHz, 88.2KHz, 96, 176.4KHz, 192KHz, 384KHz (Coaxial)
● Bit Resolution: 16-32-bits
● RMS Power output: 200W x 2 @ 8 Ohms; 250W x 2 @ 4 Ohms
● THD+N: 0.005%
● Frequency Response: 10Hz to 50kHz
● AC voltage: (90VAC~130VAC // 210VAC~ 250VAC) With Voltage Select Switch
● AC Fuse: Slow-blow, 3A, 250VA
● Color: Black or Silver
● Product Dimension: 55 x 235 x 281 mm (H x W x D)
● Package Dimension: 80 x 390 x 360 mm (H x W x D)
● Product Weight: 4kg
● Package Weight: 5kg
● Warranty: 1 year.
www.nuprime-x.com
NuPrime’s Limited Warranty and Limitation of Liabilities
ADDITIONAL RIGHTS
For consumers, who are covered by consumer protection laws or regulations in their country of
purchase or, if different, their country of residence, the benefits conferred by this warranty are in
addition to all rights and remedies conveyed by such consumer protection laws and regulations.
This warranty does not exclude, limit or suspend any rights of consumers arising out of
nonconformity with a sales contract. Some countries, states and provinces do not allow
the
exclusion or limitation of incidental or consequential damages or allow limitations on how long an
implied warranty or condition may last, so the limitations or exclusions described below may not
apply to you. This warranty gives you specific legal rights, and you may also have other rights that
vary by country, state or province. This limited warranty is governed by and construed under the
laws of the country in which the product purchase took place.
LIMITED WARRANTY
For a period of ONE YEAR from the date of retail purchase
by the original end-user purchaser
(“Warranty Period”), NuPrime warrants (in) this product against defects in materials and
workmanship, and (ii) that each Product, unmodified and under normal use and conditions, will
substantially comply with NuPrime’ applicable written technical documentation for the Product.
NuPrime reserves the right to make substitutions and modifications from time to time in the
specifications of Products sold by NuPrime, provided that such subst
itutions or modifications do
not materially affect overall Product performance.
If a hardware defect exists and a valid claim is received within the Warranty Period, at its option
and to the extent permitted by law, NuPrime will (1) repair the hardware defect at no charge,
using new or refurbished replacement parts, (2) exchange the product with a product that is new
or which has been manufactured from new or serviceable used parts and is at least functionally
equivalent to the original product, or (3) refund the purchase price of the product. NuPrime may
request that you replace defective parts with user-installable new or refurbished parts that
NuPrime provides in fulfillment of its warranty obligation. A replacement product/part assumes
23
www.nuprime-x.com
the remaining warranty of the original product or ninety (90) days from the date of replacement
or repair, whichever provides longer coverage for you. When a product or part is exchanged, any
replacement item becomes your property and the replaced item becomes NuPrime's property.
When a refund is given, your product becomes NuPrime's property.
OBTAINING WARRANTY SERVICE
If you purchased the product in the U.S., deliver the product, at your expense, to any NuPrime
Service Center located in the U.S. If you purchased the product outside of the U.S., deliver the
product to any NuPrime Authorized Importer in the country where you purchased the product.
Be aware, however, that not all countries have NuPrime Authorized Service Providers (‘NASP’)
and not all Authorized Service Providers outside the country of purchase have all parts or
replacement units for the product. If the product cannot be repaired or replaced in the coun
try it
is in, it may need to be sent to a different country or returned to the country of purchase at your
expense for repair or replacement. If you seek service in a country that is not the country of
original purchase, you will comply with all applicable import and export laws and regulations and
be responsible for all custom duties, V.A.T. and other associated taxes and charges. Where
international service is available, NuPrime may repair or exchange defective products and
parts
with comparable products and parts that comply with local standards.
You can always deliver the product to NuPrime’s U.S.A or Taiwan service center for obtaining
warranty service, however, you may have to pay for shipping cost.
NuPrime may send you user-installable new or refurbished replacement product or parts to
enable you to service or exchange your own product (“DIY Service”). Upon receipt of the
replacement product or part, the original product or part becomes th
e property of NuPrime and
you agree to follow instructions, including, if required, arranging the return of original product or
part to NuPrime in a timely manner.
When providing DIY Service requiring the return of the original product or part, NuPrime may
require a credit card authorization as security for the retail price of the replacement product or
part and applicable shipping costs. If you follow instructions, NuPrime will cancel the credit card
24
www.nuprime-x.com
25
www.nuprime-x.com
26
www.nuprime-x.com
