INSTALLATION GUIDE
PB Pre-construction Board Installation guide
PB (
PROUD
) PRE-CONSTRUCTION BOARD INSTALLATION GUIDE

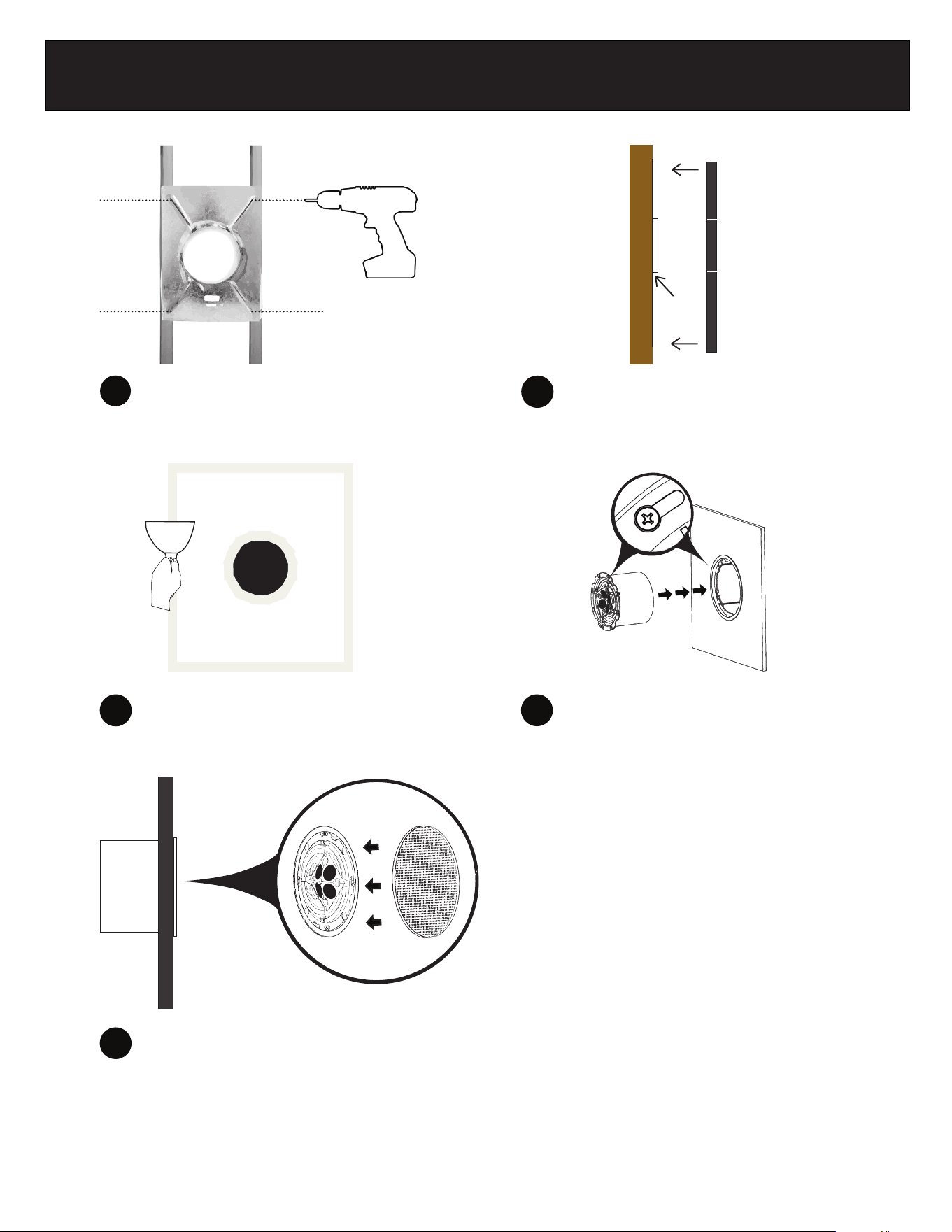

After determining the installation area for the
speaker, secure the PB board to the wall studs
while making sure that the inner rim of the PB
extrudes away from the wall and not into the wall
as shown in step 2.
1
2
Depending on the model of speaker being installed,
a bracket may need to be installed prior to speaker
installation. If required perform this step now.
(QXC bracket shown).
4
3
Once the PB board is secured, cut a hole large
enough to accommodate the rim of the PB
board in the sheetrock panel.
5
Attached the grille to complete the installation. If
desired, grilles can be painted prior to installation
to better match the installation environment.
Secure sheetrock panel to the studs and apply
mesh tape and joint compound to hide the
installation seams. Make sure to apply joint
compound up to the rim of the PB board.
(PB - Proud)
Wall
Sheetrock
Wall Stud
PB Board
(PB - Proud)
