XtremepowerUS 90153 Pool Chlorine Generator System

Product's Documents

Below are documents related to this product, you can read online or download:
Main documentSpecificationQuestions and answersRelateds Products
90153 photo

90152 User Manual

This is the main product document for model 90153. Additionally, the document applies to other XtremepowerUS models: 812365032738

The file format is pdf, 13 pages, you can download this manual here .

background

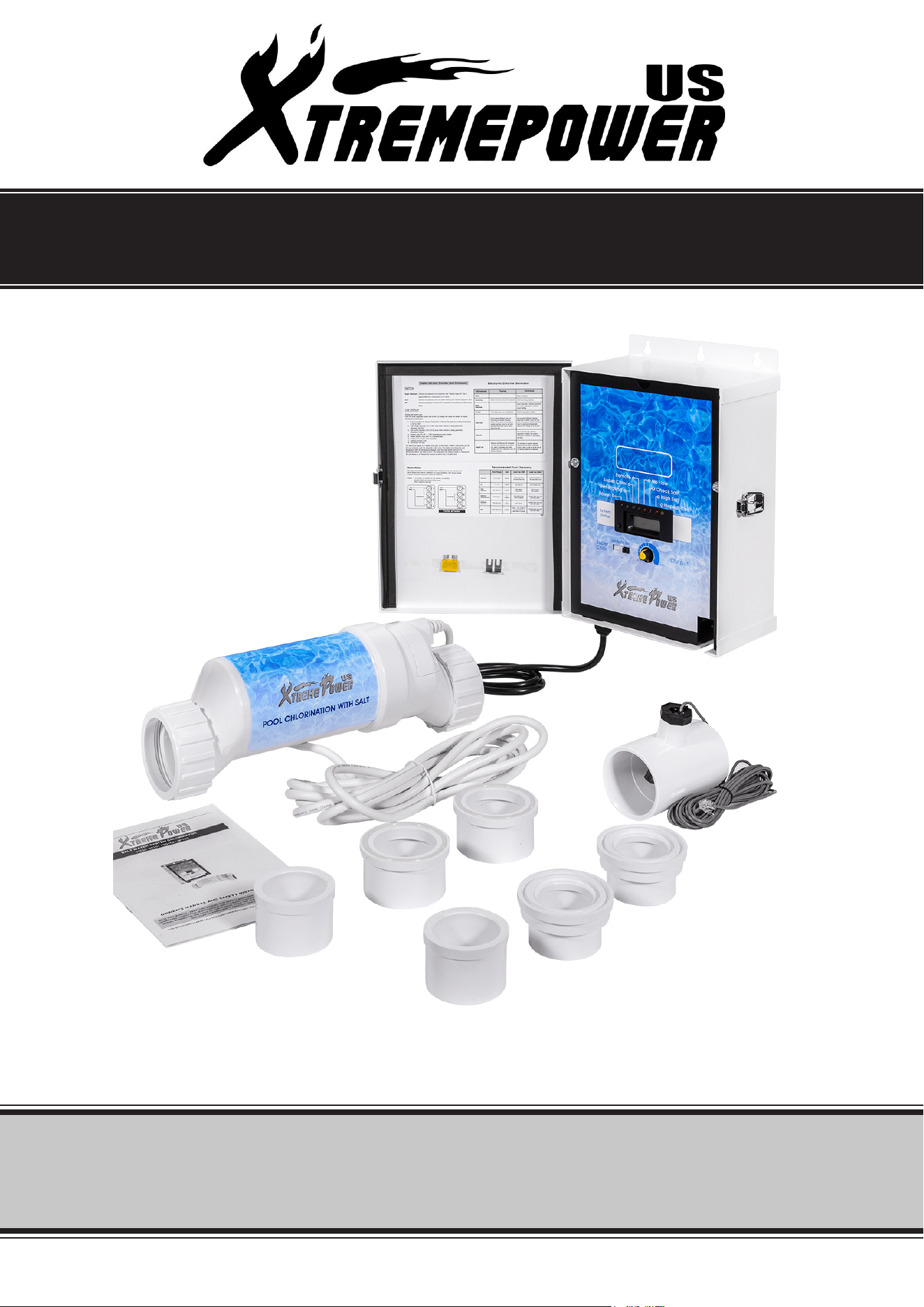

SALT WA
TER SYSTEM CHLORINATOR
ITEM: 90151 / 90152 / 90153
SAVE THIS MANUAL: KEEP
THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY,
OPERATING, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT’S
SERIAL NUMBER ON THE BACK OF THE MANUAL NEAR THE ASSEMBLY DIAGRAM (OR MONTH
AND YEAR OF PURCHASE IF PRODUCT HAS NO NUMBER)
OWNER’S MANUAL AND SAFETY INSTR
UCTIONS
FOR QUESTIONS PLEASE CALL OUR CUSTOMER SUPPORT: 909.628.0880 MON-FRI 9AM TO 3PM PST
background
IMPORTANT SAFETY INFORMATION
GENERAL SAFETY WARNINGS
Read all safety warnings and instructions. Failure to follow the warnings and instructions may result
in electric shock, re and/or serious injury. Save all warnings and instructions for future reference.
SAFETY
The warning
s, precautions, and instructions discussed in this instruction manual cannot cover all possible
conditions and situations that may occur. It must be understood by the operator that common sense and
caution are factors which cannot be built into this product, but must be supplied by the operator. Read
carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to
follow the safety rules and other basic safety precautions may result in serious personal injury.
Disconnect all
AC power during installation.
DO NOT permit children to use this product.
A green colored screw is located inside the wiring compartment, against the back panel. To reduce the
risk of electric shock, this terminal must be connected to the grounding means provided in the electric
supply service panel with a continuous copper wire equivalent in size to the circuit conductors supplying
the equipment.
One bonding lug for US models (two for Canadian models) is provided on the external surface. To reduce
the risk of electric shock, connect the local common bonding grid in the area of the swimming pool, spa,
or hot tub to these terminals with an insulated or bare copper conductor not smaller than 8 AWG US/6
AWG Canada.
All
eld-installed metal components such as rails, ladders, drains, or other similar hardware located
within 10 feet (3 meters) of the pool, spa or hot tub shall be bonded to the equipment grounding bus with
copper conductors not smaller than 8 AWG US/ 6 AWG Canada.
The SPS is an automatic chlorine generation system for pool & spa sanitation. The operation requires
a low concentration of salt (sodium chloride) in the pool water at levels low enough that it normally cannot
be tasted. SPS automatically sanitizes your pool by converting the salt into free chlorine, which kills
bacteria and algae in the pool through a process called electrolysis.
SPS is designed to handle the purification needs of the average residential swimming pool up to 40,000
gallons (150,000 liters). The actual amount of chlorination required to properly sanitize a pool
varies depending upon bather load, rainfall, air temperature, water temperature, pool’s exposure to
sunlight, pool’s surface, and cleanliness.
NOTE: It is not recommended using the SPS to generate Bromine. If your pool has natural stone
as coping or decking, please check with a stone installation specialist for the maintenance of the stone
before installing the SPS.
1
background
1. GeneralInstruction
3
2. WarningAndSafetyInstructions
4
3. FunctionAndOperationInstructions
4
4. DailyUsageandMaintenance
5
5. TroubleShooting
6
6. ParameterTable
7
7. ExplosionViewAndPartsList
10
TABLEOFCONTENTS
background
GENERAL INSTRUCTION
The chlorine generator is an automatic chlorine generation system for pool sanitation. The operation requires
a low concentration of salt (sodium chloride) in the pool water. The chlorine generator automatically sanitizes
your pool by converting the salt into free chlorine which kills bacteria and algae in the water. Chlorine will
revert back to sodium chloride after killing bacteria. These reactions will continuously recycle virtually
eliminating the need to add sanitizing chemicals to your pool.
To extend the service life, please ensure that the equipment operates in the following status
Temperature Range:
The chlorine generator normally works in the pool temperature range of 11℃˜ 45℃. Once it's exceeded, the
chlorine generator will alarm and stop until the water temperature returns to the normal range (see
TROUBLESHOOTING description for details).
Water Flow Range:
Different salt chlorinators have different requests for the water flow. Make sure that the water flows through
the salt cell in the correct direction and install the pipe on the back of chlorine generator, to ensure that the
titanium kits completely soaked in water. Please refer to Installation Instructions on how to install chlorine
generator.

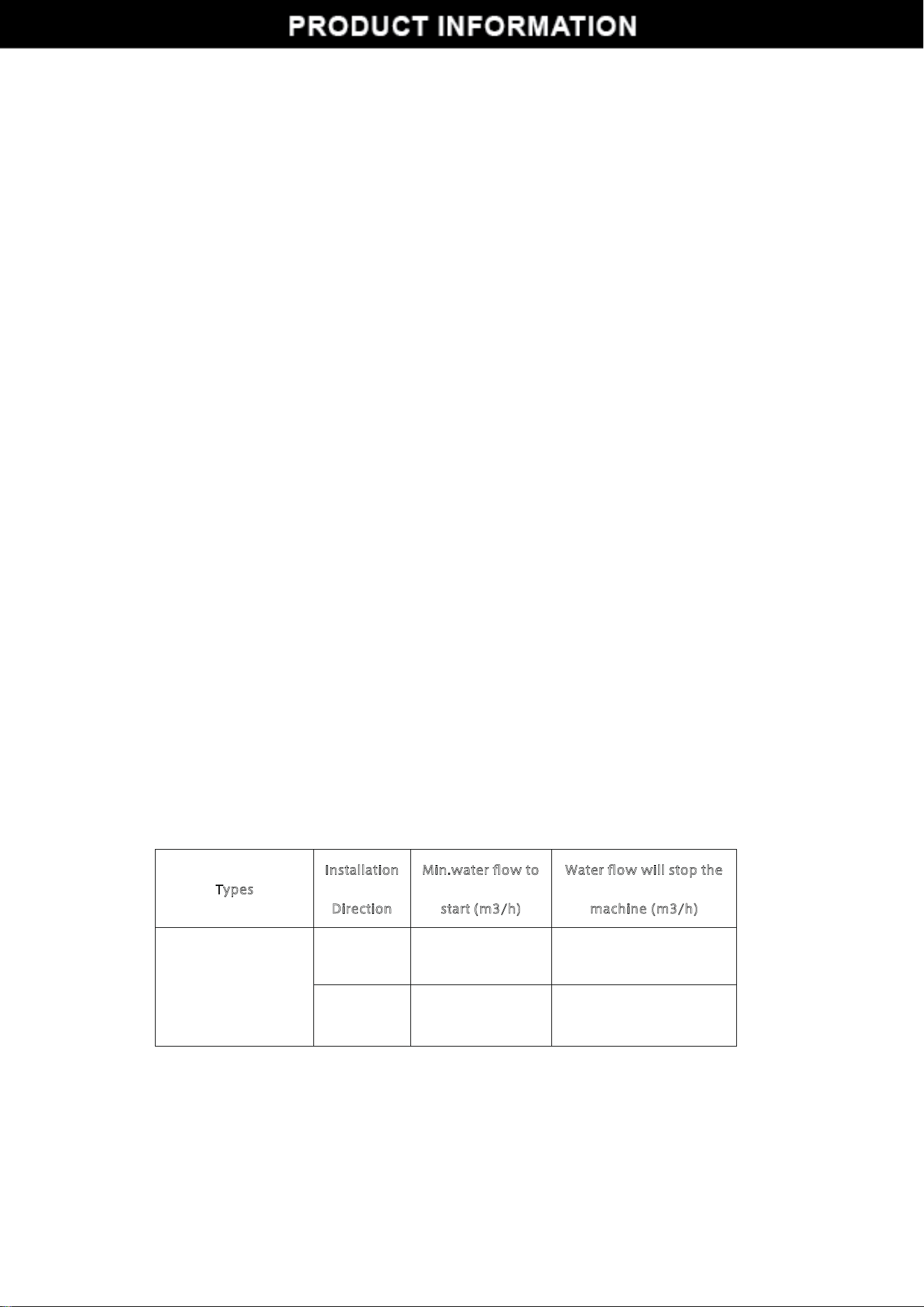

Please read the following table for the flow required for different chlorinators.
Types
I
nstallation
D
irection
M
in.waterflowto
s
tart(m3/h)
W
aterflowwillstopthe
m
achine(m3/h)
Externalflowswitch
Horizontal 2
1.2
Vertical 2
1.2
Salinity Range:
The chlorine generator normally works at a salinity of 1700PPM˜4500PPM. Once it's exceeded, the chlorine
generator will stop until the pool water is back within this range.
2
background
WARNING AND SAFETY INSTRUCTIONS
• WARNING ‒ Electrical Hazard. Failure to follow instructions can result in serious injury or
death.
• WARNING ‒ Disconnect this product from the main power supply completely before
servicing the swimming pool equipment.
• WARNING ‒ Be certain the product is only plugged into a protected outlet that is protected
from short-circuits.
• WARNING ‒To reduce the risk of electric shock, do not use extension cord to connect unit to
electric supply; provide a properly located outlet.
• WARNING ‒ Children should be supervised to ensure that they do not play with the
appliance. Keep fingers and foreign objects away from openings and moving parts.
• WARNING ‒ Use Only Genuine Replacement Parts.
• WARNING ‒ Do not operate the product if the power cord is damaged. This can cause an
electric damaged power cord must be replaced by a service agent or a similarly qualified
person immediately in order to avoid a hazard. shock. A
3
background

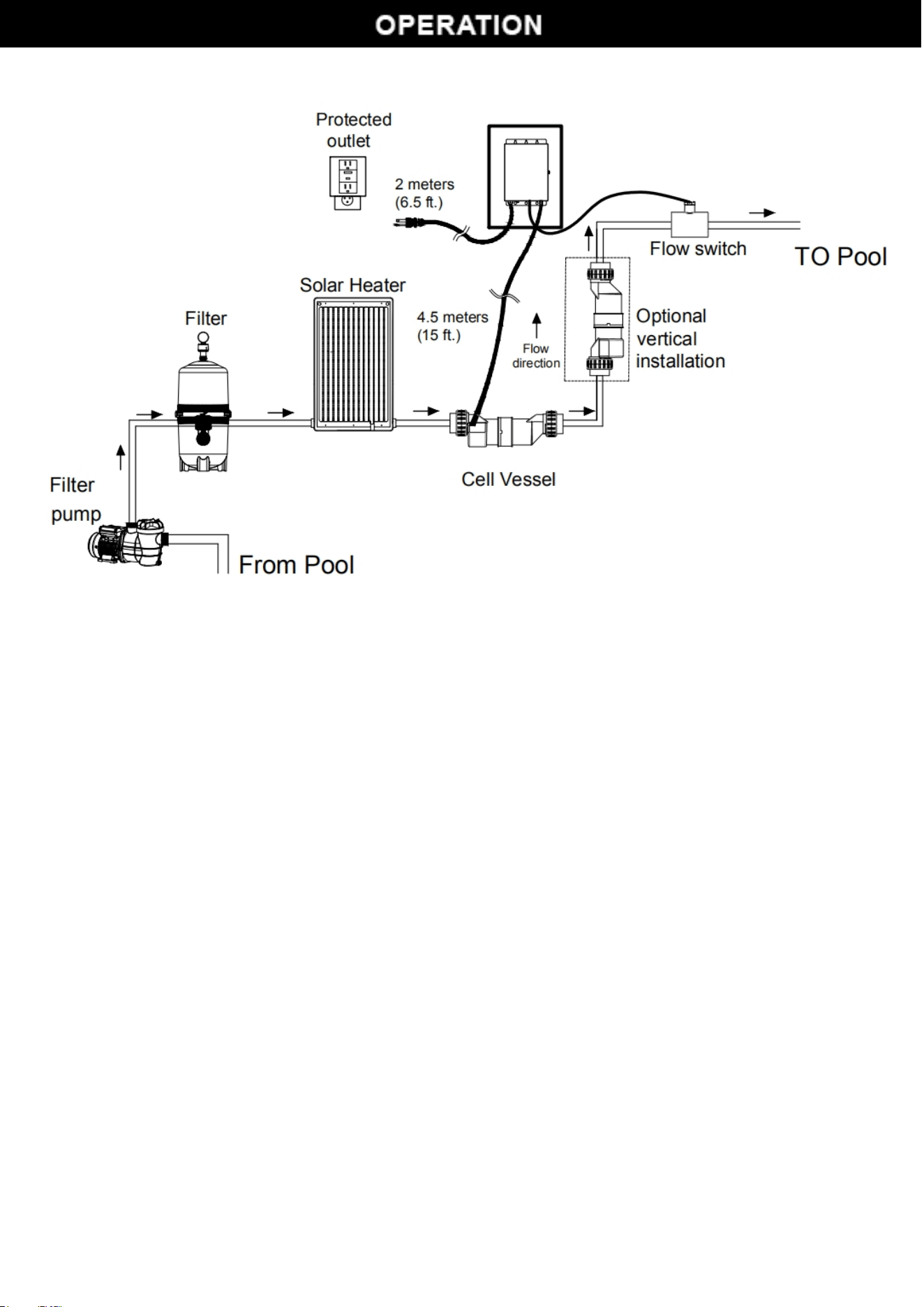

FUNCTION AND OPERATION
INSTRUCTIONS Operation Mode
1. Super chlorination mode：In any mode, press "S" button to enter, the super chlorination mode will
automatically return to the original
chlorination mode after running for 24 hours, and press "S" button again to exit
the super chlorination mode.
2. The original chlorination mode：In standby mode, press the "MORE/ON" button to enter the chlorination
mode. And adjust to a certain amount of chlorination by pressing "MORE" button, the indication light of
chlorination output will change accordingly. According to the setting of chlorination intensity, the chlorine
generator alternates between chlorination producing and suspension, and takes one hour as a cycle. For
example, when it is 60%, there are 36 minutes in chlorination producing status, and the rest 24 minutes are in
suspension.
3. Automatic cleaning mode：Keep pressing "MORE"/" ON " for a while in any working mode, the chlorine
generator enters the automatic
cleaning mode setting. The automatic cleaning cycle is set as every 1-6 hours,
and the default setting is "CL 3 " which means automatically cleaning every 3 hours (the number means frequent
intervals). Press "MORE" to increase the interval time, and "LESS" to decrease the interval time.
4
background

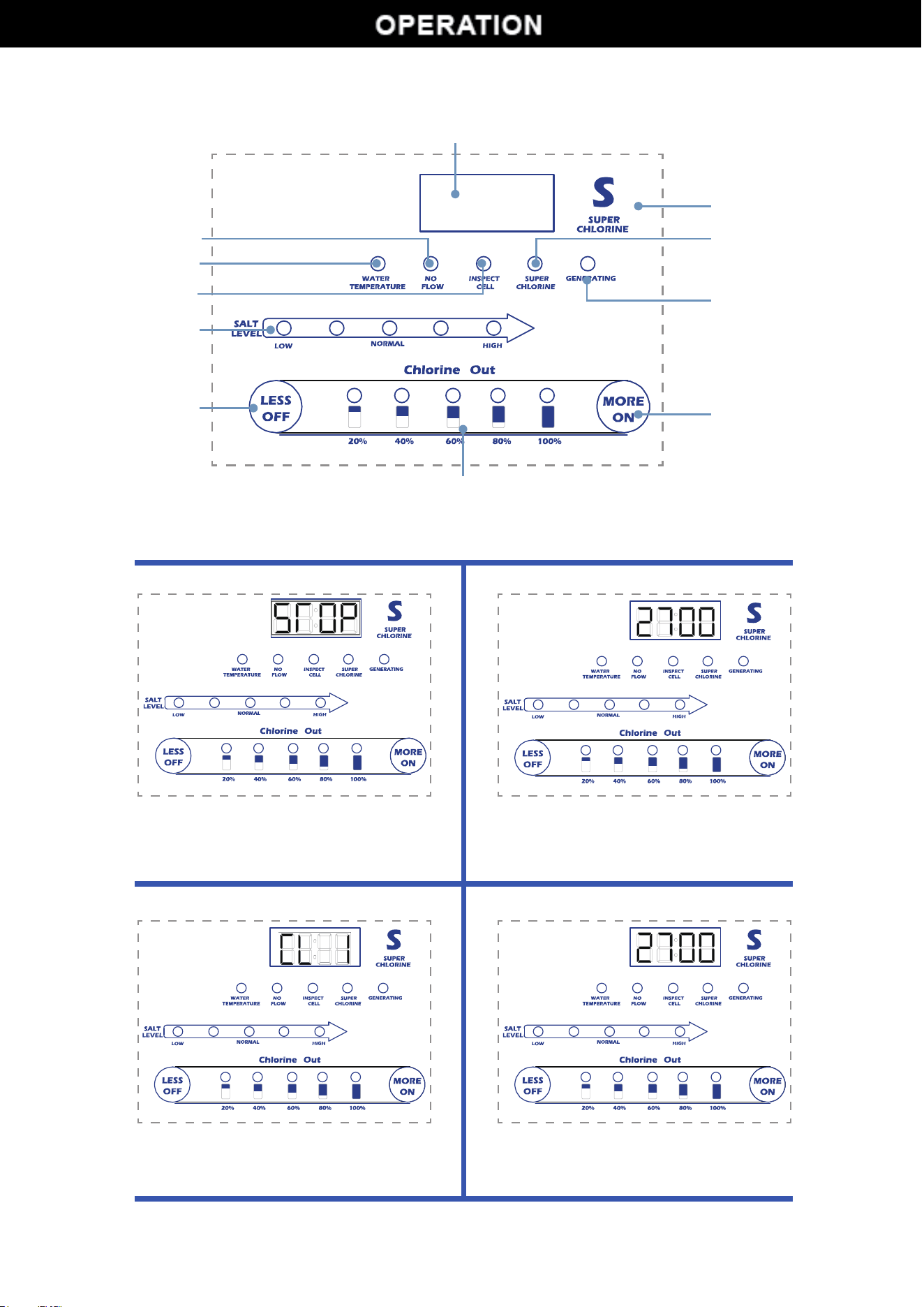

CONTROL PANEL
Salinity/Temperature/StatusDisplay
Insufficientwaterflowerrorindicationlight
Watertemperatureerrorindicationlight
Salinityerrorindicationlight
Salinityleveldisplay
Shutdown/functionselectbutton
SalinityDisplay
Poweron/functionselectbutton
Operatingindicationlight
Superchlorinationmodelight
Superchlorinationmode
Button Instructions:
Poweron/off Functionselecting
Automaticcleaningmode Superchlorinationmode
Instandbystatus,press"MORE/ON"forthe
firsttimetoturnonthegenerator,andpress
"LESS/OFF"forthefirsttimetoturnoffthe
generator,anditwillshowas"STOP".
Saltproducingtimeincrease:press"MORE/ON"
buttonwhenmachineisonSaltproducingtime
decrease:press"LESS/OFF"forfirsttime,the
machinewillbeoff,andpressagain
Keeppressing"MORE"forawhiletoenterthe
self-cleaningmodewhenstartingup,and
continuetopress"MORE"or"LESS"toadjust
Wheneverinanymode,press'S'toenterSuper
chlorinationmode
5
background

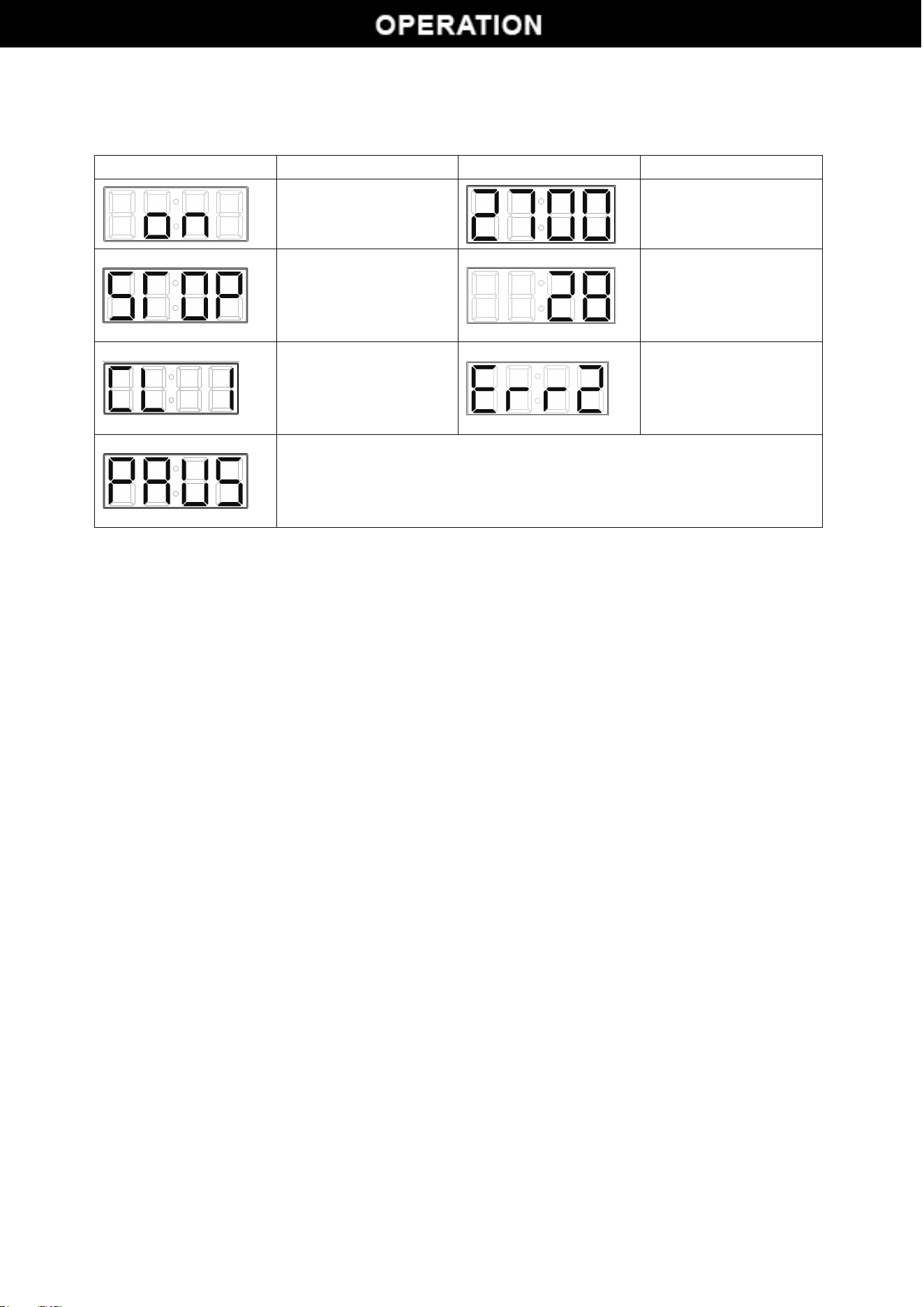

Contents for the LED screen
Displaycharacter Meaning Displaycharacter Meaning
Thechlorinegeneratoris
open
Currentsalinitylevel(ppm)
Thechlorinegeneratoris
closed
Currentwatertemperature
detected,thedefaultis℃,
Automaticcleaningmode
setting,thenumber
representstheself-cleaning
intervalhour
Erroralarmandthe
correspondingerrorlightis
inred
Thechlorinegeneratorisinsuspension
Thechlorinegeneratoralternatesbetweenchlorinationproducingandsuspension,andtakes
onehourasacycle.Forexample,whenitis60%,thereare36minutesinchlorination
producingstatus,andtherest24minutesareinsuspension.
DAILYUSAGEANDMAINTENANCE
Salinity regulation
The salt in the pool is constantly recycled and the loss of salt is smaller than during the entire
swimming season. This loss is mainly due to splashing, backwashing, or drainage (due to
rain). Salt will not be lost in evaporation. Ideal salt levels range from 2.7 g/L (2700 PPM) to
3.4 g/L (3400 PPM)
High salt will probably give you a salty taste of pool (normally, at a level of 3.5g/ (3500 PPM)
-4 g/L (4000 PPM) you will taste salty) when the salinity of chlorine generator is higher than
4800PPM, the chlorine generator will stop (see ERR4 fault), please replace part of the pool
water. Low salt level will reduce the chlorine producing efficiency. When the salinity is lower
than 1.7g/L (1700 PPM), t he chlorine generator will stop (refer to ERR2 fault). At this time,
add salt according to the recommended volume given in the table below.
6
background
2. Salttypes
Itisimportanttouseonlythesaltofsodiumchloride(NaCl),whosepureismorethan99%.In
addition,itispossibletouseawater-toningpill,however,thiswilltakelongerforpoolto
dissolve.Donotusestonesalt,
saltsoda,yellowbloodsaltoriodizedsalt.
3．Howtoaddordissolvesalt
Addsaltdirectlytothepoolandstartthecirculationpump.Washaroundthesaltto
speedupthedissolution.Donotallowsalttopileupatthebottomofthepool.Runthefilter
pumpfor24hourstodistributesaltevenlythroughoutthepool(Forthenewcementpool,
pleaseensurethatthewallofthepooliscompletelysolidifiedbeforeaddingsalt).

4．Antifreeze
Thereplaceablepartsinthechlorinegeneratorcanbedamagedbywaterfreezing,justas
yourswimmingpoolhosecanbedamaged.Incountriesorregionsexperiencingsevereor
prolongedfreezing,ensurethatallwaterisdrainedviadrainagepumps,filters,andpipesto
preventfreezing.Thecontrolboxandthepipeconnectingtheelectrolyticvesselshallbeable
tobearanyfreezingweatherandshallnotberemoved.
POUNDS and (Kg) OF SALT NEEDED FOR 3200 PPM
Current
salt
Level
ppm
6000
(22700)
Gallons and liters of Pool/Spa
water
8000 10000 12000 14000 16000 18000 20000 22000 24000 26000 28000 30000 32000 34000 36000 38000 40000
(30000) (37500) (45000) (52500) (60000) (67500) (75000) (82500) (90000) (97500) (105000) (112500) (120000) (127500) (135000) (142500) (150000)
0
161
(73)
213
(97)
267
(121)
320
(145)
373
(170)
427
(194)
480
(218)
533
(242)
587
(267)
640
(291)
693
(315)
747
(339)
800
(364)
854
(388)
907
(412)
960
(436)
1013
(460)
1067
(484)
200
150
(68)
200
(91)
250
(114)
300
(136)
350
(159)
400
(182)
450
(205)
500
(227)
550
(250)
600
(273)
650
(295)
700
(318)
750
(341)
800
(363)
850
(385)
900
(408)
950
(430)
1000
(453)
400
141
(64)
187
(85)
233
(106)
280
(127)
327
(148)
373
(170)
420
(191)
467
(212)
513
(233)
560
(255)
607
(276)
653
(297)
700
(318)
747
(339)
793
(360)
840
(382)
887
(403)
933
(424)
600
173
(59)
173
(79)
217
(98)
260
(118)
303
(138)
347
(158)
390
(177)
433
(197)
477
(217)
520
(236)
563
(256)
607
(276)
650
(297)
693
(317)
737
(337)
780
(358)
823
(378)
867
(398)
800
119
(54)
160
(73)
200
(91)
240
(109)
280
(127)
320
(145)
360
(164)
400
(182)
440
(200)
480
(218)
520
(236)
560
(255)
600
(273)
640
(291)
680
(310)
720
(328)
760
(348)
800
(364)
1000
108
(49)
147
(67)
183
(83)
220
(100)
257
(117)
293
(133)
330
(150)
367
(167)
403
(183)
440
(200)
477
(217)
513
(233)
550
(250)
587
(267)
623
(283)
660
(300)
697
(317)
733
(333)
1200
97
(44)
133
(61)
167
(760
200
(91)
233
(106)
267
(121)
300
(136)
333
(152)
367
(167)
400
(182)
433
(197)
467
(212)
500
(227)
533
(243)
567
(258)
600
(274）
633
(289)
667
(304)
1400
86
(39)
120
(55)
150
(68)
180
(82)
210
(95)
240
(109)
270
(123)
300
(136)
330
(150)
360
(164)
390
(177)
420
(191)
450
(205)
480
(218)
510
(232)
540
(246)
570
(259)
600
(263)
1600
75
(34)
107
(48)
133
(61)
160
(73)
187
(85)
213
(97)
240
(109)
267
(121)
293.
(133)
320
(145)
347
(158)
373
(170)
400
(182)
427
(195)
453
(207)
480
(219)
507
(231)
533
(243)
1800
71
(32)
93
(42)
117
(53)
140
(64)
163
(74)
187
(85)
210
(95)
233
(106)
257
(117)
280
(127)
303
(138)
327
(148)
350
(159)
373
(169)
397
(180)
420
(190)
443
(201)
467
(211)
2000
60
(27)
80
(36)
100
(45)
120
(55)
140
(64)
160
(73)
180
(82)
200
(91)
220
(100)
240
(109)
260
(118)
280
(127)
300
(136)
320
(145)
340
(154)
360
(163)
380
(172)
400
(181)
2200
49
(22)
67
(30)
83
(38)
100
(45)
117
(53)
133
(61)
150
(68)
167
(76)
183
(83)
200
(91)
217
(98)
233
(106)
250
(114)
267
(121)
283
(129)
300
(137)
317
(144)
333
(152)
2400
40
(18)
53
(24)
67
(30)
80
(36)
93
(42)
107
(48)
120
(55)
133
(61)
147
(67)
160
(73)
173
(79)
187
(85)
200
(91)
213
(98)
227
(104)
240
(110)
253
(117)
267
(123)
2600
31
(14)
40
(18)
50
(23)
60
(27)
70
(32)
80
(36)
90
(41)
100
(45)
110
(50)
120
(55)
130
(59)
140
(64)
150
(68)
160
(73)
170
(77)
180
(81)
190
(86)
200
(90)
2800
20
(9)
27
(12)
33
(15)
40
(18)
47
(21)
53
(24)
60
(27)
67
(30)
73
(33)
80
(36)
87
(39)
93
(42)
100
(45)
107
(48)
113
(51)
120
(54)
127
(57)
133
(60)
3000
9
(4)
13
(6)
17
(8)
20
(9)
23
(11)
27
(12)
30
(14)
33
(15)
37
(17)
40
(18)
43
(20)
47
(21)
50
(23)
53
(24)
57
(26)
60
(27)
63
(29)
67
(30)
3200
Ideal Ideal Ideal Ideal Ideal Ideal Ideal Ideal Ideal Ideal Ideal Ideal Ideal Ideal Ideal Ideal Ideal Ideal
3400
OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK
3600+
Dilue Dilue Dilue Dilue Dilue Dilue Dilue Dilue Dilue Dilue Dilue Dilue Dilue Dilue Dilue Dilue Dilue Dilue
7
background
Maintainandcleanchlorinegeneratorelectrolyticcell
Beforetaking out the electrolytic cell,disconnect the power supply ofchlorine generator.
After removal, check whether there is scaling (light-colored hard skin or flaky sediment)
between titanium plates and some debris stuck on the electrode plate of the electrolytic
cell. If there is sediment, try to rinse it off with a high-pressure water pipe. If this is not
successful,the electrolytic cell may need to be replaced. Titaniumscaleindicates that the
poolisatahighcalciumlevel.Ifthiscannotbecorrected,itneedstocleantheelectrolytic
cellregularly.
6. Replacetheflowswitch
After long-term usage, the water flow switch may be damaged. We provide accessories
thatcanbedirectlyreplaced.Pleaserefertothefollowingfiguresforreplacement.
Unscrew the external flow switch, reinstall and connect it to the controller. Pay
attentiontothedirectionofflowswitchinstallationwhenreplacing
8
background
TROUBLESHOOTING
Error 1 Load short circuit
Aconductivemetalisembeddedinthe
titaniumplates
Cut off the power supply, remove the chlorine
generatorandrinsethetitaniumplate
Thereisashortcircuitofwaterinletatthe
connectionoftitaniumplates
Check whether the wiring position of titanium
plateisfloodedor burntout.Ifnot drainoutof
water,re-installandstarttheequipment
Error 2 Load Break
Verylowsalinity,nocurrentorverylittle
current
Add a small amount of salt water to the cells
andrestartthechlorinegenerator
Thewireconnectingthetitaniumplatefall
off
Cutoffthe power supply, remove the chlorine
generator, and check whether the titanium
platewiringisoff
Thetitaniumplateisold
Changeelectrolyticcell
S
alinityishigherthanthemaximumlimit
specified
Changepartofthepoolwatertoreducesalinity
S
alinityislowerthanthemaximumlim it
specified
Thewatertemperaturedetectedis
exceeded11℃˜45℃（51˜113F）,willre-work
againwhenthewatertemperatureis
between13℃˜43℃（55˜109F）
-Ensurethewatertemperatureisrecoveredand
restartthechlorinegenerator
-Checkwhethertheflowswitchcircuitisbroken
Insufficientwaterflow,thecavityisfilled
withair,andtheflowswitchisnotturned
on
- Ensure the filter pump is operating and that
there are no obstructions or restrictions in the
piping
Thefilterisinbackwashstatus Adjustfilteroperationstatus
Disconnectionoftheflowswitchcircuitor
otherfault
Replacetheflowswitch
Displayscreendamaged
-Checkthatthepowercordofthecontrolboxis
pluggedintoaprotectedsocket-makesure
thatthechlorinegeneratorisworkingproperly
-Replacethechlorinegeneratorcontrollerbox
- Expel air from the cells, ensuring that the
watersurfaceexceeds2
/
3ofthecells
- Add salt to the pool
- Increasetheflowoffilterpump
- Expel air from the cells, ensuring that the
watersurfaceexceeds2
/
3ofthecells
9
Error 3
Error 4
Error 5 Water temp light
on
No Flow
LED display does not
light up
PAUSIBLE CAUSES
ERROR CODES
background
PARAMETERTABLE
Model 7018 70189 70190
InputPower 115V 115V 115V
OutputPower
24V
Max.Electricity
current
6.5A
Chlorineproducing
Amount
3400PPM,24h
87g 120g 179g
Workingtemperature Airtemperature0-50℃，watertemperature11℃-45℃
UnionType US US US
FlowSwitchType External
Min.waterflowto
startthemachine
2m
3
/h 2m
3
/h 2m
3
/h
8
External External
10
background
DISCLAIMER
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY
DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR
DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT
HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS
QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR
DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE
UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER
ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL
PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION
OF REPLACEMENT PARTS THERETO.
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only and are not available individually
as replacement parts.
PLEASE READ THE FOLLOWING CAREFULLY
PRODUCT MADE IN CHINA
11

Specifications

XtremepowerUS 90153 Questions and Answers

Find answers or ask new question.
See other models: 93934 93511 98106 98107 93520
Questions and Answers
