Operator’s Manual
www.mechmaxx.com
HEAT PRESS MACHINE
WARRANTY
OPERATING INSTRUCTIONS
1
www.mechmaxx.com
Thank you for purchasing a Mechmaxx heat press!
To ensure smooth setup and operation, please read this user manual carefully before starting production with your
machine.
Reproducing any part of this manual in any form is not permitted without written permission from Mechmaxx. We reserve
the right to make changes to technical specifications and product features at any time.
FOR THE HEAT PRESS MACHINE
OPERATING INSTRUCTIONS
DOUBLE STATIONS PNEUMATIC HEAT PRESS MACHINE USER MANUAL
DOUBLE STATIONS PNEUMATIC HEAT PRESS MACHINE USER MANUAL
2
www.mechmaxx.com
This machine can thermo-transfer (via sublimation) colorful pictures and words onto textiles made of cotton, flax, chemi-
cal fiber, nylon, etc. This machine can also conduct some heat-treatments such as hair-planting print, vesicant print, and
conglutination of clothes with their lining under lower temperature and lower pressure (such as the conglutination of kid’s
clothes, caps and shoes).
It is air press pneumatic, auto work, easy operation, safe and reliable with enlarged and thickened cast aluminum heating
board.
The Mechmaxx heat press machine is a pneumatic double-plate transfer press specifically designed for medium to
high-volume production environments.
• Enables efficient and consistent processing of larger batches through its dual working surfaces.
• Features a digital control system for precise and user-friendly adjustment of time and temperature, including real-time
monitoring of set and actual values.
• Contact pressure is flexibly adjustable via a pressure gauge, with an integrated oil and water separator to ensure
optimal pneumatic performance.
• Equipped with a two-hand operation system and emergency stop functions for maximum operational safety, including
a pre-press capability.
• Lifting and lowering speeds can be finely regulated using built-in restriction valves.
• The device is CE and RoHS certified and has been tested in accordance with applicable German safety standards.
1.This machine must be protected by safe and reliable ground wire. Note that it is only permissible to operate a heat press
from a power socket protected by a ground fault protection switch.
2. During heating up and operation, please do not touch the heater to avoid scalding.
3. To get successful sublimation effect, it should be correct time, temperature and pressure; the thickness and material
of the heating sublimation products and the ink and paper also will affect the sublimation effect.
4. Before large scale production, you must make some sample test to make sure the best time, temperature, pressure
etc.
5. The temperature controller is complicated, except the temperature setting, please do not make other setting to avoid
program error and broken.
6. Don’t put your hand on the working plate when the machine is working, for prevent your hand from burns
7.Never open the housing or attempt to modify the machine yourself
8.In case you are requested by the Mechmaxx customer support to open the heating plate cover, please make sure you
are wearing respiratory protection and only touch the contained insulation wool with gloves. Any disposal of the wool
must be contained in a closed bag.
9.Ensure that liquids and metal objects do not get into the inside of the heat press.
10.Disconnect machine from power outlet when not in use!
11.Never operate the heat press within the reach of children and never leave the machine unsupervised when switched
on.
12.Ensure that the machine is used only in dry rooms.
SUMMARY
SHORT OVERVIEW – MECHMAXX HEAT PRESS MACHINE
SAFETY PRECAUTIONS
3
www.mechmaxx.com
DOUBLE STATIONS PNEUMATIC HEAT PRESS MACHINE USER MANUAL
13.Pay attention that the used compressor is attuned to the air consumption and the pressure.
If you cannot observe one or more of the safety precautions above, or if you are not sure whether all points are satisfied,
please contact our Technical Support Department.
4
www.mechmaxx.com

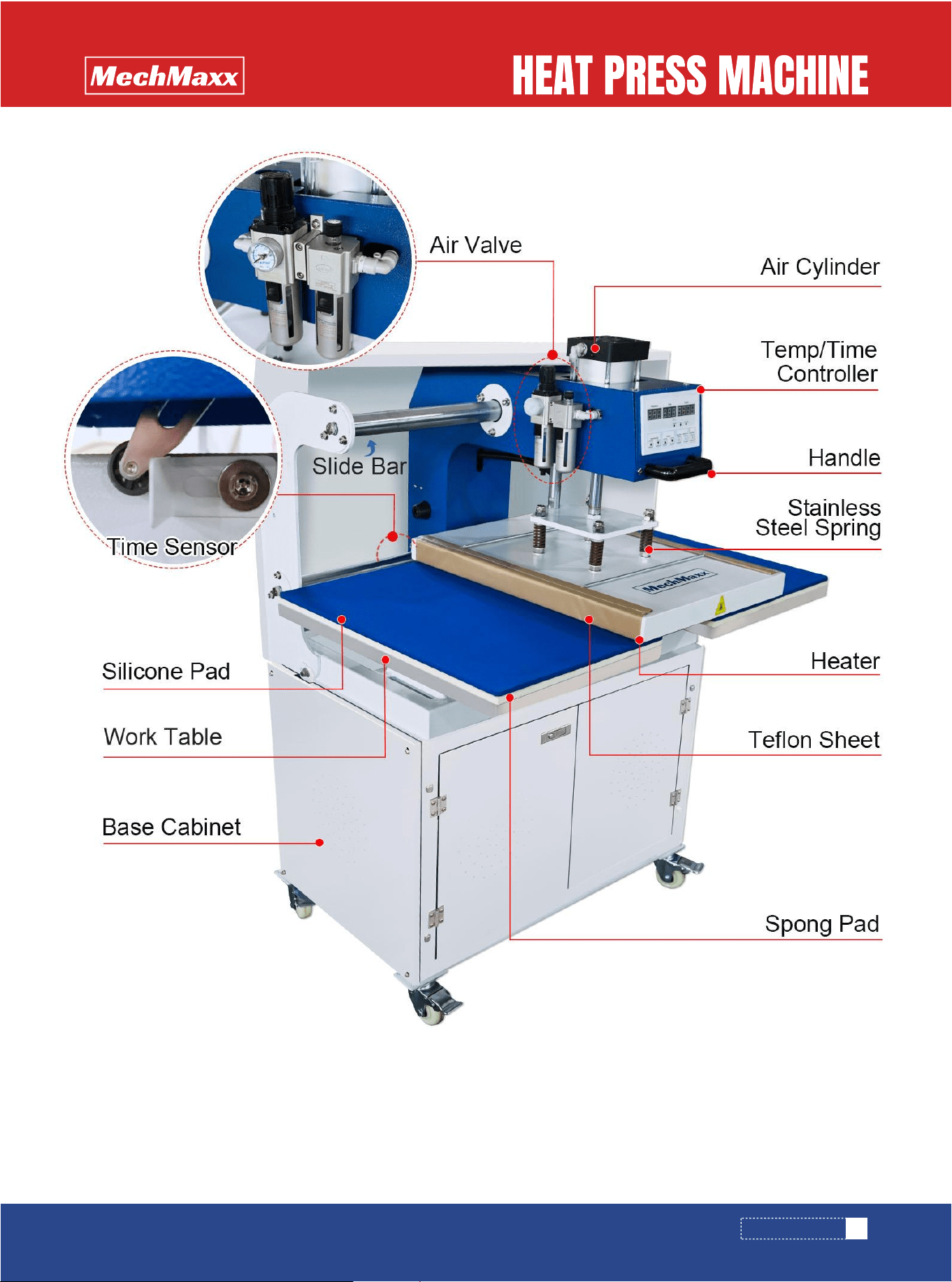

SCOPE OF DELIVERY
SCOPE OF DELIVERY
Item Quantity
TECHNICAL PARAMETERS
Heat press machine
Instruction manual
1
1
Voltage
Power
Temperature
Time for heating up
Pressure output
Work Size
110V
1650W/2.21HP
32-750°F / 0-399
°C
10-15 minutes
85 PSI / 6kg/cm²(minimum)
16x24 inches / 40x60cm
Stand
1
Model
1
Infrared Ray
Up-Slided
Double Stations Pneumatic Heat Press Machine with Infrared Ray
PUD1624-C
www.mechmaxx.com
SCOPE OF DELIVERY
5

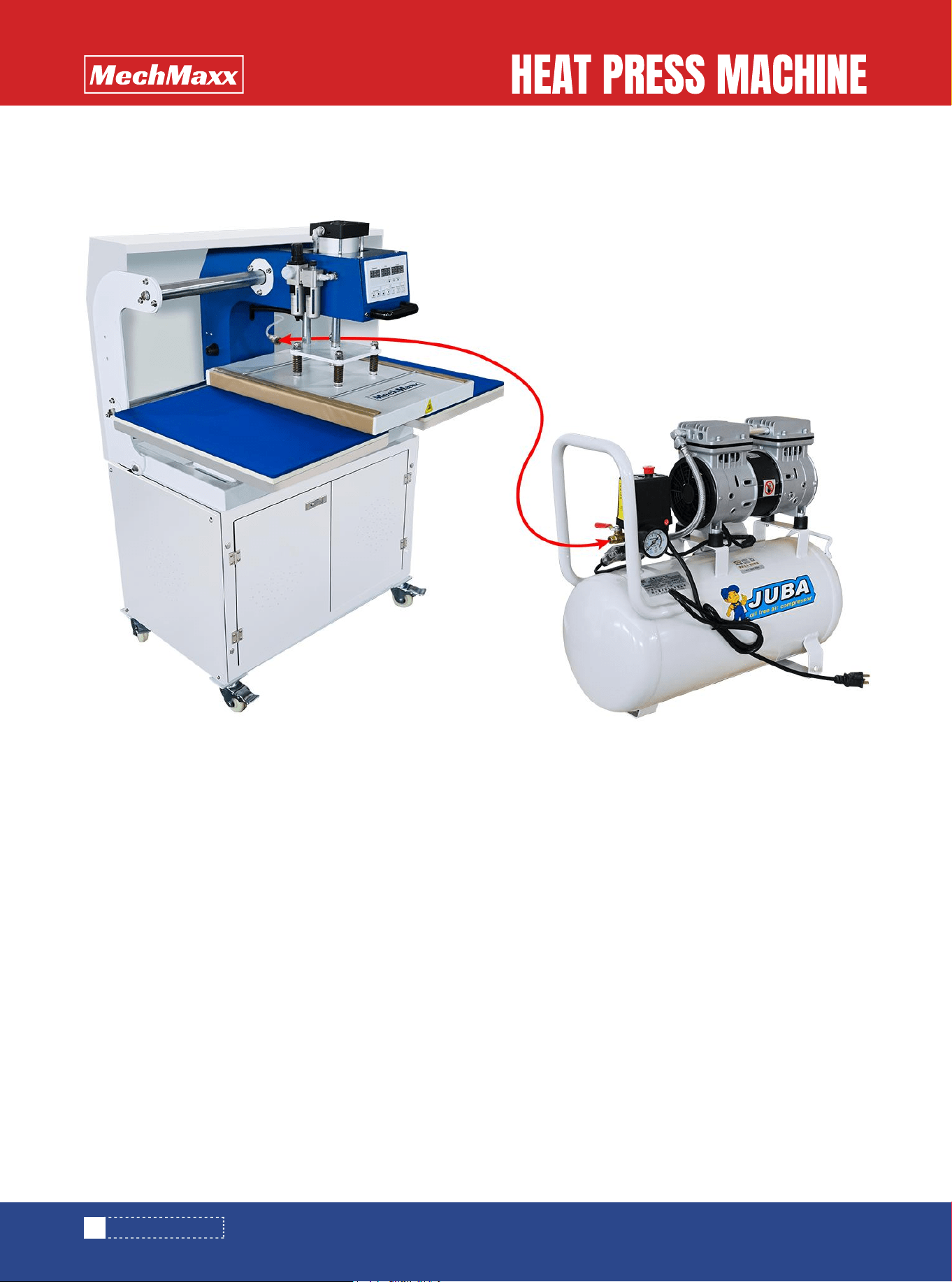

PNEUMATIC CONNECTION AND PRESSURE ADJUSTMENT
Remark: Air compressor not included in the product
4).Suggested air pressure is 58-87PSI, up to 87PSI is possible. It depends on the transfer materials.
the pressure adjustment , push down the cap.
3).Revolve the cap anticlockwise , the air pressure goes down ; contrariwise , the air pressure goes up ; when you finish
2).Lift up the cap of air valve as the picture show.
1).Connect the heat press with air compressor or air sources.
6
www.mechmaxx.com
SCOPE OF DELIVERY
OPERATION
Before turn on the power, check each spare parts to make sure they are not loose.
Connect the air source, power supply and open the pressure valve to let the pressure valve to needed pressure (about
58-87 PSI ) till the heating board rises up automatically.
1.READ BEFORE USAGE

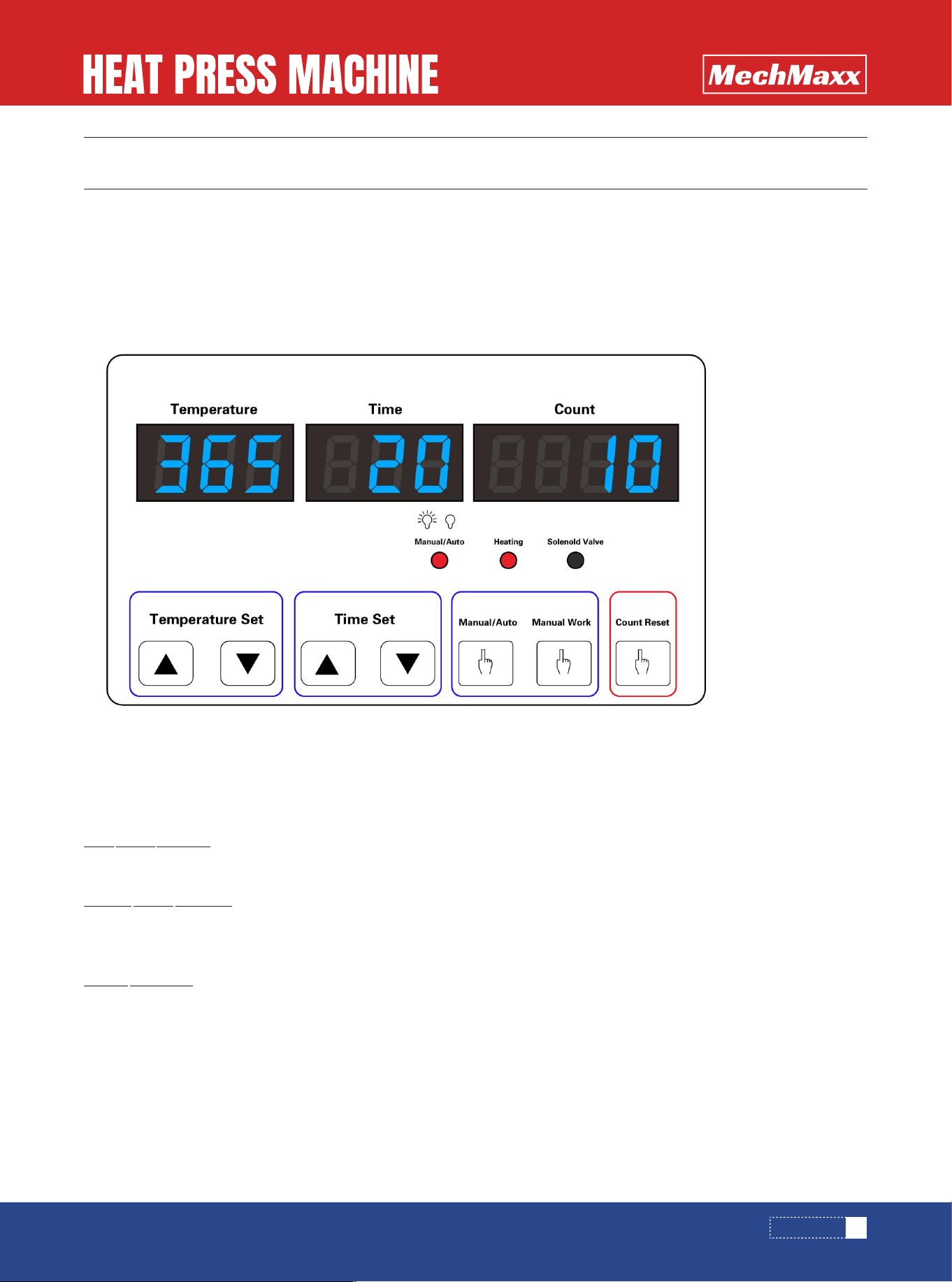

2.PANEL SETTING
7
www.mechmaxx.com
OPERATION
3): Finish setting. Machine starts heating up.
2): Set time. press▲ for time increase, press▼ for time decrease;
1): Set temperature, press ▲ for temperature increase, press ▼for temperature decrease;
Turn on the power switch,
the working temperature reaches the target temperature - only then the machine is ready to use.
which is the current temperature of the heat plate, The heat plate will take some time to warm up, please wait until
Working Temperature: After you save the target temperature and time,the panel will show the working temperature,
counter will reset to zero.
RESET Function:The panel will counter the number of use automatically.Press "
Count Reset "
button,
the usage
automatically when finishing printing
under the heater, you need to press the "Manual Work" button, then the heater will press down and it will lift up
manual work has begun. On this mode setting, the machine will not auto press down when the work table is exactly
Manual Mode Setting:
Press the "
Manual/Auto"
button .
When the "Manual/Auto"
indicator light is on,
it means
lift up automatically.
work table is exactly under the heater, the heater will auto press down while countdown and finishing printing,it will
Auto Mode Setting:The default setting of the machine is the automatic function. On this mode setting, when the
8
www.mechmaxx.com
OPERATION
EMERGENCY STOP button and pull it out.
When machine works abnormally, please immediately press EMERGENCY STOP button to stop work; to restart, rotate the
IMPORTANT NOTEICE FOR EMERGENCY STOP:
Note: Please note that a certain time is required before the press cools down after it is switched off.
When time is up to finish printing, the heater will rise up.
2)
In Auto Mode，move the heater exactly above the heater, the heater will automatically press down;
1)
3. PNEUMATIC PRESS UP AND DOWN
RECOMMENDED TIMES AND TEMPERATURES
These values are only guidelines;; they can vary from material to material and should always be checked before pressing.
1.Printing On Sublimation Paper , Mirror Image ;
2.Put The Plate Right ;
3.Light Medium .
1.Printing On Sublimation Paper , Mirror Image ;
2.Image And Printing Side Matched Tight Without
Margin ;
3.Printing Side Downward ;
4.Medium Pressure .
1.Printing On Sublimation Paper , Mirror Image ;
2.Tear Off The Protective Film On The Board Before
Printing ;
3.Image And Printing Side Matched Tight Without
Margin ;
4.High Pressure .
1.Printing On Sublimation Paper , Mirror Image ;
2.Tear Off The Protective Film On The Board Before
Printing ;
3.Image And Printing Side Matched Tight Without
Margin ;
4.High Pressure .
1.Printing On Sublimation Paper , Mirror Image ;
2.Keep Temperature Sensitive Parts Away From
Heating Board ;
3.Press Down The Heating Board After It Rises To
The Lowest Temperature ;
4.High Pressure ;
5.Only For Non Cotton Material Like Fabrics And
Polyester .
1.Printing On Light Color Transfer Paper , Mirror
Image ;
2.Keep Temperature Sensitive Parts Away From
Heating Board ;
3.Press Down The Heating Board After It Rises To
The Lowest Temperature ;
4.High Pressure ;
5.Peel Off Base Paper Immediately After Printing ;
5.Only For Light Color Cotton T-Shirts .
Item Name
Lowest
Temp.(F)
Highest
Temp.(F)
Time(S) Remark
Plate
230
320
230
230
330
330
230
310
330
310
330
330
330
330
330
330
345
345
40
100
20
100-120
20
100
120
340
340
30
50
100
300-420
120-240
Ceramic Tile
Metal Board
Key Chain
(Sparking Aluminum Sheet)
T-Shirt
(Non Cotton Material)
T-Shirt
(Light Color Cotton Material)
9
www.mechmaxx.com
RECOMMENDED TIMES AND TEMPERATURES
Before beginning full production, it is essential to conduct your own tests using the specific transfer materials and
substrates intended for use. The settings and values provided in this manual, as well as those from the material manufac-
turer, should be regarded as general guidelines only.
The user is solely responsible for determining the correct settings suitable for their individual conditions. Performance
characteristics such as wash ability and transfer behavior must be verified through your own testing.
IMPORTANT NOTICE
After pressing, allow the textile to cool completely before removing any type of carrier or backing from the transfer materi-
al. The adhesive in the transfer material activates fully only when cooled. If the adhesive fails to bond properly once
cooled, it may indicate insufficient pressing temperature or duration.
TEXTILE APPLICATION NOTE:
1.Printing On Dark Color Transfer Paper , Non Mirror
Image ;
2.Keep Temperature Sensitive Parts Away From
Heating Board ;
3.Press Down The Heating Board After It Rises To
The Lowest Temperature ;
4.High Pressure ;
5.Wait For 3 Minutes And Peel Off Thermal Paper.
1.Printing On Sublimation Paper , Mirror Image ;
2.Image And Printing Side Matched Tight Without
Margin ;
3.Medium Medium .
1.Printing On Sublimation Paper , Mirror Image ;
2.Image And Printing Side Matched Tight Without
Margin ;
3.Medium Medium .
1.Printing On Sublimation Paper , Mirror Image;
2.Printing Side Downward;
3.Both Sides Printable , Printing Side By Side With
The Need For Thermal Paper.
1.Printing On Sublimation Paper , Mirror Image;
2. Keep Temperature Sensitive Parts Away From
Heating Board;
3.Press Down The Heating Board After It Rises To
The Lowest Temperature ;
4.High Pressure.
1.Printing On Sublimation Paper , Mirror Image;
2.Image And Printing Side Matched Tight Without
Margin ;
3.Printing Side Downward;
4.Medium Pressure.
Item Name
Lowest
Temp.(F)
Highest
Temp.(F)
Time(S) Remark
340
340
345345
30
120
320320
330330
120
40
345345
80
230
345
120-180
360-480
345
345
240-300
450-600
T-Shirt
(Dark Color Cotton Material)
Mouse Pad
Puzzle
Metal Name Card
Pillow
Photo Slate
10
www.mechmaxx.com
RECOMMENDED TIMES AND TEMPERATURES
MAINTENANCE
8).Clean the Drain Valve by draining Oil and Water through the Drain Valve.
scouring sponges, solvents or gasoline!
7).Clean the press regularly with a soft cloth and mild household cleaner to remove adhesive residues etc. Never use
6).The plug must first be disconnected from the power socket.
5).Maintenance work should always be accomplished with the press switched off and cooled down.
4).If you are not able to solve the electrical parts problem, please kindly contact the supplier and get technical support
3).Please keep the machine in dry place.
using it or not.
2).In order to keep the heat platen's good transfer effect, you need to protect the heat platen carefully whenever you are
1).In order to prolong the machine service life, please add the lubrication oil regularly on the joints.
9.
Maintenance and cleaning
The display board or buzzer is damaged.
The temperature is normal, but the buzzer does not sound when time finished.
8.
The timing sensor switch or display board is damaged
The temperature is normal, but the countdown is not happening.
7.
Please reset the temp and time according the operation process manual.
11
www.mechmaxx.com
MAINTENANCE
The setting temp and time becomes abnormal after exchange the heat platen.
6.
2). Or the digital controller is faulty and it keeps conveying electric to Solid-State Relay, need to change controller
1). It means the solid-state relay is broken, out of control, need to change the Solid-State Relay.
5.
The temperature is out of control: Set 356℃, but the actual temperature is above 392℃.
Check whether the thermocouple of the heat platen touches well
4.
Temperature displays incompletely
3)Solid-State Relay is not working
2)Check whether the thermocouple of the heat platen touches well
1)The panel has problem
3.
Heater can not be heating up
2).Check the power switch or digital controller whether it is broken
1). Check the plug whether it connects well or whether it is broken.
2.No action after turn on the machine
"+"direction to add the pressure, "_"direction to reduce the pressure.
lubricating oil if it's enough in the Cylinder. Use the pressure knob on the Air Cylinder to adjust the pressure, turn toward
When the heating board can not lift up or press down, check the air valve whether it has pressure or not. Checking the
1.Air pressure
1. Picture burning: Too much time or temperature, just adjust time or temperature
2. Picture not vivid: less time or too low temperature, just adjust to have more time or temperature
3. lf the print color is pale: the temperature is too low / the pressure is not correct / or not pressed long enough2. lf the
print color is too brown or the transfer paper is almost burnt: reduce the setting temperature
4. lf the print is blurring: too much transfer time causes proliferation.
5. lf print color is different/ partial transfer effect is not good enough: the pressure is not enough / or not pressed long
enough /or poor quality transfer paper.
6 .lf transfer paper stick to the obiect after transfer: the temperature is too high/ or poor quality printing ink
COMMON FAILURES AND THEIR POSSIBLE REASONS
MAINTENANCE
12
www.mechmaxx.com

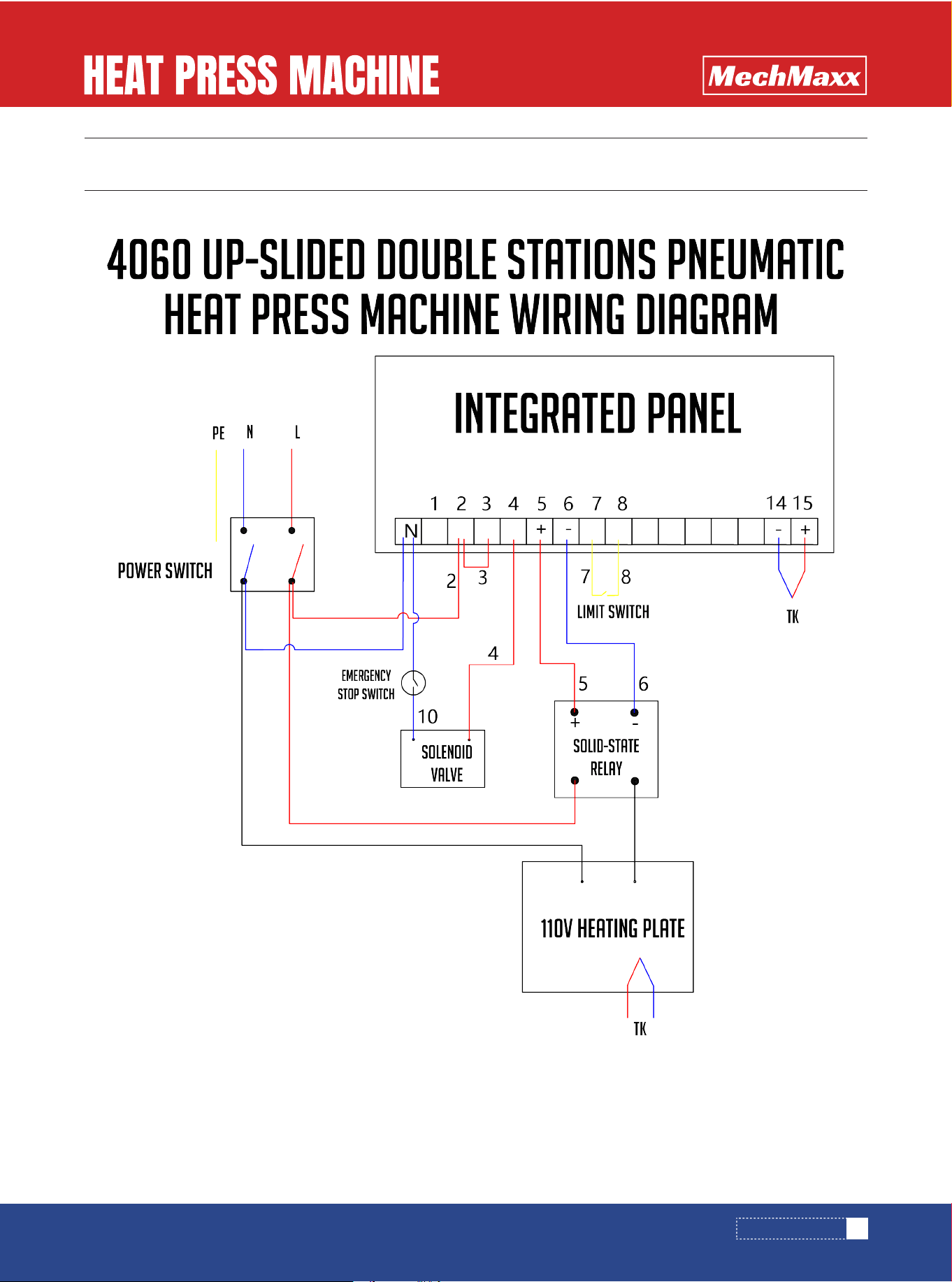

CIRCUIT DIAGRAM
www.mechmaxx.com
CIRCUIT DIAGRAM
13
