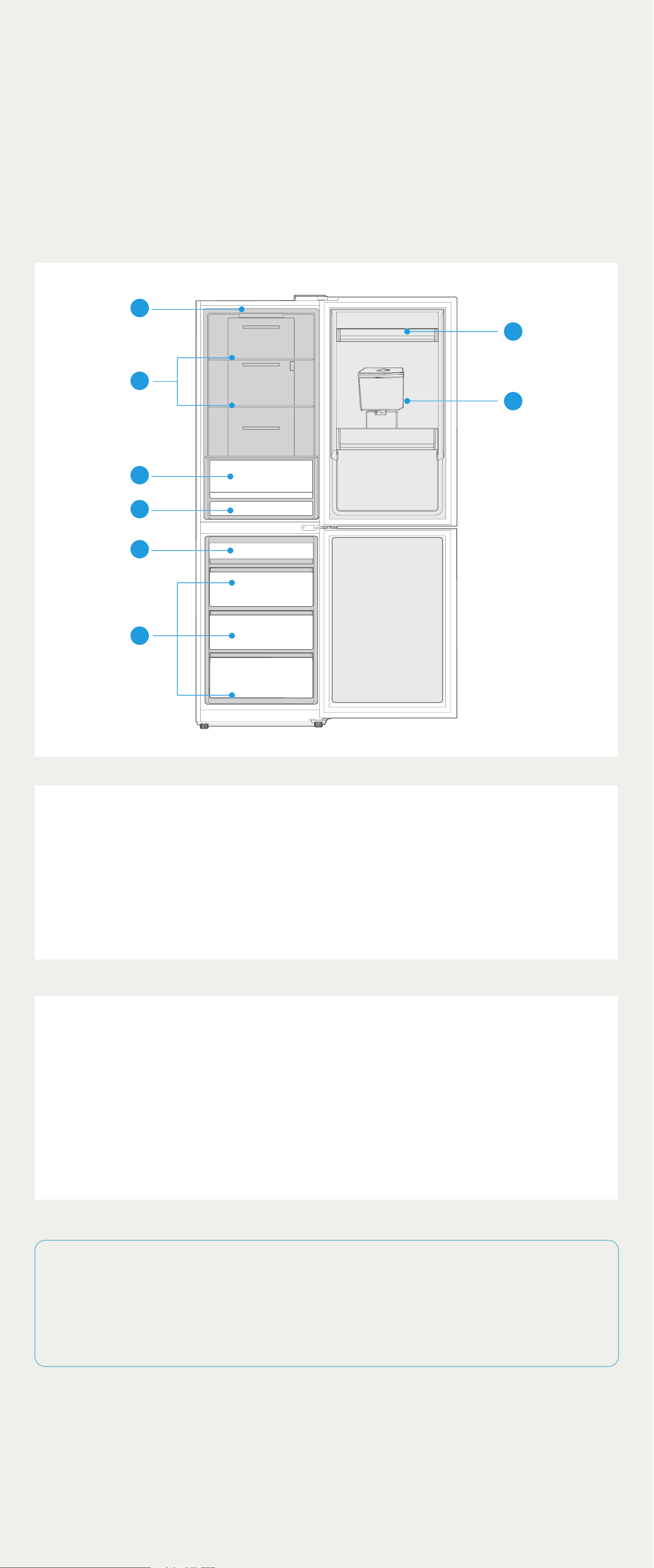

Product Overview
Product Introduction
6
8
7
5
4
3
1
2
1 LED Light 5 Pizza box
2 Shelf 6 Freezer Drawer
3 Fruits & Vegetables box 7 Door tray
4 Multifunctional spac 8 Water Dispenser
• For the most ecient use of energy, please keep the all internal
items such as trays, drawers, shelves and ice cube box on the
position supplied by manufacturer.
• This refrigerating appliance needs to be installed independently
and cannot be used as a built-in. Otherwise, it will cause problems
such the performance and life of the appliance are reduced. And
the manufacturer does not provide basic appliance warrant.
• | Attention
Dierences: Due to technical changes and dierent models, some
of the illustrations in this manual may dier from your model.

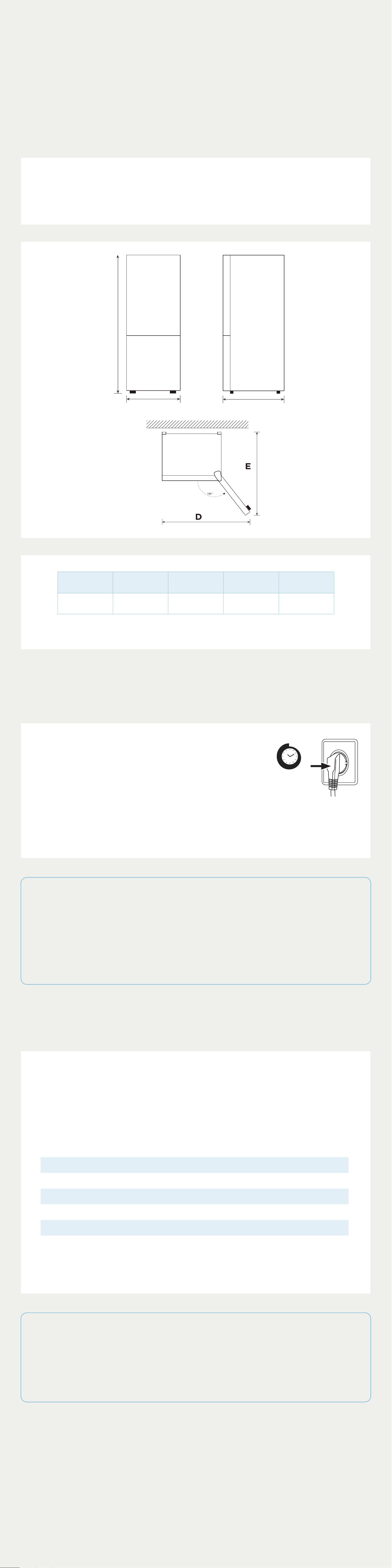

Product Installation
Space requirement diagram
Keep the air circulation free around the cabinet. When installing the
unit, ensure 10cm of free space at both sides, 10cm at the top of the
unit, and not more than 7.5cm at the rear of the unit.
B
A
C
A B C D E
547 1800 632 1040 865
Notice: All dimensions in mm
Connecting the appliance
After installing the product, please let it stay
for more than 2 hours before turning on the
power, otherwise it will lead to a decrease
in cooling capacity or a damage to the
product.
Allow the appliance to run empty for 24
hours so the compartment can cool to the
appropriate temperature.
2 h
• | CAUTION
The refrigerator should always be plugged into its own individual
electrical outlet which has a voltage rating that matches the rating
plate.
When positioning the appliance, ensure the supply cord is not
trapped or damaged.
Ambient Temperature
Depending on the climate class, this refrigerator is intended to
be used at an ambient temperature range as specified in the
following table.
The product may not operate properly at temperatures outside
of the specific range.
You can find the climate class on the product label.
Climate Class Ambient Temperature
SN +10 °C to +32 °C
N +16 °C to +32 °C
ST +16 °C to +38 °C
T +16 °C to +43 °C
If you have any doubts regarding installation, please turn
to the vendor, to our customer service or to the nearest
Authorised Service Centre.
• | Tips
The cooling performance and power consumption of the
refrigerator may be aected by the ambient temperature, the
door-opening frequency, and the location of the refrigerator. We
recommend adjusting the temperature settings as appropriate.
Product Operation

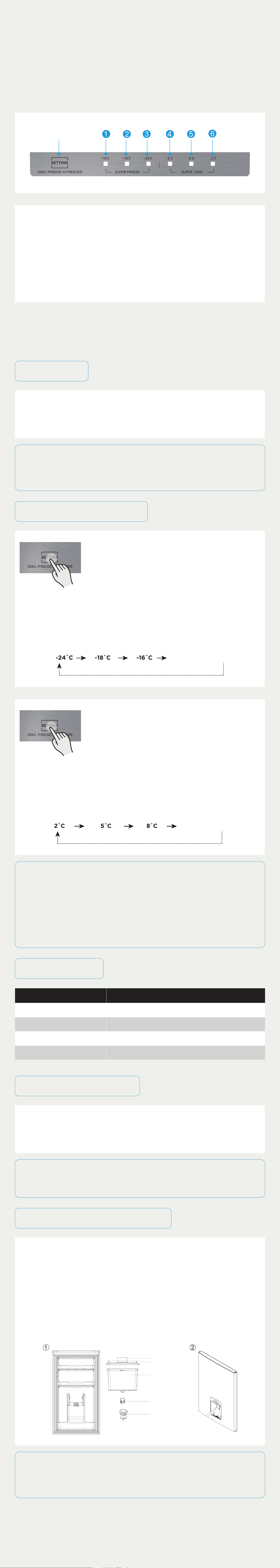

Control panel
A
Display
1 LED 1 : -16°C 2 LED 2 : -18°C
3 LED 3 : -24°C 4 LED 4 : 8°C
5 LED 5 : 5°C 6 LED 6 : 2°C
Button
A Temperature setting button
Operation Instruction
a |
Display
When the power is on for the first time, full display shall last for 3
seconds, then enter into the normal operation display;In case of a
failure, the corresponding LED blinks.
• | Tips
In case of no failures, it shows the actual temperature setting of
refrigerator.
b |
Temperature setting
Freezer temperature setting
In the refrigeration temperature setting mode,
long press the setting key for 3S to switch to
the freezing temperature setting mode.
When setting the freezer temperature, the
temperature will cycle in the following order
each time the setting key is pressed. In the
super freeze state, LED1 and LED3 will light up
at the same time,as shown below:
As follows:
SUPER FREEZER
Fridge temperature setting
In the freezing temperature setting mode,
long press the setting key for 3S to switch to
the refrigeration temperature setting mode.
When setting the refrigerating temperature,
the temperature will cycle in the following
order each time the setting key is pressed. In
the super cool state, LED4 and LED6 will light
up at the same time as shown below:
As follows:
SUPER COOL
• | Tips
The Super freeze function is designed to maintain the nutritional value
of the food in the freezer. It can freeze the food in the shortest time. If a
large amount of food is frozen at one time, it is recommended that the
user turn on the Super freeze function and put the food in. At this time,
the freezing speed of the freezer compartment is increased, which can
quickly freeze the food, effectively lock the nutrition of the food, and
facilitate storage.
c |
Error code
Fault Code Fault Description
The LED “1” and LED “6” lit Refrigerator temperature sensor circuit
The LED “1” and LED “3” lit Freezer temperature sensor fault
The LED “1” and LED “5” lit Frozen defrosting sensor fault
The LED “1” and LED “4” lit Ambient temperature fault
d |
Changing the light
Any replacement or maintenance of the LED lamps is intended to
be made by the manufacturer, its service agent or similar qualified
person.
• | Attention
This product contains a light source of energy efficiency class (G).
e |
Usage of water dispenser
• First open water inlet cover, fill with drinking water to “MAX”
marked as the maximum amount of water
• Use the cup to push the tigger to the inside, the water will flow out,
when the tigger back tothe original position, the water stops.
• Water dispenser can only be used for pure water, not suitable for
beverages or fruit juice.
Tips: Please do not remove the water tank from the door directly for
water filling.
PUSH
Water dispenser cover
Water tank cover of
water dispenser
Water tank of water
dispenser
Sealing ring
Water valve
• | Attention
The picture above is only for reference. The actual configuration will
depend on the physical product or statement by the distributor.

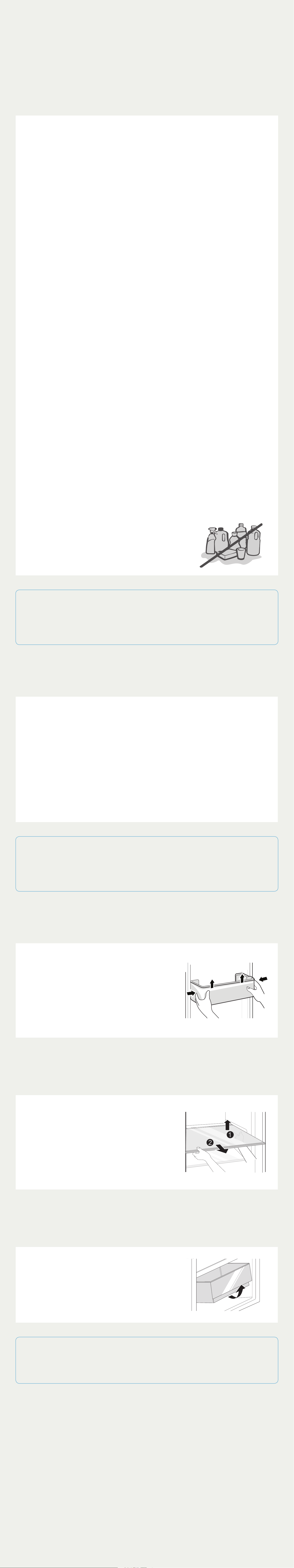

Maintenance Tips
Overall cleaning
•
Disconnect the appliance from the electrical supply before
undertaking any routine maintenance. Allow at least 5 minutes
before restarting the appliance, as frequent starting may
damage the compressor.
•
Do not use mechanical devices or other means to accelerate
the defrosting process, other than those recommended by the
manufacturer.
•
Do not try to repair, disassemble or modify the appliance by
yourself. In case of repair please contact our customer service.
•
Eliminate the dust on the back of the unit at least once in
the year to avoid hazard by fire, as well as increased energy
consumption.
•
Check the door gasket regularly to make sure there are no
debris. Clean the door gasket with a soft cloth dampened with
soapy water or diluted detergent.
•
The interior of the product should be cleaned regularly to
avoid odor.
•
Use a soft cloth or sponge to clean the inside of the product,
with two tablespoons of baking soda and a quart of warm
water. Then rinse with water and wipe clean. After cleaning,
open the door and let it dry naturally before turning on the
power.
•
For areas that are dicult to clean in the product (such as
narrow sandwiches, gaps or corners), it is recommended to
wipe them regularly with a soft rag, soft brush, etc. and when
necessary, combined with some auxiliary tools (such as thin
sticks) to ensure no contaminants or bacterials accumulation
in these areas.
•
Wipe the outer surface of the product with a soft cloth
dampened with soapy water, detergent, etc., and then wipe
dry.
•
Do not use hard brushes, clean steel balls, wire brushes,
abrasives (such as toothpastes), organic solvents (such as
alcohol, acetone, Isoamyl acetate, etc.), boiling water, acid
or alkaline items, which may damage the fridge surface and
interior. Boiling water and organic solvents such as benzene
may deform or damage plastic parts.
•
Do not rinse directly with water or
other liquids during cleaning to avoid
short circuits or aect electrical
insulation after immersion.
• | Notes:
The appliance shall run continuously once it is started. Generally, the
operation of the appliance shall not be interrupted;otherwise the service
life may be impaired
Defrosting
Although this appliance automatically defrosts, a layer of frost may
occur on the freezer compartment’s interior walls if the freezer door
is opened frequently or kept open too long. If the frost is too thick,
choose a time when the supply of food stocks are low and proceed
as follows:
1.
Remove existing food and accessories baskets, unplug the
appliance from the mains power and leave the doors open.
Ventilate the room thoroughly to accelerate the thawing
process.
2.
When defrosting is completed, clean your freezer as described
above.
• | CAUTION!
Don’t use sharp objects to remove frost from the freezer. Only after the
interior completely dry should the appliance be switched back on and
plugged back into the mains socket
Cleaning of door tray
According to the direction arrow in
the figure below, use both hands to
squeeze the tray, and push it upward,
then you can take it out.
After washing the tray having been
taken out, you can adjust its installing
height in accordance with your
requirement.
Cleaning of glass shelf
As the innermost part of the
refrigerator liner where contacting the
shelves has a backstop, you shall raise
the shelves upward, then you can be
able to take it out.
Adjust or clean the shelves according
to your requirement.
Cleaning the vegetable drawer
Remove the contents of the drawer.
Hold the handle of the vegetable
drawer and pull it out completely until
it stops.
Lift the vegetable drawer up and
remove it by pulling it out.
• | Notes:
Differences: Due to technical changes and different models, some of the
illustrations in this manual may differ from your model.

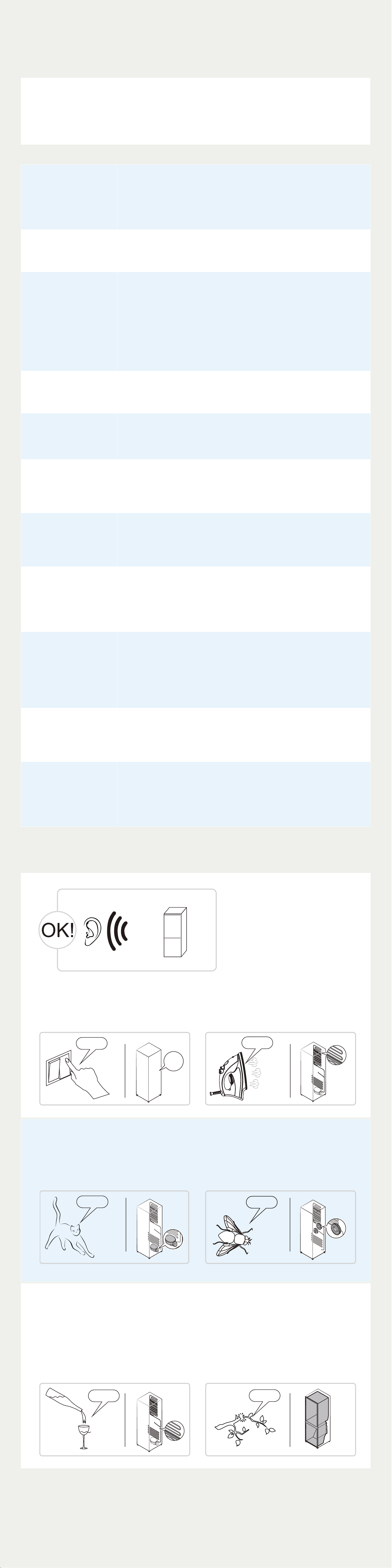

Troubleshooting
You may try to solve the following simple problems by yourself.
If them cannot be solved, please contact the after-sales
department.
Failed
operation
• Check whether the appliance is connected to power
or whether the plug is in well contact
• Check whether the voltage is too low
• Check whether there is a power failure or partial
circuits have tripped
Odor
• Odorous foods shall be tightly wrapped
• Check whether there is any rotten food
• Clean the inside of the refrigerator
Long-time
operation of
the compressor
• Long operation of the refrigerator is normal in
summer
• when the ambient temperature is high It is not
suggestible having too much food in the appliance at
the same time
• Food shall get cool before being put into the
appliance
• The doors are opened too frequently
Light fails to
get lit
• Check whether the refrigerator is connected to power
supply and whether the illuminating light is damaged
• Have the light replaced by a specialist
Door can not
be properly
closed
• The door is stuck by food packages Too much food is
placed
• The refrigerator is tiltedr.
Loud noises
• Check whether the floor is level and whether the
refrigerator is placed stably
• Check whether accessories are placed at proper
locations
Door seal fails
to be tight
• Remove foreign matters on the door seal
• Heat the door seal and then cool it for restoration
• (or blow it with an electrical drier or use a hot towel
for heating)
Water pan
overflows
• There is too much food in the chamber or food stored
contains too much water,resulting in heavy defrosting
• The doors are not closed properly, resulting in
frosting due to entry of air and increased water due
to defrosting
Hot housing
• Heat dissipation of the built-in condenser via the
housing, which is normal When housing becomes
hot due to high ambient temperature, storage of too
much food or shutdown of the compressor is shut
down, provide sound ventilation to facilitate heat
dissipation
Surface
condensation
• Condensation on the exterior surface and door
seals of the refrigerator is normal when the ambient
humidity is too high. Just wipe the condensate with a
clean towel.
Abnormal noise
• Buzz: The compressor may produce buzzes during
operation, and the buzzes are loud particularly upon
start or stop. This is normal.
• Creak: Refrigerant flowing inside of the appliance
may produce creak, which is normal.
Do you hear these abnormal sounds as below? Usually these sounds
are normal.
S
S
SRR
R
!
HISSS!
BLUBB!
C
L
IC
K
!
BRRR!
CRA
CK!
CLICK: Some electrical parts in
the refrigerator, such as electric
valve will make this noise when
working. This is normal.
HISSS: When the refrigerant
flows into the evaporator, it will
make this noise. This is normal.
CLICK！
CLICK！
HISSS!
HISSS!
BRRR: The compressor will make
this noise when working, and the
buzzes are loud particularly upon
start or stop. This is normal.
SSSRRR: The fan motor in the No
frost refrigerator will make this
noise when working. This is normal.
BRRR!
BRRR!
SSSRRR!
SSSRRR!
SSSRRR!
SSSRRR!
BLUBB: Refrigerant flowing
through the pipes in the
refrigerator will make this noise.
This is normal.
CRACK: Cracking sound or broken
ice sound: the overall structure of
the refrigerator, air duct frost will
be with the thermal expansion
and contraction of the expansion
sound, these are also normal
physical phenomenon.
BLUBB!
BLUBB!
CRACK!
CRACK!
Tips & Tricks
Storing food
Freezer compartment
The freezer compartment is designated for the low-temperature
freezing of food, long-term storage of frozen food, and for the
production of ice cubes.
Do not put fresh and frozen food next to each other. The frozen food
may thaw.
When freezing large amounts of fresh food (such as meat, fish or
chopped meat), please divide them into several small pieces before
putting in, so that they can be quickly frozen and pick up easily.
Abide by the storage times recommended by food manufacturers on
the packages, there is no information on the packaging, food should
not be stored frozen for longer than three months from the date of
purchase.
When purchasing frozen food, make sure that it was frozen at a
suitable temperature and that the packaging is not damaged.
Frozen food should be kept in suitable individual packages to ensure
that adjacent food cannot be contaminated. Consume thawed and
defrosted foods immediately, do not refreeze them.
In case of prolonged power failure or malfunction of the appliance,
remove the stored frozen food and check whether they are still edible,
then store them in a suciently cool place or in another appliance.
To defrost food, remove it from the freezer and let it defrost at room
temperature or in the refrigerator. To defrost food quickly, you can use
the defrost function on your microwave, for example.
If you only want to defrost part of a pack, remove the portion you
need and immediately close the rest of the pack. In this way, you will
avoid “freezer burn” and will reduce ice formation on the remaining
foods.
Refrigerator compartment
The Refrigerator compartment is the ideal storage location for ready
meals, cakes and pastries, preserved food, condensed milk, milk,
cheese, spreads, sauces, dips and eggs.
The freshness at point of purchase is important for the shelf-life of your
food. In principle, the fresher the produce when placed in the crisper
drawers, the longer it stays fresh. Therefore, when buying food, always
pay attention to the degree of freshness.
Never put warm foods in the fridge compartment. These should first
cool down at room temperature and then be placed so as to ensure
adequate air circulation in the fridge compartment.
Meat and clean fish (packed in a package or plastic foil) can be placed
in the fridge compartment, which can be used in 1–2 days.
Fruit and vegetables without packaging can be placed in the part
designated for fresh fruit and vegetables
.
• | Notes:
Storage of too much food during operation after the initial connection to
power may adversely affect the freezing effect of the refrigerator.
Storage times and temperature
Note: Overlong storage or storage at inappropriate freezing
temperature may cause a quality loss or spoiled foods, which causes
food waste, is inedible and may cause food poisoning. The minimum
temperature in most cases should be -18°C or colder. Follow the
maximum recommended storage times below:
•
Stew, ice cream, sausages, bread: 2-6 months.
•
Fish, shrimp, lamb, meat: 4-8 months.
•
Vegetables, fruits, poultry, beef: 6-12 months.
Tips for energy saving
Do not place the appliance near cookers, radiators or other heat sources.
If the ambient temperature is high, the compressor will run more frequently
and for longer, resulting in increased energy consumption.
Ensure that there is sucient ventilation at the base of the appliance, on
the sides of the appliance and at the back of the appliance.
Please also observe the spacing dimensions in the chapter “Installation”.
An evenly filled refrigerator/freezer compartment contributes to optimal
energy use.
Allow warm food to cool before placing it in the refrigerator/freezer
compartment. Food that has already cooled down increases energy
eciency.
Allow frozen food to defrost in the refrigeration compartment The coldness
of the frozen food reduces the energy consumption in the refrigerator
compartment and thus increases the energy eciency.
Setting the temperature no colder than necessary contributes to optimal
energy use.
The door gaskets of your appliance must be perfectly intact so that
the doors close properly and energy consumption is not increased
unnecessarily.

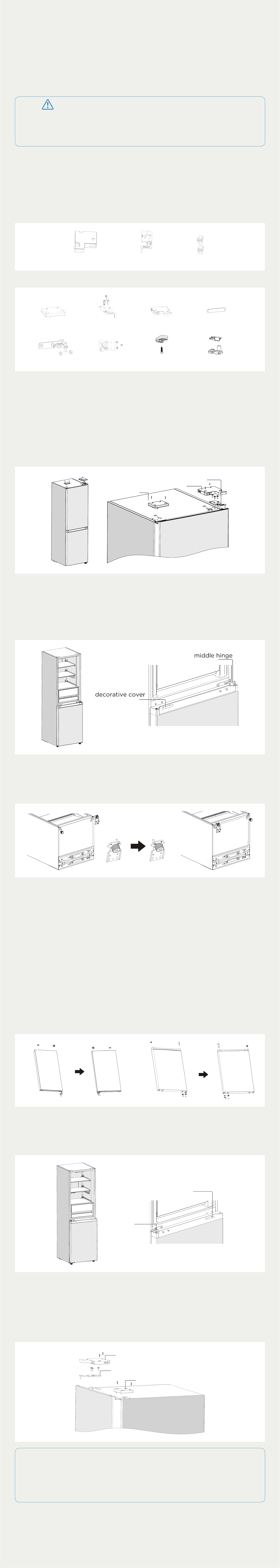

Doors Reversal
Based on the location where you plan to use your refrigerator, you may
find it more convenient to reverse the position of the door.
• |
CAUTION
To avoid injury to yourself or your property, we recommend that
someone assist you during the door reversal process.
Preparing to reverse the door position
• Make sure that your refrigerator is unplugged and empty.
• Have someone available to assist you in the process.
• Keep all of the parts you remove to reuse them later.
Parts included with the hinge kit:
L:Top hinge
R:Top hinge cover
Self-locking
Parts already mounted on the refrigerator (as shipped):
L:Decorative cover
R:Top hinge
R:Top hinge cover
Bottom hinge
M:Decorative cover
Door stop
Self-locking
Middle hinge
Steps:
1. Please power o this appliance before conduct this operation.
Remove all food from door shelves.
2. Remove the upper left hinge cover decorative cover, upper right
hinge cover and upper right hinge, and disconnect the signal line
at the top of the box body.
upper
h
inge
decorative cover
upper hinge cover
3. Remove the refrigerated door body (be careful not to lose small
parts such as the shaft sleeve and stop on the door); Remove the
middle hinge and remove the decorative cover of hinge hole on
the other side.
4. Remove the freezing door body (be careful not to lose small parts
such as the shaft sleeve and stop on the door); Remove the hinge
and adjust the angle. Remove and install the lower hinge shaft to
the other side of the hinge, and install the modified lower hinge to
the other side of the box.
5. Change the refrigerator door:
1. Remove the door stop and cap of the upper end cover of the
refrigeration door and install them at the left and right swap
positions.
2. Remove the door self-locking, door stop and shaft sleeve of
the refrigeration door, install them on the other side of the
refrigeration door.
6. Change the freezing door:
1. Remove the shaft sleeve and cap of the upper end cover of the
freezing door and install them at the left and right swap positions.
2. Remove the door self-locking, door stop and shaft sleeve of the
freezing door, install them on the other side of the freezing door.
7. Install the replaced freezing door on the lower hinge, then install
the middle hinge and cover the hinge hole decorative cover.
middle hinge
decorative cover
8. Remove the shaft sleeve and cap of the upper end cover of the
freezing door and install them at the left and right swap positions.
9. Remove the door self-locking, door stop and shaft sleeve of the
freezing door, install them on the other side of the freezing door.
upper hinge
decorative cover
upper hinge cover
• | NOTE
Dierences: Due to technical changes and dierent models, some
of the illustrations in this manual may dier from your model.
