Refrigerator
BOTTOM MOUNTED FREEZER SERIES
MDRB521MGB*
USER MANUAL
Warning notices: Before using this product, please read this manual carefully and keep it for future reference.
The design and specifications are subject to change without prior notice for product improvement.
Consult with your dealer or manufacturer for details.
The diagram above is just for reference. Please take the appearance of the actual product as the standard.
01
THANK YOU LETTER
Thank you for choosing Midea! Before using your new Midea product, please read
this manual thoroughly to ensure that you know how to operate the features and
functions that your new appliance oers in a safe way.
CONTENTS
THANK YOU LETTER
-------------------------------------------------- 01
SPECIFICATIONS
--------------------------------------------------------02
PRODUCT OVERVIEW
-------------------------------------------------03
PRODUCT INSTALLATION
-------------------------------------------04
OPERATION INSTRUCTIONS
----------------------------------------- 11
CLEANING AND MAINTENANCE
----------------------------------- 16
TROUBLESHOOTING
---------------------------------------------------17
APPENDIX
----------------------------------------------------------------- 19
02
SPECIFICATIONS
Product model MDRB521MGB
Rated Voltage/Frequency 220-240V~/50Hz
Rated Current 1.1A
Total Volume 378L
Fresh Food Compartment Volume 216L
Chill Compartment Volume 40L
Four Star Compartment Volume 122L
Temperature Rise Time 15h
Freezing Capacity 8.5kg/24h
Overall Dimension (W x D x H) 595x700x2010mm
Importer / Address: MIDEA HOME APPLIANCES UK LTD
Conavon Court Ground Floor, 12 Blackfriars Street, Salford,
Manchester M3 5BQ UK
03

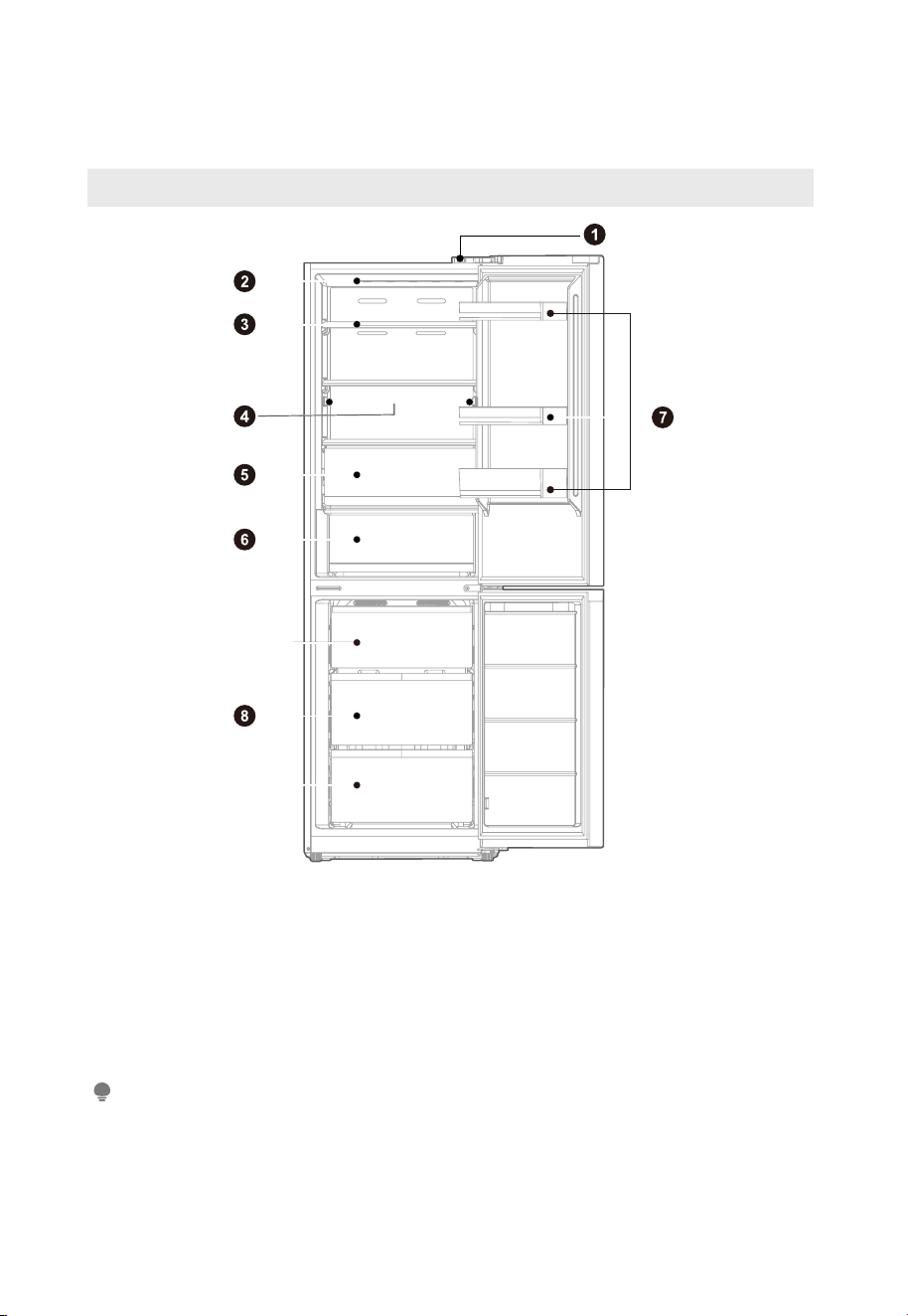

PRODUCT OVERVIEW
Names of components
1
Door switch
5
Fruits & vegetables box
2
LED light
6
Meat & fish box
3
Shelf
7
Door tray
4
LED light (for some models)
8
Drawer
ATTENTION
The picture above is only for reference. The actual configuration will depend on the physical
product or statement by the distributor.
04
PRODUCT INSTALLATION
Install Instruction
For refrigerating appliances with climate class
• Depending on the climate class, this refrigerator is intended to be used at an
ambient temperature range as specified in the following table.
• The climate class can be found on the rating plate. The product may not
operate properly at temperatures outside of the specific range.
• You can find the climate class on the product label.
• The product is designed to operate normally in the temperature range
specified by its class rating.
Class Symbol
Ambient temperature range °C
IEC 62552 (ISO 15502) ISO 8561
Extended temperate SN + 10 to + 32 + 10 to + 32
Temperate N + 16 to + 32 + 16 to + 32
Subtropical ST + 16 to + 38 + 18 to + 38
Tropical T + 16 to + 43 + 18 to + 43
Dimensions and Clearances
• Keep the air circulation free around the cabinet. When installing the unit,
ensure 10cm of free space at both sides, 10cm at the top of the unit,
and not more than 7.5cm at the rear of the unit.
>100mm
>100mm
>100mm
>100mm
>100mm
≤75mm
Top View
Required space
for air circulation
ATTENTION
The picture above is only for reference. The actual configuration will depend on the physical
product or statement by the distributor.
05
Space requirement diagram (when the door is open and when the door is closed)
125
A
B B
D
E
C
Width
Overall
Height
Depth
Width
doors open
125
o
Depth
doors open
125
o
A B C D E
595 2010 700 920 1190
Notice: All dimensions in mm.
06

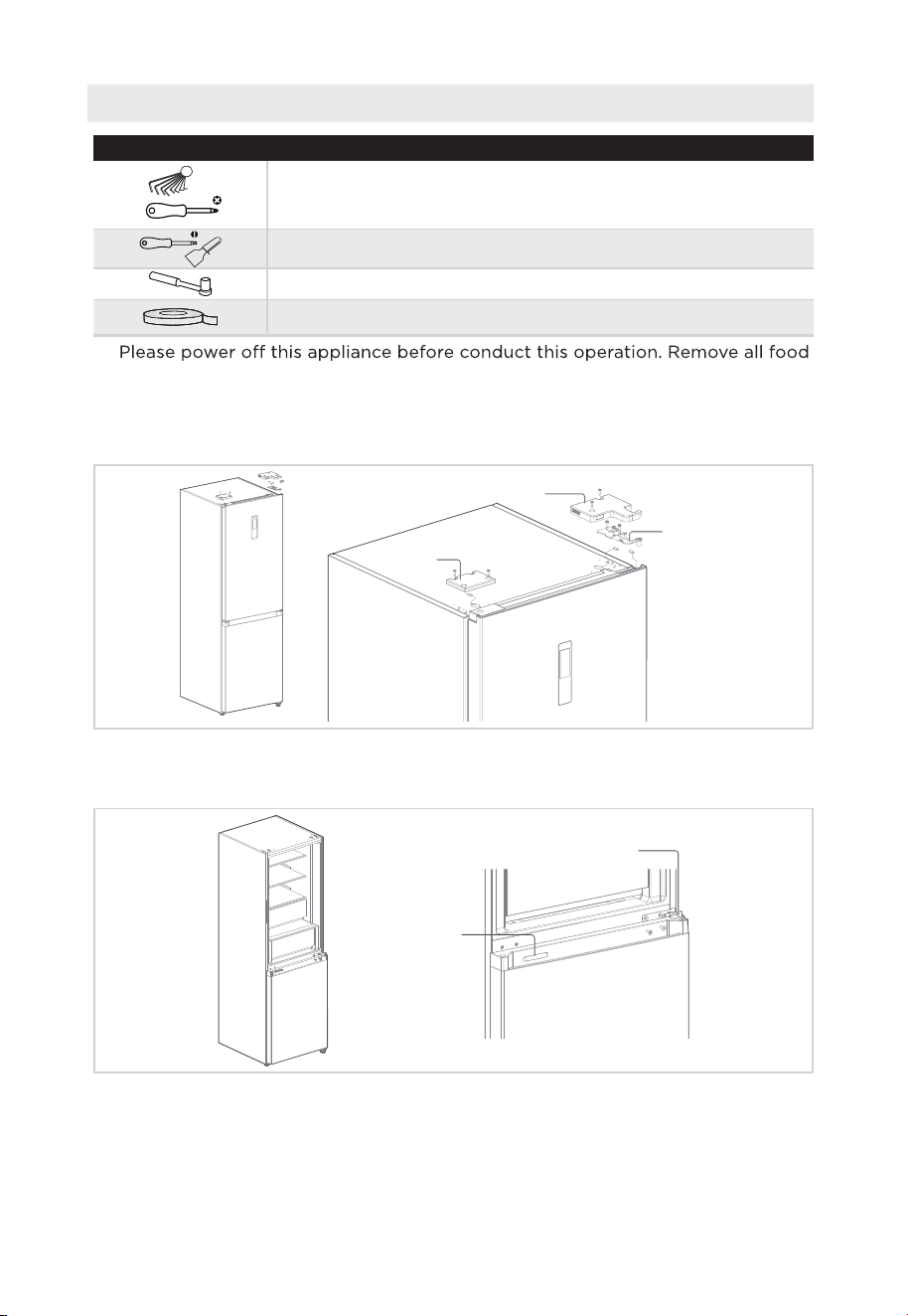

Door right-left change
List of tools to be provided by the user
Cross screwdriver
Putty knife Thin-blade screwdriver
5/16
″
socket spanner
Masking tape
1.
from door shelves.
2. Remove the upper left hinge cover decorative cover, upper right hinge cover
and upper right hinge, and disconnect the right signal line (signal line terminal 1,
2) at the top of the box body.
decorative cover
upper hinge cover
upper hing
e
1
2
3. Remove the refrigerated door body (be careful not to lose small parts such as
the shaft sleeve and stop on the door); Remove the middle hinge and remove
the decorative cover of hinge hole on the other side.
decorative cover
middle hinge

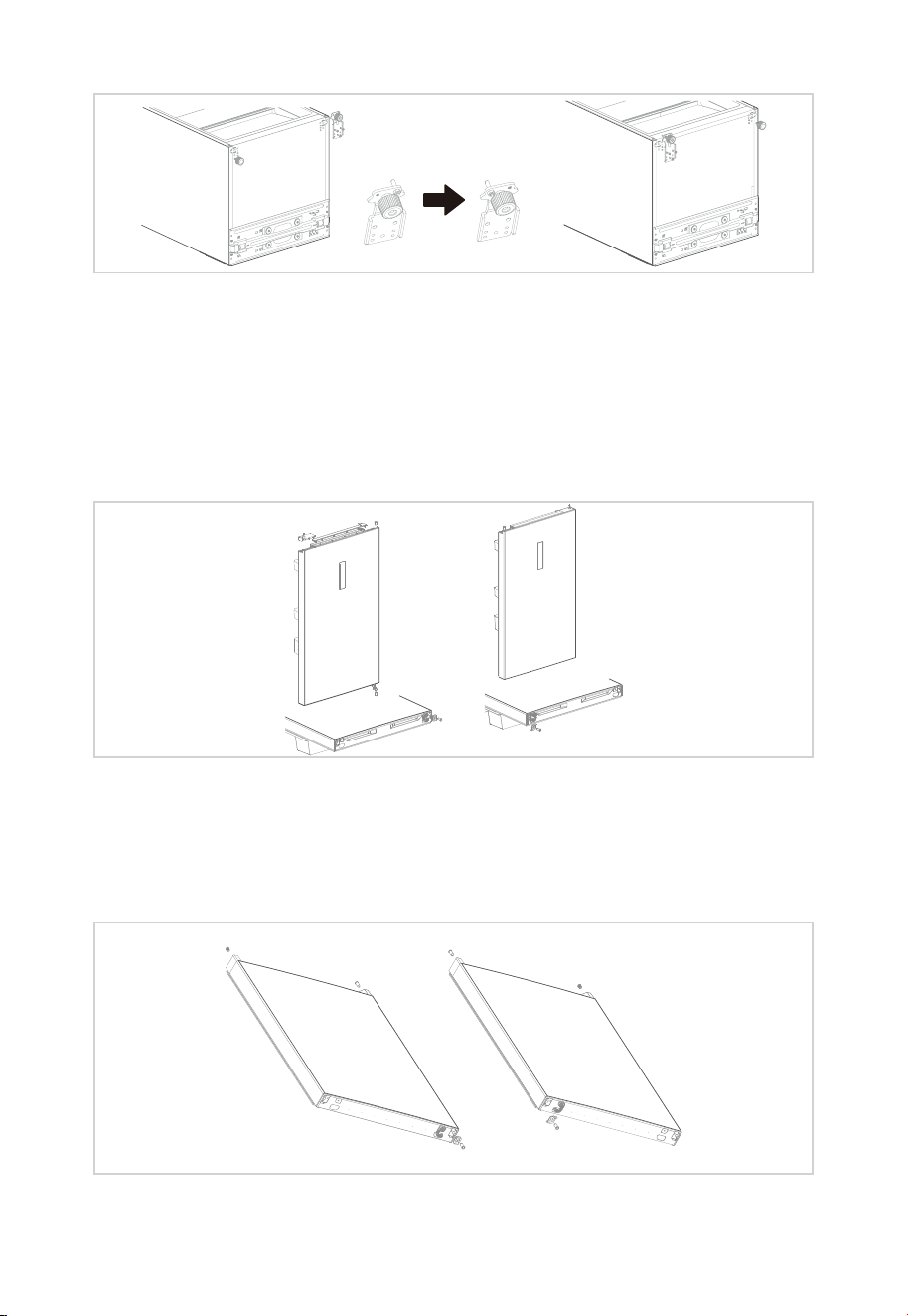

4. Remove the freezing door body (be careful not to lose small parts such as the
shaft sleeve and stop on the door); Remove the hinge and adjust the angle.
Remove and install the lower hinge shaft to the other side of the hinge, and
install the modified lower hinge to the other side of the box.
07
5. Change the refrigerator door:
1) Remove the cover plate of the upper end cover of the refrigeration door and
the left decorative cover. Install the upper shaft sleeve and the signal line of the
door body to the other side and cover the upper end cover plate. Take out the
right decorative cover from the accessory bag and install it to the other side of
the upper end cover.
2) Remove the door self-locking, door stop and shaft sleeve of the refrigeration
door, take out the left door self-locking from the accessory bag, install it on the
left side of the lower end cover of the refrigeration door, change the door stop
and shaft sleeve to the left side of the lower end cover of the refrigeration door.
6. Change the freezing door:
1) Remove the shaft sleeve and cap of the upper end cover of the freezing door
and install them at the left and right swap positions.
2) Remove the door self-locking, door stop and shaft sleeve of the freezing
door, take out the left door self-locking from the accessory bag, install it on the
left side of the lower end cover of the freezing door, change the door stop and
shaft sleeve to the left side of the lower end cover of the freezing door.

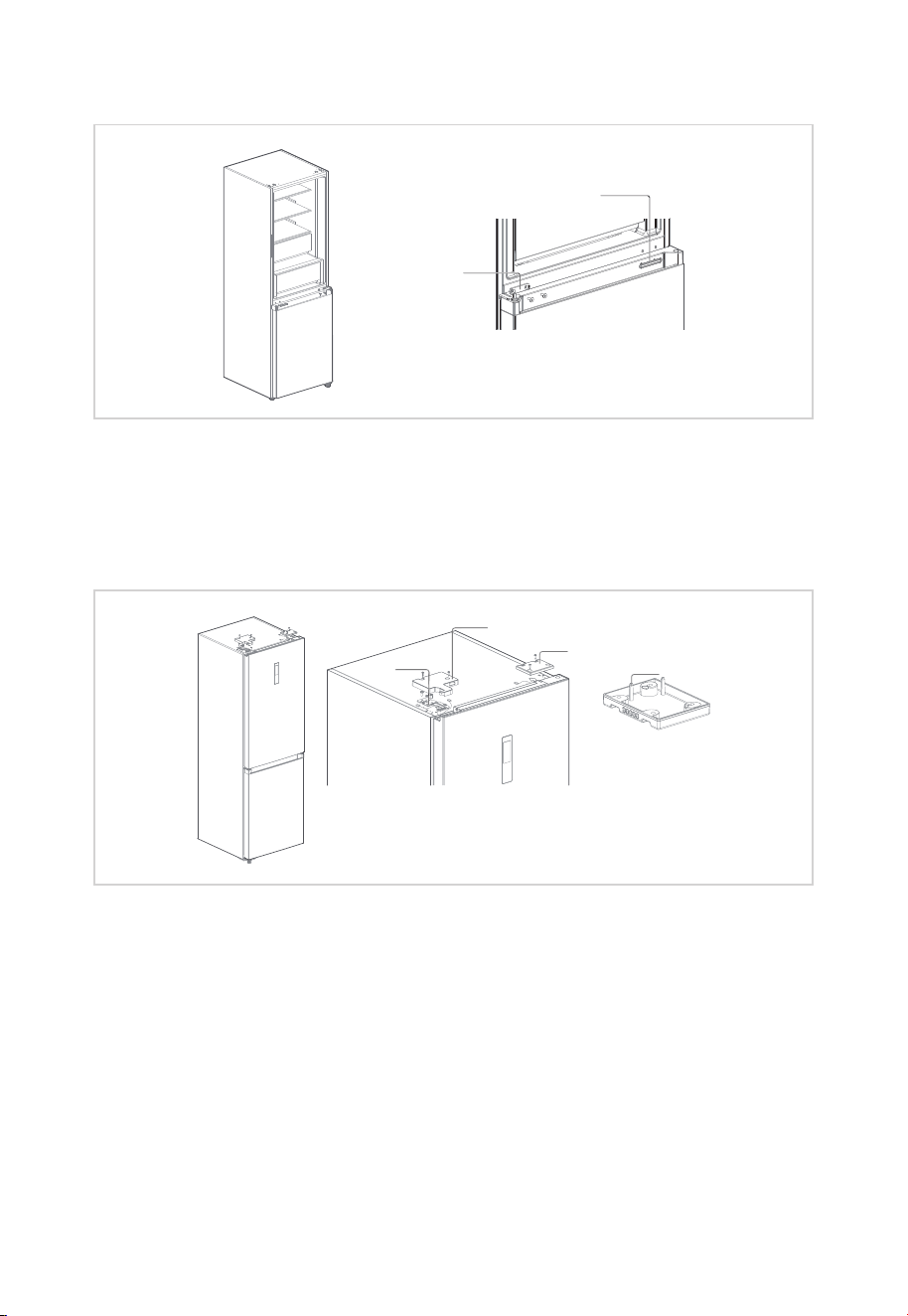

7. Install the replaced freezing door on the lower hinge, then install the middle
08
hinge and cover the hinge hole decorative cover.
middle hinge
decorative cover
8. Remove the upper left hinge cover and upper left hinge from the accessory
bag. Place the refrigerated door body on the middle hinge and install the upper
left hinge. Connect the refrigerator top signal line 3 to the door body signal
line 1. Finally, replace the hinge decorative cover to the right side of the box body
(note: when replacing the hinge decorative cover to the right side of the box
body, the two inserts on the hinge decorative cover (as shown in the figure)
shall be cut o.)
1
1
2
3
2
3
4
upper hinge cover
decorative cover
inserts
upper hinge
All illustrations without guarantee. Technical changes reserved.
09
Leveling feet
To avoid vibration, the unit must be leveled.
If required, adjust the leveling screws to compensate for the uneven floor.
The front should be slightly higher than the rear to aid in door closing.
Leveling screws can be turned easily by tipping the cabinet slightly.
Turn the leveling screws counterclockwise
to raise the unit, clockwise to
lower it.
Moving the appliance
1. Remove all food from inside the appliance.
2. Pull the power plug out, insert and fix it into the power plug hook at the rear or
on top of the appliance.
3. Tape parts such as shelves and the door handle to prevent from falling o while
moving the appliance.
4. Move the appliance with more than two people carefully. When transporting
the appliance over a long distance, keep the appliance upright.
5. After installing the appliance, connect the power plug into a socket out to
switch on the appliance.
ATTENTION
Precautions before operation:
Before making changes the refrigerator must be disconnected from power.
Precautions should be taken to prevent any personal injury.
Changing the light
• Any replacement or maintenance of the LED lamps is intended to be made by
the manufacturer, its service agent or similar qualified person.
ATTENTION
This product contains a light source of energy eciency class (G).
Connecting the appliance
After installing the appliance, connect the power plug into a socket outlet.
ATTENTION
After connecting the power supply cord (or plug) to the outlet, wait 2 or 3 hours before you
put food into the appliance. If you add food before the appliance has cooled completely, your
food may spoil.
10
Tips for energy saving
• Do not place the appliance near cookers, radiators or other heat sources. If the
ambient temperature is high, the compressor will run more frequently and for longer,
resulting in increased energy consumption.
• Ensure that there is sucient ventilation at the base of the appliance, on the sides of
the appliance and at the back of the appliance. Never cover ventilation openings.
• Please also observe the spacing dimensions in the chapter “Installation”.
• The arrangement of drawers, shelves and racks as shown in the illustration oers the
most ecient use of energy and should therefore be retained as far as possible. All
drawers and shelves should remain in the appliance to keep the temperature stable
and save energy.
• To obtain a larger storage space (e.g. for large refrigerated/frozen goods), the
middle drawers can be removed. The top and bottom drawers and shelves should be
removed last if necessary.
• An evenly filled refrigerator/freezer compartment contributes to optimal energy use.
Therefore, avoid empty or half-empty compartments.
• Allow warm food to cool before placing it in the refrigerator/freezer. Food that has
already cooled down increases energy eciency.
• Allow frozen food to defrost in the refrigerator. The coldness of the frozen food
reduces the energy consumption in the refrigerator compartment and thus increases
the energy eciency.
• Open the door only as briefly as necessary to minimise cold loss. Opening the door
briefly and closing it properly reduces energy consumption.
• The door seals of your appliance must be perfectly intact so that the doors close
properly and energy consumption is not increased unnecessarily.
11
OPERATION INSTRUCTIONS
Control panel
Display Button
1
Refrigerating chamber
temperature display area
A
Temperature setting button of
refrigerating chamber
2
Freezing chamber
temperature display area
B
Temperature setting button of
freezing chamber
3
Super cool icon
C
Super cool/super freezing button
4
Super freeze icon
5
Vacation icon
6
Lock icon
ATTENTION
The actual control panel may dier from model to model.
Display
• The first time the power was turn on for the refrigerator, the display screen will
total display for 3 seconds. Then the screen enters the normal display of the
operation.The first time for using the refrigerator, temperatures of refrigerating
chamber, temperature and freezing chamber should be set at 5° C/-18 °C
respectively.
• When the error occurs, the display panel shows the error code (see next
page), during normal running, the display panel shows the set temperature of
refrigerating chamber, freezing chamber.
• Under normal circumstances, if there is no any manual operation on refrigerator
last for 30 seconds, the control panel will lock itself automatically, and in locked
state, the display light
will go out after 30 seconds.
12
Lock / unlock
• In the non-locking state, press and hold the button for 3 seconds to
enter the locked state and the lock buzzer will sound.
• In the locked state, press and hold the button
for 3 seconds to enter the
unlocked state and the unlocking buzzer will sound.
• After 30 seconds of no button operation, it will automatically enter the locked
state, and the external display board with amusic buzzer will sound the lock
buzzer at the same time.
• The alarm sound release operation can be carried out in the locked state, and
all other key operations must be carried out in the unlocked state.
• If the operation is in the locked state, an error buzzer will be displayed.
Temperature setting of refrigerating chamber
• Click the button to change the set temperature of refrigerating chamber,
each click of temperature adjusting button of the refrigerating chamber, the set
temperature will be reduced 1°C.
• The temperature setting range of refrigerating chamber is 2°C ~ 8°C. When the
set temperature is 2°C.
• Click the button again, the set temperature of refrigerating chamber will switch
to 8°C.
Temperature setting of freezing chamber
• Click the button to change the set temperature of freezing chamber,
each click of temperature adjusting button of the freezing chamber, the set
temperature will be reduced 1°C.
• The temperature setting range for freezing chamber is -24 ~ -16°C.
• When the temperature is -24°C, click the button again, the set temperature of
freezing chamber will switch to -16°C.
ATTENTION
Recommended setting: refrigerating chamber 4°C, freezing chamber -18°C.
Vacation mode
• Long press the refrigeration temperature adjustment button(3s) to set/cancel
the holiday mode.
• When setting the holiday mode, the refrigeration is turned o, the refrigeration
temperature display area is extinguished, and the freezing is automatically set
to -18°C;
• Adjusting the refrigeration/freezing/super cool and super freezer buttons will
exit the holiday mode.
• When exiting the holiday mode, the refrigeration set temperature will
automatically return to the set temperature before the holiday mode; the
freezing set temperature will automatically return to the set temperature
before the holiday mode; enter the normal operation mode.
13
Super freeze mode
• Super cool and super freezer mode, press the button, the setting
sequence is: super cool ->super freezer -> cancel.
• When setting/cancelling the super cool mode, the corresponding super cool
• When setting the super cool mode, the refrigeration is automatically set to 2°C.
• When exiting the super-cool mode, the set temperature of the refrigerating
room will automatically return to the set temperature before the quickcooling
mode.
• When the super-freezer mode is set, the corresponding superfreezer icon is lit.
• When the super-freezer mode is set, the freezing is automatically set to -24°C.
• When exiting the super-freezer mode, the set temperature of the freezer
compartment will automatically return to the set temperature before the
superfreezer mode.
• Super cool mode automatically disabled for 6h.
• Super freezer mode automatically disabled for 24h.
ATTENTION
The super-freezing function is designed to maintain the nutritional value of the food in the
freezer. It can freeze the food in the shortest time. If a large amount of food is frozen at one
time, it is recommended that the user turn on the super-freezing function and put the food in.
At this time, the freezing speed of the freezer compartment is increased, which can quickly
Opening warning and alarm control
• If the refrigerator door is open for 120 seconds without closing, the buzzer will
alarm until the refrigerator door is closed; any key will cancel the buzzer alarm.
Fault indication
• The following warnings appearing on the display indicate corresponding faults
of the refrigerator. Though the refrigerator may still have cold storage function
with the following faults, the user shall contact a maintenance specialist for
maintenance, so as to ensure optimized operation of the appliance.
Fault code Fault Description
E1 Temperature sensor failure of refrigerating chamber
E2 Temperature sensor failure of freezing chamber
E3 Temperature sensor failure of meat & fish zone
E5 Freezing defrost sensor detection circuit error
E6 Communication error
E7 Ambient temperature sensor error
14
Tips on storing food
Freezer compartment
• The freezer is designated for the storage of food frozen at very low temperature,
long-term storage of frozen food, and for the production of ice.
• Only use the shelves in the door of the freezer to store frozen food, not for storing
hot food designated for freezing.
• Do not put fresh and frozen food next to each other. The frozen food may thaw.
• When freezing fresh food (such as meat, fish or chopped meat), cut them into parts
that can be used at the same time.
• Storing frozen food: instructions are usually stated on the packages, which must be
followed. If there is no information on the packaging, food should not be stored for
longer than three months from the date of purchase.
• When purchasing frozen food, make sure that it was frozen at a suitable temperature
and that the packaging is not damaged.
• Frozen food should be kept in suitable packages to retain the quality and should be
returned to the freezer compartment as soon as possible.
• If a package of frozen food shows moisture or abnormal bulging, it is probable that
it was stored at the wrong temperature and the content is spoiled.
• The storage period for frozen food depends on the room temperature, the
thermostat setting, the frequency of opening the door of the freezer, the type of
food and the time of transporting the product from the shop to the household. Always
follow the instructions printed on the packaging and never exceed the maximum
storage time stated on the package.
Cooling compartment
• To reduce moisture and subsequent ice build-up, never put liquid into the
refrigerator in unsealed containers. Frost tends to concentrate in the coolest parts
of the evaporator. Storing uncovered liquids results in a more frequent need for
defrosting.
• Never put warm foods in the refrigerator. These should first cool down at room
temperature and then be placed so as to ensure adequate air circulation in the
refrigerator.
• Foods or food containers should not touch the back wall of the refrigerator because
they could freeze to the wall. Do not keep regularly opening the door of the
refrigerator.
• Meat and clean fish (packed in a package or plastic foil) can be placed in the
refrigerator, which can be used in 1–2 days.
• Fruit and vegetables without packaging can be placed in the part designated for
fresh fruit and vegetables.
ATTENTION
The optimal temperature setting of each compartment depends on the ambient temperature.
Above optimal temperature is based on the ambient temperature of 25 °C.
15
Order
Compartments
TYPE
Target stor-
age temp.
[°C]
Appropriate food
1 Fridge +2 ~ +8
Eggs, cooked food, packaged food, fruits and
vegetables, dairy products, cakes, drinks and
other foods are not suitable for freezing.
2 (***)*-Freezer
≤
-18
Seafood (fish, shrimp, shellfish), freshwater
aquatic products and meat products
(recommended for 3 months, the longer the
storage time, the worse the taste and nutrition),
suitable for frozen fresh food.
3 ***-Freezer
≤
-18
Seafood (fish, shrimp, shellfish), freshwater
aquatic products and meat products
(recommended for 3 months, the longer the
storage time, the worse the taste and nutrition),
suitable for frozen fresh food.
4 **-Freezer
≤
-12
Seafood (fish, shrimp, shellfish), freshwater
aquatic products and meat products
(recommended for 3 months, the longer the
storage time, the worse the taste and nutrition),
suitable for frozen fresh food.
5 *-Freezer
≤
-6
Seafood (fish, shrimp, shellfish), freshwater
aquatic products and meat products
(recommended for 3 months, the longer the
storage time, the worse the taste and nutrition),
suitable for frozen fresh food.
6 0-star -6 ~ 0
Fresh pork, beef, fish, chicken, some packaged
processed foods, etc. (Recommended to eat
within the same day, preferably no more than 3
days).
Partially encapsulated processed foods (non-
freezable foods).
7 Chill -2 ~ +3
Fresh/ frozen pork, beef, chicken, freshwater
aquatic products, etc. (7 days below 0°C and
above 0°C is recommended for consumption
within that day, preferably no more than 2
days).Seafood (less than 0 for 15 days, it is not
recommended to store above 0°C.
8 Fresh food 0 ~ +4
Fresh pork, beef, fish, chicken, cooked food, etc.
(Recommended to eat within the same day,
preferably no more than 3 days)
9 Wine +5 ~ +20 Red wine, white wine, sparkling wine, etc.
ATTENTION
please store dierent foods according to the compartments or target storage temperature of
your purchased.
16

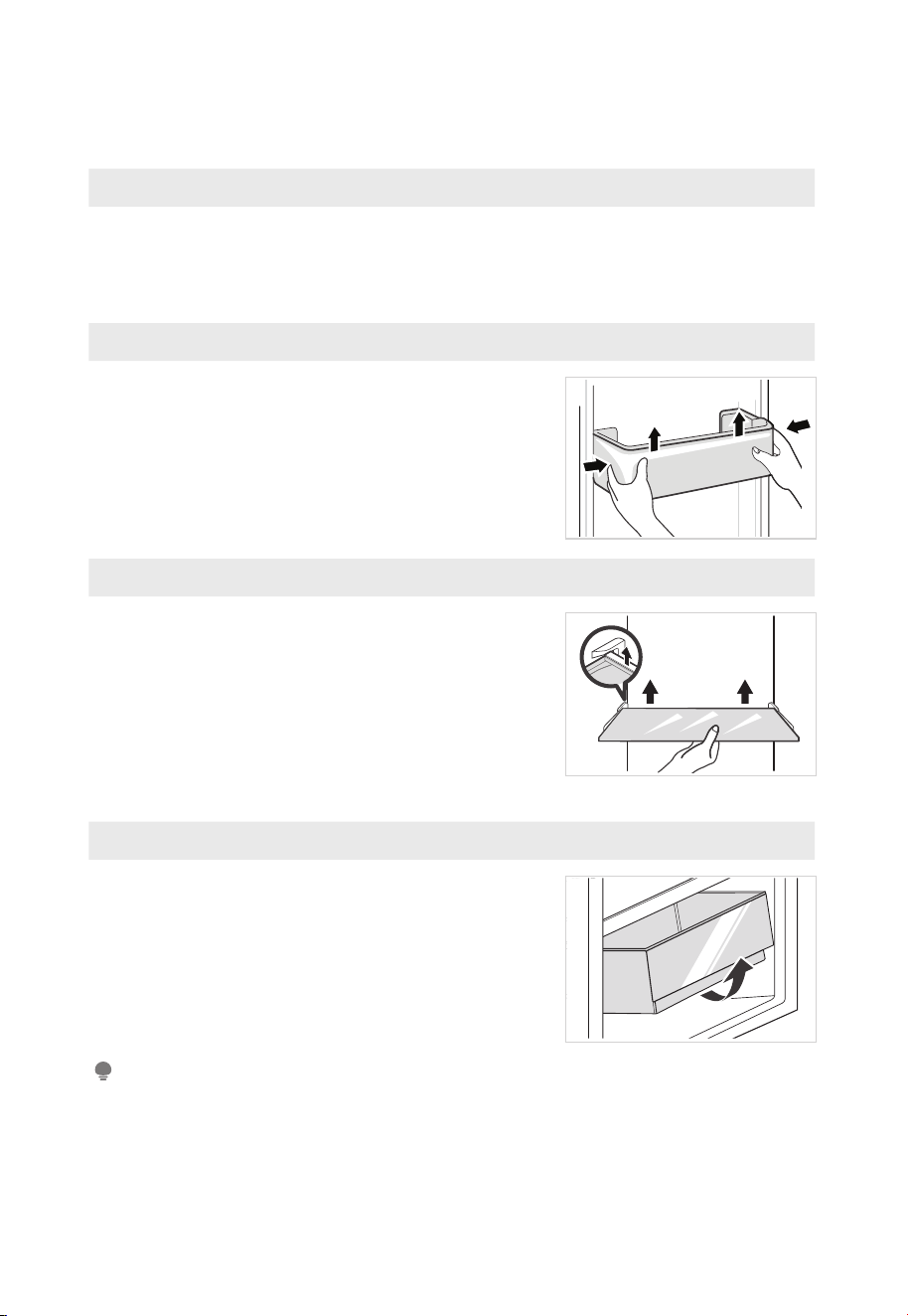

CLEANING AND MAINTENANCE
Defrosting
• The refrigerator is made based on the air-cooling principle and thus has
automatic defrosting function. Frost formed due to change of season or
temperature may also be manually removed by disconnection of the appliance
from power supply or by wiping with a dry towel.
Cleaning of door tray
• According to the direction arrow in the figure
below, use both hands to squeeze the tray, and
push it upward, then you can take it out.
• After washing the tray having been taken
out, you can adjust its installing height in
accordance with your requirement.
Cleaning of glass shelf
• As the innermost part of the refrigerator liner
where contacting the shelves has a backstop,
you shall raise the shelves upward, then you can
be able to take it out.
• Adjust or clean the shelves according to your
requirement.
Cleaning the vegetable drawer
1. Remove the contents of the drawer. Hold the
handle of the vegetable drawer and pull it out
completely until it stops.
2. Lift the vegetable drawer up and remove it by
pulling it out.
ATTENTION
Soft towels or sponge dipped in water and non-corrosive neutral detergents are suggested
for cleaning. The freezer of shall be finally cleaned with clean water and dry cloth. Open the
door for natural drying before the power is turned on. Do not use hard brushes, clean steel
balls, wire brushes, abrasives, such as toothpastes, organic solvents (such as alcohol, acetone,
banana oil, etc.), boiling water, acid or alkaline items clean refrigerator considering that this
may damage the fridge surface and interior.
17
TROUBLESHOOTING
The following simple issues can be handled by the user. Please call the after-sale
service department if the issues are not solved.
Problem Possible reason
Failed operation
• Check whether the appliance is connected to power or
whether the plug is in well contact.
• Check whether the voltage is too low.
• Check whether there is a power failure or partial circuits have
tripped.
Odor
• Odorous foods shall be tightly wrapped.
• Check whether there is any rotten food.
• Clean the inside of the refrigerator.
Long-time operation
of the compressor
• Long operation of the refrigerator is normal in summer.
• when the ambient temperature is high it is not suggestible
having too much food in the appliance at the same time.
• Food shall get cool before being put into the appliance.
• The doors are opened too frequently.
Light fails to get lit
• Check whether the refrigerator is connected to power supply
and whether the illuminating light is damaged.
• Have the light replaced by a specialist.
Door can not be
properly closed
• The door is stuck by food packages too much food is placed.
• The refrigerator is tiltedr.
Loud noises
• Check whether the floor is level and whether the refrigerator
is placed stably.
• Check whether accessories are placed at proper locations.
18
Problem Possible reason
Door seal fails to be
tight
• Remove foreign matters on the door seal.
• Heat the door seal and then cool it for restoration (or blow it
with an electrical drier or use a hot towel for heating).
Water pan overflows
• There is too much food in the chamber or food stored
contains too much water,resulting in heavy defrosting.
• The doors are not closed properly, resulting in frosting due to
entry of air and increased water due to defrosting.
Hot housing
• Heat dissipation of the built-in condenser via the housing,
which is normal. When housing becomes hot due to high
ambient temperature, storage of too much food or shutdown
of the compressor is shut down, provide sound ventilation to
facilitate heat dissipation.
Surface
condensation
• Condensation on the exterior surface and door seals of the
refrigerator is normal when the ambient humidity is too high.
Just wipe the condensate with a clean towel.
Abnormal noise
• Buzz: The compressor may produce buzzes during operation,
and the buzzes are loud particularly upon start or stop. This is
normal.
• Creak: Refrigerant flowing inside of the appliance may
produce creak, which is normal.
19
APPENDIX
Special for new European standard
The ordered parts in the following table can be acquired from Service provider
channel.
Ordered part Provided by
Minimum time required for Provision
Thermostats Professional maintenance
personnel
At least 7 years after the last model is
launched on the market
Temperature
sensors
Professional maintenance
personnel
At least 7 years after the last model is
launched on the market
Printed circuit
boards
Professional maintenance
personnel
At least 7 years after the last model is
launched on the market
Light sources Professional maintenance
personnel
At least 7 years after the last model is
launched on the market
Door handles Professional repairers and
final users
At least 7 years after the last model is
launched on the market
Door hinges Professional repairers and
final users
At least 7 years after the last model is
launched on the market
Trays Professional repairers and
final users
At least 7 years after the last model is
launched on the market
Baskets Professional repairers and
final users
At least 7 years after the last model is
launched on the market
Door gaskets Professional repairers and
final users
At least 10 years after the last model is
launched on the market
Dear customer
1. If you want to return or replace the product, please contact the store where you
buy.
(Remember to bring the purchase invoice)
2. If your product breaks down which needs to repair, please contact after-sales
service provider.
ATTENTION
The model information inthe product database, as well as the model identifier, can be
obtained througha weblink scanned by a QR code, if any, on the energy eciency label of the
product.
For more information about the energy eciency of the appliance, visit https://ec.europa.eu
and search using the model name.
The model name can be found on the rating label of the appliance.
